Extension Housing Gasket: Notes

MATERIAL DESCRIPTION

Item Specification
MERCON® V Automatic Transmission Fluid
XT-5-QM		 MERCON® V

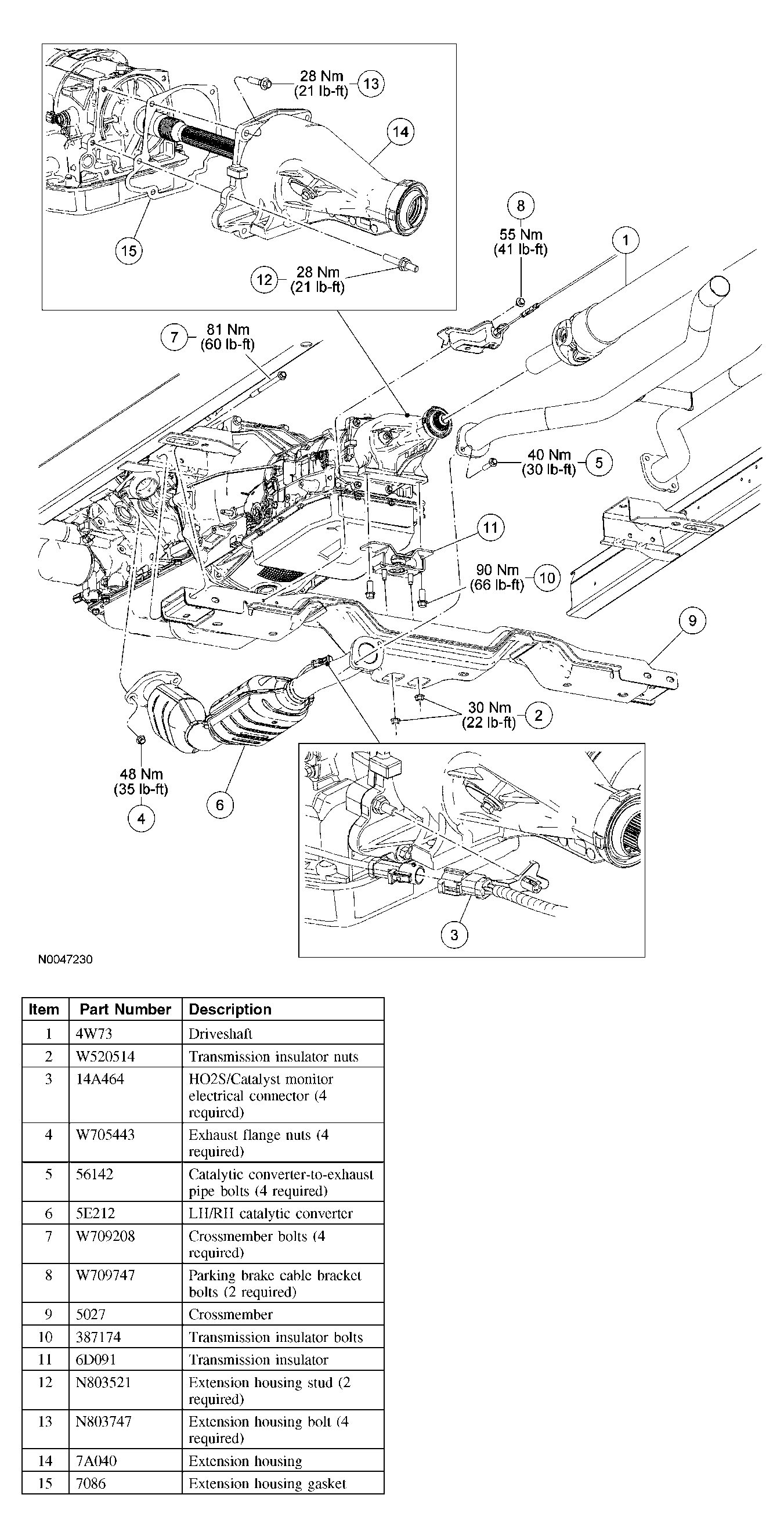

Fig 1: Exploded View Of Extension Housing Gasket
G04584294Courtesy of FORD MOTOR CO.
