Engine Ignition Components - Exploded View

LH Shown, RH Similar

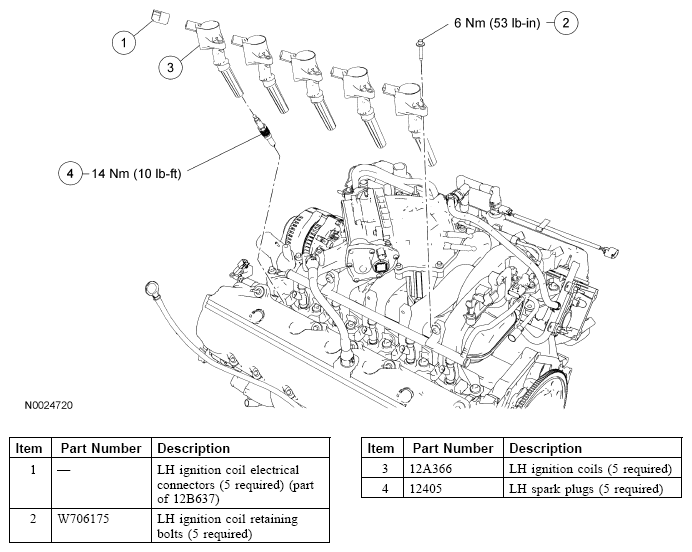

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications & Part Numbers
G04614974Courtesy of FORD MOTOR CO.
