Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE CHART

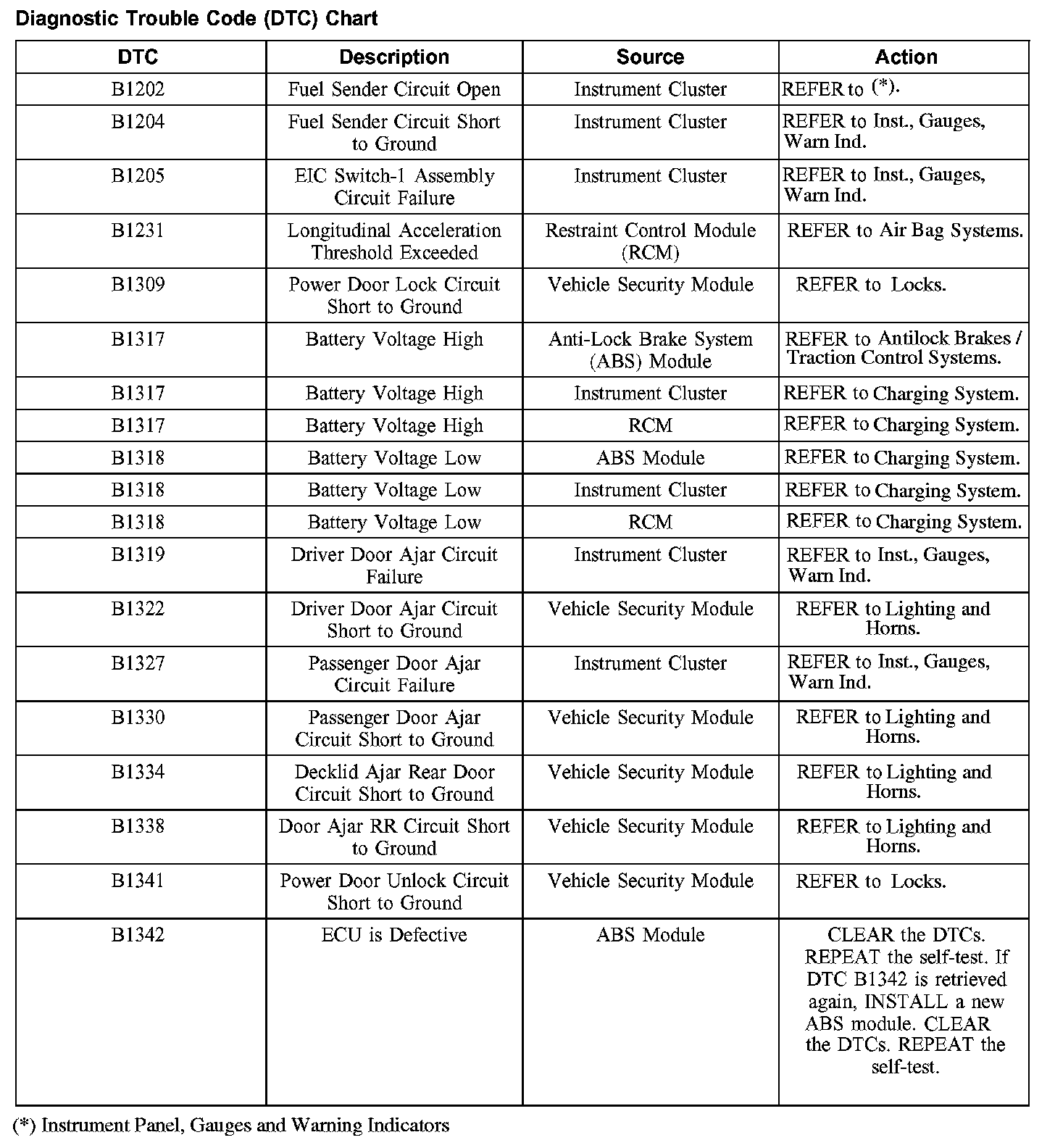

B1202-B1342:

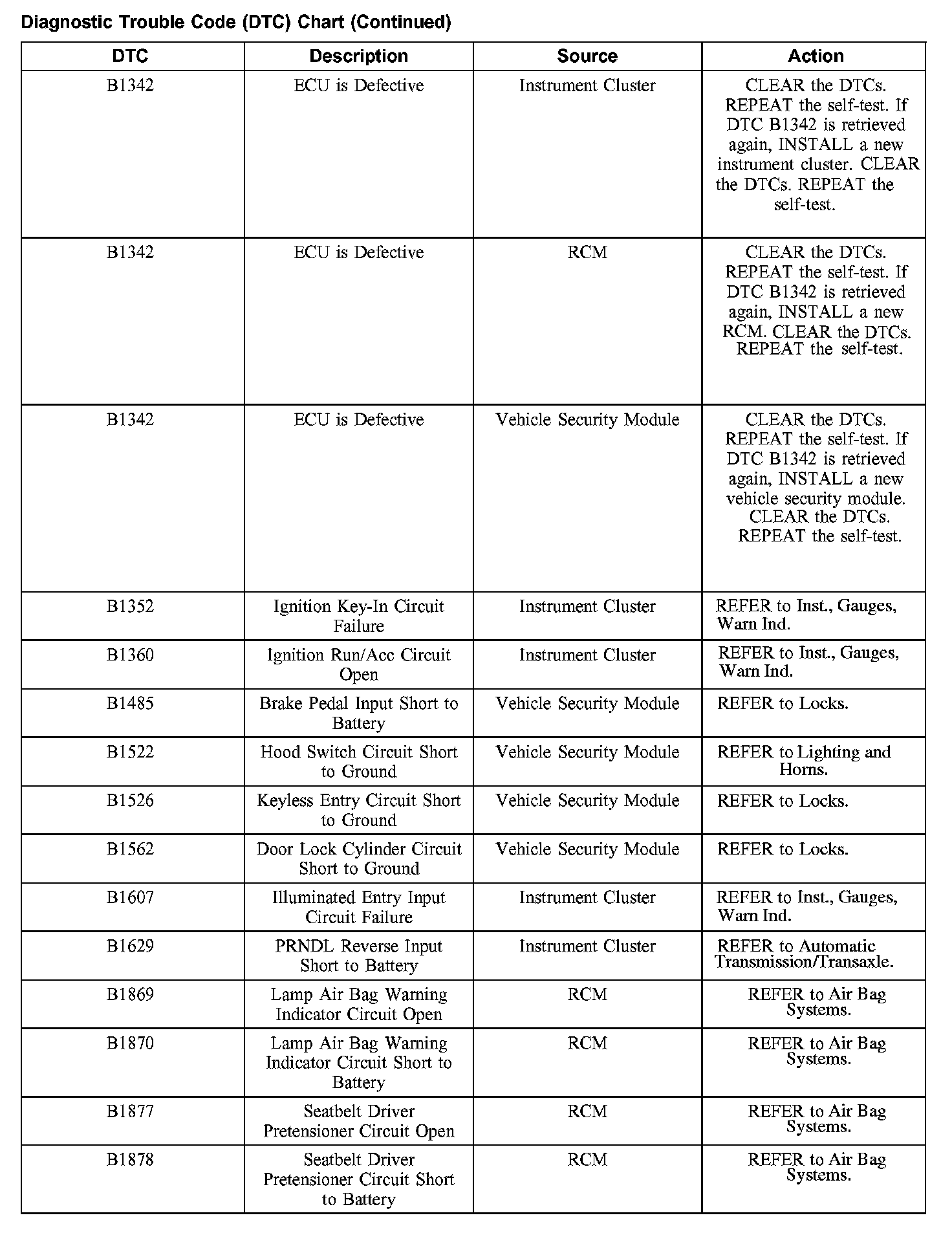

B1342-B1878:

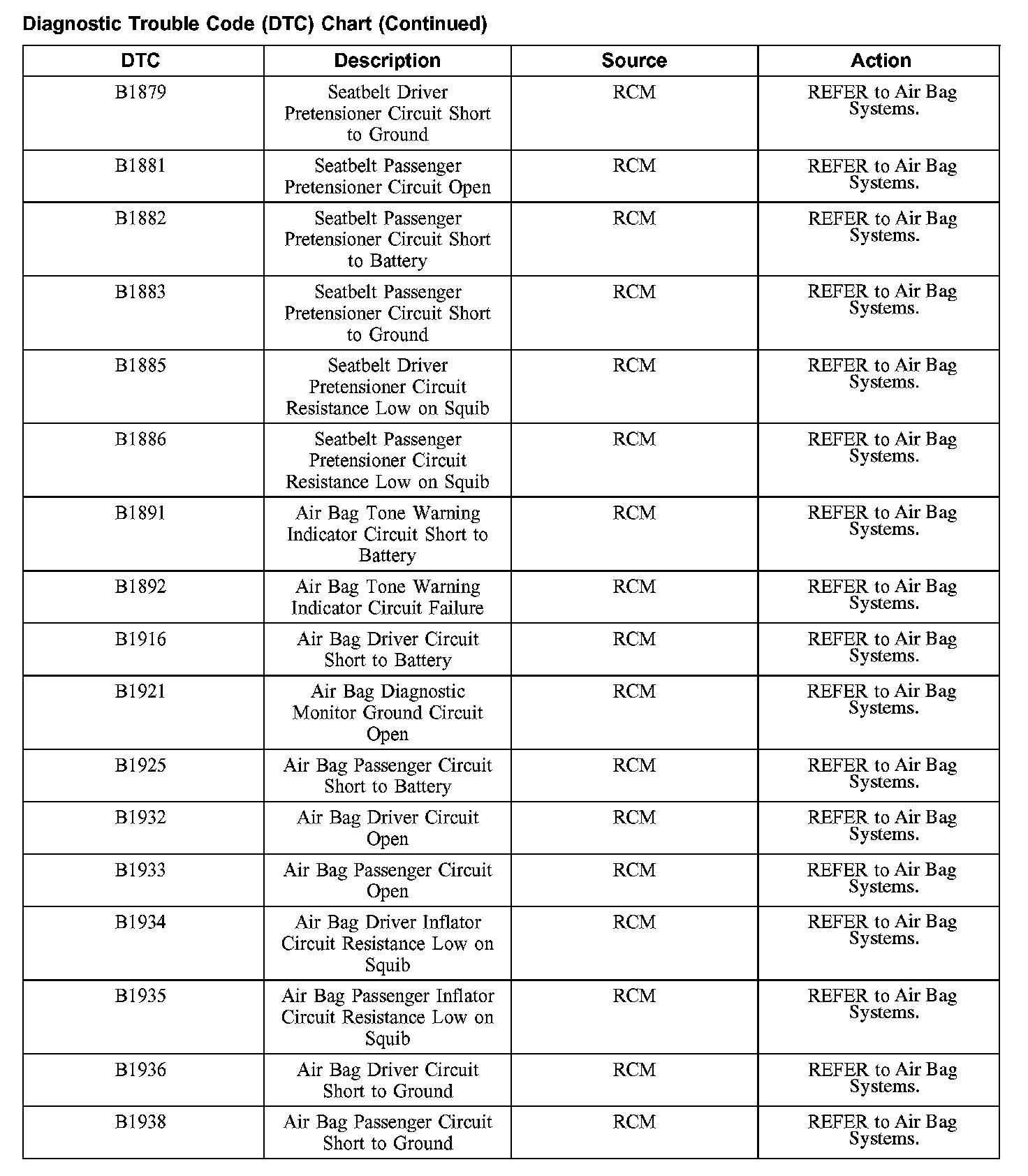

B1879-B1938:

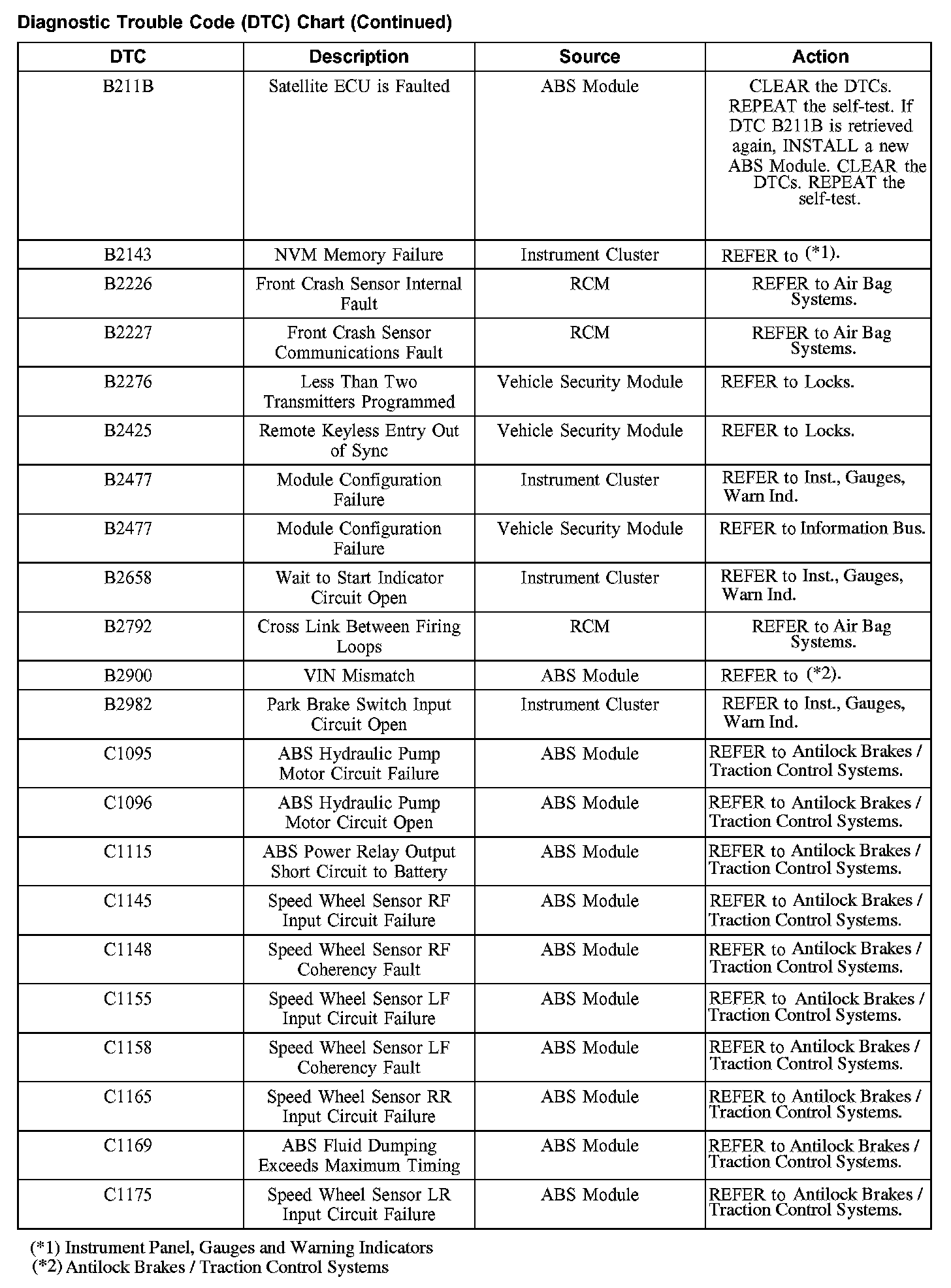

B211B-B2982 / C1095-C1175:

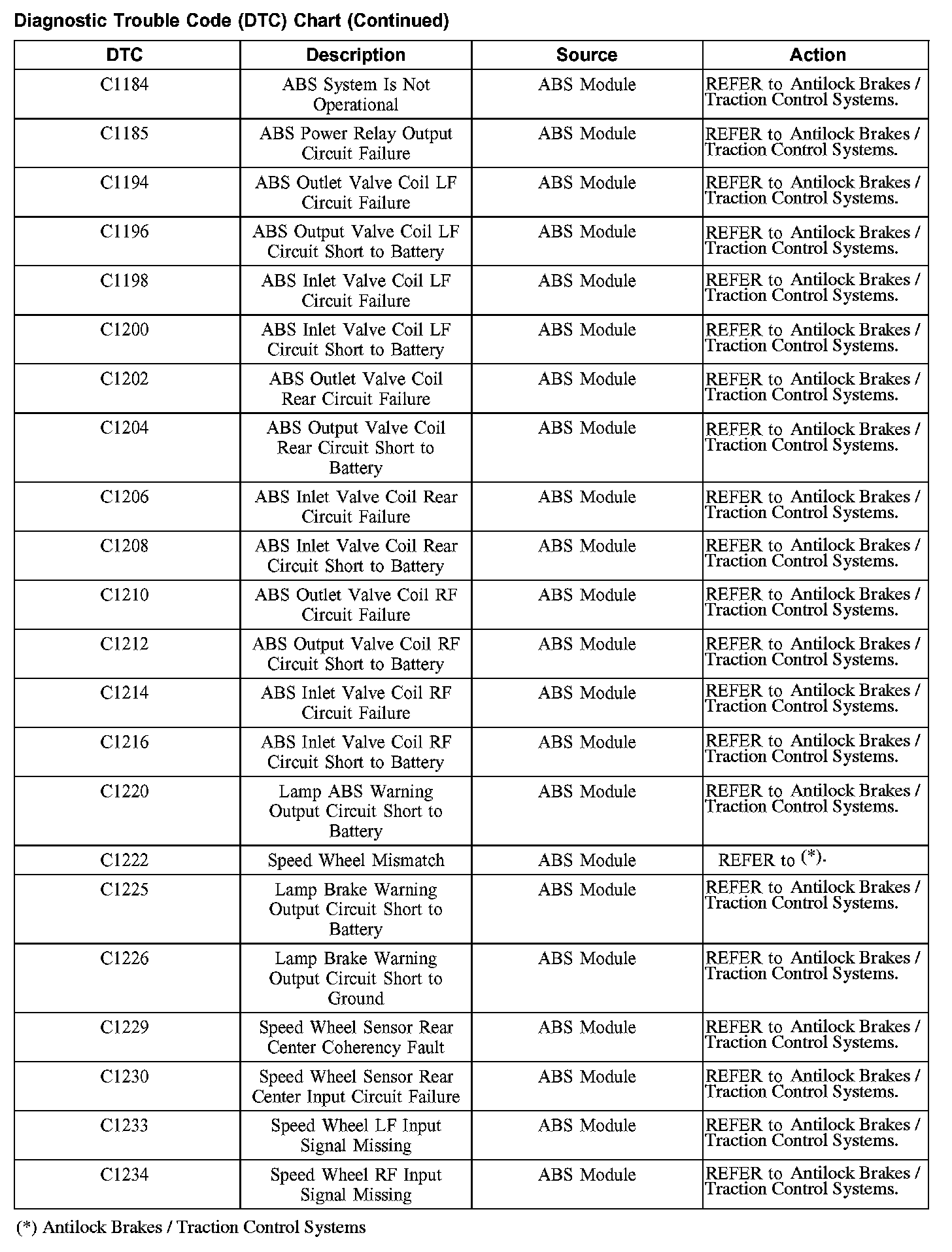

C1184-C1234:

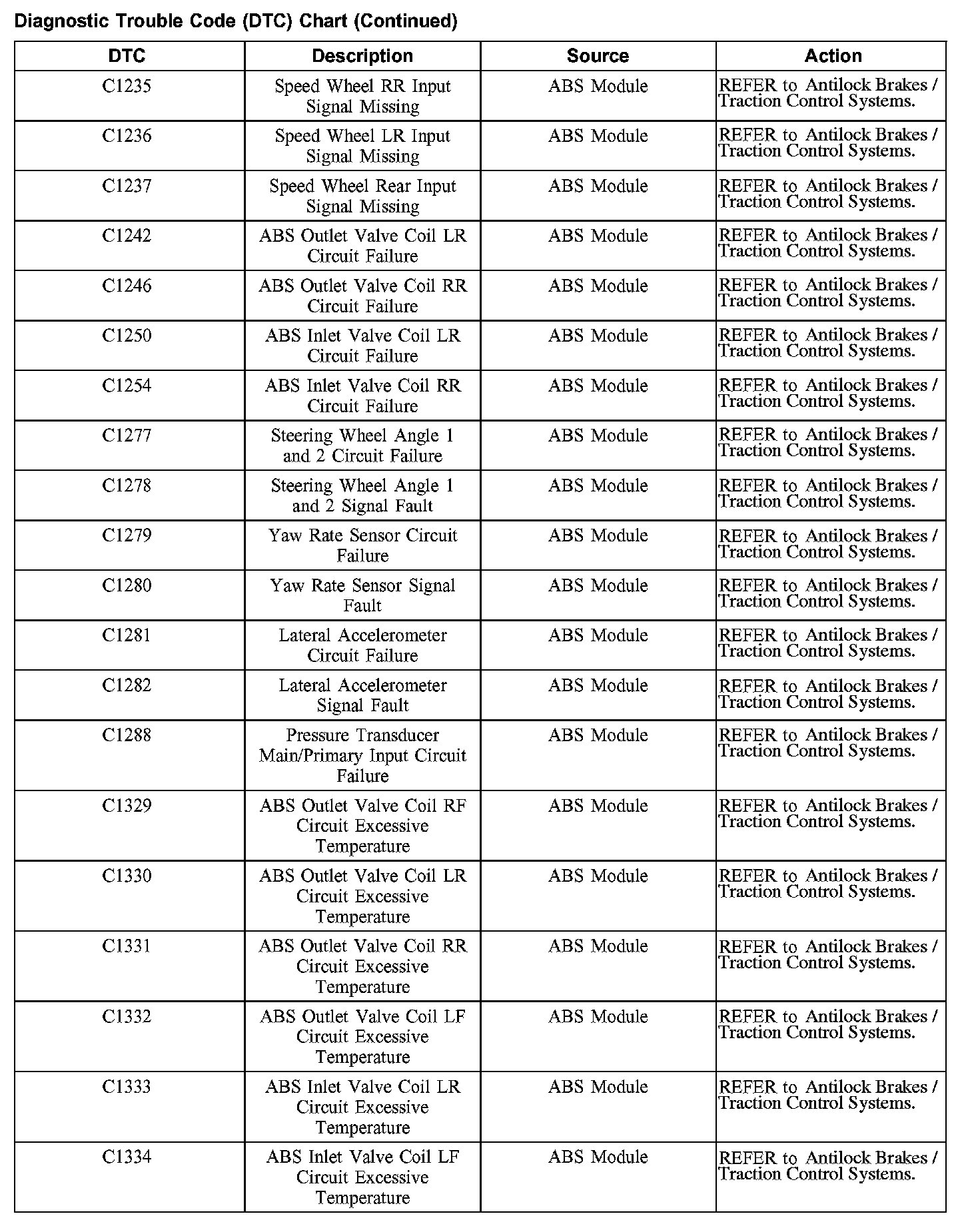

C1235-C1334:

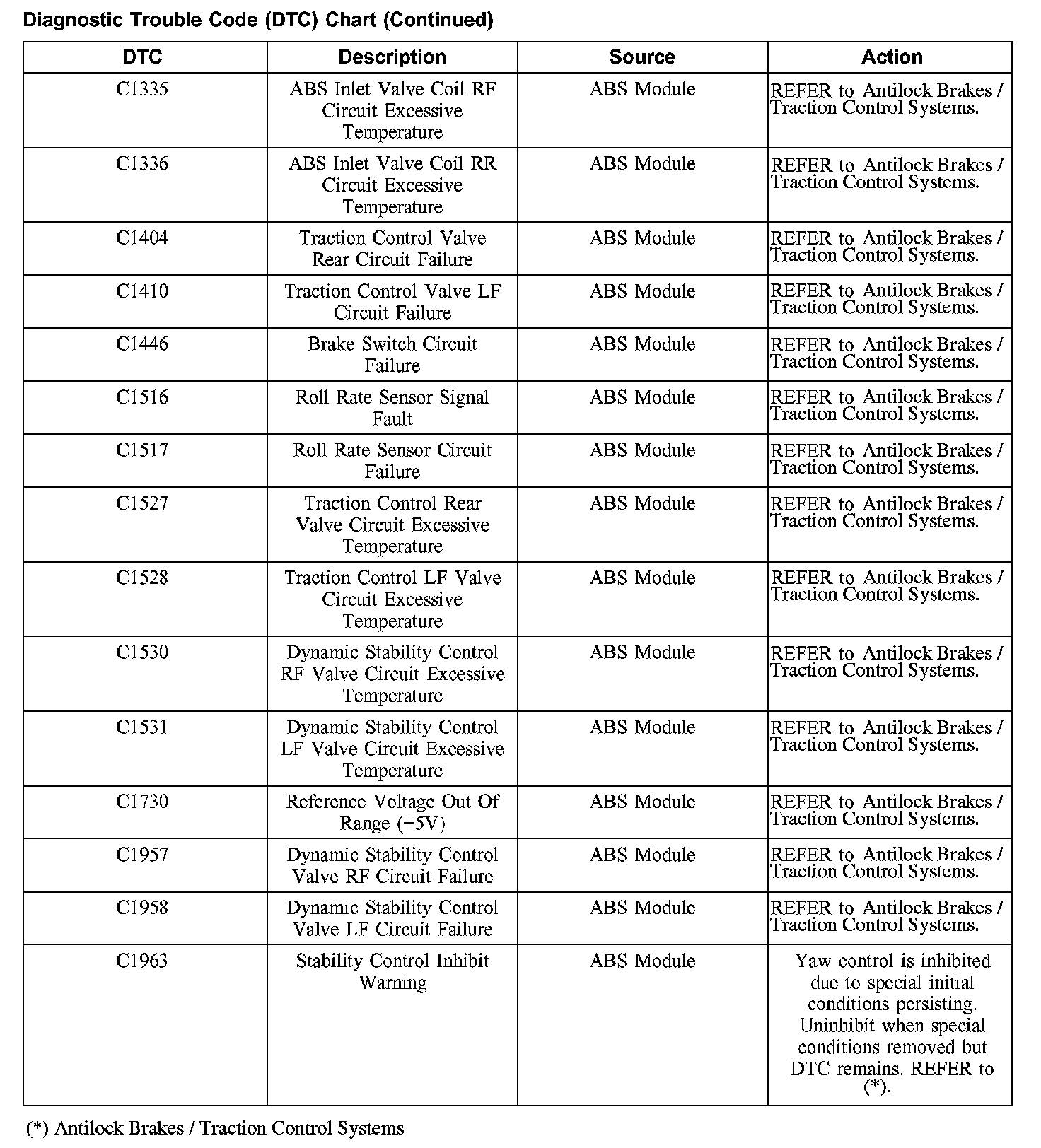

C1335-C1963:

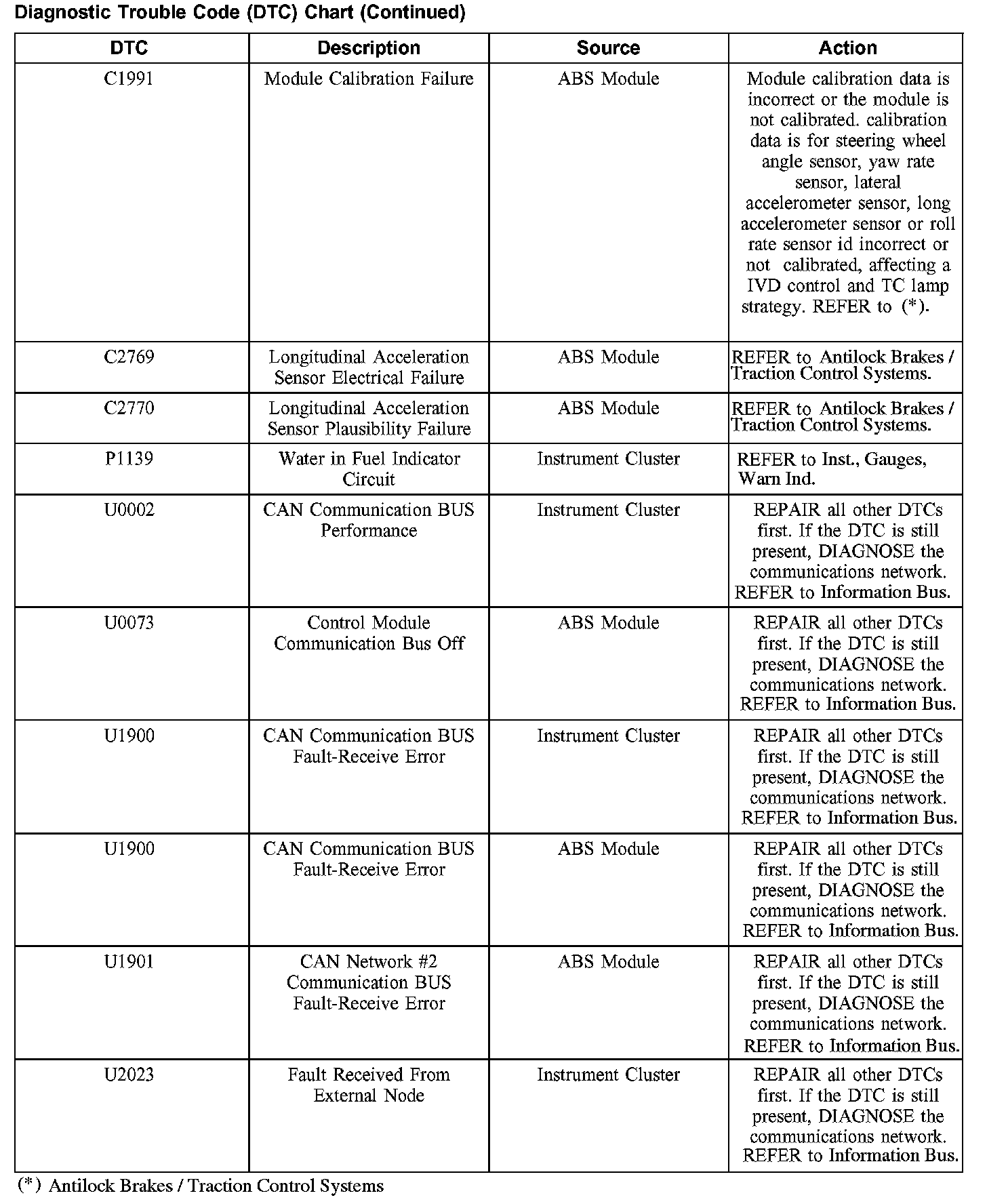

C1991-C2770 / P1139 / U0002-U2023:






U2050-U2051:
