Steering Linkage - Exploded View

Steering Linkage - Exploded View

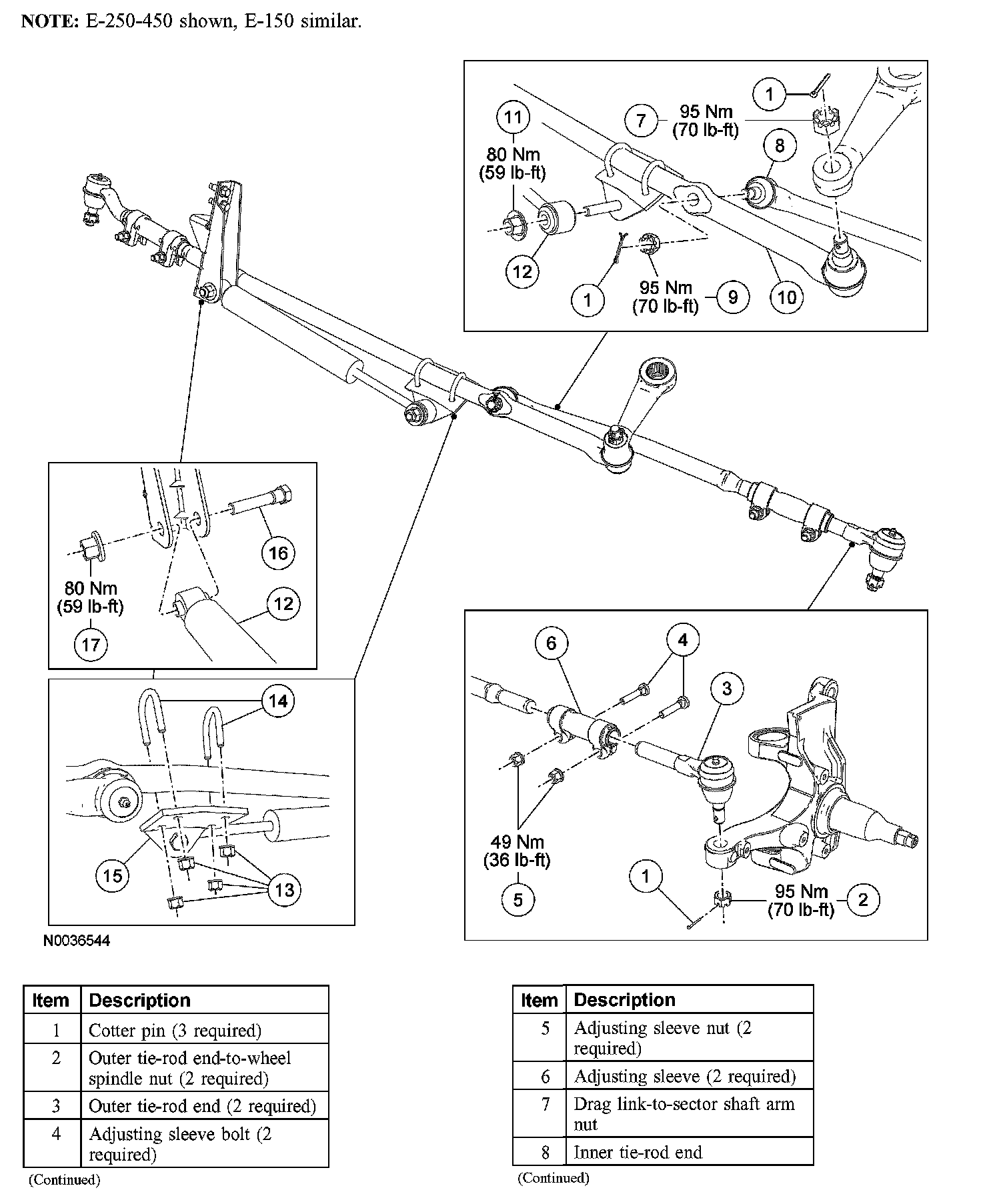

NOTE: E-250-450 shown, E-150 similar. (Part 1):




NOTE: E-250-450 shown, E-150 similar. (Part 2):
