System Diagram

Engine Components - Exploded View

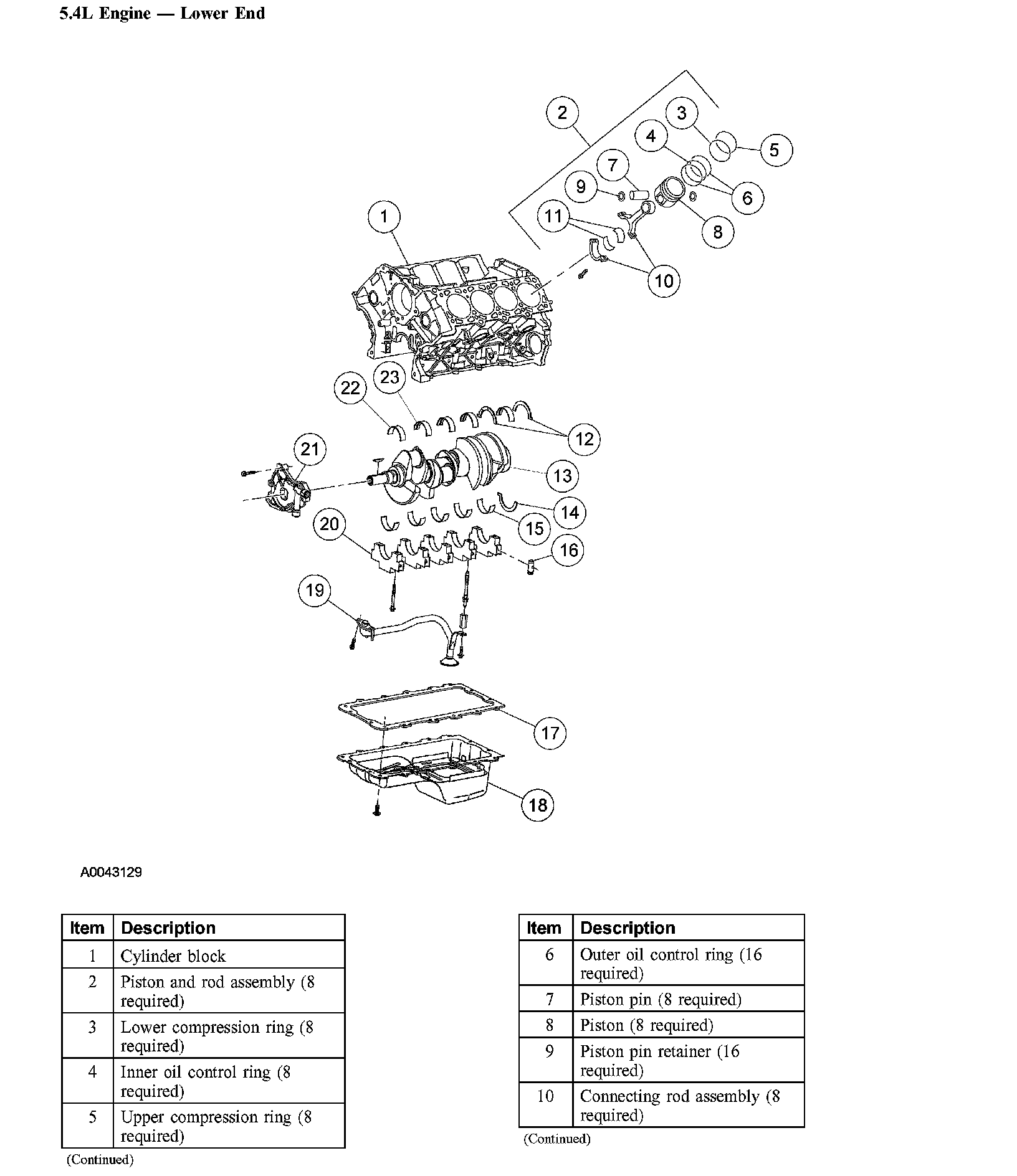

5.4L Engine - Lower End:




5.4L Engine - Lower End:

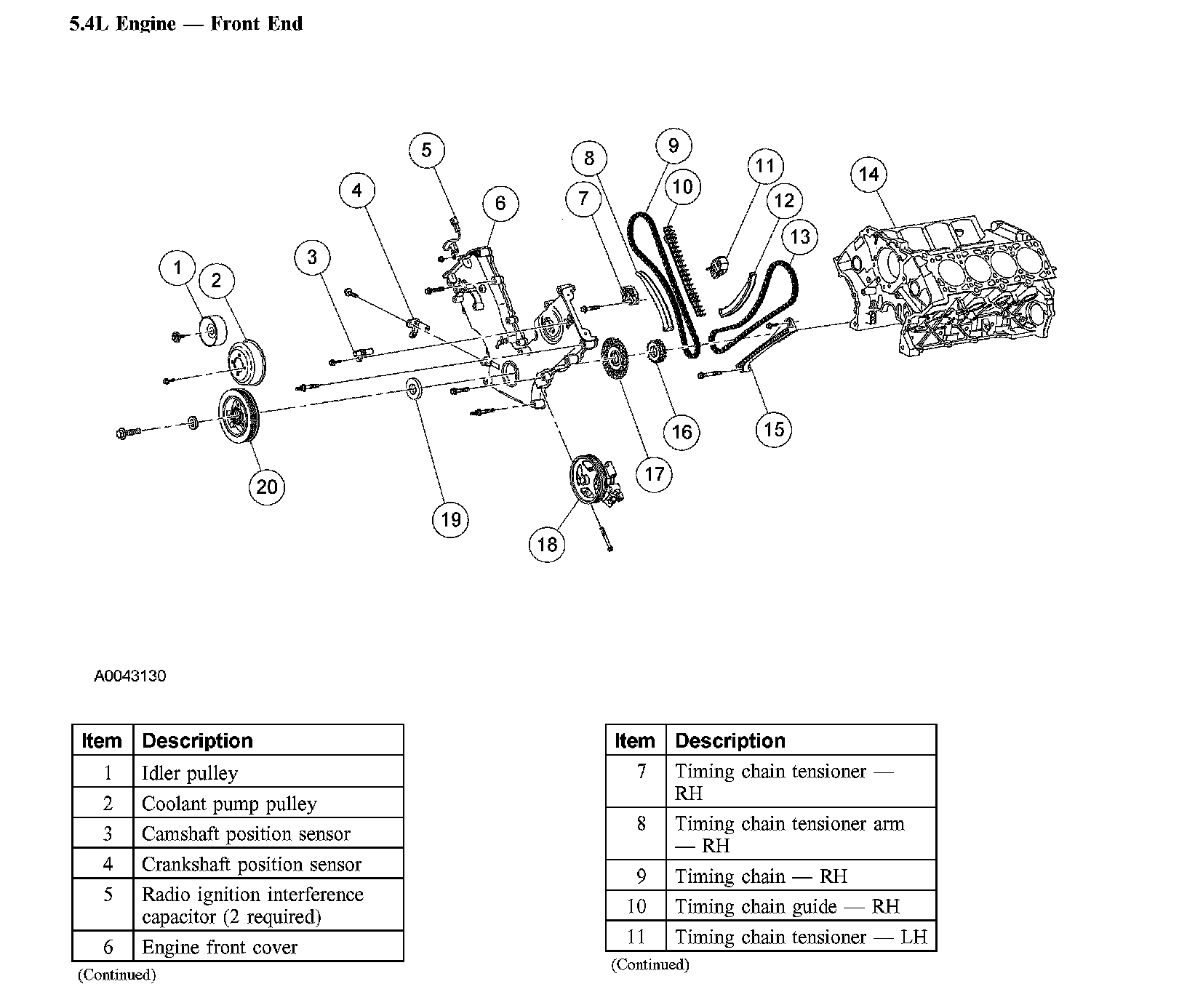

5.4L Engine - Front End:




5.4L Engine - Front End:
