Exhaust System

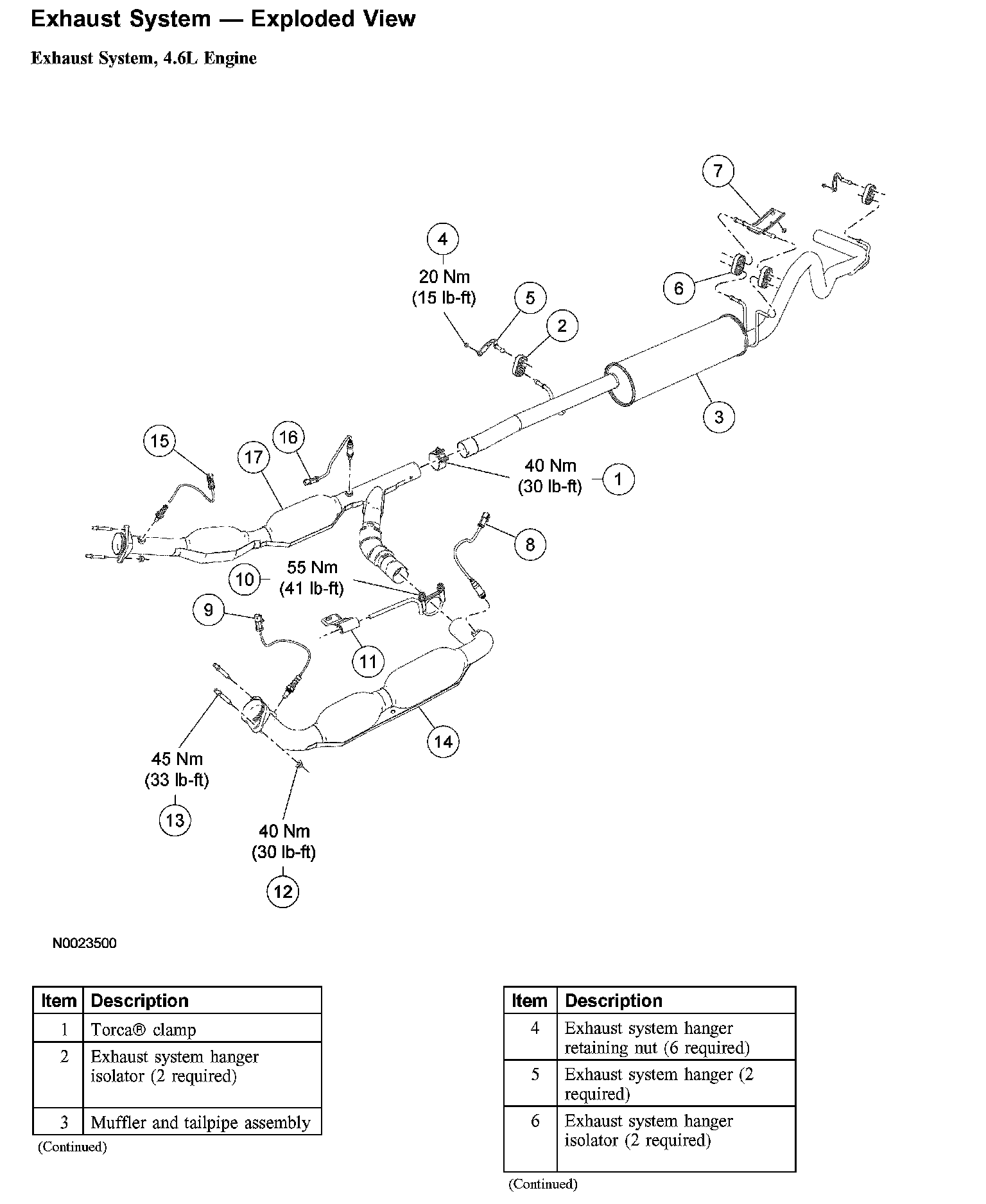

Exhaust System - Exploded View, 4.6L Engine:

Exhaust System - Exploded View, 4.6L Engine (Part 2):

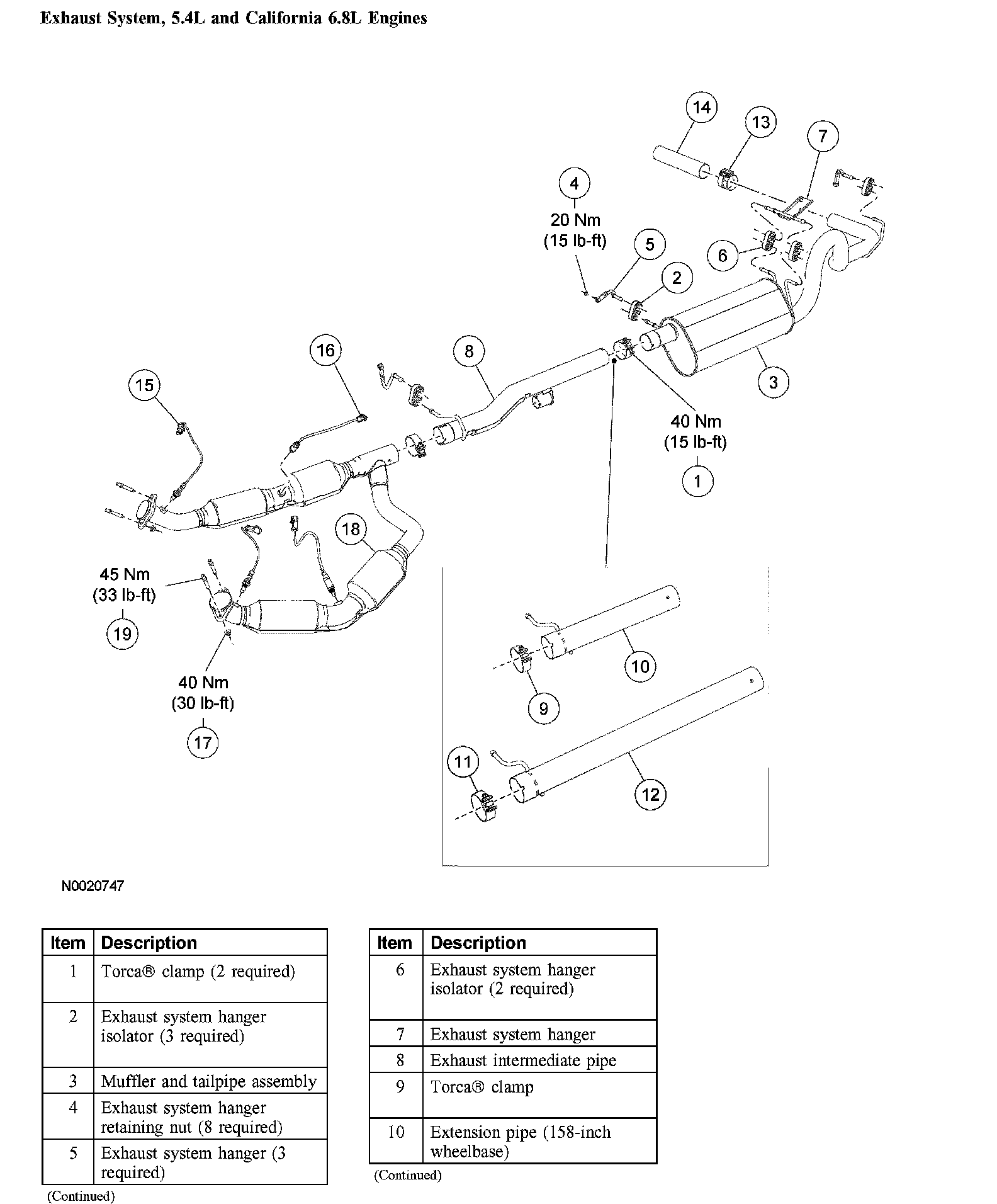

Exhaust System - Exploded View, 5.4L And California 6.8L Engines:

Exhaust System - Exploded View, 5.4L And California 6.8L Engines (Part 2):

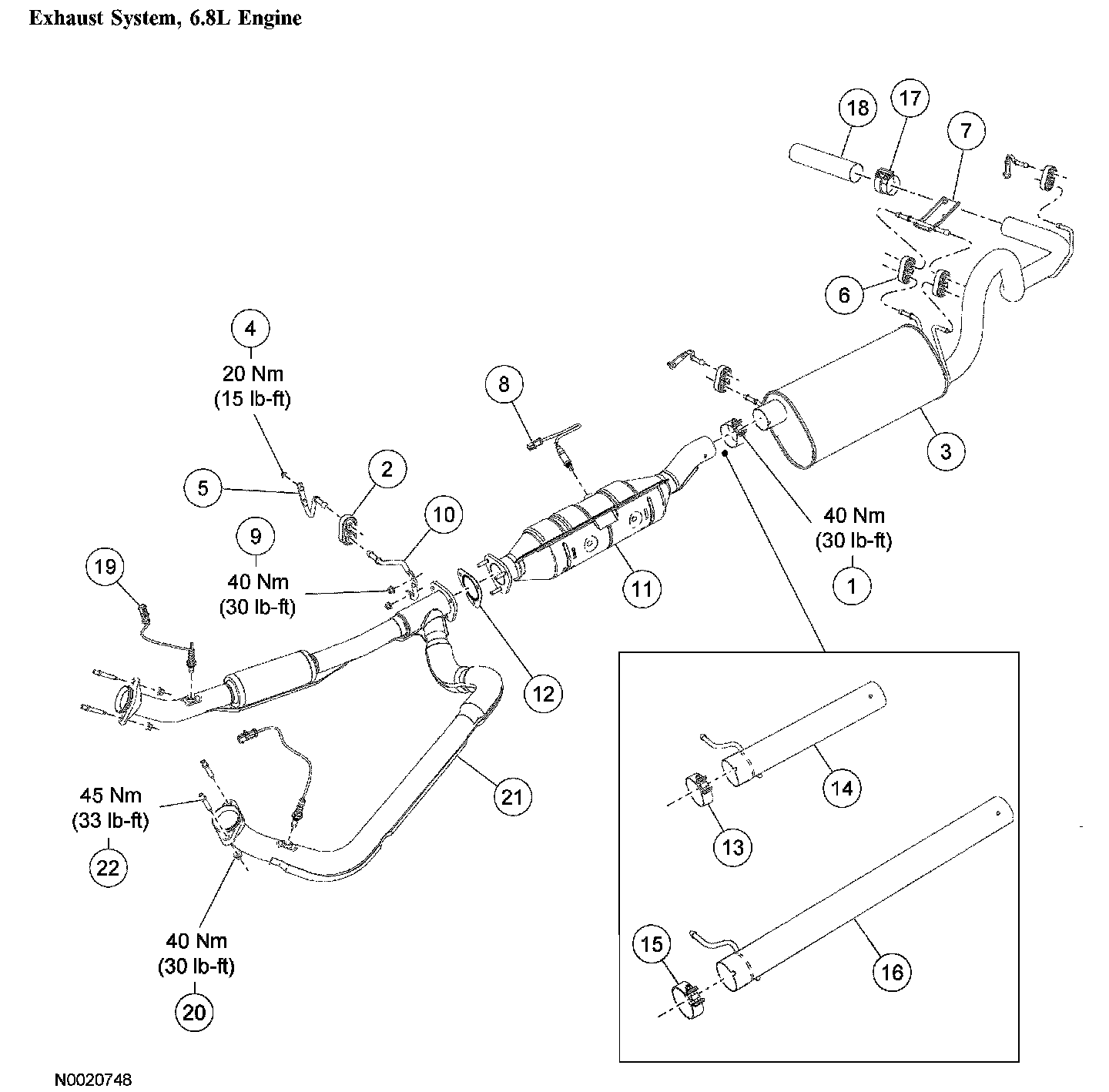

Exhaust System - Exploded View, 6.8L Engine:

Exhaust System - Exploded View, 6.8L Engine:

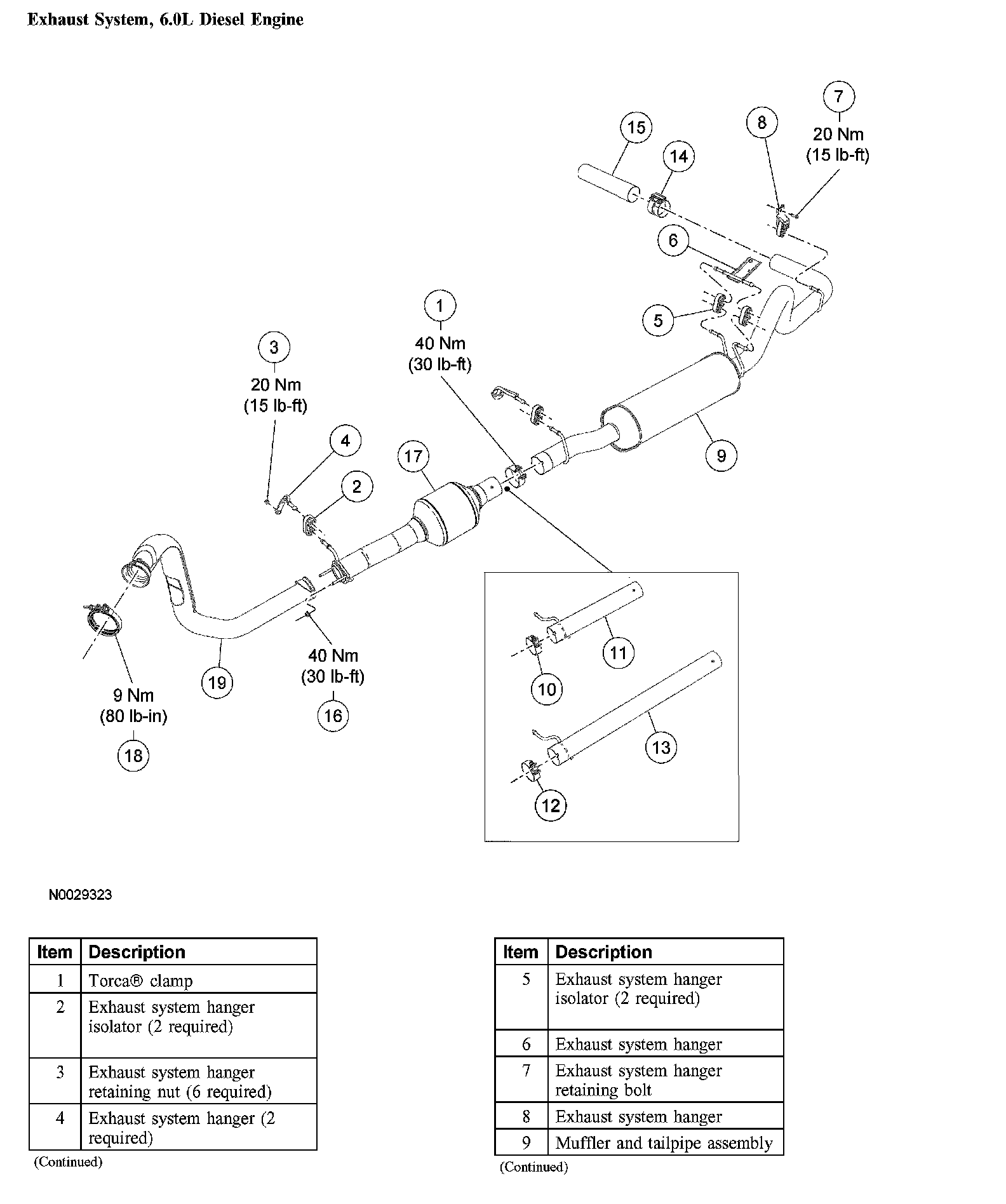

Exhaust System - Exploded View, 6.0L Diesel Engine:

Exhaust System - Exploded View, 6.0L Diesel Engine:
