Intake Manifold

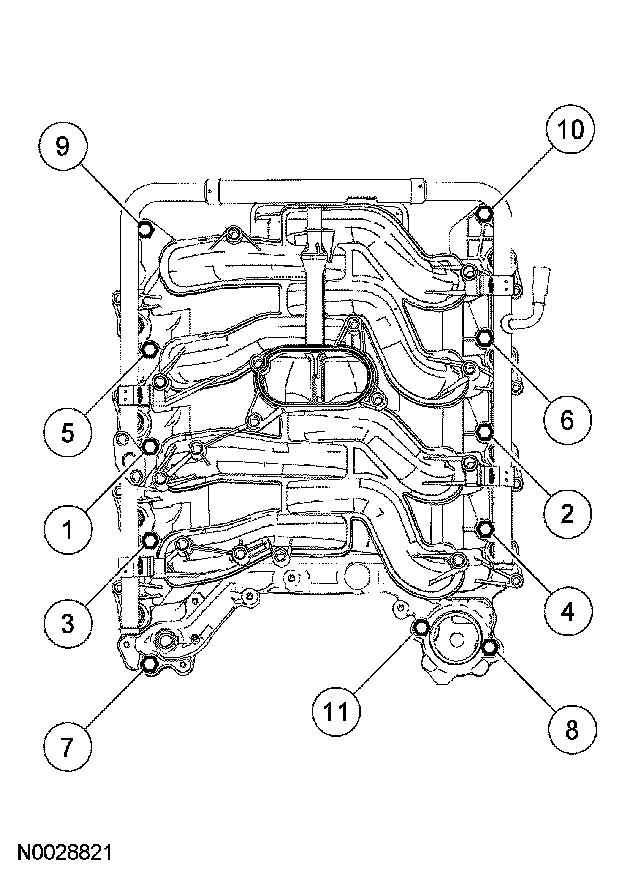

Intake manifold
bolts
First pass
2 Nm (18 inch lbs.)
Final pass
25 Nm (18 ft. lbs.)
Throttle body adapter bolts
First pass
9 Nm (80 inch lbs.)
Final pass
tighten 90°
