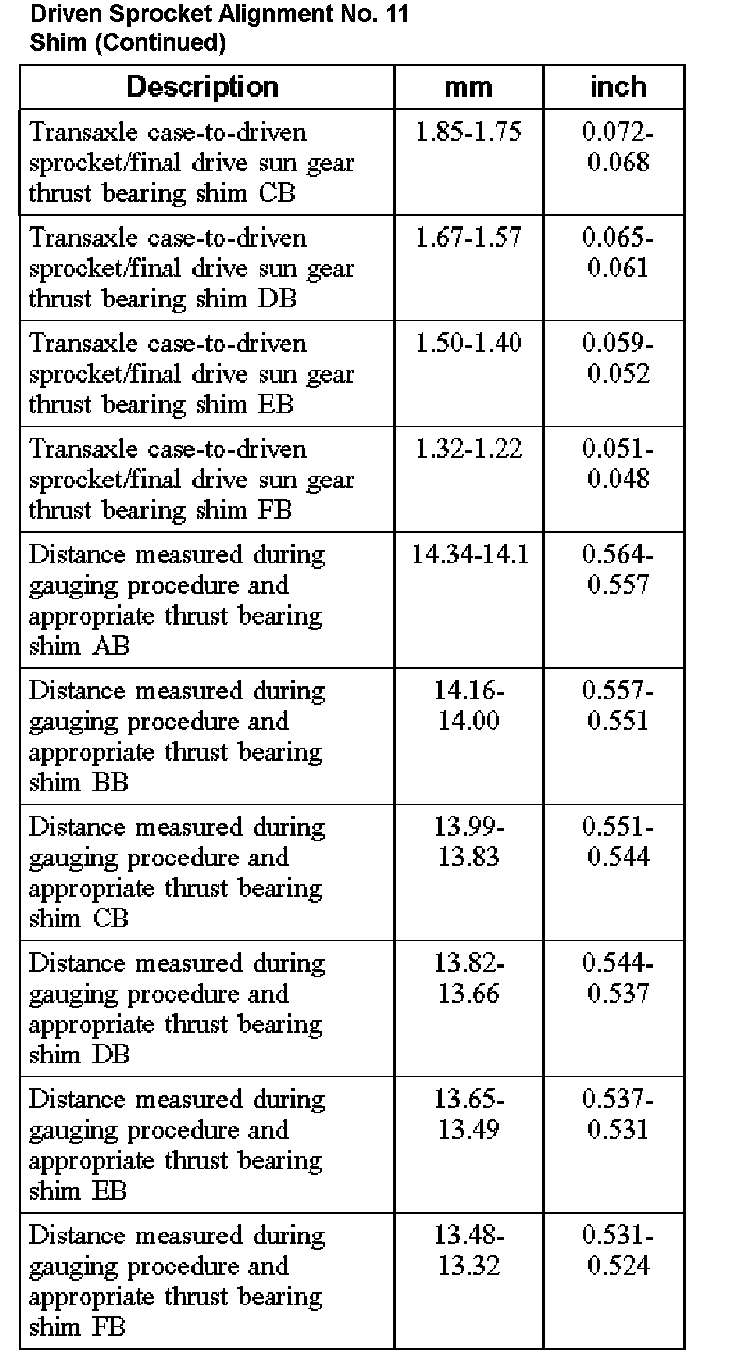

Driven Sprocket Alignment No. 11 Shim
Driven Sprocket Alignment No. 11 Shim (Part 1):
Driven Sprocket Alignment No. 11 Shim (Part 2):
