Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE VEHICLE SECURITY MODULE

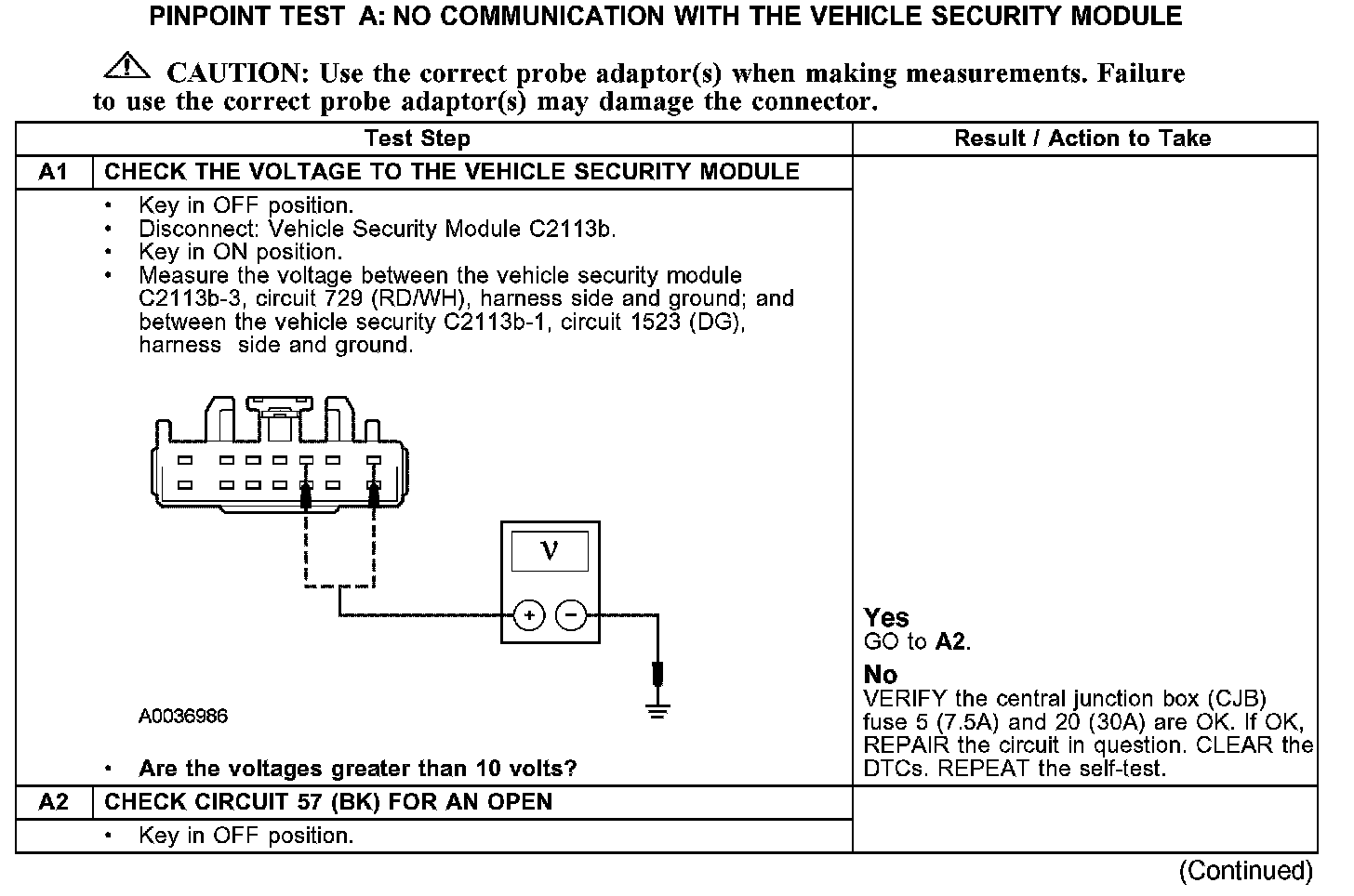

A1-A2:

A2 Continued:

Normal Operation
The vehicle security module (VSM) voltage is supplied by the central junction box (CJB) through circuits 729 (RD/WH) and 1523 (DG). The vehicle security module is grounded through circuit 57 (BK).

Possible Causes
- fuse(s)
- circuit 57 (BK) open
- circuit 729 (RD/WH) open
- circuit 1523 (DG) open
- VSM
