Frame Components

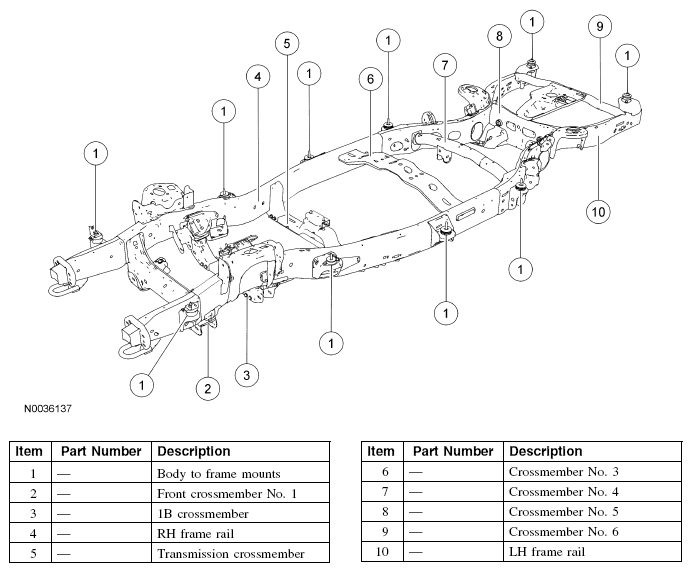

Fig 1: Identifying Frame Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
