Connector Views

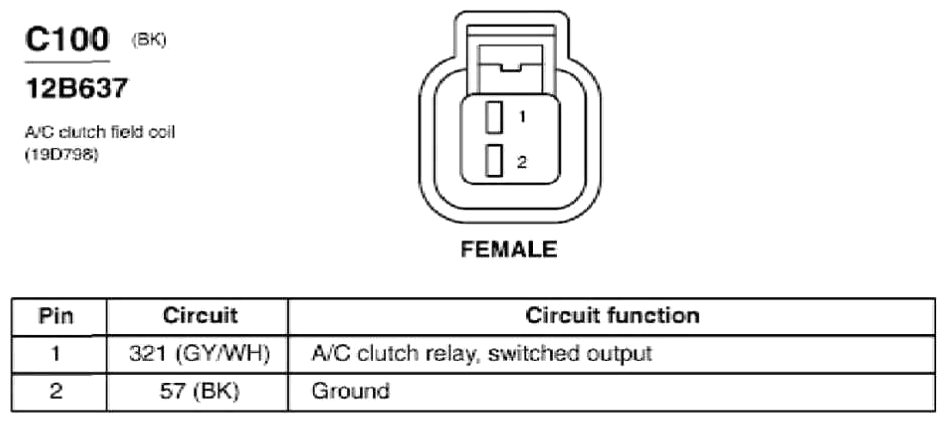

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07846294

Courtesy of FORD MOTOR CO.

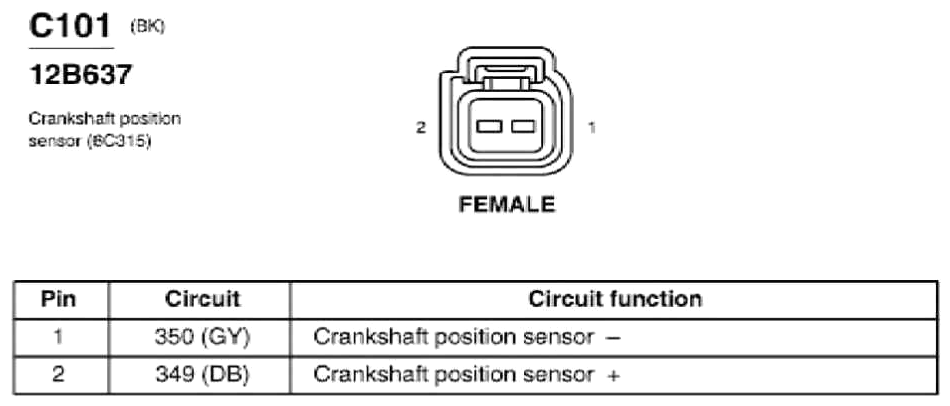

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07846295

Courtesy of FORD MOTOR CO.

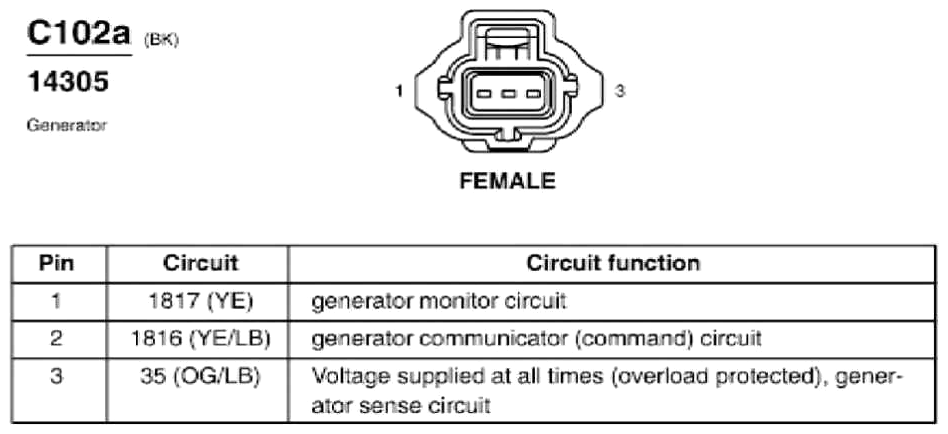

Fig 3: Generator Connector End View (C102a)

G07846296

Courtesy of FORD MOTOR CO.

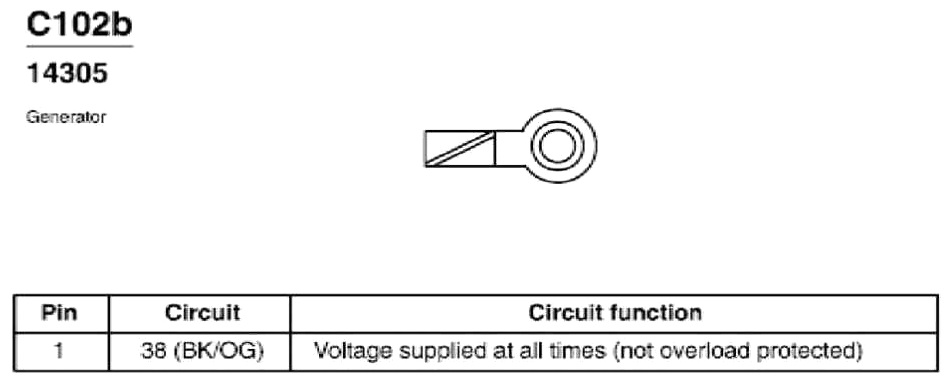

Fig 4: Generator Connector End View (C102b)

G07846297

Courtesy of FORD MOTOR CO.

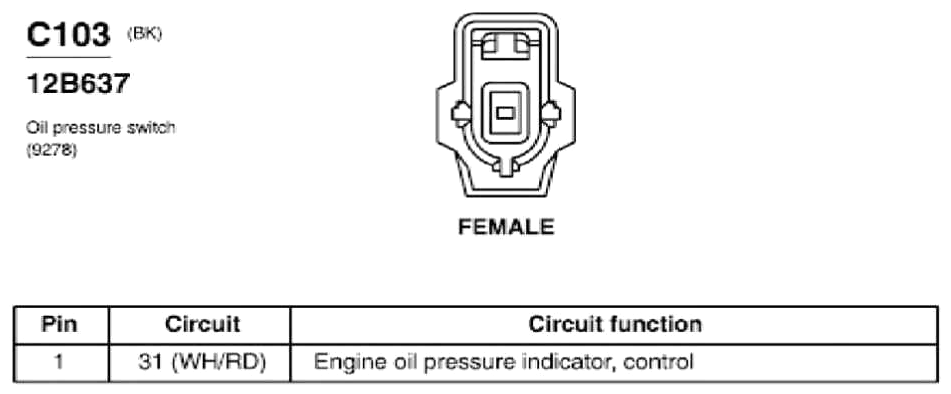

Fig 5: Oil Pressure Switch Connector End View (C103)

G07846298

Courtesy of FORD MOTOR CO.

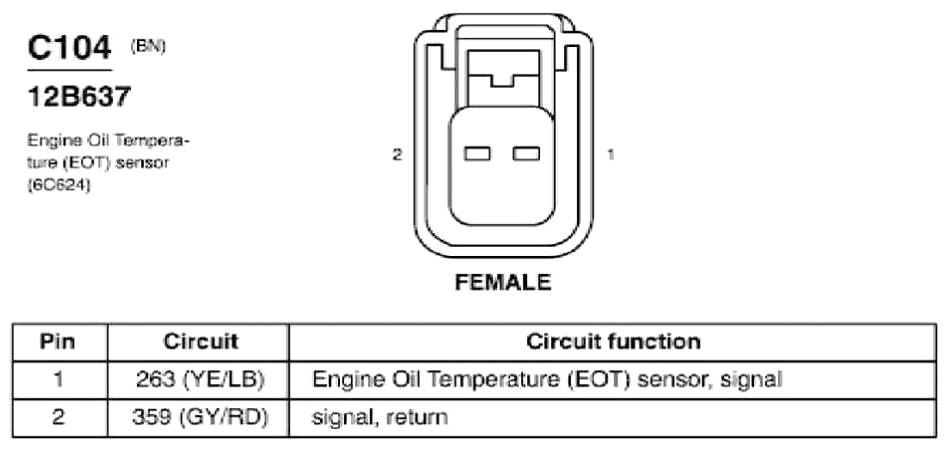

Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07846299

Courtesy of FORD MOTOR CO.

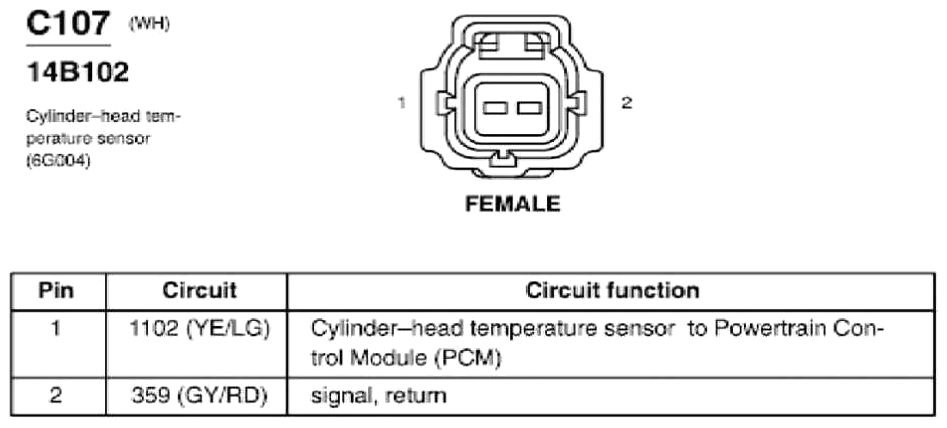

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)

G07846300

Courtesy of FORD MOTOR CO.

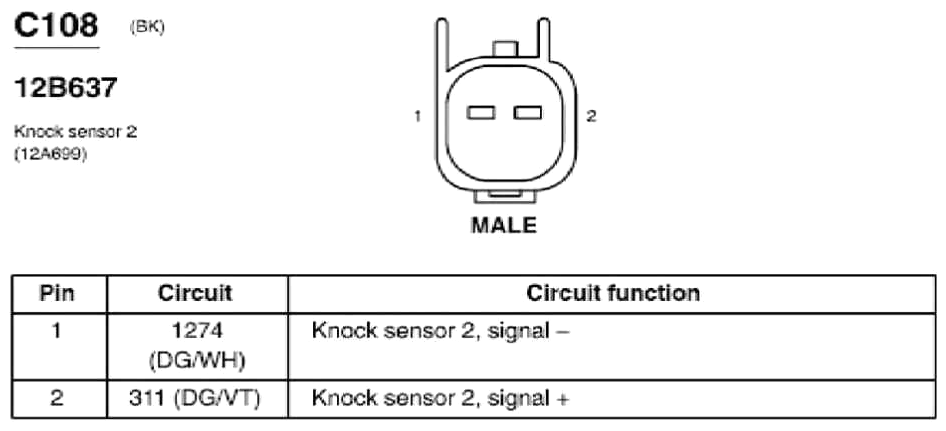

Fig 8: Knock Sensor 2 Connector End View (C108)

G07846301

Courtesy of FORD MOTOR CO.

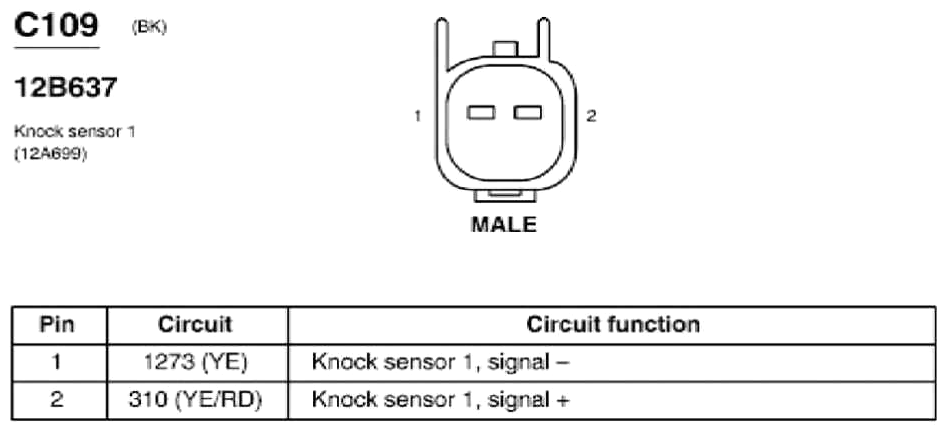

Fig 9: Knock Sensor 1 Connector End View (C109)

G07846302

Courtesy of FORD MOTOR CO.

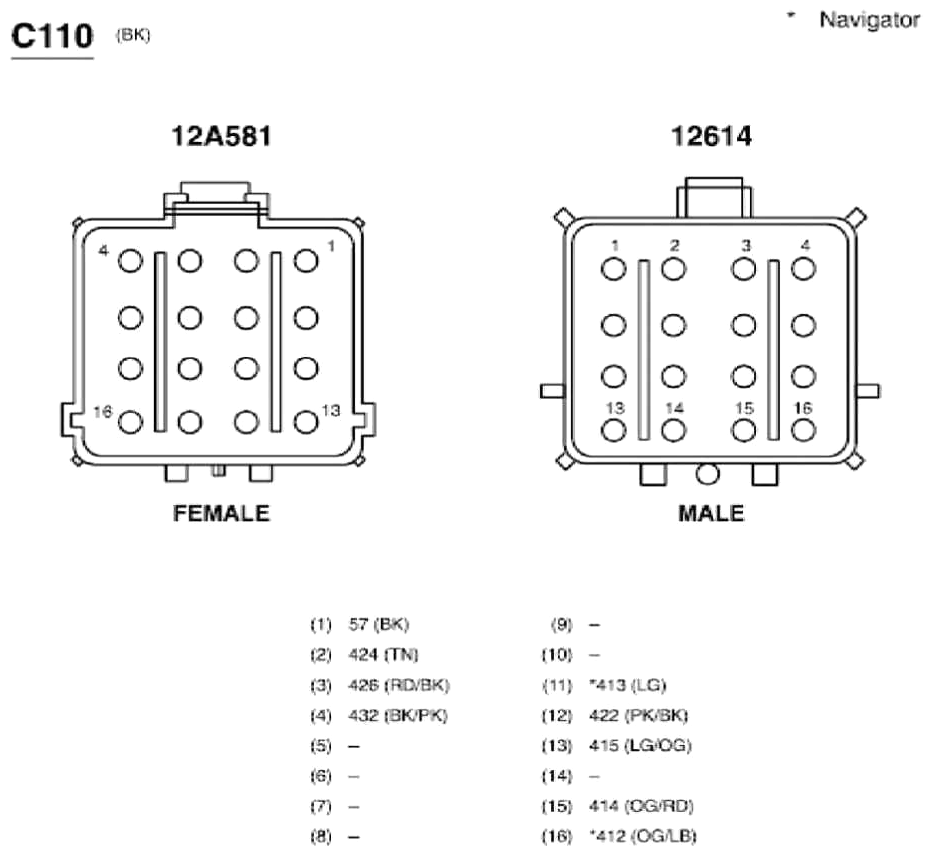

Fig 10: Inline Connector End View (C110)

G07846303

Courtesy of FORD MOTOR CO.

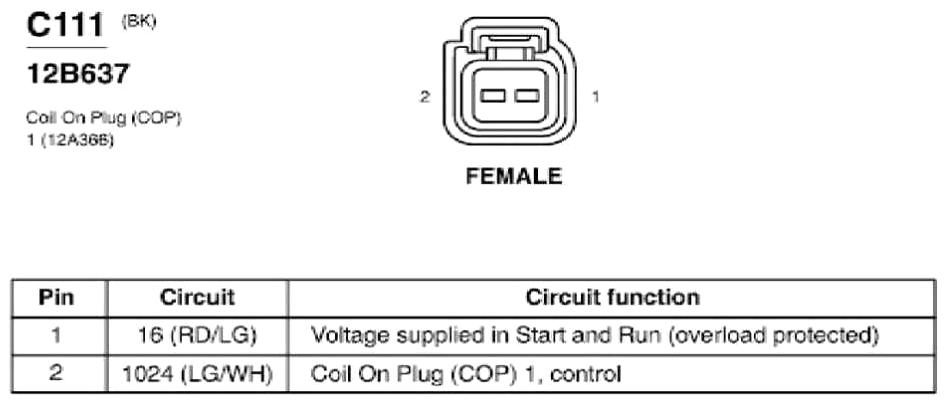

Fig 11: Coil On Plug (COP) 1 Connector End View (C111)

G07846304

Courtesy of FORD MOTOR CO.

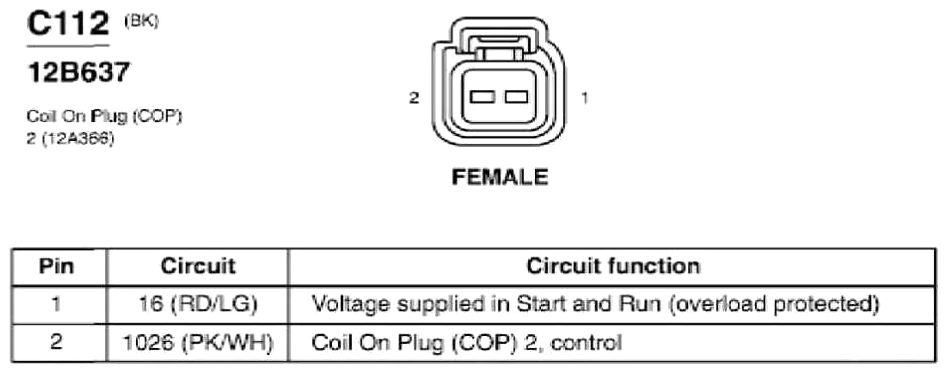

Fig 12: Coil On Plug (COP) 2 Connector End View (C112)

G07846305

Courtesy of FORD MOTOR CO.

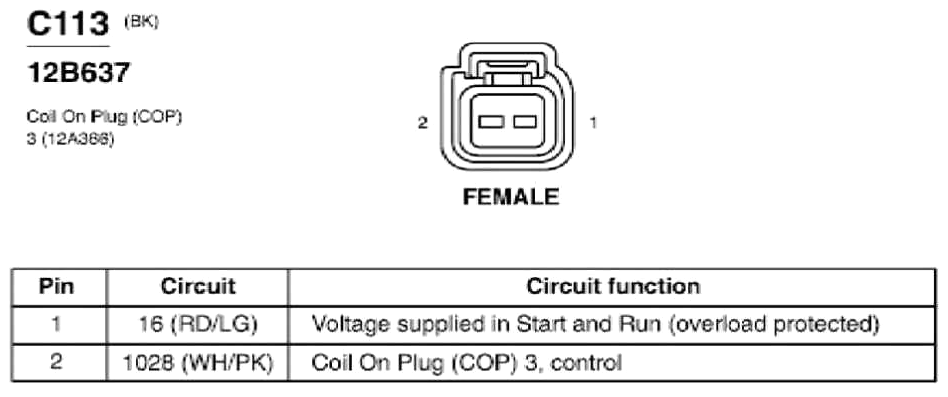

Fig 13: Coil On Plug (COP) 3 Connector End View (C113)

G07846306

Courtesy of FORD MOTOR CO.

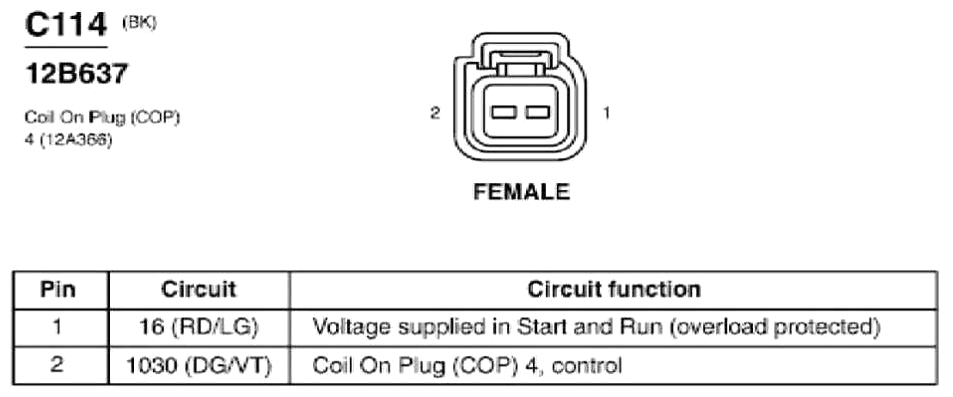

Fig 14: Coil On Plug (COP) 4 Connector End View (C114)

G07846307

Courtesy of FORD MOTOR CO.

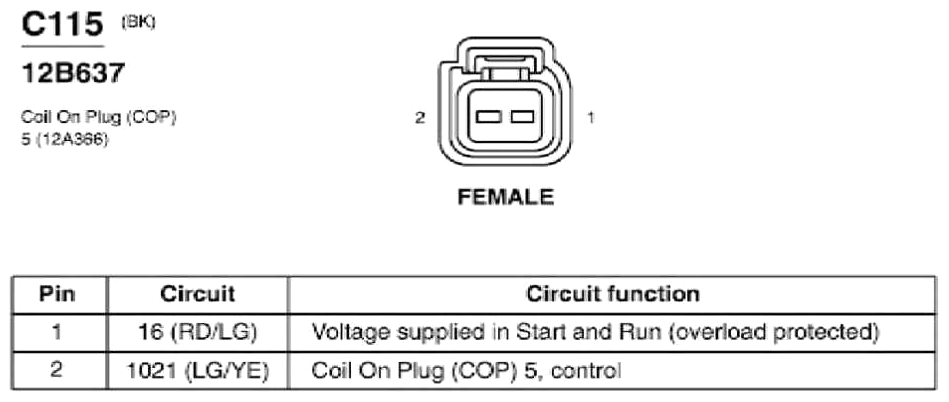

Fig 15: Coil On Plug (COP) 5 Connector End View (C115)

G07846308

Courtesy of FORD MOTOR CO.

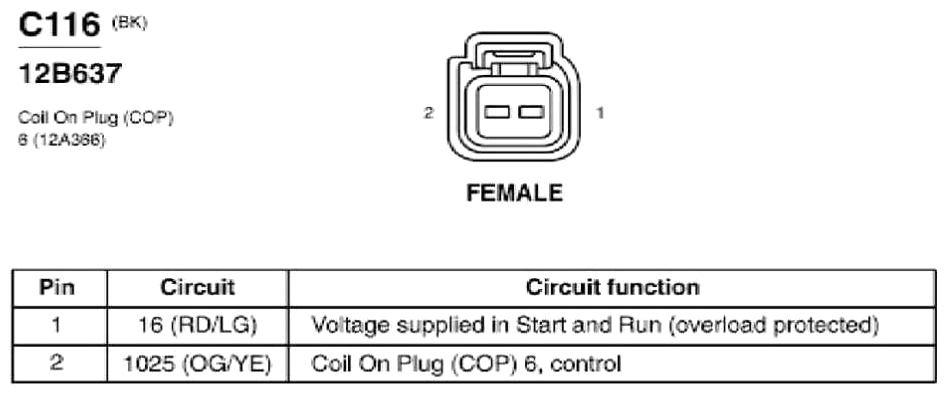

Fig 16: Coil On Plug (COP) 6 Connector End View (C116)

G07846309

Courtesy of FORD MOTOR CO.

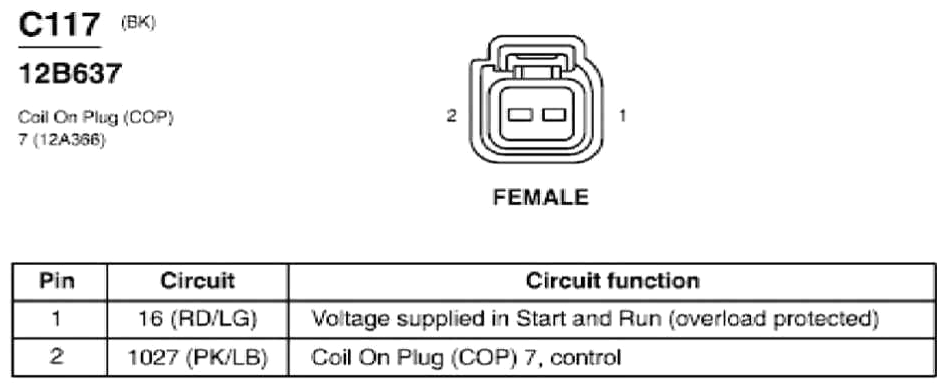

Fig 17: Coil On Plug (COP) 7 Connector End View (C117)

G07846310

Courtesy of FORD MOTOR CO.

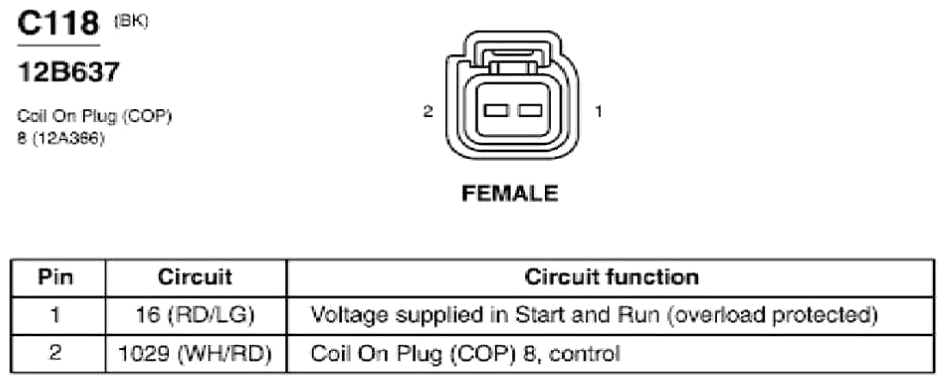

Fig 18: Coil On Plug (COP) 8 Connector End View (C118)

G07846311

Courtesy of FORD MOTOR CO.

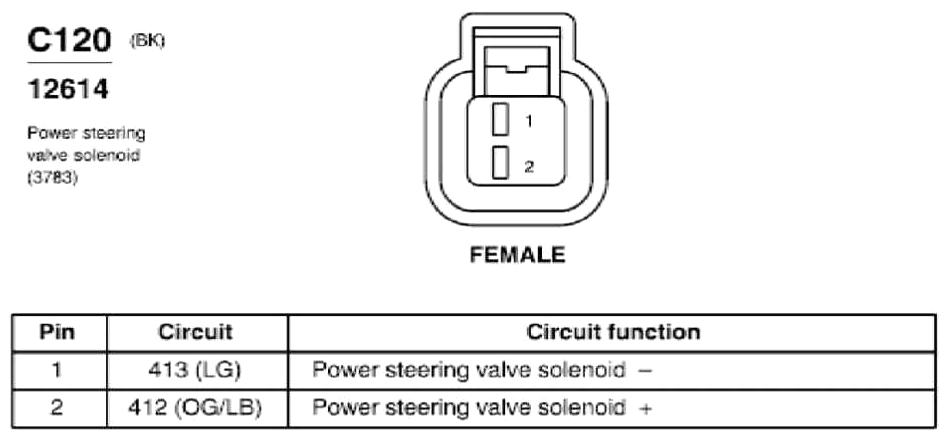

Fig 19: Power Steering Valve Solenoid Connector End View (C120)

G07846312

Courtesy of FORD MOTOR CO.

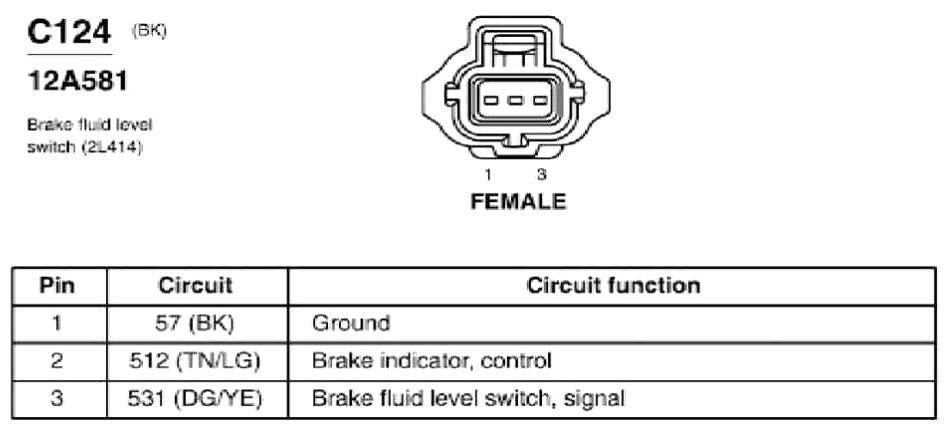

Fig 20: Brake Fluid Level Switch Connector End View (C124)

G07846313

Courtesy of FORD MOTOR CO.

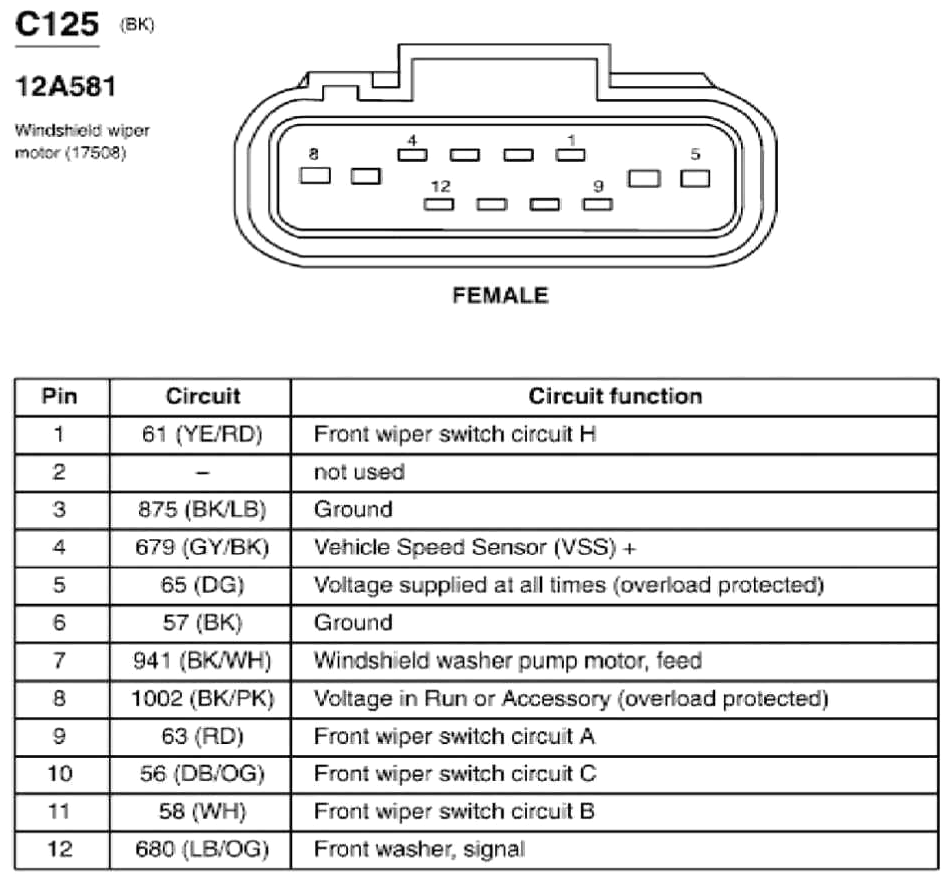

Fig 21: Windshield Wiper Motor Connector End View (C125)

G07846314

Courtesy of FORD MOTOR CO.

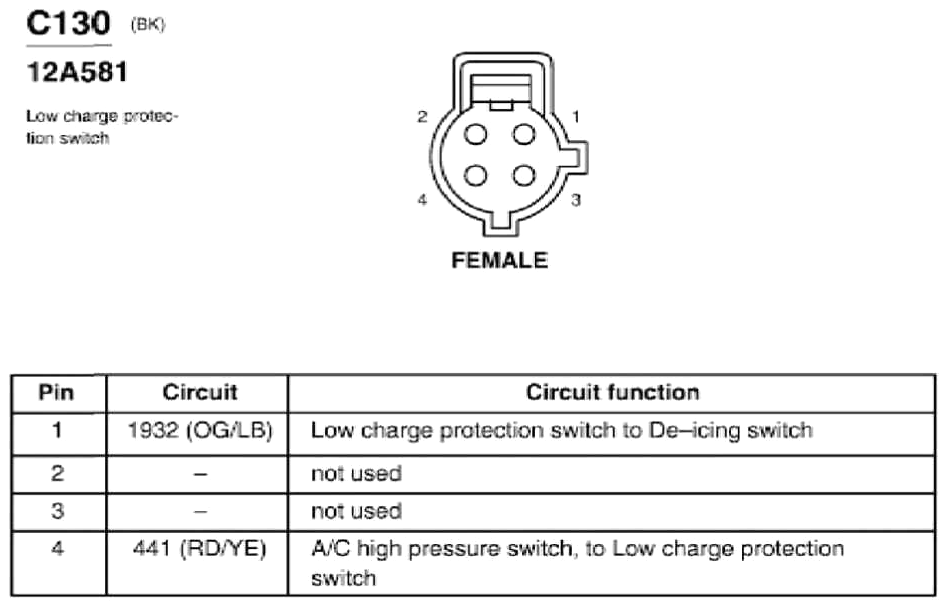

Fig 22: Low Charge Protection Switch Connector End View (C130)

G07846315

Courtesy of FORD MOTOR CO.

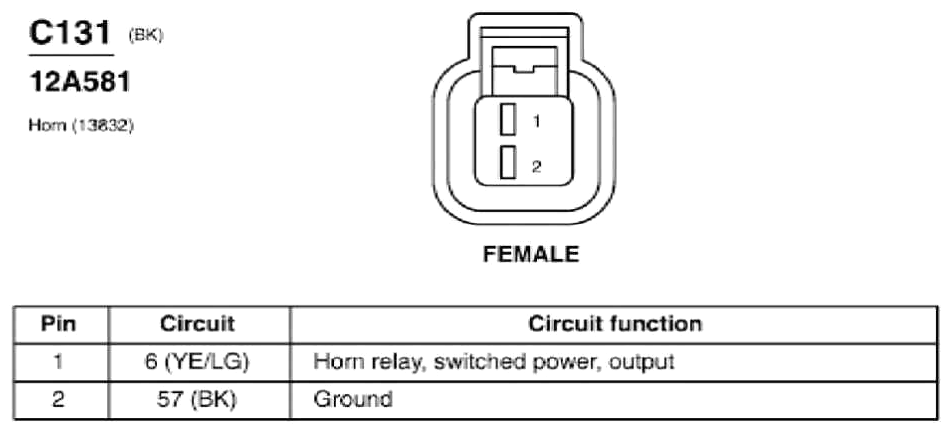

Fig 23: Horn Connector End View (C131)

G07846316

Courtesy of FORD MOTOR CO.

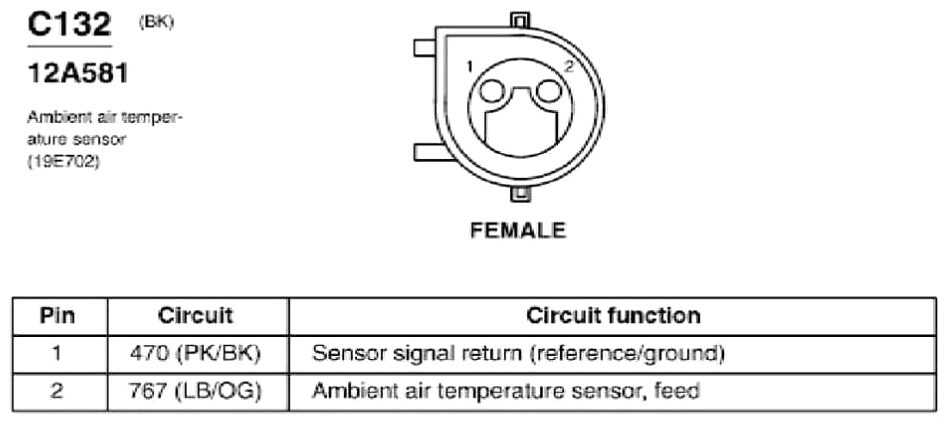

Fig 24: Ambient Air Temperature Sensor Connector End View (C132)

G07846317

Courtesy of FORD MOTOR CO.

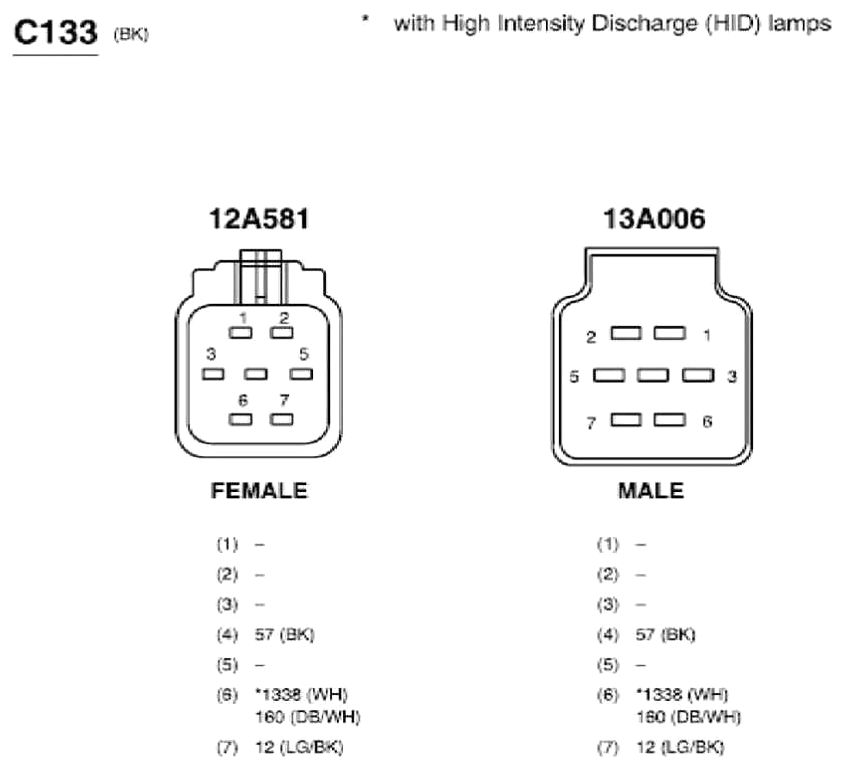

Fig 25: Inline Connector End View (C133)

G07846318

Courtesy of FORD MOTOR CO.

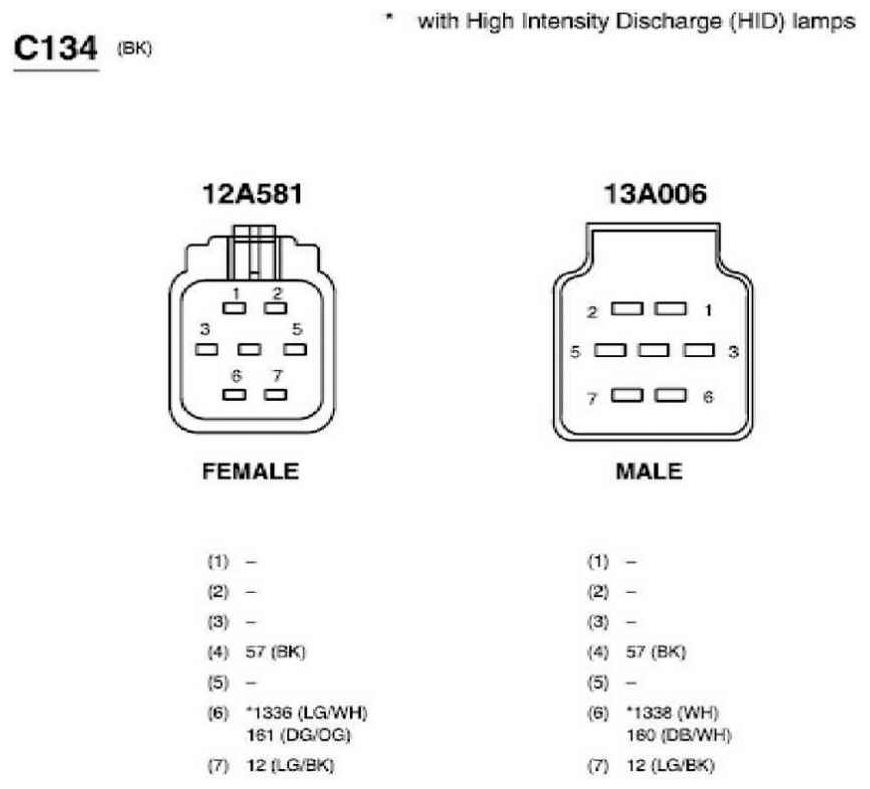

Fig 26: Inline Connector End View (C134)

G04596356

Courtesy of FORD MOTOR CO.

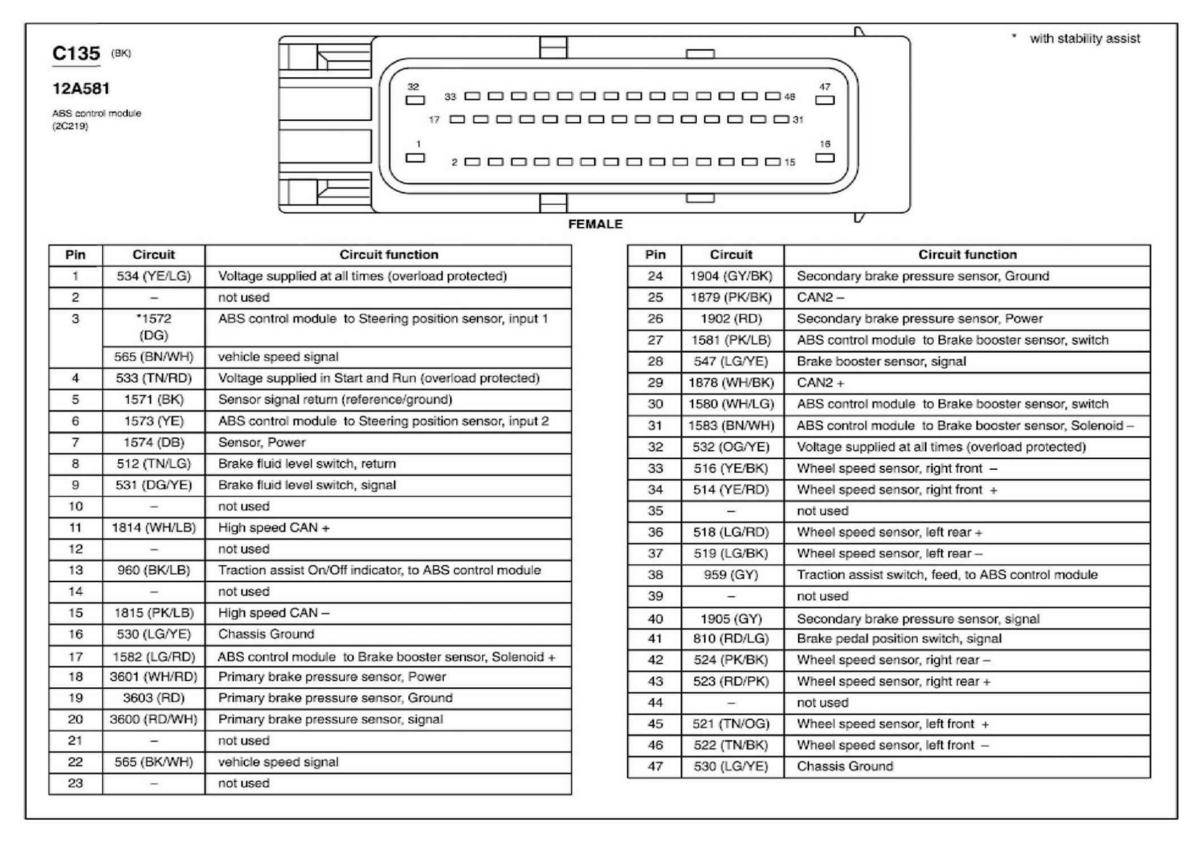

Fig 27: ABS Control Module Connector End View (C135)

G04596357

Courtesy of FORD MOTOR CO.

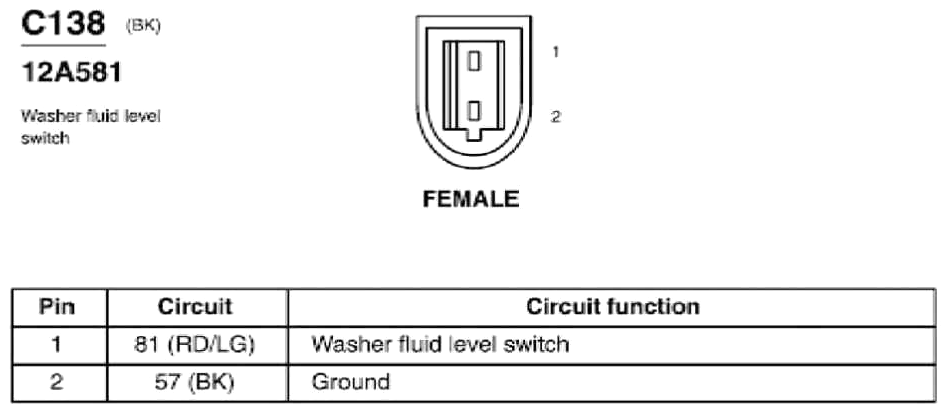

Fig 28: Washer Fluid Level Switch Connector End View (C138)

G07846319

Courtesy of FORD MOTOR CO.

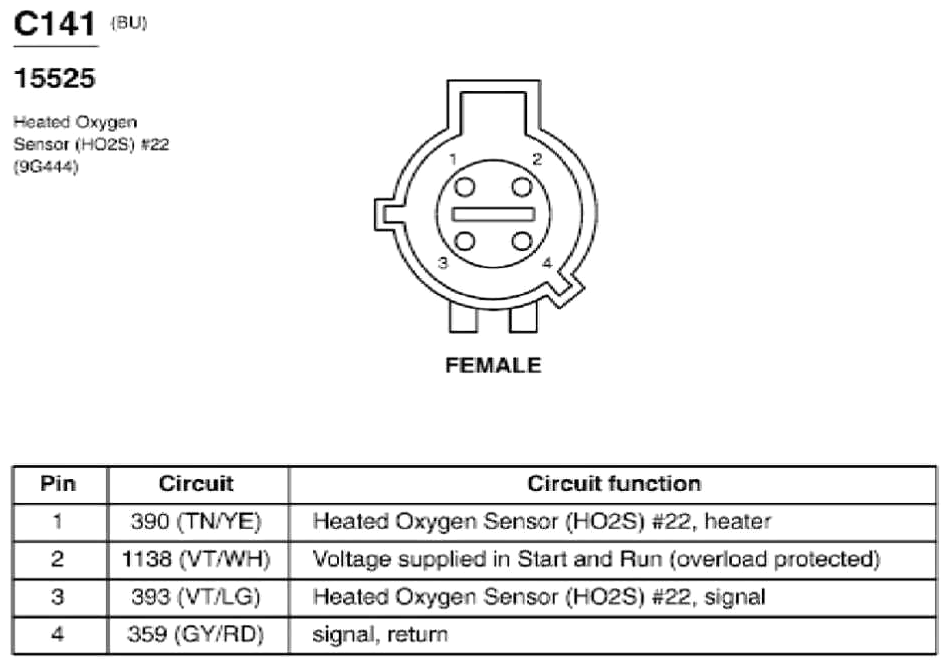

Fig 29: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07846320

Courtesy of FORD MOTOR CO.

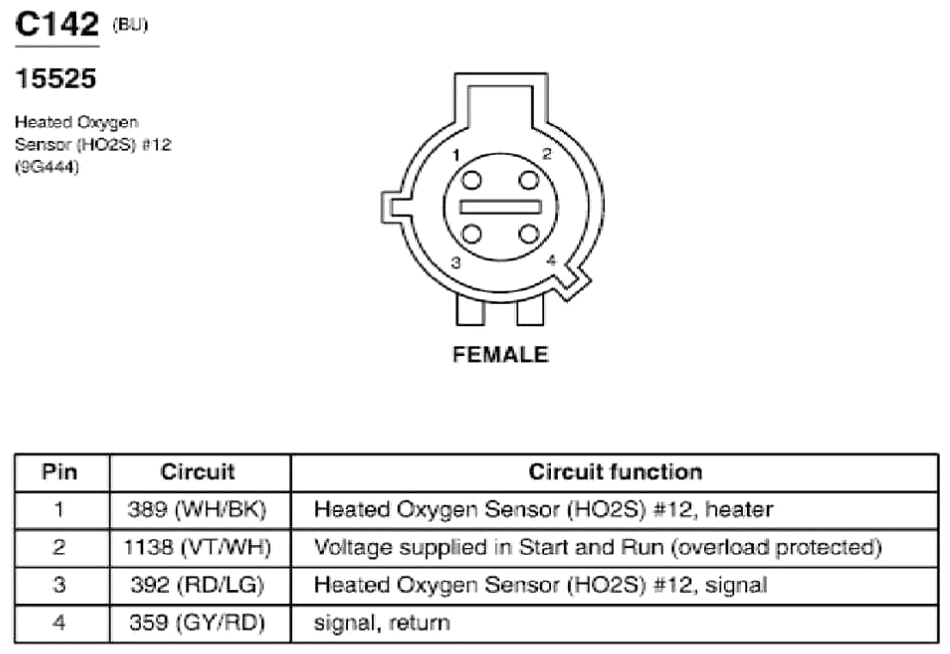

Fig 30: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07846321

Courtesy of FORD MOTOR CO.

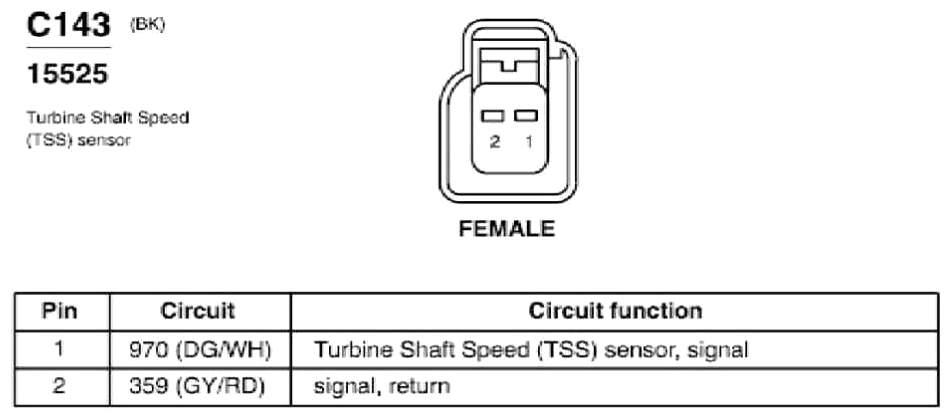

Fig 31: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07846322

Courtesy of FORD MOTOR CO.

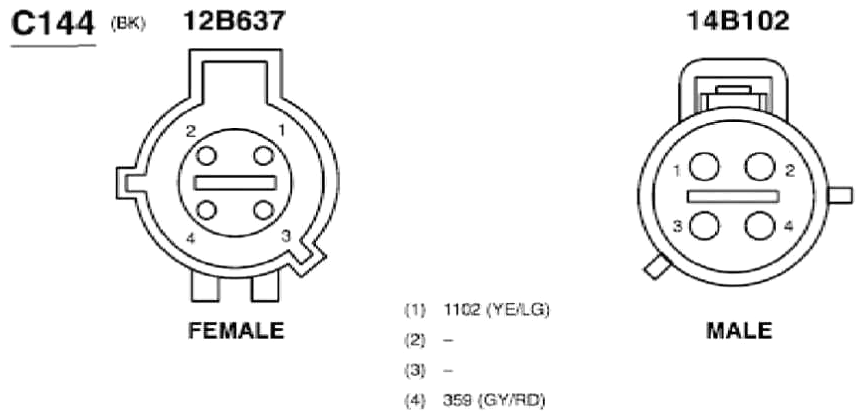

Fig 32: Inline Connector End View (C144)

G07846323

Courtesy of FORD MOTOR CO.

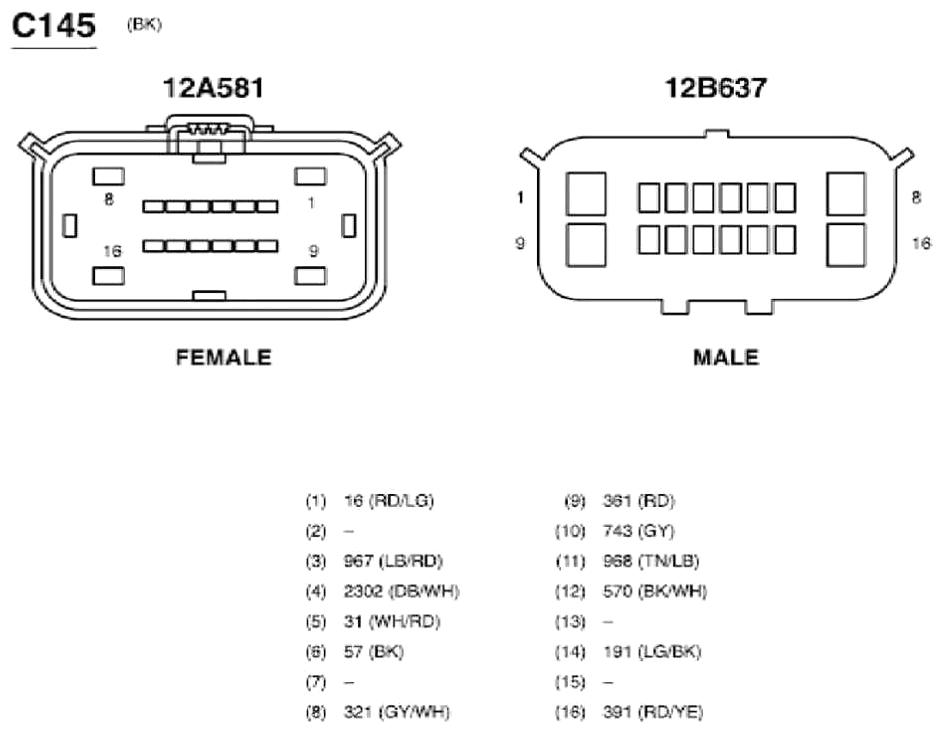

Fig 33: Inline Connector End View (C145)

G07846324

Courtesy of FORD MOTOR CO.

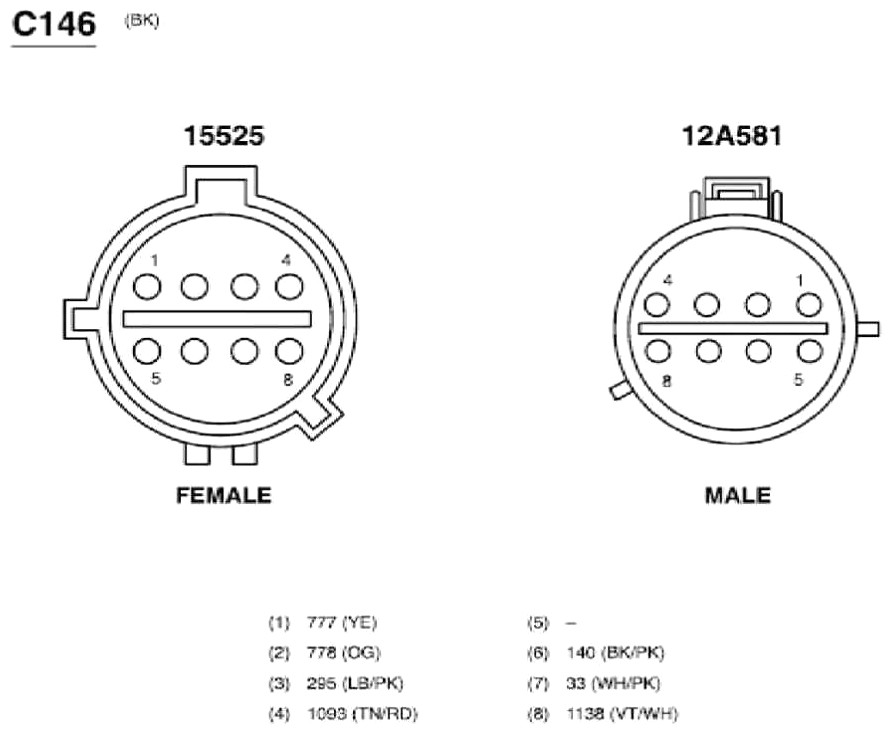

Fig 34: Inline Connector End View (C146)

G07846325

Courtesy of FORD MOTOR CO.

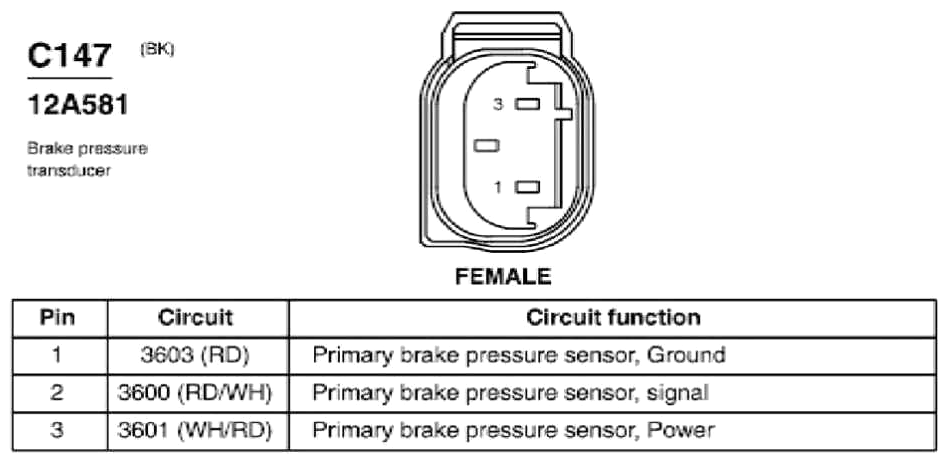

Fig 35: Brake Pressure Transducer Connector End View (C147)

G07846326

Courtesy of FORD MOTOR CO.

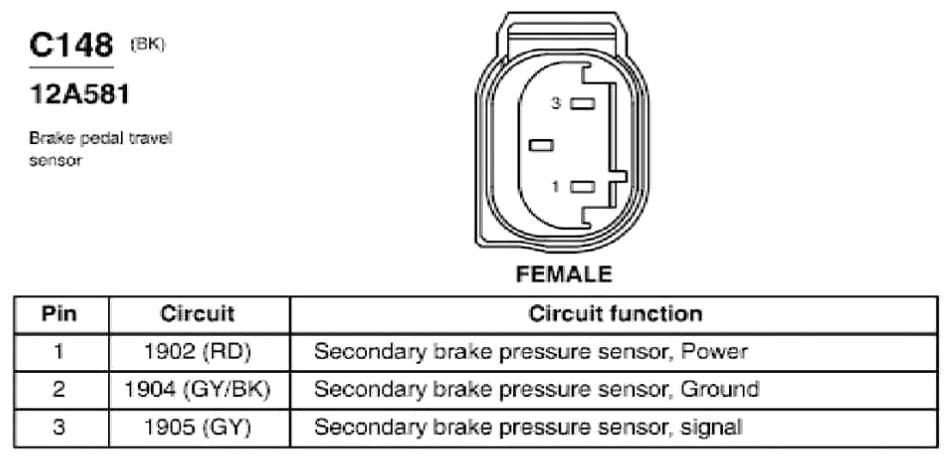

Fig 36: Brake Pedal Travel Sensor Connector End View (C148)

G07846327

Courtesy of FORD MOTOR CO.

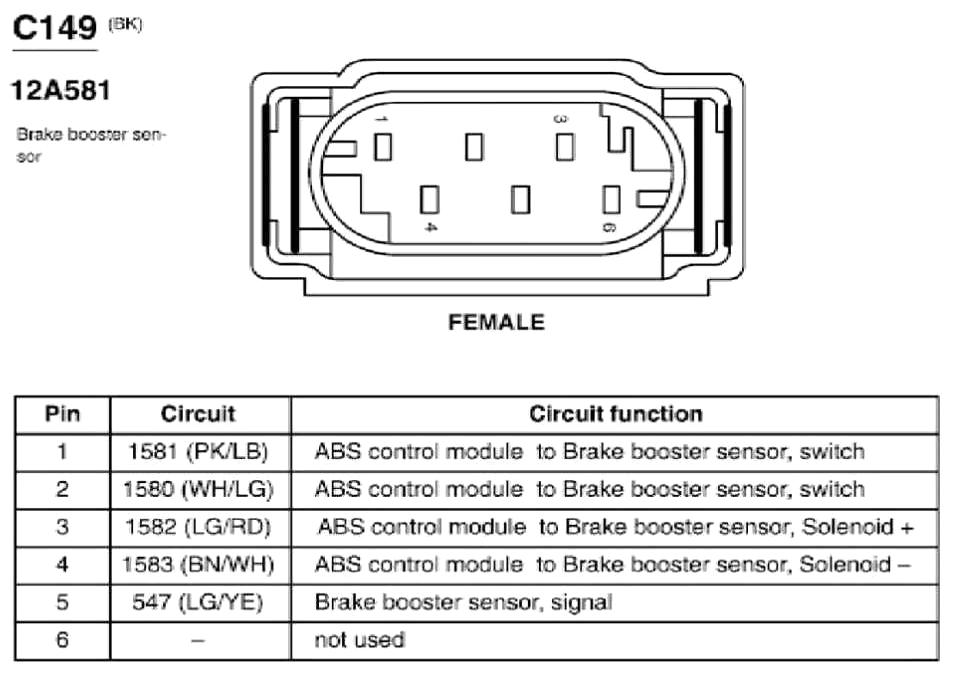

Fig 37: Brake Booster Sensor Connector End View (C149)

G07846328

Courtesy of FORD MOTOR CO.

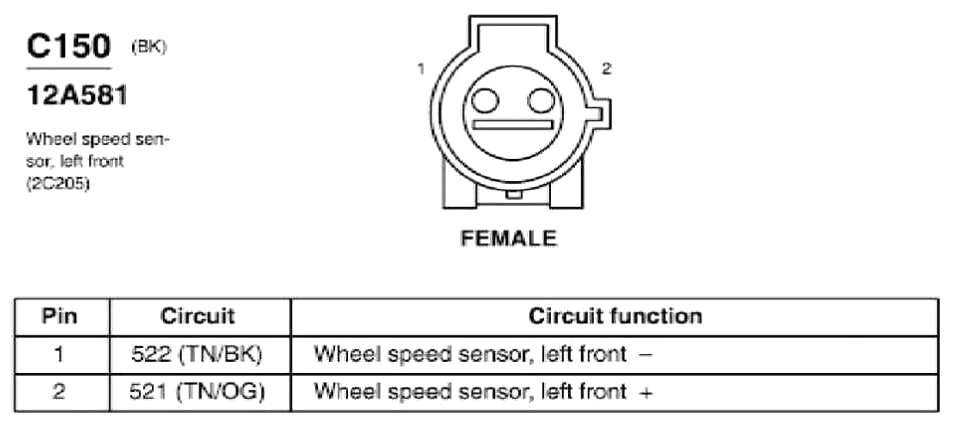

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07846329

Courtesy of FORD MOTOR CO.

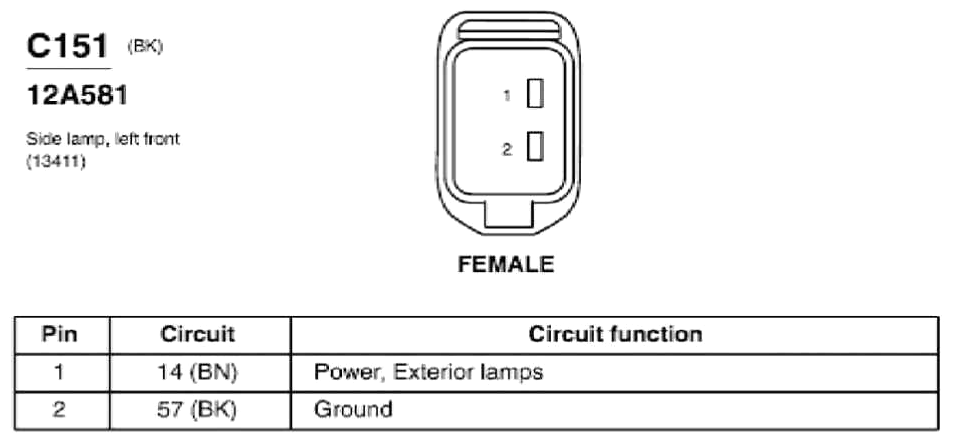

Fig 39: Side Lamp, Left Front Connector End View (C151)

G07846330

Courtesy of FORD MOTOR CO.

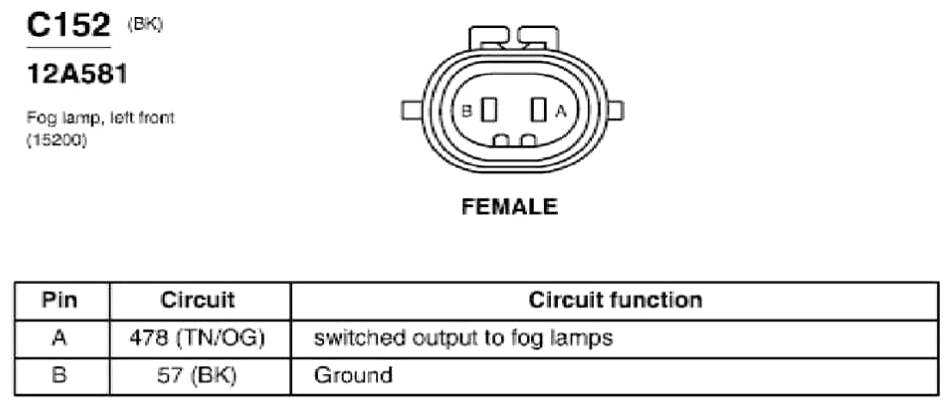

Fig 40: Fog Lamp, Left Front Connector End View (C152)

G07846331

Courtesy of FORD MOTOR CO.

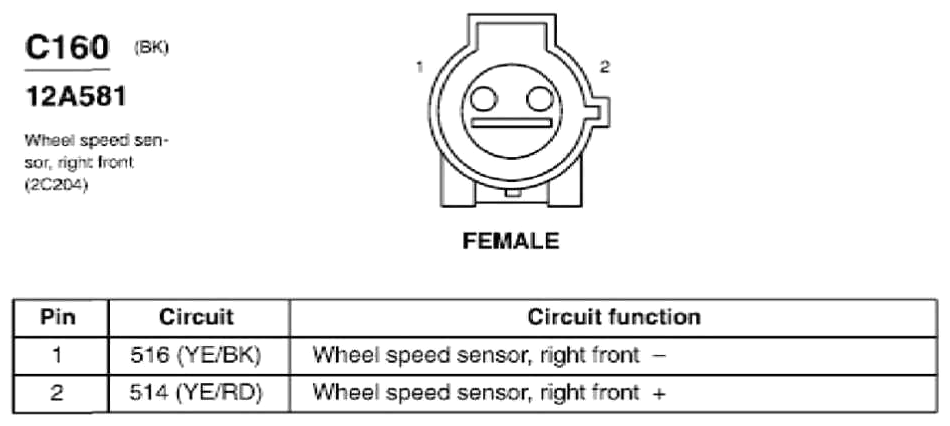

Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)

G07846332

Courtesy of FORD MOTOR CO.

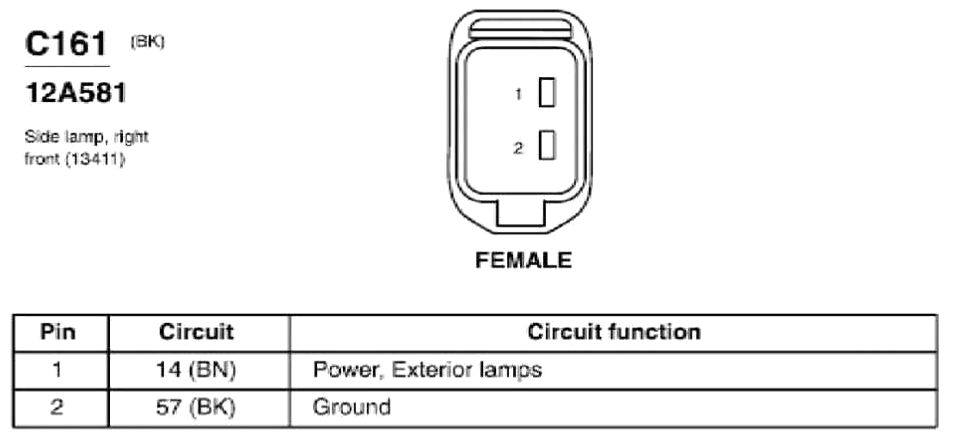

Fig 42: Side Lamp, Right Front Connector End View (C161)

G07846333

Courtesy of FORD MOTOR CO.

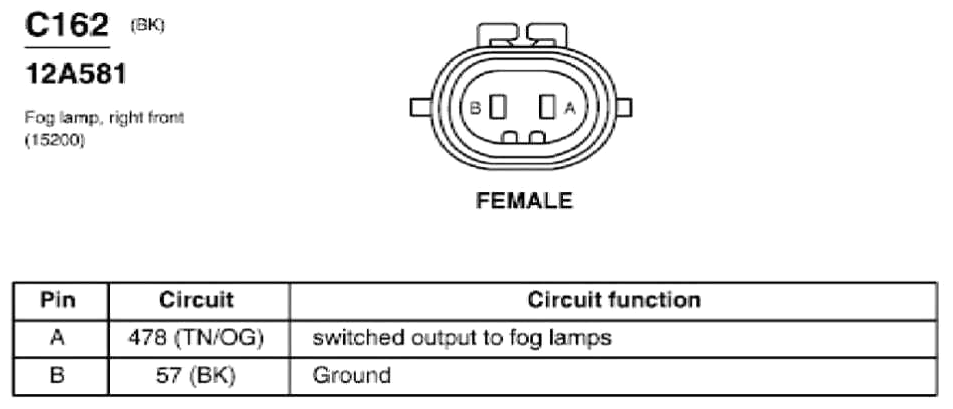

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G07846334

Courtesy of FORD MOTOR CO.

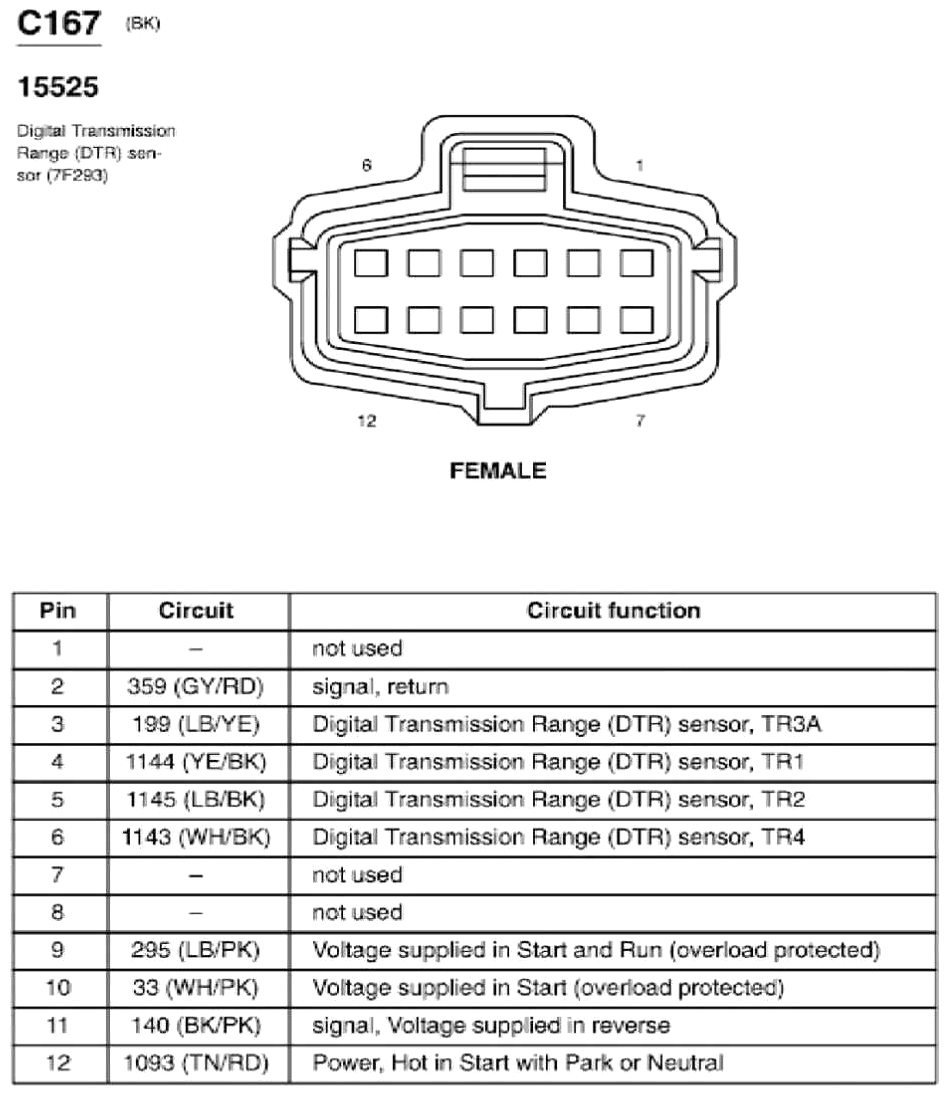

Fig 44: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07846335

Courtesy of FORD MOTOR CO.

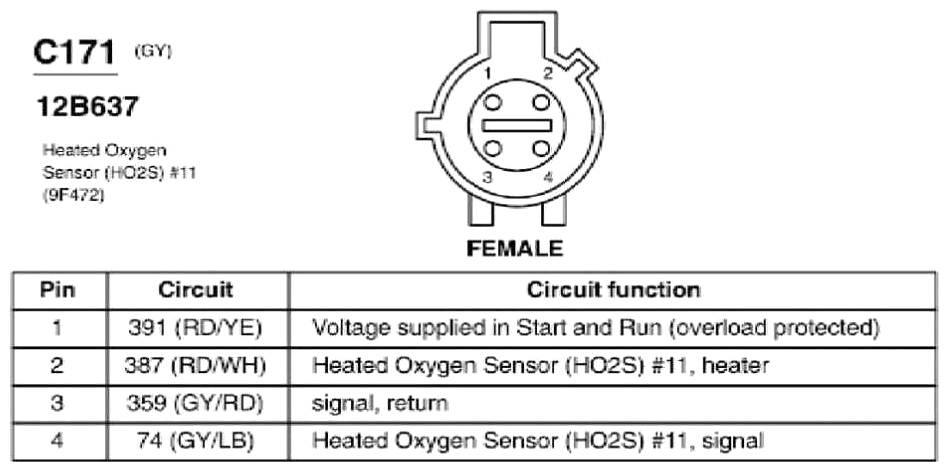

Fig 45: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07846336

Courtesy of FORD MOTOR CO.

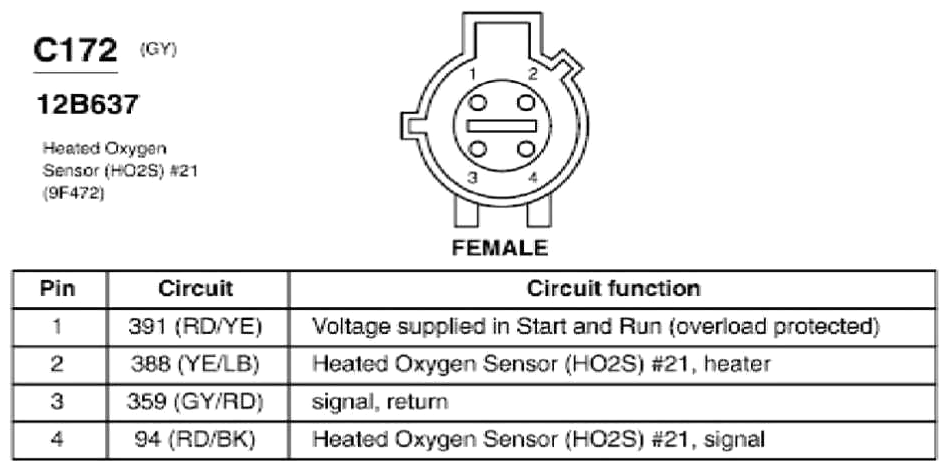

Fig 46: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07846337

Courtesy of FORD MOTOR CO.

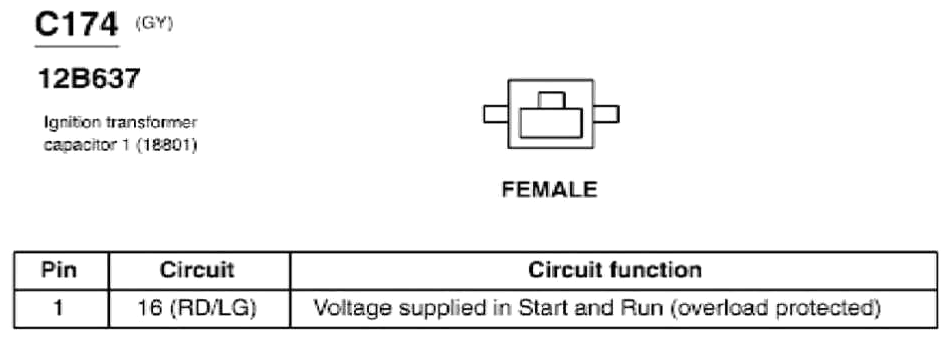

Fig 47: Ignition Transformer Capacitor Connector End View (C174)

G07846338

Courtesy of FORD MOTOR CO.

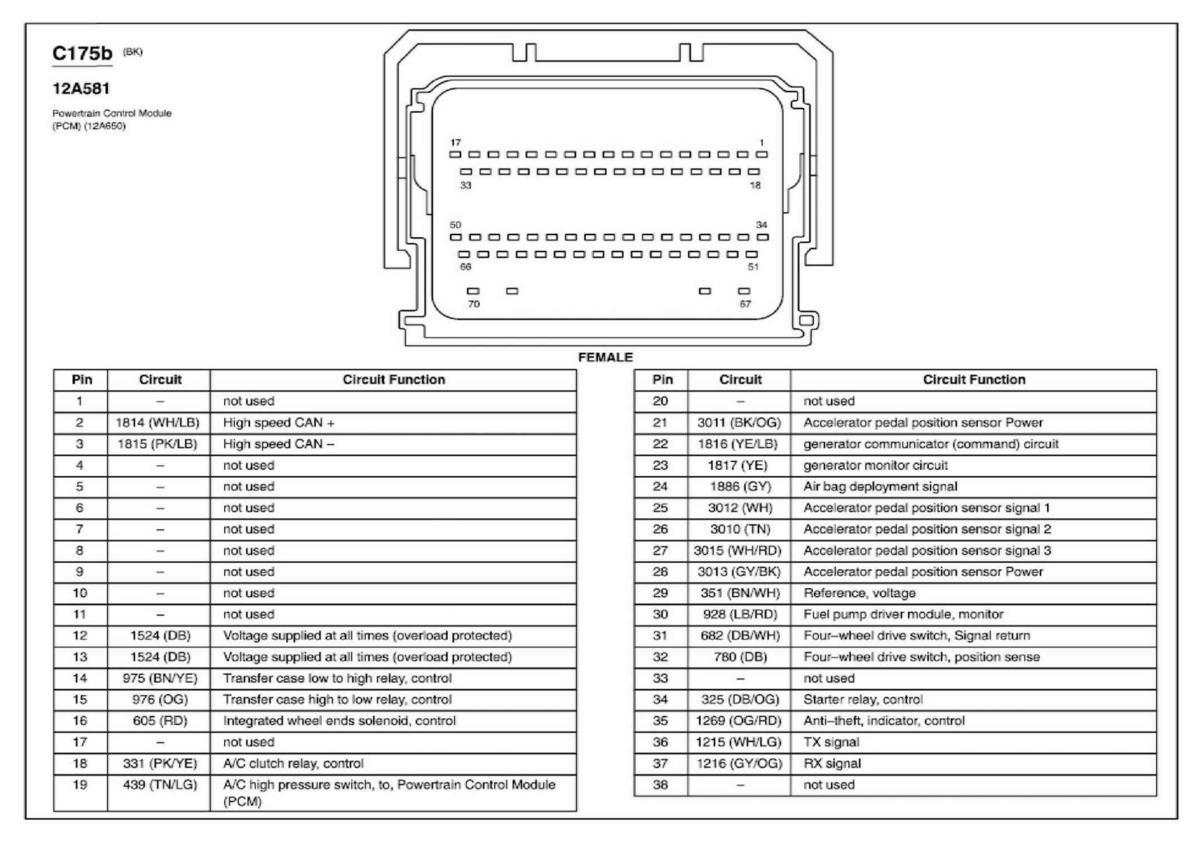

Fig 48: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G04596363

Courtesy of FORD MOTOR CO.

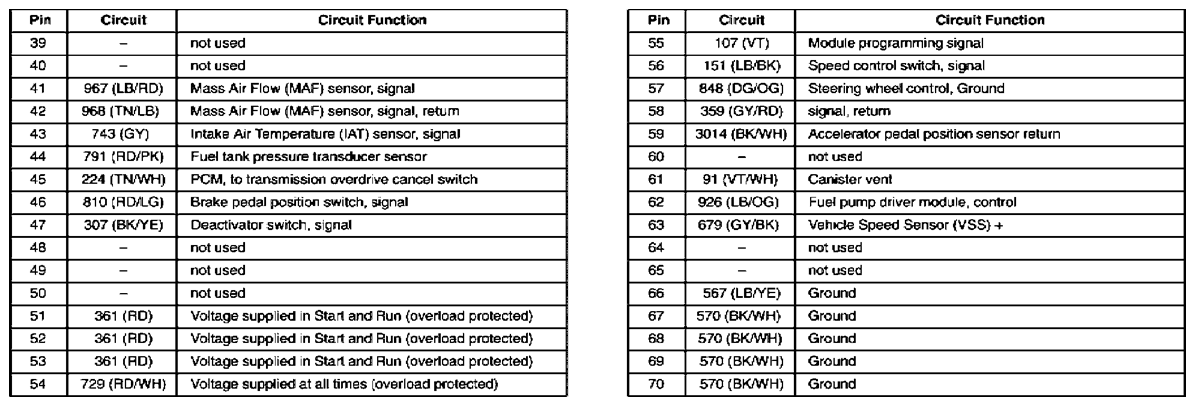

Fig 49: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G04596364

Courtesy of FORD MOTOR CO.

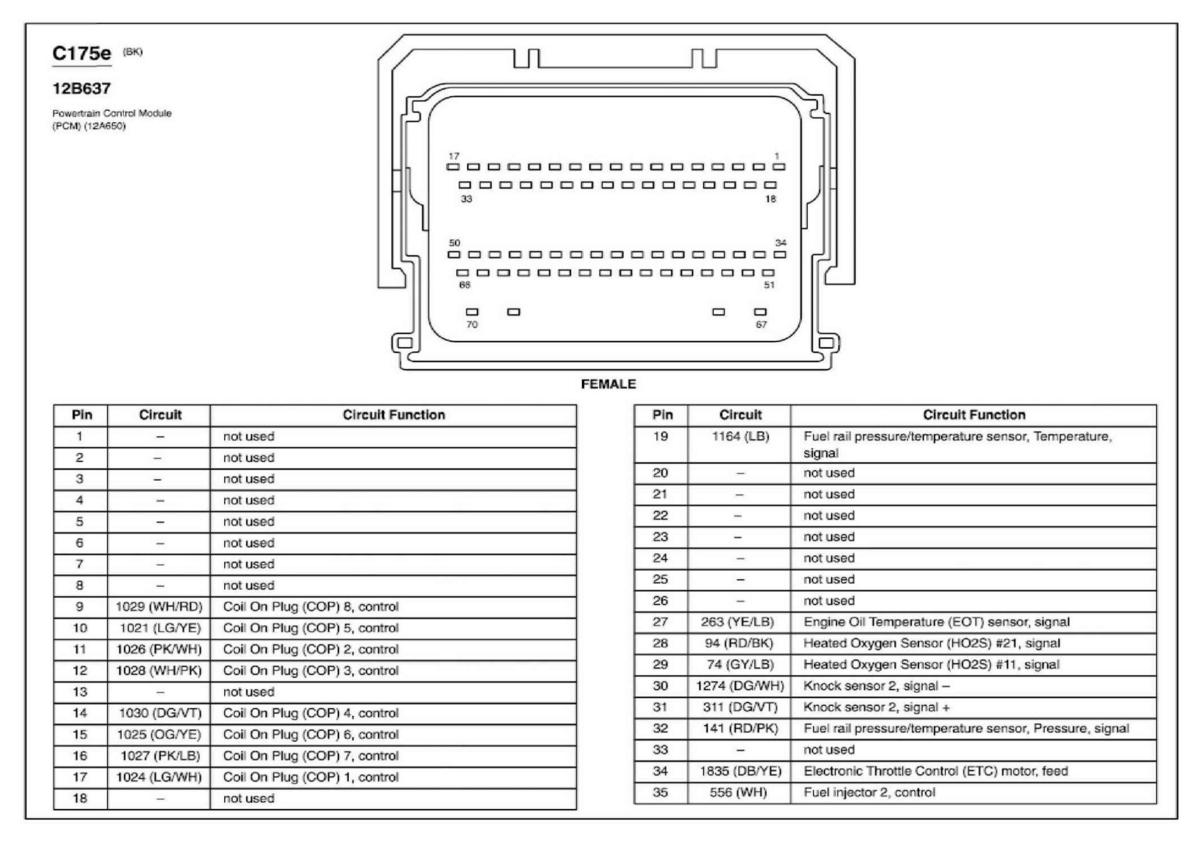

Fig 50: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G04596365

Courtesy of FORD MOTOR CO.

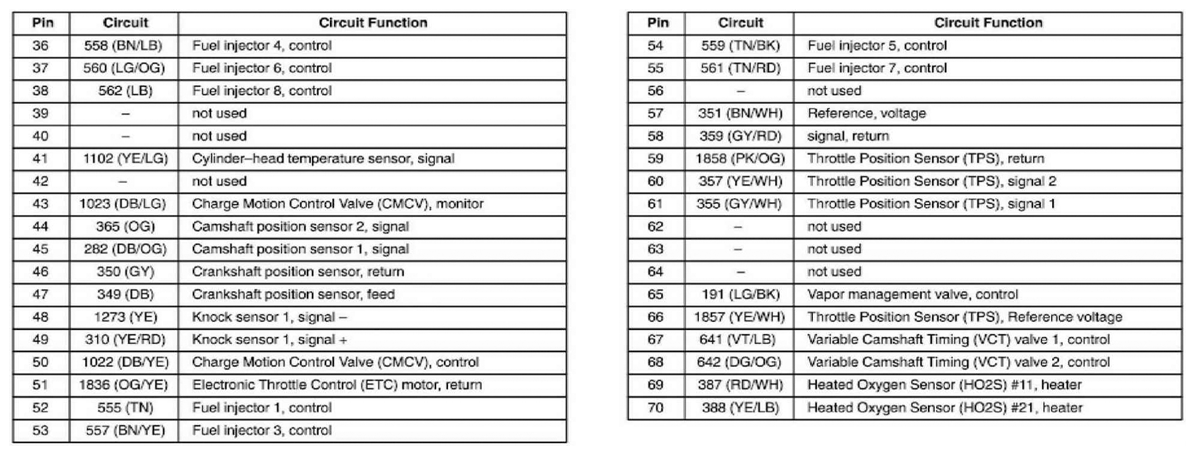

Fig 51: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G04596366

Courtesy of FORD MOTOR CO.

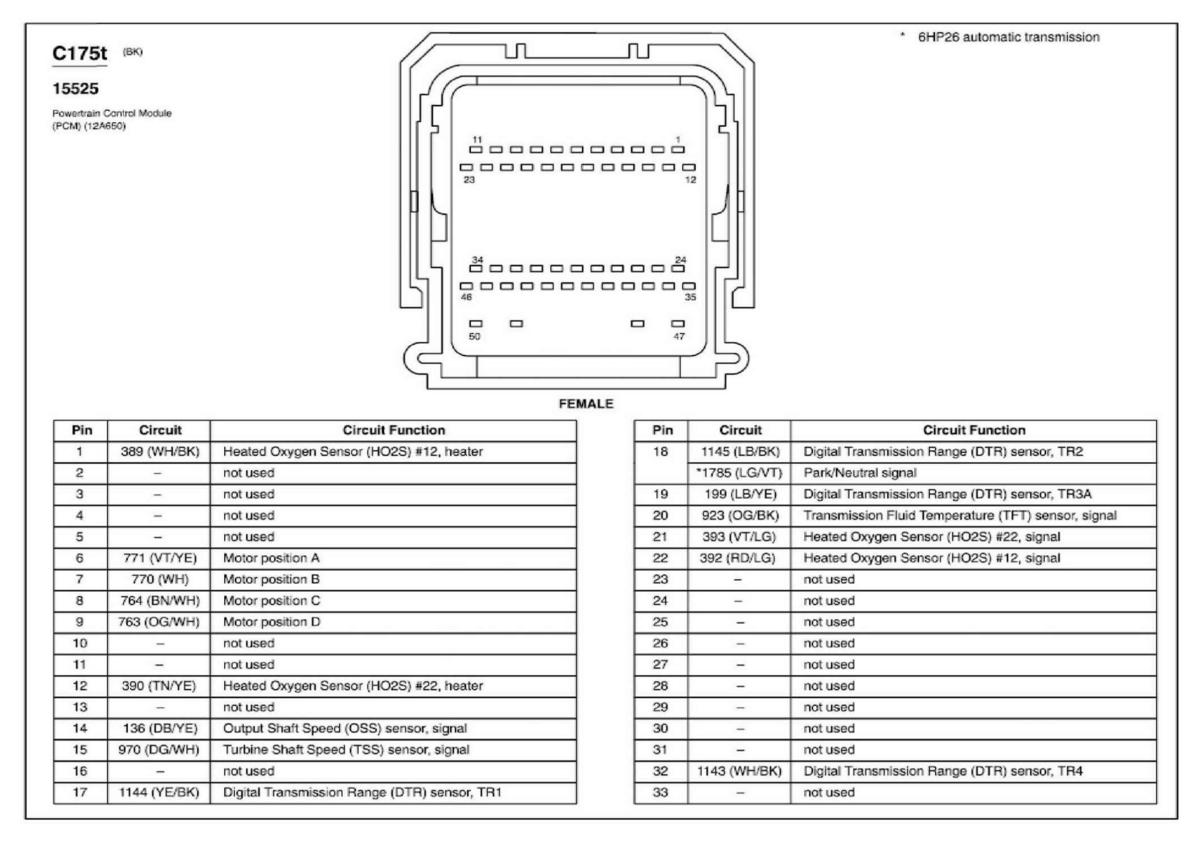

Fig 52: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)

G04596367

Courtesy of FORD MOTOR CO.

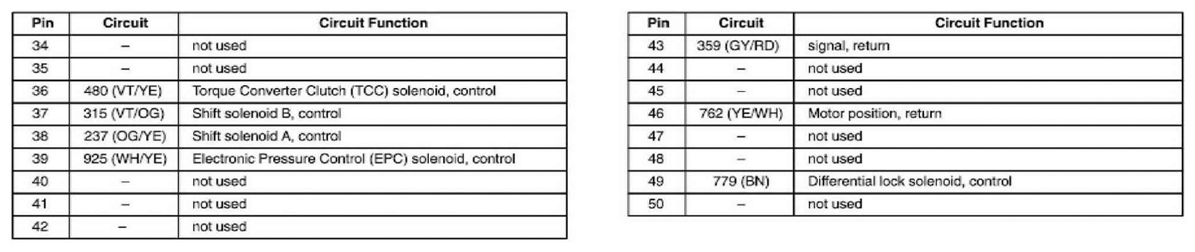

Fig 53: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)

G04596368

Courtesy of FORD MOTOR CO.

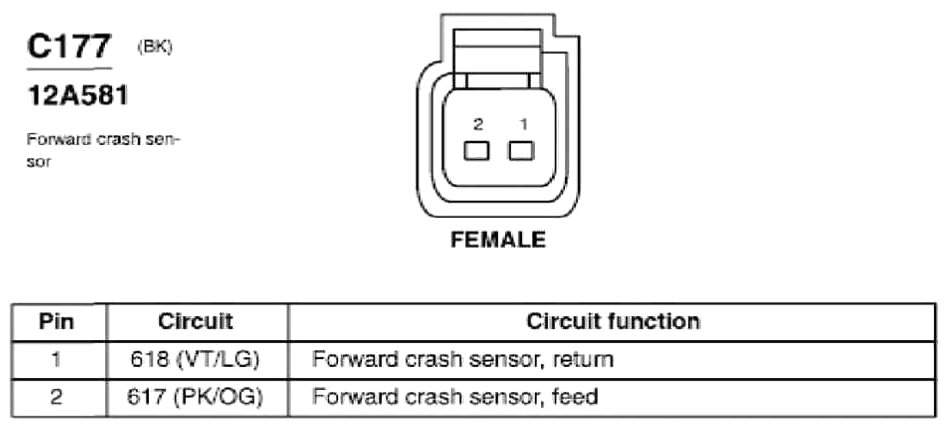

Fig 54: Forward Crash Sensor Connector End View (C177)

G07846339

Courtesy of FORD MOTOR CO.

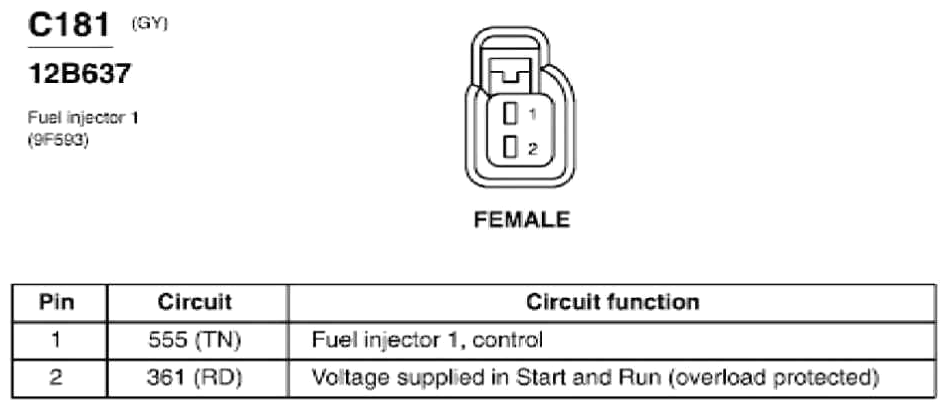

Fig 55: Fuel Injector 1 Connector End View (C181)

G07846340

Courtesy of FORD MOTOR CO.

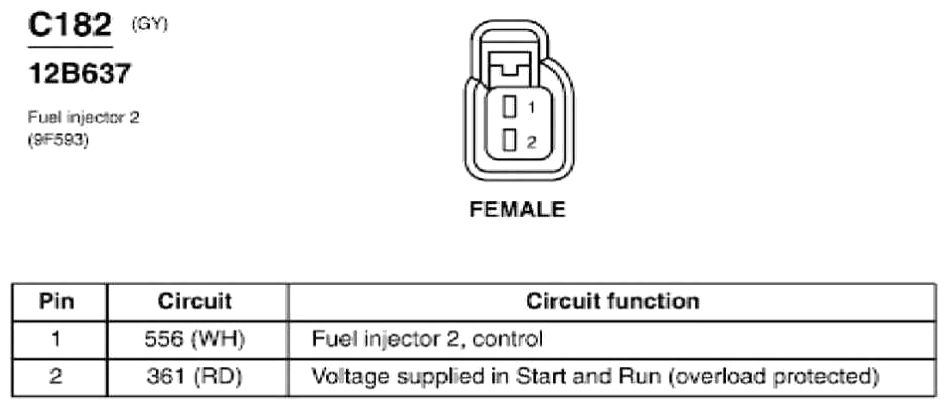

Fig 56: Fuel Injector 2 Connector End View (C182)

G07846341

Courtesy of FORD MOTOR CO.

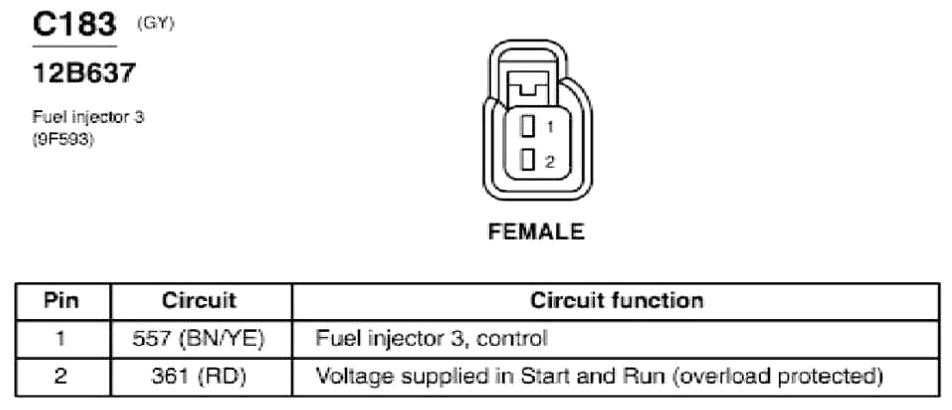

Fig 57: Fuel Injector 3 Connector End View (C183)

G07846342

Courtesy of FORD MOTOR CO.

Fig 58: Fuel Injector 4 Connector End View (C184)

G07846343

Courtesy of FORD MOTOR CO.

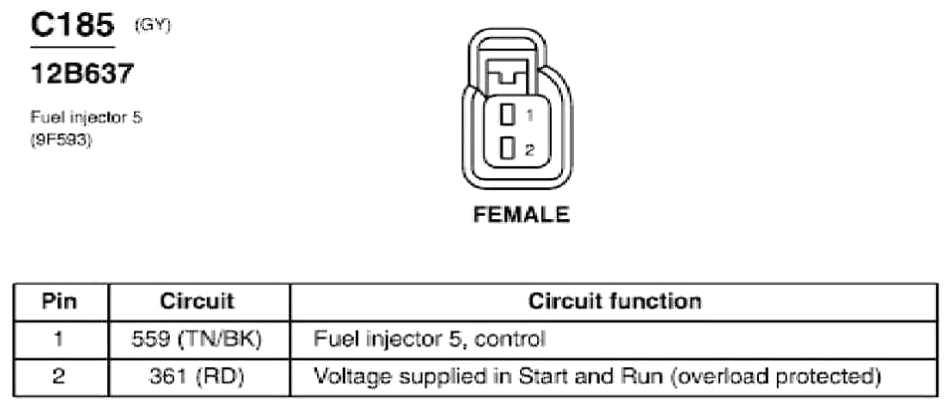

Fig 59: Fuel Injector 5 Connector End View (C185)

G07846344

Courtesy of FORD MOTOR CO.

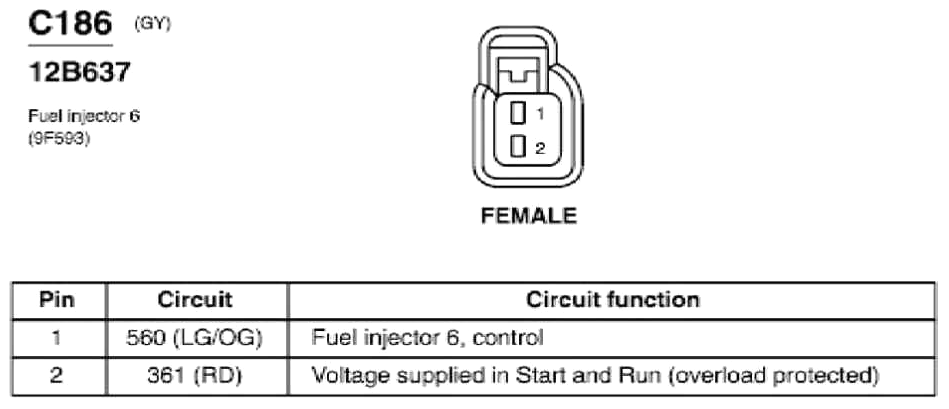

Fig 60: Fuel Injector 6 Connector End View (C186)

G07846345

Courtesy of FORD MOTOR CO.

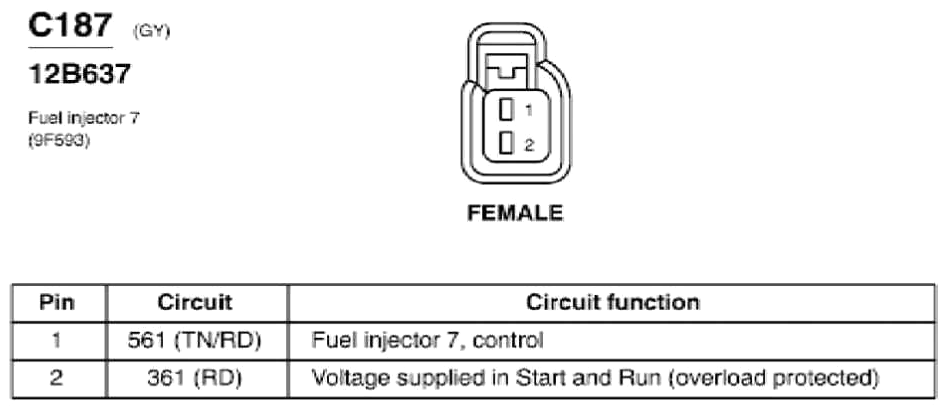

Fig 61: Fuel Injector 7 Connector End View (C187)

G07846346

Courtesy of FORD MOTOR CO.

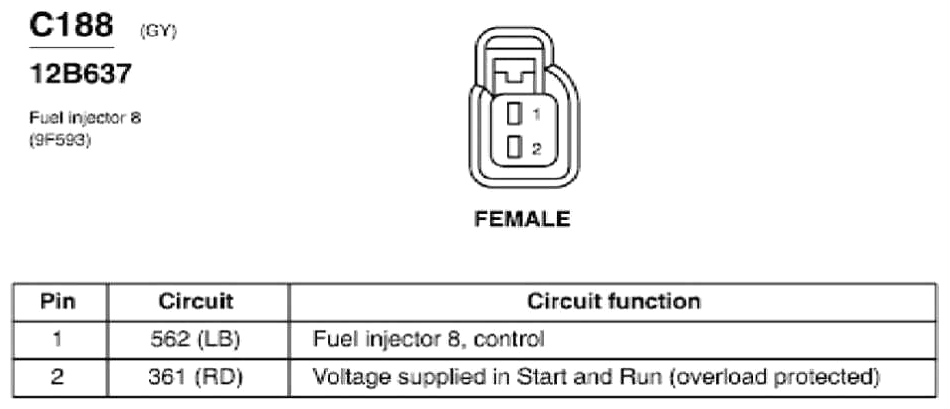

Fig 62: Fuel Injector 8 Connector End View (C188)

G07846347

Courtesy of FORD MOTOR CO.

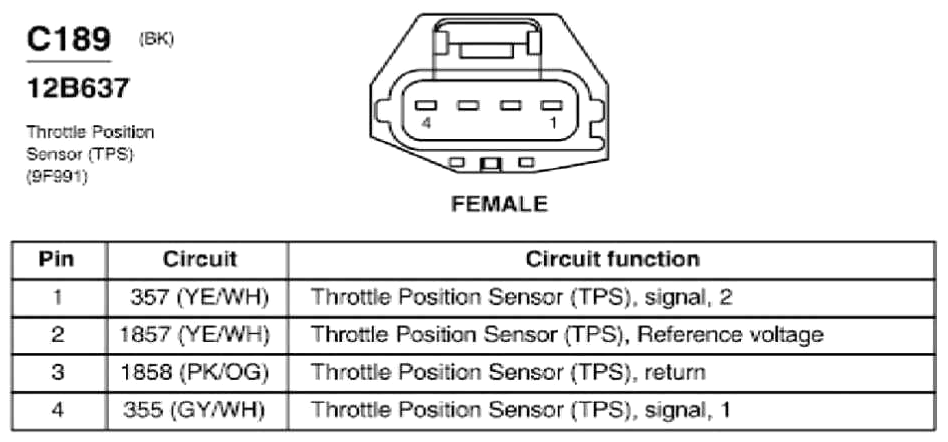

Fig 63: Throttle Position Sensor (TPS) Connector End View (C189)

G07846348

Courtesy of FORD MOTOR CO.

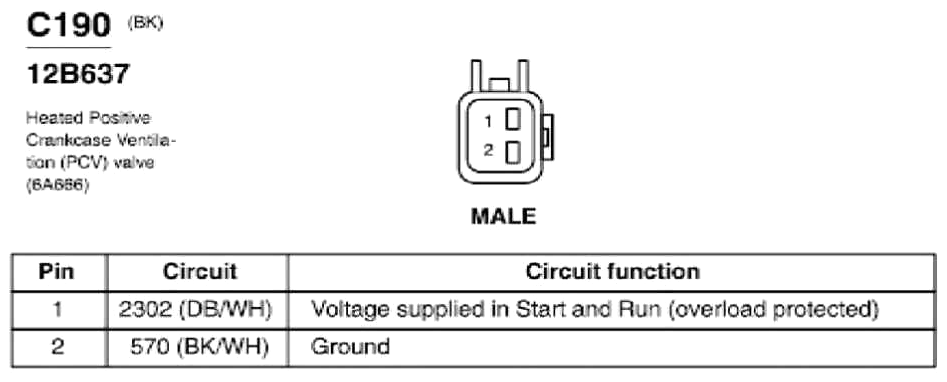

Fig 64: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07846349

Courtesy of FORD MOTOR CO.

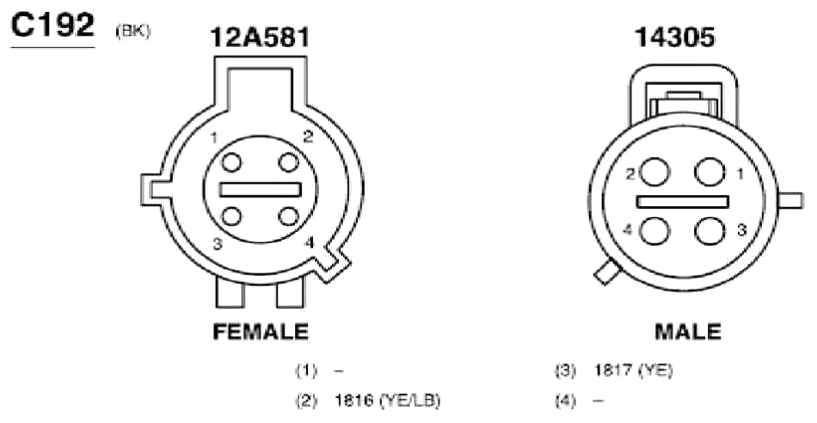

Fig 65: Inline Connector End View (C192)

G07846350

Courtesy of FORD MOTOR CO.

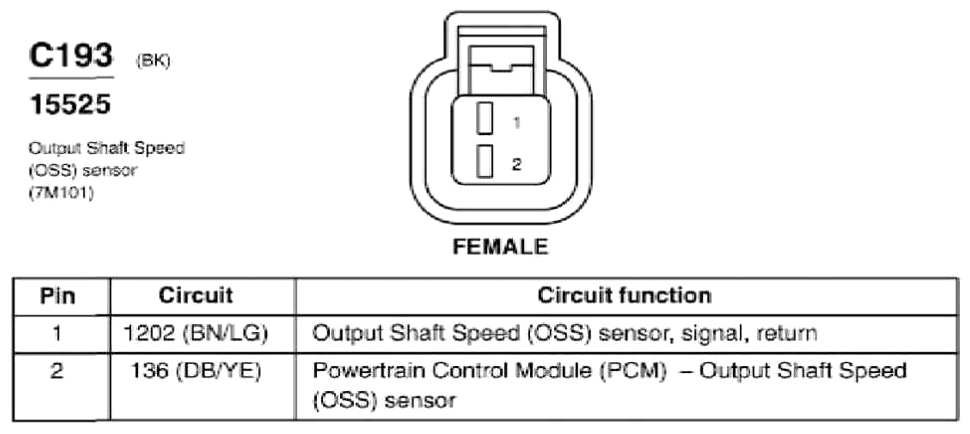

Fig 66: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07846351

Courtesy of FORD MOTOR CO.

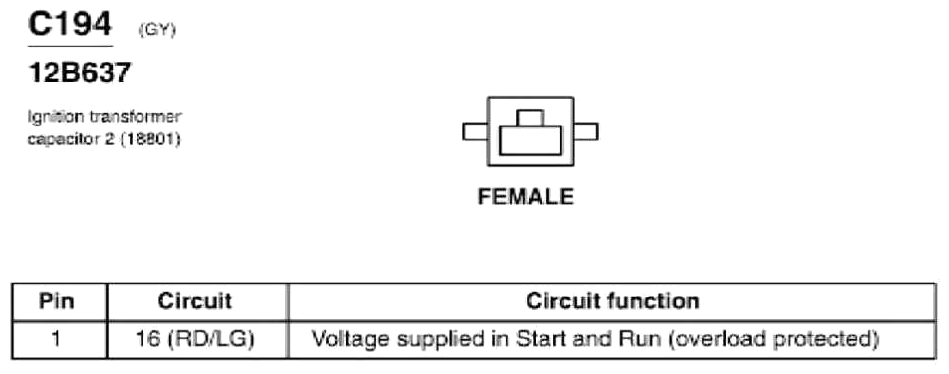

Fig 67: Ignition Transformer Capacitor 2 Connector End View (C194)

G07846352

Courtesy of FORD MOTOR CO.

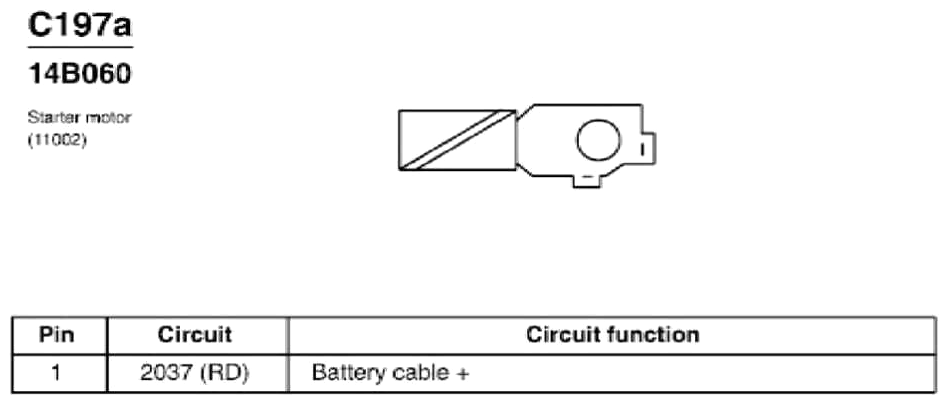

Fig 68: Starter Motor Connector End View (C197a)

G07846353

Courtesy of FORD MOTOR CO.

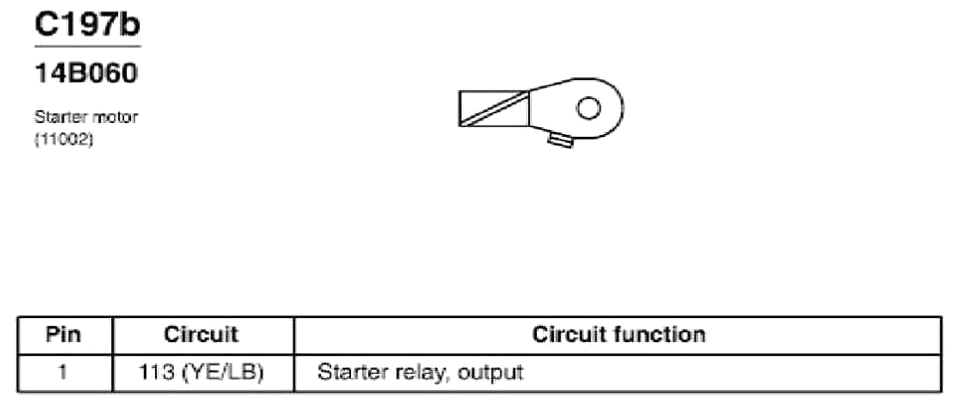

Fig 69: Starter Motor Connector End View (C197b)

G07846354

Courtesy of FORD MOTOR CO.

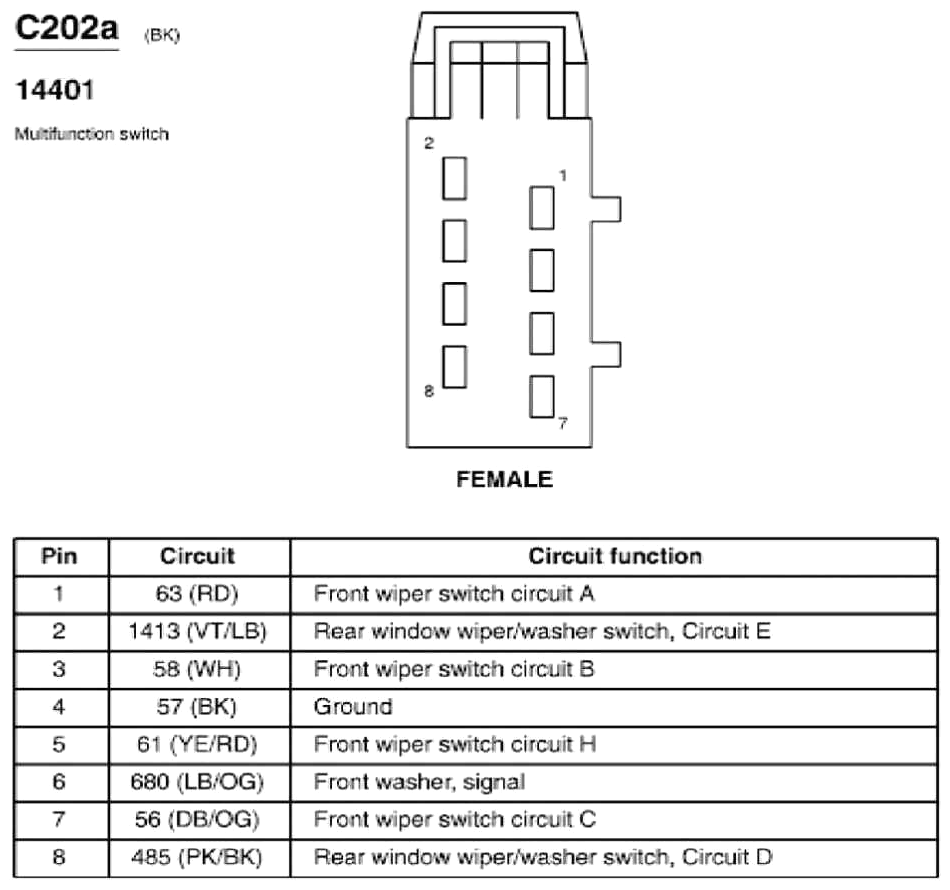

Fig 70: Multifunction Switch Connector End View (C202a)

G07846355

Courtesy of FORD MOTOR CO.

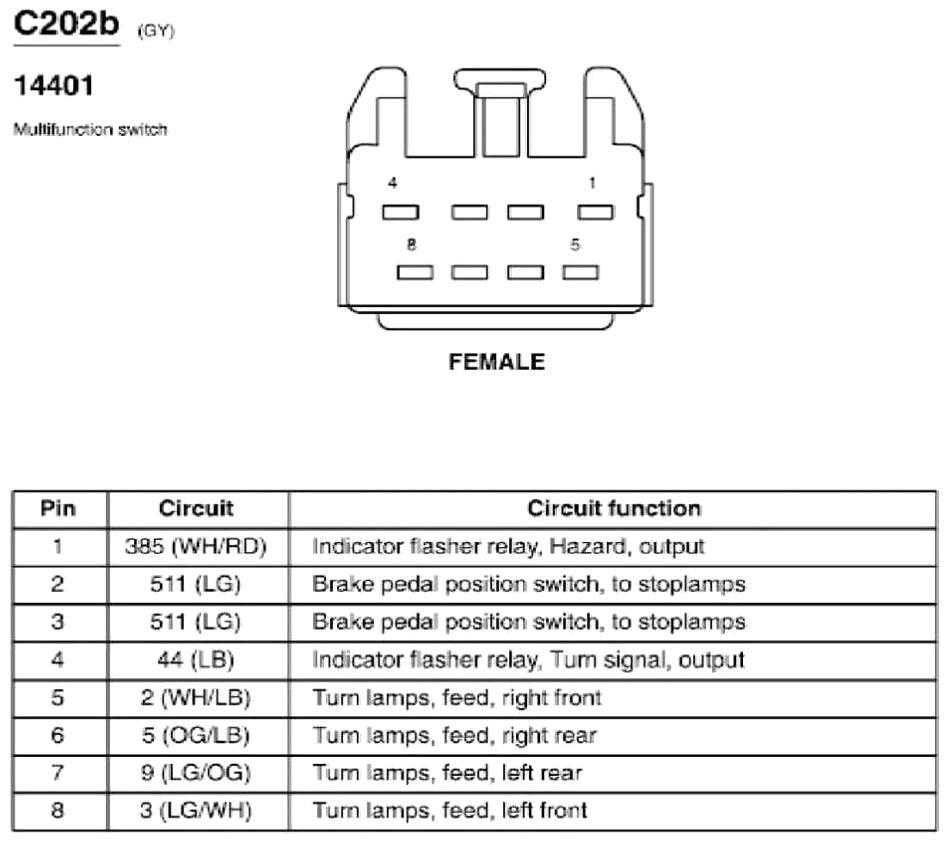

Fig 71: Multifunction Switch Connector End View (C202b)

G07846356

Courtesy of FORD MOTOR CO.

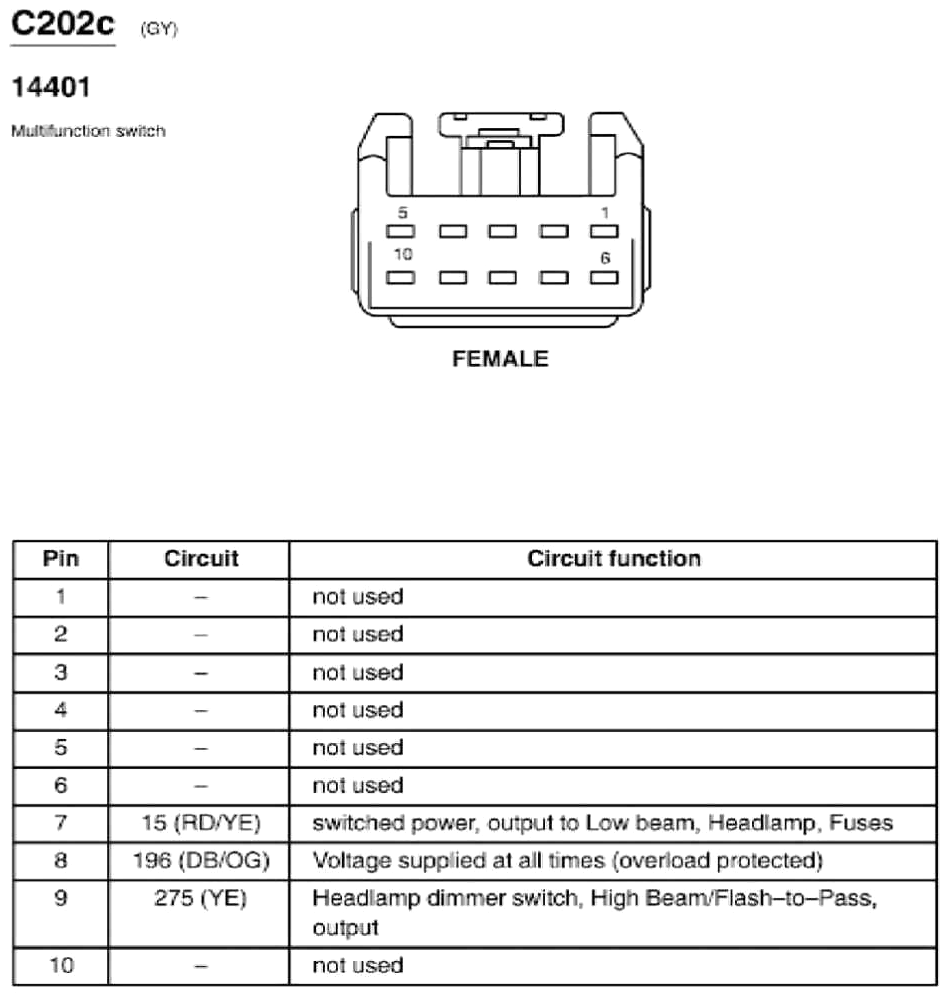

Fig 72: Multifunction Switch Connector End View (C202c)

G07846357

Courtesy of FORD MOTOR CO.

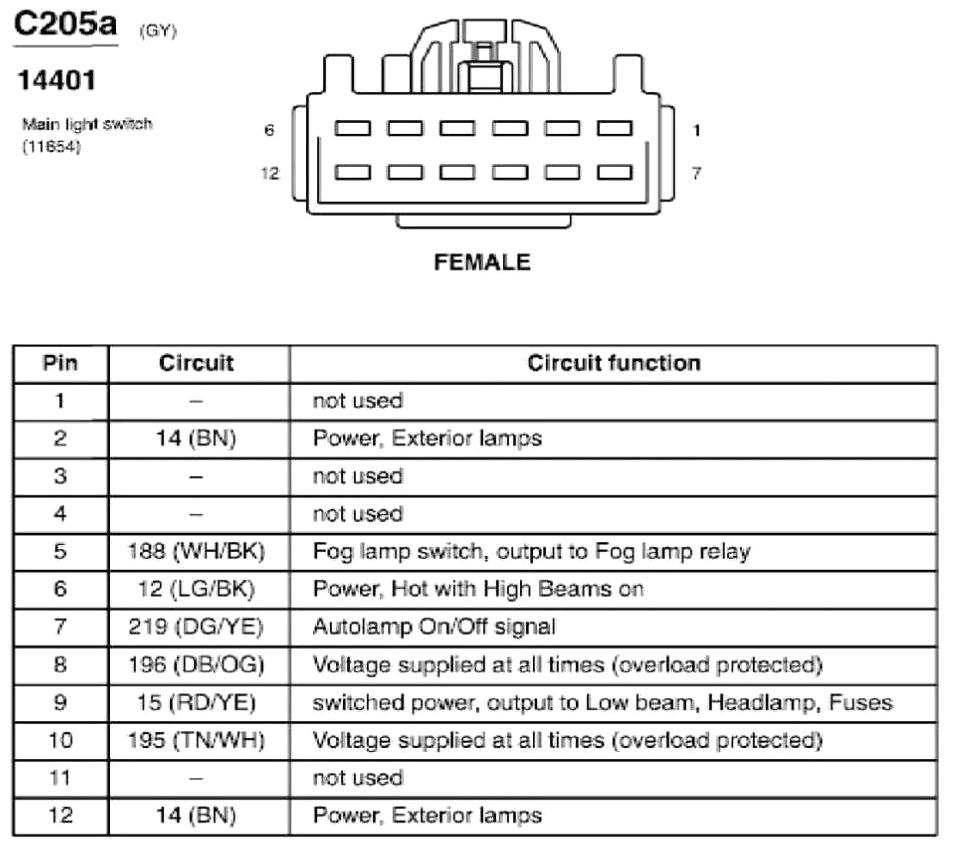

Fig 73: Main Light Switch Connector End View (C205a)

G07846358

Courtesy of FORD MOTOR CO.

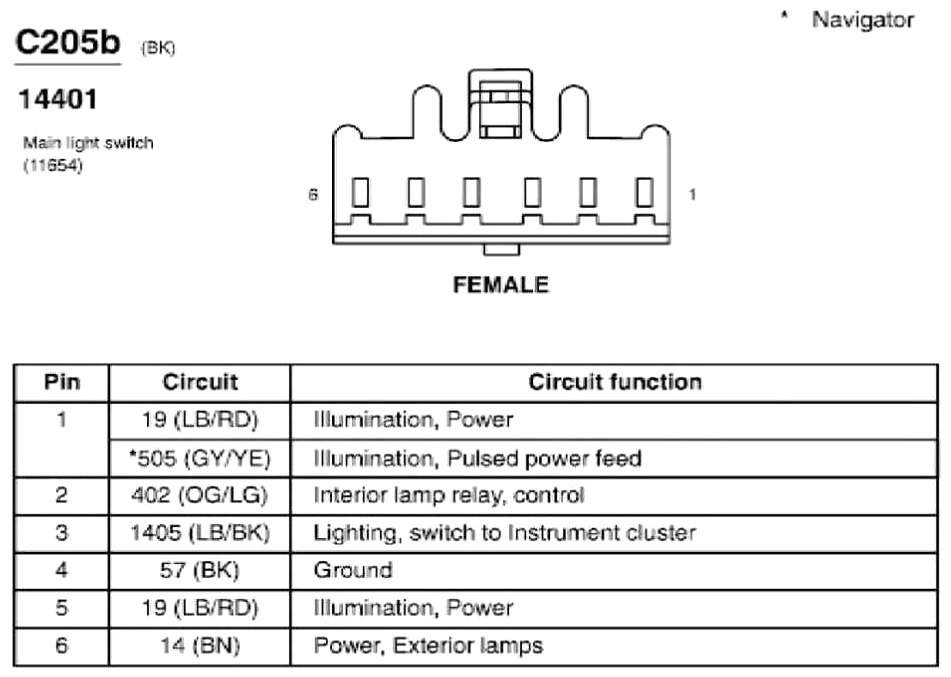

Fig 74: Main Light Switch Connector End View (C205b)

G07846359

Courtesy of FORD MOTOR CO.

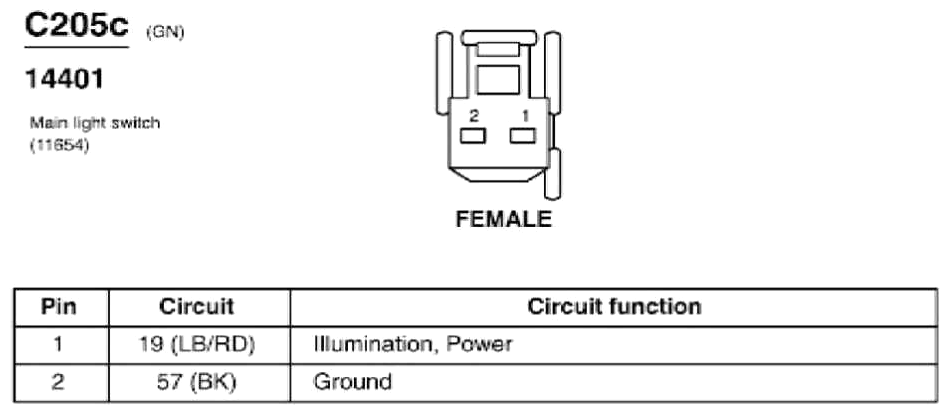

Fig 75: Main Light Switch Connector End View (C205c)

G07846360

Courtesy of FORD MOTOR CO.

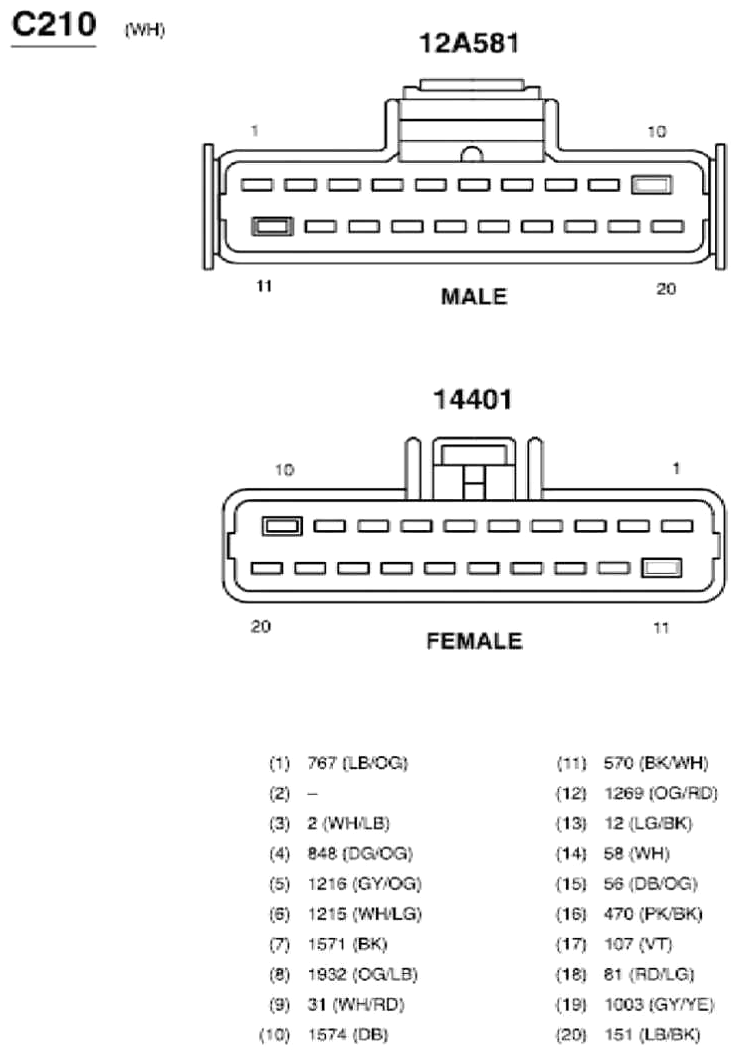

Fig 76: Inline Connector End View (C210)

G07846361

Courtesy of FORD MOTOR CO.

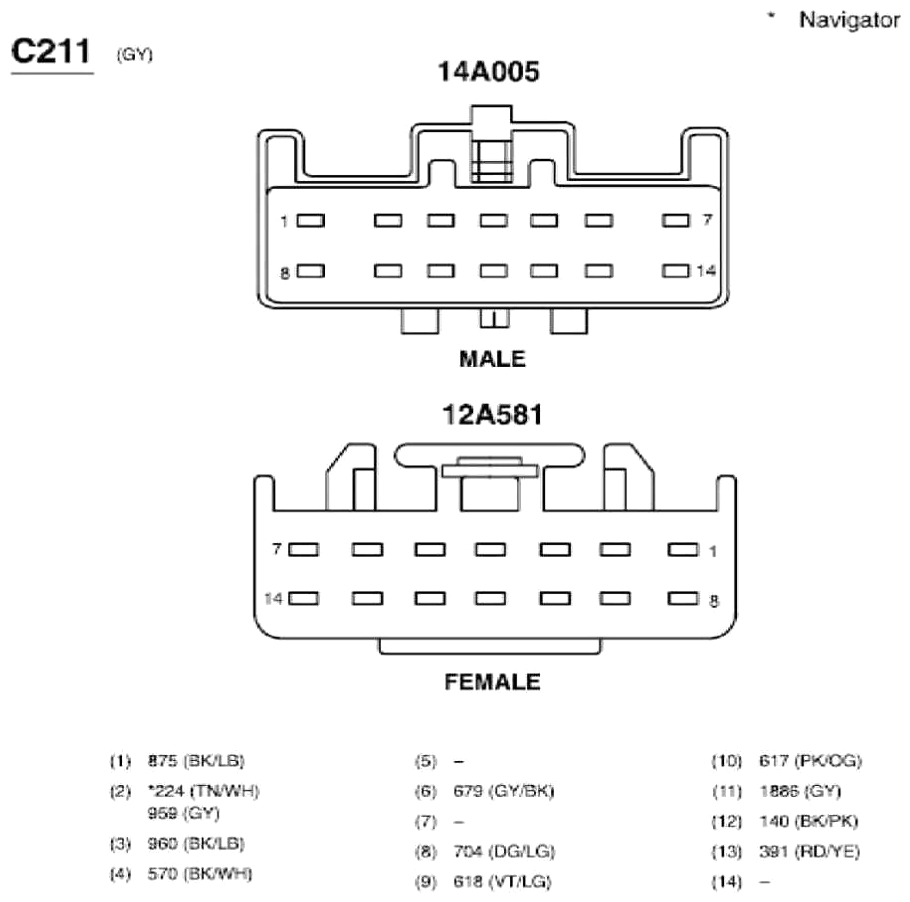

Fig 77: Inline Connector End View (C211)

G07846362

Courtesy of FORD MOTOR CO.

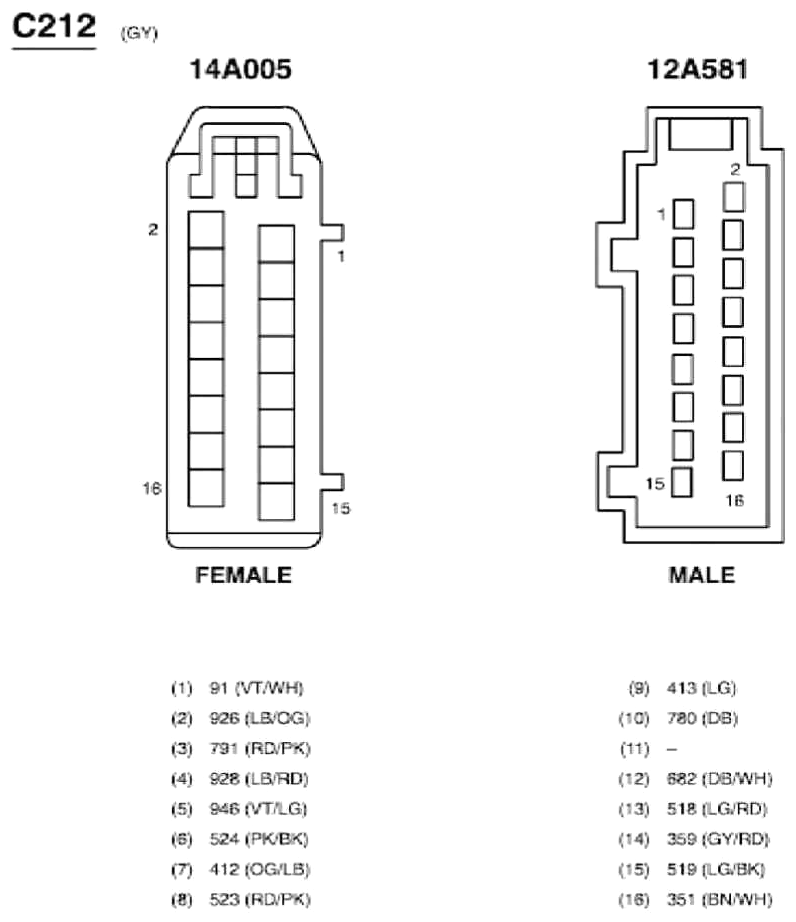

Fig 78: Inline Connector End View (C212)

G07846363

Courtesy of FORD MOTOR CO.

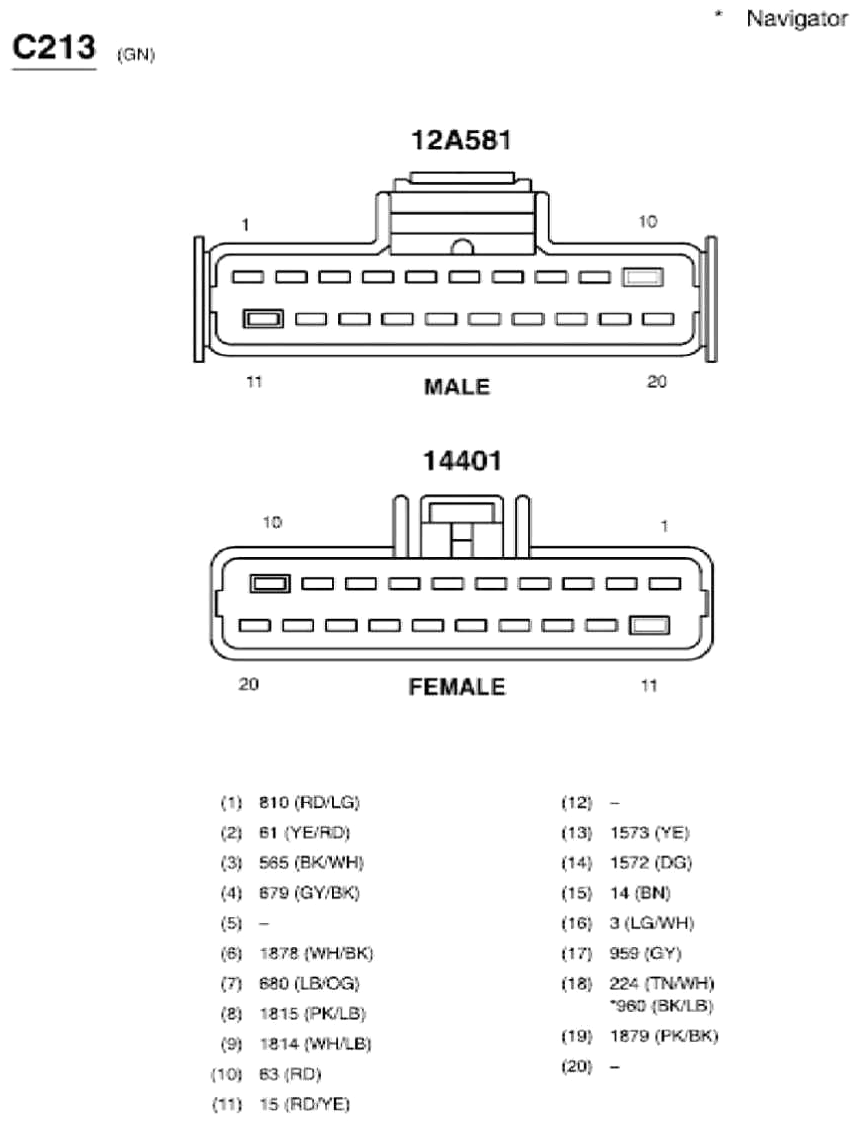

Fig 79: Inline Connector End View (C213)

G07846364

Courtesy of FORD MOTOR CO.

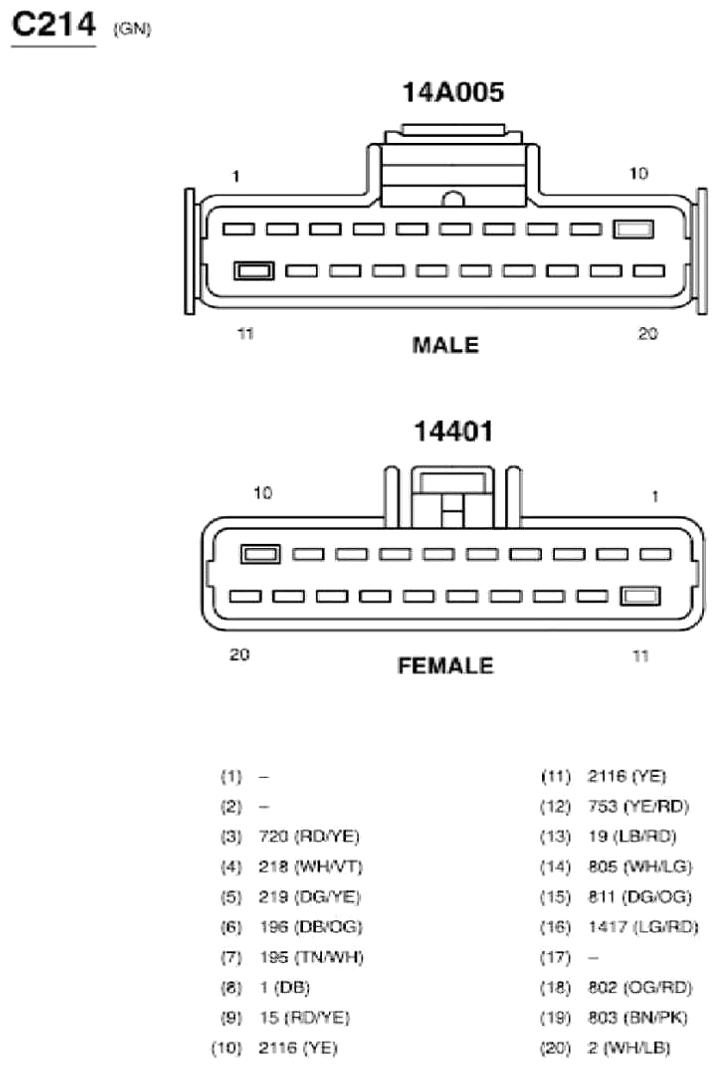

Fig 80: Inline Connector End View (C214)

G07846365

Courtesy of FORD MOTOR CO.

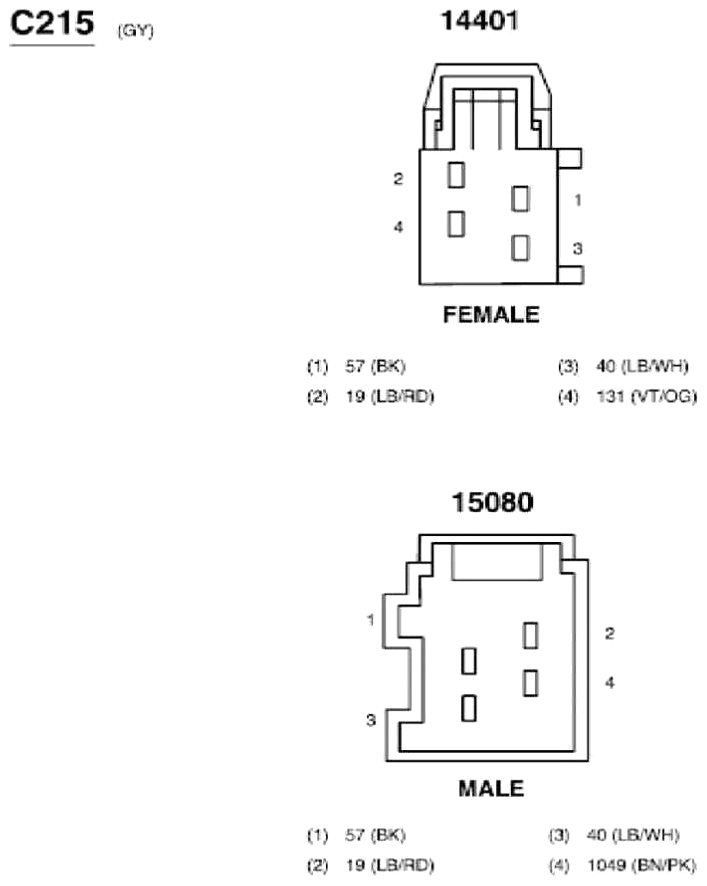

Fig 81: Inline Connector End View (C215)

G07846366

Courtesy of FORD MOTOR CO.

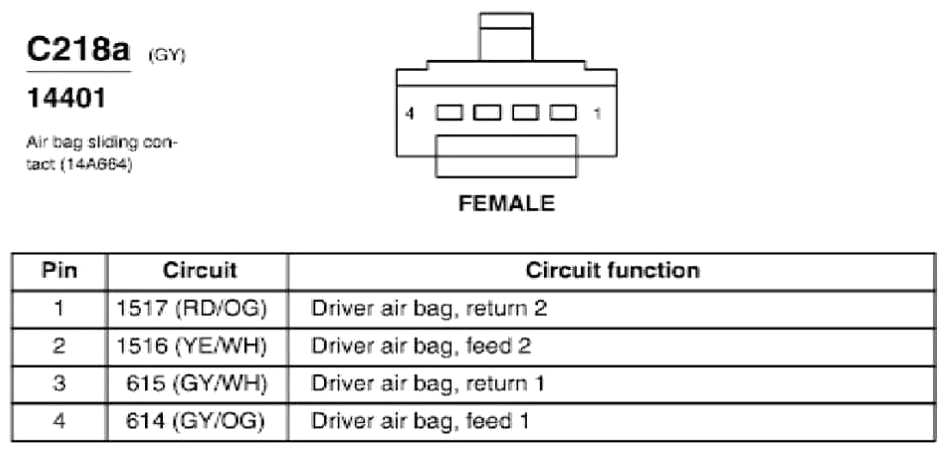

Fig 82: Air Bag Sliding Contact Connector End View (C218a)

G07846367

Courtesy of FORD MOTOR CO.

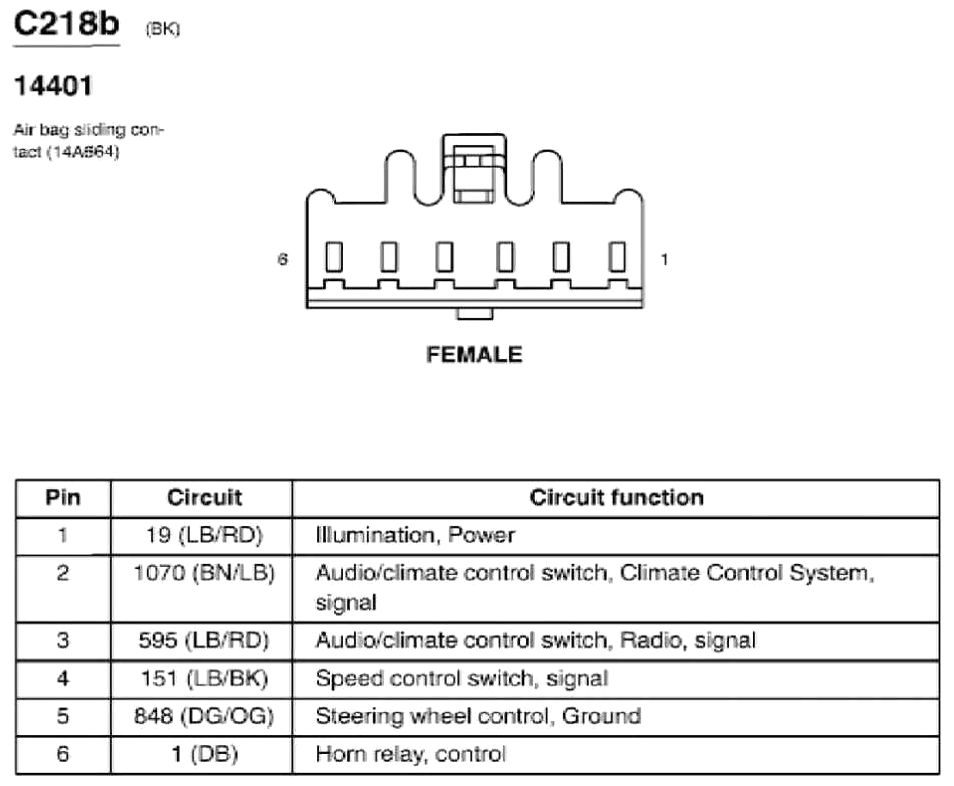

Fig 83: Air Bag Sliding Contact Connector End View (C218b)

G07846368

Courtesy of FORD MOTOR CO.

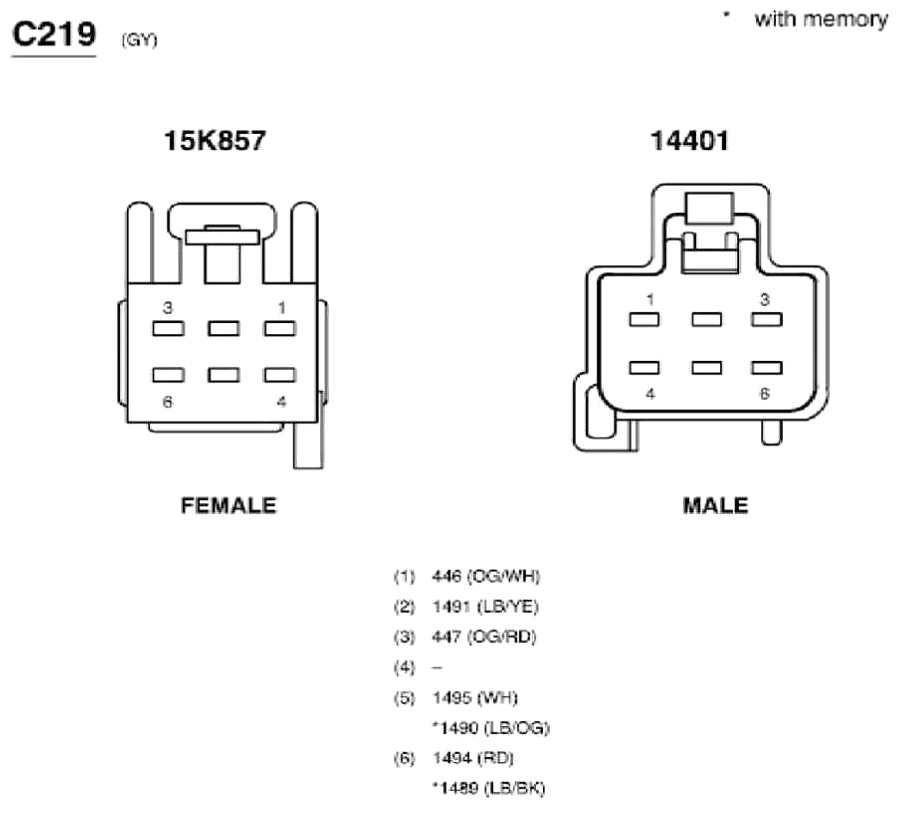

Fig 84: Inline Connector End View (C219)

G07846369

Courtesy of FORD MOTOR CO.

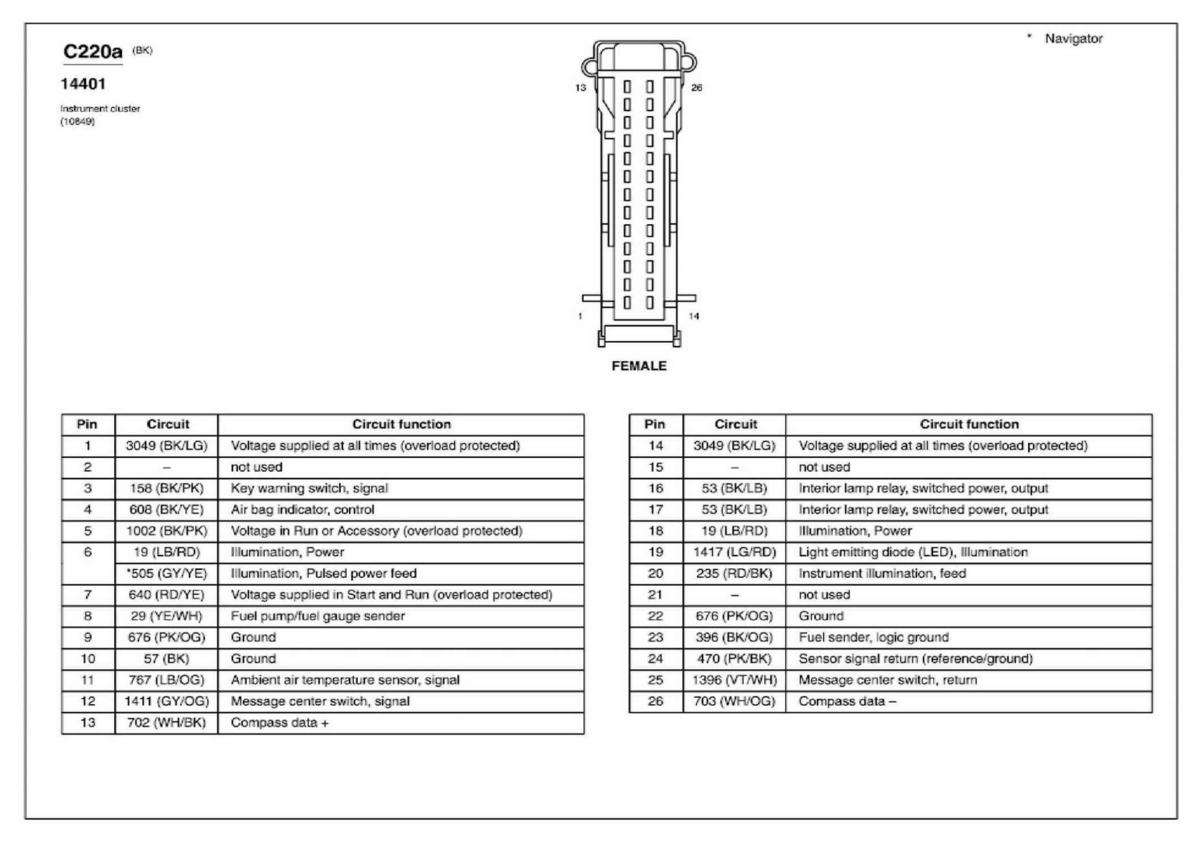

Fig 85: Instrument Cluster Connector End View (C220a)

G04596378

Courtesy of FORD MOTOR CO.

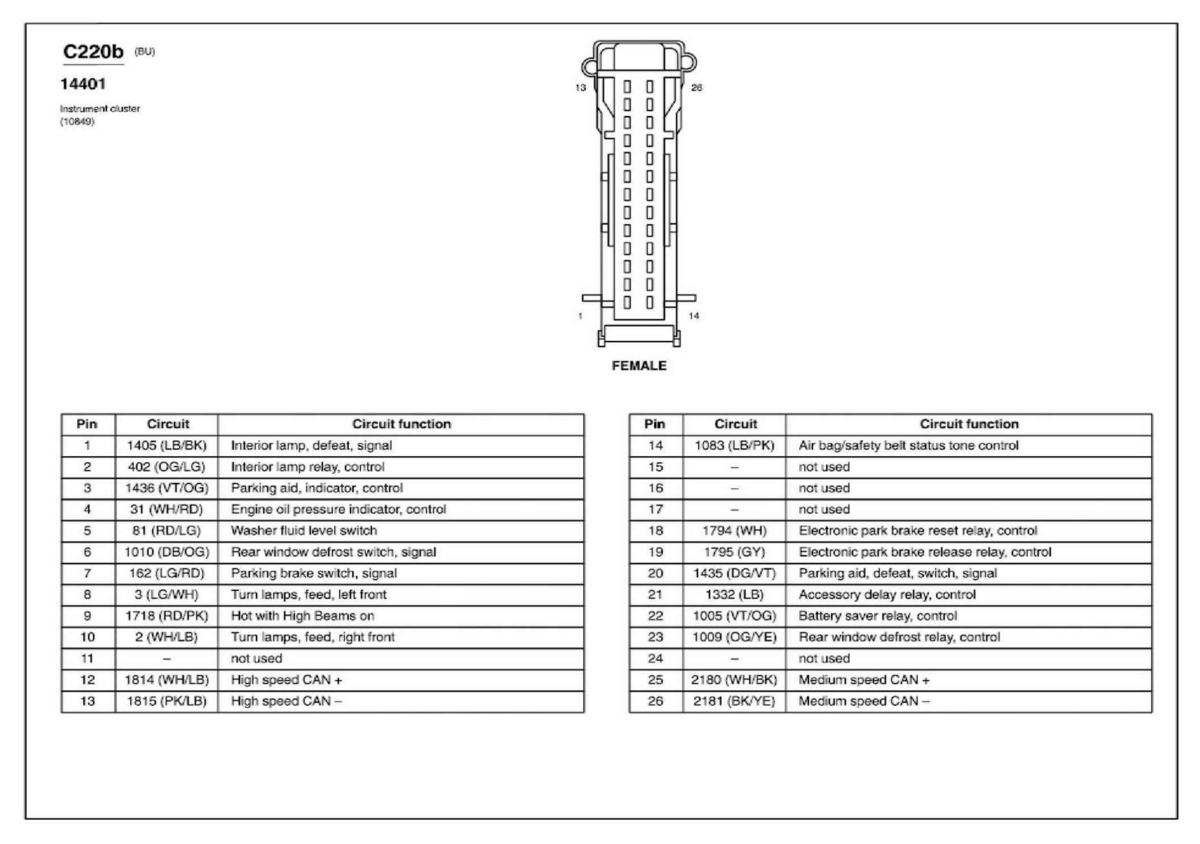

Fig 86: Instrument Cluster Connector End View (C220b)

G04596379

Courtesy of FORD MOTOR CO.

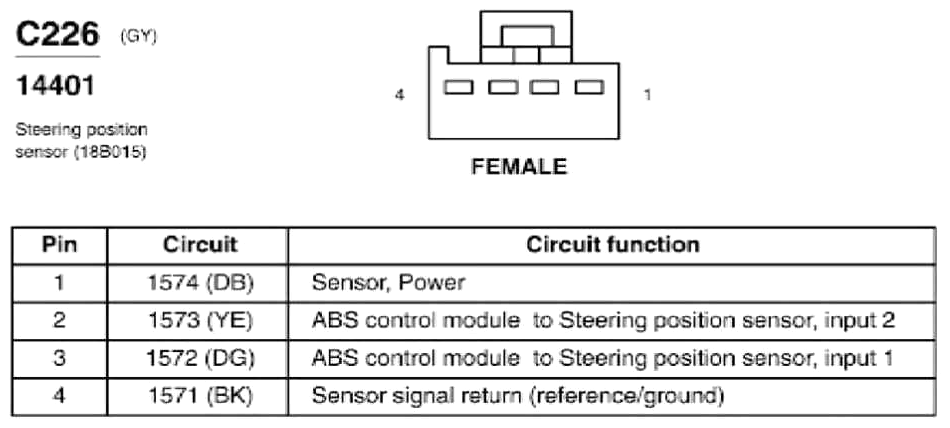

Fig 87: Steering Position Sensor Connector End View (C226)

G07846370

Courtesy of FORD MOTOR CO.

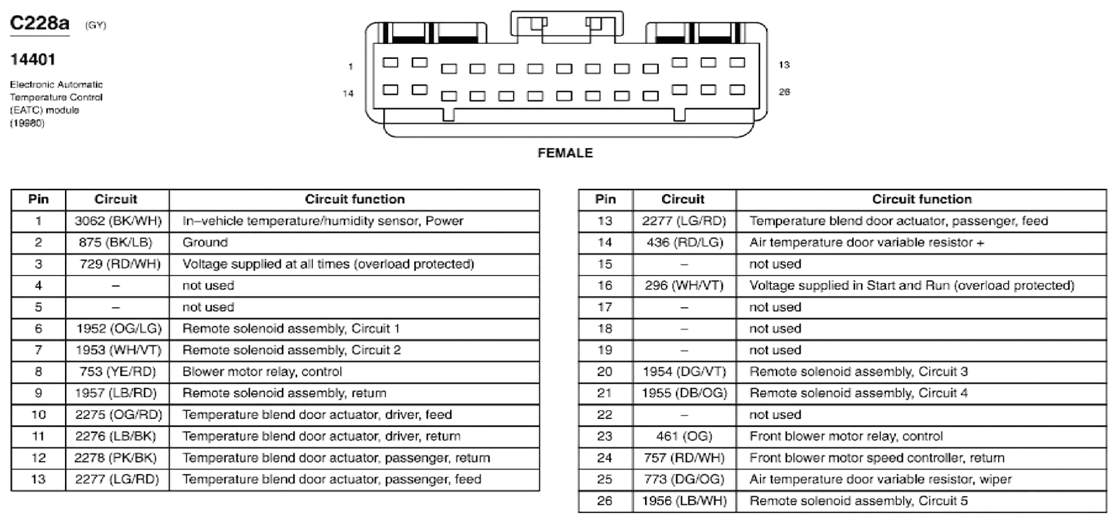

Fig 88: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G07846371

Courtesy of FORD MOTOR CO.

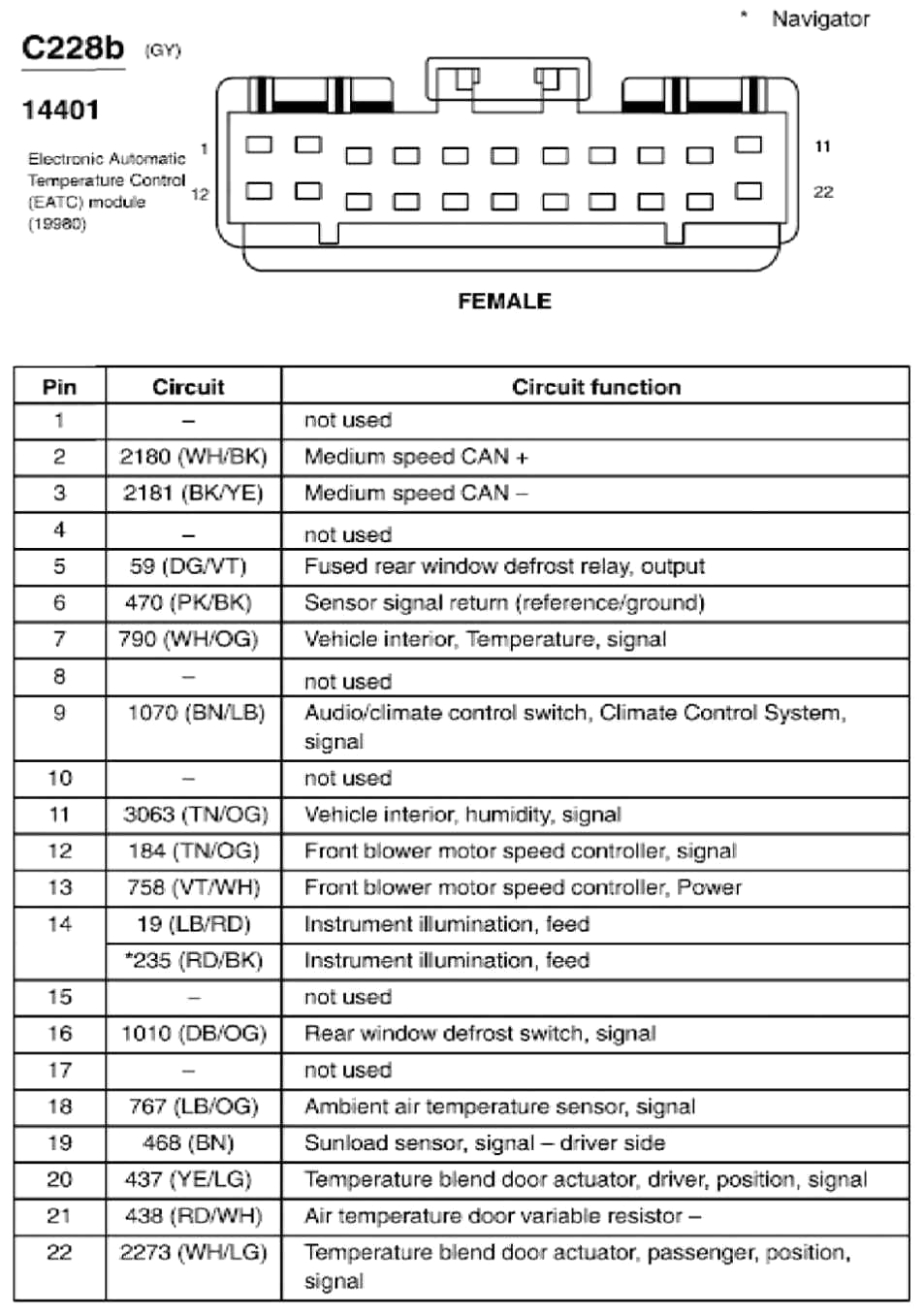

Fig 89: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07846372

Courtesy of FORD MOTOR CO.

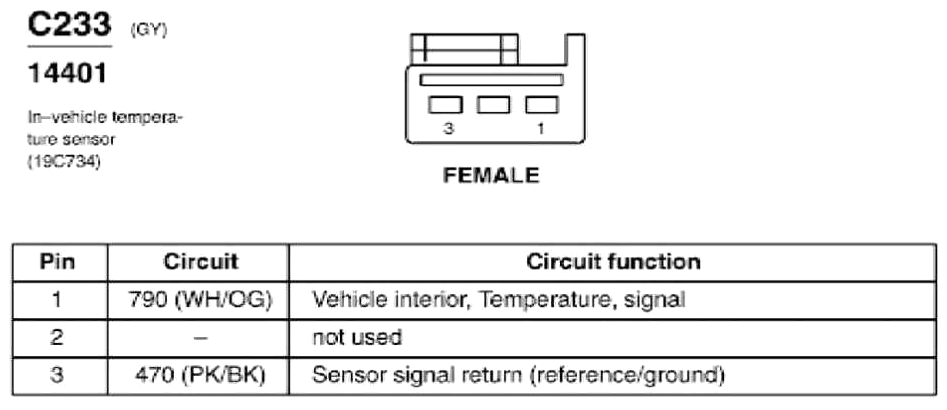

Fig 90: In-vehicle Temperature Sensor Connector End View (C233)

G07846373

Courtesy of FORD MOTOR CO.

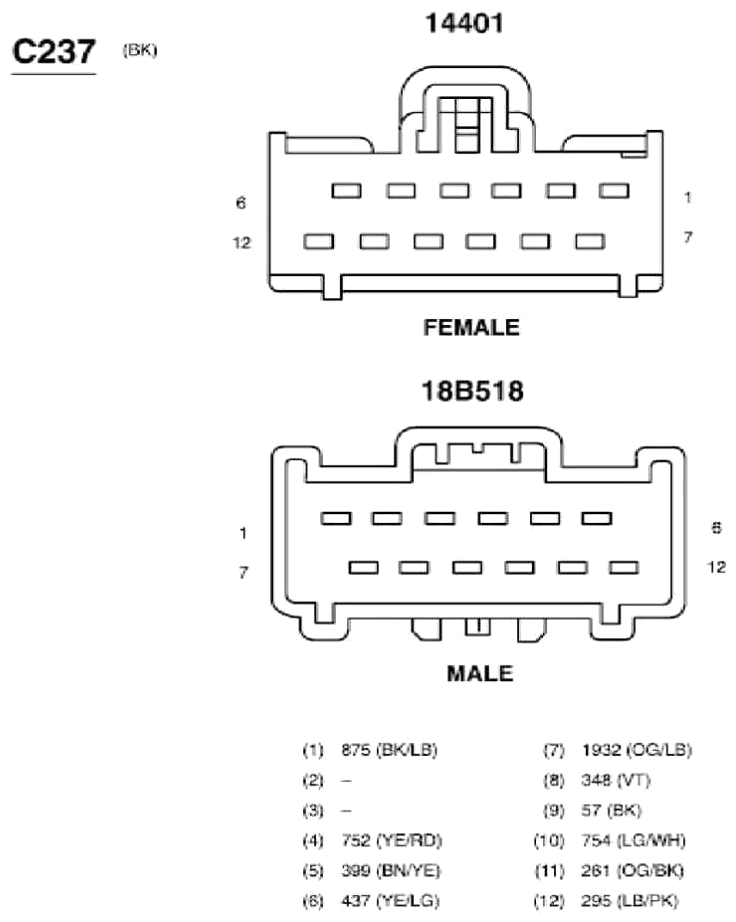

Fig 91: Inline Connector End View (C237)

G07846374

Courtesy of FORD MOTOR CO.

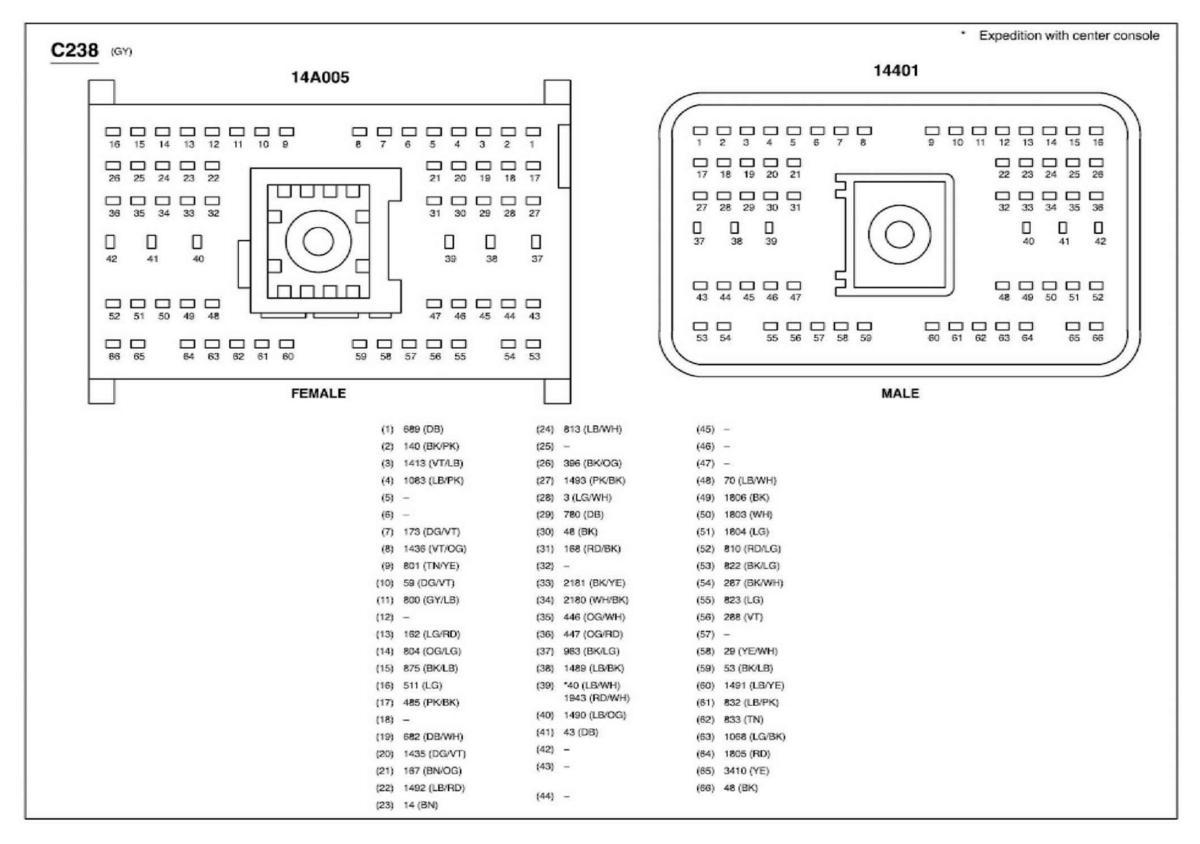

Fig 92: Inline Connector End View (C238)

G04596382

Courtesy of FORD MOTOR CO.

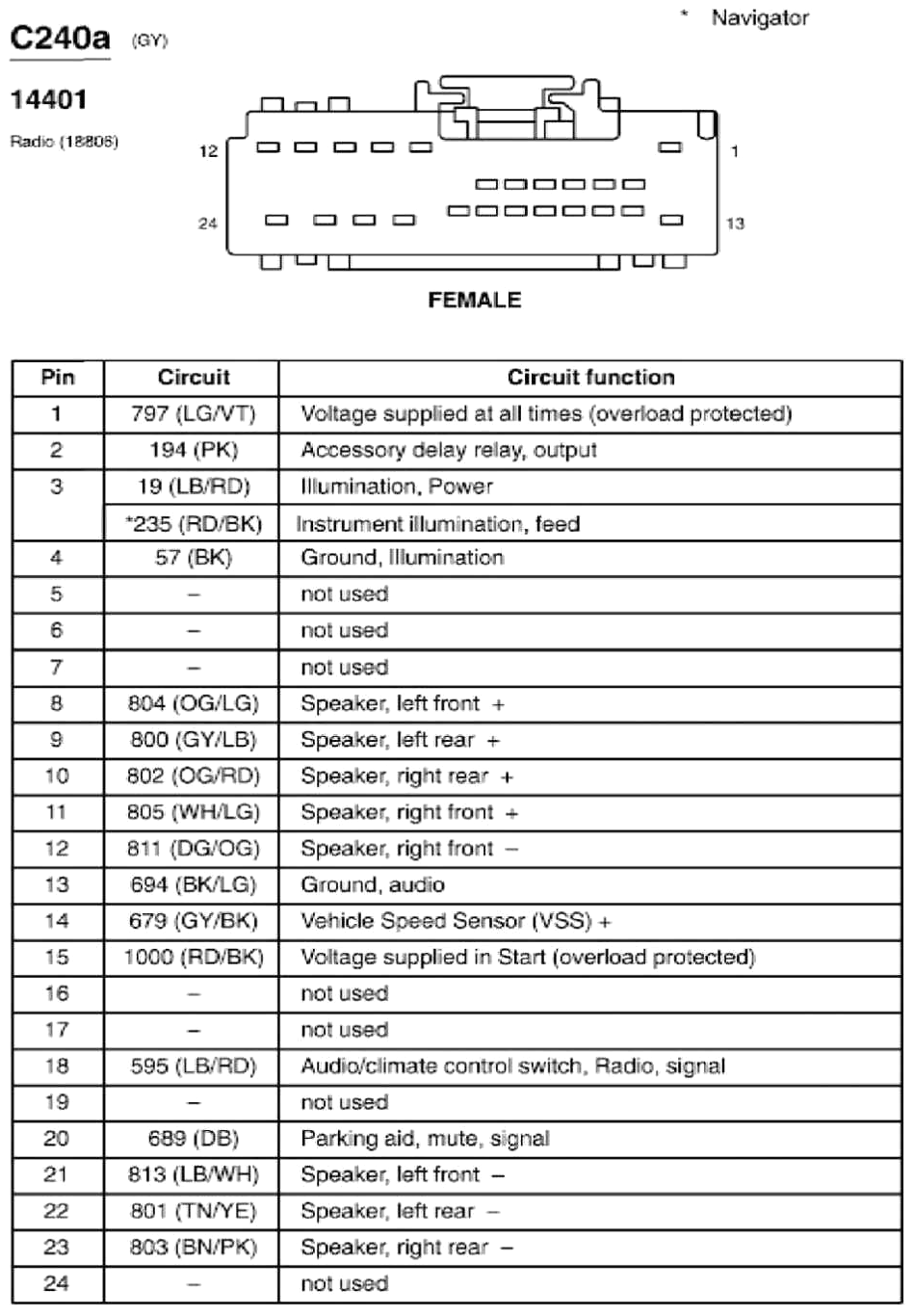

Fig 93: Radio Connector End View (C240a)

G07846375

Courtesy of FORD MOTOR CO.

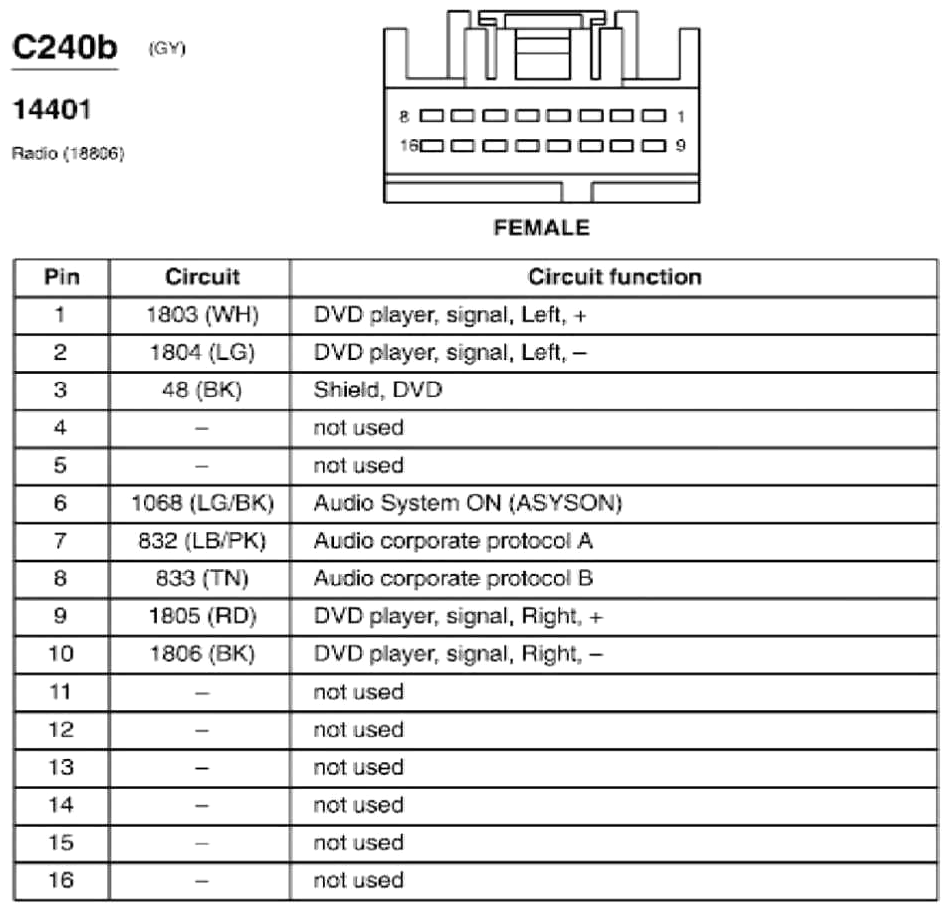

Fig 94: Radio Connector End View (C240b)

G07846376

Courtesy of FORD MOTOR CO.

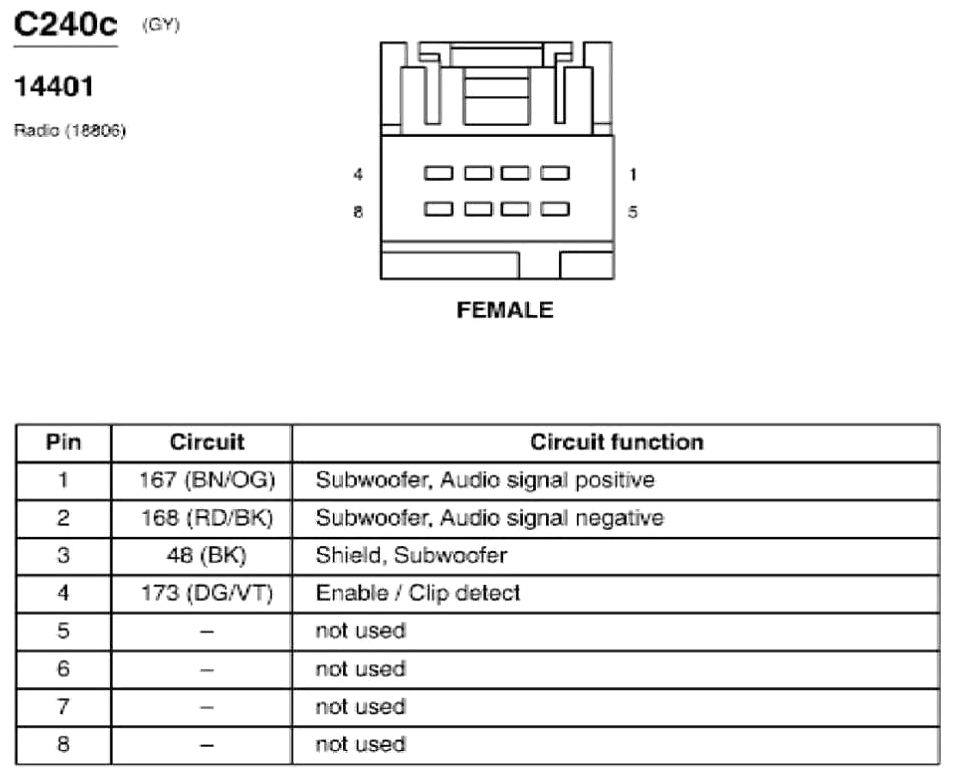

Fig 95: Radio Connector End View (C240c)

G07846377

Courtesy of FORD MOTOR CO.

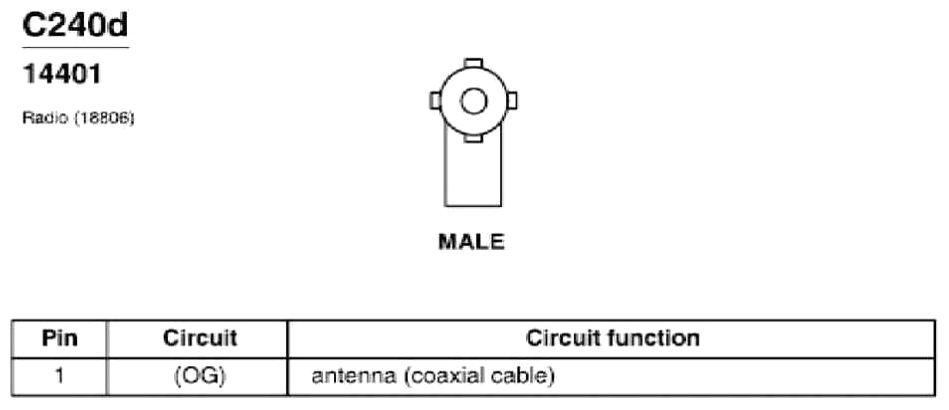

Fig 96: Radio Connector End View (C240d)

G07846378

Courtesy of FORD MOTOR CO.

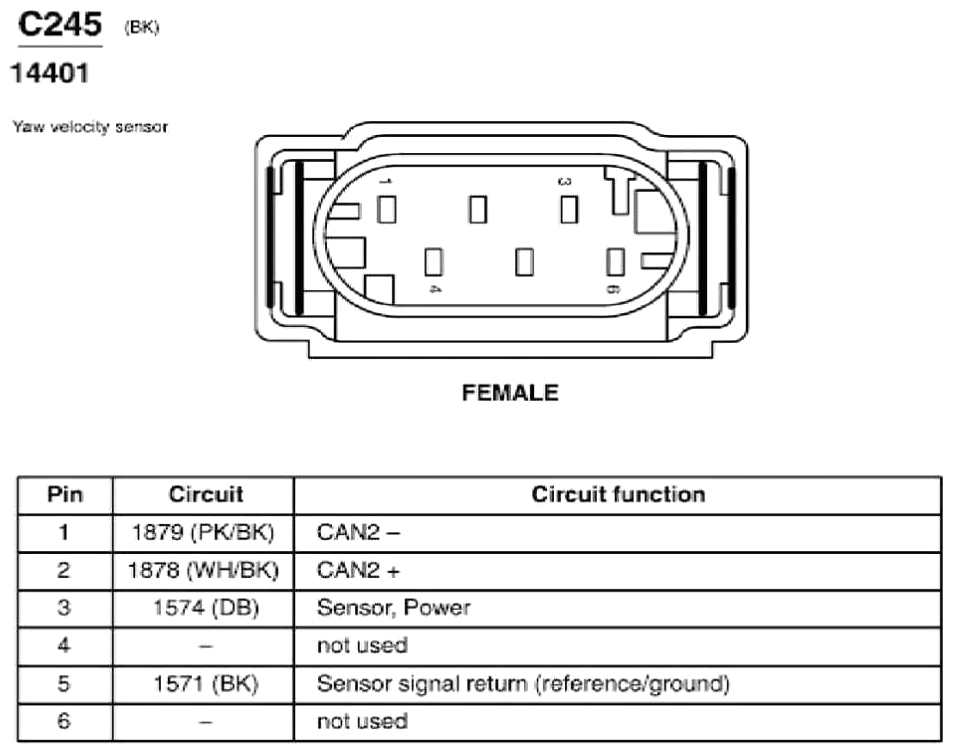

Fig 97: Yaw Velocity Sensor Connector End View (C245)

G07846379

Courtesy of FORD MOTOR CO.

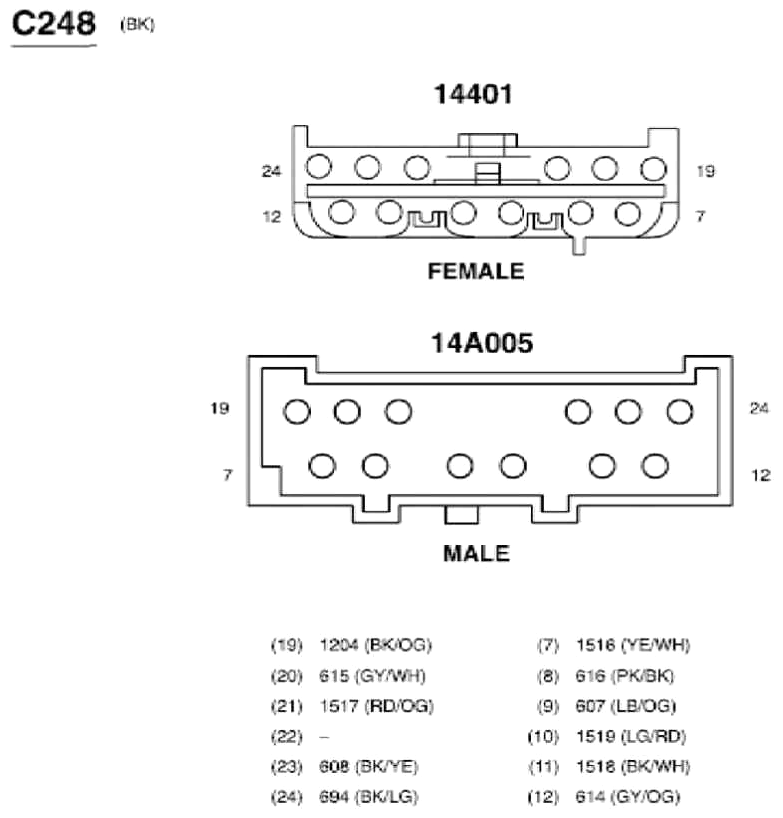

Fig 98: Inline Connector End View (C248)

G07846380

Courtesy of FORD MOTOR CO.

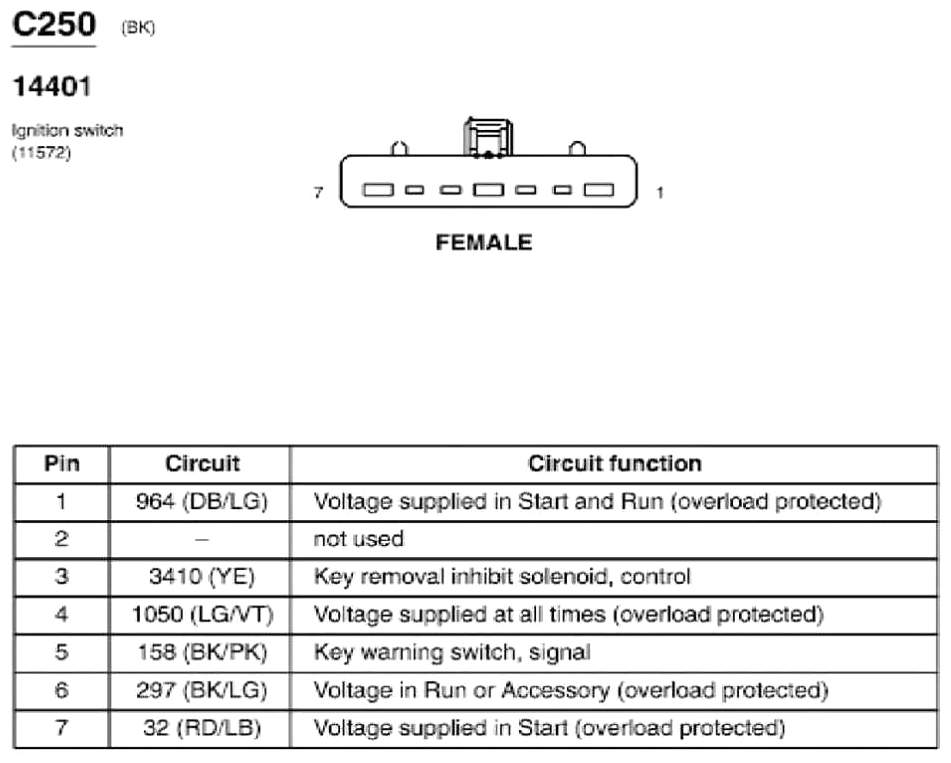

Fig 99: Ignition Switch Connector End View (C250)

G07846381

Courtesy of FORD MOTOR CO.

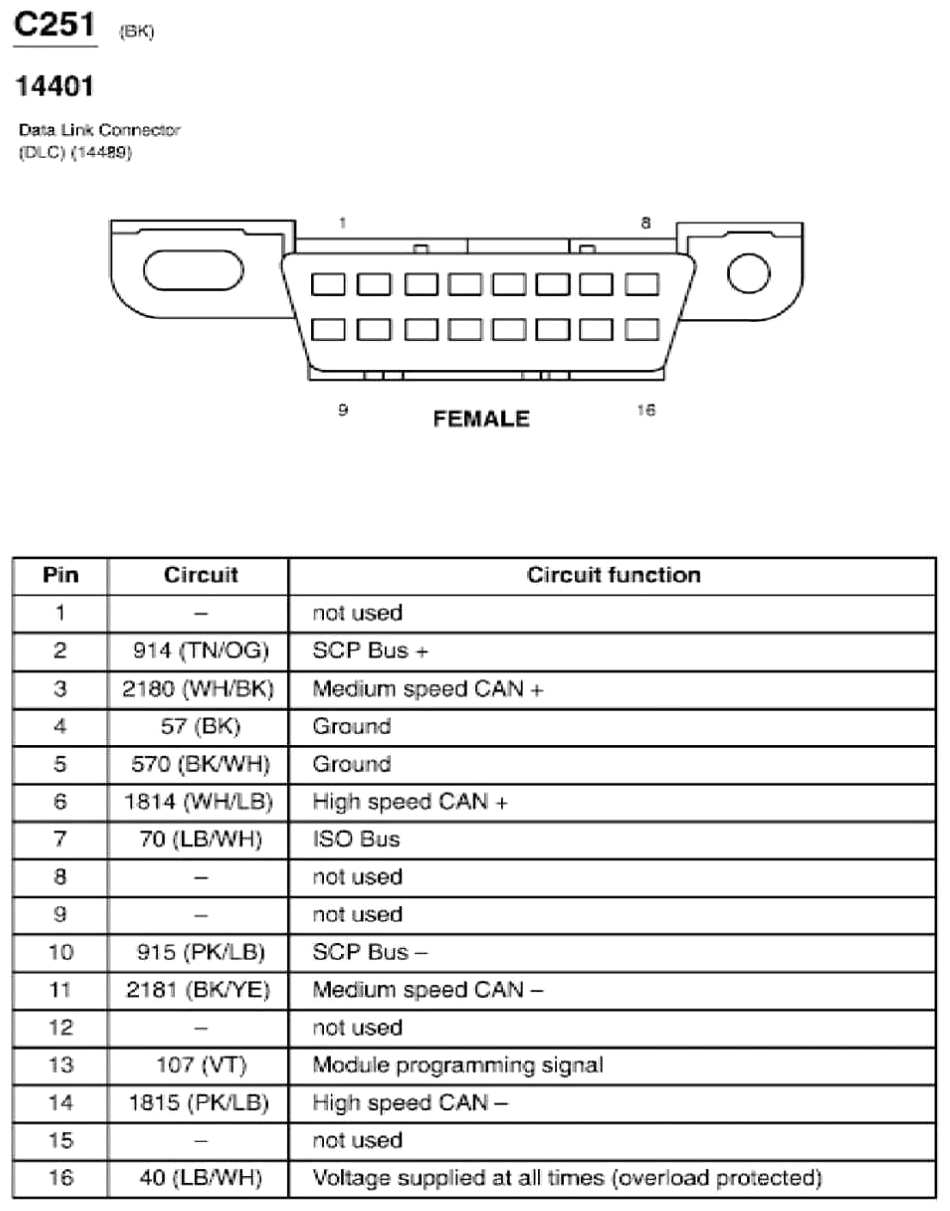

Fig 100: Data Link Connector (DLC) Connector End View (C251)

G07846382

Courtesy of FORD MOTOR CO.

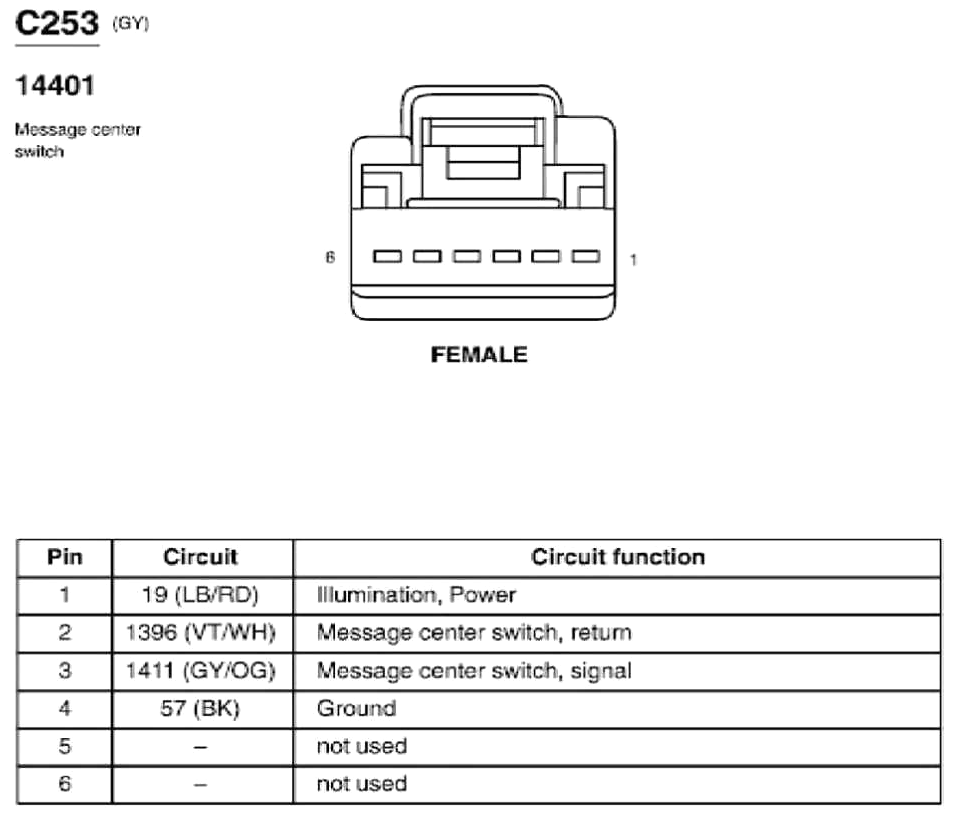

Fig 101: Message Center Switch Connector End View (C253)

G07846383

Courtesy of FORD MOTOR CO.

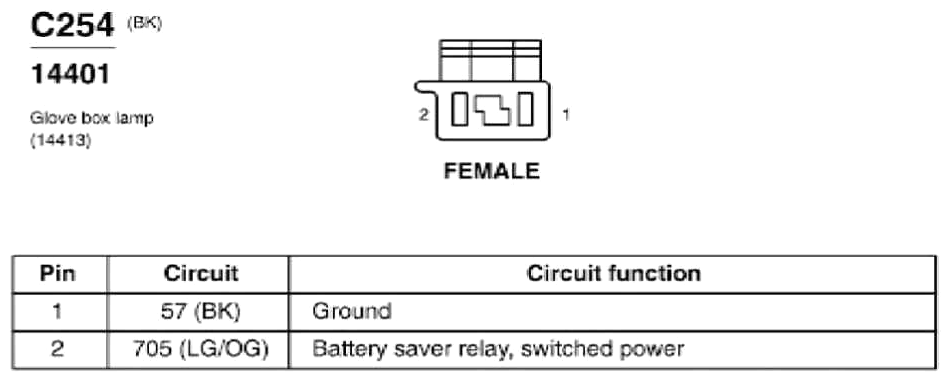

Fig 102: Glove Box Lamp Connector End View (C254)

G07846384

Courtesy of FORD MOTOR CO.

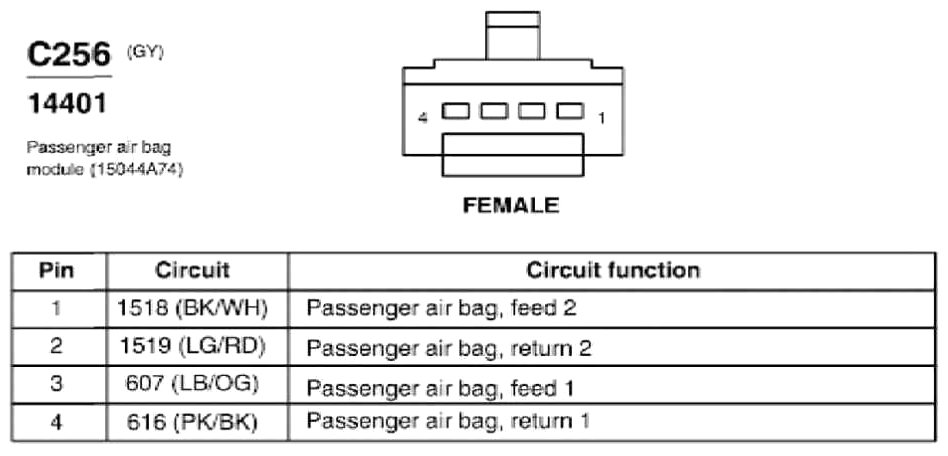

Fig 103: Passenger Air Bag Module Connector End View (C256)

G07846385

Courtesy of FORD MOTOR CO.

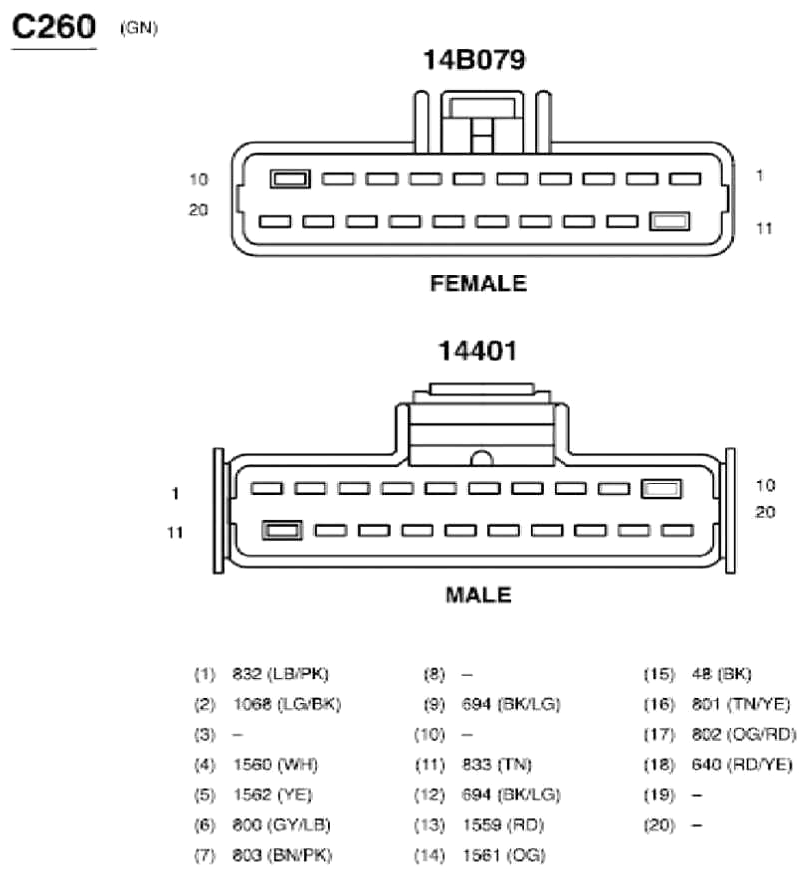

Fig 104: Inline Connector End View (C260)

G07846386

Courtesy of FORD MOTOR CO.

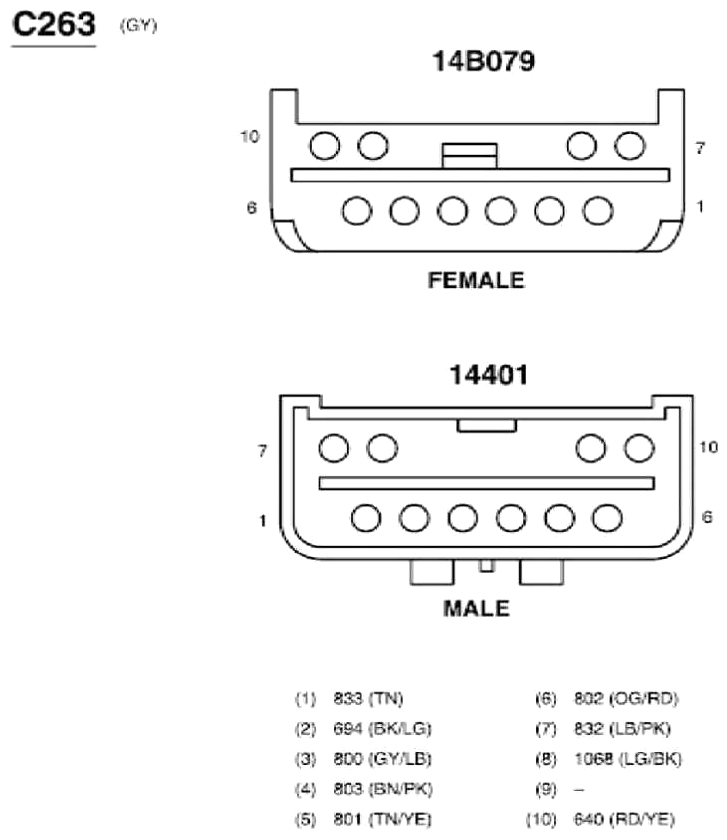

Fig 105: Inline Connector End View (C263)

G07846387

Courtesy of FORD MOTOR CO.

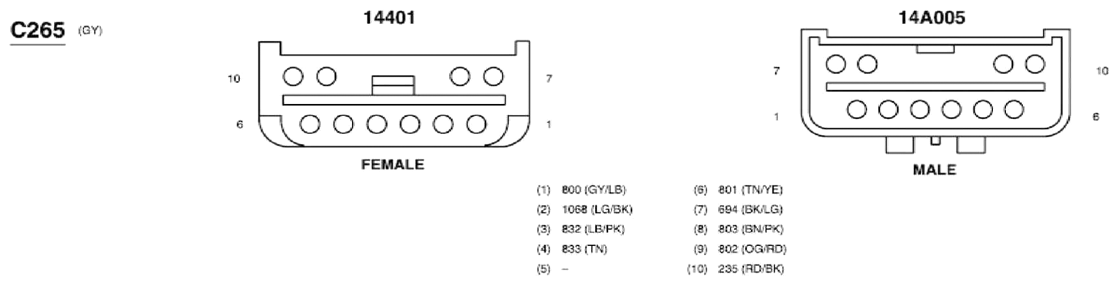

Fig 106: Inline Connector End View (C265)

G07846388

Courtesy of FORD MOTOR CO.

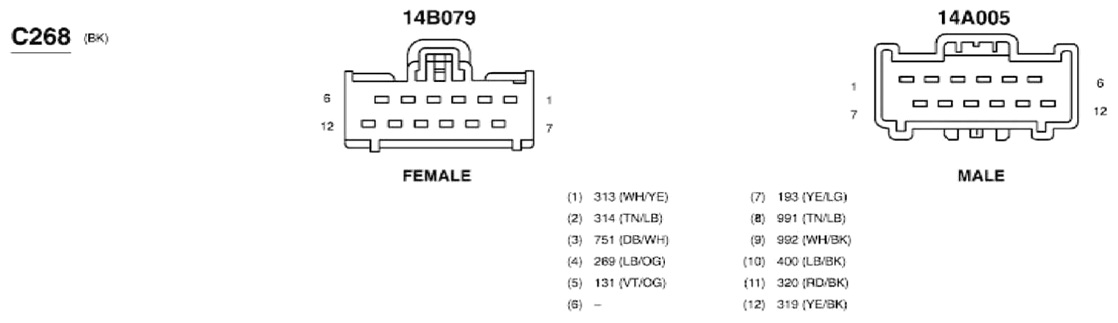

Fig 107: Inline Connector End View (C268)

G07846389

Courtesy of FORD MOTOR CO.

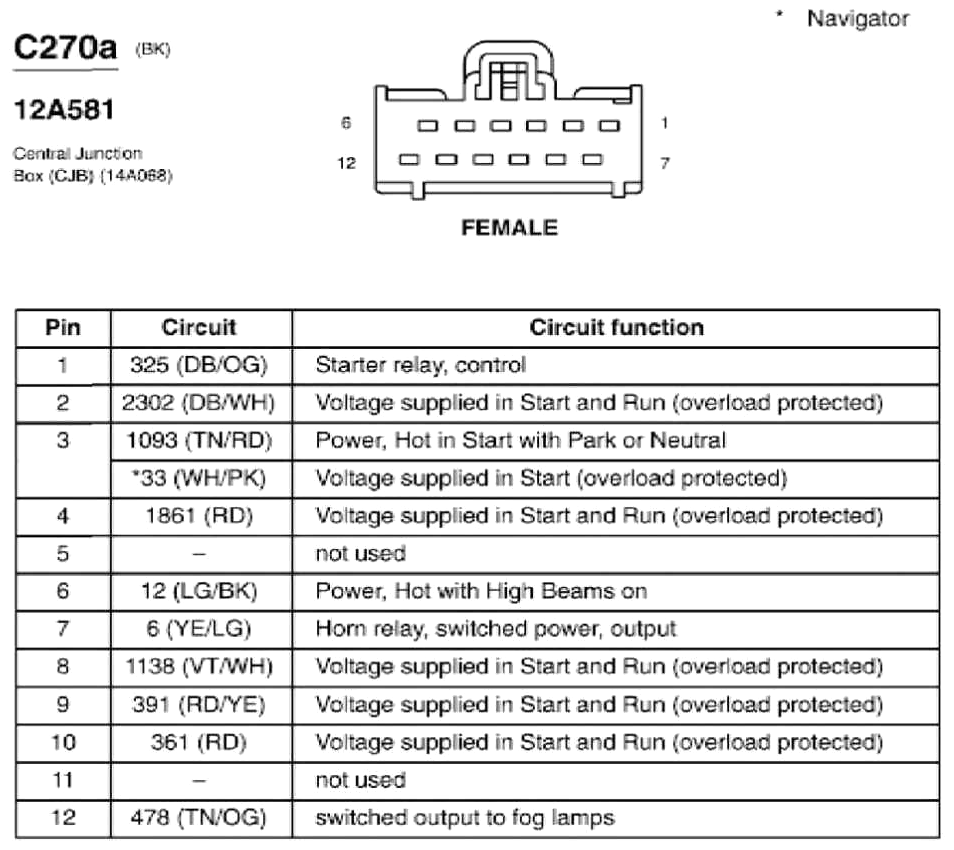

Fig 108: Central Junction Box (CJB) Connector End View (C270a)

G07846390

Courtesy of FORD MOTOR CO.

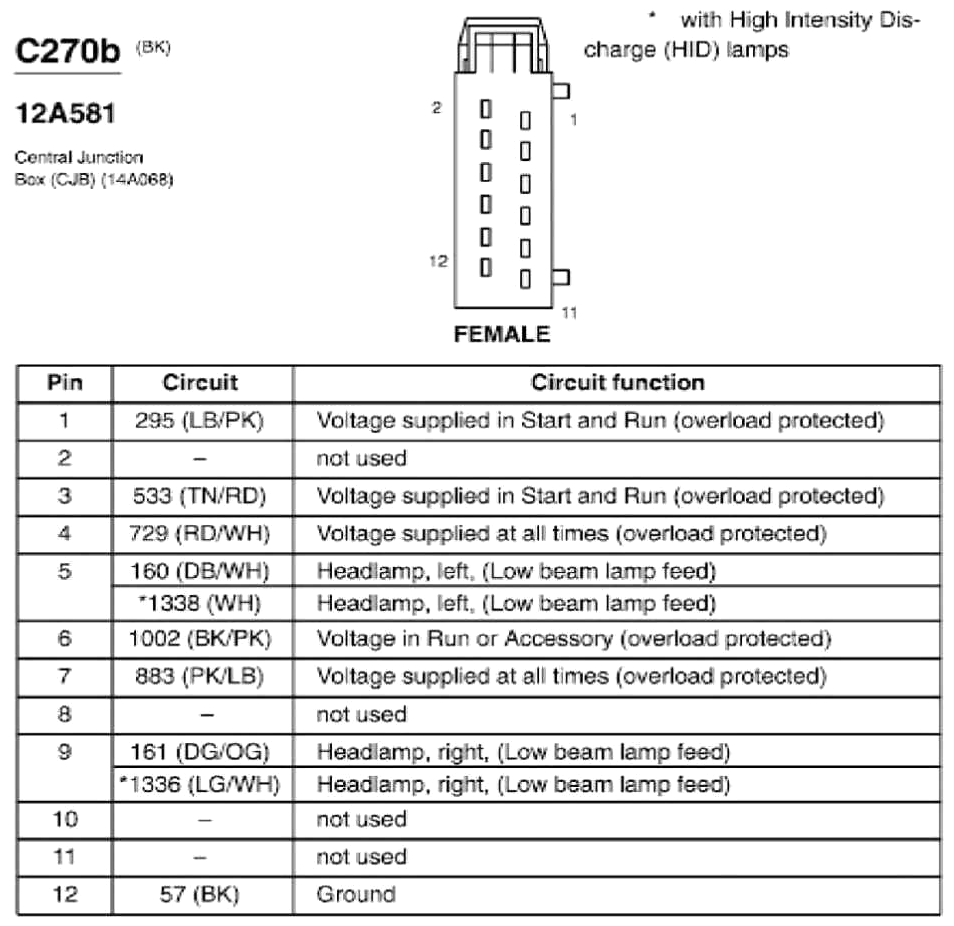

Fig 109: Central Junction Box (CJB) Connector End View (C270b)

G07846391

Courtesy of FORD MOTOR CO.

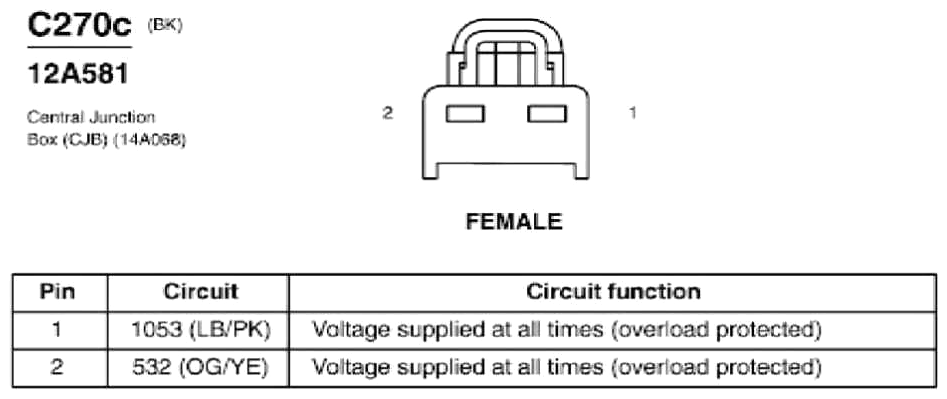

Fig 110: Central Junction Box (CJB) Connector End View (C270c)

G07846392

Courtesy of FORD MOTOR CO.

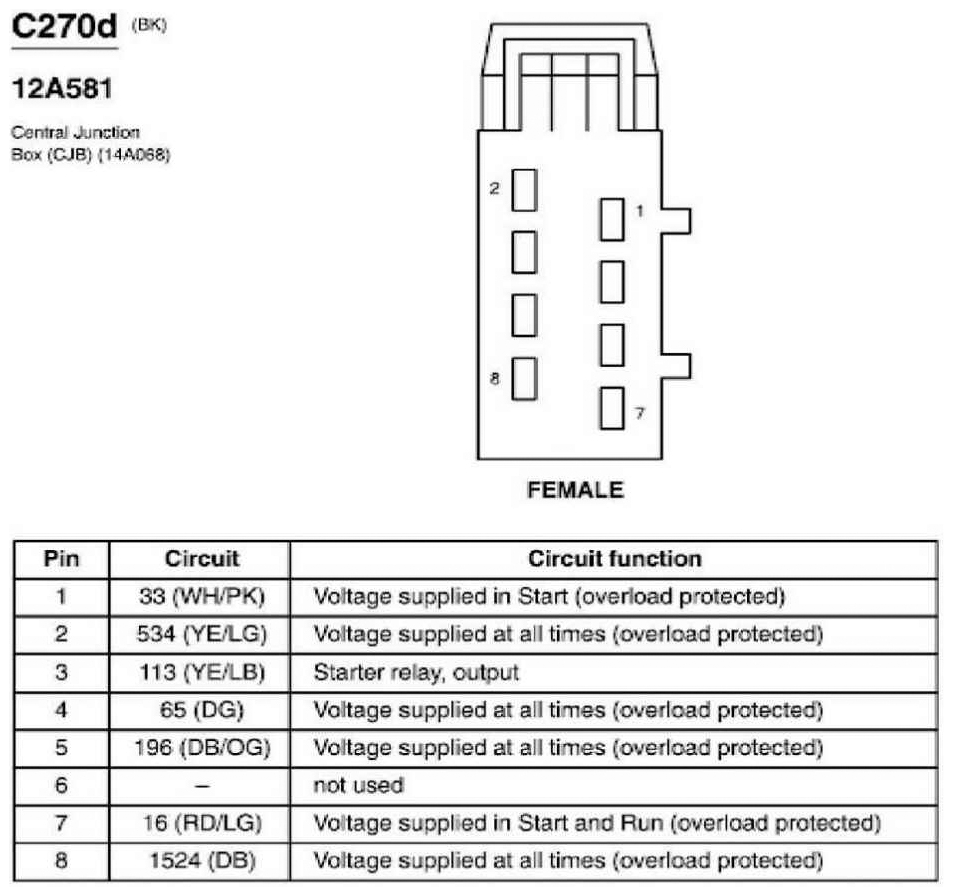

Fig 111: Central Junction Box (CJB) Connector End View (C270d)

G04596390

Courtesy of FORD MOTOR CO.

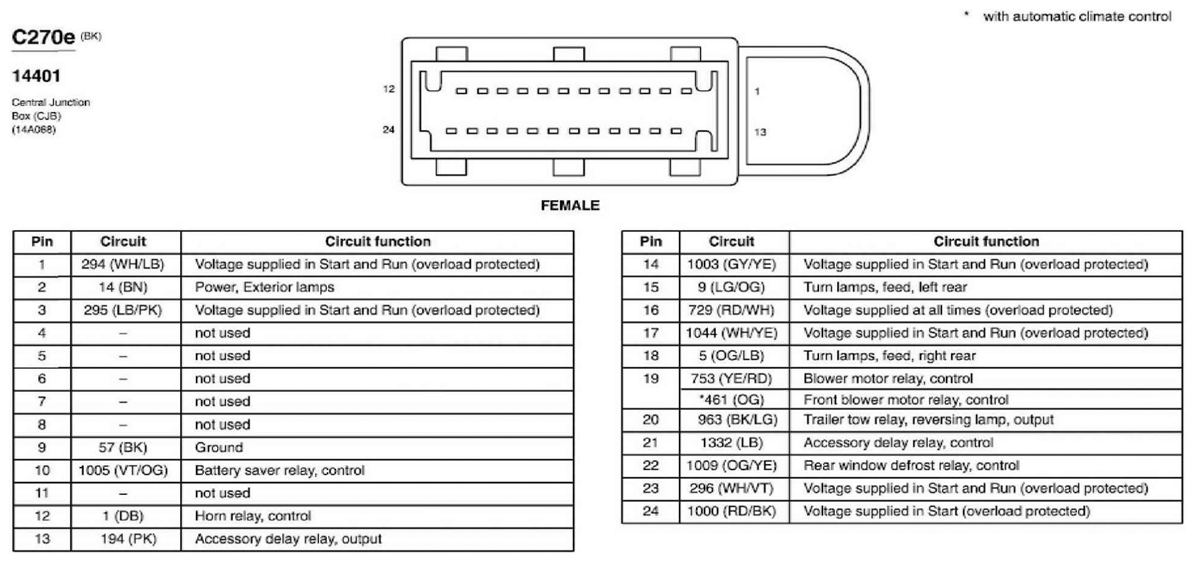

Fig 112: Central Junction Box (CJB) Connector End View (C270e)

G04596391

Courtesy of FORD MOTOR CO.

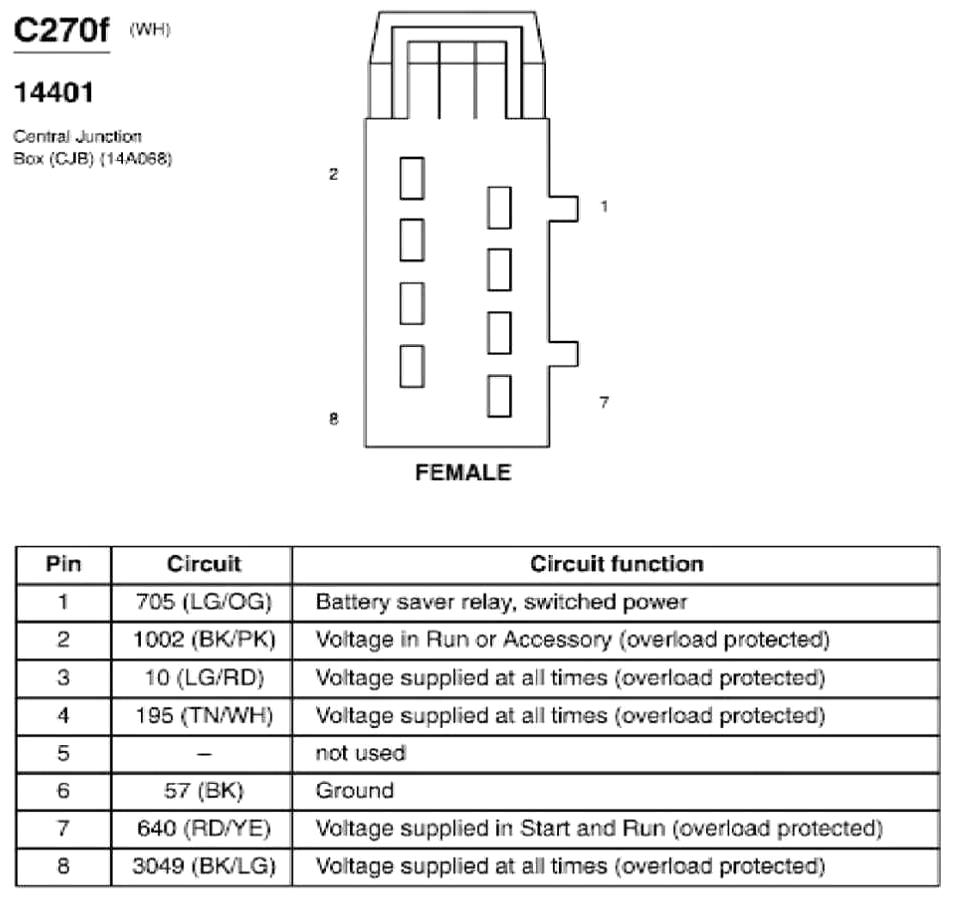

Fig 113: Central Junction Box (CJB) Connector End View (C270f)

G07846393

Courtesy of FORD MOTOR CO.

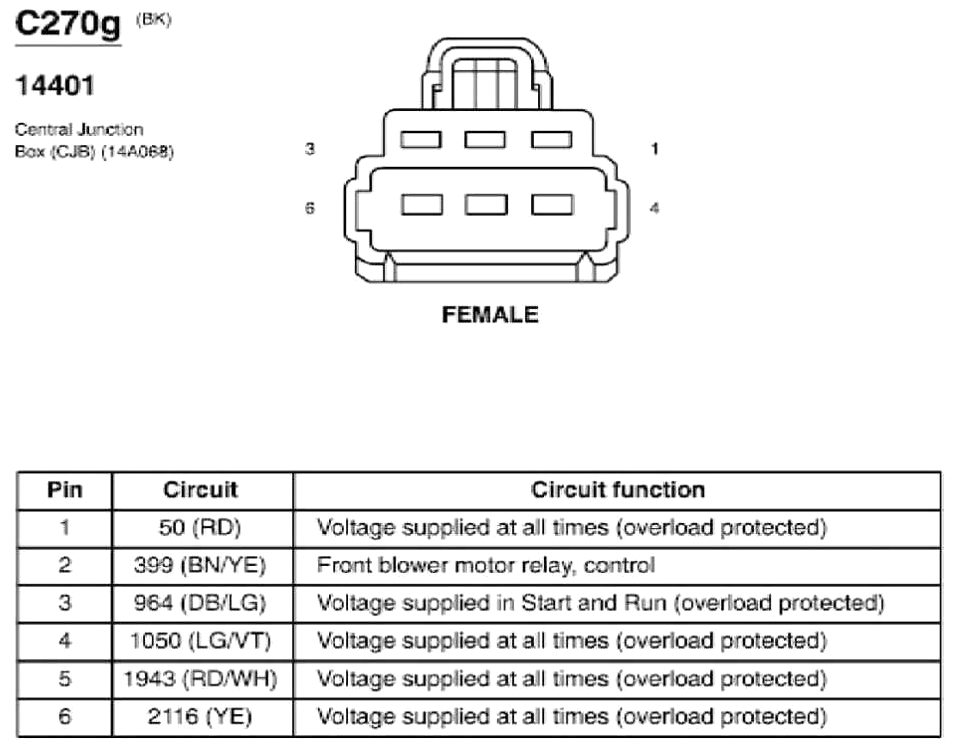

Fig 114: Central Junction Box (CJB) Connector End View (C270g)

G07846394

Courtesy of FORD MOTOR CO.

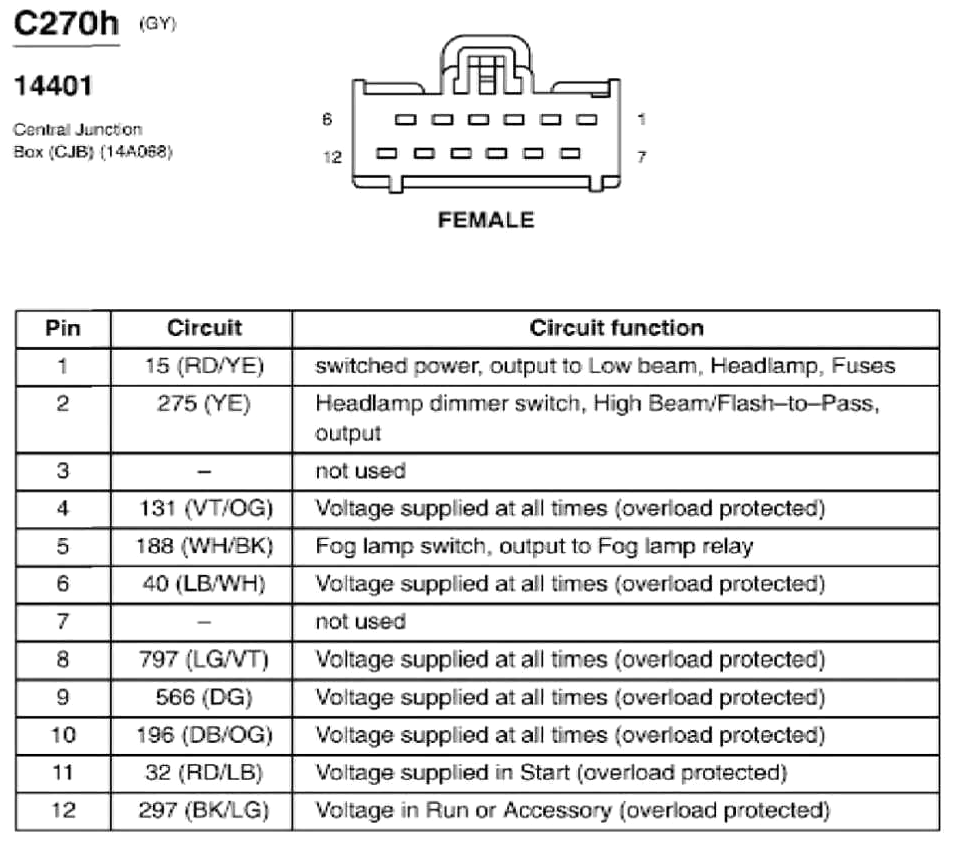

Fig 115: Central Junction Box (CJB) Connector End View (C270h)

G07846395

Courtesy of FORD MOTOR CO.

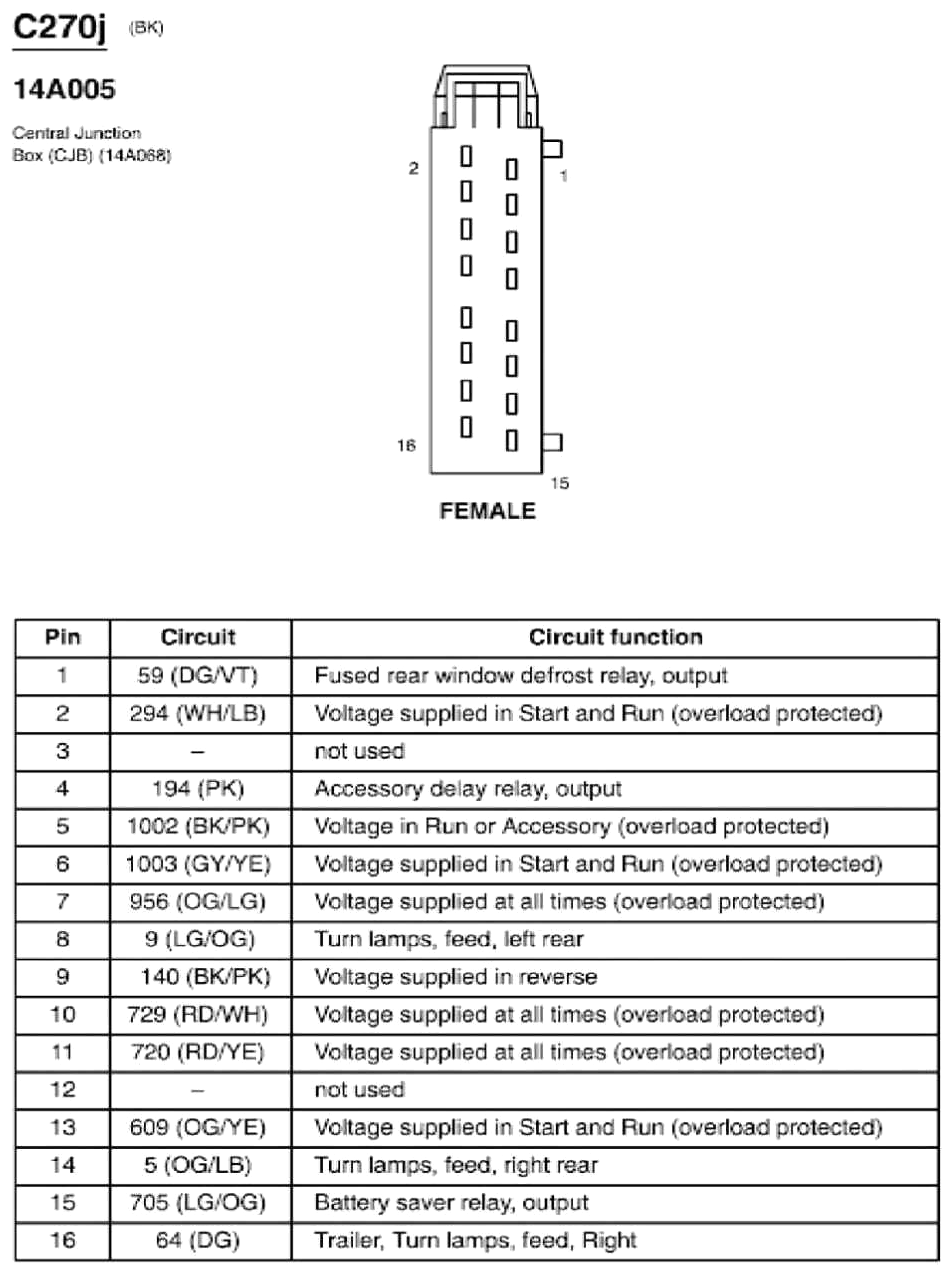

Fig 116: Central Junction Box (CJB) Connector End View (C270j)

G07846396

Courtesy of FORD MOTOR CO.

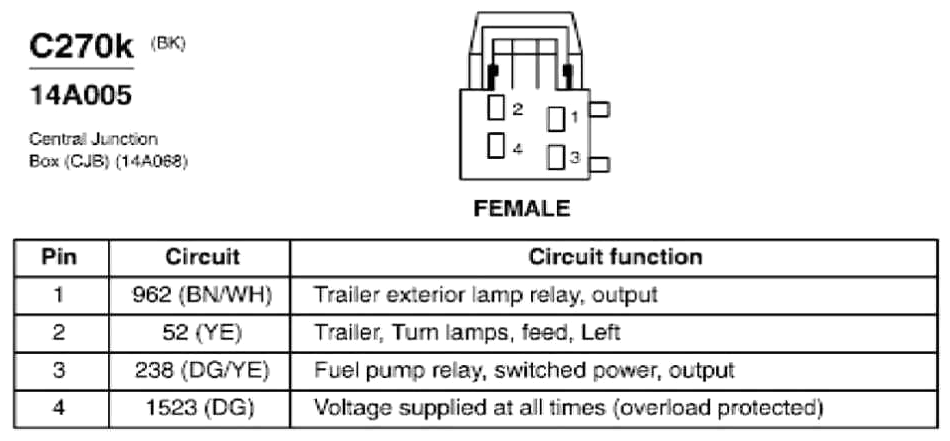

Fig 117: Central Junction Box (CJB) Connector End View (C270k)

G07846397

Courtesy of FORD MOTOR CO.

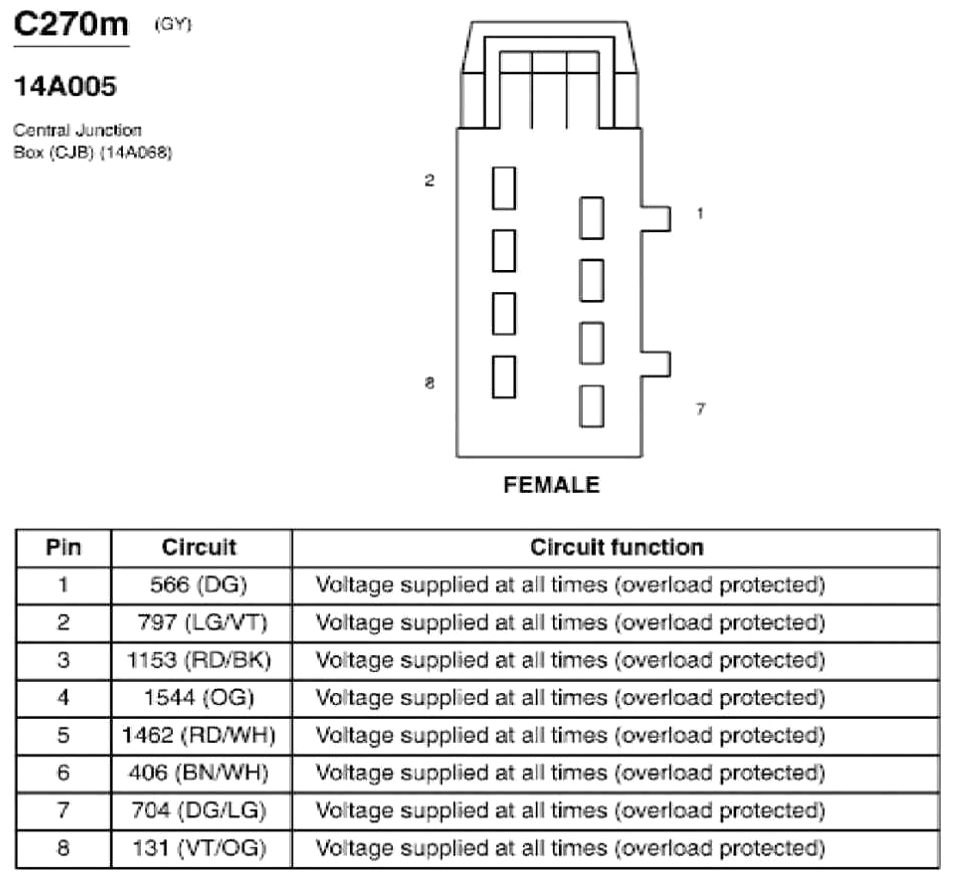

Fig 118: Central Junction Box (CJB) Connector End View (C270m)

G07846398

Courtesy of FORD MOTOR CO.

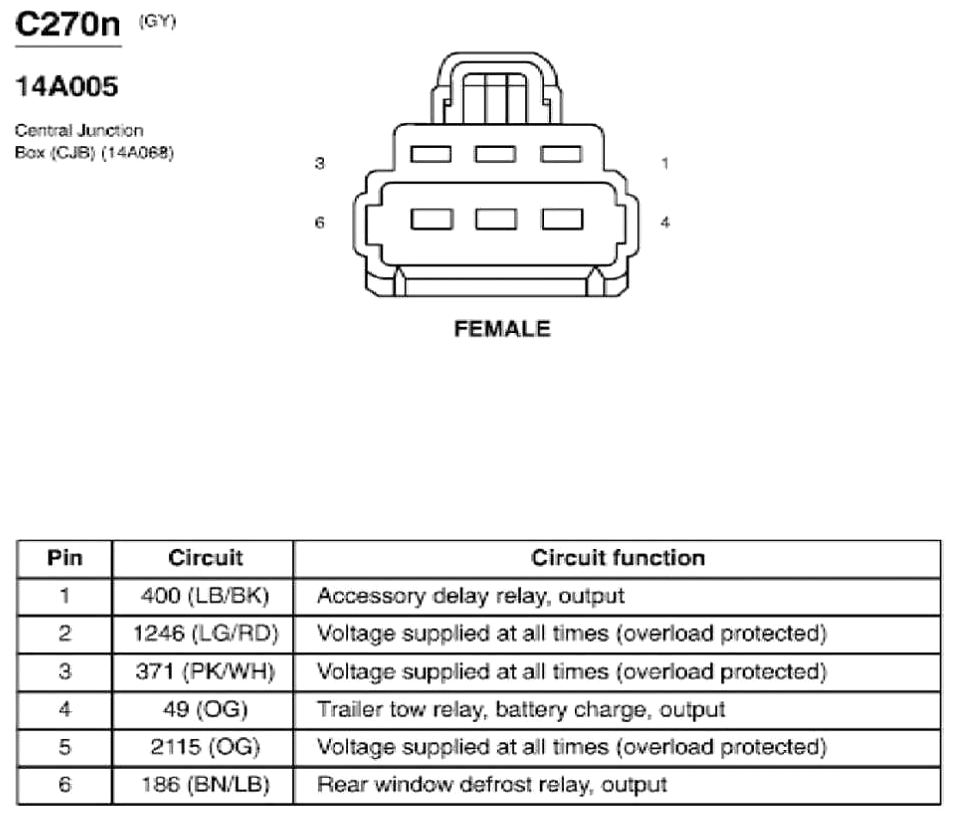

Fig 119: Central Junction Box (CJB) Connector End View (C270n)

G07846399

Courtesy of FORD MOTOR CO.

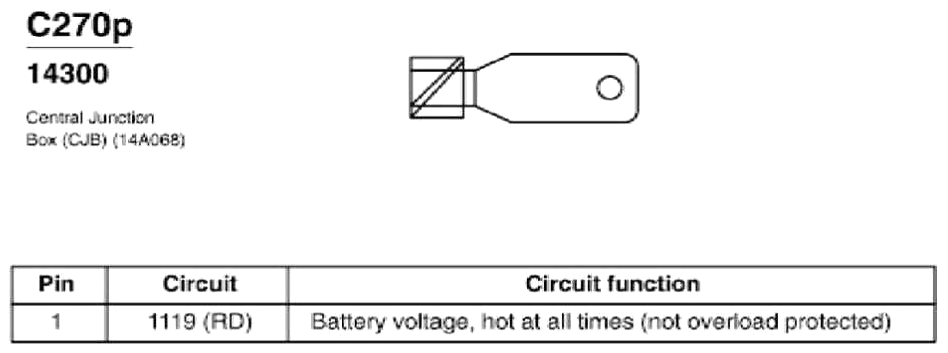

Fig 120: Central Junction Box (CJB) Connector End View (C270p)

G07846400

Courtesy of FORD MOTOR CO.

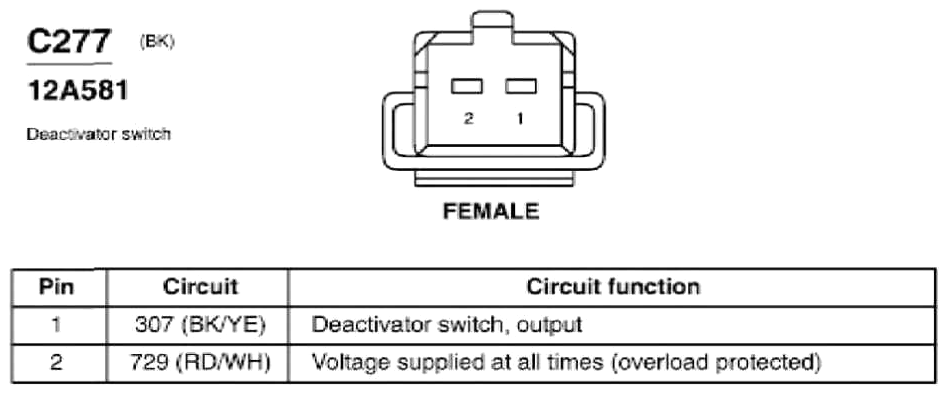

Fig 121: Deactivator Switch Connector End View (C277)

G07846401

Courtesy of FORD MOTOR CO.

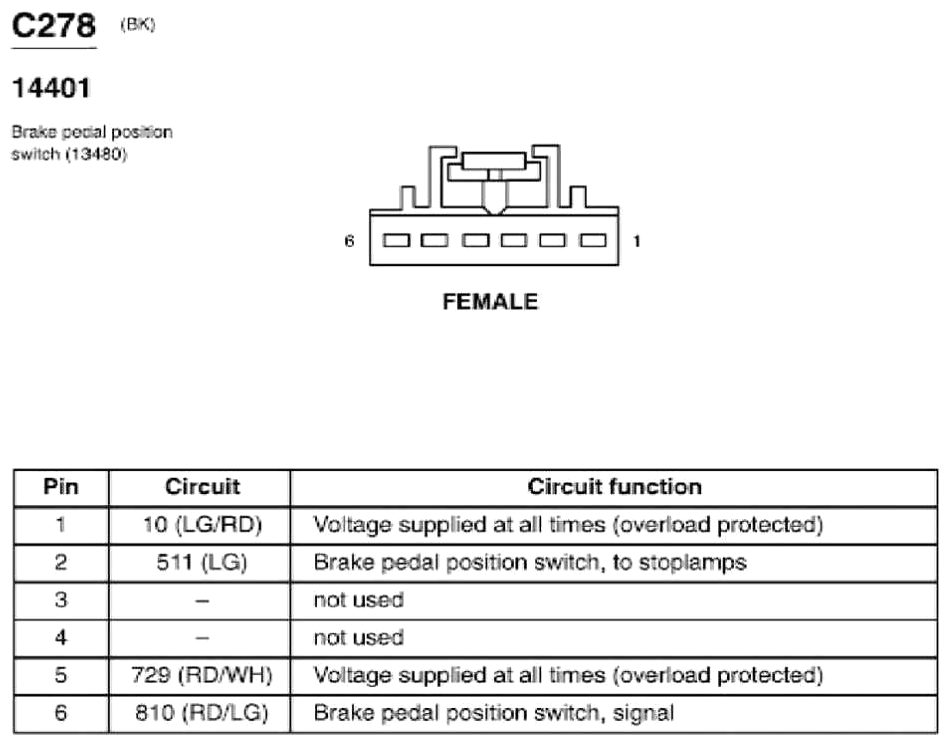

Fig 122: Brake Pedal Position Switch Connector End View (C278)

G07846402

Courtesy of FORD MOTOR CO.

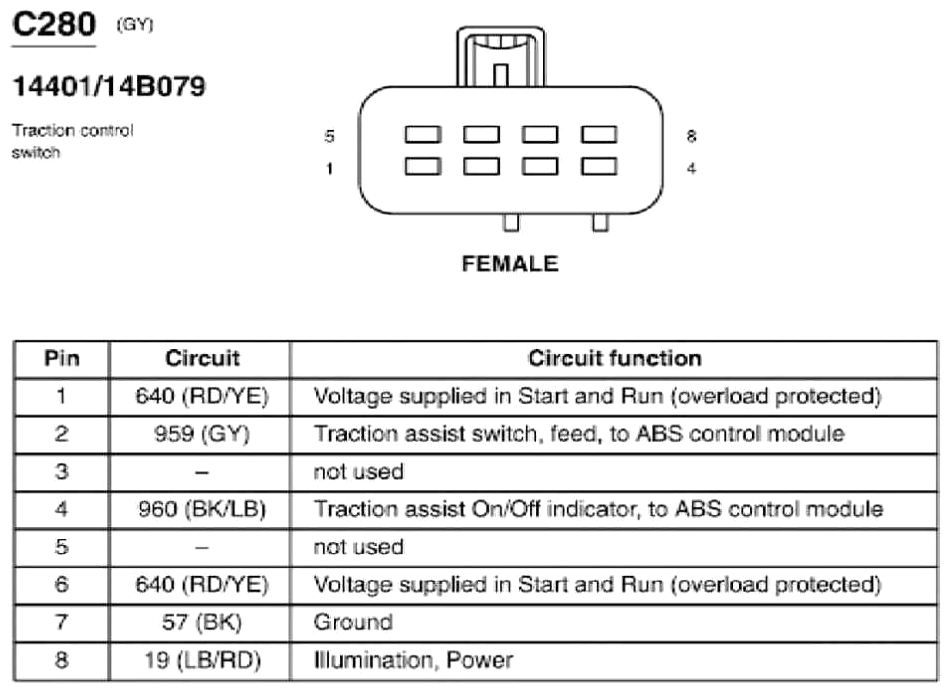

Fig 123: Traction Control Switch Connector End View (C280)

G07846403

Courtesy of FORD MOTOR CO.

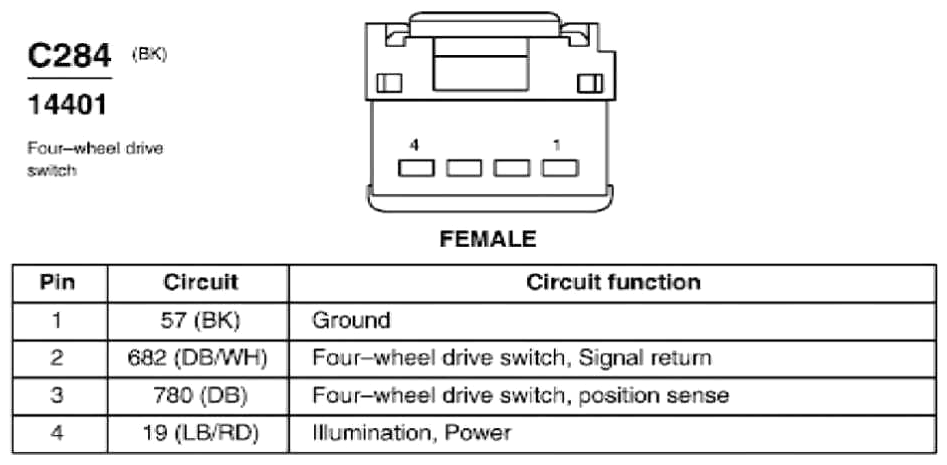

Fig 124: Four-Wheel Drive Switch Connector End View (C284)

G07846404

Courtesy of FORD MOTOR CO.

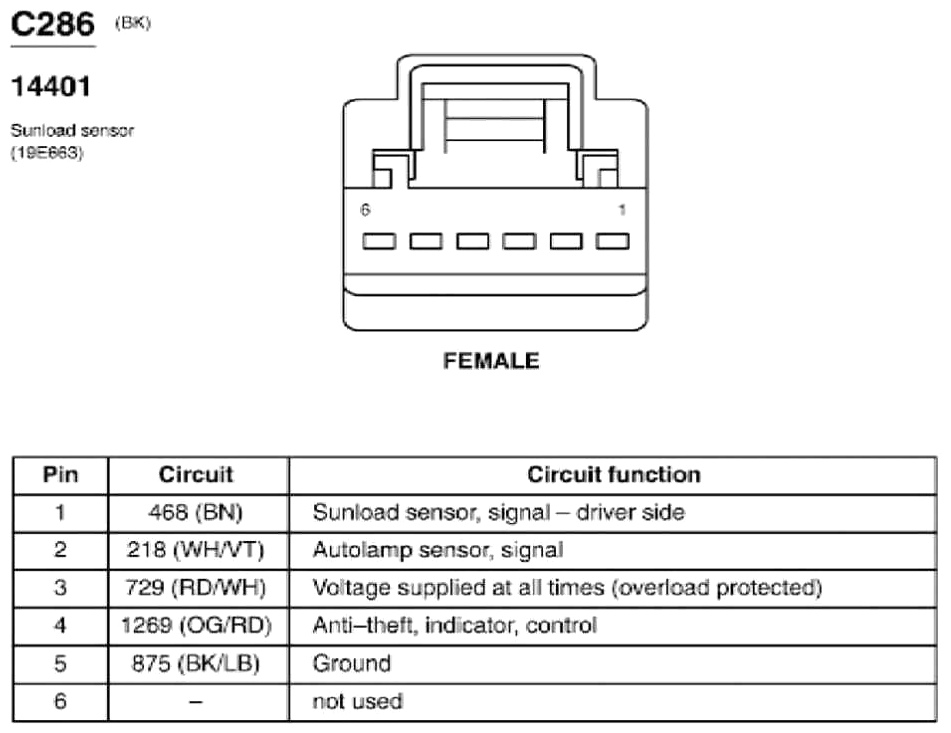

Fig 125: Sunload Sensor Connector End View (C286)

G07846405

Courtesy of FORD MOTOR CO.

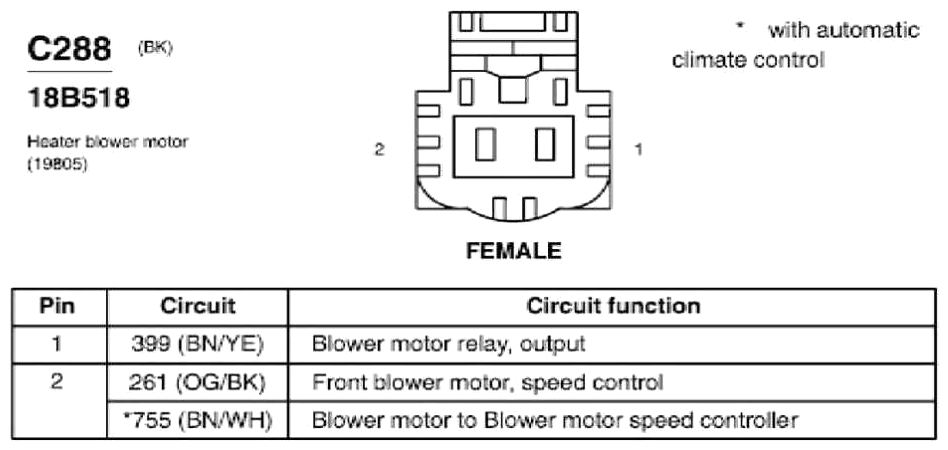

Fig 126: Heater Blower Motor Connector End View (C288)

G07846406

Courtesy of FORD MOTOR CO.

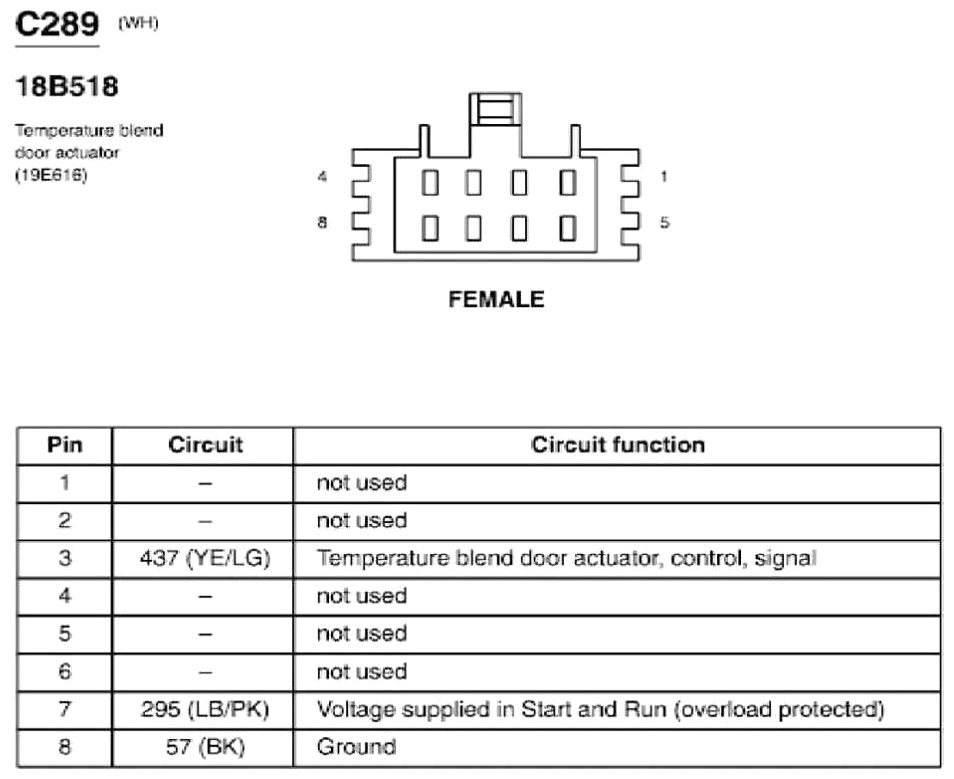

Fig 127: Temperature Blend Door Actuator Connector End View (C289)

G07846407

Courtesy of FORD MOTOR CO.

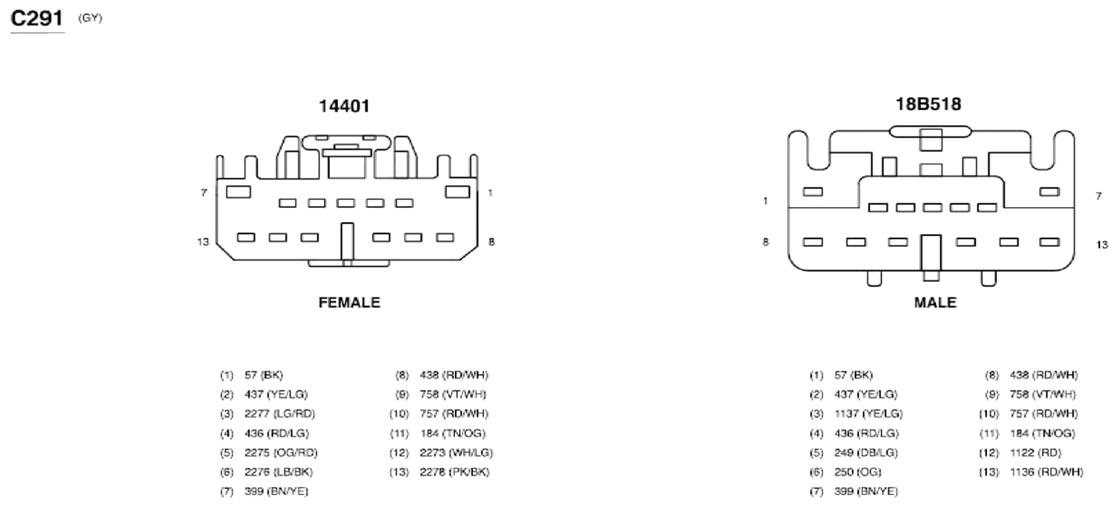

Fig 128: Inline Connector End View (C291)

G07846408

Courtesy of FORD MOTOR CO.

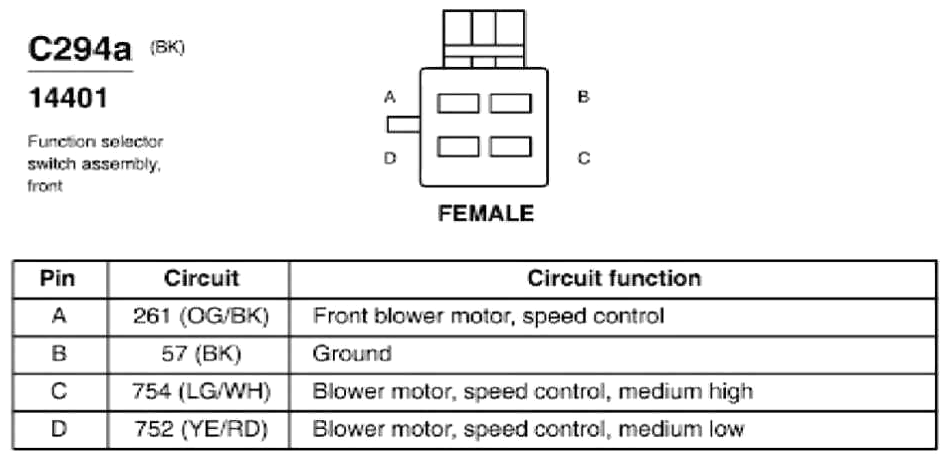

Fig 129: Function Selector Switch Assembly, Front Connector End View (C294a)

G07846409

Courtesy of FORD MOTOR CO.

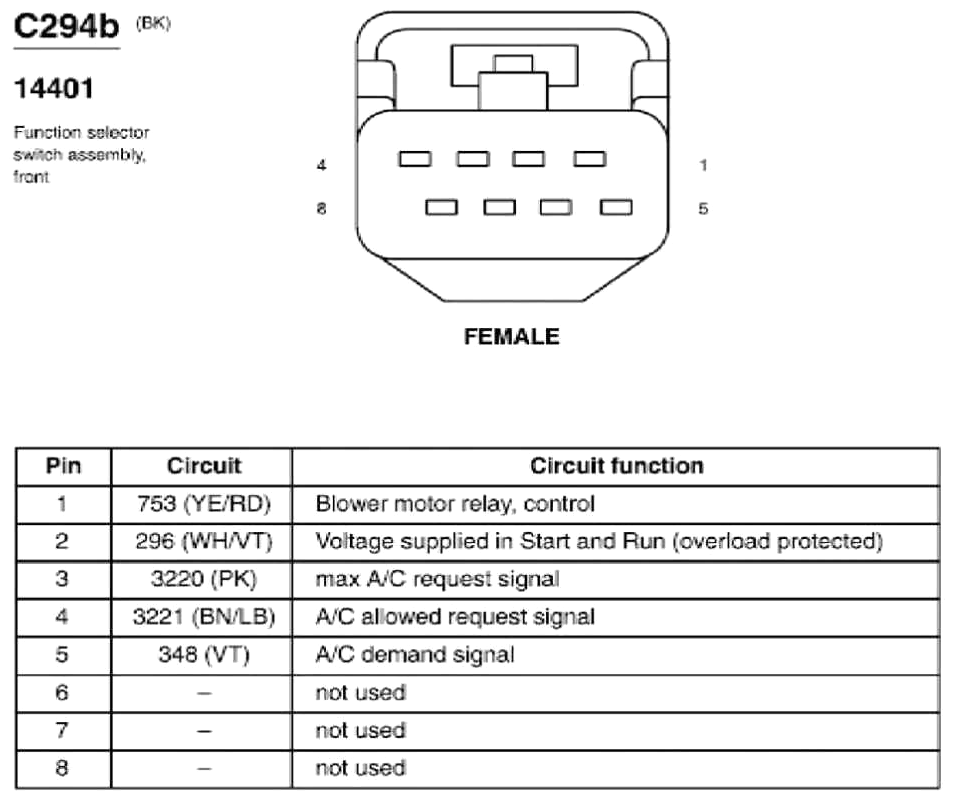

Fig 130: Function Selector Switch Assembly, Front Connector End View (C294b)

G07846410

Courtesy of FORD MOTOR CO.

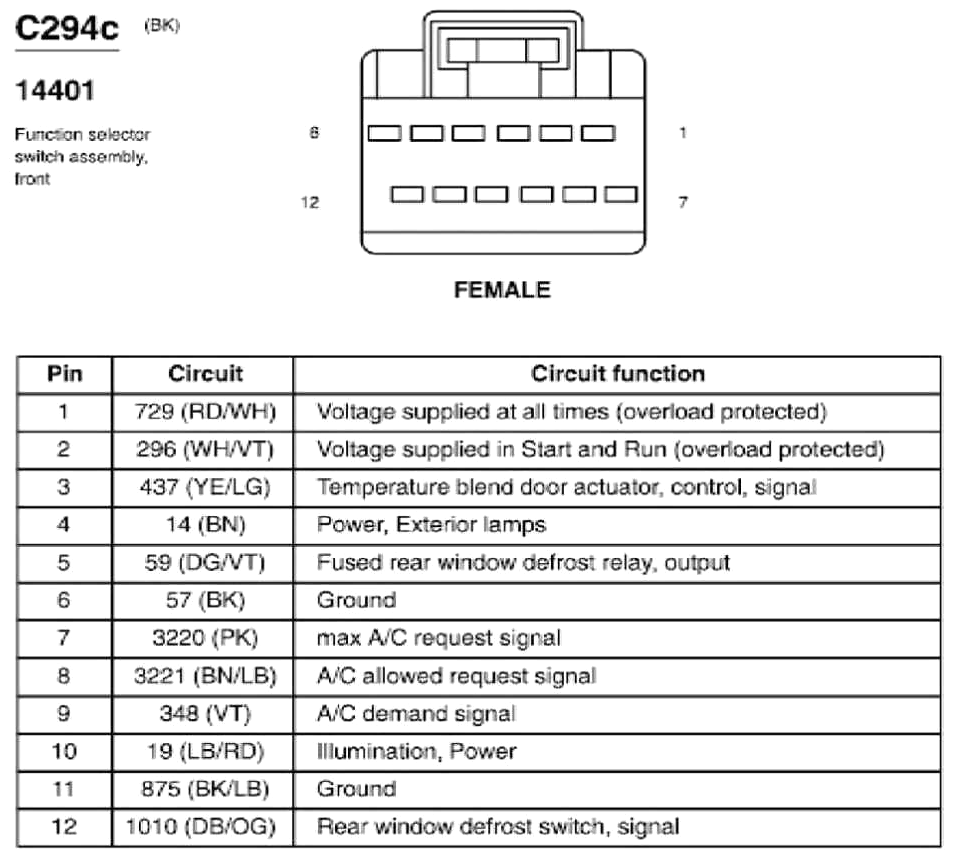

Fig 131: Function Selector Switch Assembly, Front Connector End View (C294c)

G07846411

Courtesy of FORD MOTOR CO.

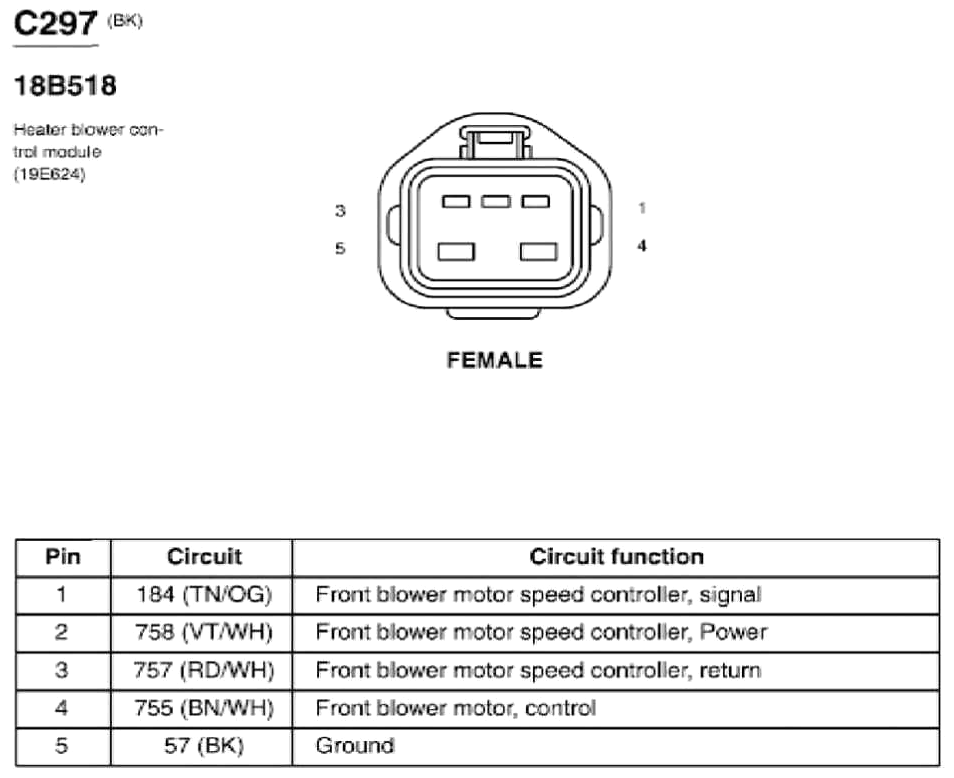

Fig 132: Heater Blower Control Module Connector End View (C297)

G07846412

Courtesy of FORD MOTOR CO.

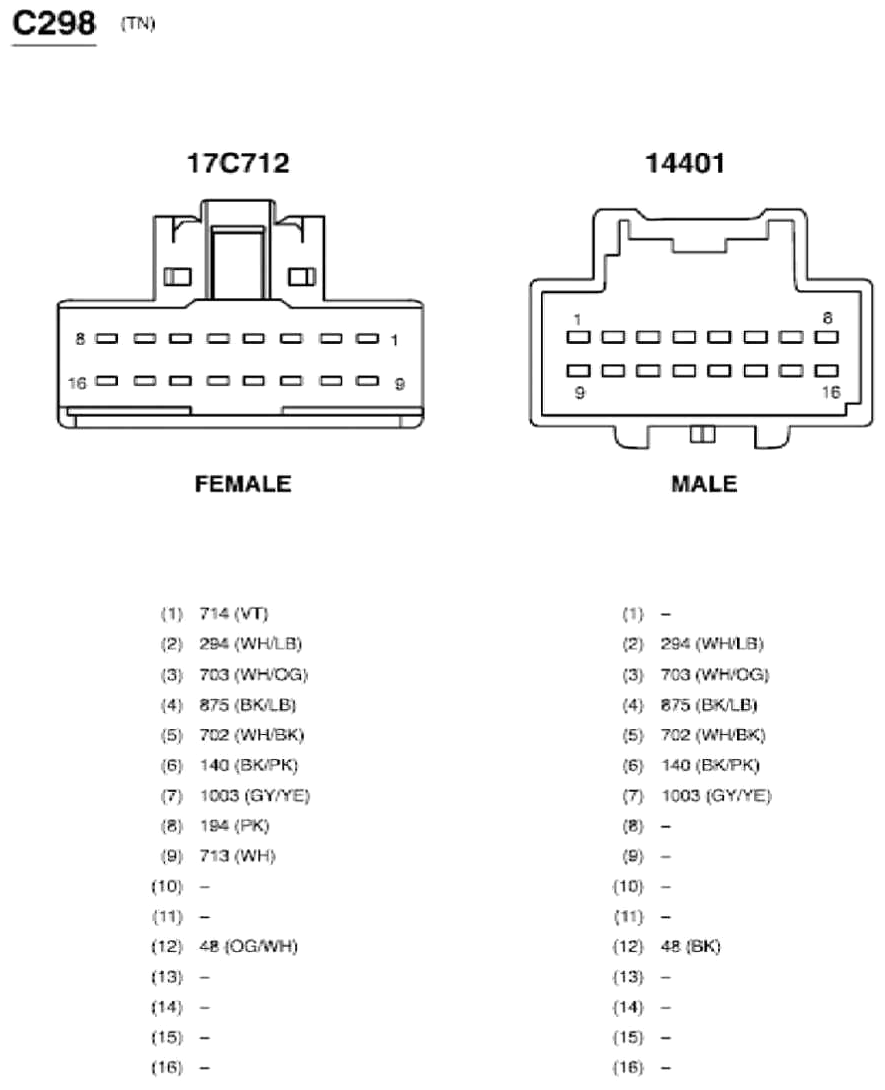

Fig 133: Inline Connector End View (C298)

G07846413

Courtesy of FORD MOTOR CO.

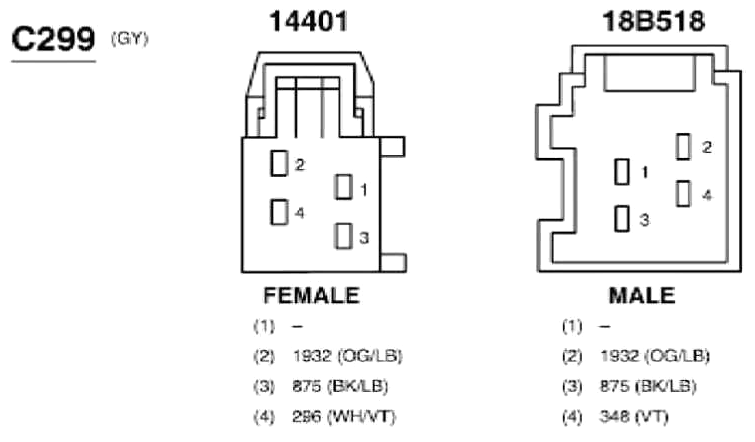

Fig 134: Inline Connector End View (C299)

G07846414

Courtesy of FORD MOTOR CO.

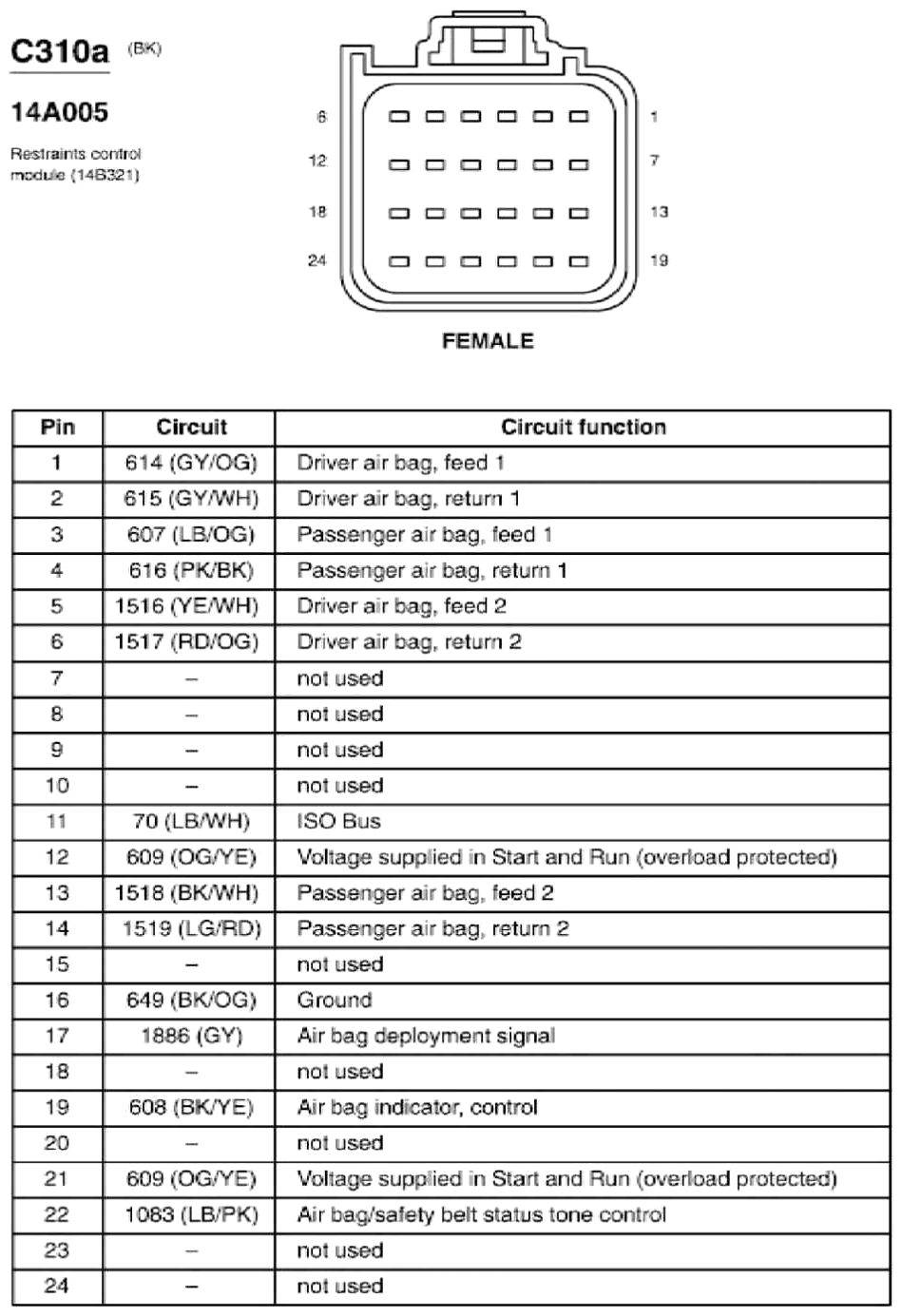

Fig 135: Restraints Control Module Connector End View (C310a)

G07846415

Courtesy of FORD MOTOR CO.

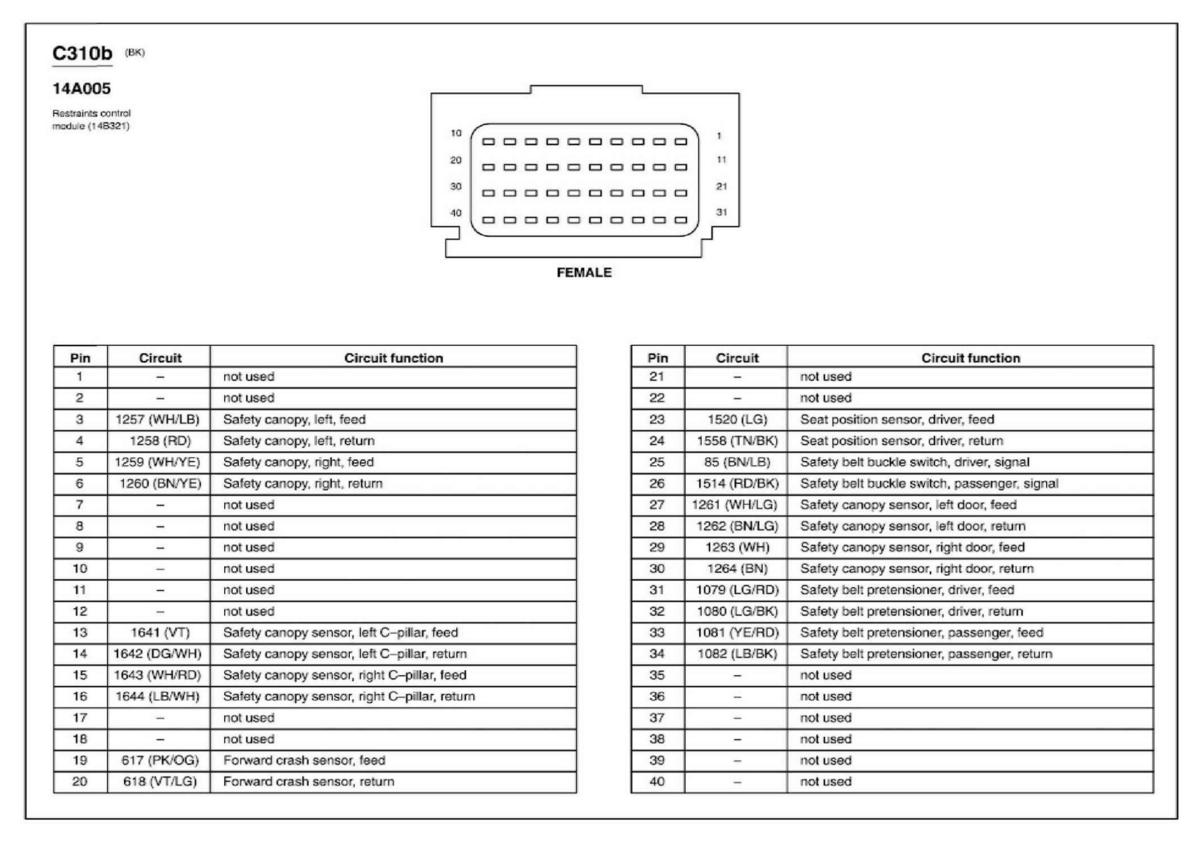

Fig 136: Restraints Control Module Connector End View (C310b)

G04596401

Courtesy of FORD MOTOR CO.

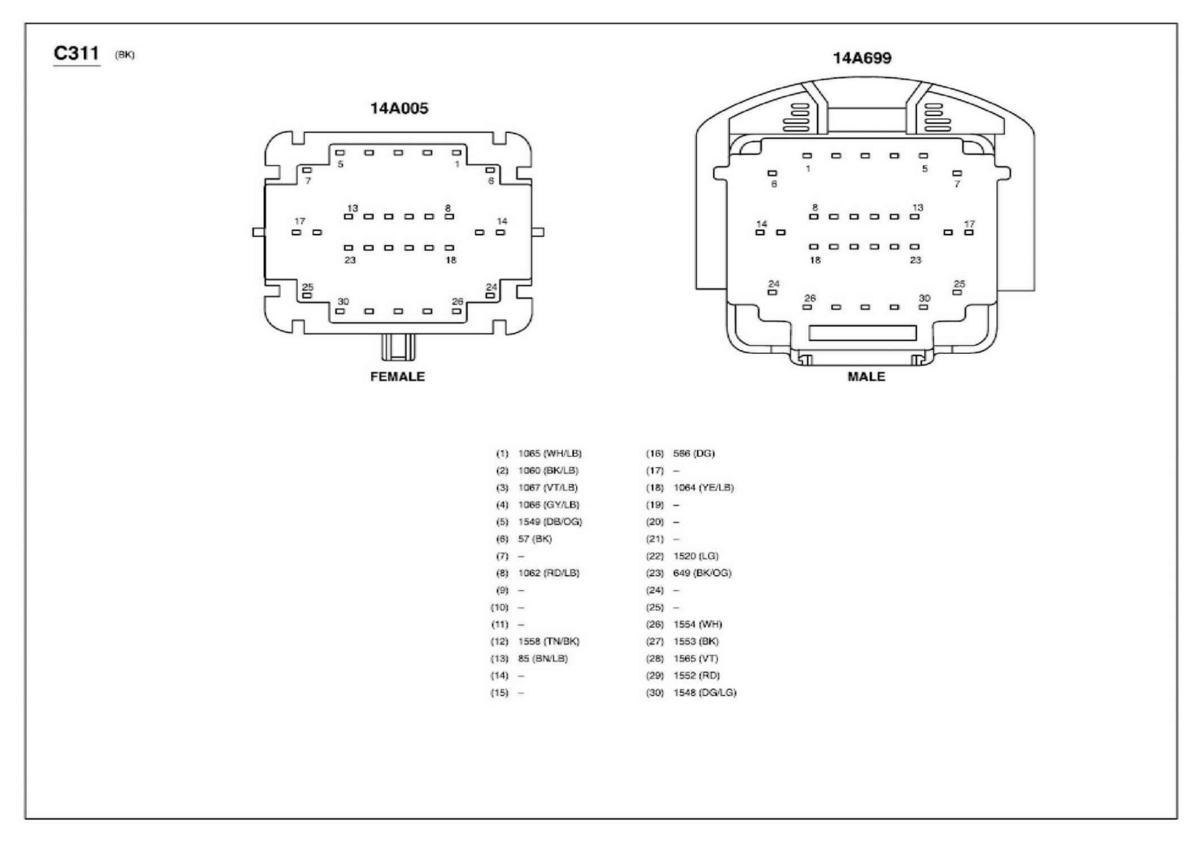

Fig 137: Inline Connector End View (C311)

G04596402

Courtesy of FORD MOTOR CO.

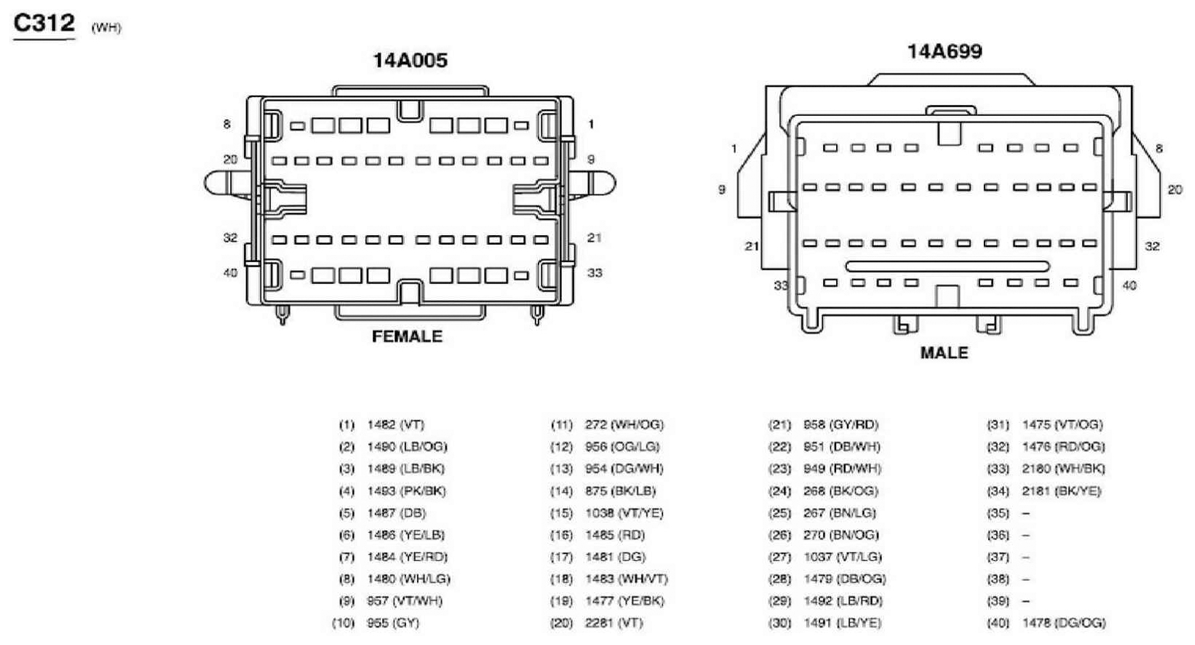

Fig 138: Inline Connector End View (C312)

G04596403

Courtesy of FORD MOTOR CO.

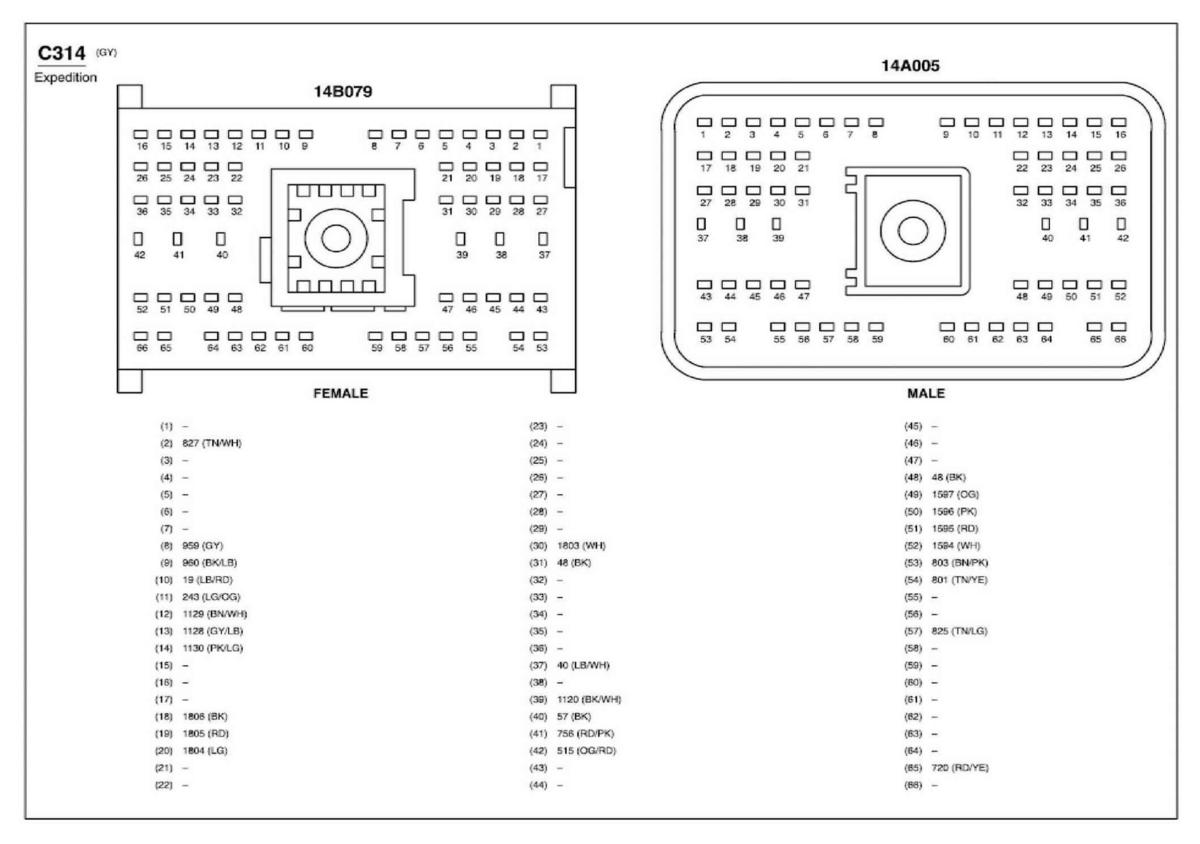

Fig 139: Inline Connector End View (C314)

G04596404

Courtesy of FORD MOTOR CO.

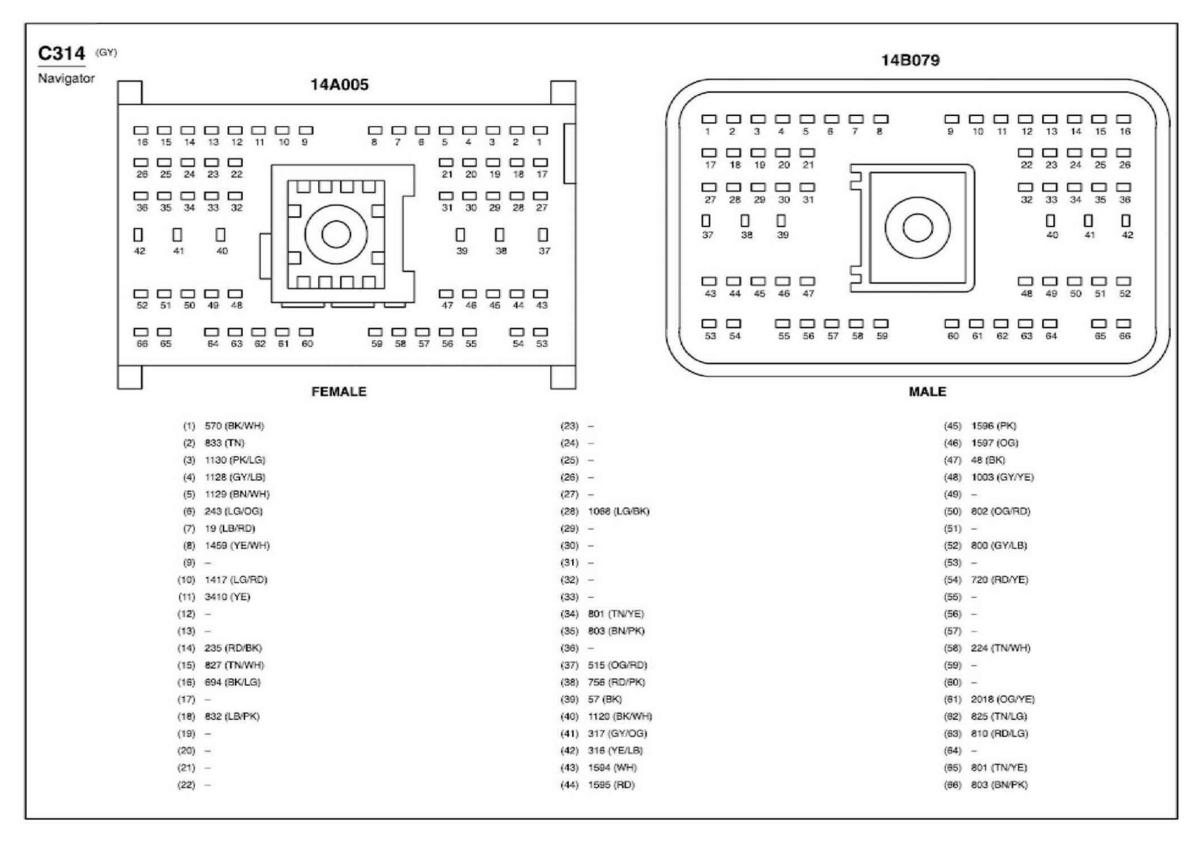

Fig 140: Inline Connector End View (C314)

G04596405

Courtesy of FORD MOTOR CO.

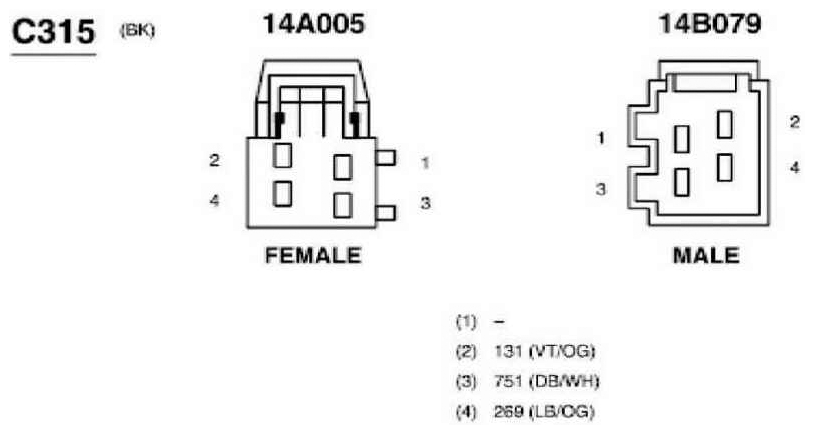

Fig 141: Inline Connector End View (C315)

G04596406

Courtesy of FORD MOTOR CO.

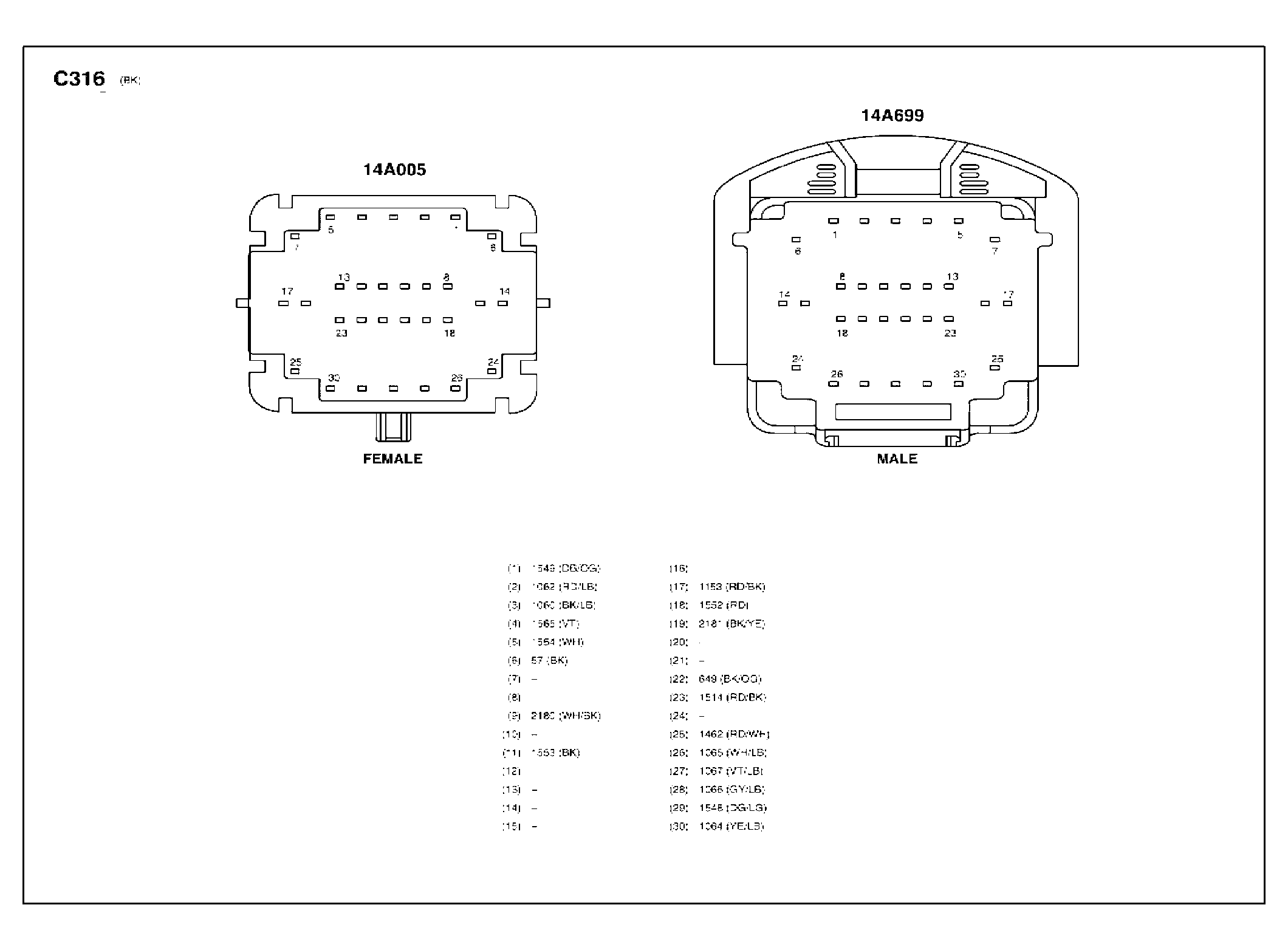

Fig 142: Inline Connector End View (C316)

G04596407

Courtesy of FORD MOTOR CO.

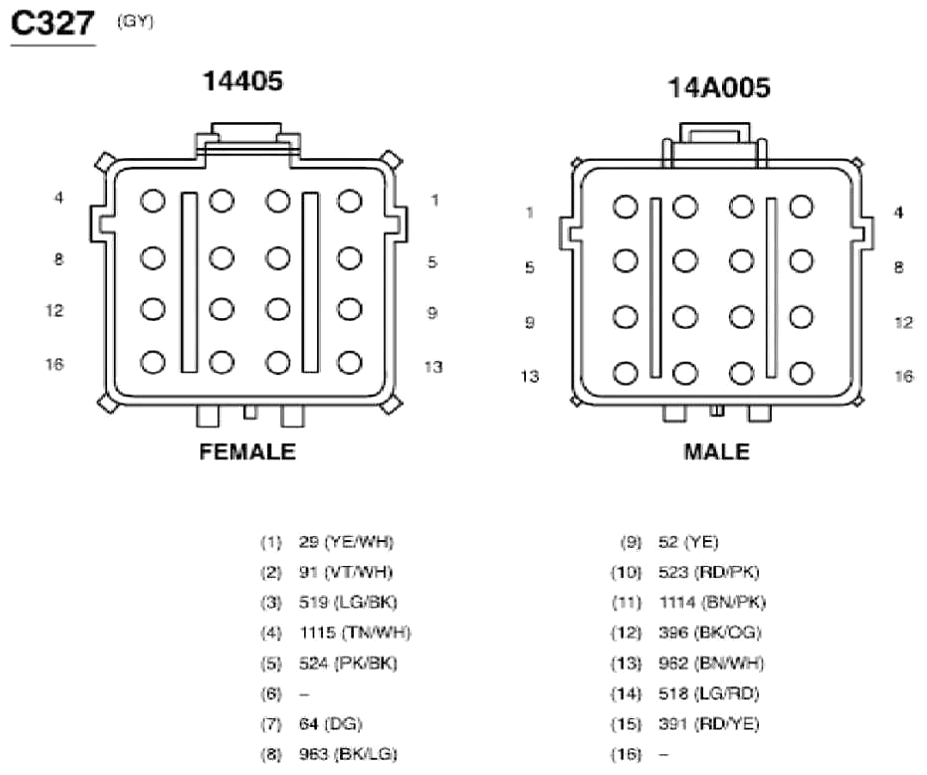

Fig 143: Inline Connector End View (C327)

G07846416

Courtesy of FORD MOTOR CO.

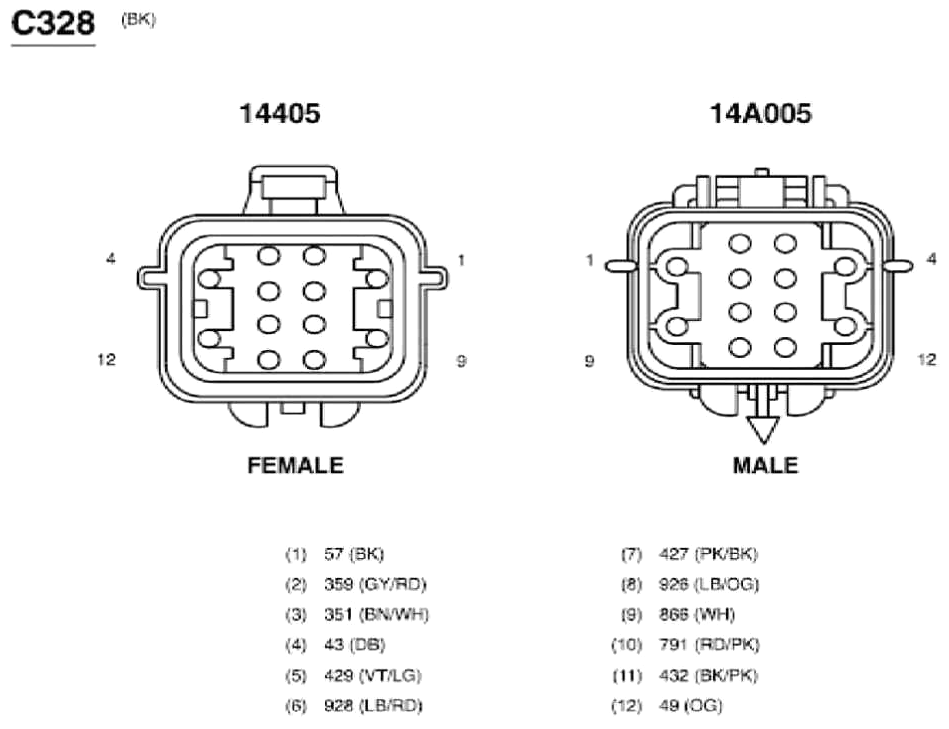

Fig 144: Inline Connector End View (C328)

G07846417

Courtesy of FORD MOTOR CO.

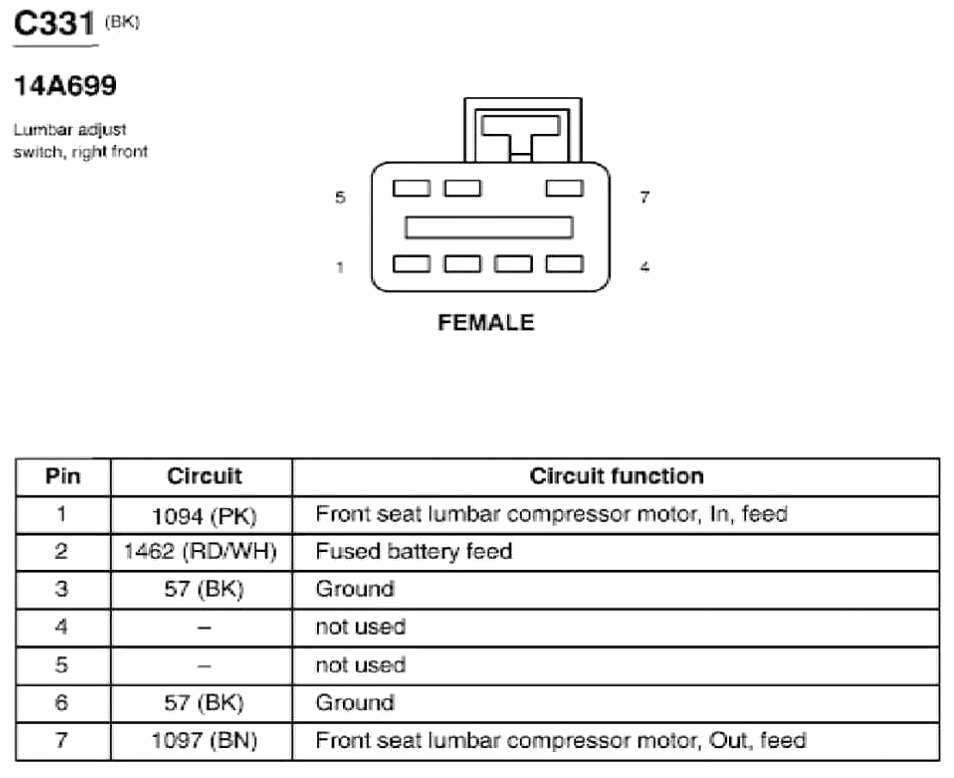

Fig 145: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07846418

Courtesy of FORD MOTOR CO.

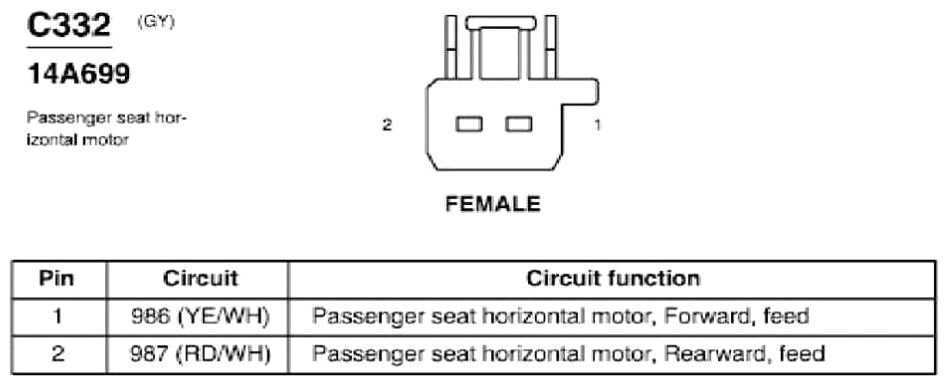

Fig 146: Passenger Seat Horizontal Motor Connector End View (C332)

G07846419

Courtesy of FORD MOTOR CO.

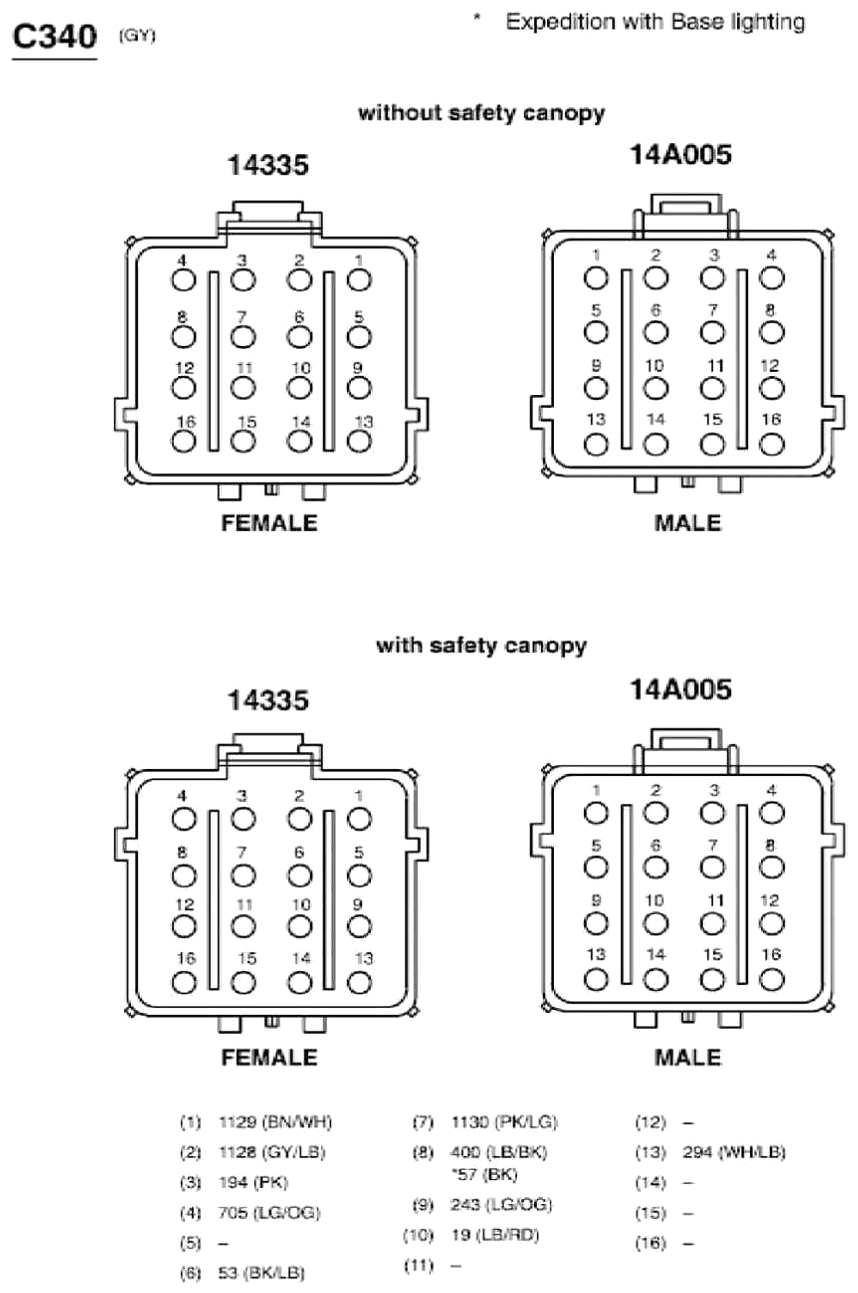

Fig 147: Inline Connector End View (C340)

G07846420

Courtesy of FORD MOTOR CO.

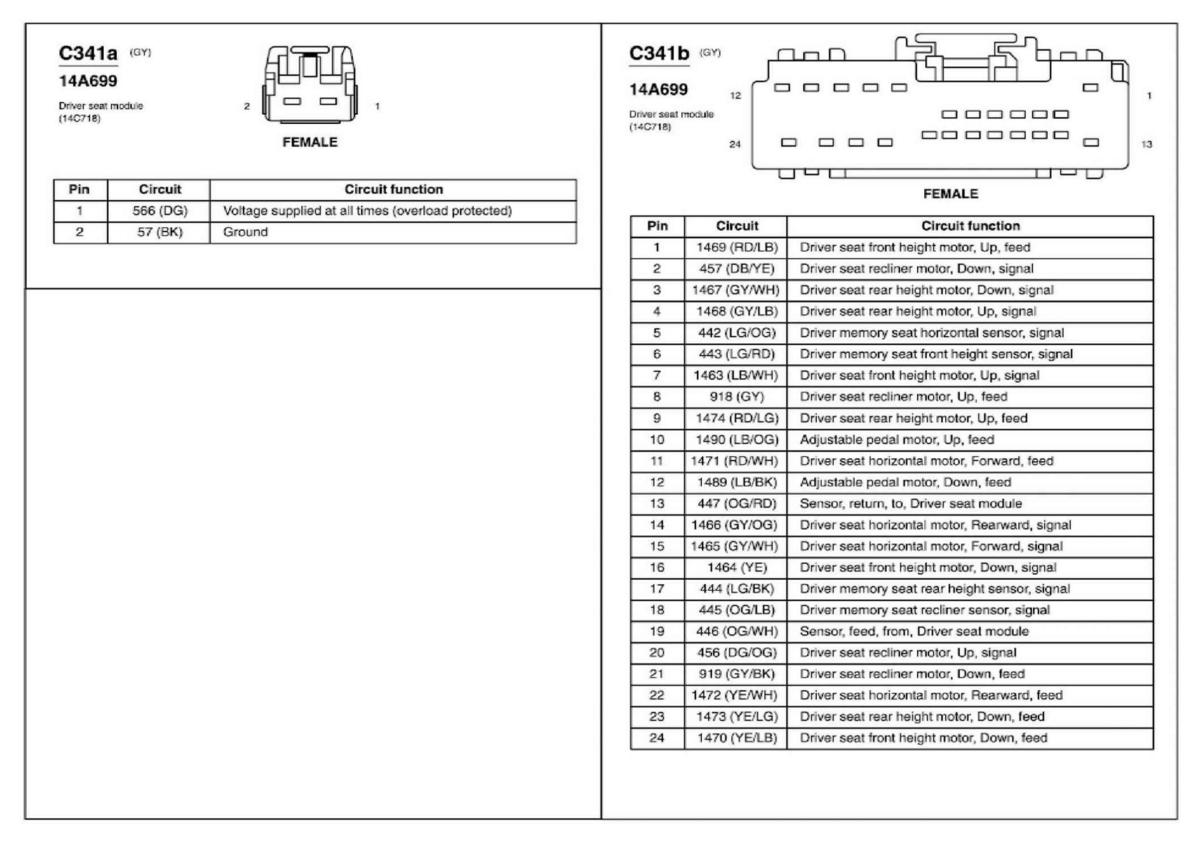

Fig 148: Driver Seat Module Connector End View (C341a)

G04596410

Courtesy of FORD MOTOR CO.

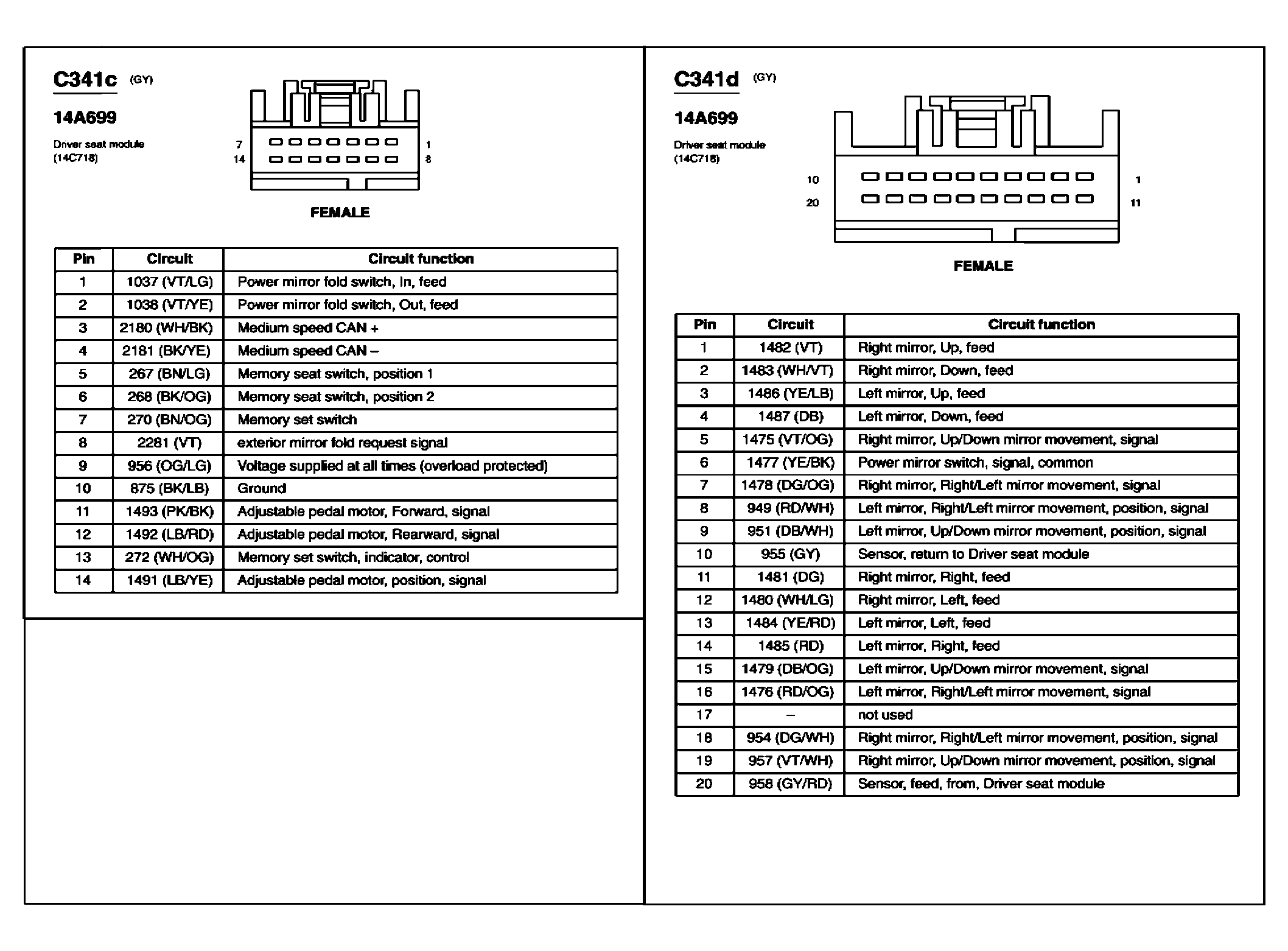

Fig 149: Driver Seat Module Connector End View (C341c)

G04598964

Courtesy of FORD MOTOR CO.

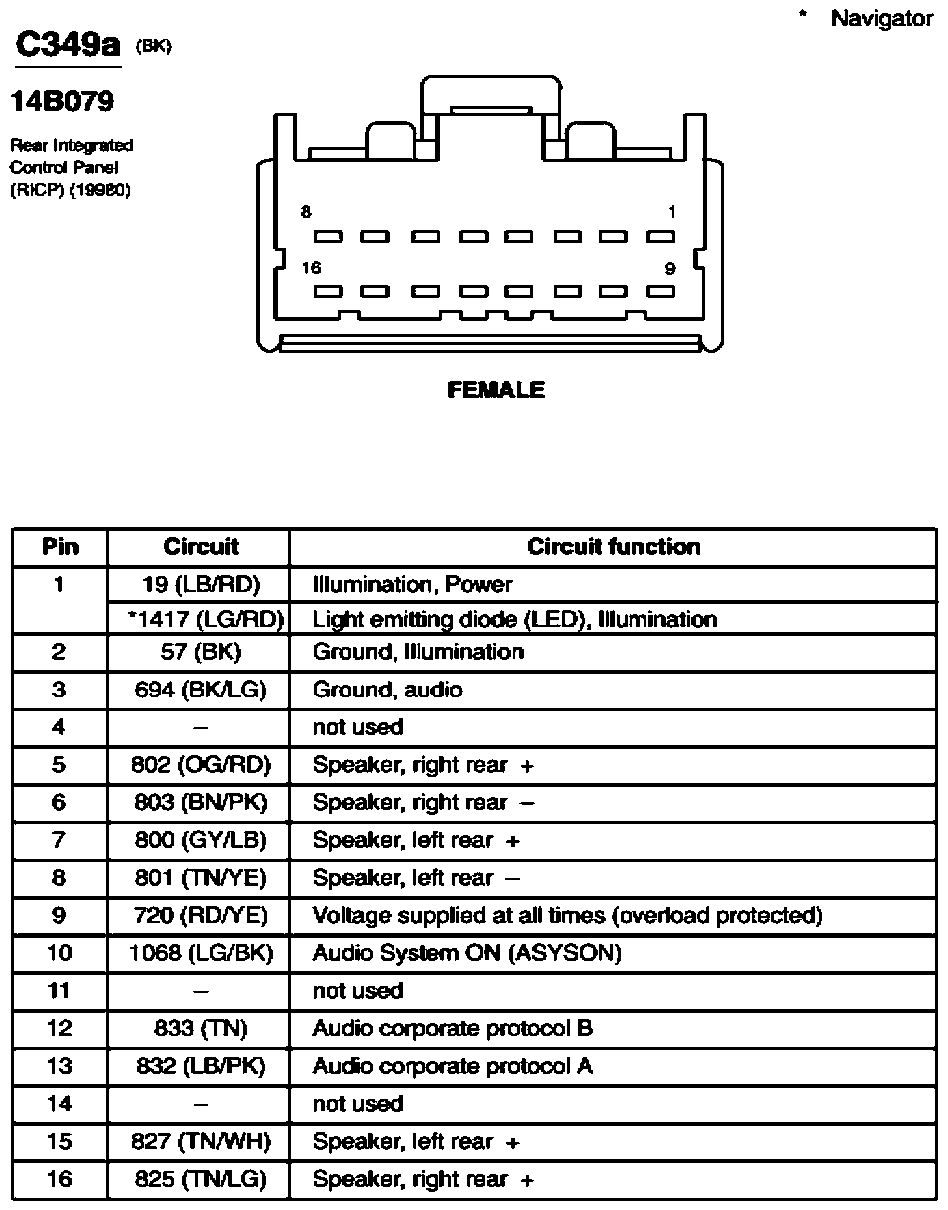

Fig 150: Rear Integrated Control Panel (RICP) Connector End View (C349a)

G07847744

Courtesy of FORD MOTOR CO.

Fig 151: Rear Integrated Control Panel (RICP) Connector End View (C349b)

G07847745

Courtesy of FORD MOTOR CO.

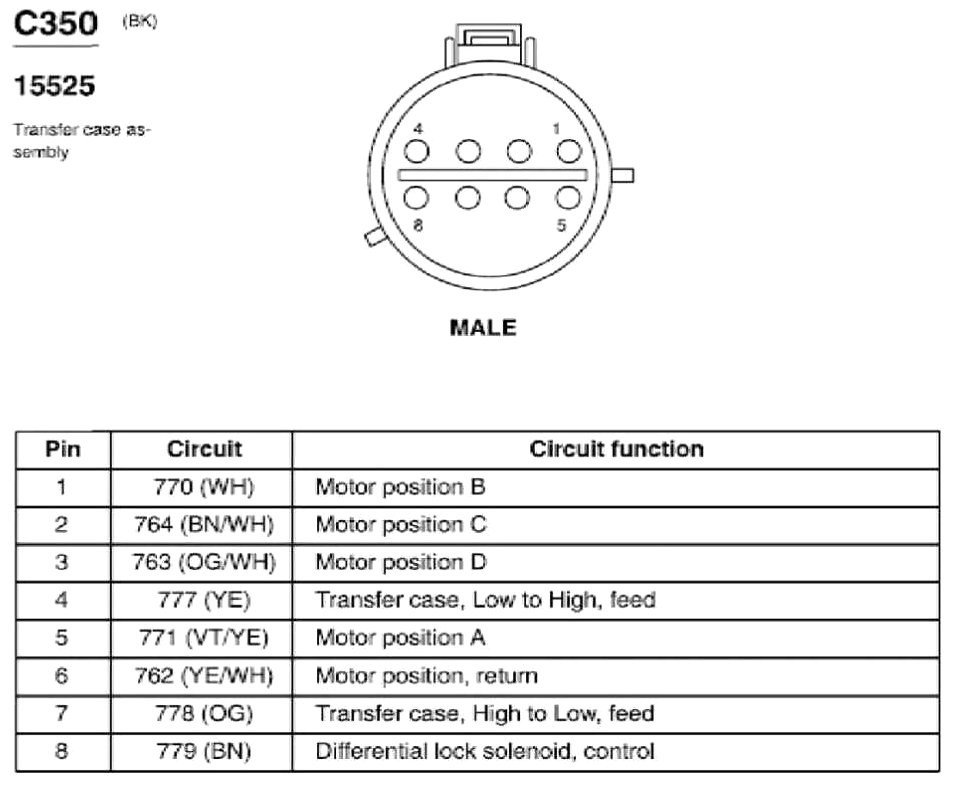

Fig 152: Transfer Case Assembly Connector End View (C350)

G07846421

Courtesy of FORD MOTOR CO.

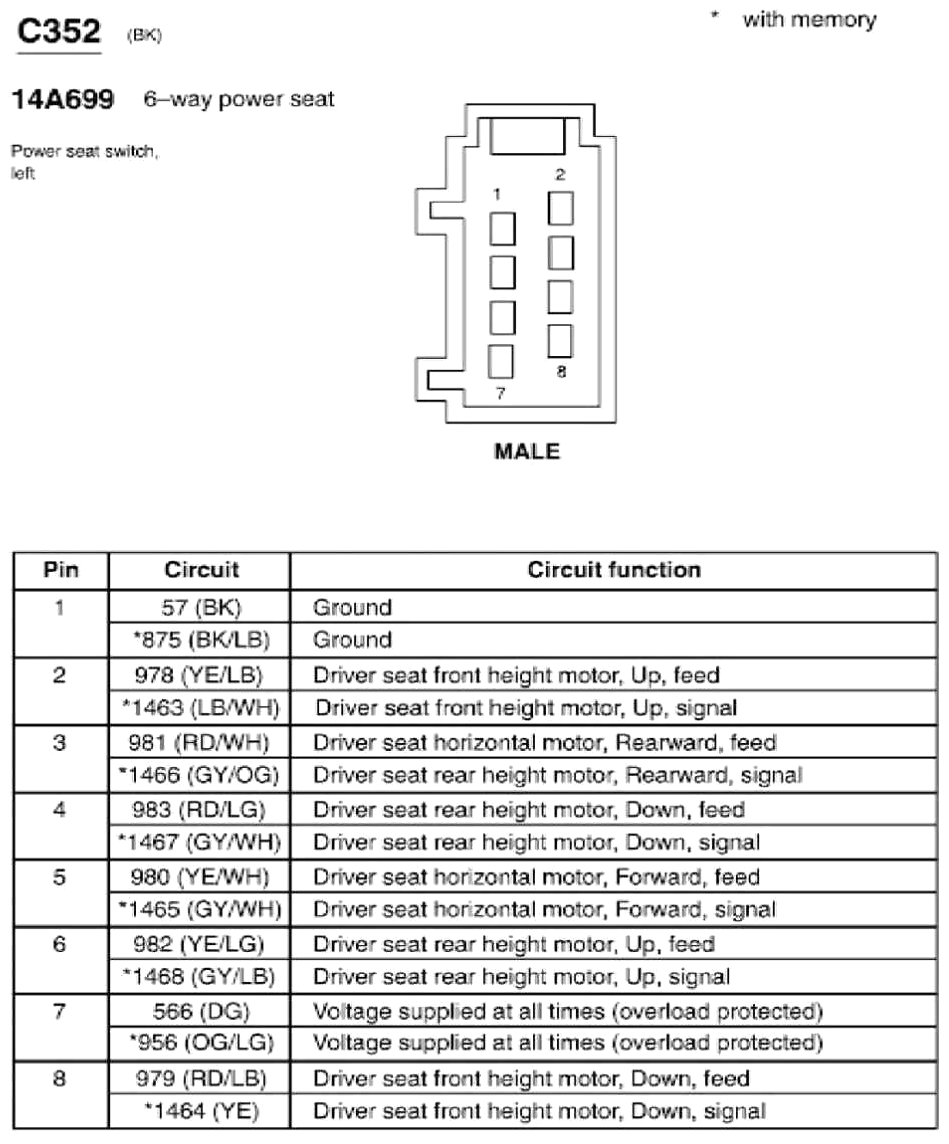

Fig 153: Power Seat Switch, Left Connector End View (C352)

G07846422

Courtesy of FORD MOTOR CO.

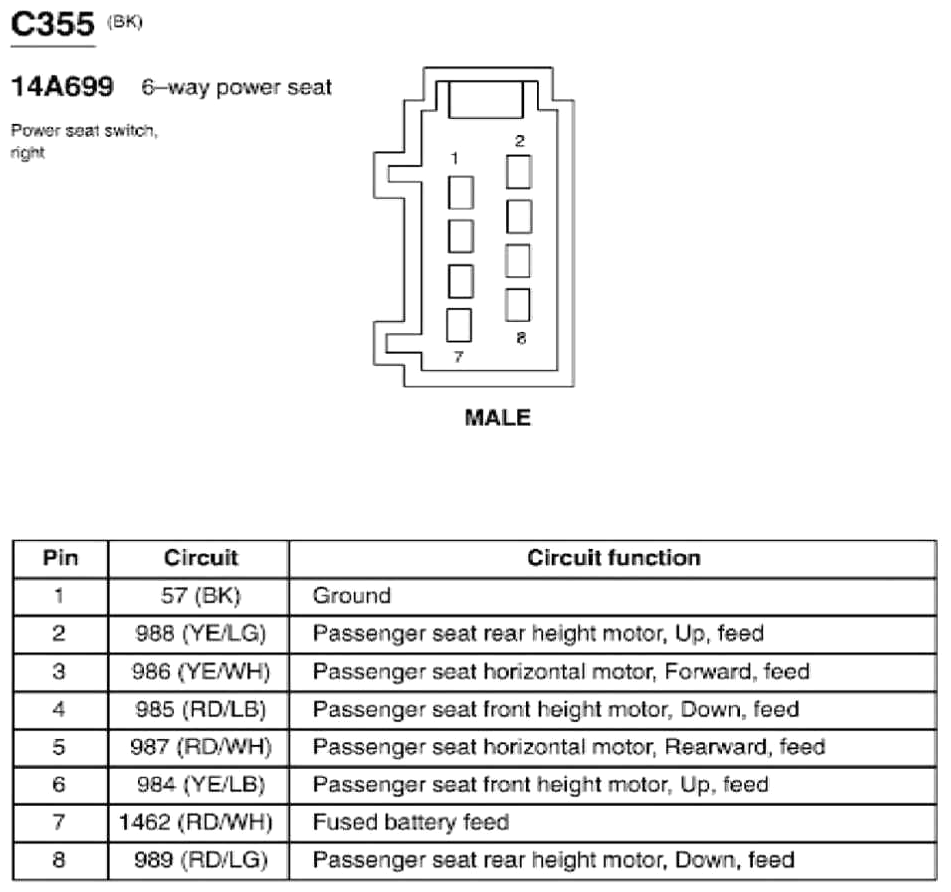

Fig 154: Power Seat Switch, Right Connector End View (C355)

G07846423

Courtesy of FORD MOTOR CO.

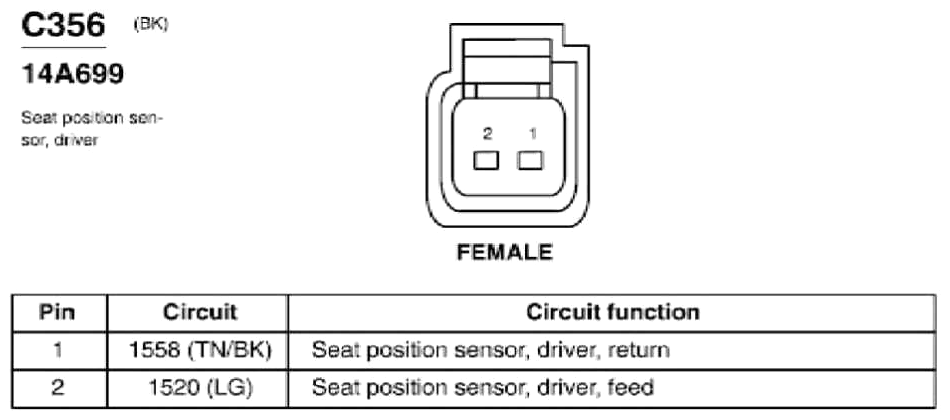

Fig 155: Seat Position Sensor, Driver Connector End View (C356)

G07846424

Courtesy of FORD MOTOR CO.

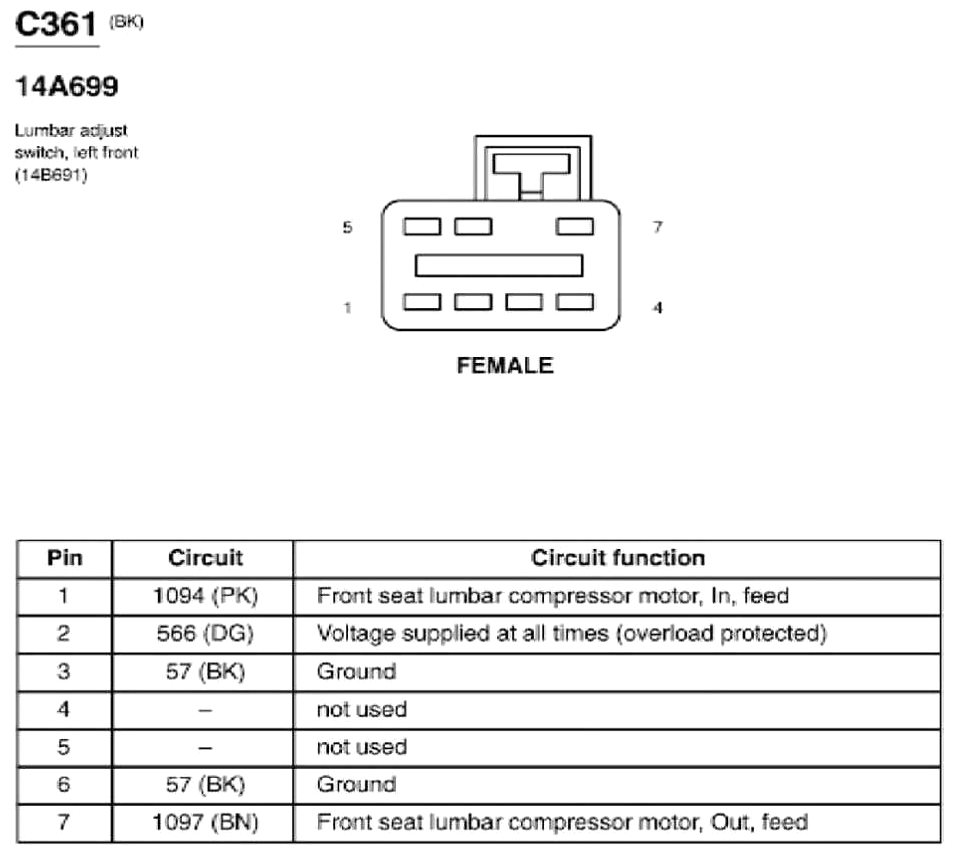

Fig 156: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07846425

Courtesy of FORD MOTOR CO.

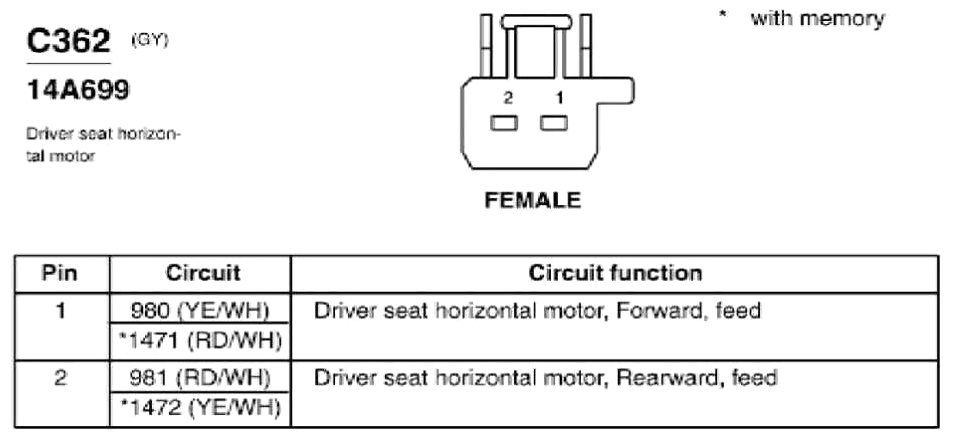

Fig 157: Driver Seat Horizontal Motor Connector End View (C362)

G07846426

Courtesy of FORD MOTOR CO.

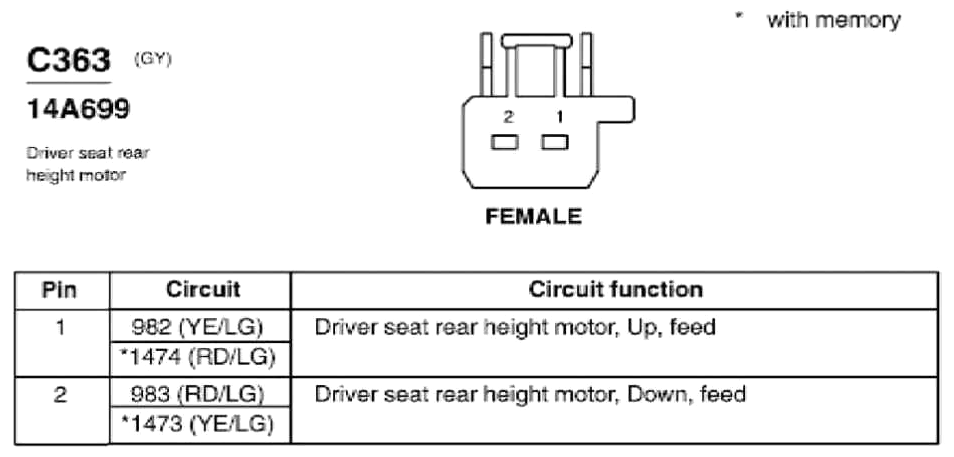

Fig 158: Driver Seat Rear Height Motor Connector End View (C363)

G07846427

Courtesy of FORD MOTOR CO.

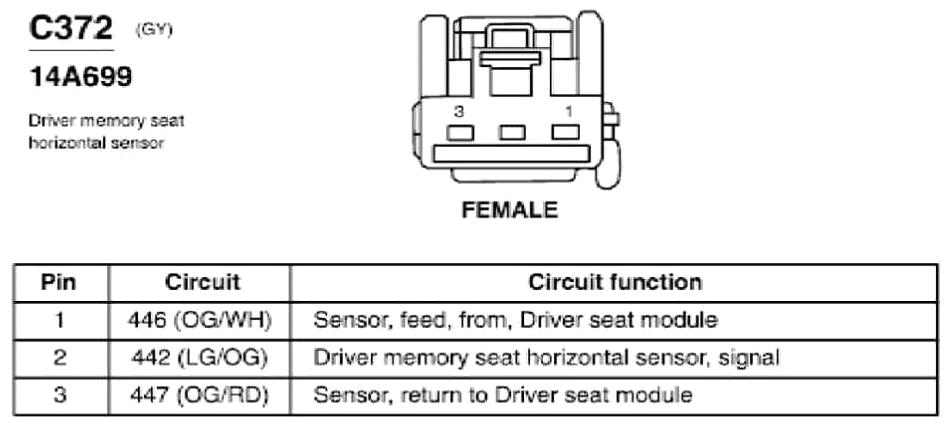

Fig 159: Driver Memory Seat Horizontal Sensor Connector End View (C372)

G07846428

Courtesy of FORD MOTOR CO.

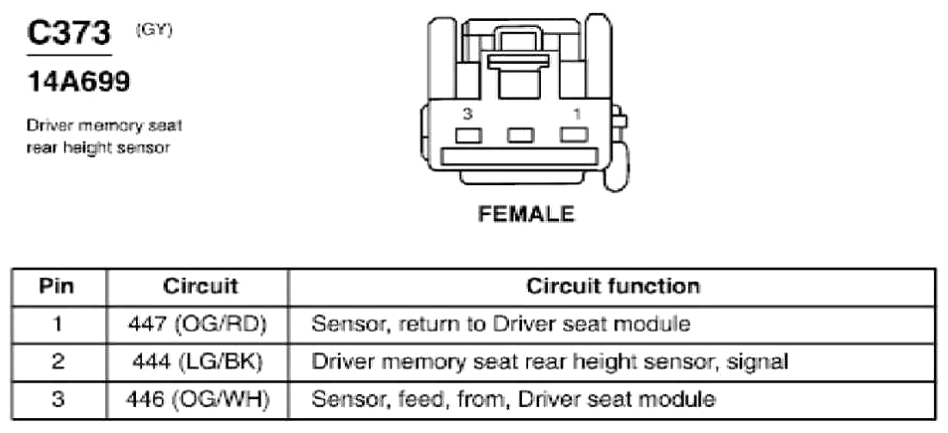

Fig 160: Driver Memory Seat Rear Height Sensor Connector End View (C373)

G07846429

Courtesy of FORD MOTOR CO.

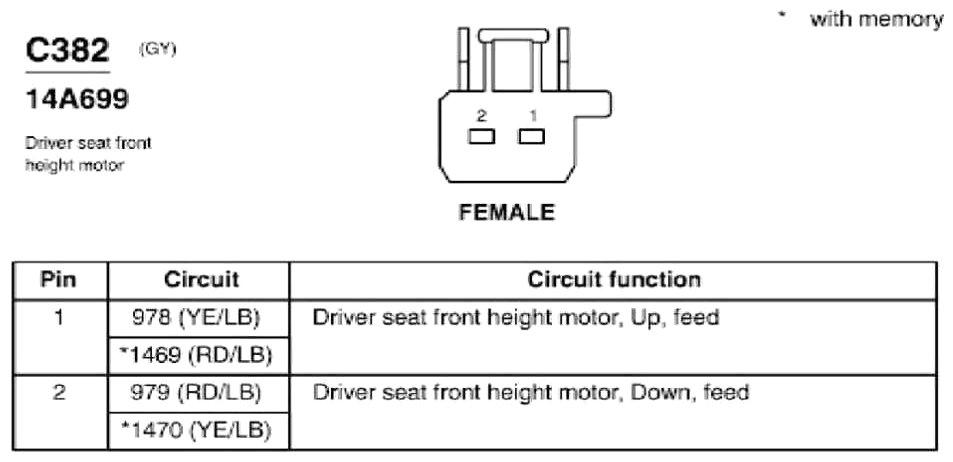

Fig 161: Driver Seat Front Height Motor Connector End View (C382)

G07846430

Courtesy of FORD MOTOR CO.

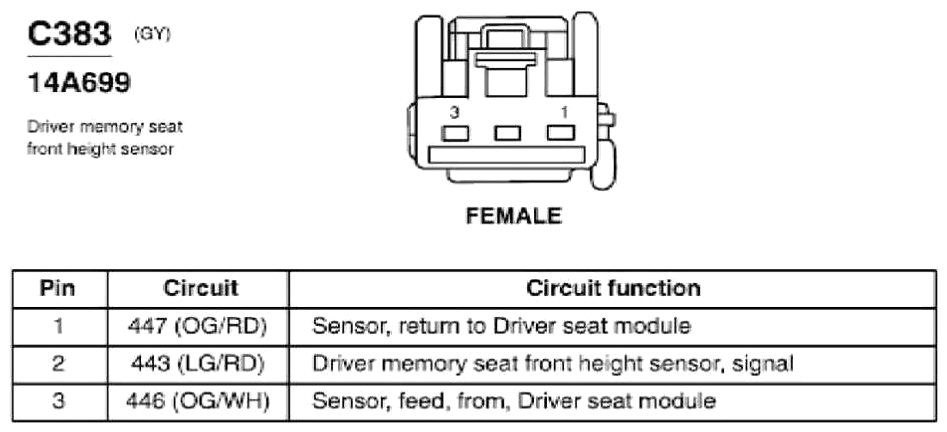

Fig 162: Driver Memory Seat Front Height Sensor Connector End View (C383)

G07846431

Courtesy of FORD MOTOR CO.

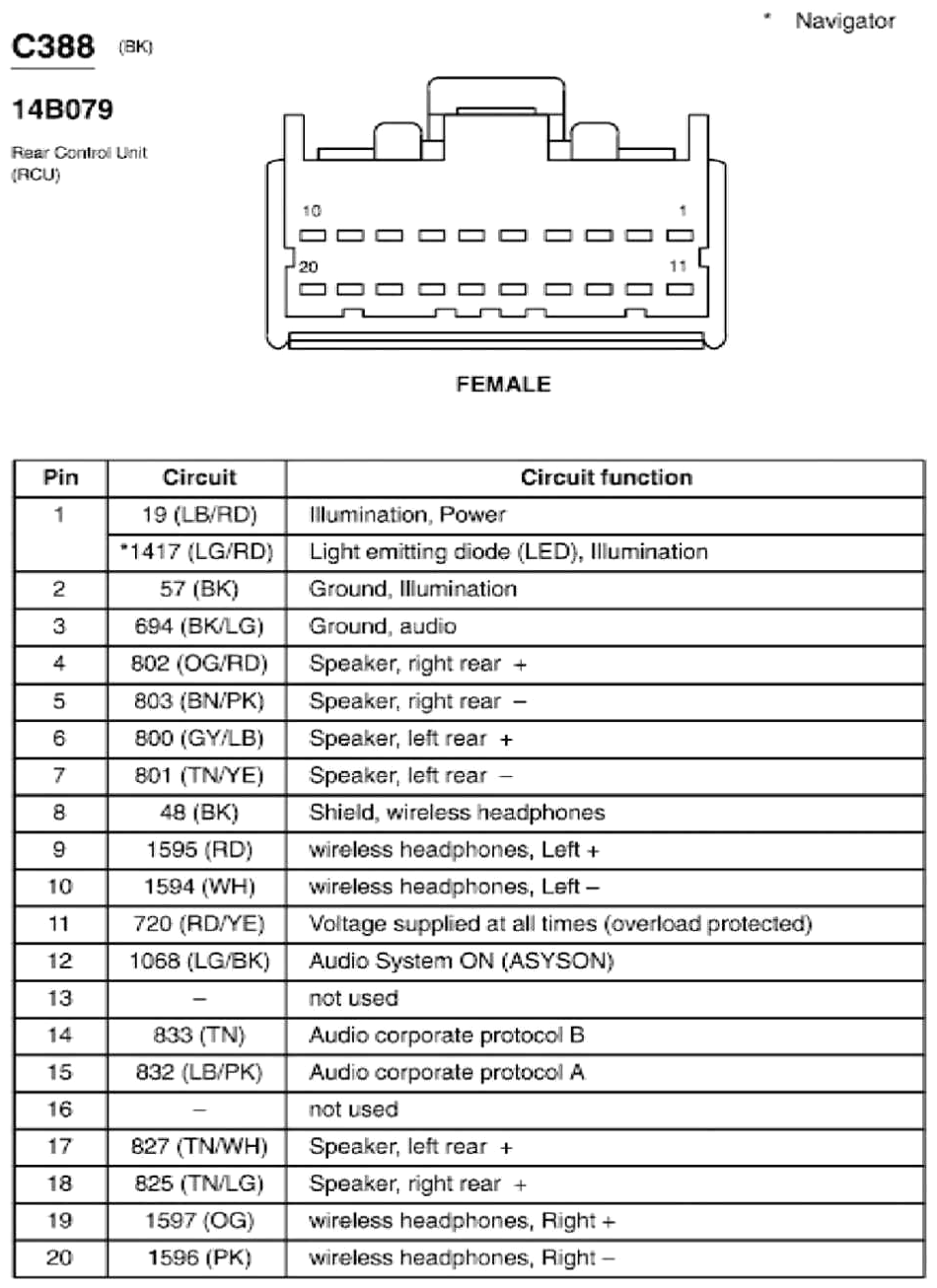

Fig 163: Rear Control Unit (RCU) Connector End View (C388)

G07846432

Courtesy of FORD MOTOR CO.

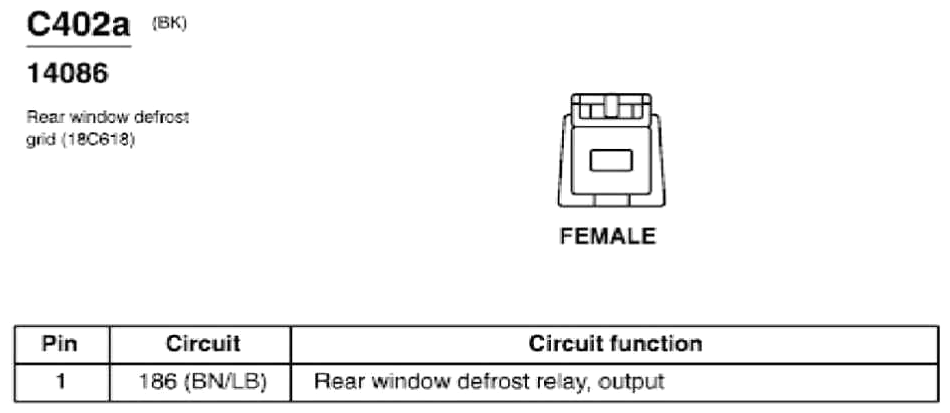

Fig 164: Rear Window Defrost Grid Connector End View (C402a)

G07846433

Courtesy of FORD MOTOR CO.

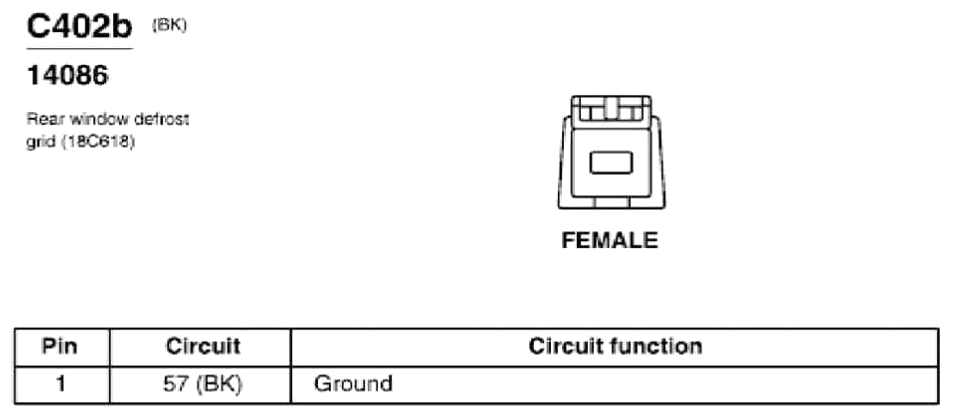

Fig 165: Rear Window Defrost Grid Connector End View (C402b)

G07846434

Courtesy of FORD MOTOR CO.

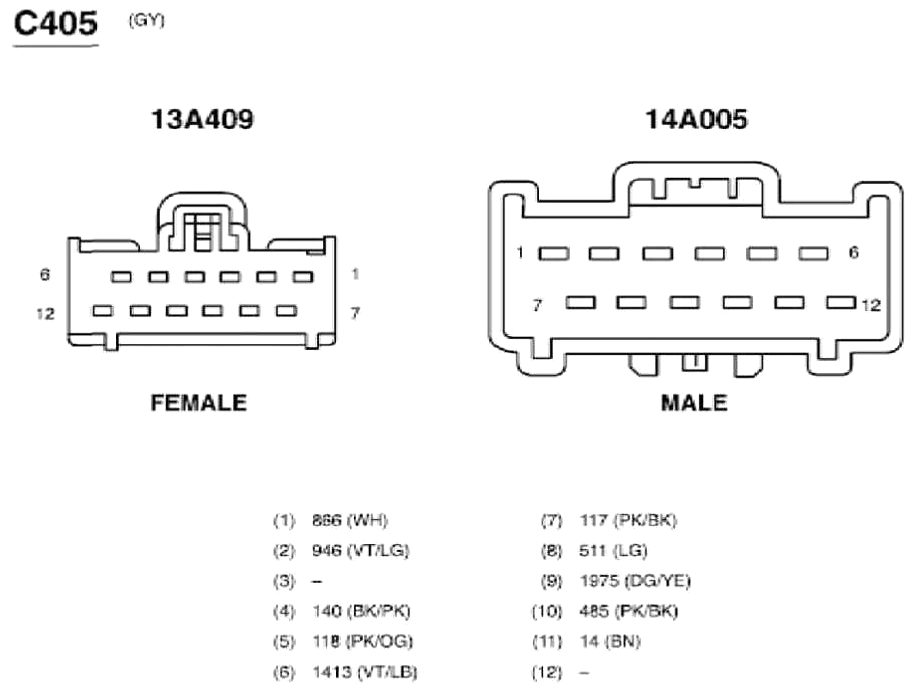

Fig 166: Inline Connector End View (C405)

G07846435

Courtesy of FORD MOTOR CO.

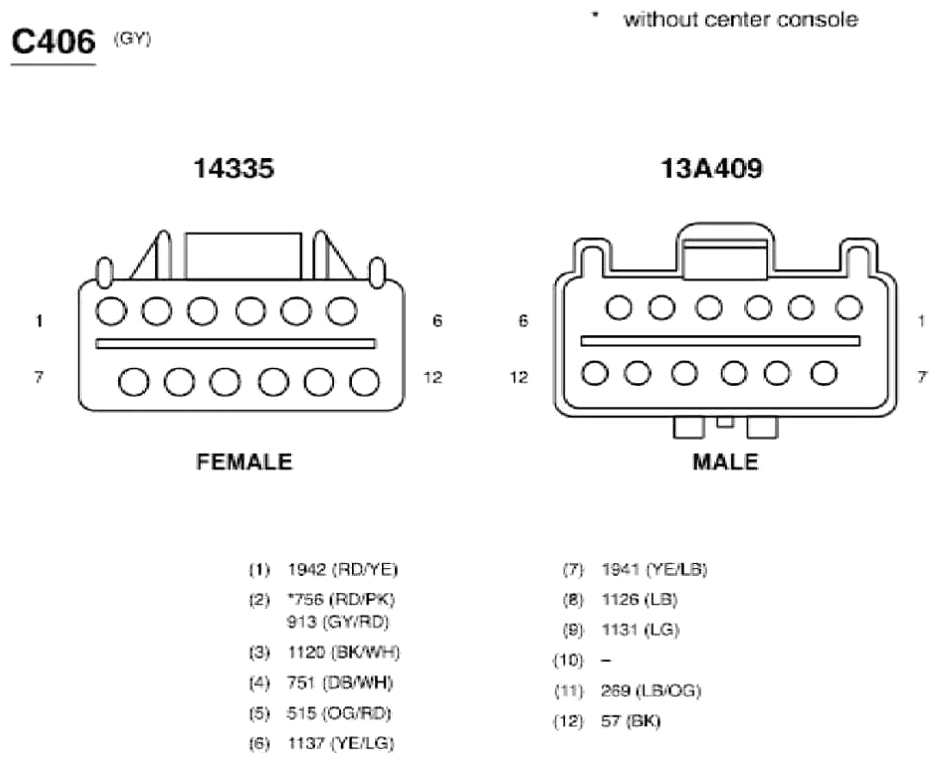

Fig 167: Inline Connector End View (C406)

G07846436

Courtesy of FORD MOTOR CO.

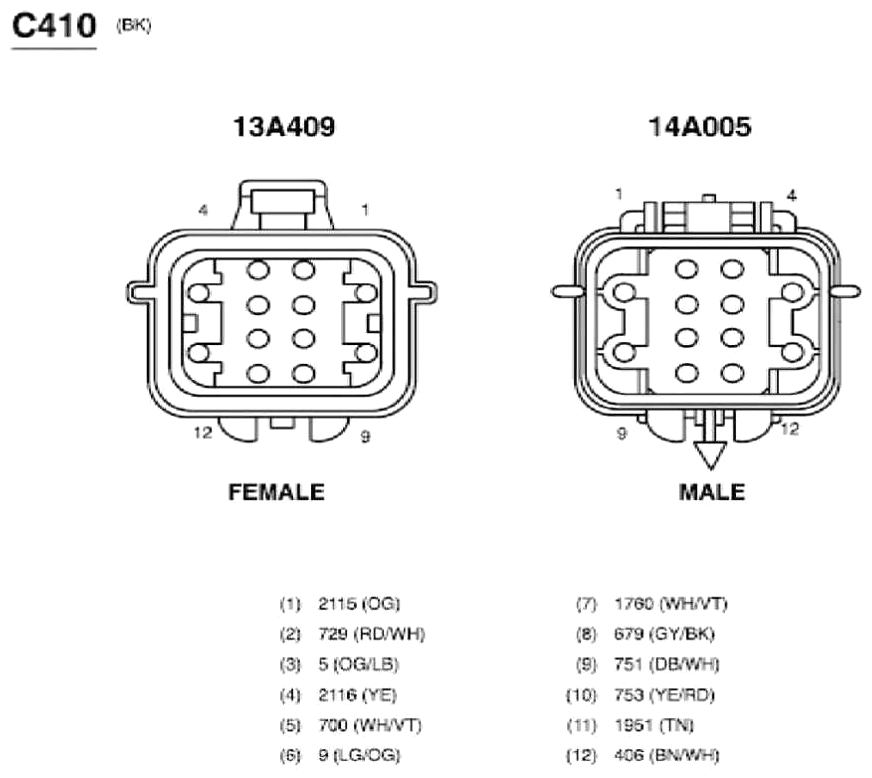

Fig 168: Inline Connector End View (C410)

G07846437

Courtesy of FORD MOTOR CO.

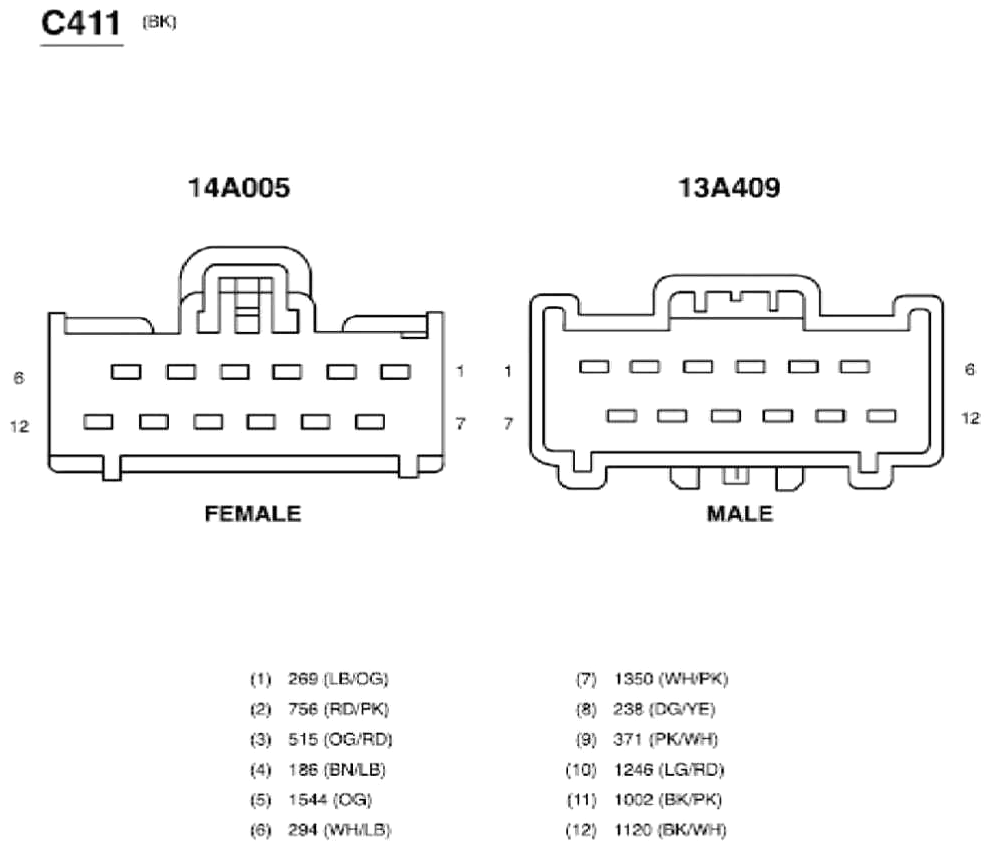

Fig 169: Inline Connector End View (C411)

G07846438

Courtesy of FORD MOTOR CO.

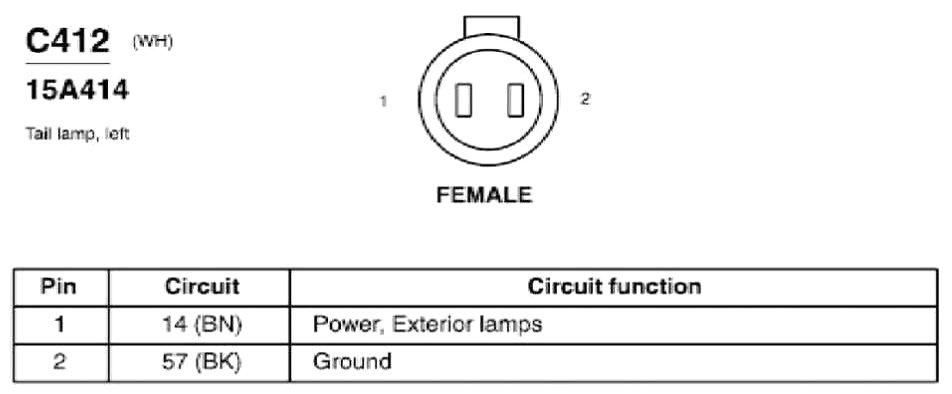

Fig 170: Tail Lamp, Left Connector End View (C412)

G07846439

Courtesy of FORD MOTOR CO.

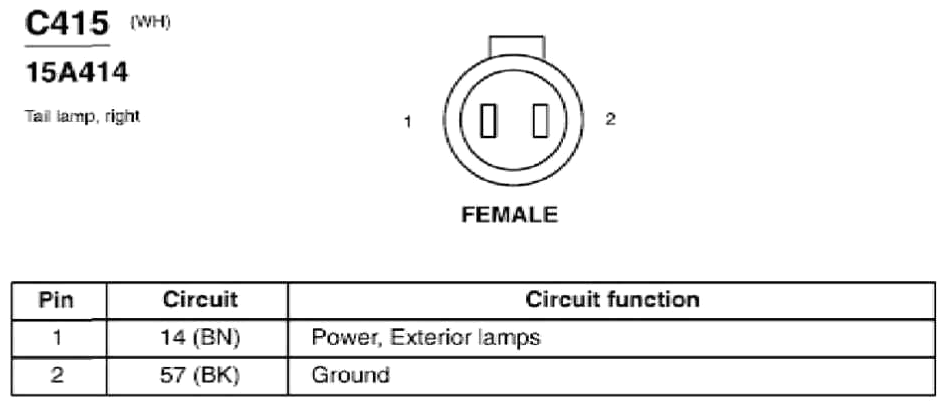

Fig 171: Tail Lamp, Right Connector End View (C415)

G07846440

Courtesy of FORD MOTOR CO.

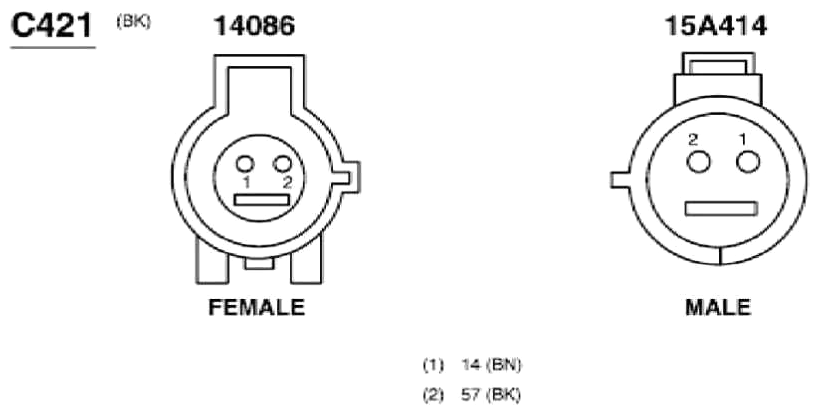

Fig 172: Inline Connector End View (C421)

G07846441

Courtesy of FORD MOTOR CO.

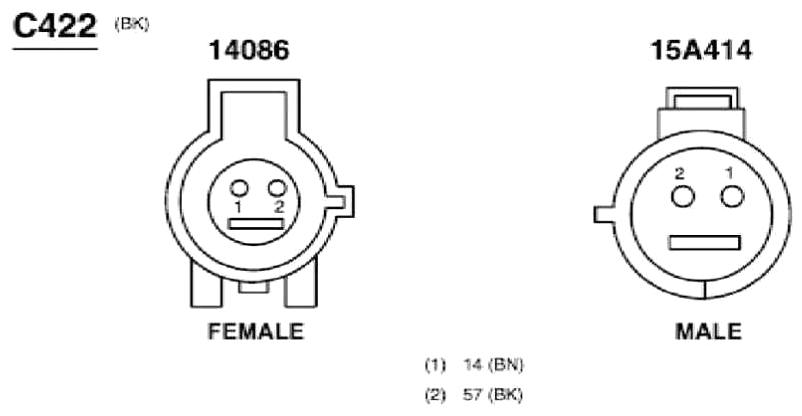

Fig 173: Inline Connector End View (C422)

G07846442

Courtesy of FORD MOTOR CO.

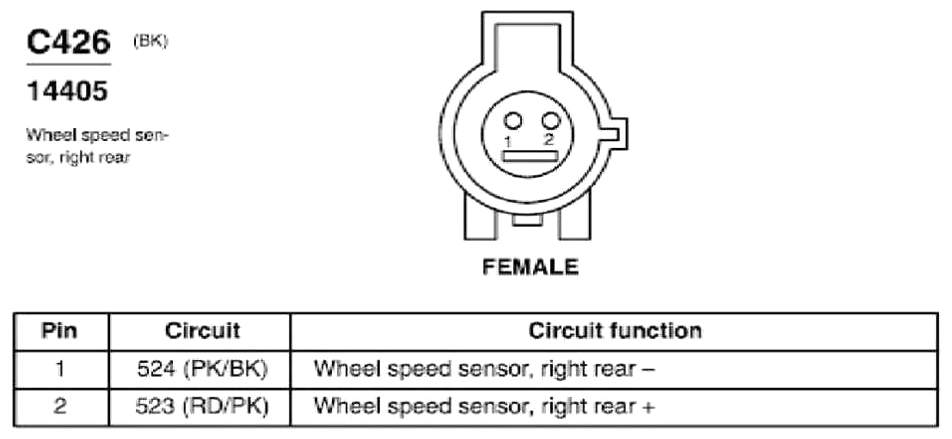

Fig 174: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07846443

Courtesy of FORD MOTOR CO.

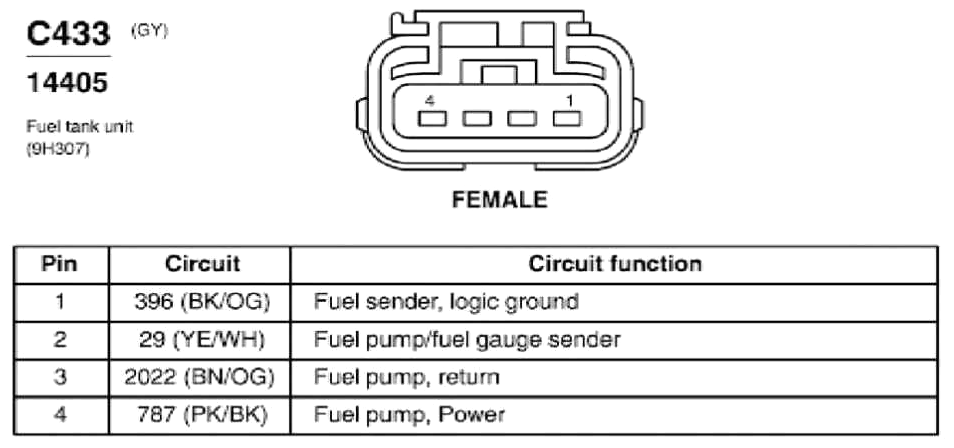

Fig 175: Fuel Tank Unit Connector End View (C433)

G07846444

Courtesy of FORD MOTOR CO.

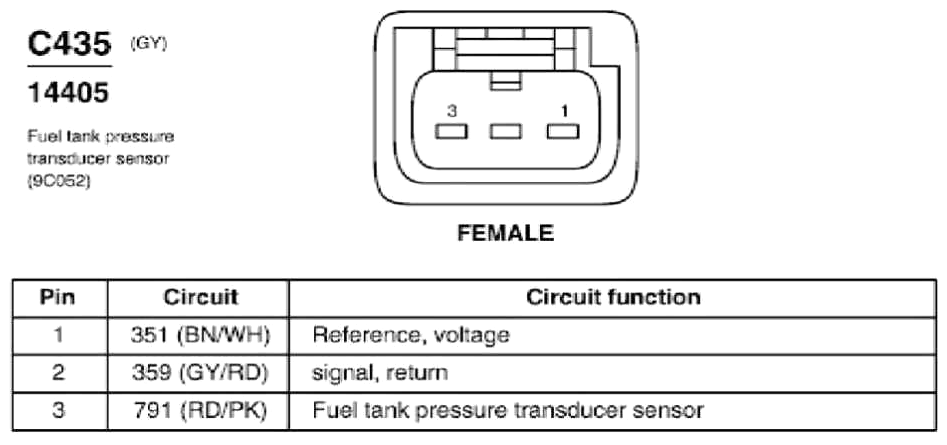

Fig 176: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07846445

Courtesy of FORD MOTOR CO.

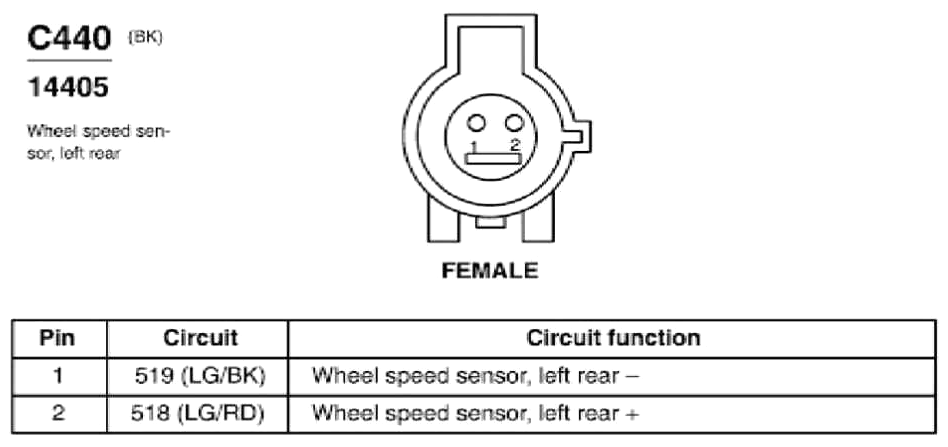

Fig 177: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07846446

Courtesy of FORD MOTOR CO.

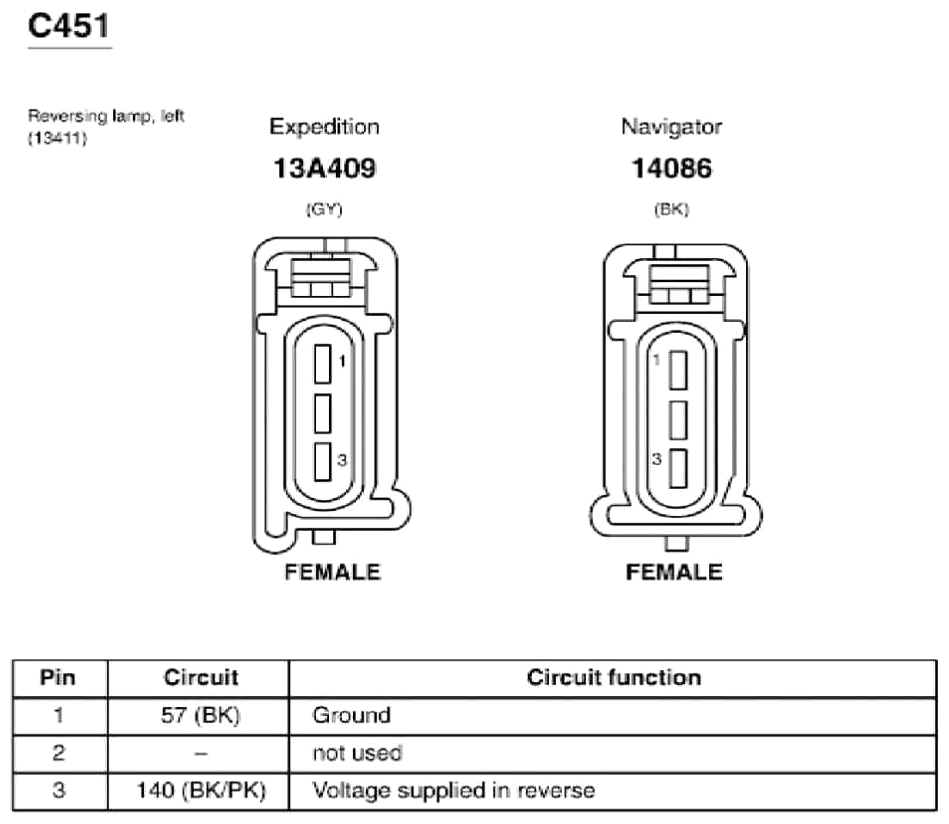

Fig 178: Reversing Lamp, Left Connector End View (C451)

G07846447

Courtesy of FORD MOTOR CO.

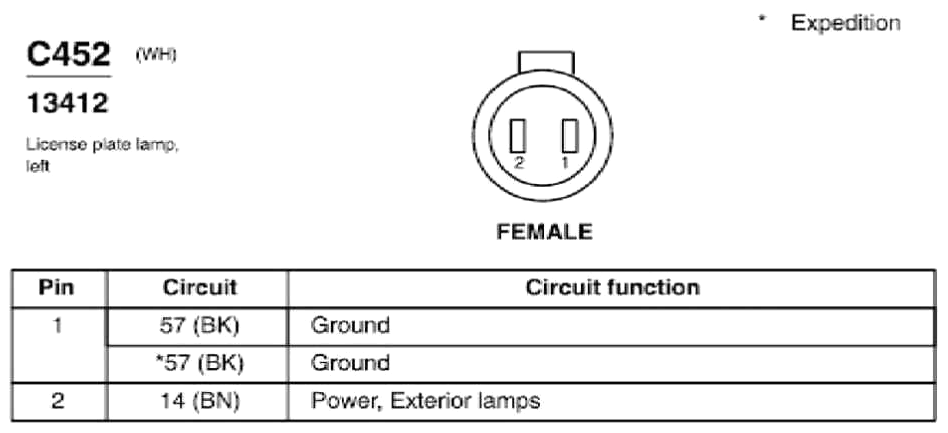

Fig 179: License Plate Lamp, Left Connector End View (C452)

G07846448

Courtesy of FORD MOTOR CO.

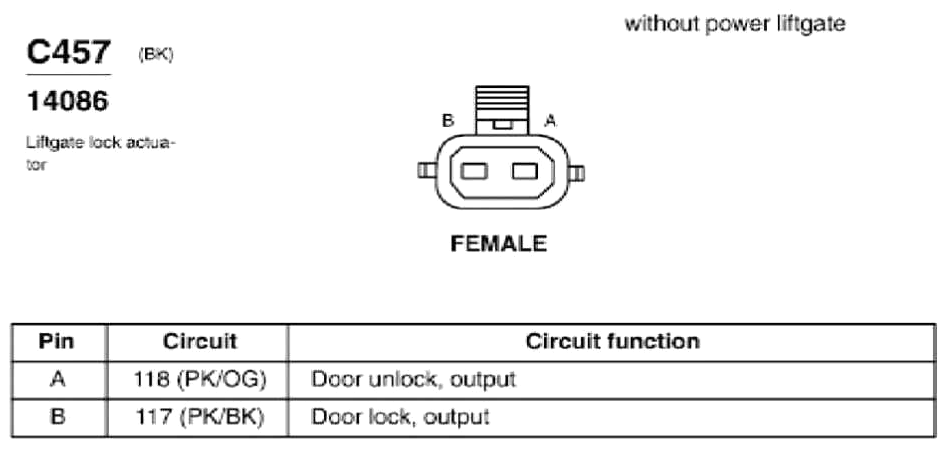

Fig 180: Liftgate Lock Actuator Connector End View (C457)

G07846449

Courtesy of FORD MOTOR CO.

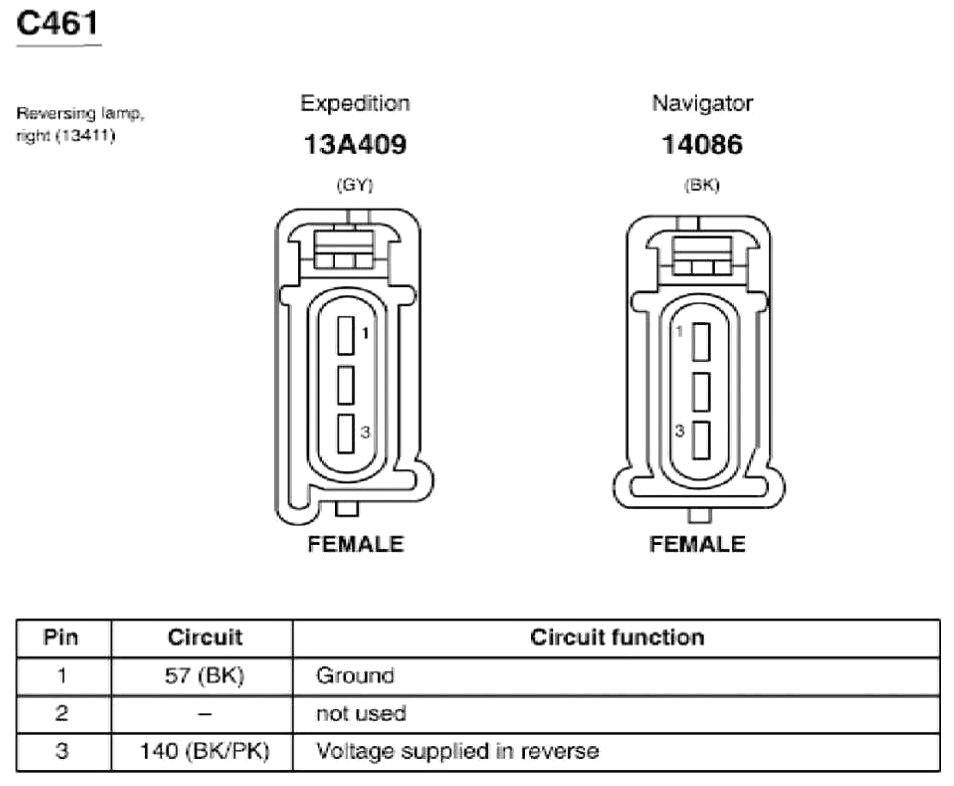

Fig 181: Reversing Lamp, Right Connector End View (C461)

G07846450

Courtesy of FORD MOTOR CO.

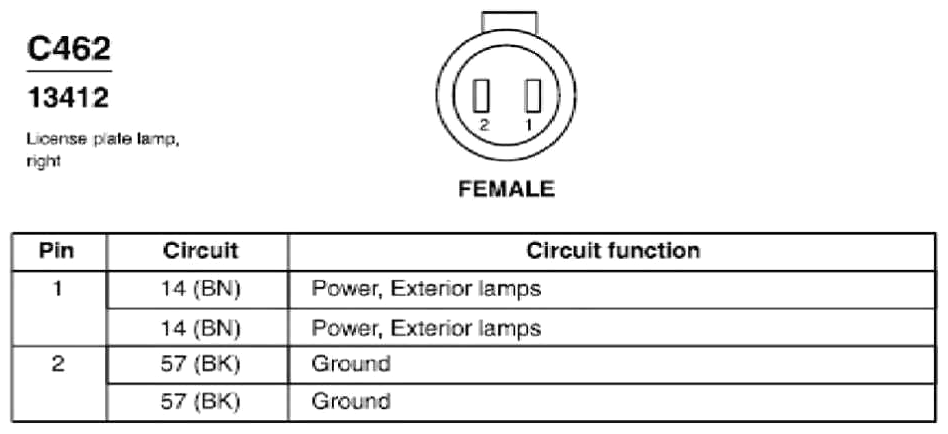

Fig 182: License Plate Lamp, Right Connector End View (C462)

G07846451

Courtesy of FORD MOTOR CO.

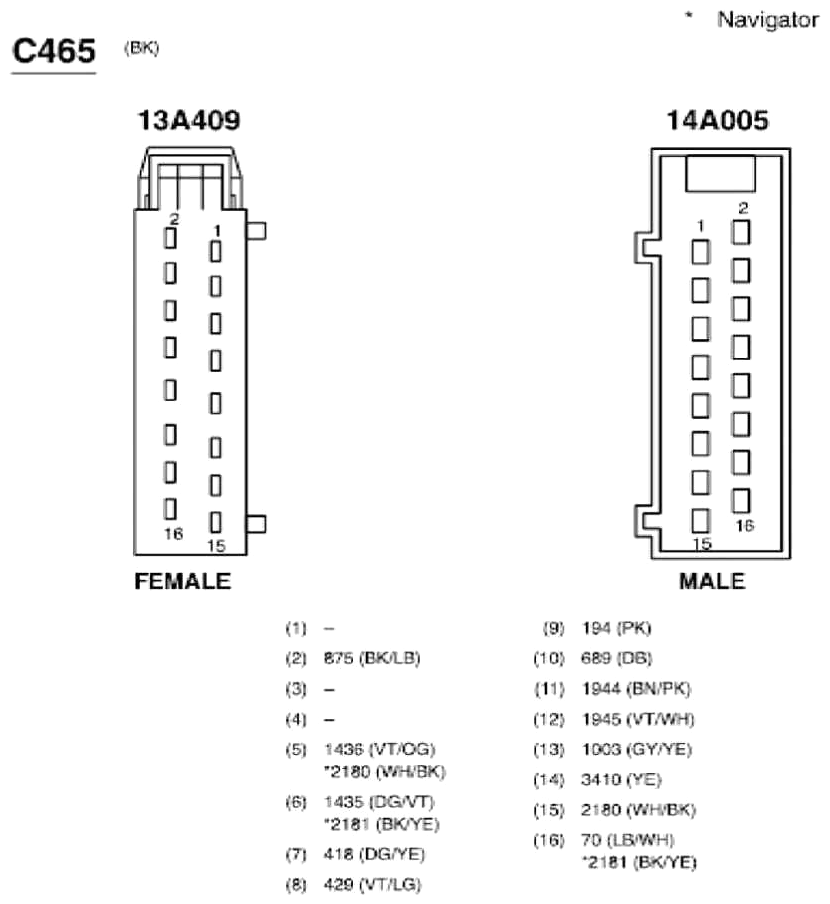

Fig 183: Inline Connector End View (C465)

G07846452

Courtesy of FORD MOTOR CO.

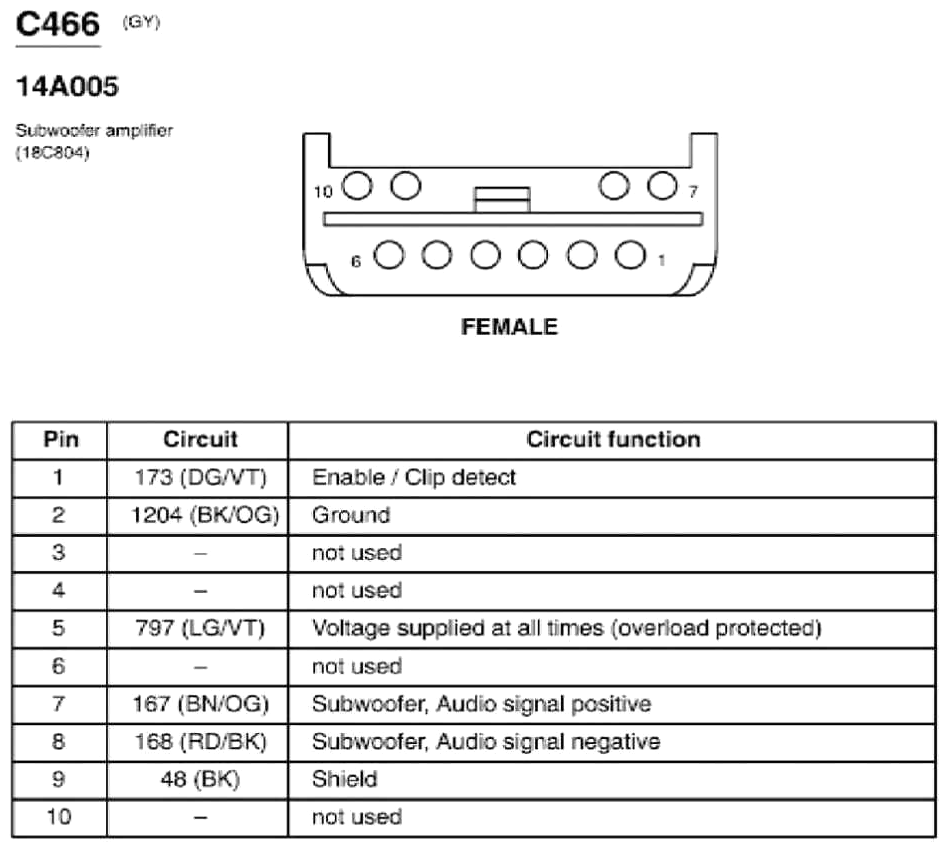

Fig 184: Subwoofer Amplifier Connector End View (C466)

G07846453

Courtesy of FORD MOTOR CO.

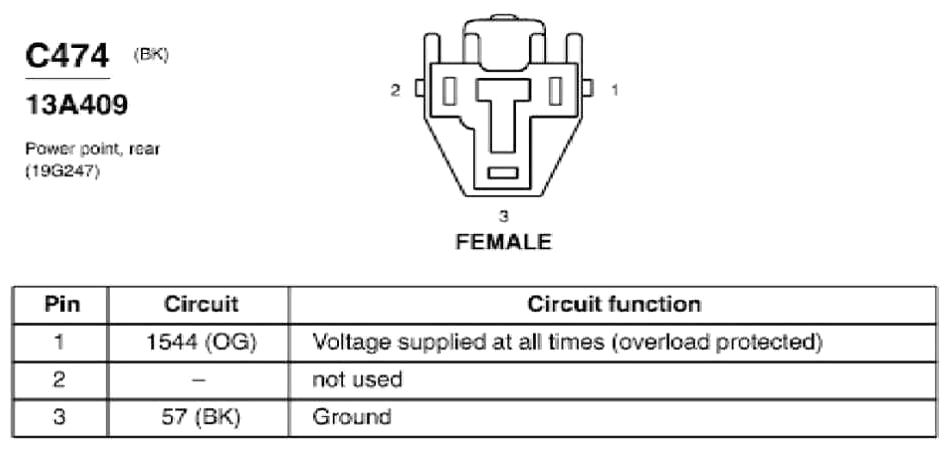

Fig 185: Power Point, Rear Connector End View (C474)

G07846454

Courtesy of FORD MOTOR CO.

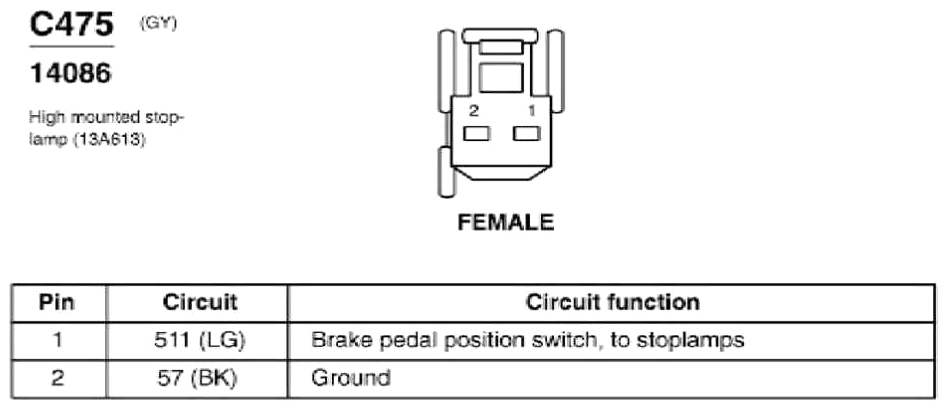

Fig 186: High Mounted Stop Lamp Connector End View (C475)

G07846455

Courtesy of FORD MOTOR CO.

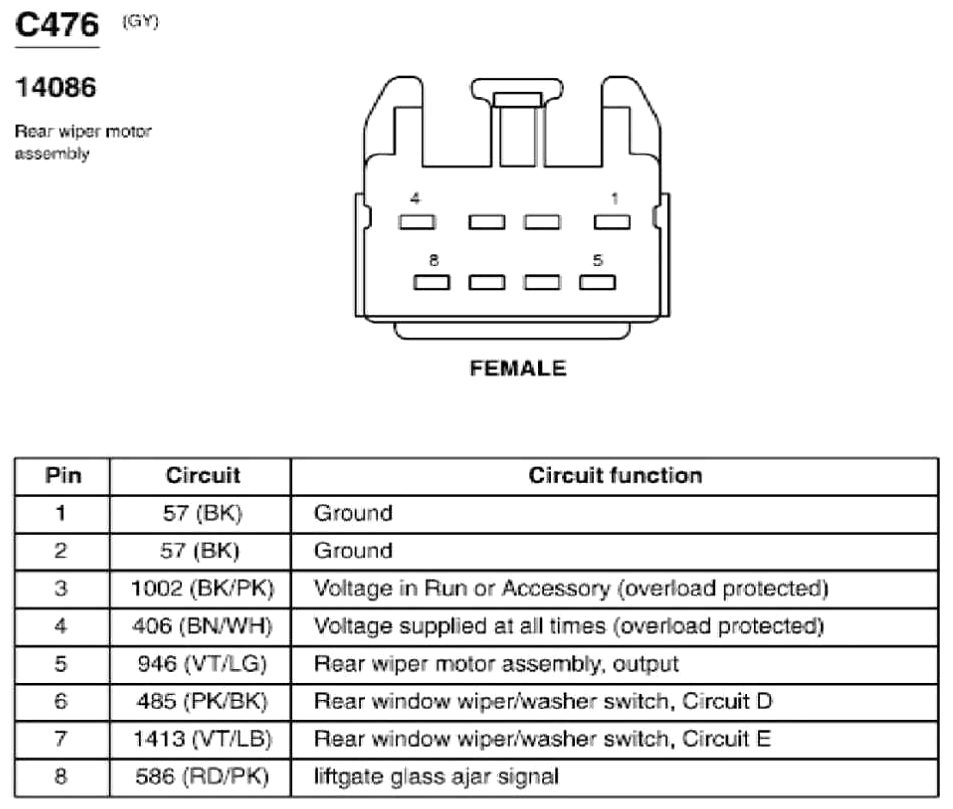

Fig 187: Rear Wiper Motor Assembly Connector End View (C476)

G07846456

Courtesy of FORD MOTOR CO.

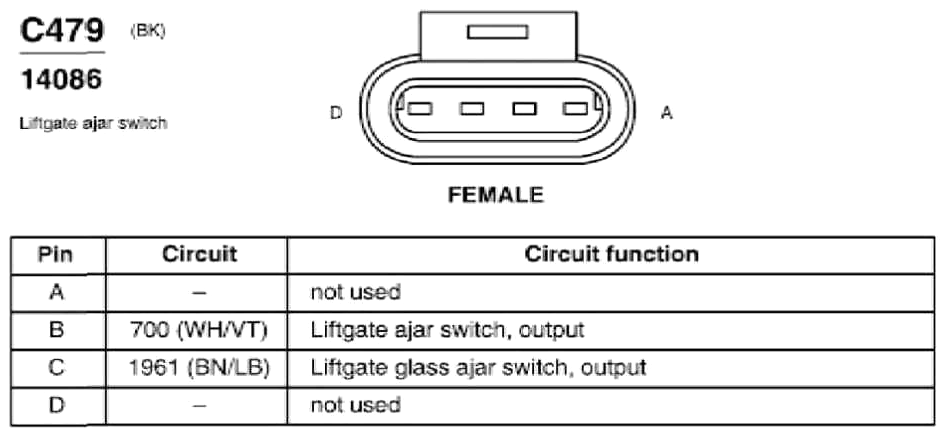

Fig 188: Liftgate Ajar Switch Connector End View (C479)

G07846457

Courtesy of FORD MOTOR CO.

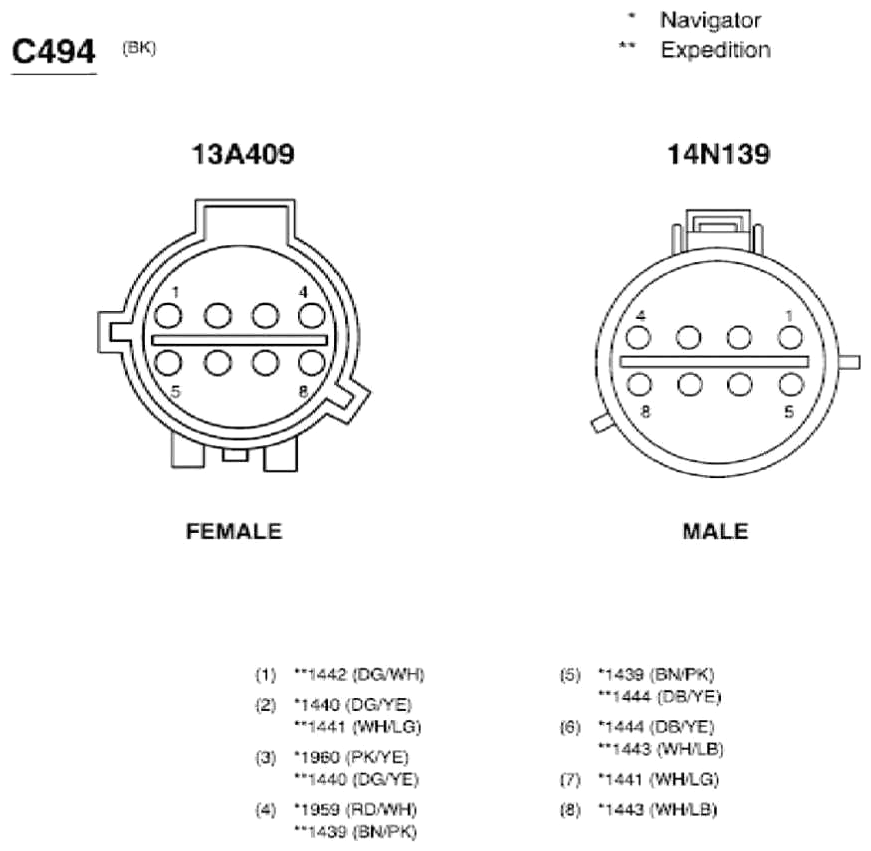

Fig 189: Inline Connector End View (C494)

G07846458

Courtesy of FORD MOTOR CO.

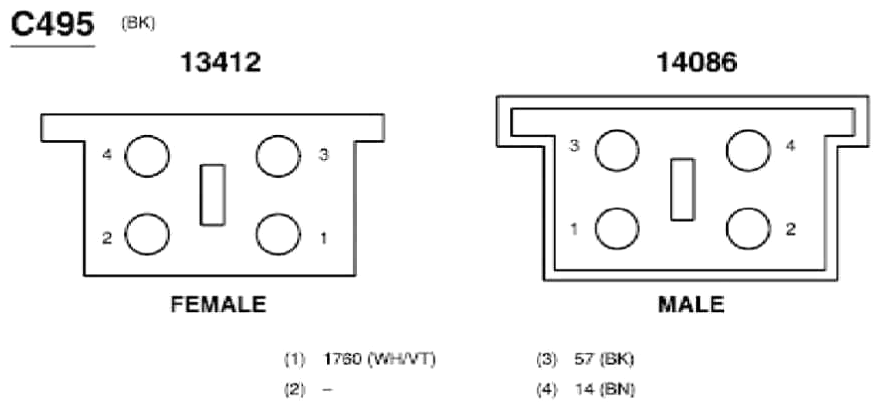

Fig 190: Inline Connector End View (C495)

G07846459

Courtesy of FORD MOTOR CO.

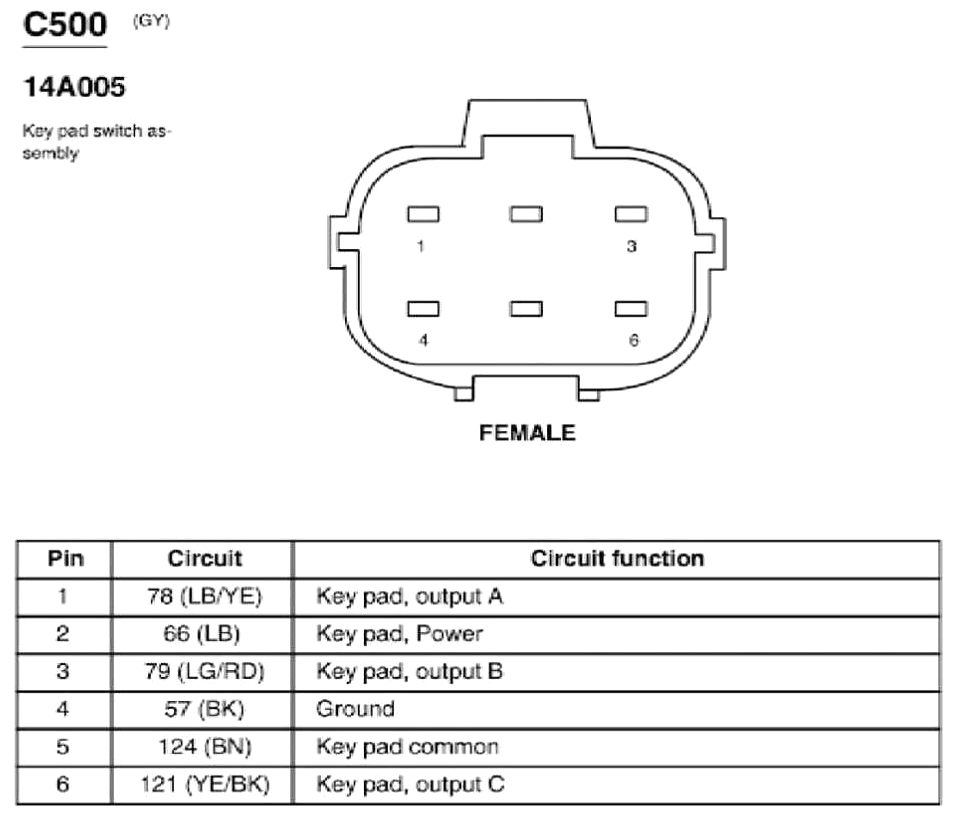

Fig 191: Key Pad Switch Assembly Connector End View (C500)

G07846460

Courtesy of FORD MOTOR CO.

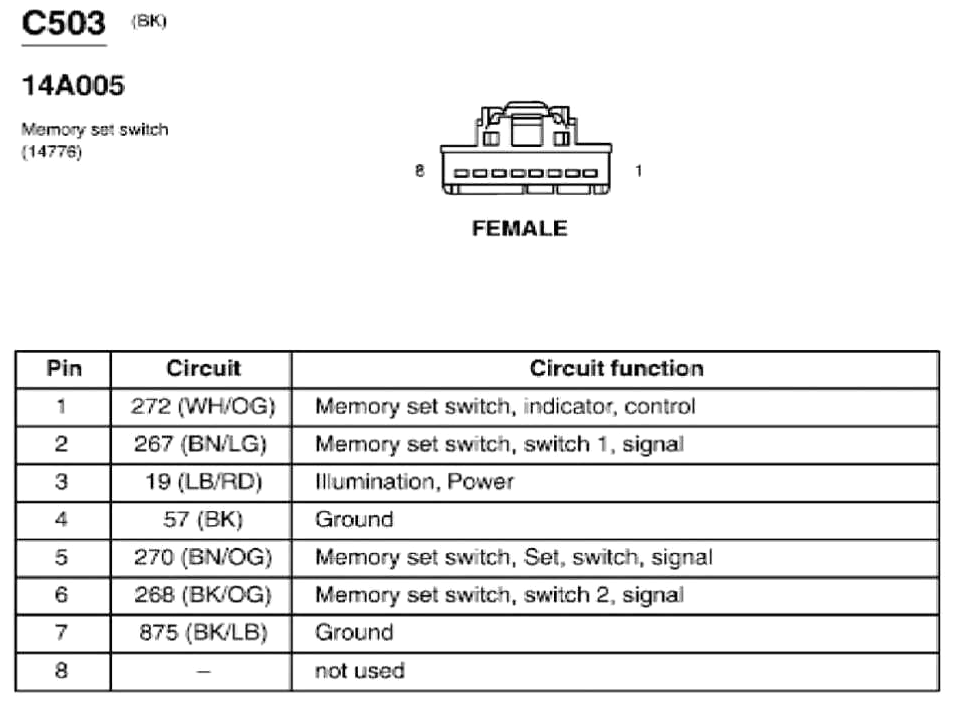

Fig 192: Memory Set Switch Connector End View (C503)

G07846461

Courtesy of FORD MOTOR CO.

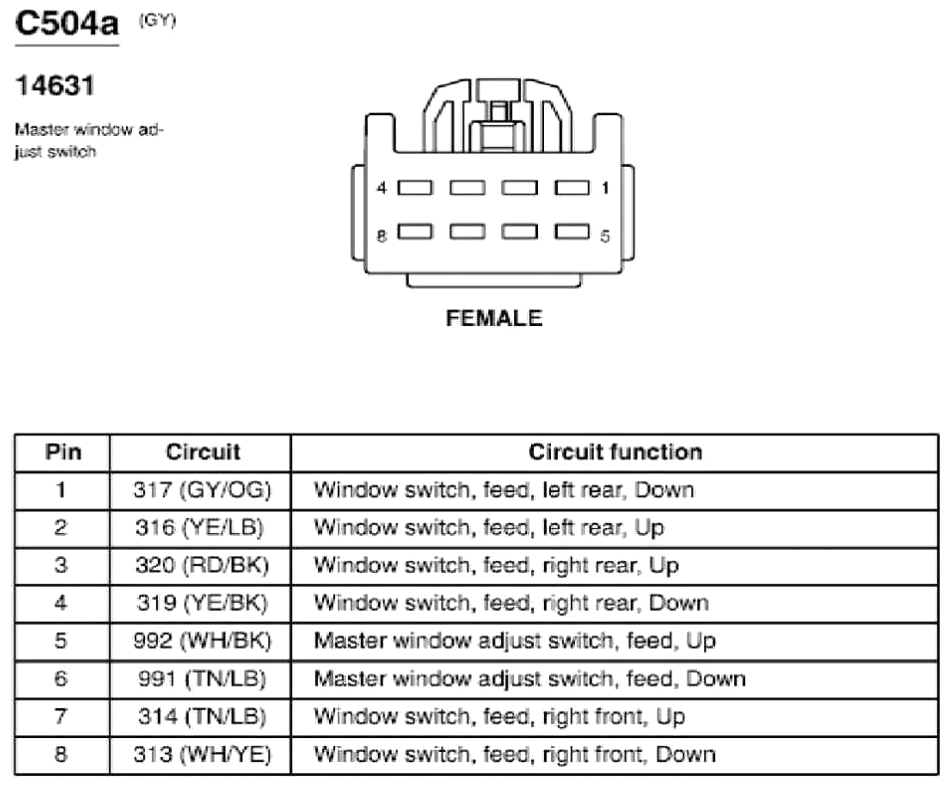

Fig 193: Master Window Adjust Switch Connector End View (C504a)

G07846462

Courtesy of FORD MOTOR CO.

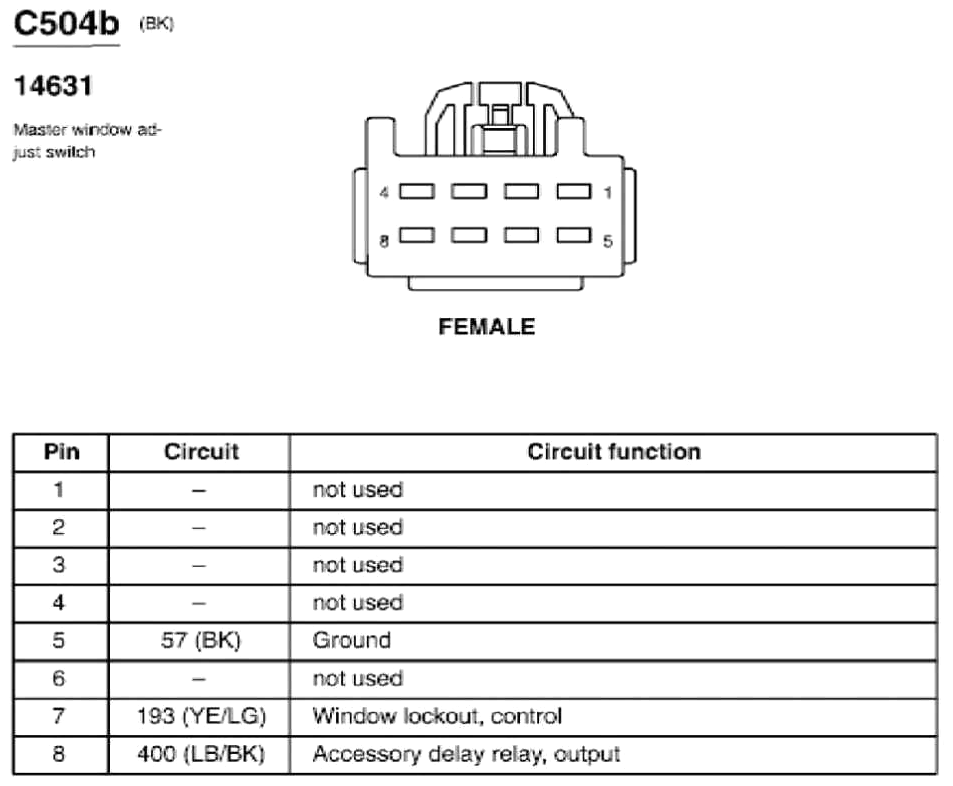

Fig 194: Master Window Adjust Switch Connector End View (C504b)

G07846463

Courtesy of FORD MOTOR CO.

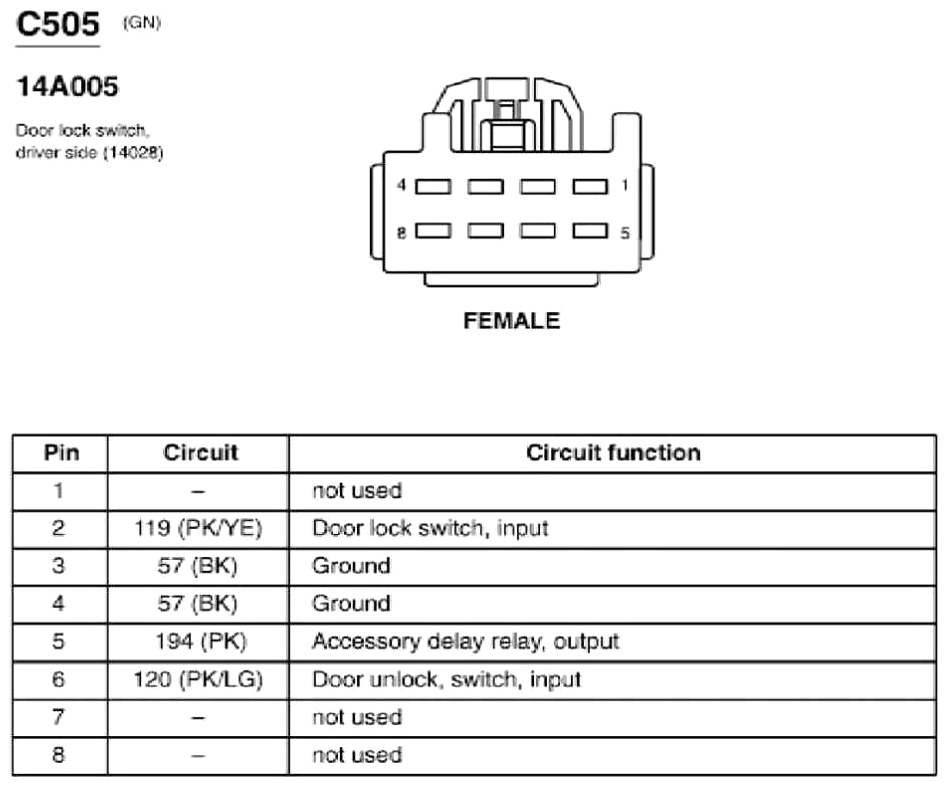

Fig 195: Door Lock Switch, Driver Side Connector End View (C505)

G07846464

Courtesy of FORD MOTOR CO.

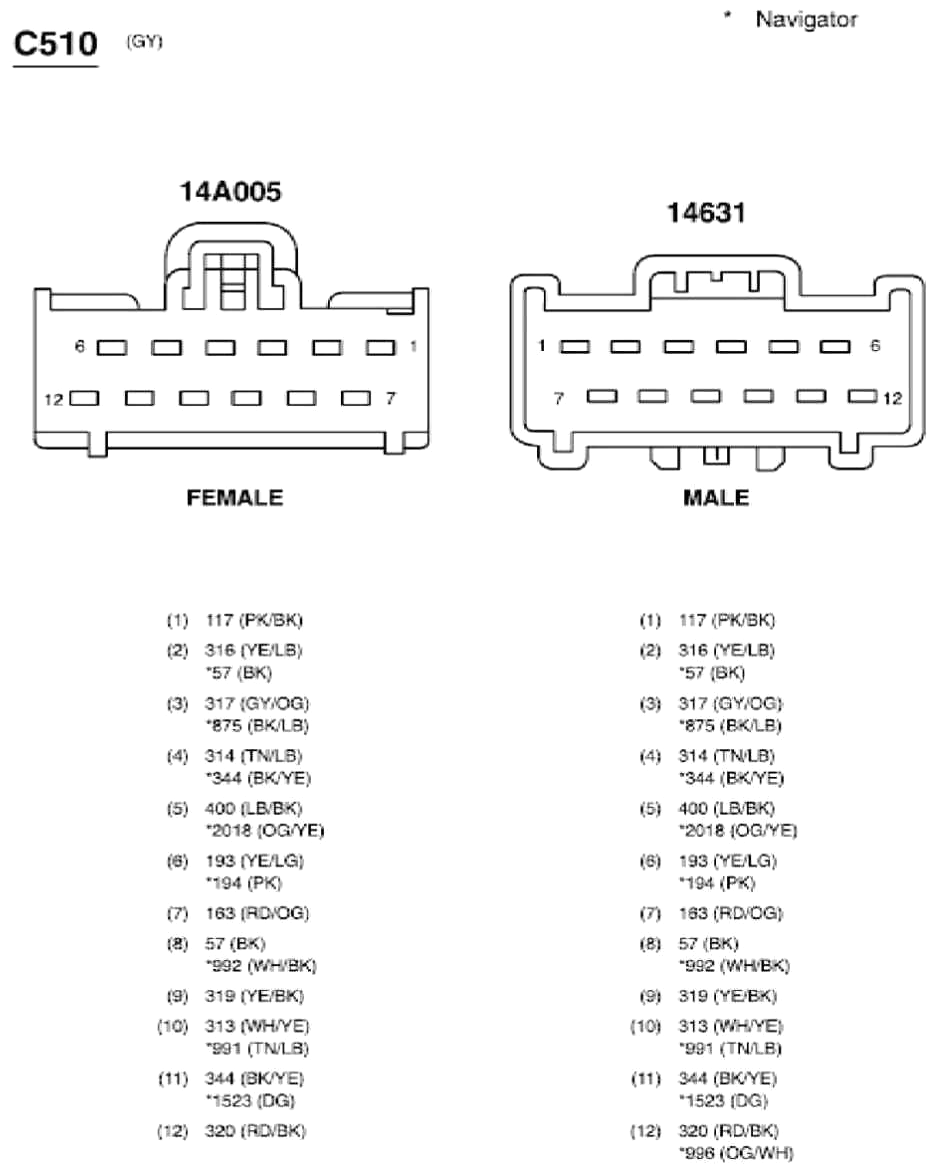

Fig 196: Inline Connector End View (C510)

G07846465

Courtesy of FORD MOTOR CO.

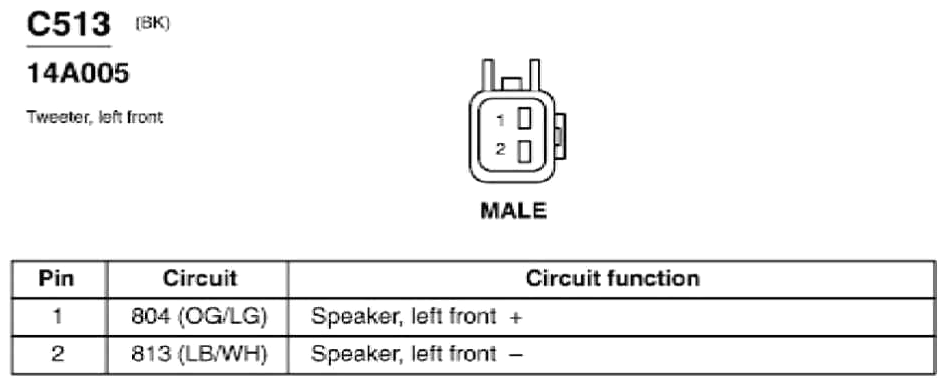

Fig 197: Tweeter, Left Front Connector End View (C513)

G07846466

Courtesy of FORD MOTOR CO.

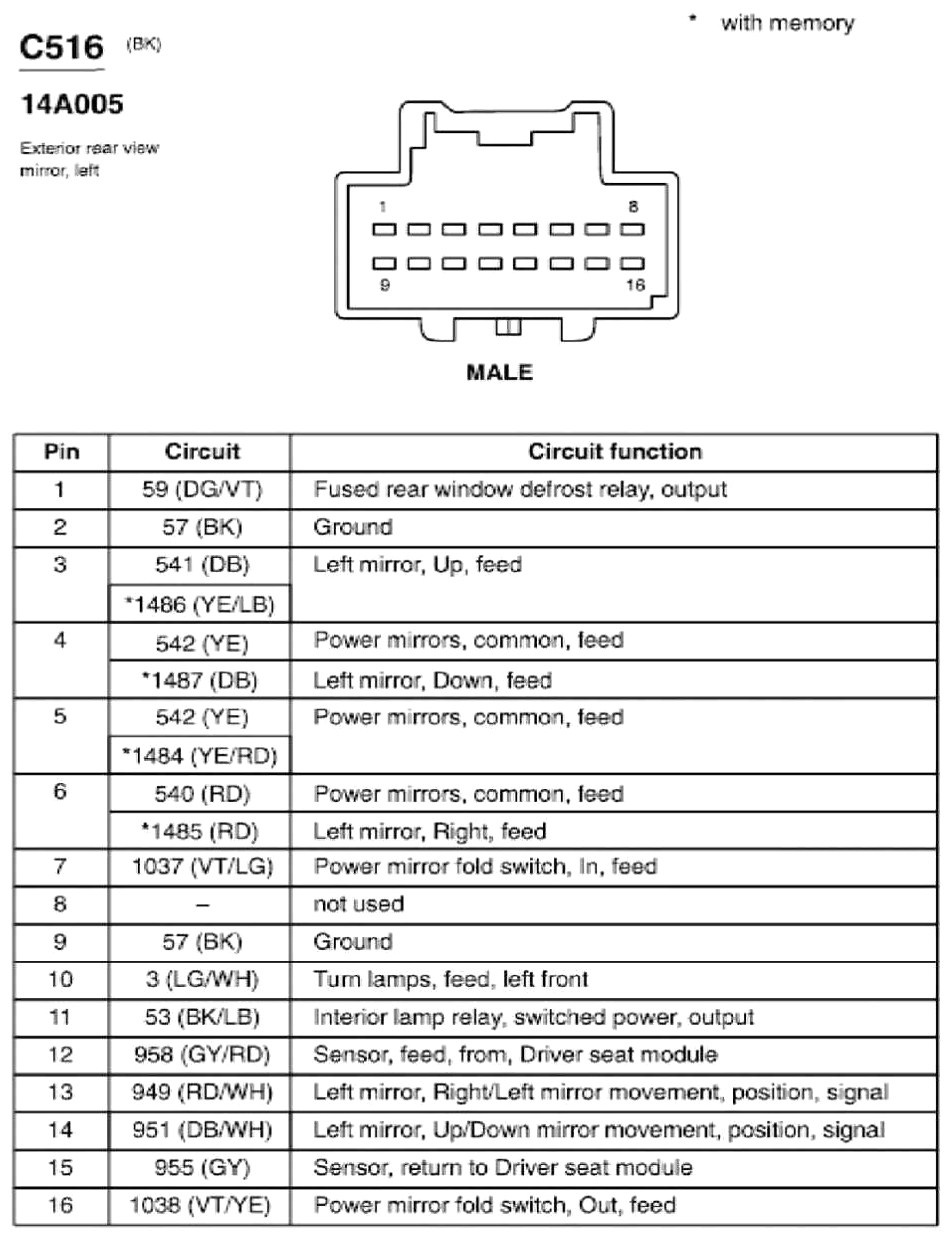

Fig 198: Exterior Rear View Mirror, Left Connector End View (C516)

G07846467

Courtesy of FORD MOTOR CO.

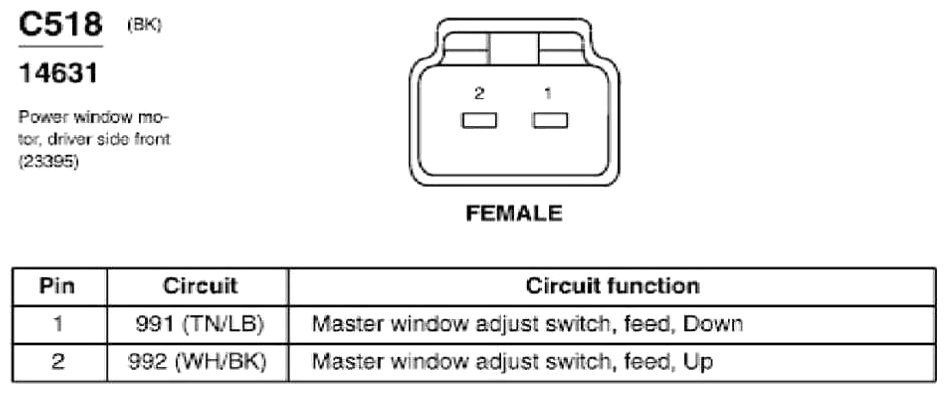

Fig 199: Power Window Motor, Driver Side Front Connector End View (C518)

G07846468

Courtesy of FORD MOTOR CO.

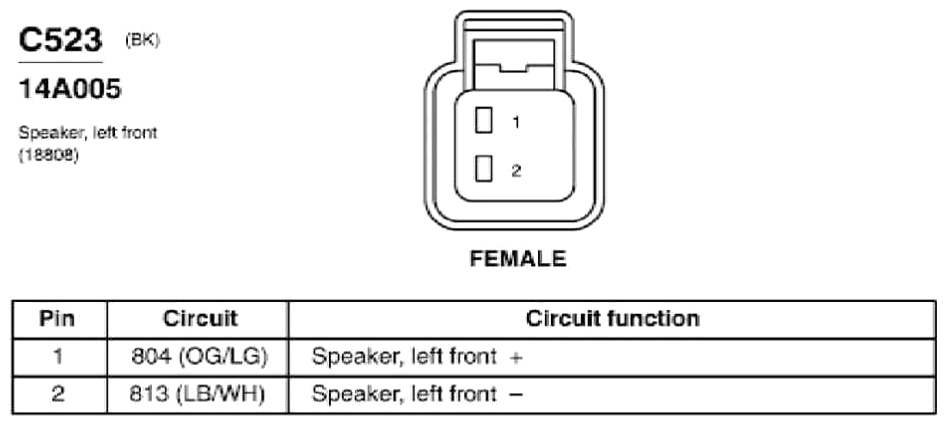

Fig 200: Speaker, Left Front Connector End View (C523)

G07846469

Courtesy of FORD MOTOR CO.

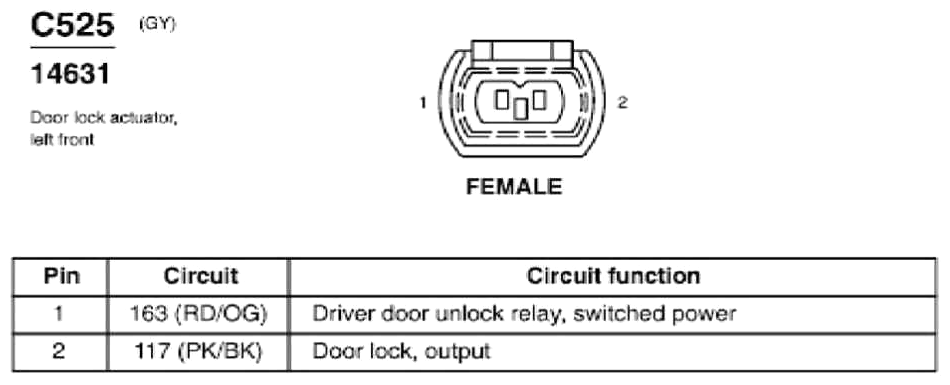

Fig 201: Door Lock Actuator, Left Front Connector End View (C525)

G07846470

Courtesy of FORD MOTOR CO.

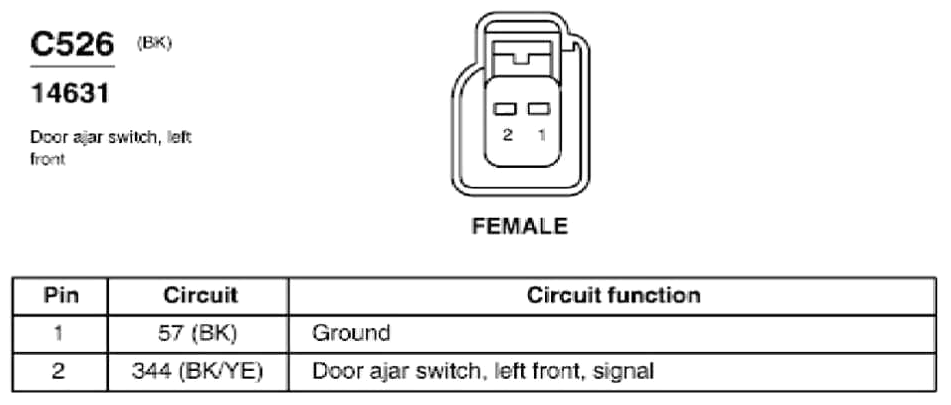

Fig 202: Door Ajar Switch, Left Front Connector End View (C526)

G07846471

Courtesy of FORD MOTOR CO.

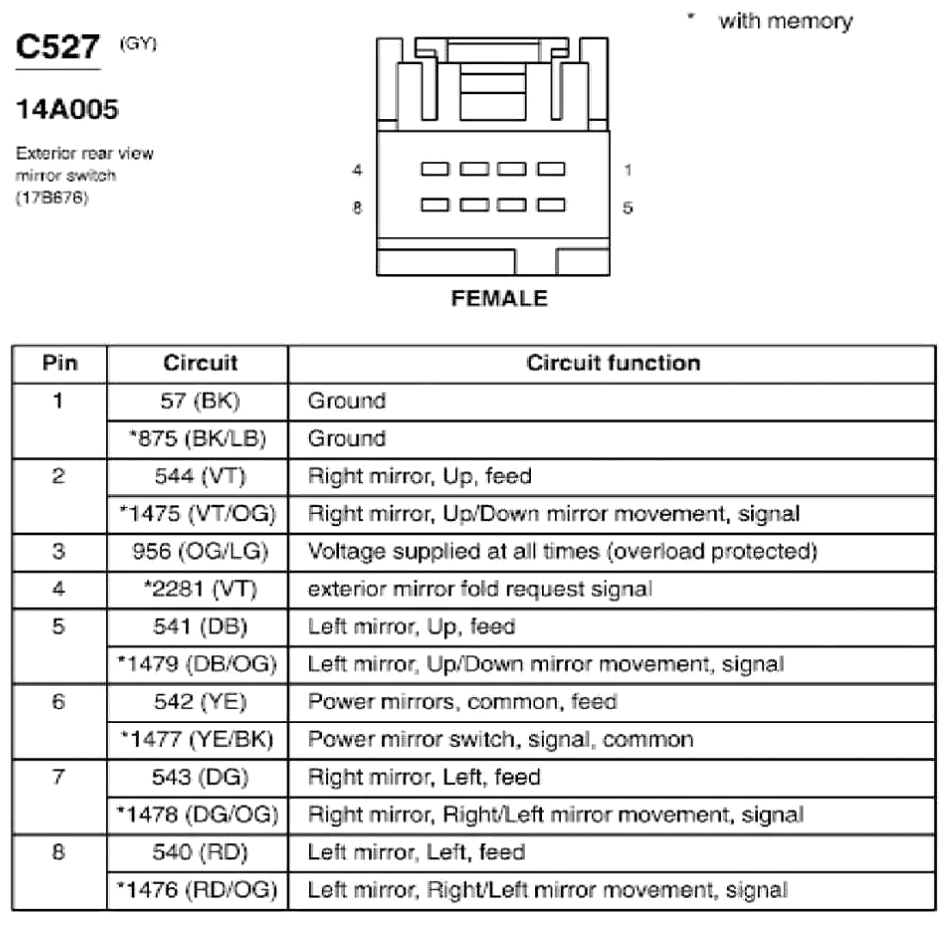

Fig 203: Exterior Rear View Mirror Switch Connector End View (C527)

G07846472

Courtesy of FORD MOTOR CO.

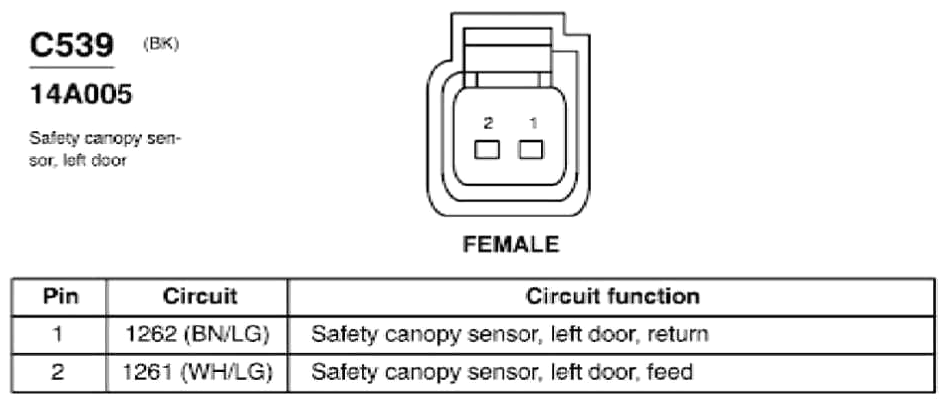

Fig 204: Safety Canopy Sensor, Left Door Connector End View (C539)

G07846473

Courtesy of FORD MOTOR CO.

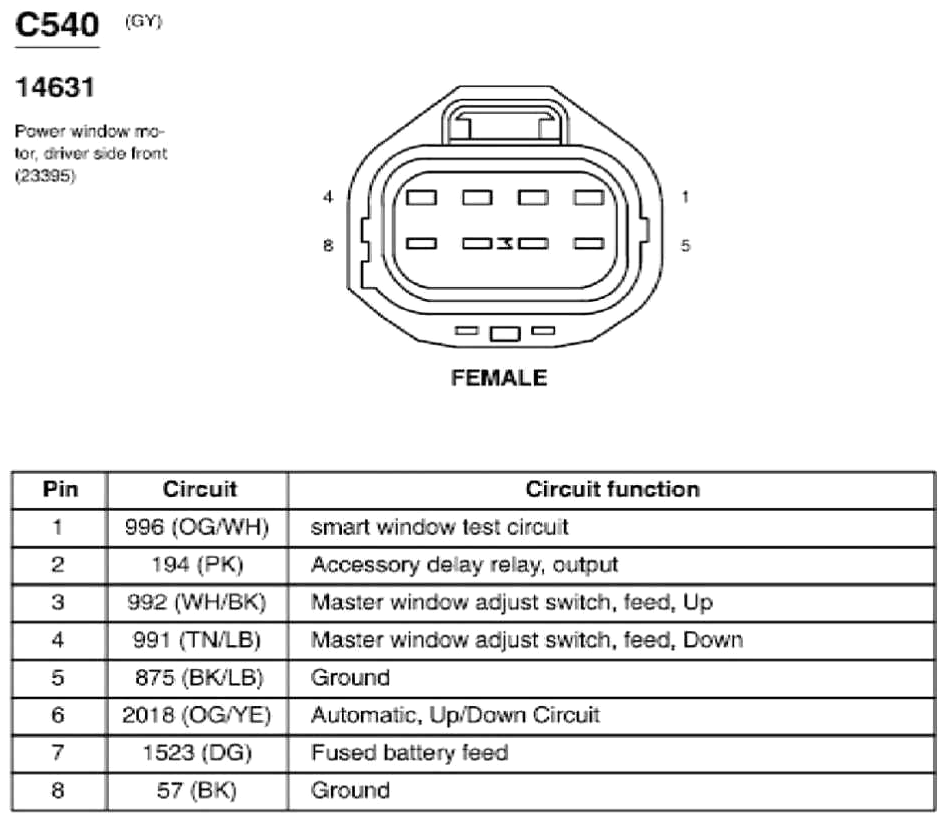

Fig 205: Power Window Motor, Driver Side Front Connector End View (C540)

G07846474

Courtesy of FORD MOTOR CO.

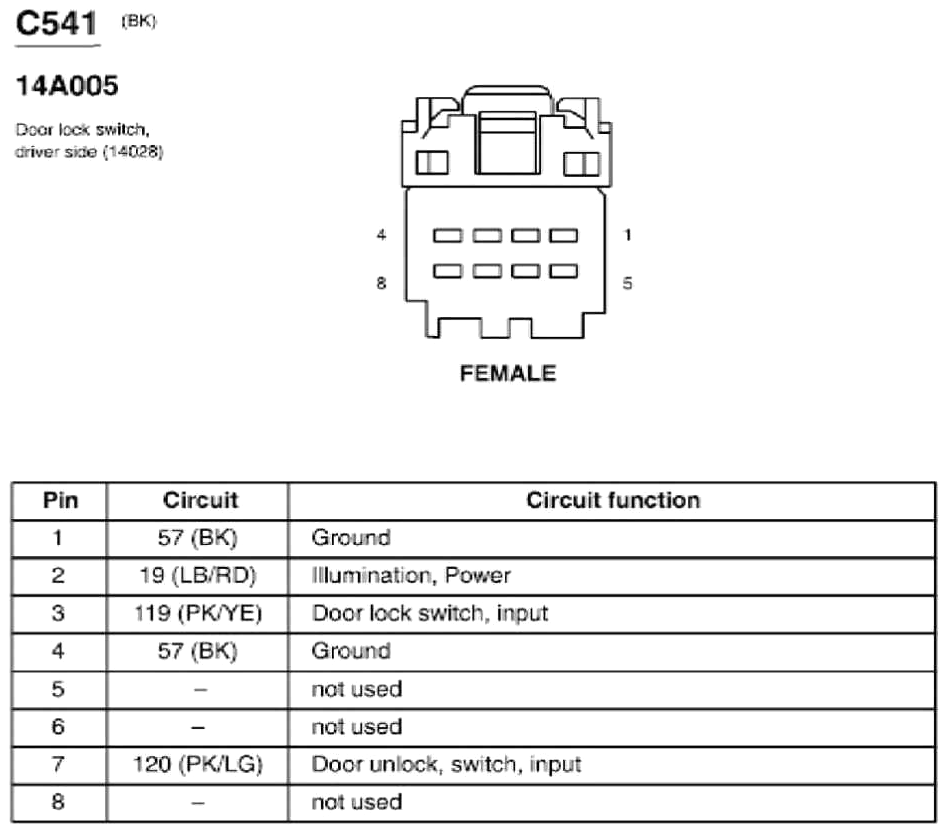

Fig 206: Door Lock Switch, Driver Side Connector End View (C541)

G07846475

Courtesy of FORD MOTOR CO.

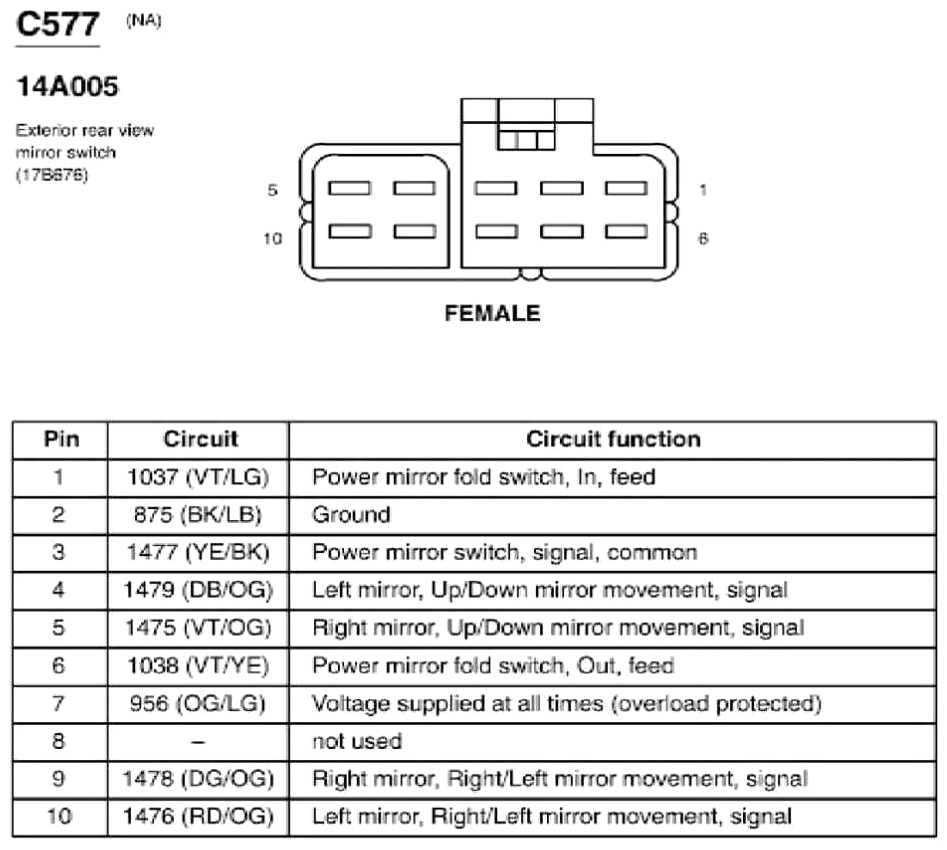

Fig 207: Exterior Rear View Mirror Switch Connector End View (C577)

G07846476

Courtesy of FORD MOTOR CO.

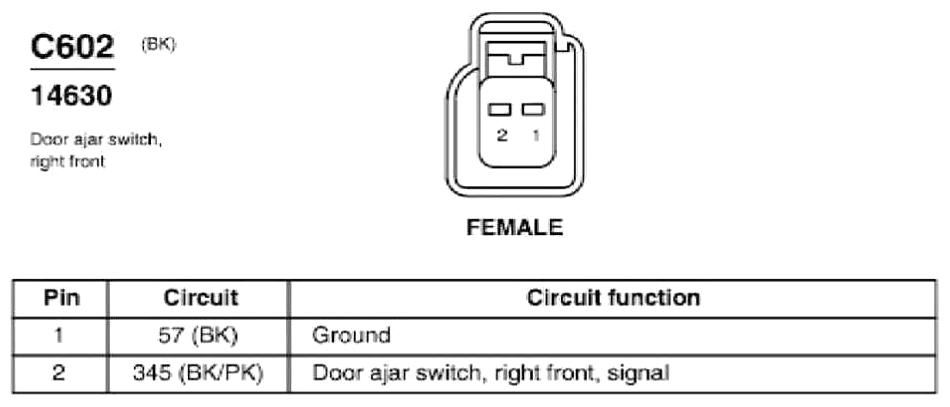

Fig 208: Door Ajar Switch, Right Front Connector End View (C602)

G07846477

Courtesy of FORD MOTOR CO.

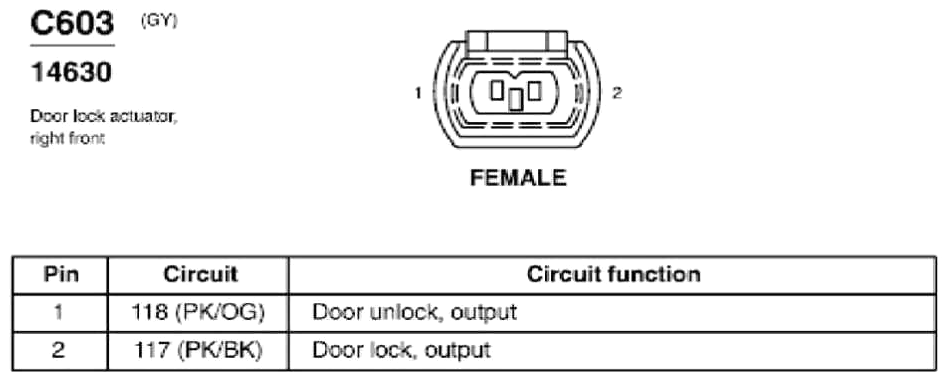

Fig 209: Door Lock Actuator, Right Front Connector End View (C603)

G07846478

Courtesy of FORD MOTOR CO.

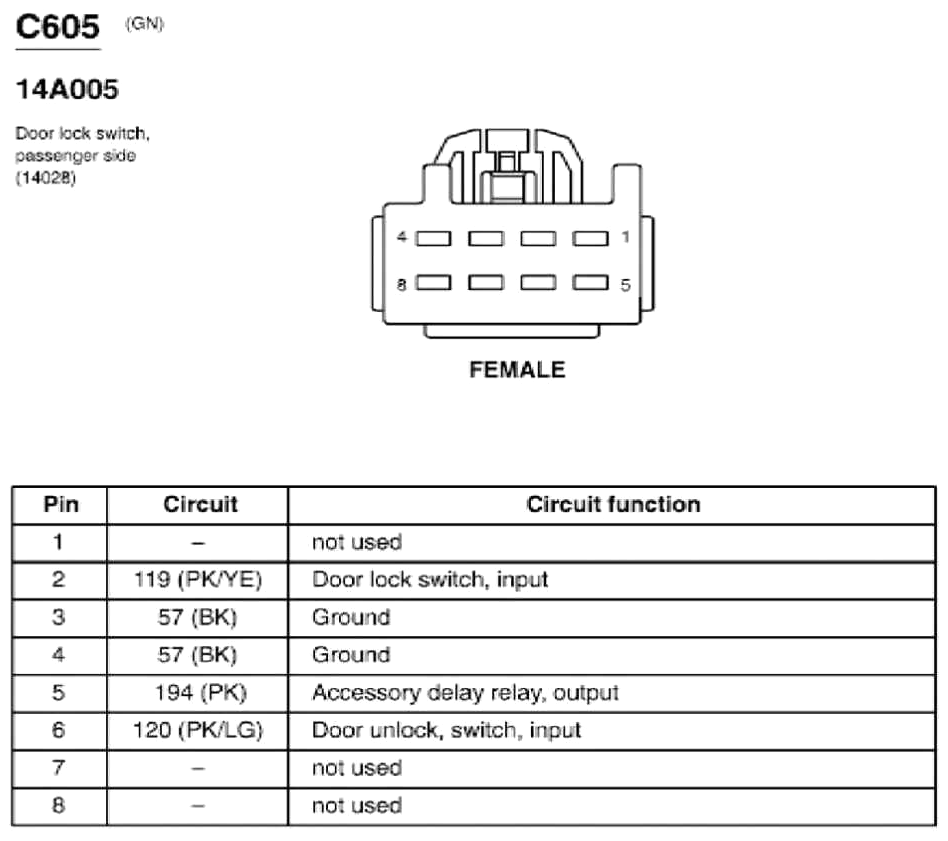

Fig 210: Door Lock Switch, Passenger Side Connector End View (C605)

G07846479

Courtesy of FORD MOTOR CO.

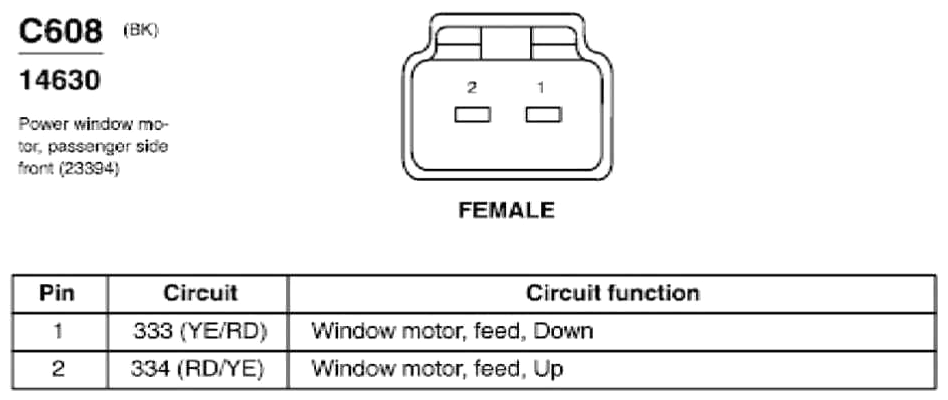

Fig 211: Power Window Motor, Passenger Side Front Connector End View (C608)

G07846480

Courtesy of FORD MOTOR CO.

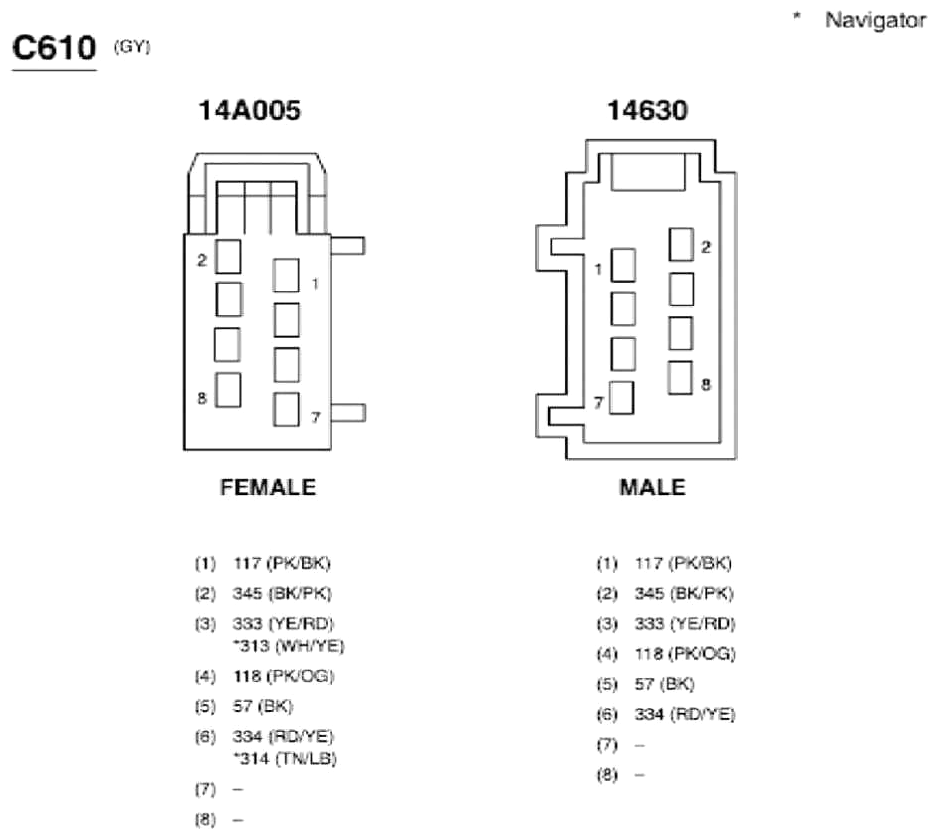

Fig 212: Inline Connector End View (C610)

G07846481

Courtesy of FORD MOTOR CO.

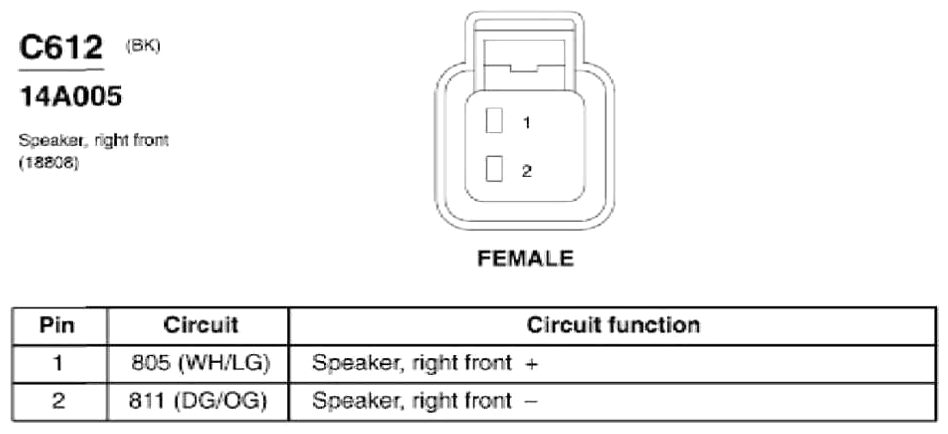

Fig 213: Speaker, Right Front Connector End View (C612)

G07846482

Courtesy of FORD MOTOR CO.

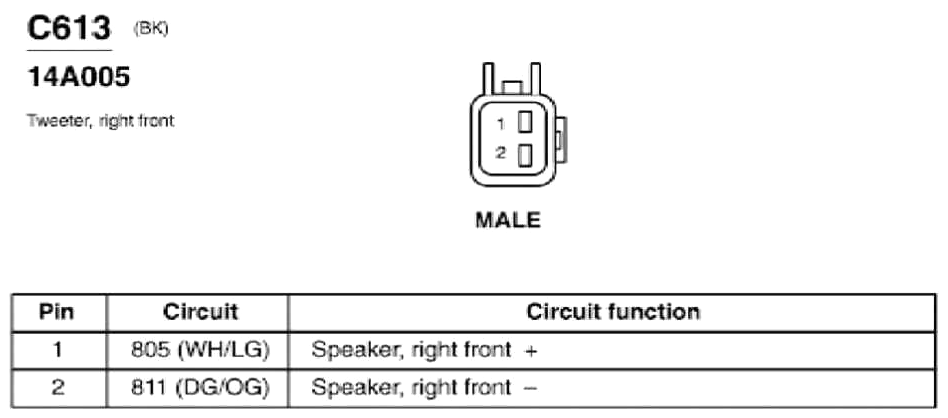

Fig 214: Tweeter, Right Front Connector End View (C613)

G07846483

Courtesy of FORD MOTOR CO.

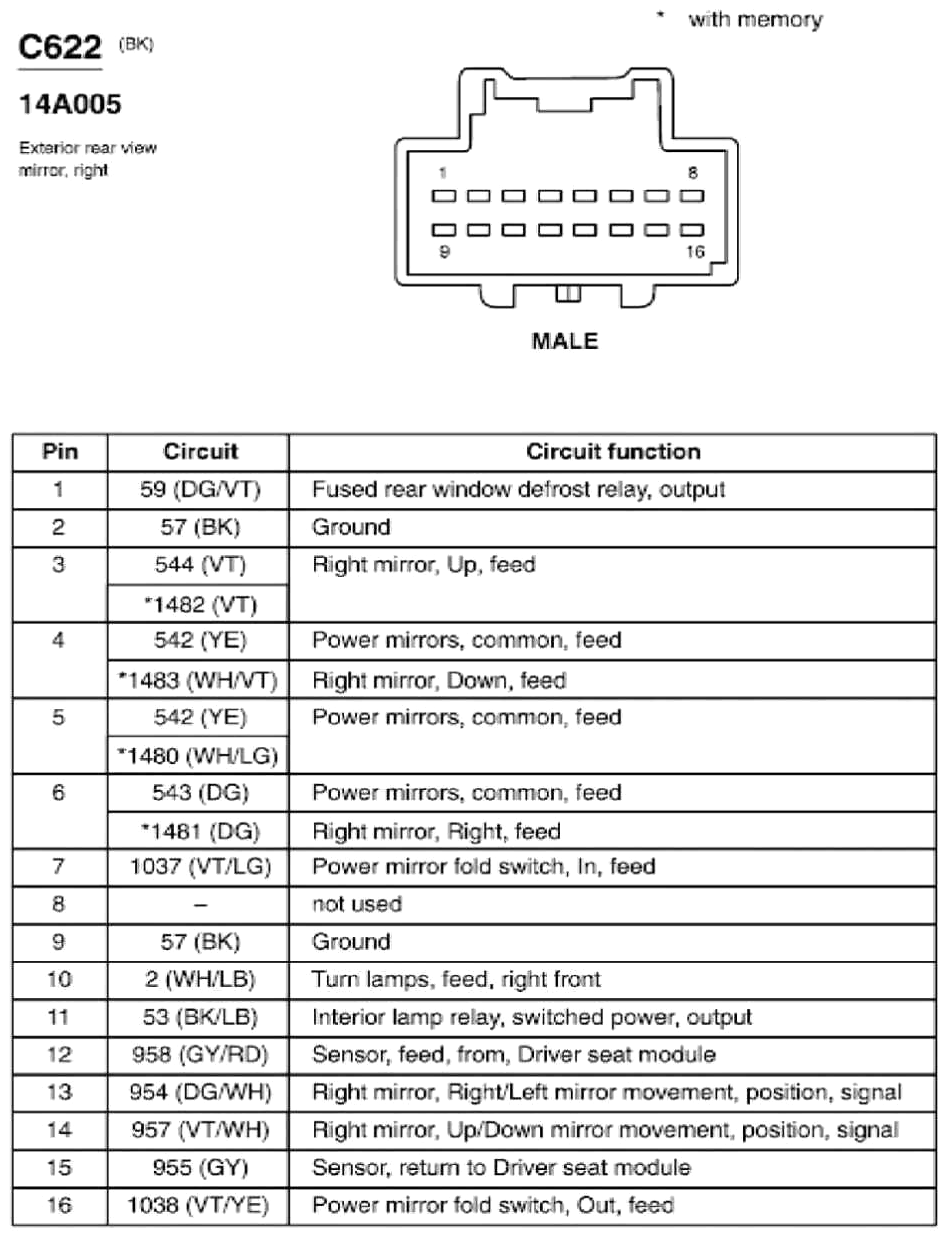

Fig 215: Exterior Rear View Mirror, Right Connector End View (C622)

G07846484

Courtesy of FORD MOTOR CO.

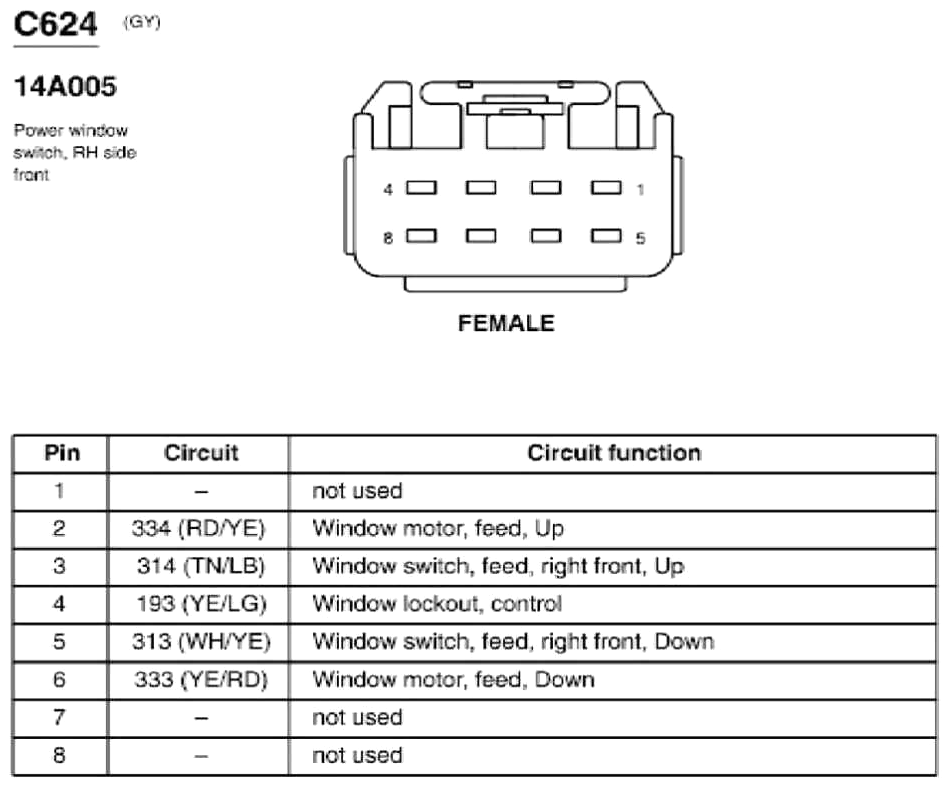

Fig 216: Power Window Switch, RH Side Front Connector End View (C624)

G07846485

Courtesy of FORD MOTOR CO.

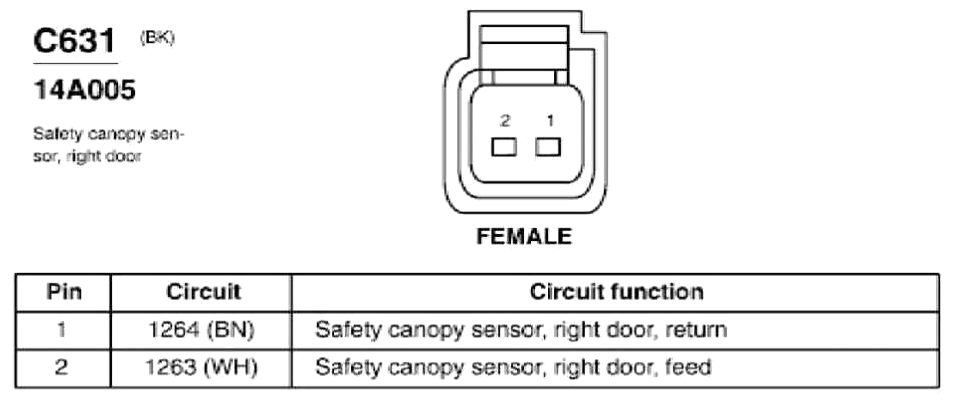

Fig 217: Safety Canopy Sensor, Right Door Connector End View (C631)

G07846486

Courtesy of FORD MOTOR CO.

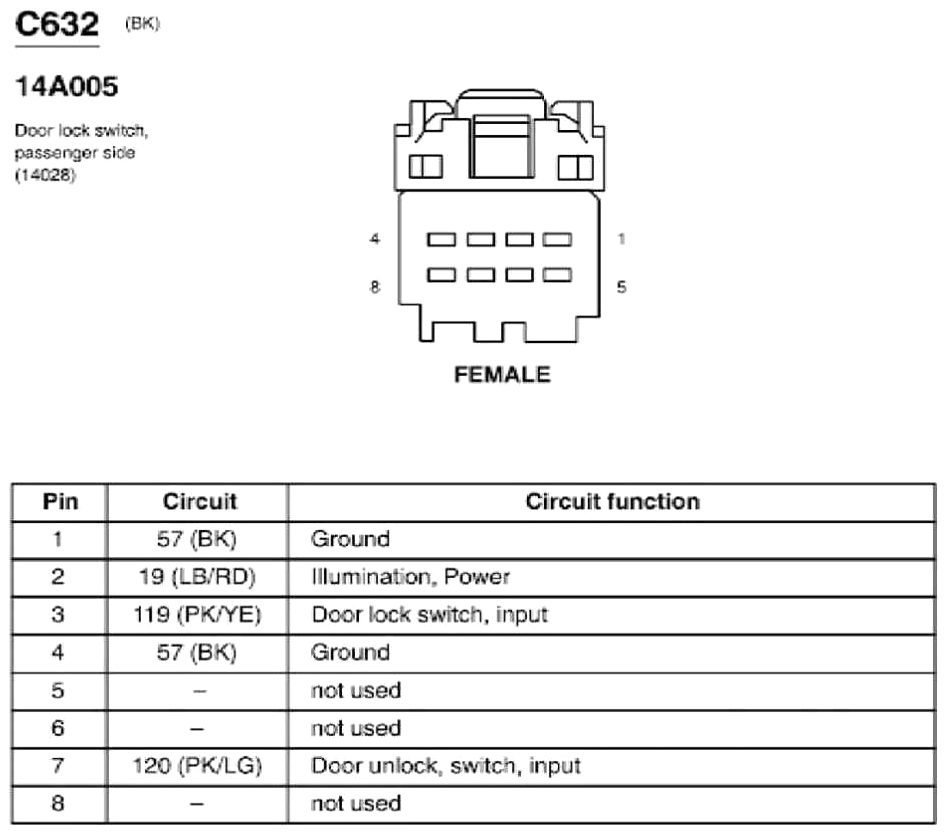

Fig 218: Door Lock Switch, Passenger Side Connector End View (C632)

G07846487

Courtesy of FORD MOTOR CO.

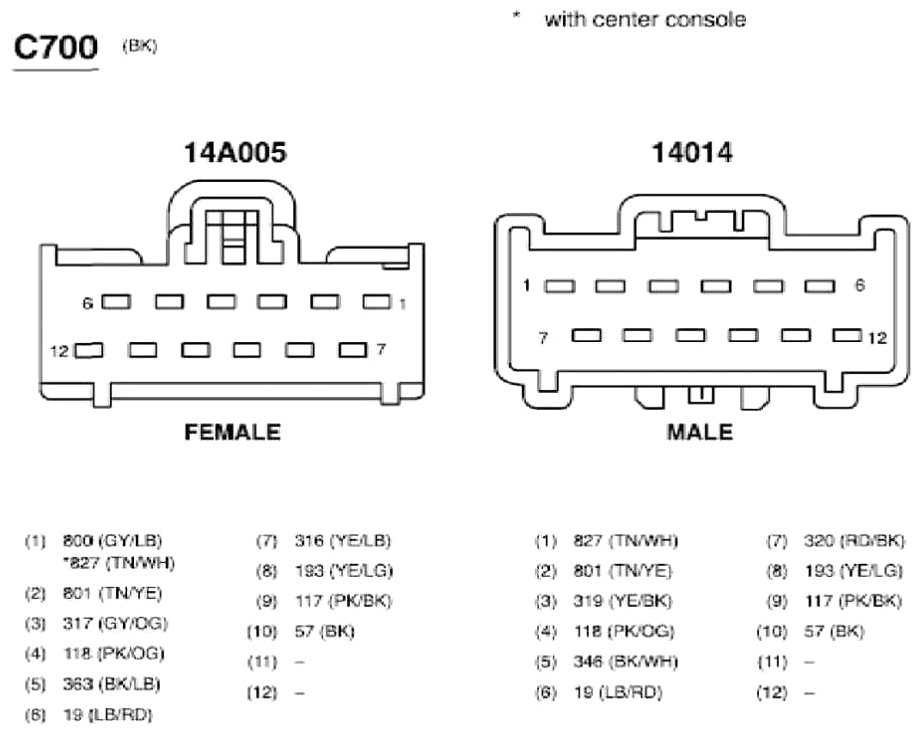

Fig 219: Inline Connector End View (C700)

G07846488

Courtesy of FORD MOTOR CO.

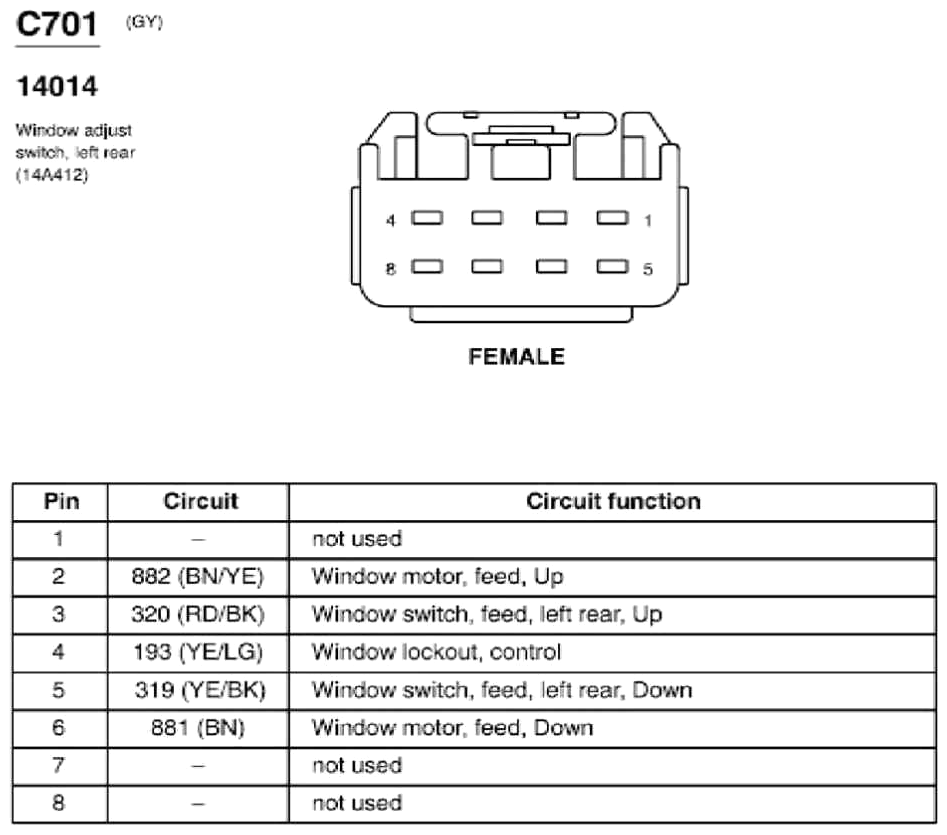

Fig 220: Window Adjust Switch, Left Rear Connector End View (C701)

G07846489

Courtesy of FORD MOTOR CO.

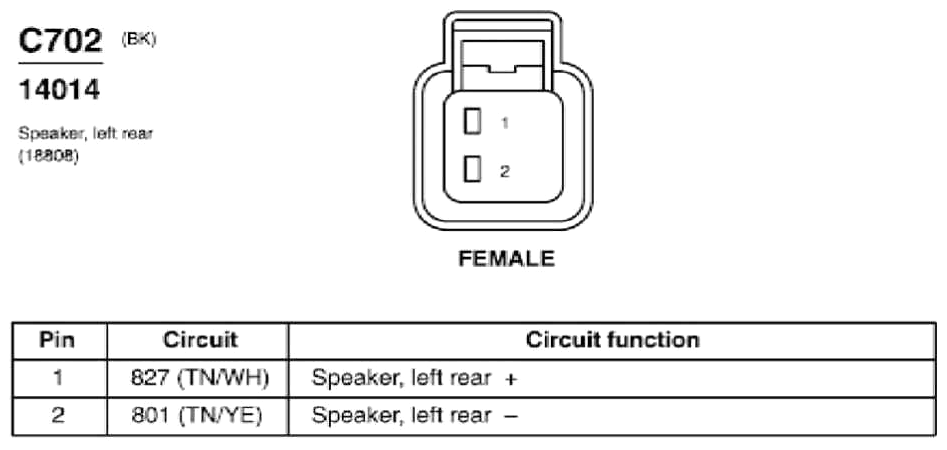

Fig 221: Speaker, Left Rear Connector End View (C702)

G07846490

Courtesy of FORD MOTOR CO.

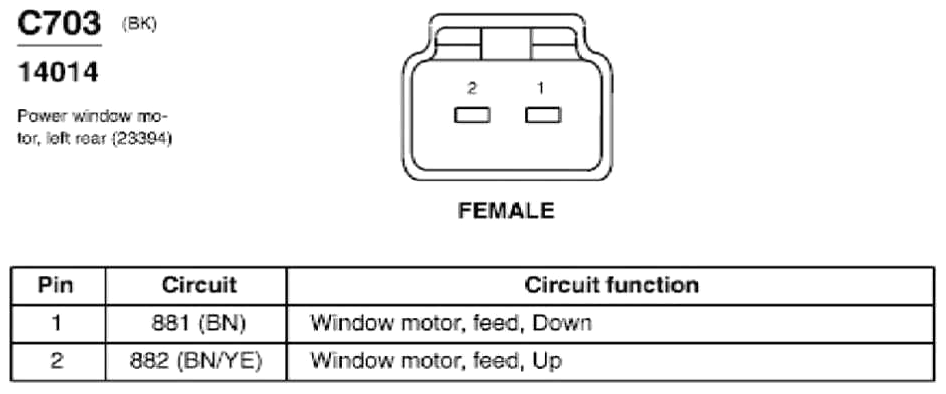

Fig 222: Power Window Motor, Left Rear Connector End View (C703)

G07846491

Courtesy of FORD MOTOR CO.

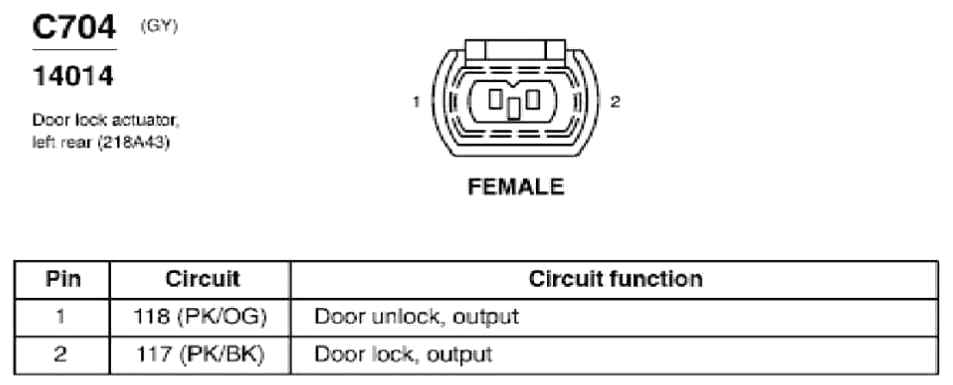

Fig 223: Door Lock Actuator, Left Rear Connector End View (C704)

G07846492

Courtesy of FORD MOTOR CO.

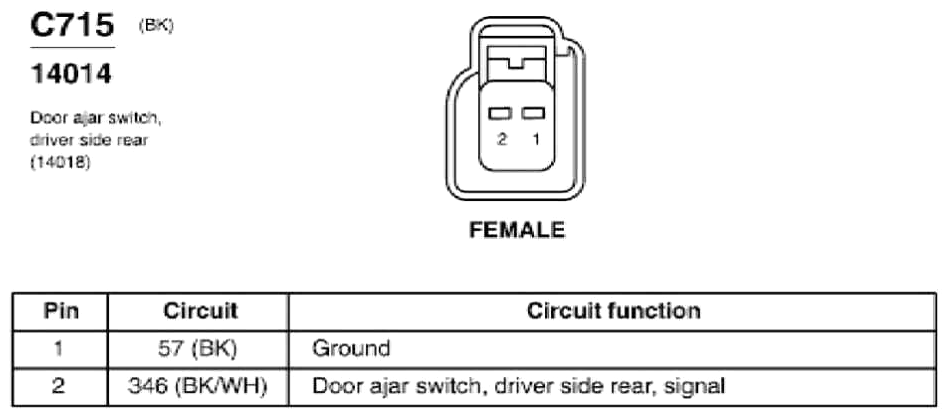

Fig 224: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07846493

Courtesy of FORD MOTOR CO.

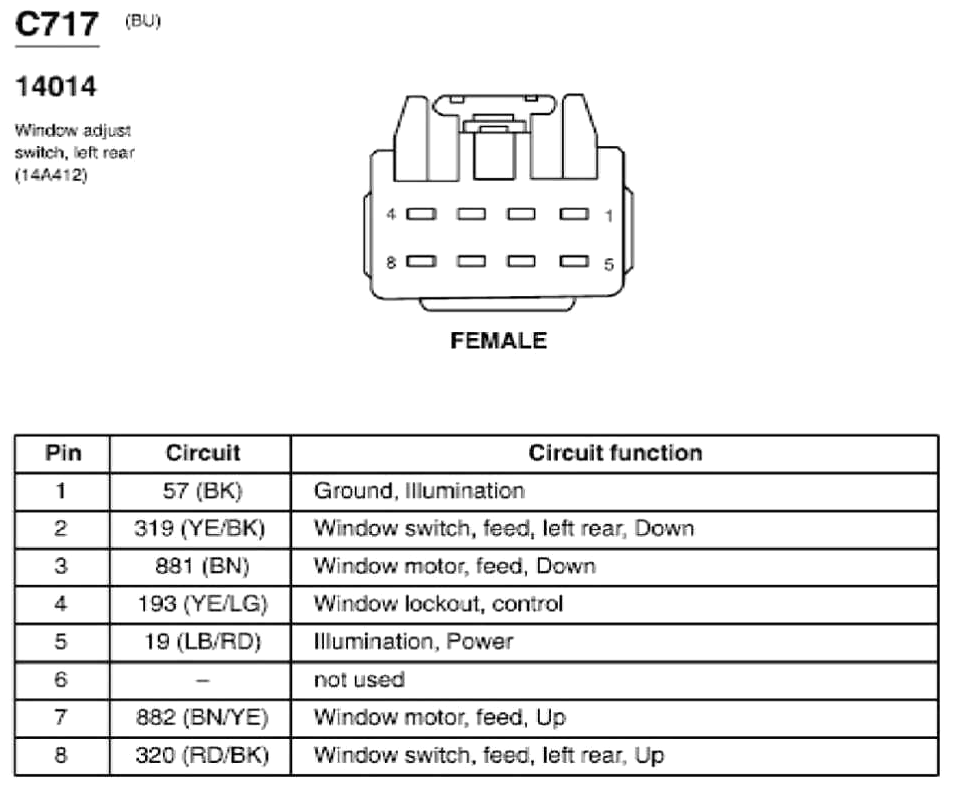

Fig 225: Window Adjust Switch, Left Rear Connector End View (C717)

G07846494

Courtesy of FORD MOTOR CO.

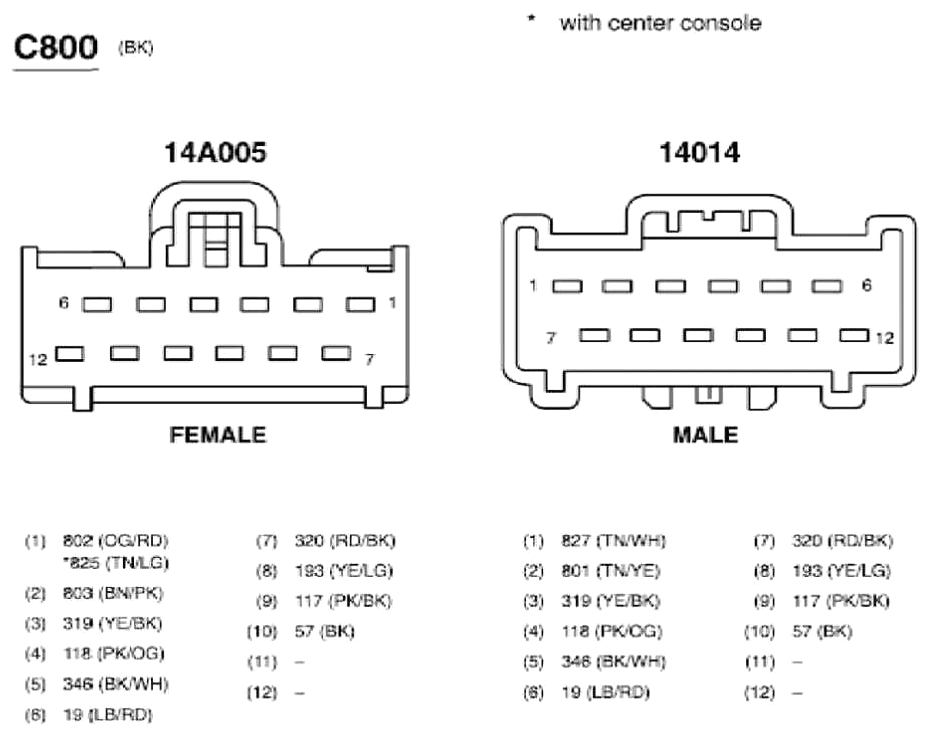

Fig 226: Inline Connector End View (C800)

G07846495

Courtesy of FORD MOTOR CO.

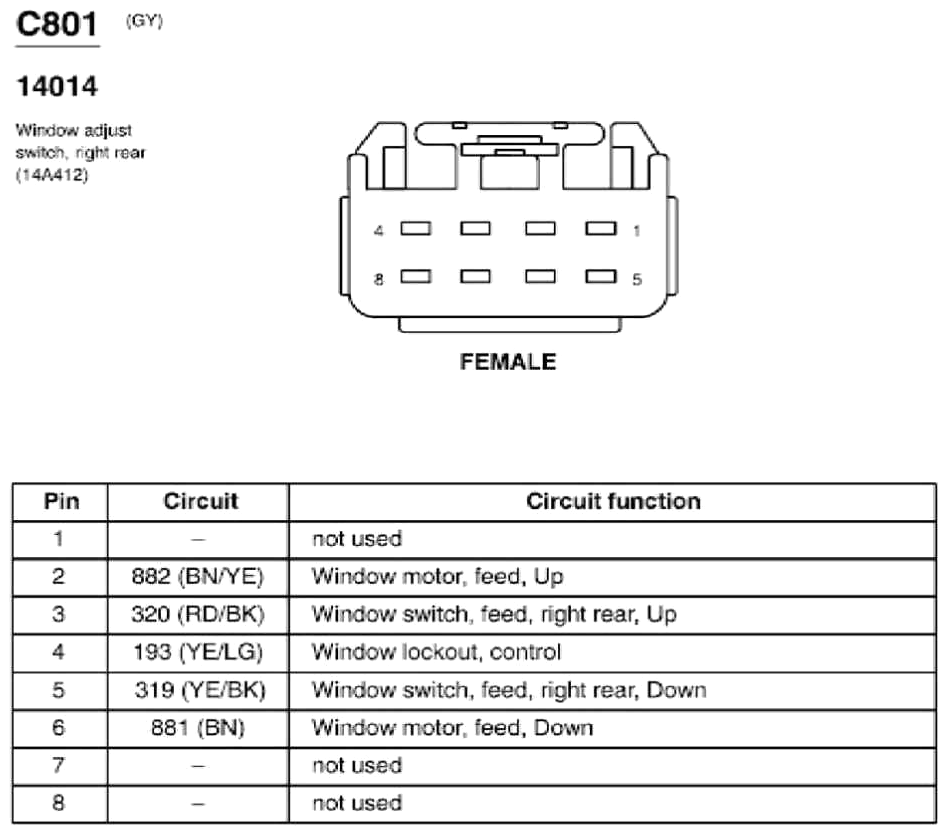

Fig 227: Window Adjust Switch, Right Rear Connector End View (C801)

G07846496

Courtesy of FORD MOTOR CO.

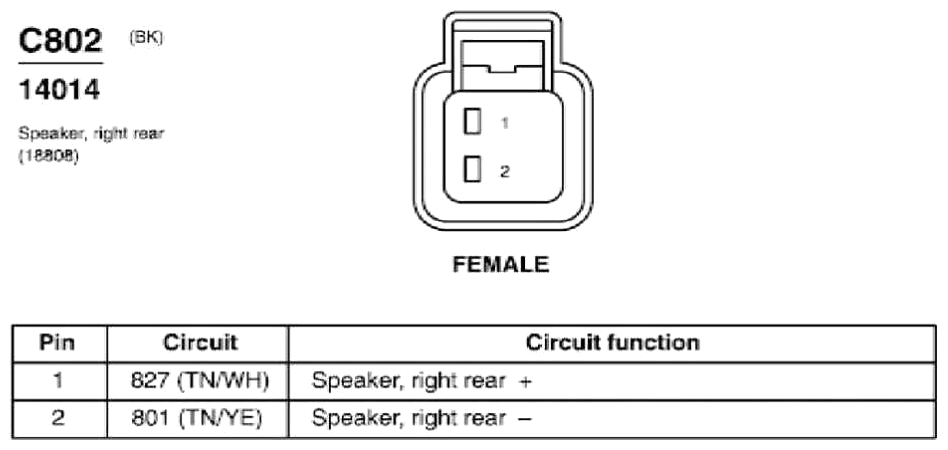

Fig 228: Speaker, Right Rear Connector End View (C802)

G07846497

Courtesy of FORD MOTOR CO.

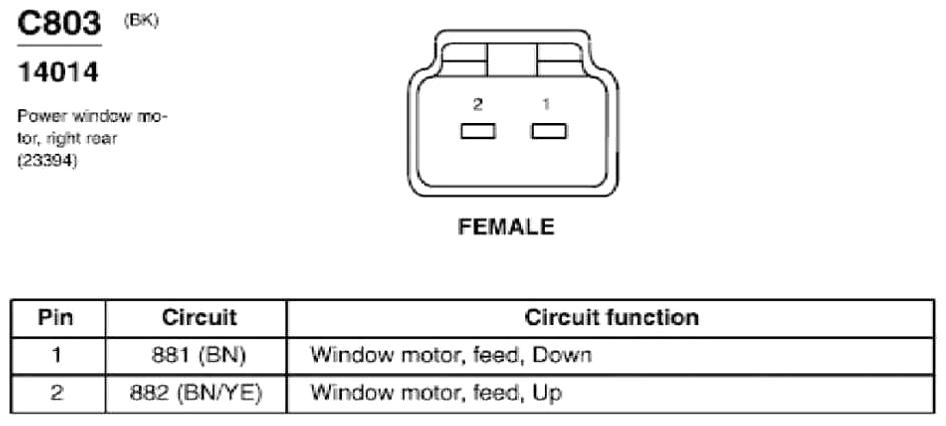

Fig 229: Power Window Motor, Right Rear Connector End View (C803)

G07846498

Courtesy of FORD MOTOR CO.

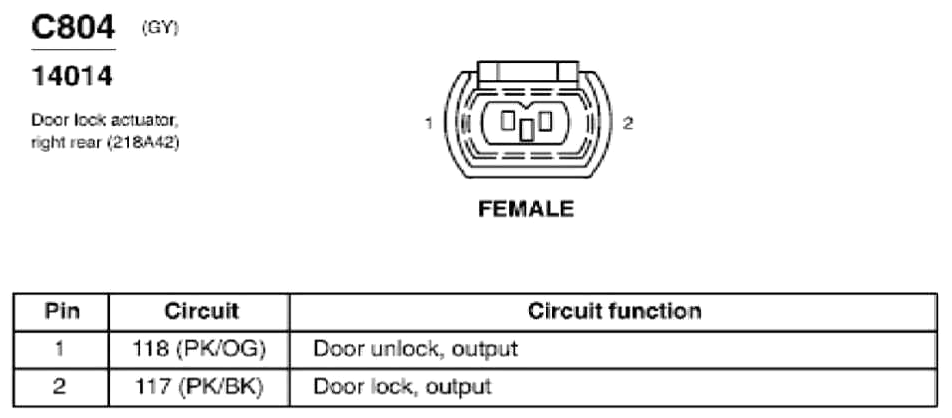

Fig 230: Door Lock Actuator, Right Rear Connector End View (C804)

G07846499

Courtesy of FORD MOTOR CO.

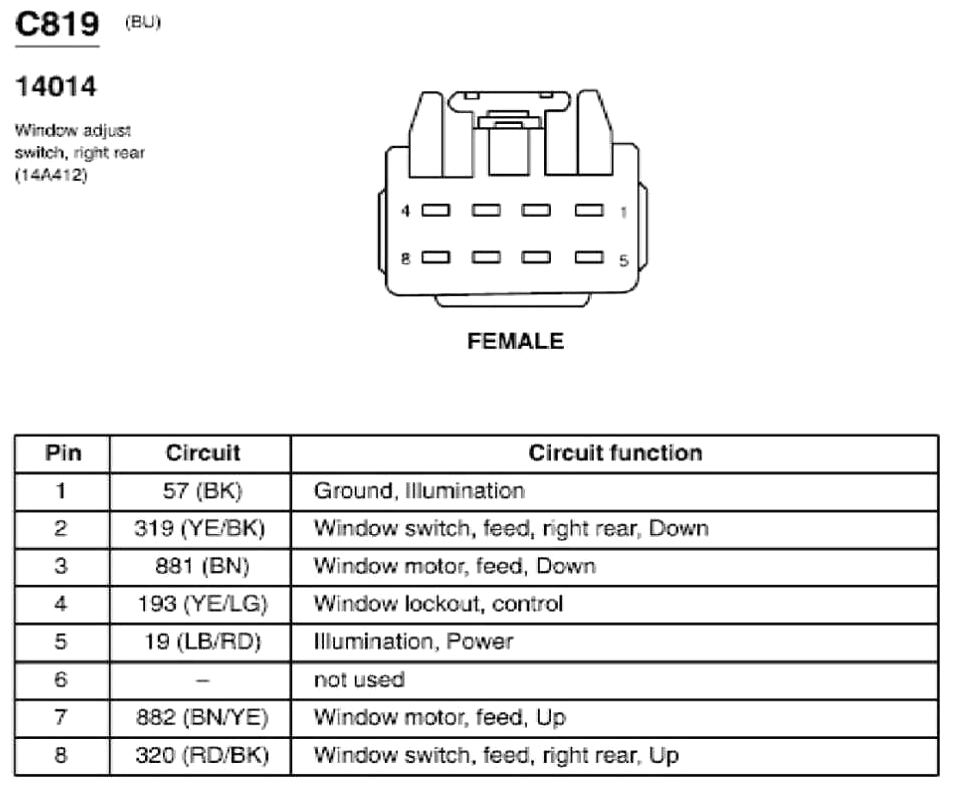

Fig 231: Window Adjust Switch, Right Rear Connector End View (C819)

G07846500

Courtesy of FORD MOTOR CO.

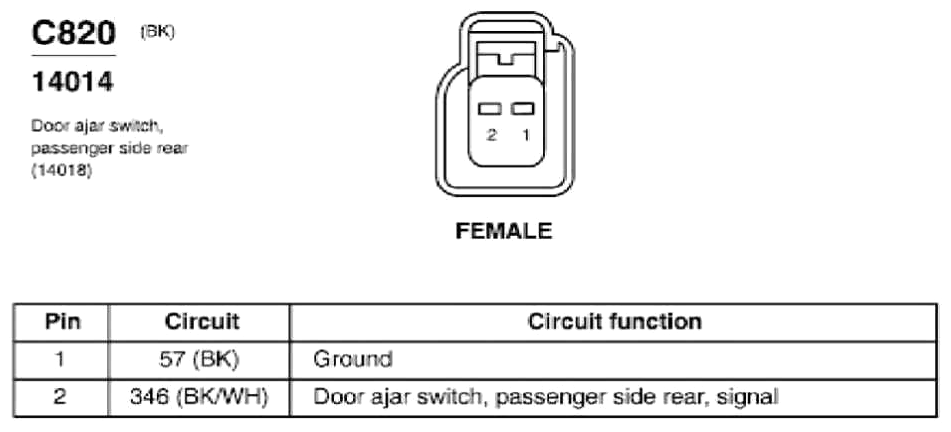

Fig 232: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07846501

Courtesy of FORD MOTOR CO.

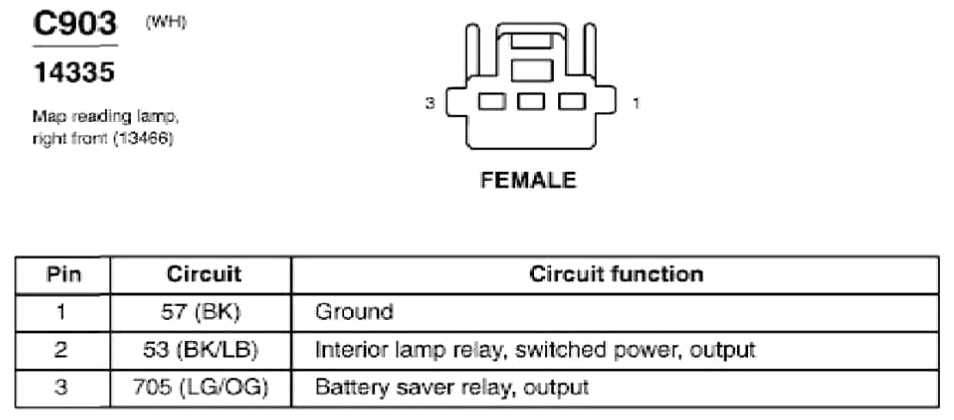

Fig 233: Map Reading Lamp, Right Front Connector End View (C903)

G07846502

Courtesy of FORD MOTOR CO.

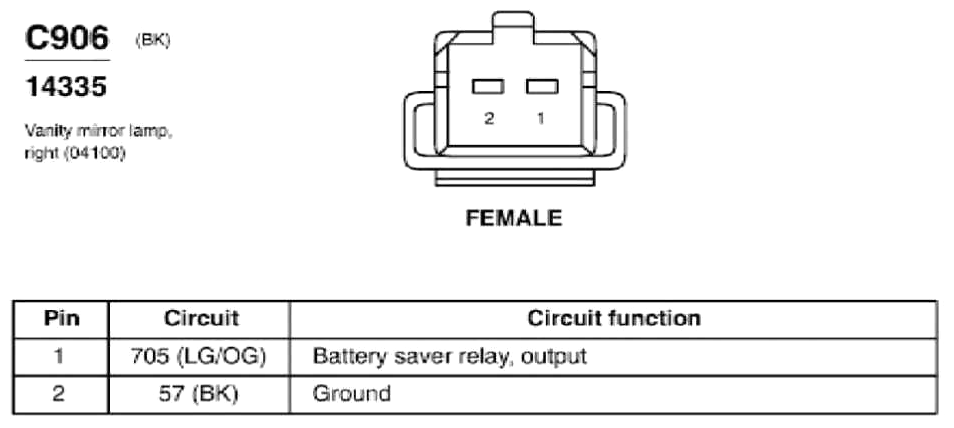

Fig 234: Vanity Mirror Lamp, Right Connector End View (C906)

G07846503

Courtesy of FORD MOTOR CO.

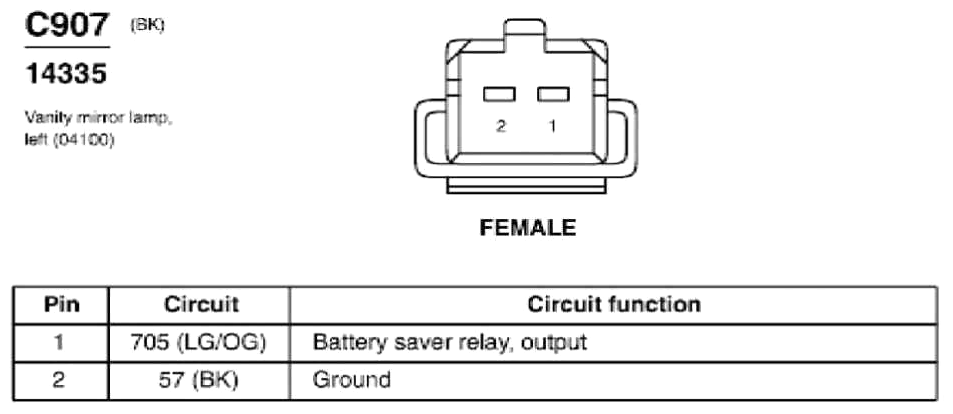

Fig 235: Vanity Mirror Lamp, Left Connector End View (C907)

G07846504

Courtesy of FORD MOTOR CO.

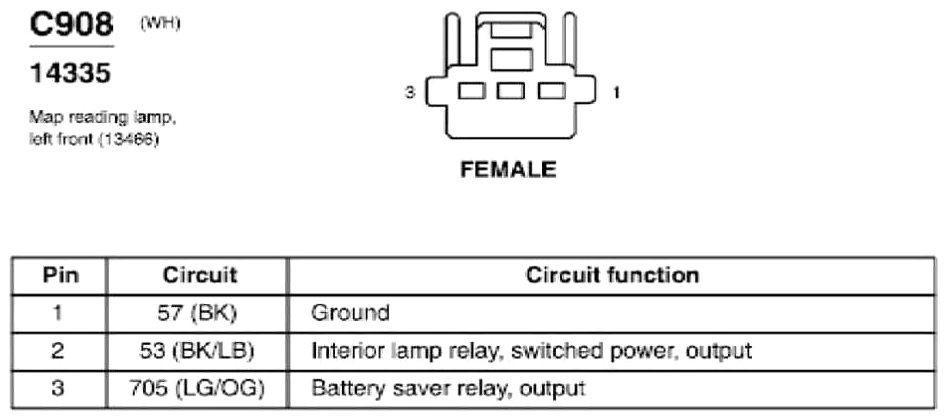

Fig 236: Map Reading Lamp, Left Front Connector End View (C908)

G07846505

Courtesy of FORD MOTOR CO.

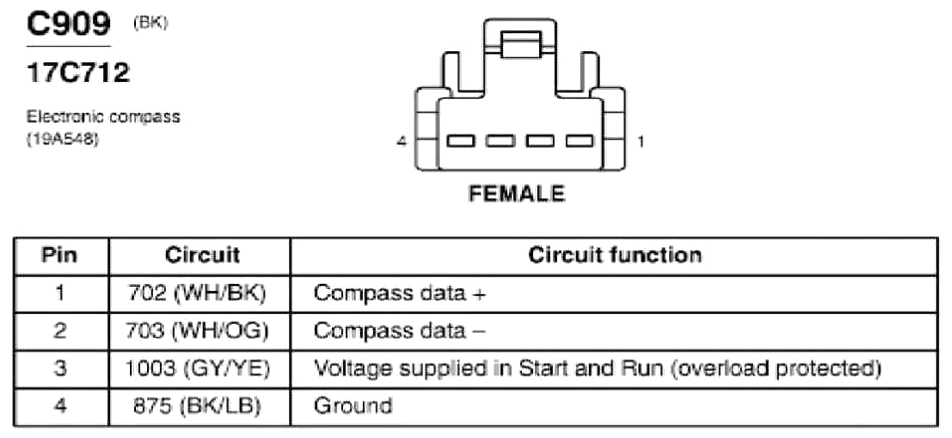

Fig 237: Electronic Compass Connector End View (C909)

G07846506

Courtesy of FORD MOTOR CO.

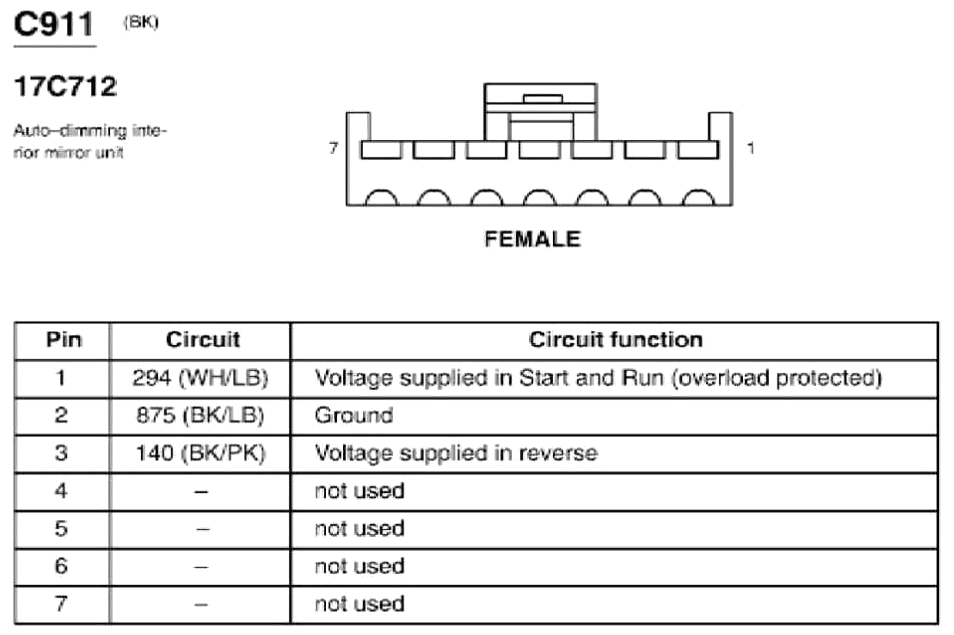

Fig 238: Auto-Dimming Interior Mirror Unit Connector End View (C911)

G07846507

Courtesy of FORD MOTOR CO.

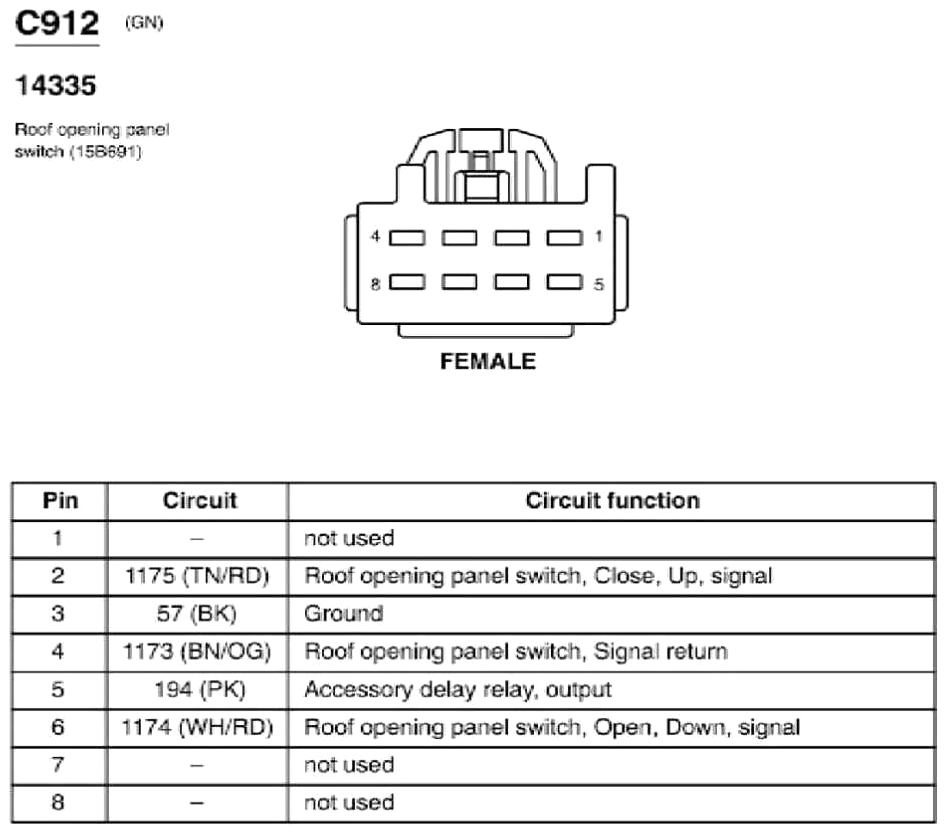

Fig 239: Roof Opening Panel Switch Connector End View (C912)

G07846508

Courtesy of FORD MOTOR CO.

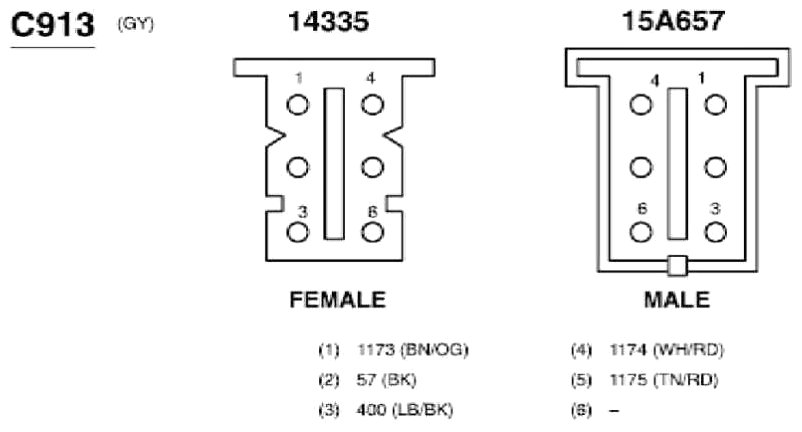

Fig 240: Inline Connector End View (C913)

G07846509

Courtesy of FORD MOTOR CO.

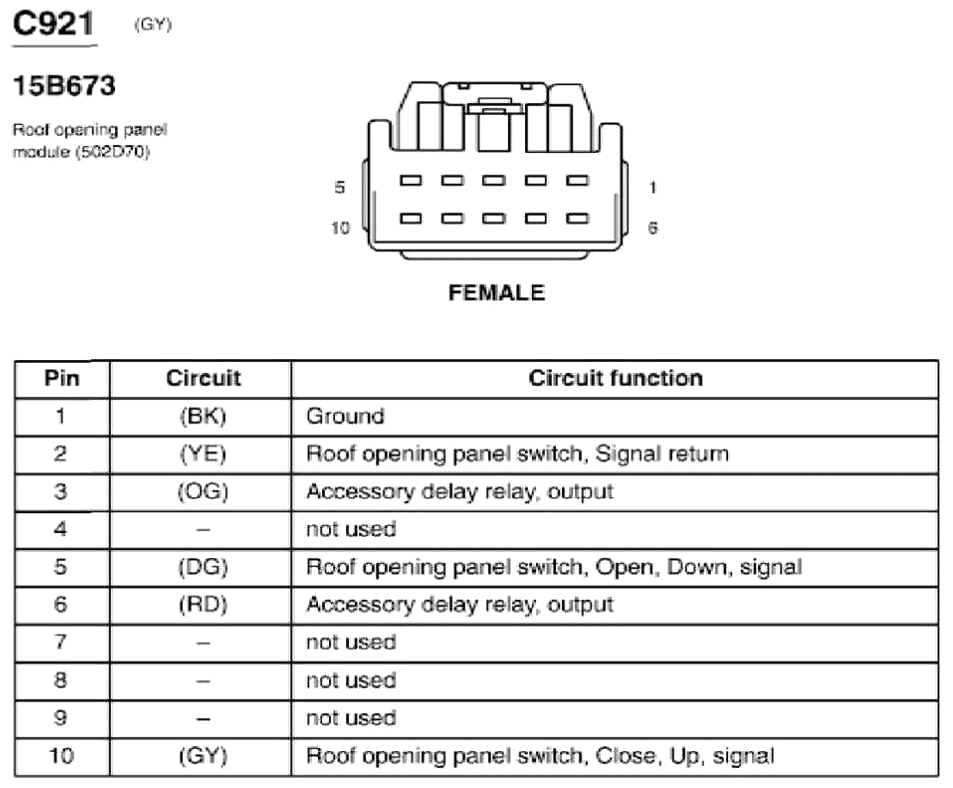

Fig 241: Roof Opening Panel Module Connector End View (C921)

G07846510

Courtesy of FORD MOTOR CO.

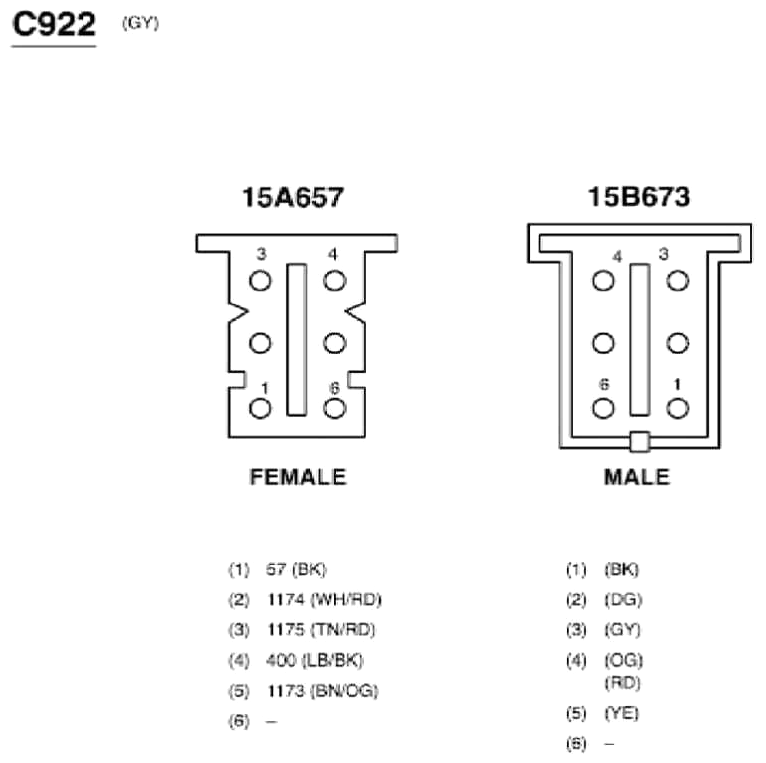

Fig 242: Inline Connector End View (C922)

G07846511

Courtesy of FORD MOTOR CO.

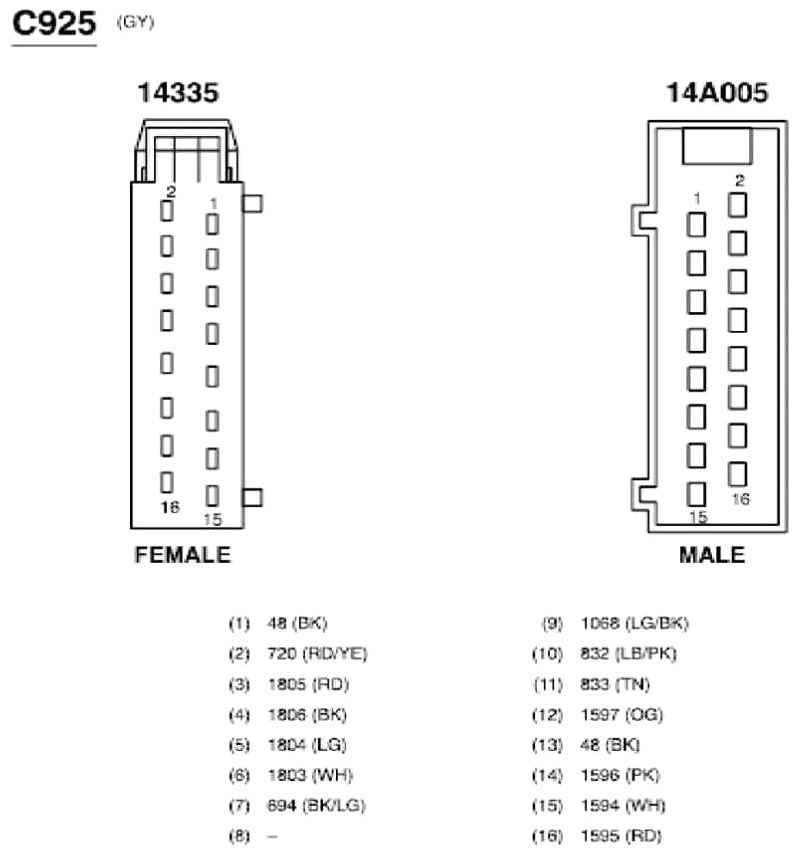

Fig 243: Inline Connector End View (C925)

G07846512

Courtesy of FORD MOTOR CO.

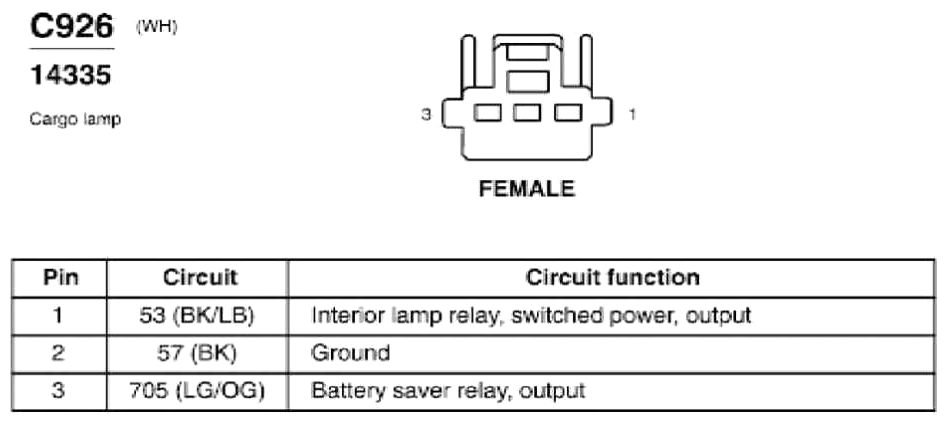

Fig 244: Cargo Lamp Connector End View (C926)

G07846513

Courtesy of FORD MOTOR CO.

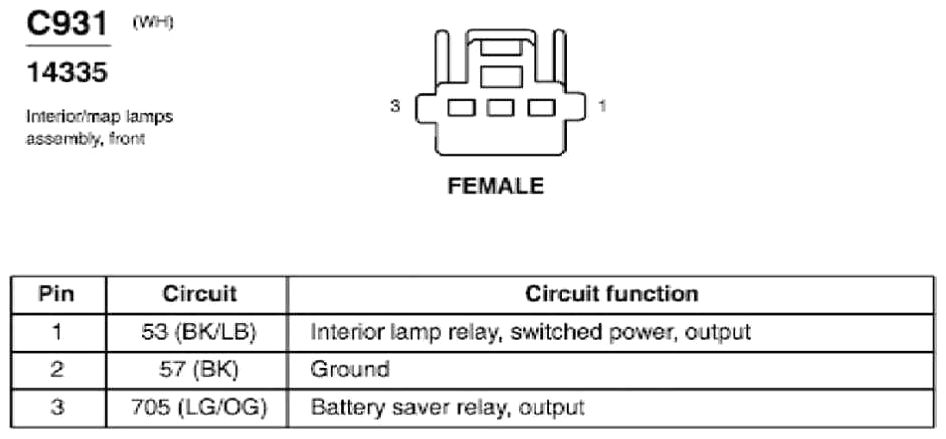

Fig 245: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07846514

Courtesy of FORD MOTOR CO.

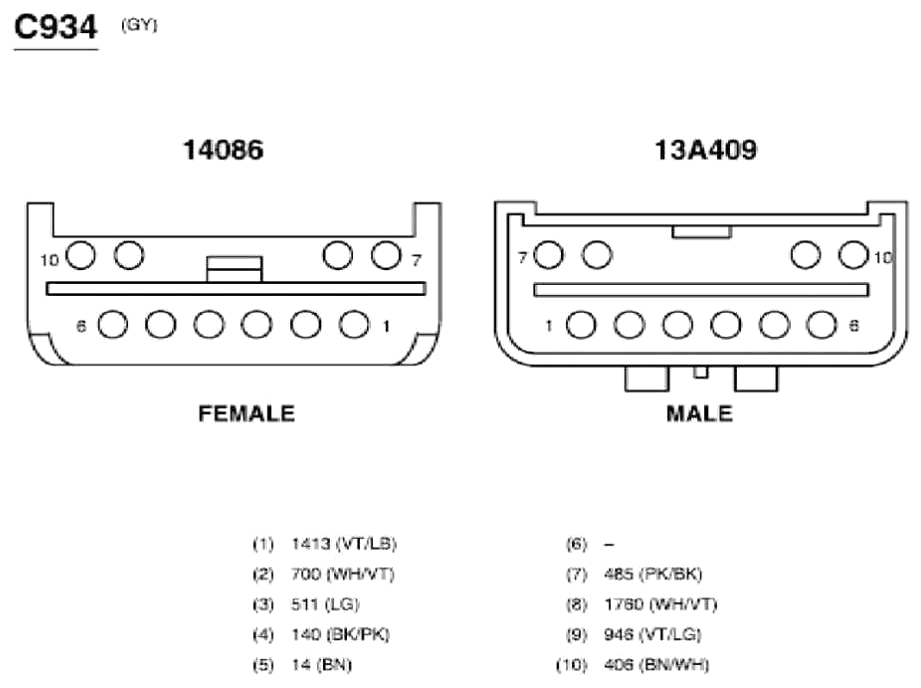

Fig 246: Inline Connector End View (C934)

G07846515

Courtesy of FORD MOTOR CO.

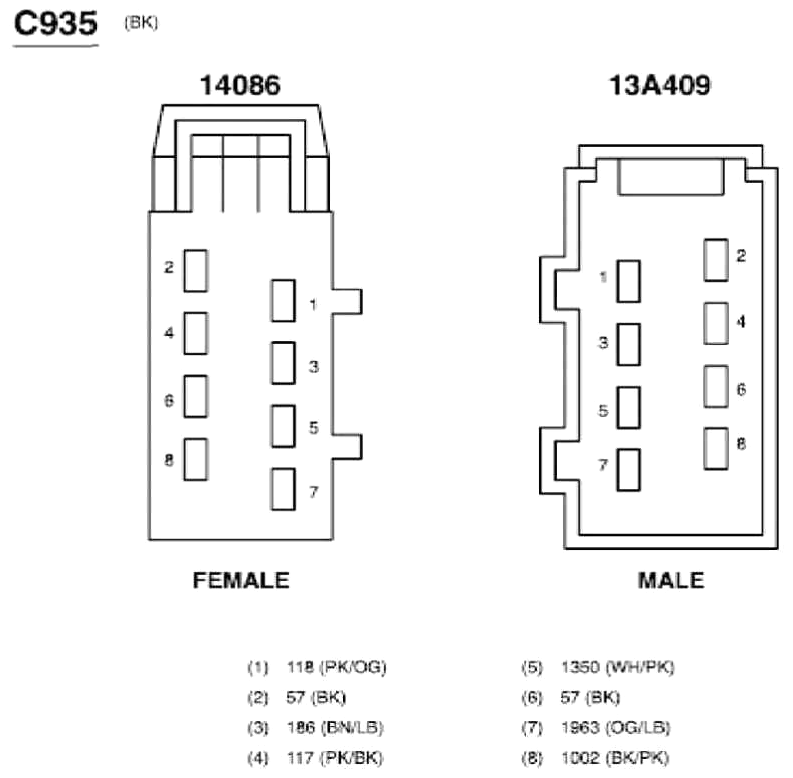

Fig 247: Inline Connector End View (C935)

G07846516

Courtesy of FORD MOTOR CO.

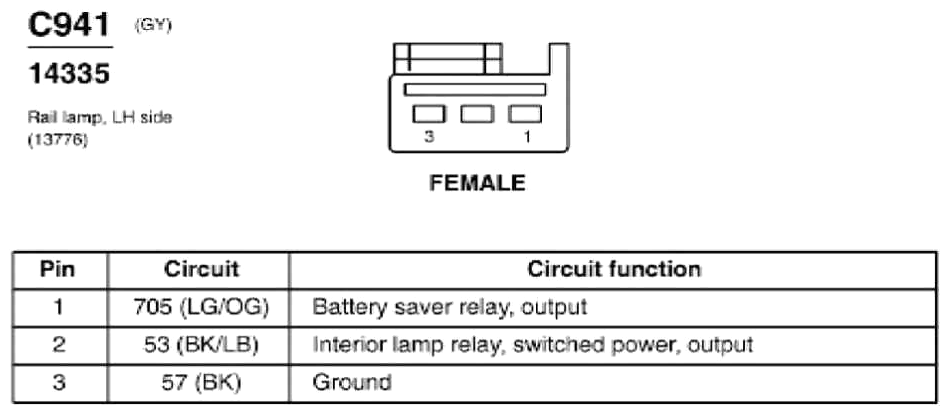

Fig 248: Rail Lamp, LH Side Connector End View (C941)

G07846517

Courtesy of FORD MOTOR CO.

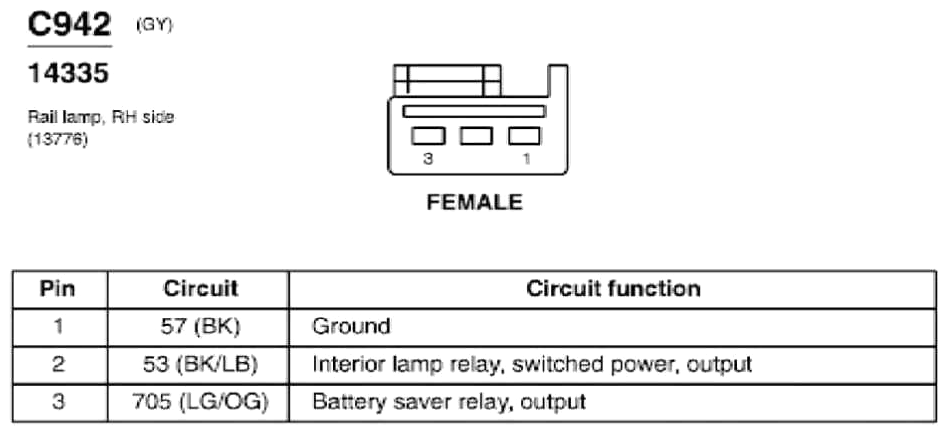

Fig 249: Rail Lamp, RH Side Connector End View (C942)

G07846518

Courtesy of FORD MOTOR CO.

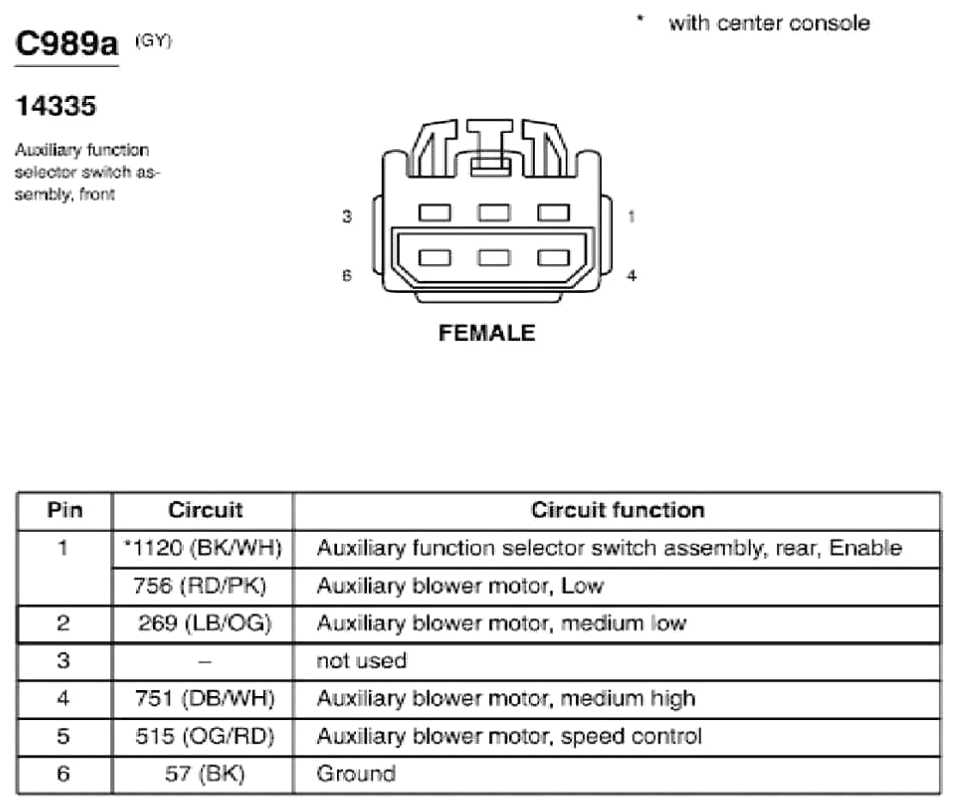

Fig 250: Auxiliary Function Selector Switch Assembly, Front Connector End View (C989a)

G07846519

Courtesy of FORD MOTOR CO.

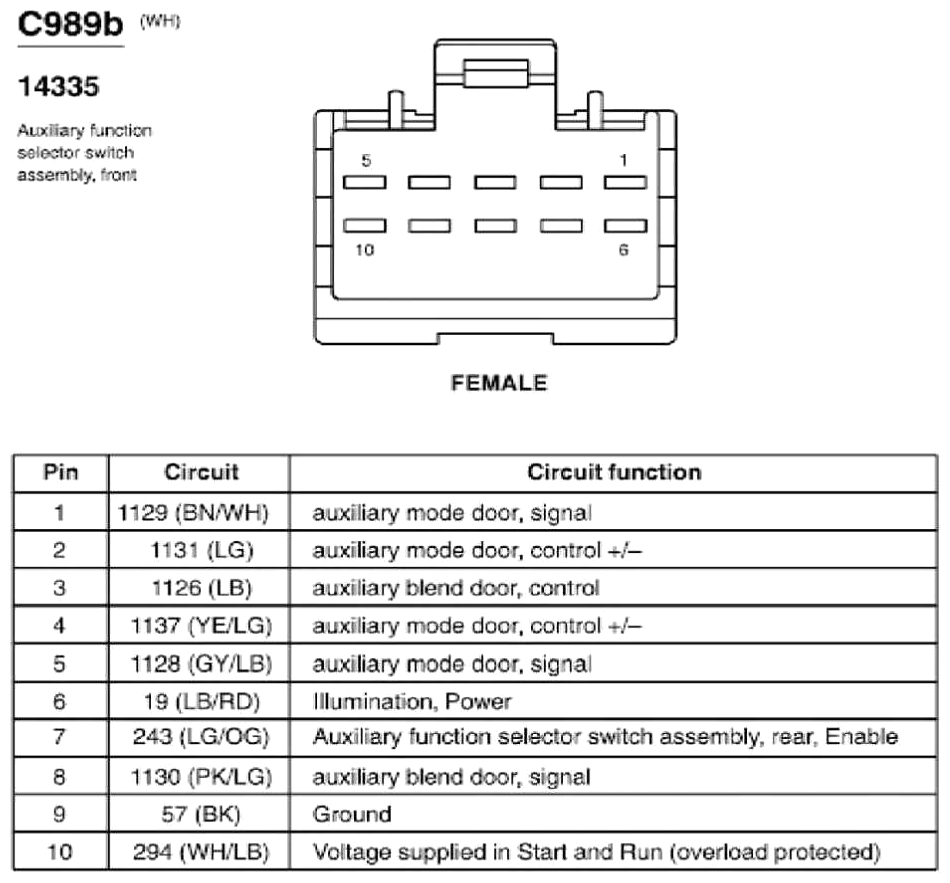

Fig 251: Auxiliary Function Selector Switch, Assembly, Front Connector End View (C989b)

G07846520

Courtesy of FORD MOTOR CO.

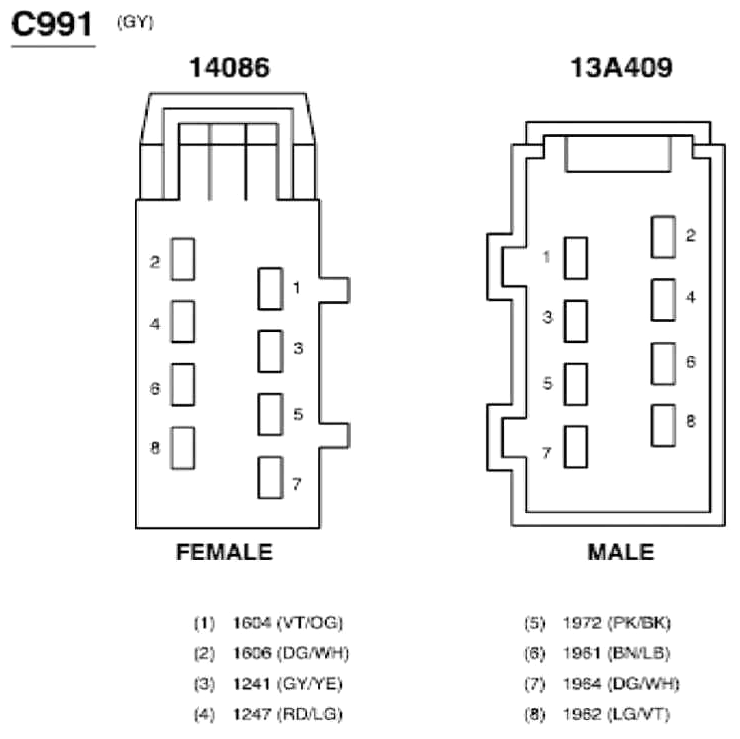

Fig 252: Inline Connector End View (C991)

G07846521

Courtesy of FORD MOTOR CO.

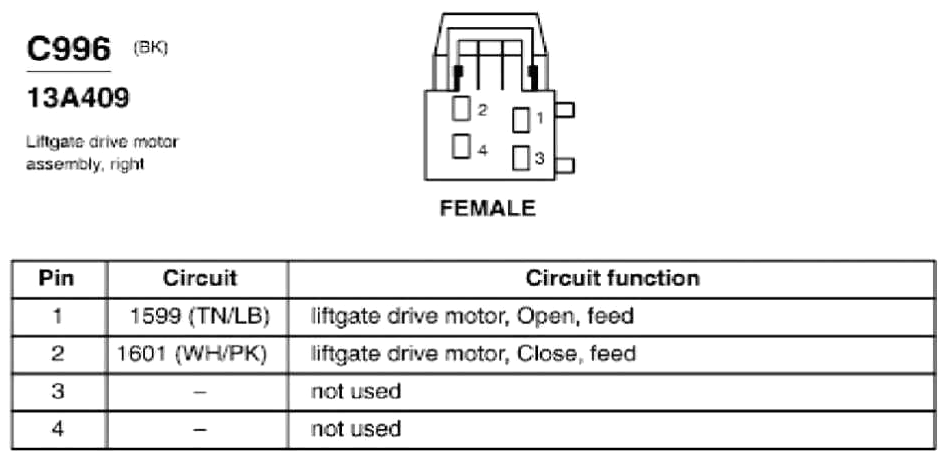

Fig 253: Liftgate Drive Motor Assembly, Right Connector End View (C996)

G07846522

Courtesy of FORD MOTOR CO.

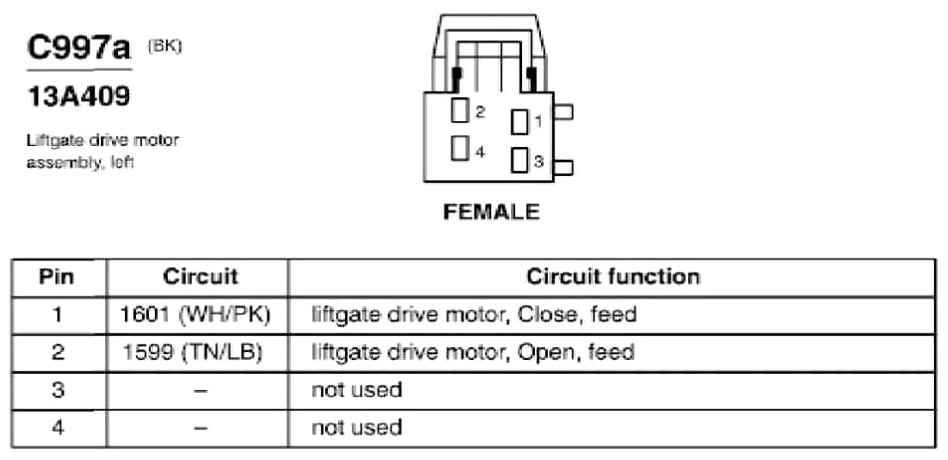

Fig 254: Liftgate Driver Motor Assembly, Left Connector End View (C997a)

G07846523

Courtesy of FORD MOTOR CO.

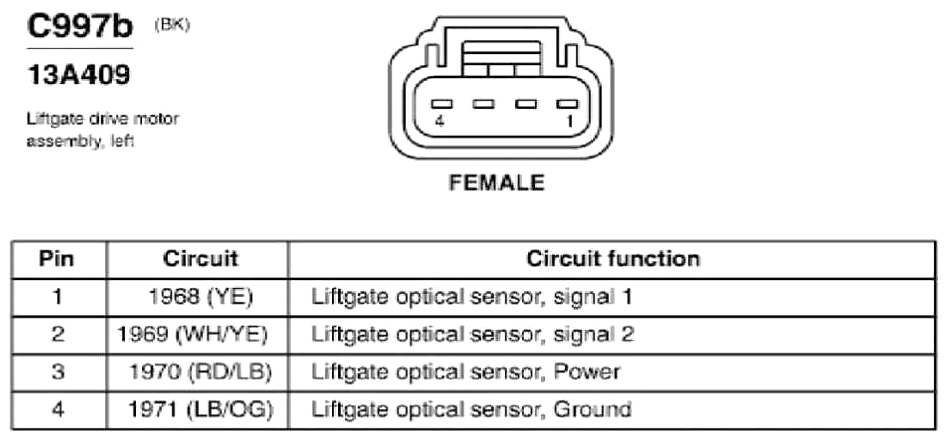

Fig 255: Liftgate Driver Motor Assembly, Left Connector End View (C997b)

G07846524

Courtesy of FORD MOTOR CO.

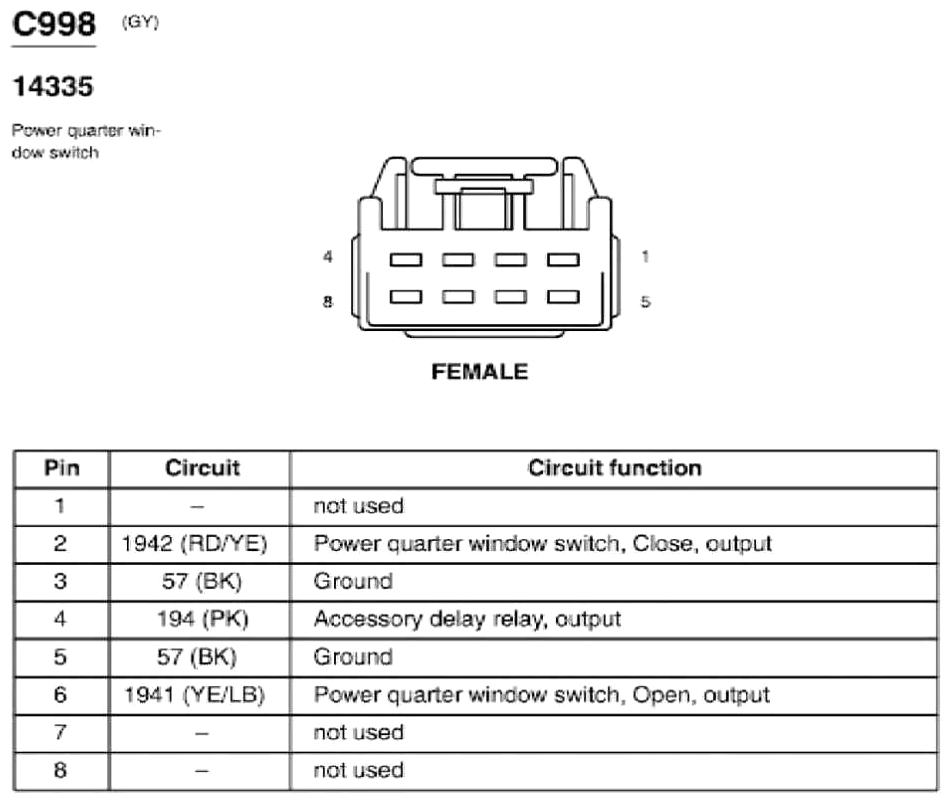

Fig 256: Power Quarter Window Switch Connector End View (C998)

G07846525

Courtesy of FORD MOTOR CO.

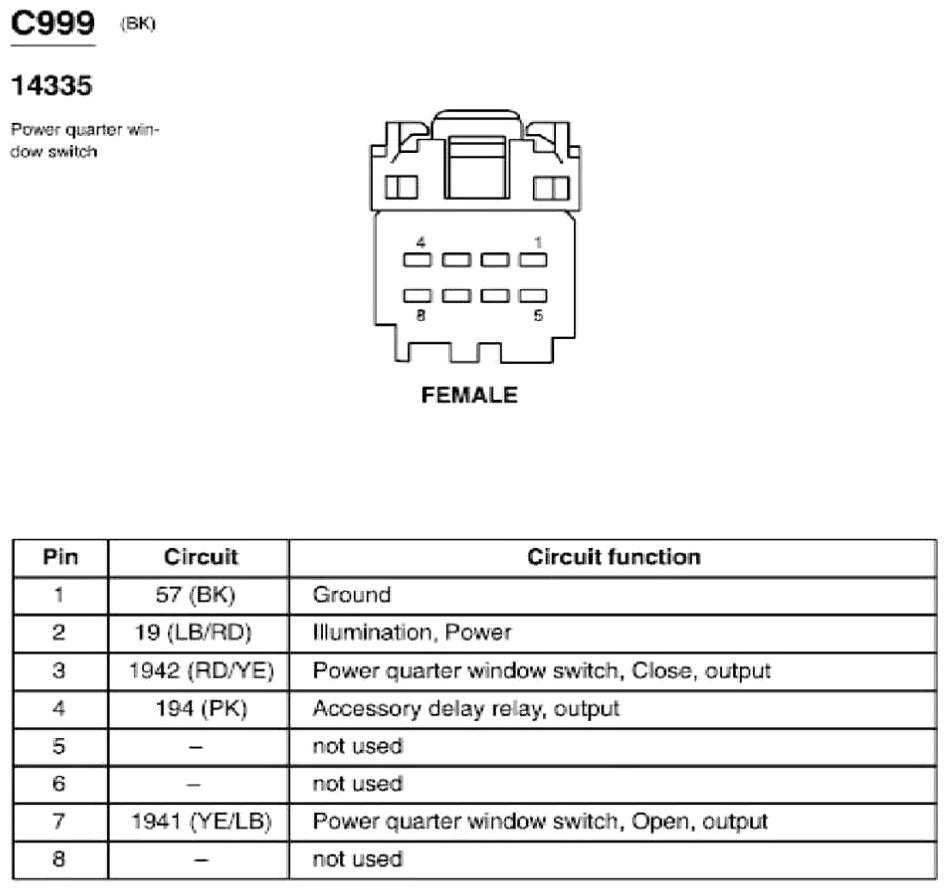

Fig 257: Power Quarter Window Switch Connector End View (C999)

G07846526

Courtesy of FORD MOTOR CO.

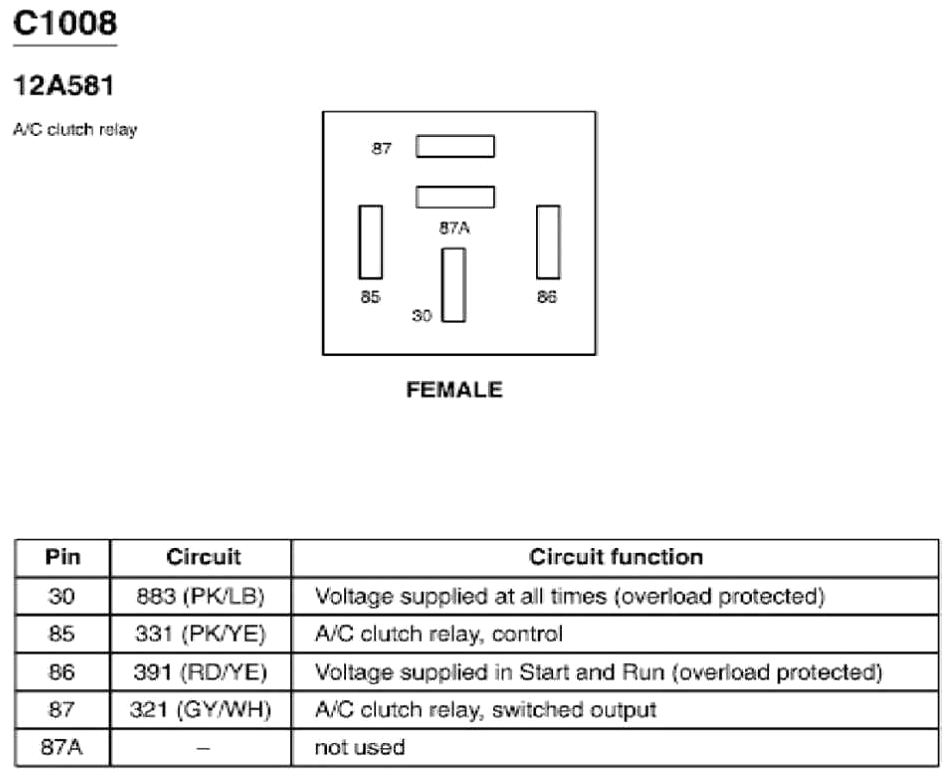

Fig 258: A/C Clutch Relay Connector End View (C1008)

G07846527

Courtesy of FORD MOTOR CO.

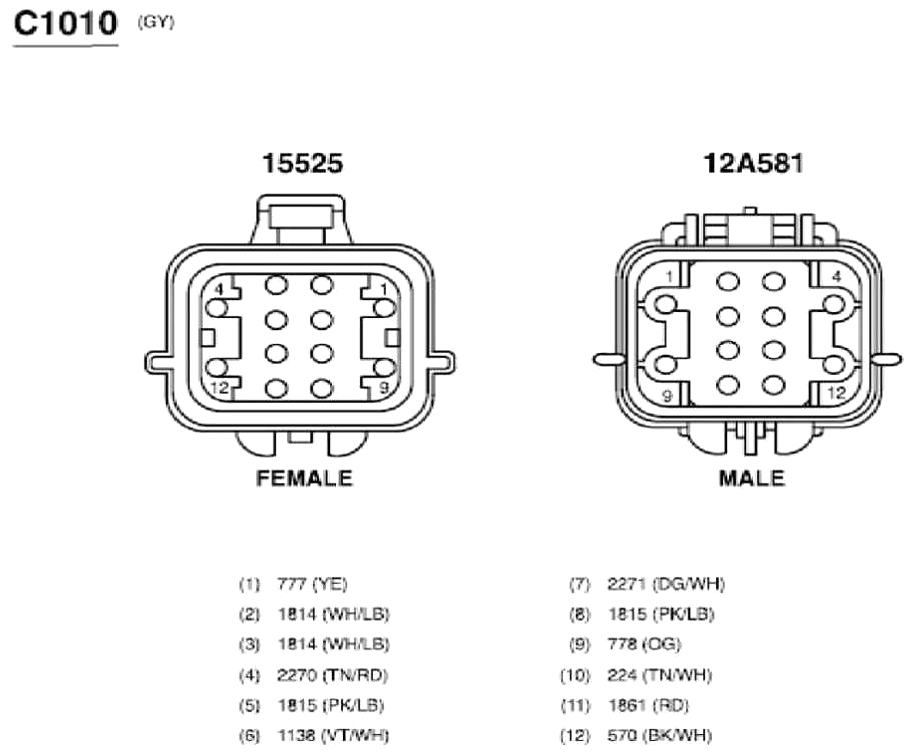

Fig 259: Inline Connector End View (C1010)

G07846528

Courtesy of FORD MOTOR CO.

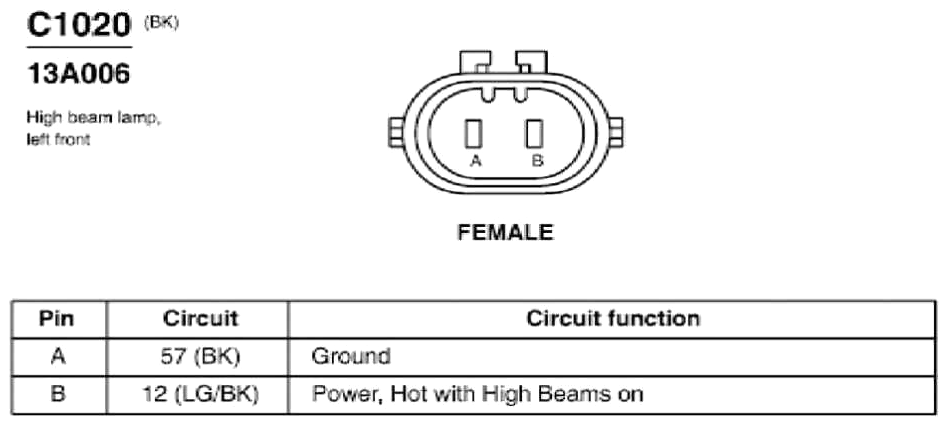

Fig 260: High Beam Lamp, Left Front Connector End View (C1020)

G07846529

Courtesy of FORD MOTOR CO.

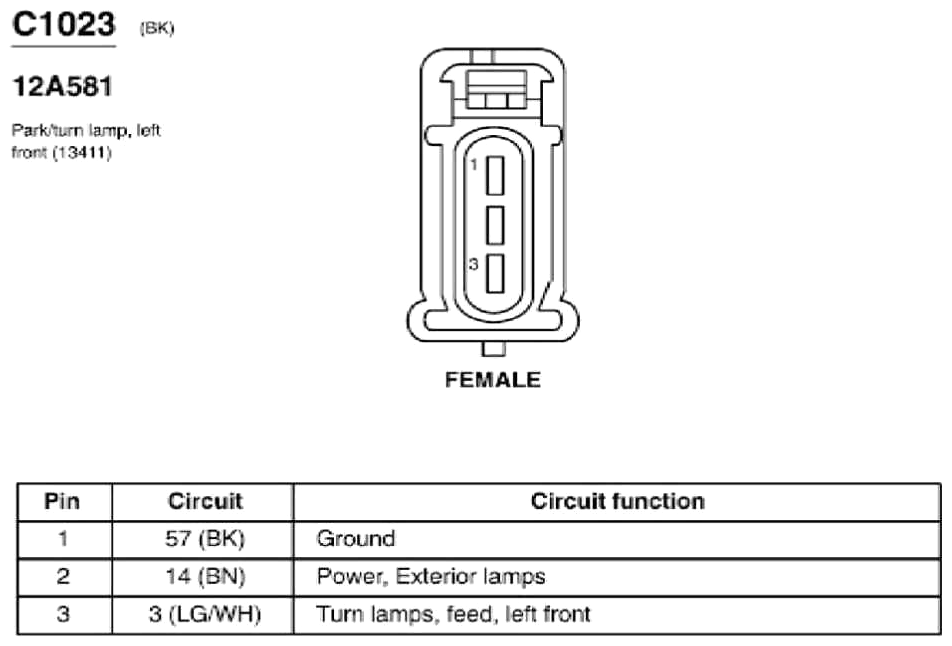

Fig 261: Pak/Turn Lamp, Left Front Connector End View (C1023)

G07846530

Courtesy of FORD MOTOR CO.

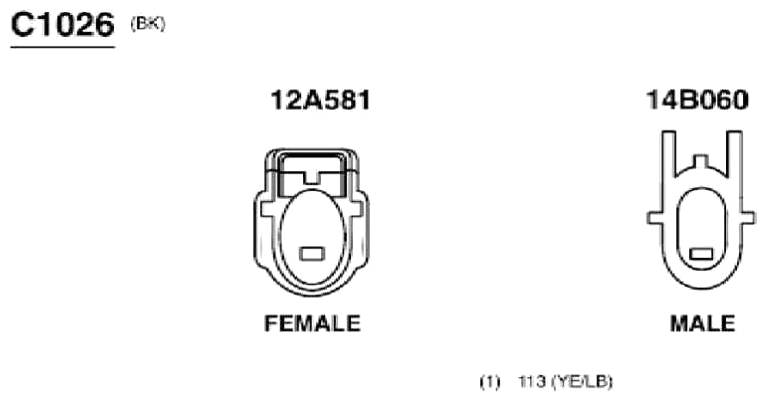

Fig 262: Inline Connector End View (C1026)

G07846531

Courtesy of FORD MOTOR CO.

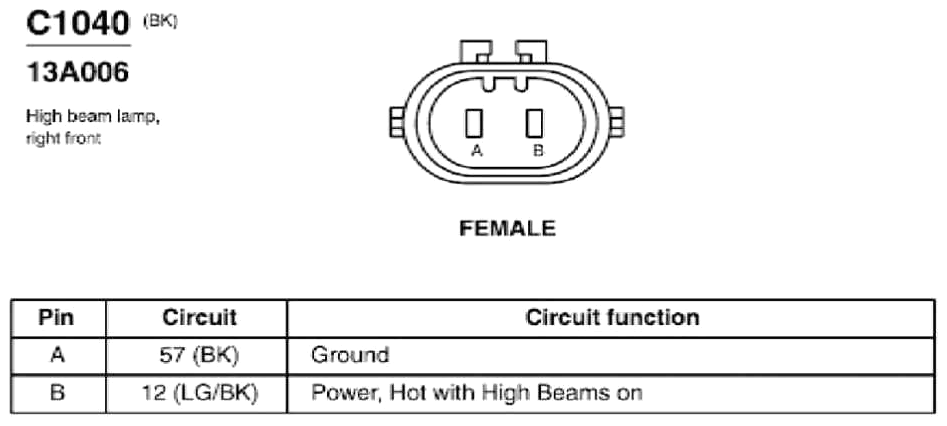

Fig 263: High Beam Lamp, Right Front Connector End View (C1040)

G07846532

Courtesy of FORD MOTOR CO.

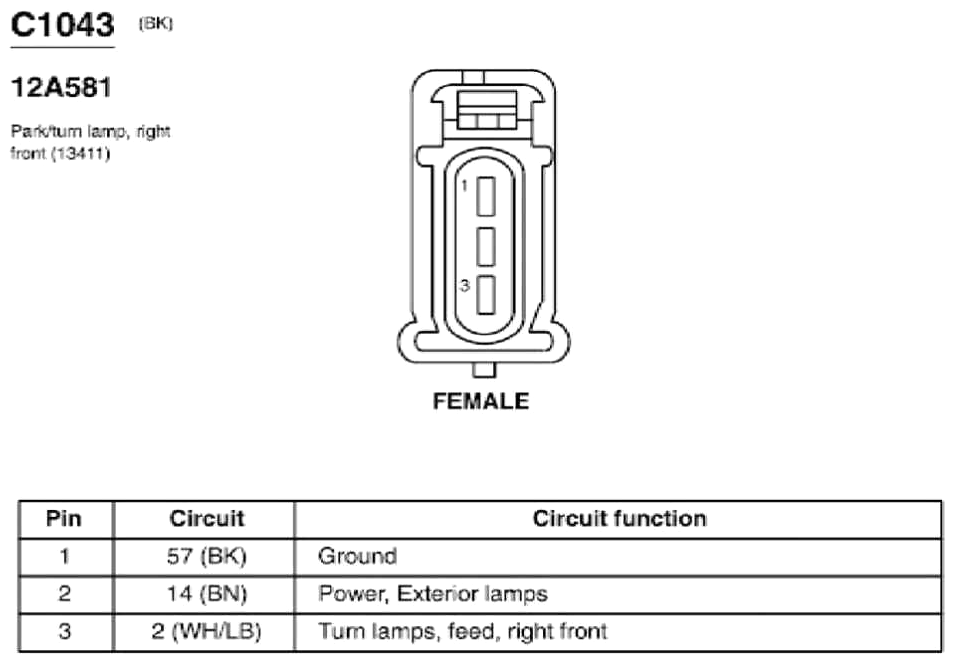

Fig 264: Park/Turn Lamp, Right Front Connector End View (C1043)

G07846533

Courtesy of FORD MOTOR CO.

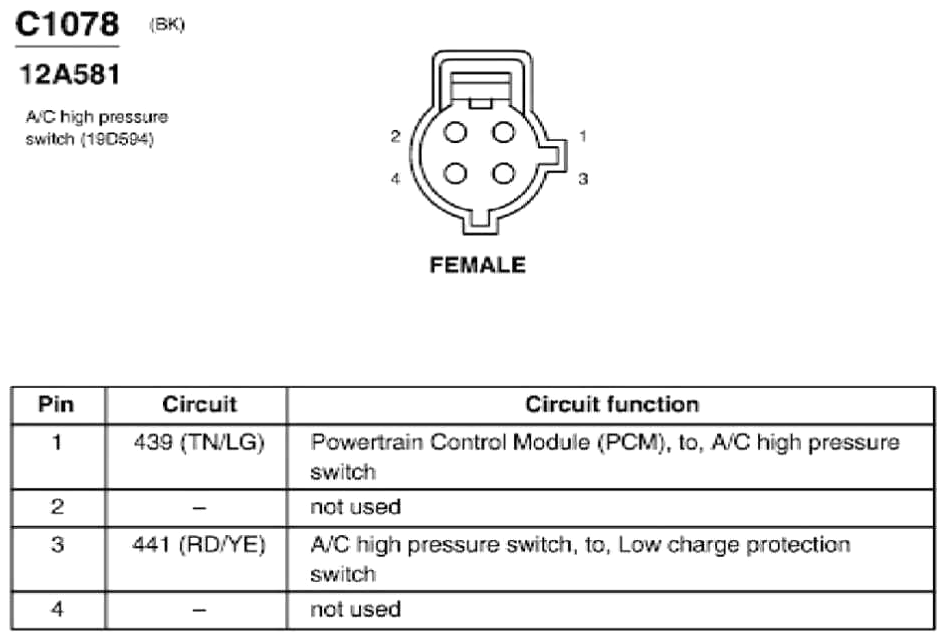

Fig 265: A/C High Pressure Switch Connector End View (C1078)

G07846534

Courtesy of FORD MOTOR CO.

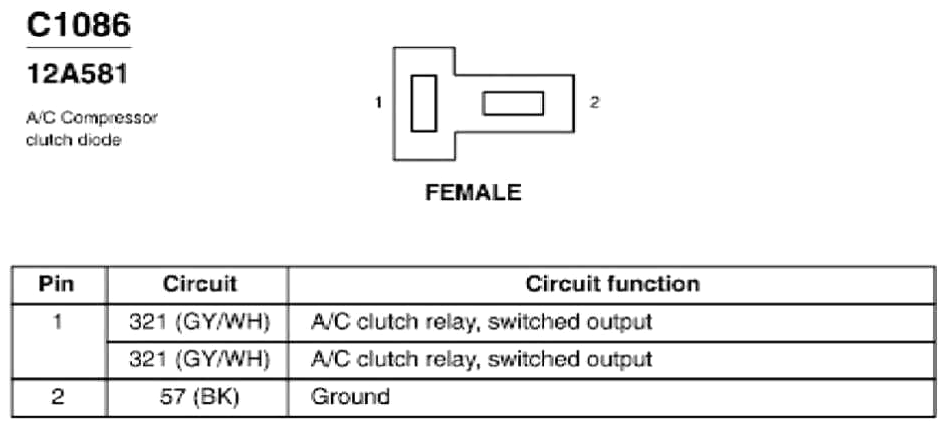

Fig 266: A/C Compressor Clutch Diode Connector End View (C1086)

G07846535

Courtesy of FORD MOTOR CO.

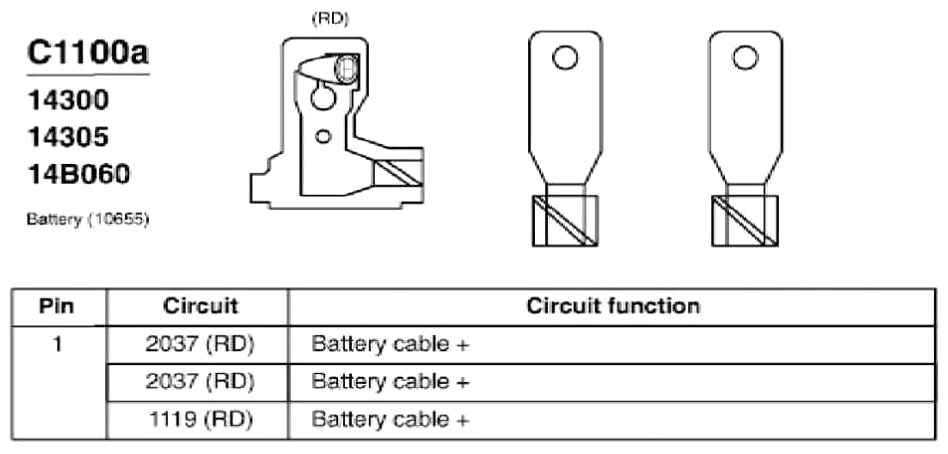

Fig 267: Battery Connector End View (C1100a)

G07846536

Courtesy of FORD MOTOR CO.

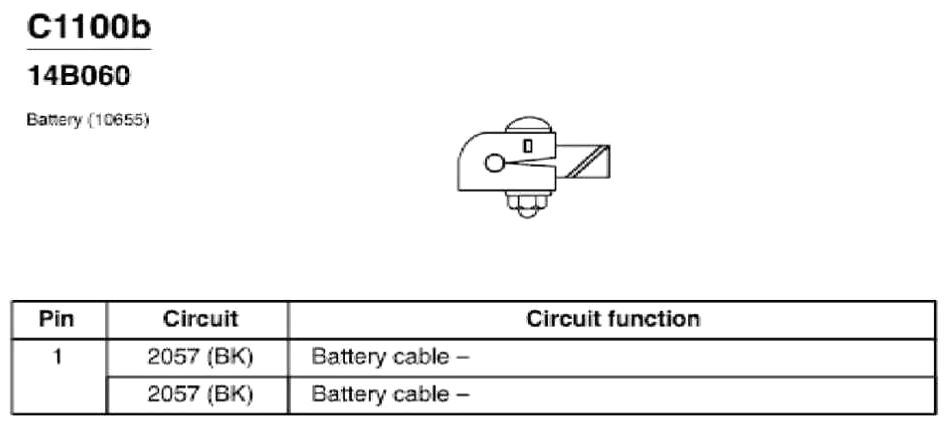

Fig 268: Battery Connector End View (C1100b)

G07846537

Courtesy of FORD MOTOR CO.

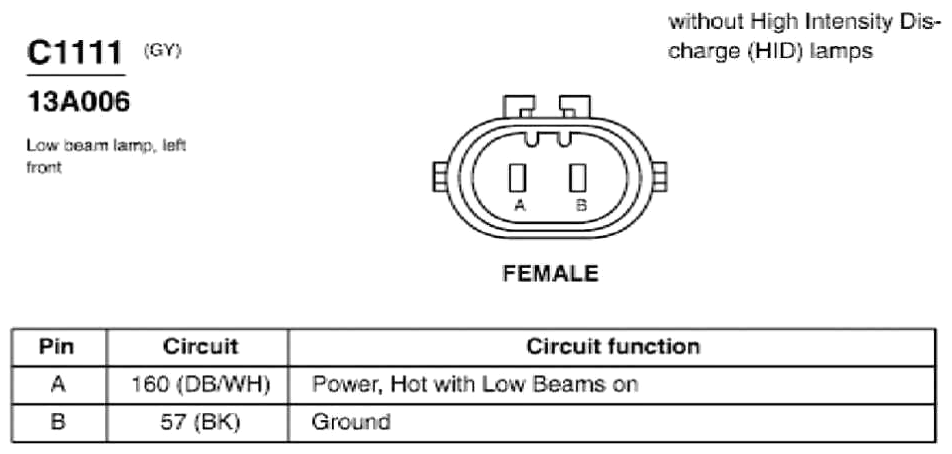

Fig 269: Low Beam Lamp, Left Front Connector End View (C1111)

G07846538

Courtesy of FORD MOTOR CO.

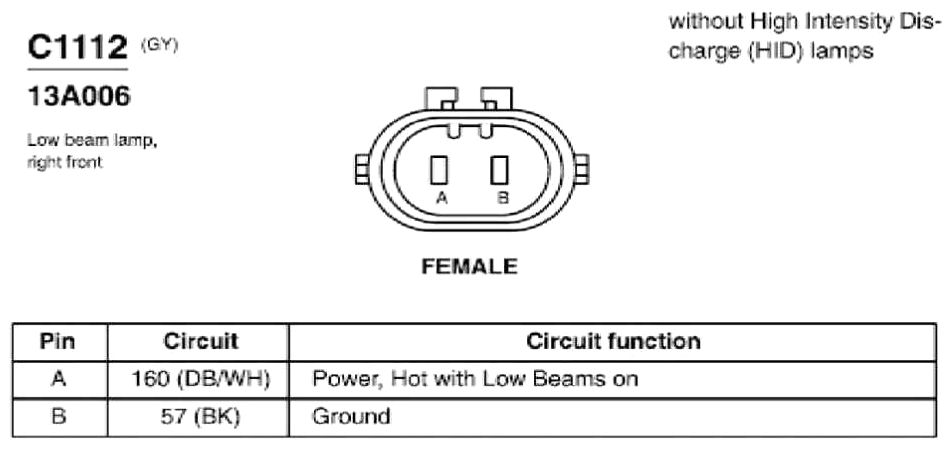

Fig 270: Low Beam Lamp, Right Front Connector End View (C1112)

G07846539

Courtesy of FORD MOTOR CO.

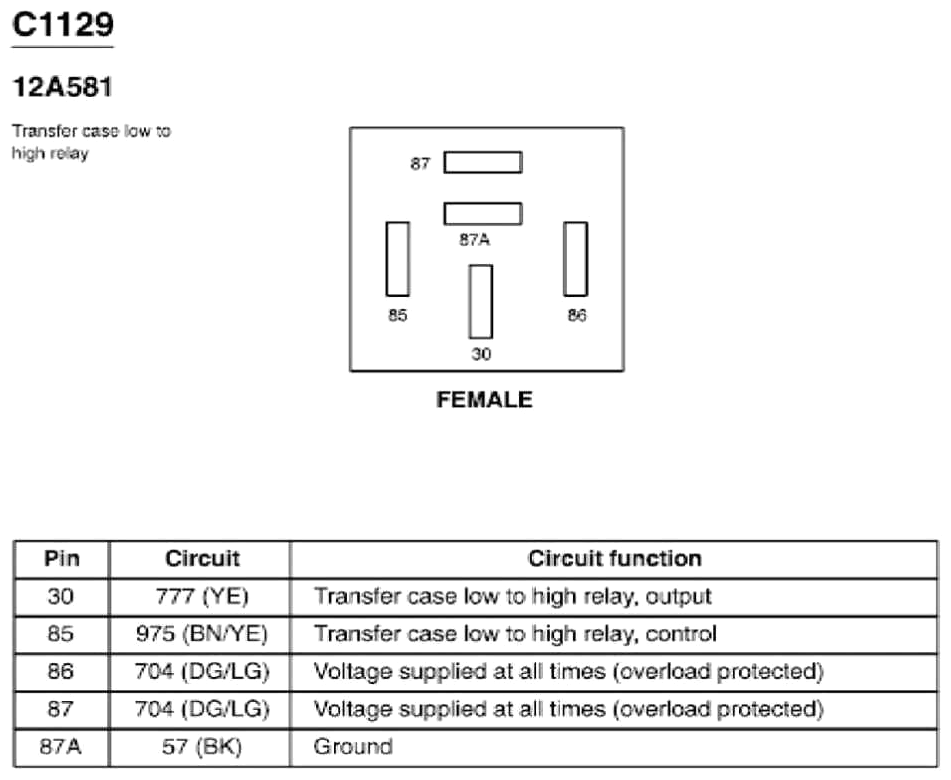

Fig 271: Transfer Case Low To High Relay Connector End View (C1129)

G07846540

Courtesy of FORD MOTOR CO.

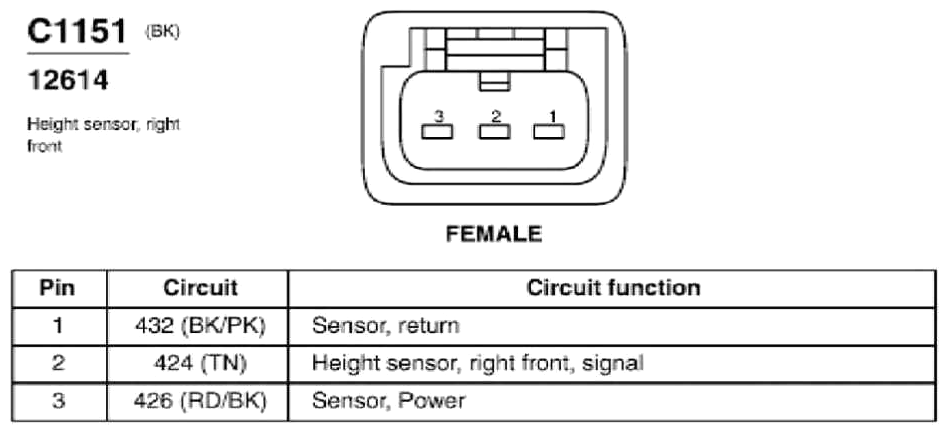

Fig 272: Height Sensor, Right Front Connector End View (C1151)

G07846541

Courtesy of FORD MOTOR CO.

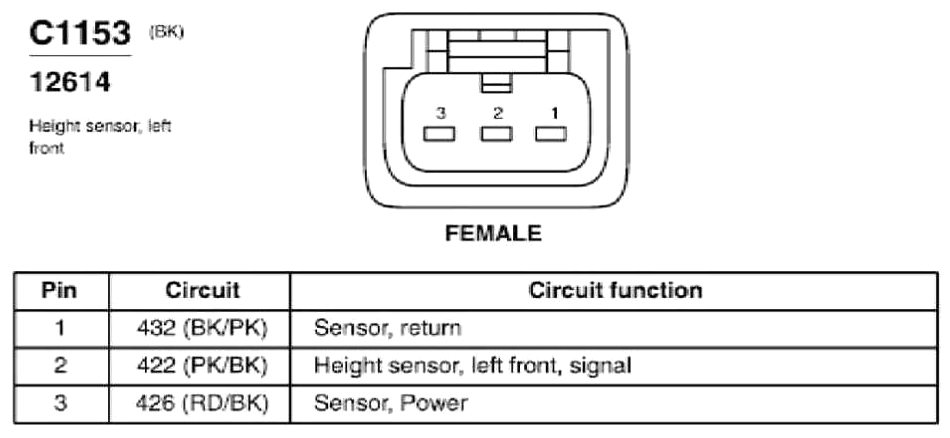

Fig 273: Height Sensor, Left Front Connector End View (C1153)

G07846542

Courtesy of FORD MOTOR CO.

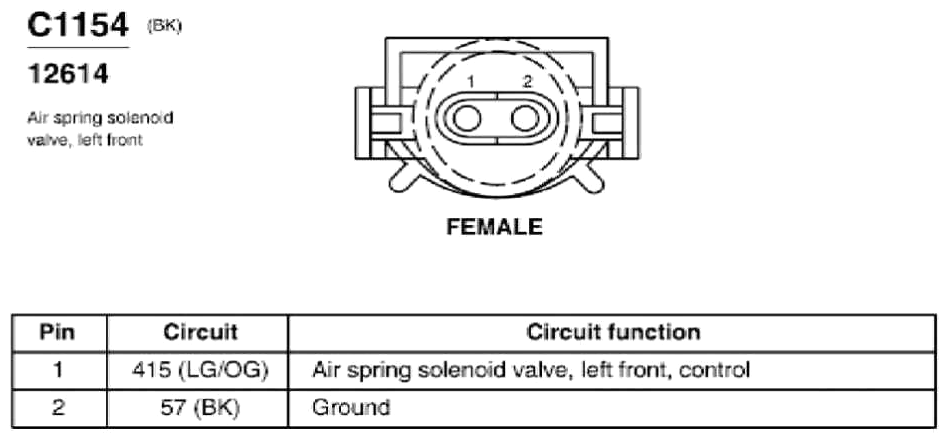

Fig 274: Air Spring Solenoid Valve, Left Front Connector End View (C1154)

G07846543

Courtesy of FORD MOTOR CO.

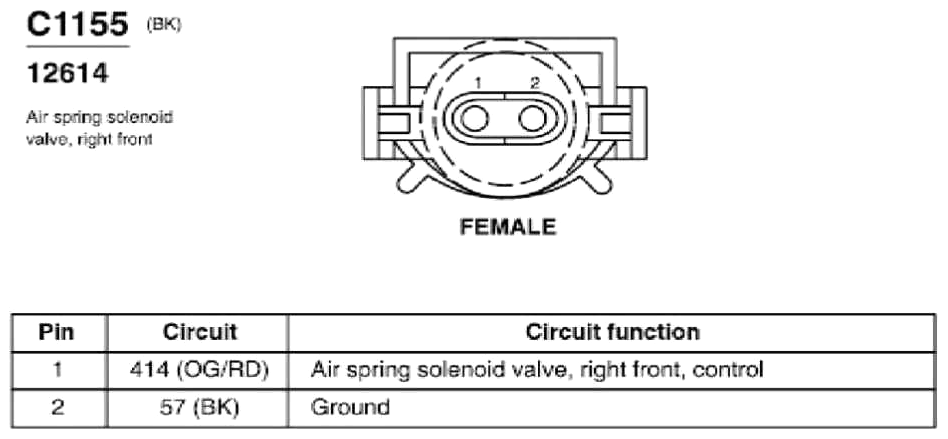

Fig 275: Air Spring Solenoid Valve, Right Front Connector End View (C1155)

G07846544

Courtesy of FORD MOTOR CO.

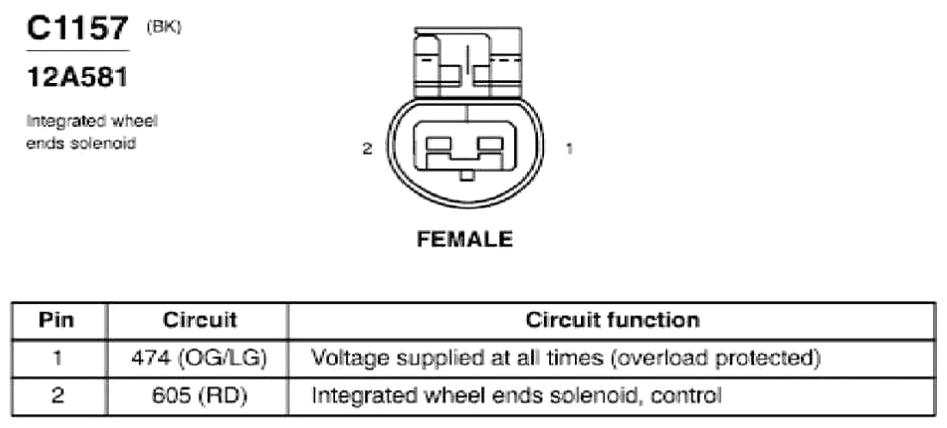

Fig 276: Integrated Wheel Ends Solenoid Connector End View (C1157)

G07846545

Courtesy of FORD MOTOR CO.

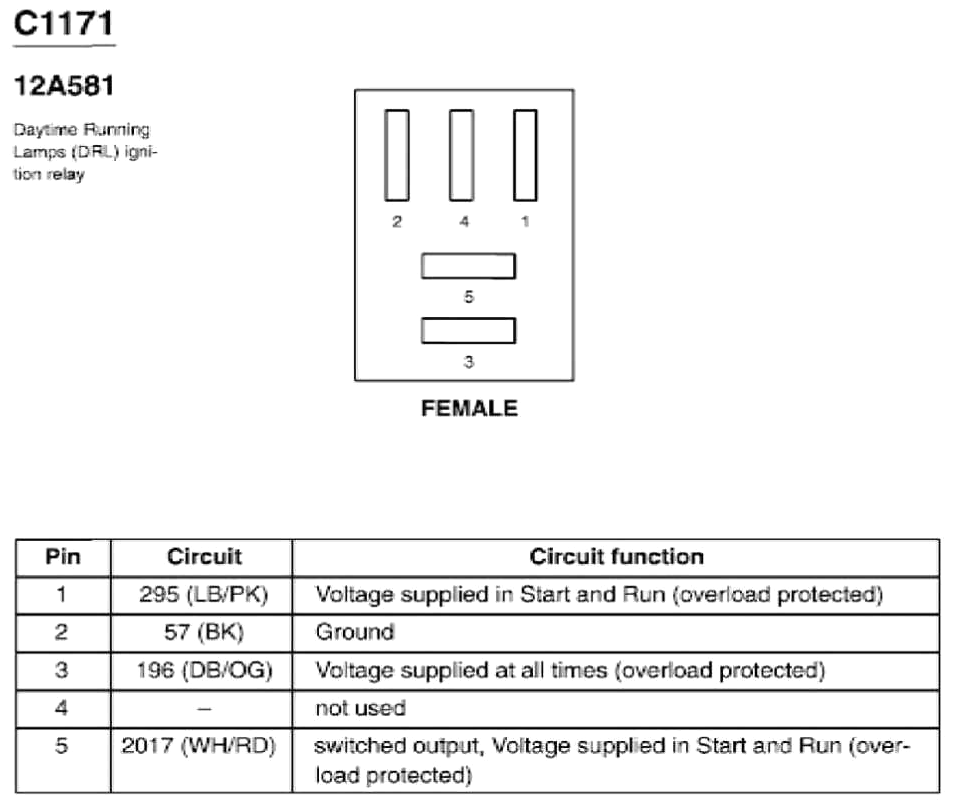

Fig 277: Daytime Running Lamps (DRL) Ignition Relay Connector End View (C1171)

G07846546

Courtesy of FORD MOTOR CO.

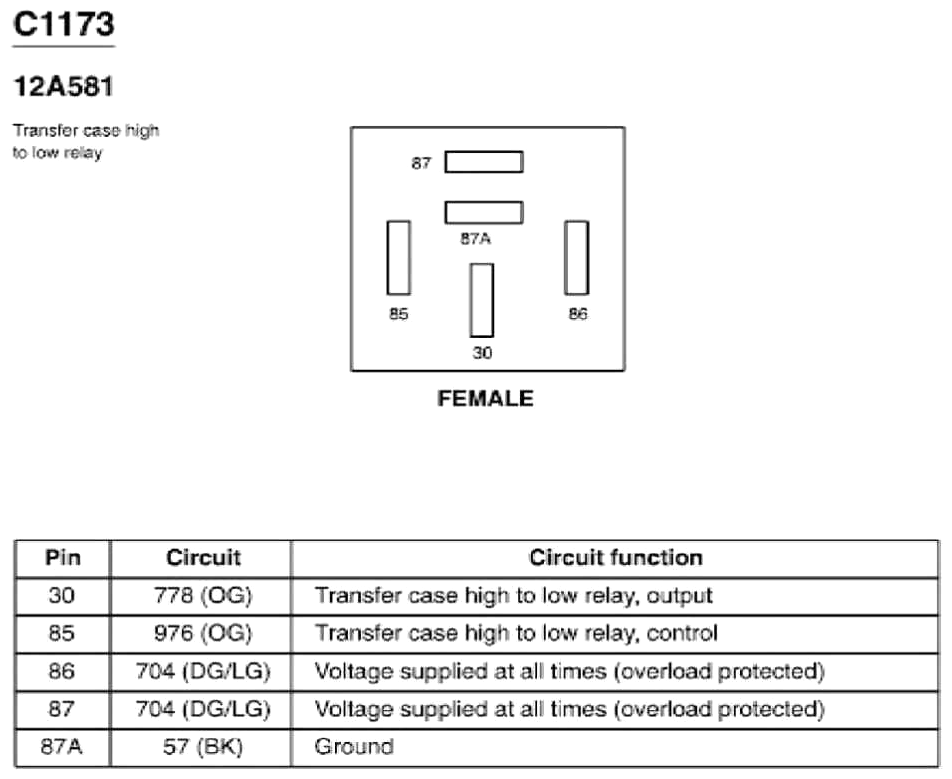

Fig 278: Transfer Case High To Low Relay Connector End View (C1173)

G07846547

Courtesy of FORD MOTOR CO.

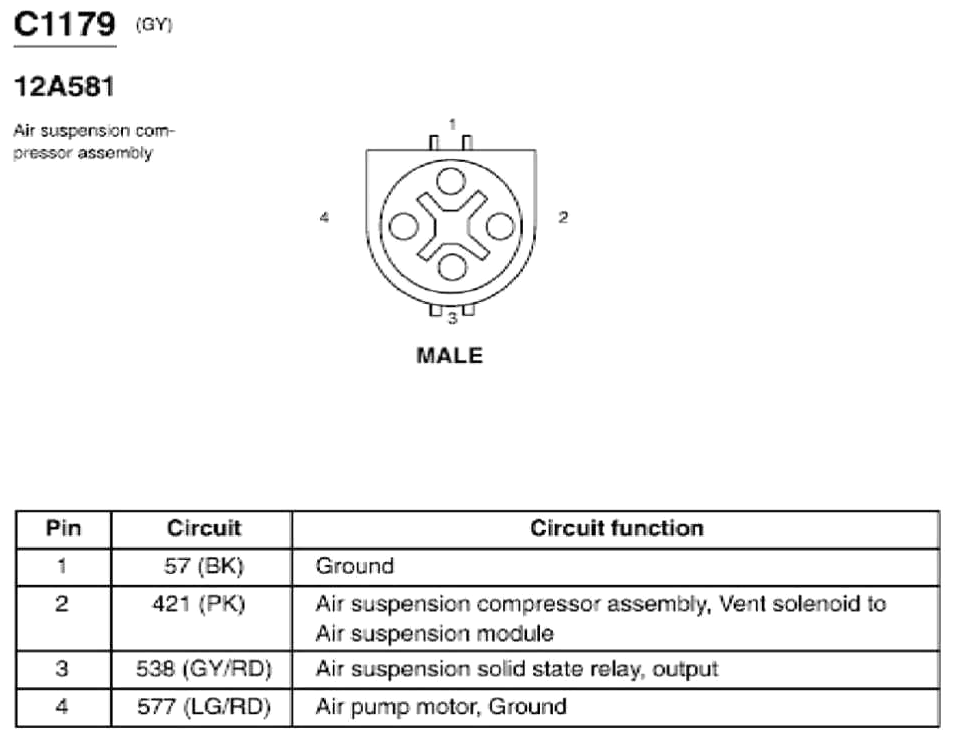

Fig 279: Air Suspension Compressor Assembly Connector End View (C1179)

G07846548

Courtesy of FORD MOTOR CO.

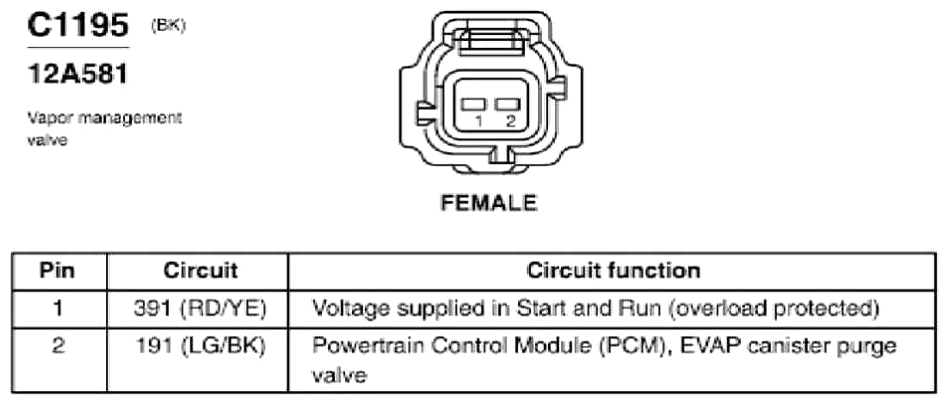

Fig 280: Vapor Management Valve Connector End View (C1195)

G07846549

Courtesy of FORD MOTOR CO.

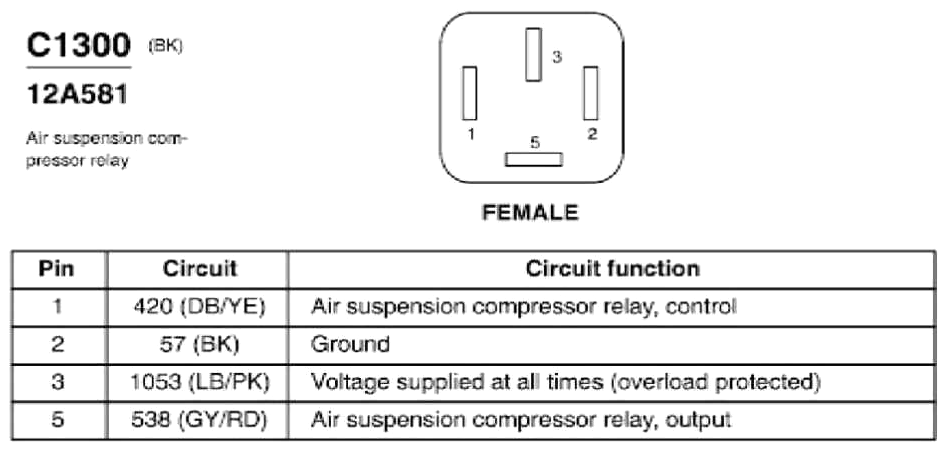

Fig 281: Air Suspension Compressor Relay Connector End View (C1300)

G07846550

Courtesy of FORD MOTOR CO.

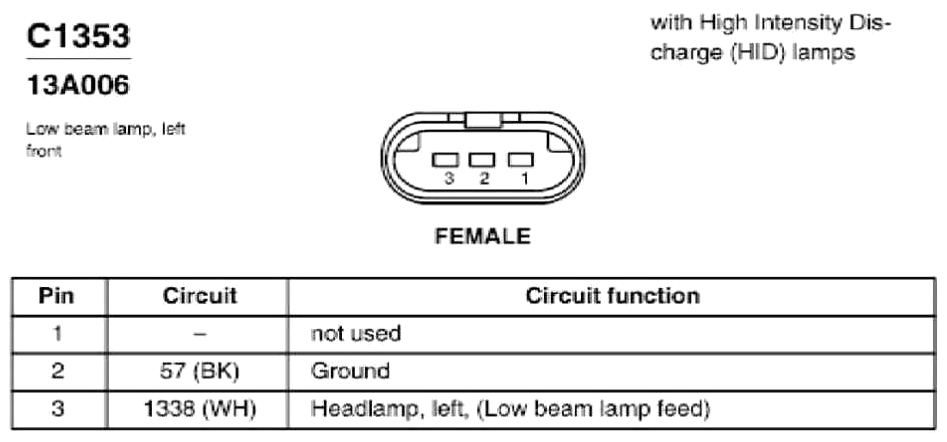

Fig 282: Low Beam Lamp, Left Front Connector End View (C1353)

G07846551

Courtesy of FORD MOTOR CO.

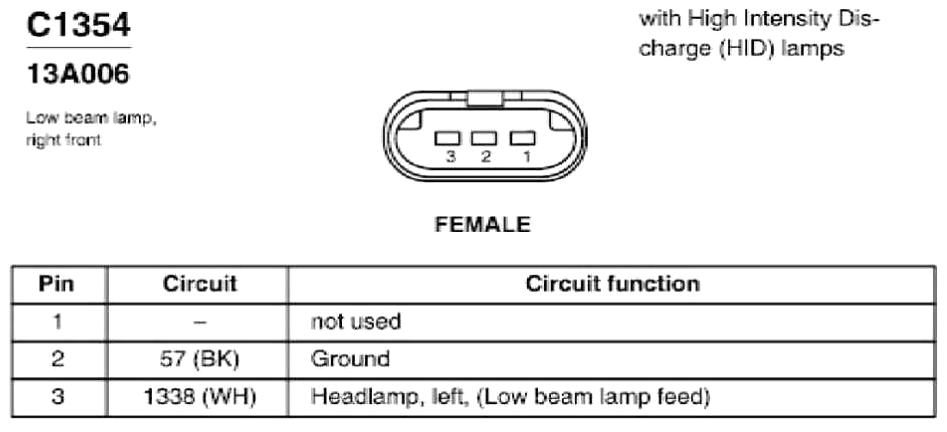

Fig 283: Low Beam Lamp, Right Front Connector End View (C1354)

G07846552

Courtesy of FORD MOTOR CO.

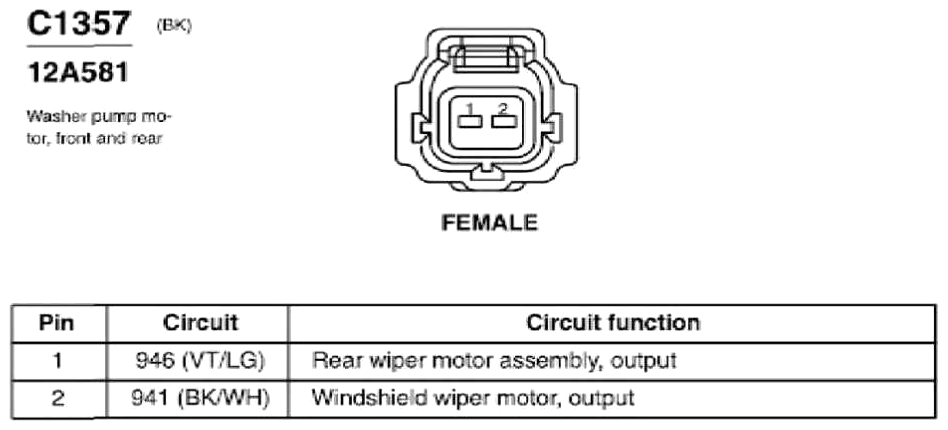

Fig 284: Washer Pump Motor, Front And Rear Connector End View (C1357)

G07846553

Courtesy of FORD MOTOR CO.

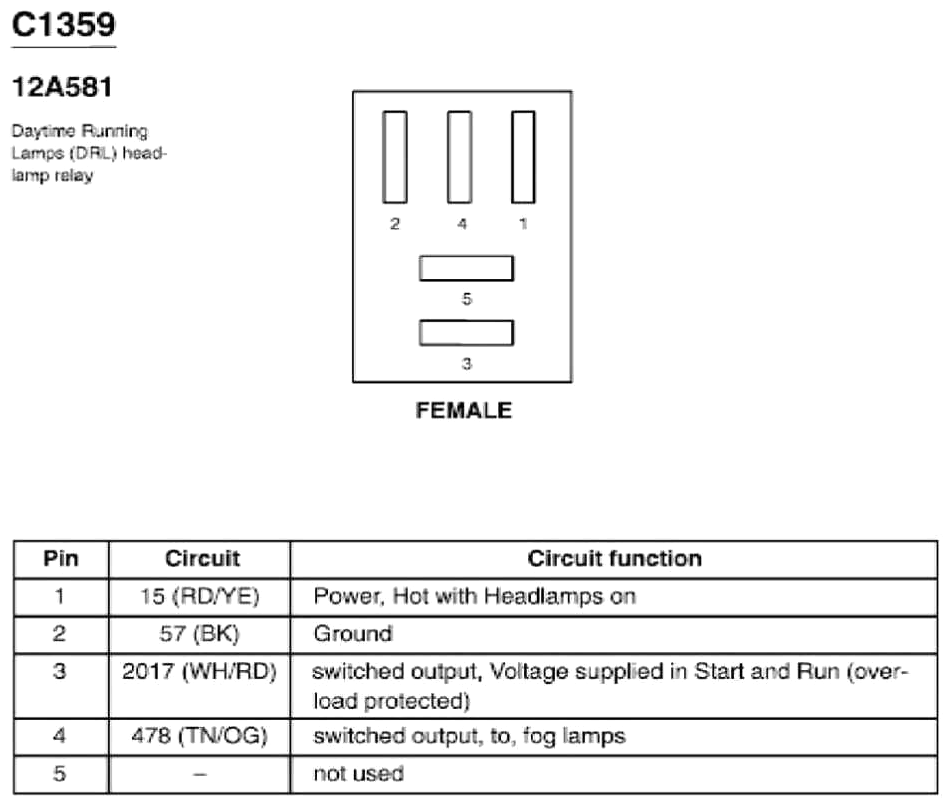

Fig 285: Daytime Running Lamps (DRL) Headlamp Relay Connector End View (C1359)

G07846554

Courtesy of FORD MOTOR CO.

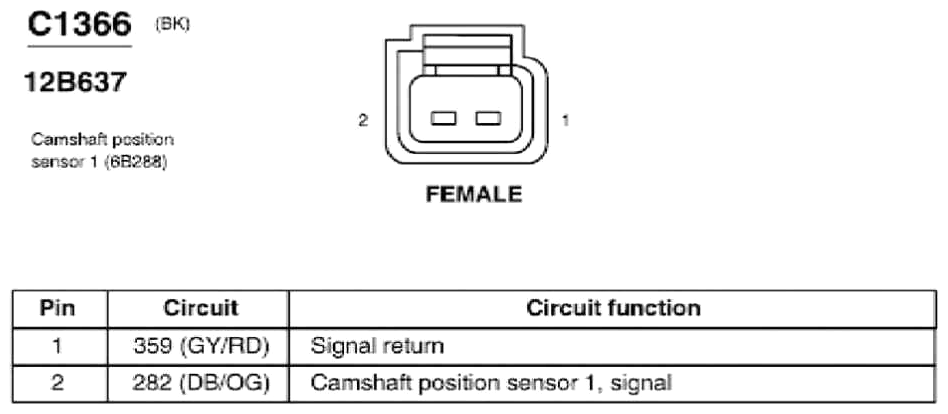

Fig 286: Camshaft Position Sensor 1 Connector End View (C1366)

G07846555

Courtesy of FORD MOTOR CO.

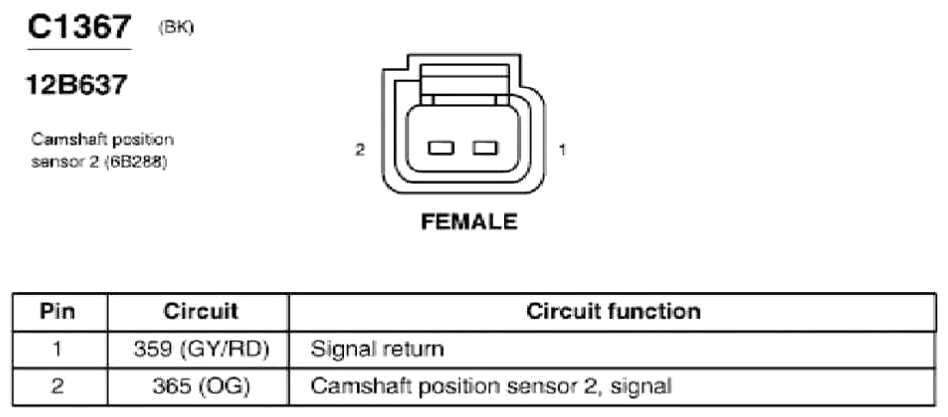

Fig 287: Camshaft Position Sensor 2 Connector End View (C1367)

G07846556

Courtesy of FORD MOTOR CO.

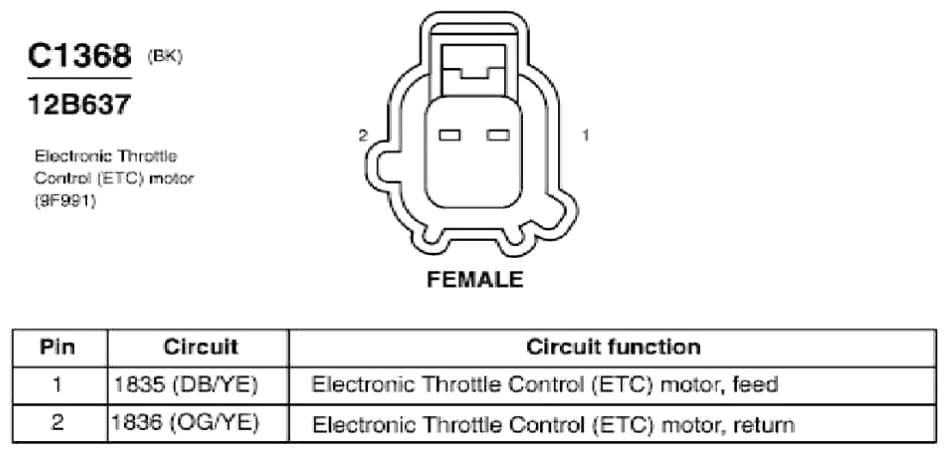

Fig 288: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G07846557

Courtesy of FORD MOTOR CO.

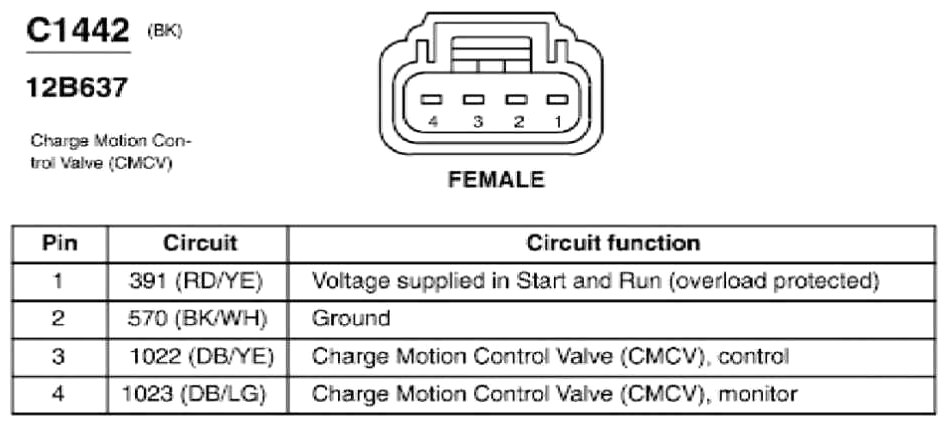

Fig 289: Charge Motion Control Valve (CMCV) Connector End View (C1442)

G07846558

Courtesy of FORD MOTOR CO.

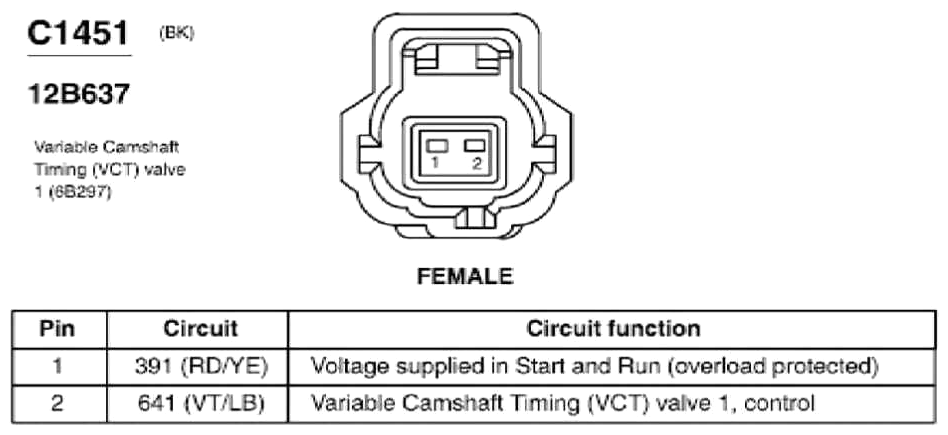

Fig 290: Variable Camshaft Timing (VCT) Valve 1 Connector End View (C1451)

G07846559

Courtesy of FORD MOTOR CO.

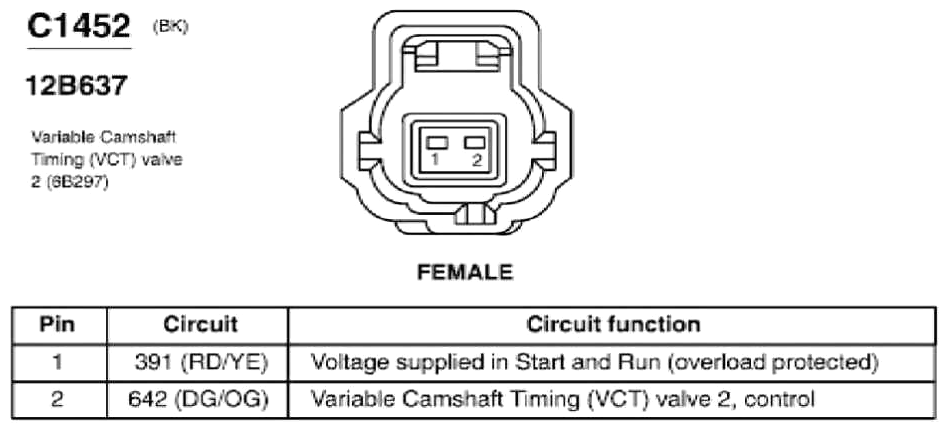

Fig 291: Variable Camshaft Timing (VCT) Valve 2 Connector End View (C1452)

G07846560

Courtesy of FORD MOTOR CO.

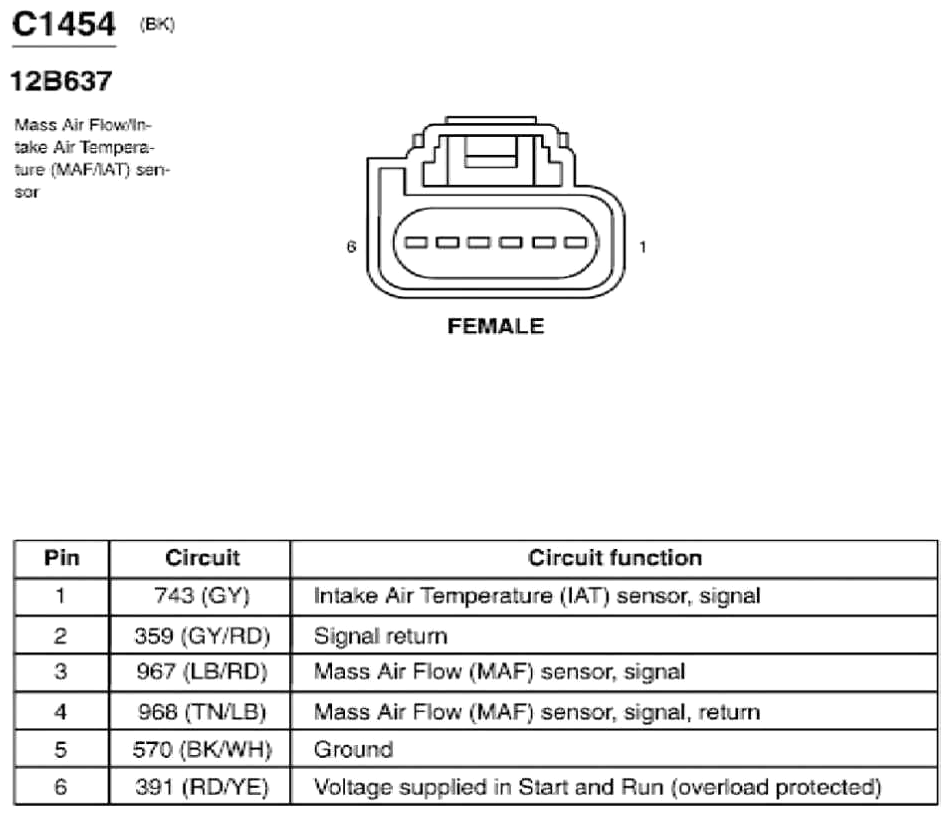

Fig 292: Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector End View (C1454)

G07846561

Courtesy of FORD MOTOR CO.

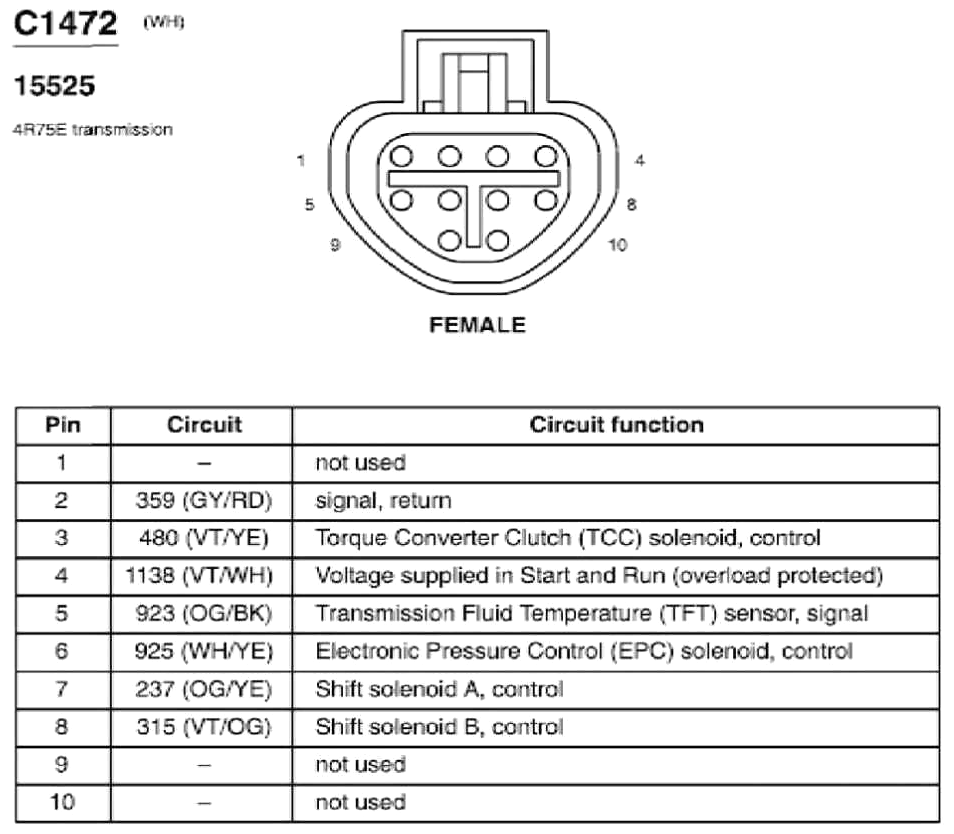

Fig 293: 4R75E Transmission Connector End View (C1472)

G07846562

Courtesy of FORD MOTOR CO.

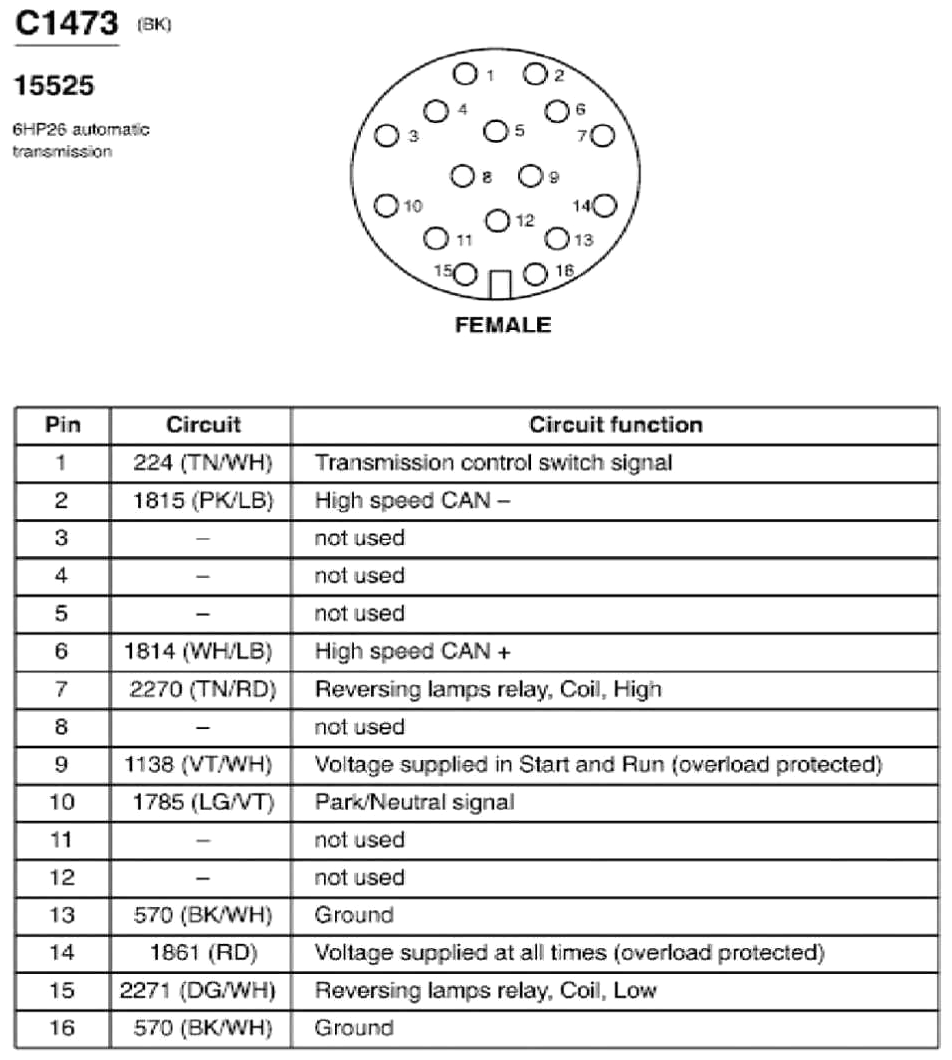

Fig 294: 6HP26 Automatic Transmission Connector End View (C1473)

G07846563

Courtesy of FORD MOTOR CO.

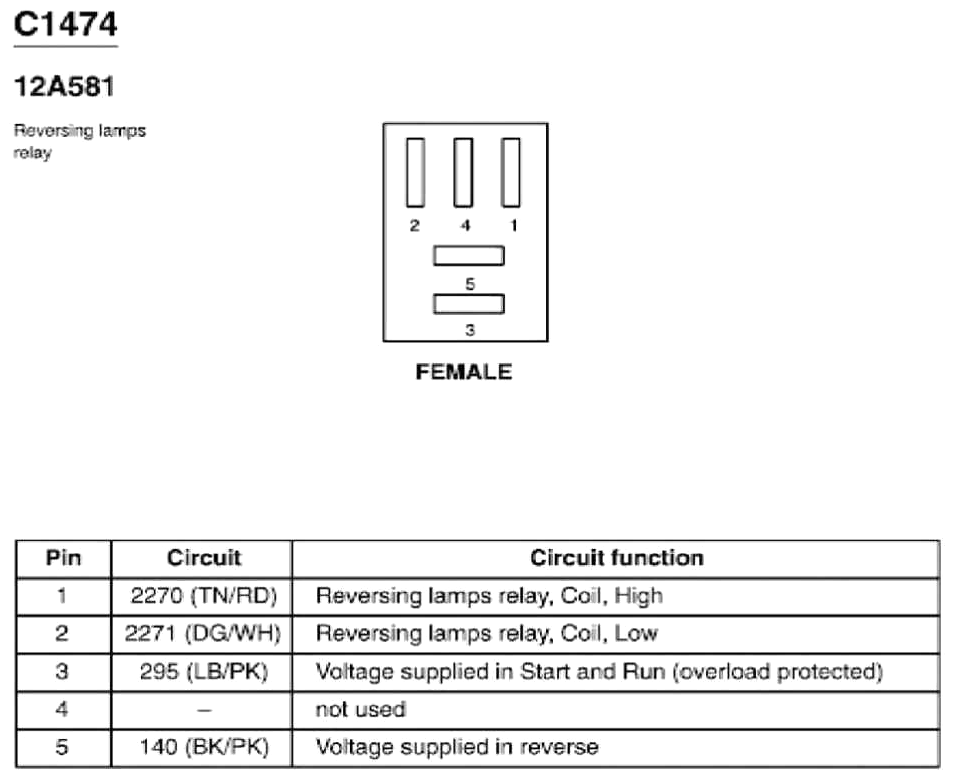

Fig 295: Reversing Lamps Relay Connector End View (C1474)

G07846564

Courtesy of FORD MOTOR CO.

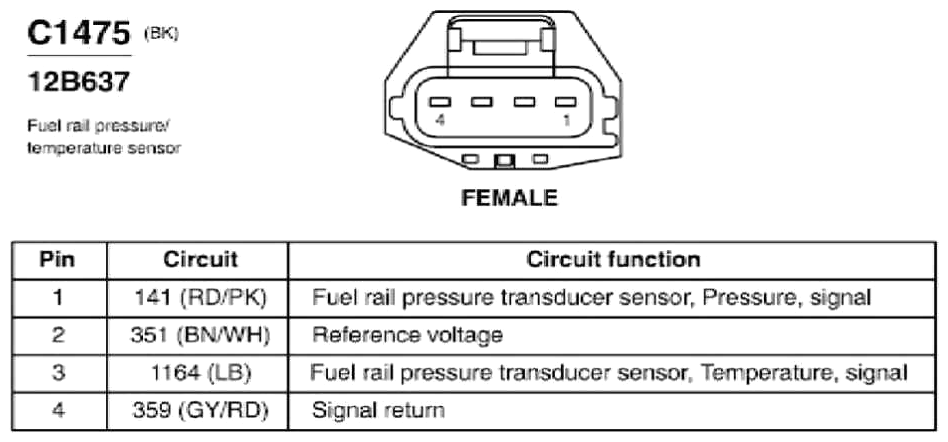

Fig 296: Fuel Rail Pressure/Temperature Sensor Connector End View (C1475)

G07846565

Courtesy of FORD MOTOR CO.

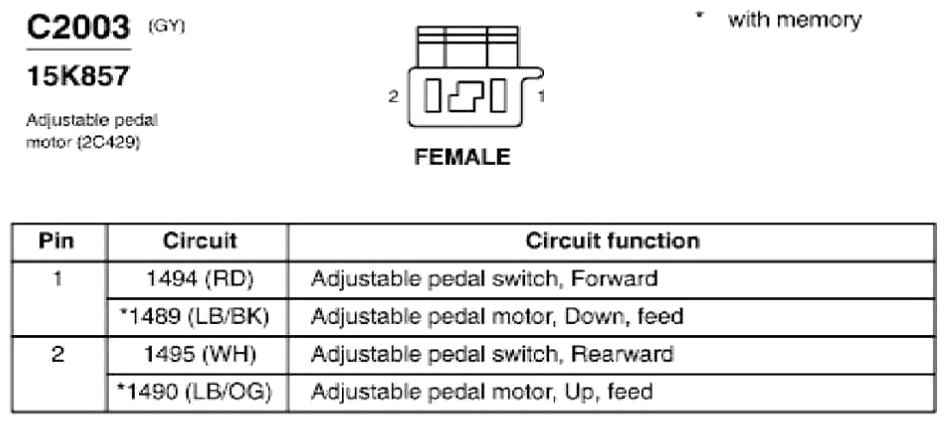

Fig 297: Adjustable Pedal Motor Connector End View (C2003)

G07846566

Courtesy of FORD MOTOR CO.

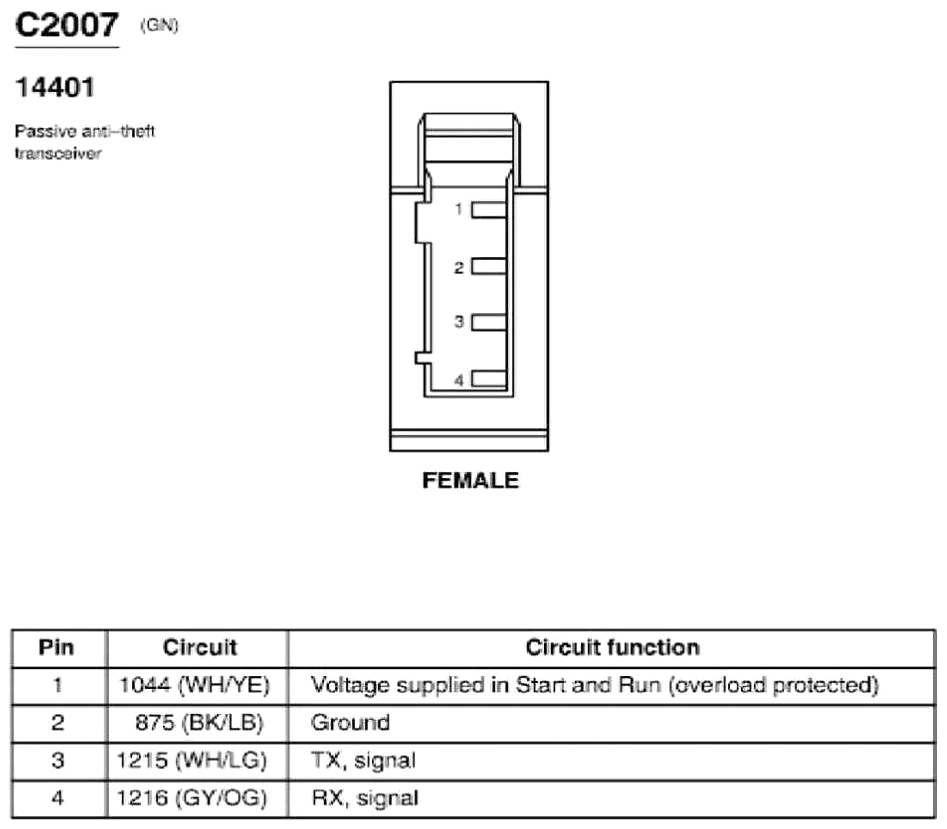

Fig 298: Passive Anti-Theft Transceiver Connector End View (C2007)

G07846567

Courtesy of FORD MOTOR CO.

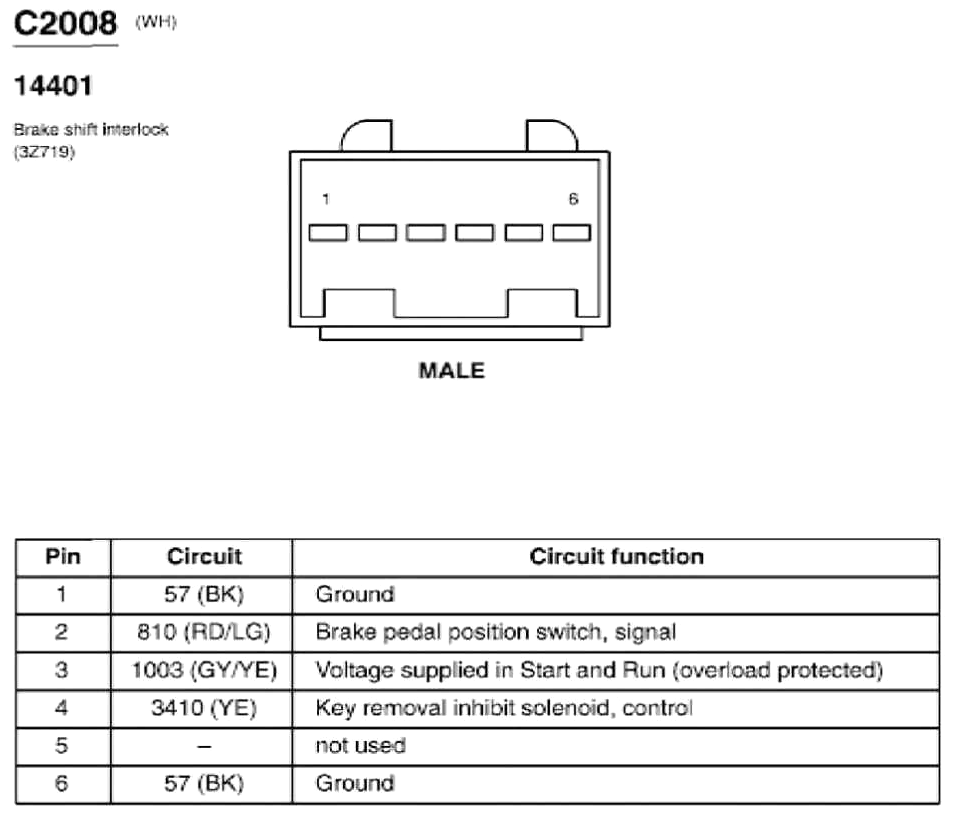

Fig 299: Brake Shift Interlock Connector End View (C2008)

G07846568

Courtesy of FORD MOTOR CO.

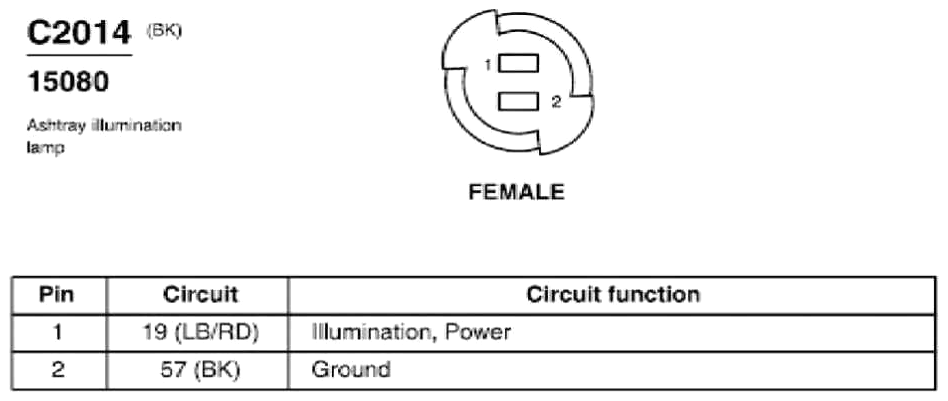

Fig 300: Ashtray Illumination Lamp Connector End View (C2014)

G07846569

Courtesy of FORD MOTOR CO.

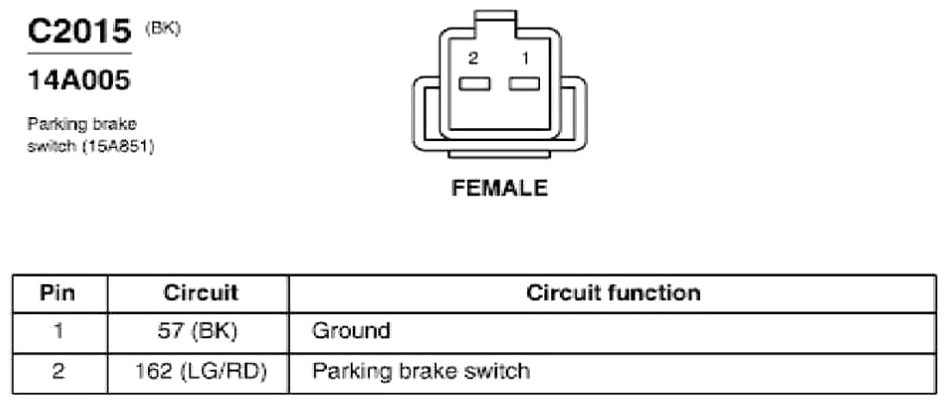

Fig 301: Parking Brake Switch Connector End View (C2015)

G07846570

Courtesy of FORD MOTOR CO.

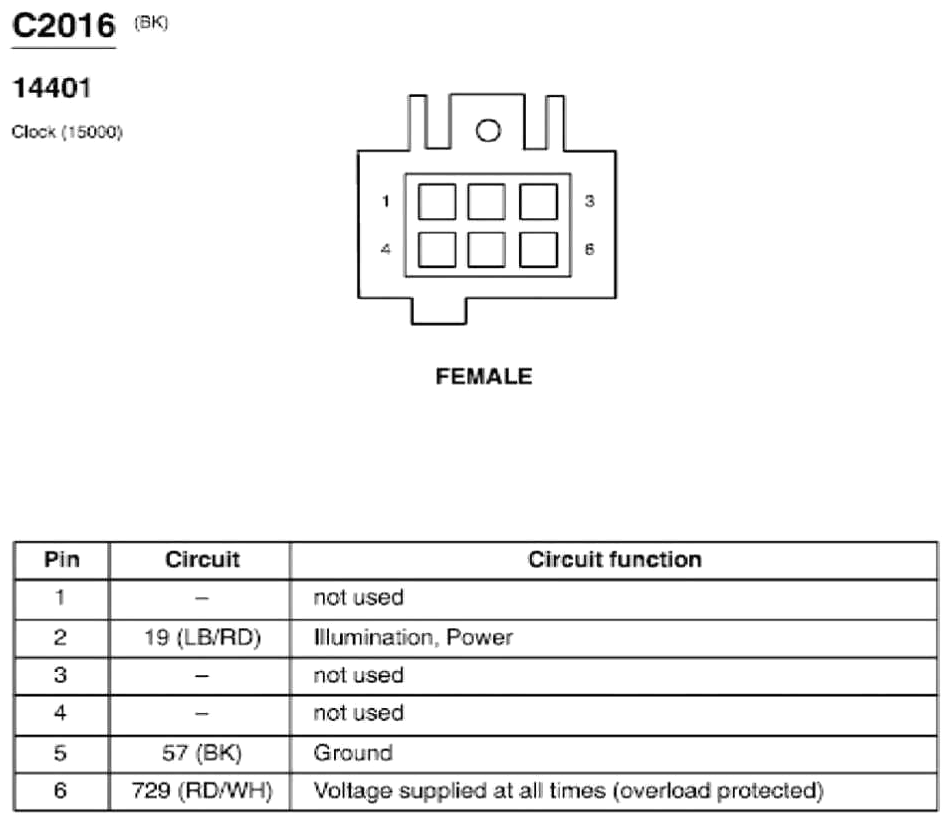

Fig 302: Clock Connector End View (C2016)

G07846571

Courtesy of FORD MOTOR CO.

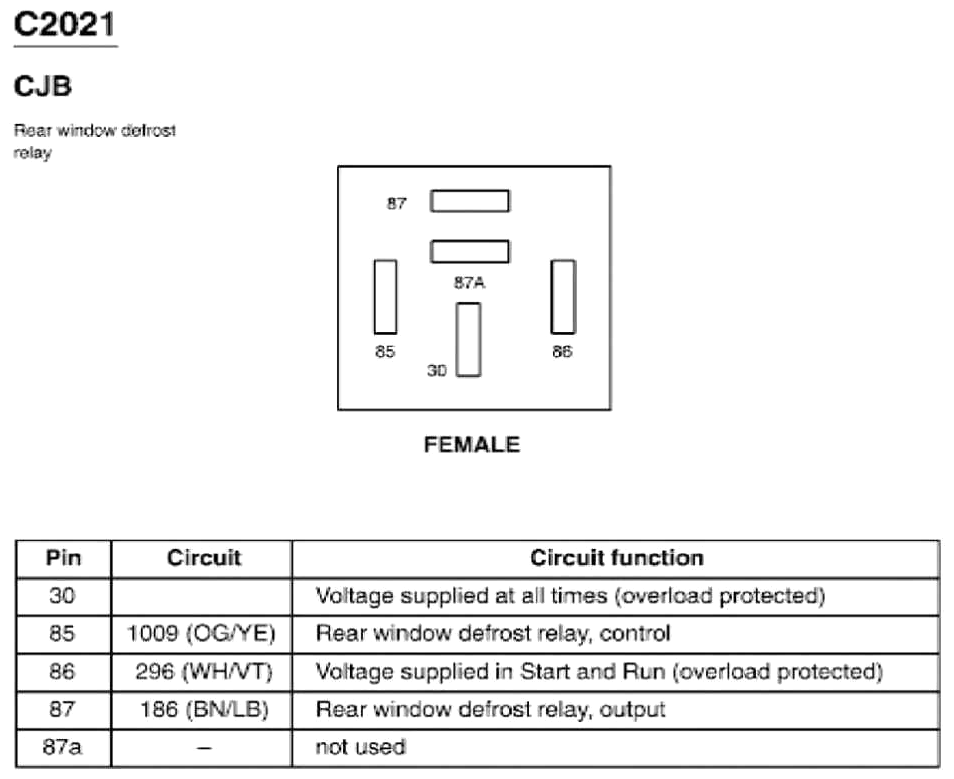

Fig 303: Rear Window Defrost Relay Connector End View (C2021)

G07846572

Courtesy of FORD MOTOR CO.

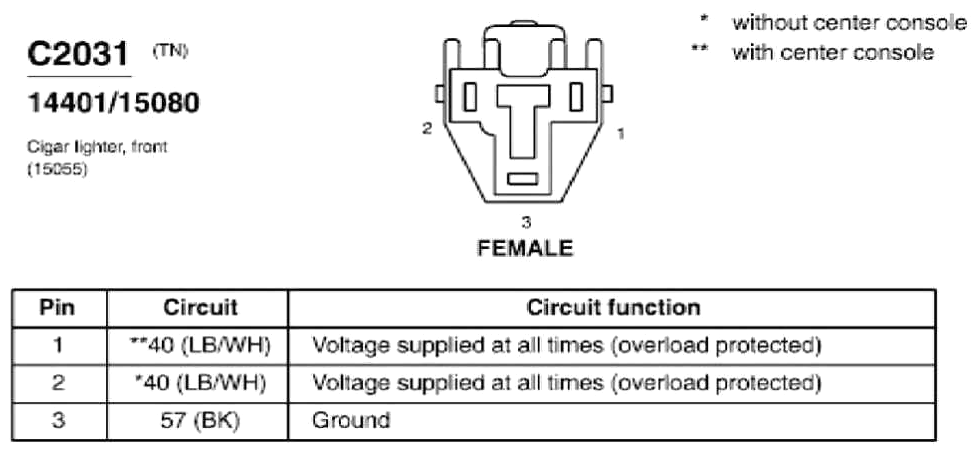

Fig 304: Cigar Lighter, Front Connector End View (C2031)

G07846573

Courtesy of FORD MOTOR CO.

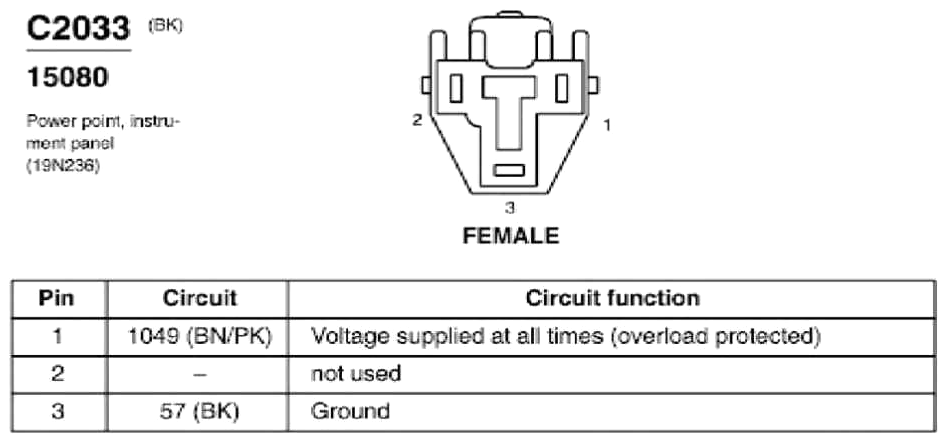

Fig 305: Power Point, Instrument Panel Connector End View (C2033)

G07846574

Courtesy of FORD MOTOR CO.

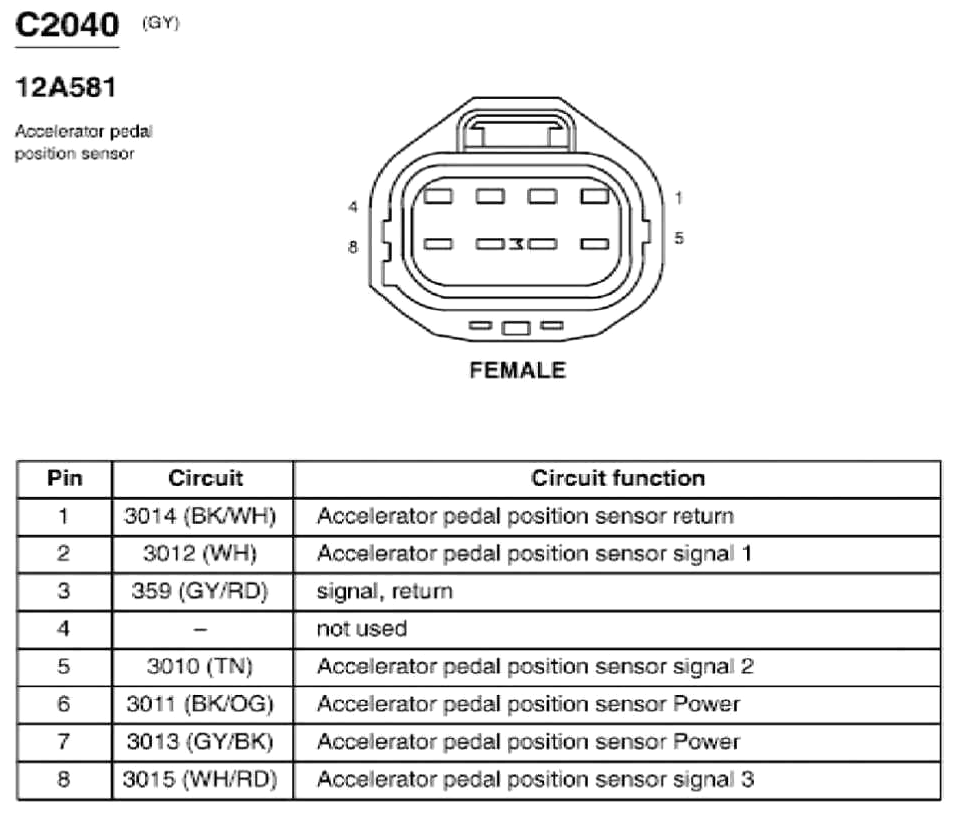

Fig 306: Accelerator Pedal Position Sensor Connector End View (C2040)

G07846575

Courtesy of FORD MOTOR CO.

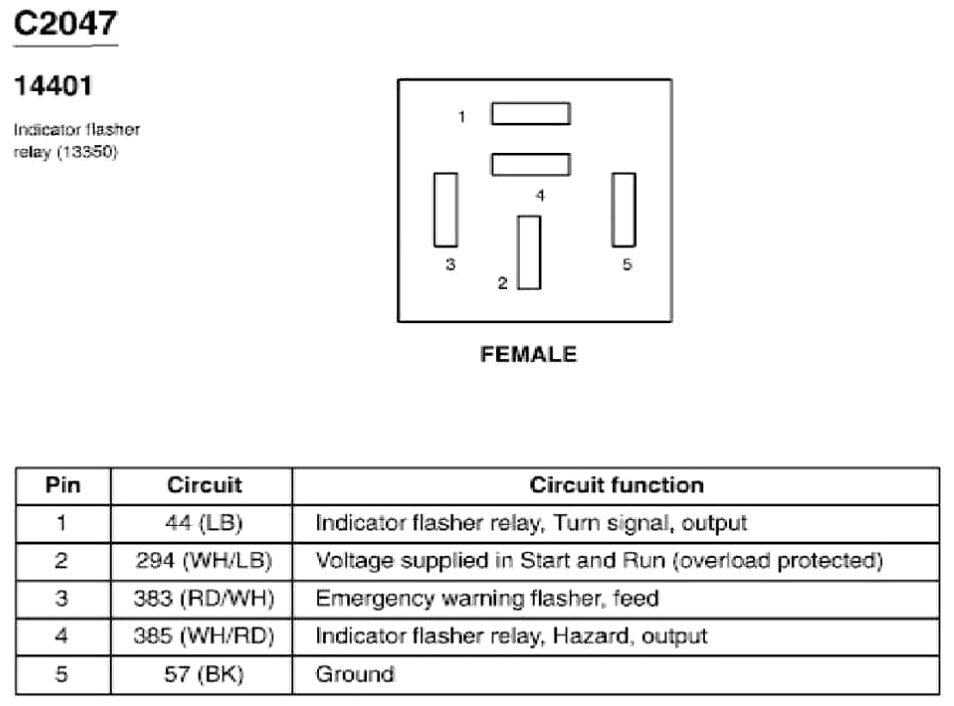

Fig 307: Indicator Flasher Relay Connector End View (C2047)

G07846576

Courtesy of FORD MOTOR CO.

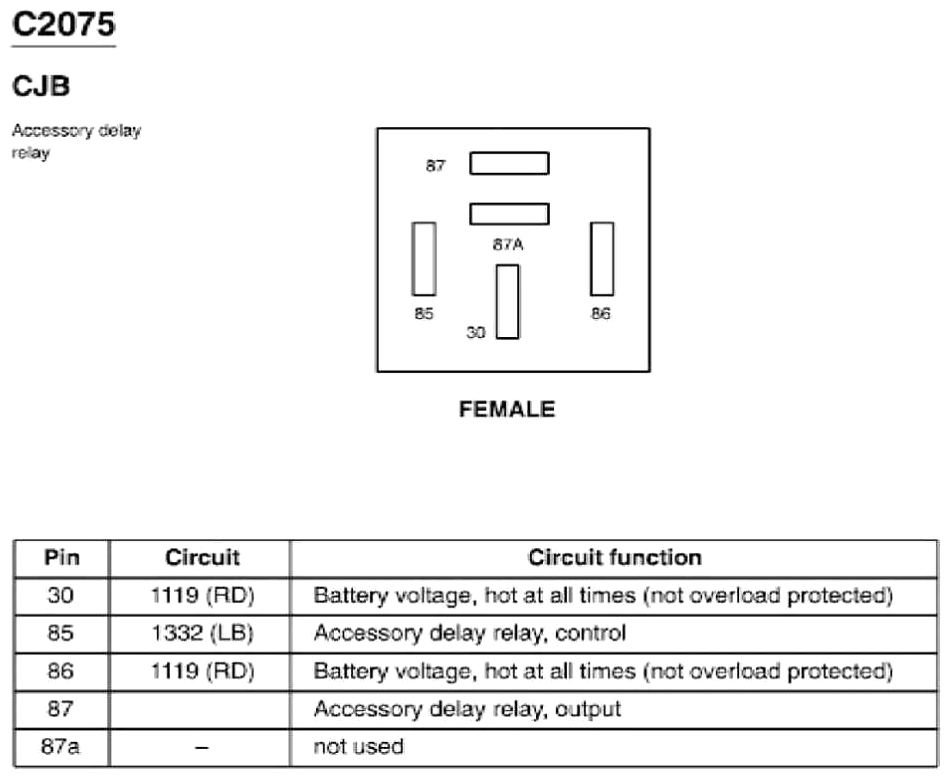

Fig 308: Accessory Delay Relay Connector End View (C2075)

G07846577

Courtesy of FORD MOTOR CO.

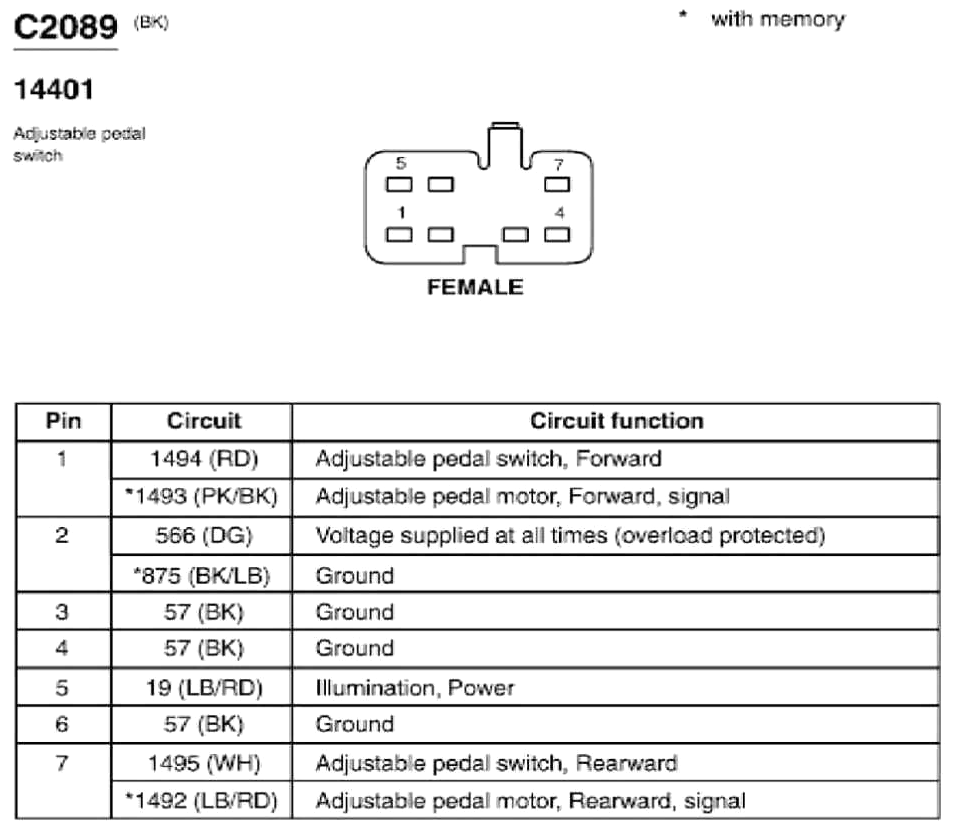

Fig 309: Adjustable Pedal Switch Connector End View (C2089)

G07846578

Courtesy of FORD MOTOR CO.

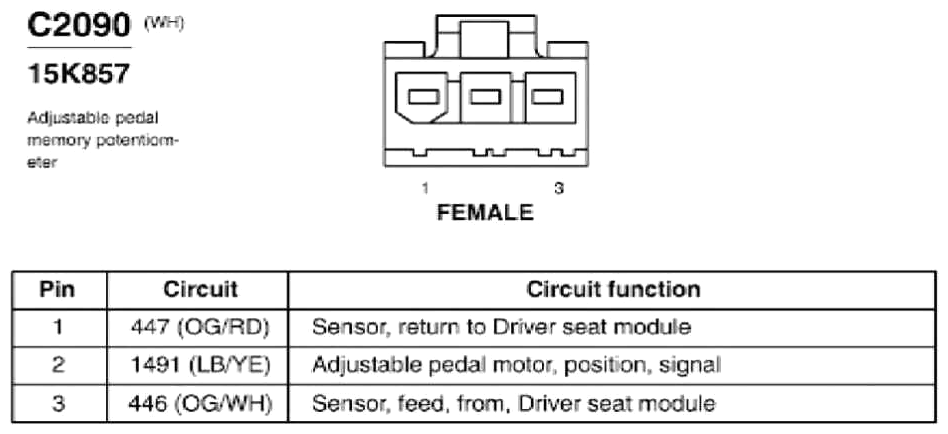

Fig 310: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07846579

Courtesy of FORD MOTOR CO.

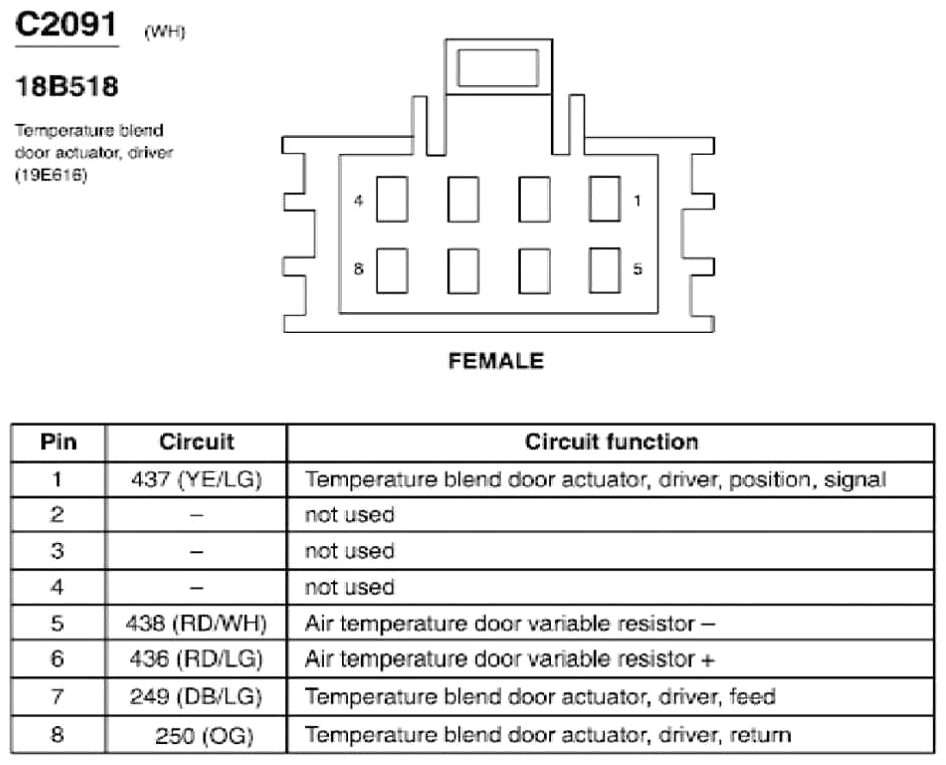

Fig 311: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07846580

Courtesy of FORD MOTOR CO.

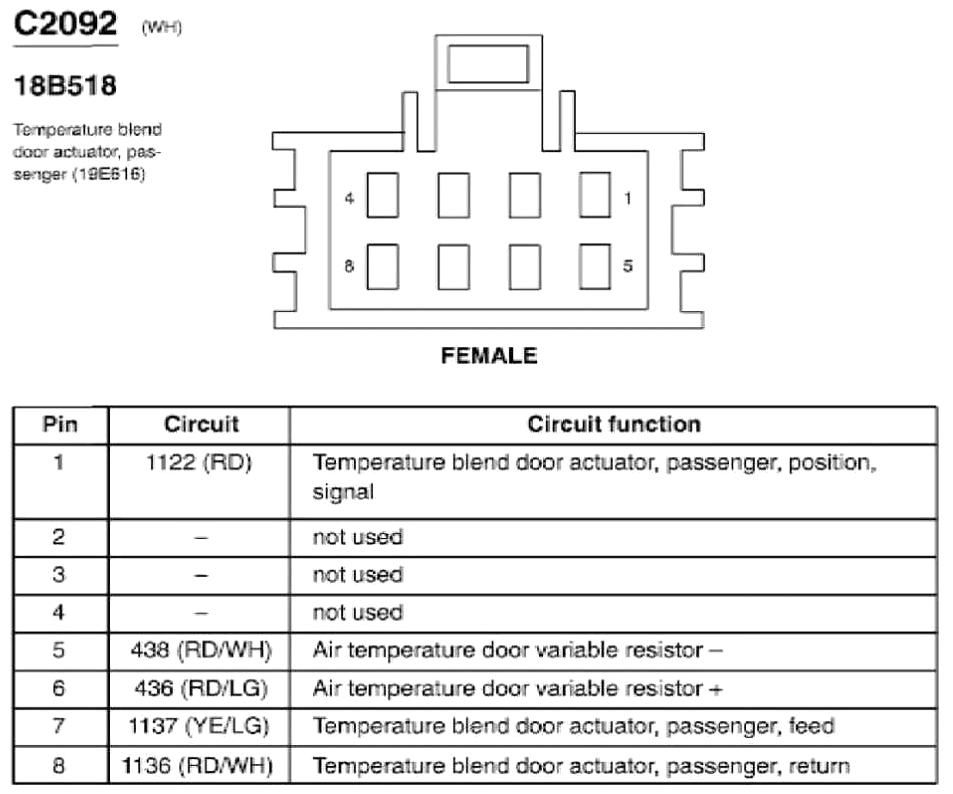

Fig 312: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G07846581

Courtesy of FORD MOTOR CO.

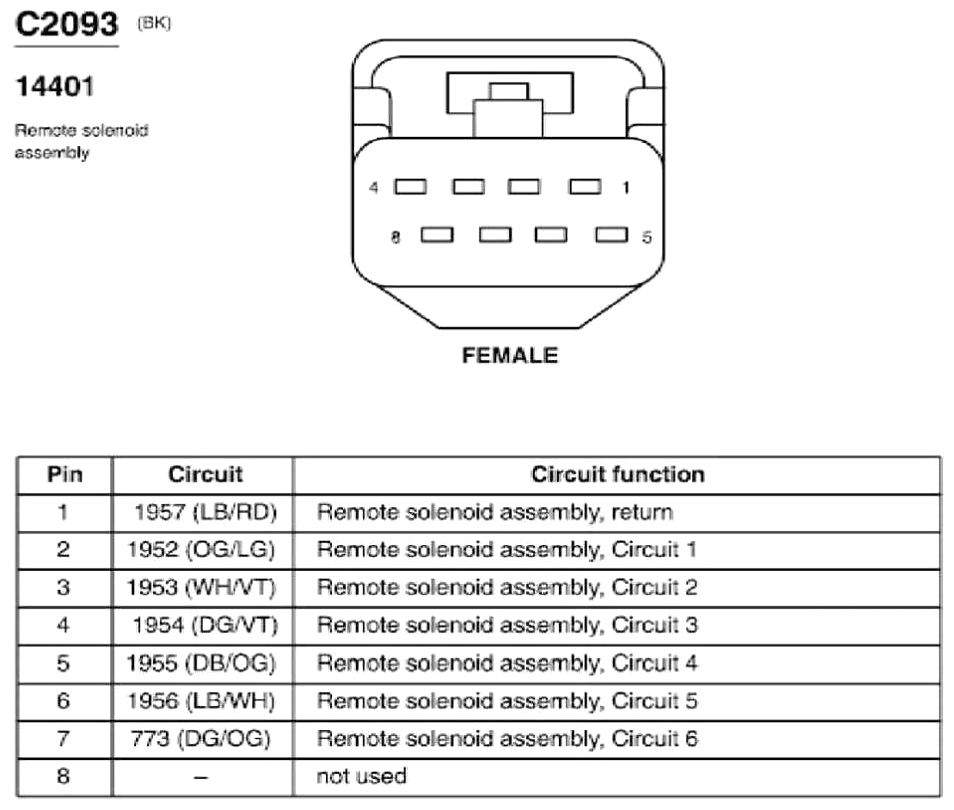

Fig 313: Remote Solenoid Assembly Connector End View (C2093)

G07846582

Courtesy of FORD MOTOR CO.

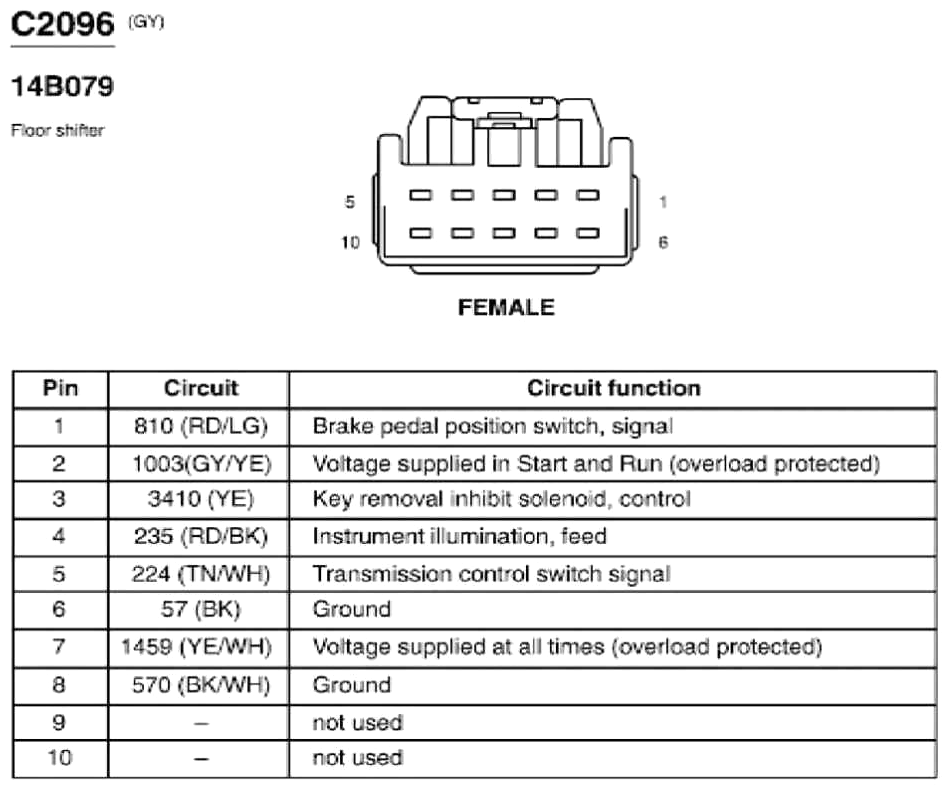

Fig 314: Floor Shifter Connector End View (C2096)

G07846583

Courtesy of FORD MOTOR CO.

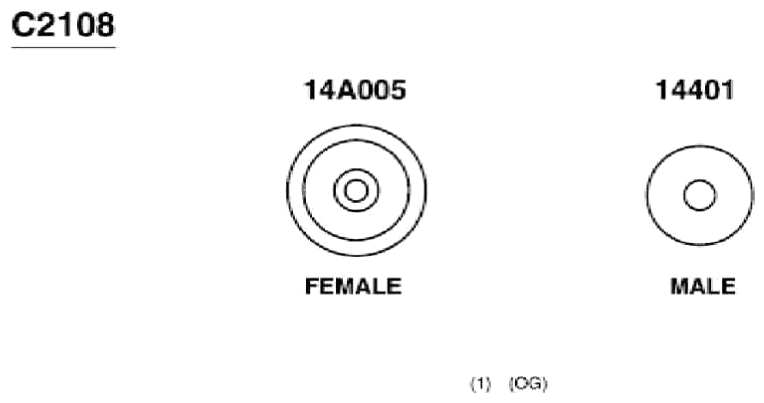

Fig 315: Inline Connector End View (C2108)

G07846584

Courtesy of FORD MOTOR CO.

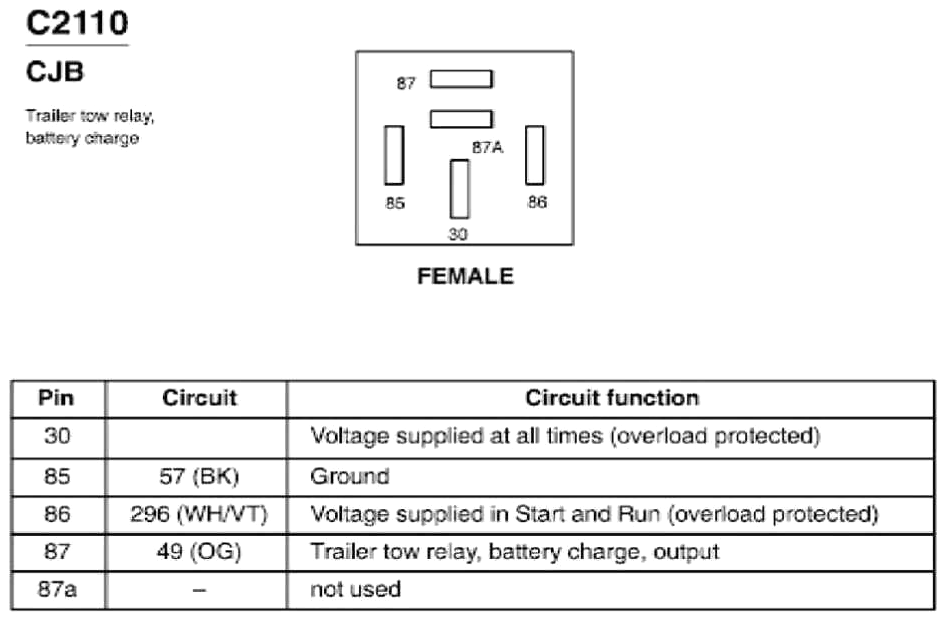

Fig 316: Trailer Tow Relay, Battery Charge Connector End View (C20110)

G07846585

Courtesy of FORD MOTOR CO.

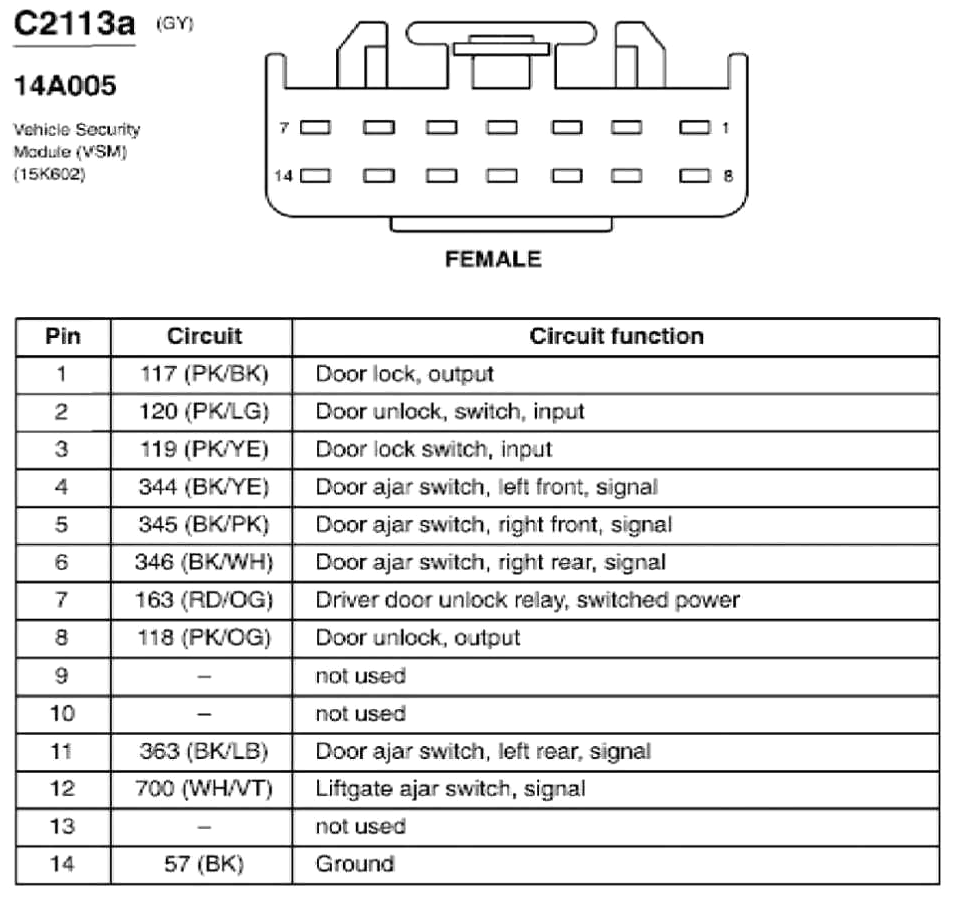

Fig 317: Vehicle Security Module (VSM) Connector End View (C2113a)

G07846586

Courtesy of FORD MOTOR CO.

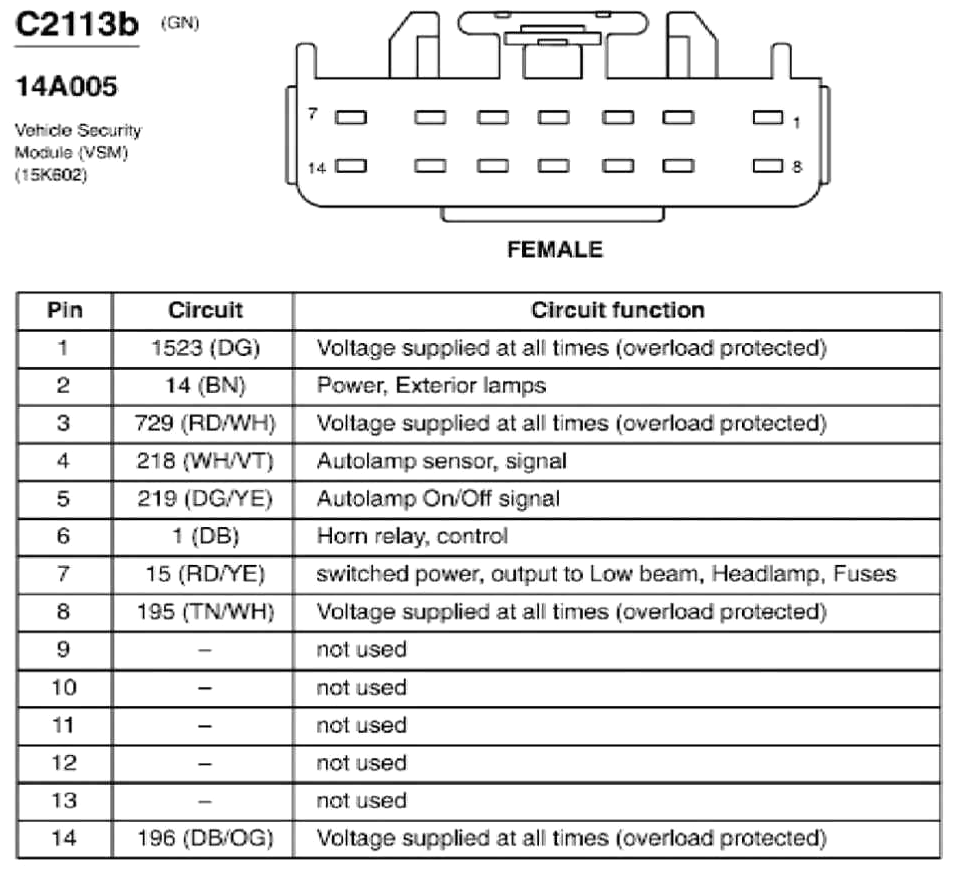

Fig 318: Vehicle Security Module (VSM) Connector End View (C2113b)

G07846587

Courtesy of FORD MOTOR CO.

Fig 319: Vehicle Security Module (VSM) Connector End View (C2113c)

G07847746

Courtesy of FORD MOTOR CO.

Fig 320: Audio/Navigation Control Unit Connector End View (C2123a)

G07847747

Courtesy of FORD MOTOR CO.

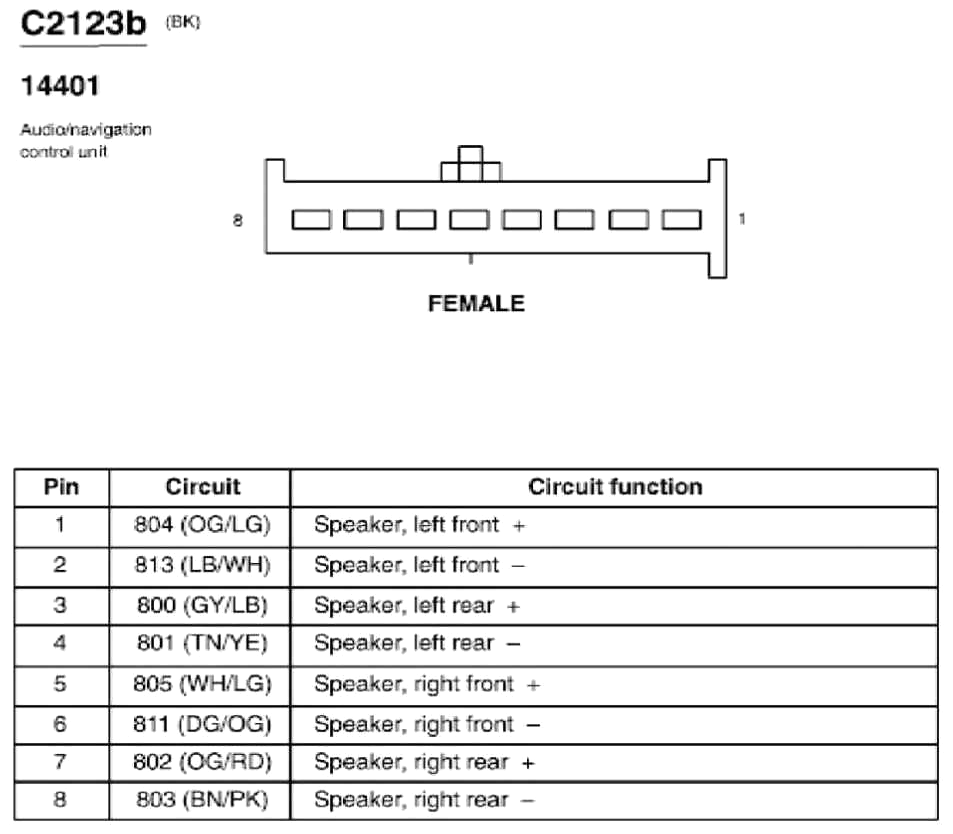

Fig 321: Audio/Navigation Control Unit Connector End View (C2123b)

G07846588

Courtesy of FORD MOTOR CO.

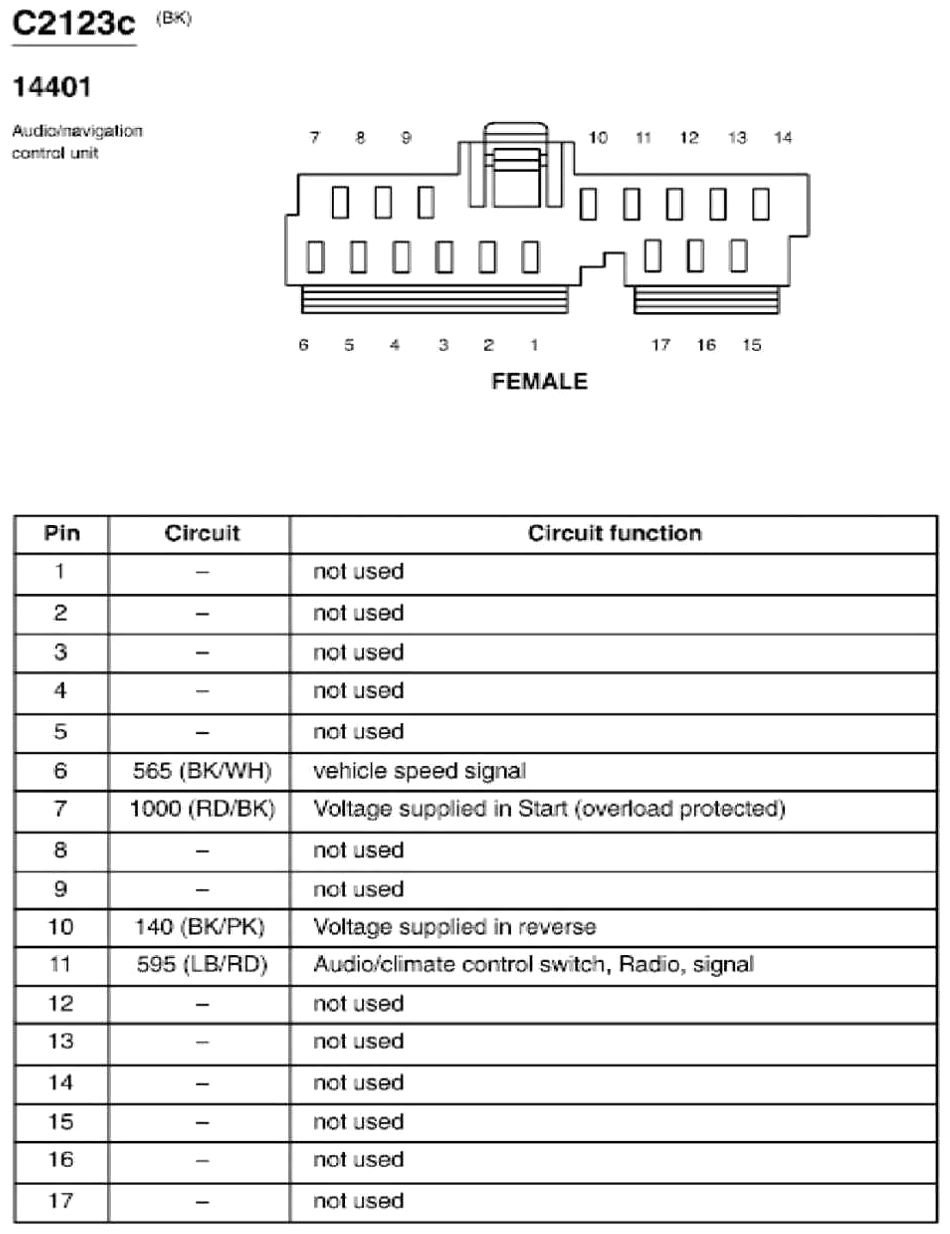

Fig 322: Audio/Navigation Control Unit Connector End View (C2123c)

G07846589

Courtesy of FORD MOTOR CO.

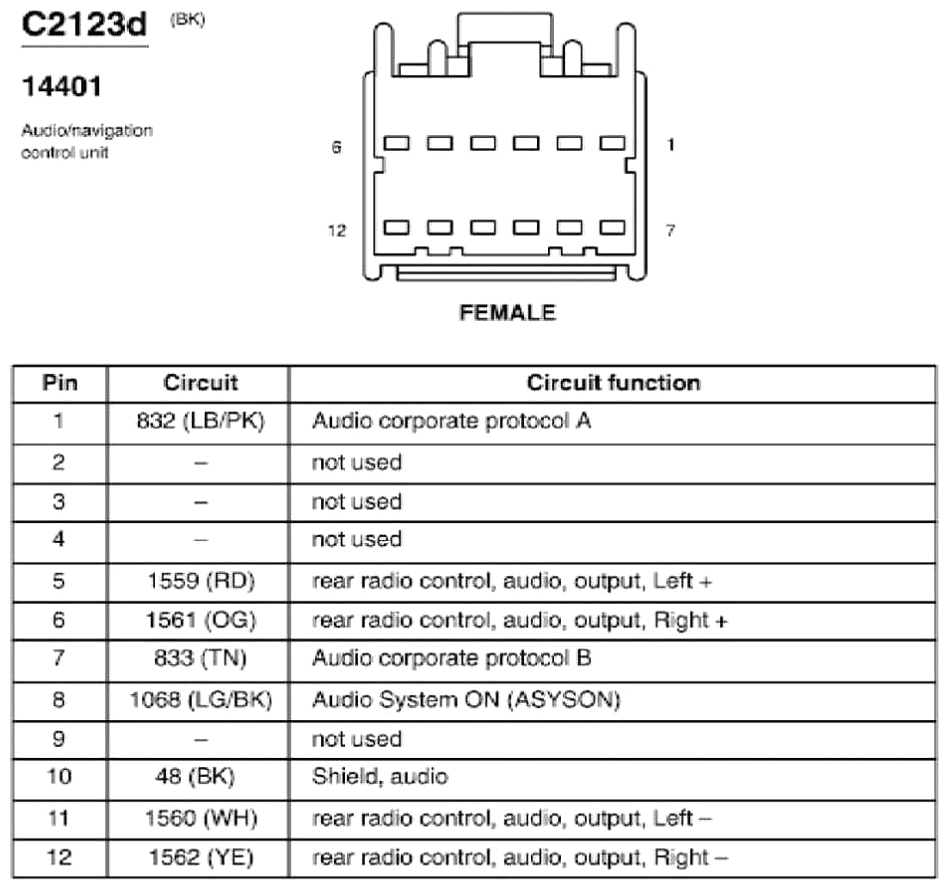

Fig 323: Audio/Navigation Control Unit Connector End View (C2123d)

G07846590

Courtesy of FORD MOTOR CO.

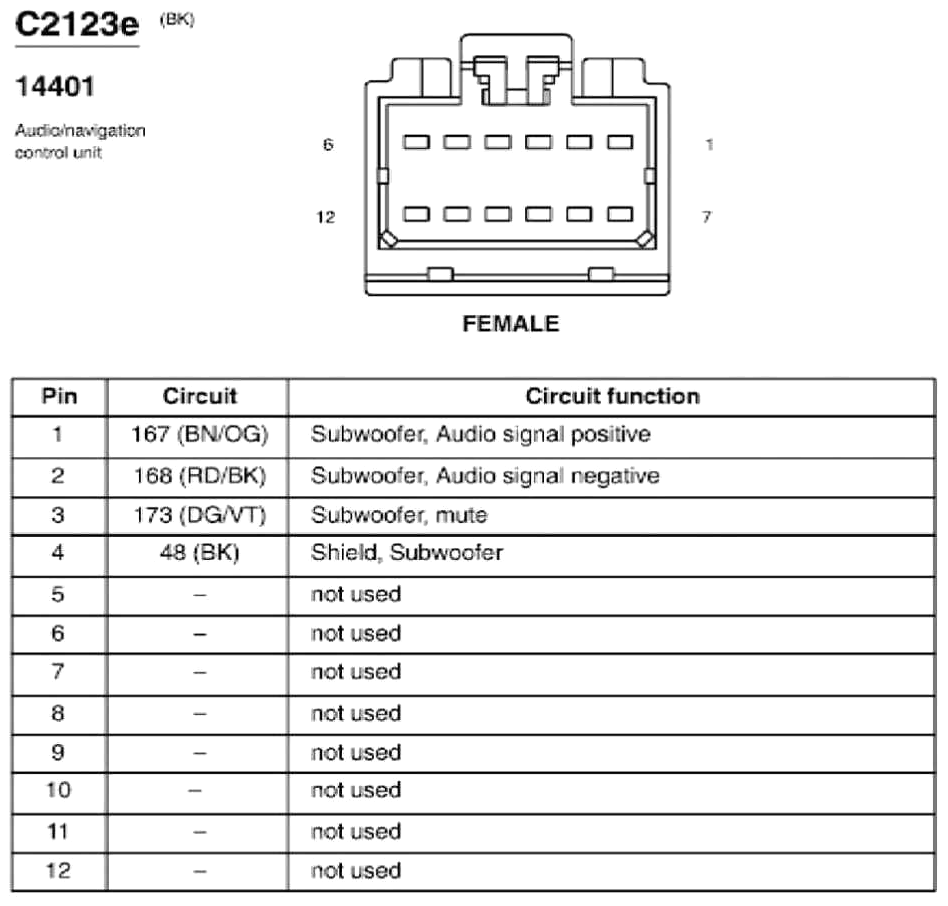

Fig 324: Audio/Navigation Control Unit Connector End View (C2123e)

G07846591

Courtesy of FORD MOTOR CO.

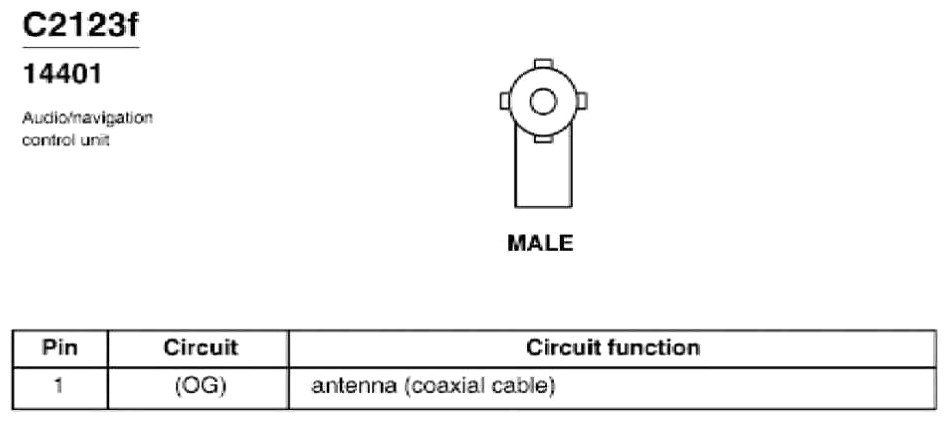

Fig 325: Audio/Navigation Control Unit Connector End View (C2123f)

G07846592

Courtesy of FORD MOTOR CO.

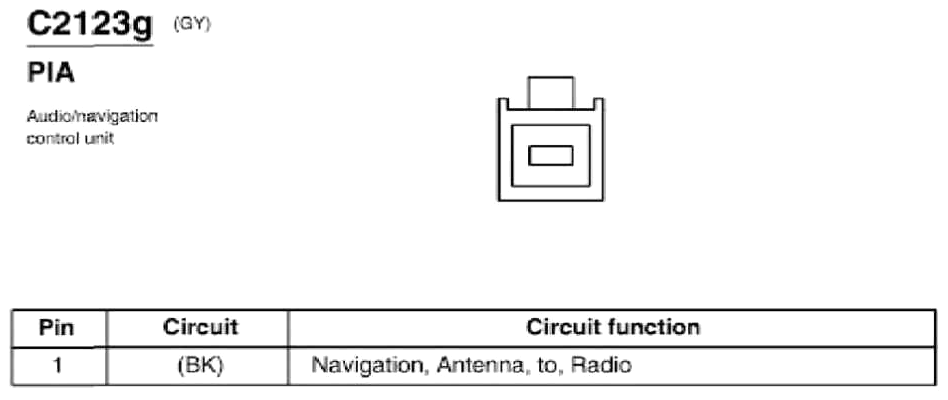

Fig 326: Audio/Navigation Control Unit Connector End View (C2123g)

G07846593

Courtesy of FORD MOTOR CO.

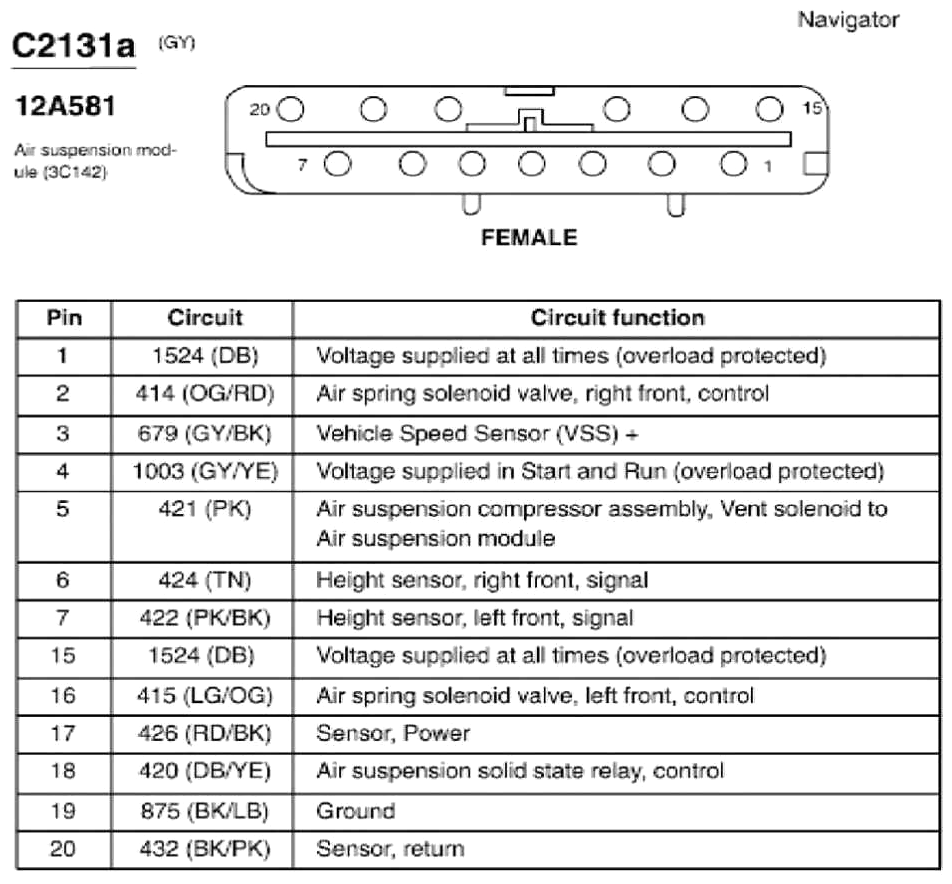

Fig 327: Air Suspension Module Connector End View (C2131a)

G07846594

Courtesy of FORD MOTOR CO.

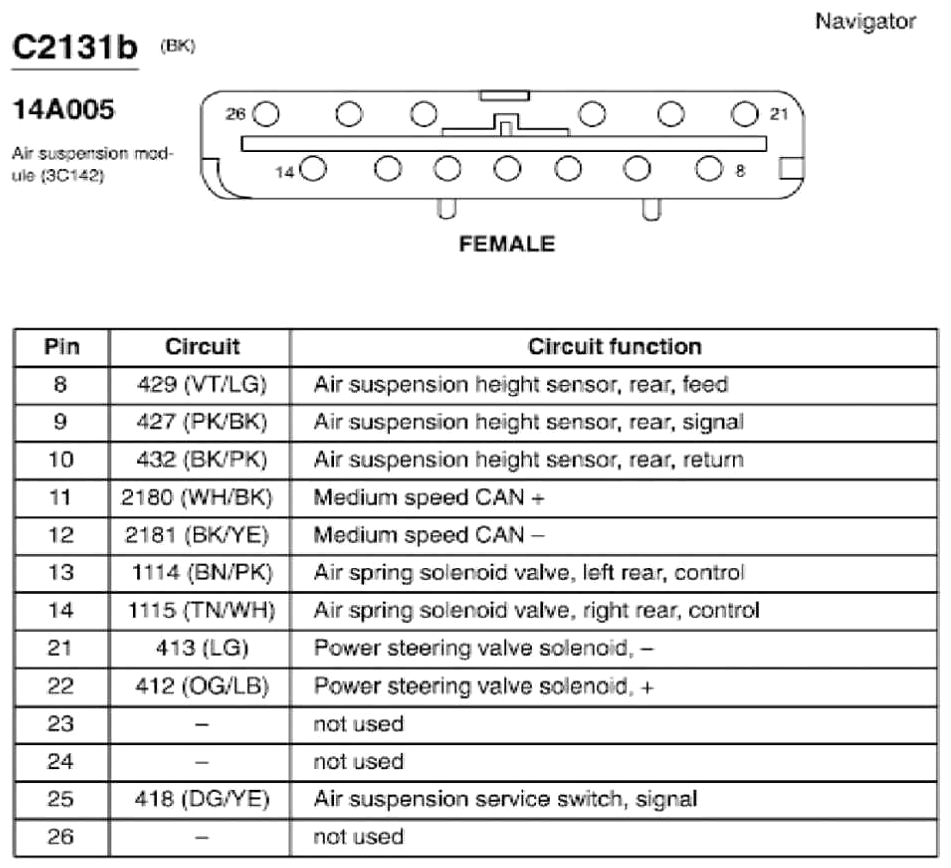

Fig 328: Air Suspension Module Connector End View (C2131b)

G07846595

Courtesy of FORD MOTOR CO.

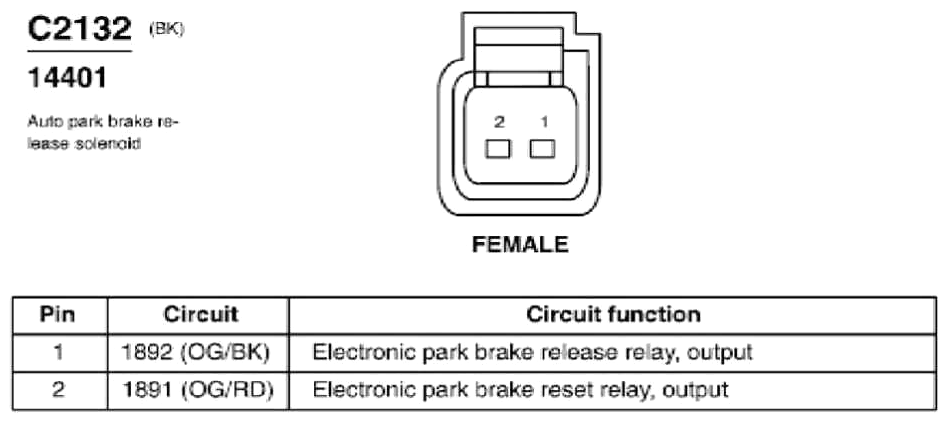

Fig 329: Auto Park Brake Release Solenoid Connector End View (C2132)

G07846596

Courtesy of FORD MOTOR CO.

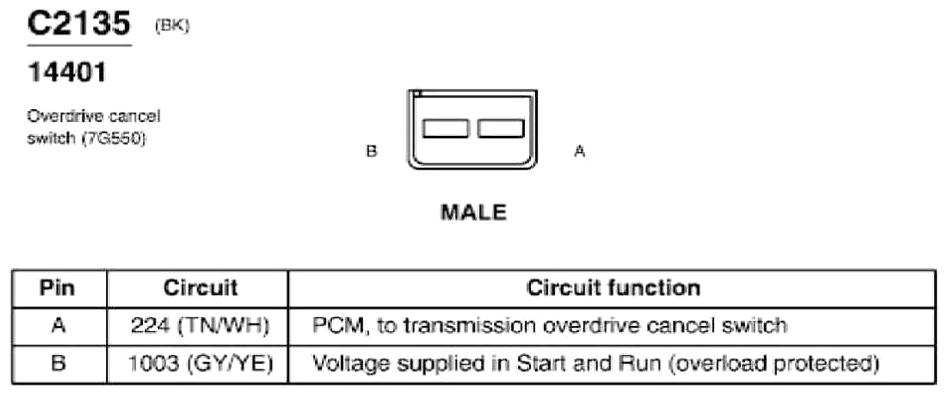

Fig 330: Overdrive Cancel Switch Connector End View (C2135)

G07846597

Courtesy of FORD MOTOR CO.

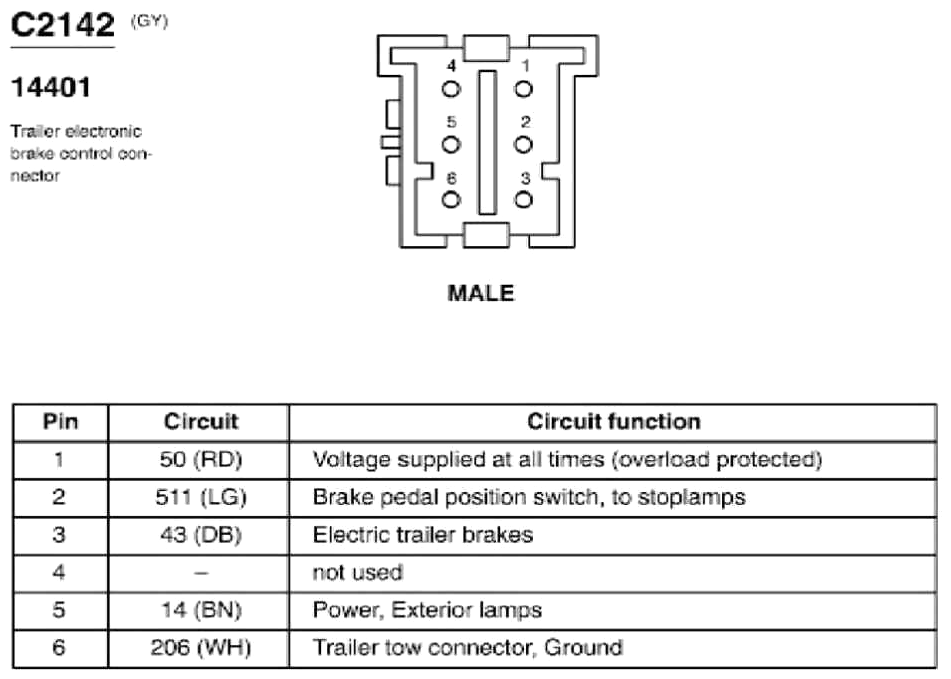

Fig 331: Trailer Electronic Brake Control Connector End View (C2142)

G07846598

Courtesy of FORD MOTOR CO.

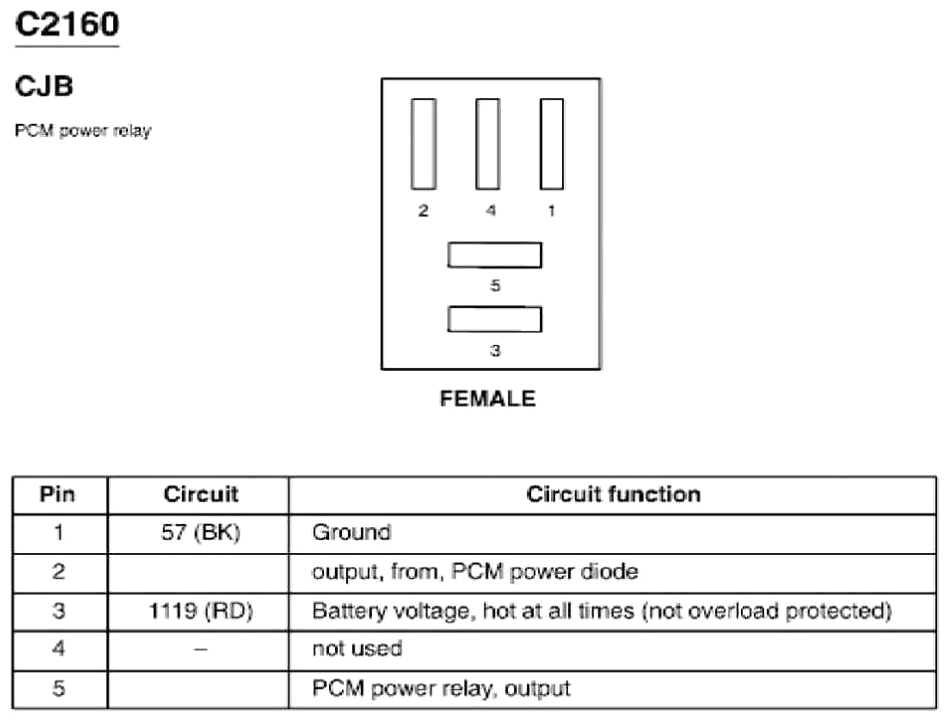

Fig 332: PCM Power Relay Connector End View (C2160)

G07846599

Courtesy of FORD MOTOR CO.

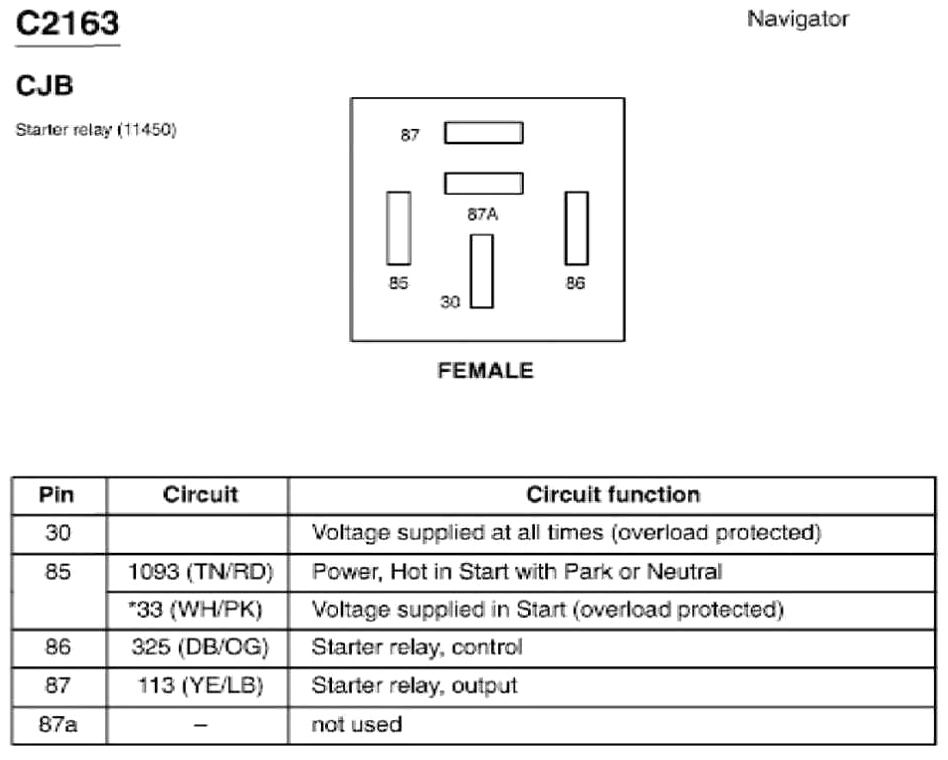

Fig 333: Starter Relay Connector End View (C2163)

G07846600

Courtesy of FORD MOTOR CO.

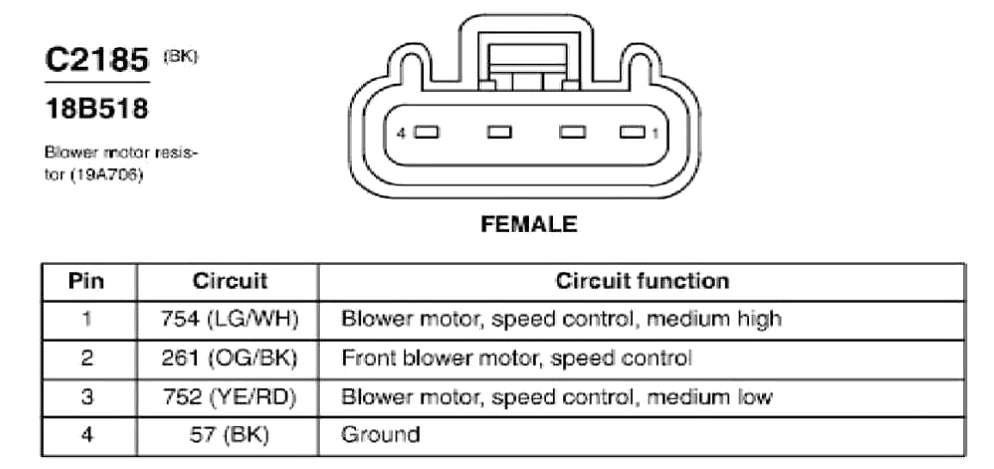

Fig 334: Blower Motor Resistor Connector End View (C2185)

G07846601

Courtesy of FORD MOTOR CO.

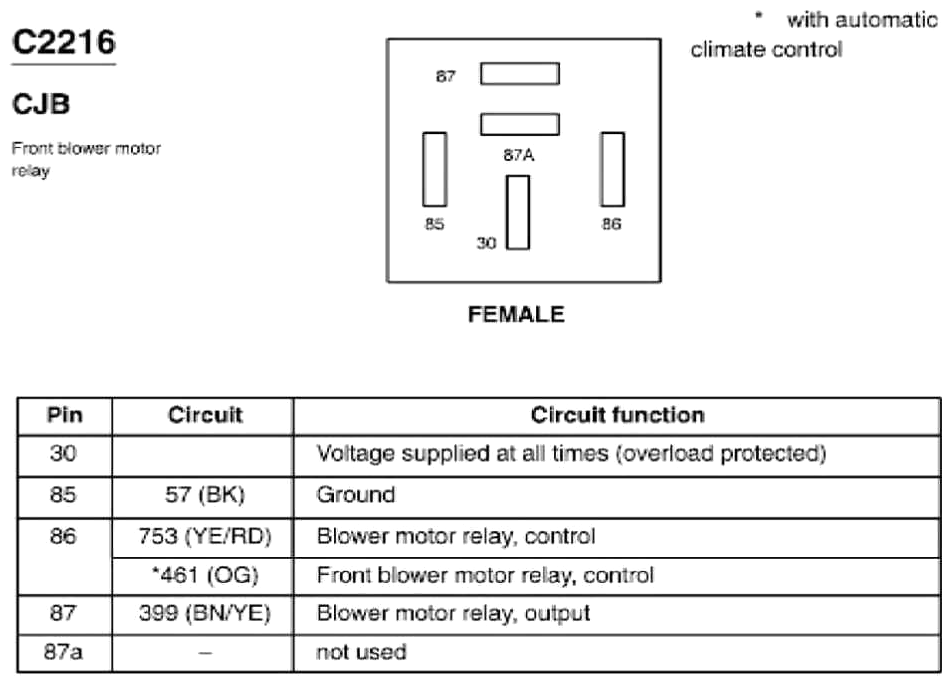

Fig 335: Front Blower Motor Relay Connector End View (C2216)

G07846602

Courtesy of FORD MOTOR CO.

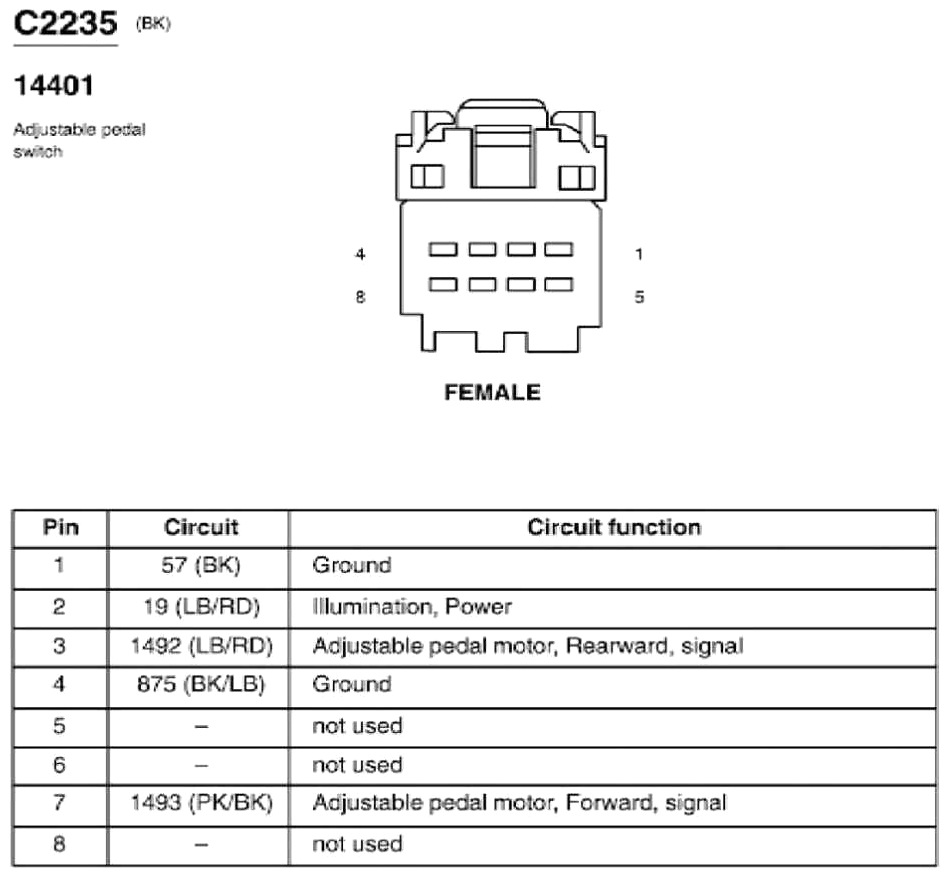

Fig 336: Adjustable Pedal Switch Connector End View (C2235)

G07846603

Courtesy of FORD MOTOR CO.

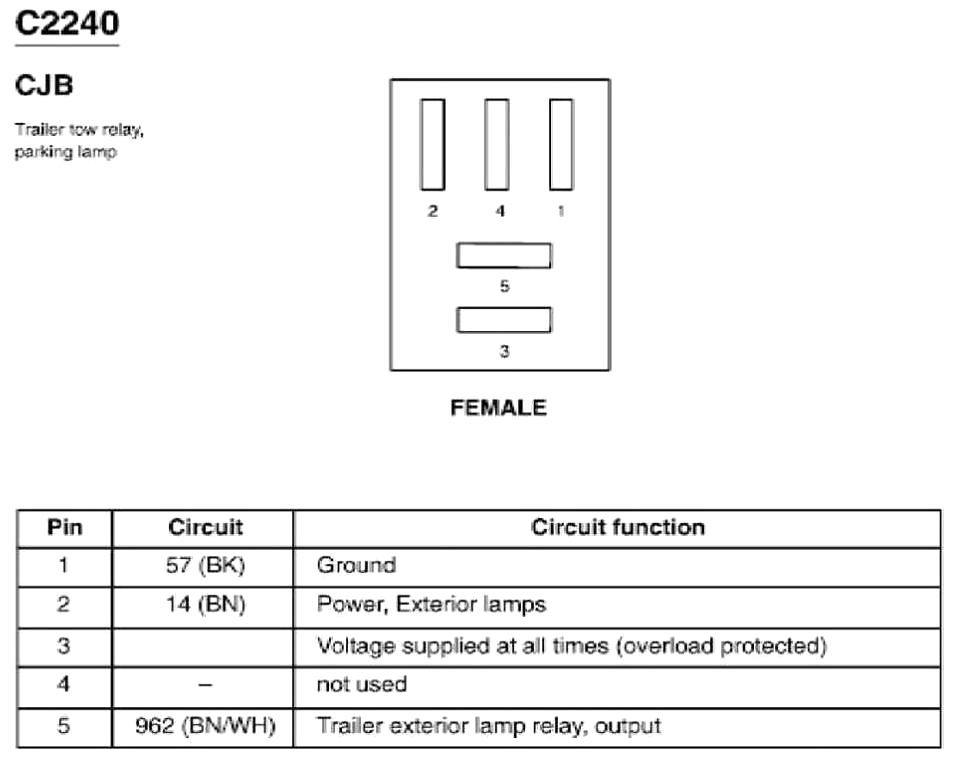

Fig 337: Trailer Tow Relay, Parking Lamp Connector End View (C2240)

G07846604

Courtesy of FORD MOTOR CO.

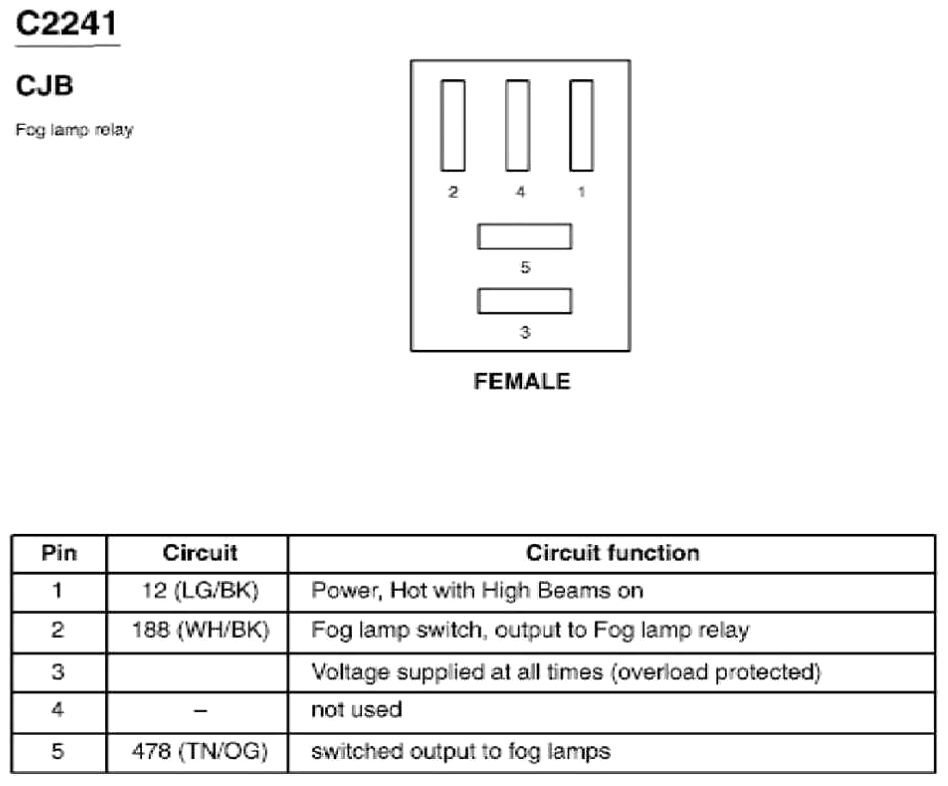

Fig 338: Fog Lamp Relay Connector End View (C2241)

G07846605

Courtesy of FORD MOTOR CO.

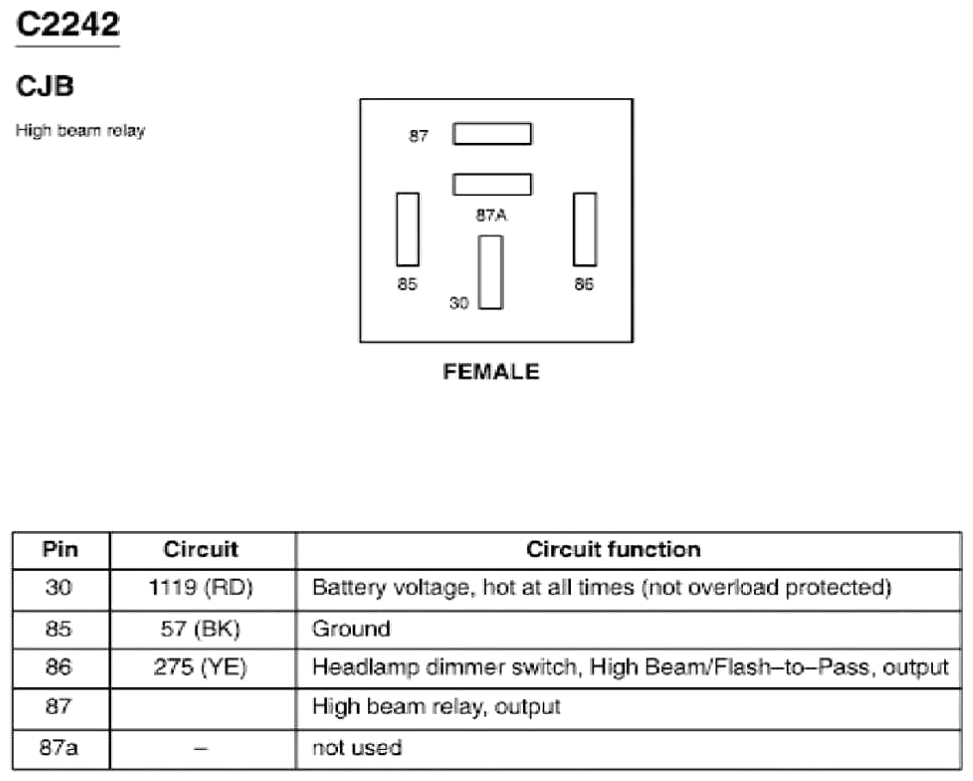

Fig 339: High Beam Relay Connector End View (C2242)

G07846606

Courtesy of FORD MOTOR CO.

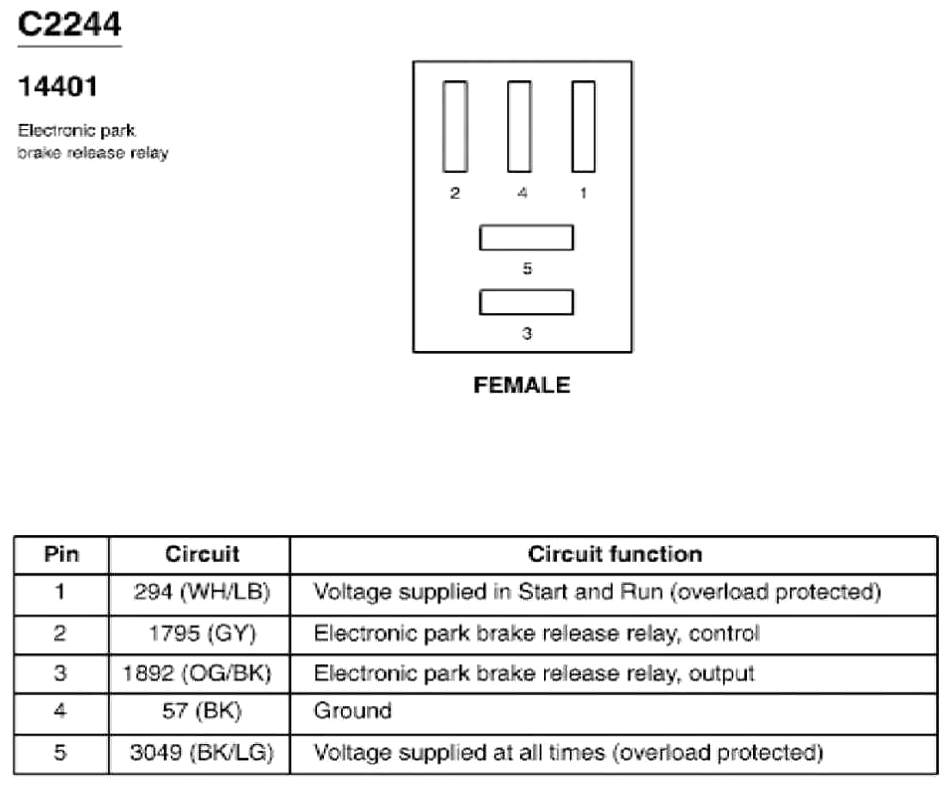

Fig 340: Electronic Park Brake Release Relay Connector End View (C2244)

G07846607

Courtesy of FORD MOTOR CO.

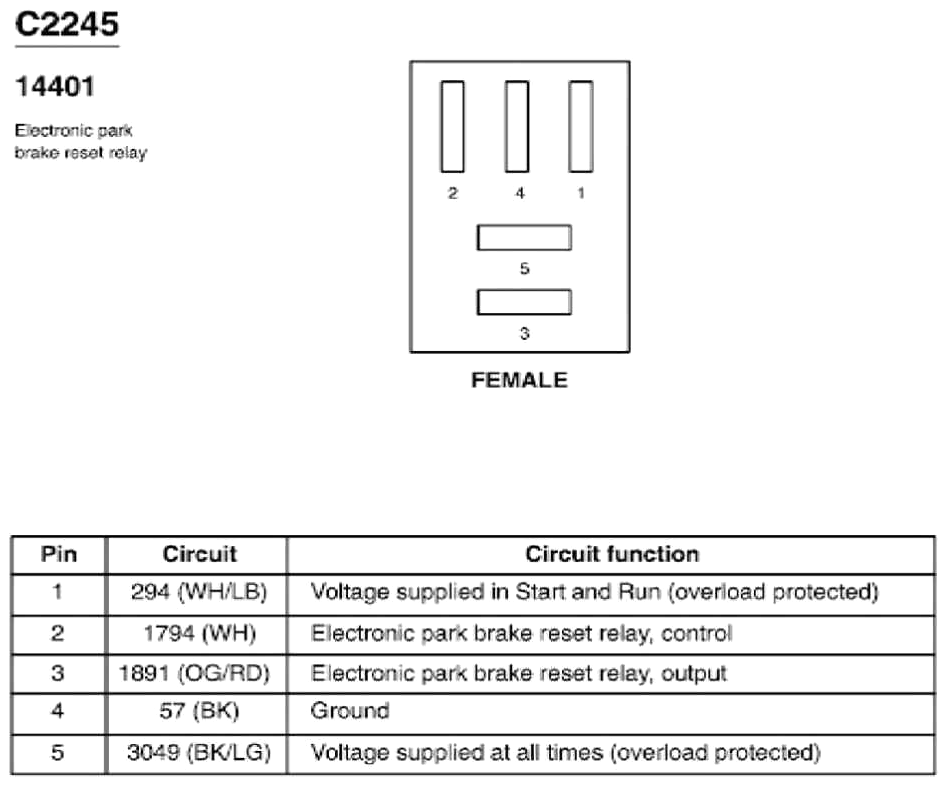

Fig 341: Electronic Park Brake Reset Relay Connector End View (C2245)

G07846608

Courtesy of FORD MOTOR CO.

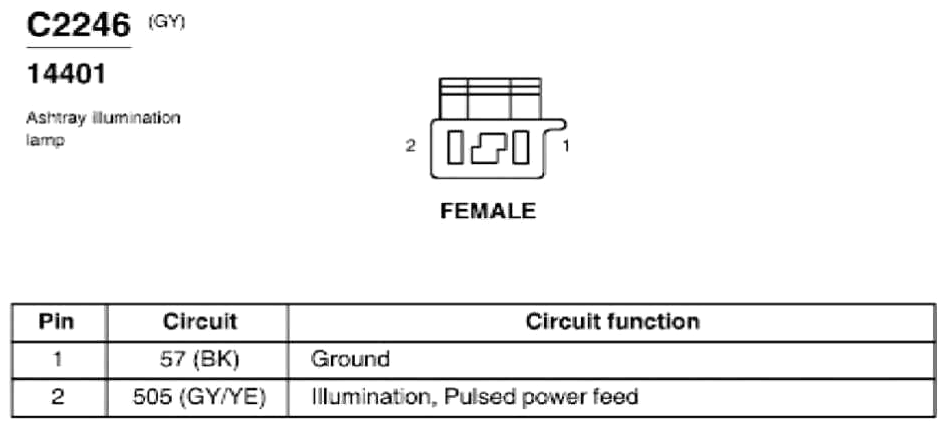

Fig 342: Ashtray Illumination Lamp Connector End View (C2246)

G07846609

Courtesy of FORD MOTOR CO.

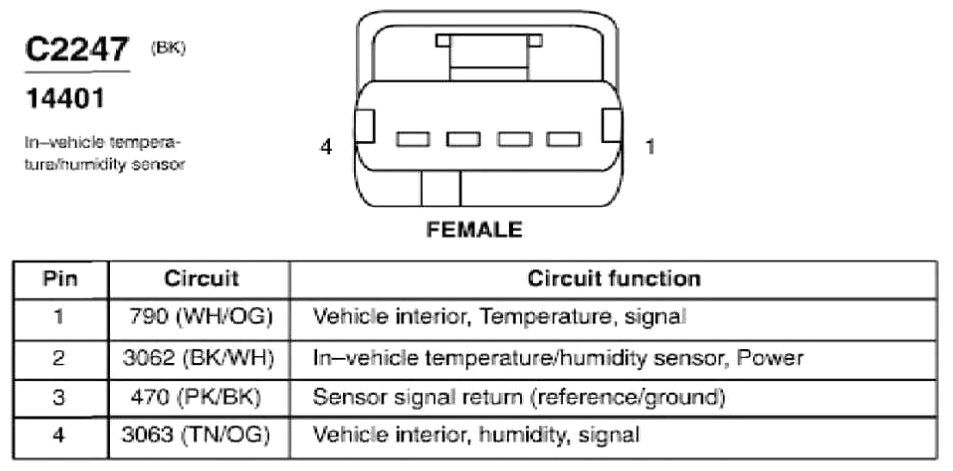

Fig 343: In-Vehicle Temperature/Humidity Sensor Connector End View (C2247)

G07846610

Courtesy of FORD MOTOR CO.

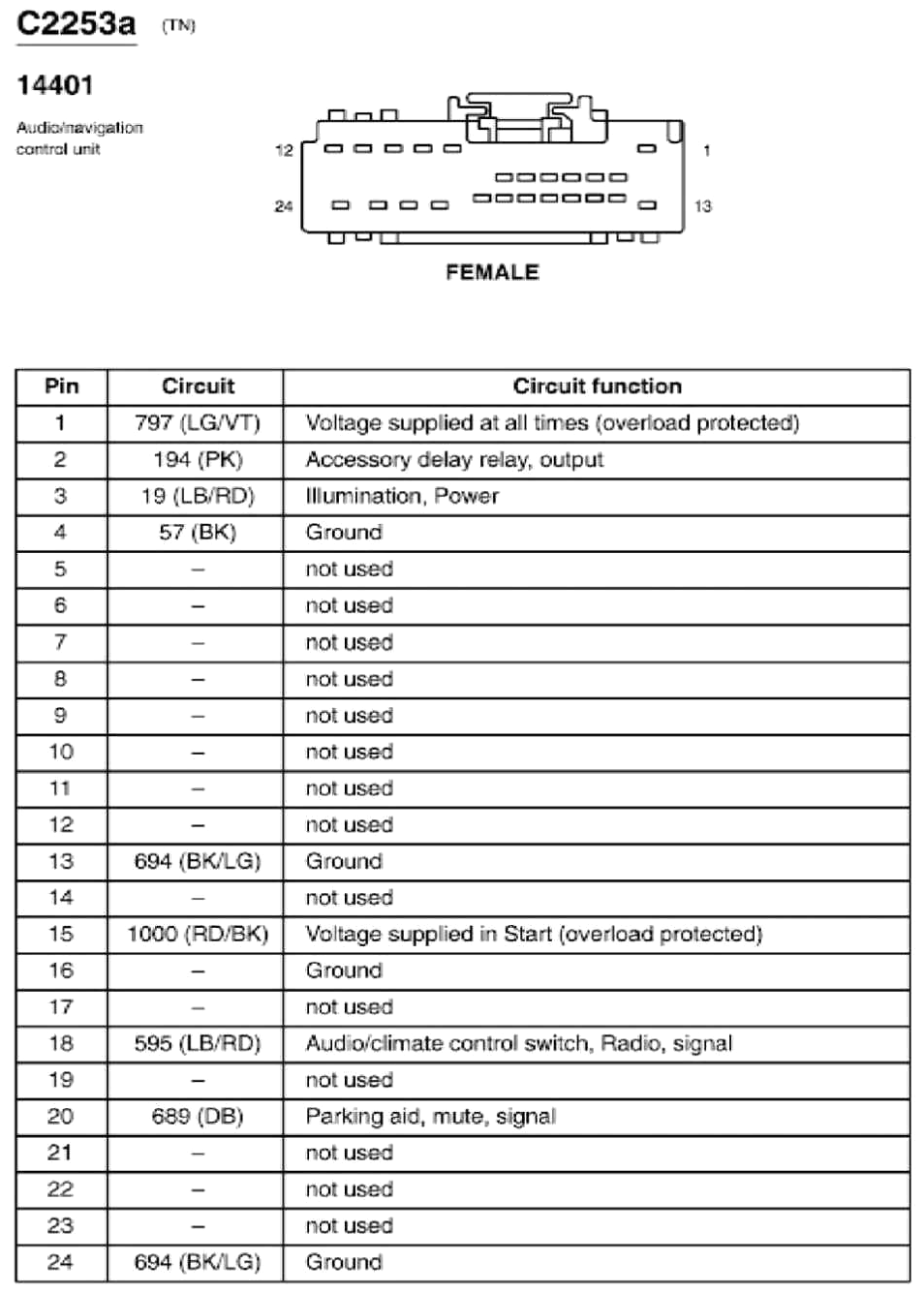

Fig 344: Audio/Navigation Control Unit Connector End View (C2253a)

G07846611

Courtesy of FORD MOTOR CO.

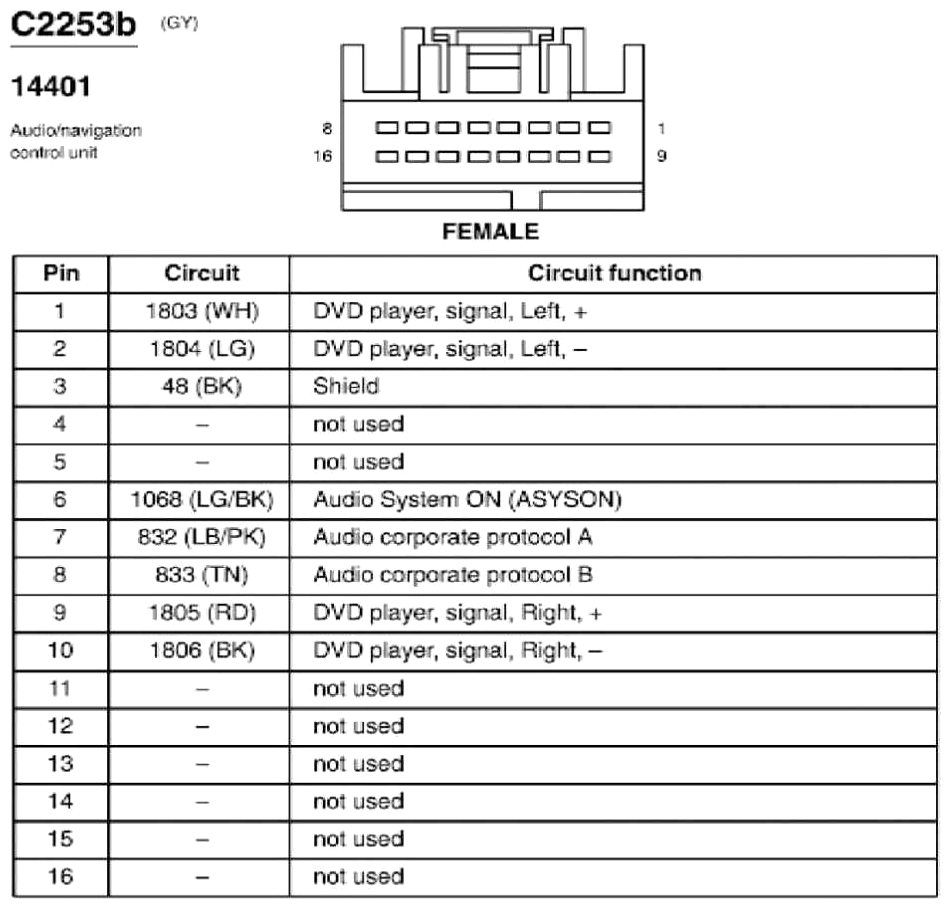

Fig 345: Audio/Navigation Control Unit Connector End View (C2253b)

G07846612

Courtesy of FORD MOTOR CO.

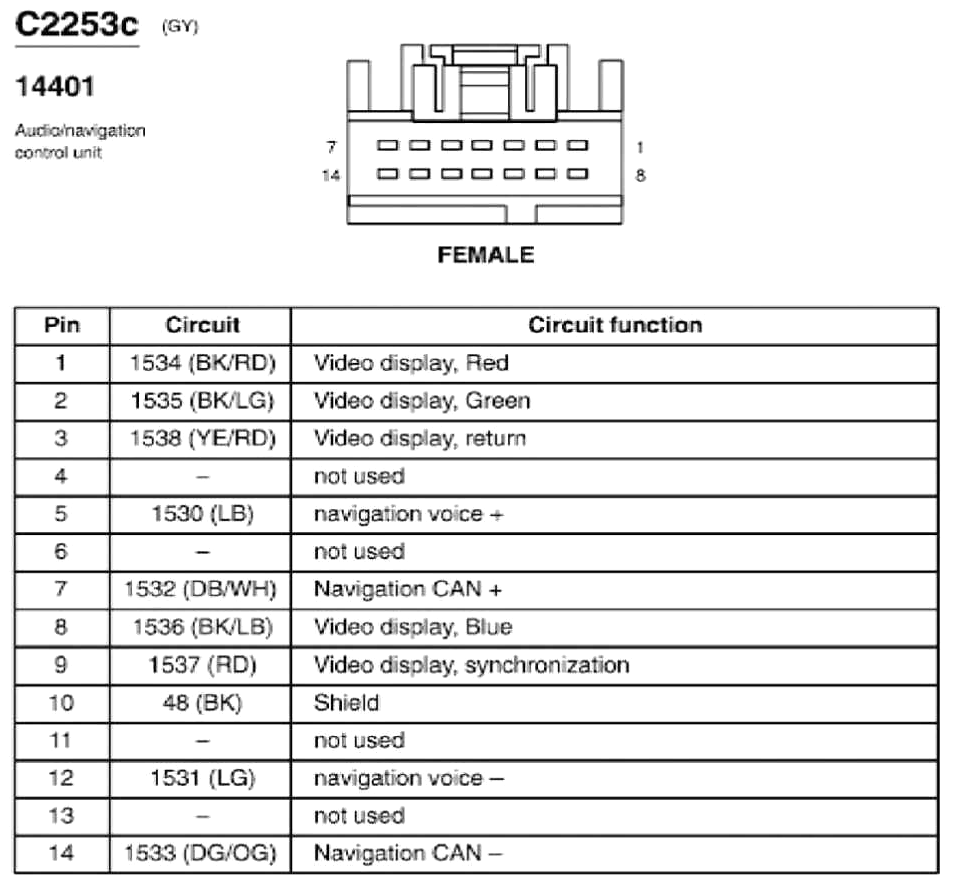

Fig 346: Audio/Navigation Control Unit Connector End View (C2253c)

G07846613

Courtesy of FORD MOTOR CO.

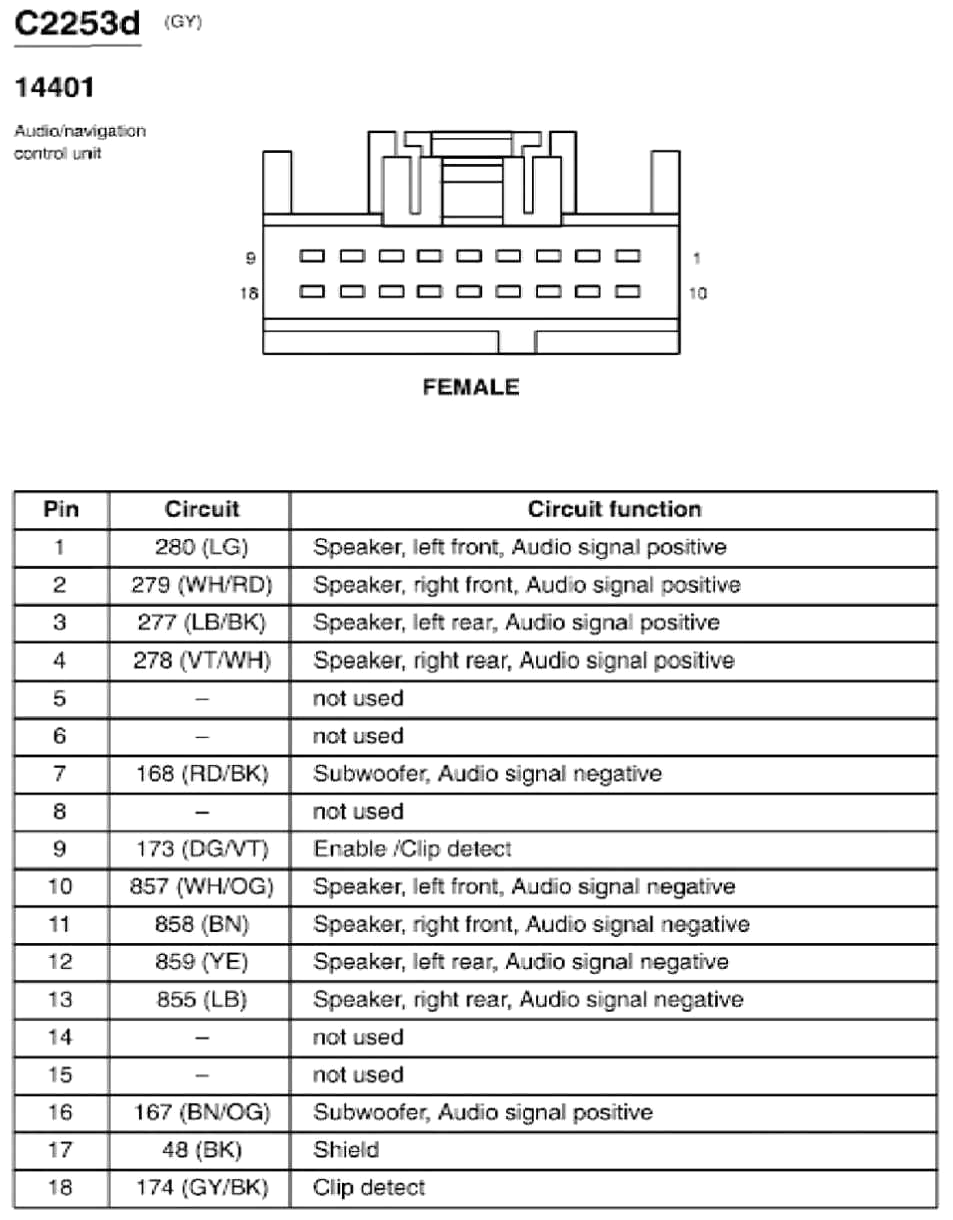

Fig 347: Audio/Navigation Control Unit Connector End View (C2253d)

G07846614

Courtesy of FORD MOTOR CO.

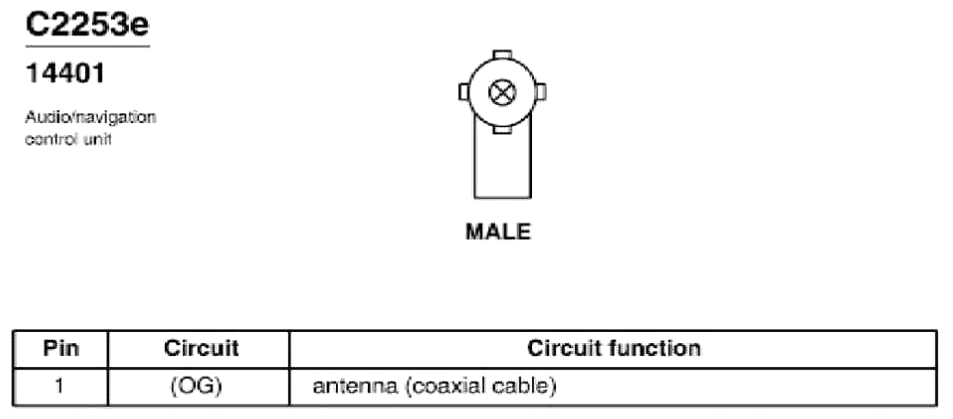

Fig 348: Audio/Navigation Control Unit Connector End View (C2253e)

G07846615

Courtesy of FORD MOTOR CO.

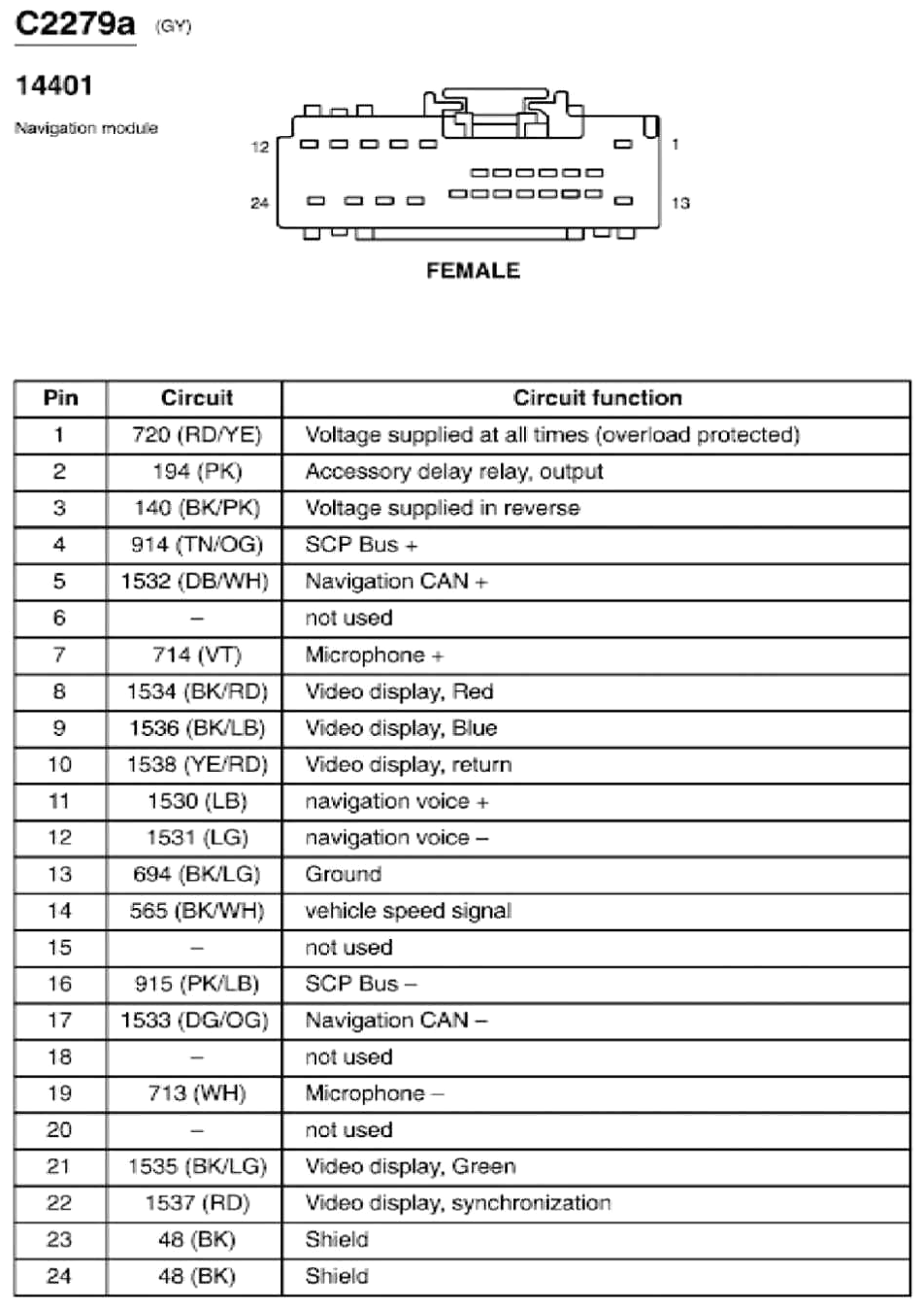

Fig 349: Navigation Module Connector End View (C2279a)

G07846616

Courtesy of FORD MOTOR CO.

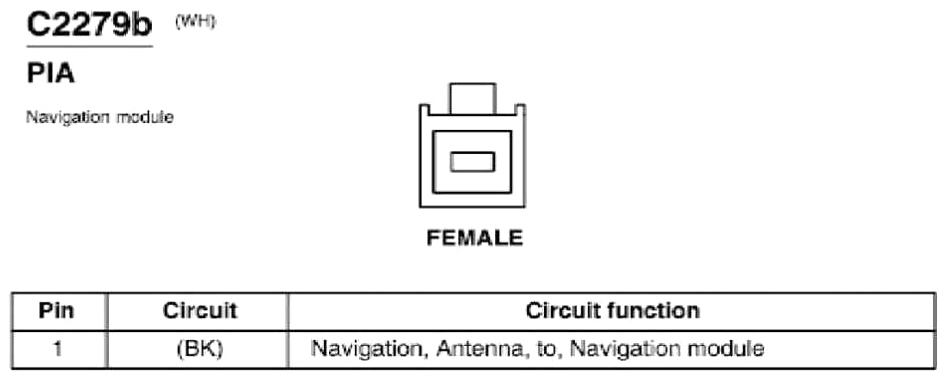

Fig 350: Navigation Module Connector End View (C2279b)

G07846617

Courtesy of FORD MOTOR CO.

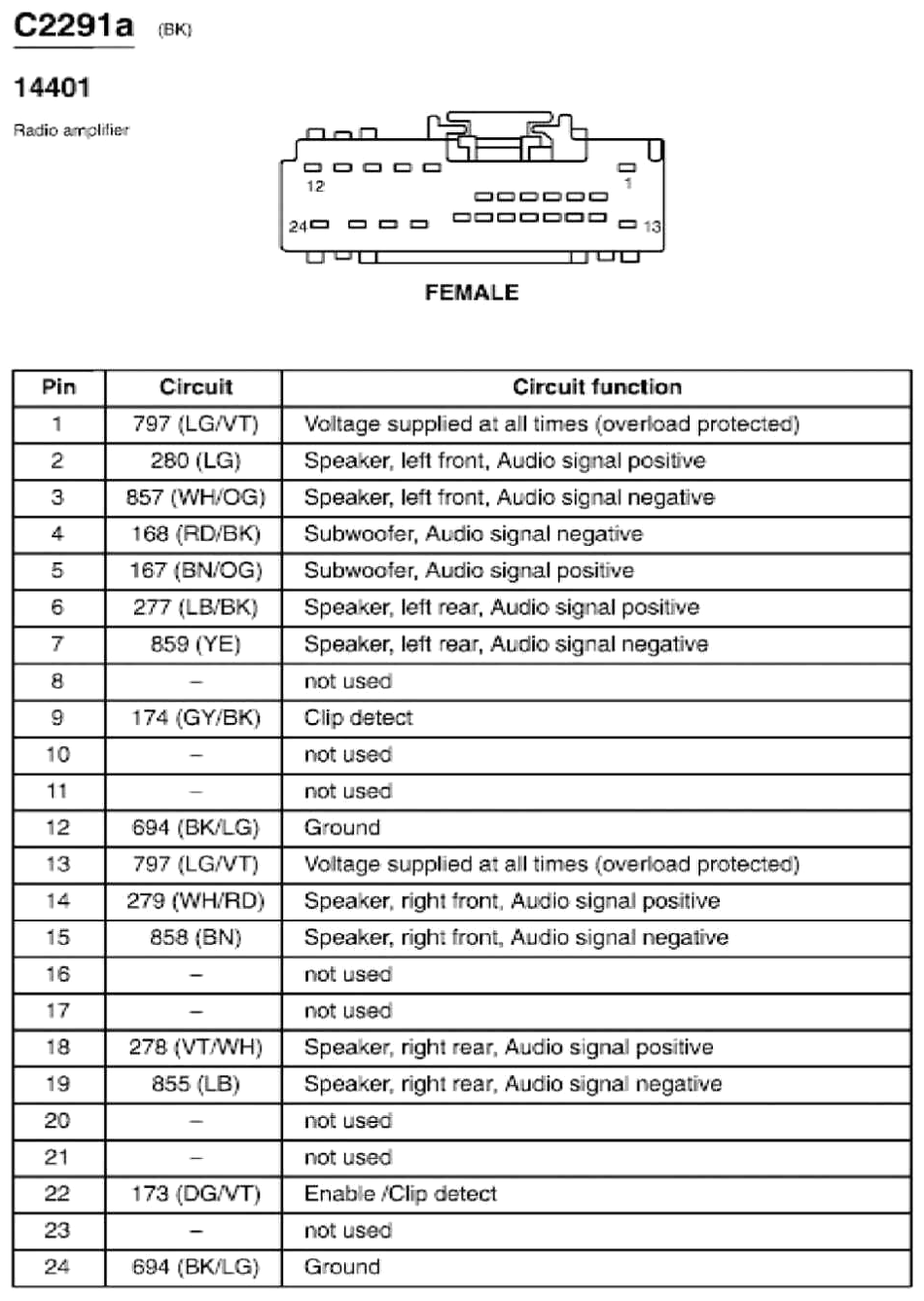

Fig 351: Radio Amplifier Connector End View (C2291a)

G07846618

Courtesy of FORD MOTOR CO.

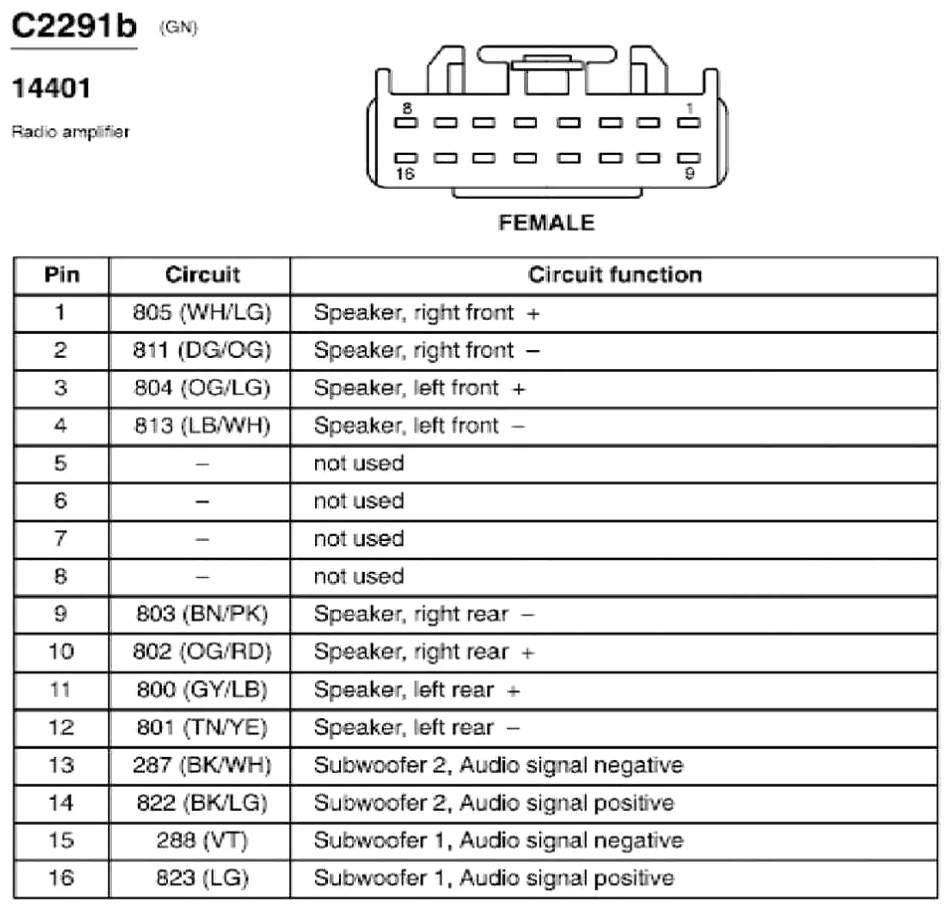

Fig 352: Radio Amplifier Connector End View (C2291b)

G07846619

Courtesy of FORD MOTOR CO.

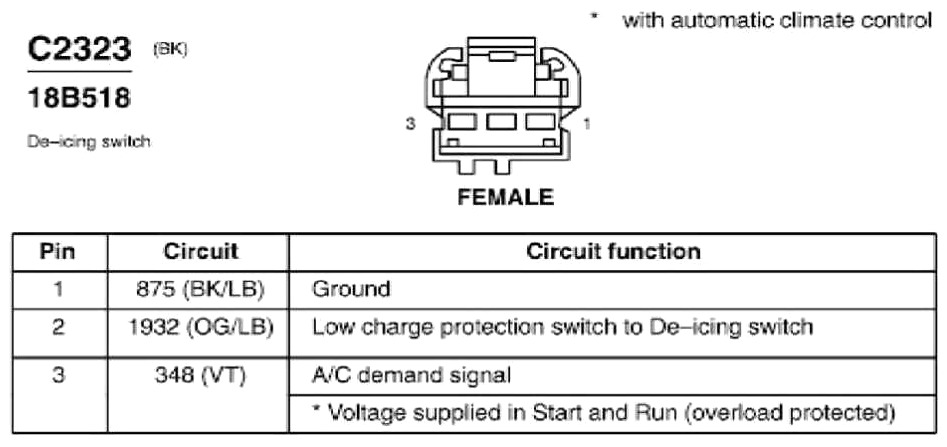

Fig 353: De-Icing Switch Connector End View (C2323)

G07846620

Courtesy of FORD MOTOR CO.

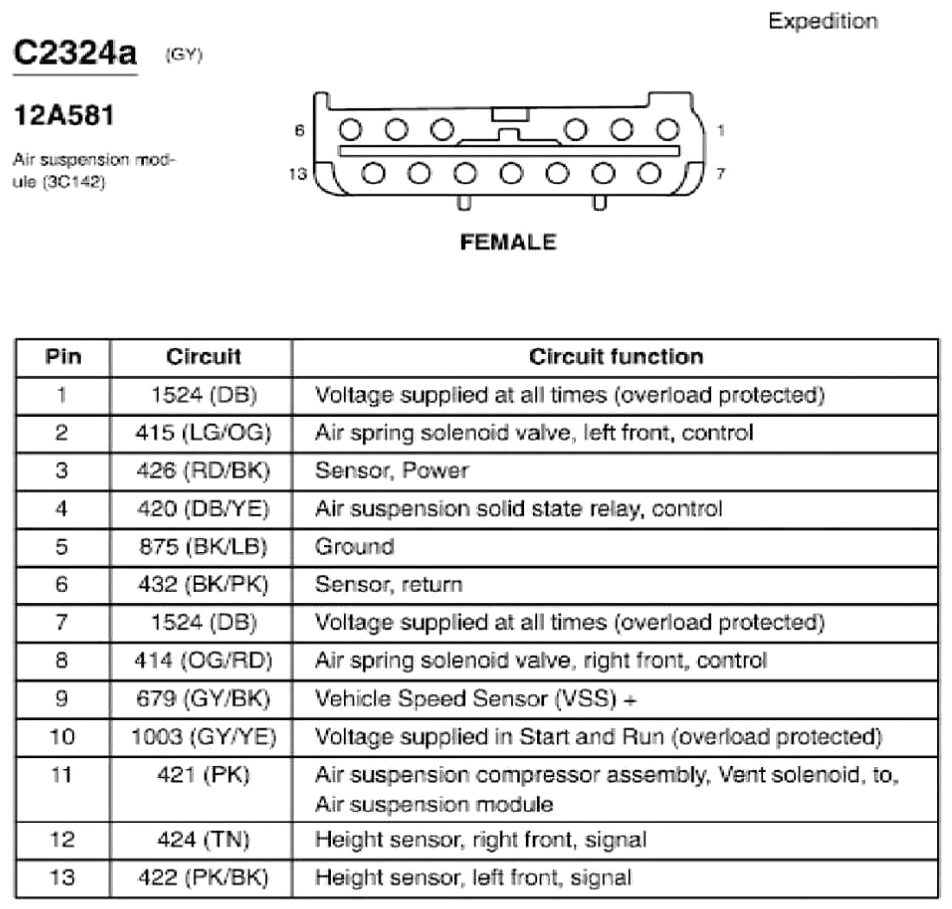

Fig 354: Air Suspension Module Connector End View (C2324a)

G07846621

Courtesy of FORD MOTOR CO.

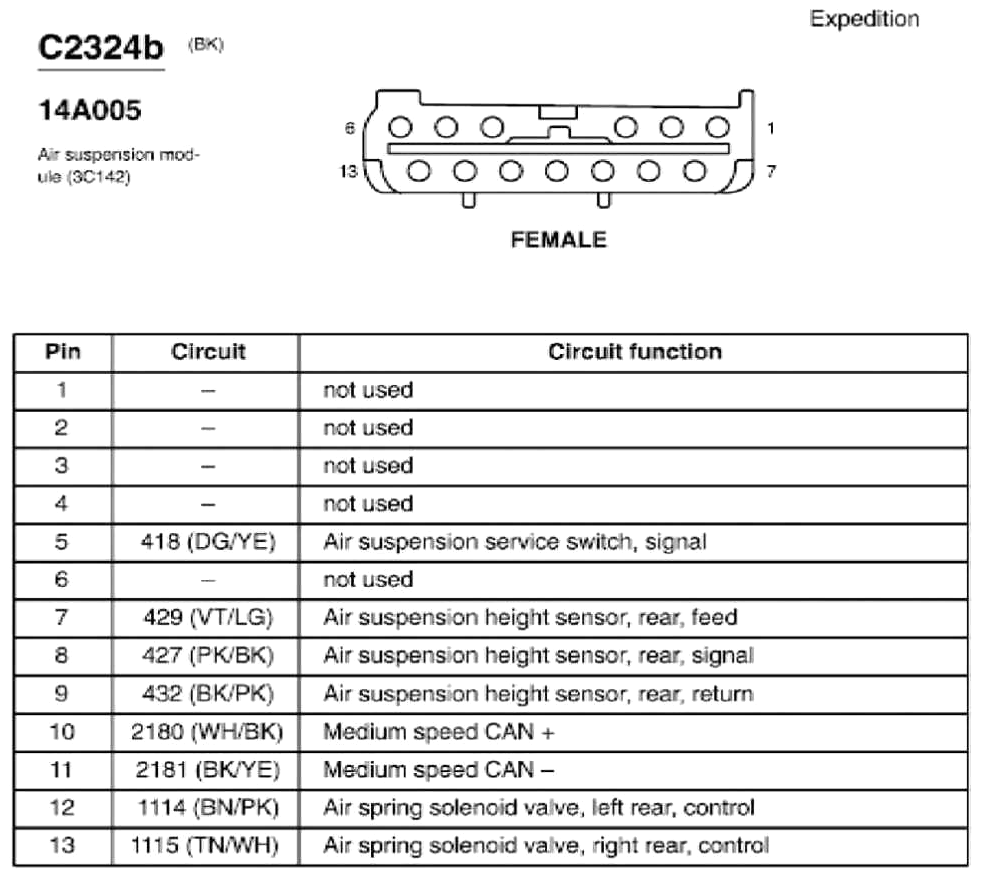

Fig 355: Air Suspension Module Connector End View (C2324b)

G07846622

Courtesy of FORD MOTOR CO.

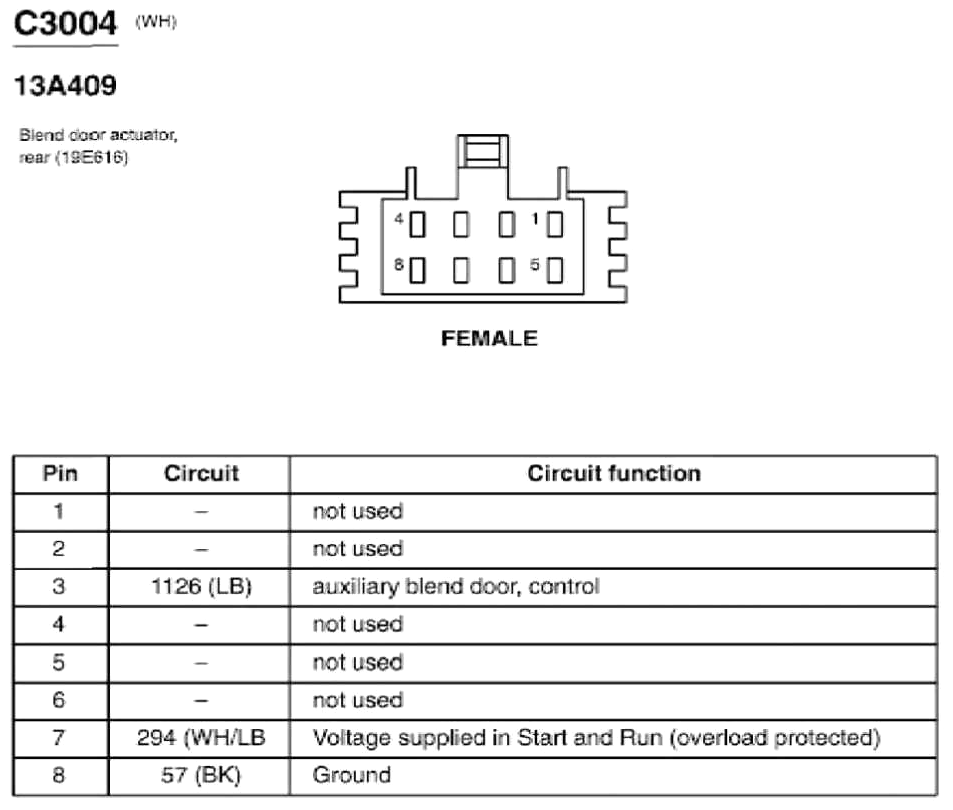

Fig 356: Blend Door Actuator, Rear Connector End View (C3004)

G07846623

Courtesy of FORD MOTOR CO.

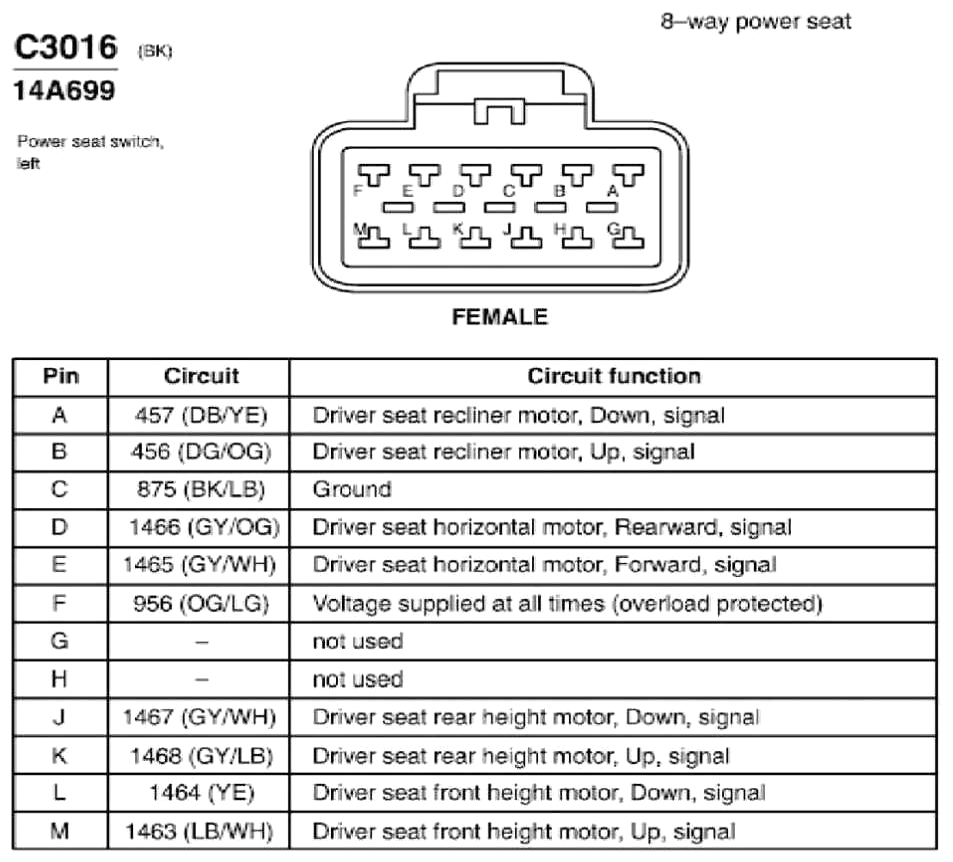

Fig 357: Power Seat Switch, Left Connector End View (C3016)

G07846624

Courtesy of FORD MOTOR CO.

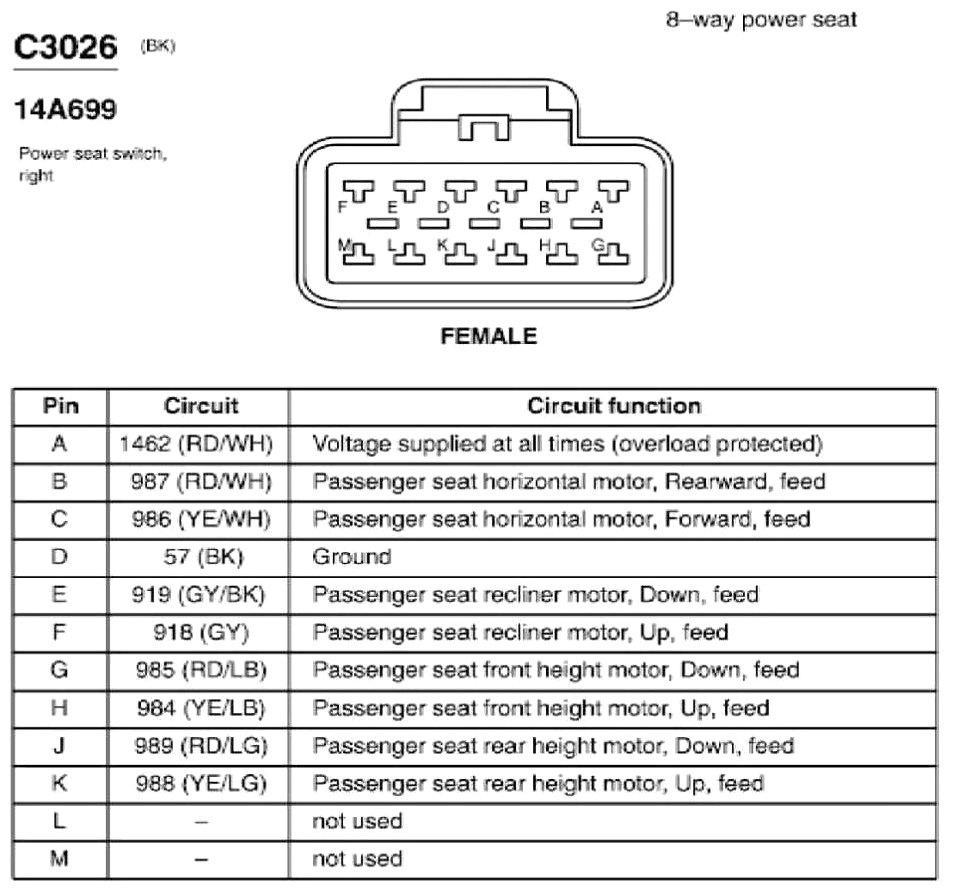

Fig 358: Power Seat Switch, Right Connector End View (C3026)

G07846625

Courtesy of FORD MOTOR CO.

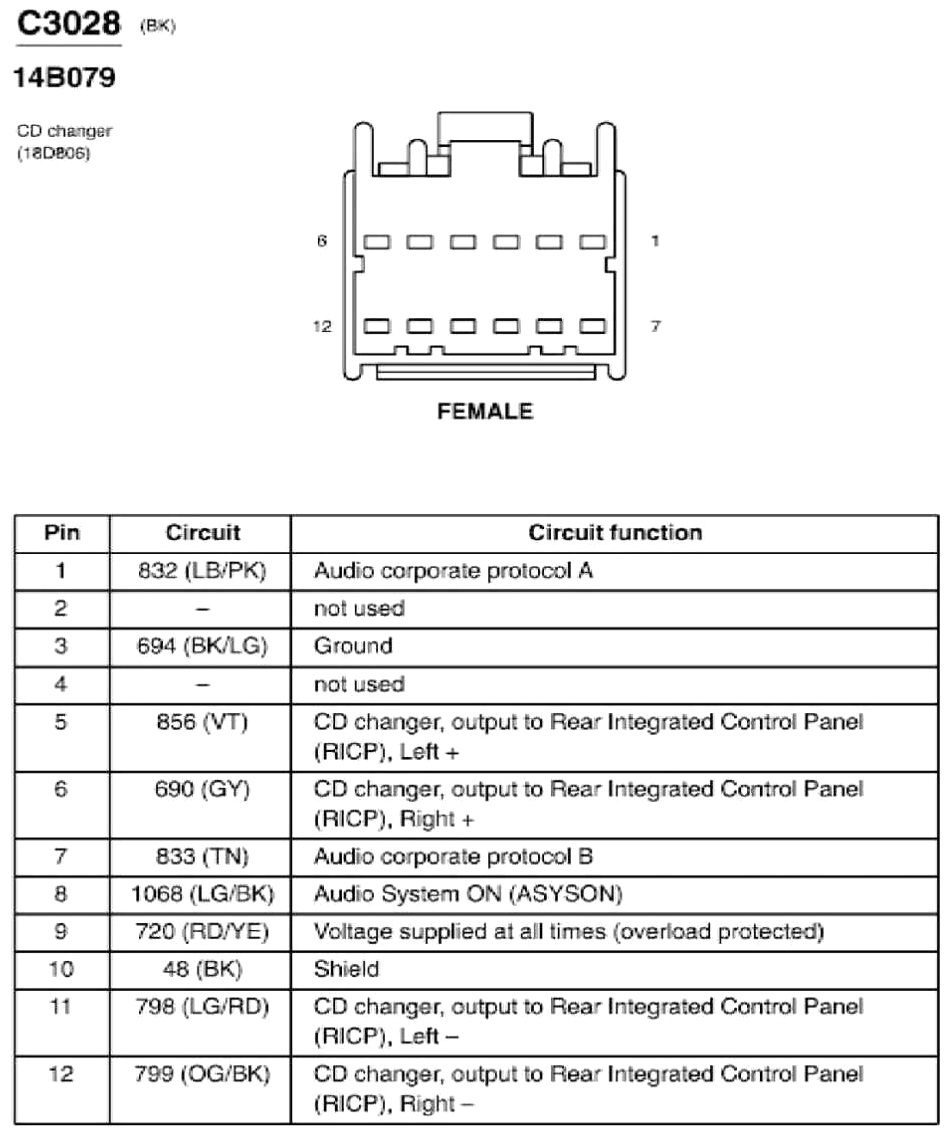

Fig 359: CD Charger Connector End View (C3028)

G07846626

Courtesy of FORD MOTOR CO.

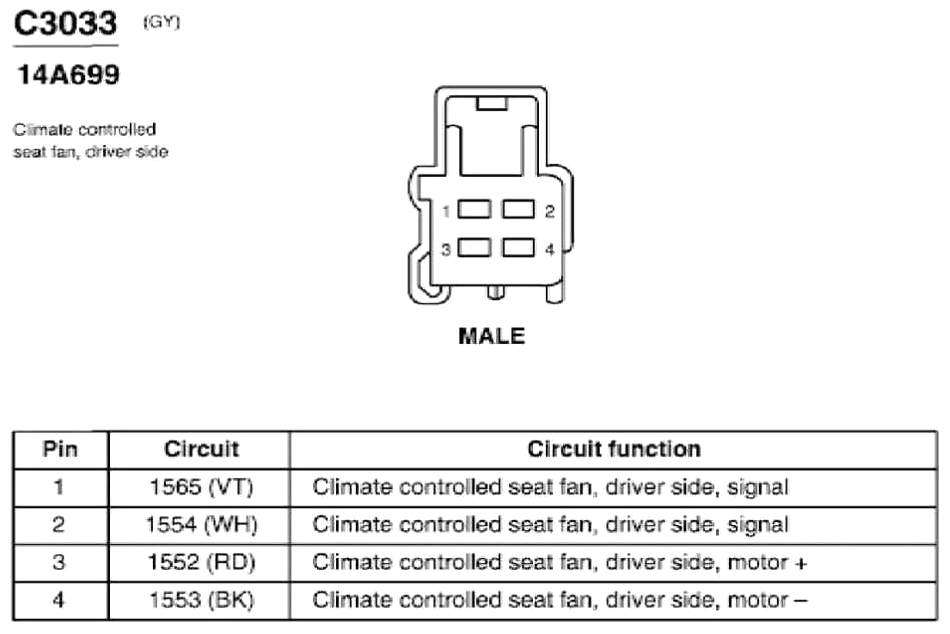

Fig 360: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)

G07846627

Courtesy of FORD MOTOR CO.

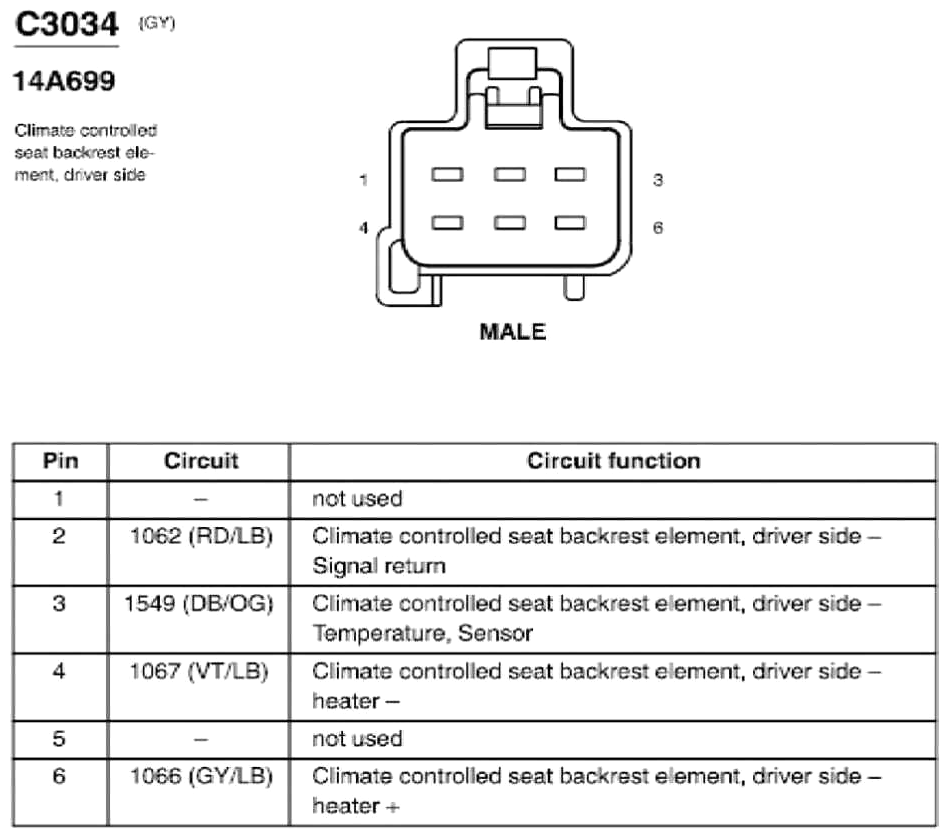

Fig 361: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)

G07846628

Courtesy of FORD MOTOR CO.

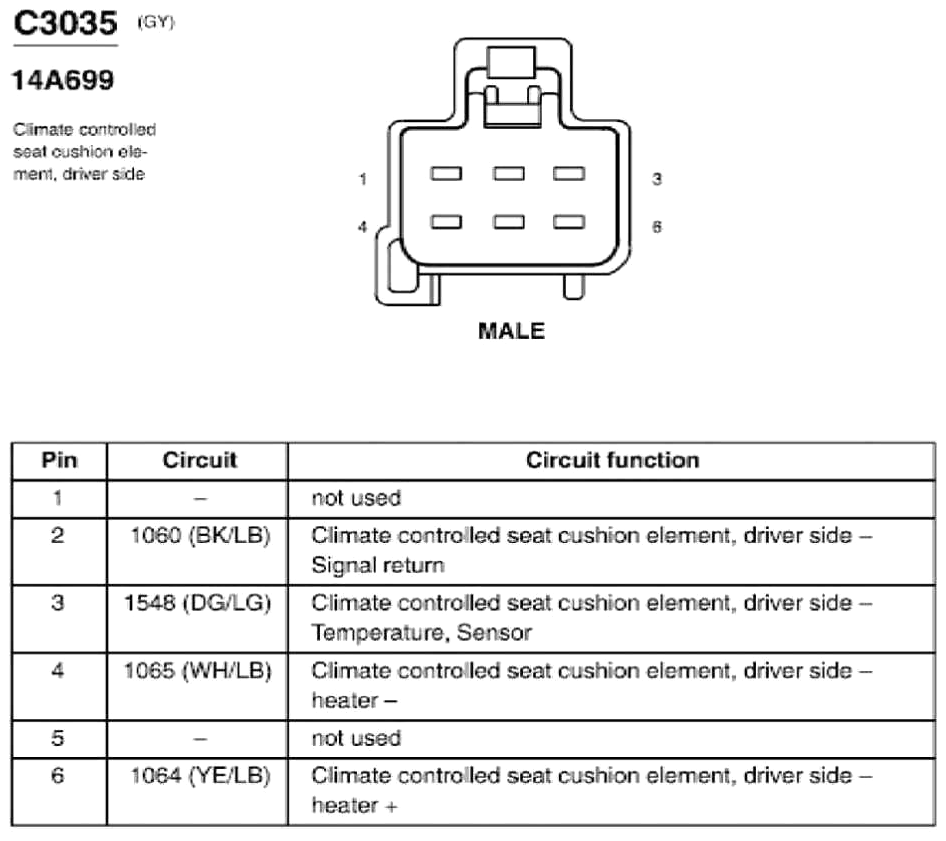

Fig 362: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)

G07846629

Courtesy of FORD MOTOR CO.

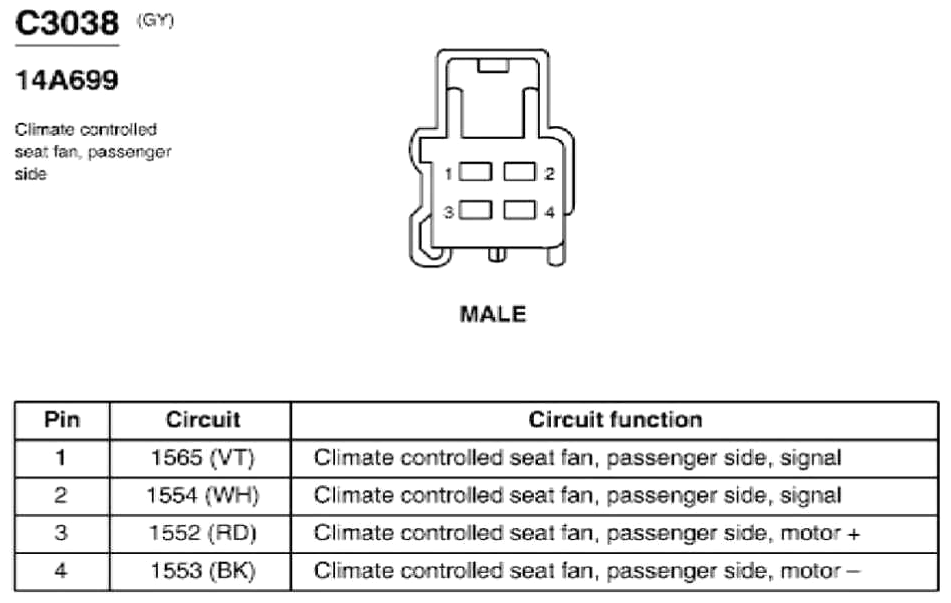

Fig 363: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)

G07846630

Courtesy of FORD MOTOR CO.

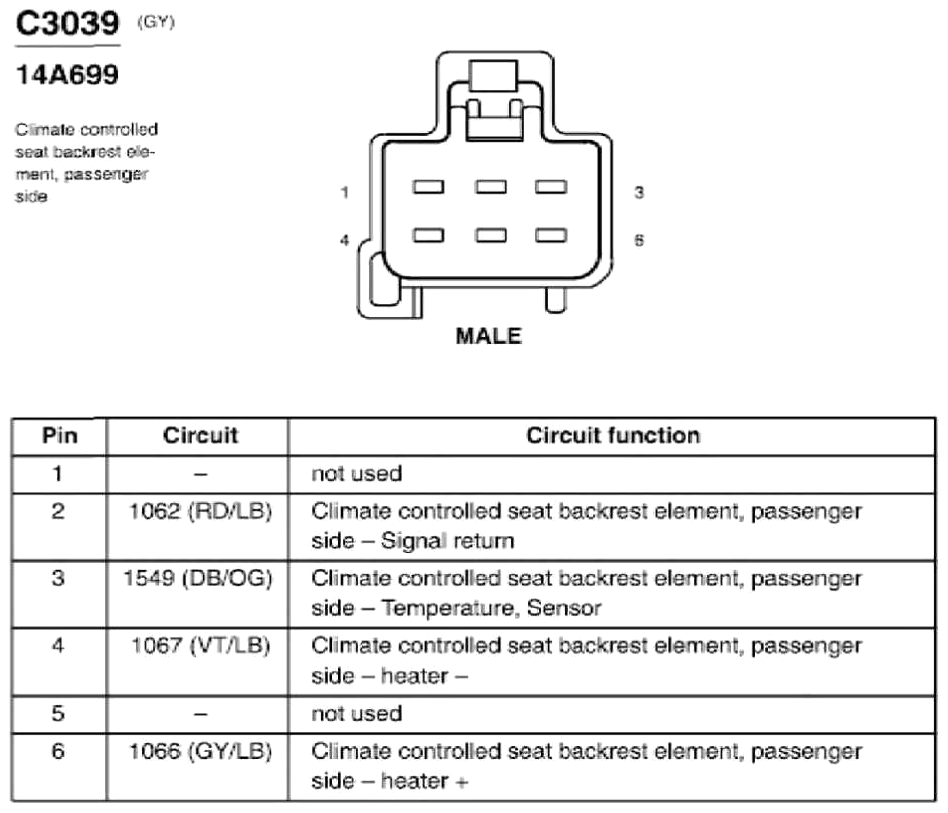

Fig 364: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)

G07846631

Courtesy of FORD MOTOR CO.

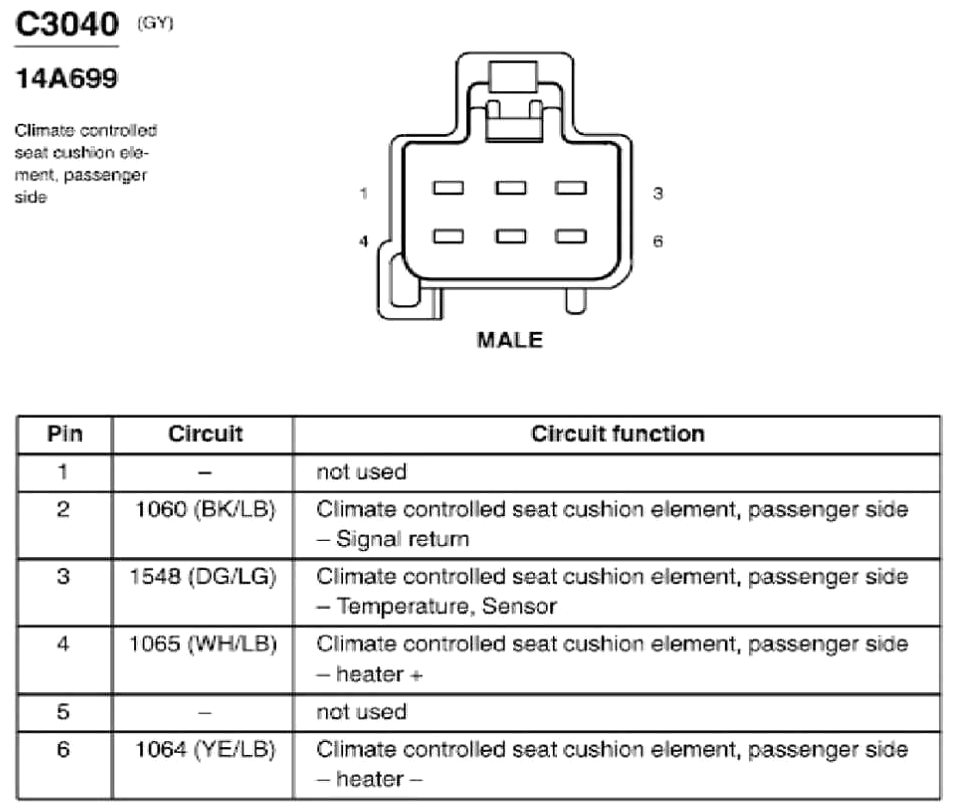

Fig 365: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)

G07846632

Courtesy of FORD MOTOR CO.

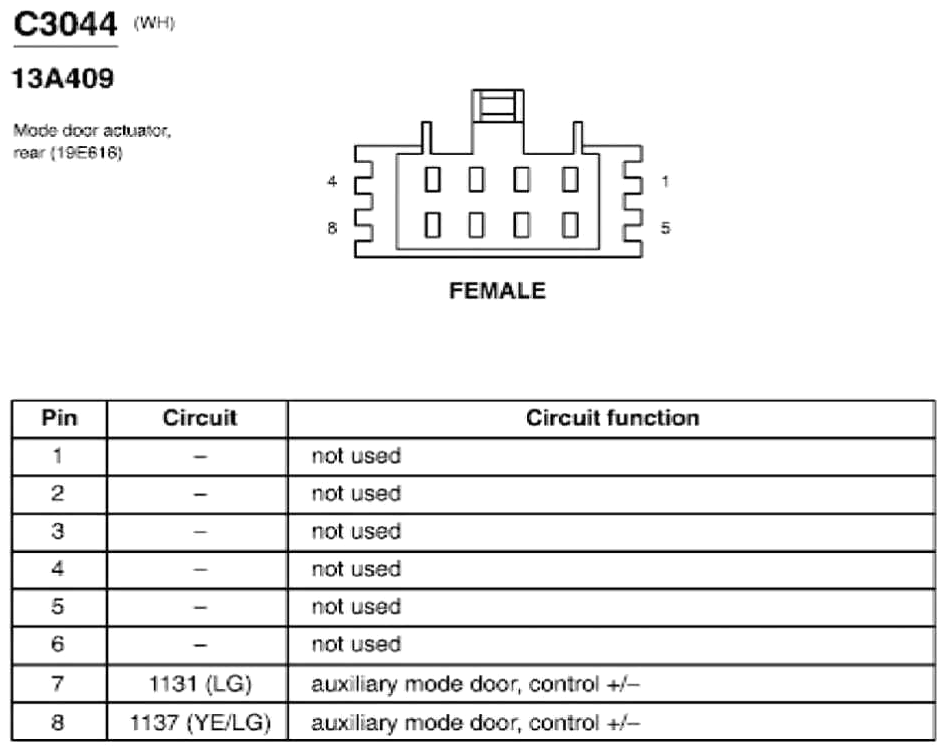

Fig 366: Mode Door Actuator, Rear Connector End View (C3044)

G07846633

Courtesy of FORD MOTOR CO.

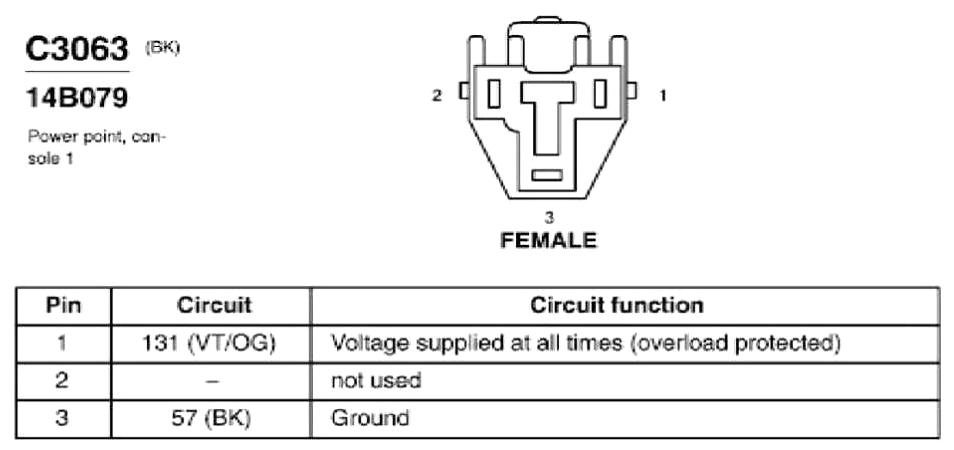

Fig 367: Power Point, Console 1 Connector End View (C3063)

G07846634

Courtesy of FORD MOTOR CO.

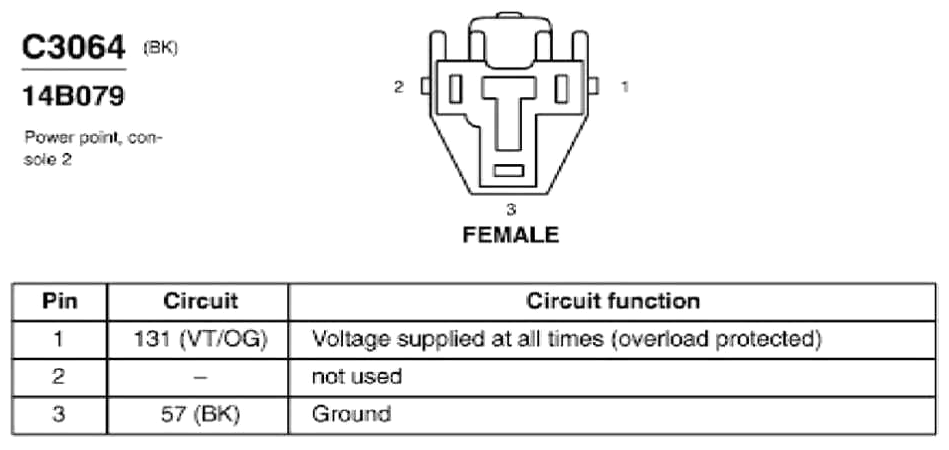

Fig 368: Power Point, Console 2 Connector End View (C3064)

G07846635

Courtesy of FORD MOTOR CO.

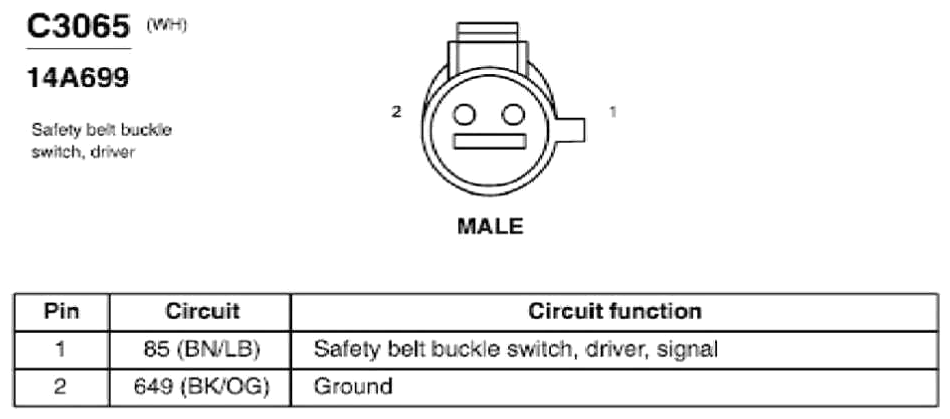

Fig 369: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07846636

Courtesy of FORD MOTOR CO.

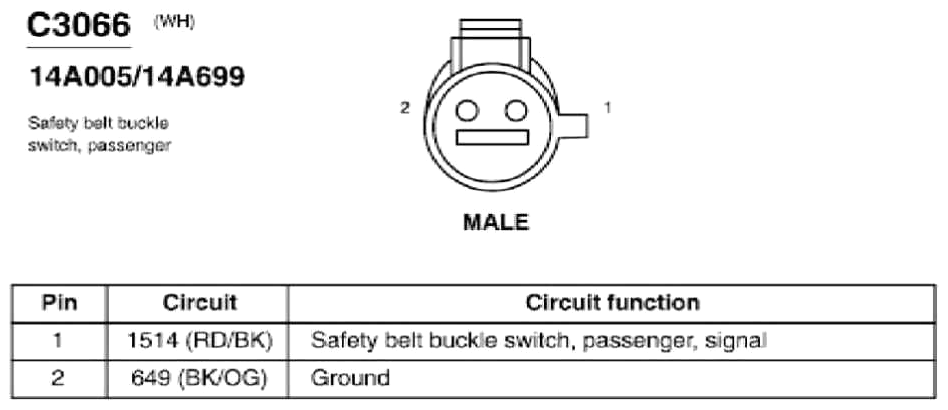

Fig 370: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07846637

Courtesy of FORD MOTOR CO.

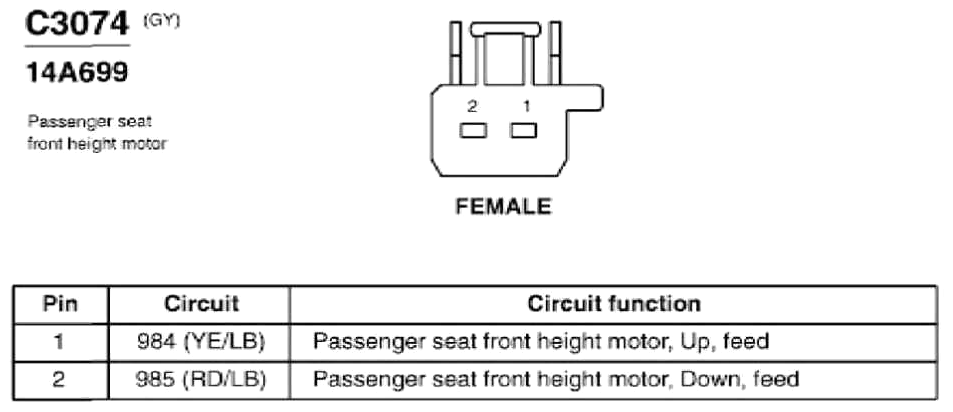

Fig 371: Passenger Seat Front Height Motor Connector End View (C3074)

G07846638

Courtesy of FORD MOTOR CO.

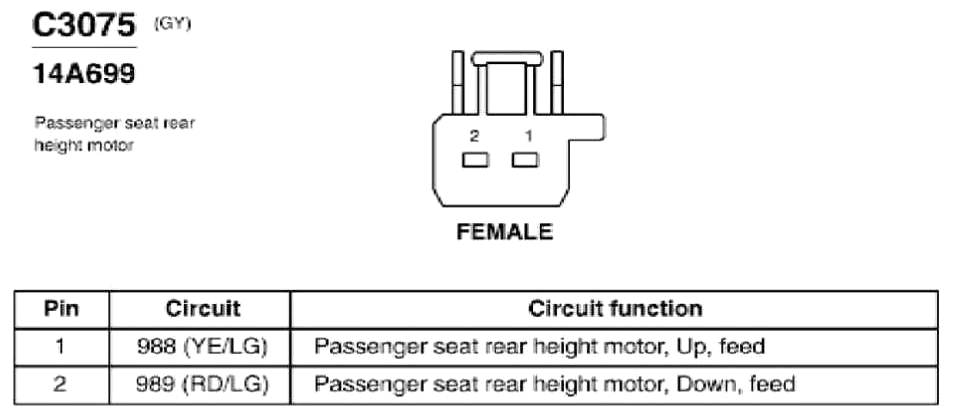

Fig 372: Passenger Seat Rear Height Motor Connector End View (C3075)

G07846639

Courtesy of FORD MOTOR CO.

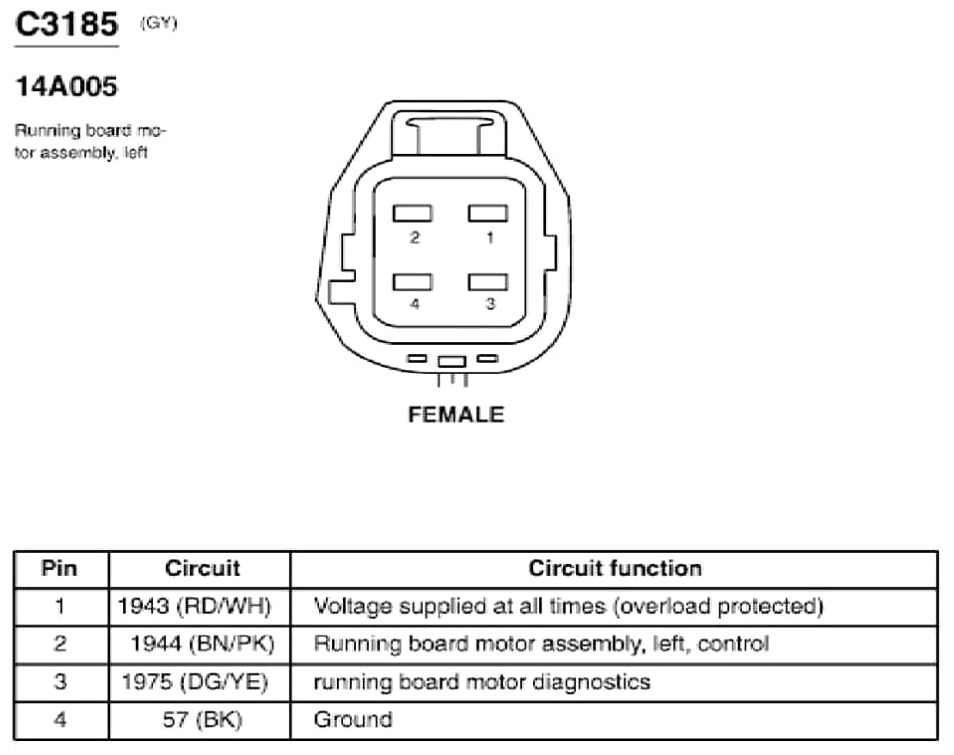

Fig 373: Running Board Motor Assembly, Left Connector End View (C3185)

G07846640

Courtesy of FORD MOTOR CO.

Fig 374: Running Board Motor Assembly, Right Connector End View (C3186)

G07846641

Courtesy of FORD MOTOR CO.

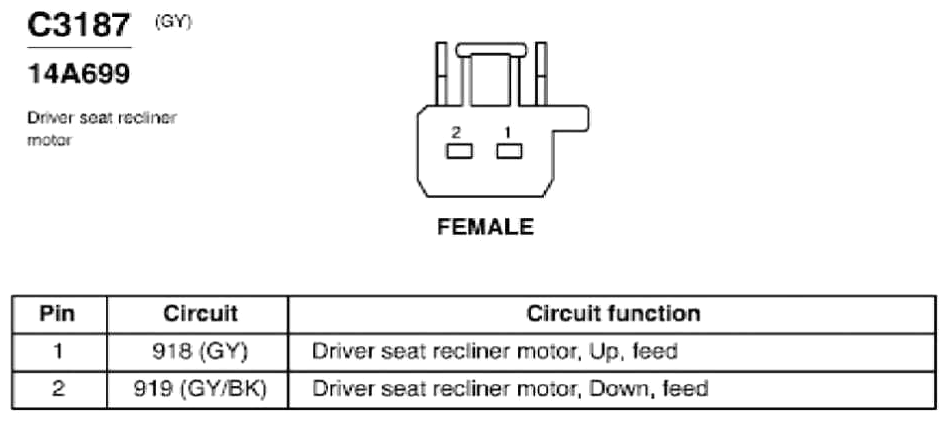

Fig 375: Driver Seat Recliner Motor Connector End View (C3187)

G07846642

Courtesy of FORD MOTOR CO.

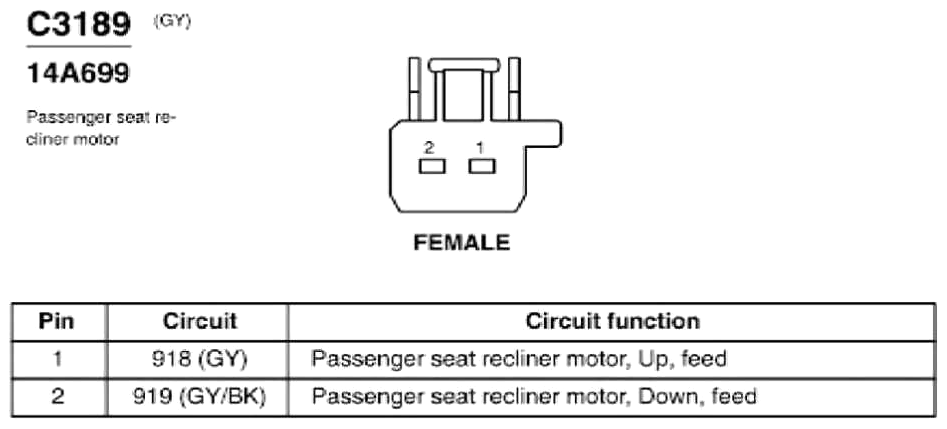

Fig 376: Passenger Seat Recliner Motor Connector End View (C3189)

G07846643

Courtesy of FORD MOTOR CO.

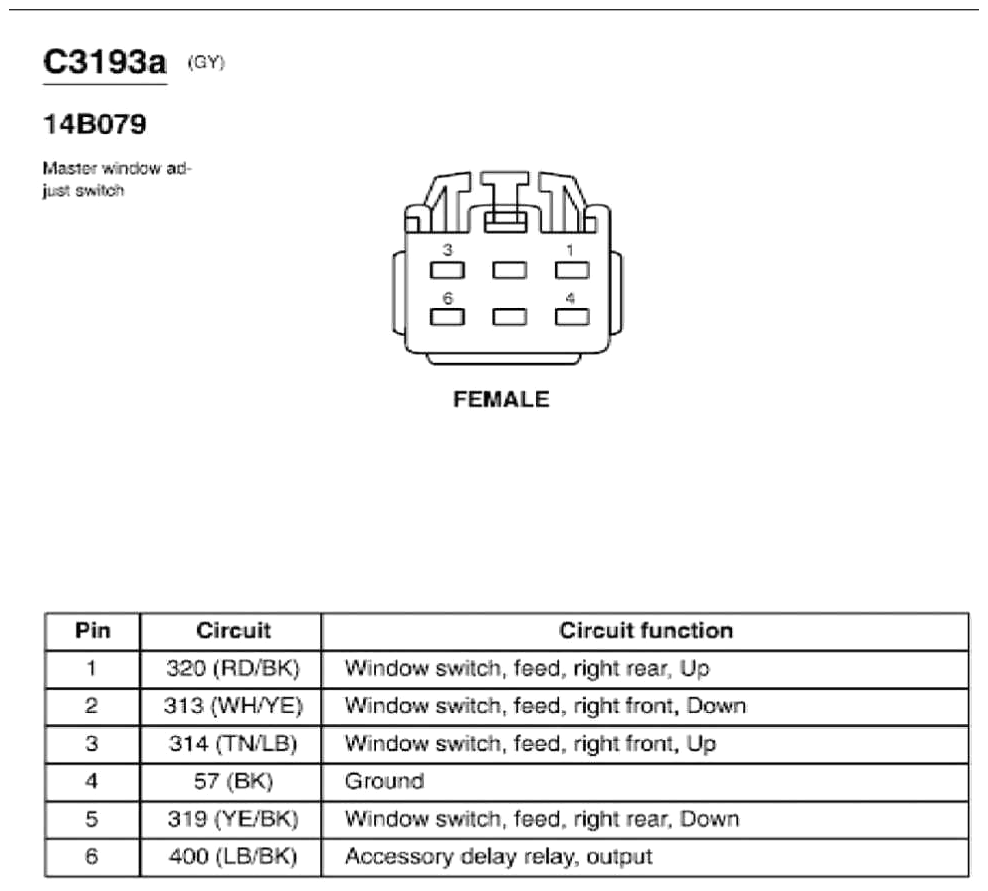

Fig 377: Master Window Adjust Switch Connector End View (C3193a)

G07846644

Courtesy of FORD MOTOR CO.

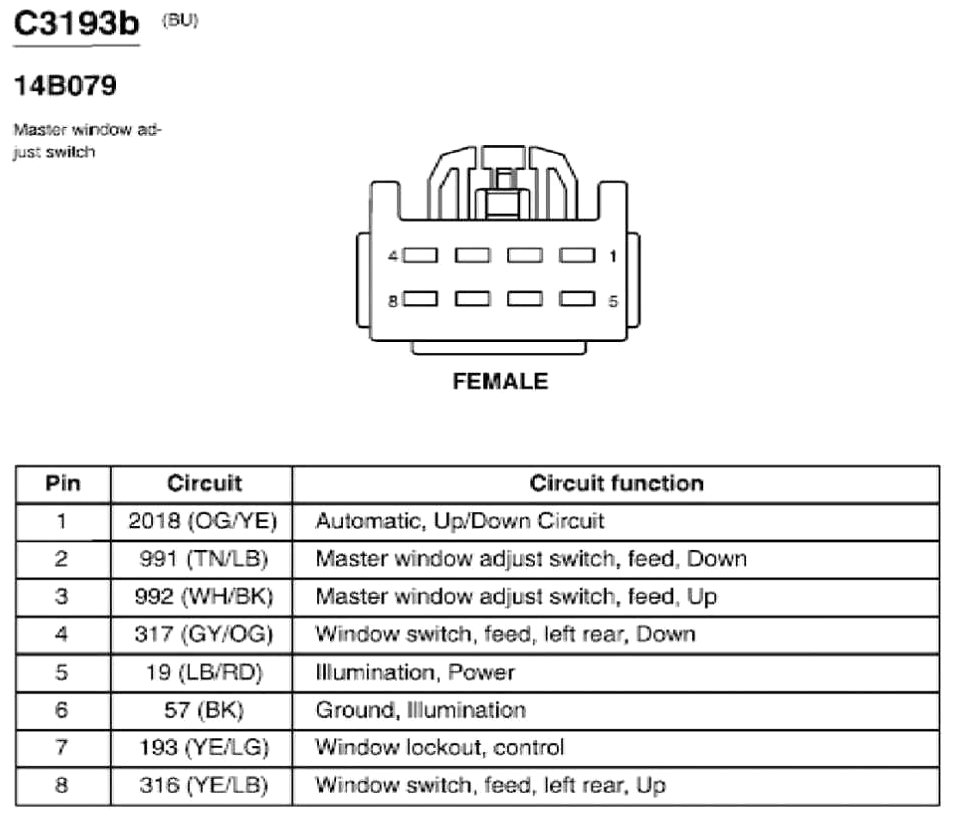

Fig 378: Master Window Adjust Switch Connector End View (C3193b)

G07846645

Courtesy of FORD MOTOR CO.

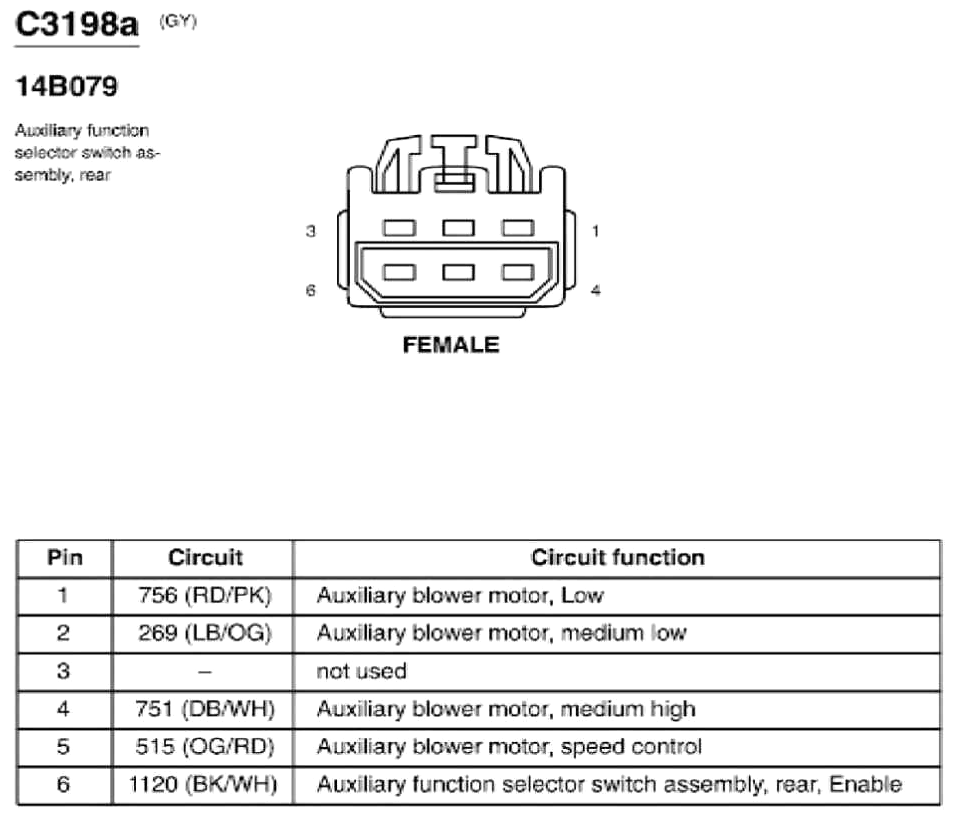

Fig 379: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198a)

G07846646

Courtesy of FORD MOTOR CO.

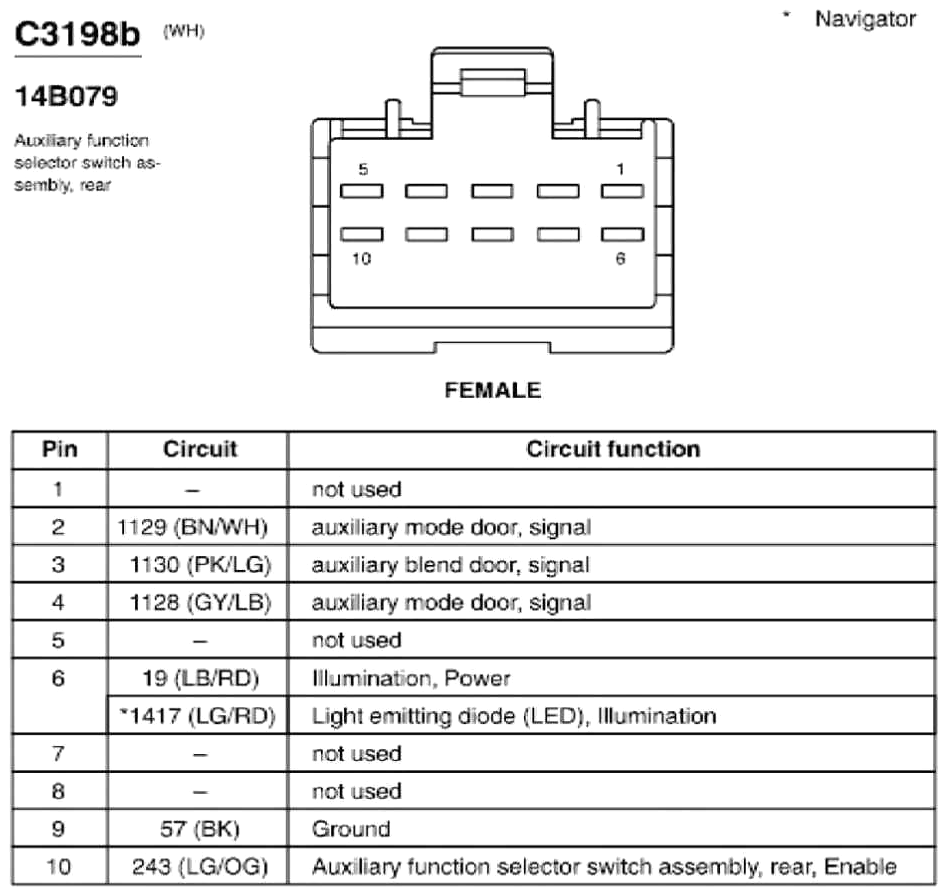

Fig 380: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C3198b)

G07846647

Courtesy of FORD MOTOR CO.

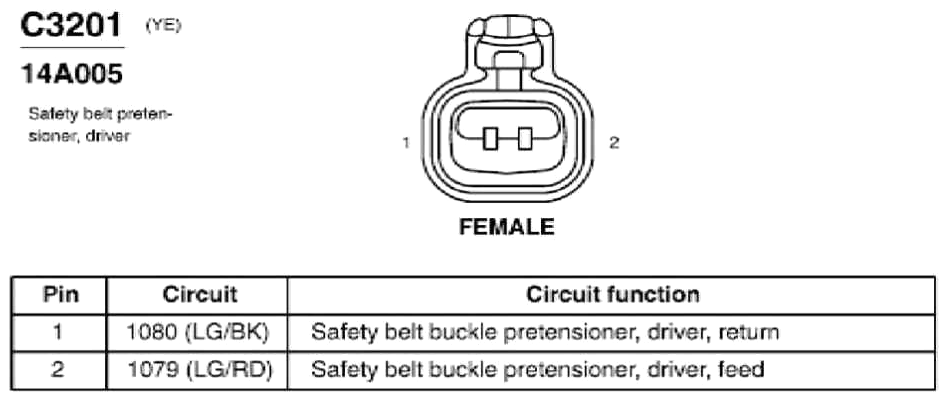

Fig 381: Safety Belt Pretensioner, Driver Connector End View (C3201)

G07846648

Courtesy of FORD MOTOR CO.

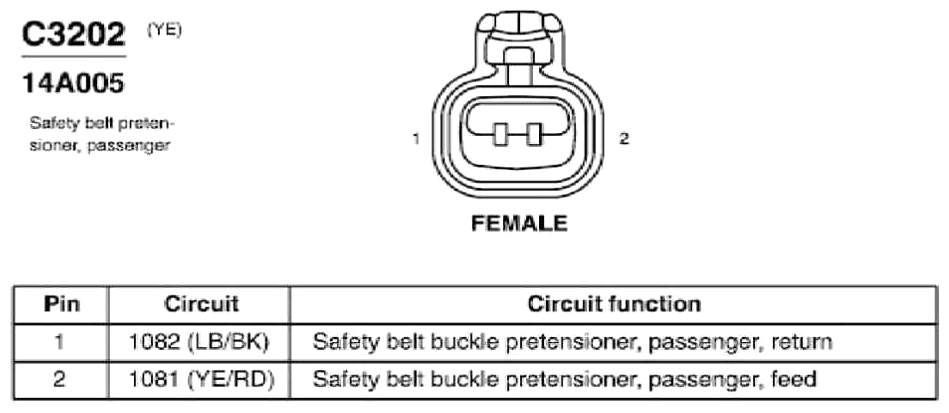

Fig 382: Safety Belt Pretensioner, Passenger Connector End View (C3202)

G07846649

Courtesy of FORD MOTOR CO.

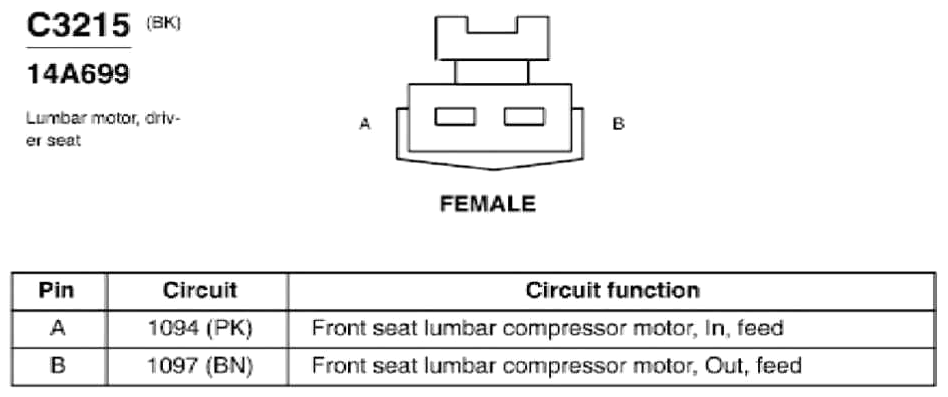

Fig 383: Lumbar Motor, Driver Seat Connector End View (C3215)

G07846650

Courtesy of FORD MOTOR CO.

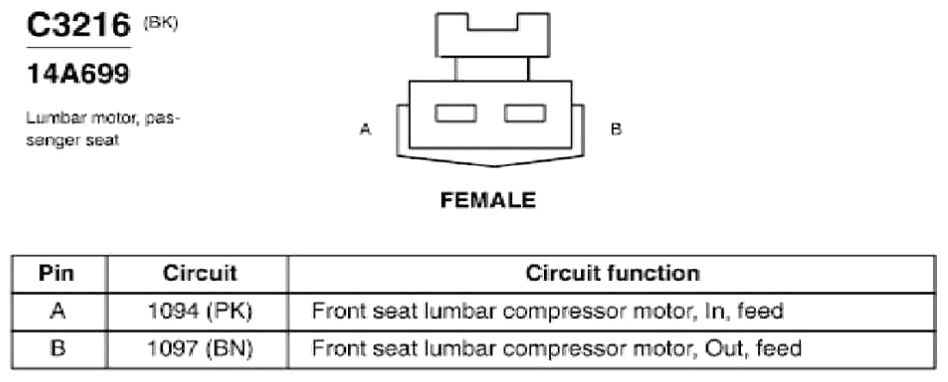

Fig 384: Lumbar Motor, Passenger Seat Connector End View (C3216)

G07846651

Courtesy of FORD MOTOR CO.

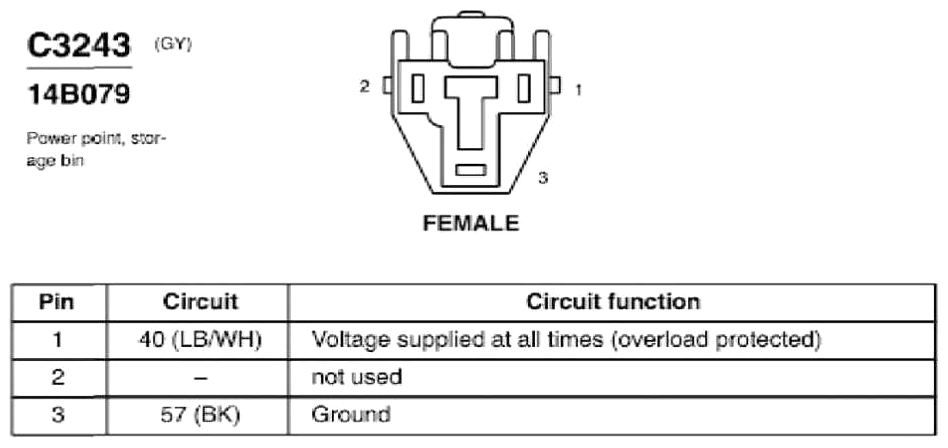

Fig 385: Power Point, Storage Bin Connector End View (C3243)

G07846652

Courtesy of FORD MOTOR CO.

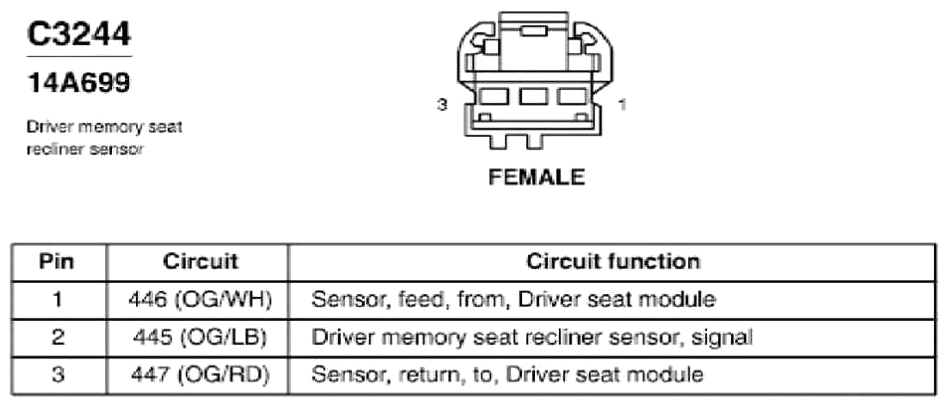

Fig 386: Driver Memory Seat Recliner Sensor Connector End View (C3244)

G07846653

Courtesy of FORD MOTOR CO.

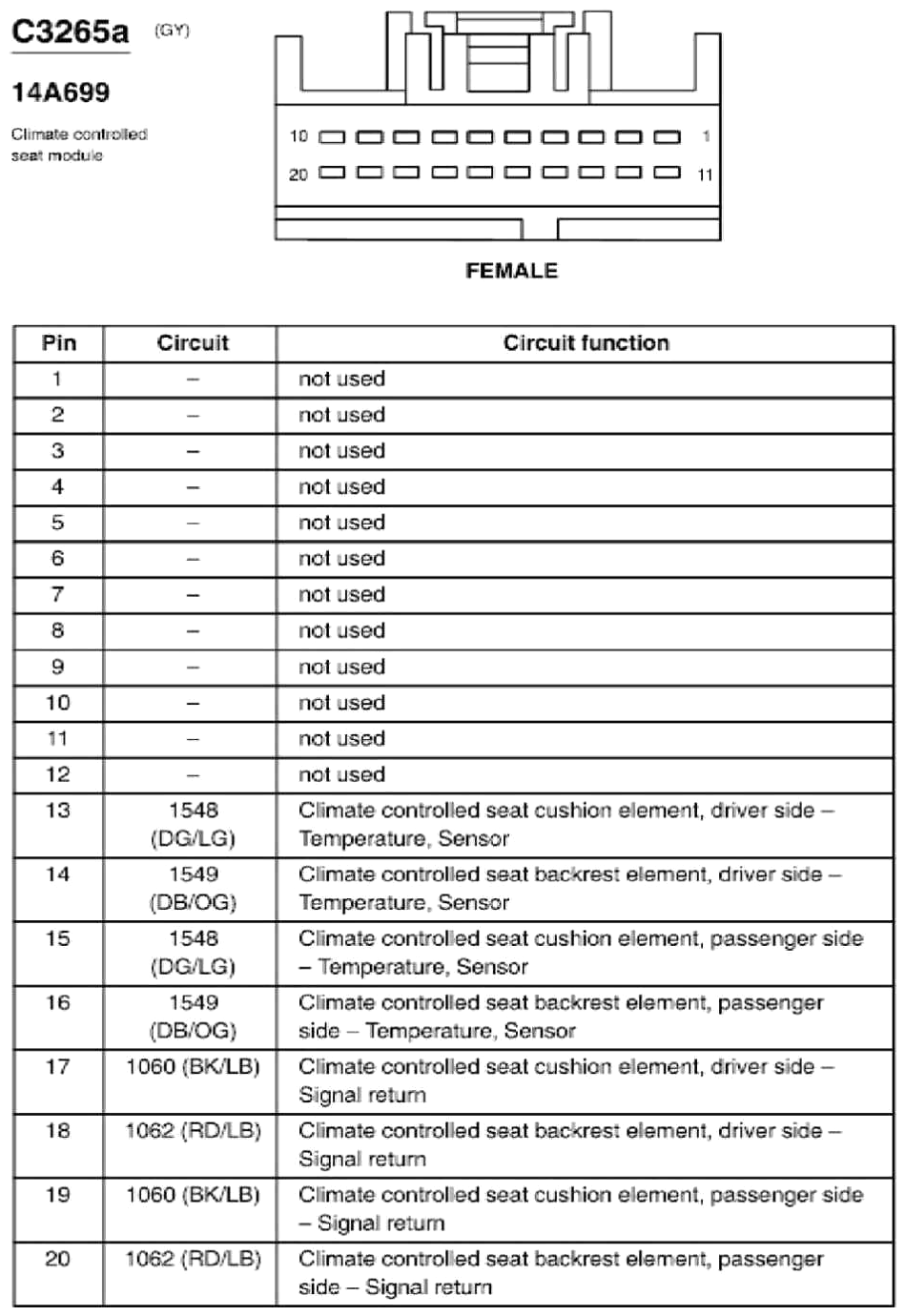

Fig 387: Climate Controlled Seat Module Connector End View (C3265a)

G07846654

Courtesy of FORD MOTOR CO.

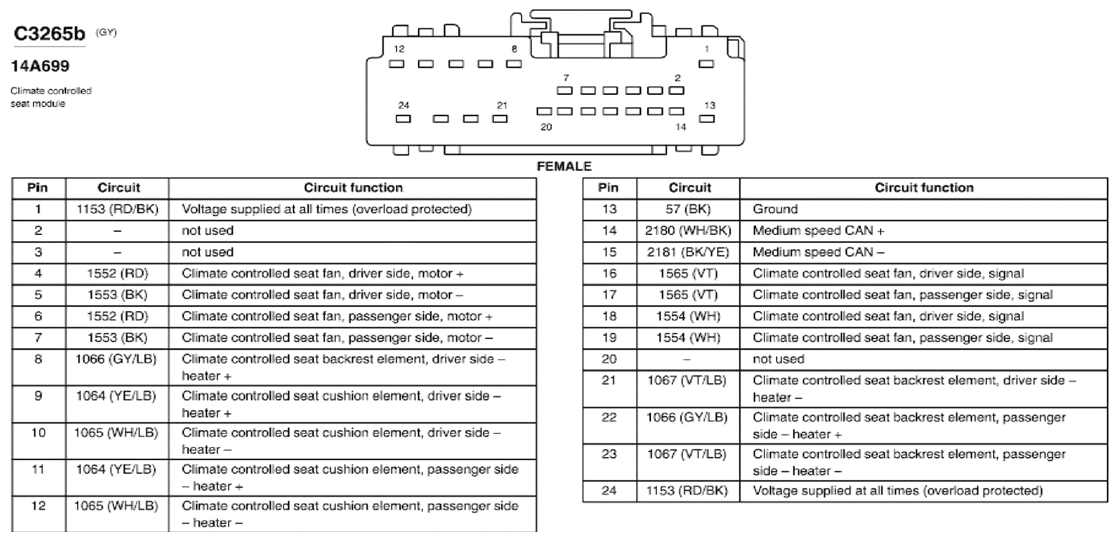

Fig 388: Climate Controlled Seat Module Connector End View (C3265b)

G07846655

Courtesy of FORD MOTOR CO.

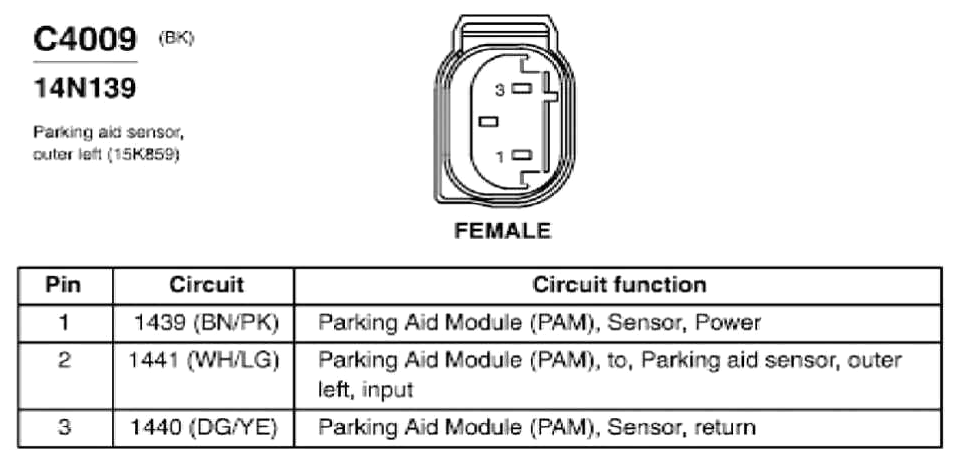

Fig 389: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07846656

Courtesy of FORD MOTOR CO.

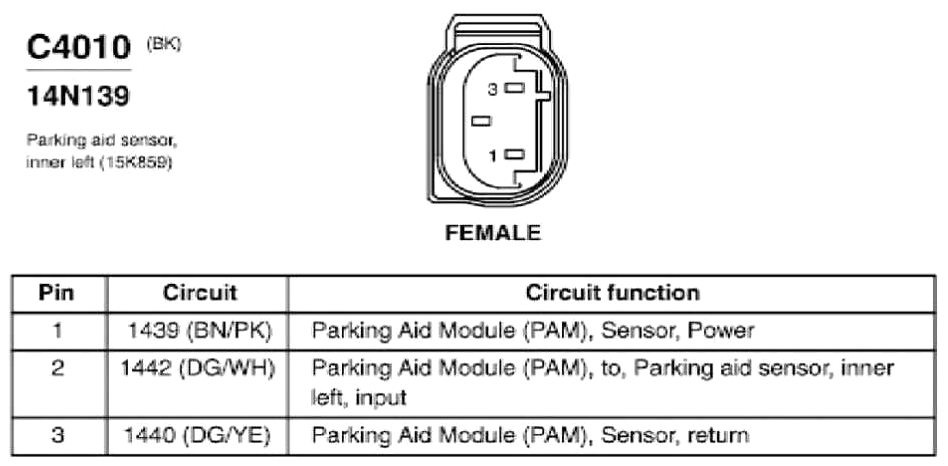

Fig 390: Parking Aid Sensor, Inner Left Connector End View (C4010)

G07846657

Courtesy of FORD MOTOR CO.

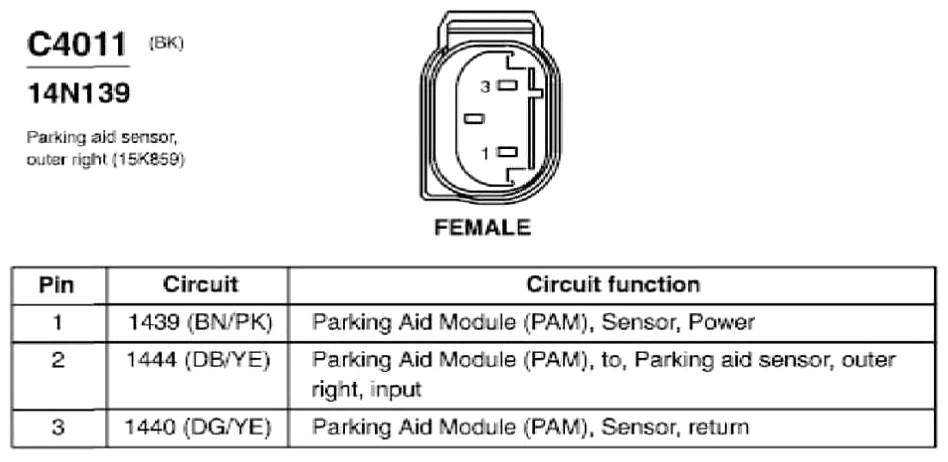

Fig 391: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07846658

Courtesy of FORD MOTOR CO.

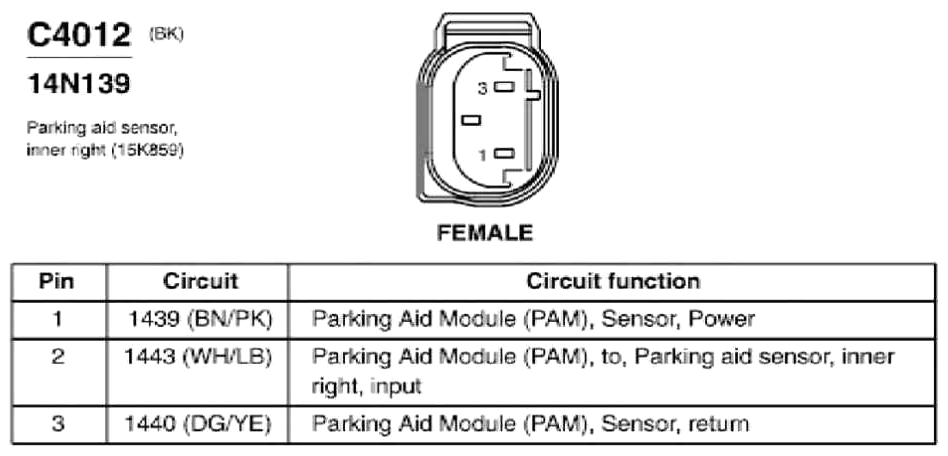

Fig 392: Parking Aid Sensor, Inner Right Connector End View (C4012)

G07846659

Courtesy of FORD MOTOR CO.

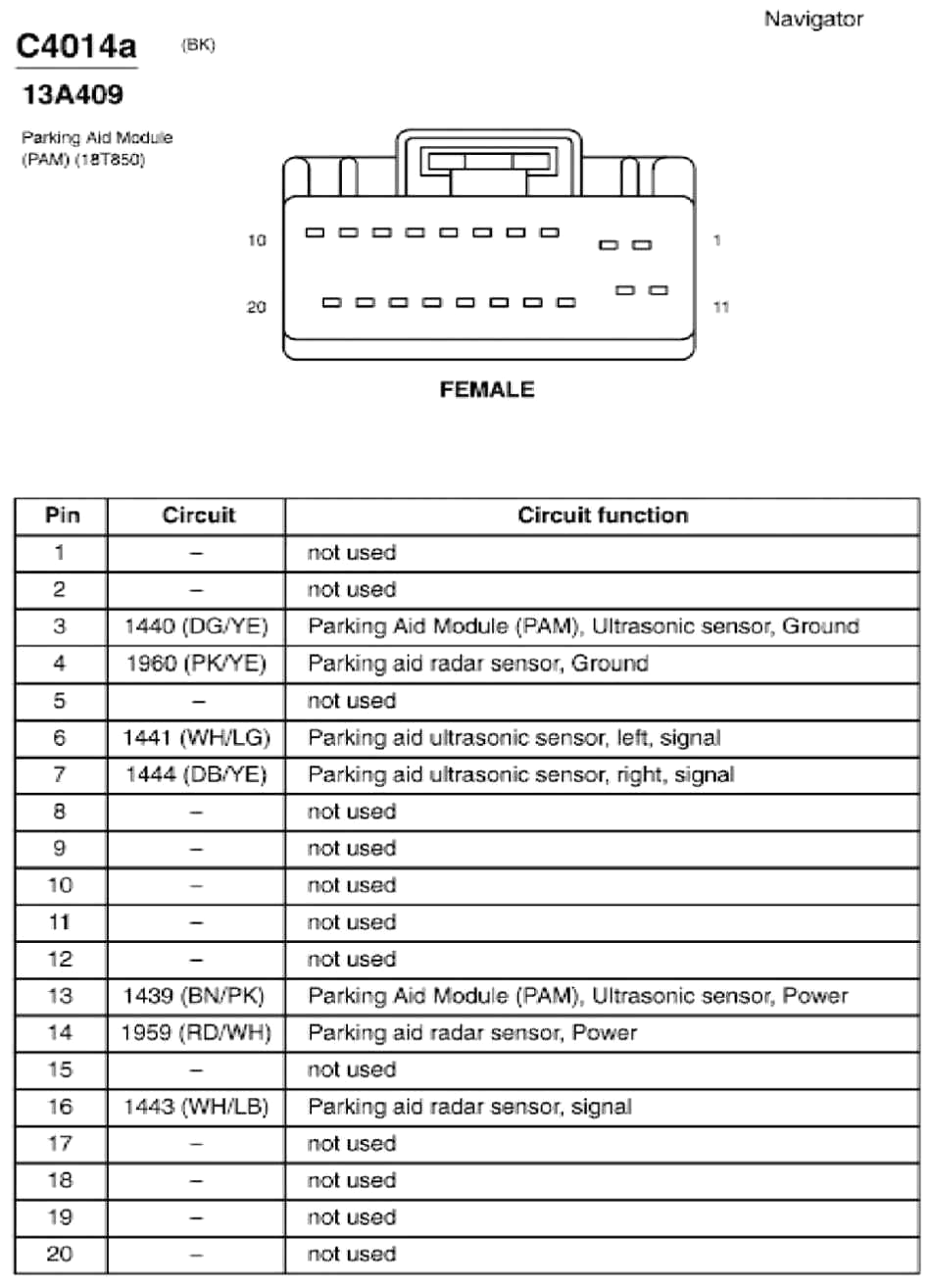

Fig 393: Parking Aid Module (PAM) Connector End View (C4014a)

G07846660

Courtesy of FORD MOTOR CO.

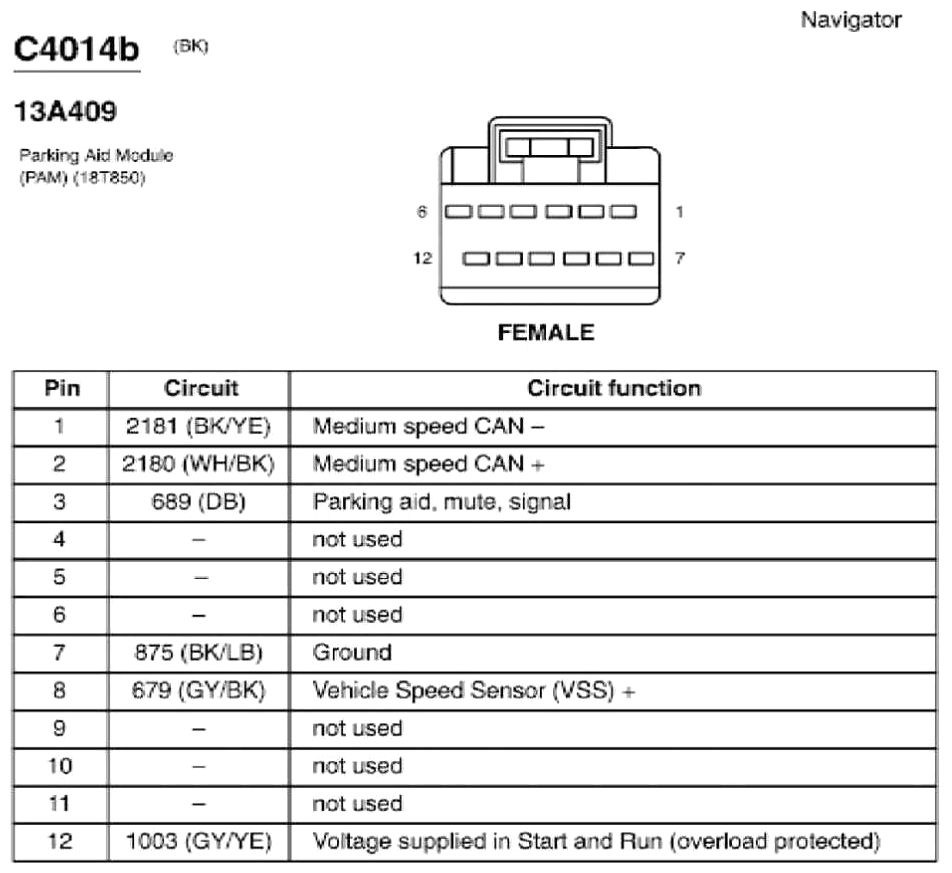

Fig 394: Parking Aid Module (PAM) Connector End View (C4014b)

G07846661

Courtesy of FORD MOTOR CO.

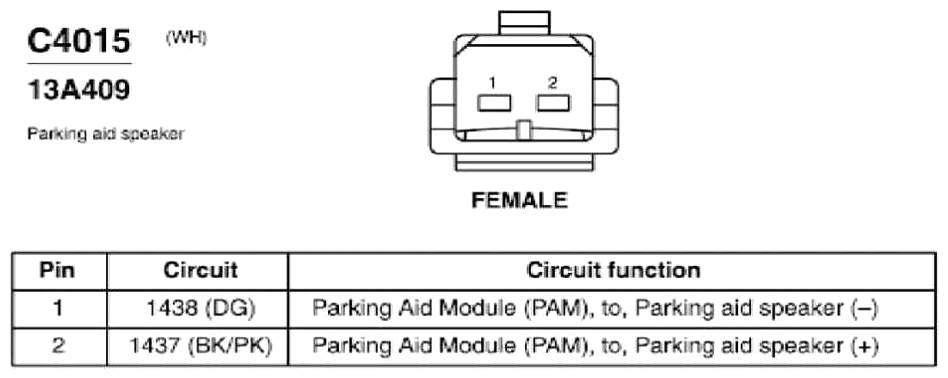

Fig 395: Parking Aid Speaker Connector End View (C4015)

G07846662

Courtesy of FORD MOTOR CO.

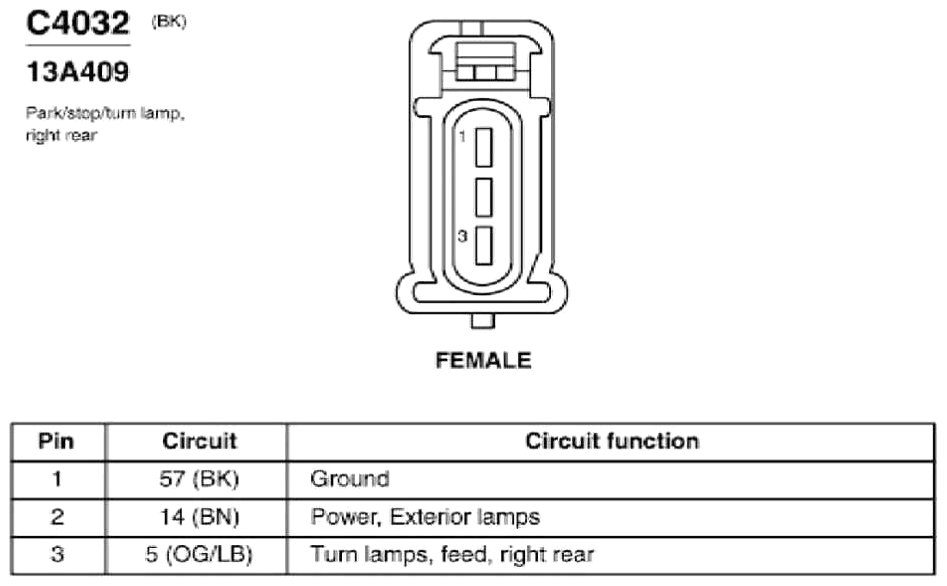

Fig 396: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07846663

Courtesy of FORD MOTOR CO.

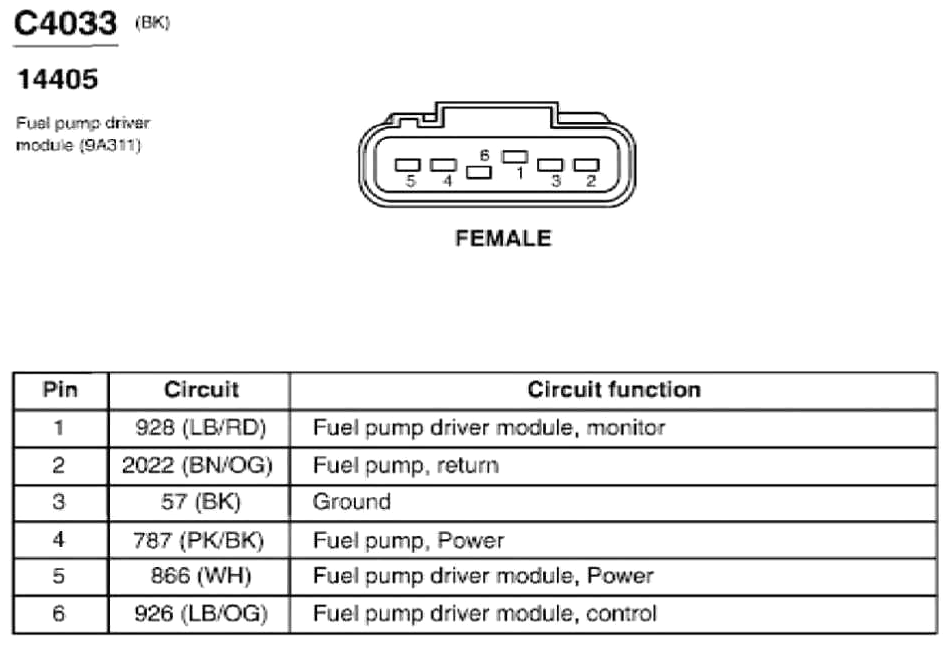

Fig 397: Fuel Pump Driver Module Connector End View (C4033)

G07846664

Courtesy of FORD MOTOR CO.

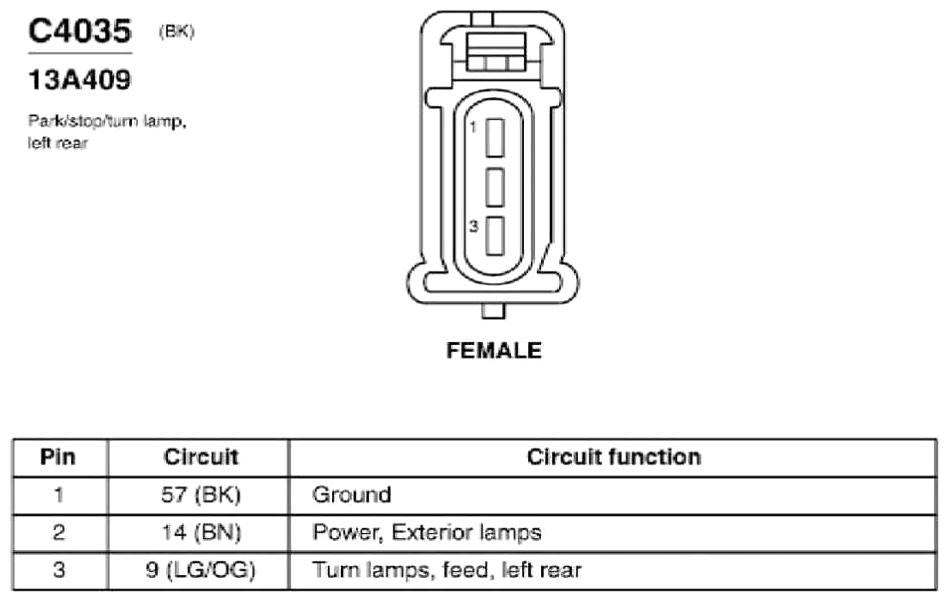

Fig 398: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07846665

Courtesy of FORD MOTOR CO.

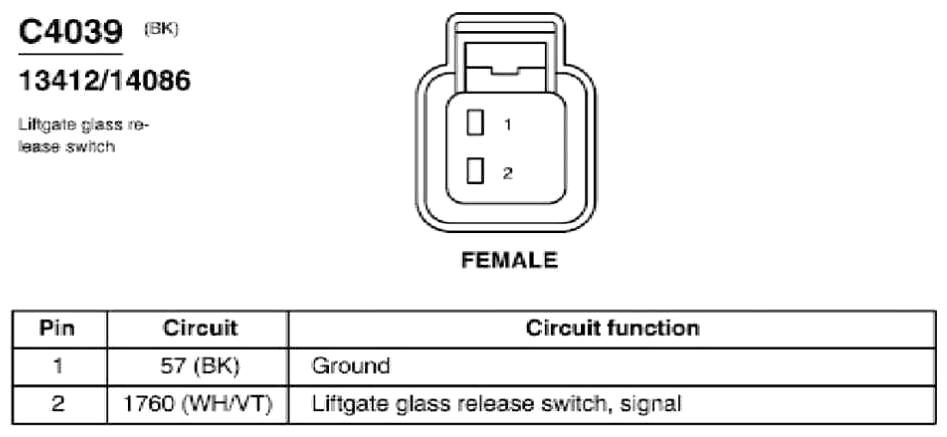

Fig 399: Liftgate Glass Release Switch Connector End View (C4039)

G07846666

Courtesy of FORD MOTOR CO.

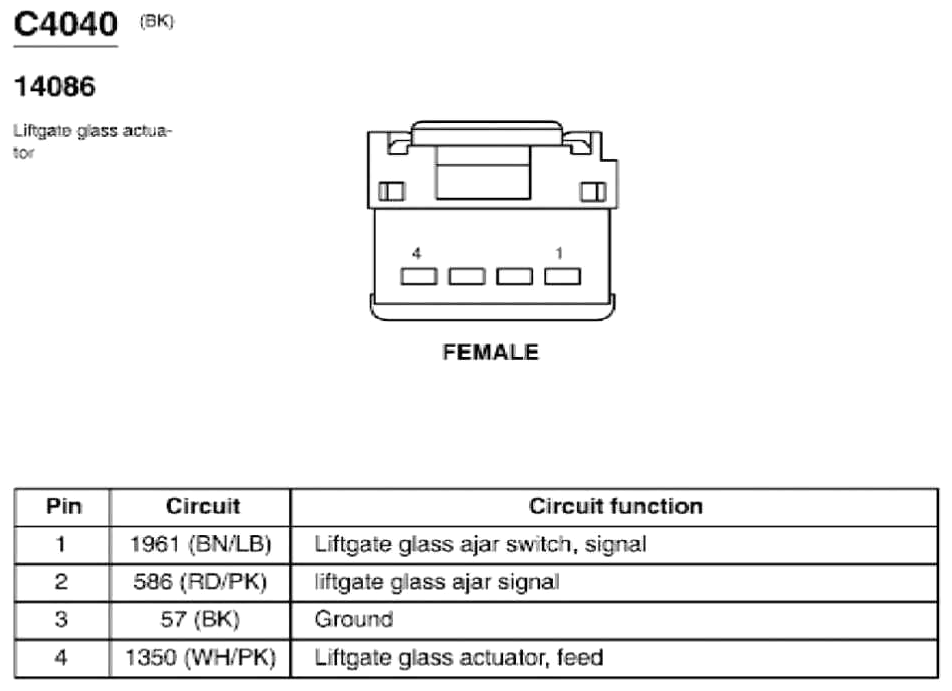

Fig 400: Liftgate Glass Actuator Connector End View (C4040)

G07846667

Courtesy of FORD MOTOR CO.

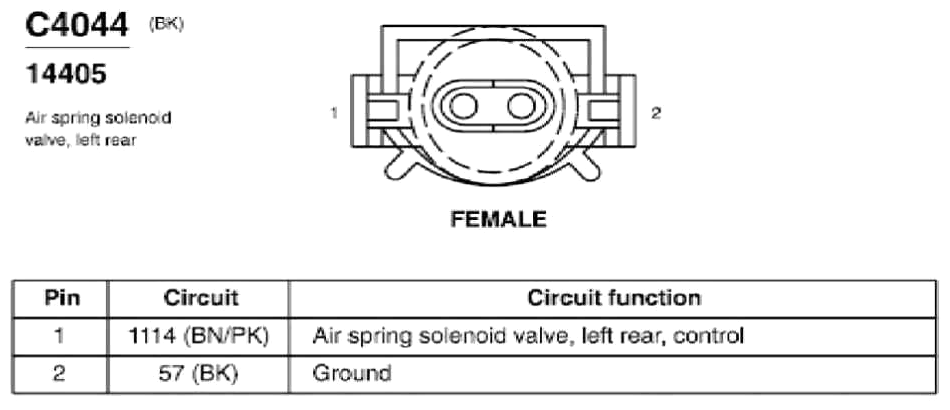

Fig 401: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

G07846668

Courtesy of FORD MOTOR CO.

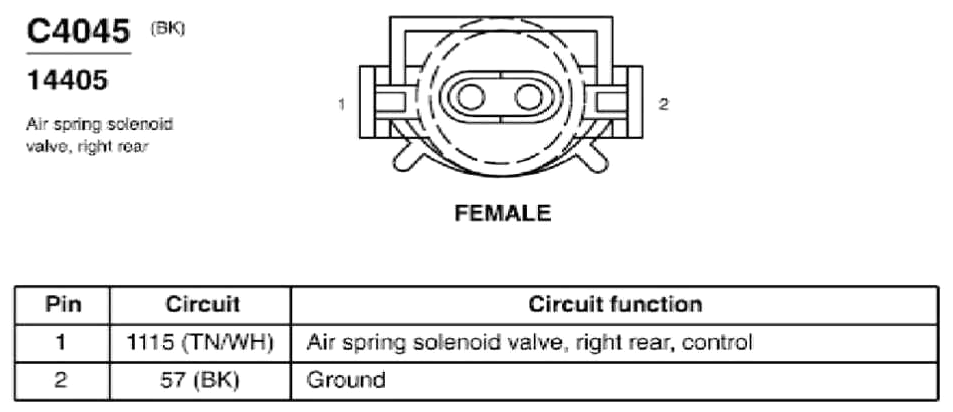

Fig 402: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

G07846669

Courtesy of FORD MOTOR CO.

Fig 403: Quarter Window Motor, LH Side Rear Connector End View (C4047)

G07846670

Courtesy of FORD MOTOR CO.

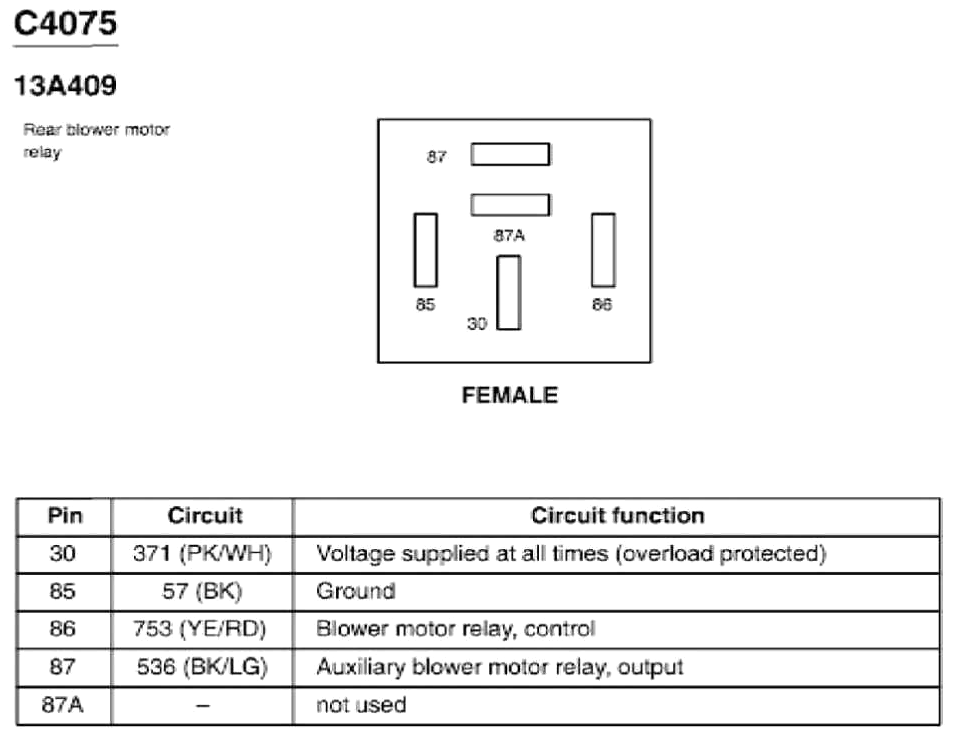

Fig 404: Rear Blower Motor Relay Connector End View (C4075)

G07846671

Courtesy of FORD MOTOR CO.

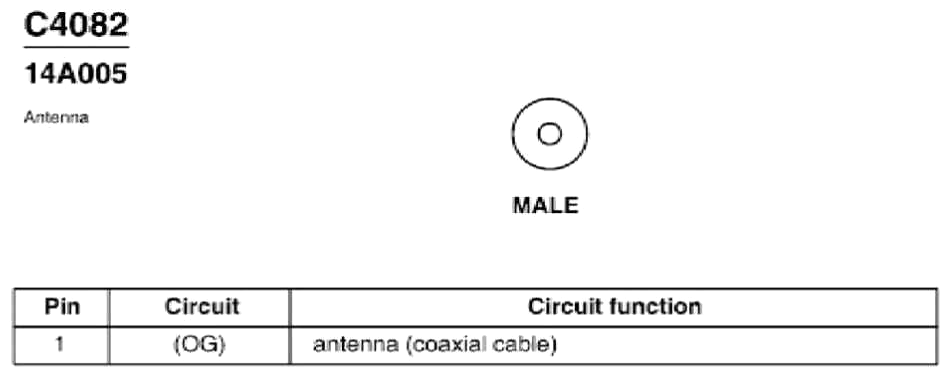

Fig 405: Antenna Connector End View (C4082)

G07846672

Courtesy of FORD MOTOR CO.

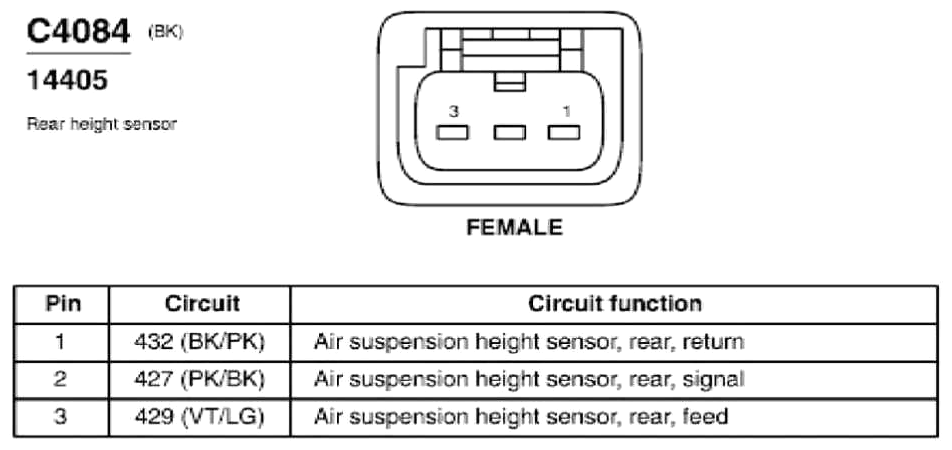

Fig 406: Rear Height Sensor Connector End View (C4084)

G07846673

Courtesy of FORD MOTOR CO.

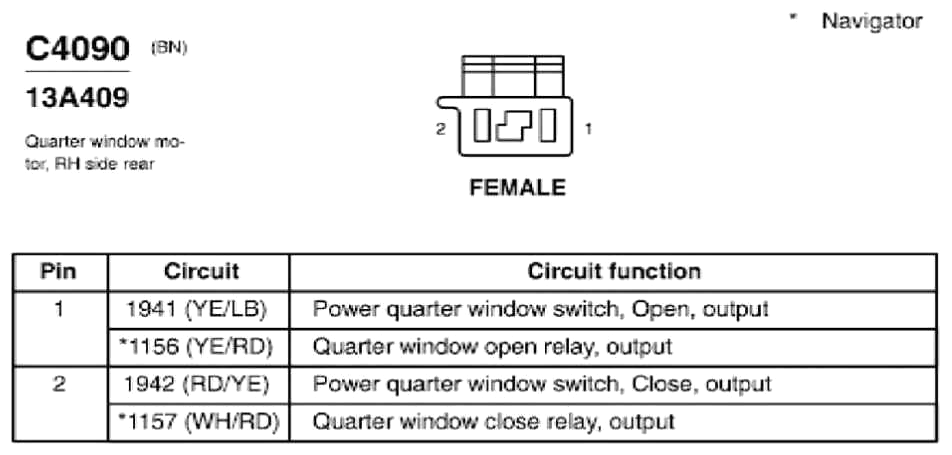

Fig 407: Quarter Window Motor, RH Side Rear Connector End View (C4090)

G07846674

Courtesy of FORD MOTOR CO.

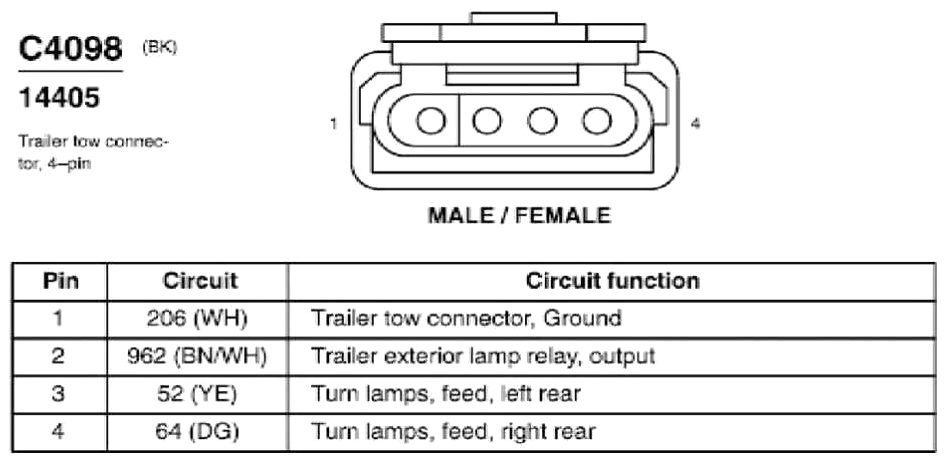

Fig 408: Trailer Low Connector, 4-Pin Connector End View (C4098)

G07846675

Courtesy of FORD MOTOR CO.

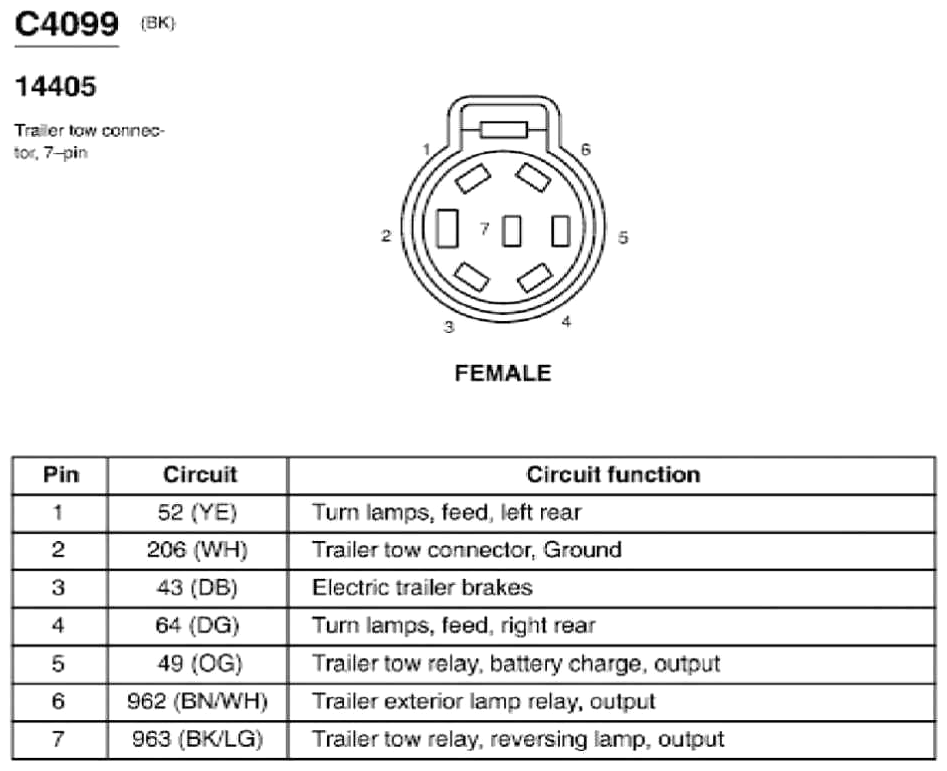

Fig 409: Trailer Tow Connector, 7-Pin Connector End View (C4099)

G07846676

Courtesy of FORD MOTOR CO.

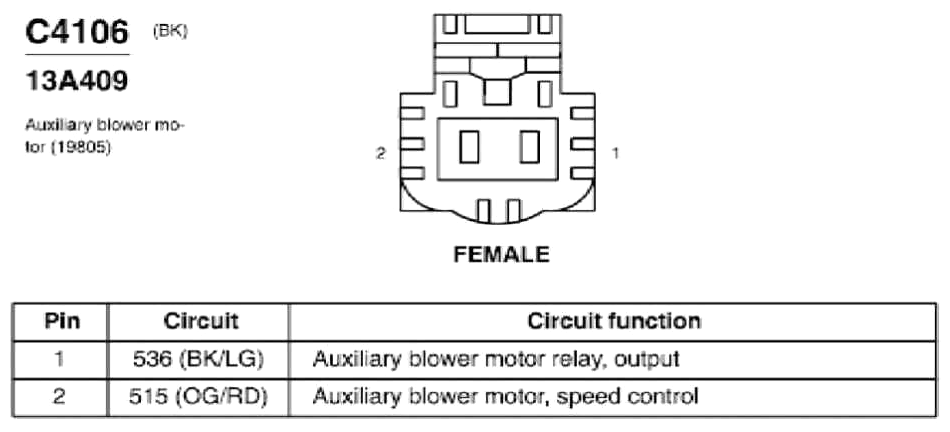

Fig 410: Auxiliary Blower Motor Connector End View (C4106)

G07846677

Courtesy of FORD MOTOR CO.

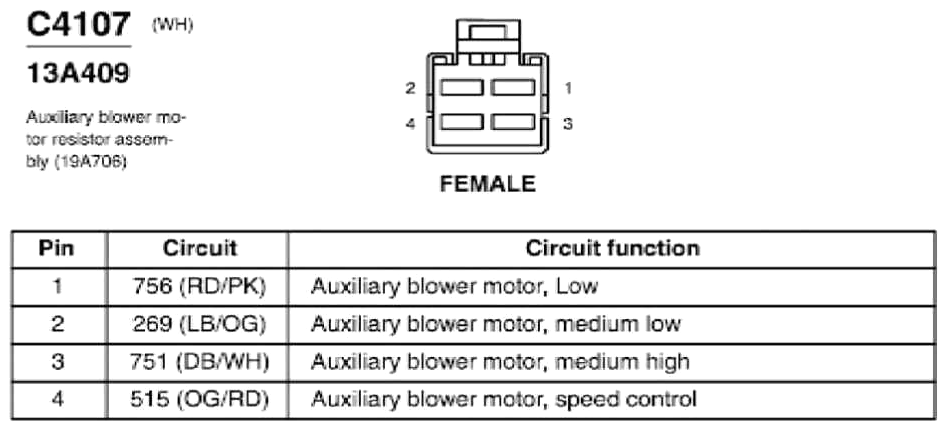

Fig 411: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)

G07846678

Courtesy of FORD MOTOR CO.

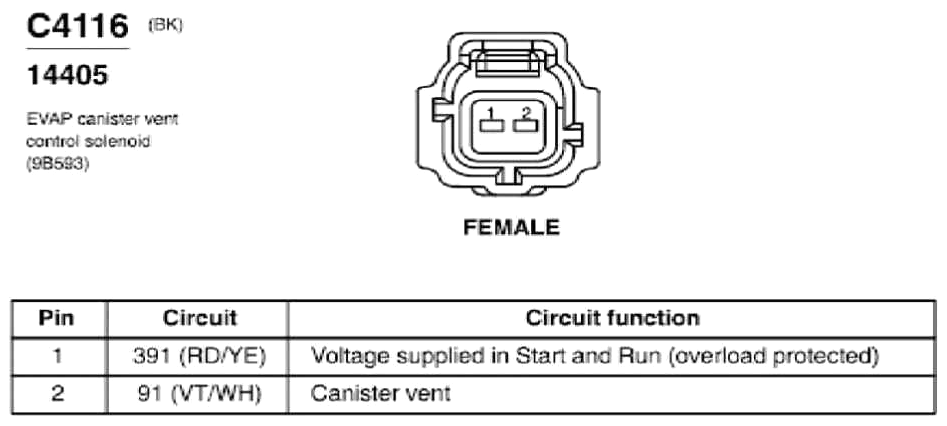

Fig 412: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07846679

Courtesy of FORD MOTOR CO.

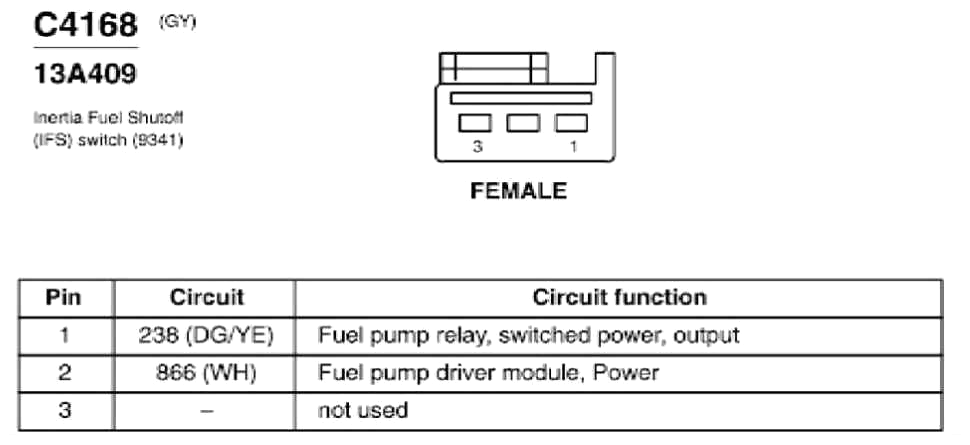

Fig 413: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07846680

Courtesy of FORD MOTOR CO.

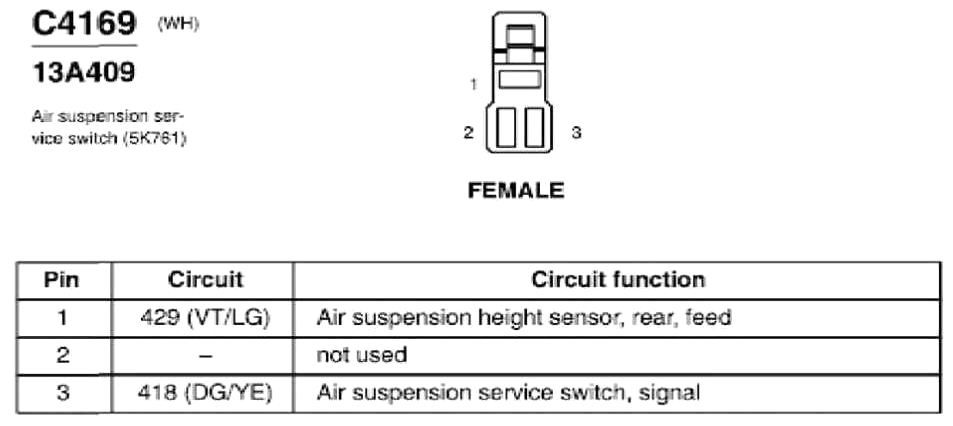

Fig 414: Air Suspension Service Switch Connector End View (C4169)

G07846681

Courtesy of FORD MOTOR CO.

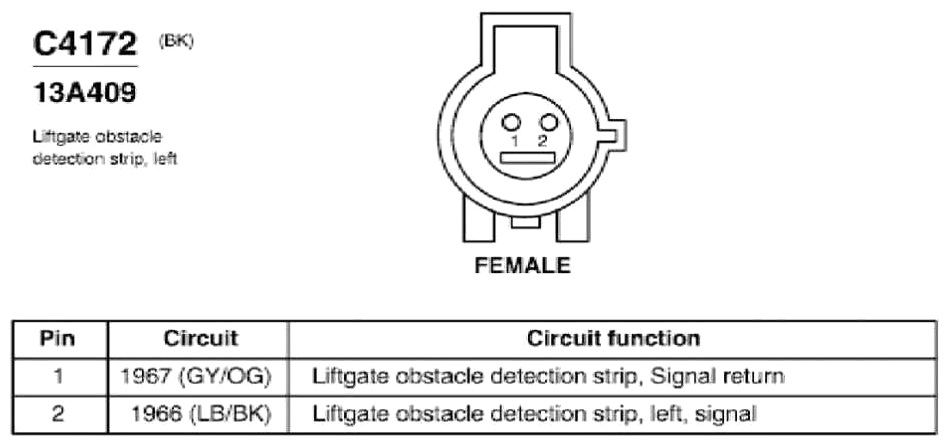

Fig 415: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)

G07846682

Courtesy of FORD MOTOR CO.

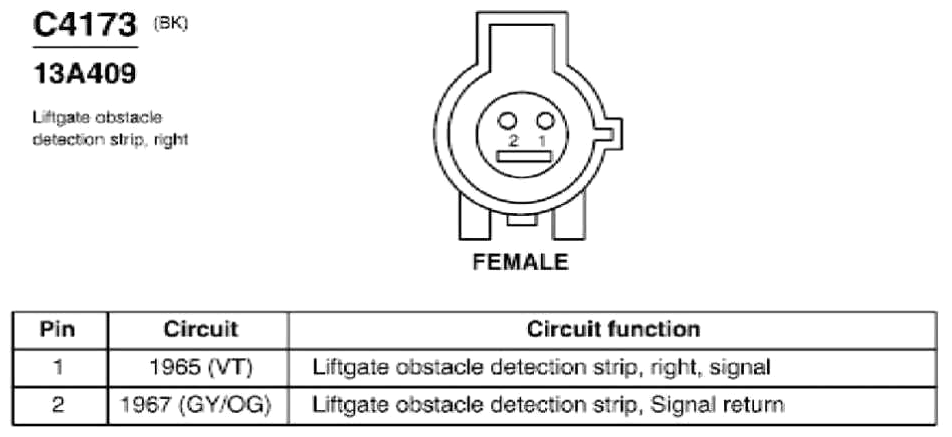

Fig 416: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)

G07846683

Courtesy of FORD MOTOR CO.

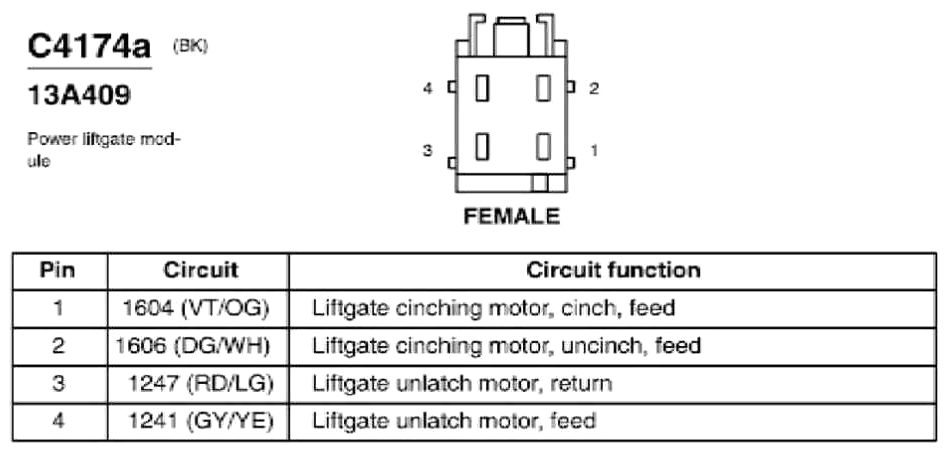

Fig 417: Power Liftgate Module Connector End View (C4174a)

G07846684

Courtesy of FORD MOTOR CO.

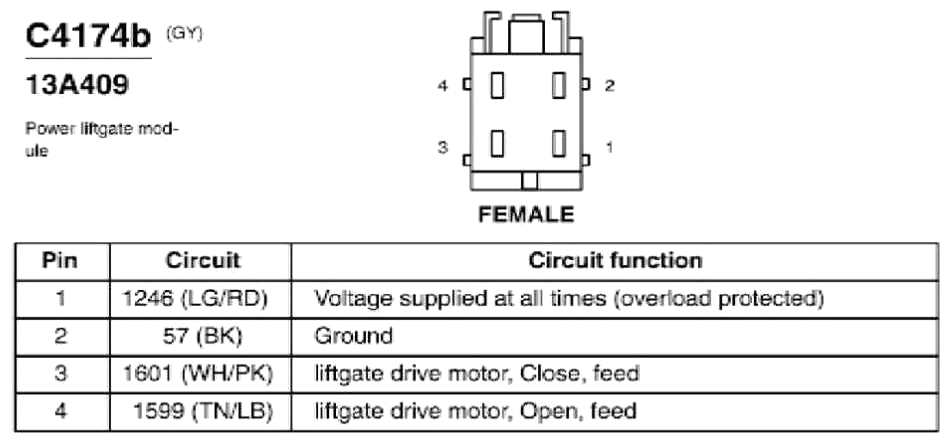

Fig 418: Power Liftgate Module Connector End View (C4174b)

G07846685

Courtesy of FORD MOTOR CO.

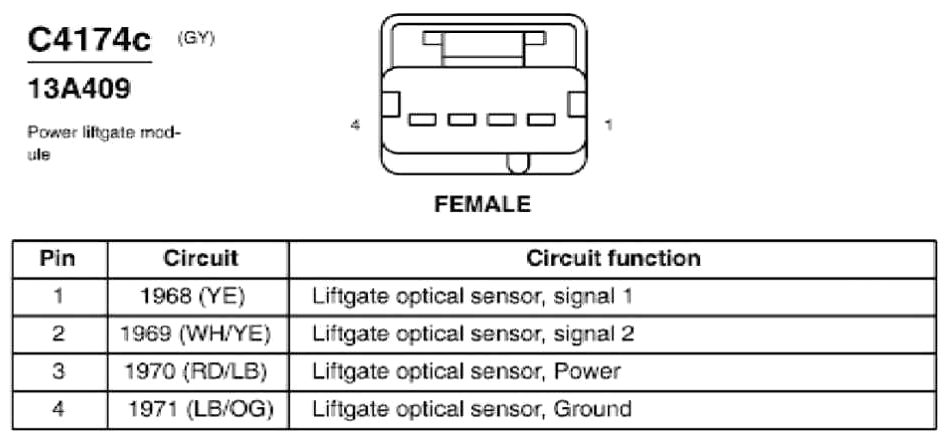

Fig 419: Power Liftgate Module Connector End View (C4174c)

G07846686

Courtesy of FORD MOTOR CO.

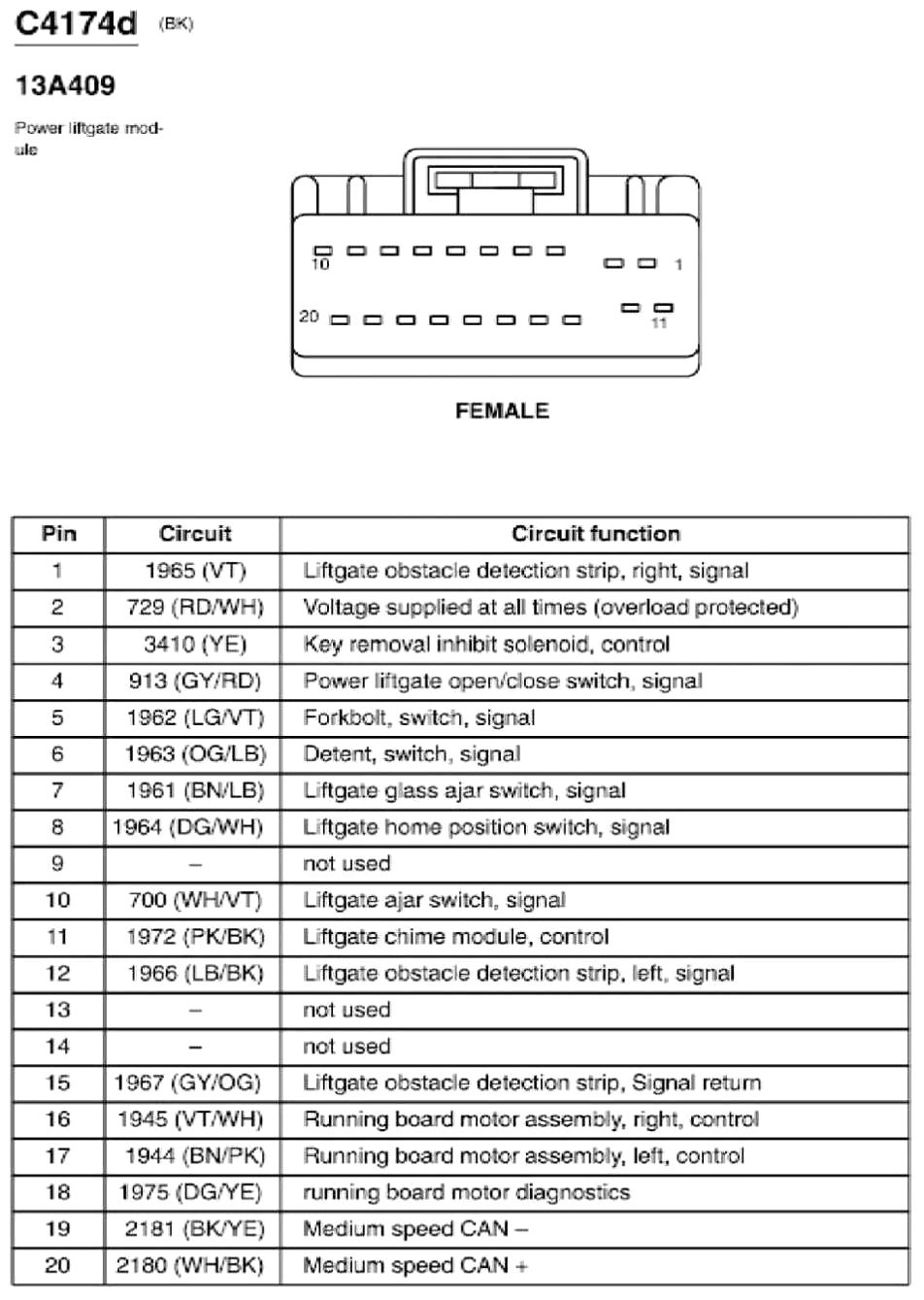

Fig 420: Power Liftgate Module Connector End View (C4174d)

G07846687

Courtesy of FORD MOTOR CO.

Fig 421: Quarter Window Open Relay Connector End View (C4175)

G07846688

Courtesy of FORD MOTOR CO.

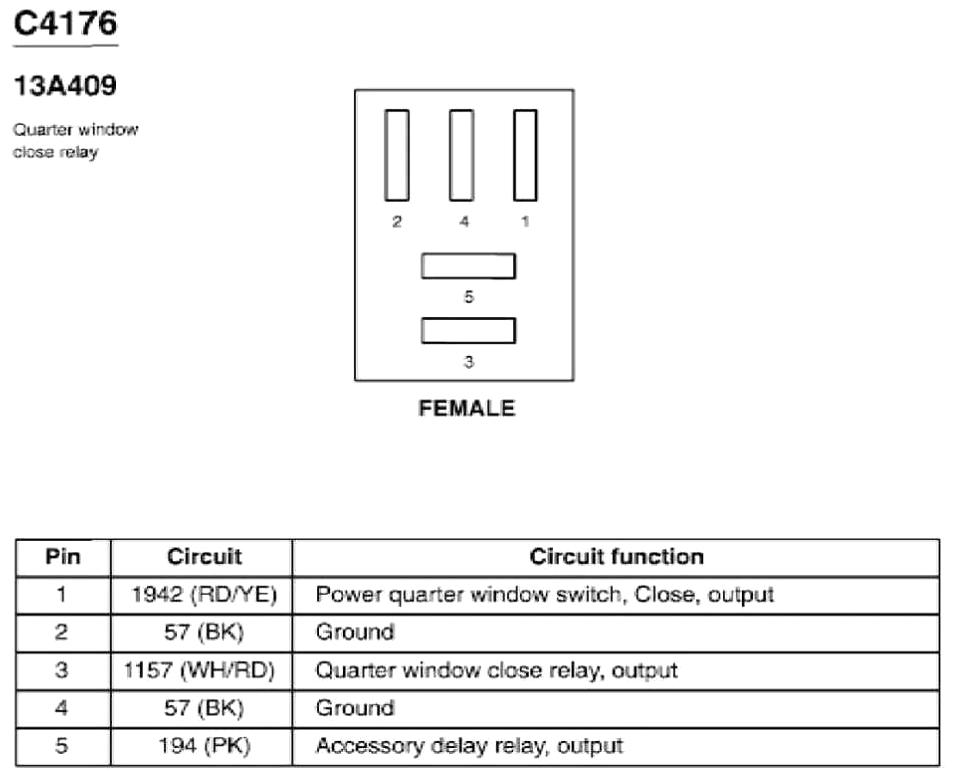

Fig 422: Quarter Window Close Relay Connector End View (C4176)

G07846689

Courtesy of FORD MOTOR CO.

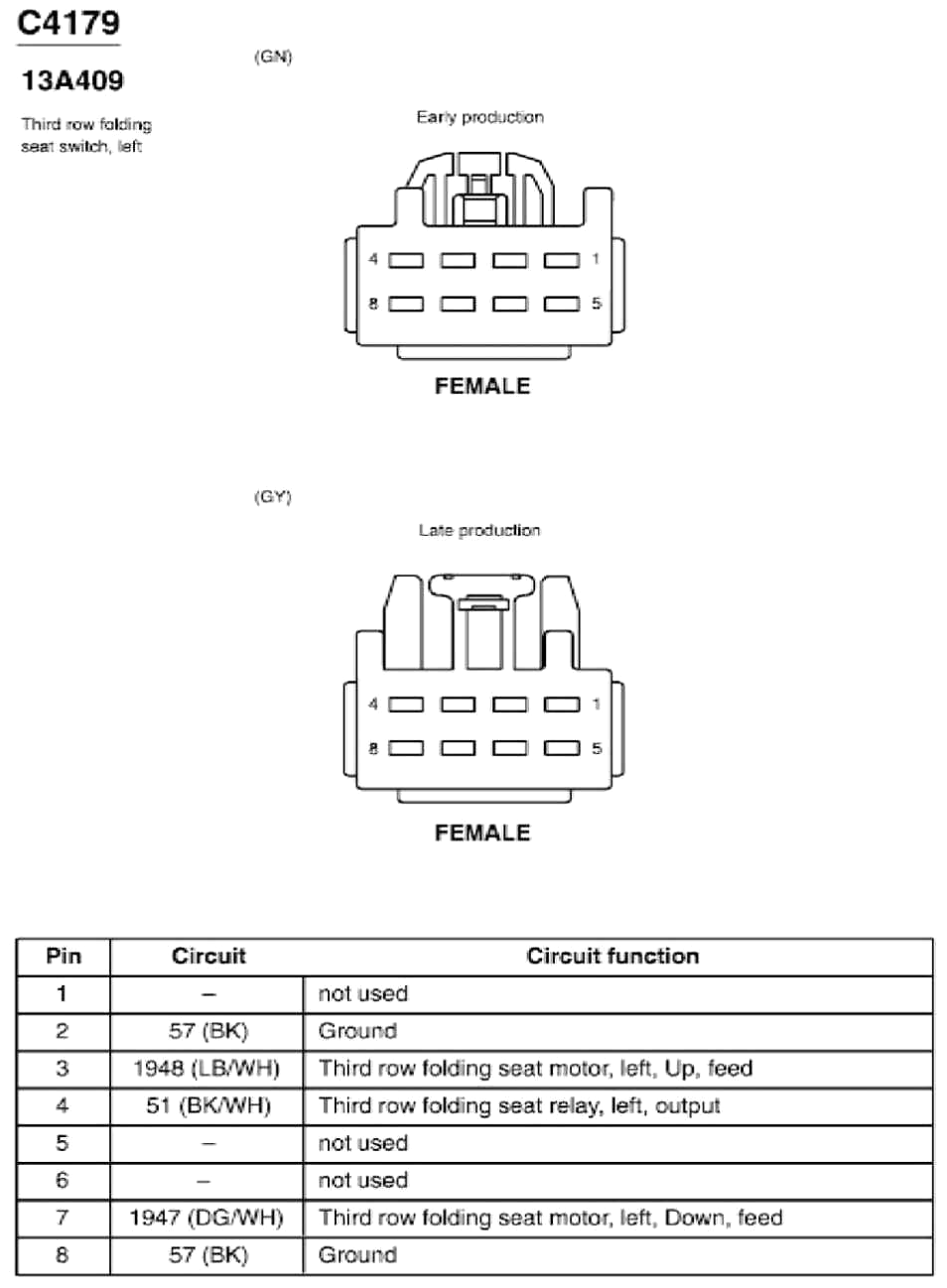

Fig 423: Third Row Folding Seat Switch, Left Connector End View (C4179)

G07846690

Courtesy of FORD MOTOR CO.

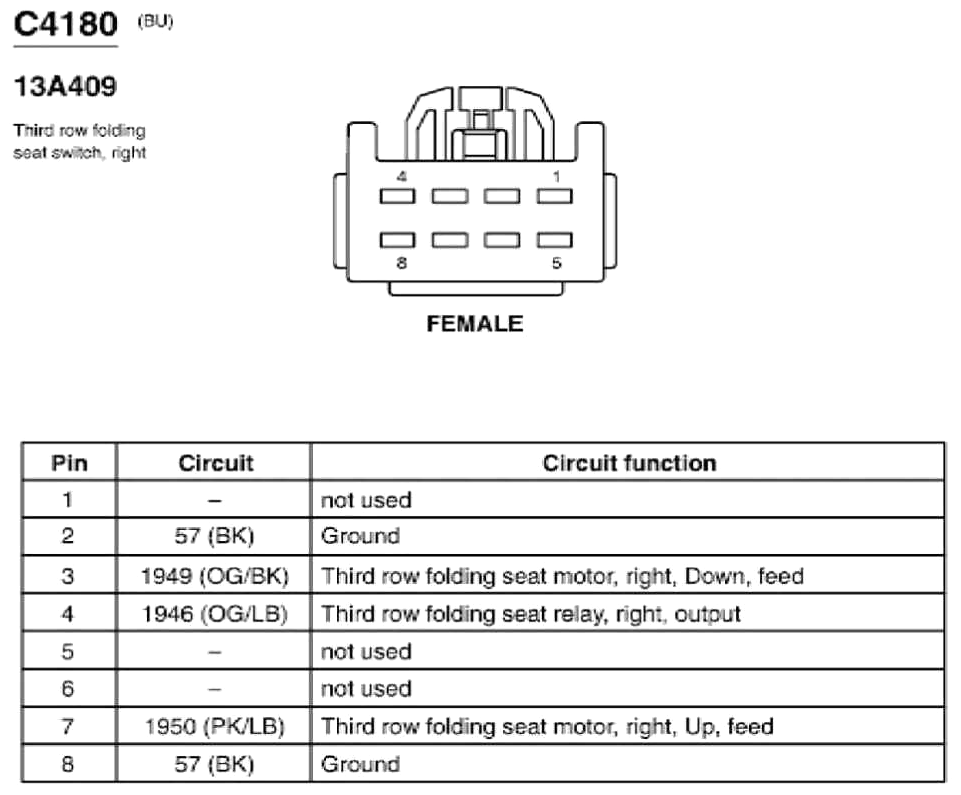

Fig 424: Third Row Folding Seat Switch, Right Connector End View (C4180)

G07846691

Courtesy of FORD MOTOR CO.

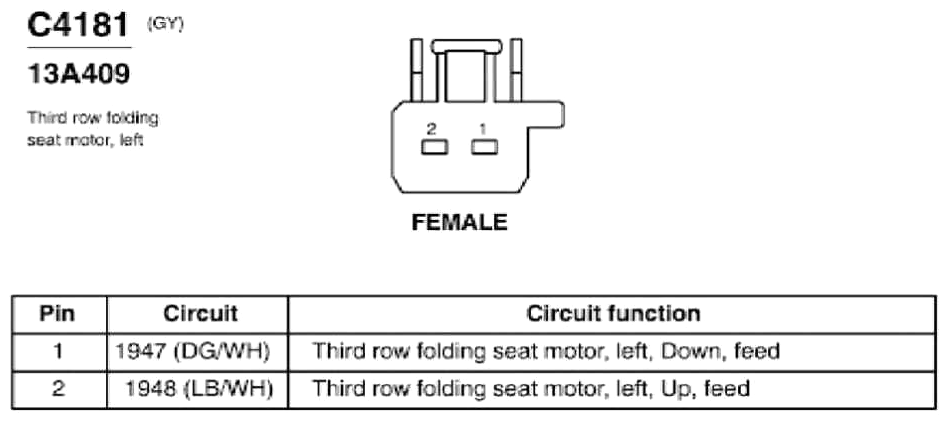

Fig 425: Third Row Folding Seat Motor, Left Connector End View (C4181)

G07846692

Courtesy of FORD MOTOR CO.

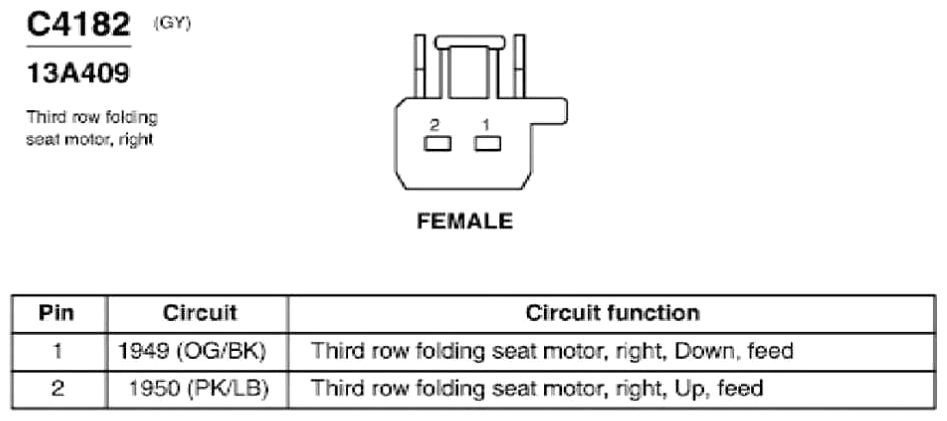

Fig 426: Third Row Folding Seat Motor, Right Connector End View (C4182)

G07846693

Courtesy of FORD MOTOR CO.

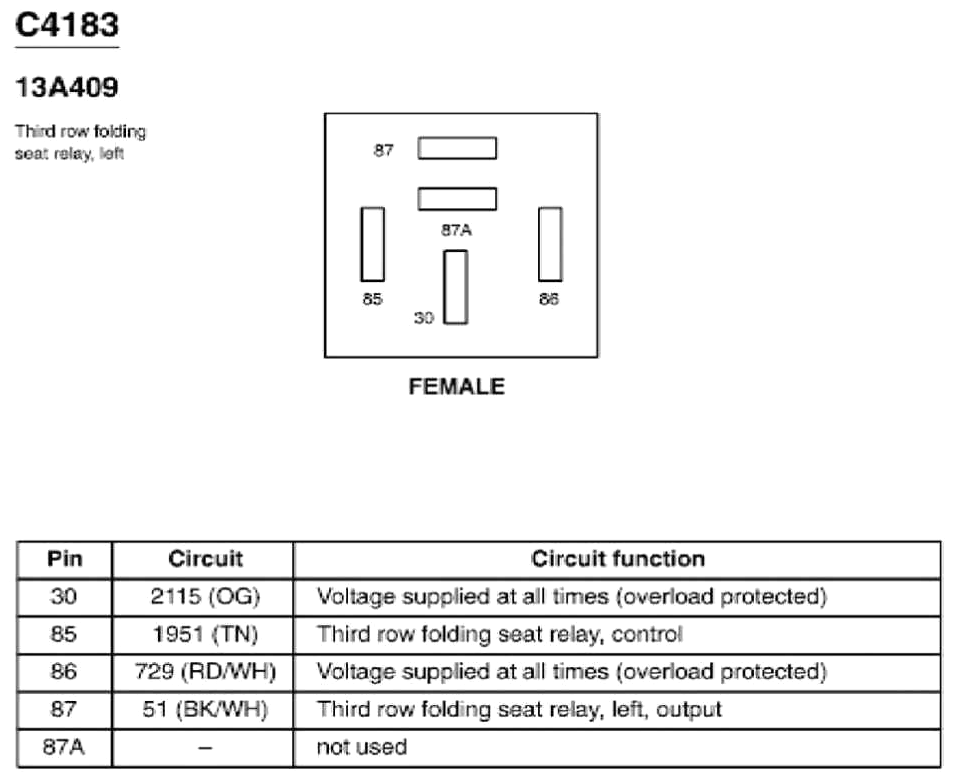

Fig 427: Third Row Folding Seat Relay, Left Connector End View (C4183)

G07846694

Courtesy of FORD MOTOR CO.

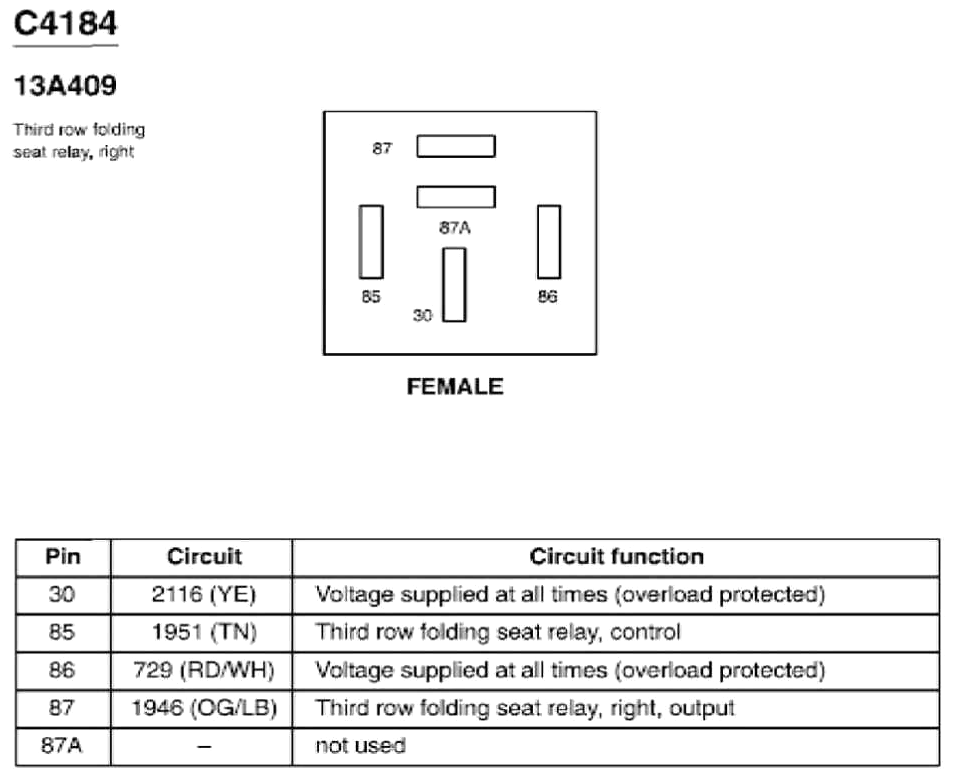

Fig 428: Third Row Folding Seat Relay, Right Connector End View (C4184)

G07846695

Courtesy of FORD MOTOR CO.

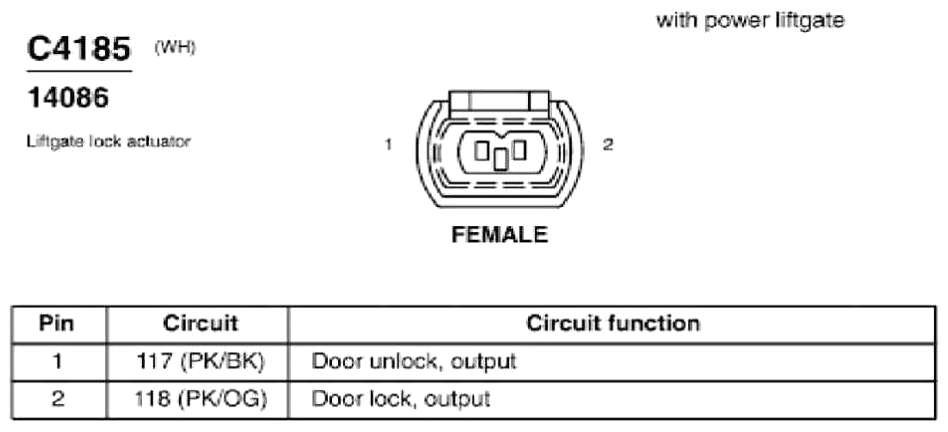

Fig 429: Liftgate Lock Actuator Connector End View (C4185)

G07846696

Courtesy of FORD MOTOR CO.

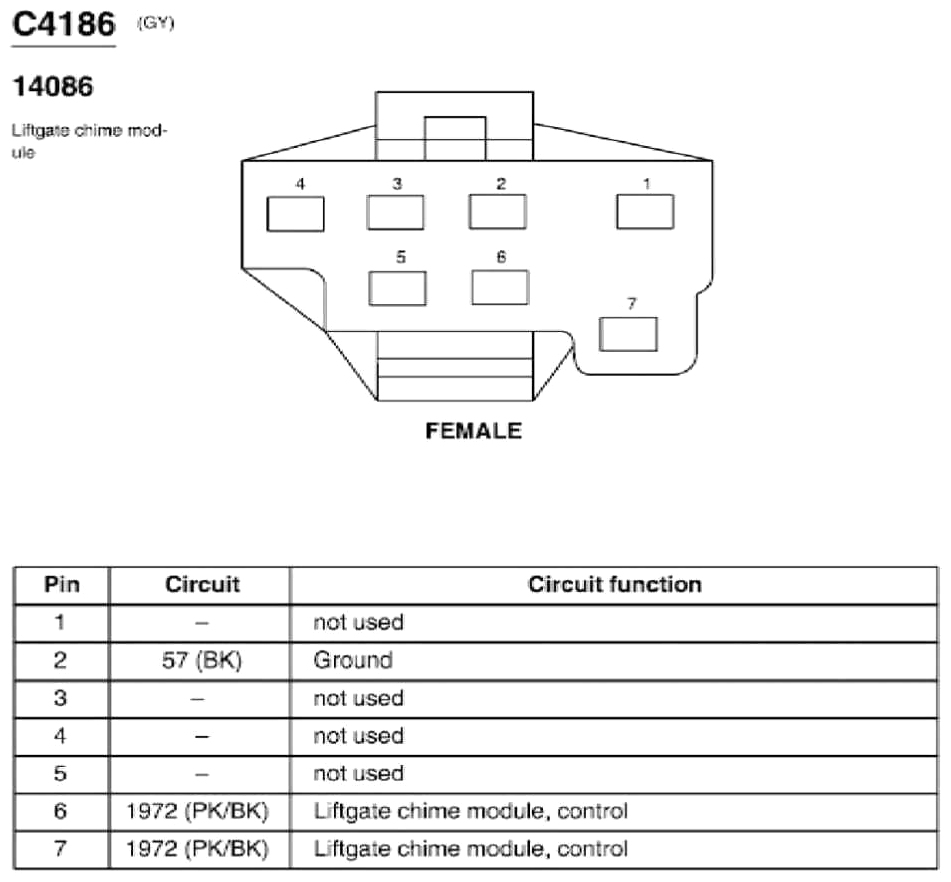

Fig 430: Liftgate Chime Module Connector End View (C4186)

G07846697

Courtesy of FORD MOTOR CO.

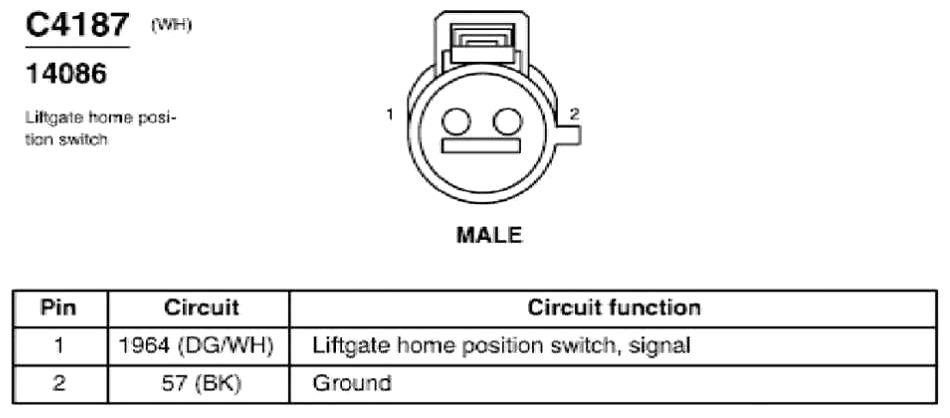

Fig 431: Liftgate Home Position Switch Connector End View (C4187)

G07846698

Courtesy of FORD MOTOR CO.

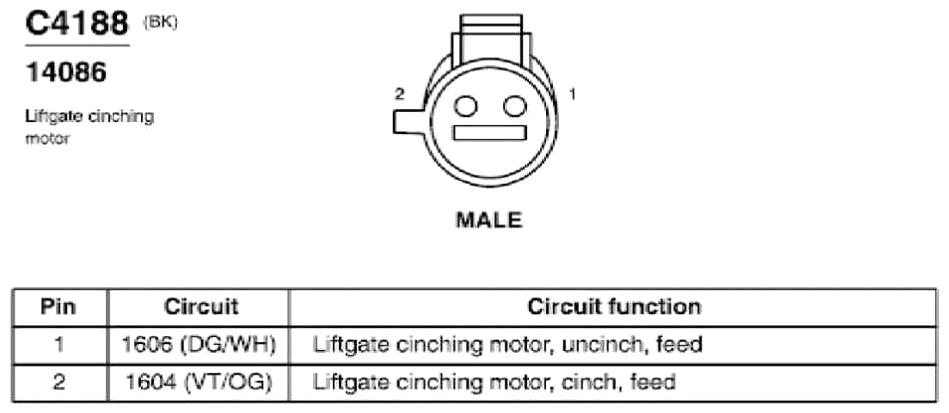

Fig 432: Liftgate Cinching Motor Connector End View (C4188)

G07846699

Courtesy of FORD MOTOR CO.

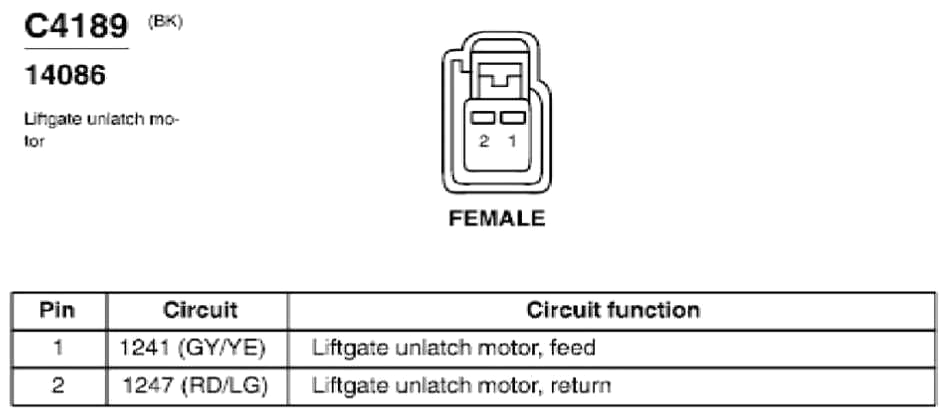

Fig 433: Liftgate Unlatch Motor Connector End View (C4189)

G07846700

Courtesy of FORD MOTOR CO.

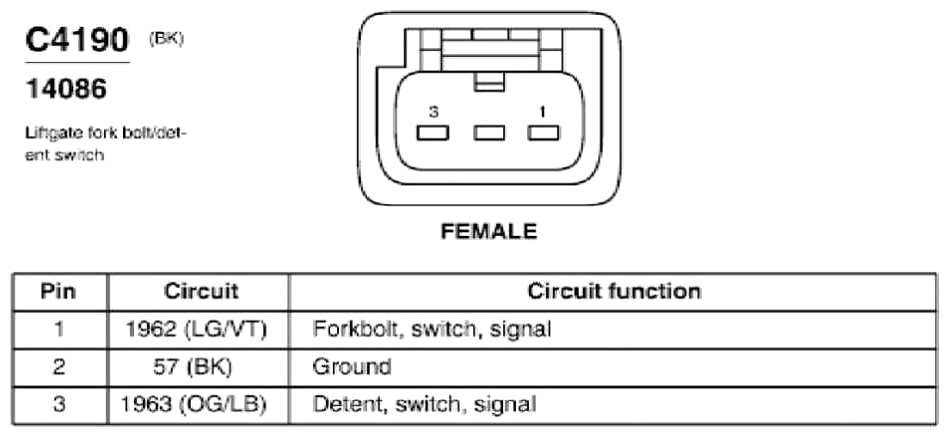

Fig 434: Liftgate Fork Bolt/Detent Switch Connector End View (C4190)

G07846701

Courtesy of FORD MOTOR CO.

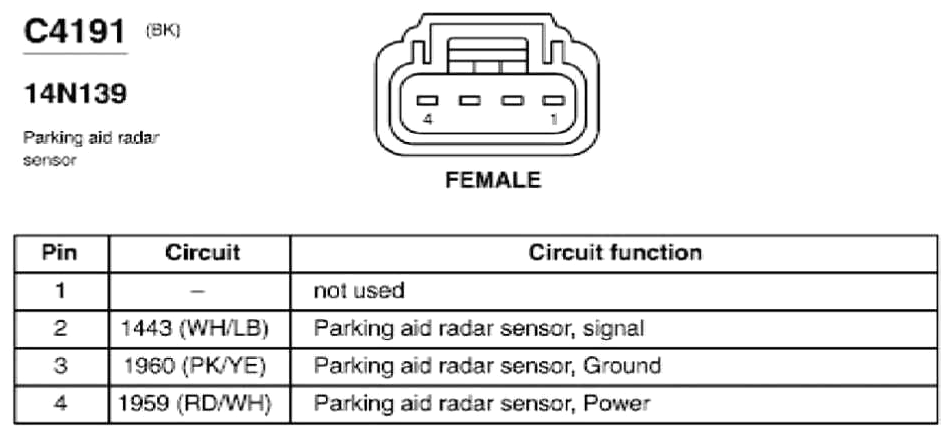

Fig 435: Parking Aid Radar/Sensor Connector End View (C4191)

G07846702

Courtesy of FORD MOTOR CO.

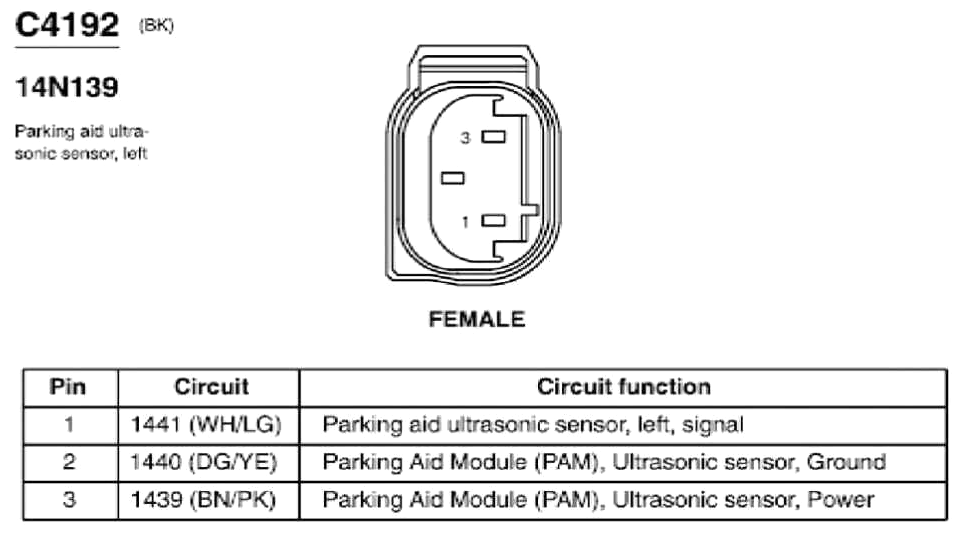

Fig 436: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)

G07846703

Courtesy of FORD MOTOR CO.

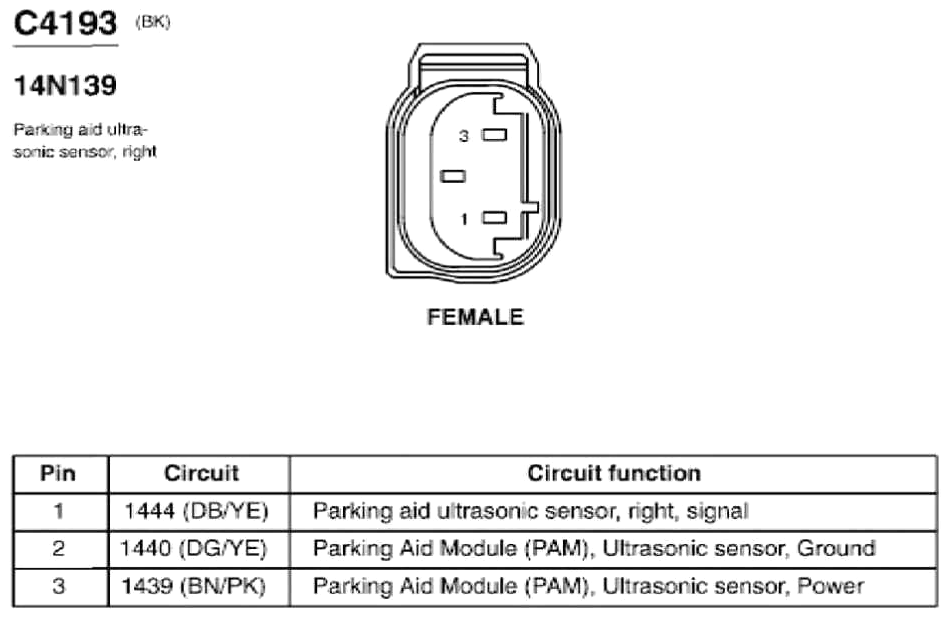

Fig 437: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)

G07846704

Courtesy of FORD MOTOR CO.

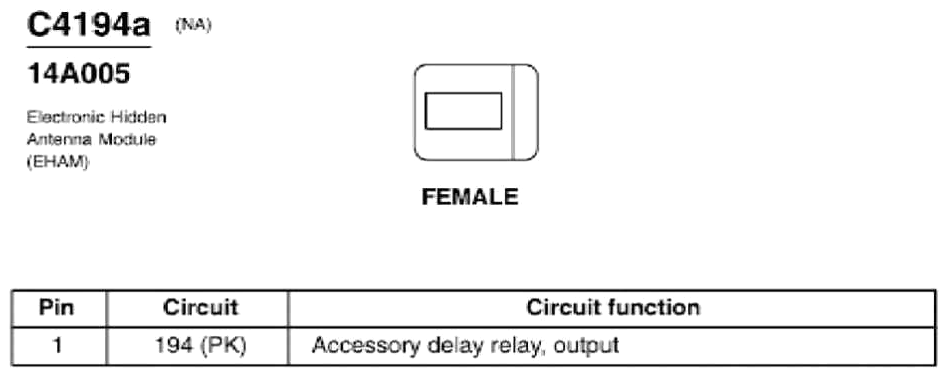

Fig 438: Electronic Hidden Antenna Module (EHAM) Connector End View (C4194a)

G07846705

Courtesy of FORD MOTOR CO.

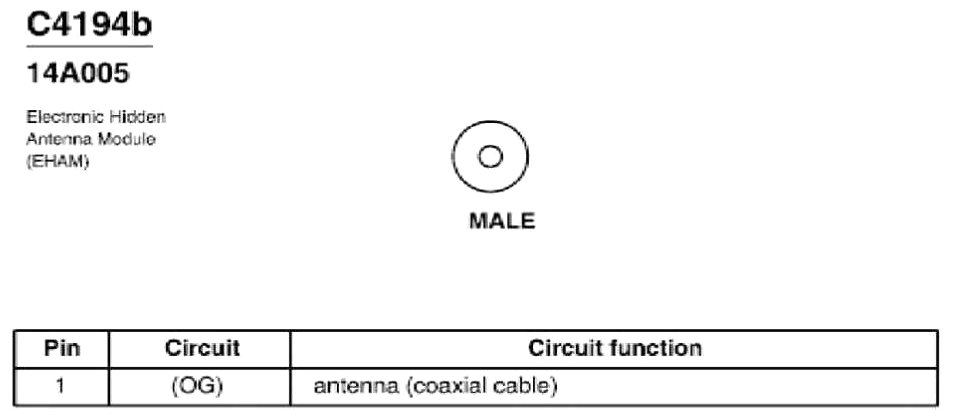

Fig 439: Electronic Hidden Antenna Module (EHAM) Connector End View (C4914b)

G07846706

Courtesy of FORD MOTOR CO.

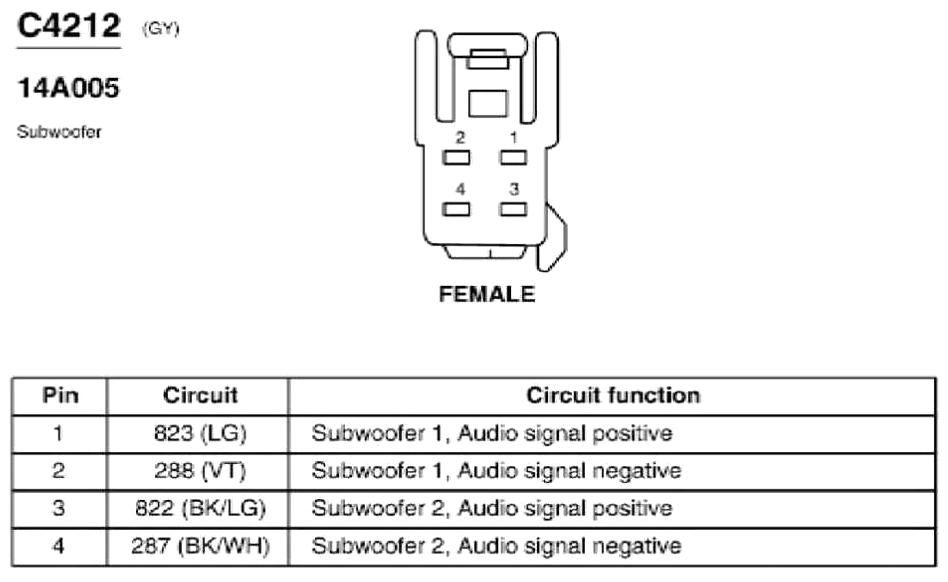

Fig 440: Subwoofer Connector End View (C4212)

G07846707

Courtesy of FORD MOTOR CO.

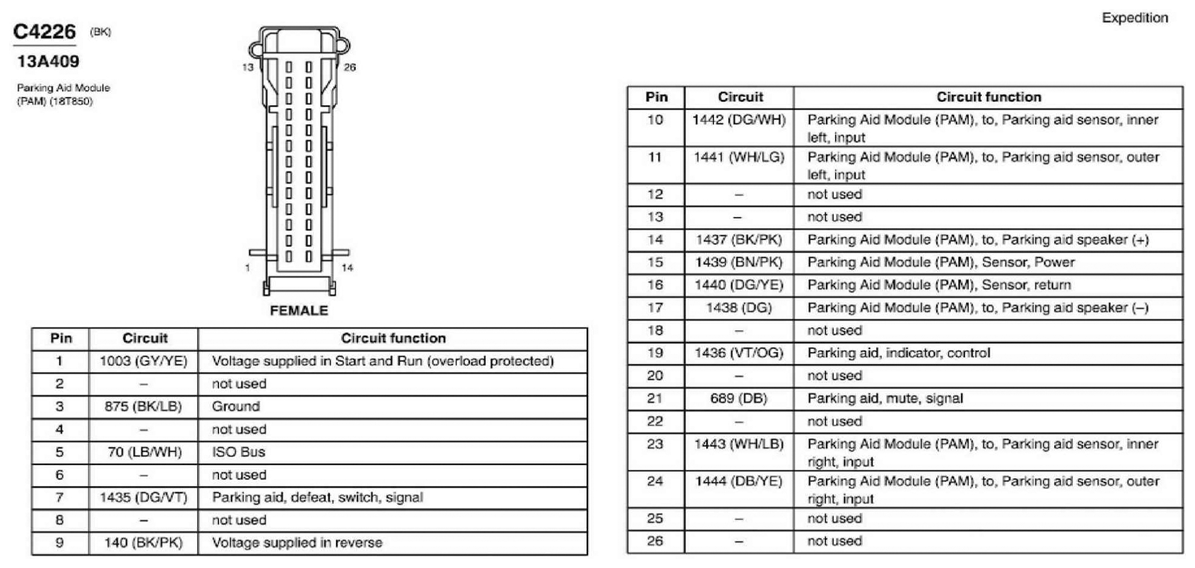

Fig 441: Parking Aid Module (PAM) Connector End View (C4226)

G04596501

Courtesy of FORD MOTOR CO.

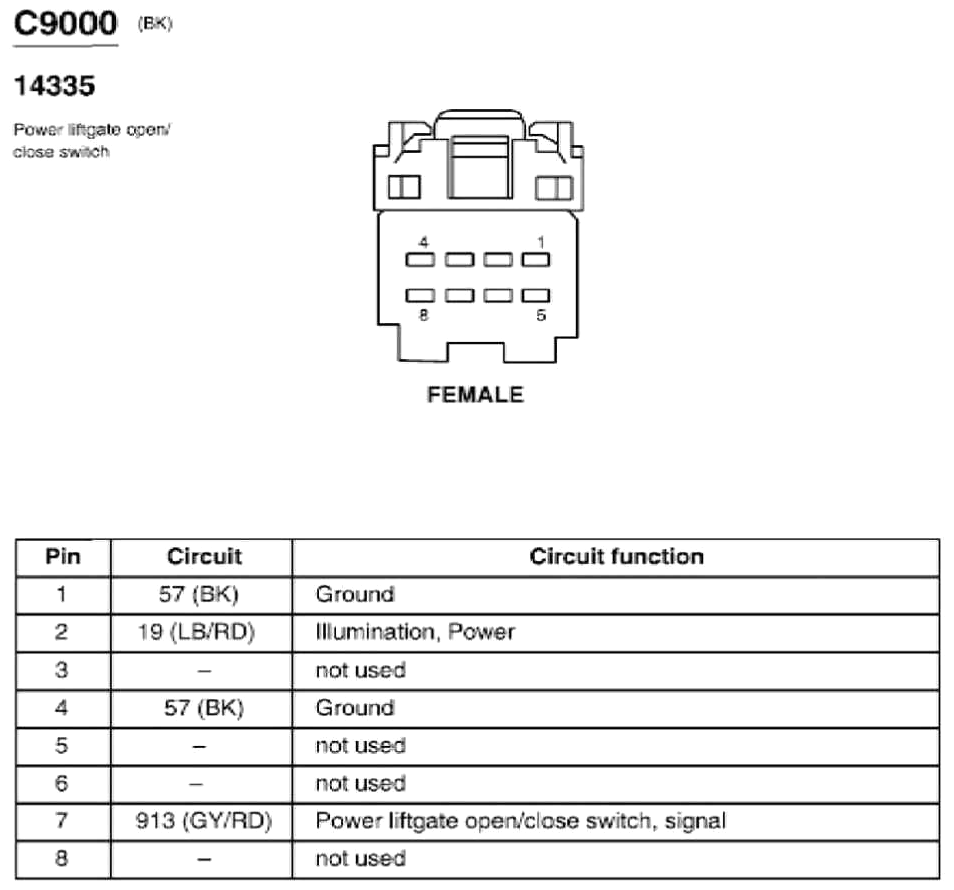

Fig 442: Power Liftgate Open/Close Switch Connector End View (C9000)

G07846708

Courtesy of FORD MOTOR CO.

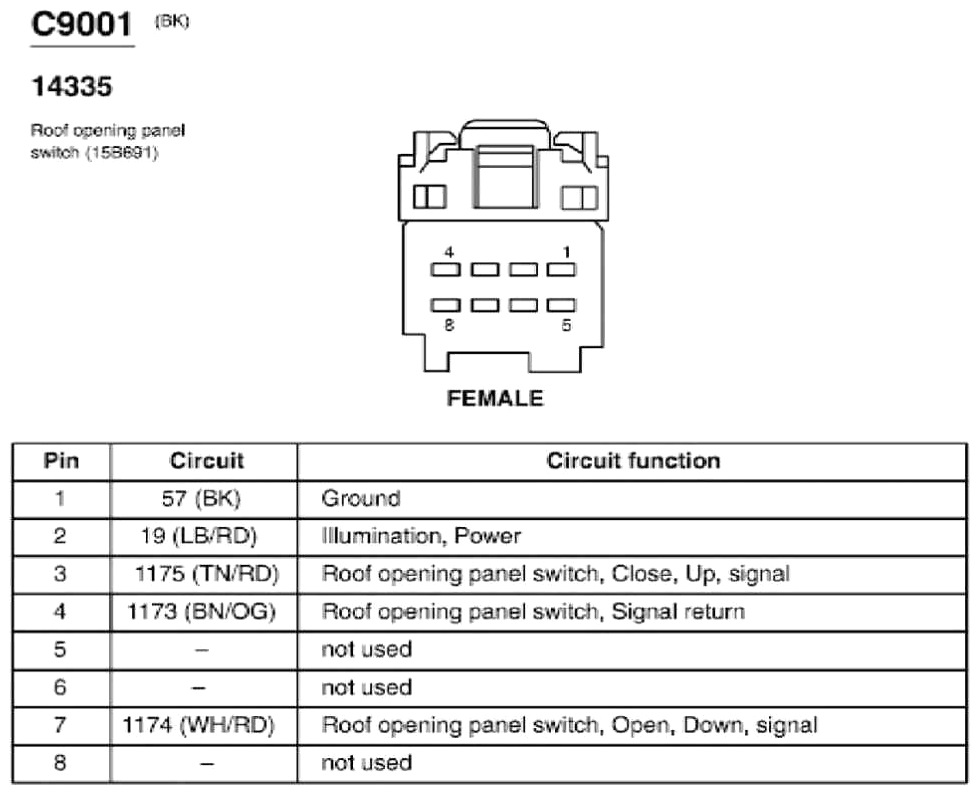

Fig 443: Roof Opening Panel Switch Connector End View (C9001)

G07846709

Courtesy of FORD MOTOR CO.

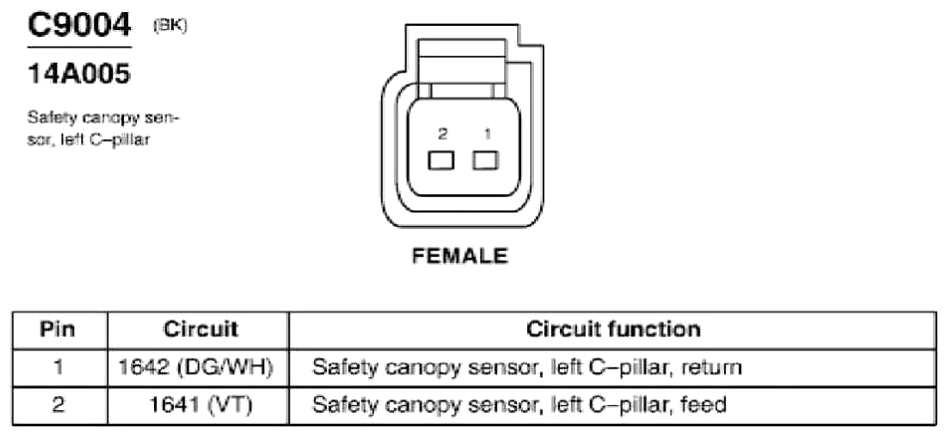

Fig 444: Safety Canopy Sensor, Left C-Pillar Connector End View (C9004)

G07846710

Courtesy of FORD MOTOR CO.

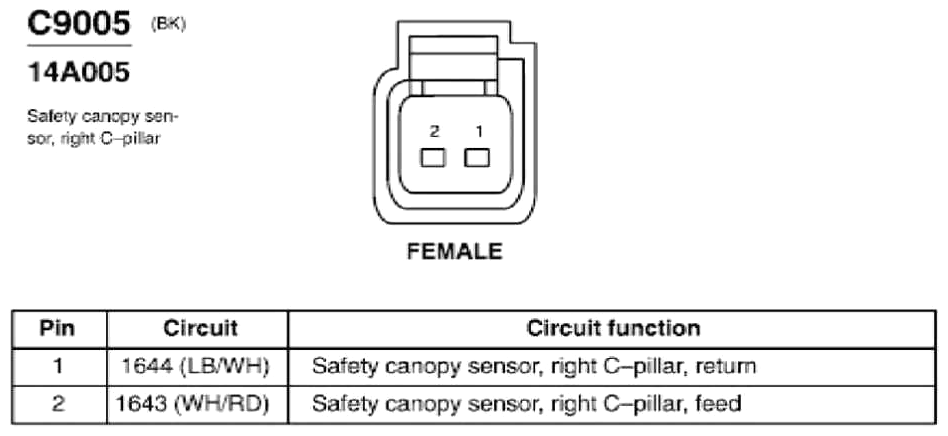

Fig 445: Safety Canopy Sensor, Right C-Pillar Connector End View (C9005)

G07846711

Courtesy of FORD MOTOR CO.

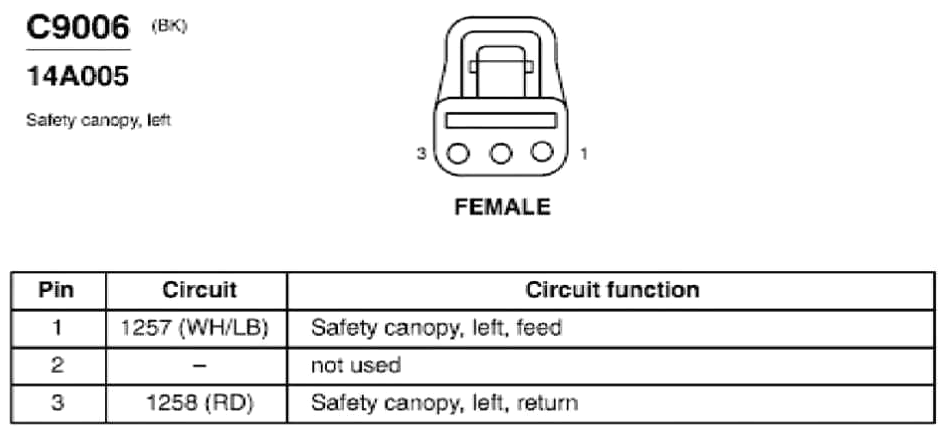

Fig 446: Safety Canopy, Left Connector End View (C9006)

G07846712

Courtesy of FORD MOTOR CO.

Fig 447: Safety Canopy, Right Connector End View (C9007)

G07846713

Courtesy of FORD MOTOR CO.

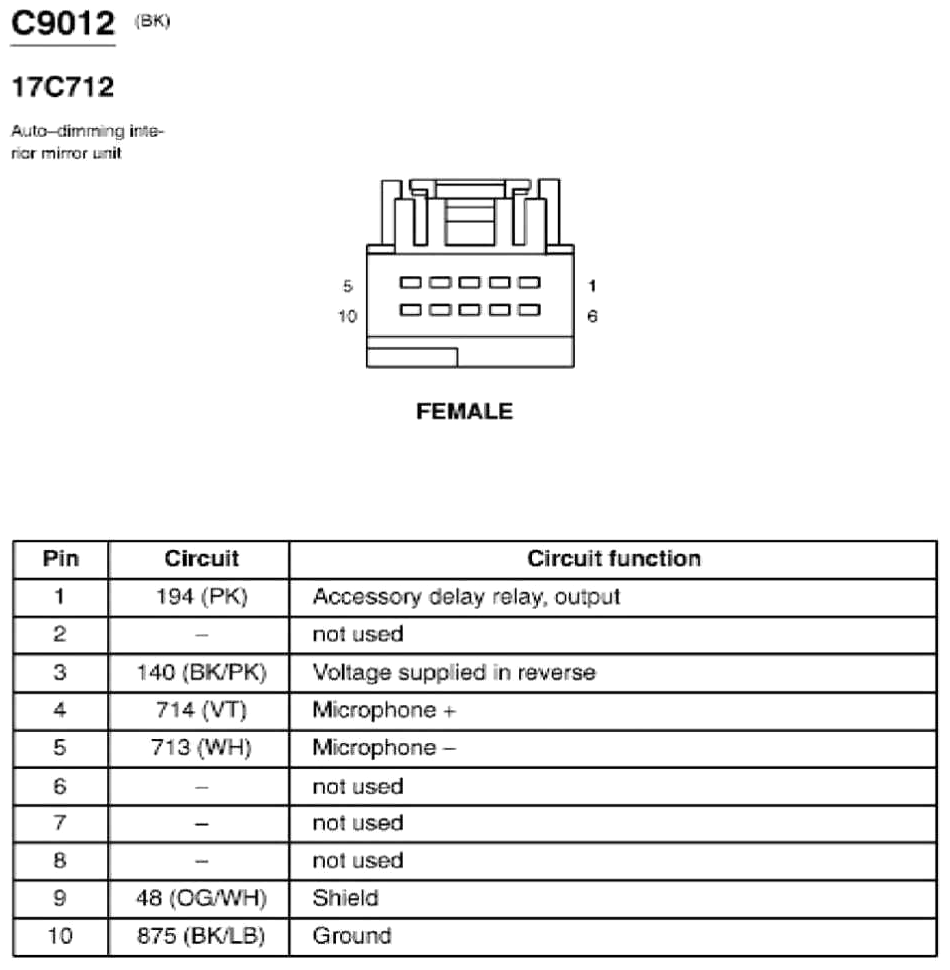

Fig 448: Auto-Dimming Interior Mirror Unit Connector End View (C9012)

G07846714

Courtesy of FORD MOTOR CO.

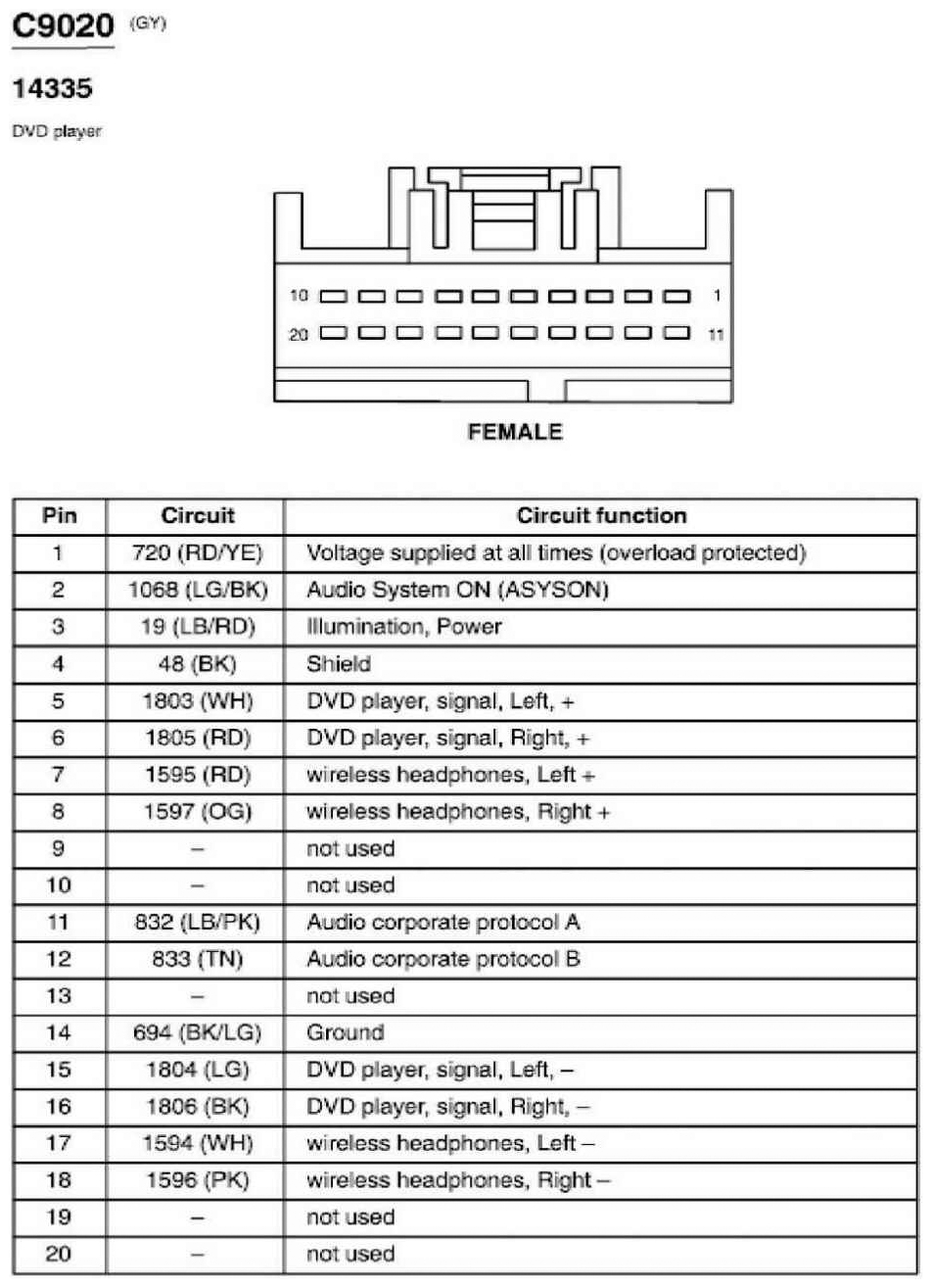

Fig 449: DVD Player Connector End View (C9020)

G04596504

Courtesy of FORD MOTOR CO.
