Liftgate Handle, Lock and Latch - Exploded View

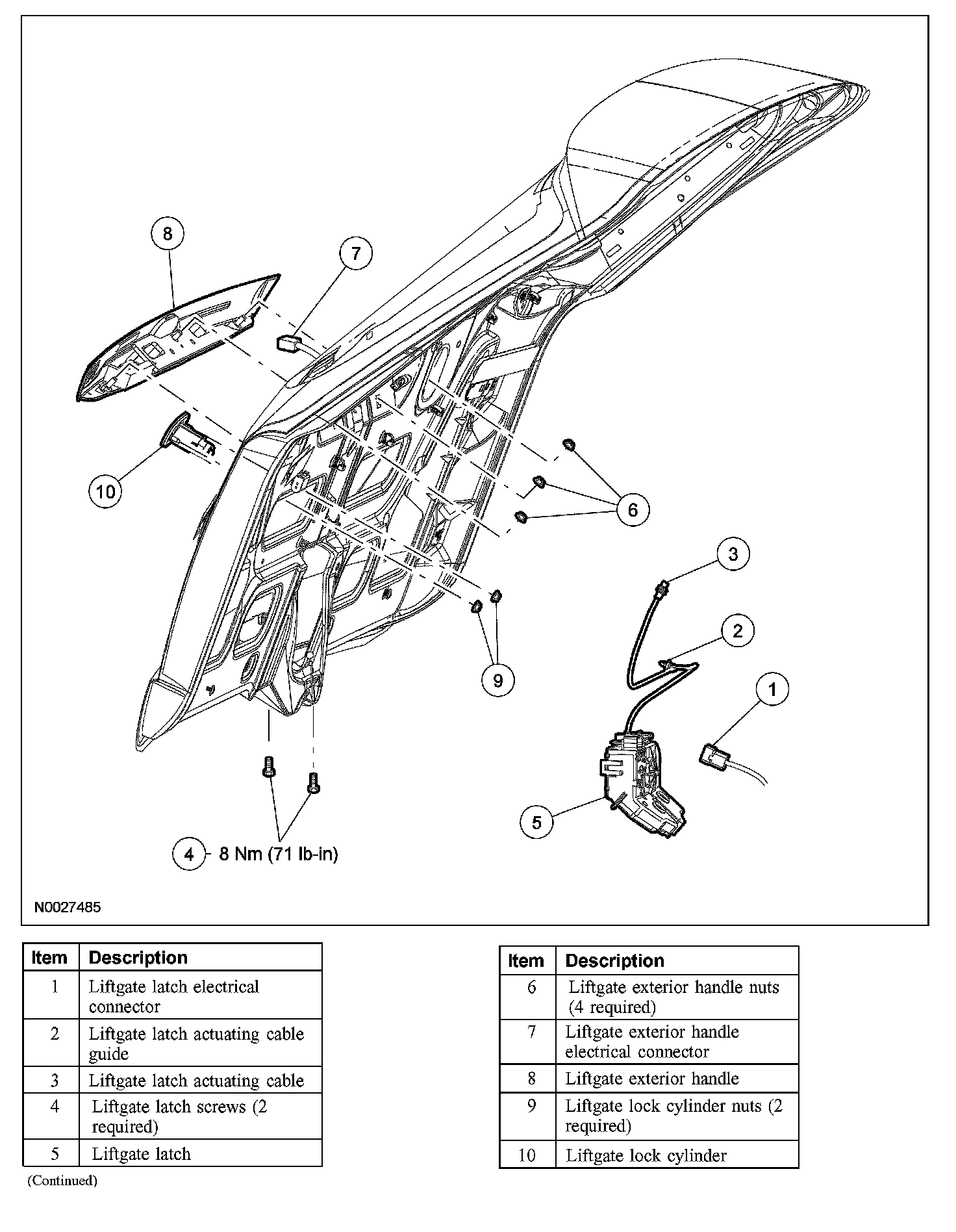

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
