Exterior Mirrors - Exploded View

NOTE: The LH side is shown, the RH side is similar.

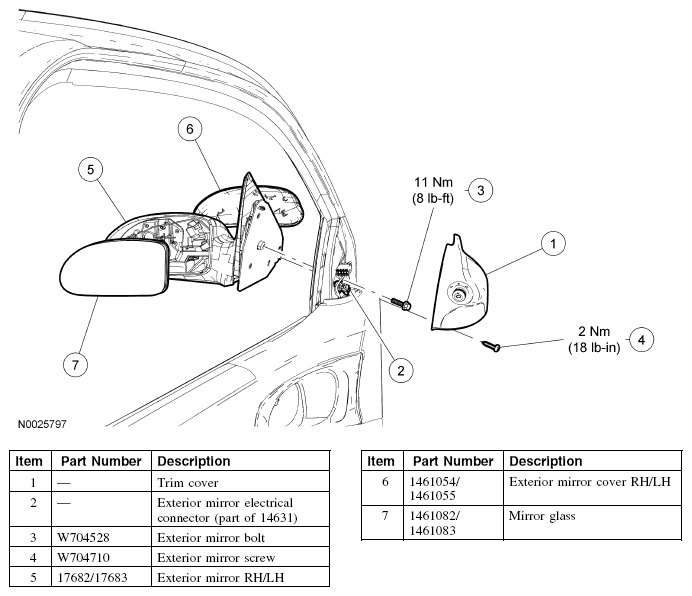

Fig 1: Exploded View Of Exterior Mirrors (with Torque Specifications)
G04654330Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
