Connector Views
Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.
Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.
Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.
Fig 4: Generator Connector End View (C102c)
Courtesy of FORD MOTOR CO.
Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.
Fig 6: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.
Fig 7: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.
Fig 8: Coil On Plug (COP) Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 9: Coil On Plug (COP) Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 10: Coil On Plug (COP) Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 11: Coil On Plug (COP) Connector End View (C114)
Courtesy of FORD MOTOR CO.
Fig 12: Speed Control Servo Connector End View (C122)
Courtesy of FORD MOTOR CO.
Fig 13: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.
Fig 14: Brake Fluid Level Switch Connector End View (C124)
Courtesy of FORD MOTOR CO.
Fig 15: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.
Fig 16: ABS Test Connector End View (C126)
Courtesy of FORD MOTOR CO.
Fig 17: Engine Compartment Switch Connector End View (C127)
Courtesy of FORD MOTOR CO.
Fig 18: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.
Fig 19: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.
Fig 20: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.
Fig 21: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

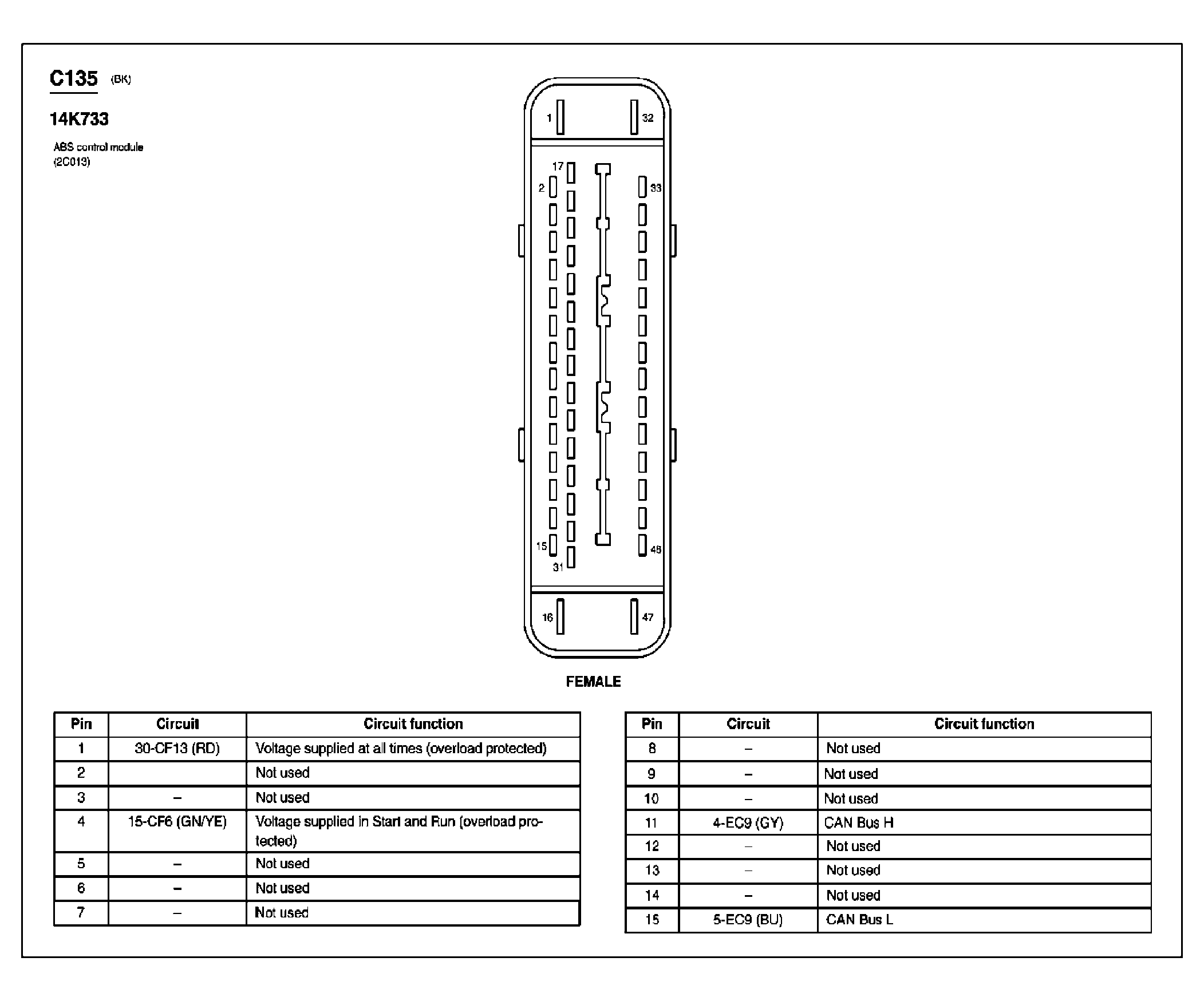

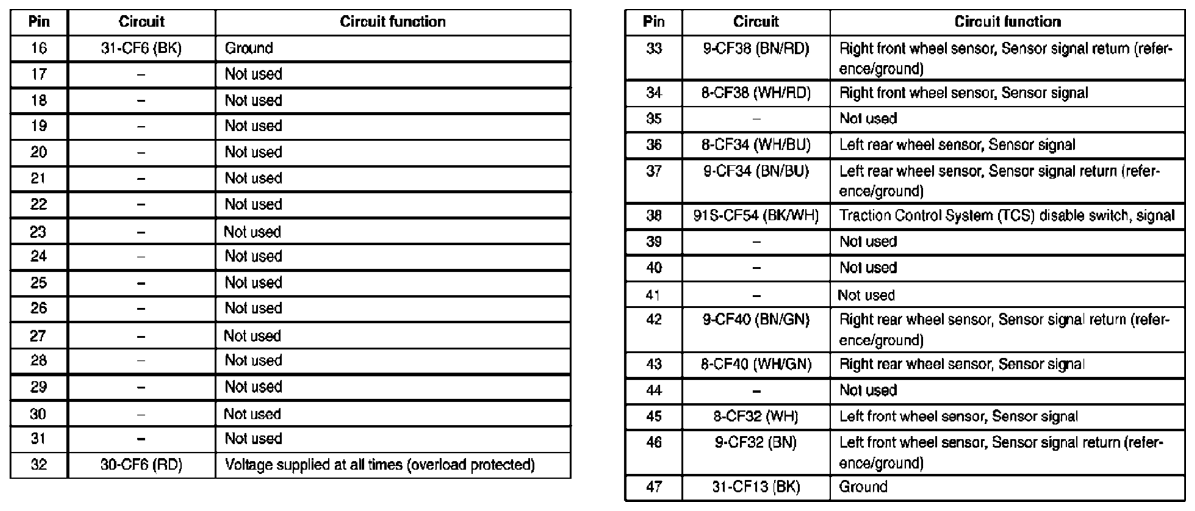

Fig 22: ABS Control Module Connector End View (C135) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 23: ABS Control Module Connector End View (C135) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.
Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
Courtesy of FORD MOTOR CO.

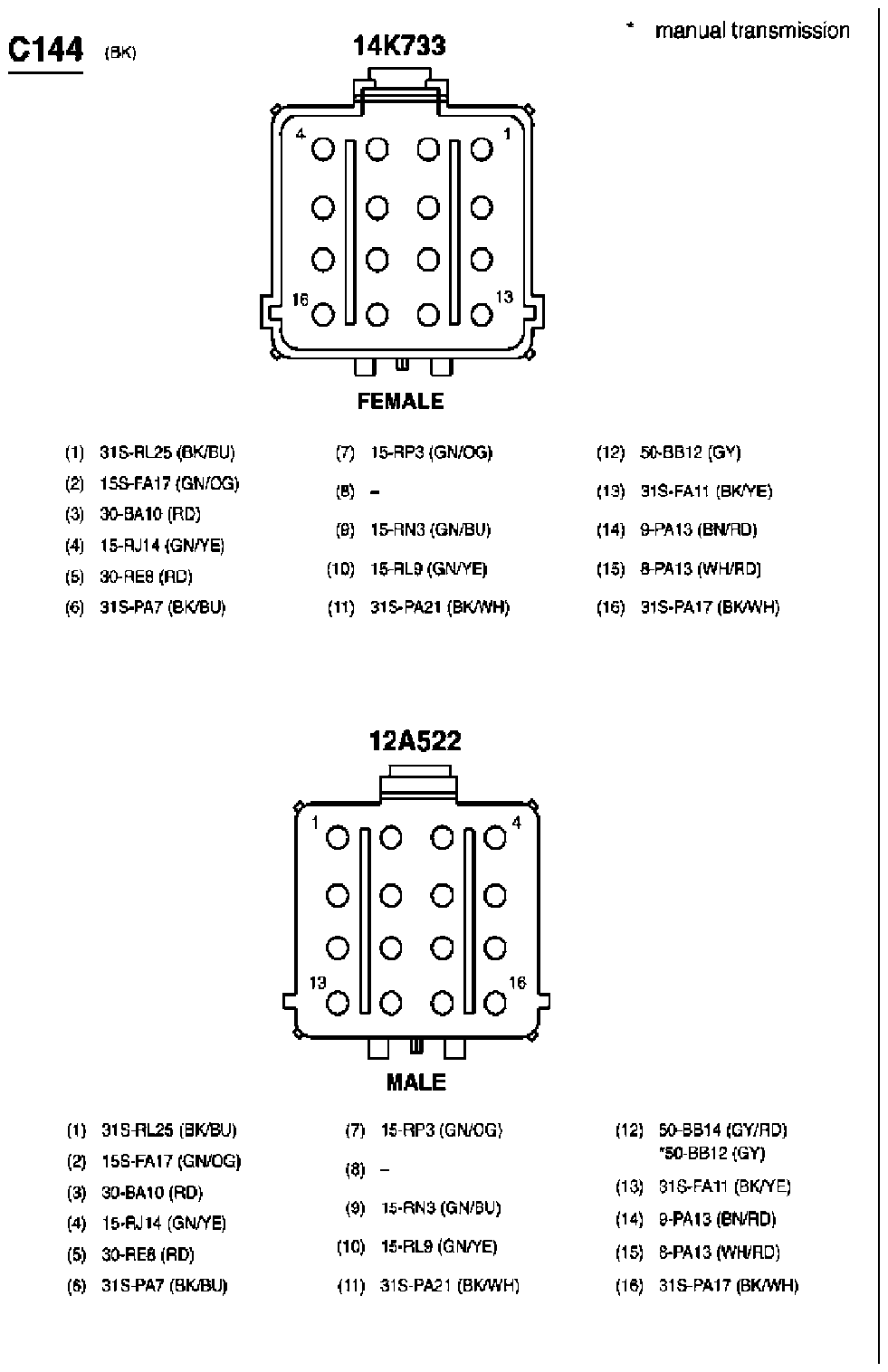

Fig 26: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.
Fig 27: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.
Fig 28: Side Lamp, Left Front Connector End View (C151)
Courtesy of FORD MOTOR CO.
Fig 29: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

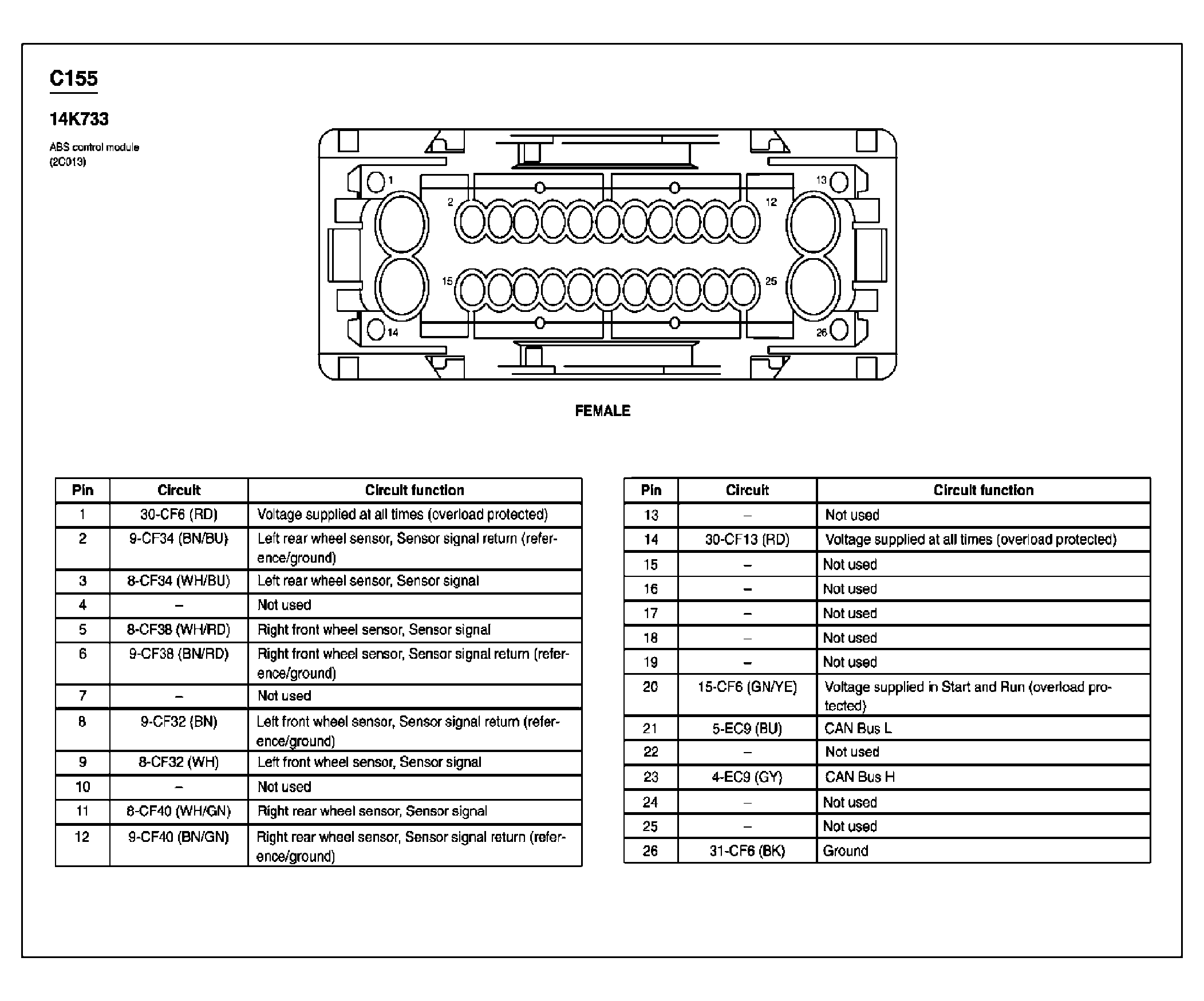

Fig 30: ABS Control Module Connector End View (C155)
Courtesy of FORD MOTOR CO.
Fig 31: Air Pump Motor Connector End View (C158)
Courtesy of FORD MOTOR CO.
Fig 32: Air Pump Relay Connector End View (C159)
Courtesy of FORD MOTOR CO.
Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.
Fig 34: Side Lamp, Right Front Connector End View (C161)
Courtesy of FORD MOTOR CO.
Fig 35: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.
Fig 36: Transmission Range (TR), Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.
Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.

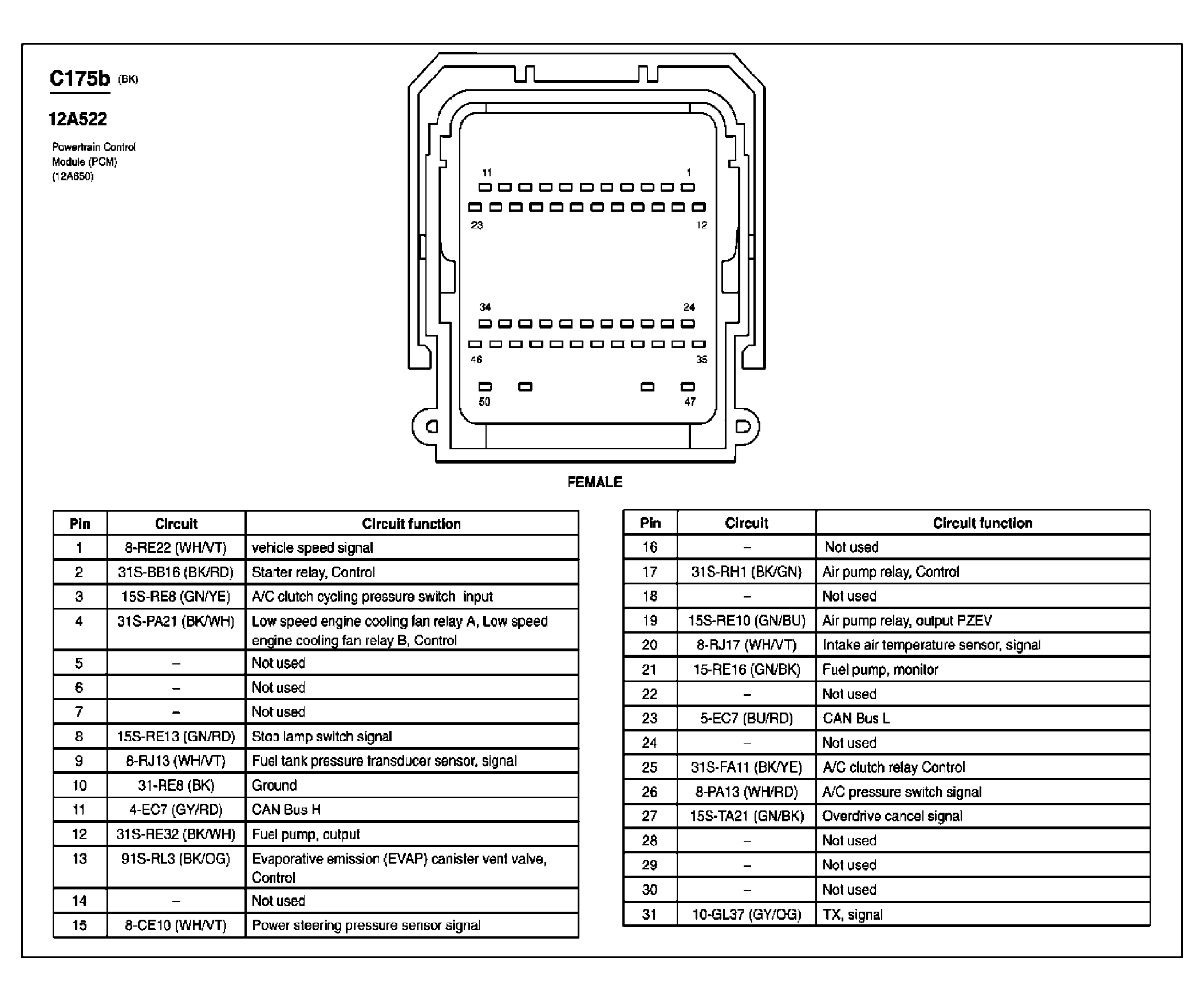

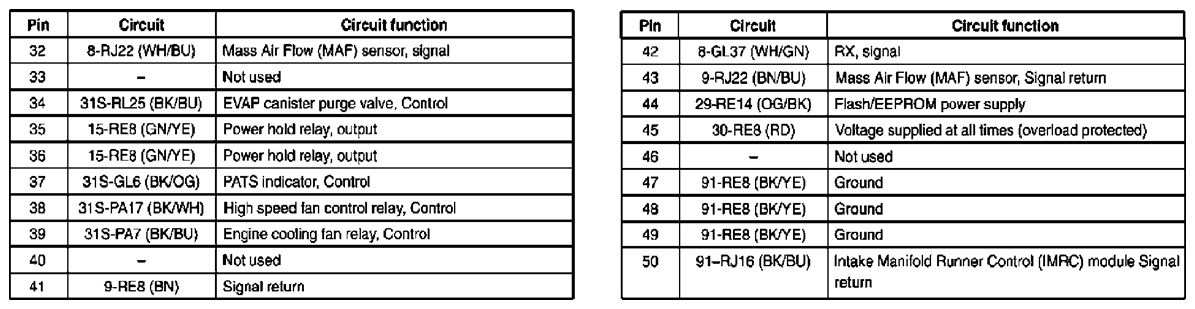

Fig 38: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 39: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
Courtesy of FORD MOTOR CO.

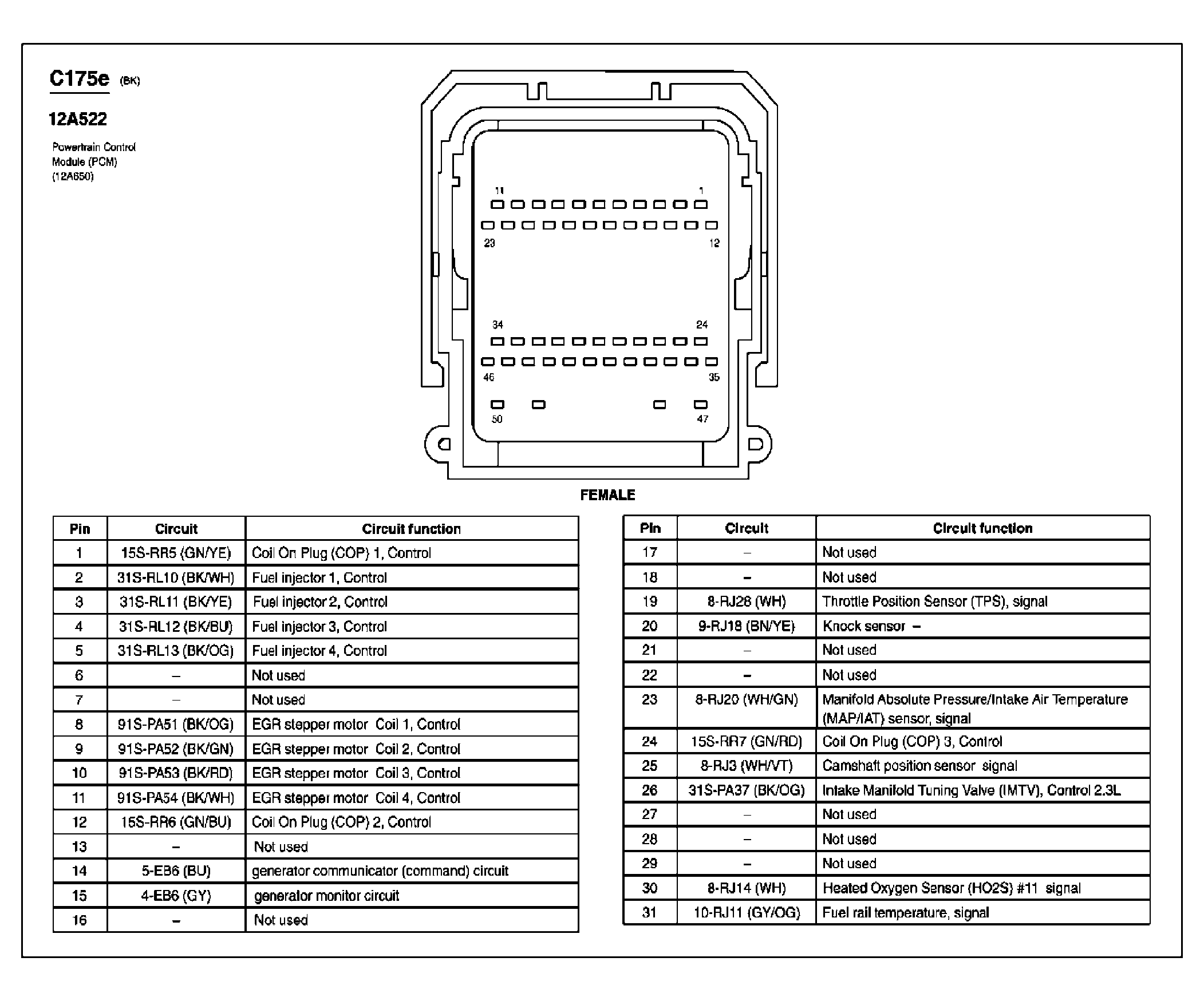

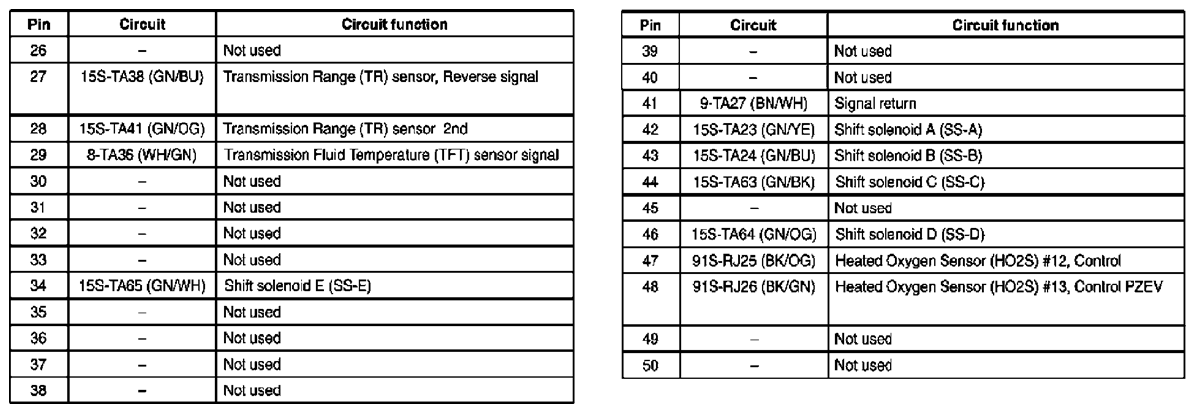

Fig 40: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
Courtesy of FORD MOTOR CO.

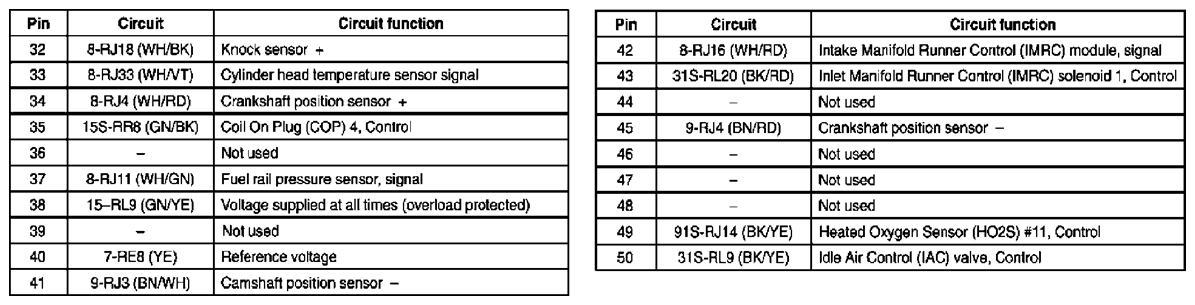

Fig 41: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
Courtesy of FORD MOTOR CO.

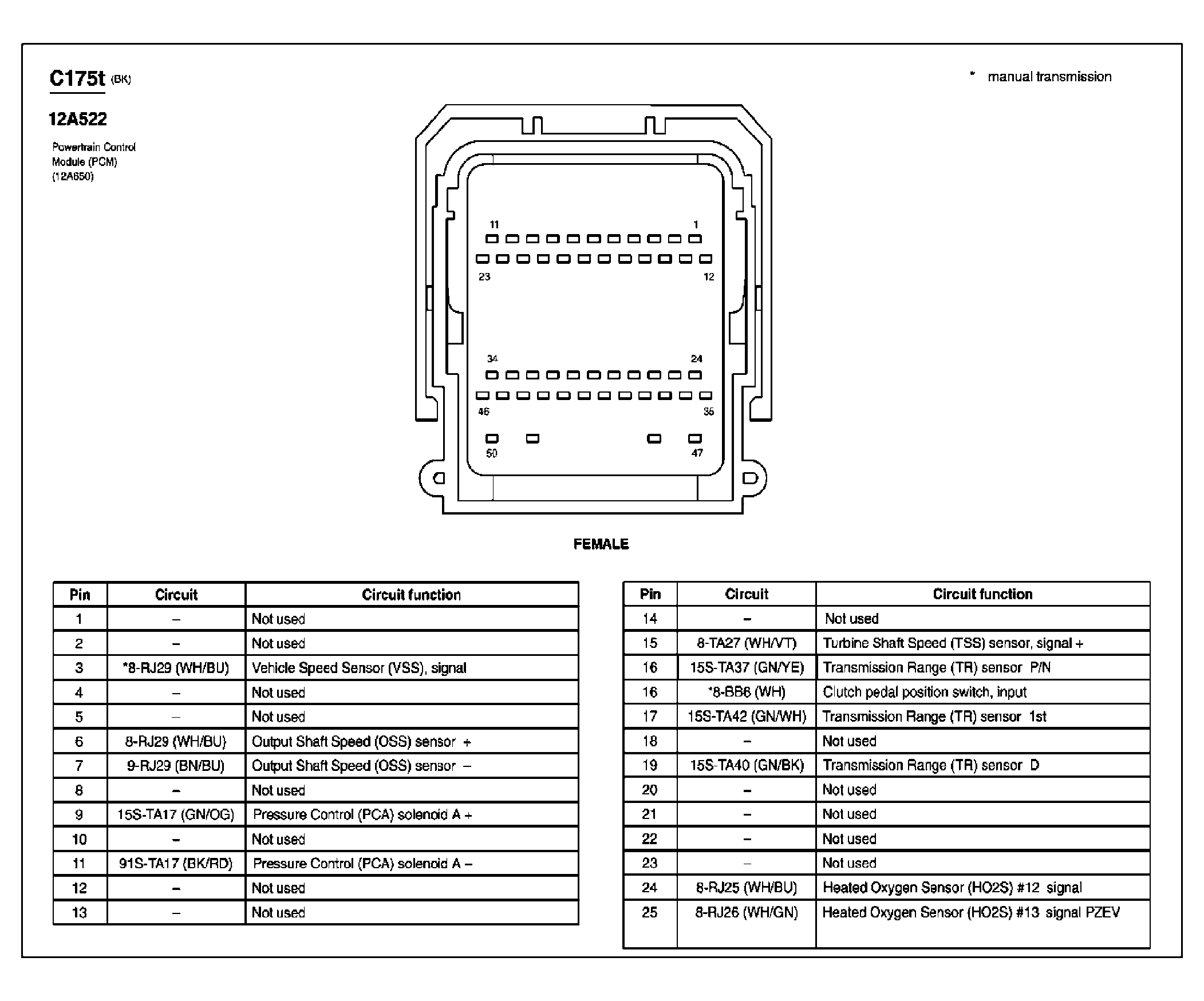

Fig 42: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 43: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 44: Forward Crash Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.
Fig 45: Camshaft Position Sensor Connector End View (C180)
Courtesy of FORD MOTOR CO.
Fig 46: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.
Fig 47: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 48: Starter Motor Connector End View (C197)
Courtesy of FORD MOTOR CO.
Fig 49: Transmission Hardware Unit Connector End View (C199)
Courtesy of FORD MOTOR CO.

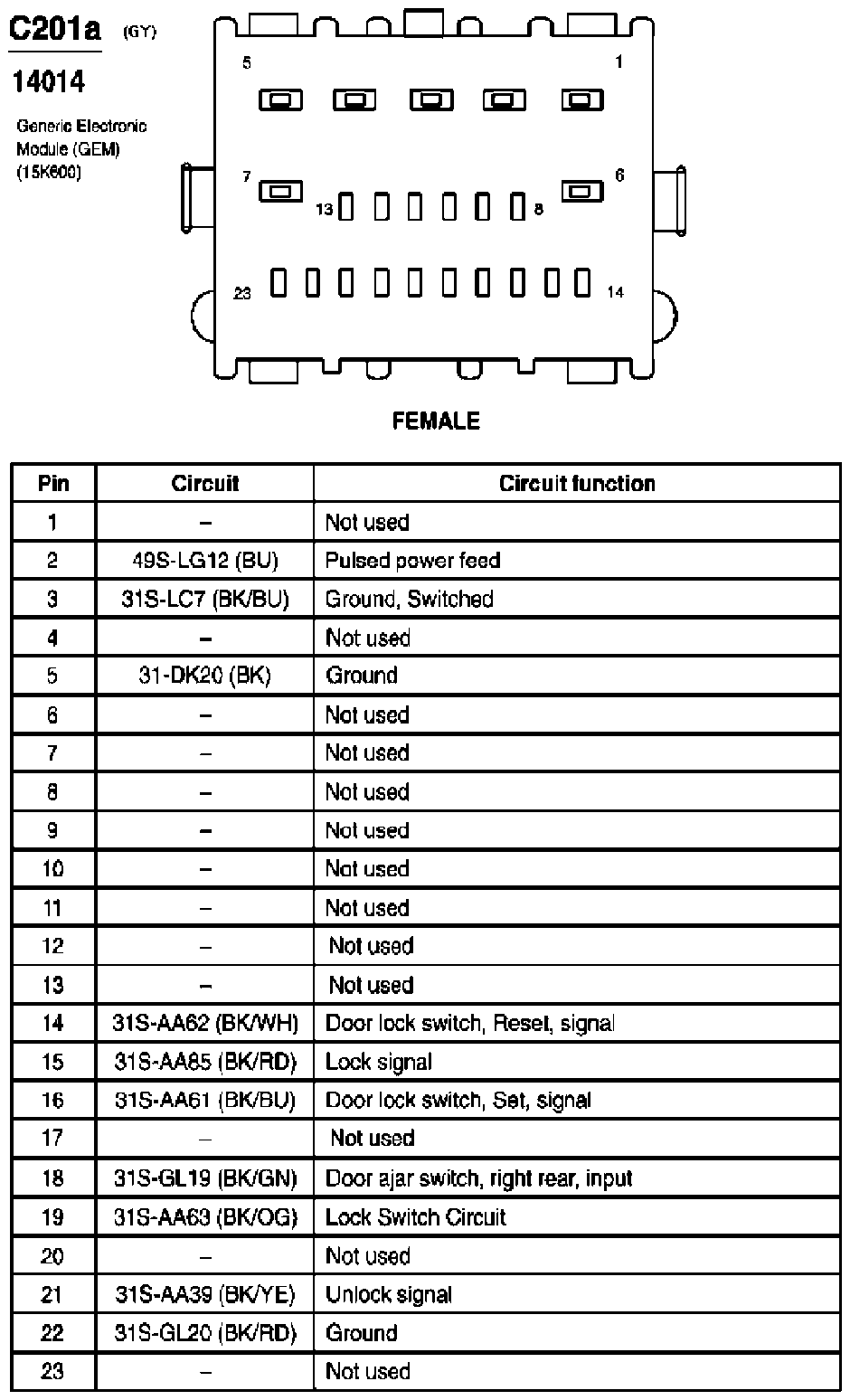

Fig 50: Generic Electronic Module (GEM) Connector End View (C201a)
Courtesy of FORD MOTOR CO.

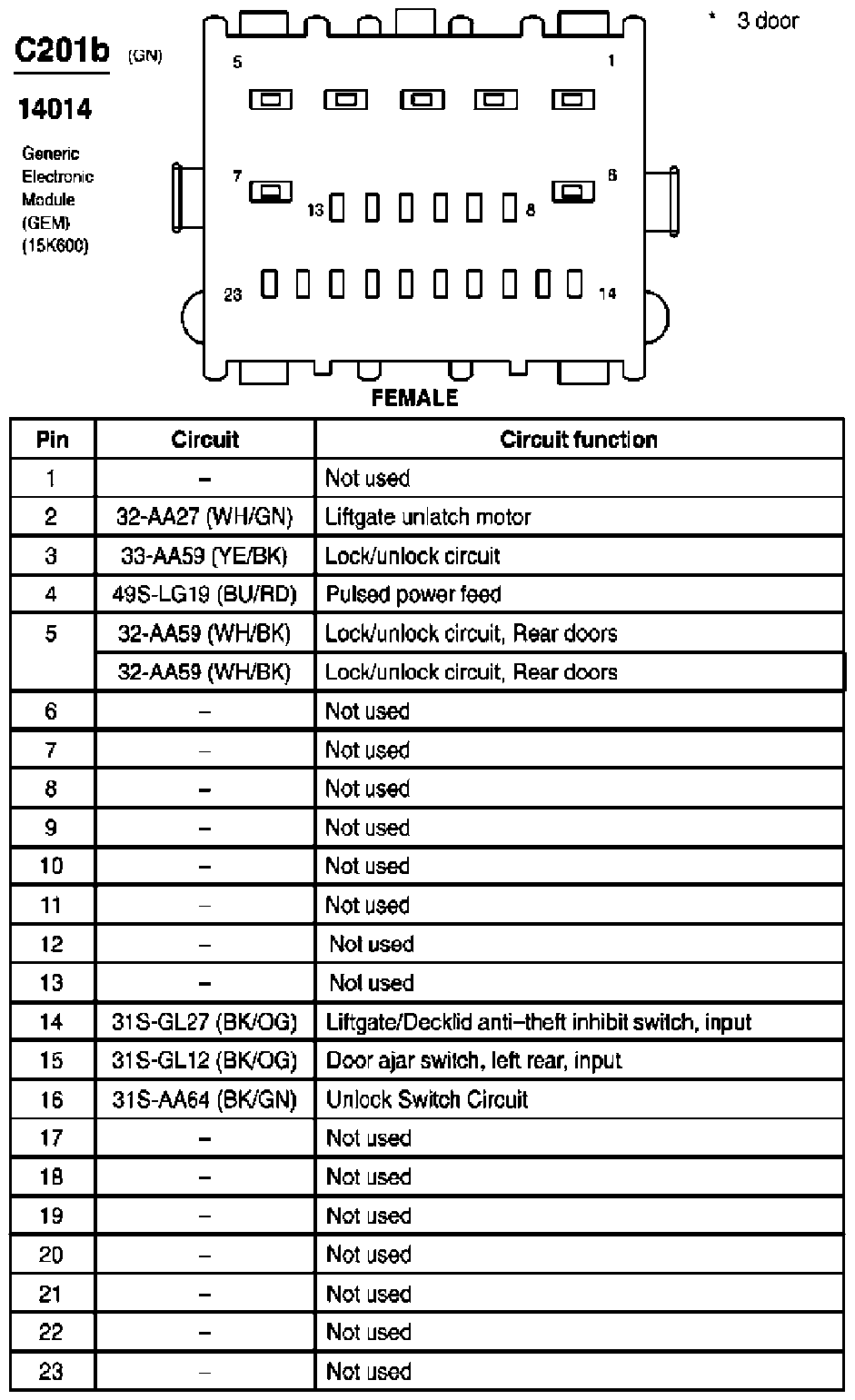

Fig 51: Generic Electronic Module (GEM) Connector End View (C201b)
Courtesy of FORD MOTOR CO.
Fig 52: Generic Electronic Module (GEM) Connector End View (C201c)
Courtesy of FORD MOTOR CO.

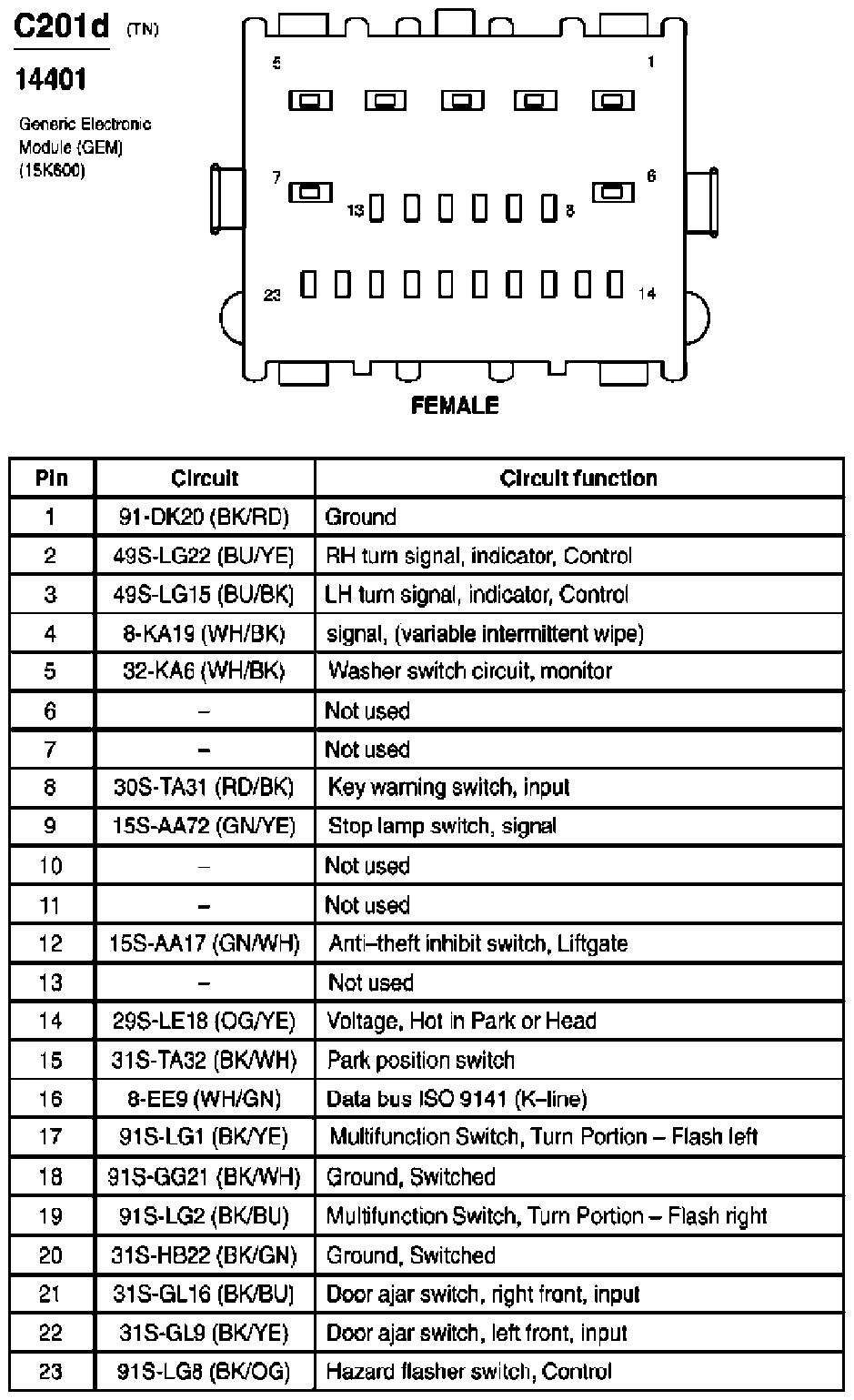

Fig 53: Generic Electronic Module (GEM) Connector End View (C201d)
Courtesy of FORD MOTOR CO.

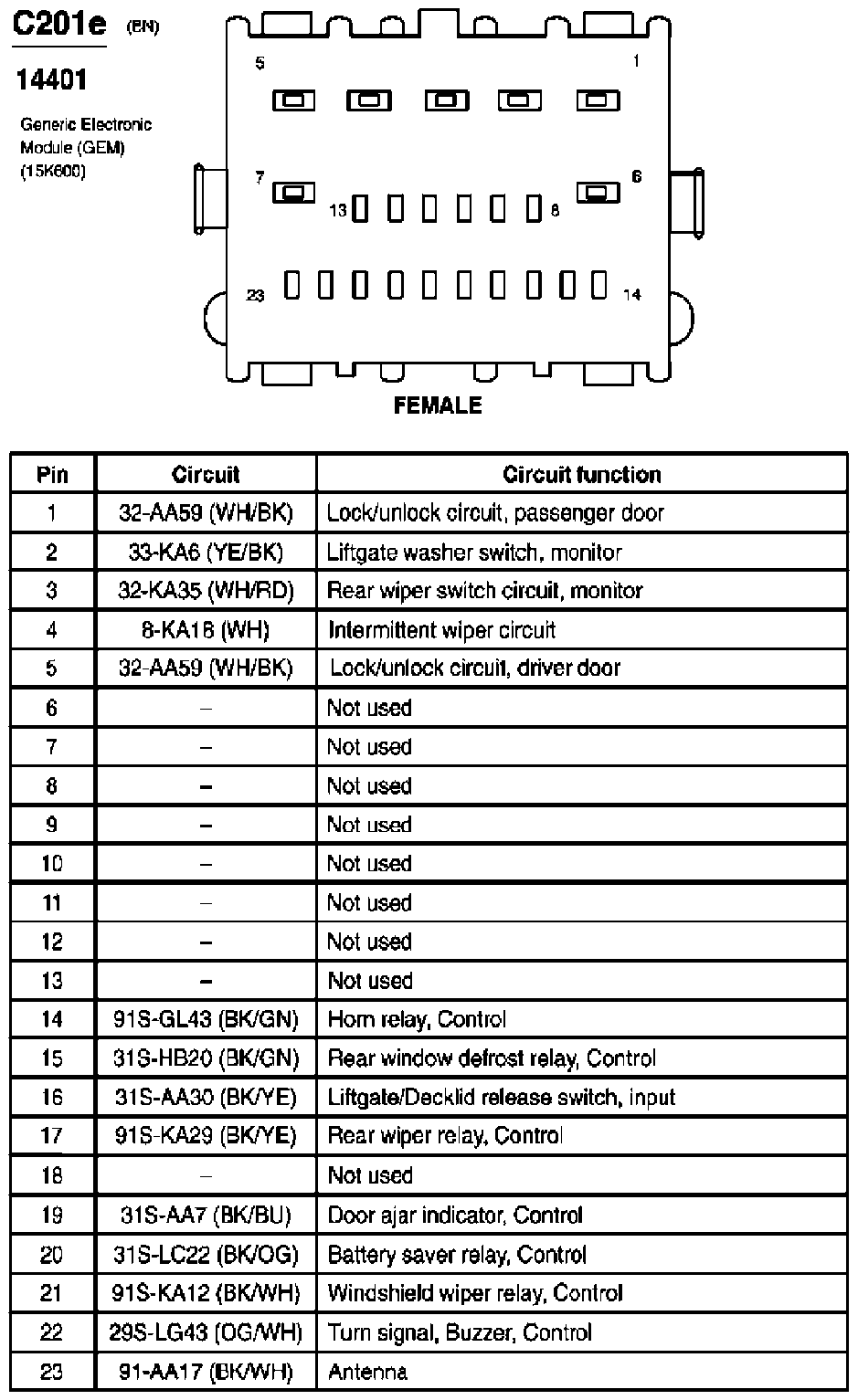

Fig 54: Generic Electronic Module (GEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.
Fig 55: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.

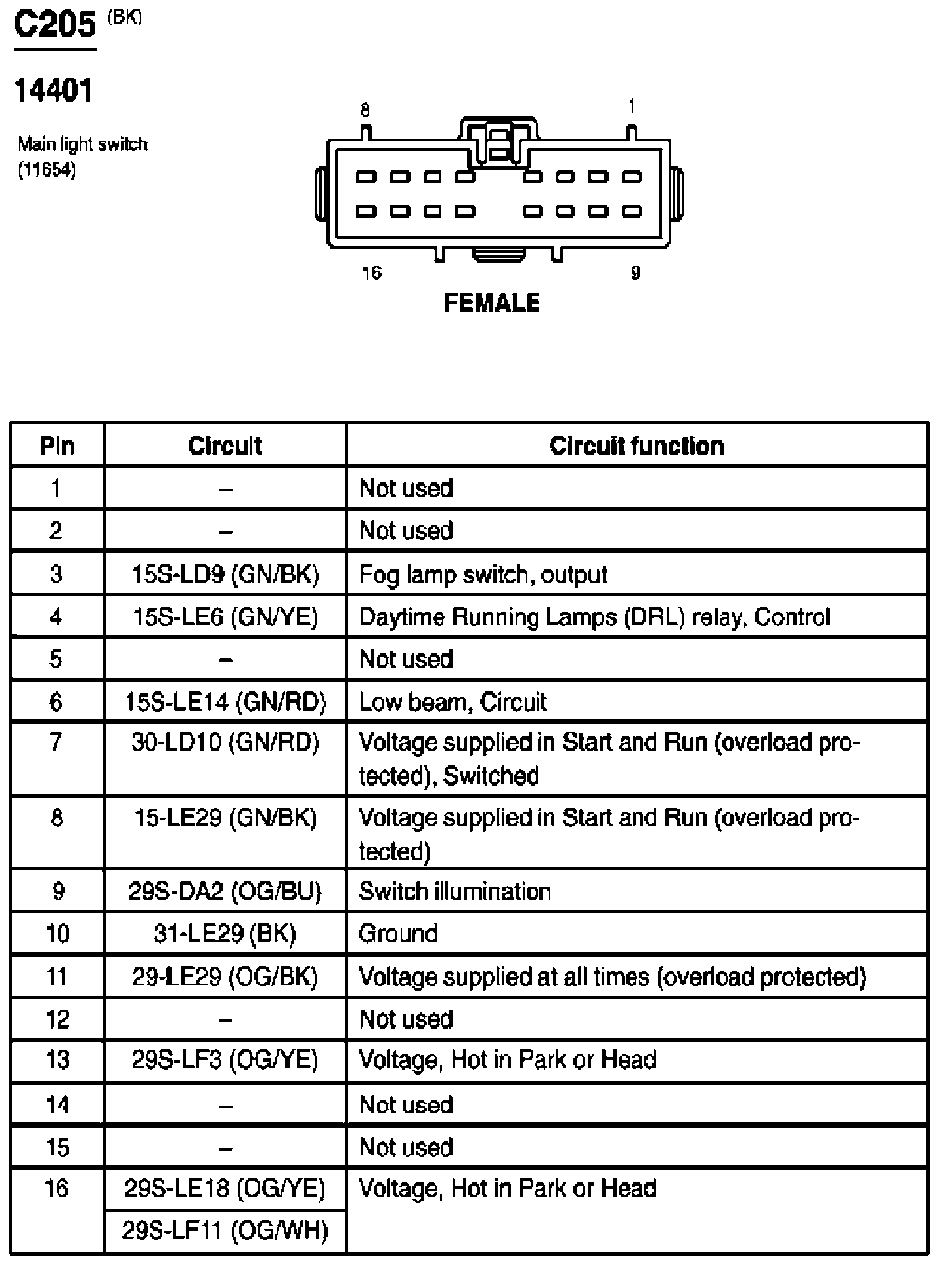

Fig 56: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.

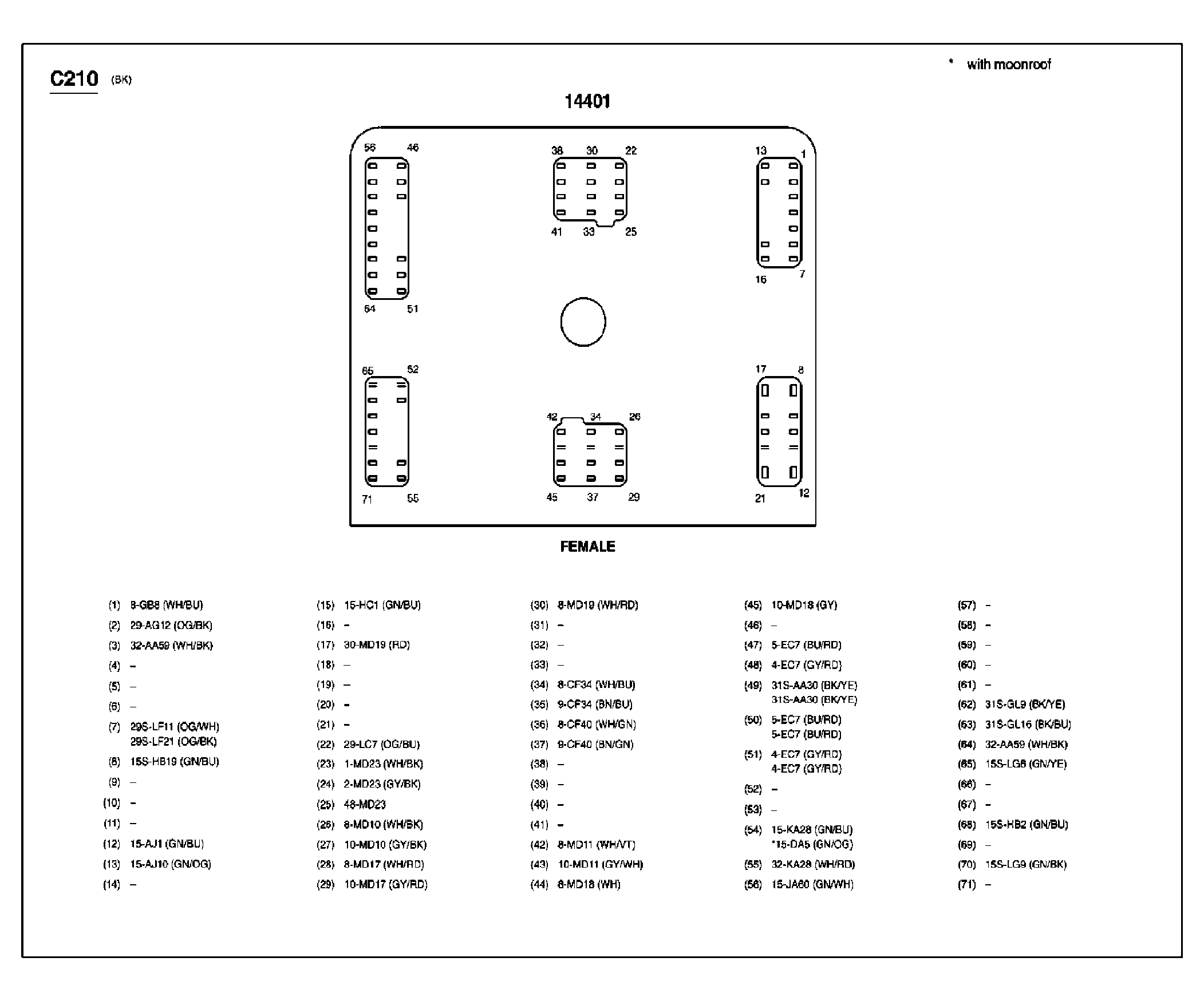

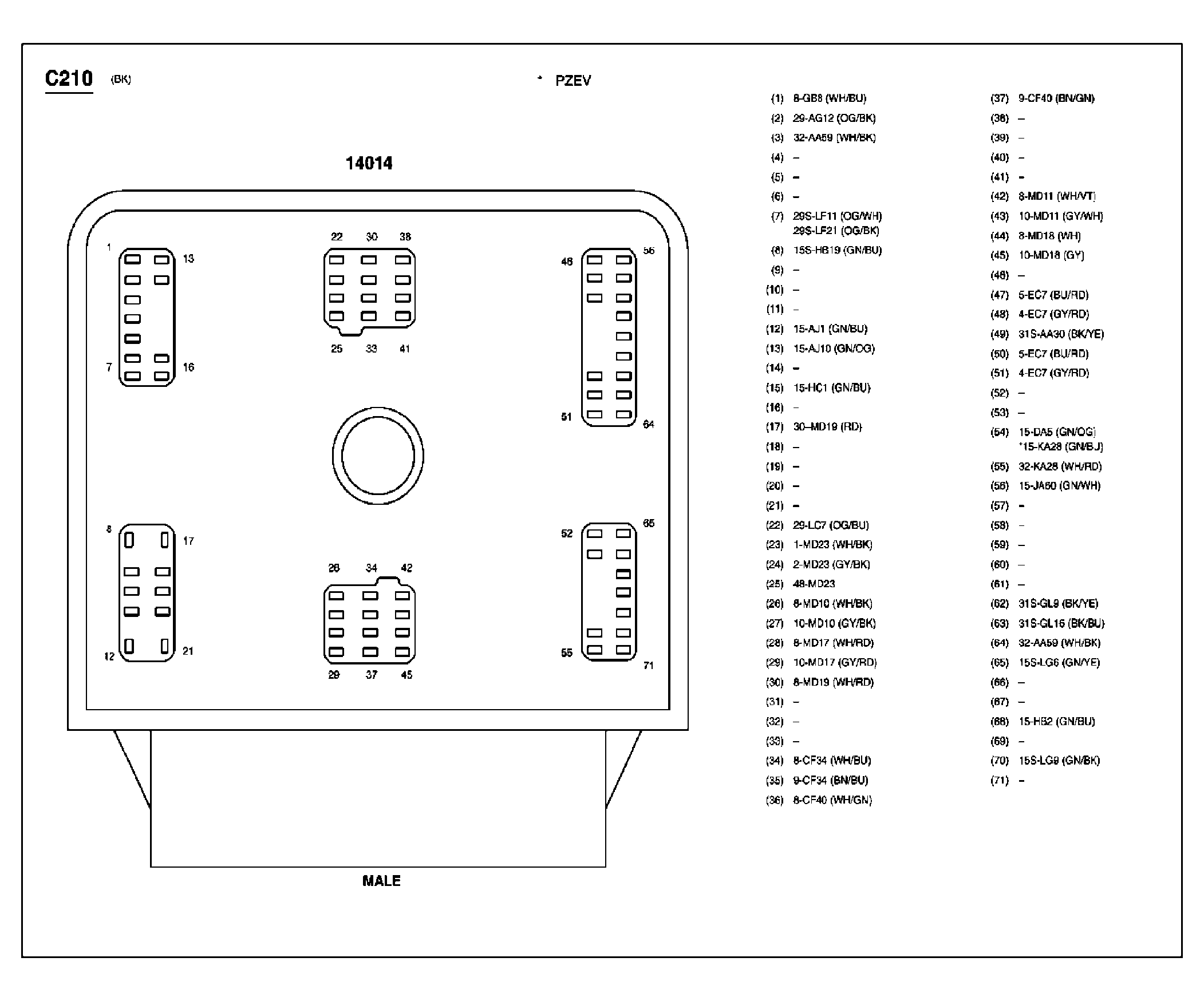

Fig 57: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Fig 58: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

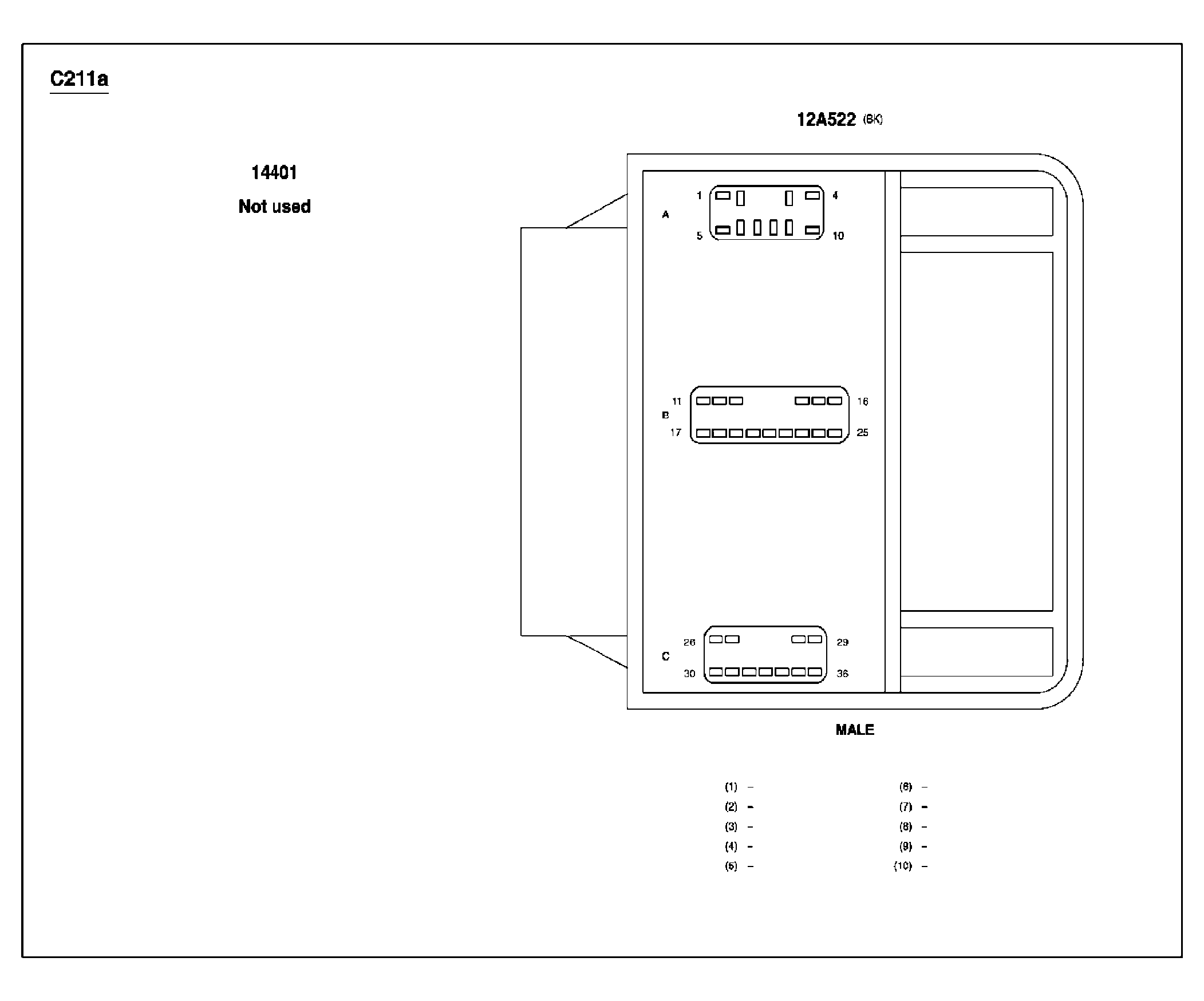

Fig 59: Inline Connector End View (C211a)
Courtesy of FORD MOTOR CO.

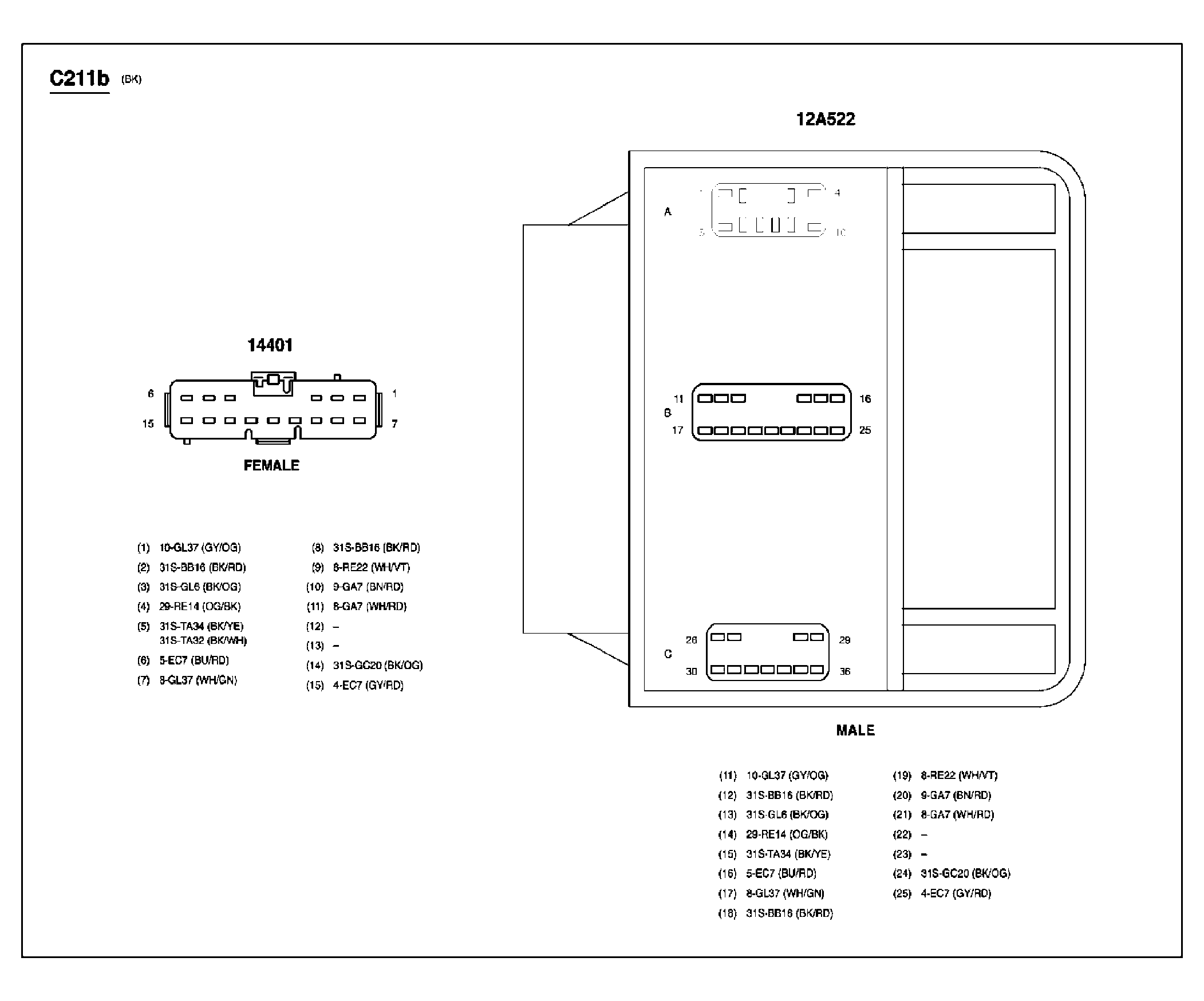

Fig 60: Inline Connector End View (C211b)
Courtesy of FORD MOTOR CO.

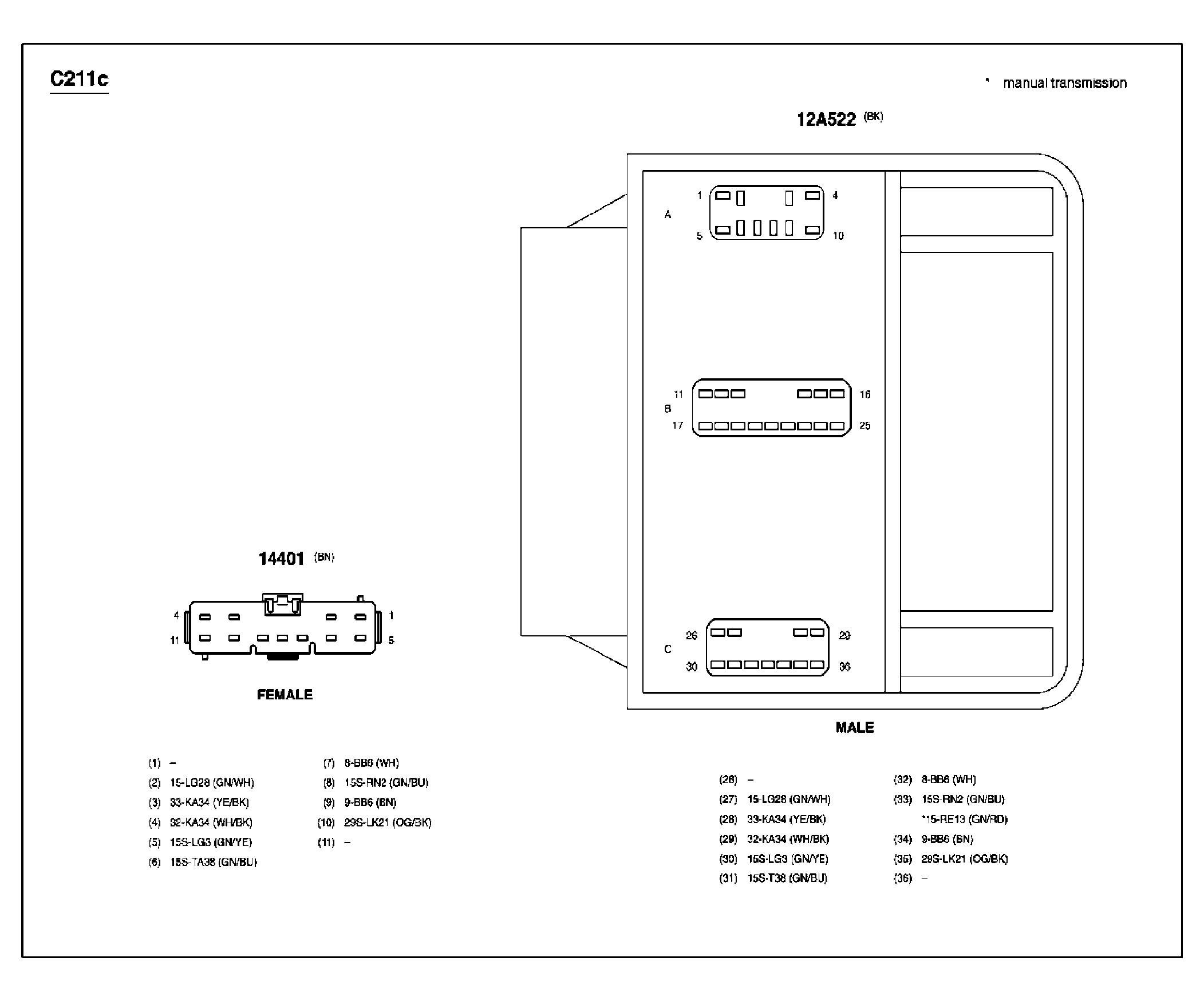

Fig 61: Inline Connector End View (C211c)
Courtesy of FORD MOTOR CO.

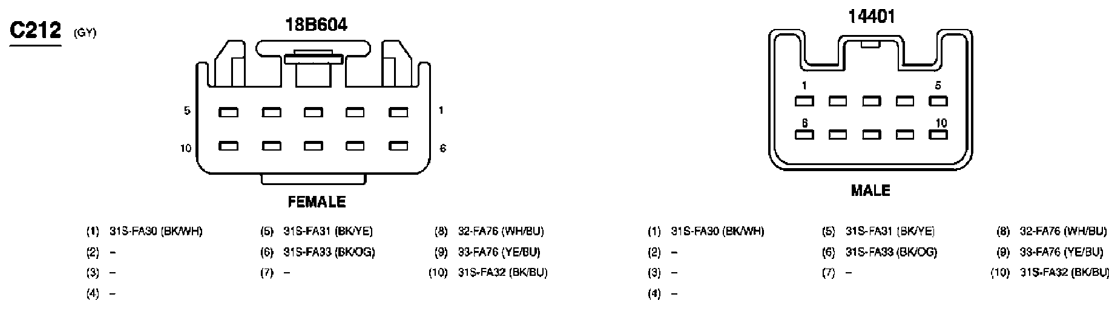

Fig 62: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

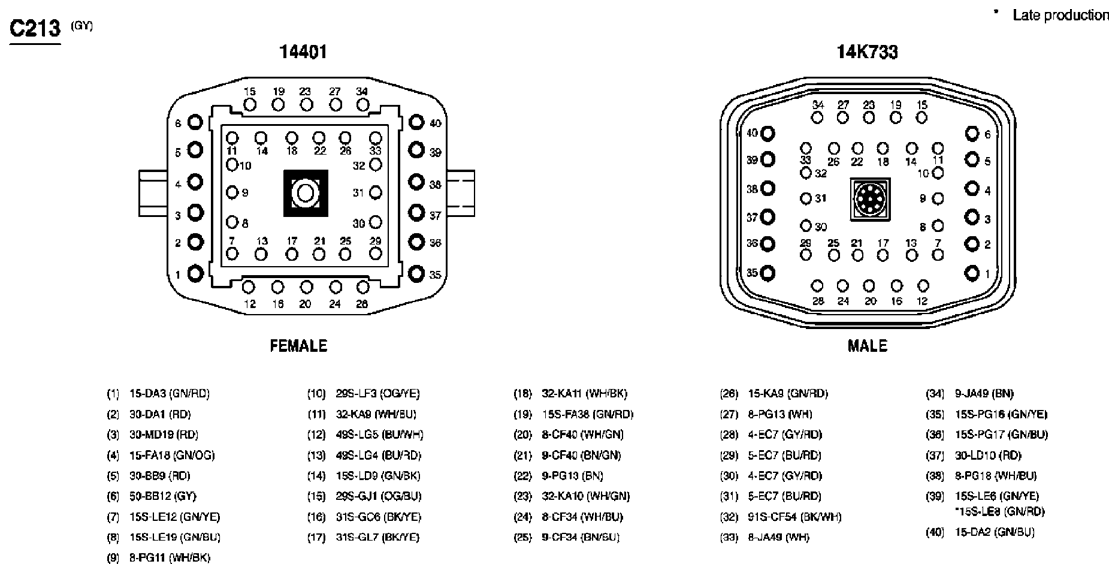

Fig 63: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.
Fig 64: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.
Fig 65: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.
Fig 66: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.
Fig 67: Passenger Air Bag Module Connector End View (C256a)
Courtesy of FORD MOTOR CO.
Fig 68: Passenger Air Bag Module Connector End View (C256b)
Courtesy of FORD MOTOR CO.
Fig 69: Clutch Pedal Position Switch Connector End View (C257)
Courtesy of FORD MOTOR CO.
Fig 70: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.
Fig 71: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.
Fig 72: Central Junction Box (CJB) Connector End View (C270c)
Courtesy of FORD MOTOR CO.

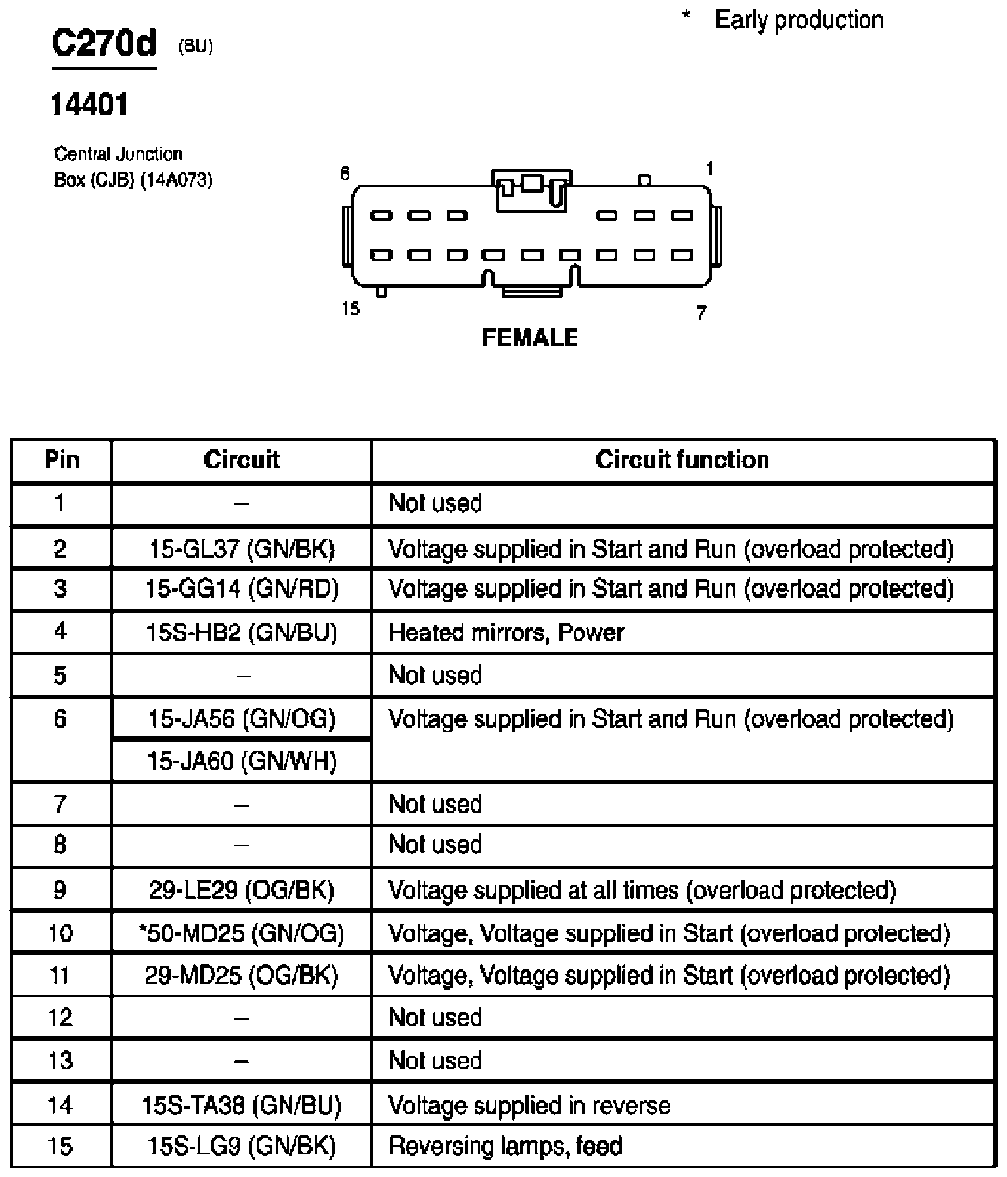

Fig 73: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.

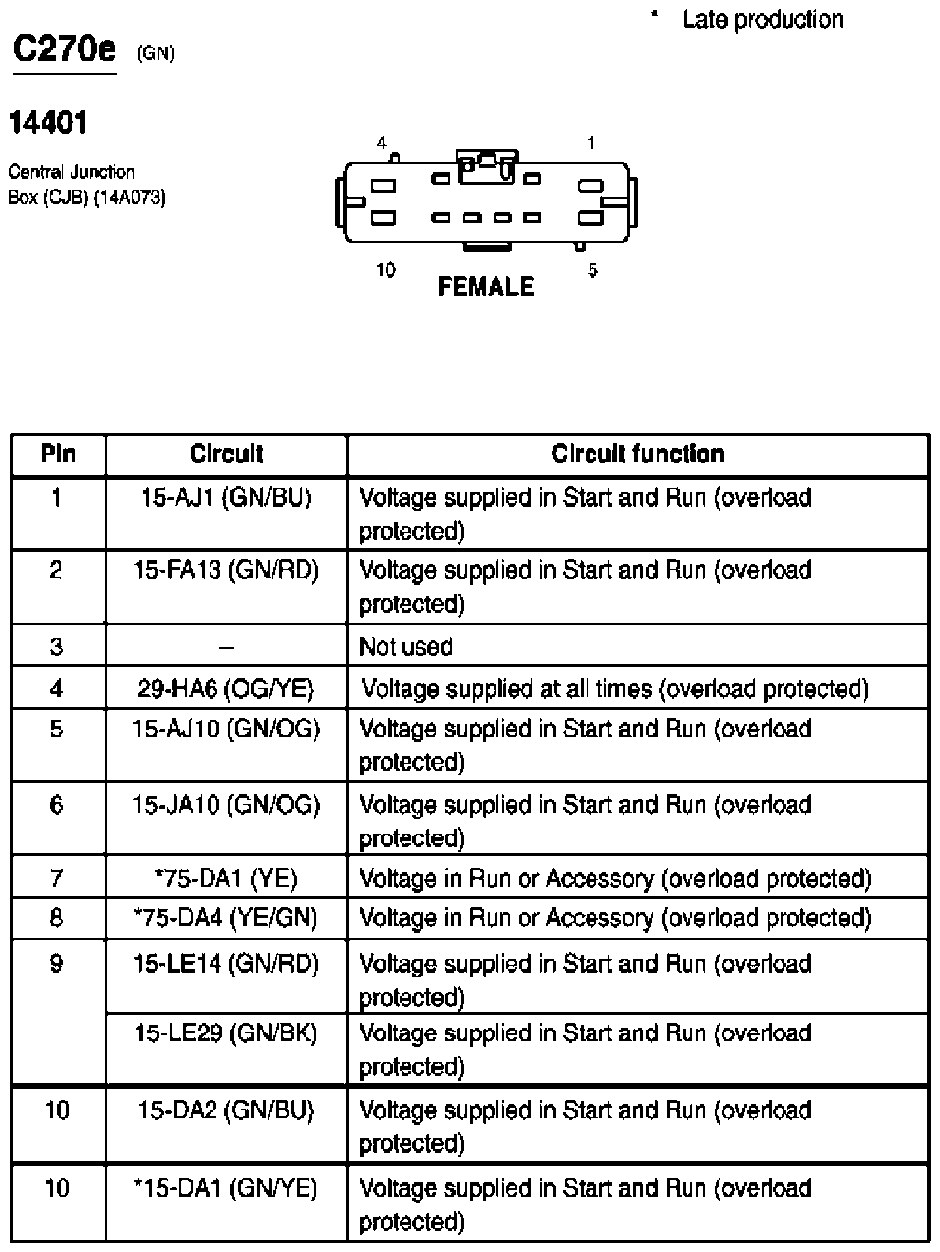

Fig 74: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.

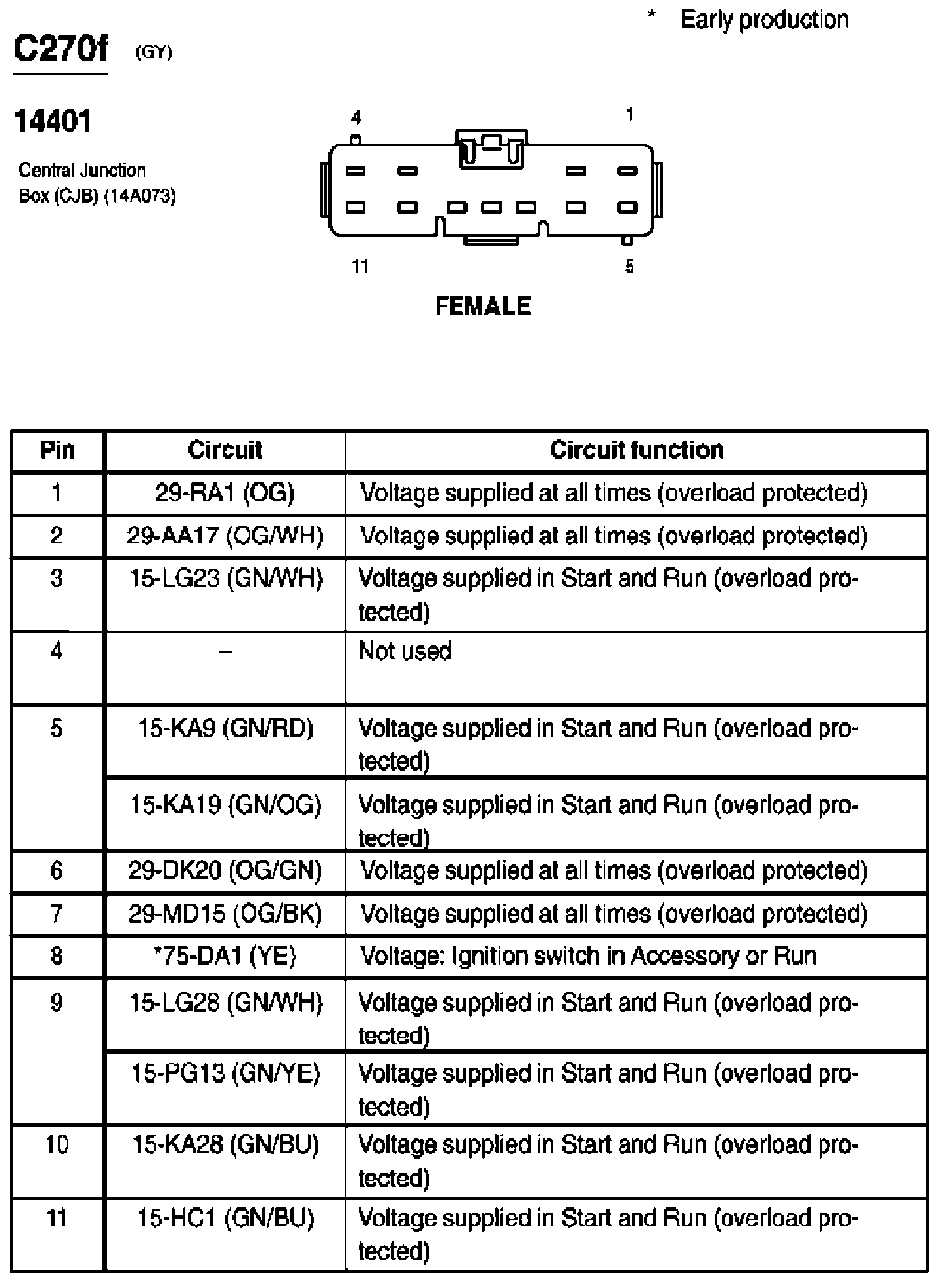

Fig 75: Central Junction Box (CJB) Connector End View (C270f)
Courtesy of FORD MOTOR CO.
Fig 76: Central Junction Box (CJB) Connector End View (C270g)
Courtesy of FORD MOTOR CO.
Fig 77: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.
Fig 78: Inertial Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.
Fig 79: Heater Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.
Fig 80: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.
Fig 81: Side Air Bag Sensor, Right Connector End View (C304)
Courtesy of FORD MOTOR CO.
Fig 82: Side Air Bag Sensor, Left Connector End View (C305)
Courtesy of FORD MOTOR CO.
Fig 83: Heated Seat Element, Driver Side Front Connector End View (C311a)
Courtesy of FORD MOTOR CO.
Fig 84: Seat Belt Buckle Sensor, Driver Connector End View (C311b)
Courtesy of FORD MOTOR CO.
Fig 85: Inline Connector End View (C311c)
Courtesy of FORD MOTOR CO.
Fig 86: Seat Track Position Sensor, Driver Connector End View (C311d)
Courtesy of FORD MOTOR CO.
Fig 87: Side Air Bag Module, Left Connector End View (C311e)
Courtesy of FORD MOTOR CO.
Fig 88: Heated Seat Element, Passenger Side Front Connector End View (C312a)
Courtesy of FORD MOTOR CO.
Fig 89: Seat Belt Buckle Sensor, Passenger Connector End View (C312b)
Courtesy of FORD MOTOR CO.
Fig 90: Inline Connector End View (C312c)
Courtesy of FORD MOTOR CO.
Fig 91: Inline Connector End View (C312d)
Courtesy of FORD MOTOR CO.
Fig 92: Side Air Bag Module, Right Connector End View (C312e)
Courtesy of FORD MOTOR CO.
Fig 93: Seat Heater Switch, Passenger Side Connector End View (C321)
Courtesy of FORD MOTOR CO.
Fig 94: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.
Fig 95: Seat Heater Switch, Driver Side Connector End View (C344)
Courtesy of FORD MOTOR CO.
Fig 96: Seat Belt Tensioner, Passenger Seat Connector End View (C389)
Courtesy of FORD MOTOR CO.
Fig 97: Speaker, Left Rear Connector End View (C395)
Courtesy of FORD MOTOR CO.
Fig 98: Speaker, Right Rear Connector End View (C396)
Courtesy of FORD MOTOR CO.
Fig 99: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.
Fig 100: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.
Fig 101: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.
Fig 102: Inline Connector End View (C406)
Courtesy of FORD MOTOR CO.
Fig 103: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.
Fig 104: Inline Connector End View (C422)
Courtesy of FORD MOTOR CO.
Fig 105: Inline Connector End View (C423)
Courtesy of FORD MOTOR CO.
Fig 106: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.
Fig 107: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.
Fig 108: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.
Fig 109: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.
Fig 110: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.
Fig 111: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.
Fig 112: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.
Fig 113: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.
Fig 114: License Plate Lamp, Left Connector End View (C452a)
Courtesy of FORD MOTOR CO.
Fig 115: License Plate Lamp, Left Connector End View (C452b)
Courtesy of FORD MOTOR CO.
Fig 116: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.
Fig 117: License Plate Lamp, Right Connector End View (C462a)
Courtesy of FORD MOTOR CO.
Fig 118: License Plate Lamp, Right Connector End View (C462b)
Courtesy of FORD MOTOR CO.
Fig 119: Subwoofer Amplifier Connector End View (C466)
Courtesy of FORD MOTOR CO.
Fig 120: High Mounted Stoplamp Connector End View (C475)
Courtesy of FORD MOTOR CO.
Fig 121: Cargo Space Lamp Connector End View (C489a)
Courtesy of FORD MOTOR CO.
Fig 122: Cargo Space Lamp Connector End View (C489b)
Courtesy of FORD MOTOR CO.
Fig 123: Lamp Assembly, Left Rear Connector End View (C498)
Courtesy of FORD MOTOR CO.
Fig 124: Lamp Assembly, Right Rear Connector End View (C499)
Courtesy of FORD MOTOR CO.
Fig 125: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.

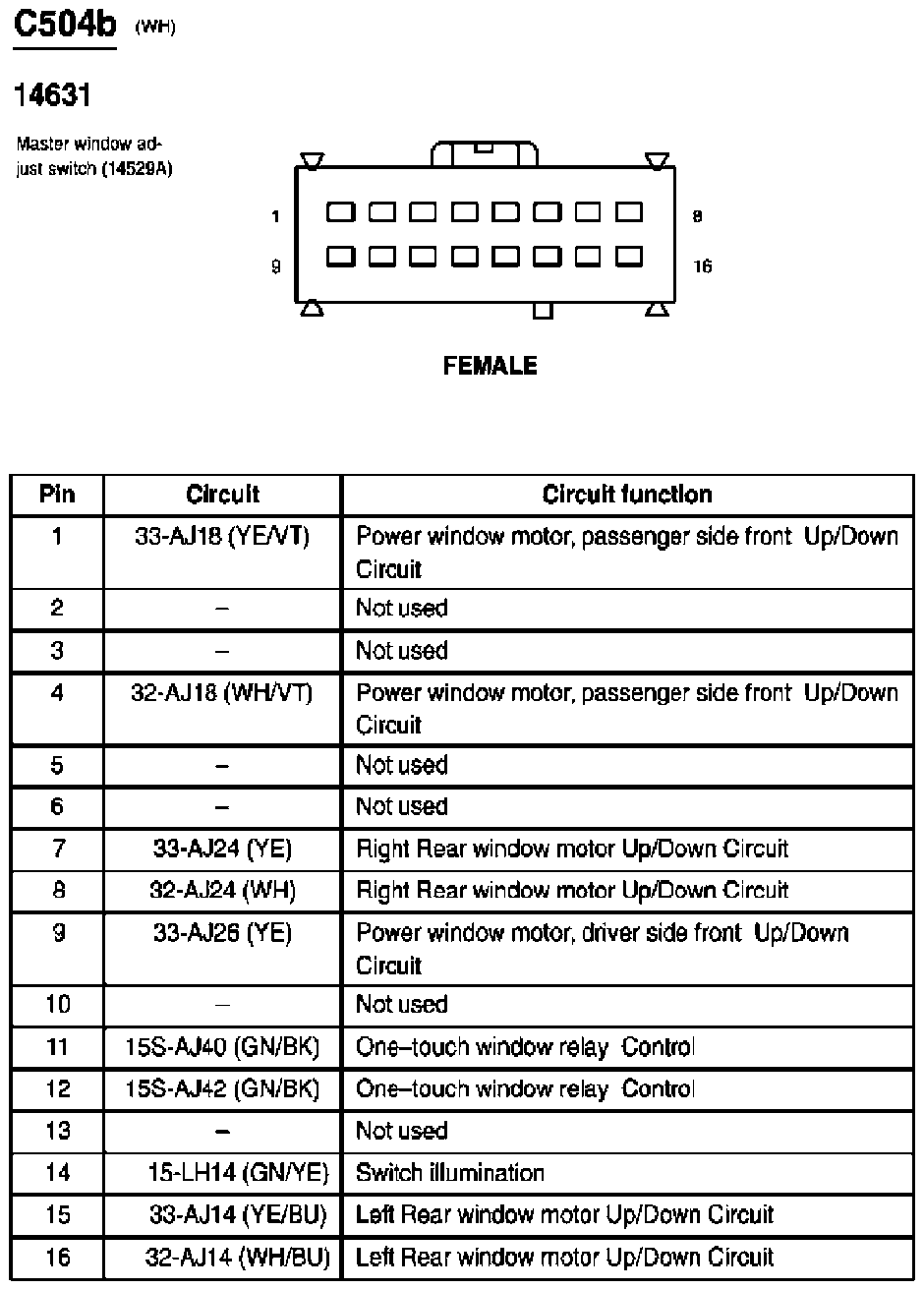

Fig 126: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.
Fig 127: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.

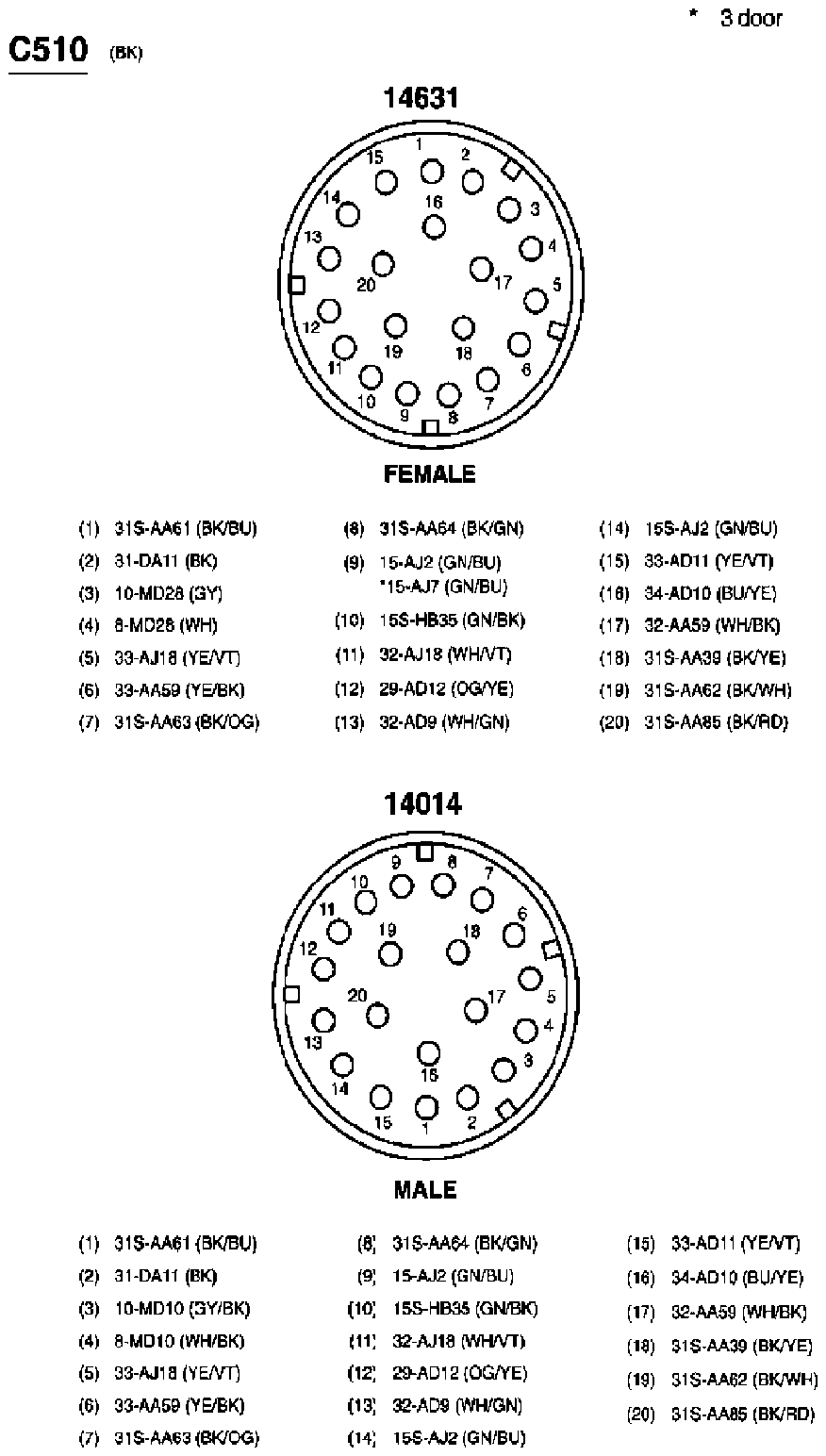

Fig 128: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.
Fig 129: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.
Fig 130: Power Window Motor, Driver Side Front Connector End View (C518)
Courtesy of FORD MOTOR CO.
Fig 131: Exterior Rear View Mirror, Left Connector End View (C522)
Courtesy of FORD MOTOR CO.
Fig 132: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.
Fig 133: Door Lock Unit, Driver Side Front Connector End View (C525)
Courtesy of FORD MOTOR CO.
Fig 134: Door Ajar Switch, Driver Side Front Connector End View (C526)
Courtesy of FORD MOTOR CO.
Fig 135: Exterior Rear View Mirror, Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.
Fig 136: Master Window Adjust Switch Connector End View (C535)
Courtesy of FORD MOTOR CO.
Fig 137: One-Touch Window Relay Connector End View (C546)
Courtesy of FORD MOTOR CO.
Fig 138: Door Ajar Switch, Passenger Side Front Connector End View (C602)
Courtesy of FORD MOTOR CO.
Fig 139: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.
Fig 140: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.
Fig 141: Door Lock Unit, Passenger Side Front Connector End View (C609)
Courtesy of FORD MOTOR CO.

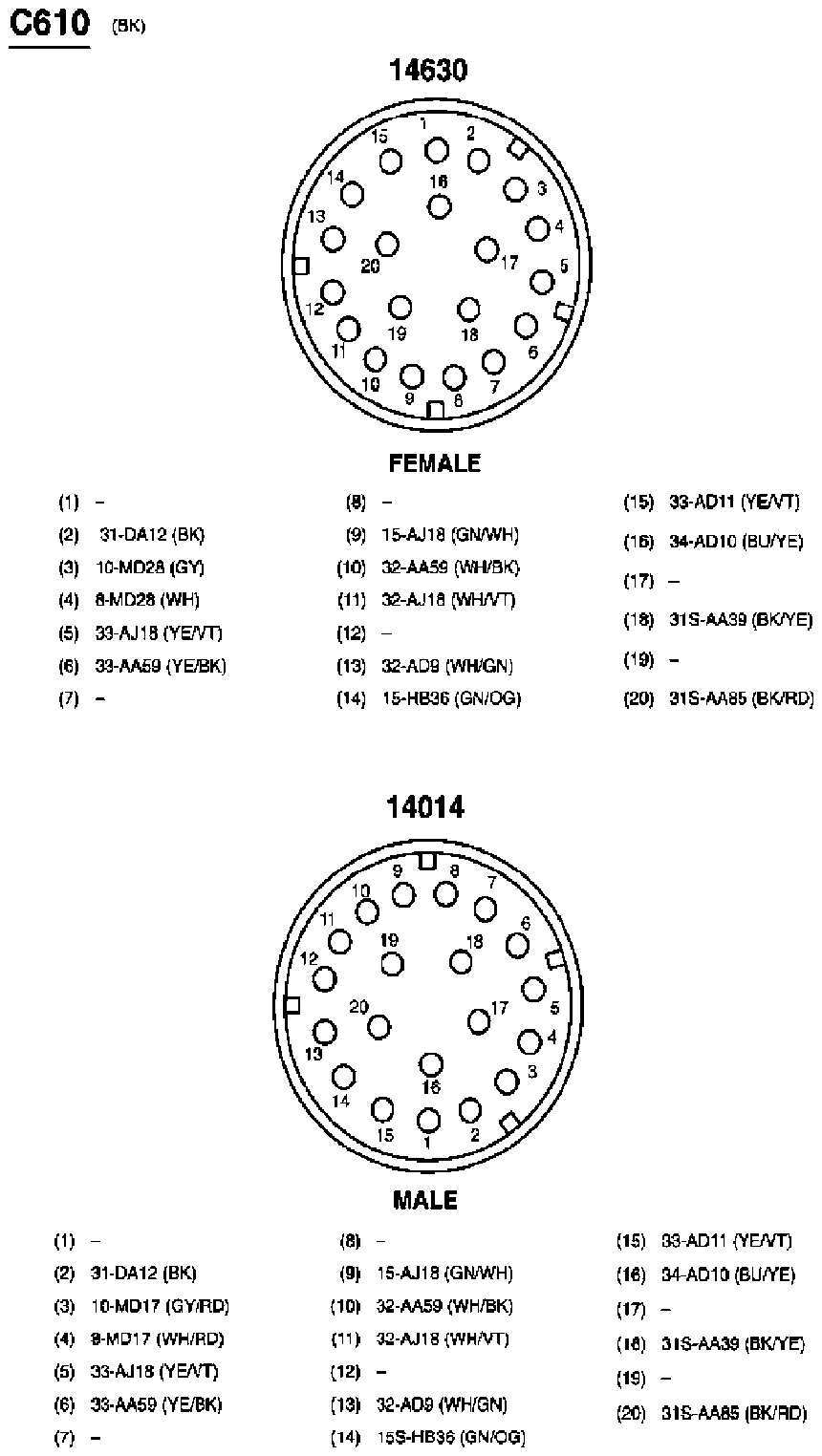

Fig 142: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.
Fig 143: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.
Fig 144: Exterior Rear View Mirror, Right Connector End View (C622)
Courtesy of FORD MOTOR CO.
Fig 145: Power Window Motor, Right Front Connector End View (C623)
Courtesy of FORD MOTOR CO.
Fig 146: Inline Connector End View (C700)
Courtesy of FORD MOTOR CO.
Fig 147: Window Adjust Switch, Right Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.
Fig 148: Speaker, Right Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.
Fig 149: Power Window Motor, Right Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.
Fig 150: Door Lock Unit, Left Rear Connector End View (C705)
Courtesy of FORD MOTOR CO.
Fig 151: Door Ajar Switch, Left Rear Connector End View (C715)
Courtesy of FORD MOTOR CO.
Fig 152: Inline Connector End View (C800)
Courtesy of FORD MOTOR CO.
Fig 153: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.
Fig 154: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.
Fig 155: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.
Fig 156: Door Lock Unit, Right Rear Connector End View (C805)
Courtesy of FORD MOTOR CO.
Fig 157: Door Ajar Switch, Passenger Side Rear Connector End View (C820)
Courtesy of FORD MOTOR CO.
Fig 158: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
Fig 159: Interior Lamp, Front Connector End View (C918a)
Courtesy of FORD MOTOR CO.
Fig 160: Interior Lamp, Front Connector End View (C918b)
Courtesy of FORD MOTOR CO.
Fig 161: Daytime Running Lamps (DRL) Relay Connector End View (C1000)
Courtesy of FORD MOTOR CO.
Fig 162: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.
Fig 163: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.
Fig 164: Inline Connector End View (C1019)
Courtesy of FORD MOTOR CO.
Fig 165: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.
Fig 166: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.
Fig 167: Engine Cooling Fan Resistor Connector End View (C1027)
Courtesy of FORD MOTOR CO.
Fig 168: Inline Connector End View (C1033)
Courtesy of FORD MOTOR CO.

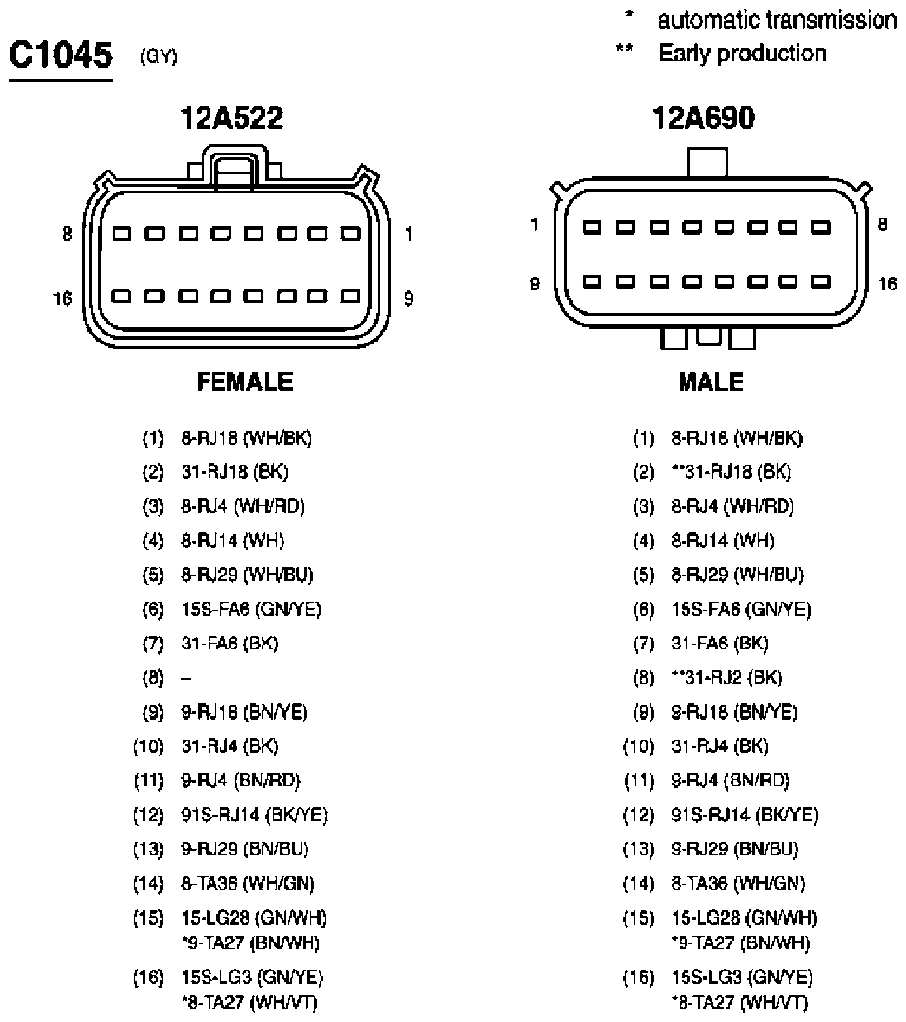

Fig 169: Inline Connector End View (C1045)
Courtesy of FORD MOTOR CO.
Fig 170: Inline Connector End View (C1046)
Courtesy of FORD MOTOR CO.
Fig 171: Inline Connector End View (C1045)
Courtesy of FORD MOTOR CO.
Fig 172: Inline Connector End View (C1046)
Courtesy of FORD MOTOR CO.
Fig 173: Inline Connector End View (C1047)
Courtesy of FORD MOTOR CO.
Fig 174: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.
Fig 175: Low Beam Relay Connector End View (C1049)
Courtesy of FORD MOTOR CO.
Fig 176: High Beam Relay Connector End View (C1050)
Courtesy of FORD MOTOR CO.
Fig 177: Fuel Pump Relay Connector End View (C1051)
Courtesy of FORD MOTOR CO.
Fig 178: Ignition Relay Connector End View (C1054)
Courtesy of FORD MOTOR CO.
Fig 179: Engine Cooling Fan Relay Connector End View (C1055)
Courtesy of FORD MOTOR CO.
Fig 180: High Speed Fan Control Relay Connector End View (C1056)
Courtesy of FORD MOTOR CO.
Fig 181: Dual Pressure Switch Connector End View (C1062)
Courtesy of FORD MOTOR CO.
Fig 182: Idle Air Control (IAC) Valve Connector End View (C1066)
Courtesy of FORD MOTOR CO.
Fig 183: Secondary Air Injection Bypass Solenoid Connector End View (C1070)
Courtesy of FORD MOTOR CO.
Fig 184: A/C Compressor Cycling Switch Connector End View (C1081)
Courtesy of FORD MOTOR CO.
Fig 185: A/C Compressor Clutch Diode Connector End View (C1086)
Courtesy of FORD MOTOR CO.
Fig 186: Vehicle Speed Sensor (VSS) Connector End View (C1088)
Courtesy of FORD MOTOR CO.
Fig 187: Battery Connector End View (C1100a)
Courtesy of FORD MOTOR CO.
Fig 188: Battery Connector End View (C1100b)
Courtesy of FORD MOTOR CO.
Fig 189: Manifold Absolute Pressure/Intake Air Temperature (MAP/IAT) Sensor Connector End View (C1140)
Courtesy of FORD MOTOR CO.
Fig 190: Inline Connector End View (C1147)
Courtesy of FORD MOTOR CO.
Fig 191: Inline Connector End View (C1148)
Courtesy of FORD MOTOR CO.
Fig 192: EGR Stepper Motor Connector End View (C1160)
Courtesy of FORD MOTOR CO.
Fig 193: Fuel Injector 1 Connector End View (C1181)
Courtesy of FORD MOTOR CO.
Fig 194: Fuel Injector 2 Connector End View (C1182)
Courtesy of FORD MOTOR CO.
Fig 195: Fuel Injector 3 Connector End View (C1183)
Courtesy of FORD MOTOR CO.
Fig 196: Fuel Injector 4 Connector End View (C1184)
Courtesy of FORD MOTOR CO.
Fig 197: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.
Fig 198: Intake Manifold Runner Control (MRC) Module Connector End View (C1286)
Courtesy of FORD MOTOR CO.
Fig 199: Fuel Rail Pressure/Temperature Sensor Connector End View (C1303)
Courtesy of FORD MOTOR CO.
Fig 200: Power Steering Pressure Sensor Connector End View (C1311)
Courtesy of FORD MOTOR CO.
Fig 201: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)
Courtesy of FORD MOTOR CO.
Fig 202: Two-Way Washer Pump Motor Connector End View (C1397)
Courtesy of FORD MOTOR CO.
Fig 203: Power Hold Relay Connector End View (C1403)
Courtesy of FORD MOTOR CO.
Fig 204: Second Cooling Fan Motor Connector End View (C1406)
Courtesy of FORD MOTOR CO.
Fig 205: Park/Neutral Position (PNP) Switch Connector End View (C1407)
Courtesy of FORD MOTOR CO.
Fig 206: Low Speed Engine Cooling Fan Relay A Connector End View (C1409)
Courtesy of FORD MOTOR CO.
Fig 207: Low Speed Engine Cooling Fan Relay B Connector End View (C1410)
Courtesy of FORD MOTOR CO.
Fig 208: Intake Manifold Tuning Valve (IMTV) Connector End View (C1426)
Courtesy of FORD MOTOR CO.
Fig 209: Heated Oxygen Sensor (HO2S) #13 Connector End View (C1455)
Courtesy of FORD MOTOR CO.
Fig 210: Parking Brake Switch Connector End View (C2015)
Courtesy of FORD MOTOR CO.
Fig 211: Rear Wiper Relay Connector End View (C2020)
Courtesy of FORD MOTOR CO.
Fig 212: Rear Window Defrost Relay Connector End View (C2021)
Courtesy of FORD MOTOR CO.
Fig 213: Cigar Lighter, Front Connector End View (C2031)
Courtesy of FORD MOTOR CO.
Fig 214: Hazard Flasher Switch Connector End View (C2039)
Courtesy of FORD MOTOR CO.

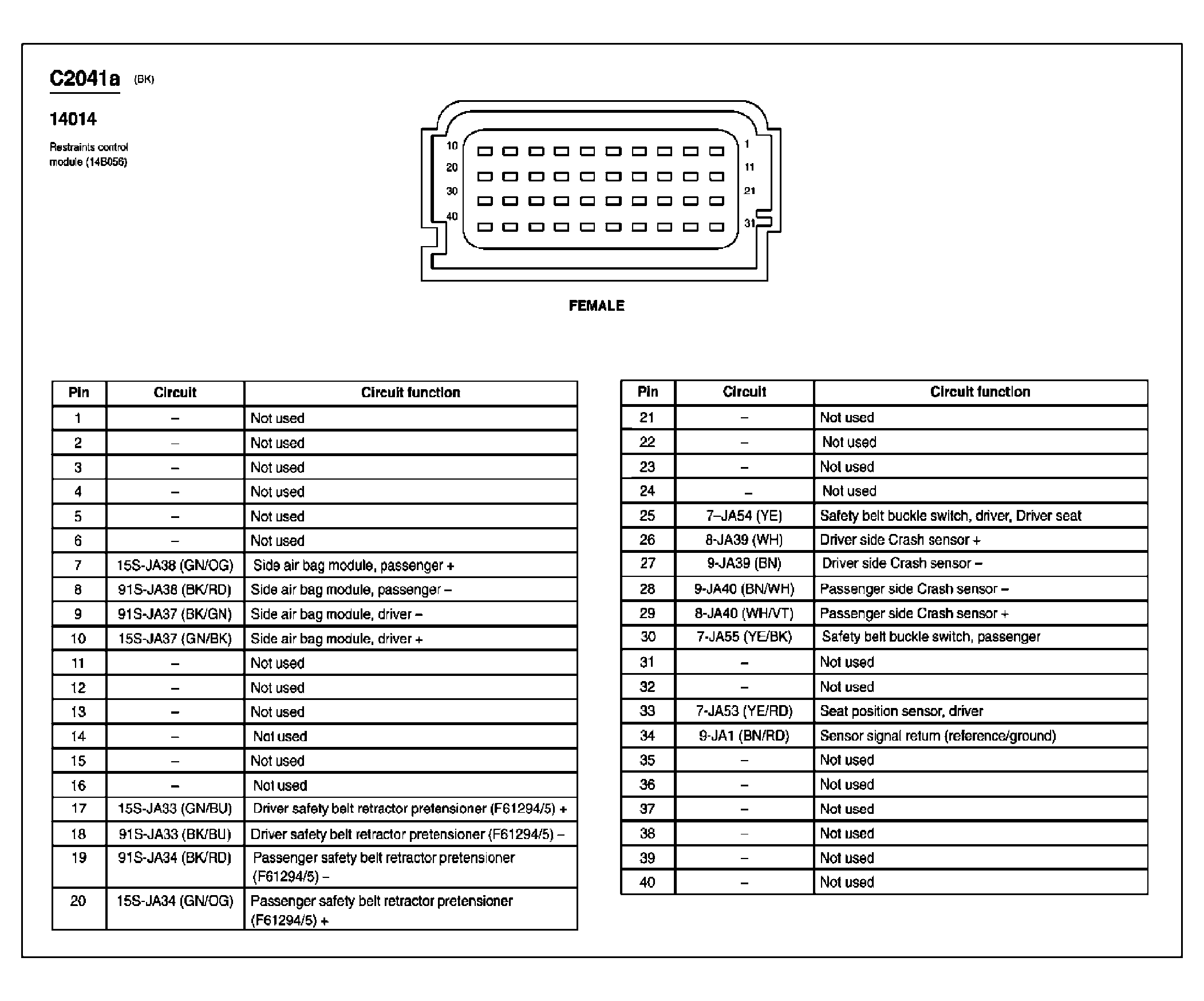

Fig 215: Restraints Control Module Connector End View (C2041a)
Courtesy of FORD MOTOR CO.

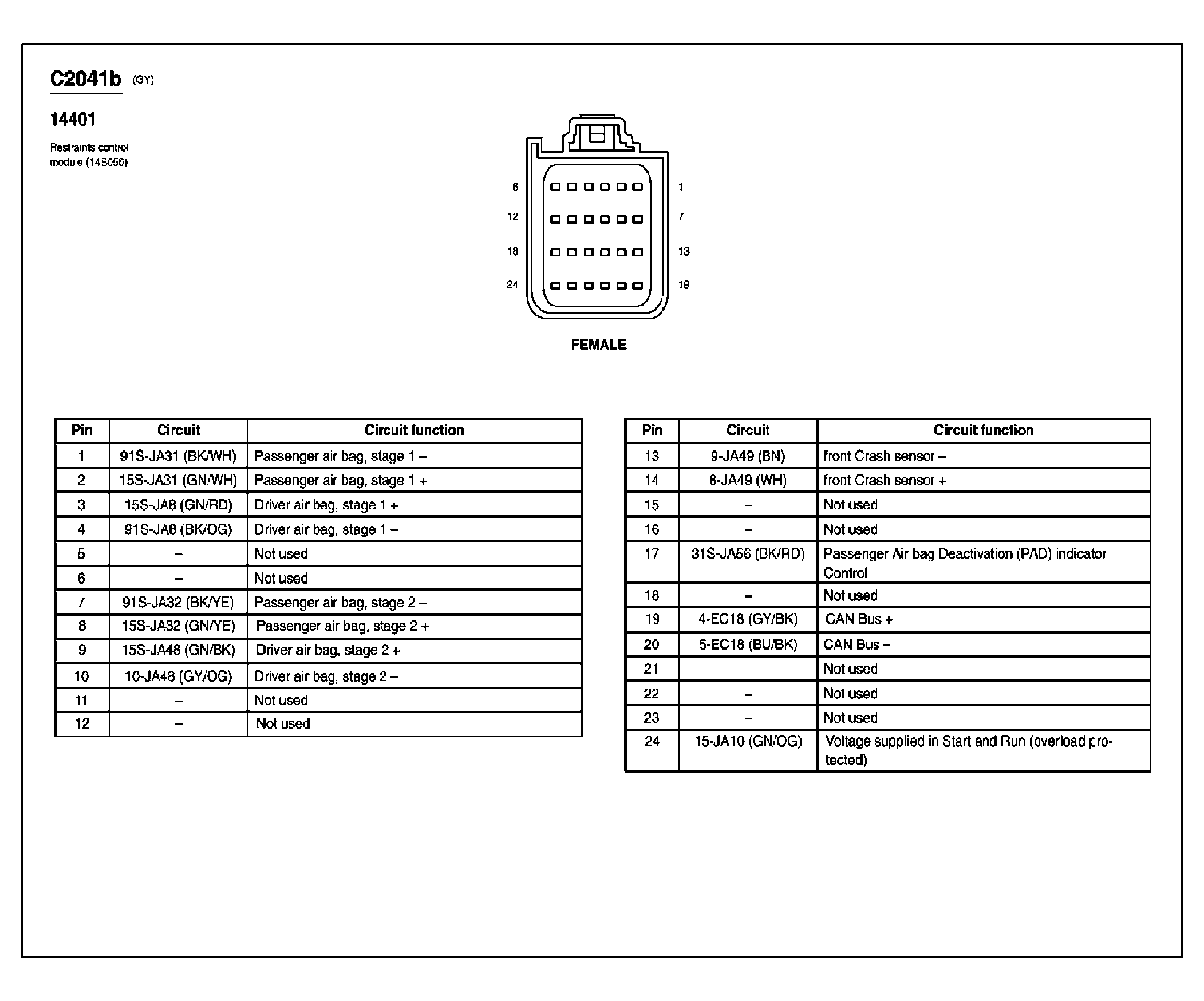

Fig 216: Restraints Control Module Connector End View (C2041b)
Courtesy of FORD MOTOR CO.

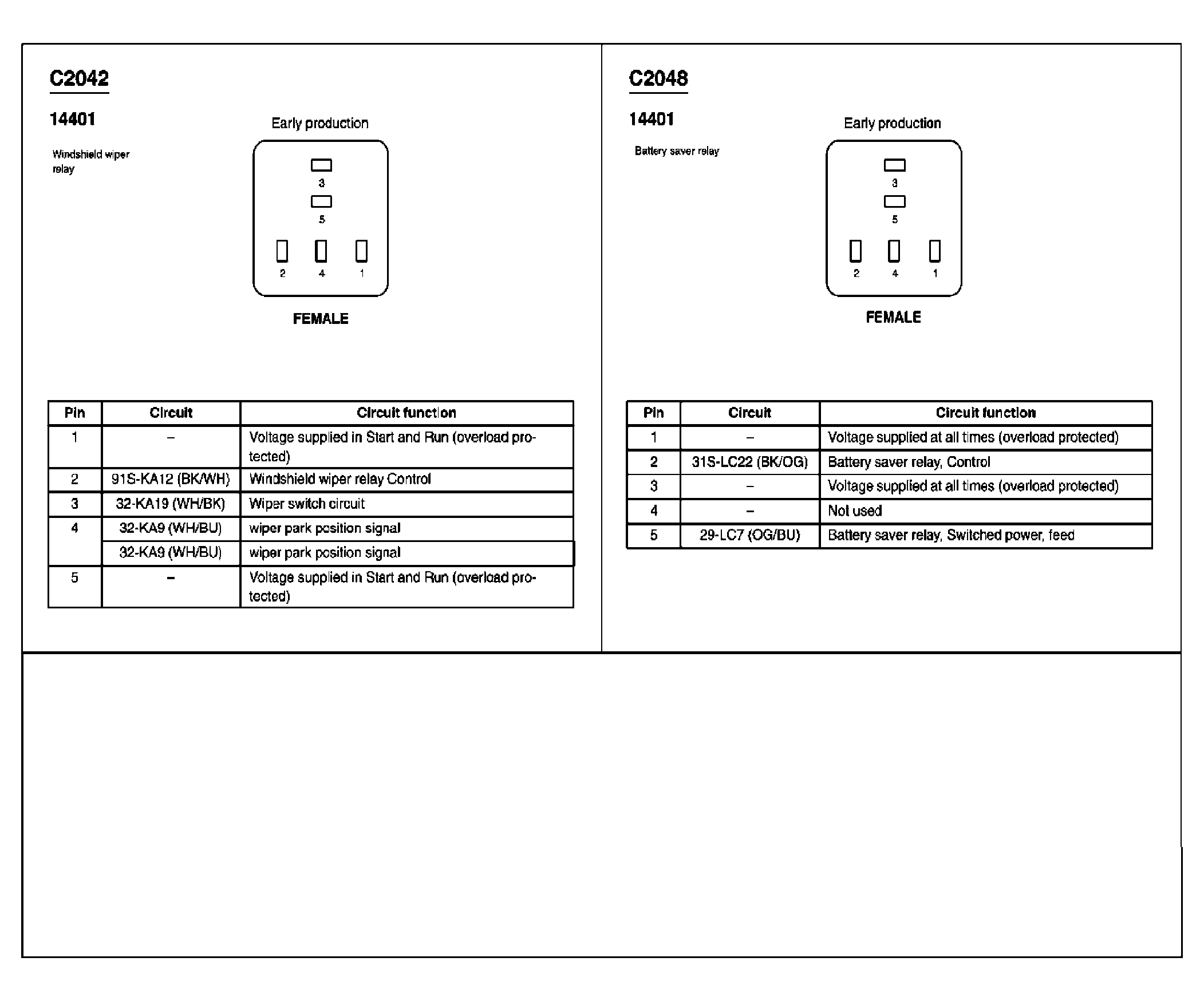

Fig 217: Windshield Wiper Relay Connector End View (C2042)
Courtesy of FORD MOTOR CO.
Fig 218: Daytime Running Lamps (DRL) Relay Connector End View (C2073)
Courtesy of FORD MOTOR CO.
Fig 219: Horn Relay Connector End View (C2077)
Courtesy of FORD MOTOR CO.
Fig 220: Wiper/Washer Switch Connector End View (C2081)
Courtesy of FORD MOTOR CO.
Fig 221: Starter Relay Connector End View (C2163)
Courtesy of FORD MOTOR CO.
Fig 222: Blower Motor Resistor Connector End View (C2184)
Courtesy of FORD MOTOR CO.

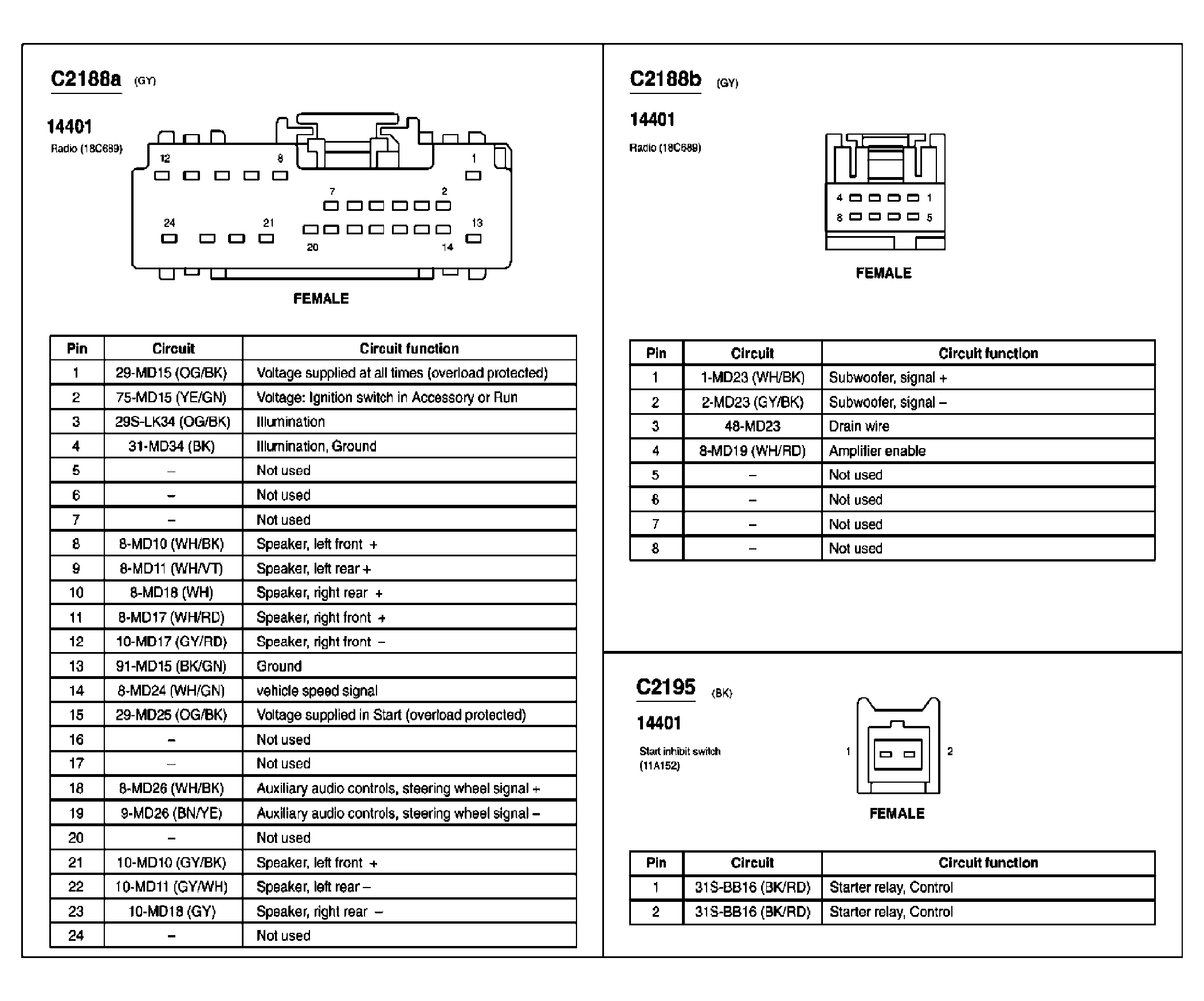

Fig 223: Radio Connector End View (C2188a)
Courtesy of FORD MOTOR CO.

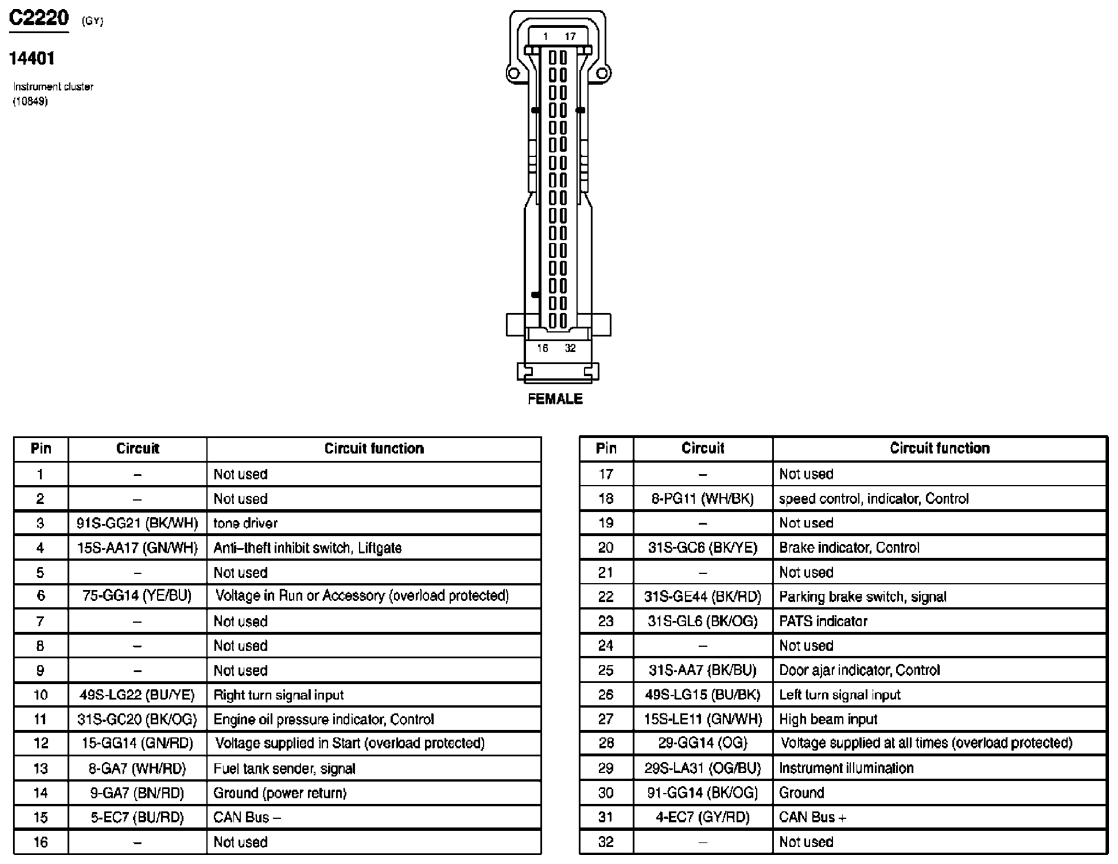

Fig 224: Instrument Cluster Connector End View (C2220)
Courtesy of FORD MOTOR CO.
Fig 225: Recirculation Air Actuator Connector End View (C2261)
Courtesy of FORD MOTOR CO.
Fig 226: De-icing Switch Connector End View (C2262)
Courtesy of FORD MOTOR CO.
Fig 227: Heater Control Module Connector End View (C2263)
Courtesy of FORD MOTOR CO.
Fig 228: Radio Remote Control Switch Connector End View (C2264)
Courtesy of FORD MOTOR CO.
Fig 229: Heater Blower Switch Connector End View (C2265)
Courtesy of FORD MOTOR CO.
Fig 230: Heater Panel Illumination Lamp Connector End View (C2266)
Courtesy of FORD MOTOR CO.
Fig 231: Traction Control System (TCS) Disable Switch Connector End View (C2267)
Courtesy of FORD MOTOR CO.
Fig 232: Liftgate/Decklid Release Switch Connector End View (C2269)
Courtesy of FORD MOTOR CO.
Fig 233: Clock Spring Connector End View (C2274)
Courtesy of FORD MOTOR CO.
Fig 234: Stoplamp Switch Connector End View (C2314)
Courtesy of FORD MOTOR CO.
Fig 235: Seat Pressure Sensor Connector End View (C3042)
Courtesy of FORD MOTOR CO.

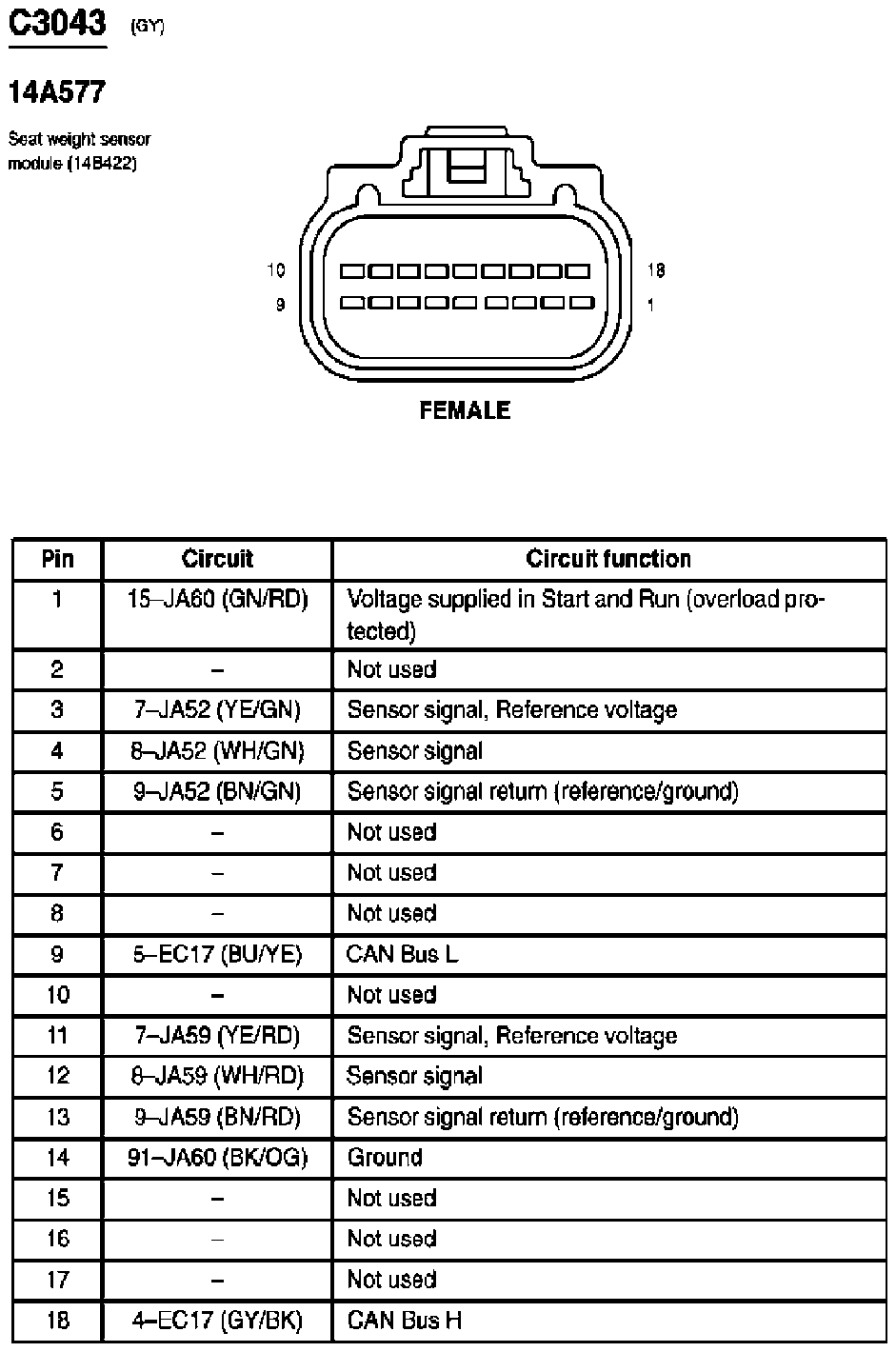

Fig 236: Seat Weight Sensor Module Connector End View (C3043)
Courtesy of FORD MOTOR CO.
Fig 237: Gearshift Lever Unit Connector End View (C3233)
Courtesy of FORD MOTOR CO.
Fig 238: Fuel Pump Driver Module Connector End View (C3239)
Courtesy of FORD MOTOR CO.
Fig 239: Rear Wiper Motor Assembly Connector End View (C4218)
Courtesy of FORD MOTOR CO.
Fig 240: Liftgate/Decklid Latch Assembly Connector End View (C4223)
Courtesy of FORD MOTOR CO.
Fig 241: Liftgate/Decklid Release Switch, Exterior Connector End View (C4224)
Courtesy of FORD MOTOR CO.
Fig 242: Liftgate/Decklid Anti-Theft Inhibit Switch Connector End View (C4225)
Courtesy of FORD MOTOR CO.
Fig 243: Moonroof Adjust Switch Connector End View (C9014)
Courtesy of FORD MOTOR CO.
Fig 244: Roof Opening Panel Unit Connector End View (C9015)
Courtesy of FORD MOTOR CO.
