Instrument Cluster: Notes

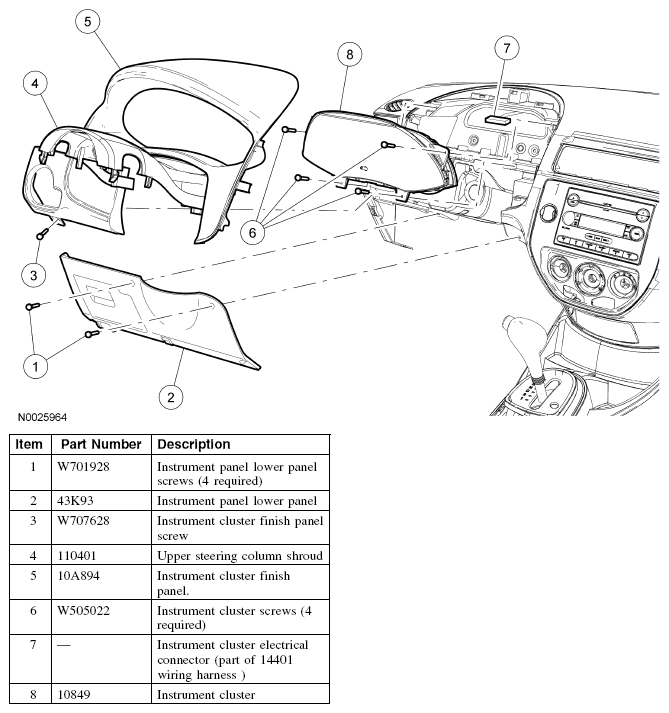

Fig 1: Exploded View Of Instrument Cluster
G04653975Courtesy of FORD MOTOR CO.
