Instrument Panel: Notes

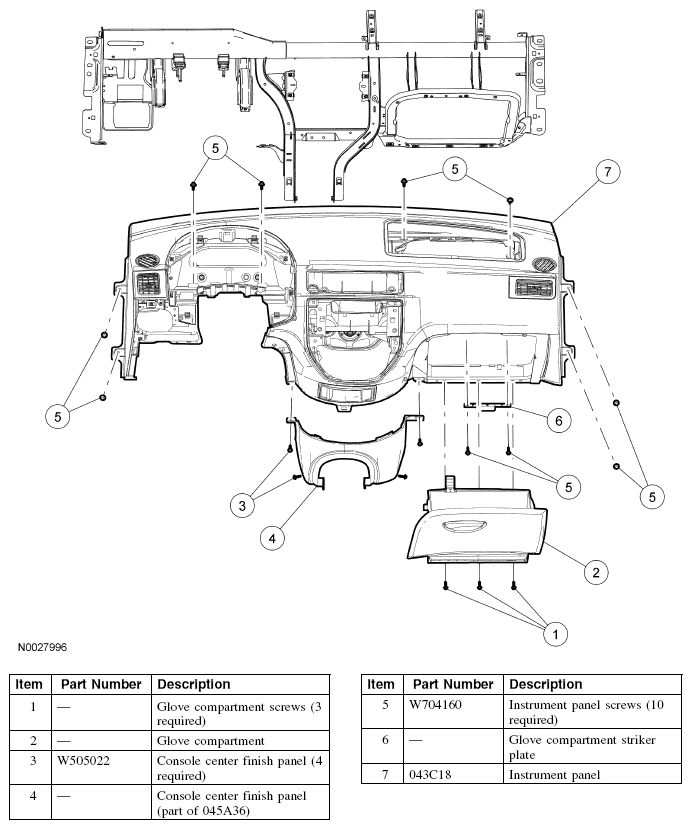

Fig 1: Identifying Instrument Panel Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
