Driver Seat Module (DSM): Notes

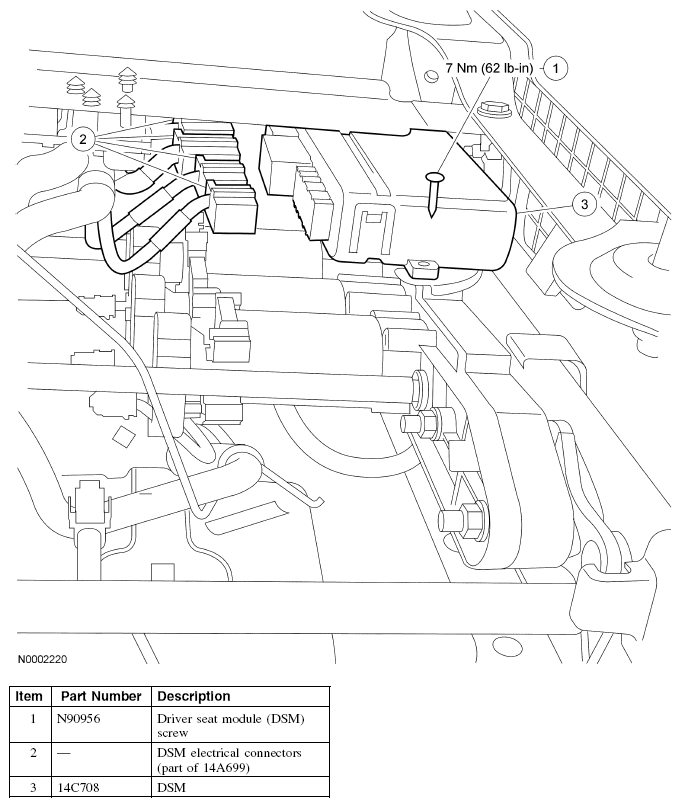

Fig 1: Driver Seat Module (DSM) Replacement Components With Torque Specifications
G04662734Courtesy of FORD MOTOR CO.
