Safety Belt Shoulder Height Adjuster - Second Row: Notes

SPECIAL TOOL(S)

G04663658Courtesy of FORD MOTOR CO.
Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)
NOTE: RH side shown, LH side similar.

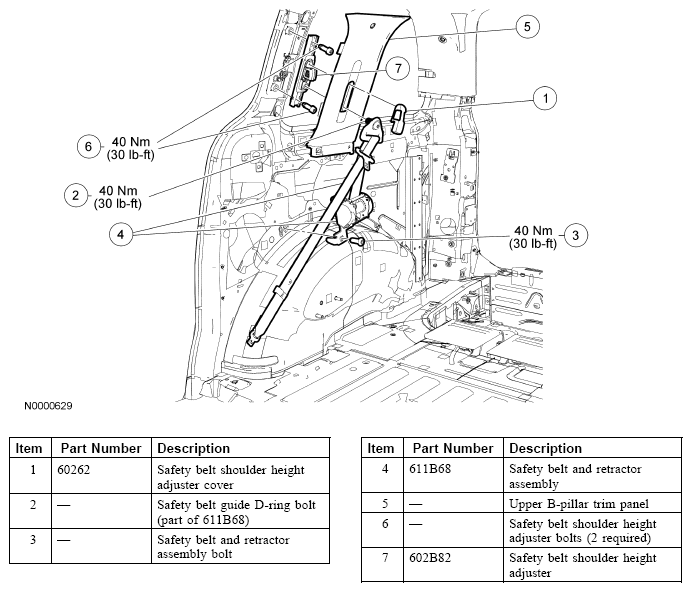

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components -- Second Row With Torque Specification's
G04663659Courtesy of FORD MOTOR CO.
