Steering Column - Exploded View

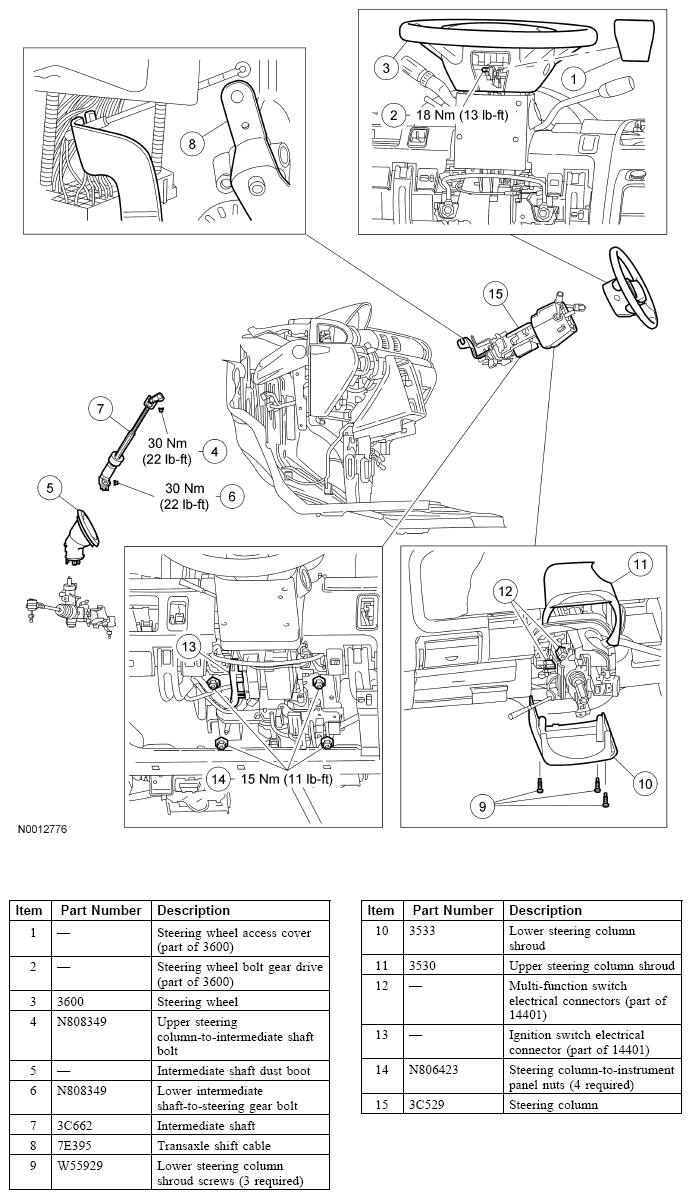

Fig 1: Exploded View Of Steering Column
G04660164Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
