System Diagram

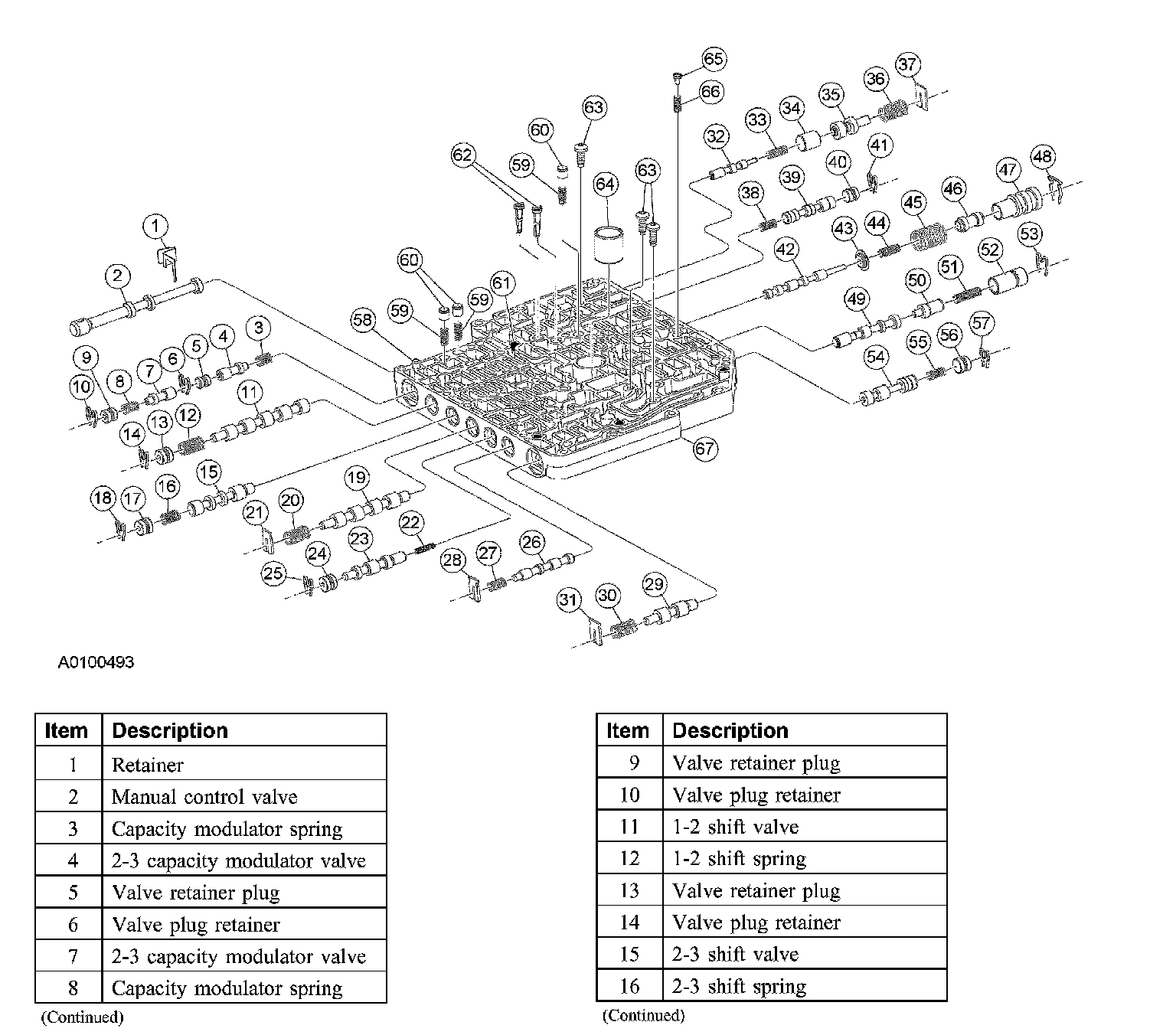

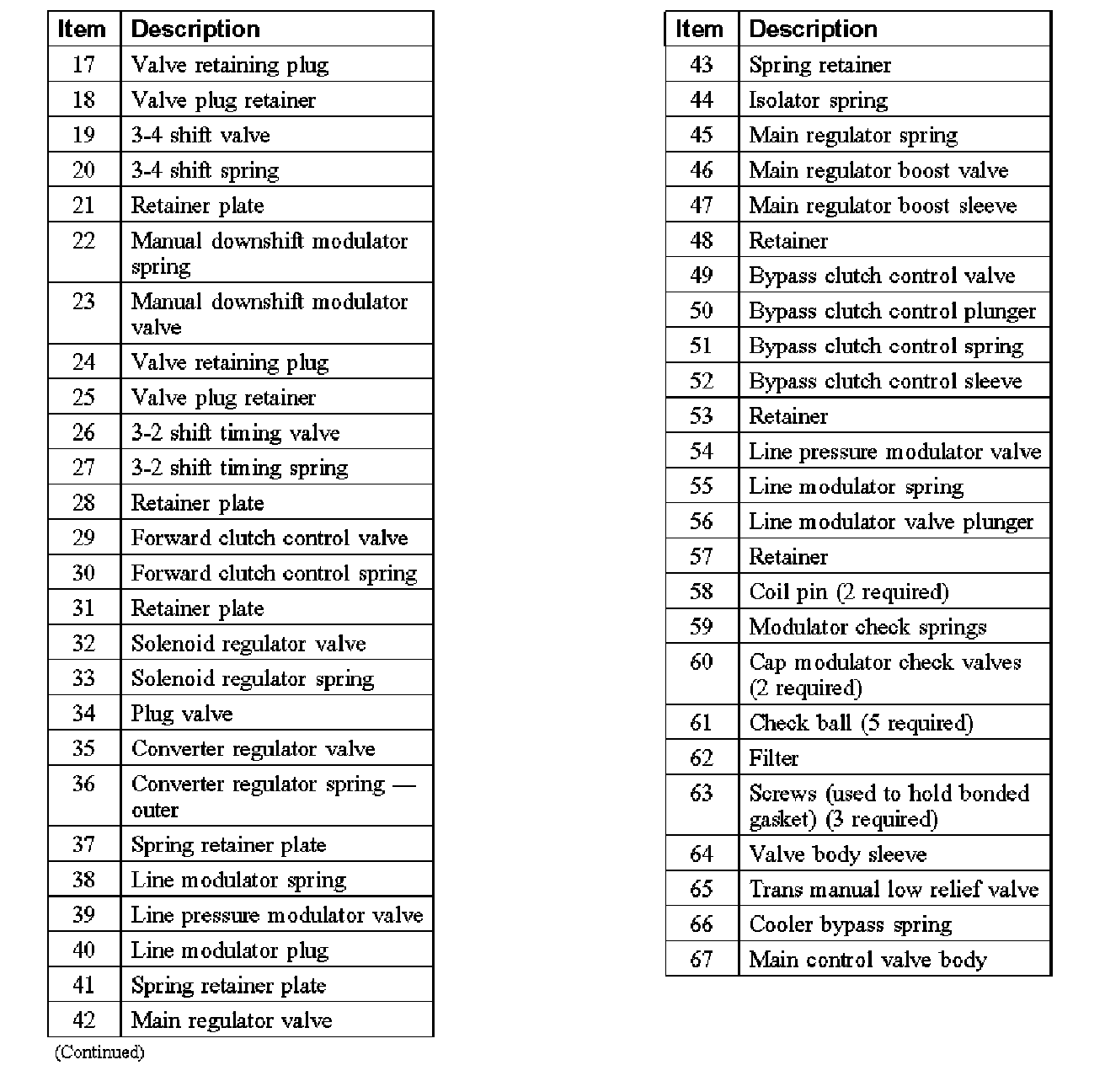

Main Control Valve Body

Main Control Valve Body:




Main Control Valve Body:

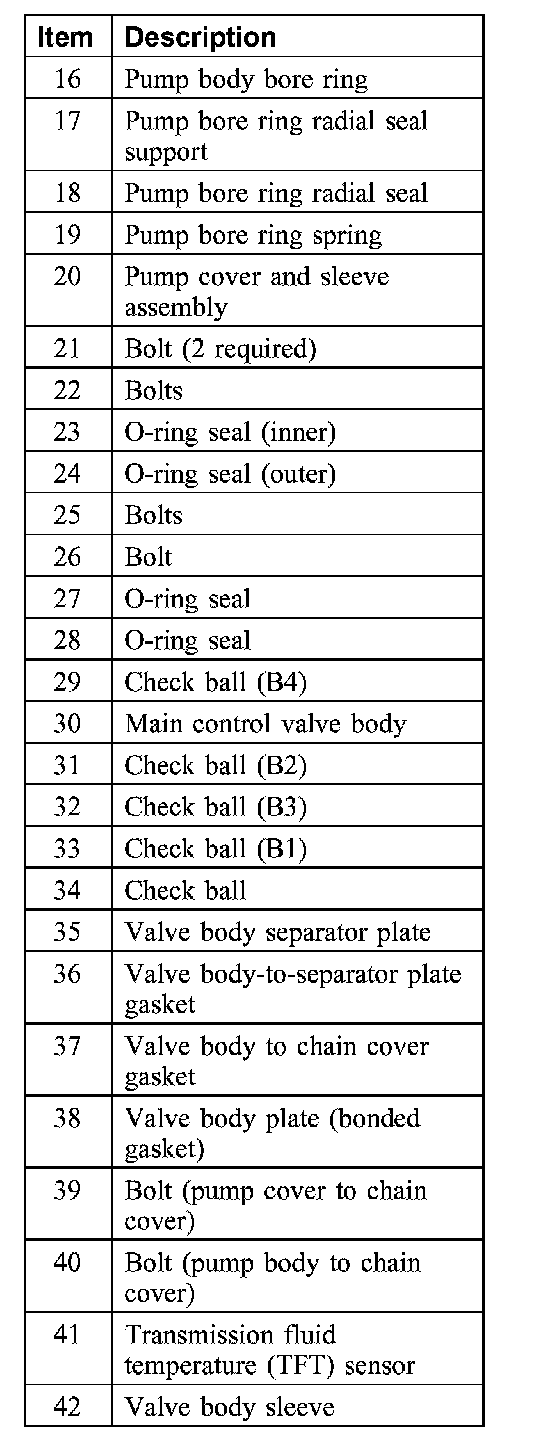

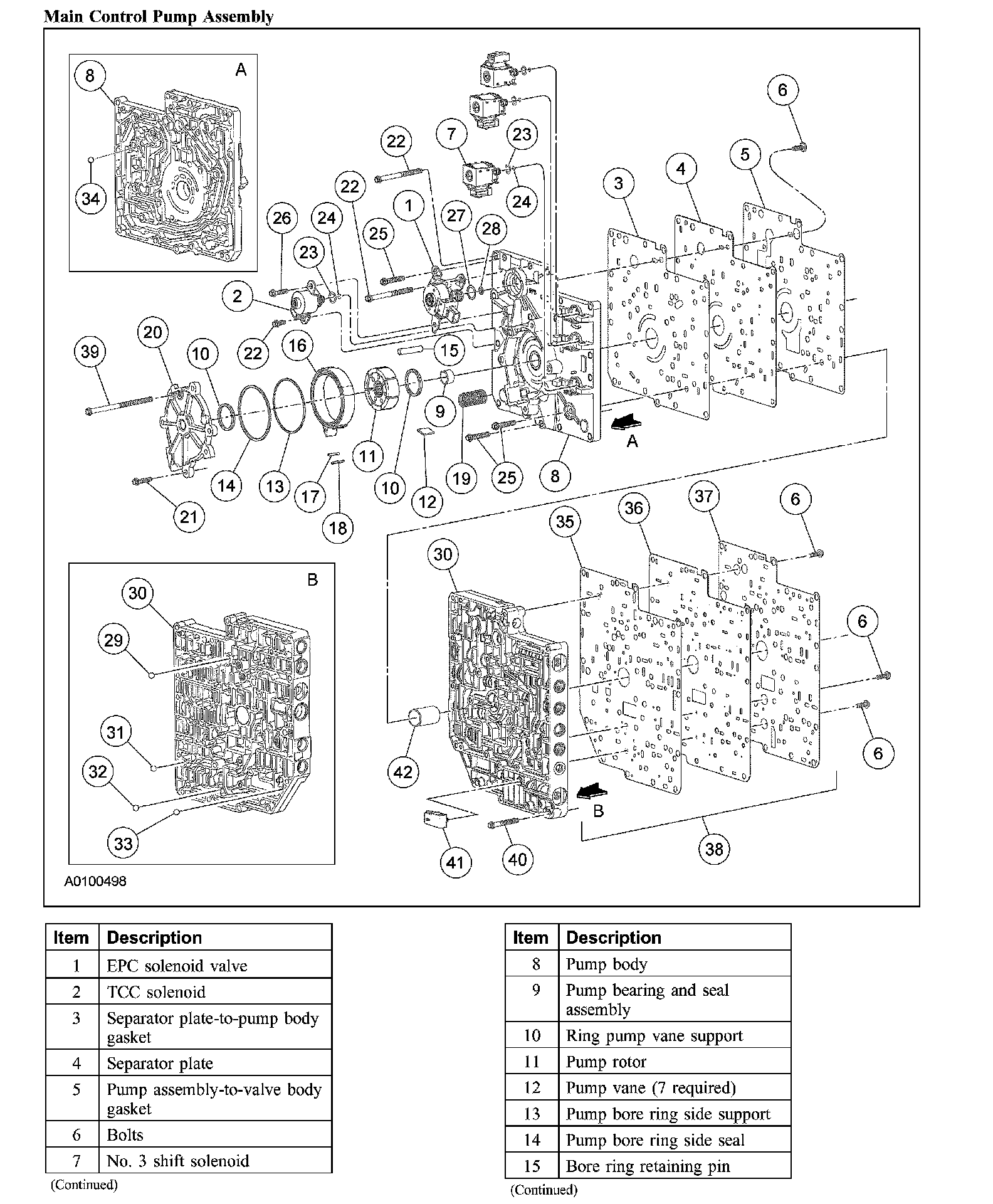

Main Control Pump Assembly

Main Control Pump Assembly:




Main Control Pump Assembly:
