Glass, Frames and Mechanisms - Exploded View

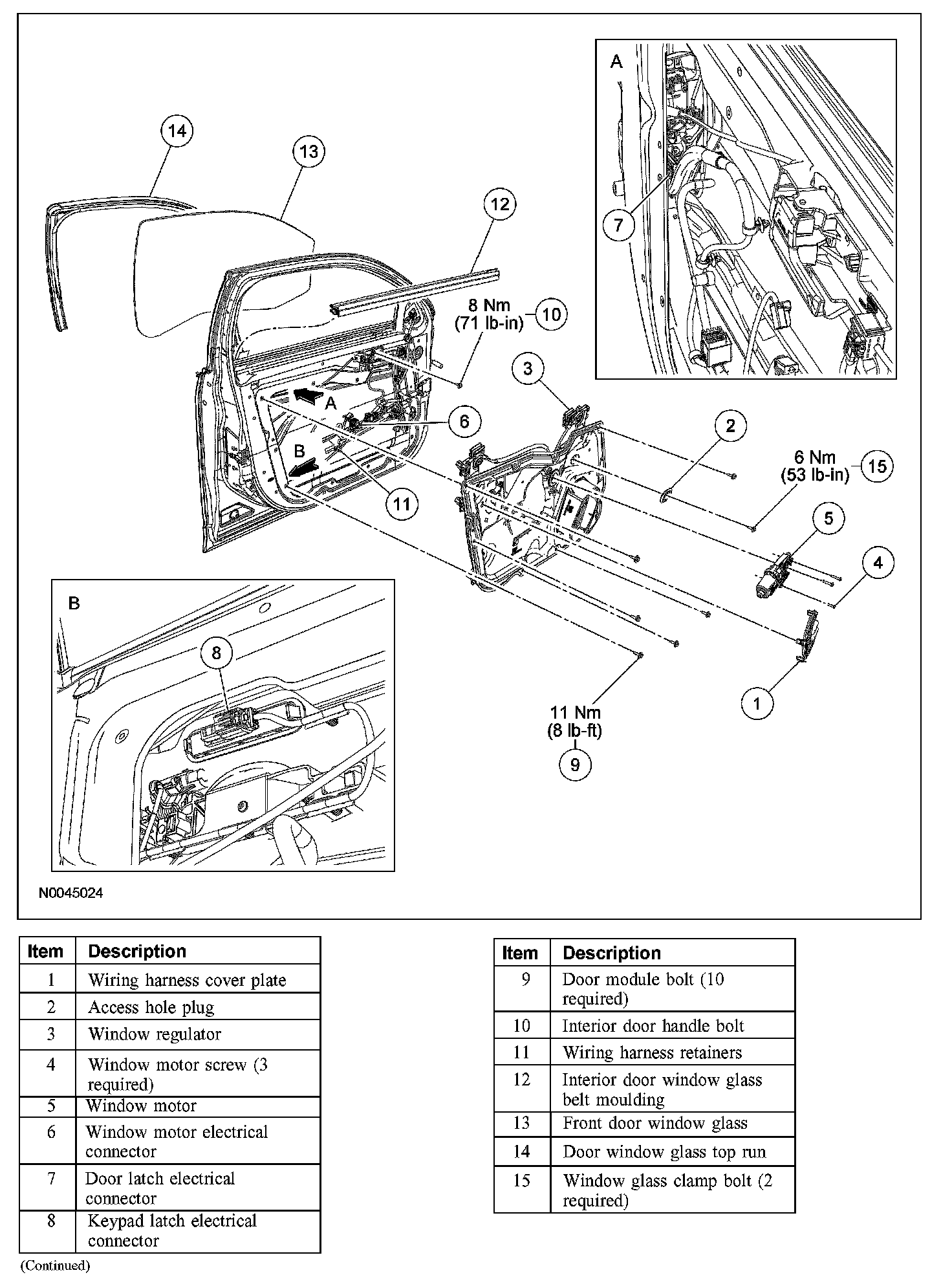

GLASS, FRAMES AND MECHANISMS - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
