Exhaust Gas Recirculation (EGR) System Module and Tube - Exploded View

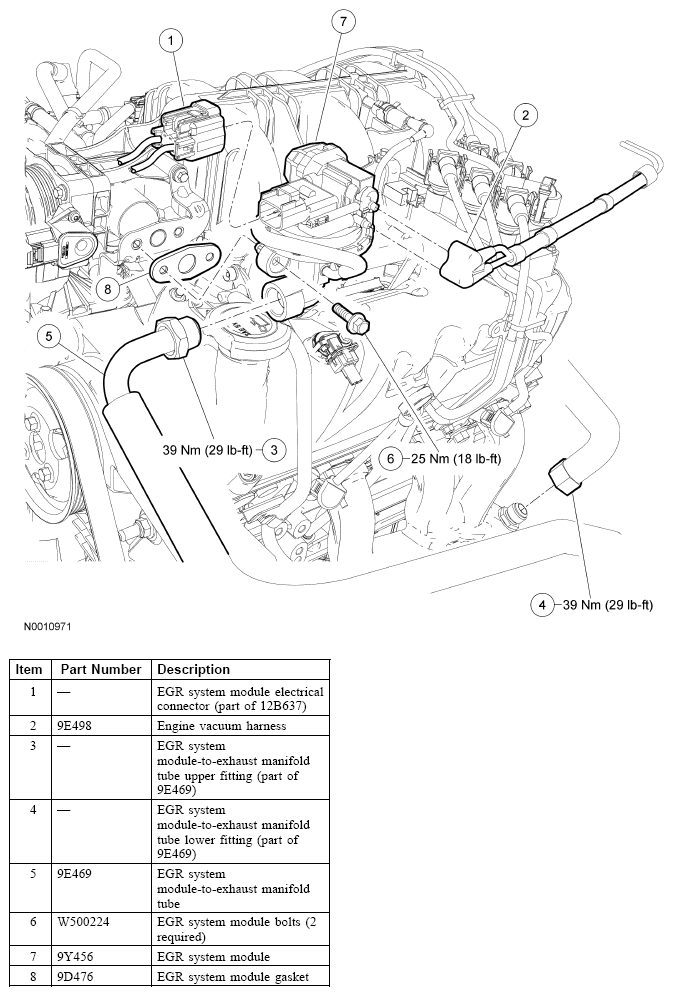

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System Module And Tube Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedure in this article.
