Power Steering System - Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering System - Exploded View

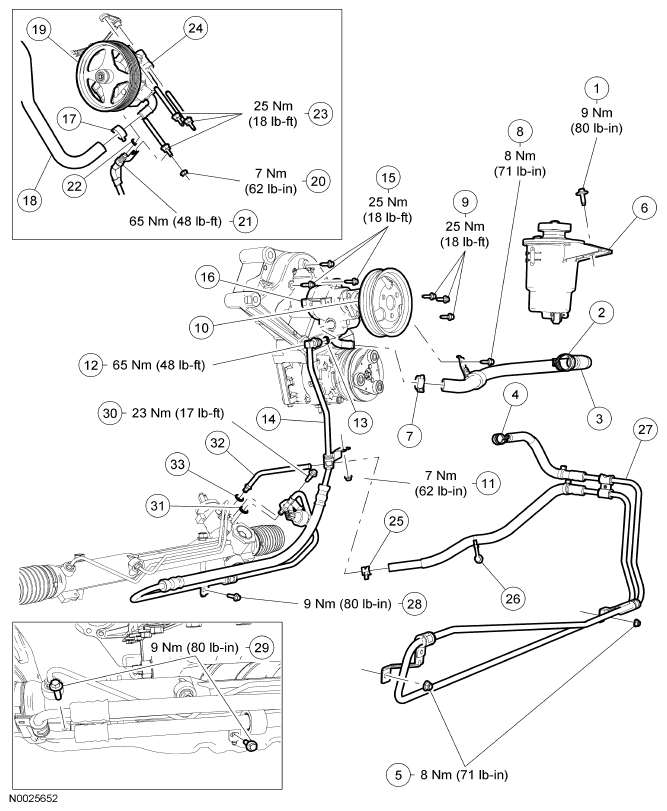

Fig 1: Power Steering System - Exploded View (1 Of 2) - With Torque Specifications

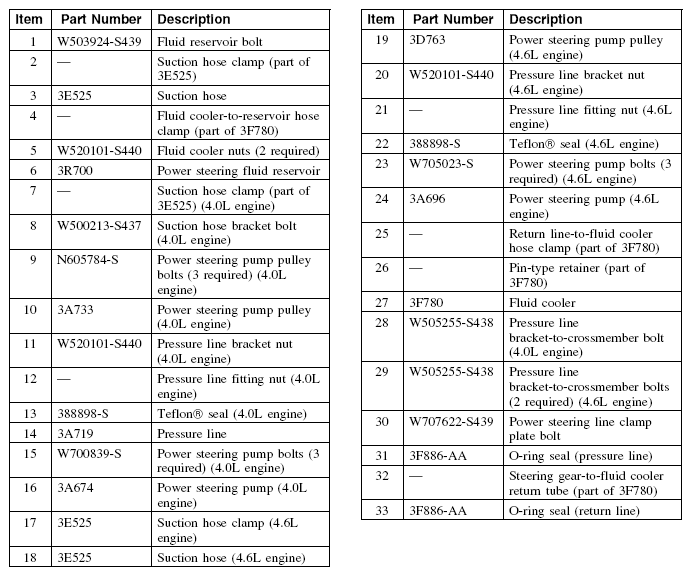

Fig 2: Power Steering System - Exploded View (2 Of 2)
For additional information, refer to the appropriate procedures in this article.
