Selector Lever: Installation

Position the transmission selector lever assembly in the vehicle and install the 2 nuts and the 2 screws.
- Tighten to 9 Nm (80 lb-in).

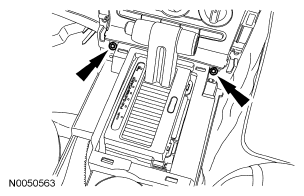

  Fig 1: Locating Transmission Selector Lever Nuts And Screws (2 Of 2)
Connect the selector lever electrical connector.

Fig 2: Locating Selector Lever Electrical Connector
Connect the power point electrical connector and install the console.

Fig 3: Locating Power Point Electrical Connector
Install the 2 screws into the front of the console.

Fig 4: Locating Screws Into Front Of Console
Install the 2 screws into the bottom of the console bin.

Fig 5: Locating Screws Into Bottom Of Console Bin
Install the driver and passenger side center console kick panels.

Fig 6: Locating Driver And Passenger Side Center Console Kick Panels
Install the center console top finish panel and the 2 screws.

Fig 7: Locating Center Console Top Finish Panel And Screws
Install the center console selector lever trim.

Fig 8: Locating Center Console Selector Lever Trim

NOTE: It is necessary to install a new plastic clip prior to installation.
Install the selector lever cable into the bracket.

Fig 9: Locating Selector Lever Cable Into Bracket
Install the selector lever cable onto the selector lever and lock the selector lever cable adjustment lock.

Fig 10: Installing Selector Lever Cable Onto Selector Lever
Verify the selector lever cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT in this article.
