Connector Views

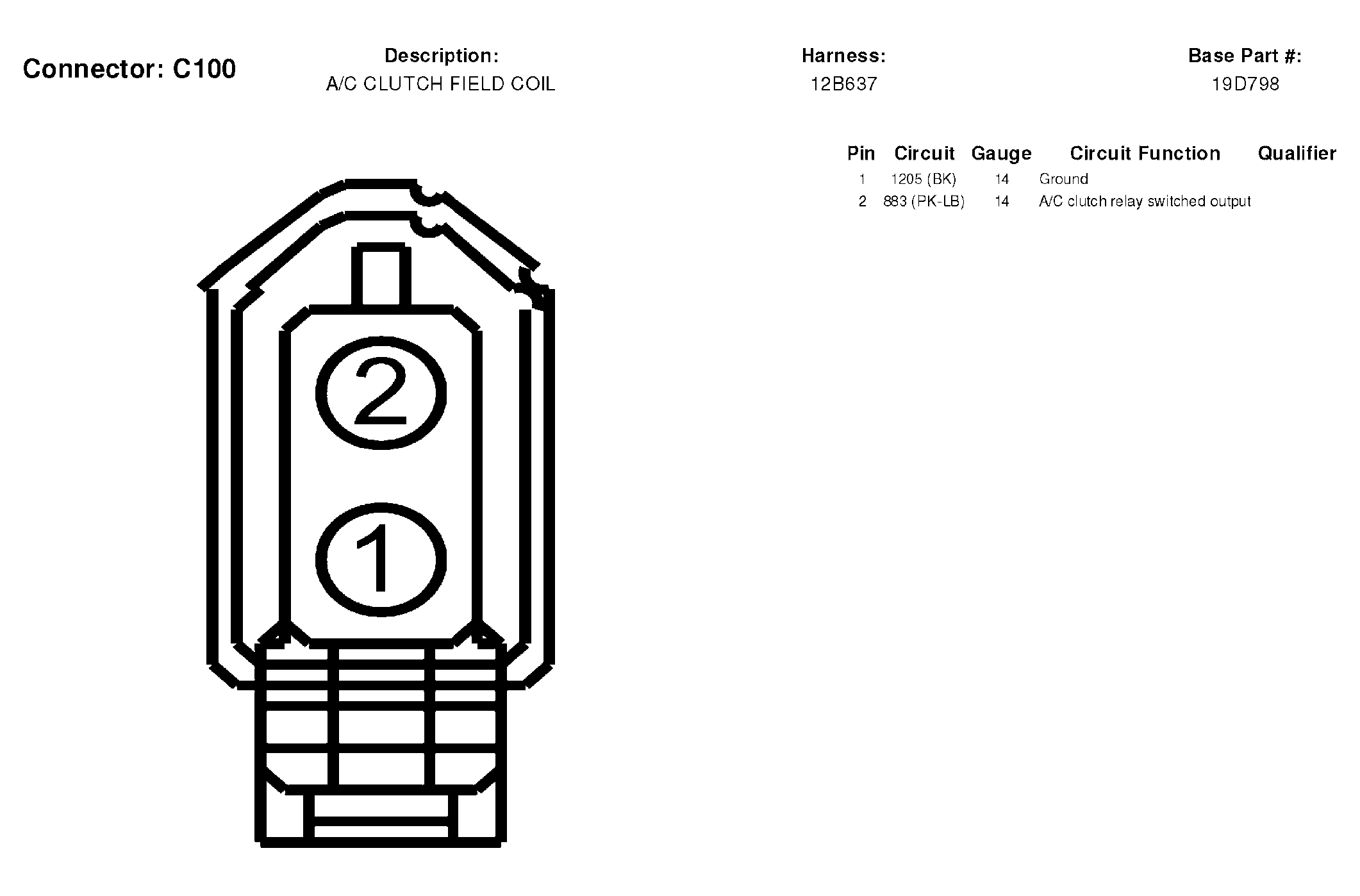

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G04597960

Courtesy of FORD MOTOR CO.

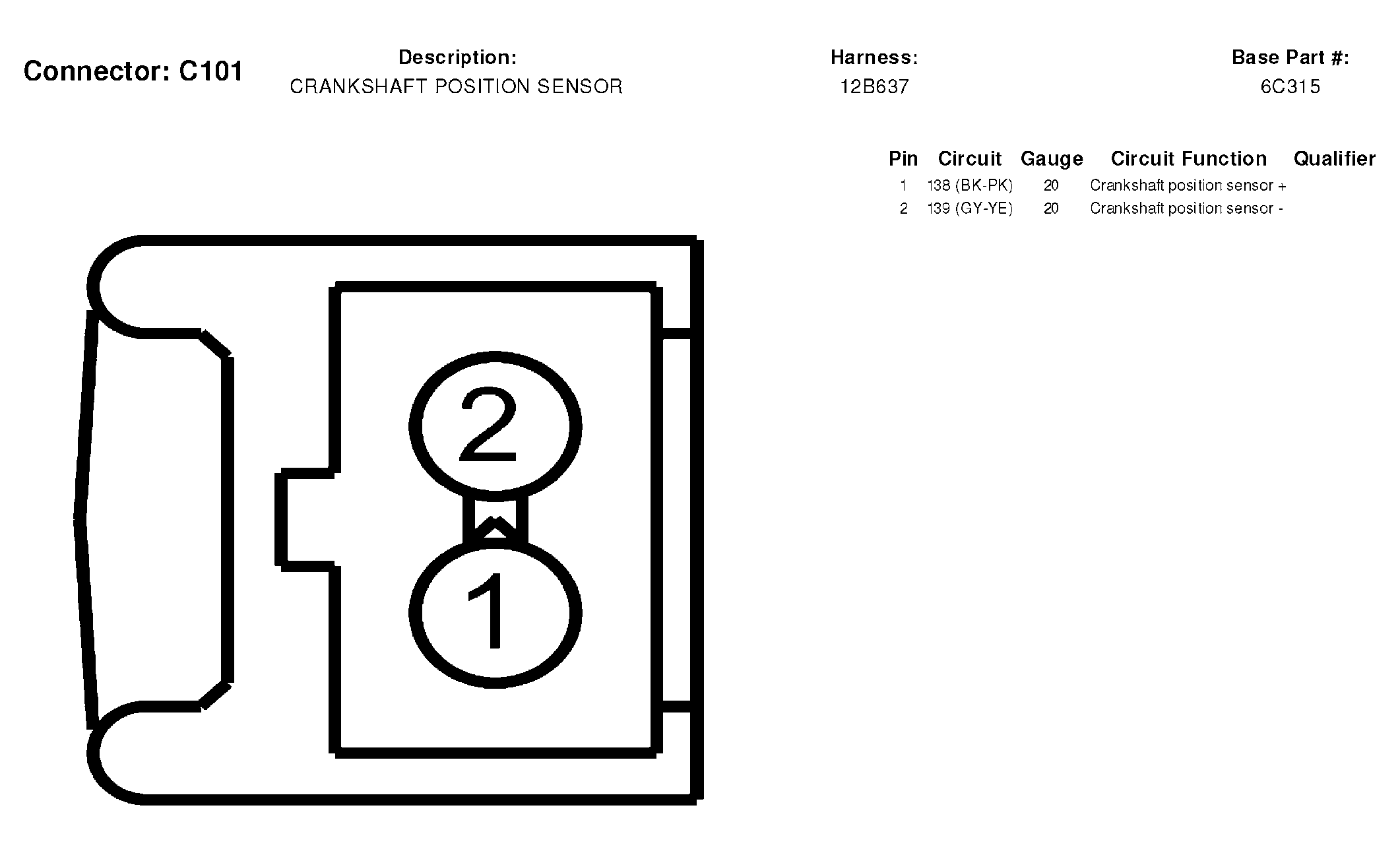

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G04597961

Courtesy of FORD MOTOR CO.

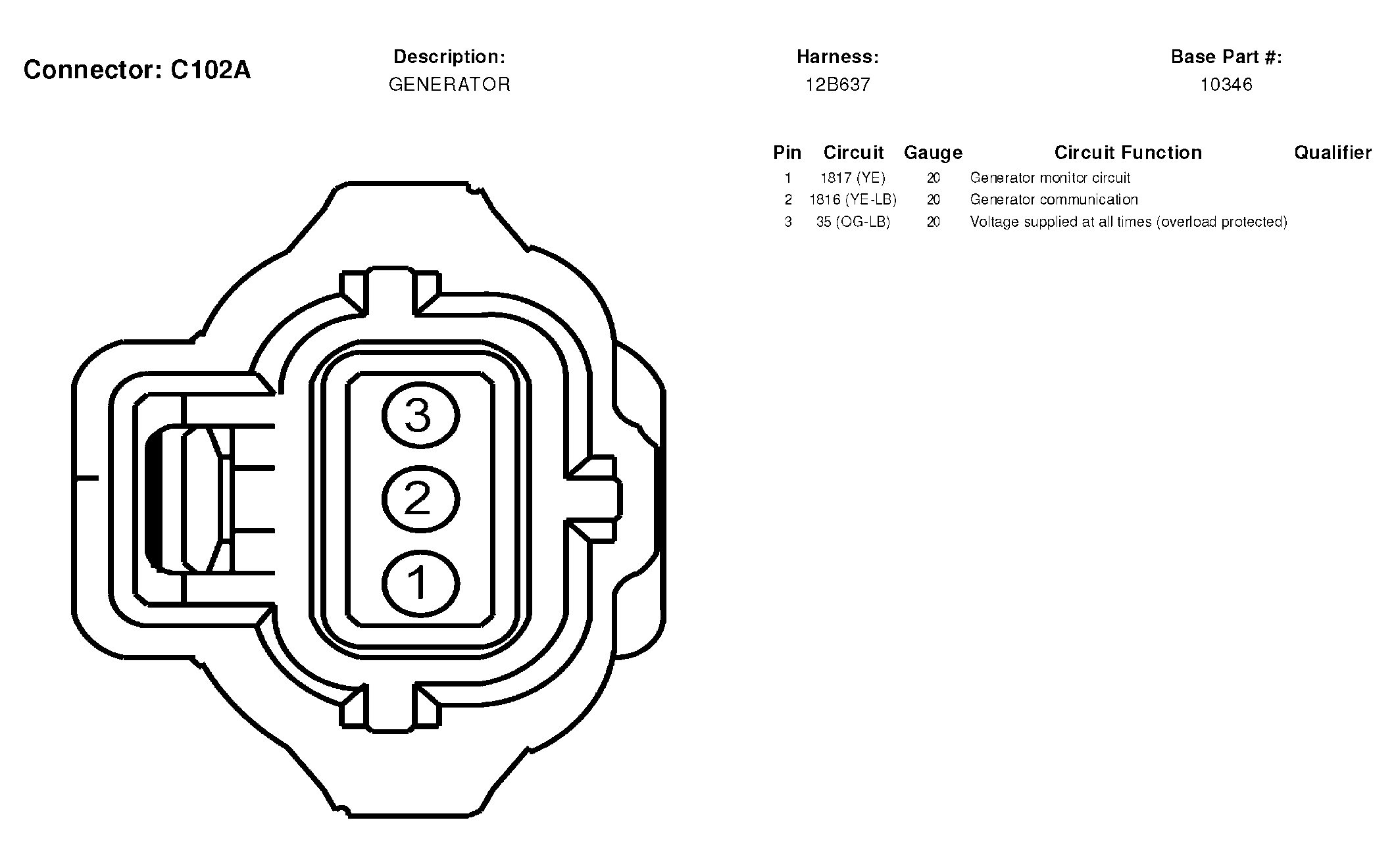

Fig 3: Generator Connector End View (C102A)

G04597962

Courtesy of FORD MOTOR CO.

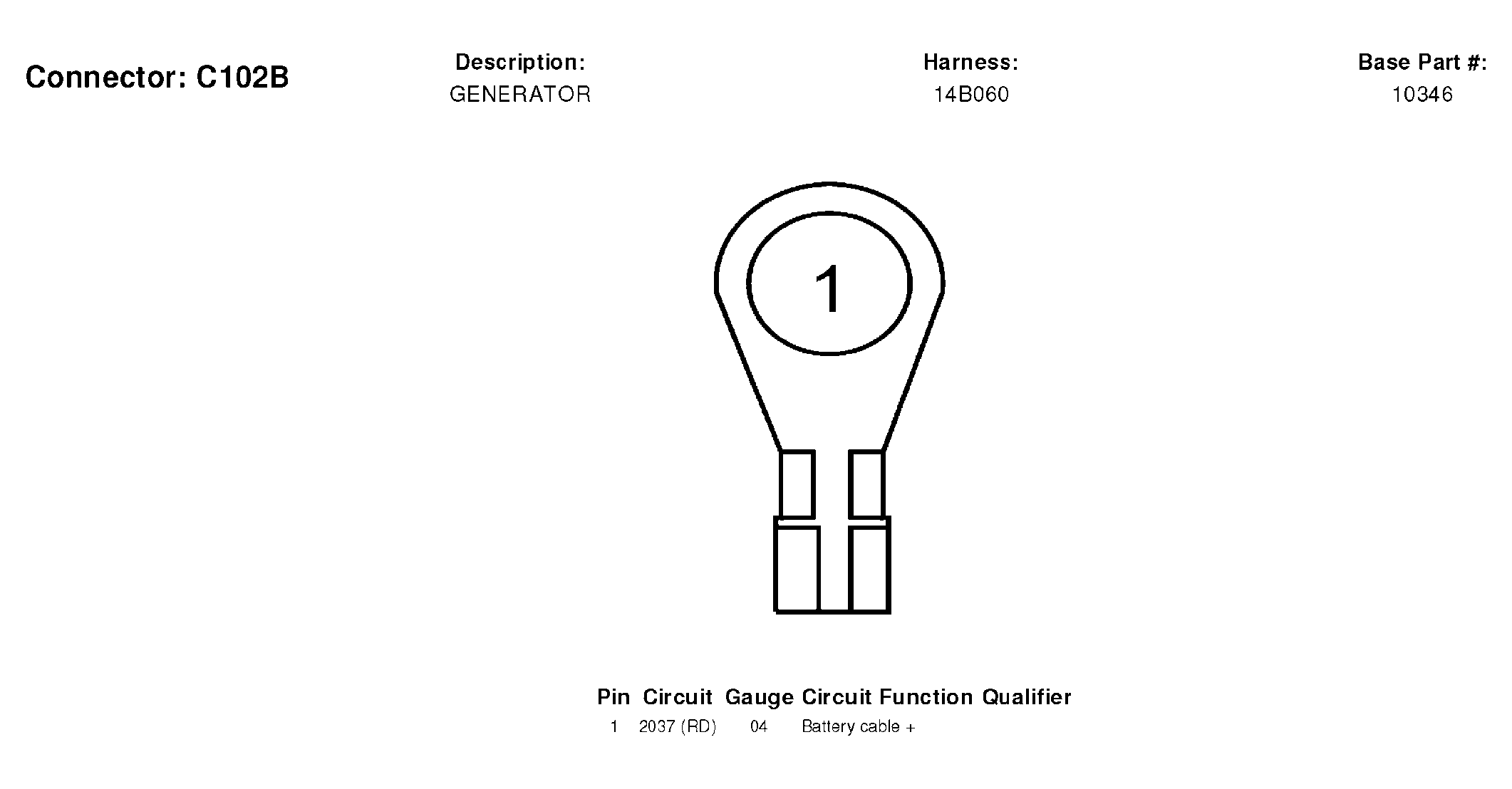

Fig 4: Generator Connector End View (C102B)

G04597963

Courtesy of FORD MOTOR CO.

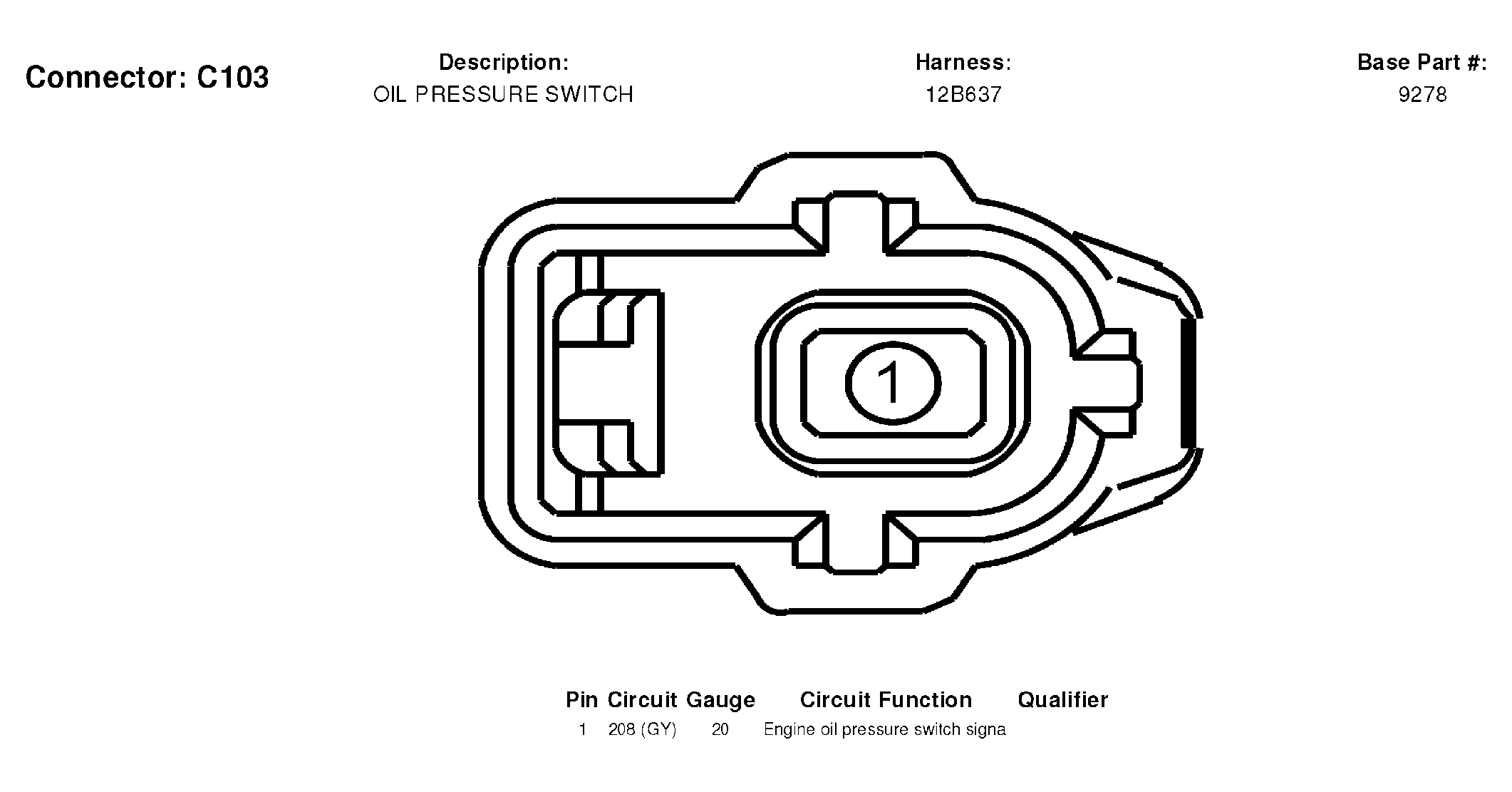

Fig 5: Oil Pressure Switch Connector End View (C103)

G04597964

Courtesy of FORD MOTOR CO.

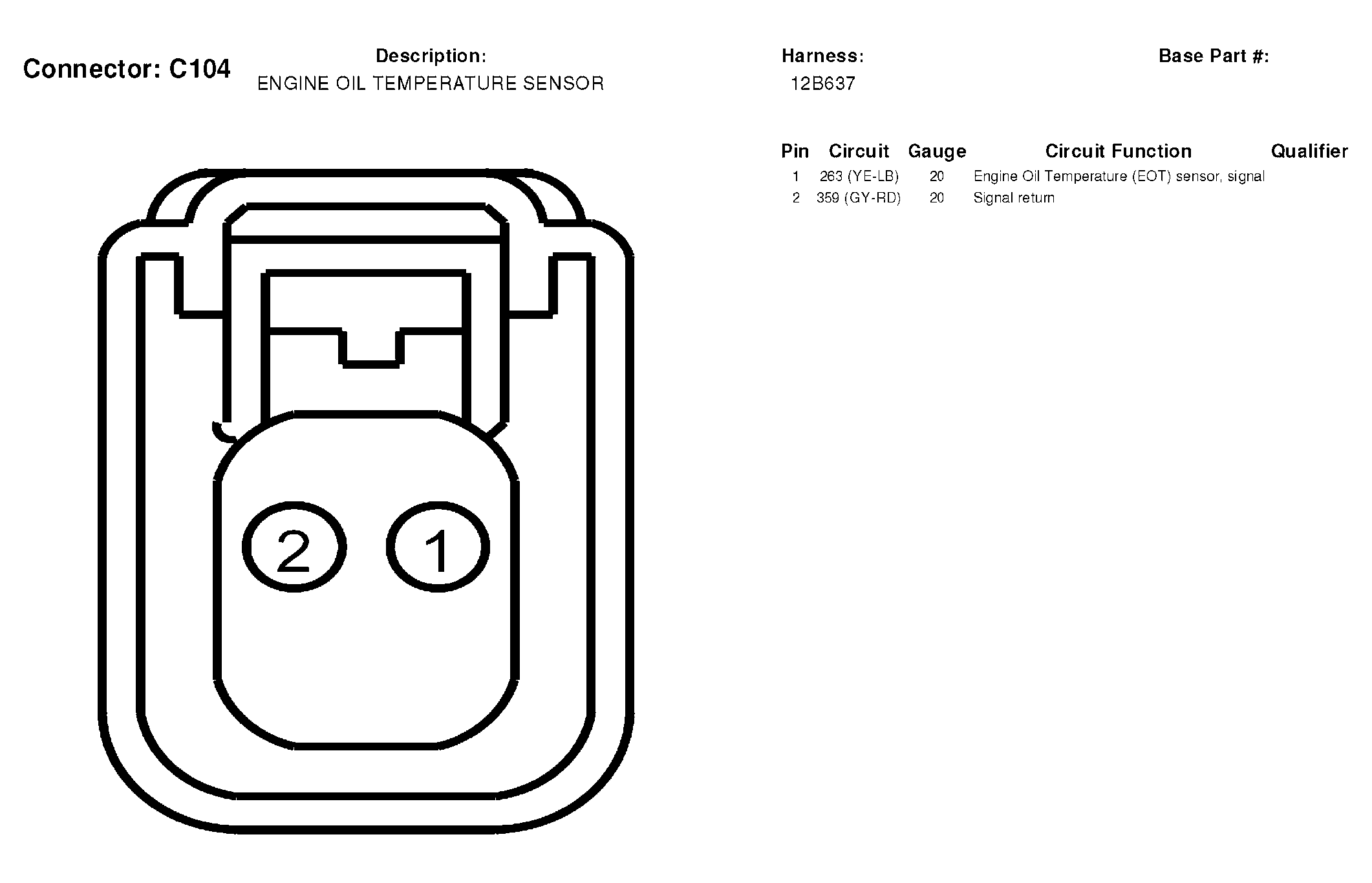

Fig 6: Engine Oil Temperature Sensor Connector End View (C104)

G04597965

Courtesy of FORD MOTOR CO.

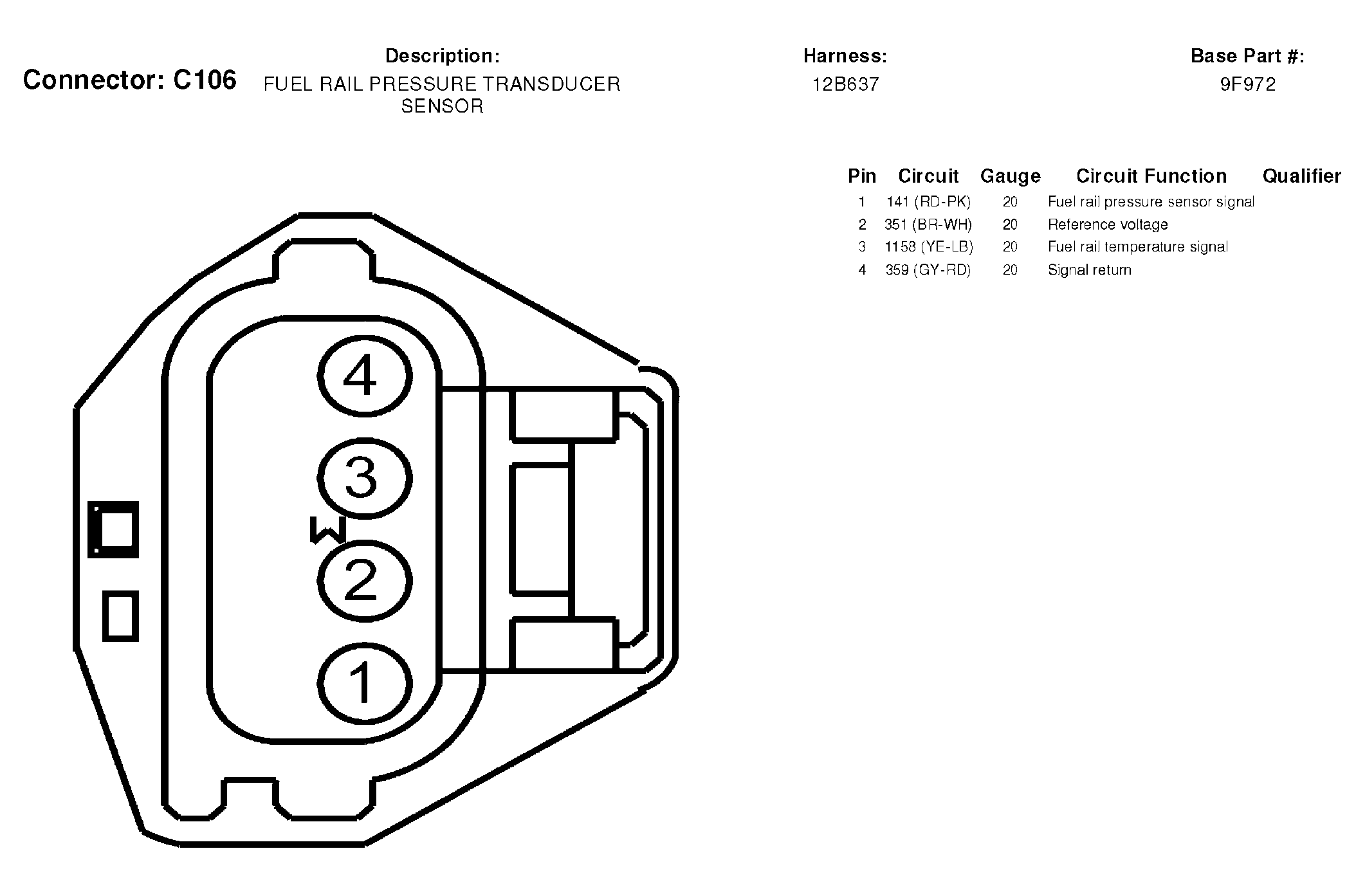

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G04597966

Courtesy of FORD MOTOR CO.

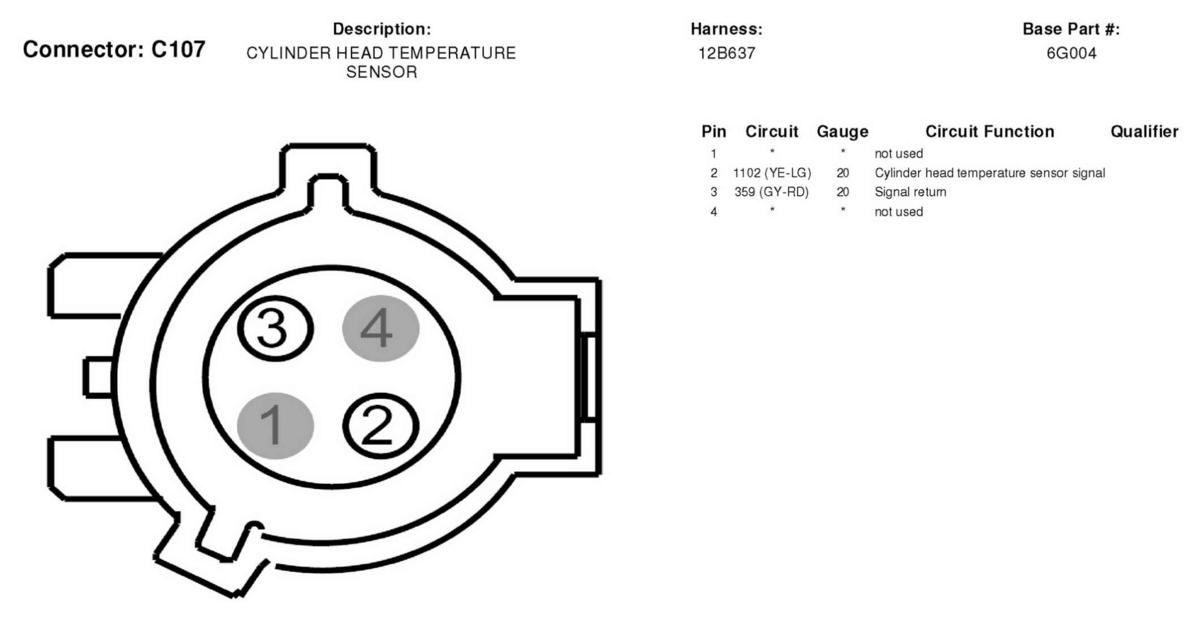

Fig 8: Cylinder Head Temperature Sensor Connector End View (C107)

G04597967

Courtesy of FORD MOTOR CO.

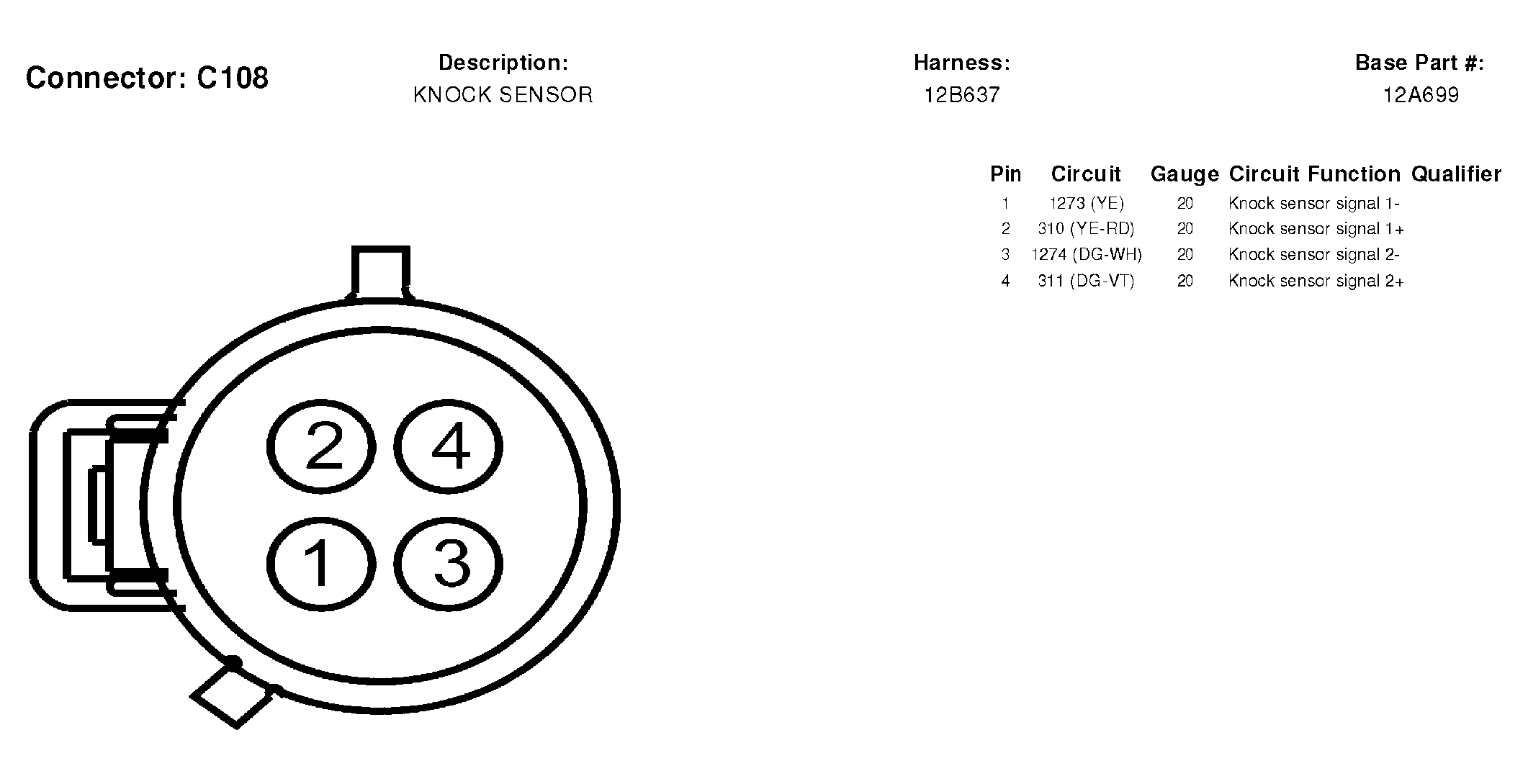

Fig 9: Knock Sensor Connector End View (C108)

G04597968

Courtesy of FORD MOTOR CO.

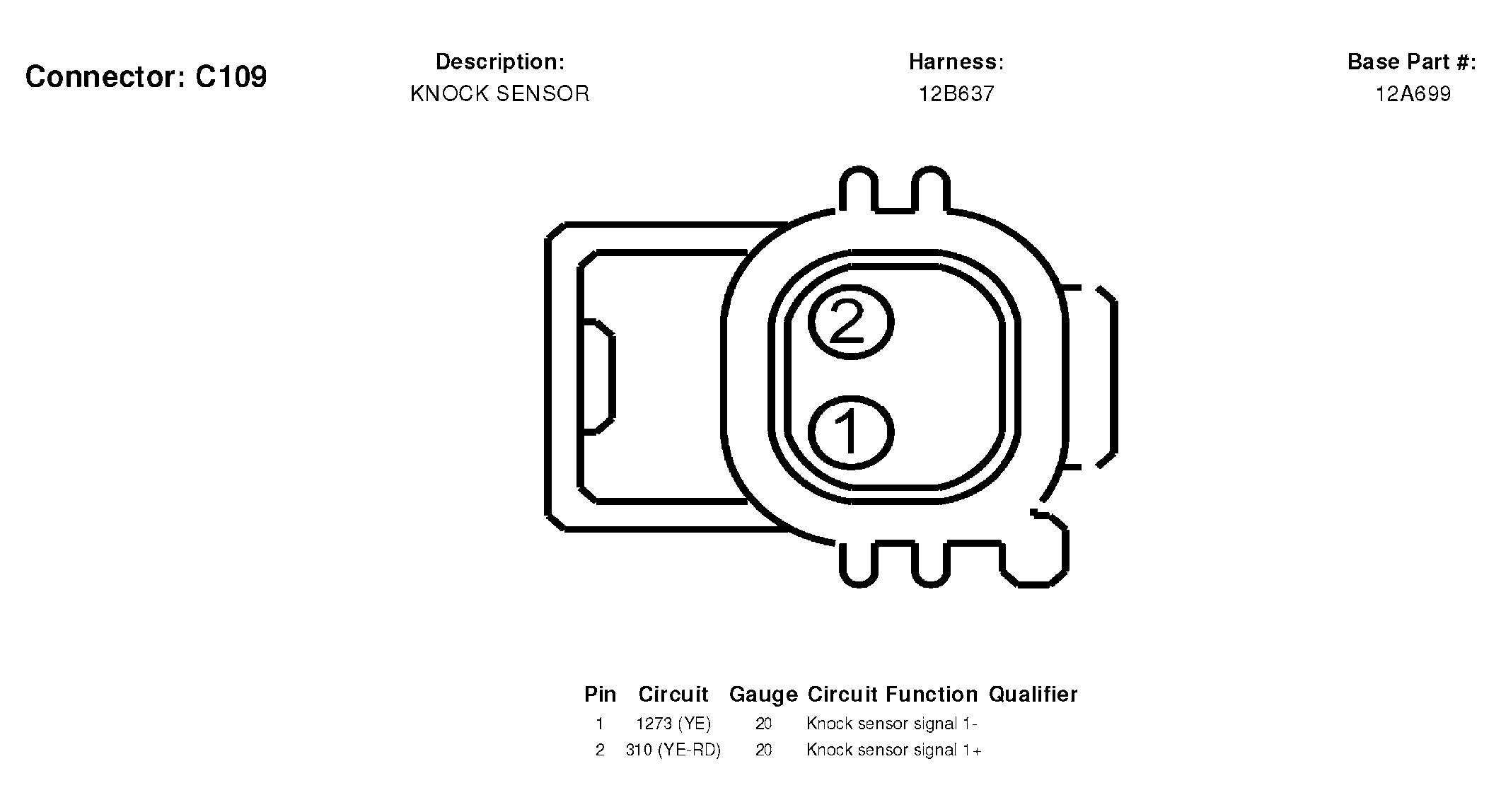

Fig 10: Knock Sensor Connector End View (C109)

G04597969

Courtesy of FORD MOTOR CO.

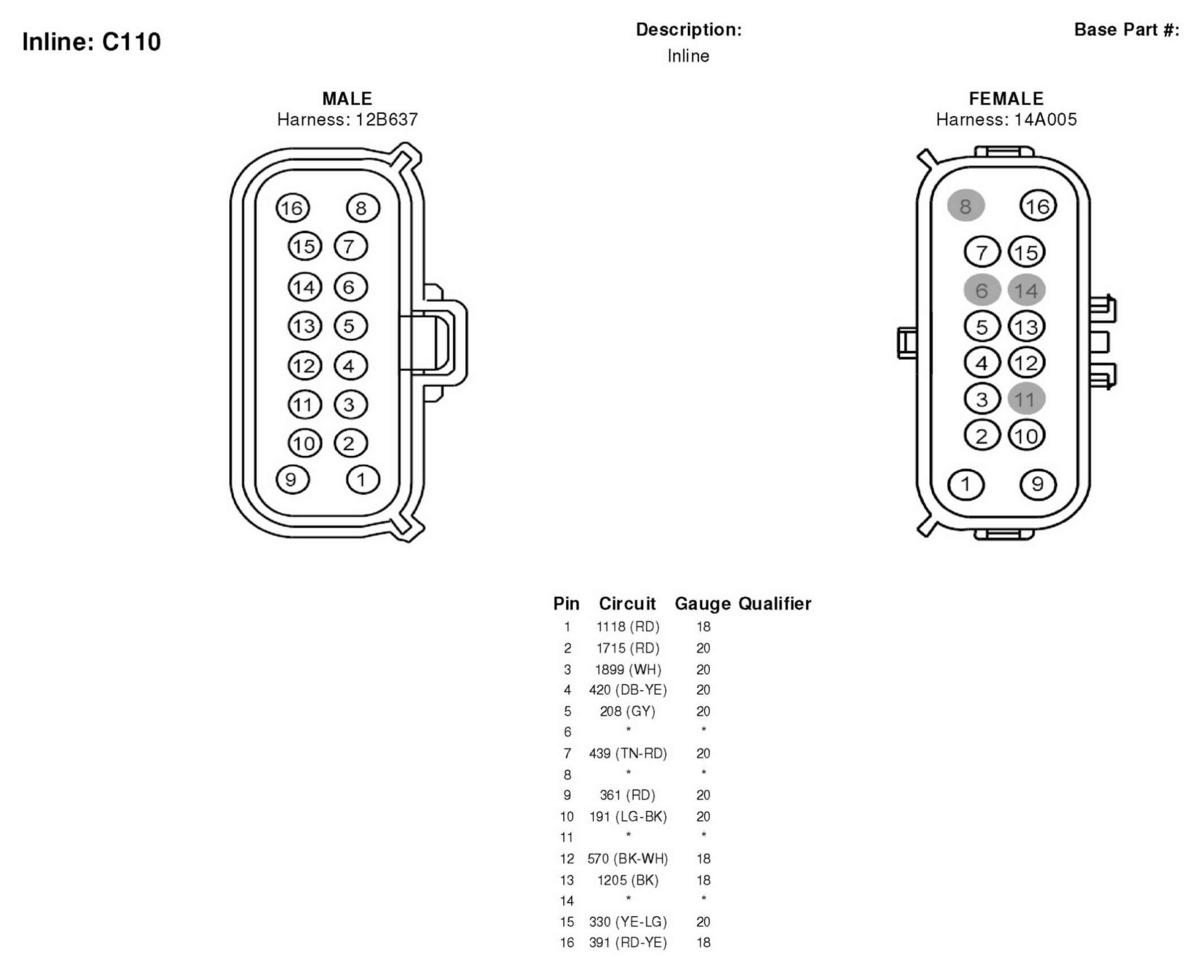

Fig 11: Inline Connector End View (C110)

G04597970

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G04597971

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G04597972

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G04597973

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G04597974

Courtesy of FORD MOTOR CO.

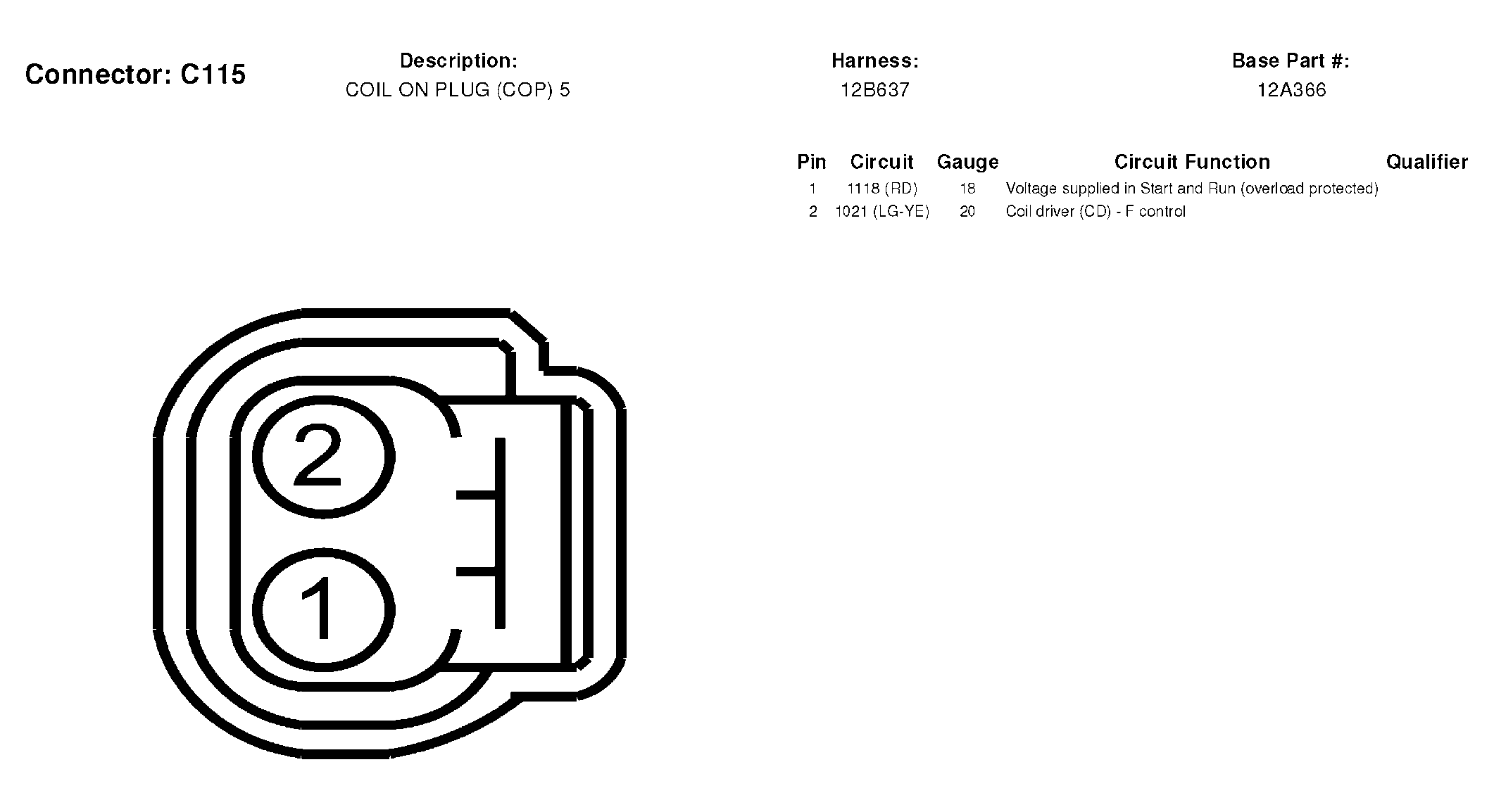

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G04597975

Courtesy of FORD MOTOR CO.

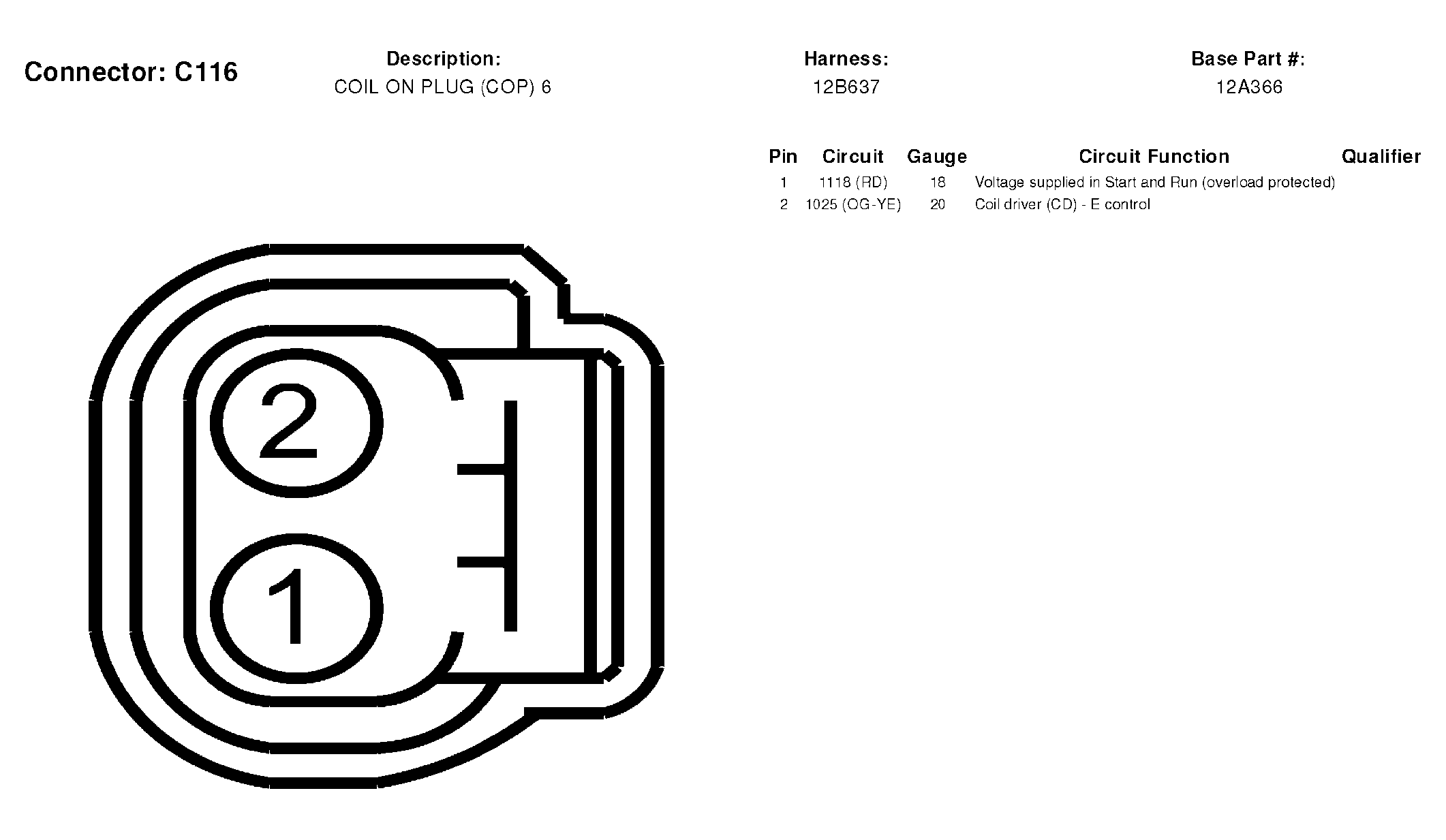

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G04597976

Courtesy of FORD MOTOR CO.

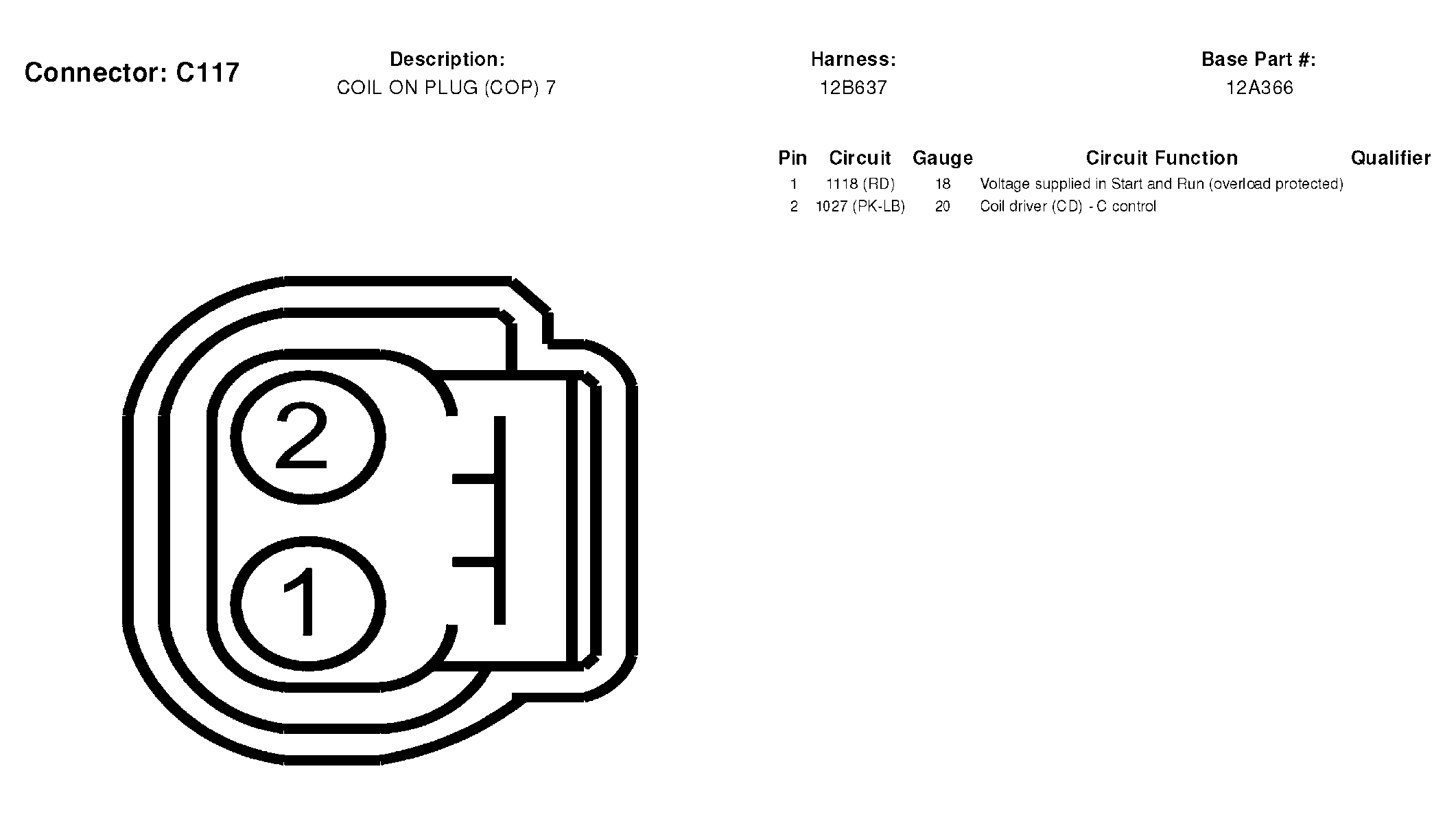

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G04597977

Courtesy of FORD MOTOR CO.

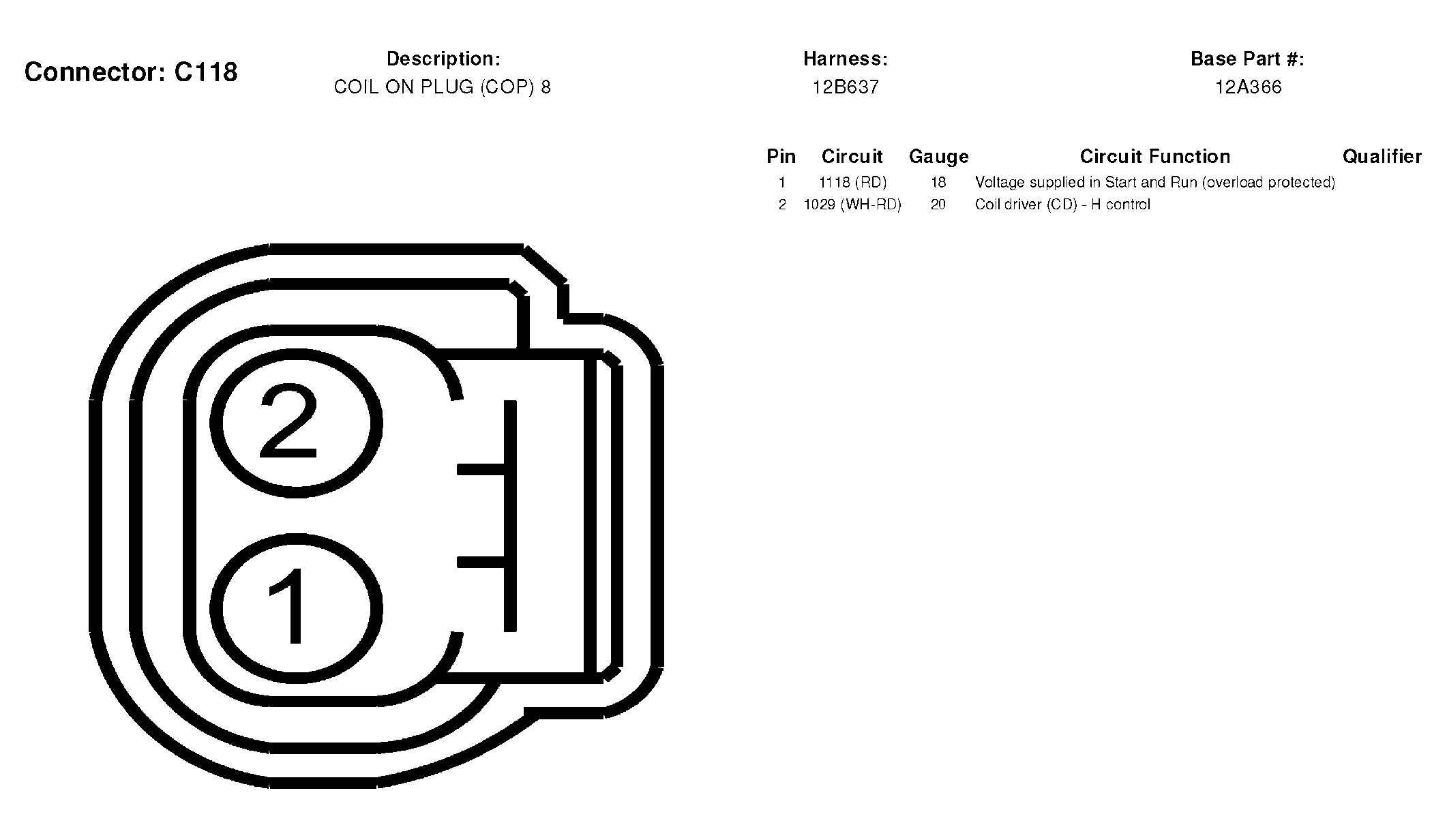

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G04597978

Courtesy of FORD MOTOR CO.

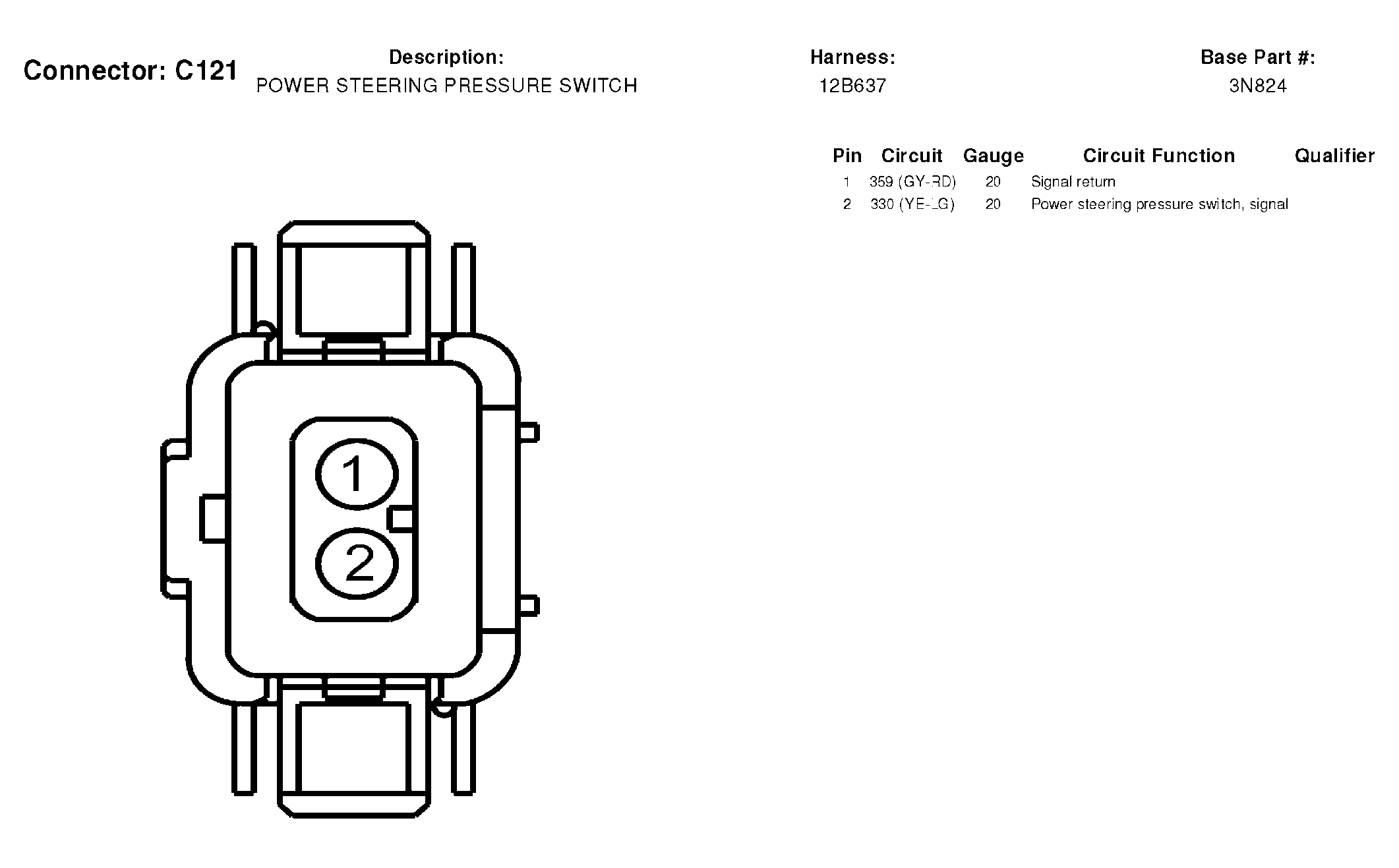

Fig 20: Power Steering Pressure Switch Connector End View (C121)

G04597979

Courtesy of FORD MOTOR CO.

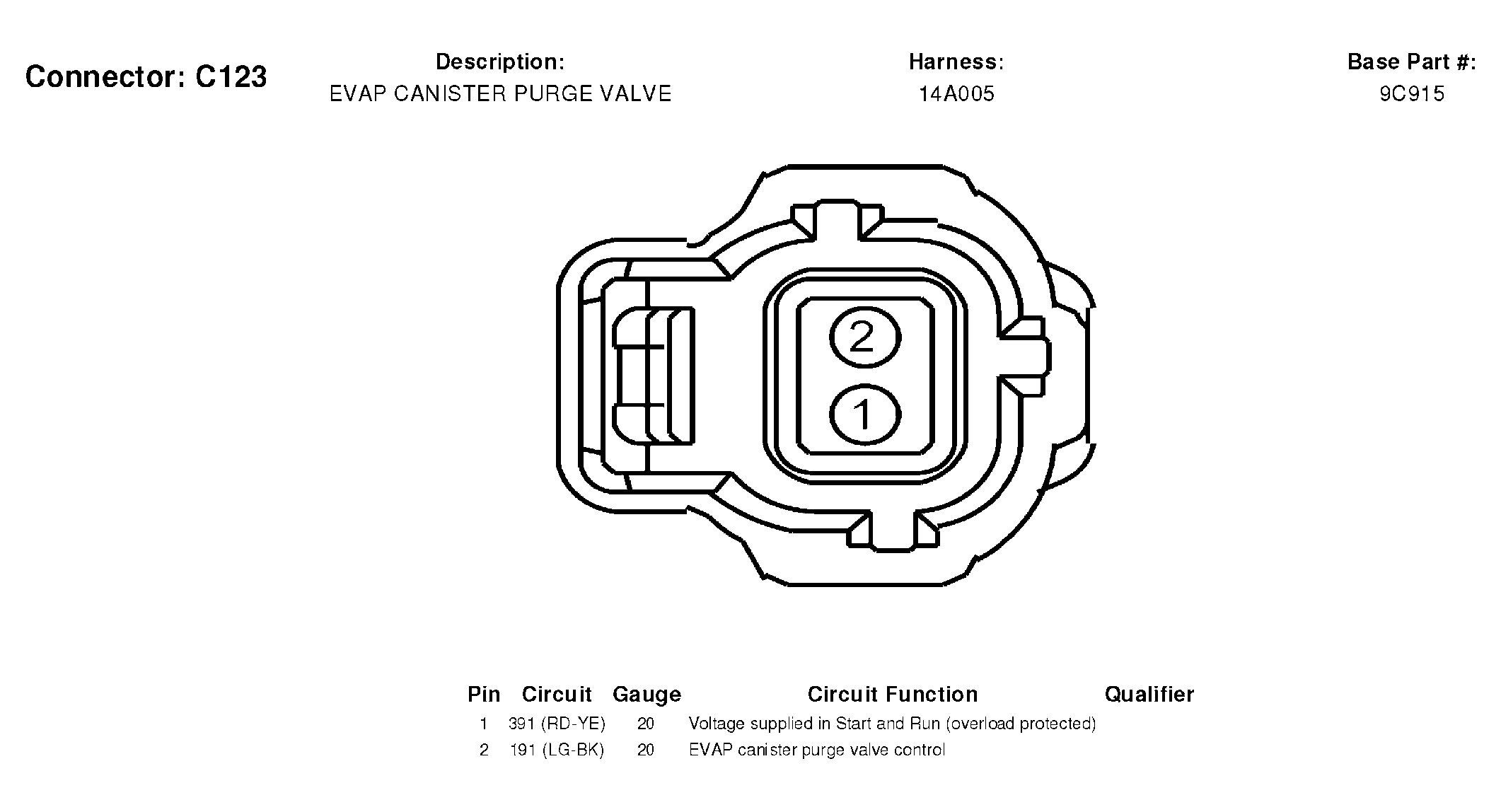

Fig 21: EVAP Canister Purge Valve Connector End View (C123)

G04597980

Courtesy of FORD MOTOR CO.

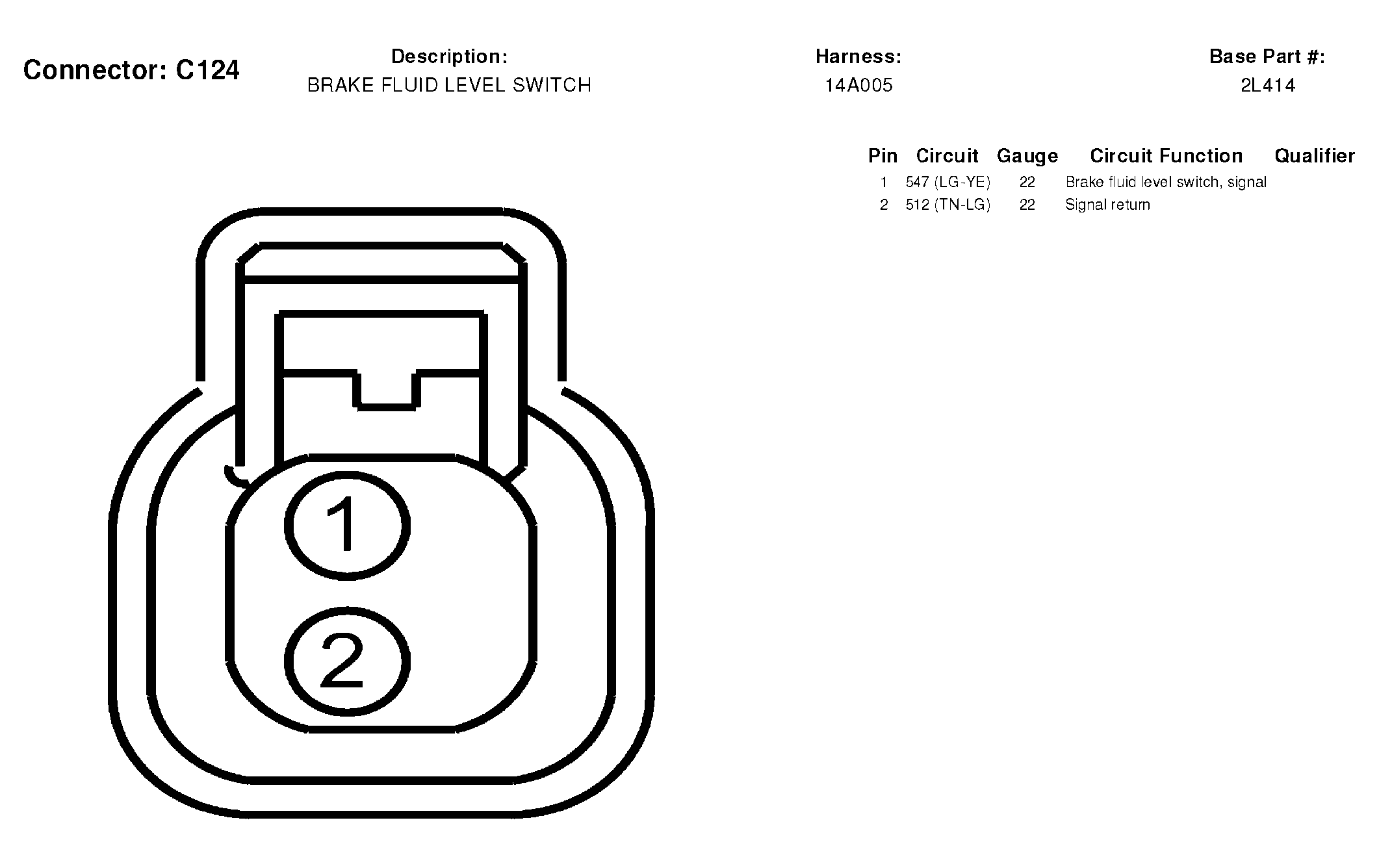

Fig 22: Brake Fluid Level Switch Connector End View (C124)

G04597981

Courtesy of FORD MOTOR CO.

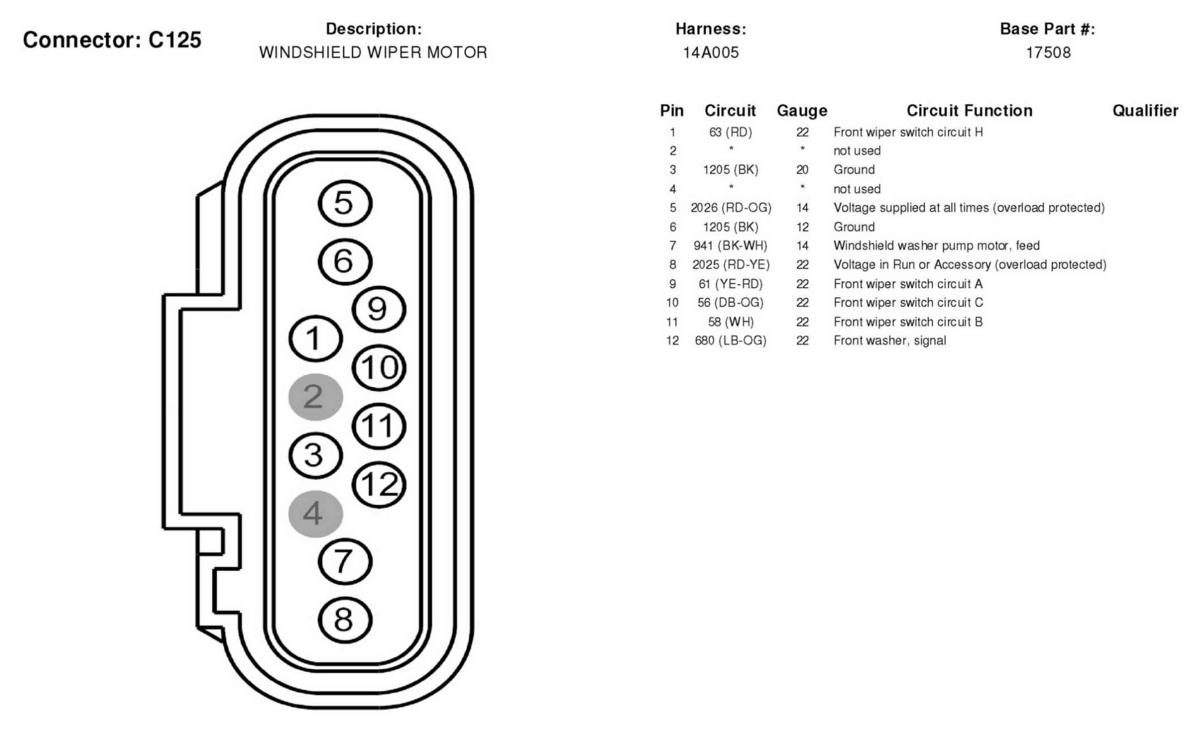

Fig 23: Windshield Wiper Motor Connector End View (C125)

G04597982

Courtesy of FORD MOTOR CO.

Fig 24: Anti-Theft Hood Switch Connector End View (C127)

G04597983

Courtesy of FORD MOTOR CO.

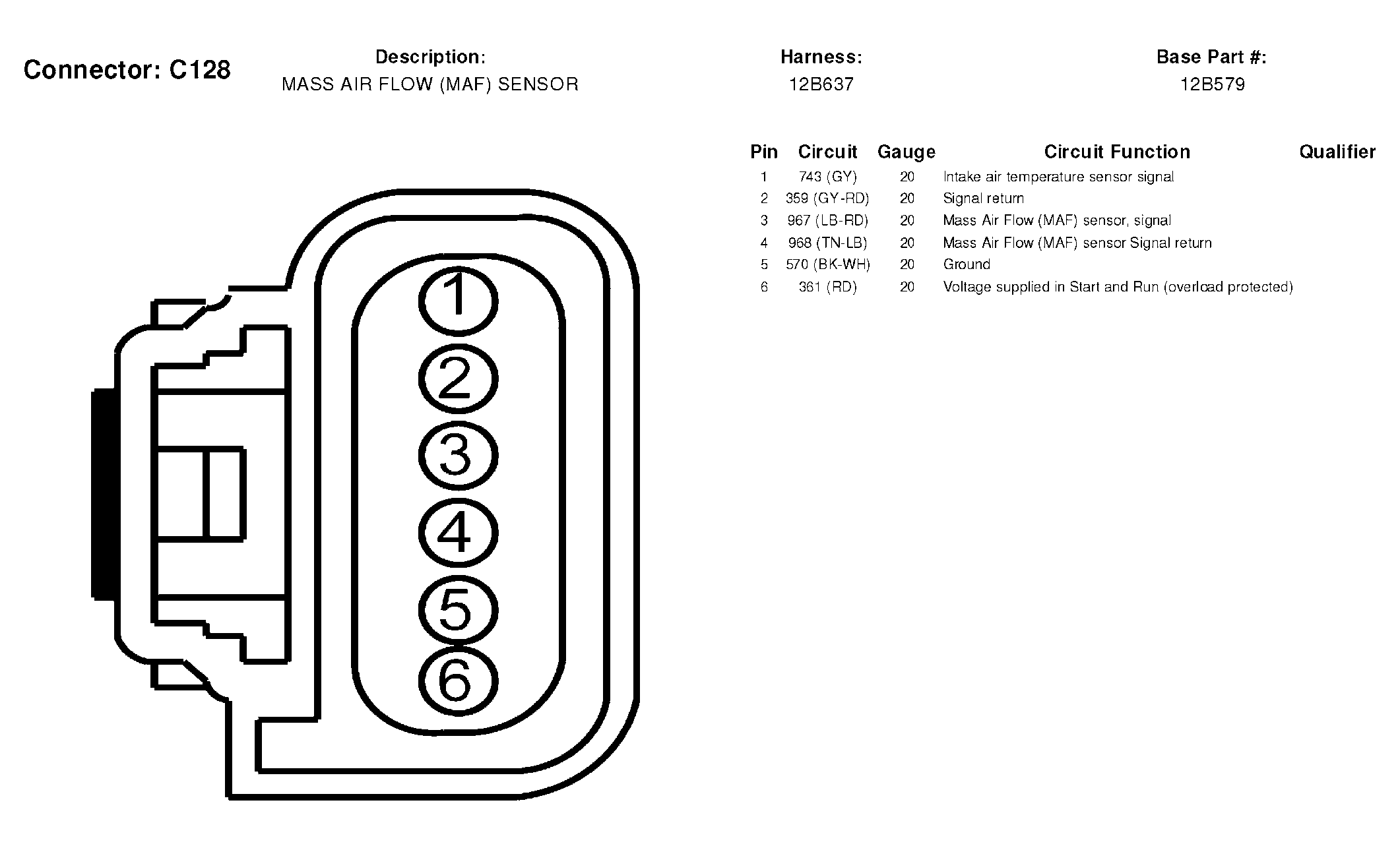

Fig 25: Mass Air Flow (MAF) Sensor Connector End View (C128)

G04597984

Courtesy of FORD MOTOR CO.

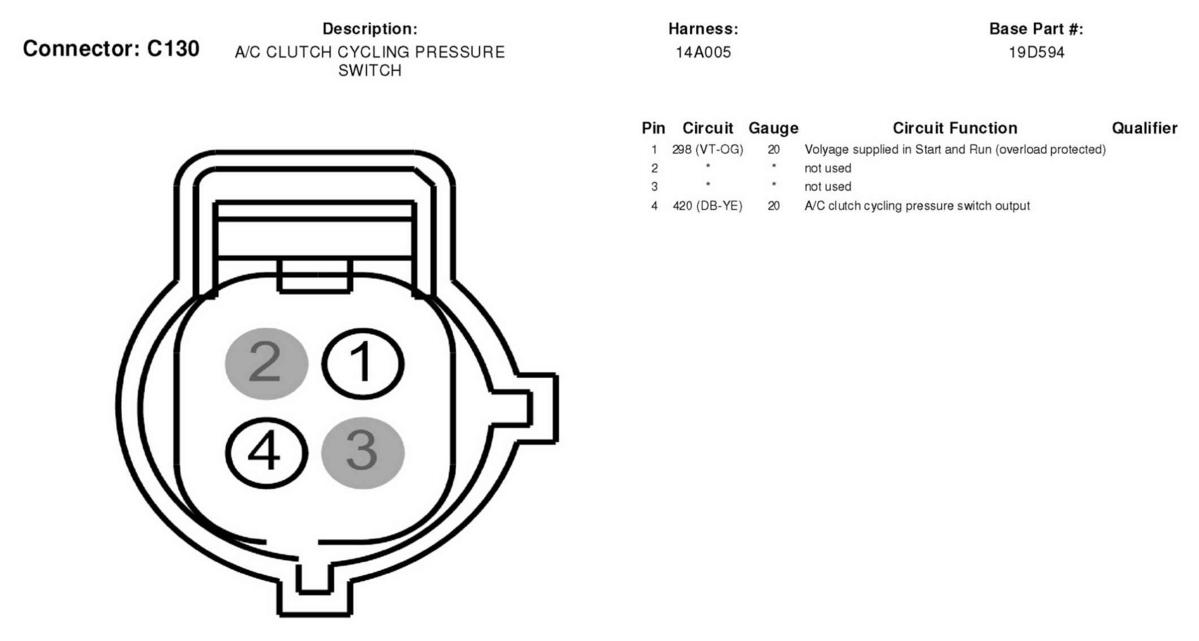

Fig 26: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G04597985

Courtesy of FORD MOTOR CO.

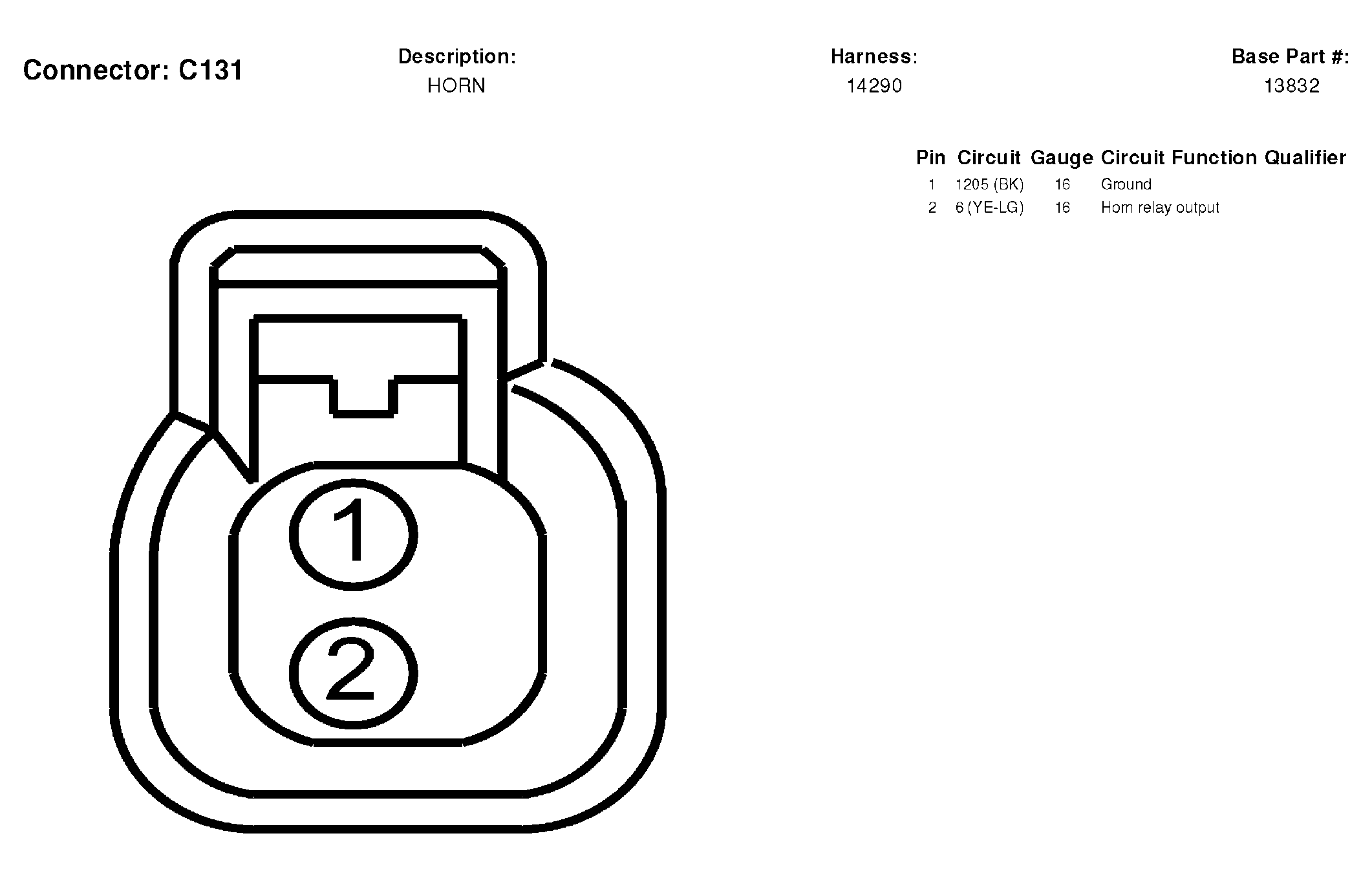

Fig 27: Horn Connector End View (C131)

G04597986

Courtesy of FORD MOTOR CO.

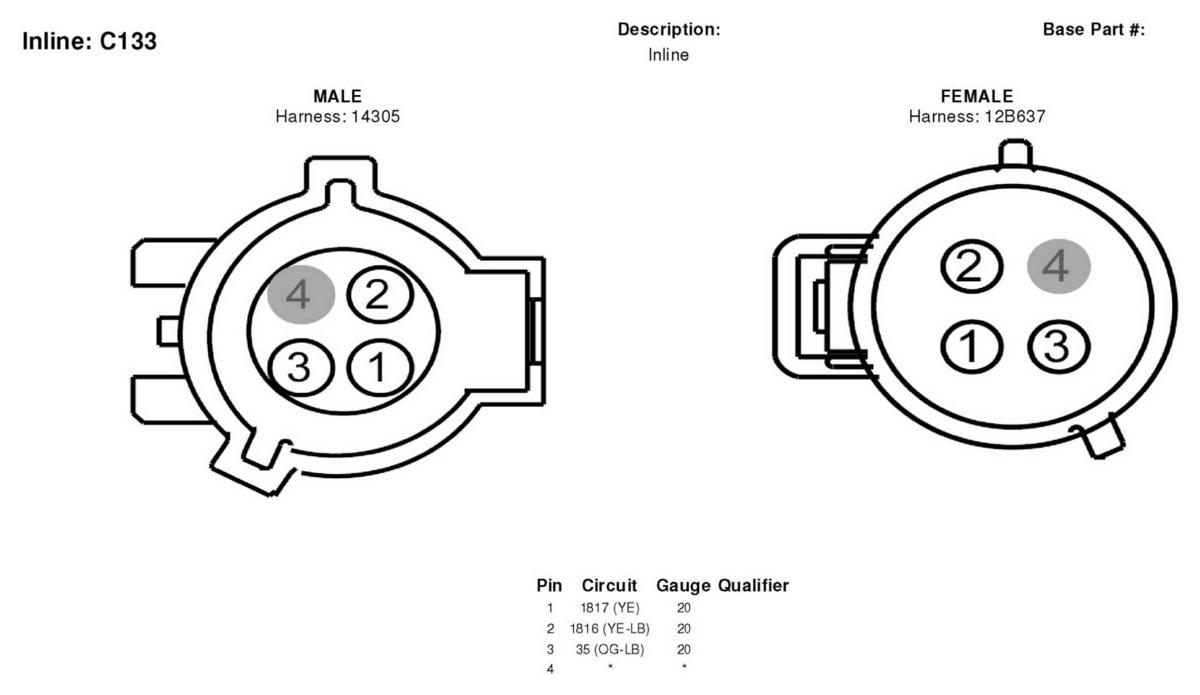

Fig 28: Inline Connector End View (C133)

G04597987

Courtesy of FORD MOTOR CO.

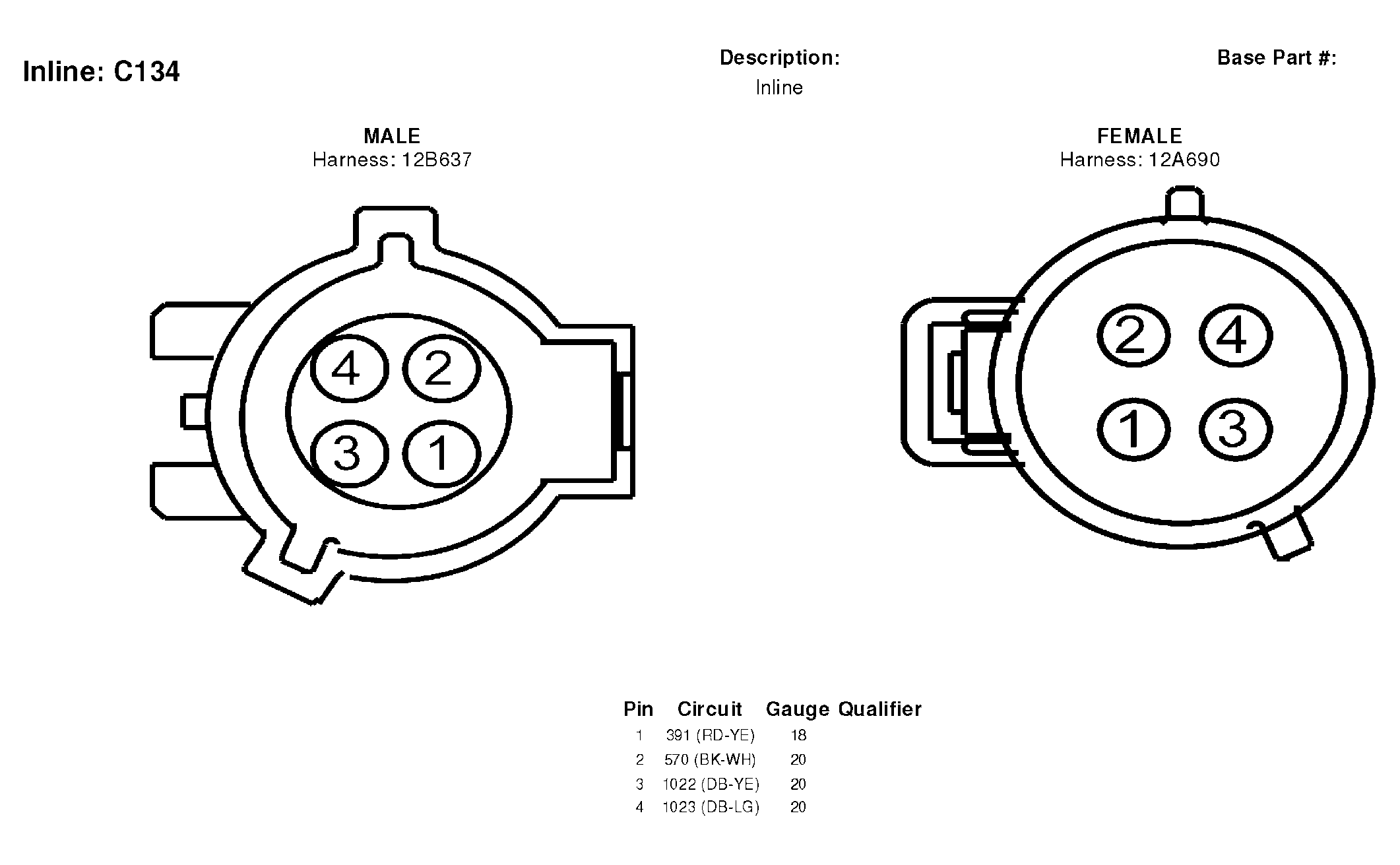

Fig 29: Inline Connector End View (C134)

G04597988

Courtesy of FORD MOTOR CO.

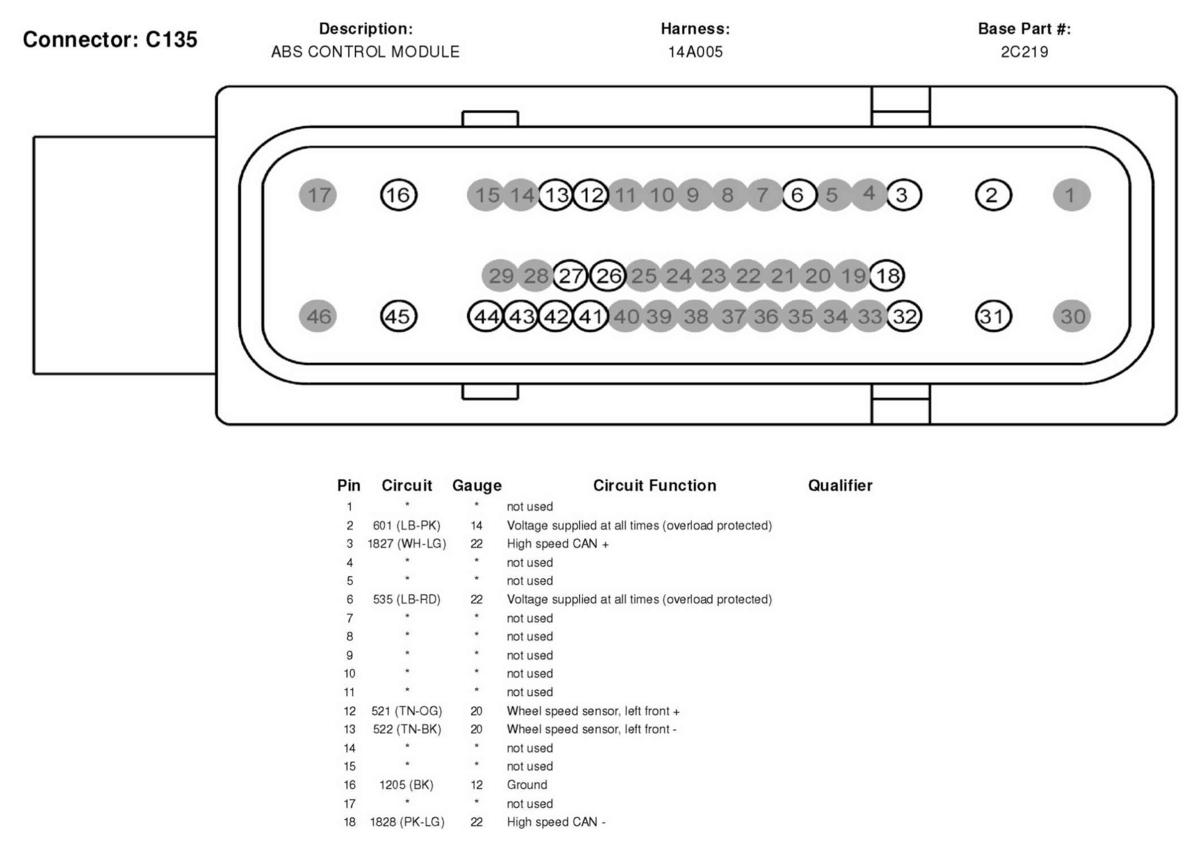

Fig 30: ABS Control Module Connector End View (C135) (1 Of 2)

G04597989

Courtesy of FORD MOTOR CO.

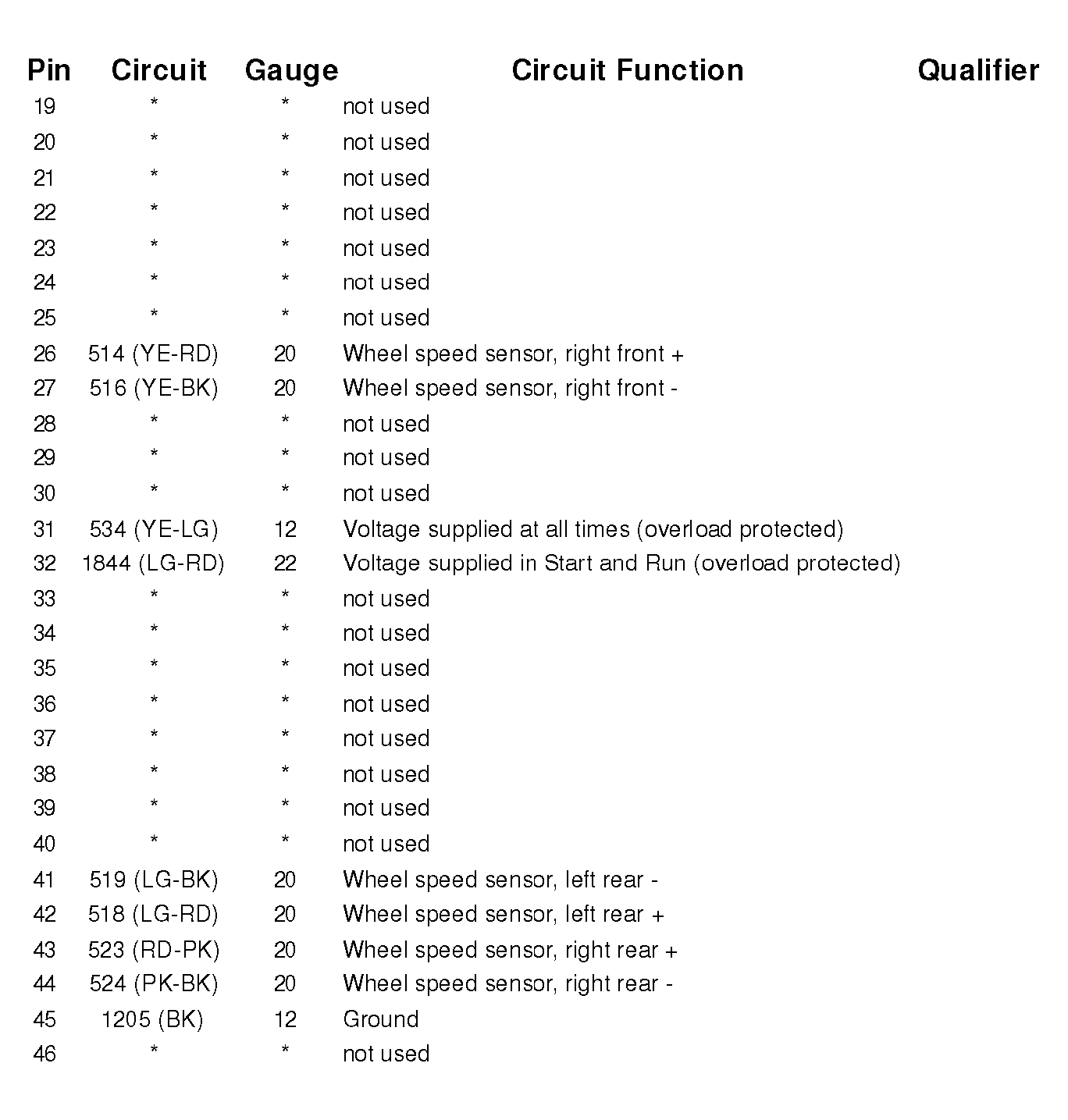

Fig 31: ABS Control Module Connector End View (C135) (2 Of 2)

G04597990

Courtesy of FORD MOTOR CO.

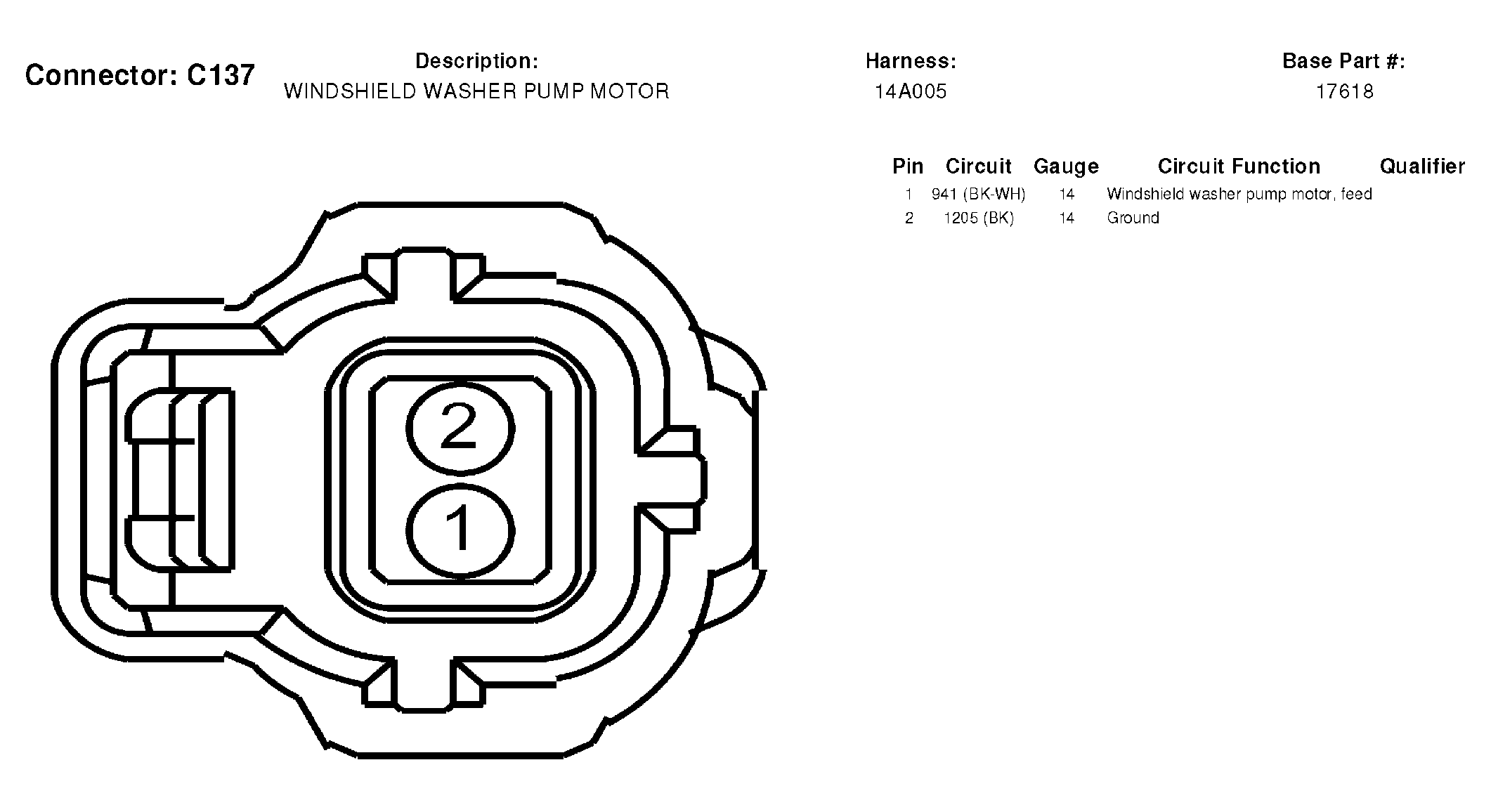

Fig 32: Windshield Washer Pump Motor Connector End View (C137)

G04597991

Courtesy of FORD MOTOR CO.

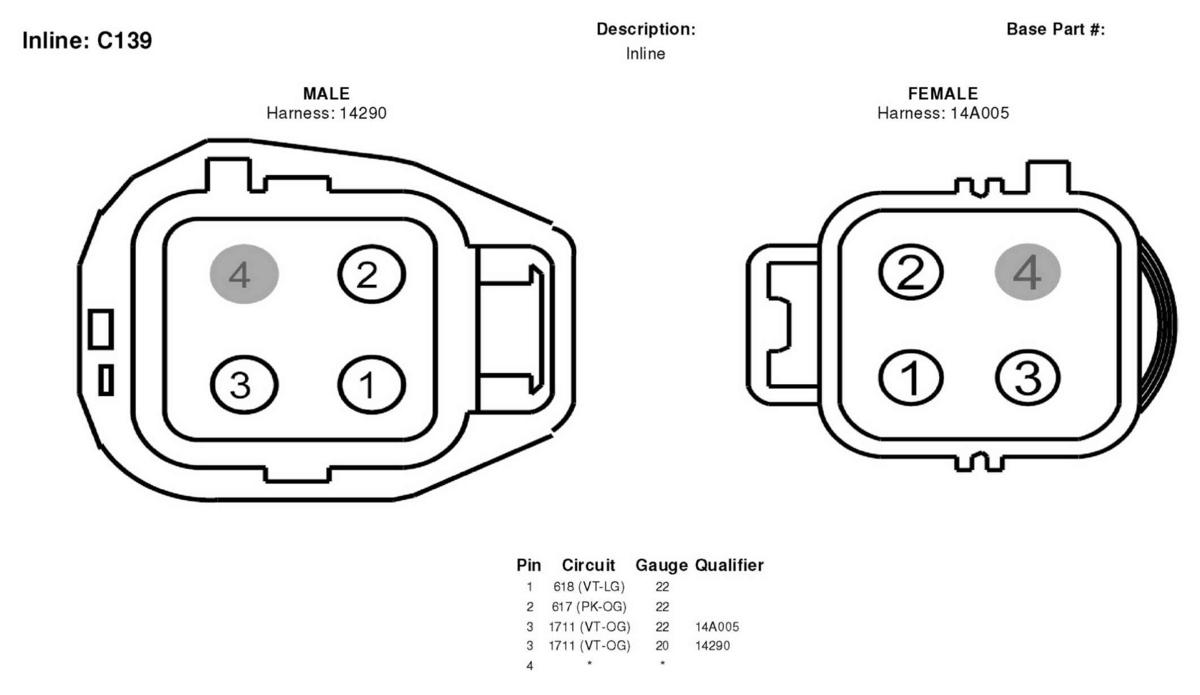

Fig 33: Inline Connector End View (C139)

G04597992

Courtesy of FORD MOTOR CO.

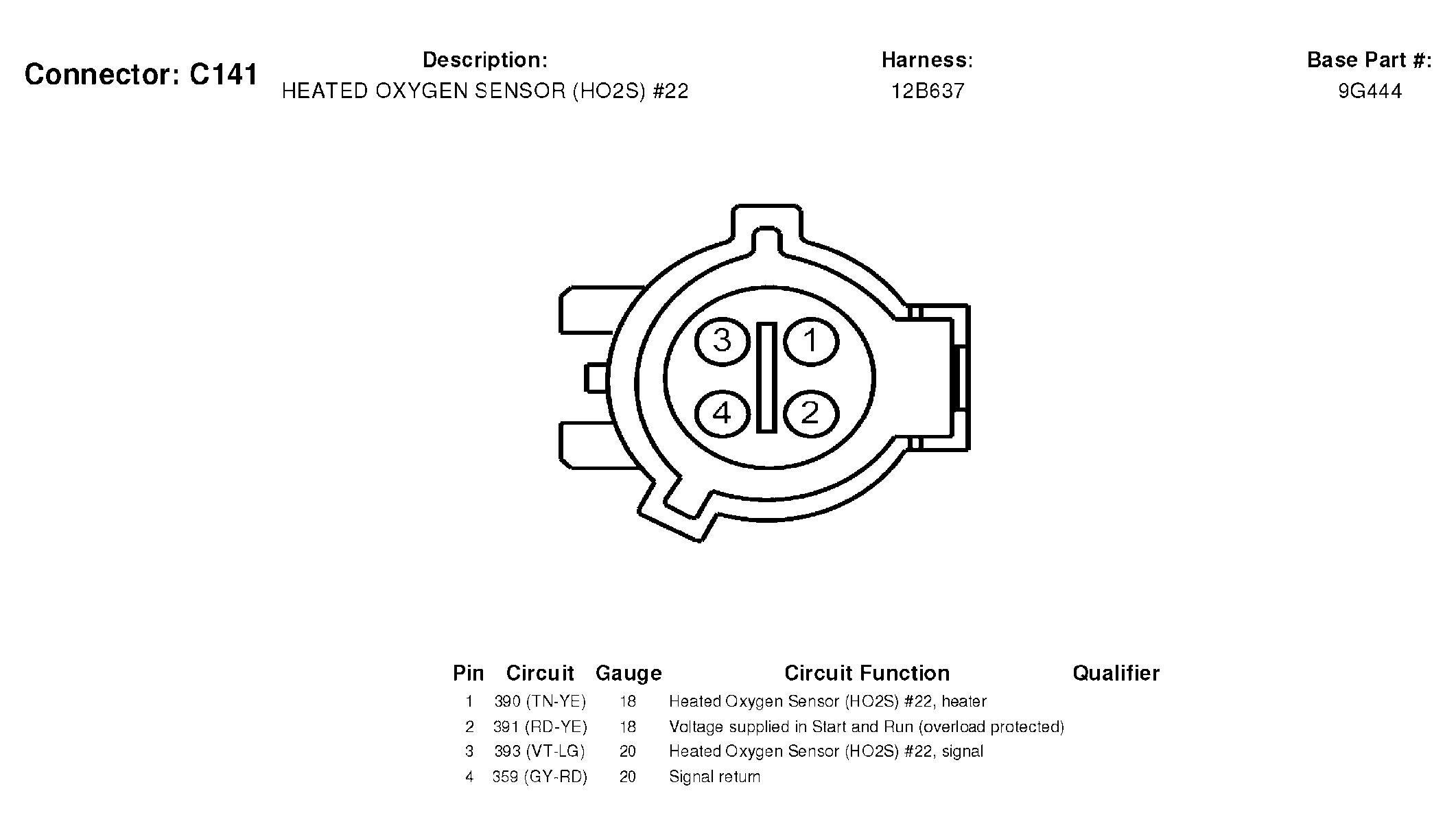

Fig 34: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G04597993

Courtesy of FORD MOTOR CO.

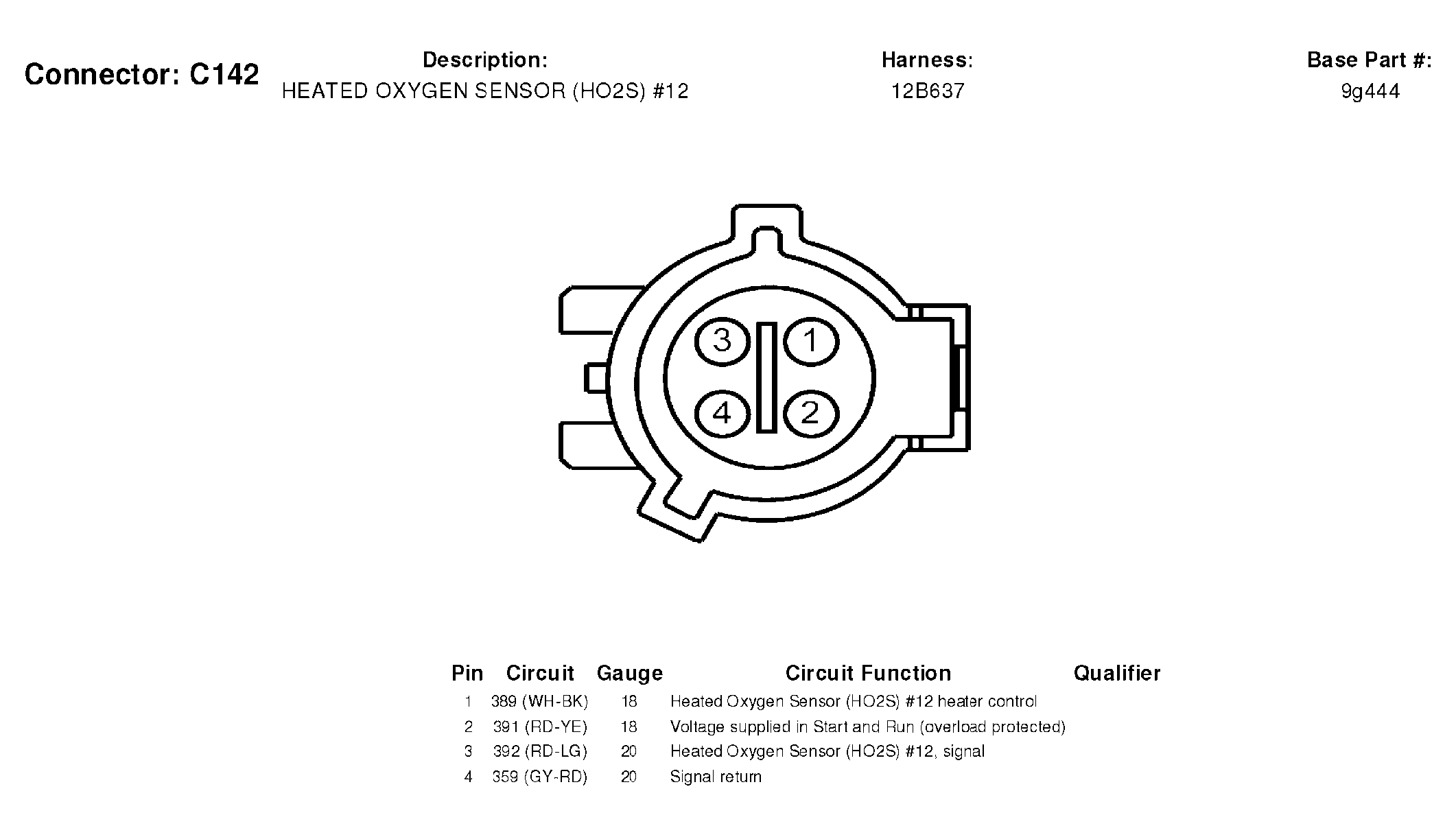

Fig 35: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G04597994

Courtesy of FORD MOTOR CO.

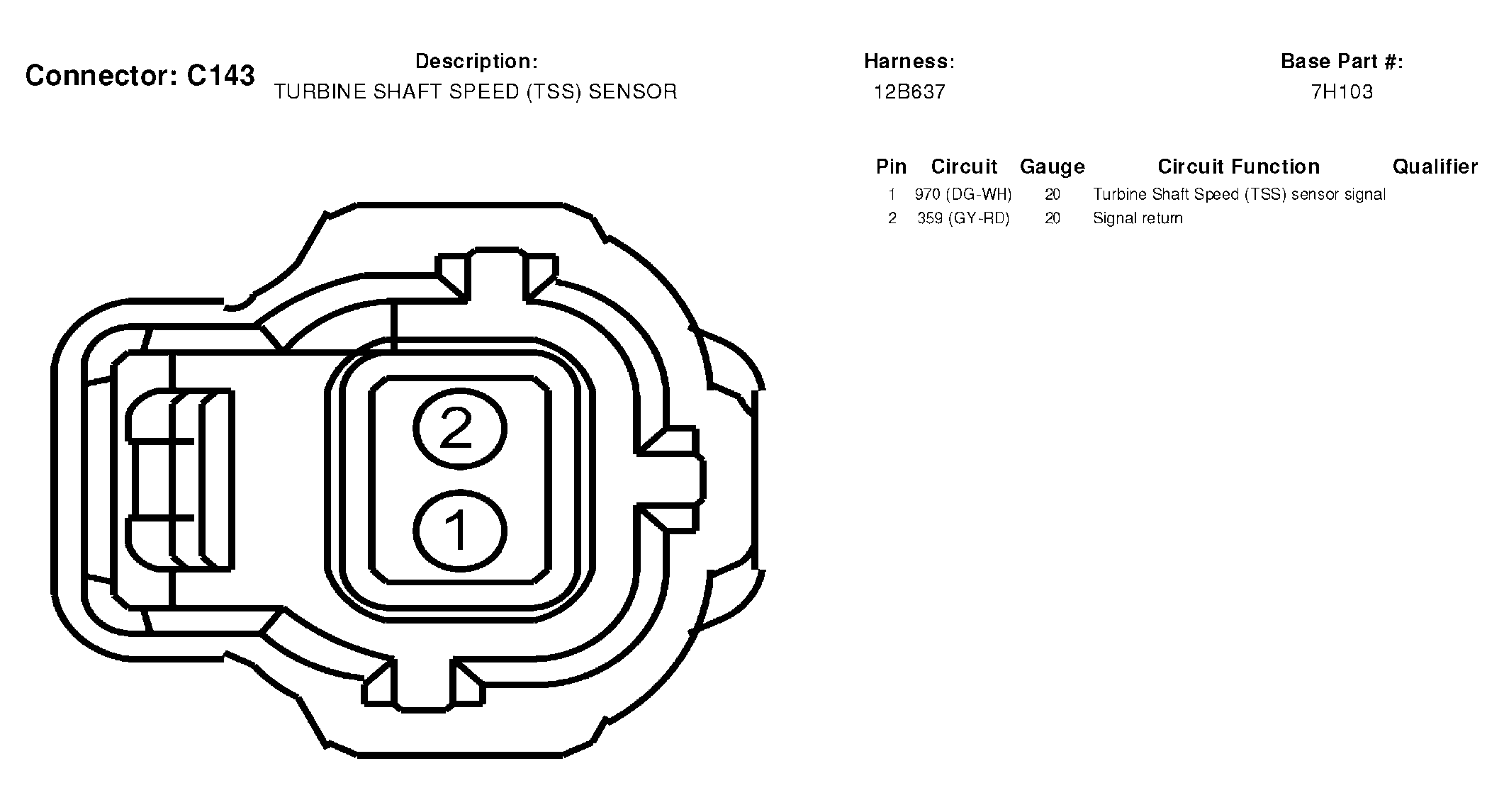

Fig 36: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G04597995

Courtesy of FORD MOTOR CO.

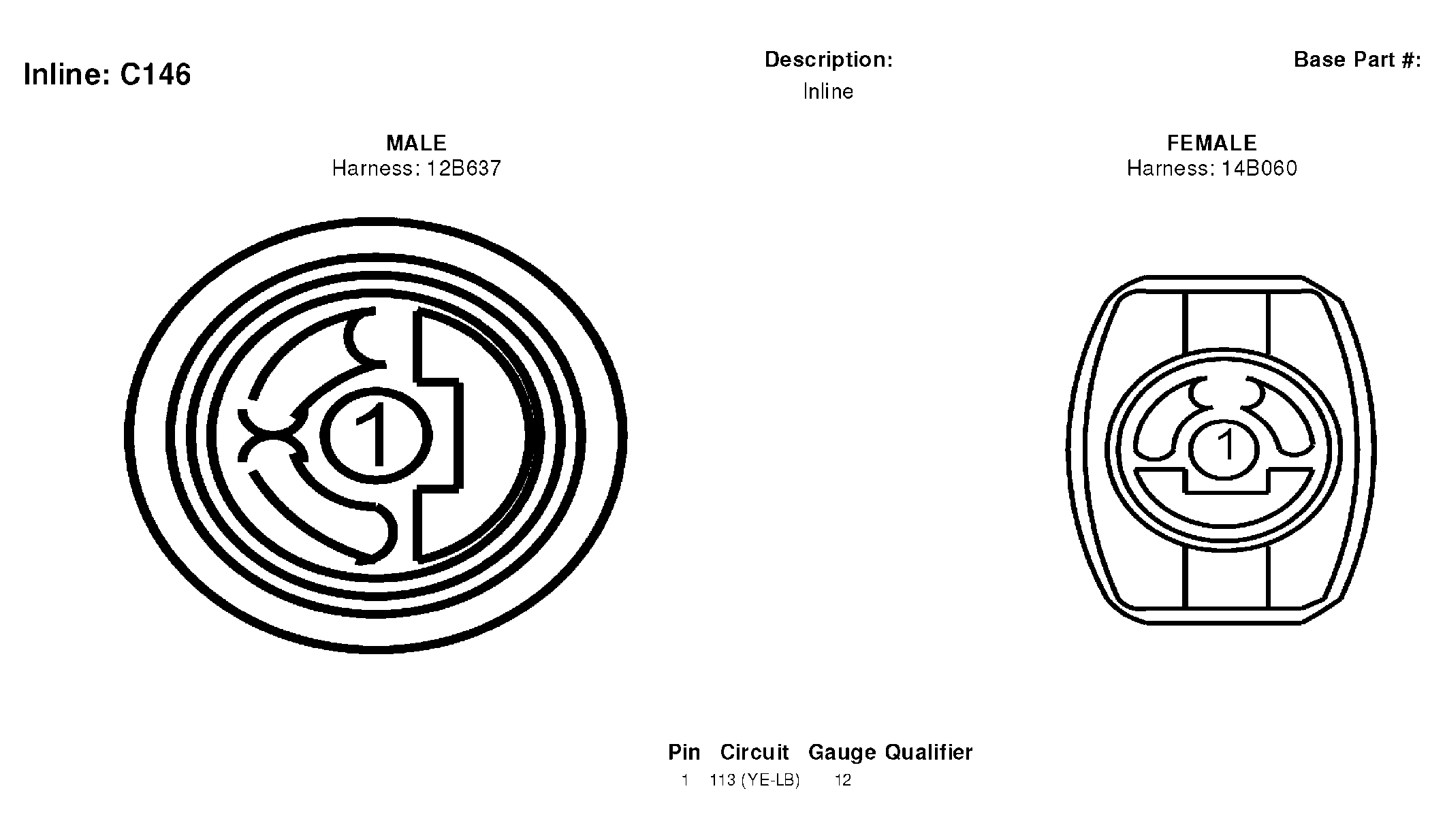

Fig 37: Inline Connector End View (C146)

G04597996

Courtesy of FORD MOTOR CO.

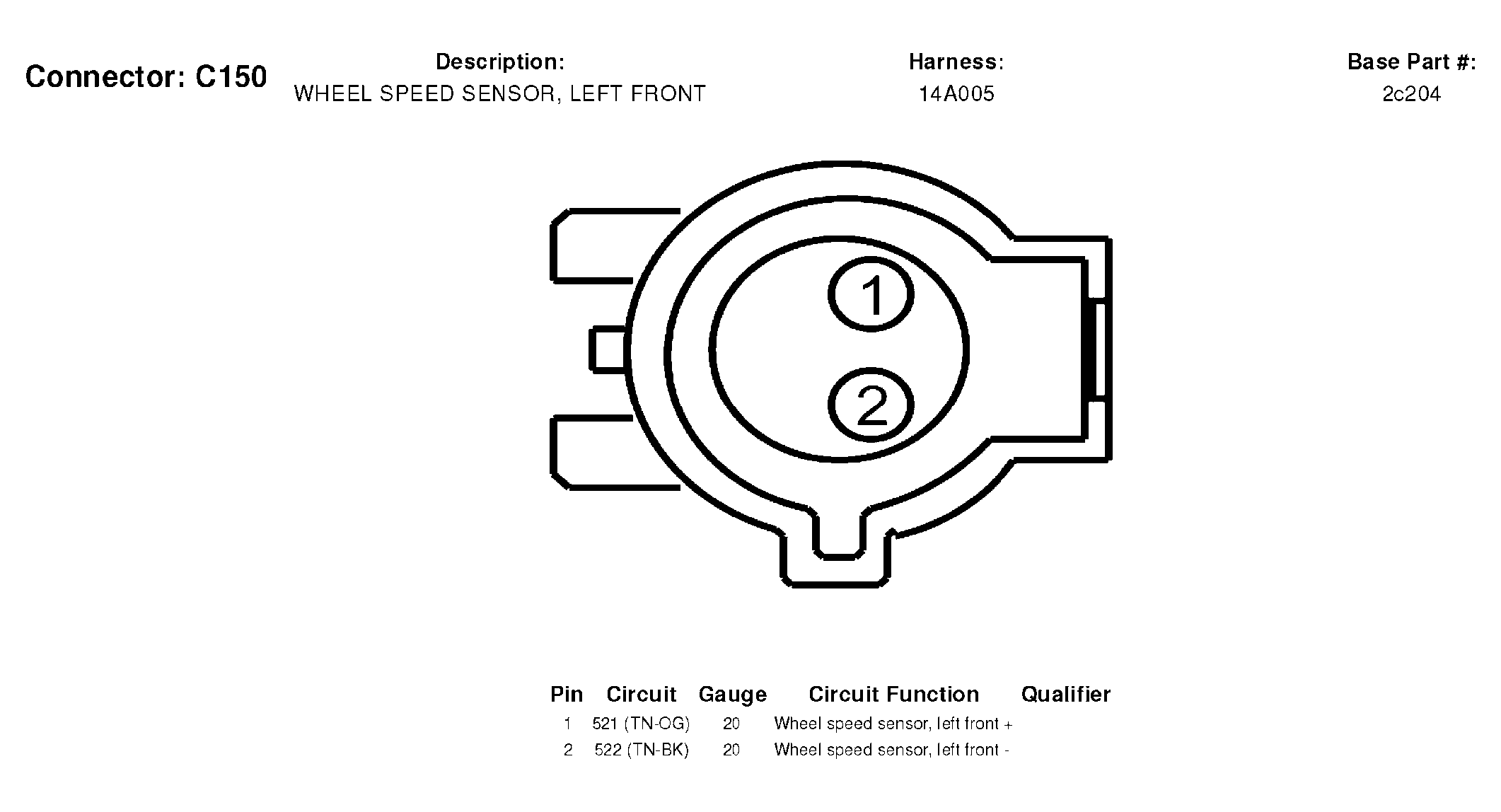

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G04597997

Courtesy of FORD MOTOR CO.

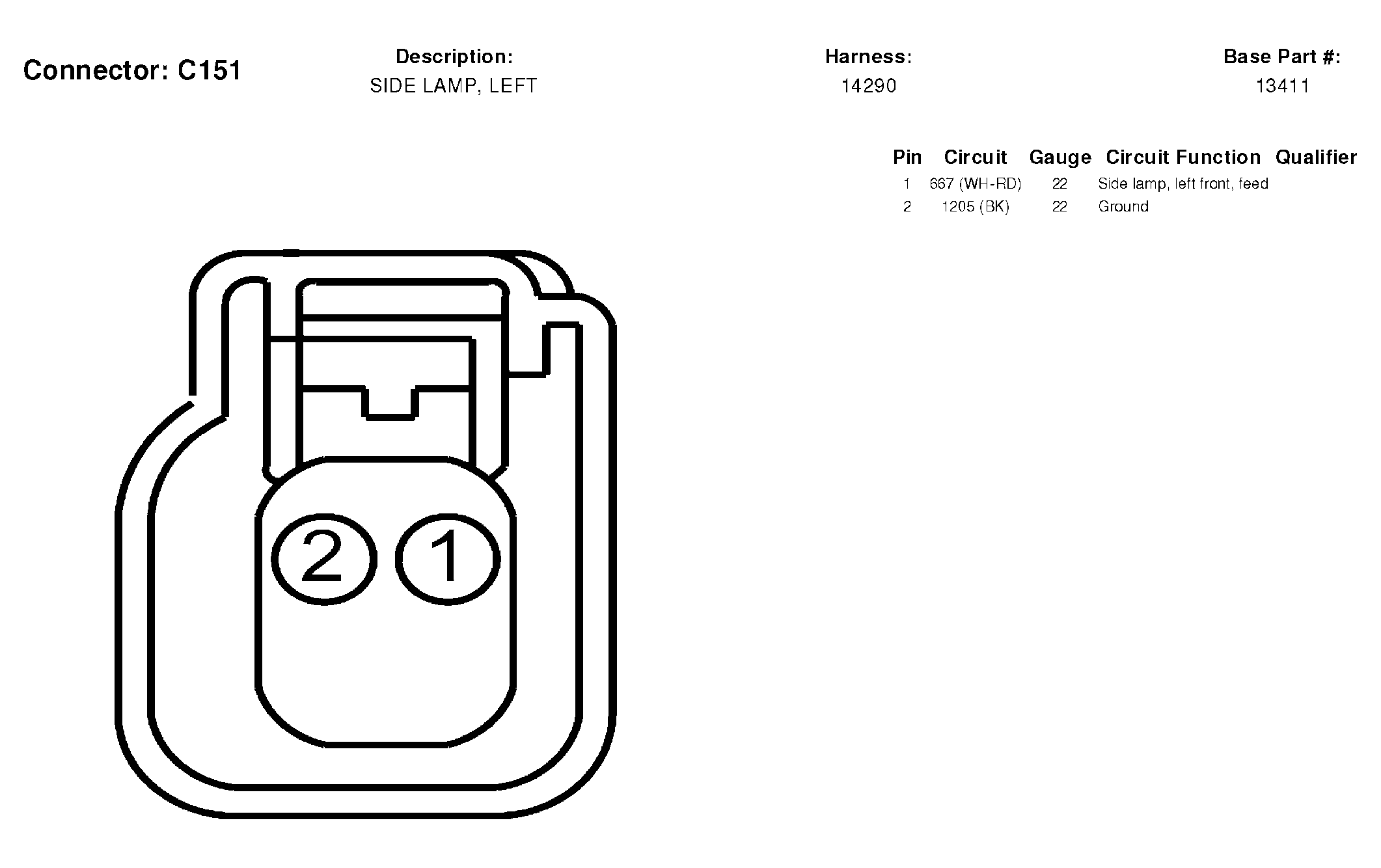

Fig 39: Side Lamp, Left Connector End View (C151)

G04597998

Courtesy of FORD MOTOR CO.

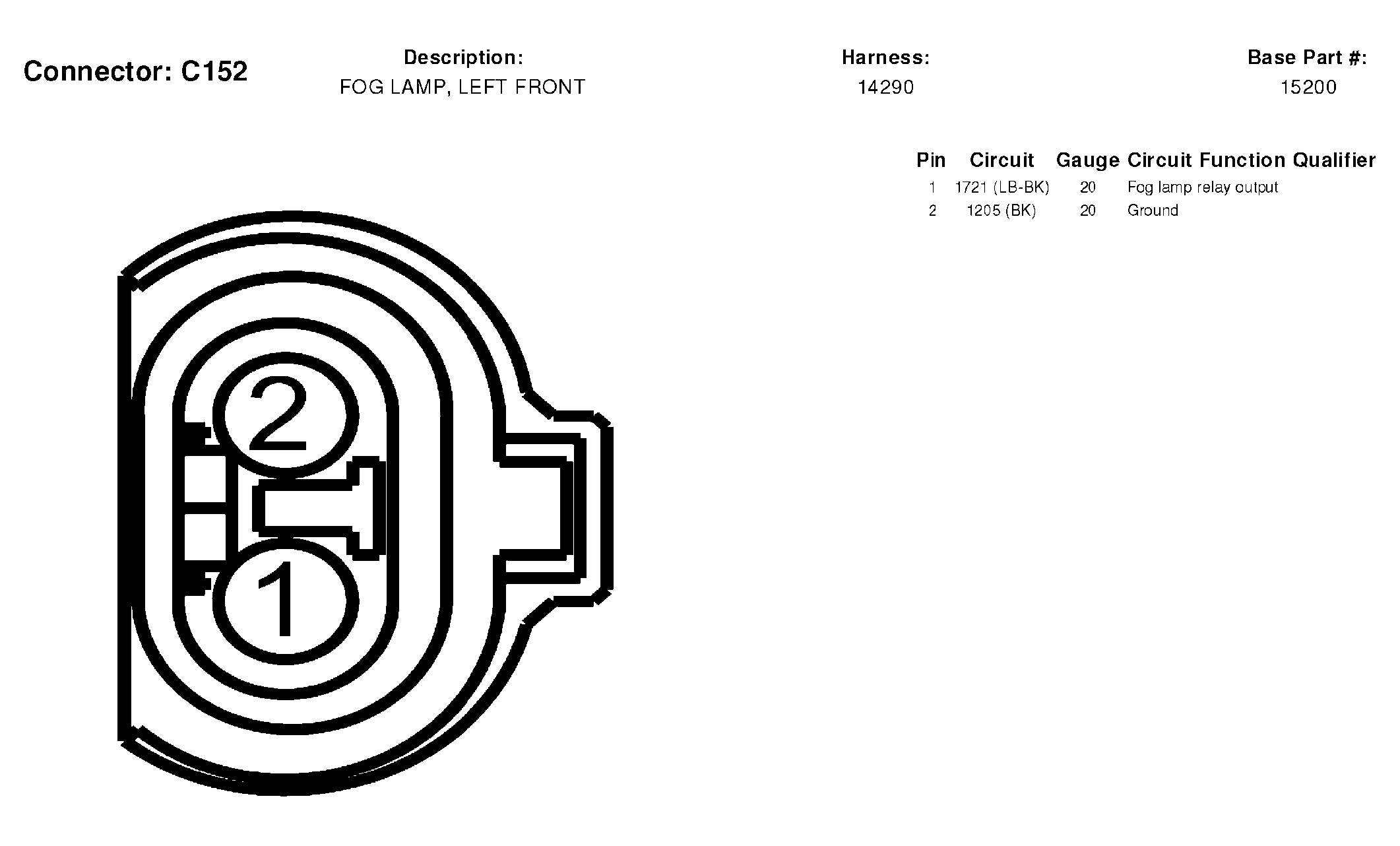

Fig 40: Fog Lamp, Left Front Connector End View (C152)

G04597999

Courtesy of FORD MOTOR CO.

Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)

G04598000

Courtesy of FORD MOTOR CO.

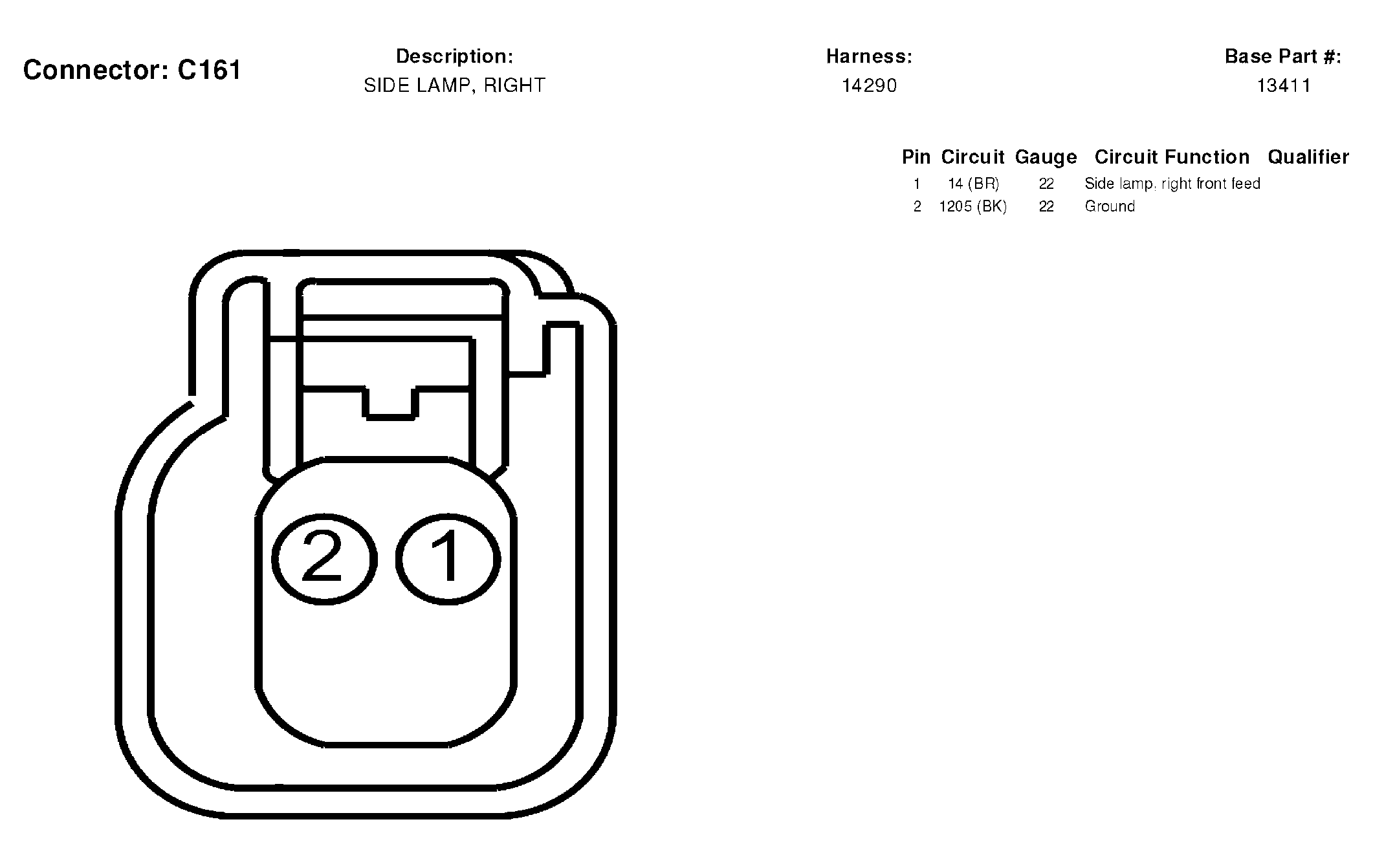

Fig 42: Side Lamp, Right Connector End View (C161)

G04598001

Courtesy of FORD MOTOR CO.

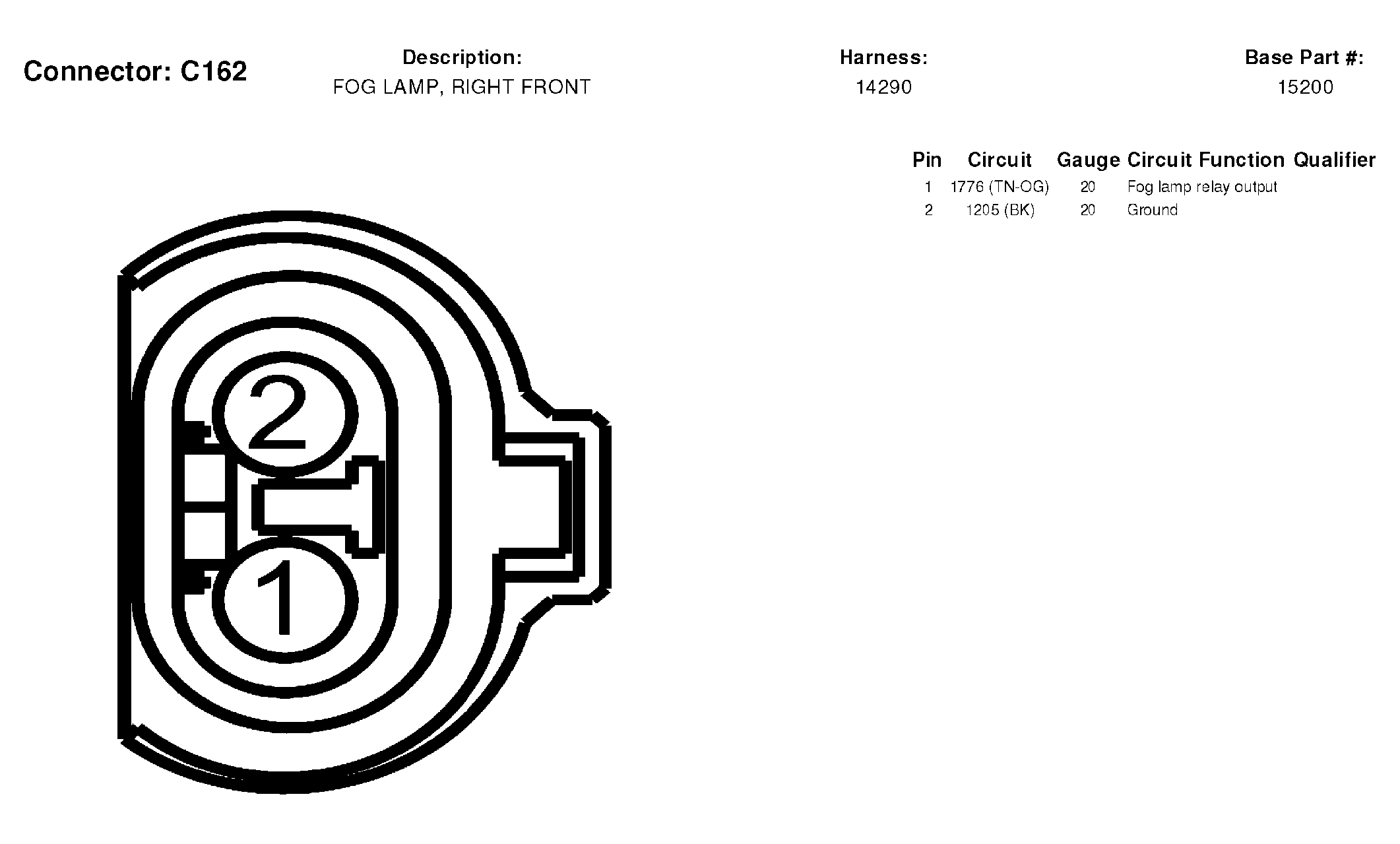

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G04598002

Courtesy of FORD MOTOR CO.

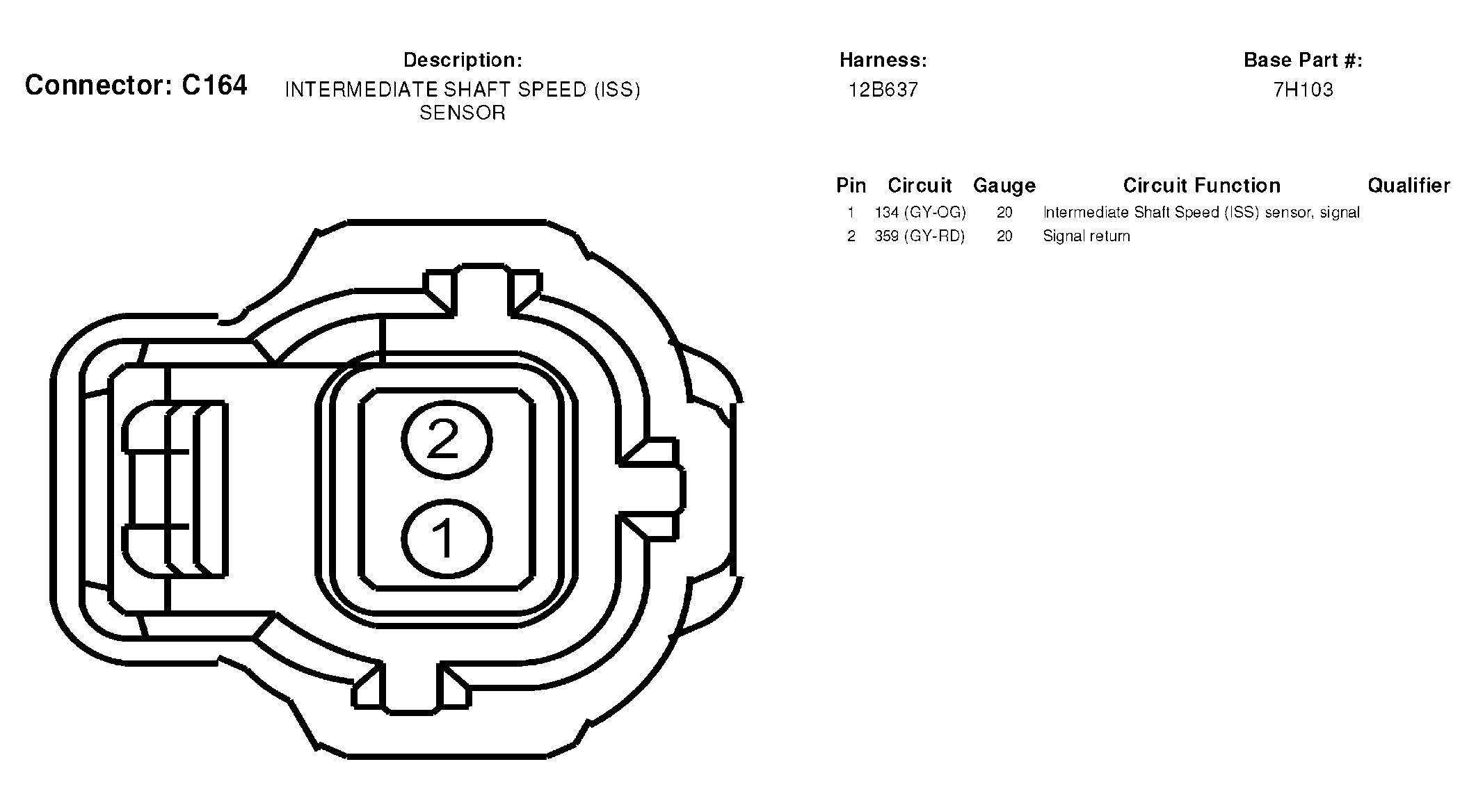

Fig 44: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G04598003

Courtesy of FORD MOTOR CO.

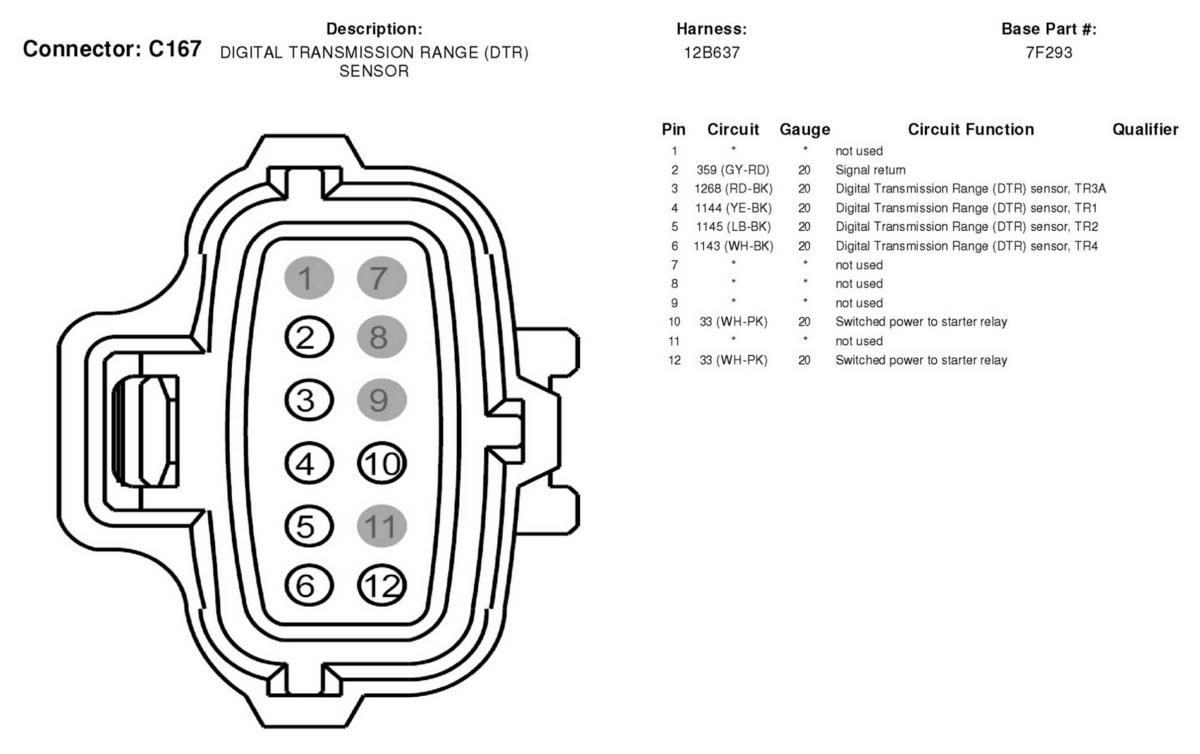

Fig 45: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G04598004

Courtesy of FORD MOTOR CO.

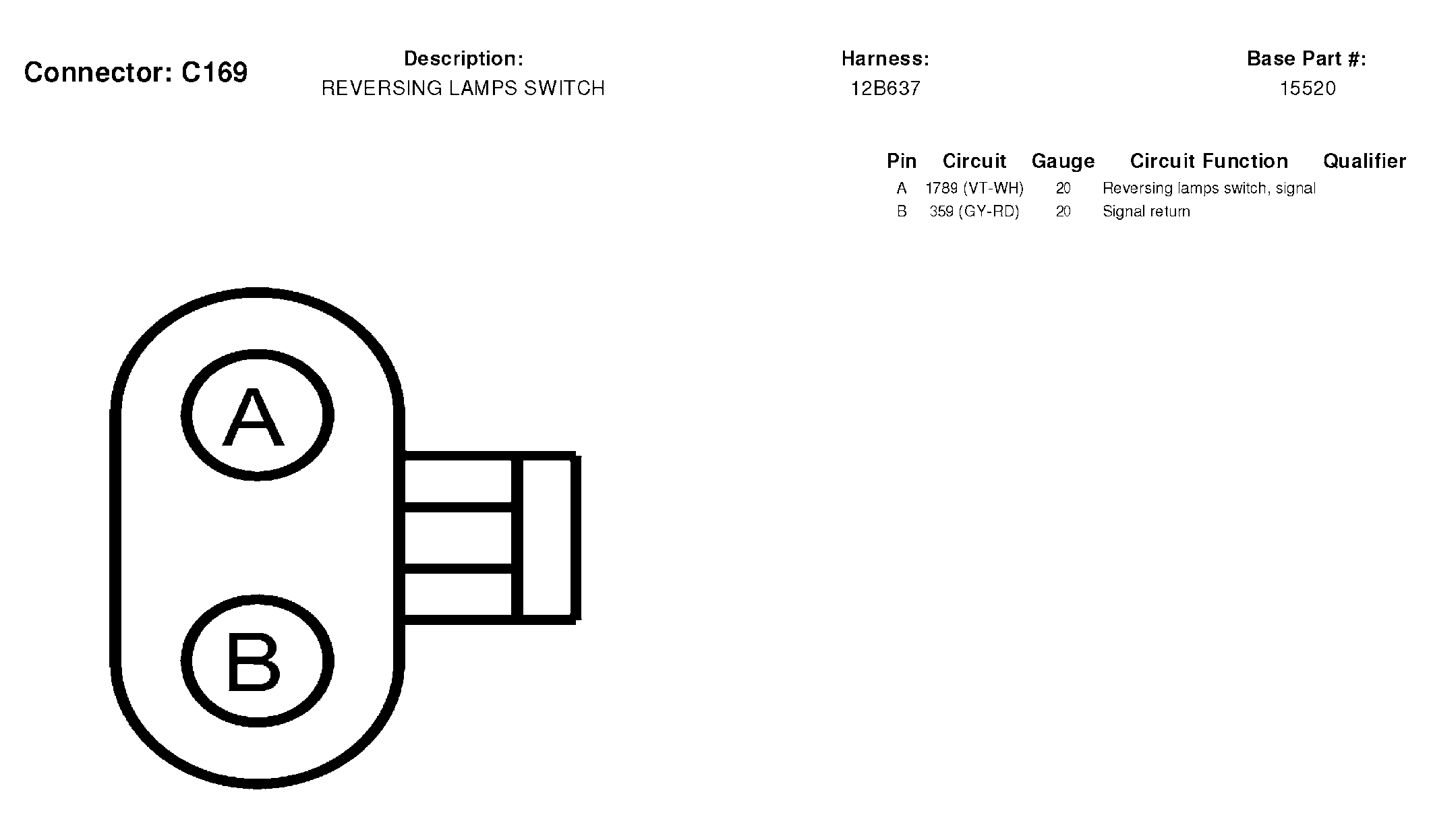

Fig 46: Reversing Lamps Switch Connector End View (C169)

G04598005

Courtesy of FORD MOTOR CO.

Fig 47: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G04598006

Courtesy of FORD MOTOR CO.

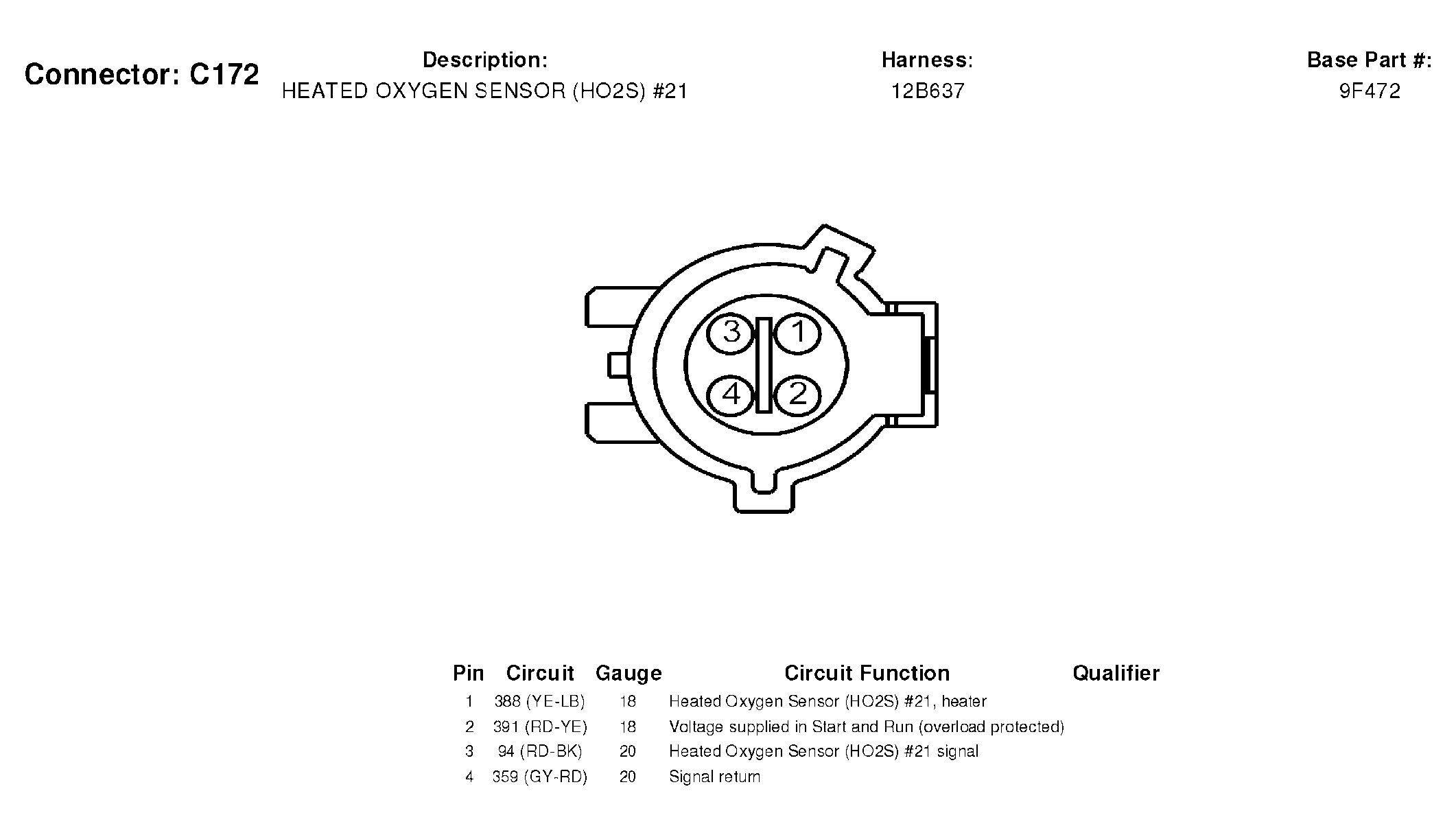

Fig 48: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G04598007

Courtesy of FORD MOTOR CO.

Fig 49: Ignition Transformer Capacitor 1 Connector End View (C174)

G04598008

Courtesy of FORD MOTOR CO.

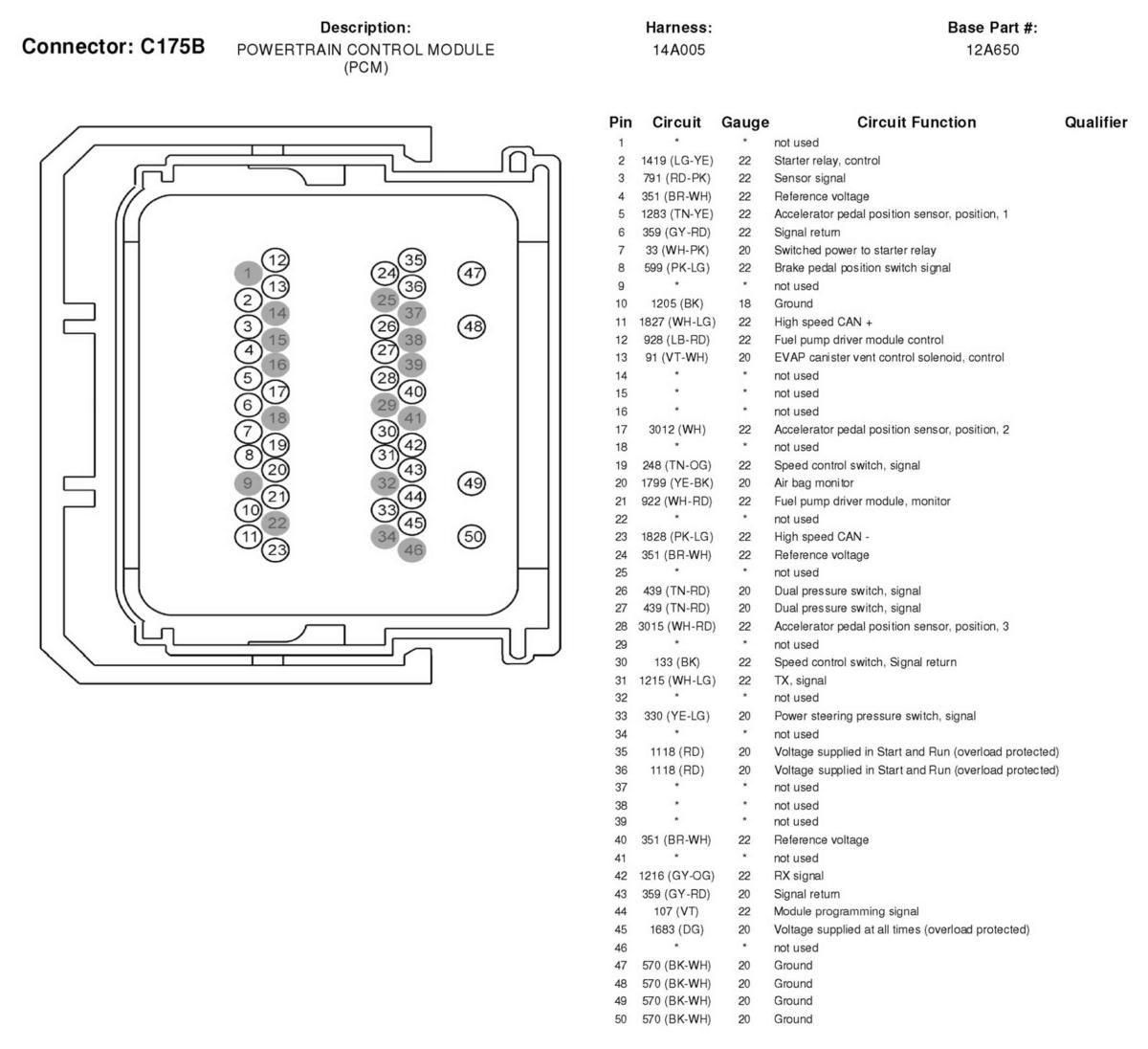

Fig 50: Powertrain Control Module (PCM) Connector End View (C175B)

G04598009

Courtesy of FORD MOTOR CO.

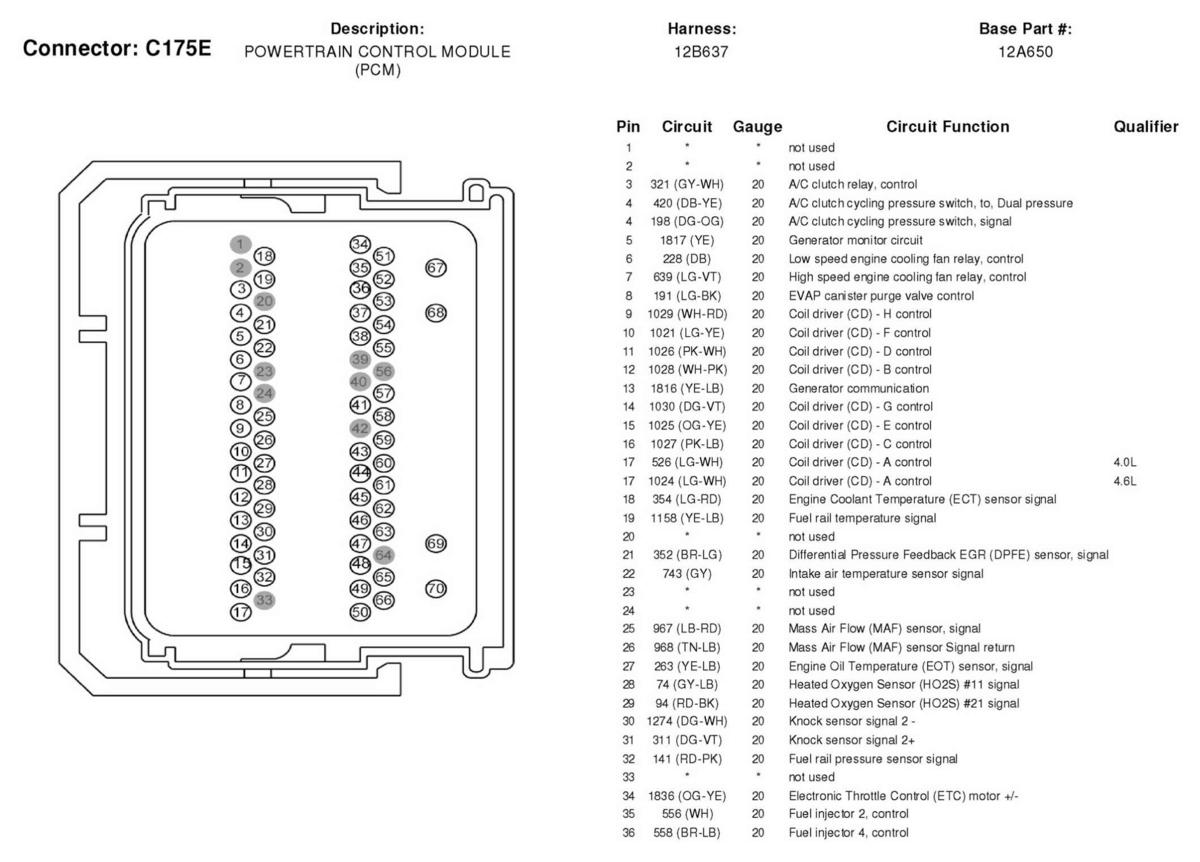

Fig 51: Powertrain Control Module (PCM) Connector End View (C175E) (1 Of 2)

G04598010

Courtesy of FORD MOTOR CO.

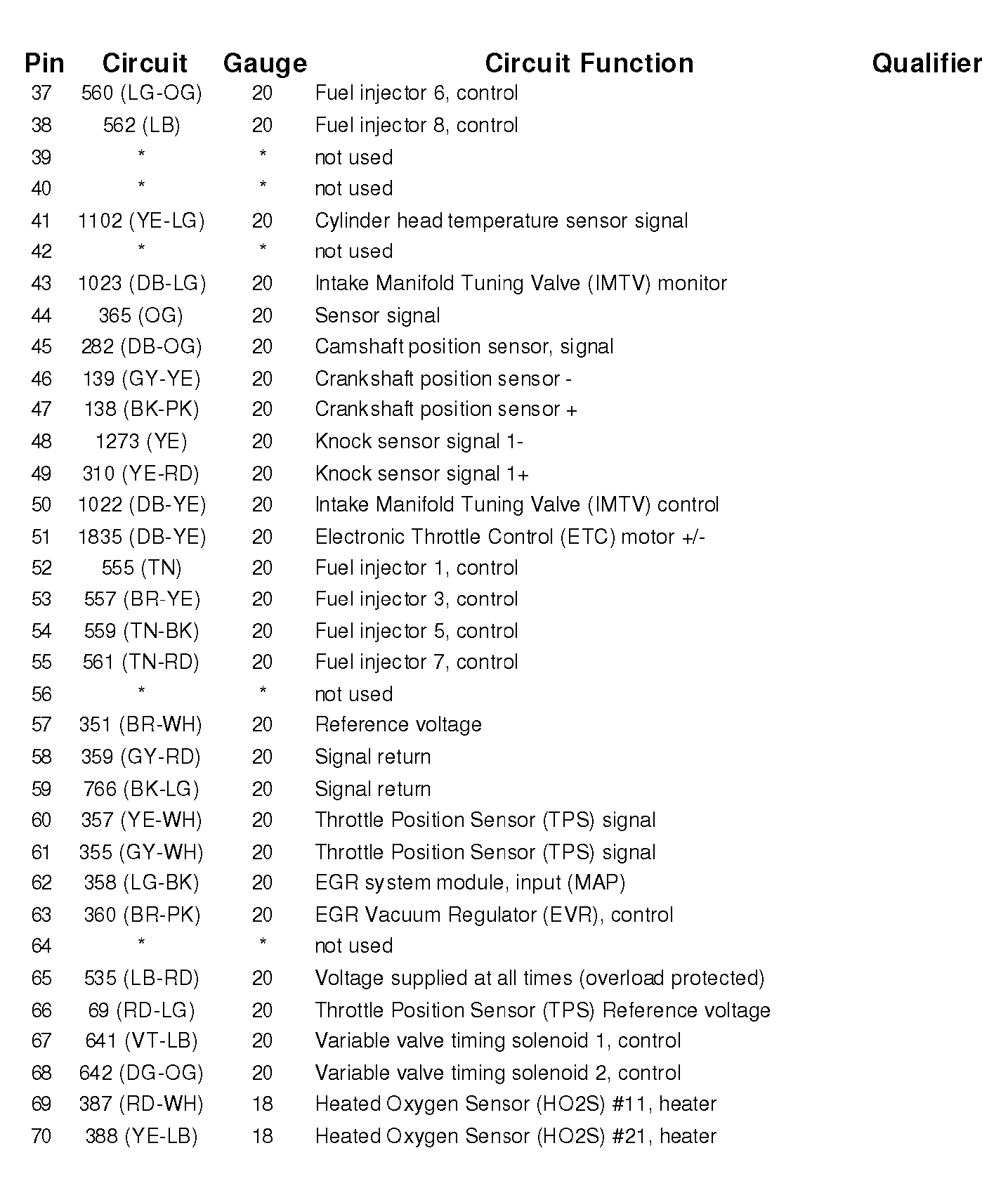

Fig 52: Powertrain Control Module (PCM) Connector End View (C175E) (2 Of 2)

G04598011

Courtesy of FORD MOTOR CO.

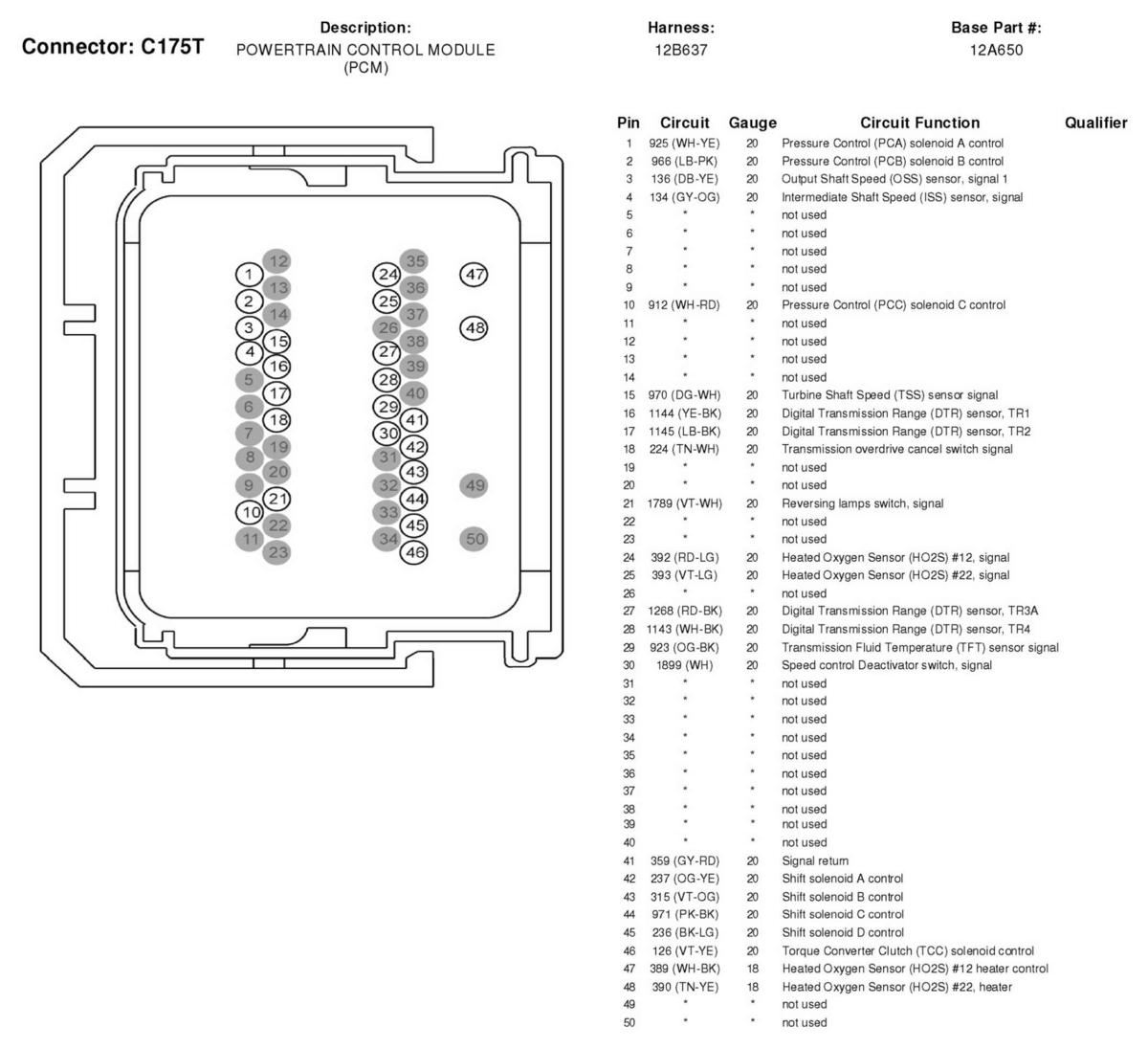

Fig 53: Powertrain Control Module (PCM) Connector End View (C175T)

G04598012

Courtesy of FORD MOTOR CO.

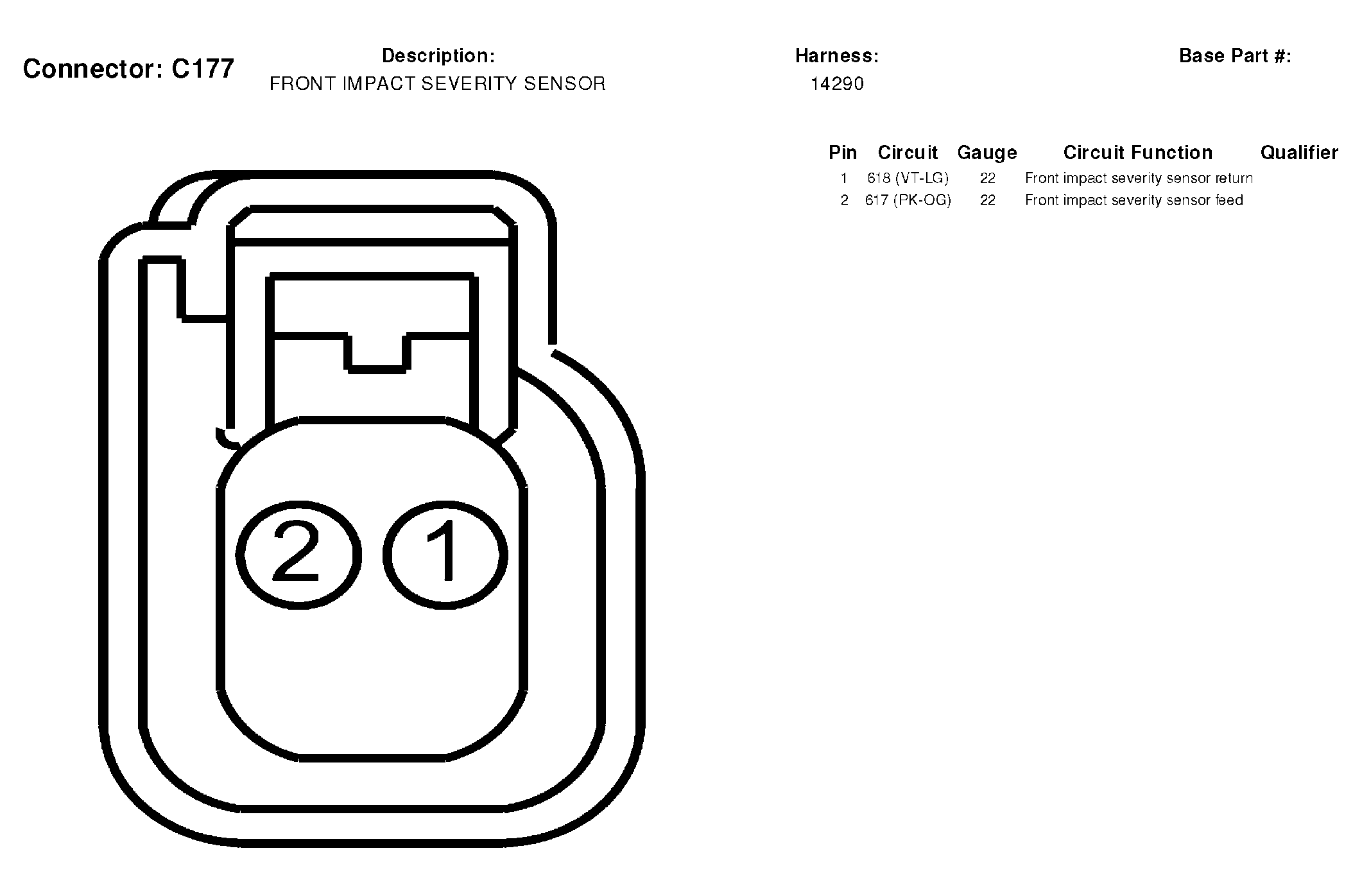

Fig 54: Front Impact Severity Sensor Connector End View (C177)

G04598013

Courtesy of FORD MOTOR CO.

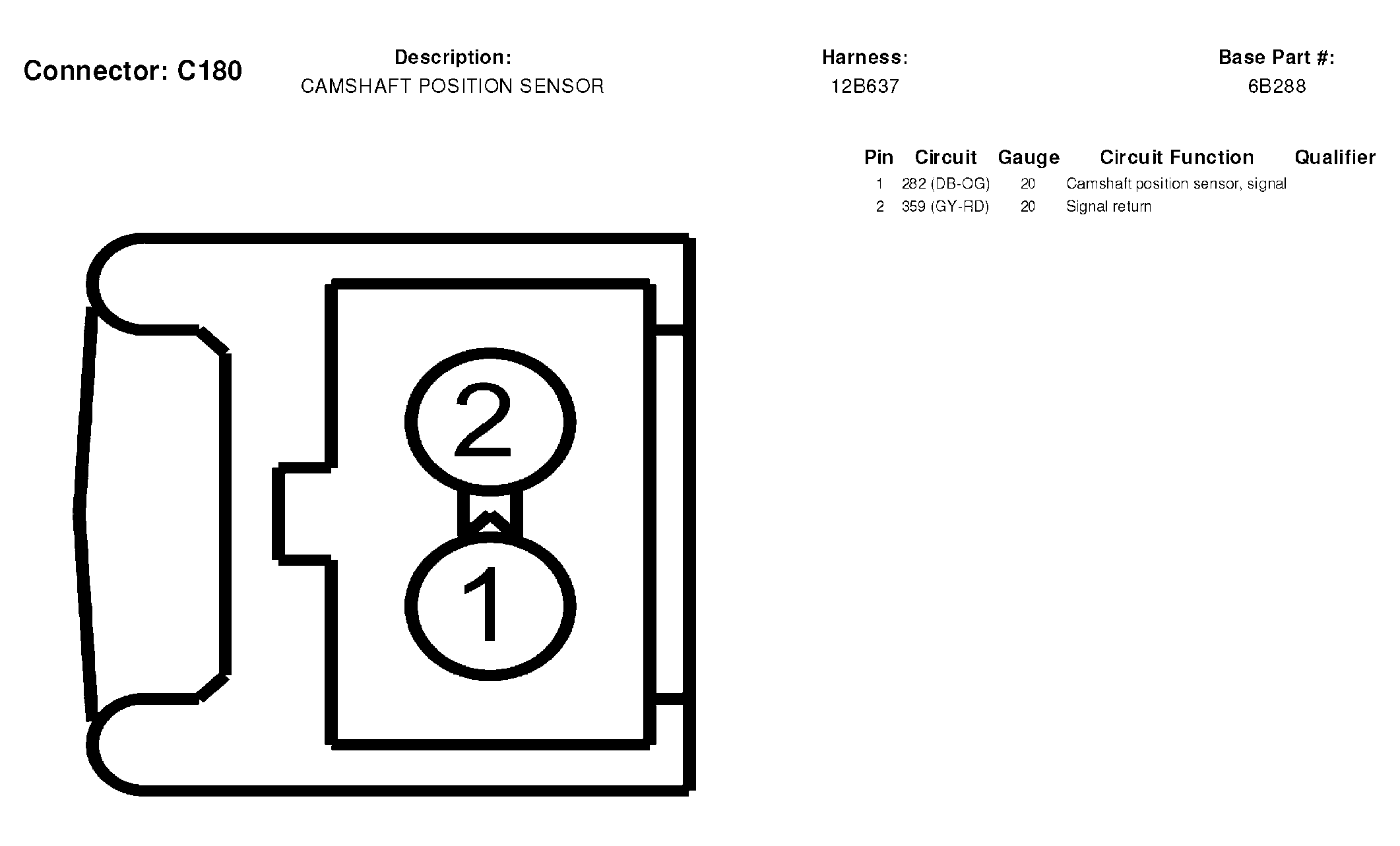

Fig 55: Camshaft Position Sensor Connector End View (C180)

G04598014

Courtesy of FORD MOTOR CO.

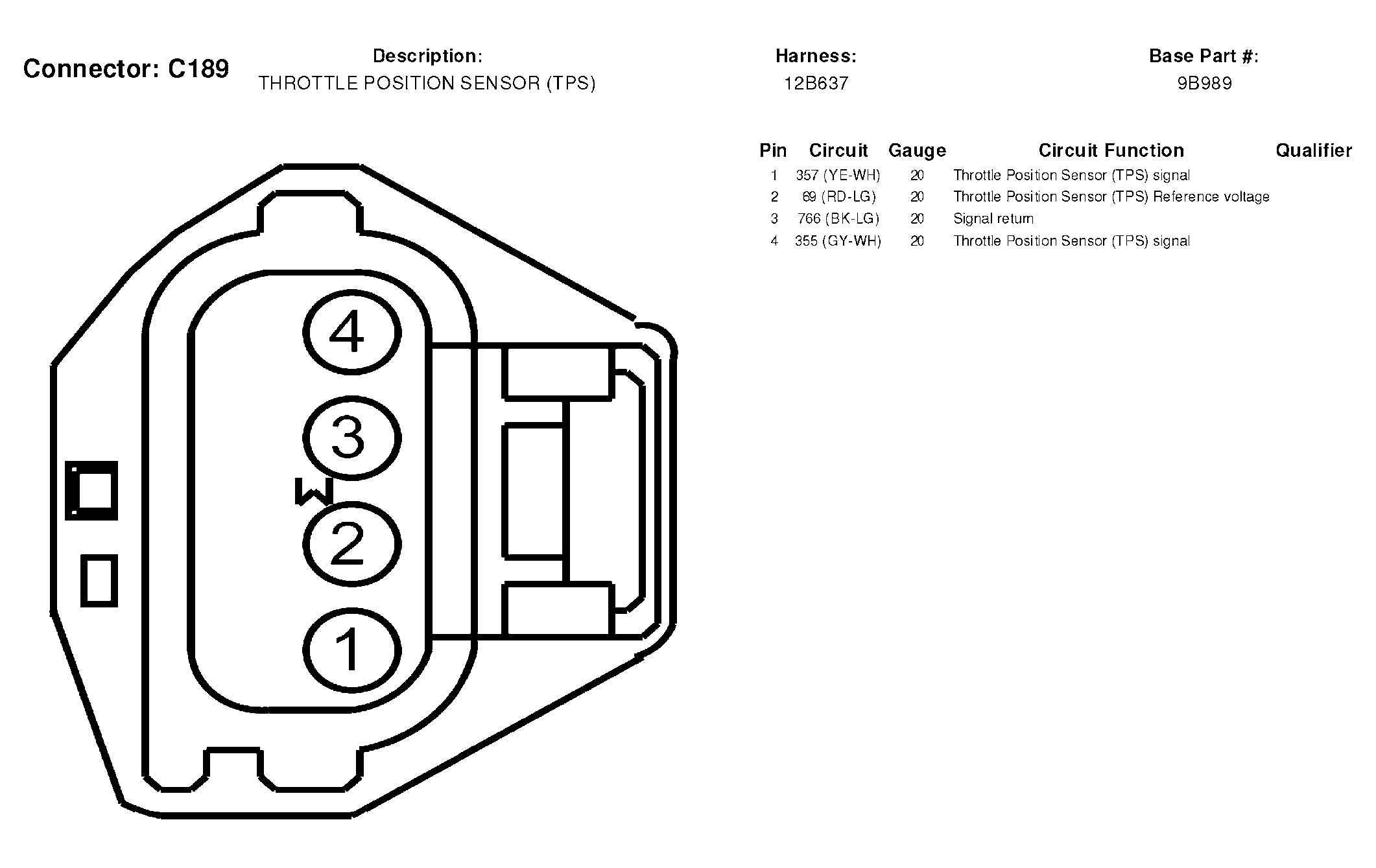

Fig 56: Throttle Position Sensor (TPS) Connector End View (C189)

G04598015

Courtesy of FORD MOTOR CO.

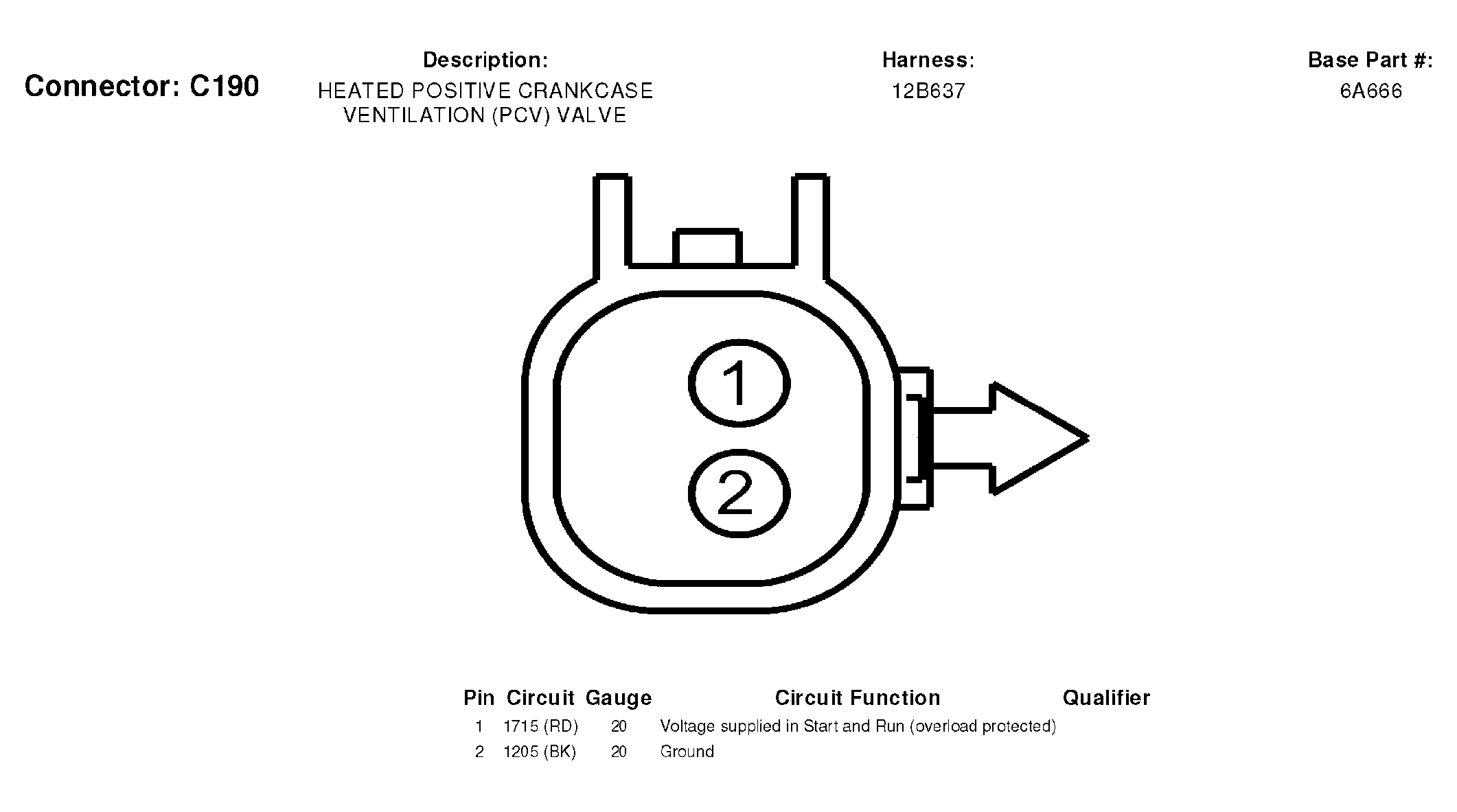

Fig 57: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G04598016

Courtesy of FORD MOTOR CO.

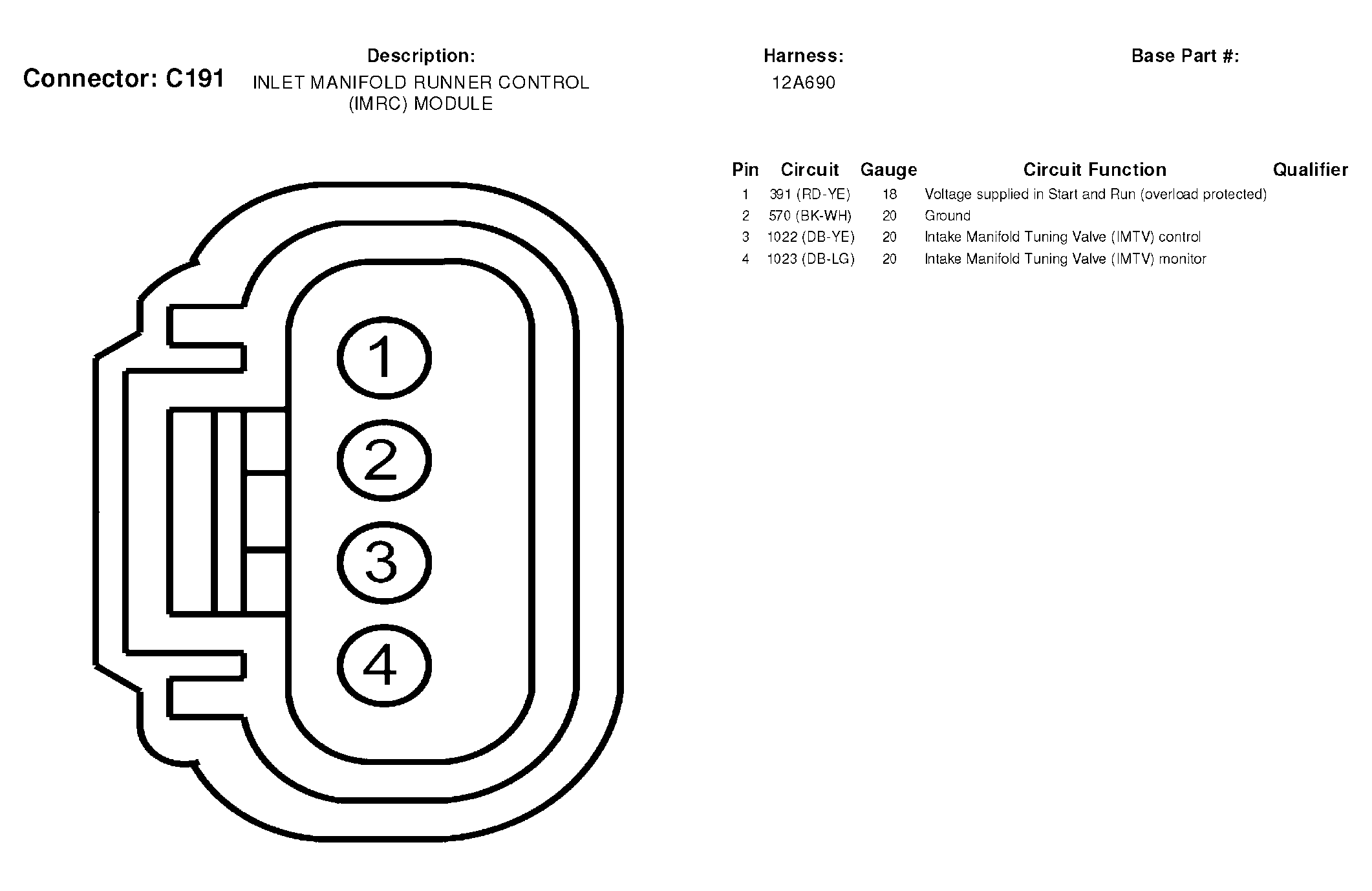

Fig 58: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G04598017

Courtesy of FORD MOTOR CO.

Fig 59: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G04598018

Courtesy of FORD MOTOR CO.

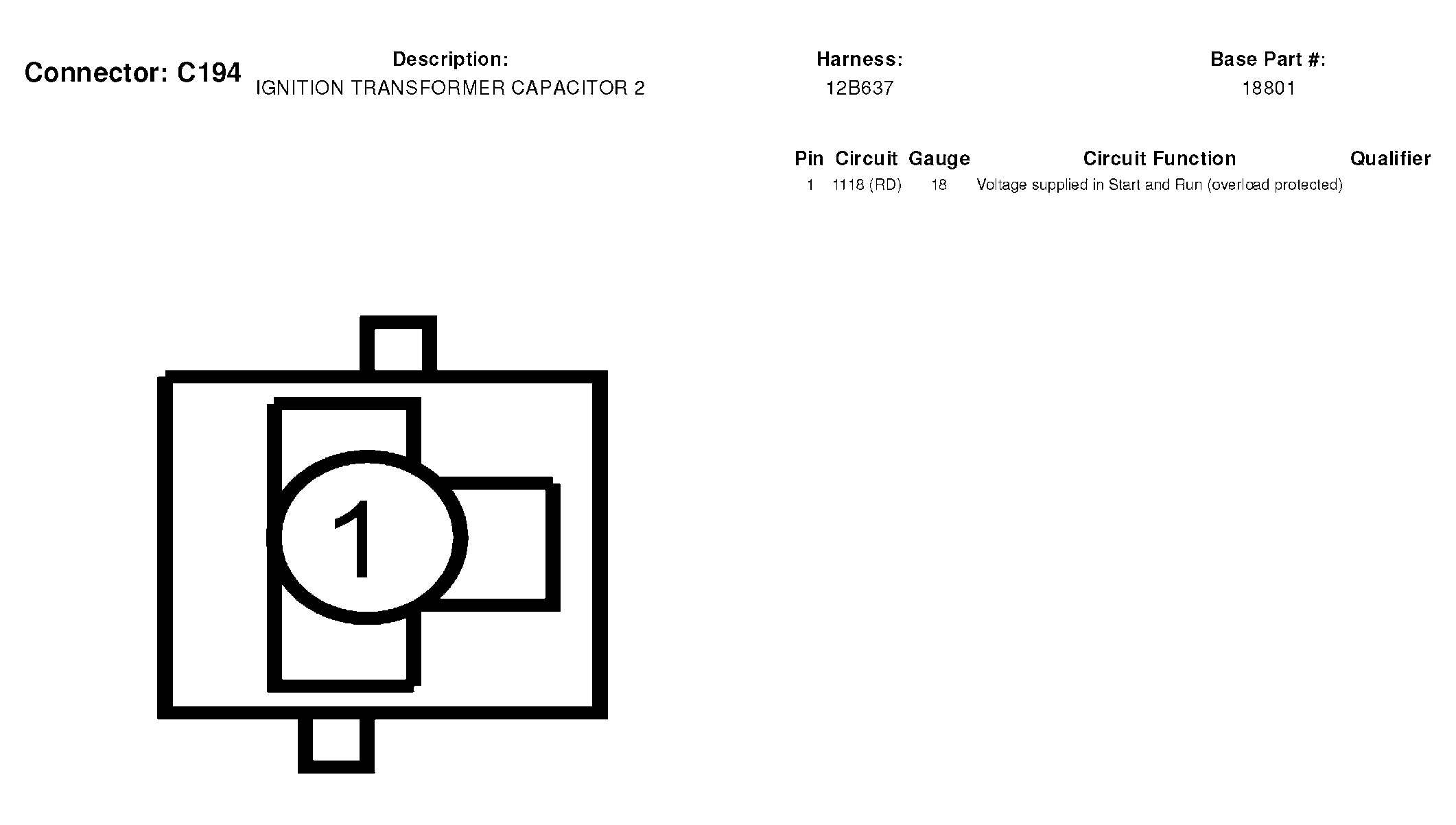

Fig 60: Ignition Transformer Capacitor 2 Connector End View (C194)

G04598019

Courtesy of FORD MOTOR CO.

Fig 61: Starter Motor Connector End View (C197A)

G04598020

Courtesy of FORD MOTOR CO.

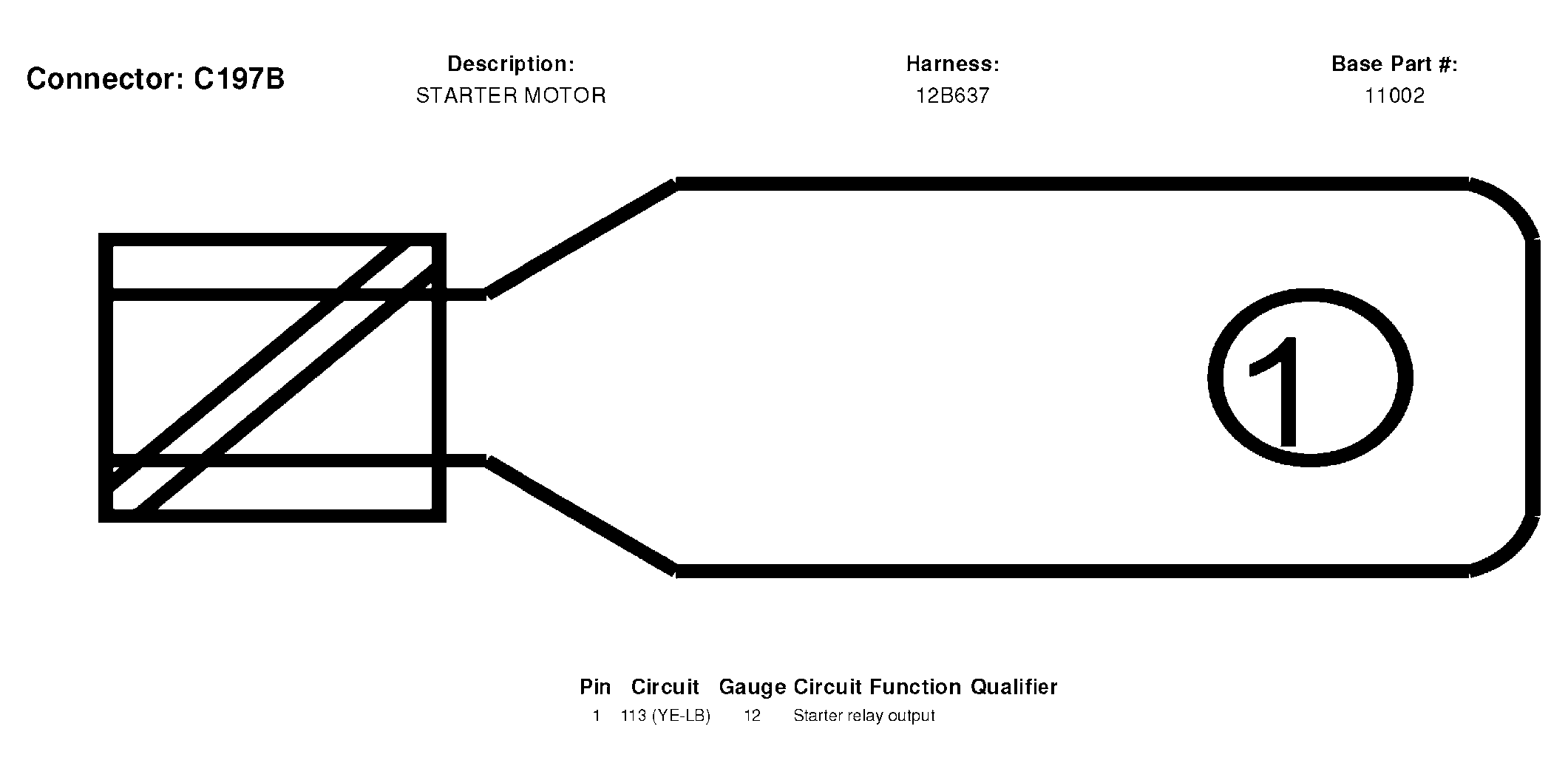

Fig 62: Starter Motor Connector End View (C197B)

G04598021

Courtesy of FORD MOTOR CO.

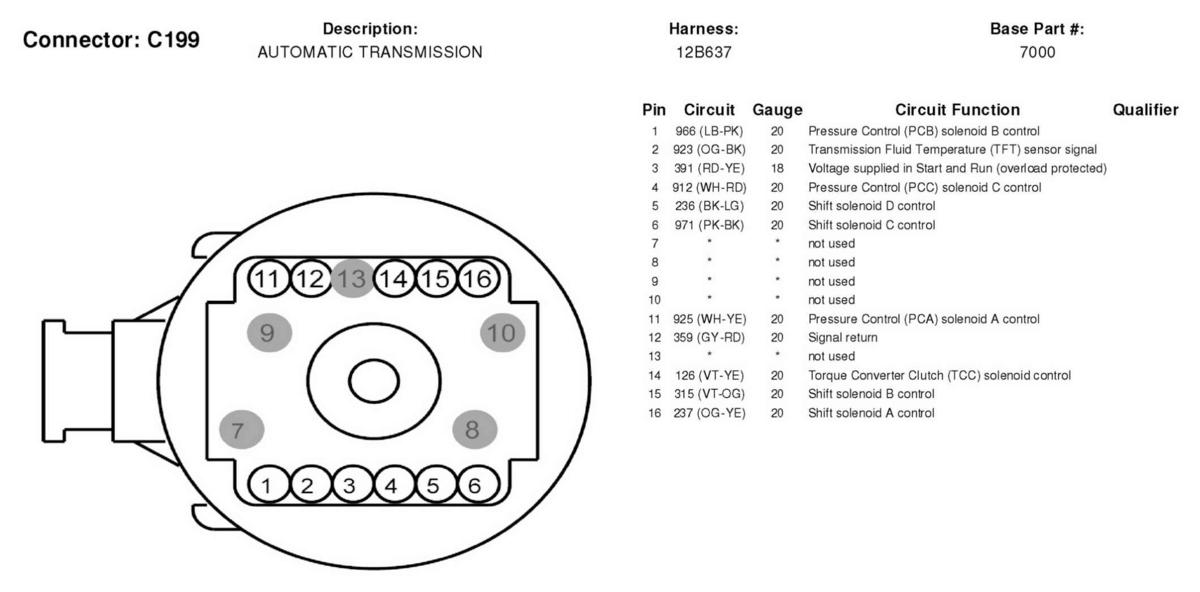

Fig 63: Automatic Transmission Connector End View (C199)

G04598022

Courtesy of FORD MOTOR CO.

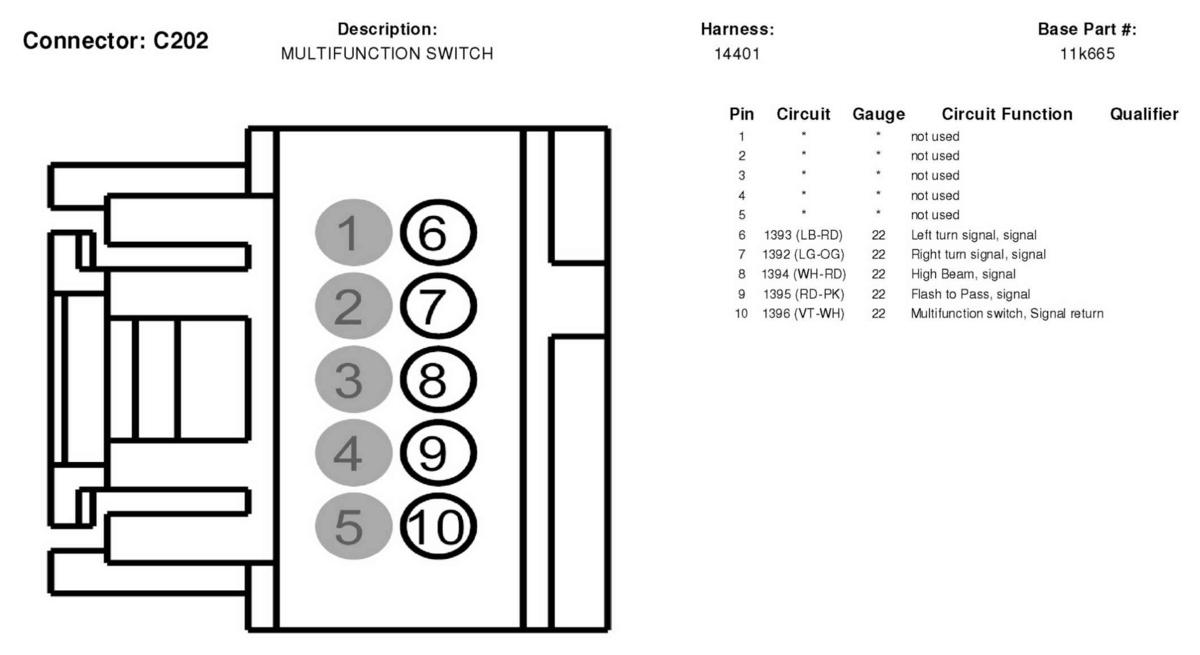

Fig 64: Multifunction Switch Connector End View (C202)

G04598023

Courtesy of FORD MOTOR CO.

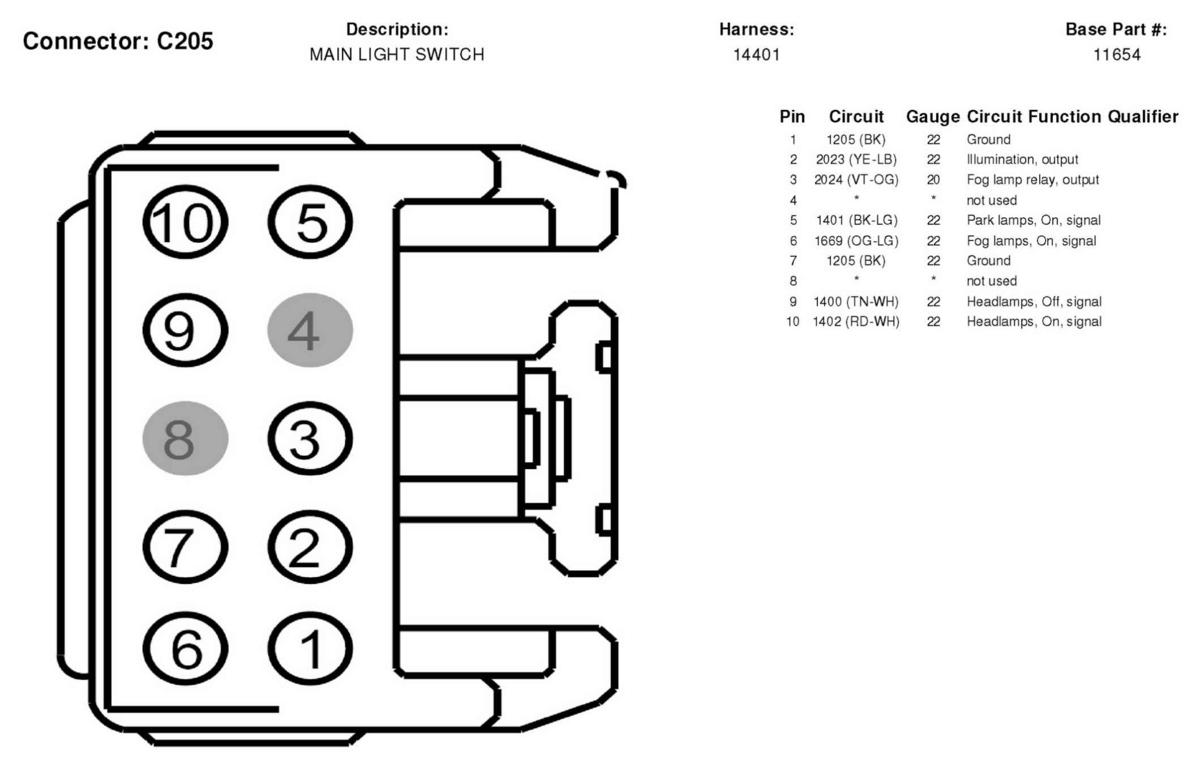

Fig 65: Main Light Switch Connector End View (C205)

G04598024

Courtesy of FORD MOTOR CO.

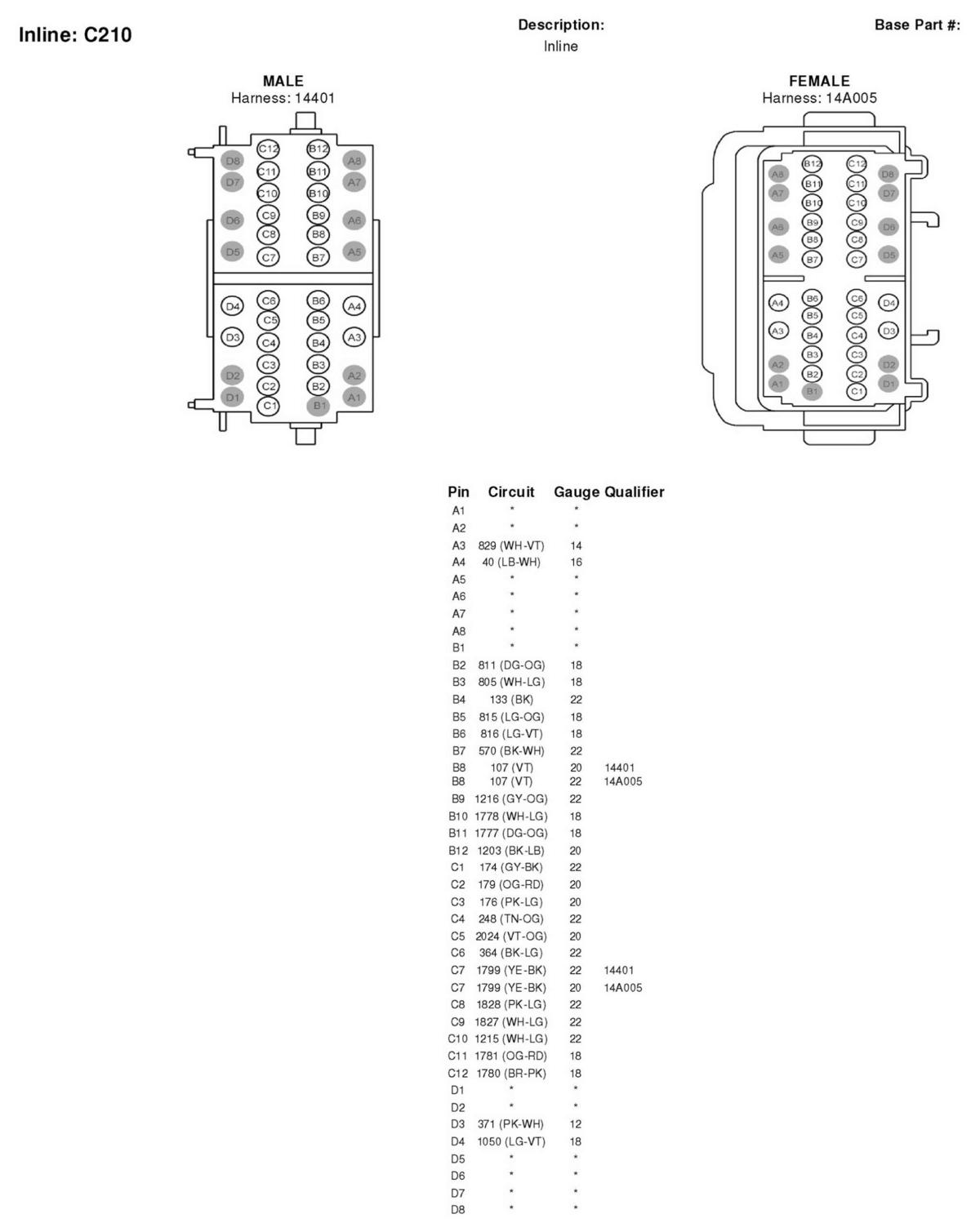

Fig 66: Inline Connector End View (C210)

G04598025

Courtesy of FORD MOTOR CO.

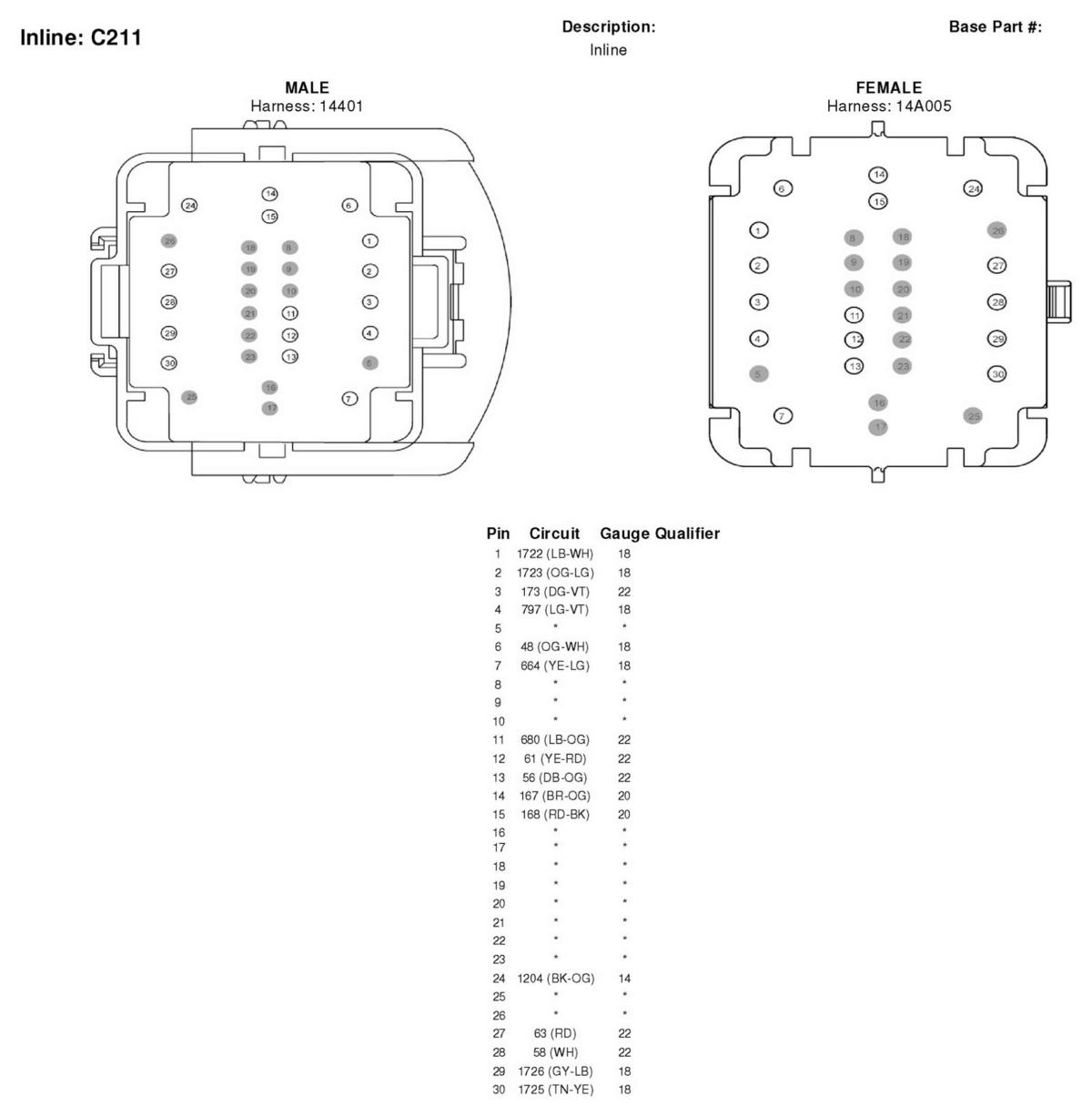

Fig 67: Inline Connector End View (C211)

G04598026

Courtesy of FORD MOTOR CO.

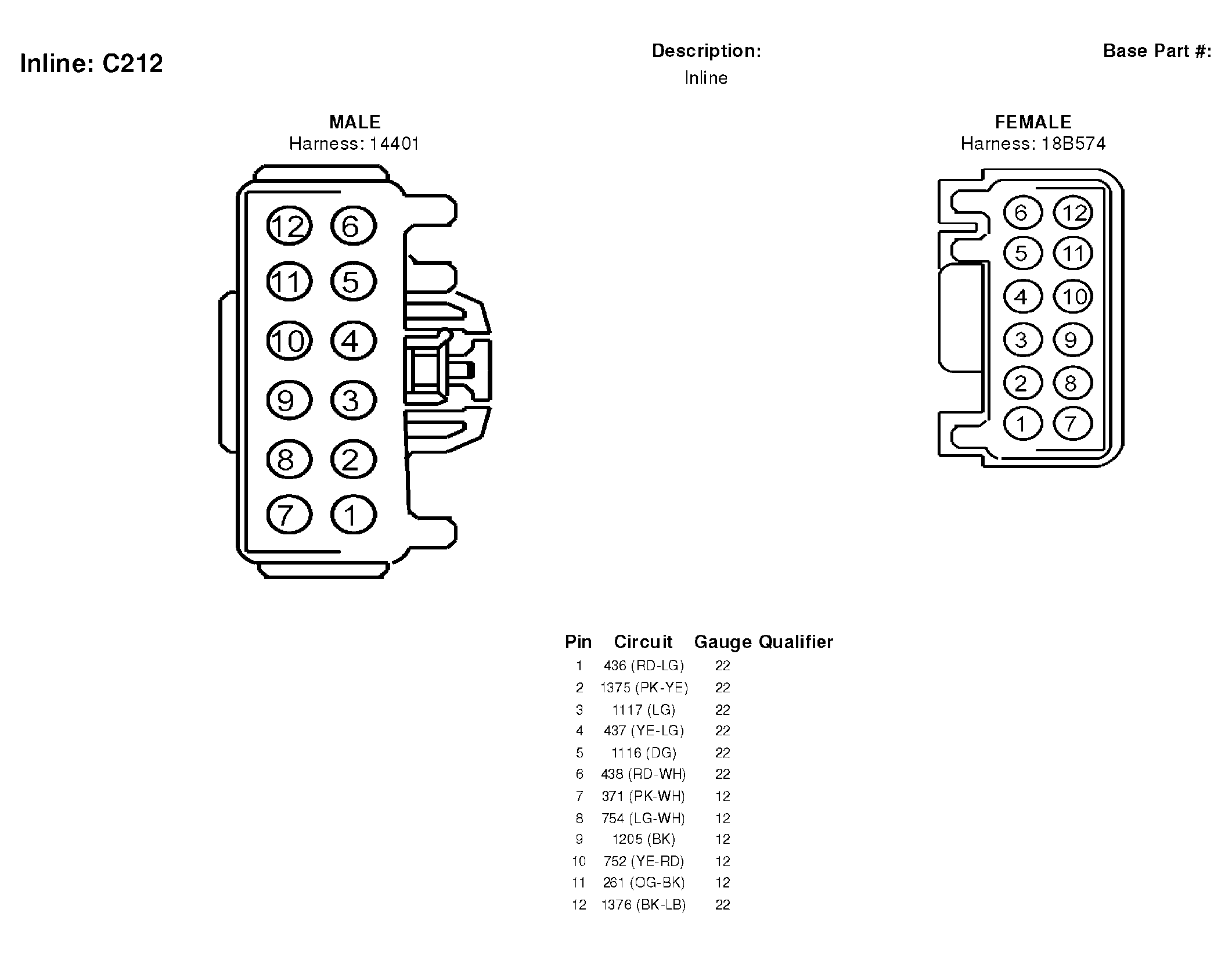

Fig 68: Inline Connector End View (C212)

G04598027

Courtesy of FORD MOTOR CO.

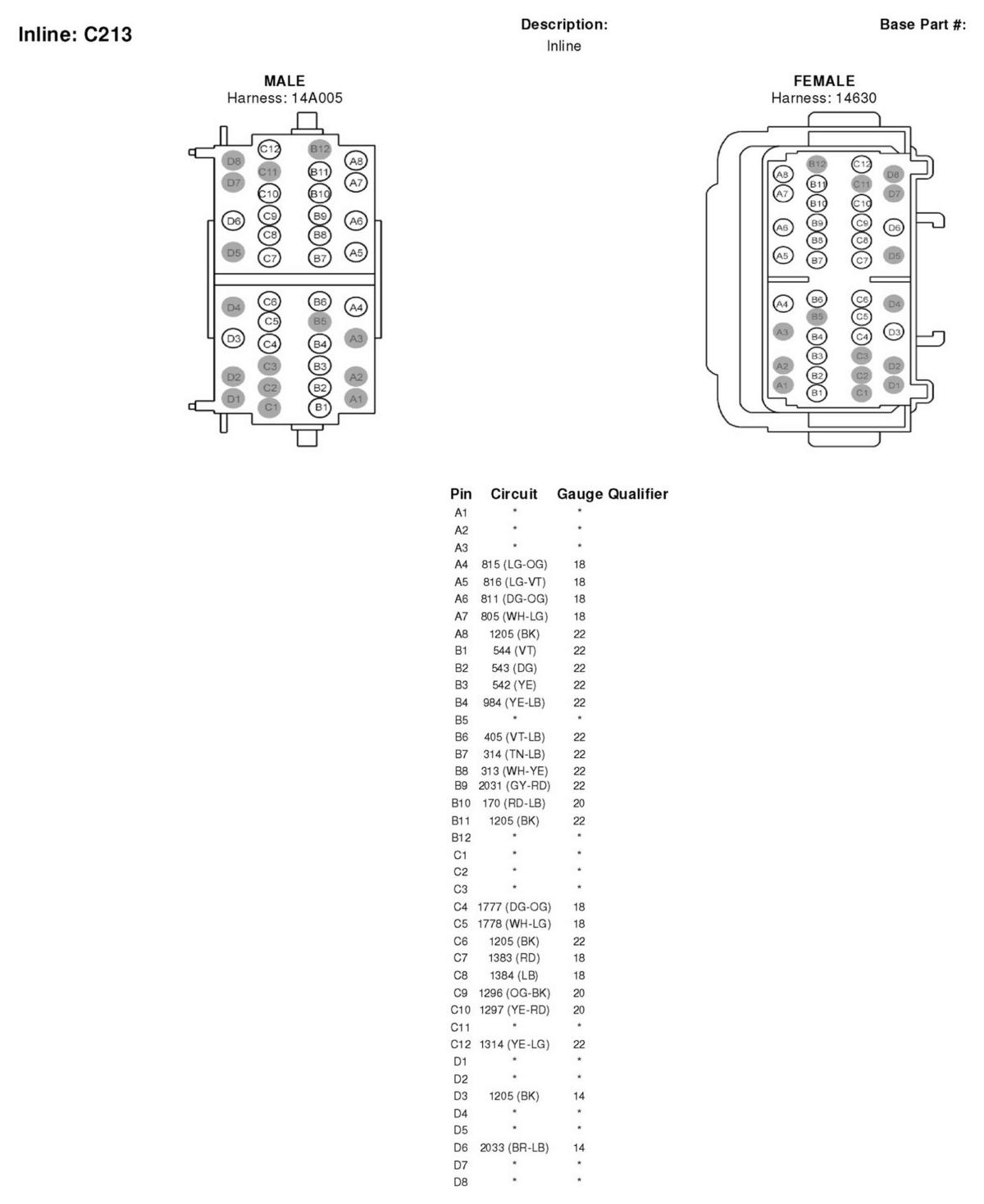

Fig 69: Inline Connector End View (C213)

G04598028

Courtesy of FORD MOTOR CO.

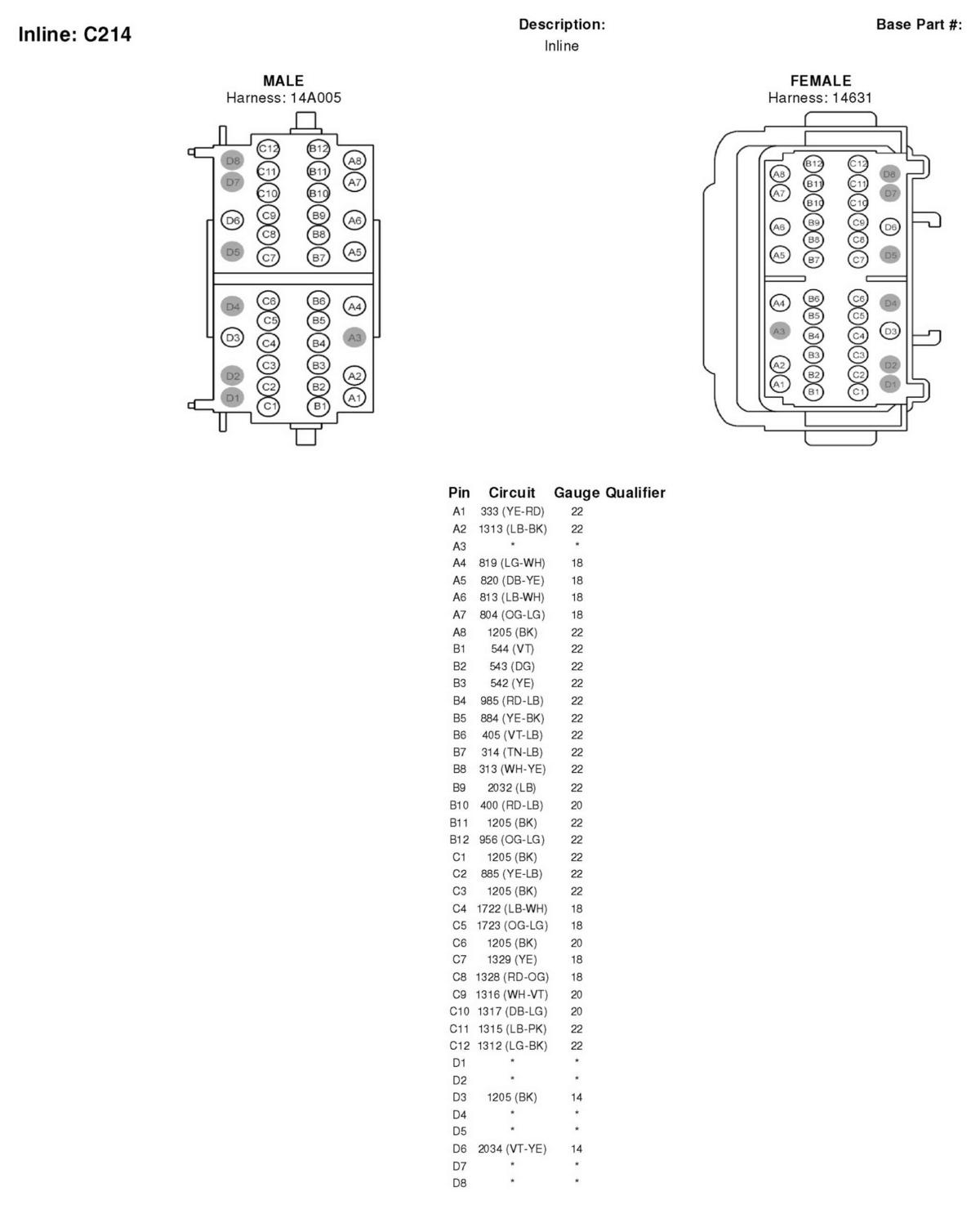

Fig 70: Inline Connector End View (C214)

G04598029

Courtesy of FORD MOTOR CO.

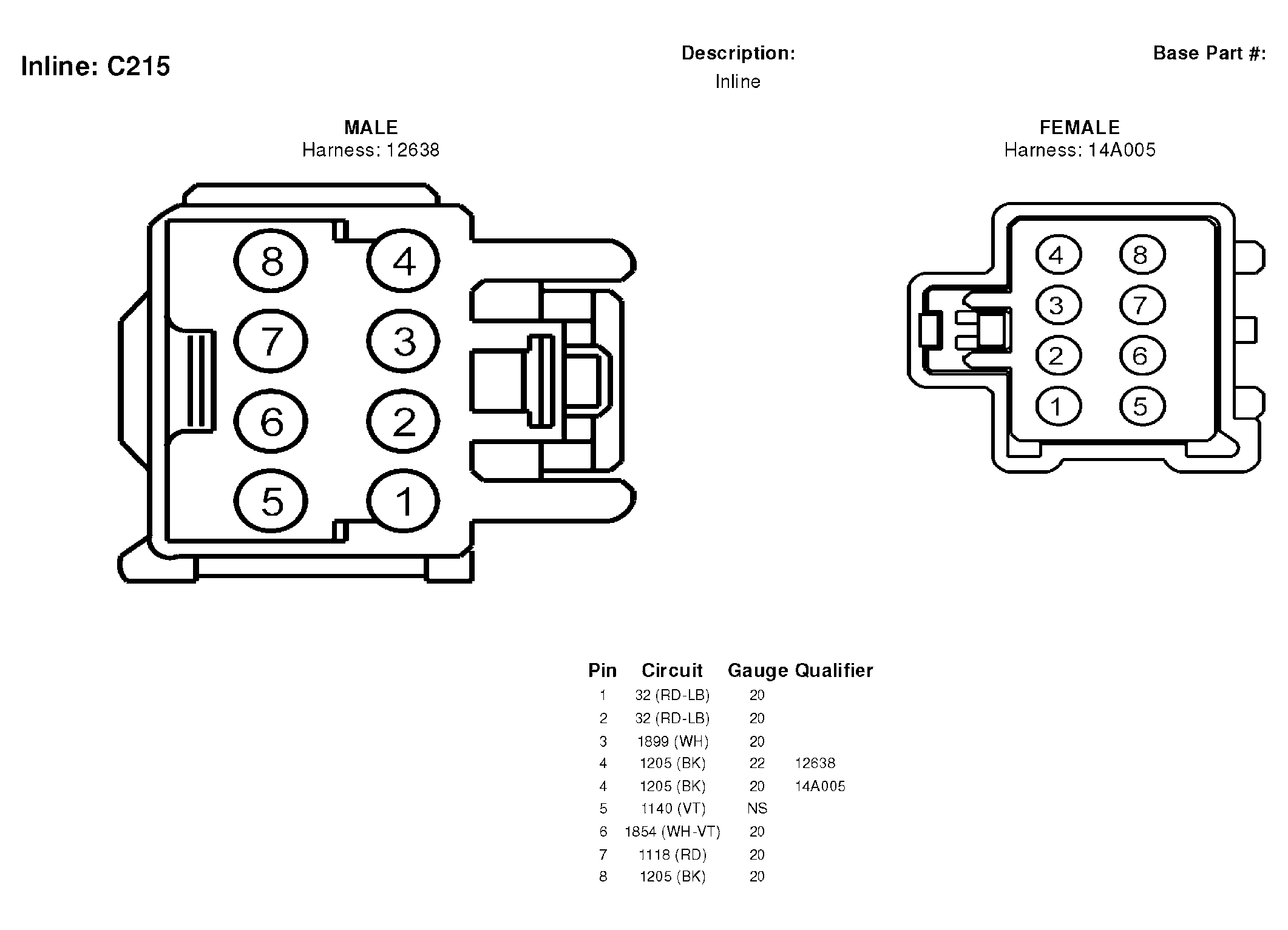

Fig 71: Inline Connector End View (C215)

G04598030

Courtesy of FORD MOTOR CO.

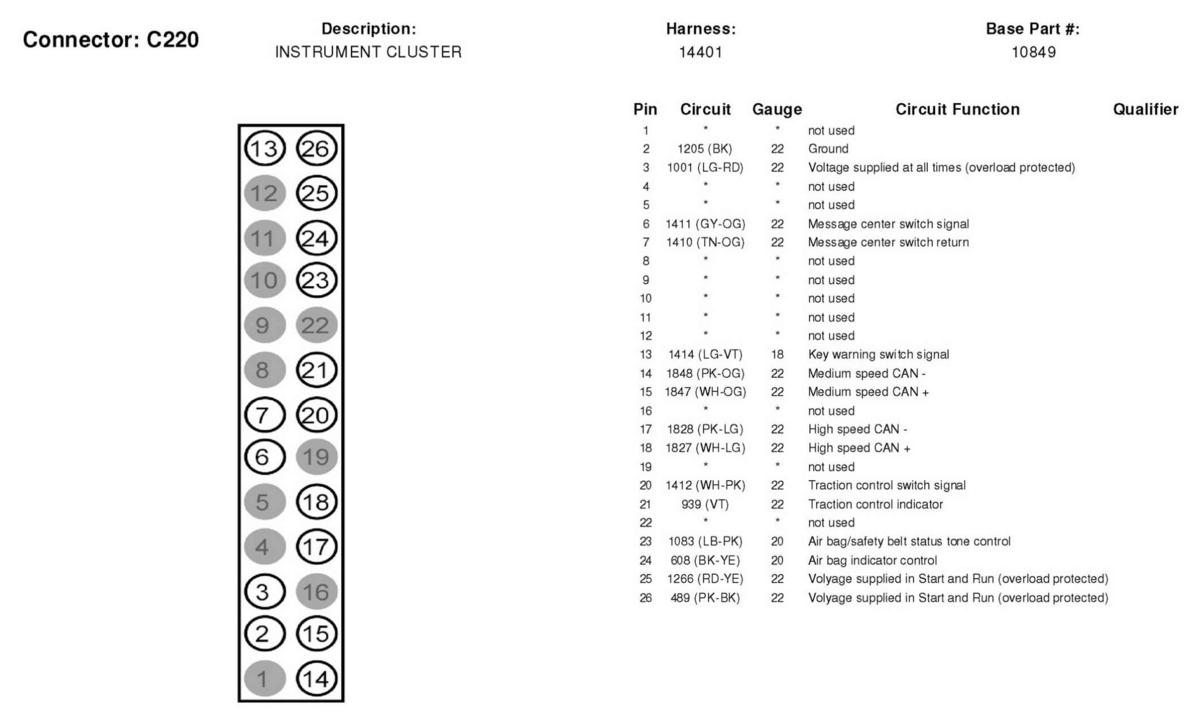

Fig 72: Instrument Cluster Connector End View (C220)

G04598031

Courtesy of FORD MOTOR CO.

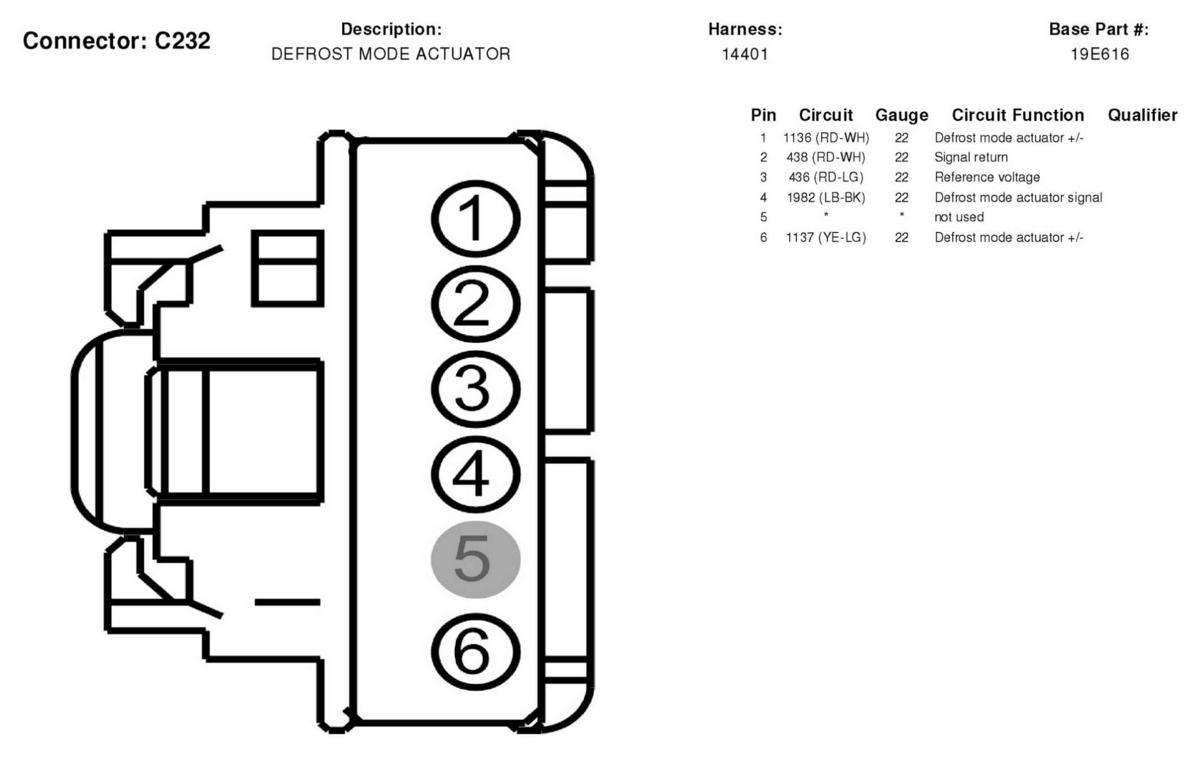

Fig 73: Defrost Mode Actuator Connector End View (C232)

G04598032

Courtesy of FORD MOTOR CO.

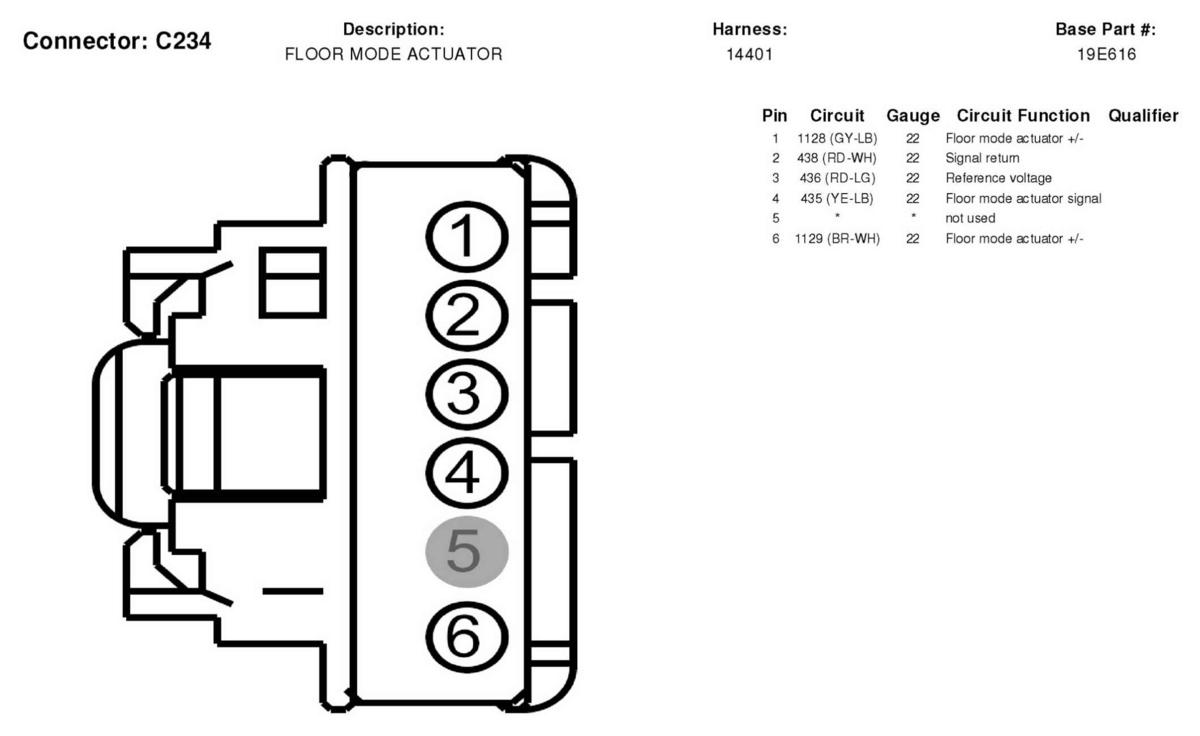

Fig 74: Floor Mode Actuator Connector End View (C234)

G04598033

Courtesy of FORD MOTOR CO.

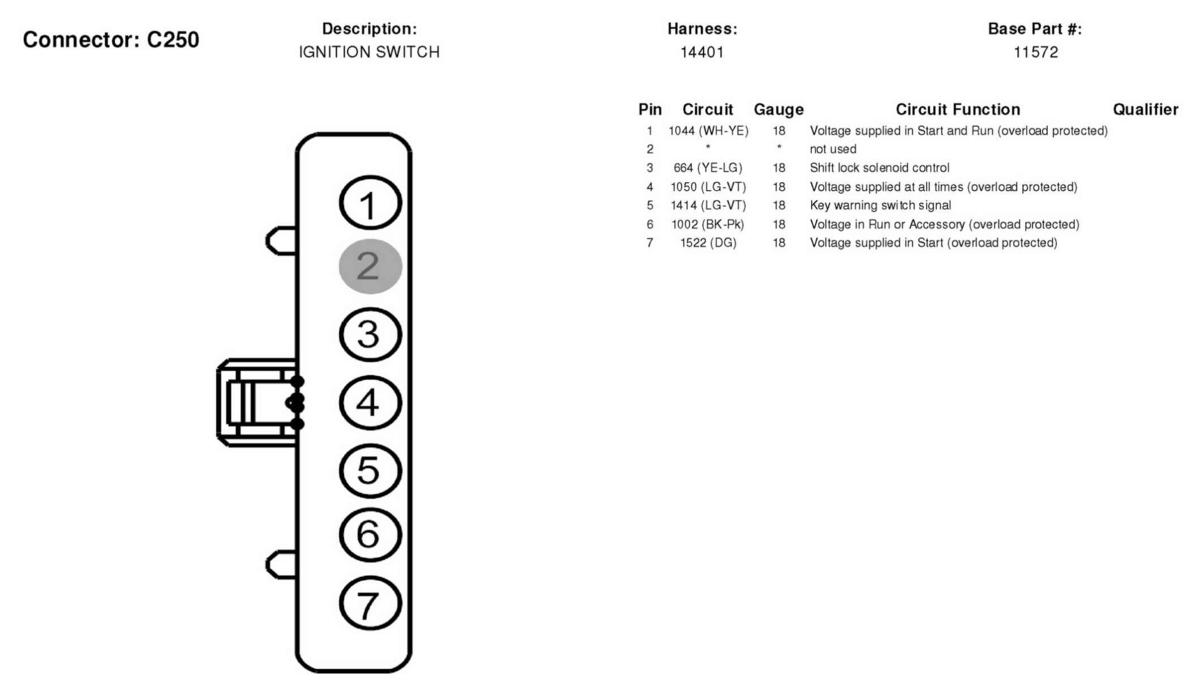

Fig 75: Ignition Switch Connector End View (C250)

G04598034

Courtesy of FORD MOTOR CO.

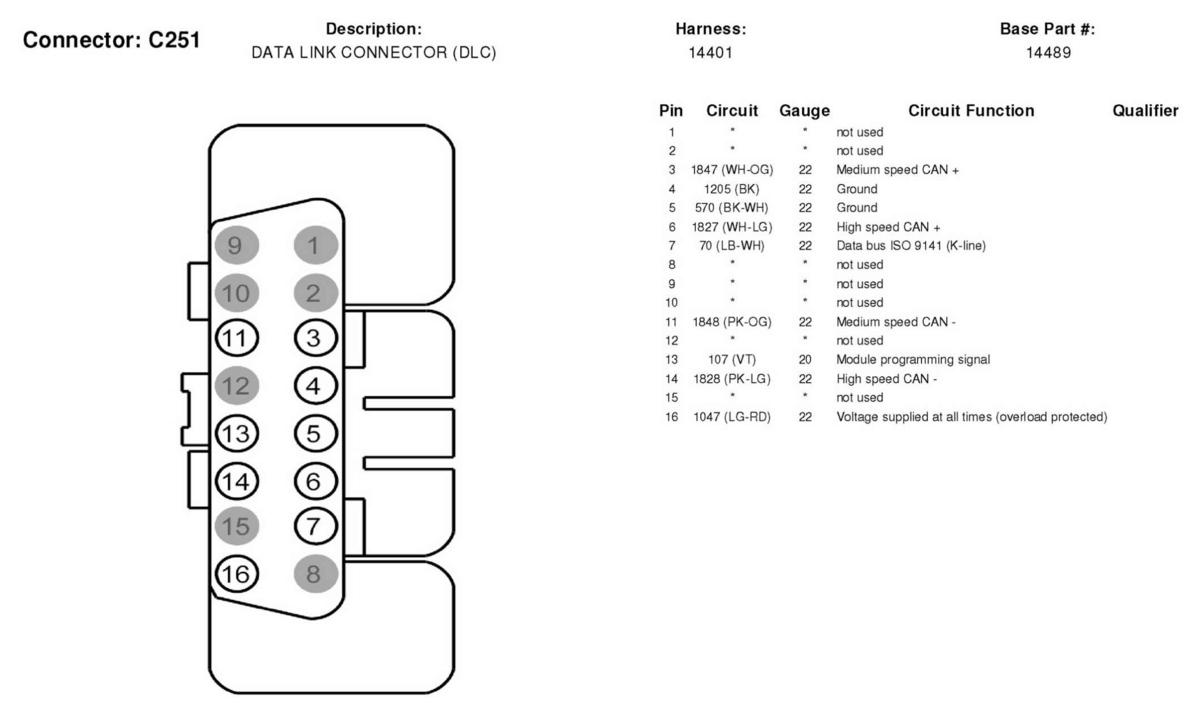

Fig 76: Data Link Connector (DLC) Connector End View (C251)

G04598035

Courtesy of FORD MOTOR CO.

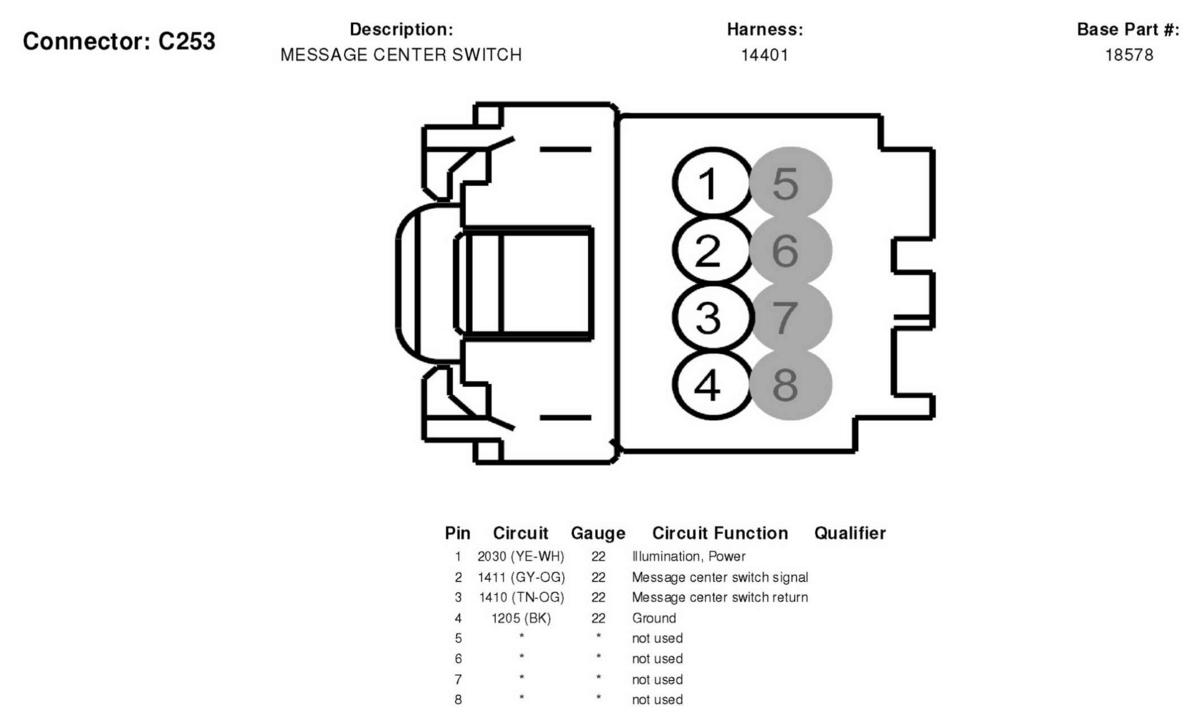

Fig 77: Massage Center Switch Connector End View (C253)

G04598036

Courtesy of FORD MOTOR CO.

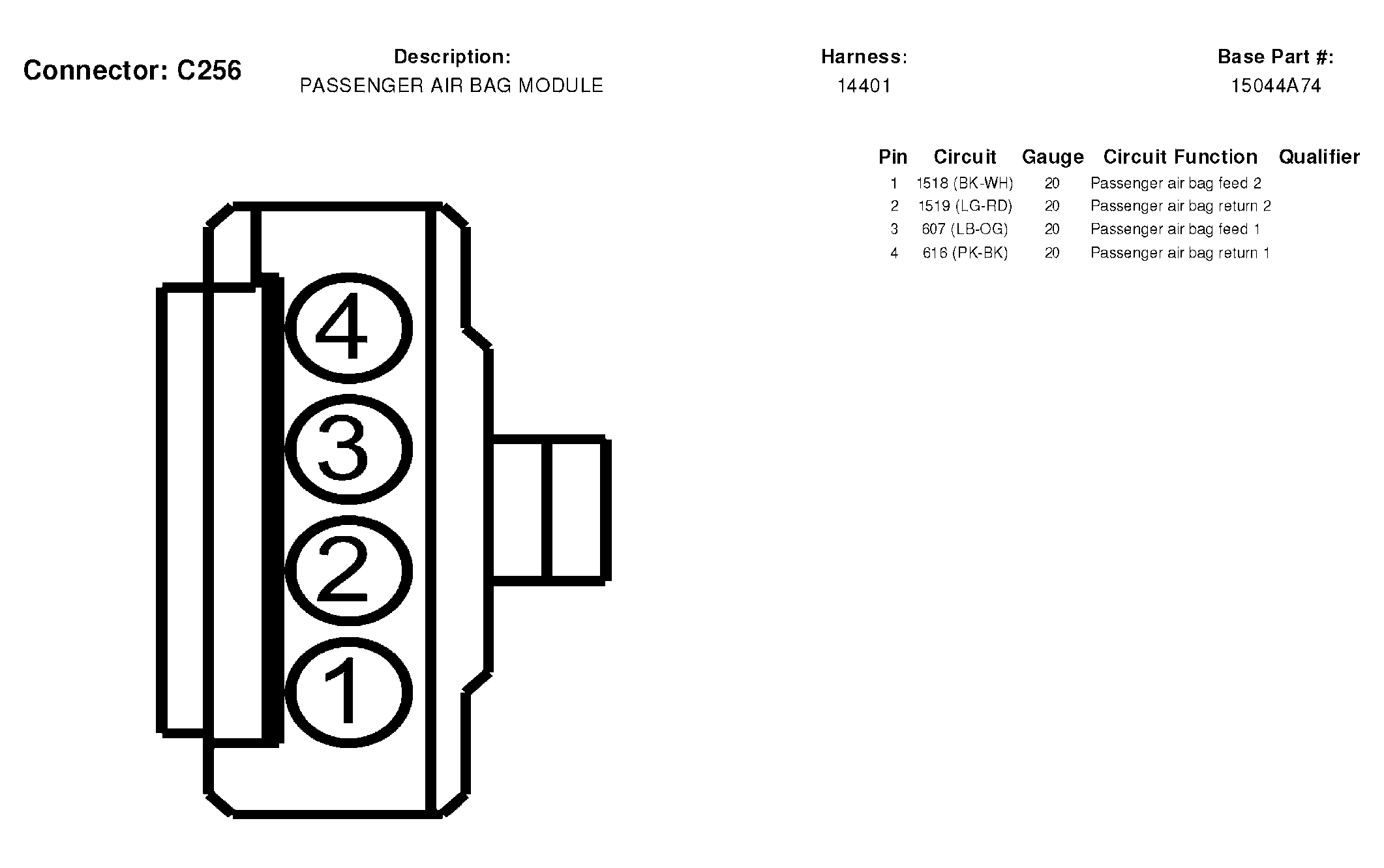

Fig 78: Passenger Air Bag Module Connector End View (C256)

G04598037

Courtesy of FORD MOTOR CO.

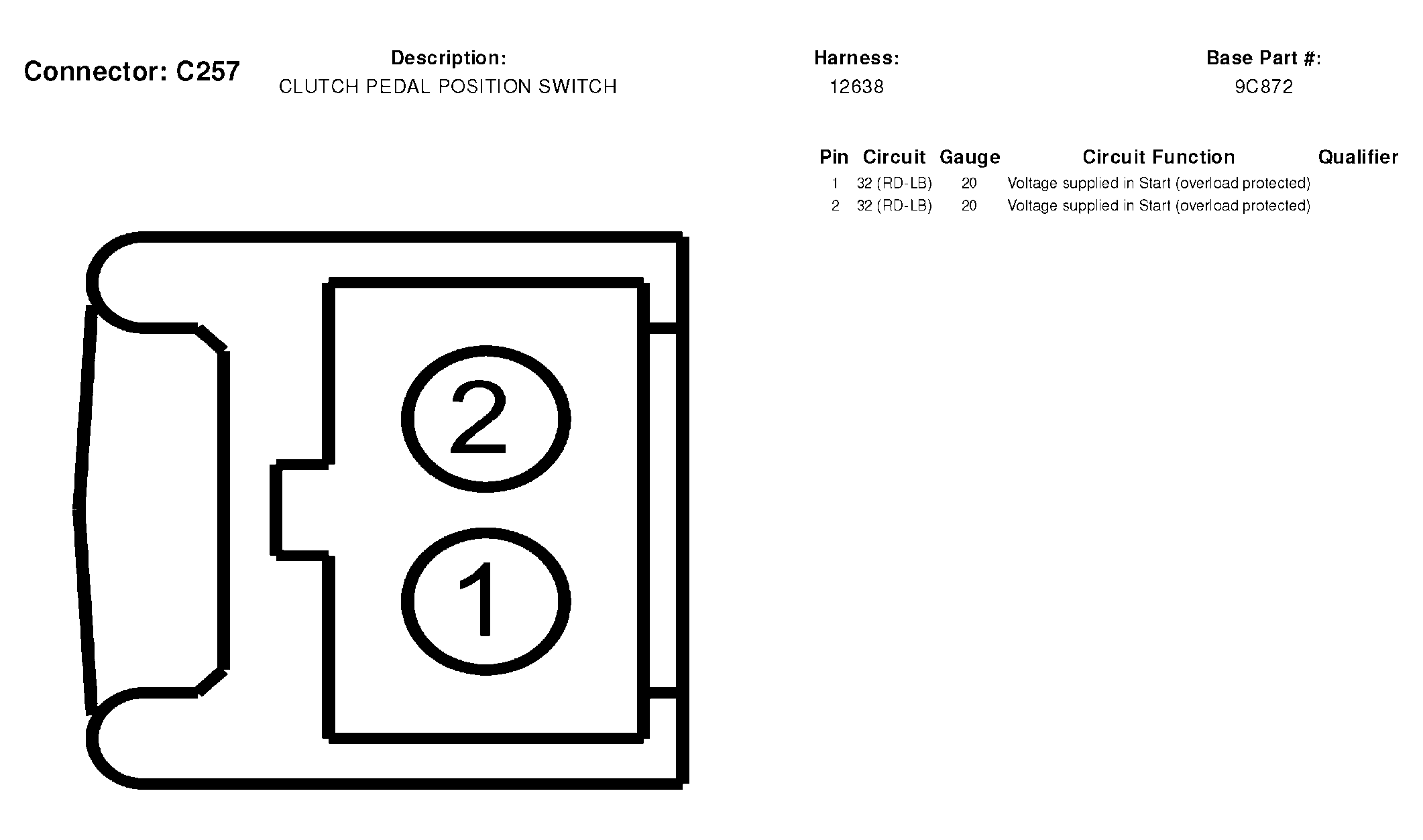

Fig 79: Clutch Pedal Position Switch Connector End View (C257)

G04598038

Courtesy of FORD MOTOR CO.

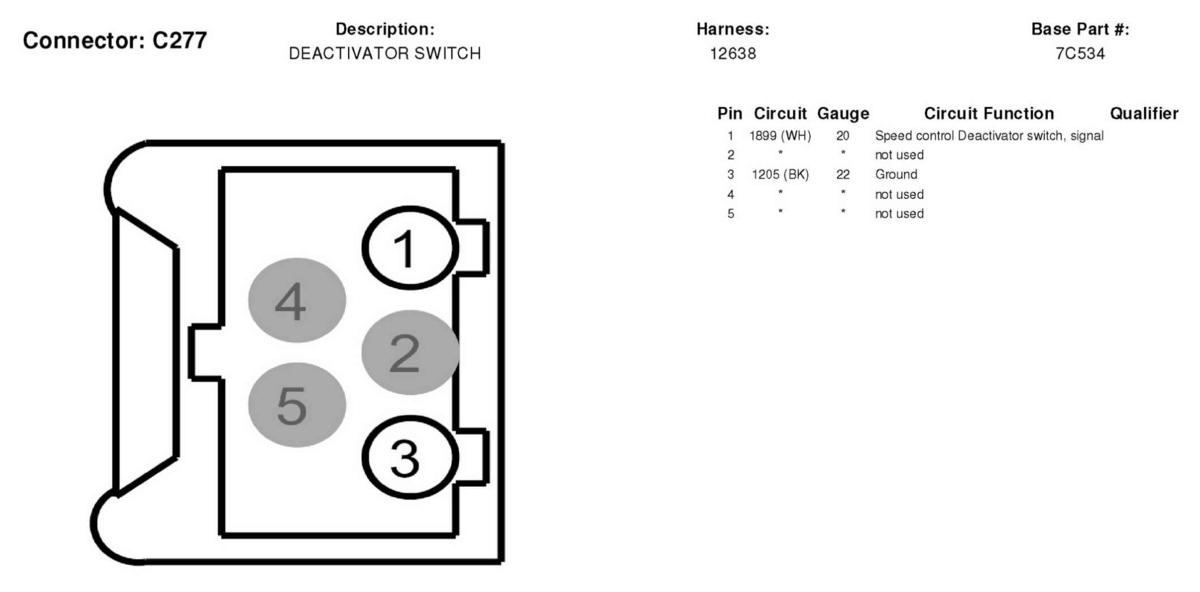

Fig 80: Deactivator Switch Connector End View (C277)

G04598039

Courtesy of FORD MOTOR CO.

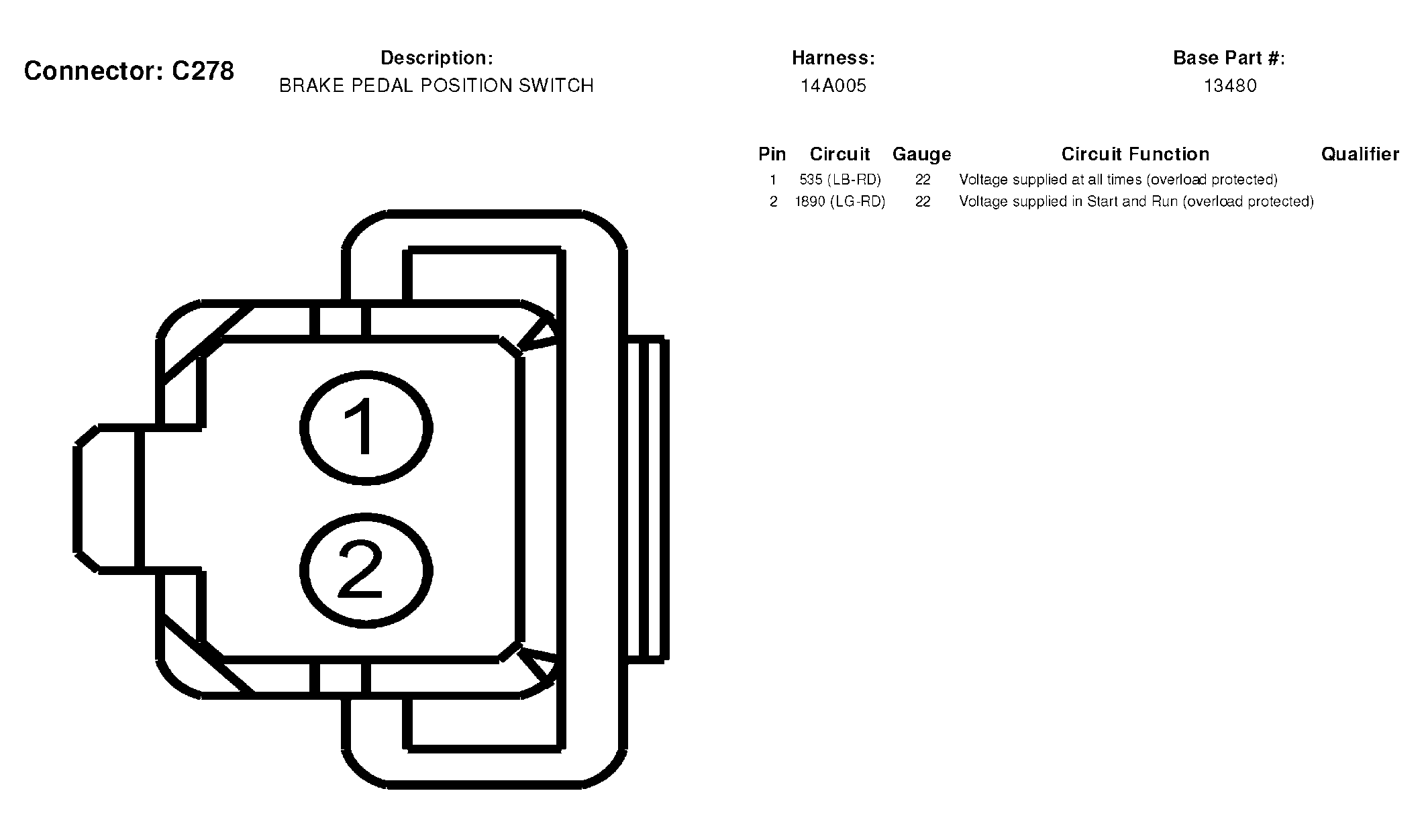

Fig 81: Brake Pedal Position Switch Connector End View (C278)

G04598040

Courtesy of FORD MOTOR CO.

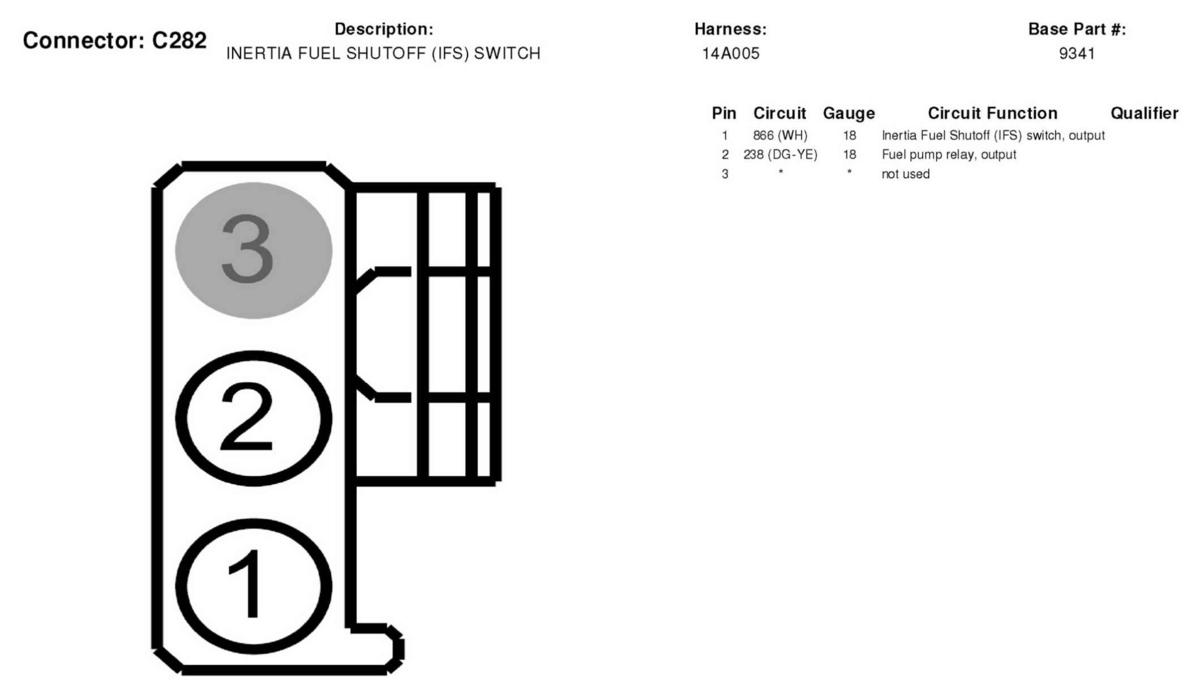

Fig 82: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G04598041

Courtesy of FORD MOTOR CO.

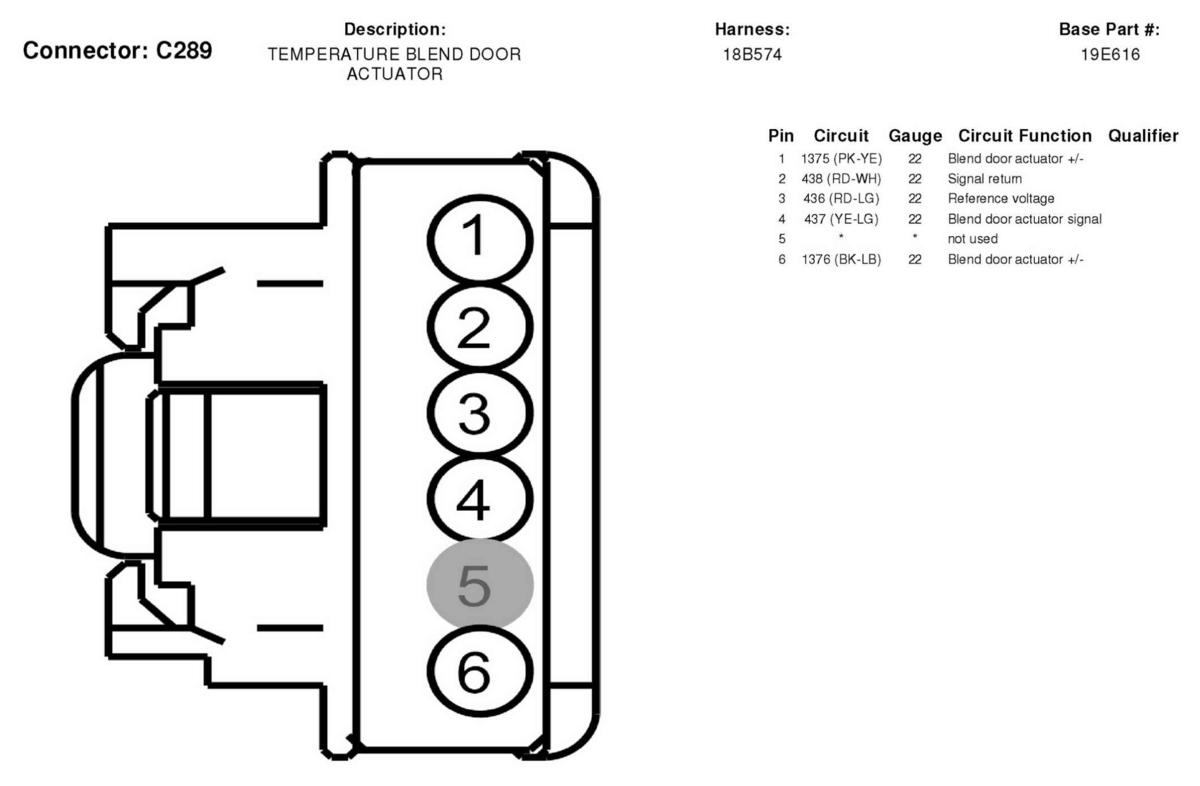

Fig 83: Temperature Blend Door Actuator Connector End View (C289)

G04598042

Courtesy of FORD MOTOR CO.

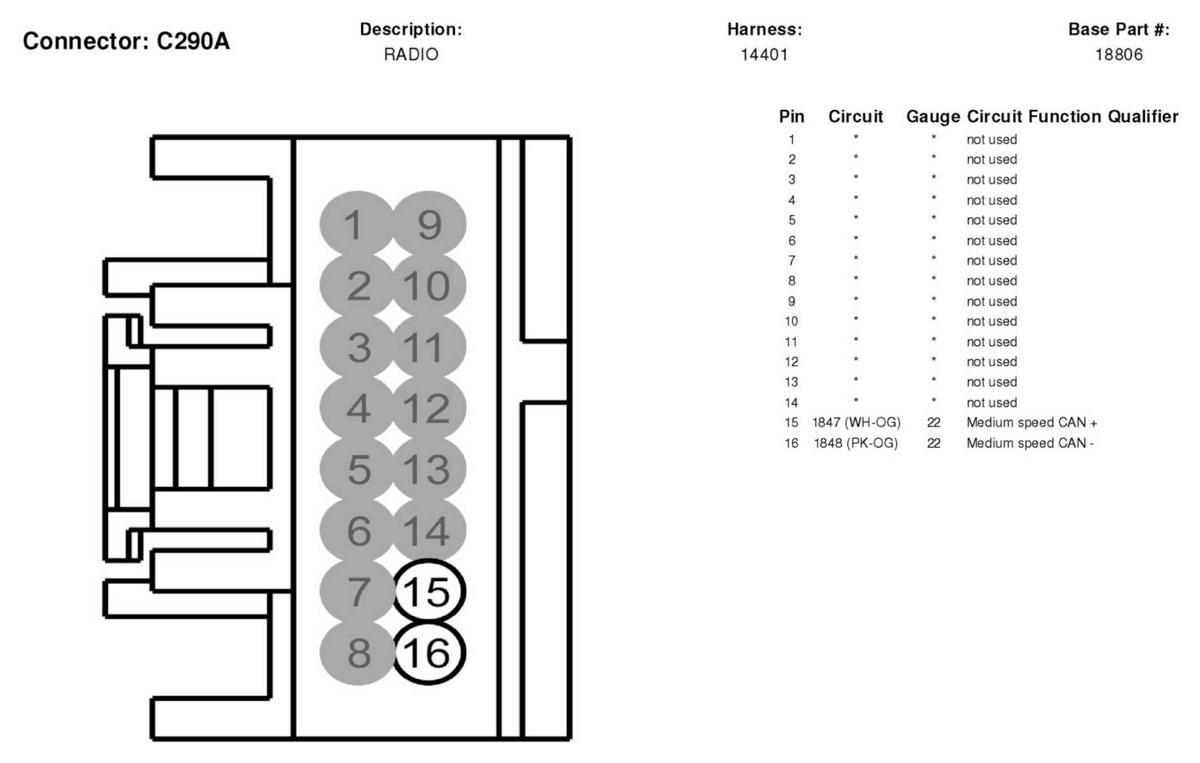

Fig 84: Radio Connector End View (C290A)

G04598043

Courtesy of FORD MOTOR CO.

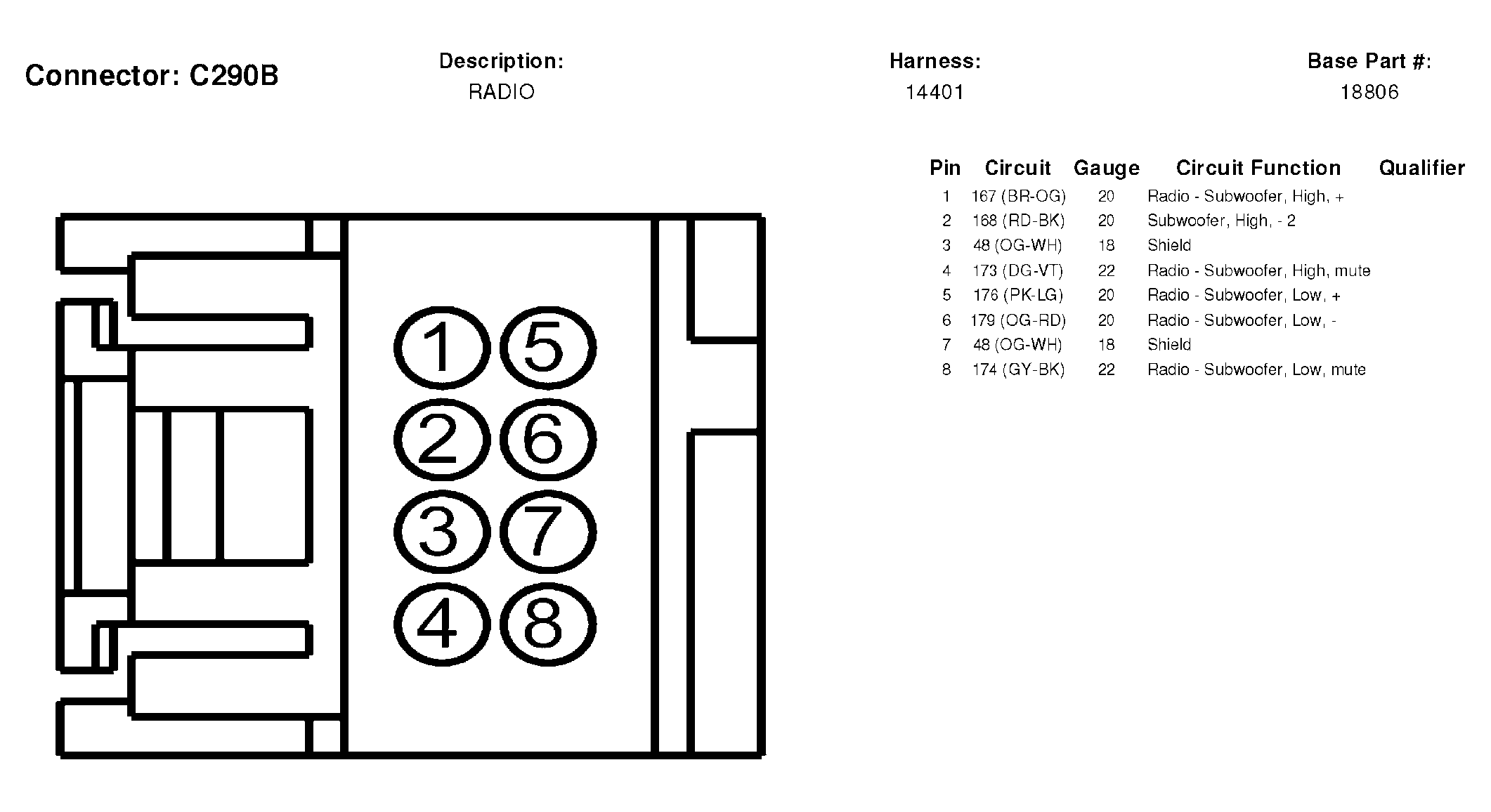

Fig 85: Radio Connector End View (C290B)

G04598044

Courtesy of FORD MOTOR CO.

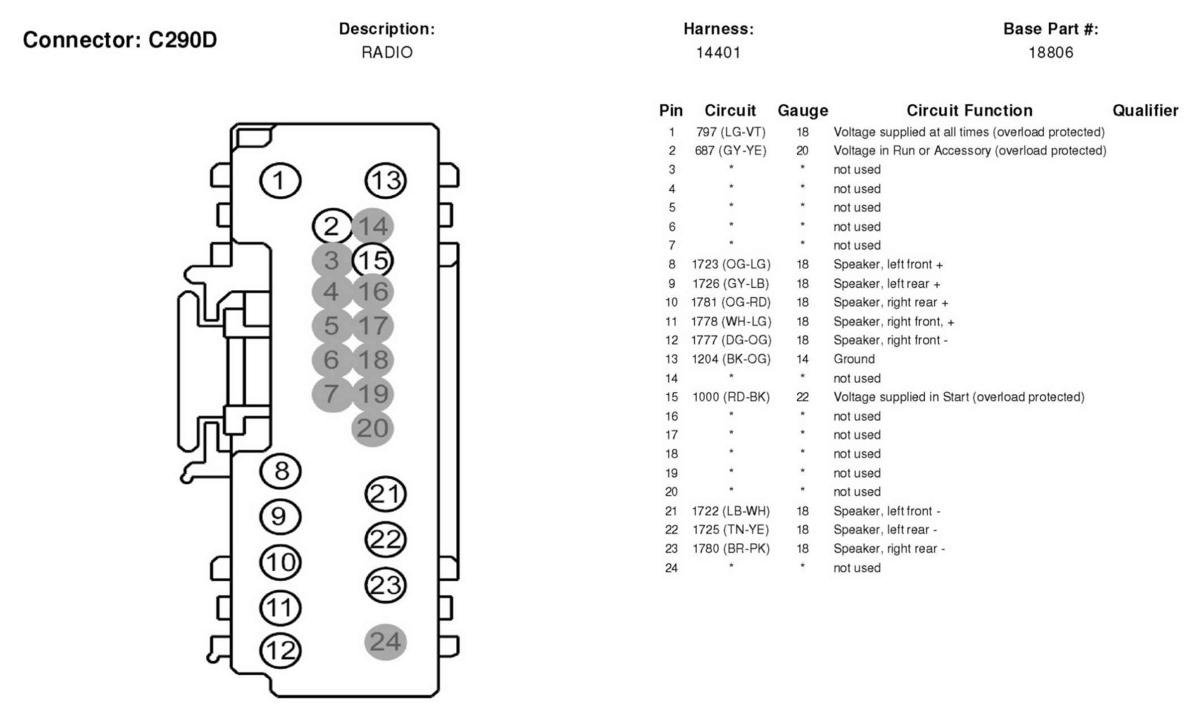

Fig 86: Radio Connector End View (C290D)

G04598045

Courtesy of FORD MOTOR CO.

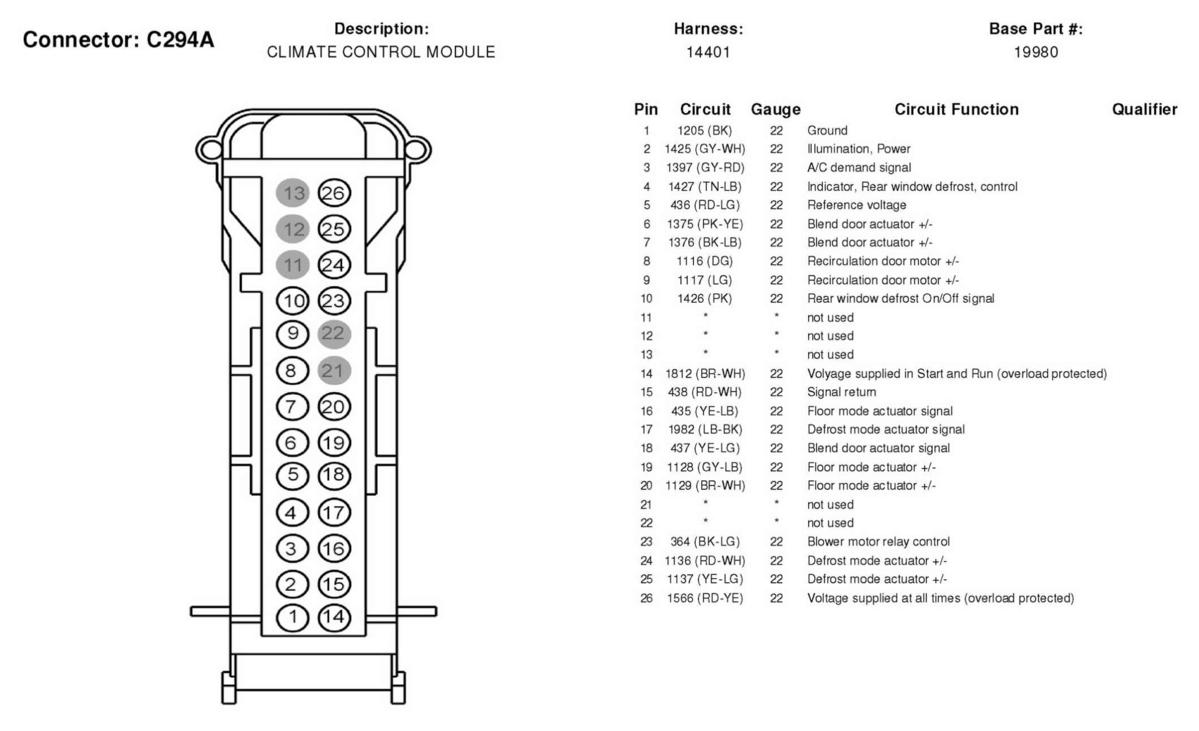

Fig 87: Climate Control Module Connector End View (C294A)

G04598046

Courtesy of FORD MOTOR CO.

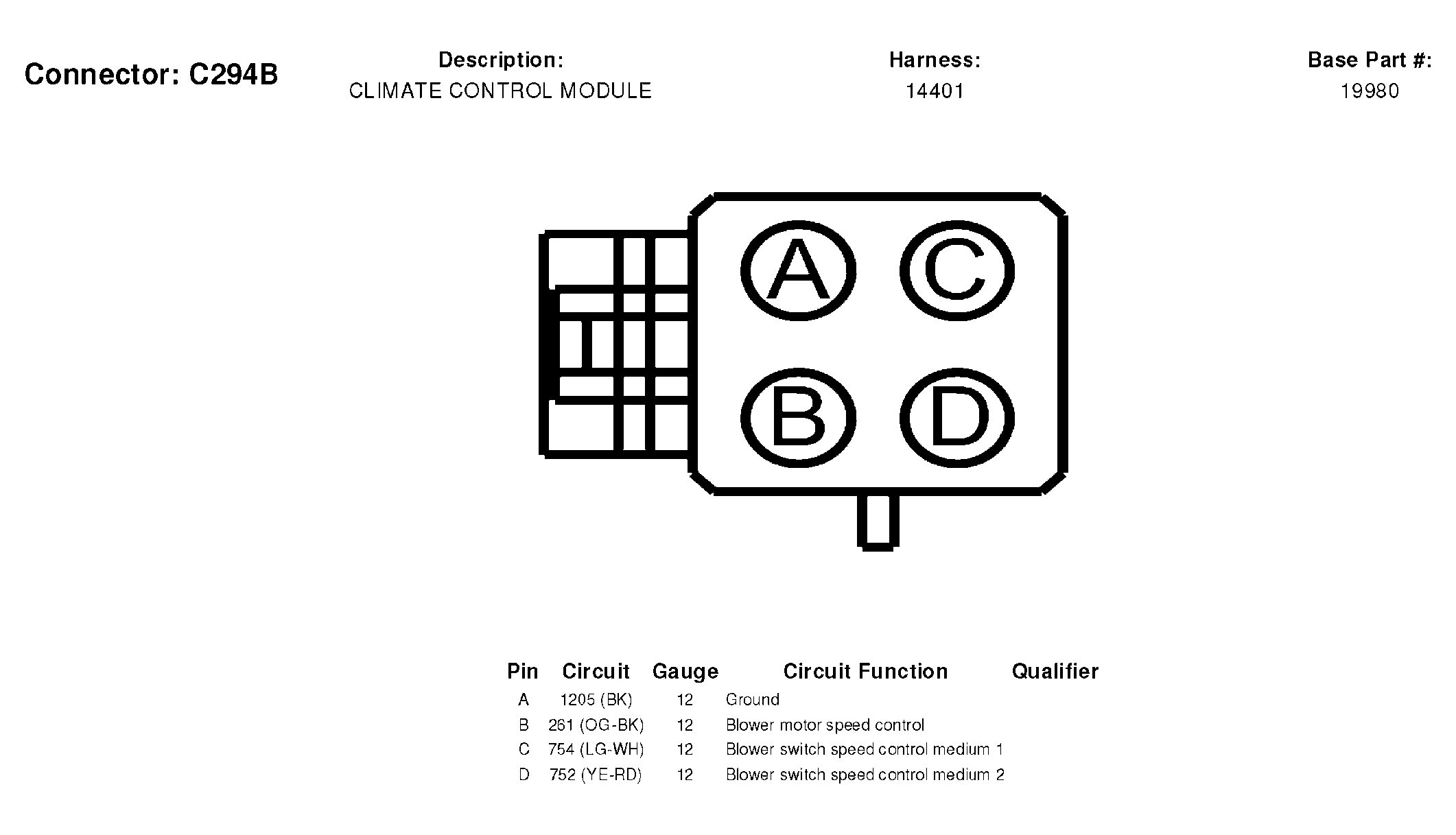

Fig 88: Climate Control Module Connector End View (C294B)

G04598047

Courtesy of FORD MOTOR CO.

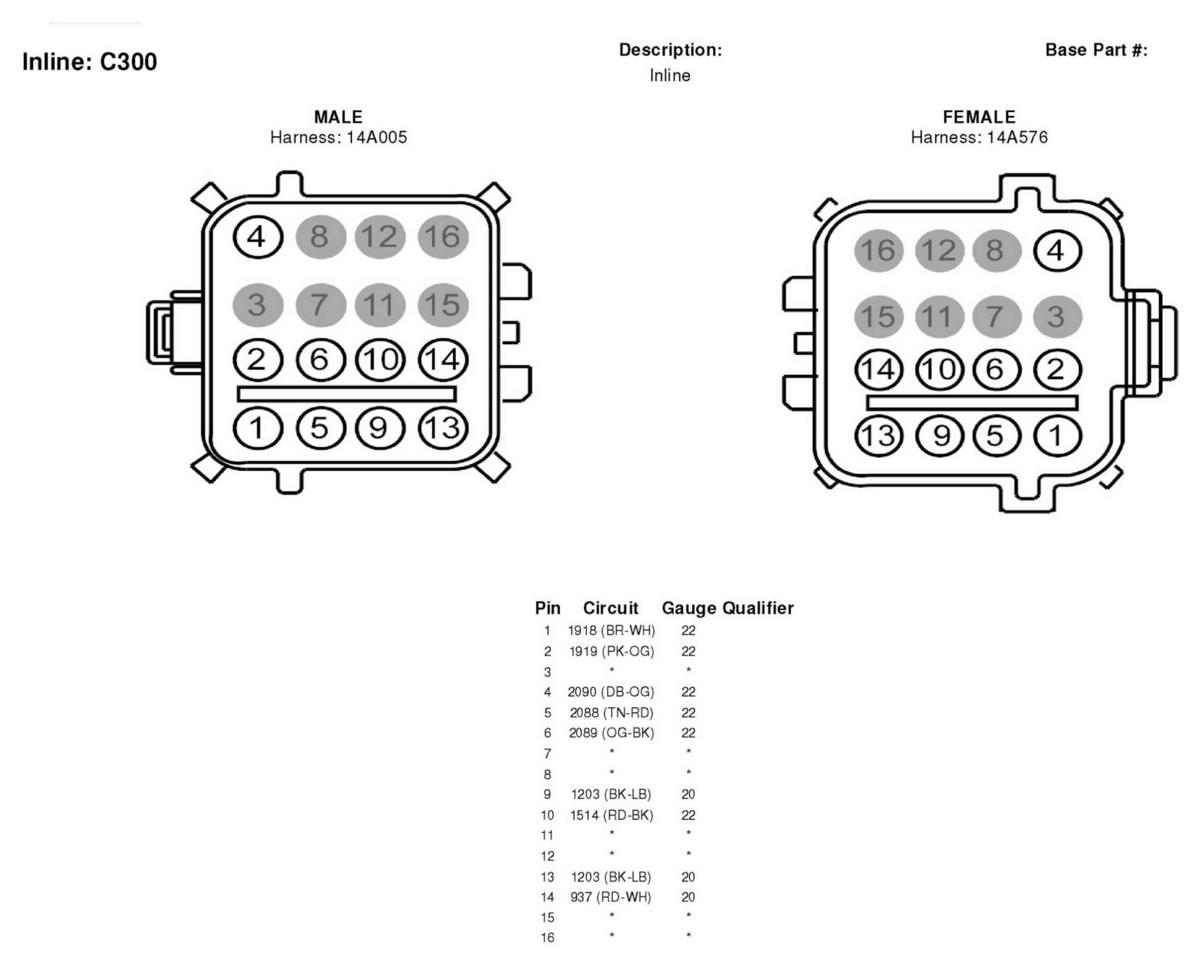

Fig 89: Inline Connector End View (C300)

G04598048

Courtesy of FORD MOTOR CO.

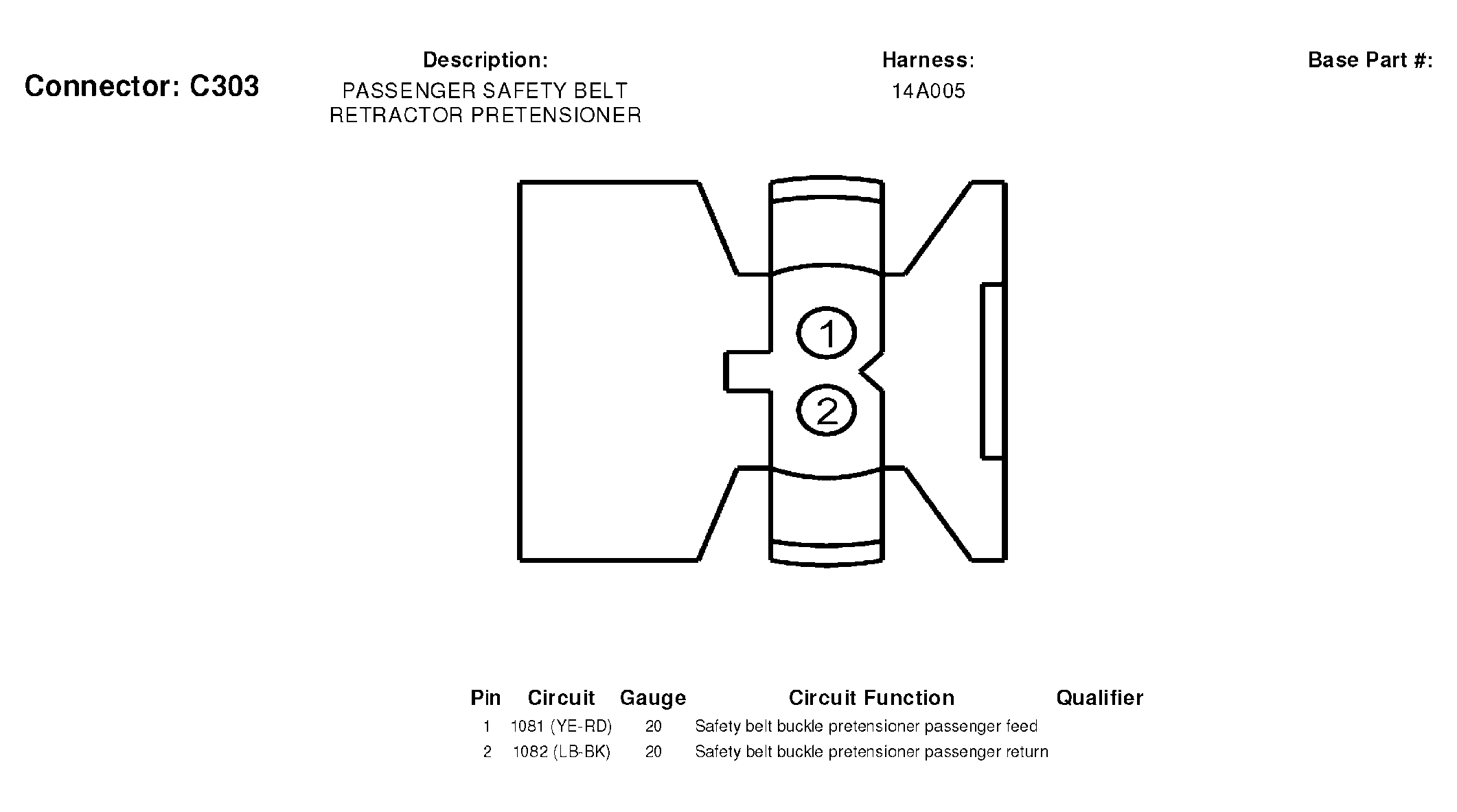

Fig 90: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G04598049

Courtesy of FORD MOTOR CO.

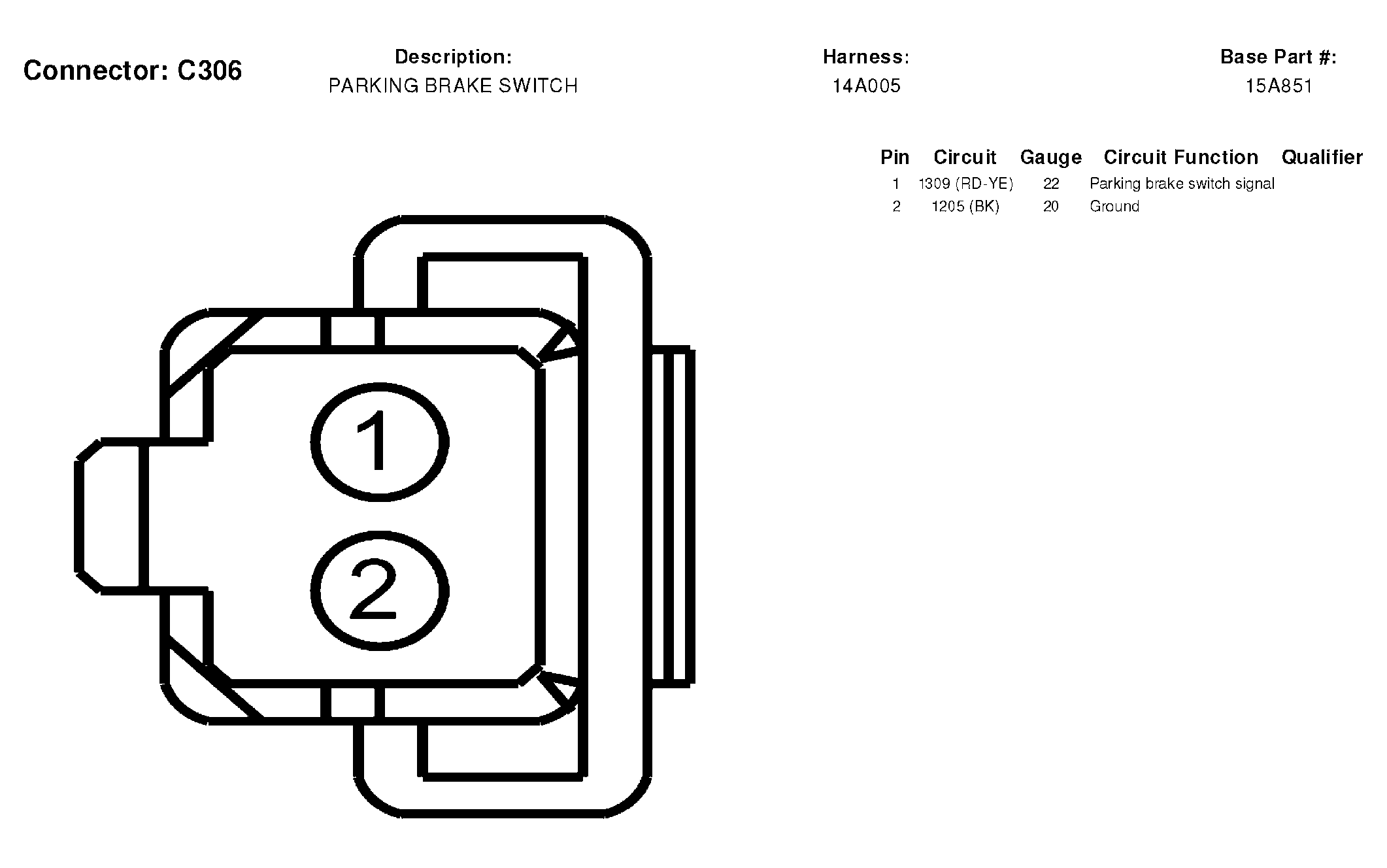

Fig 91: Parking Brake Switch Connector End View (C306)

G04598050

Courtesy of FORD MOTOR CO.

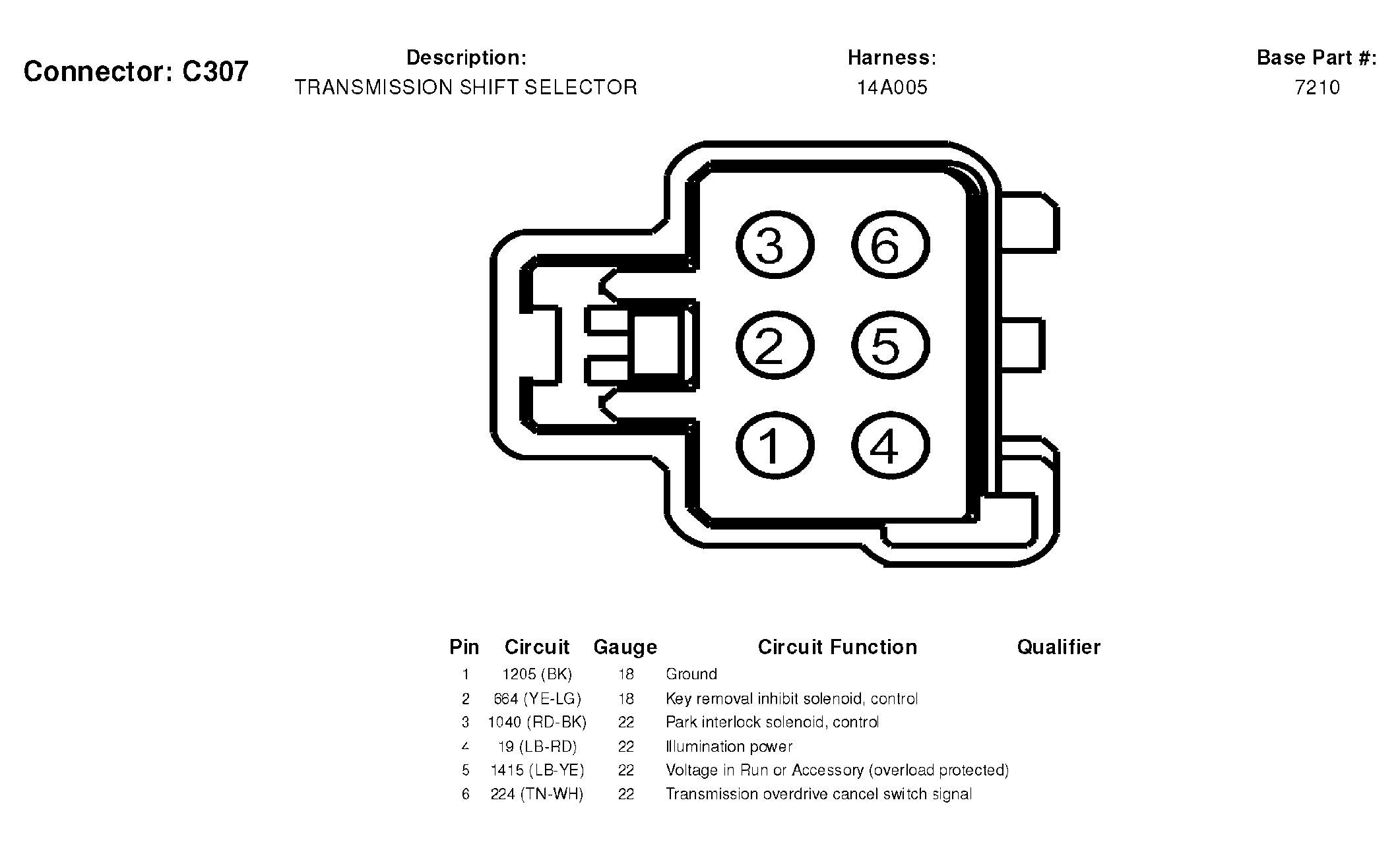

Fig 92: Transmission Shift Selector Connector End View (C307)

G04598051

Courtesy of FORD MOTOR CO.

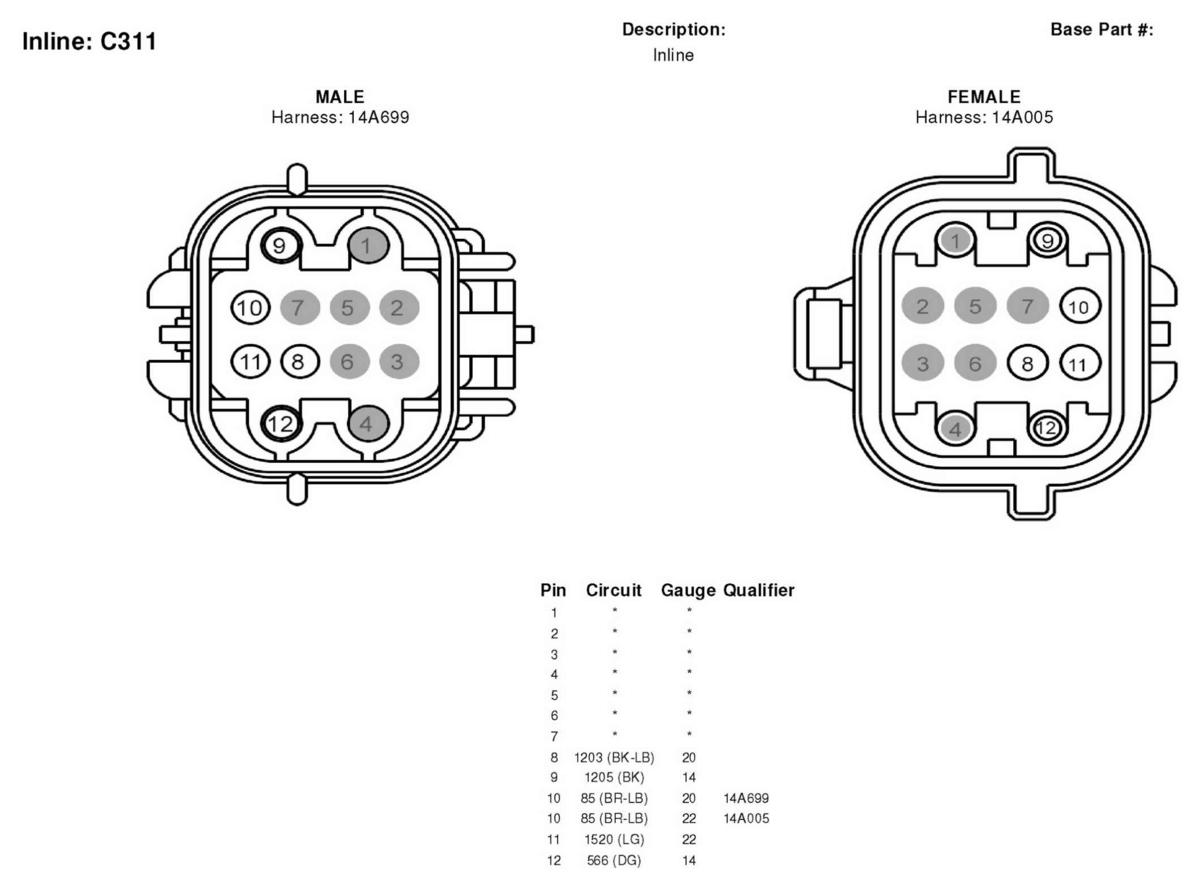

Fig 93: Inline Connector End View (C311)

G04598052

Courtesy of FORD MOTOR CO.

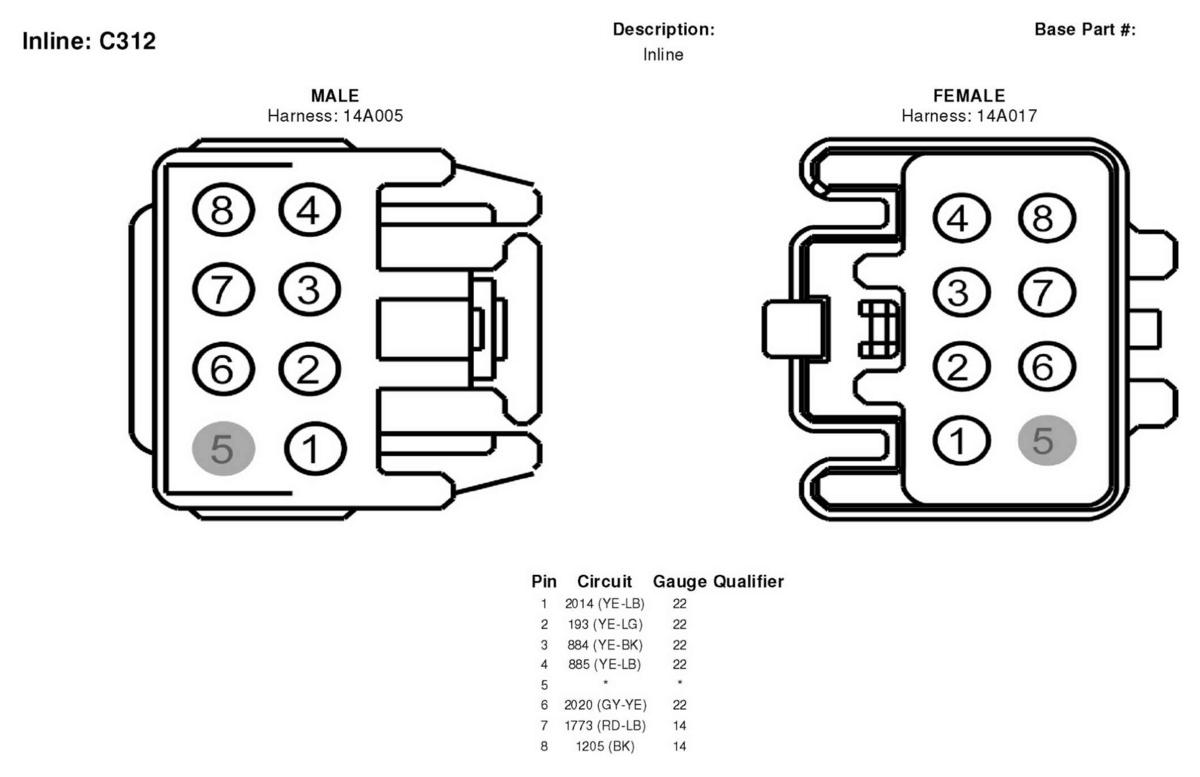

Fig 94: Inline Connector End View (C312)

G04598053

Courtesy of FORD MOTOR CO.

Fig 95: Inline Connector End View (C313)

G04598054

Courtesy of FORD MOTOR CO.

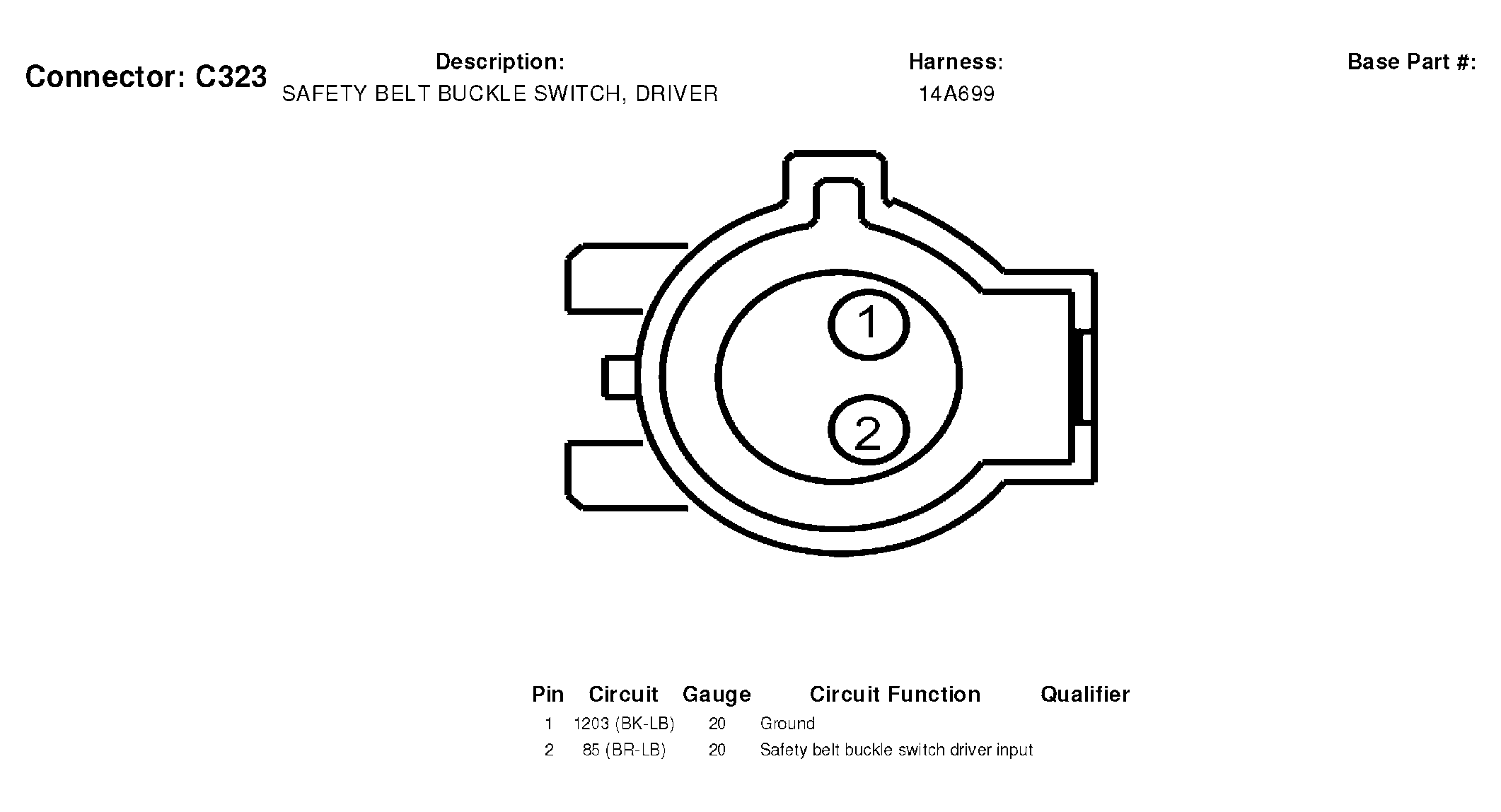

Fig 96: Safety Belt Buckle Switch, Driver Connector End View (C323)

G04598055

Courtesy of FORD MOTOR CO.

Fig 97: Side Air Bag Module, Right Connector End View (C337)

G04598056

Courtesy of FORD MOTOR CO.

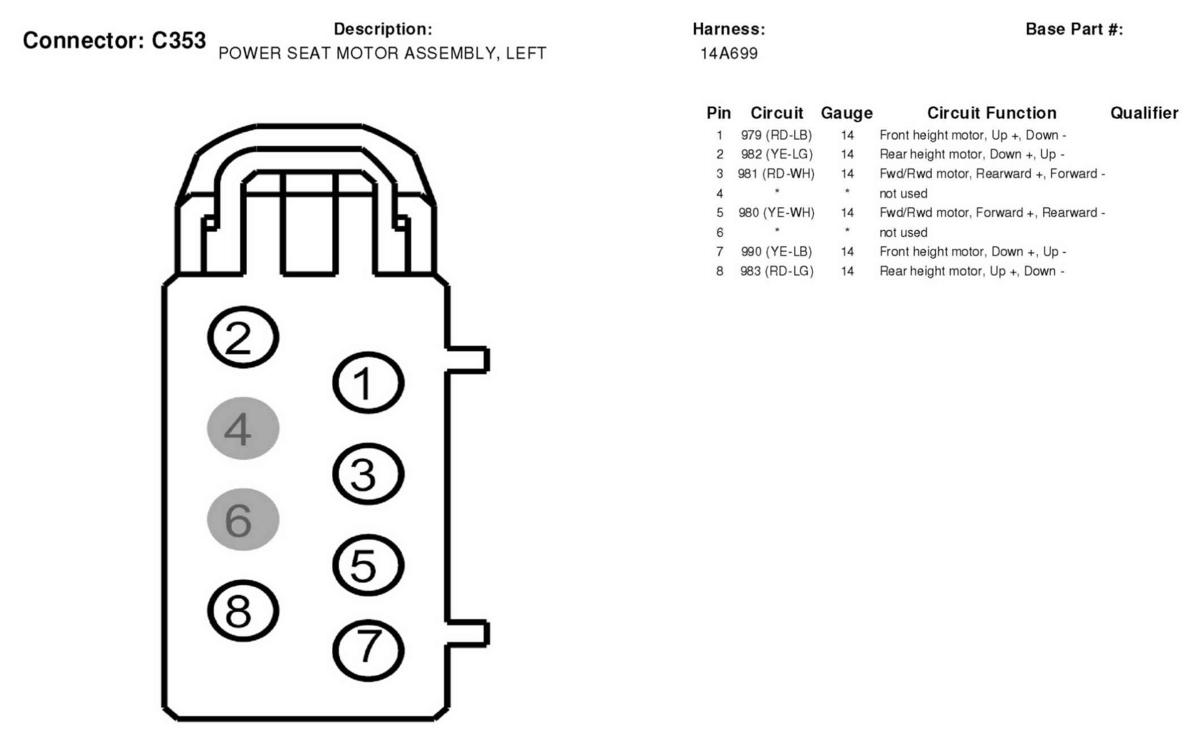

Fig 98: Power Seat Motor Assembly, Left Connector End View (C353)

G04598057

Courtesy of FORD MOTOR CO.

Fig 99: Seat Position Sensor, Driver Connector End View (C356)

G04598058

Courtesy of FORD MOTOR CO.

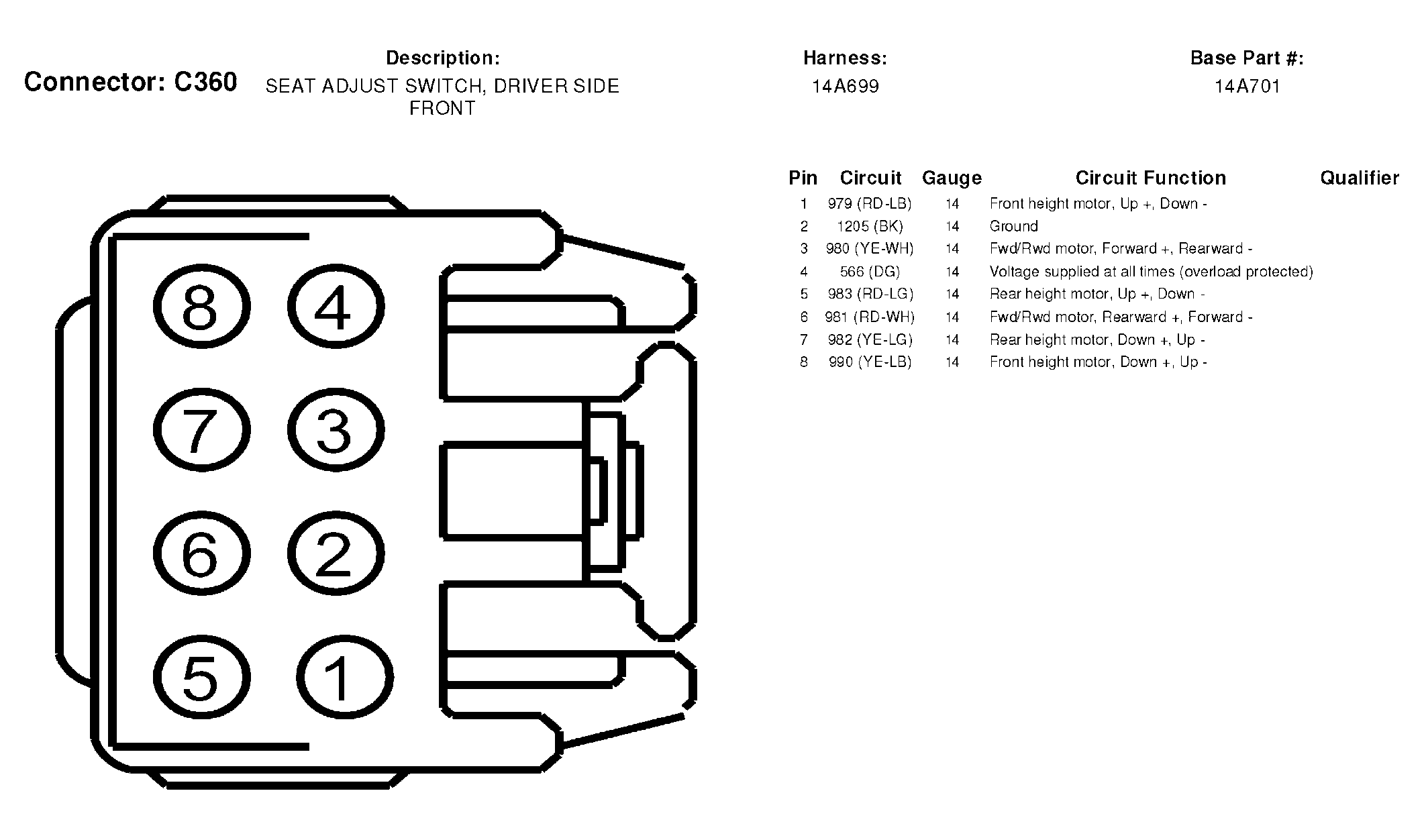

Fig 100: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G04598059

Courtesy of FORD MOTOR CO.

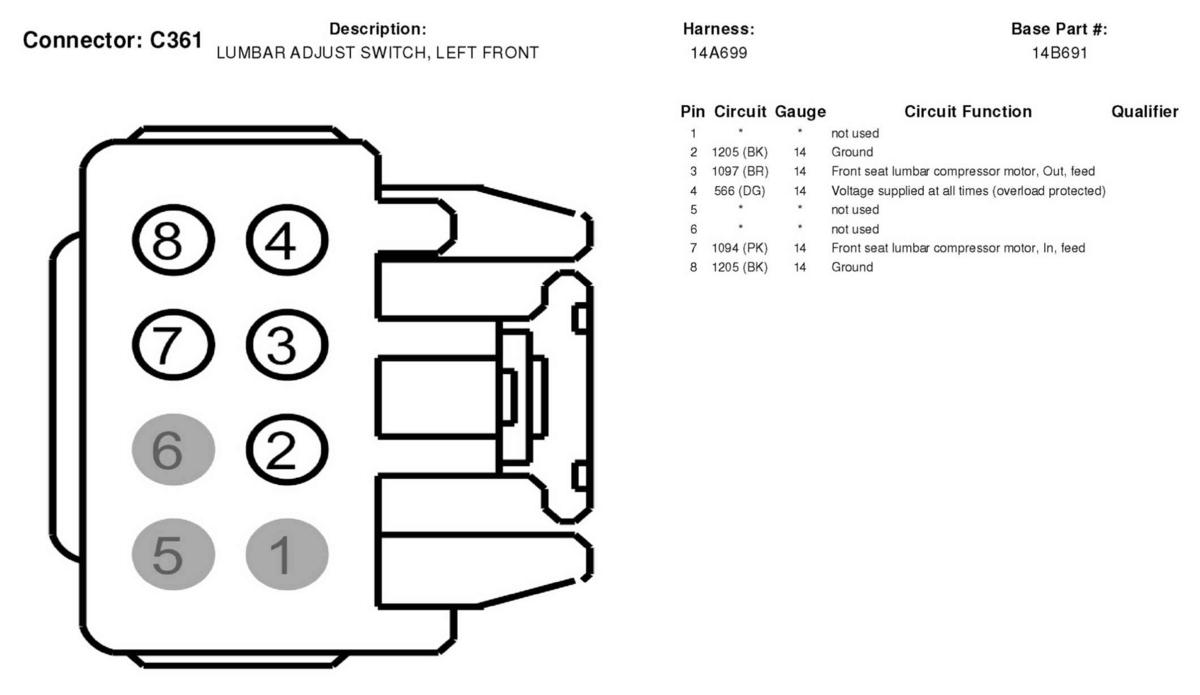

Fig 101: Lumbar Adjust Switch, Left Front Connector End View (C361)

G04598060

Courtesy of FORD MOTOR CO.

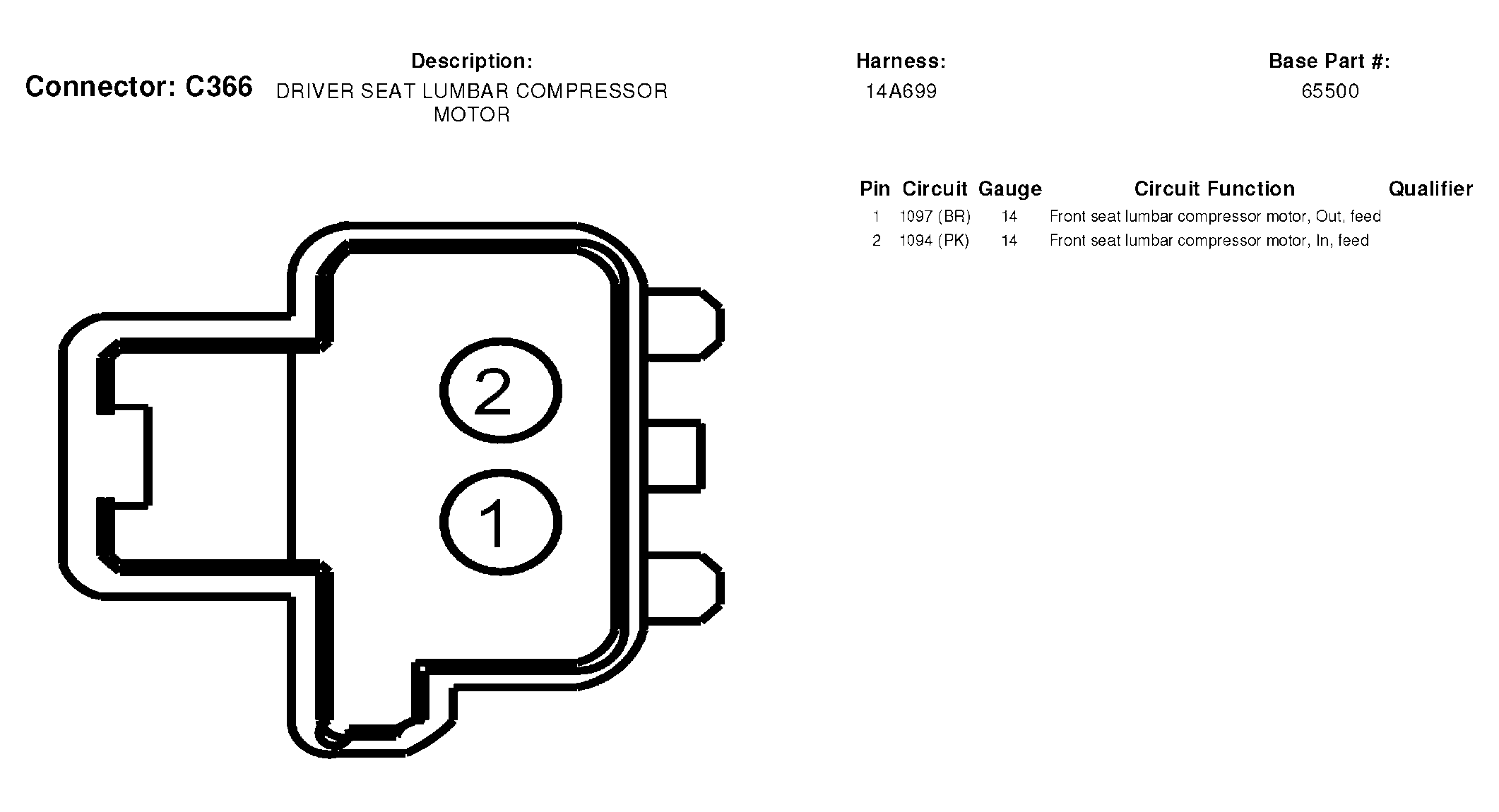

Fig 102: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G04598061

Courtesy of FORD MOTOR CO.

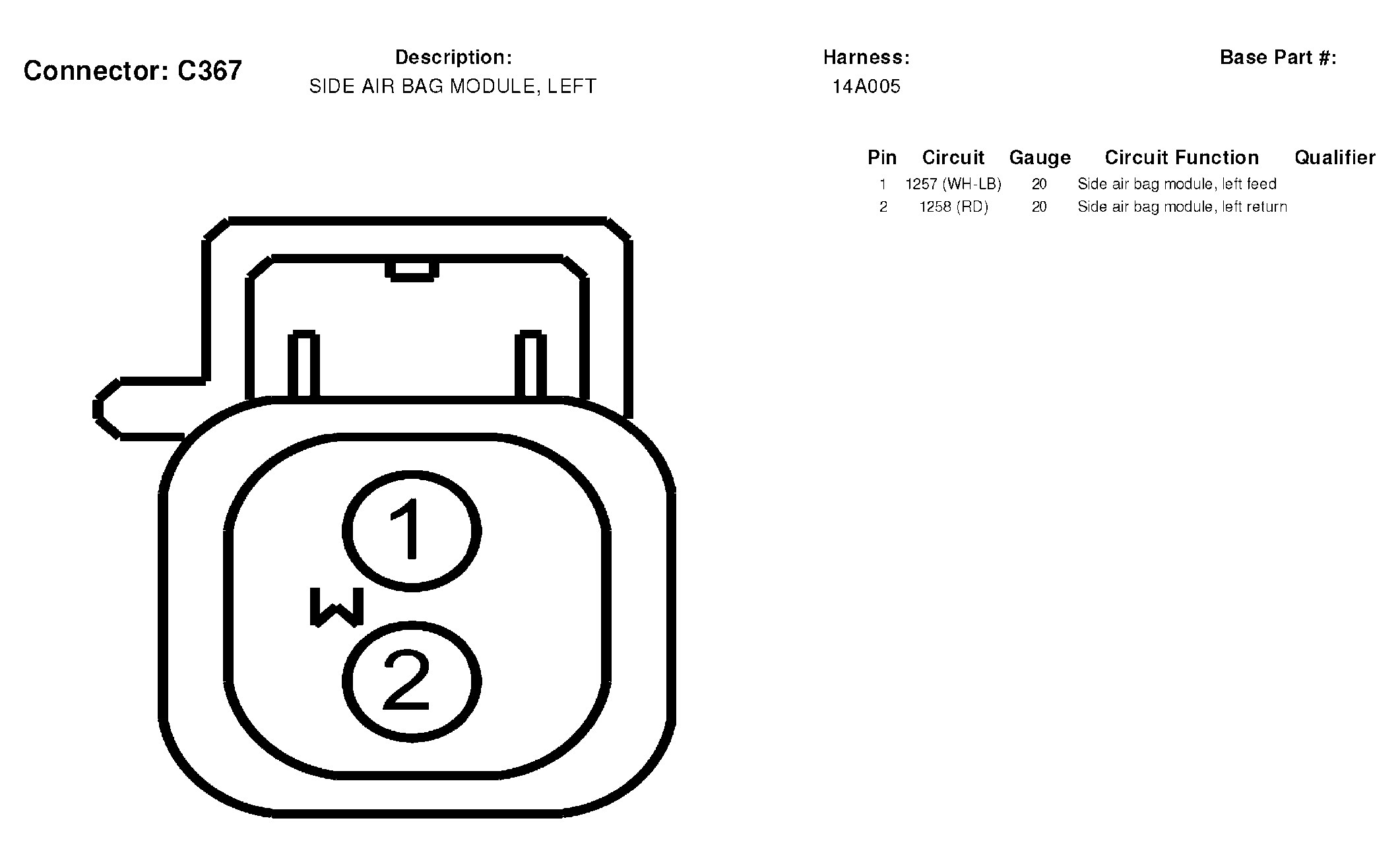

Fig 103: Side Air Bag Module, Left Connector End View (C367)

G04598062

Courtesy of FORD MOTOR CO.

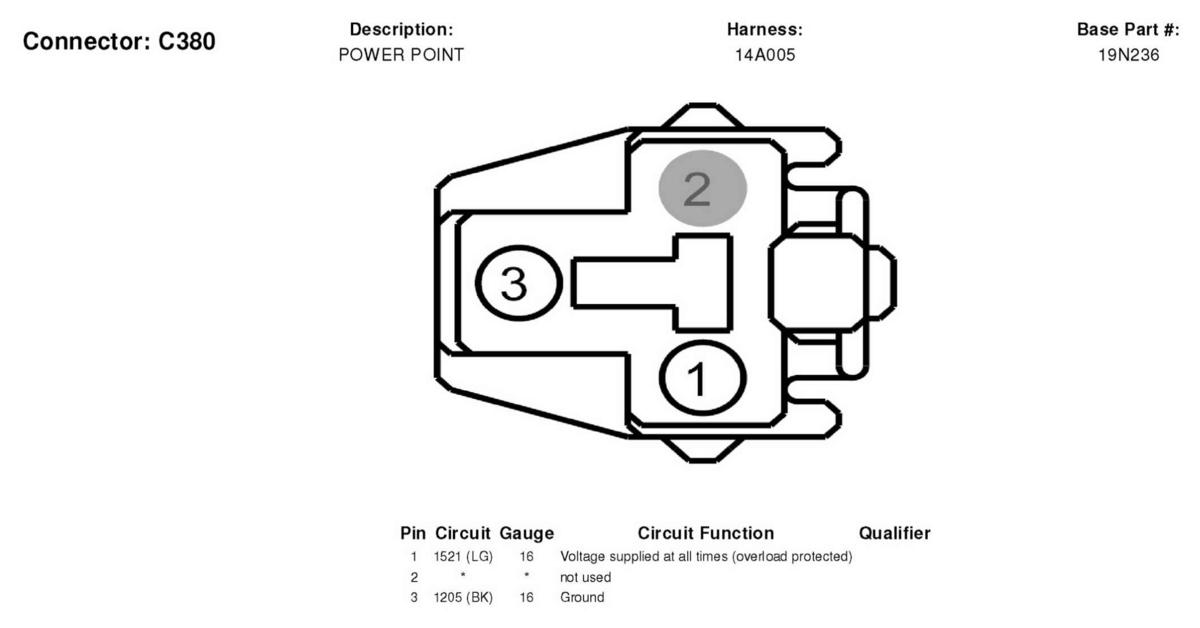

Fig 104: Power Point Connector End View (C380)

G04598063

Courtesy of FORD MOTOR CO.

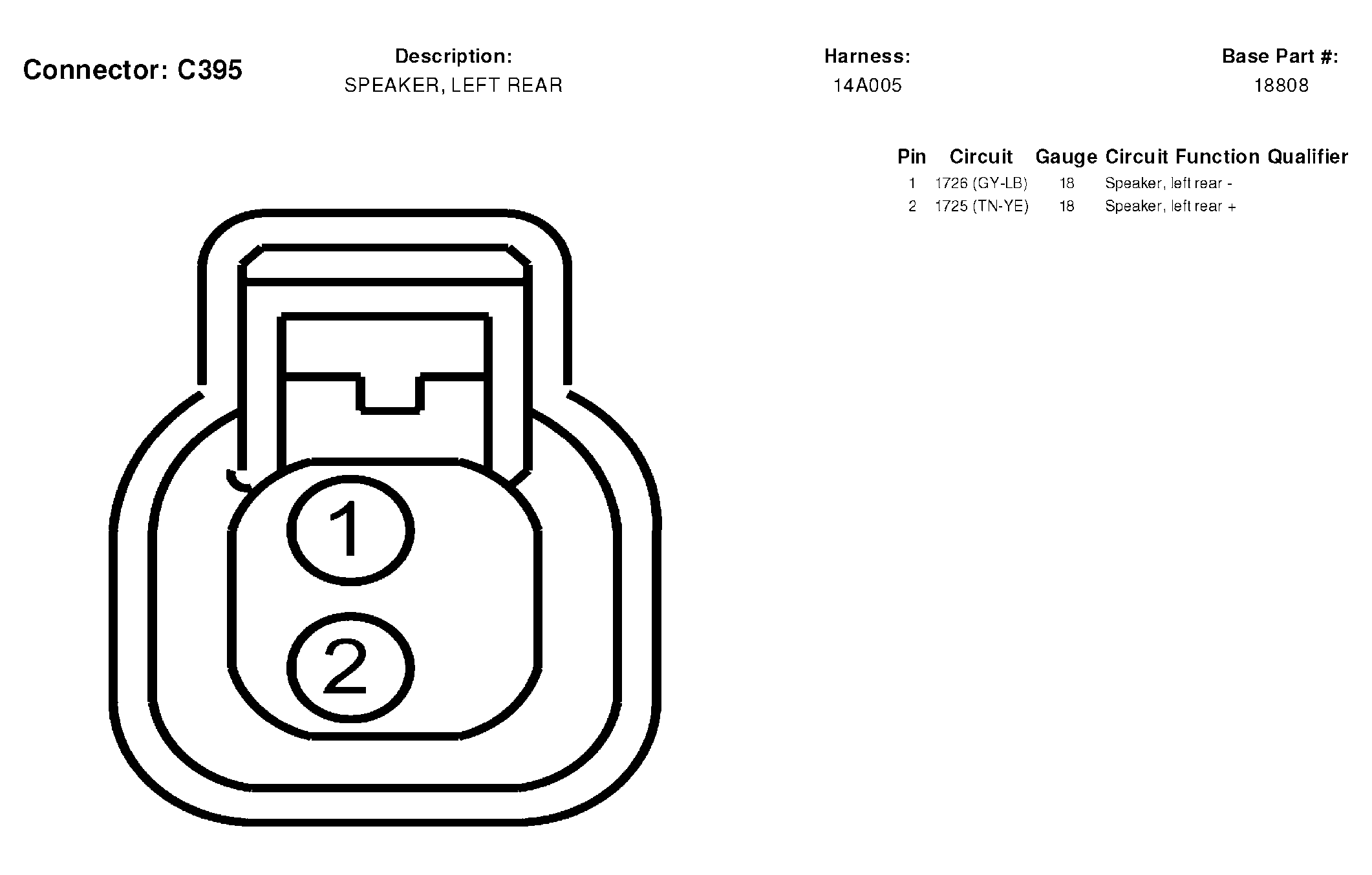

Fig 105: Speaker, Left Rear Connector End View (C395)

G04598064

Courtesy of FORD MOTOR CO.

Fig 106: Speaker, Right Rear Connector End View (C396)

G04598065

Courtesy of FORD MOTOR CO.

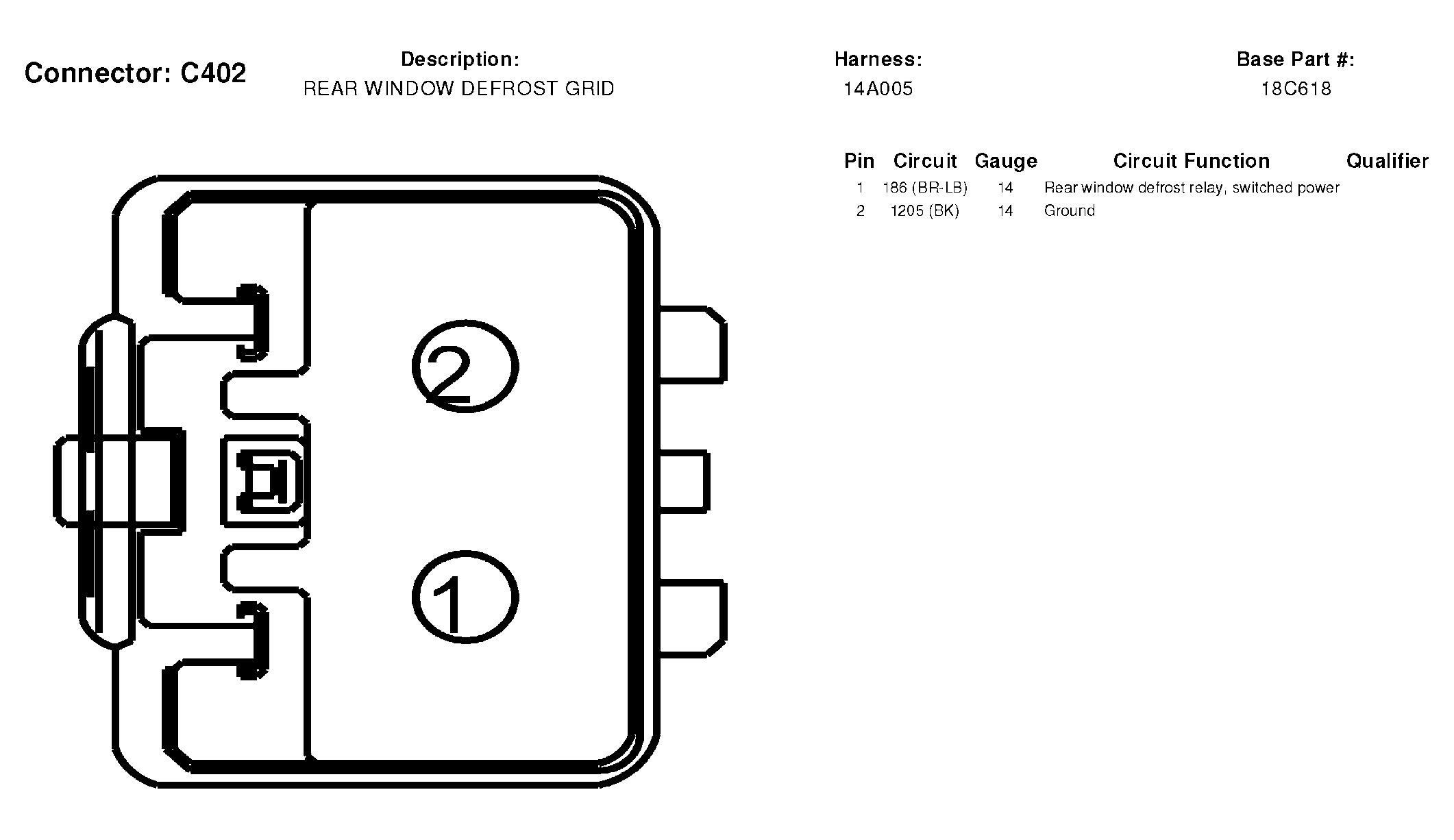

Fig 107: Rear Window Defrost Grid Connector End View (C402)

G04598066

Courtesy of FORD MOTOR CO.

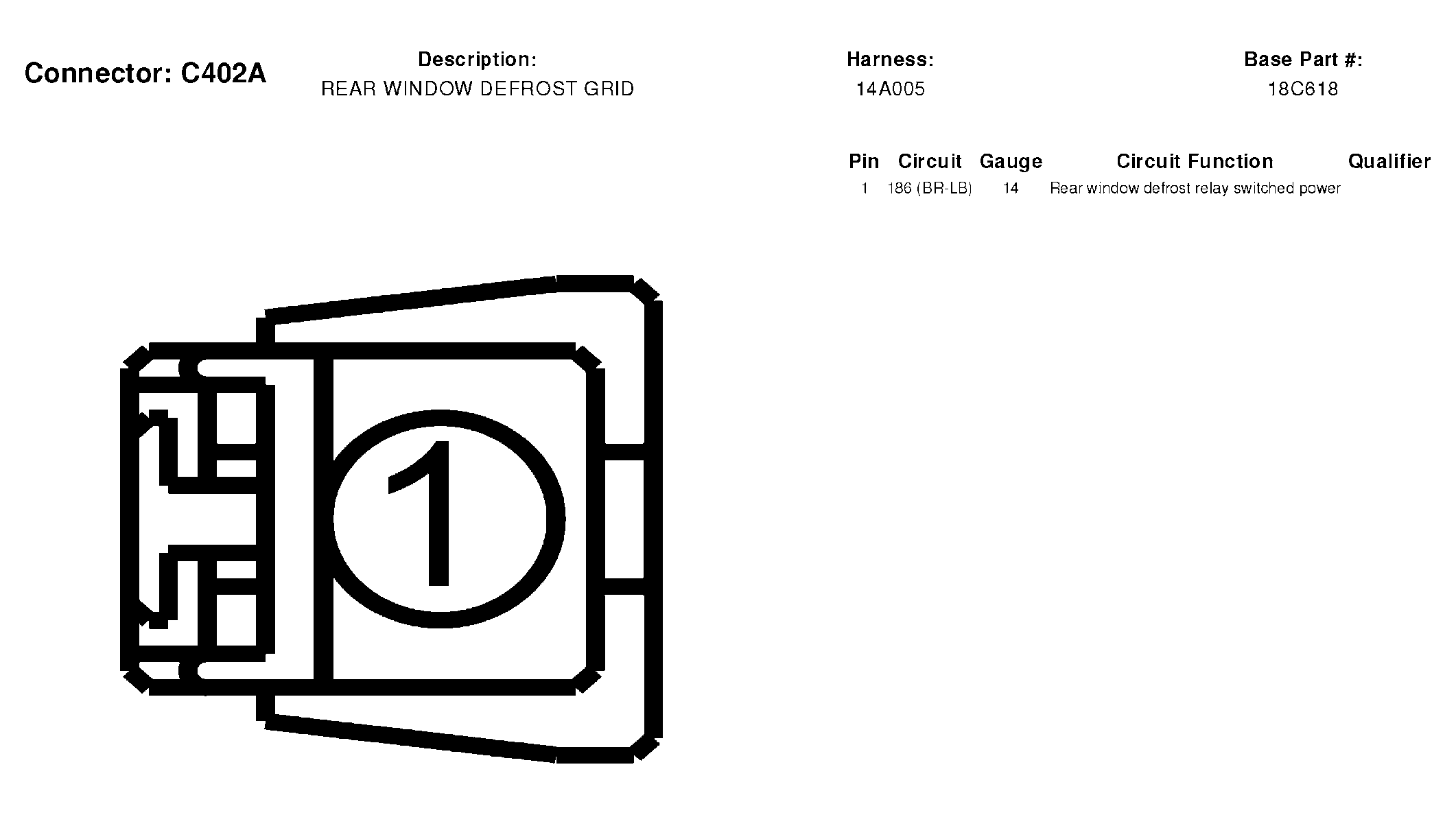

Fig 108: Rear Window Defrost Grid Connector End View (C402A)

G04598067

Courtesy of FORD MOTOR CO.

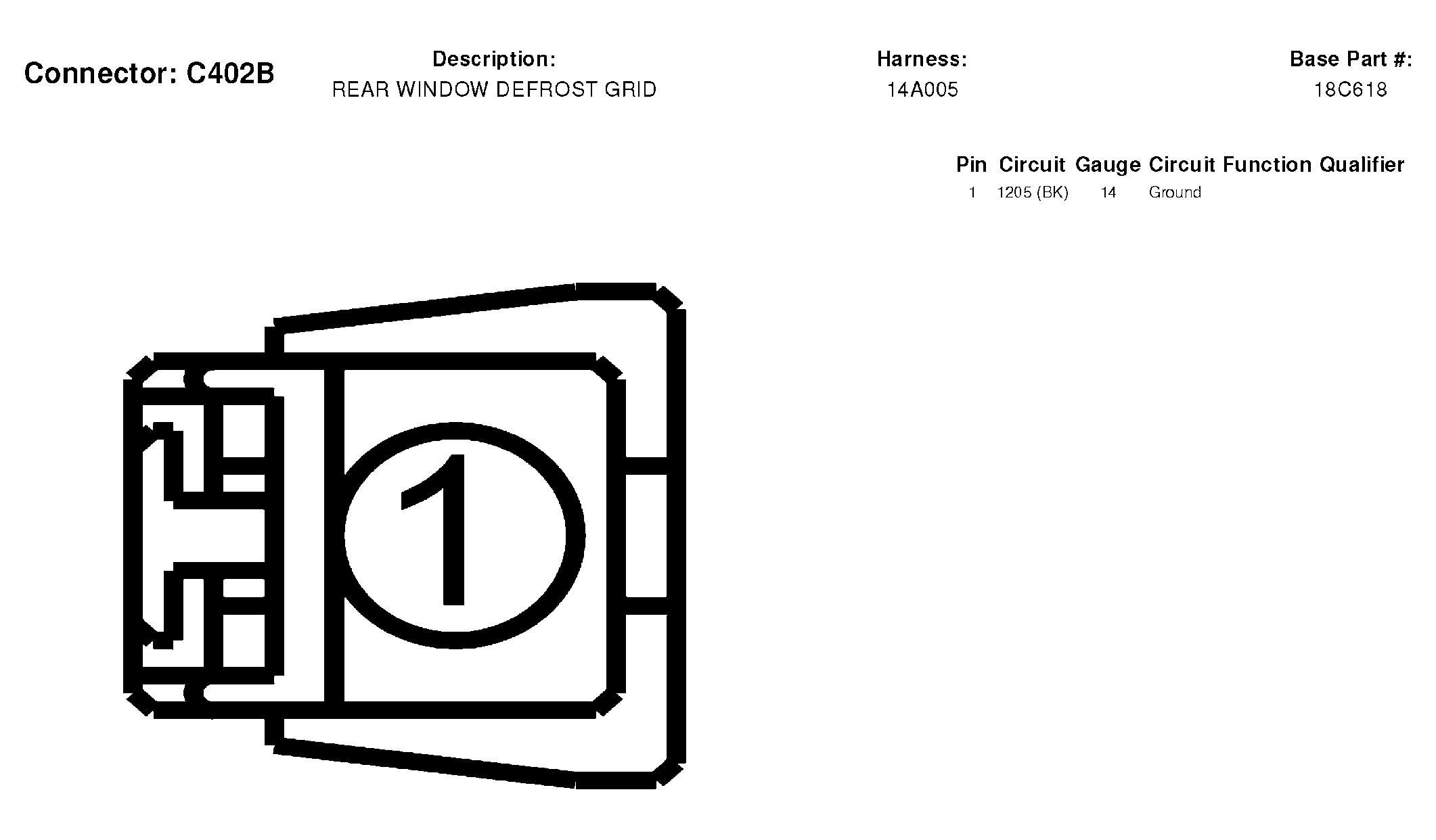

Fig 109: Rear Window Defrost Grid Connector End View (C402B)

G04598068

Courtesy of FORD MOTOR CO.

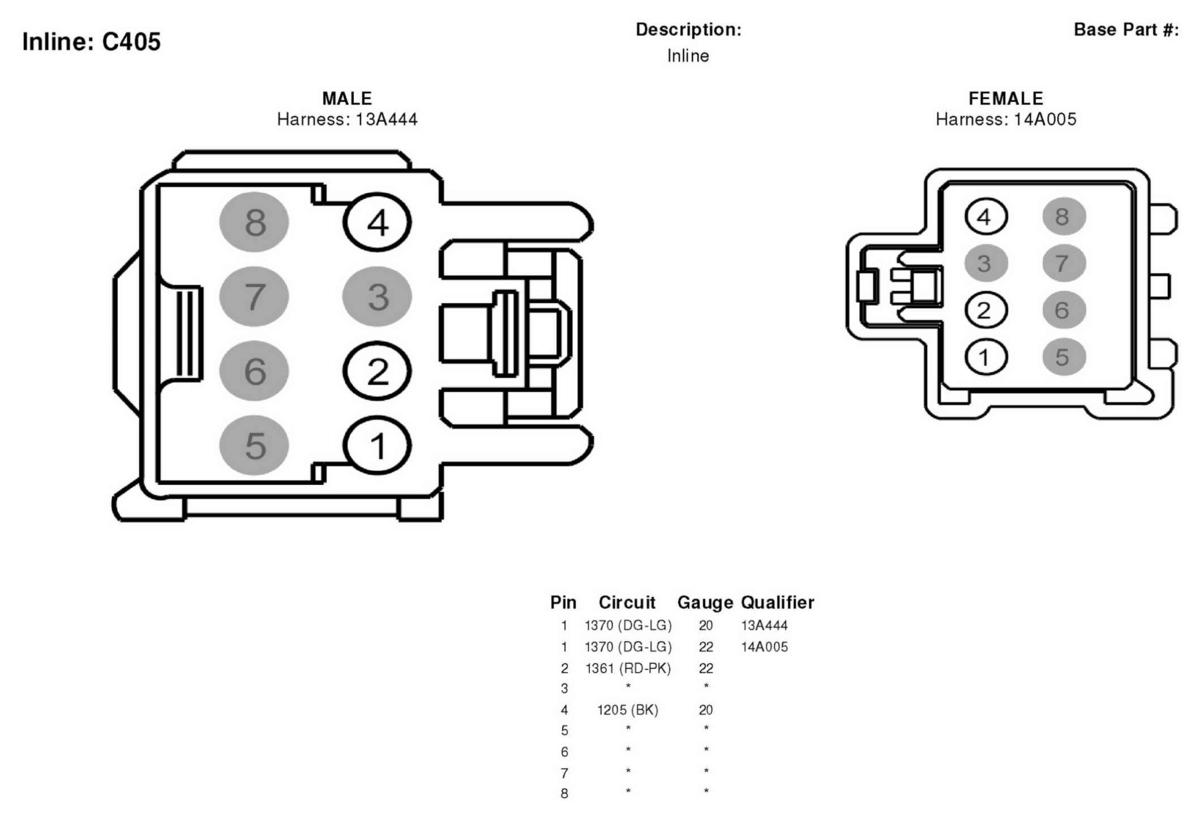

Fig 110: Inline Connector End View (C405)

G04598069

Courtesy of FORD MOTOR CO.

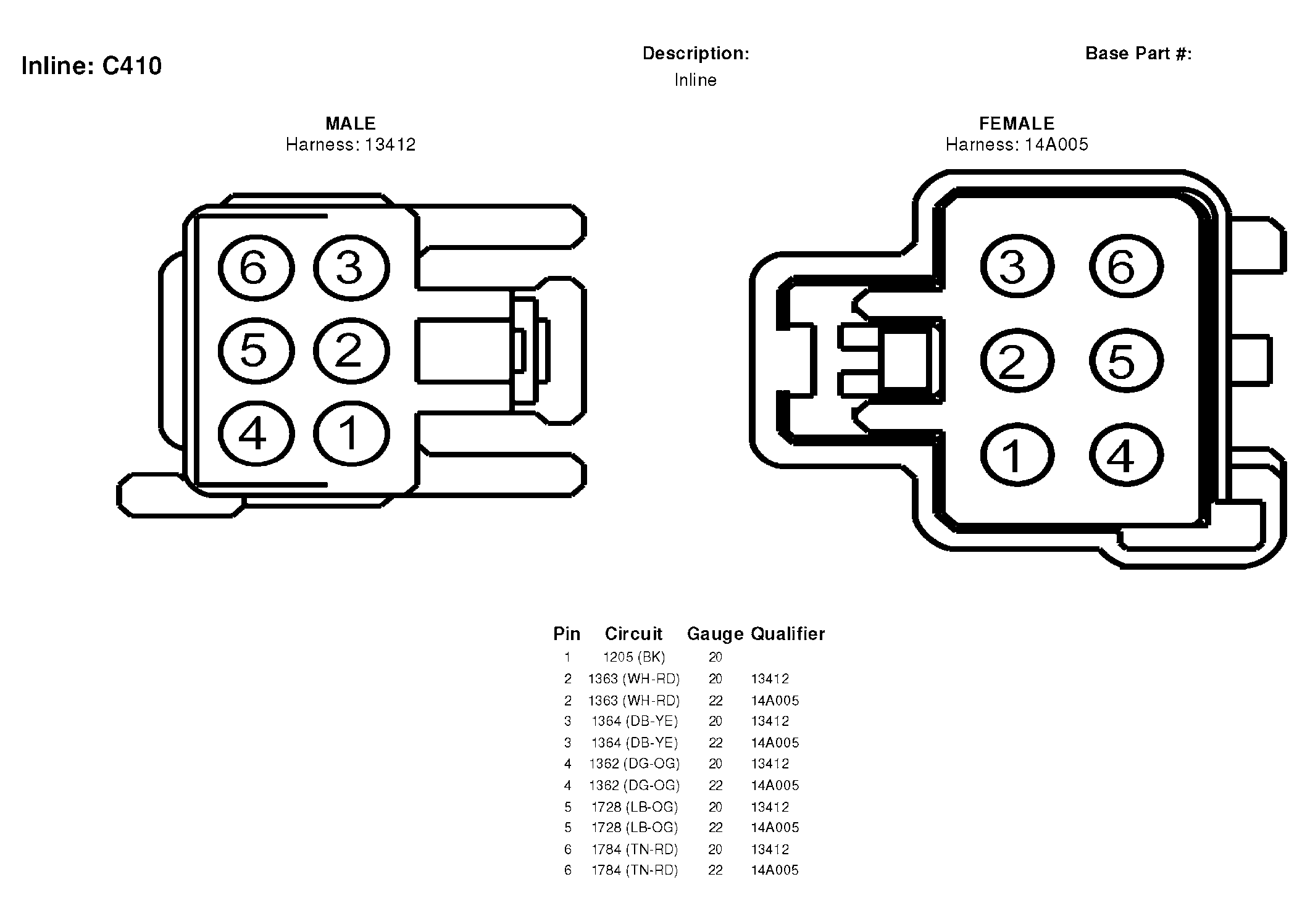

Fig 111: Inline Connector End View (C410)

G04598070

Courtesy of FORD MOTOR CO.

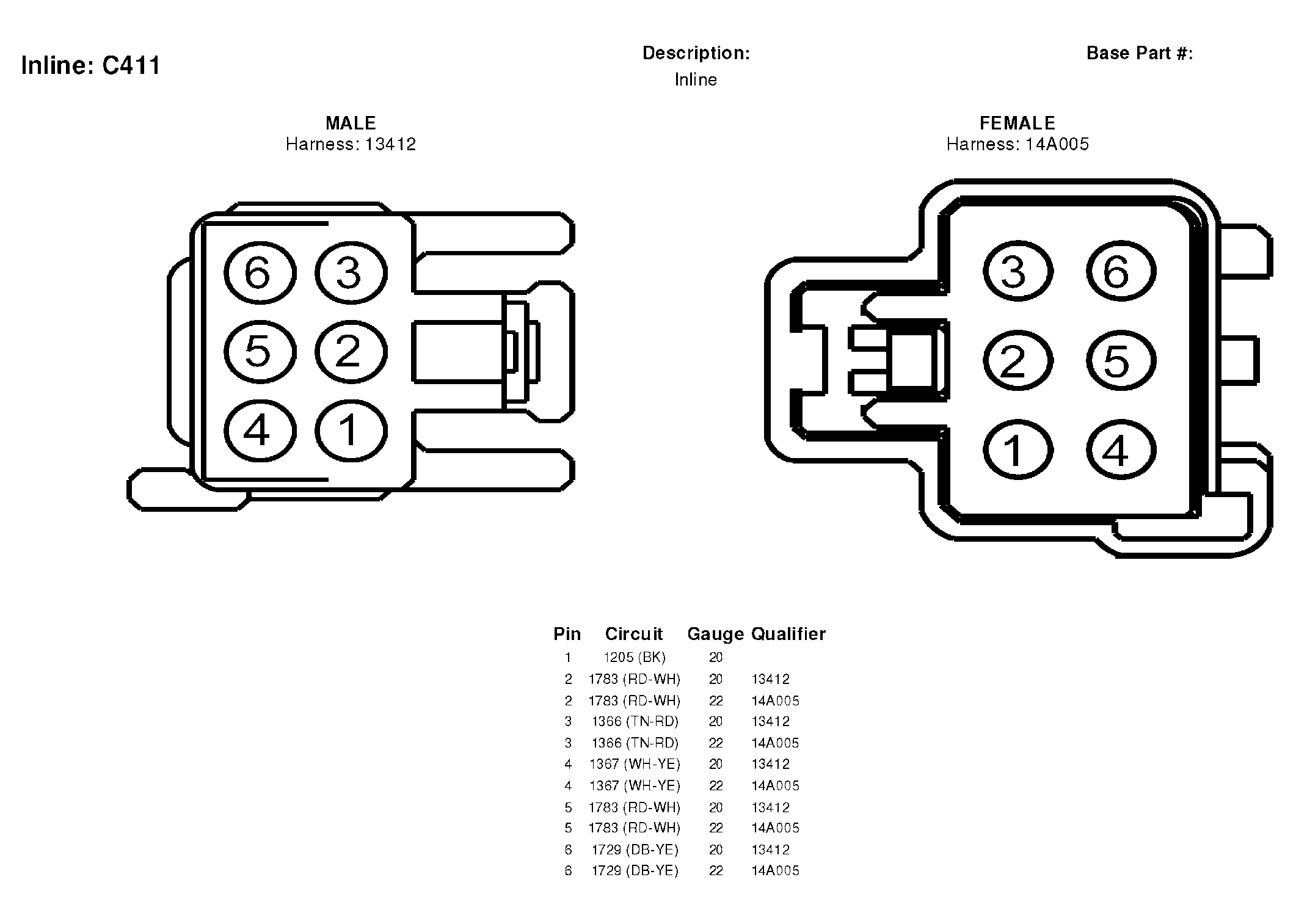

Fig 112: Inline Connector End View (C411)

G04598071

Courtesy of FORD MOTOR CO.

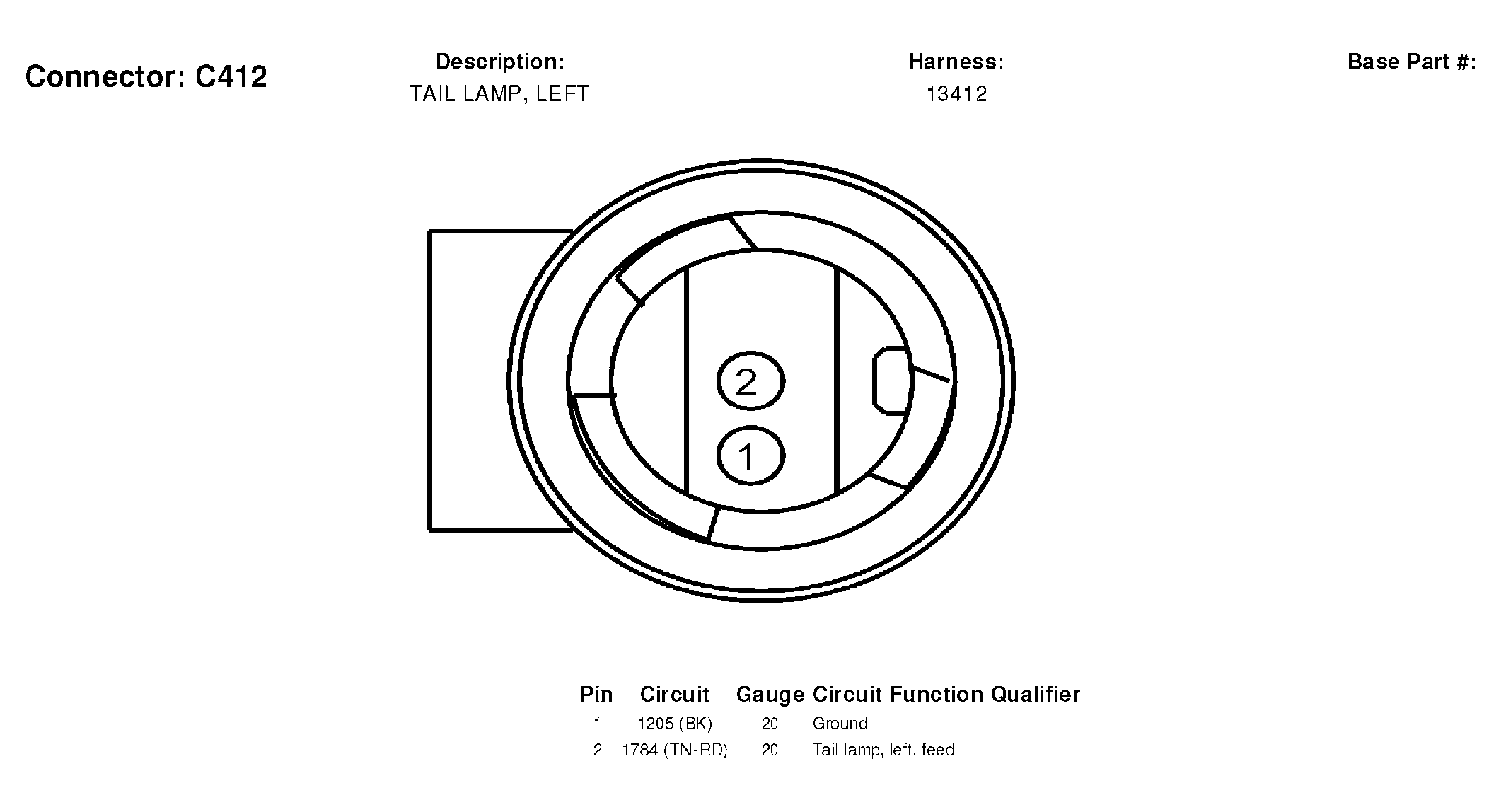

Fig 113: Tail Lamp, Left Connector End View (C412)

G04598072

Courtesy of FORD MOTOR CO.

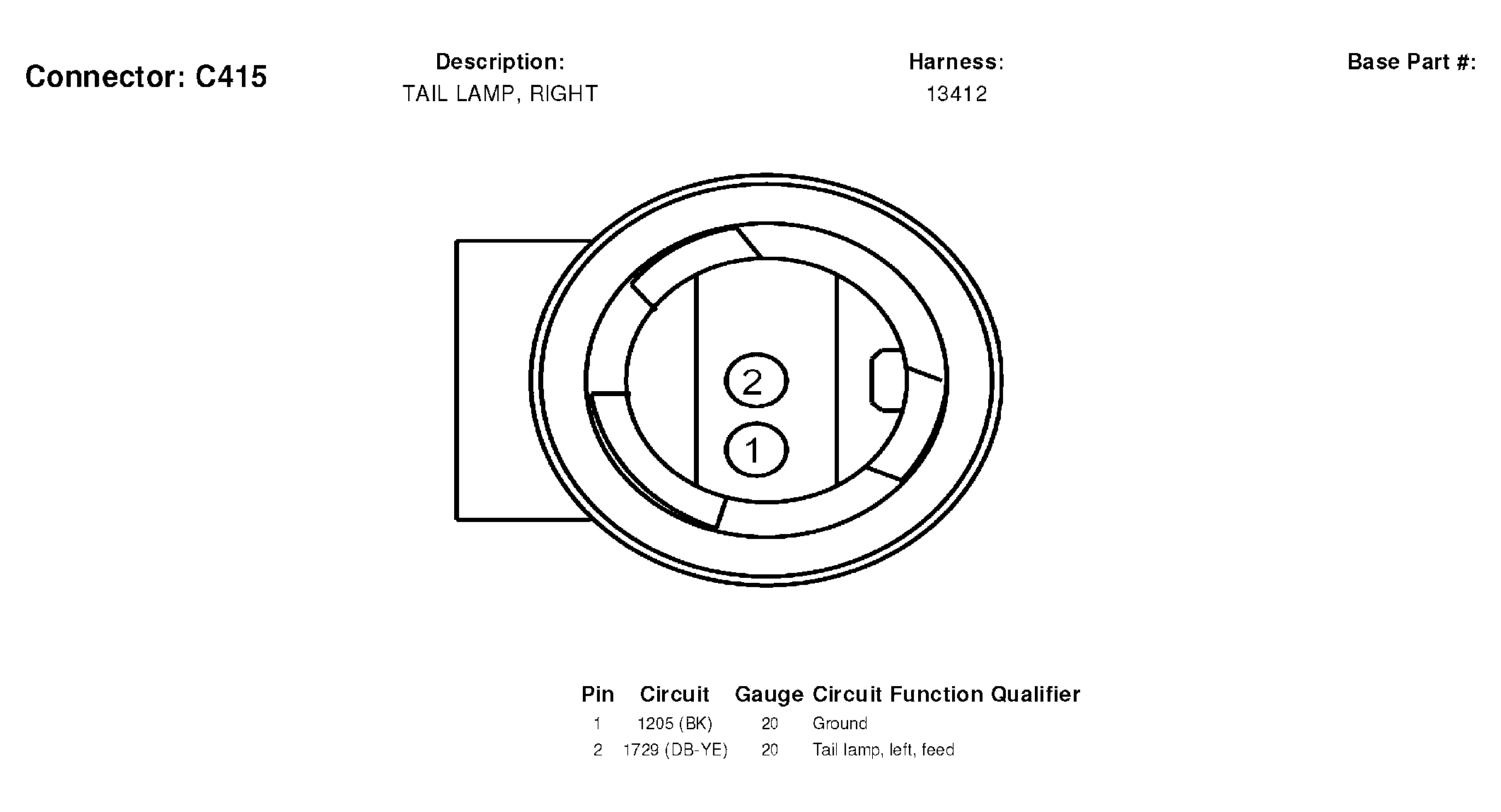

Fig 114: Tail Lamp, Right Connector End View (C415)

G04598073

Courtesy of FORD MOTOR CO.

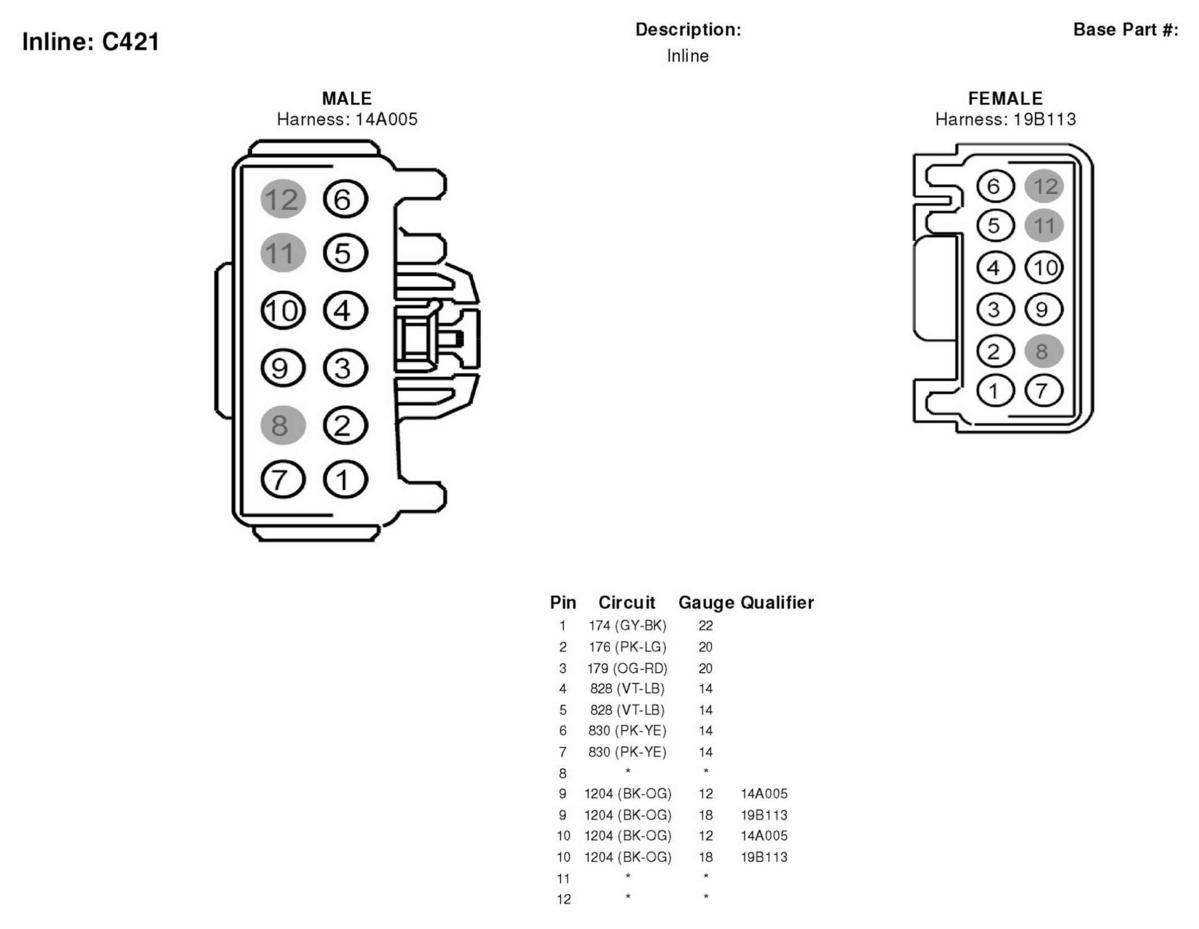

Fig 115: Inline Connector End View (C421)

G04598074

Courtesy of FORD MOTOR CO.

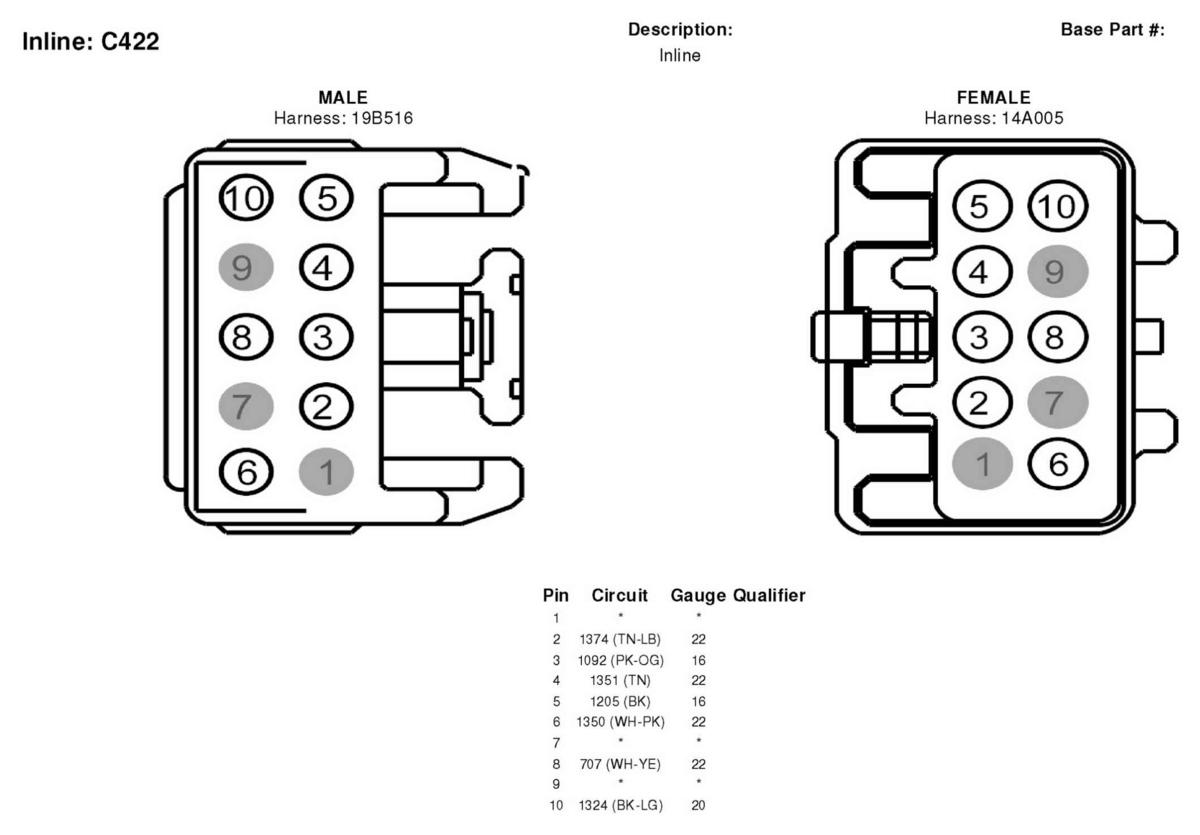

Fig 116: Inline Connector End View (C422)

G04598075

Courtesy of FORD MOTOR CO.

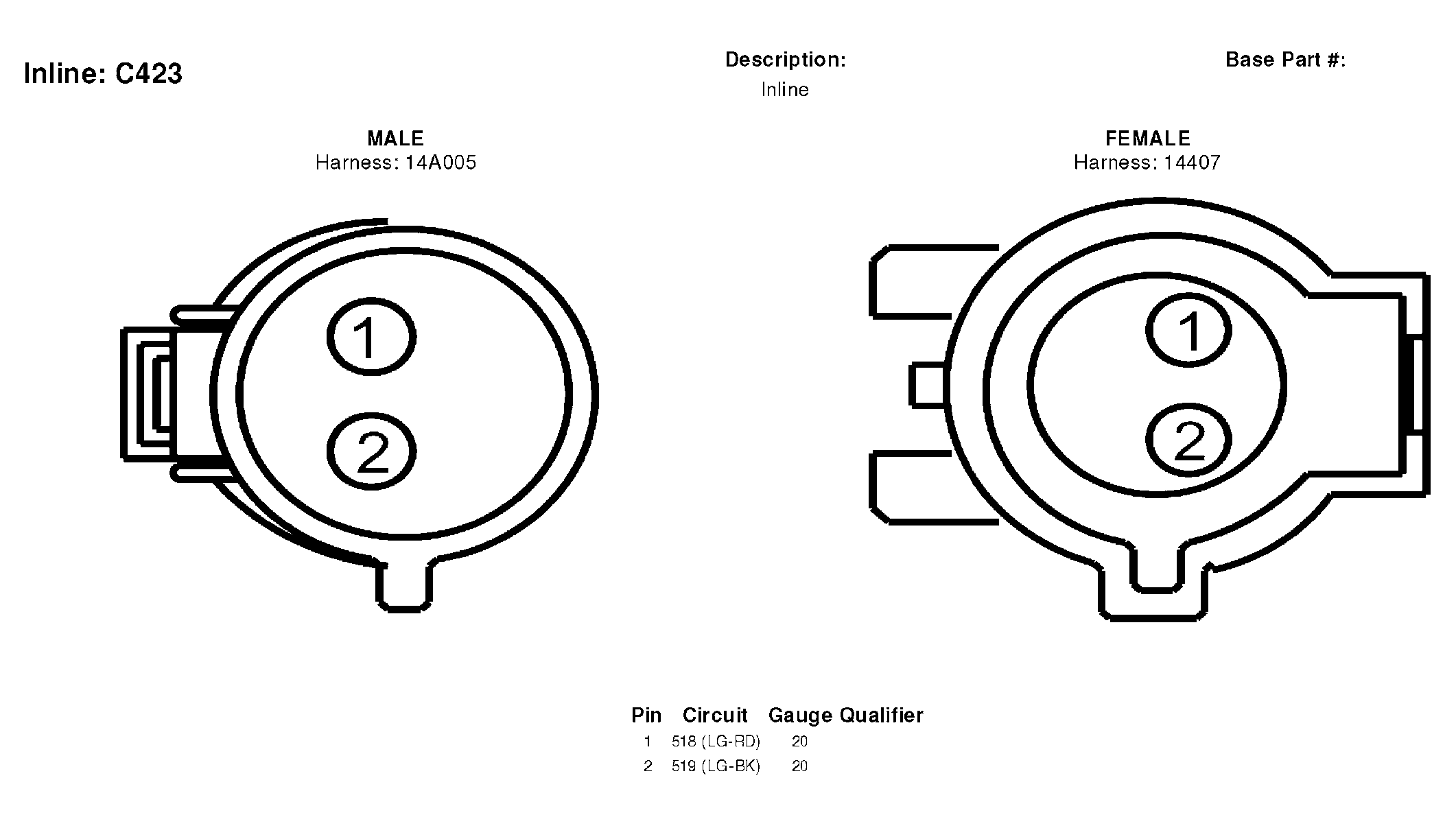

Fig 117: Inline Connector End View (C423)

G04598076

Courtesy of FORD MOTOR CO.

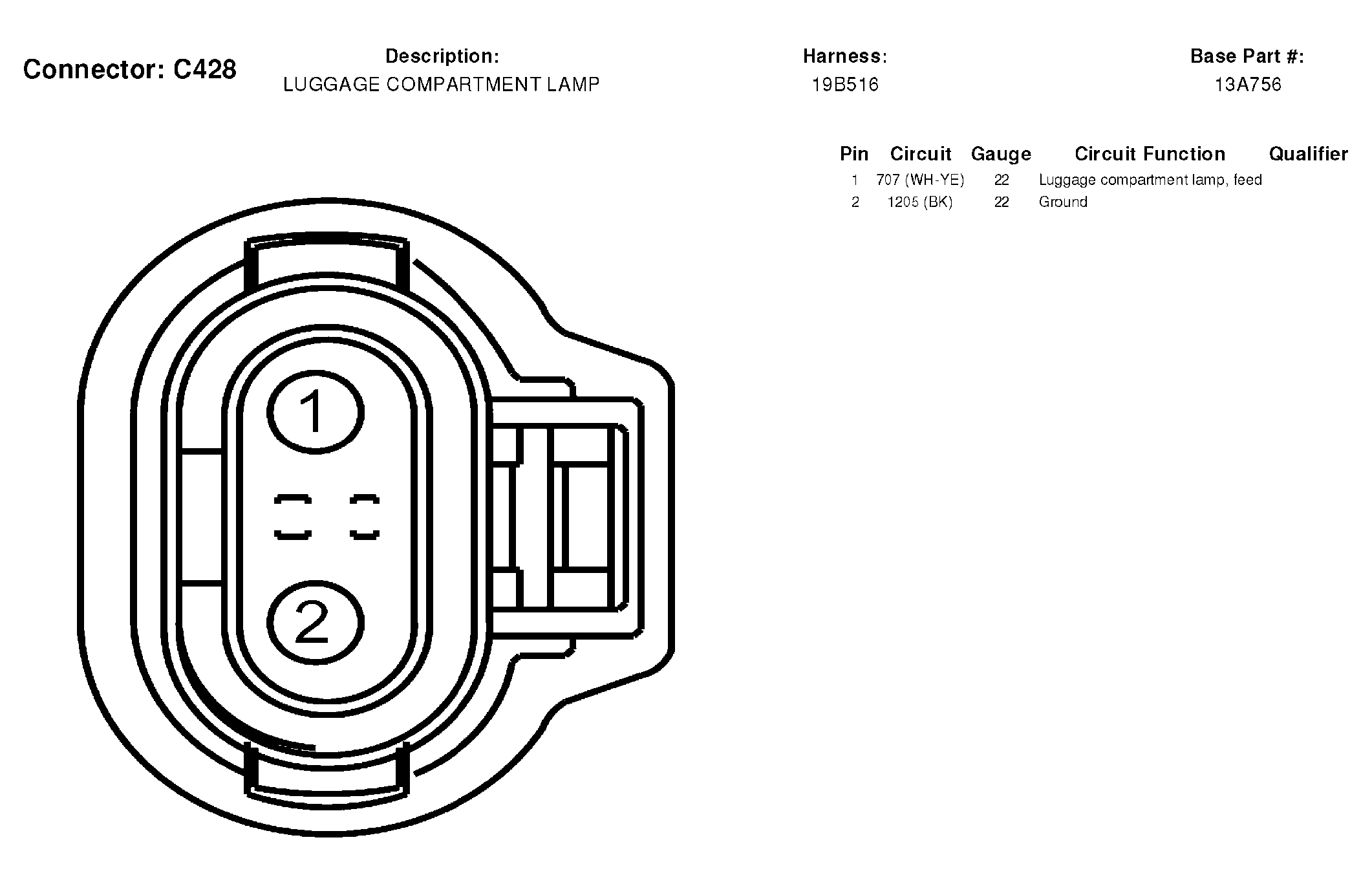

Fig 118: Luggage Compartment Lamp Connector End View (C428)

G04598077

Courtesy of FORD MOTOR CO.

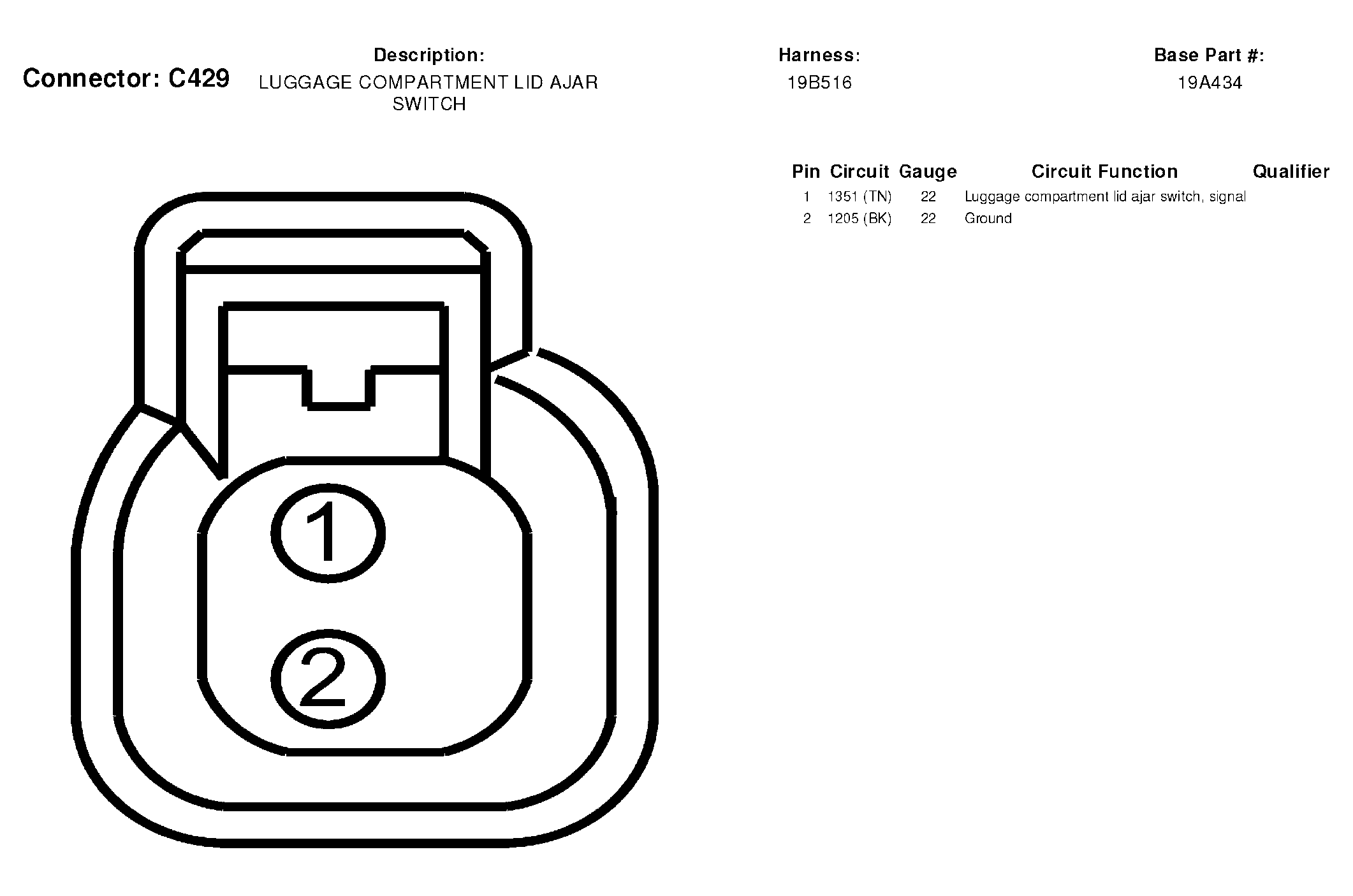

Fig 119: Luggage Compartment Lid Ajar Switch Connector End View (C429)

G04598078

Courtesy of FORD MOTOR CO.

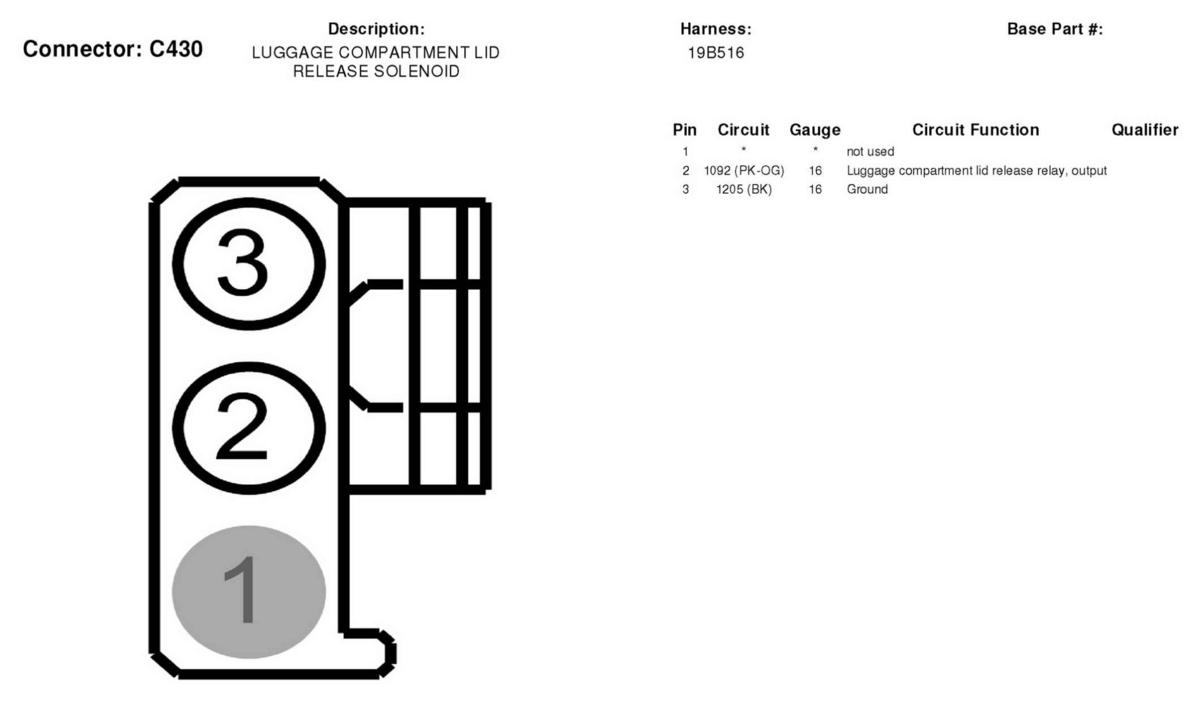

Fig 120: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G04598079

Courtesy of FORD MOTOR CO.

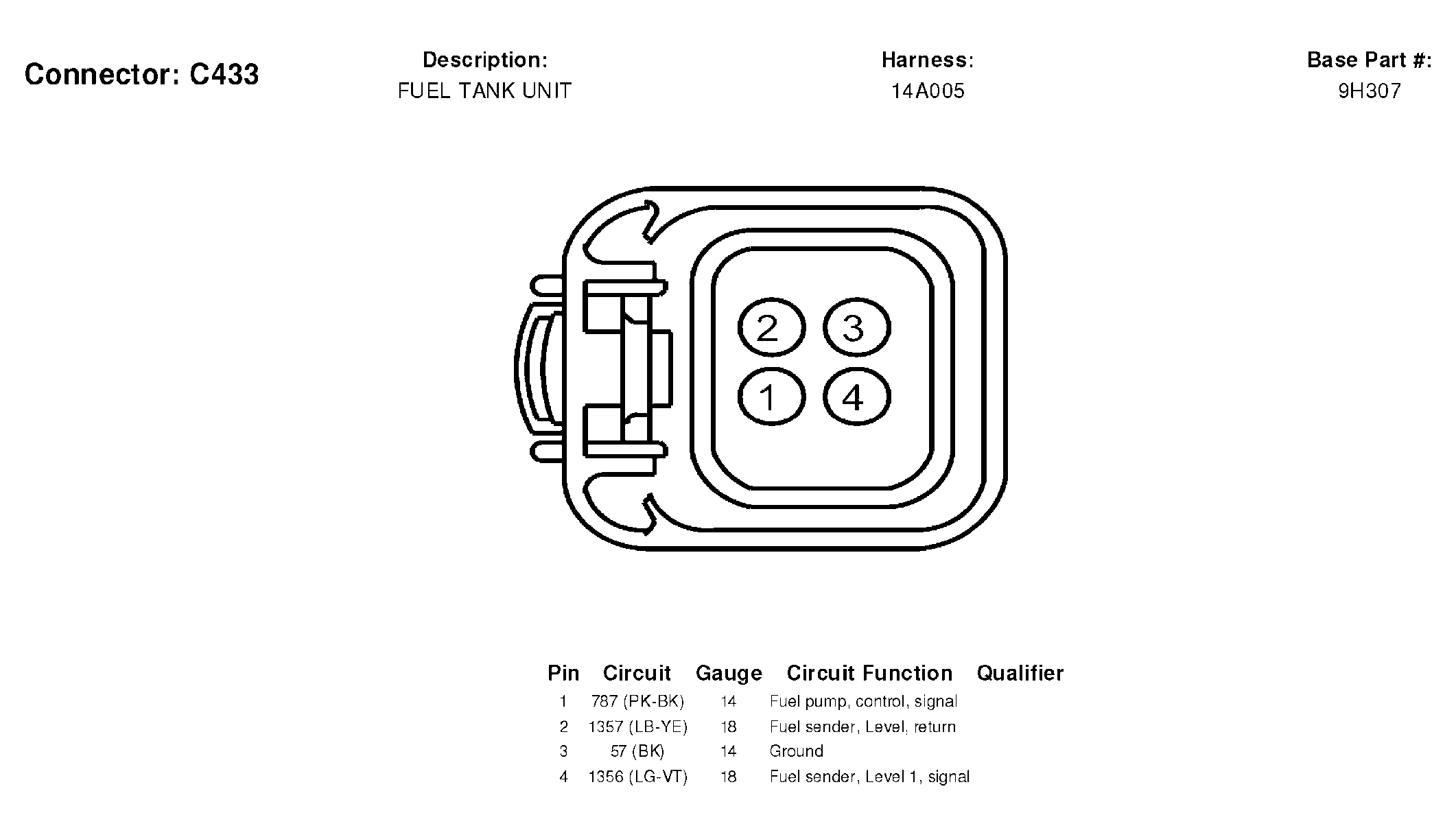

Fig 121: Fuel Tank Unit Connector End View (C433)

G04598080

Courtesy of FORD MOTOR CO.

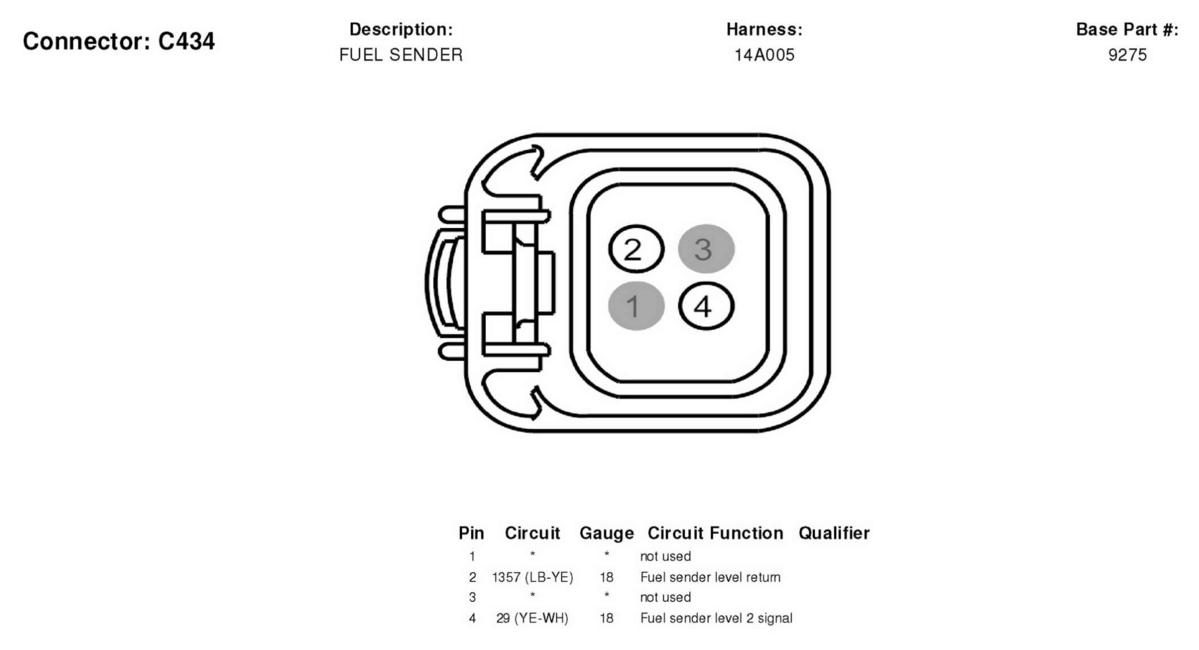

Fig 122: Fuel Sender Connector End View (C434)

G04598081

Courtesy of FORD MOTOR CO.

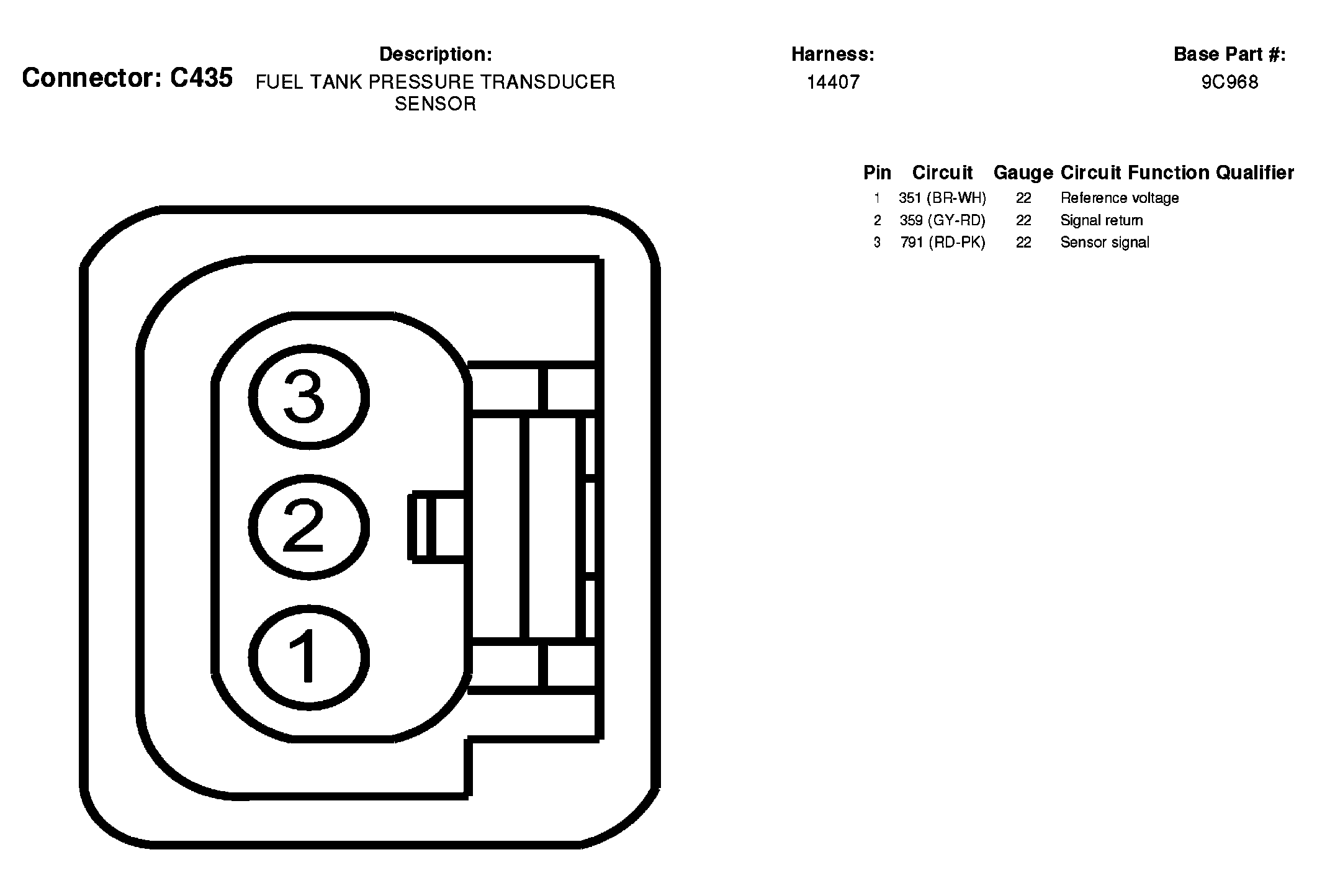

Fig 123: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G04598082

Courtesy of FORD MOTOR CO.

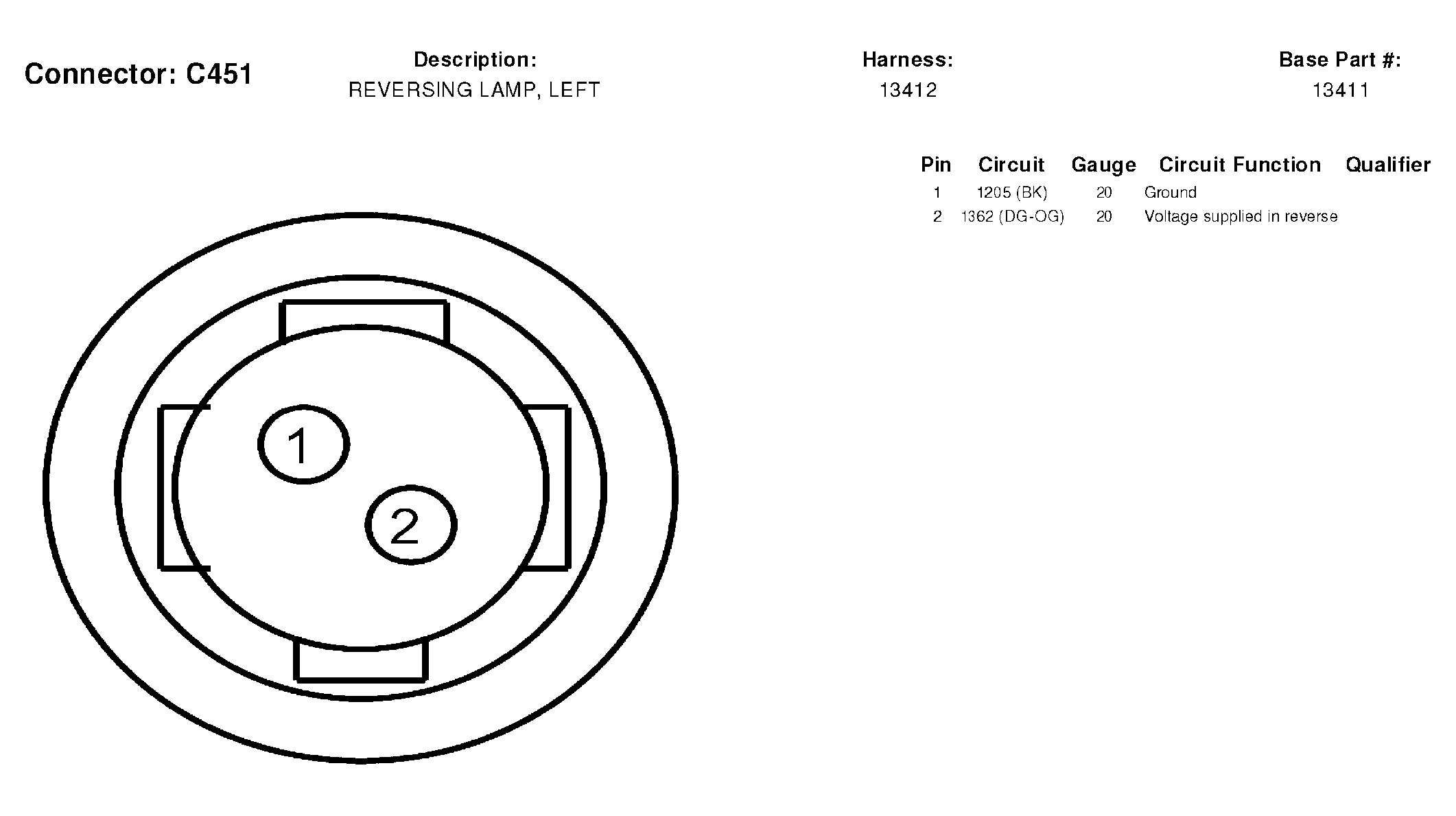

Fig 124: Reversing Lamp, Left Connector End View (C451)

G04598083

Courtesy of FORD MOTOR CO.

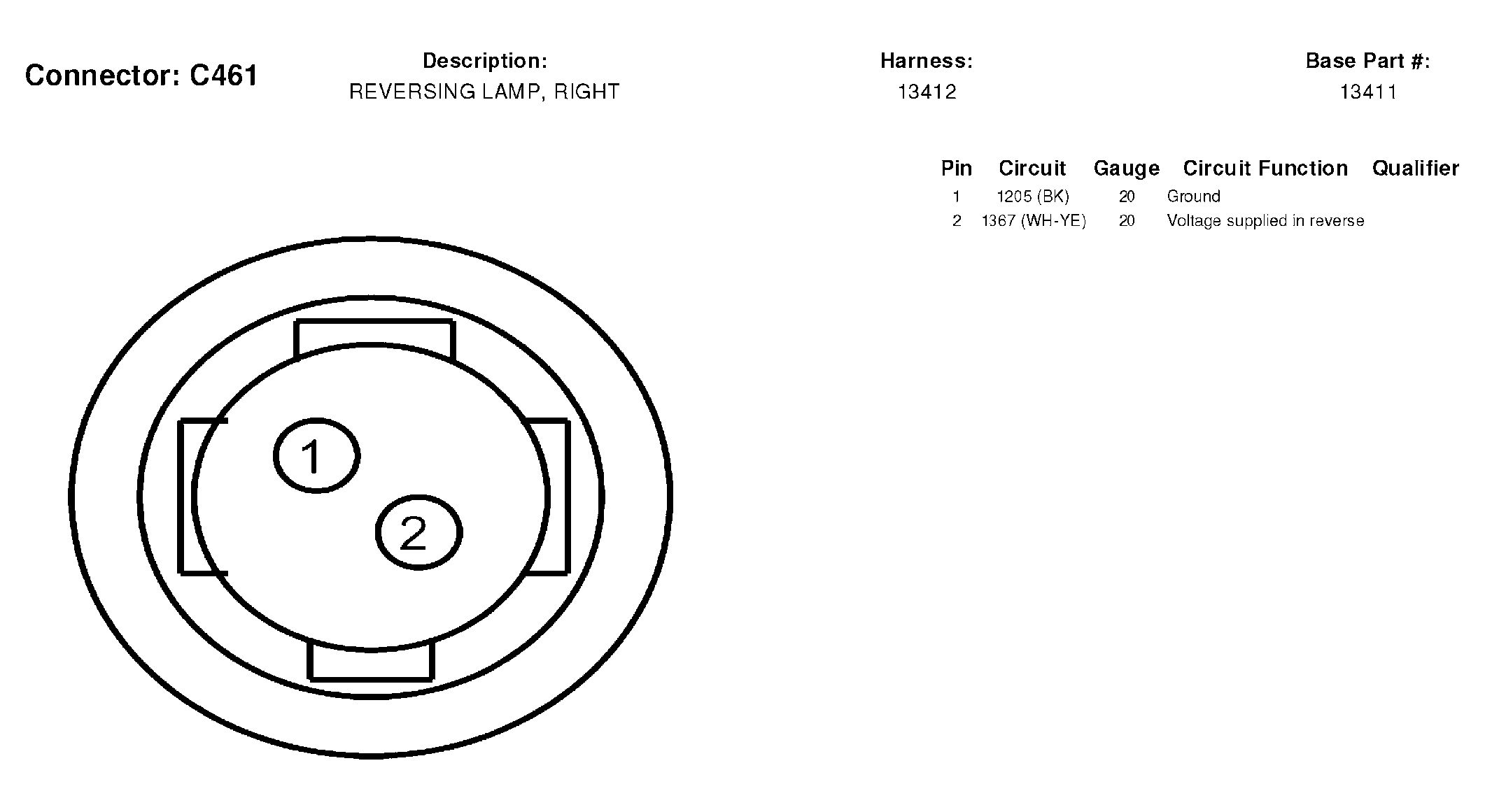

Fig 125: Reversing Lamp, Right Connector End View (C461)

G04598084

Courtesy of FORD MOTOR CO.

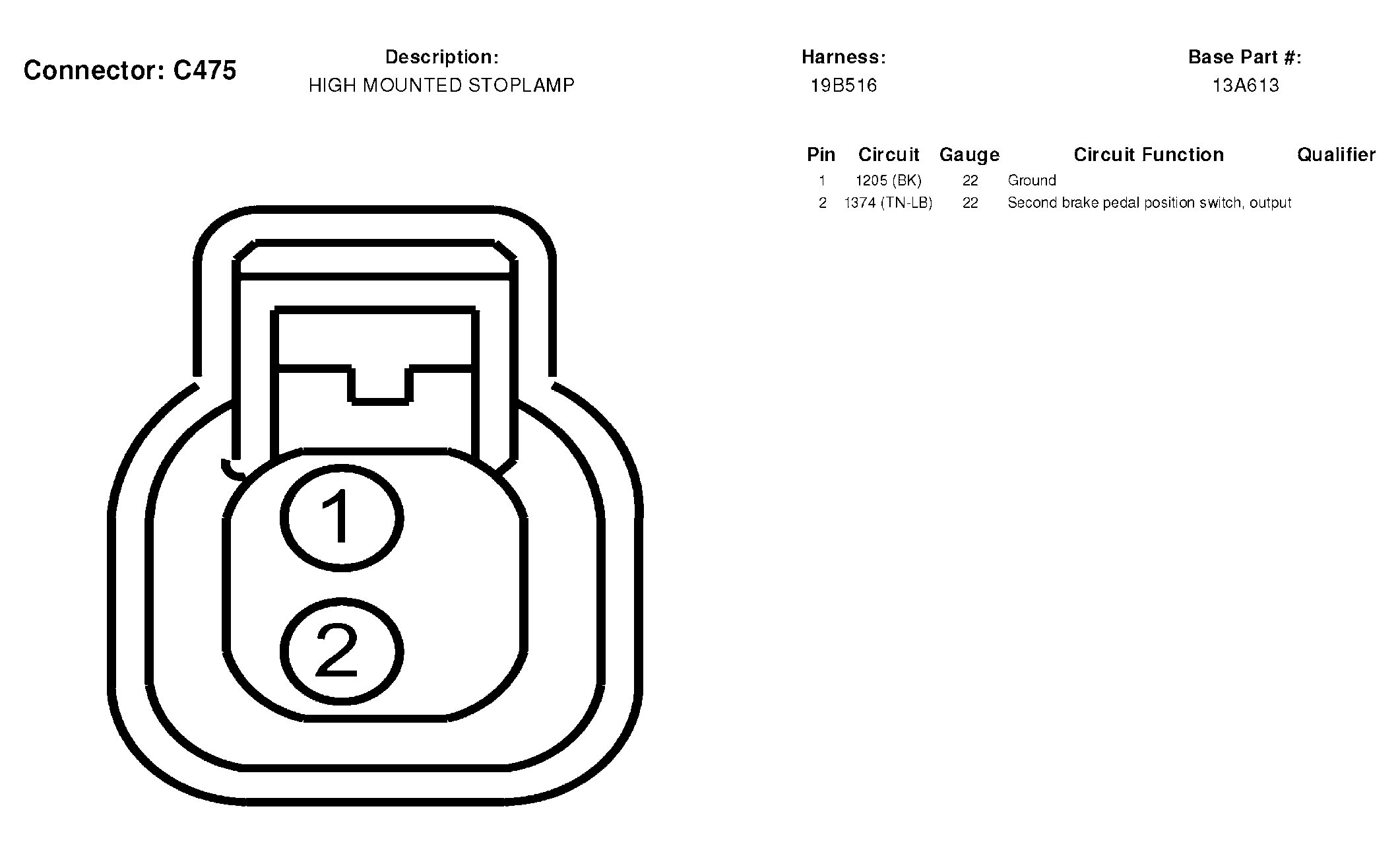

Fig 126: High Mounted Stoplamp Connector End View (C475)

G04598085

Courtesy of FORD MOTOR CO.

Fig 127: Side Lamp, Left Rear Connector End View (C481)

G04598086

Courtesy of FORD MOTOR CO.

Fig 128: Side Lamp, Right Rear Connector End View (C482)

G04598087

Courtesy of FORD MOTOR CO.

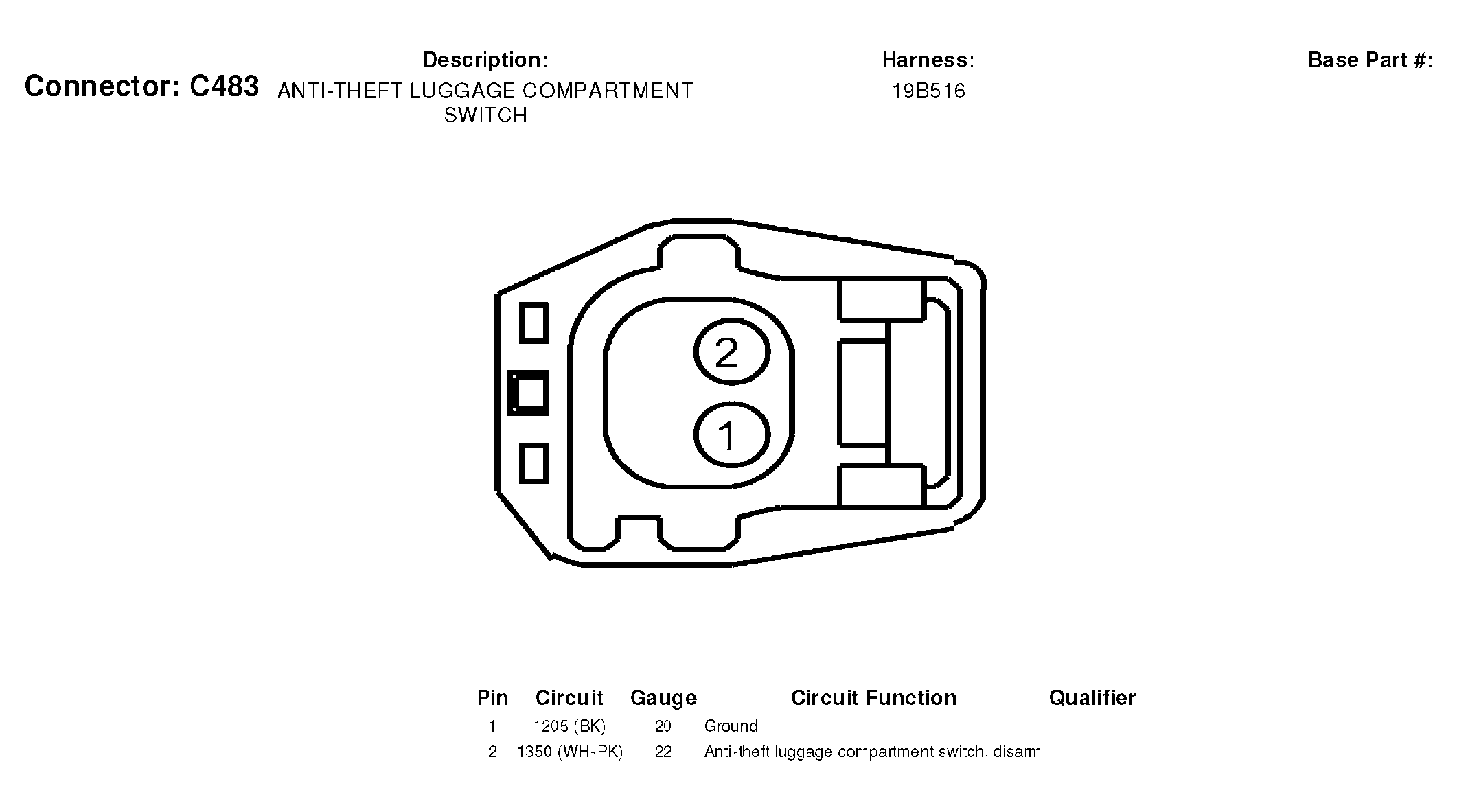

Fig 129: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G04598088

Courtesy of FORD MOTOR CO.

Fig 130: Speaker, Left Rear Connector End View (C484)

G04598089

Courtesy of FORD MOTOR CO.

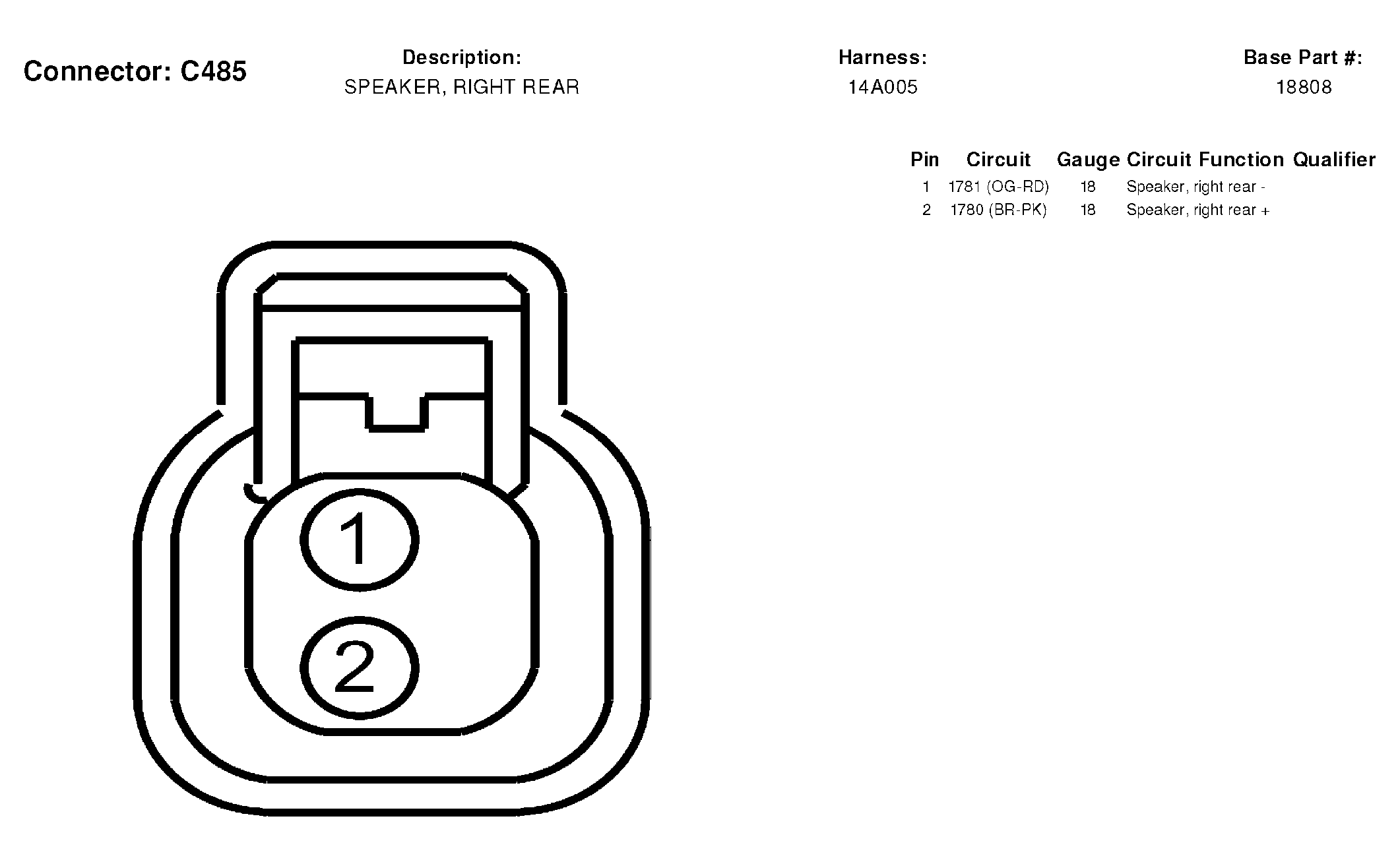

Fig 131: Speaker, Right Rear Connector End View (C485)

G04598090

Courtesy of FORD MOTOR CO.

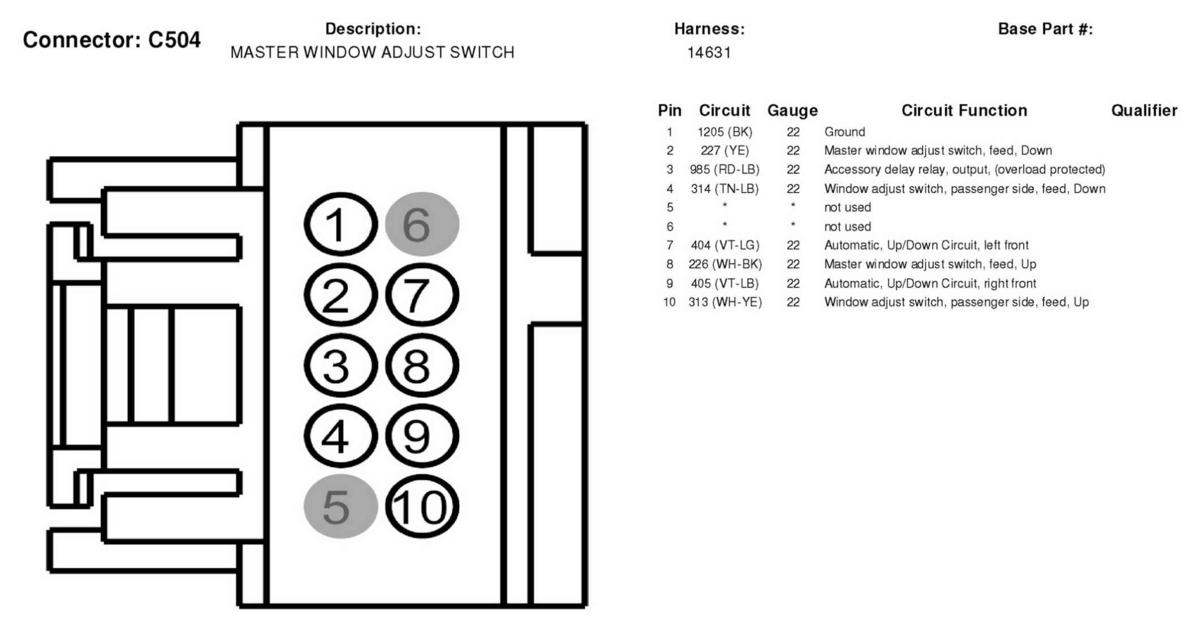

Fig 132: Master Window Adjust Switch Connector End View (C504)

G04598091

Courtesy of FORD MOTOR CO.

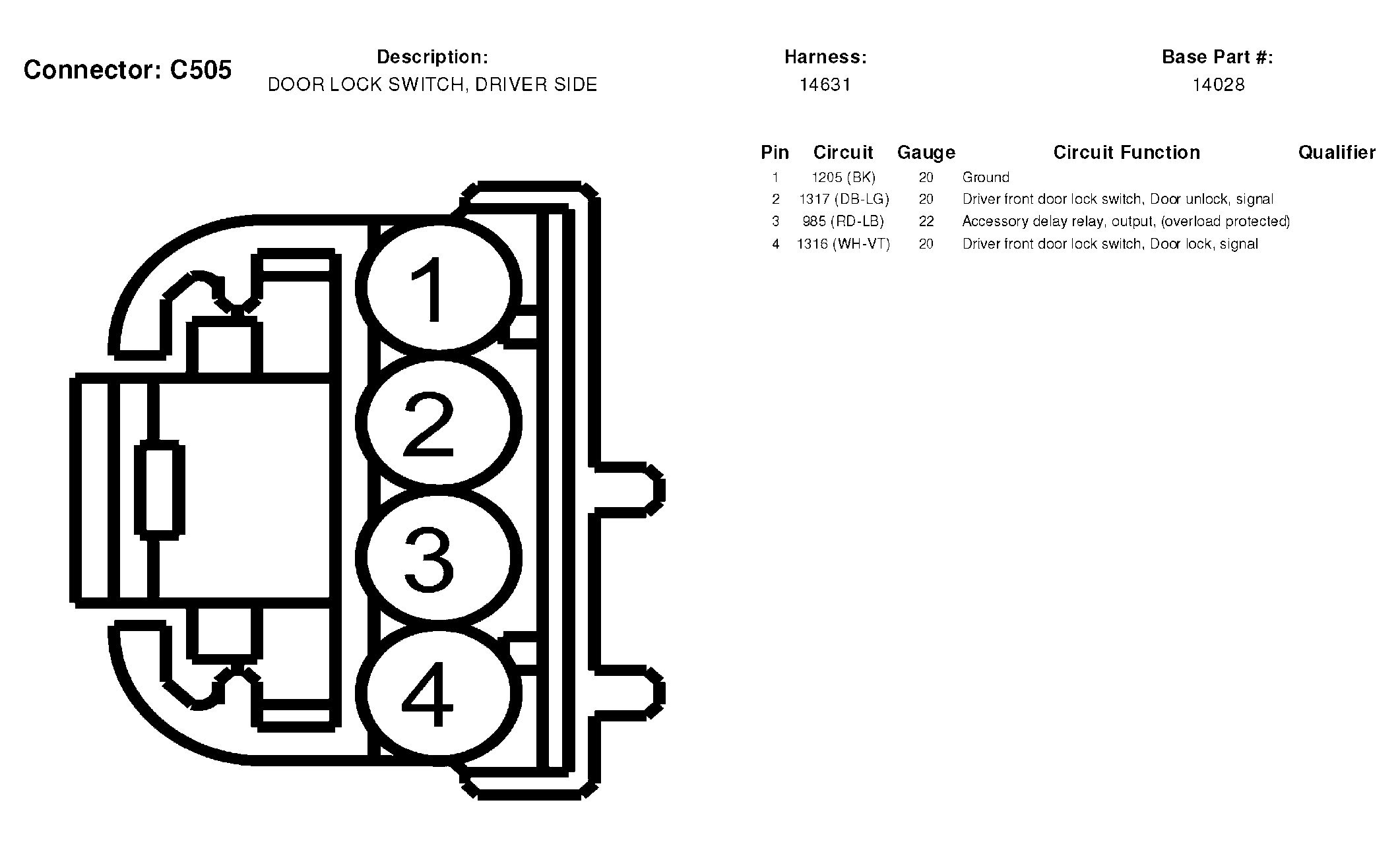

Fig 133: Door Lock Switch, Driver Side Connector End View (C505)

G04598092

Courtesy of FORD MOTOR CO.

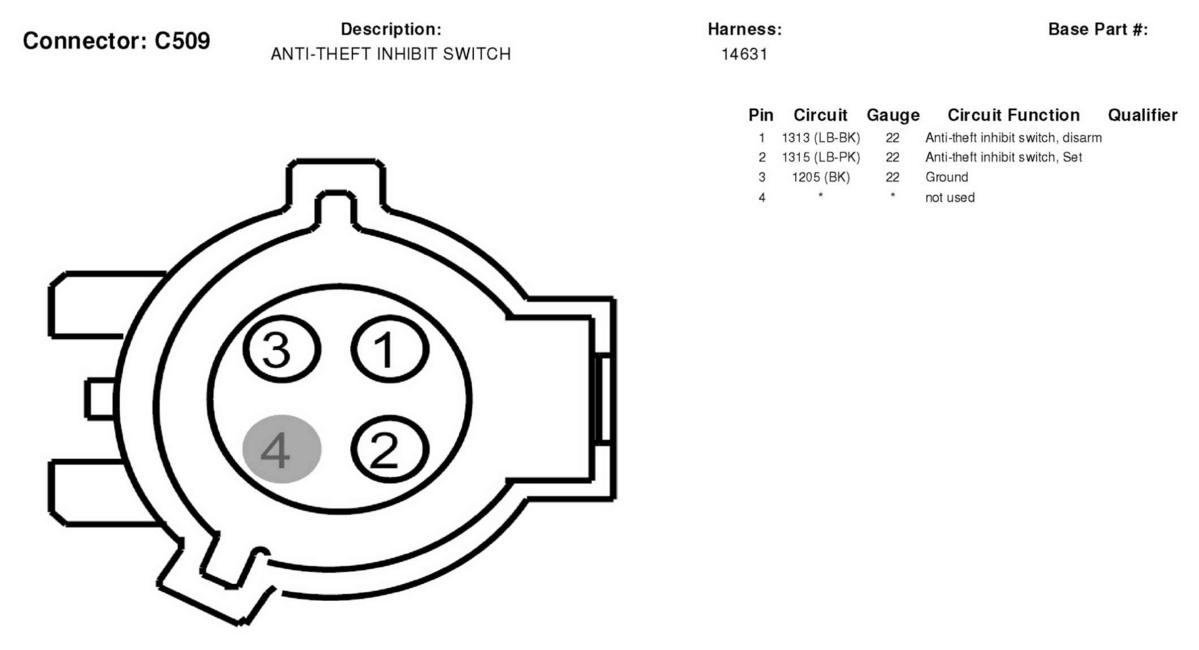

Fig 134: Anti-Theft Inhibit Switch Connector End View (C509)

G04598093

Courtesy of FORD MOTOR CO.

Fig 135: Exterior Rear View Mirror, Left Connector End View (C516)

G04598094

Courtesy of FORD MOTOR CO.

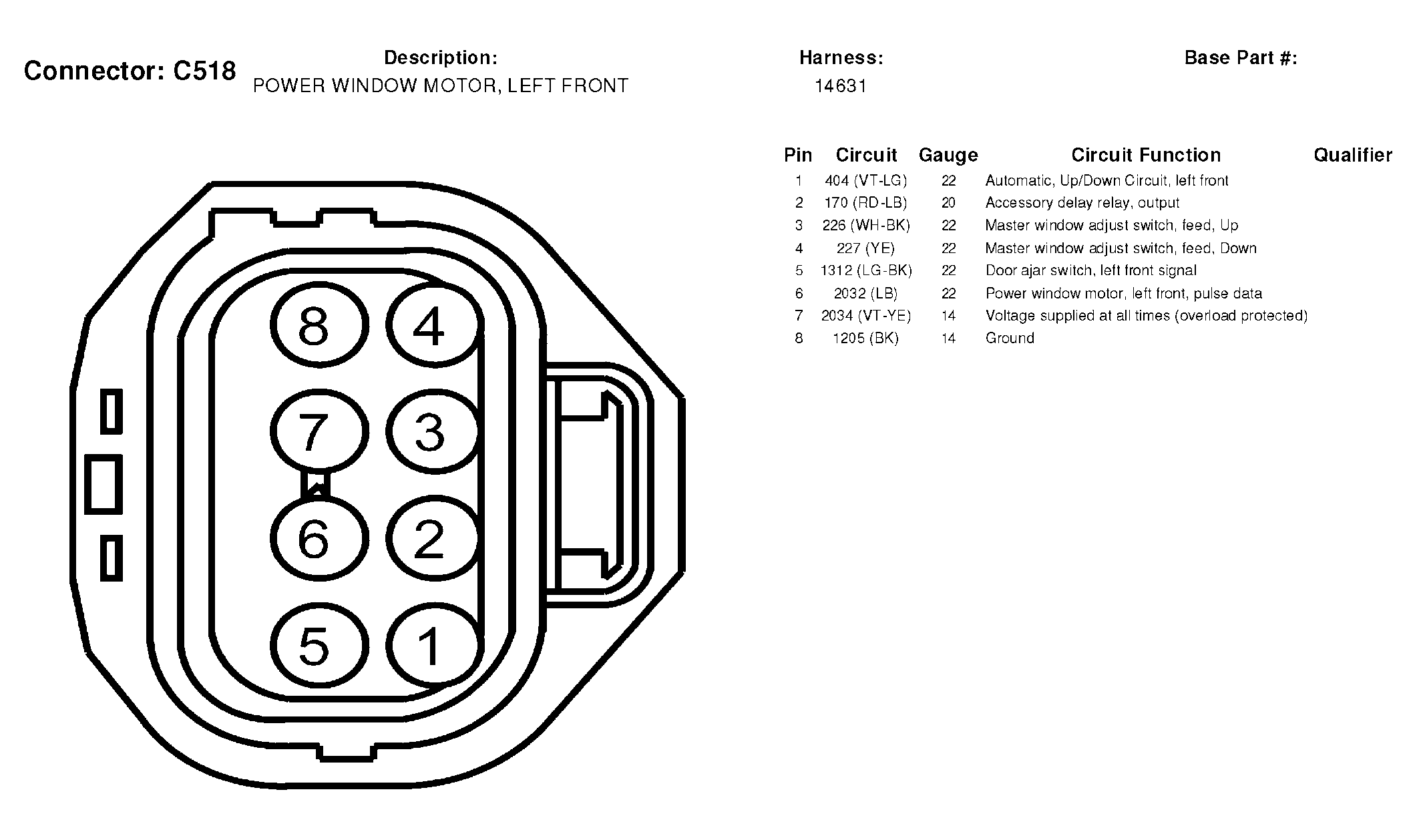

Fig 136: Power Window Motor, Left Front Connector End View (C518)

G04598095

Courtesy of FORD MOTOR CO.

Fig 137: Speaker, Left Front Connector End View (C523)

G04598096

Courtesy of FORD MOTOR CO.

Fig 138: Door Lock Actuator, Left Front Connector End View (C525)

G04598097

Courtesy of FORD MOTOR CO.

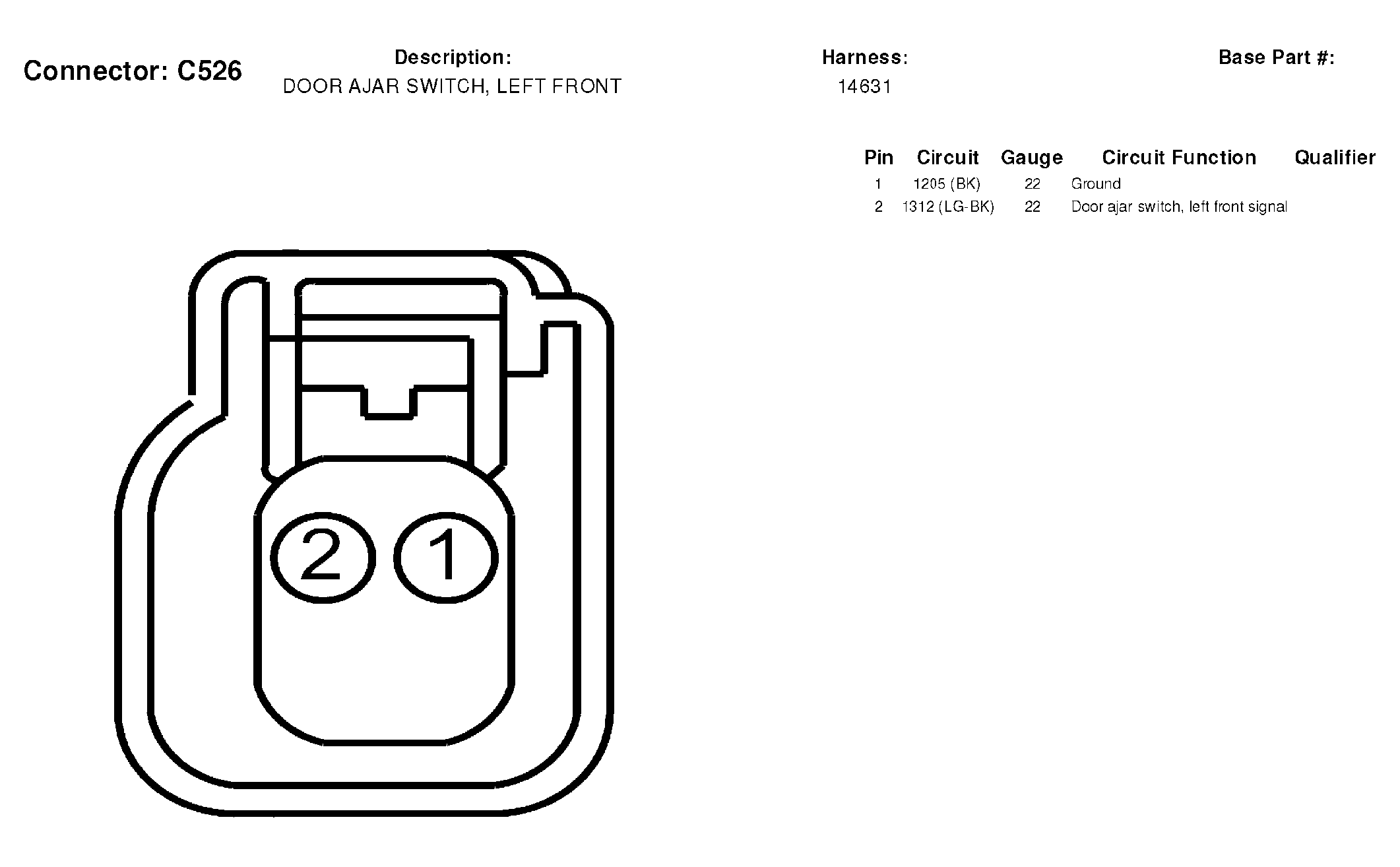

Fig 139: Door Ajar Switch, Left Front Connector End View (C526)

G04598098

Courtesy of FORD MOTOR CO.

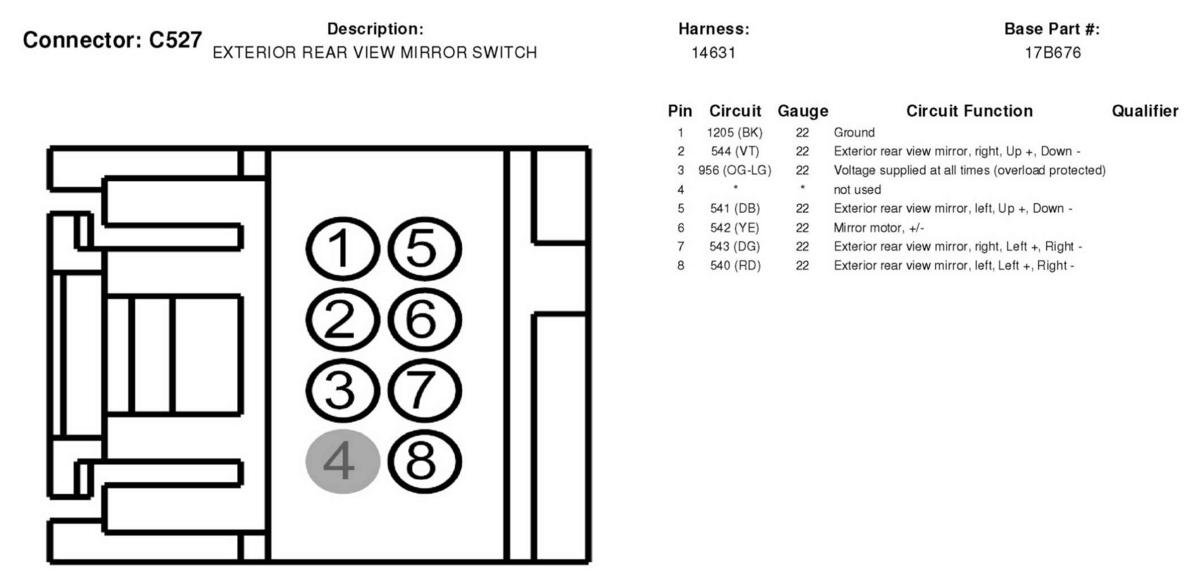

Fig 140: Exterior Rear View Mirror Switch Connector End View (C527)

G04598099

Courtesy of FORD MOTOR CO.

Fig 141: Subwoofer, Left Front Connector End View (C536)

G04598100

Courtesy of FORD MOTOR CO.

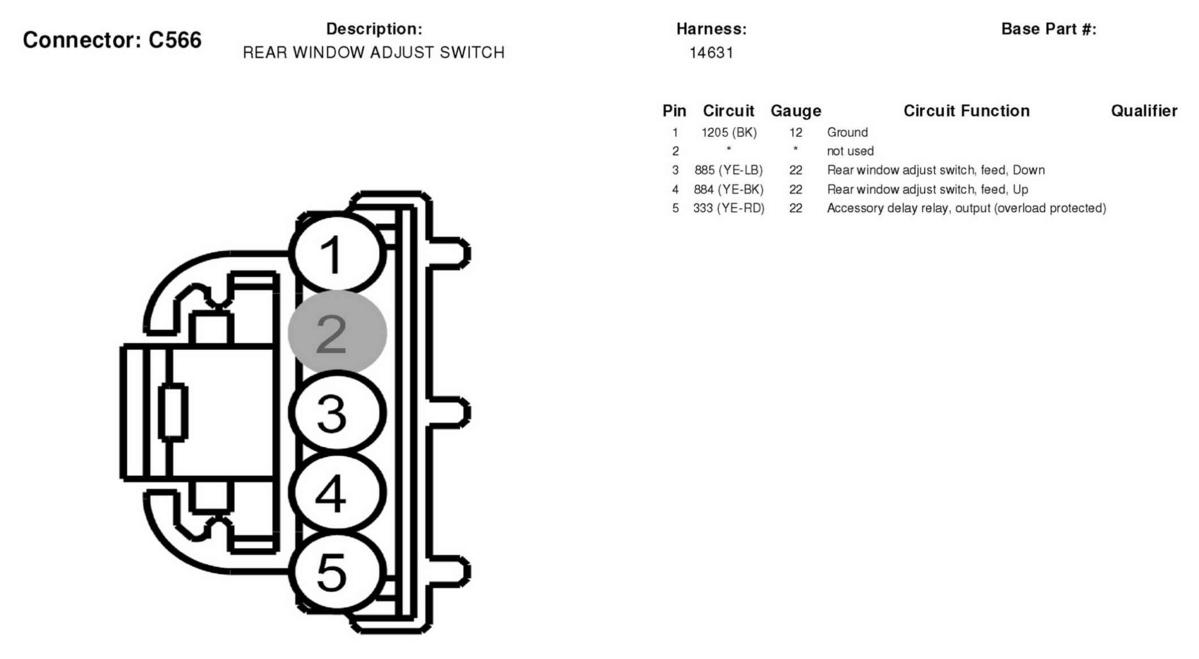

Fig 142: Rear Window Adjust Switch Connector End View (C566)

G04598101

Courtesy of FORD MOTOR CO.

Fig 143: Door Ajar Switch, Right Front Connector End View (C602)

G04598102

Courtesy of FORD MOTOR CO.

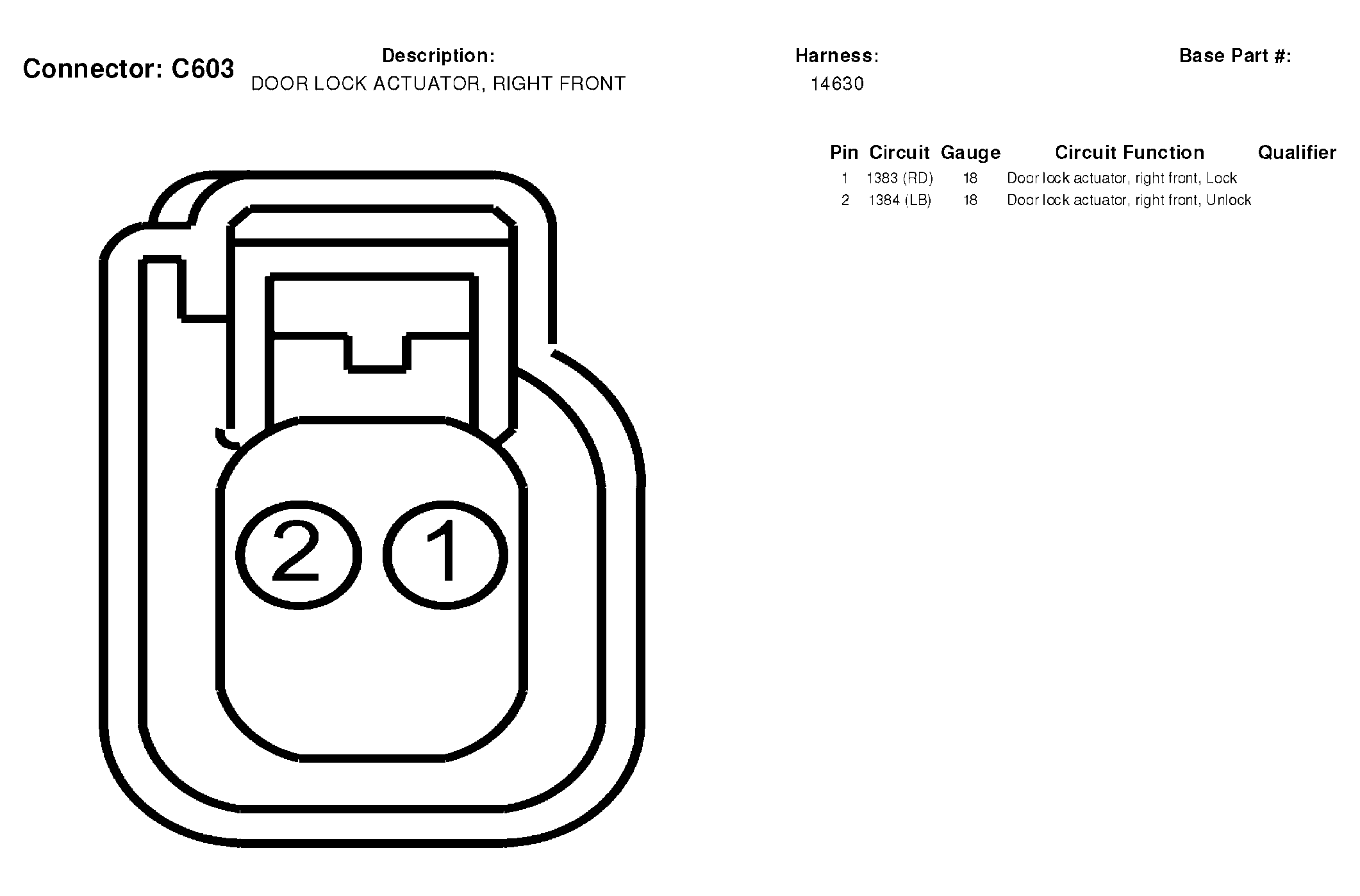

Fig 144: Door Lock Actuator, Right Front Connector End View (C603)

G04598103

Courtesy of FORD MOTOR CO.

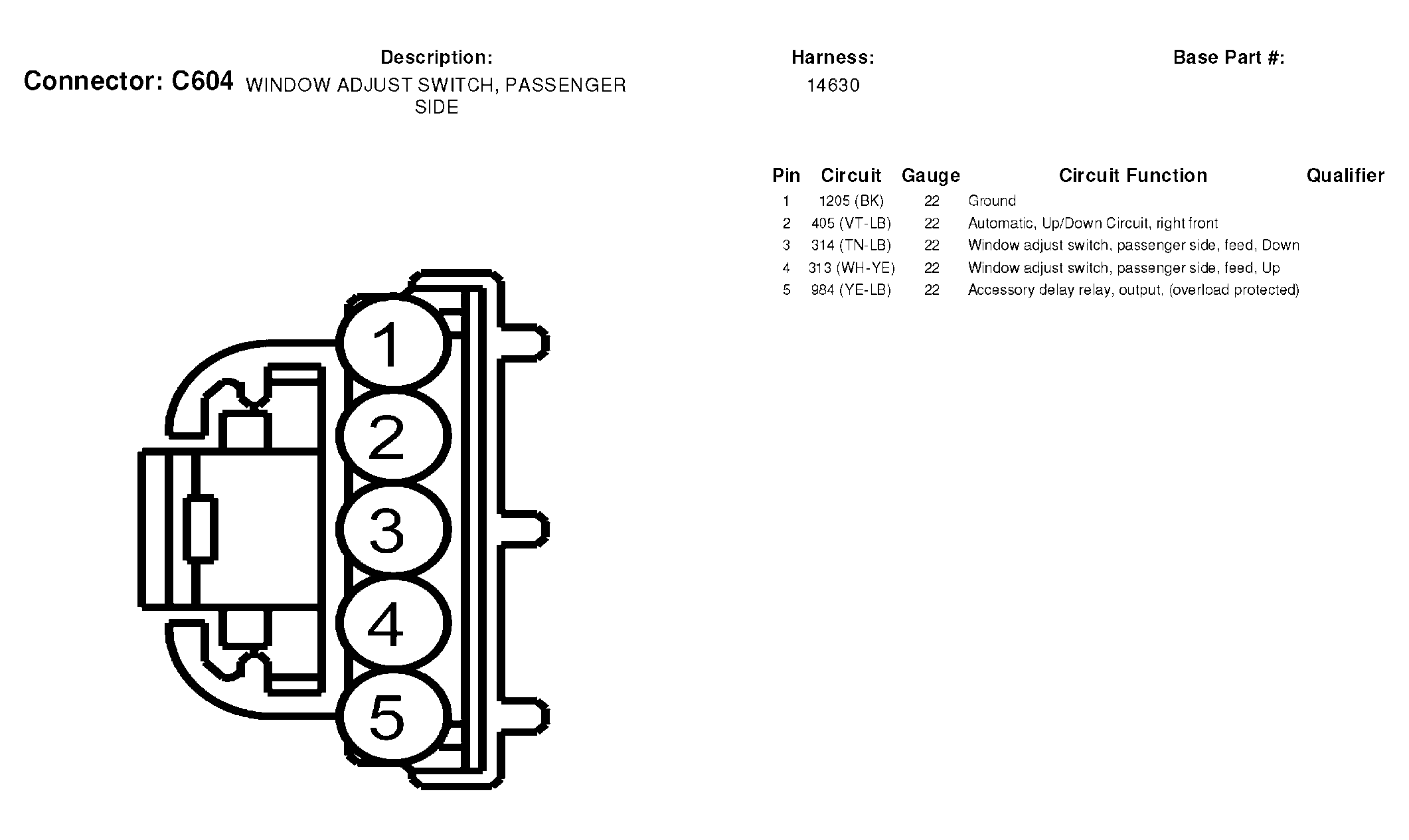

Fig 145: Window Adjust Switch, Passenger Side Connector End View (C604)

G04598104

Courtesy of FORD MOTOR CO.

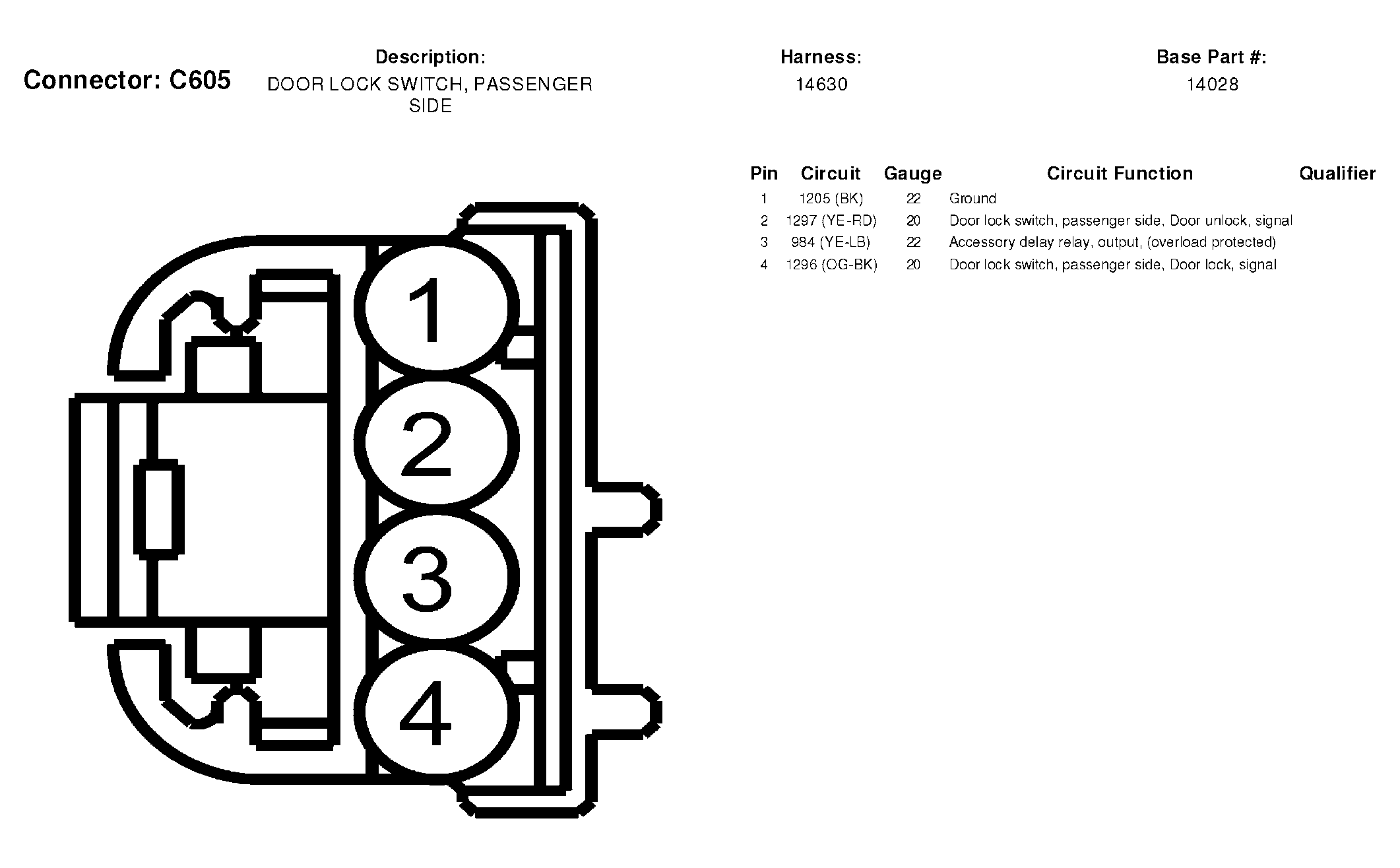

Fig 146: Door Lock Switch, Passenger Side Connector End View (C605)

G04598105

Courtesy of FORD MOTOR CO.

Fig 147: Speaker, Right Front Connector End View (C612)

G04598106

Courtesy of FORD MOTOR CO.

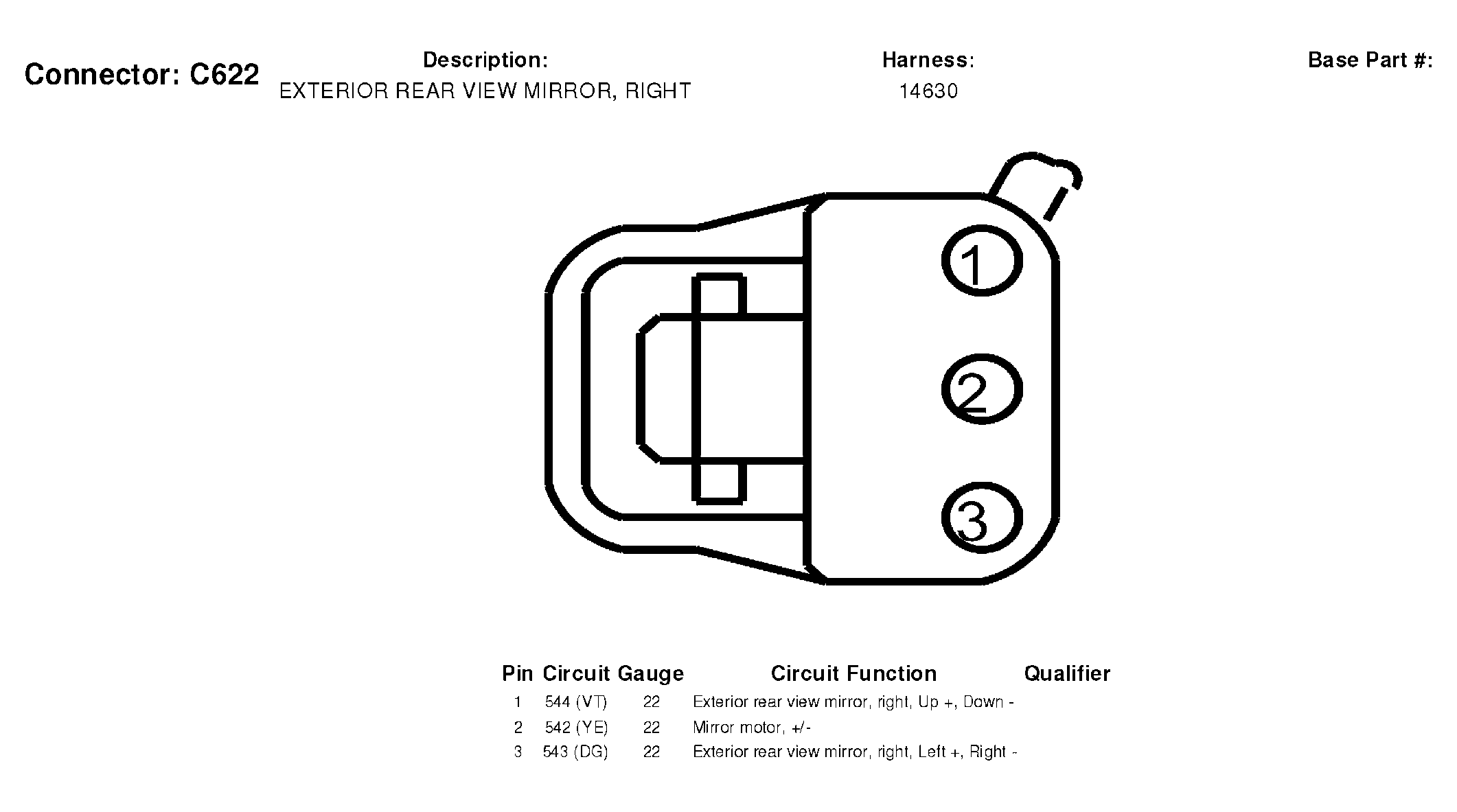

Fig 148: Exterior Rear View Mirror, Right Connector End View (C622)

G04598107

Courtesy of FORD MOTOR CO.

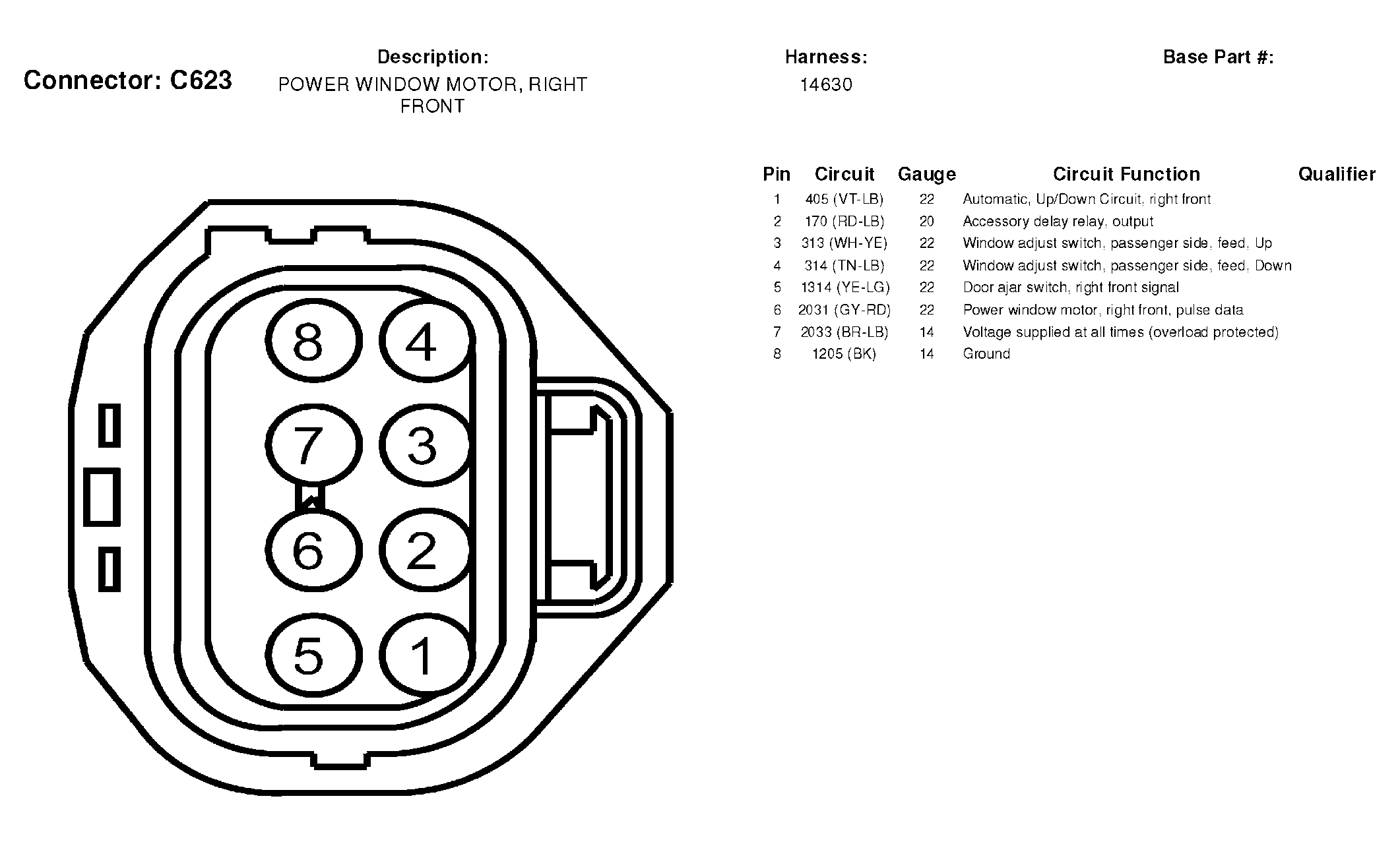

Fig 149: Power Window Motor, Right Front Connector End View (C623)

G04598108

Courtesy of FORD MOTOR CO.

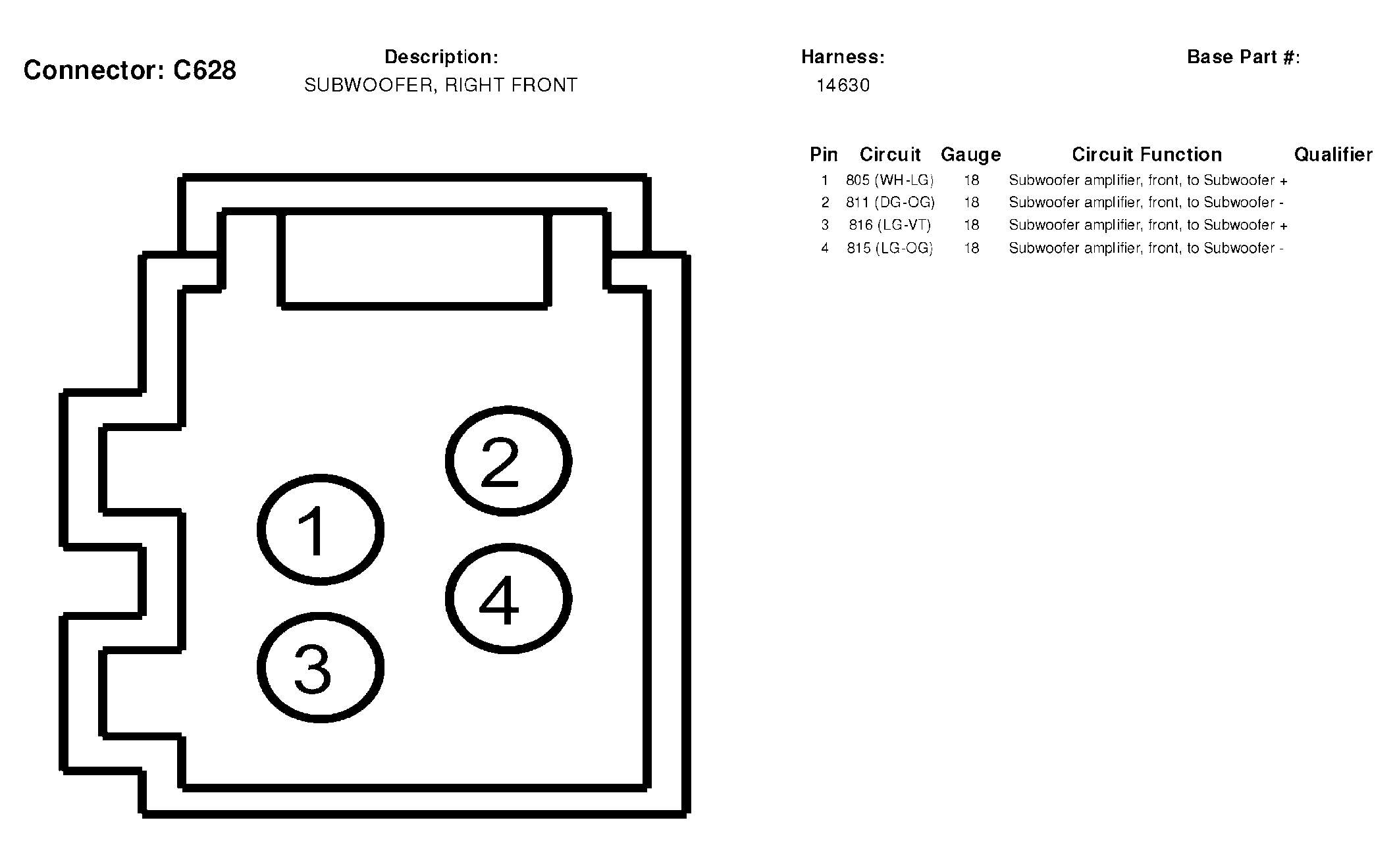

Fig 150: Subwoofer, Right Front Connector End View (C628)

G04598109

Courtesy of FORD MOTOR CO.

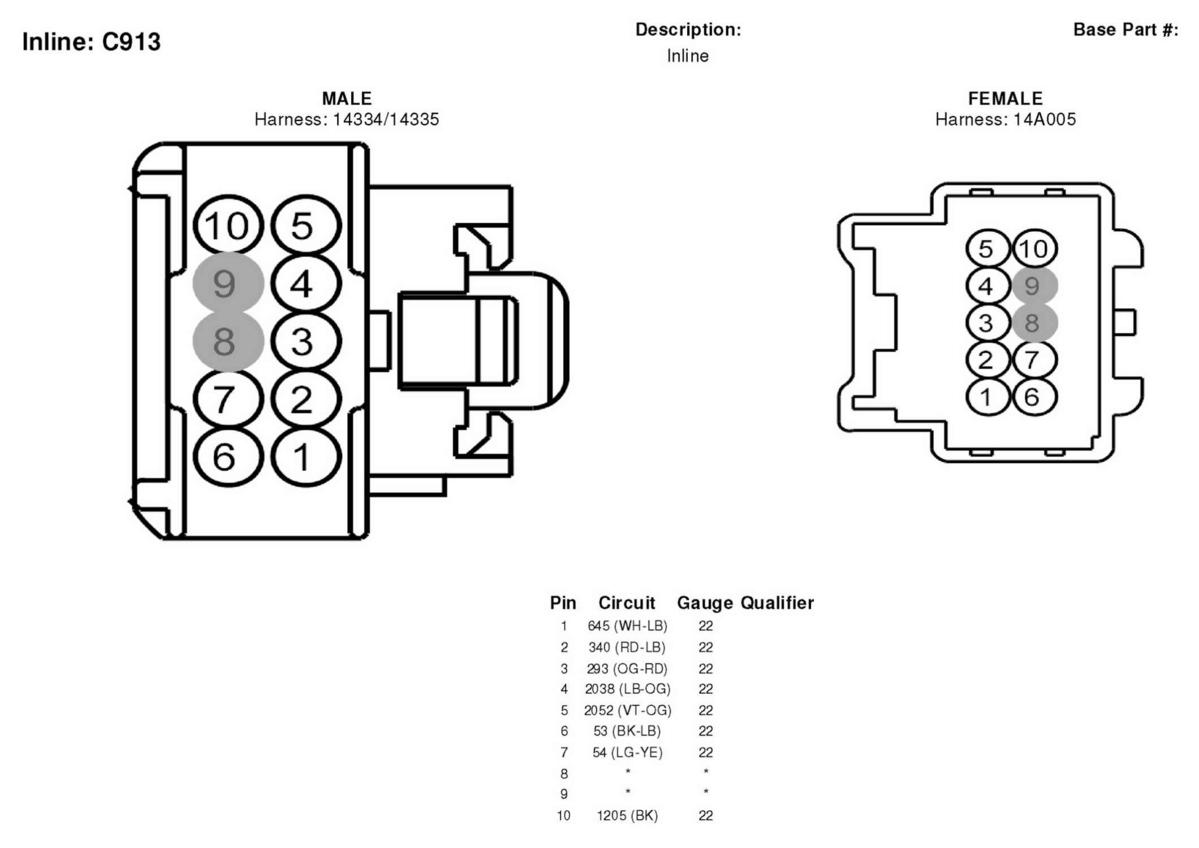

Fig 151: Inline Connector End View (C913)

G04598110

Courtesy of FORD MOTOR CO.

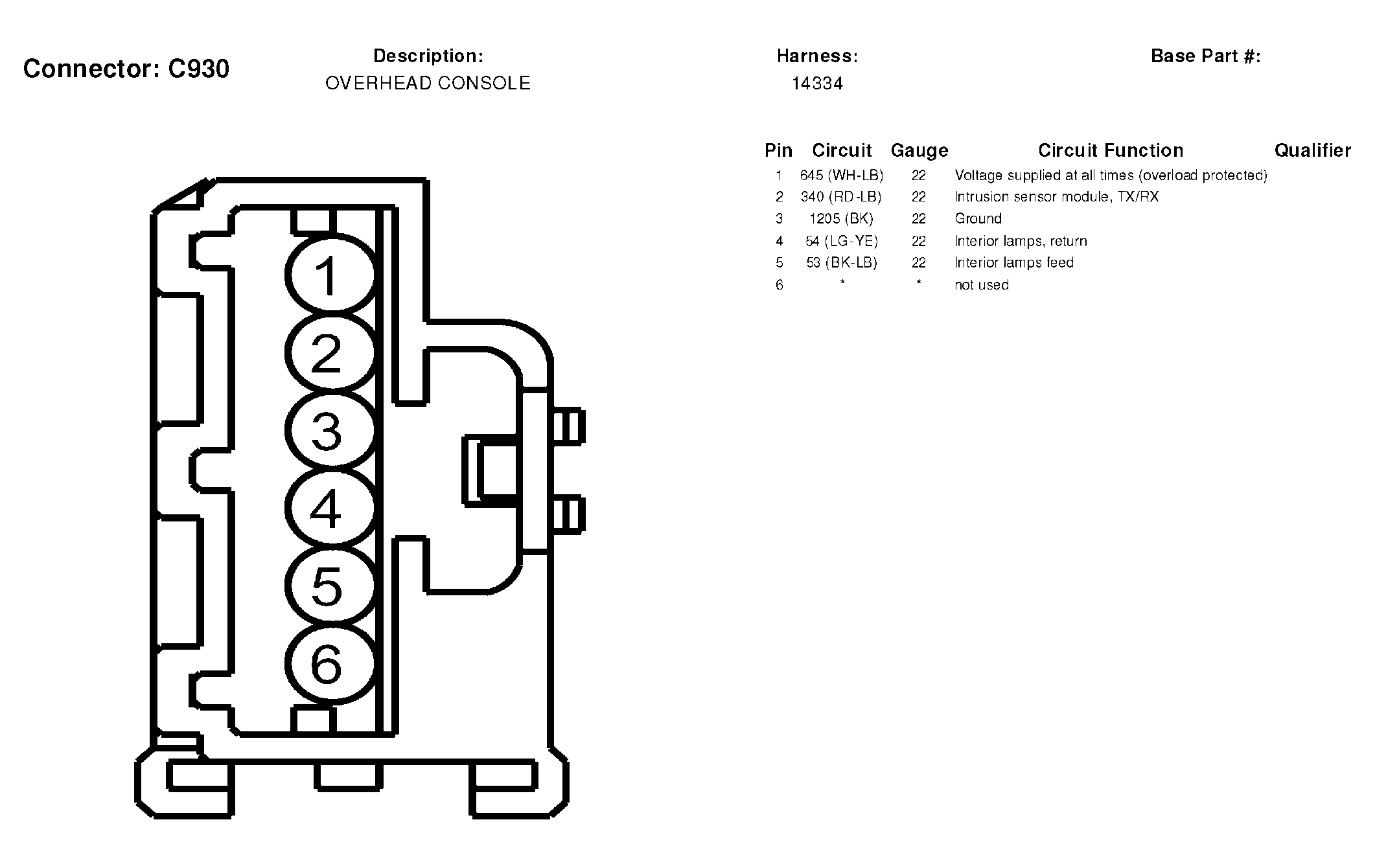

Fig 152: Overhead Console Connector End View (C930)

G04598111

Courtesy of FORD MOTOR CO.

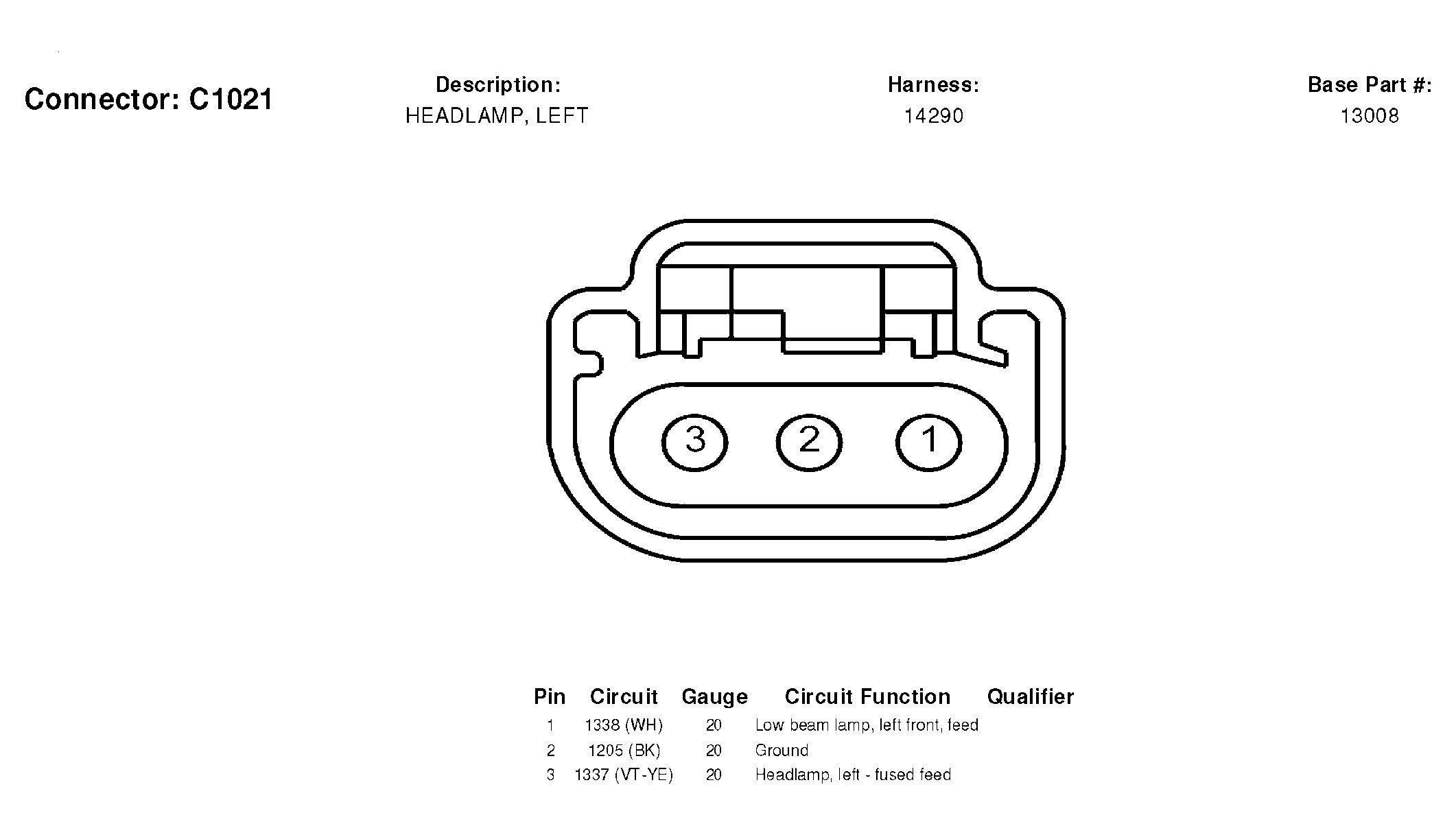

Fig 153: Headlamp, Left Connector End View (C1021)

G04598112

Courtesy of FORD MOTOR CO.

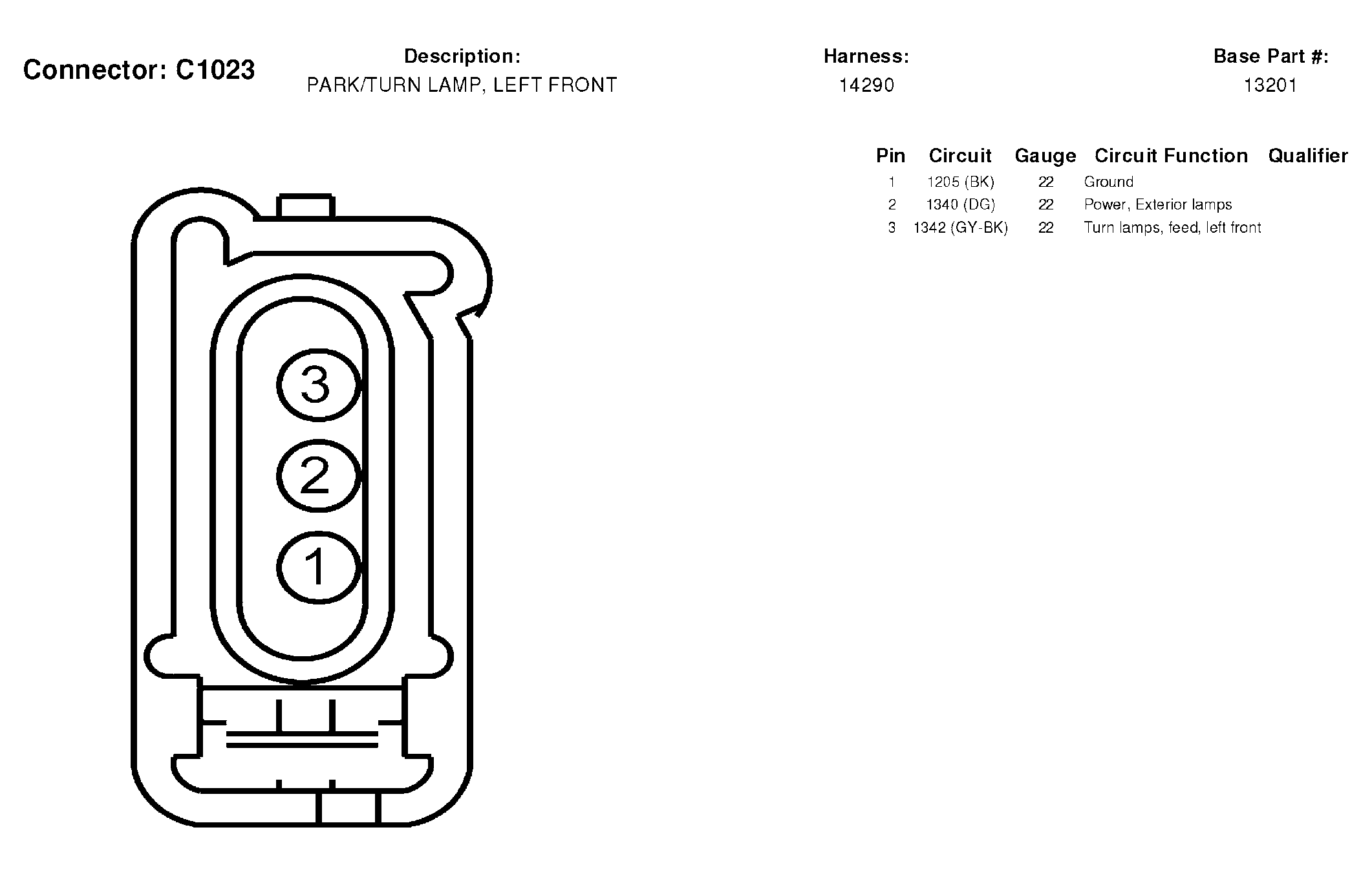

Fig 154: Park/Turn Lamp, Left Front Connector End View (C1023)

G04598113

Courtesy of FORD MOTOR CO.

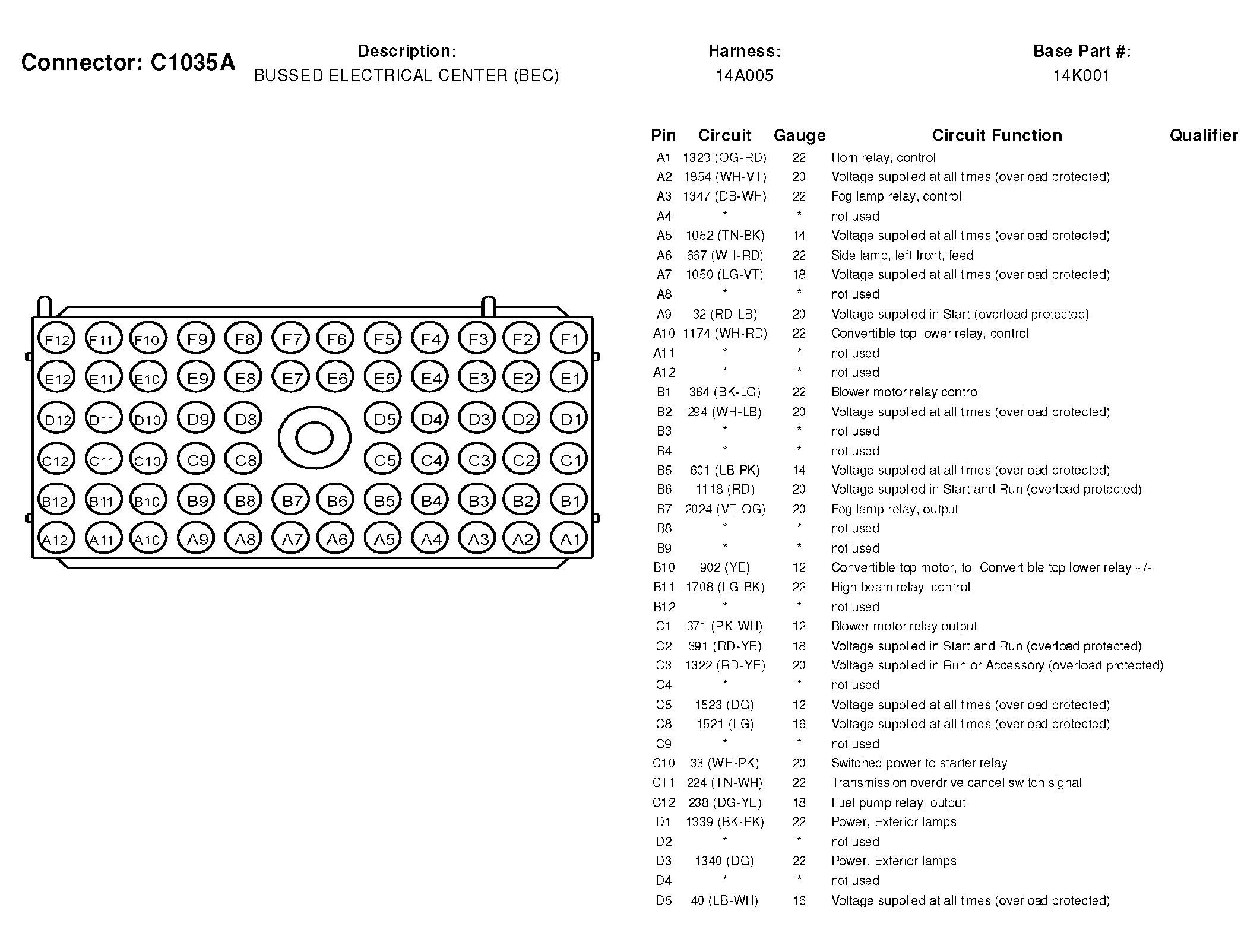

Fig 155: Bussed Electrical Center (BEC) Connector End View (C1035A) (1 Of 2)

G04598114

Courtesy of FORD MOTOR CO.

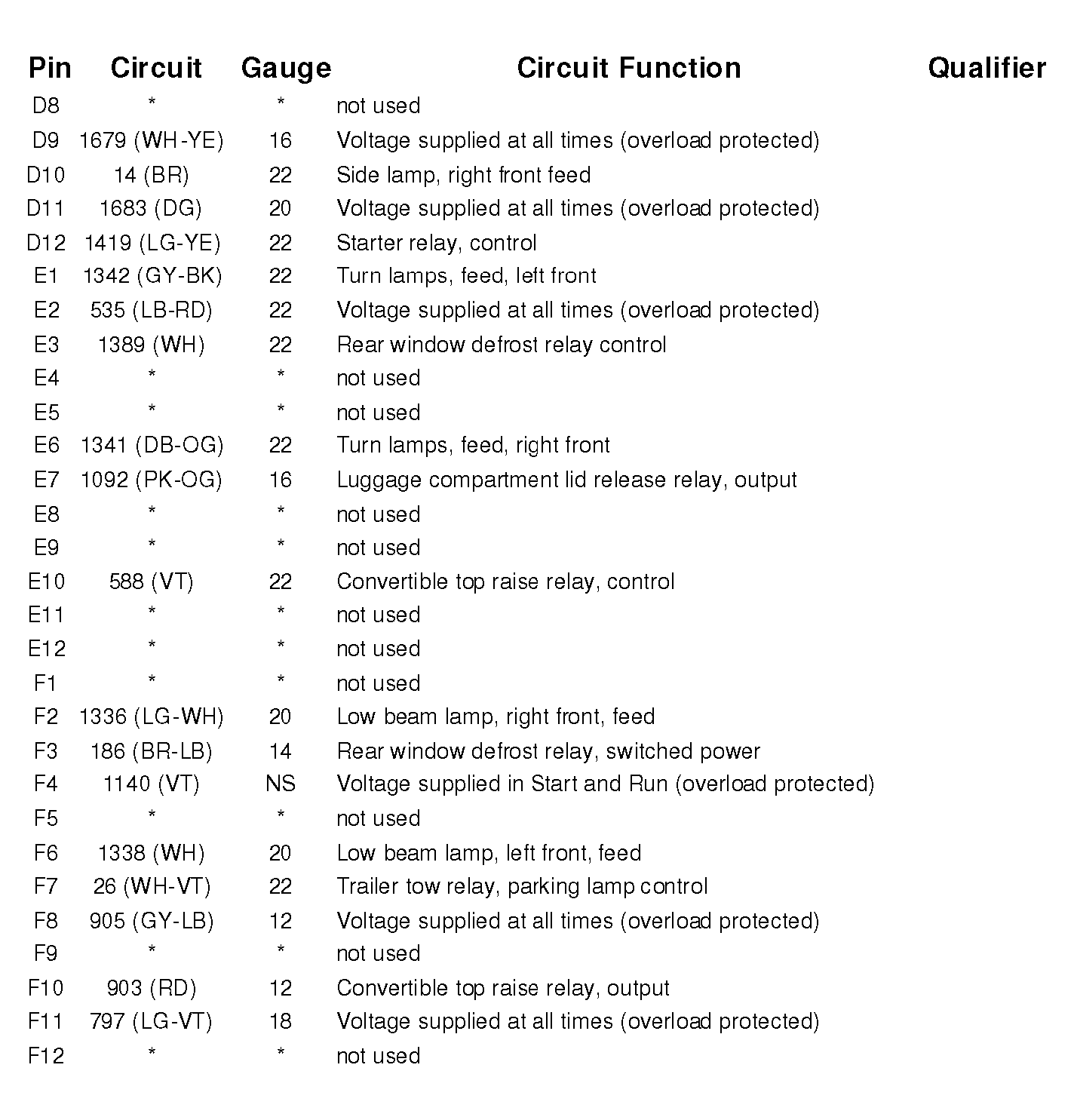

Fig 156: Bussed Electrical Center (BEC) Connector End View (C1035A) (2 Of 2)

G04598115

Courtesy of FORD MOTOR CO.

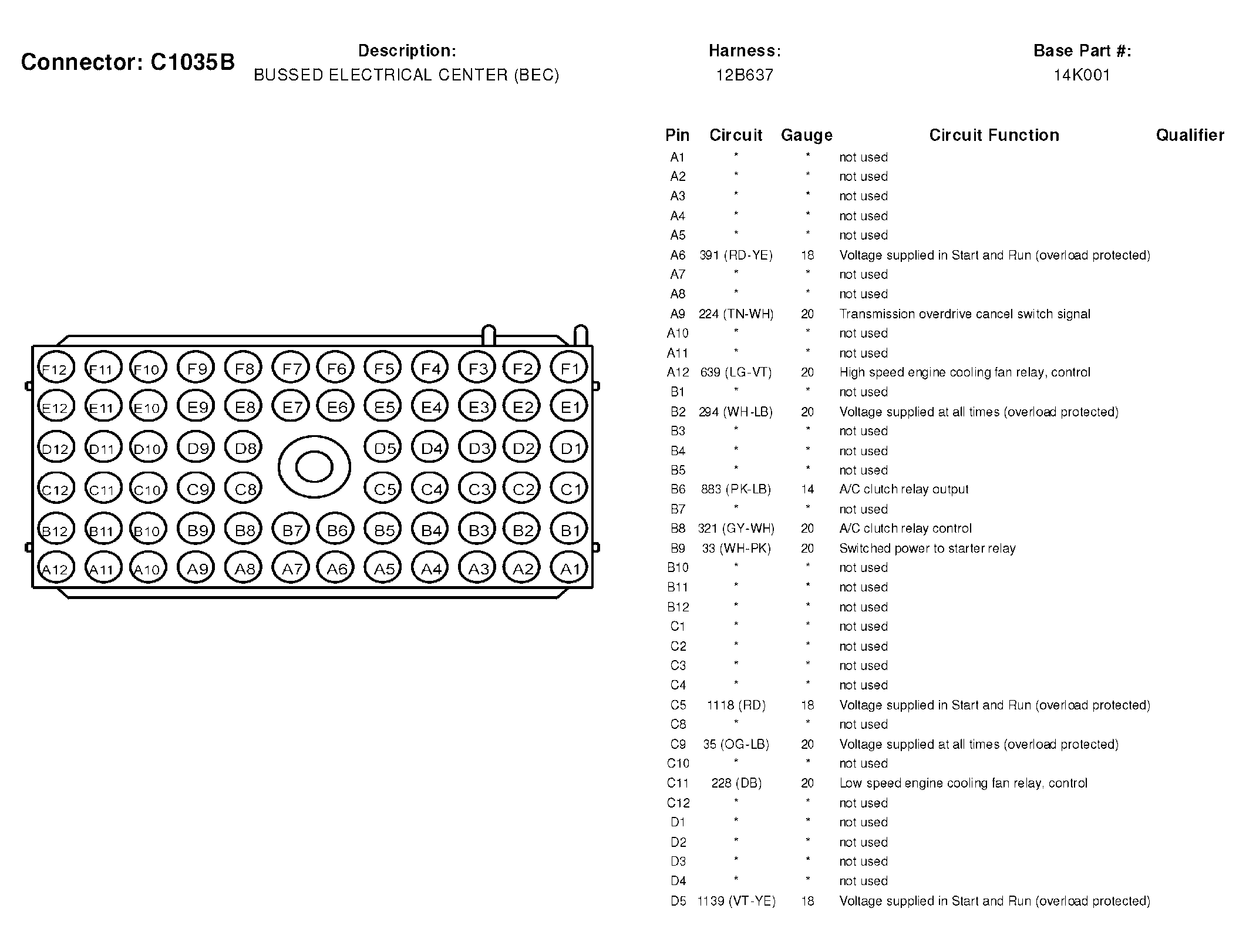

Fig 157: Bussed Electrical Center (BEC) Connector End View (C1035B) (1 Of 2)

G04598116

Courtesy of FORD MOTOR CO.

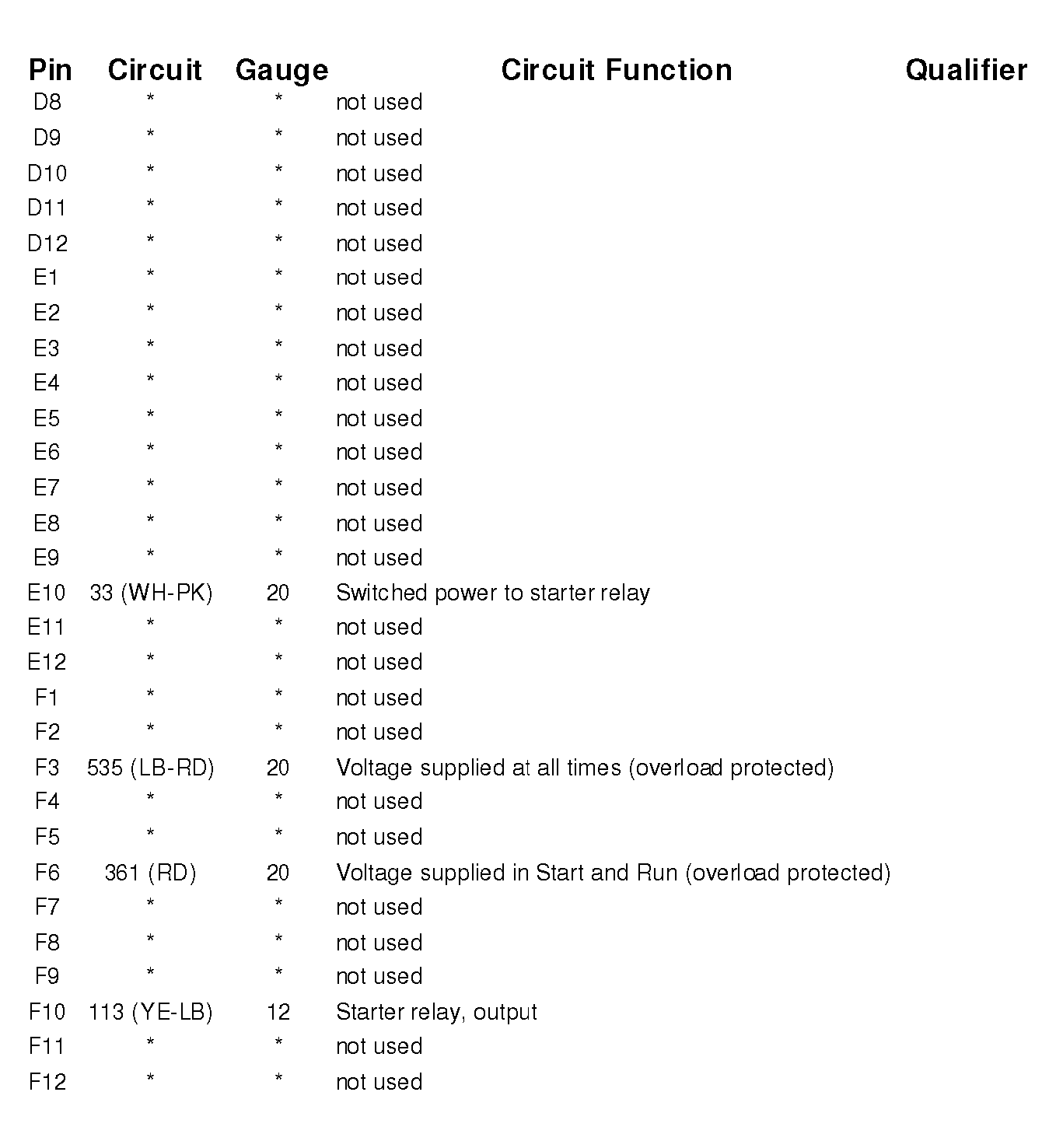

Fig 158: Bussed Electrical Center (BEC) Connector End View (C1035B) (2 Of 2)

G04598117

Courtesy of FORD MOTOR CO.

Fig 159: Bussed Electrical Center (BEC) Connector End View (C1035C) (1 Of 2)

G04598118

Courtesy of FORD MOTOR CO.

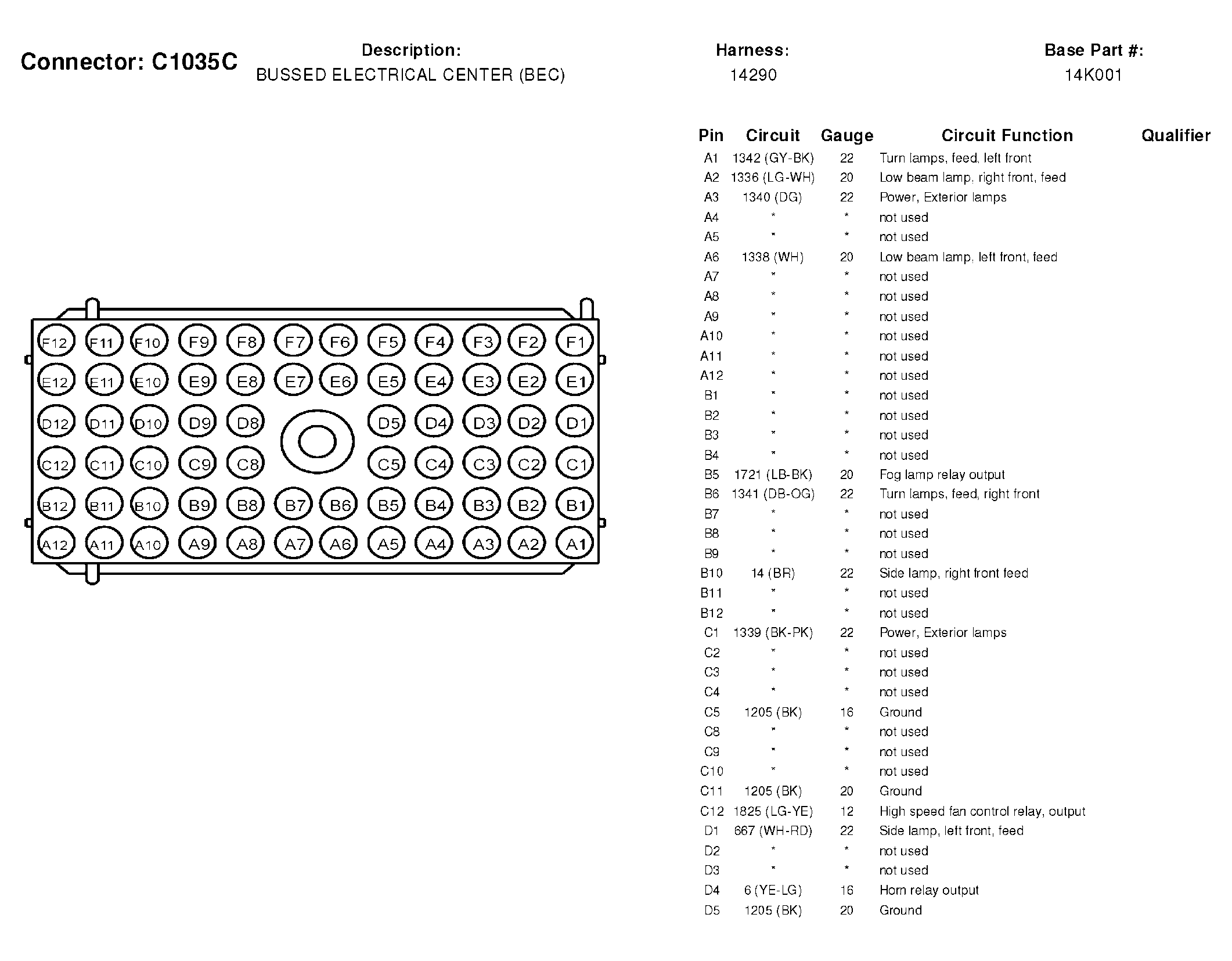

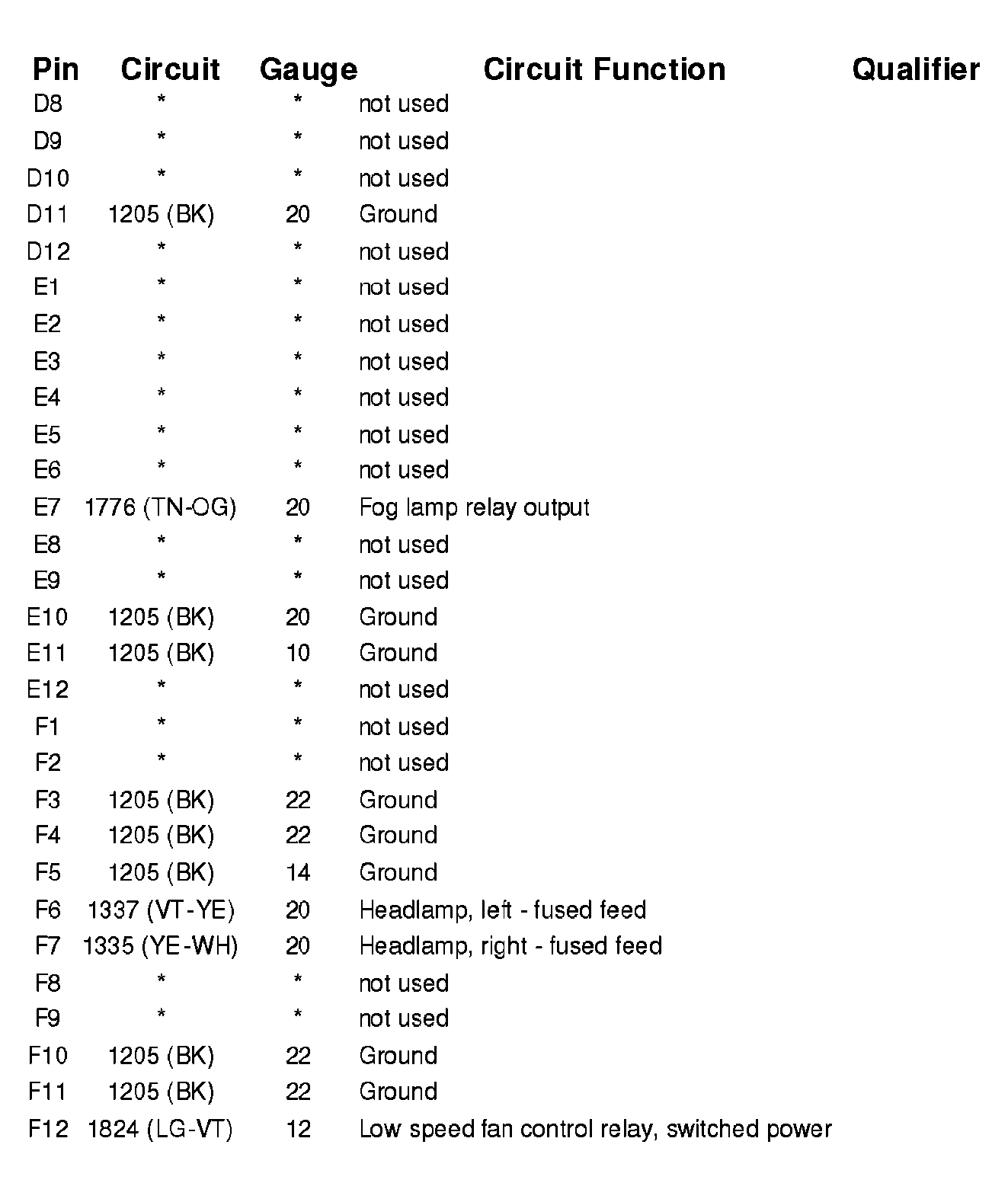

Fig 160: Bussed Electrical Center (BEC) Connector End View (C1035C) (2 Of 2)

G04598119

Courtesy of FORD MOTOR CO.

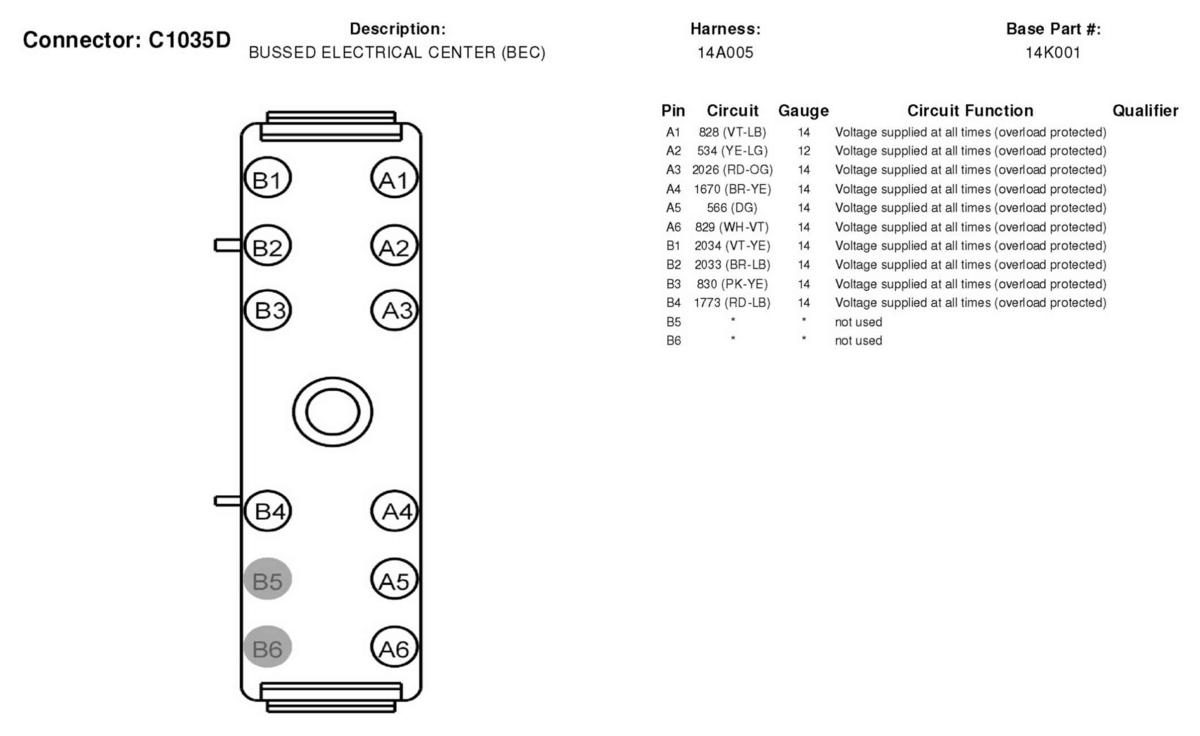

Fig 161: Bussed Electrical Center (BEC) Connector End View (C1035D)

G04598120

Courtesy of FORD MOTOR CO.

Fig 162: Bussed Electrical Center (BEC) Connector End View (C1035E)

G04598121

Courtesy of FORD MOTOR CO.

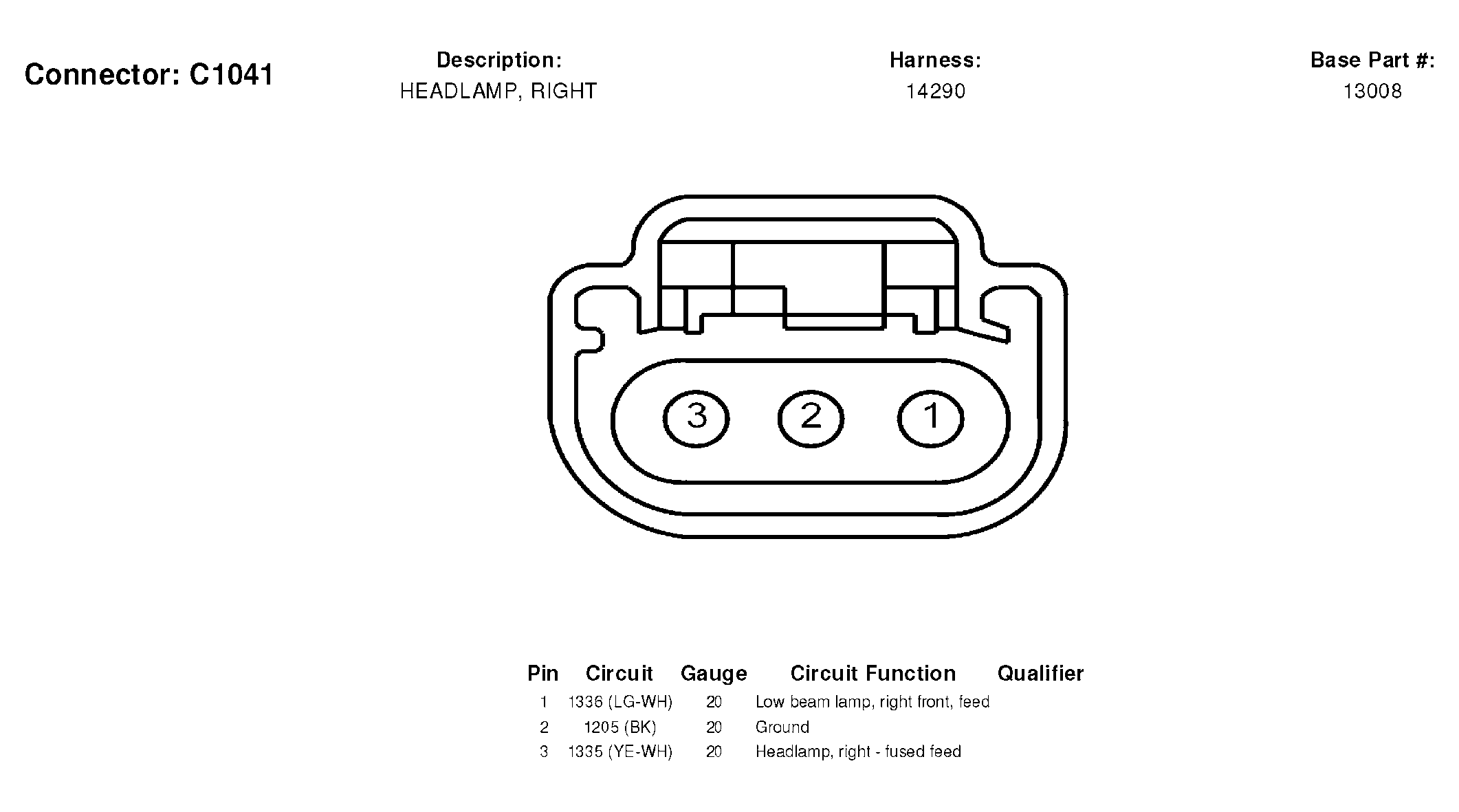

Fig 163: Headlamp, Right Connector End View (C1041)

G04598122

Courtesy of FORD MOTOR CO.

Fig 164: Park/Turn Lamp, Right Front Connector End View (C1043)

G04598123

Courtesy of FORD MOTOR CO.

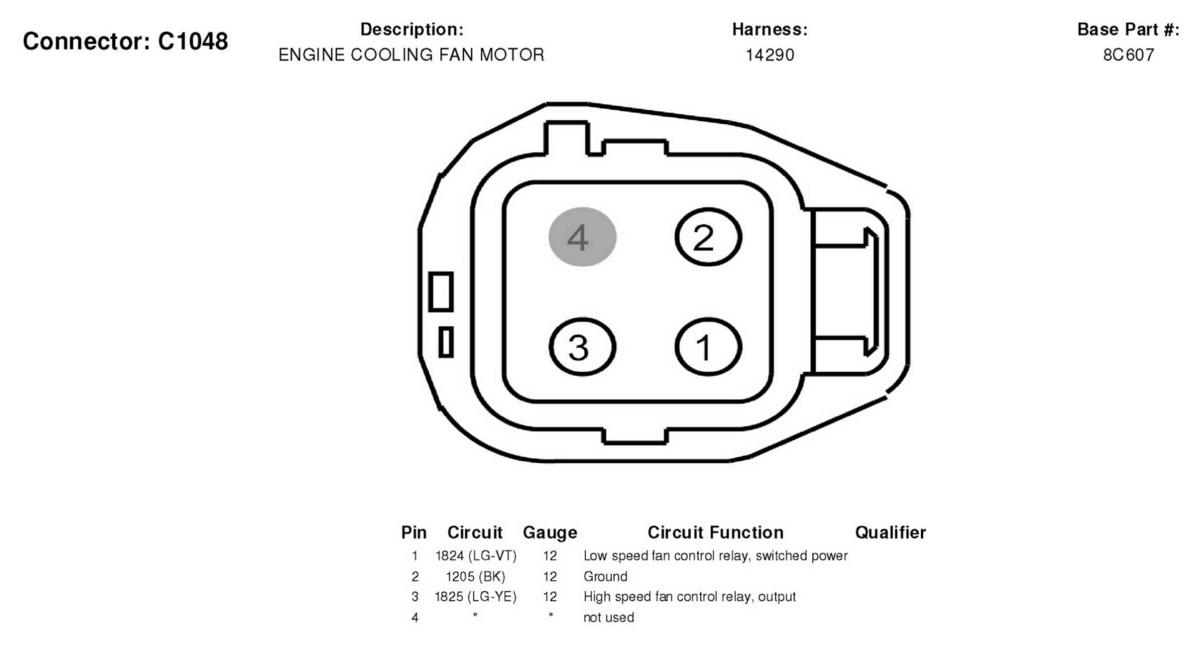

Fig 165: Engine Cooling Fan Motor Connector End View (C1048)

G04598124

Courtesy of FORD MOTOR CO.

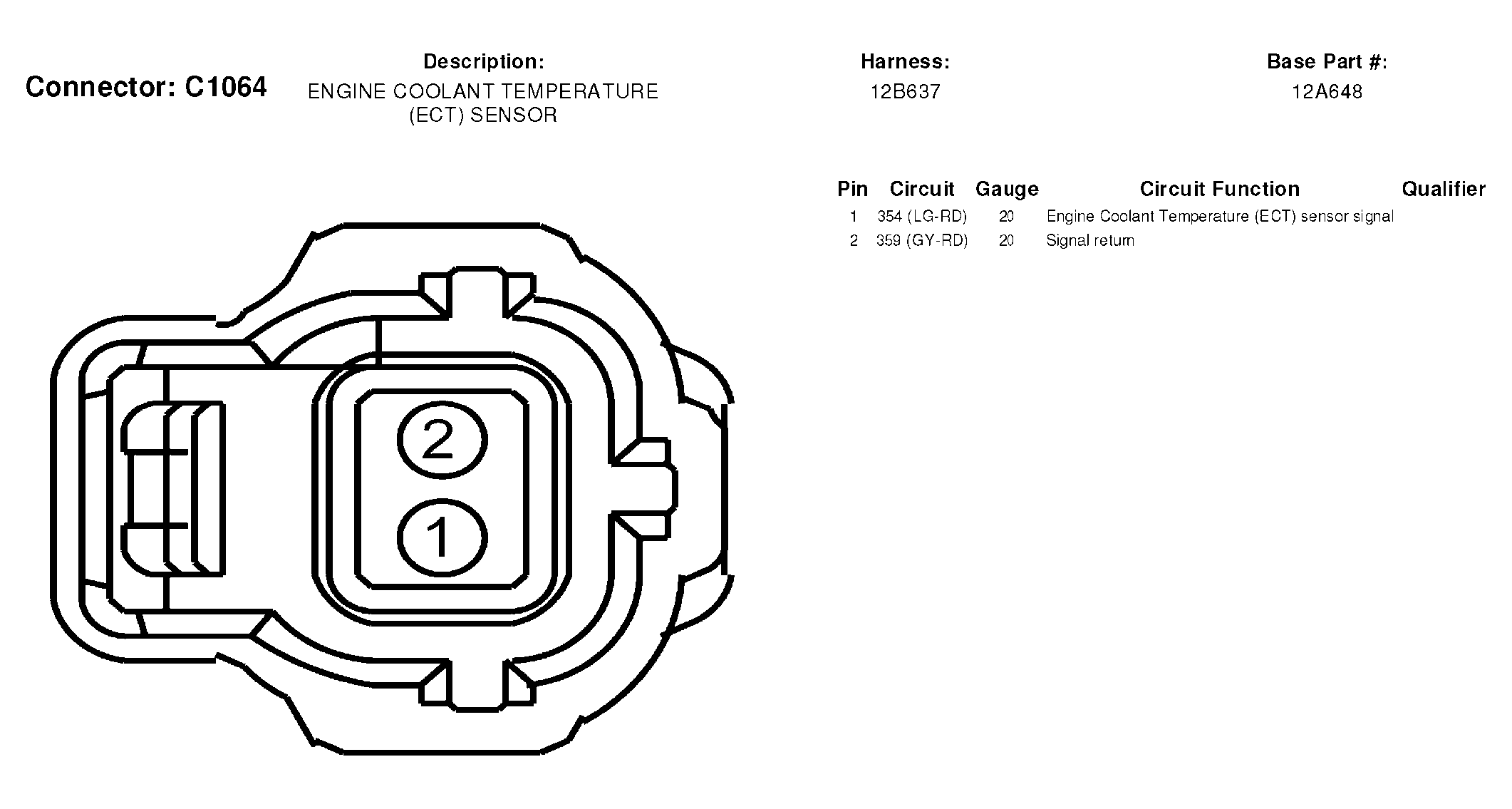

Fig 166: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G04598125

Courtesy of FORD MOTOR CO.

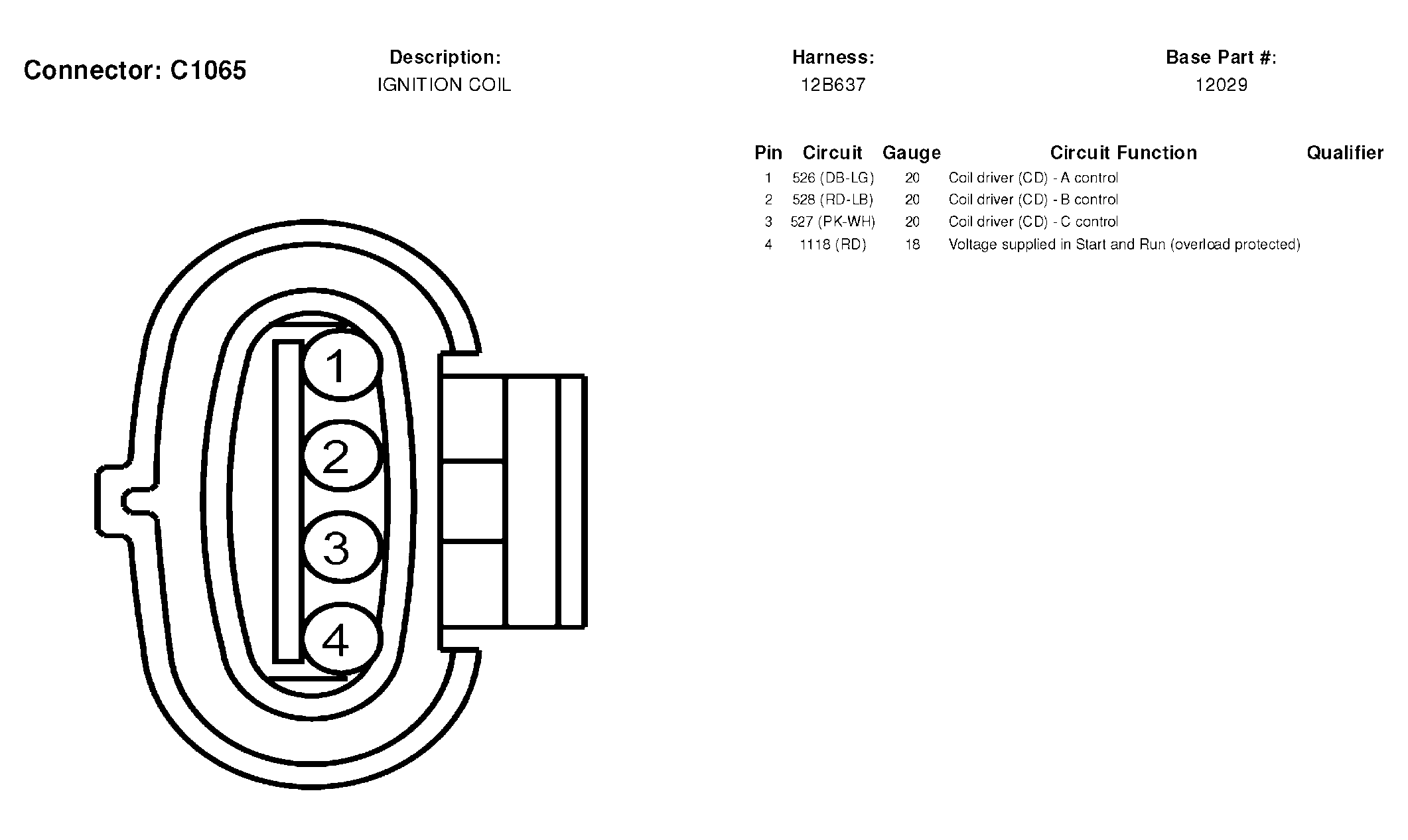

Fig 167: Ignition Coil Connector End View (C1065)

G04598126

Courtesy of FORD MOTOR CO.

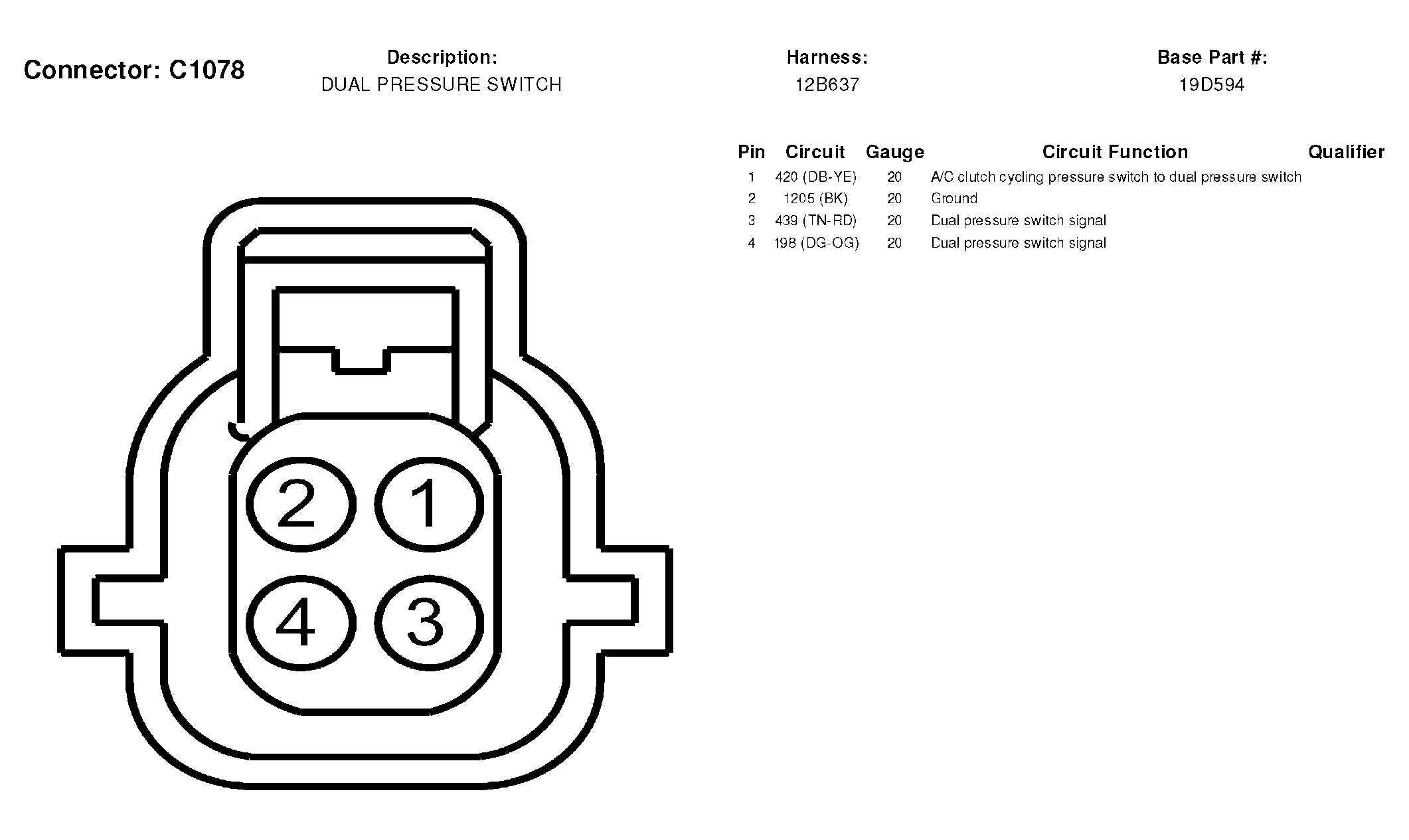

Fig 168: Dual Pressure Switch Connector End View (C1078)

G04598127

Courtesy of FORD MOTOR CO.

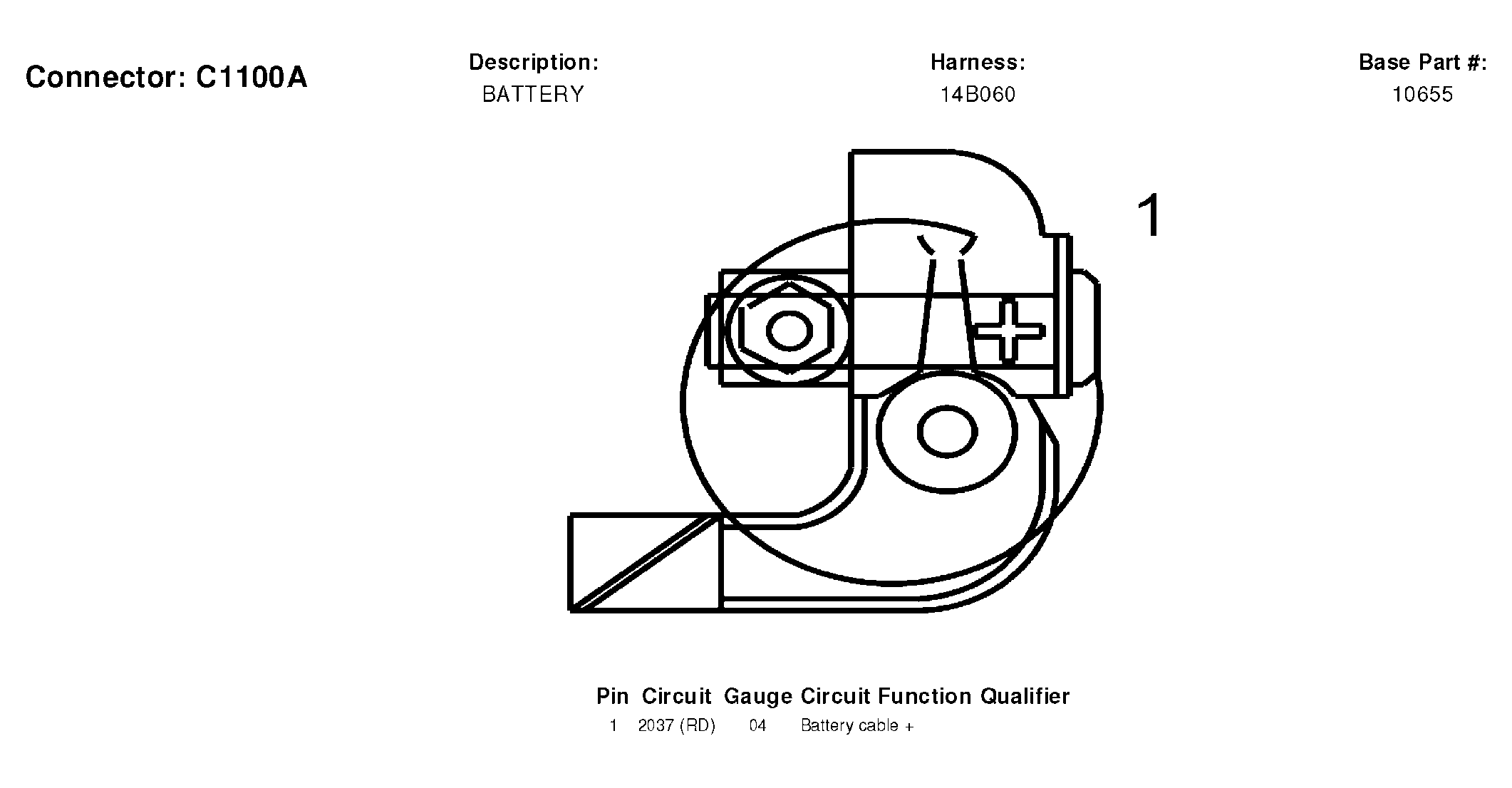

Fig 169: Battery Connector End View (C1100A)

G04598128

Courtesy of FORD MOTOR CO.

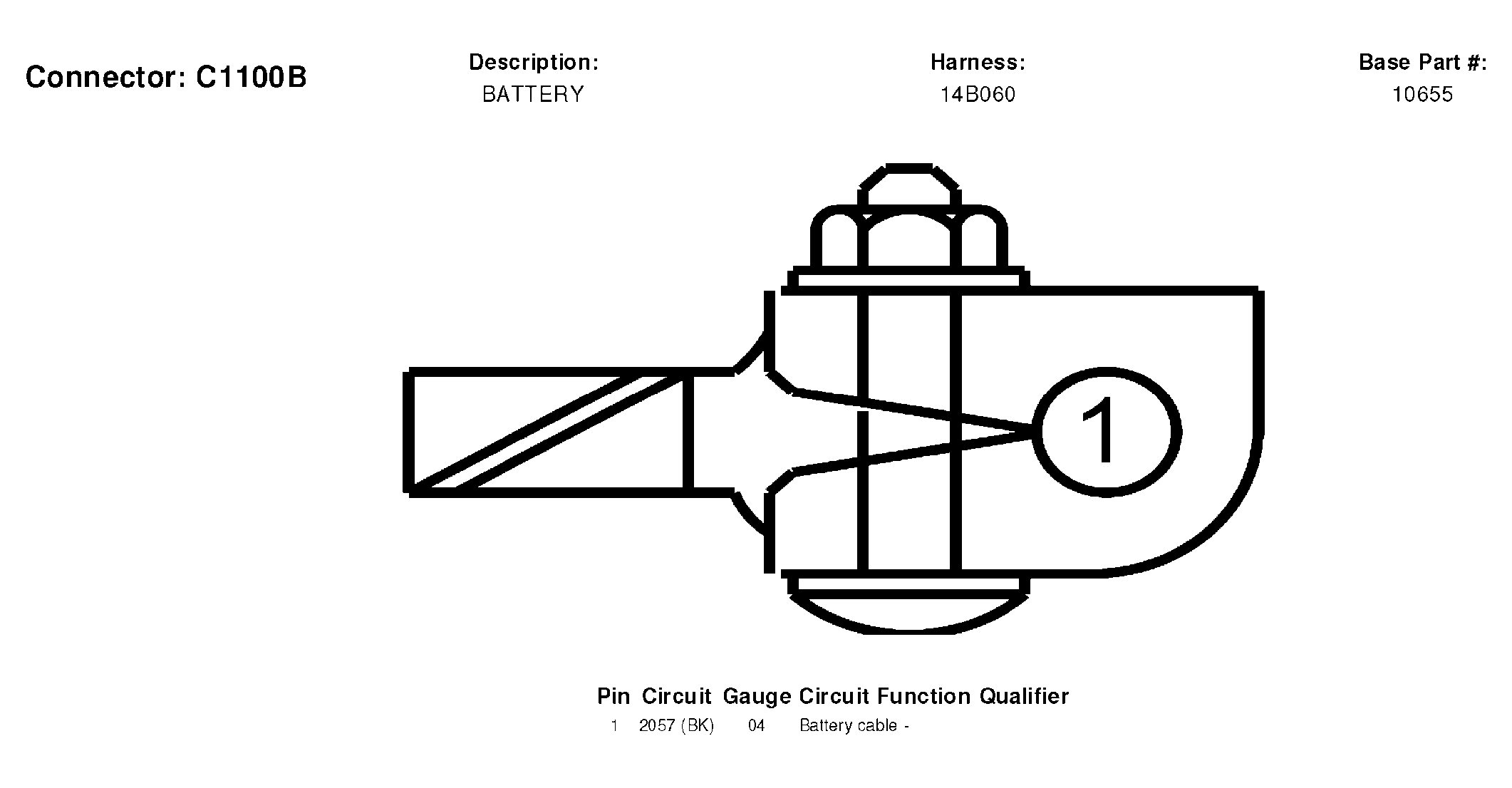

Fig 170: Battery Connector End View (C1100B)

G04598129

Courtesy of FORD MOTOR CO.

Fig 171: Battery Connector End View (C1100C)

G04598130

Courtesy of FORD MOTOR CO.

Fig 172: Fuel Injector 1 Connector End View (C1181)

G04598131

Courtesy of FORD MOTOR CO.

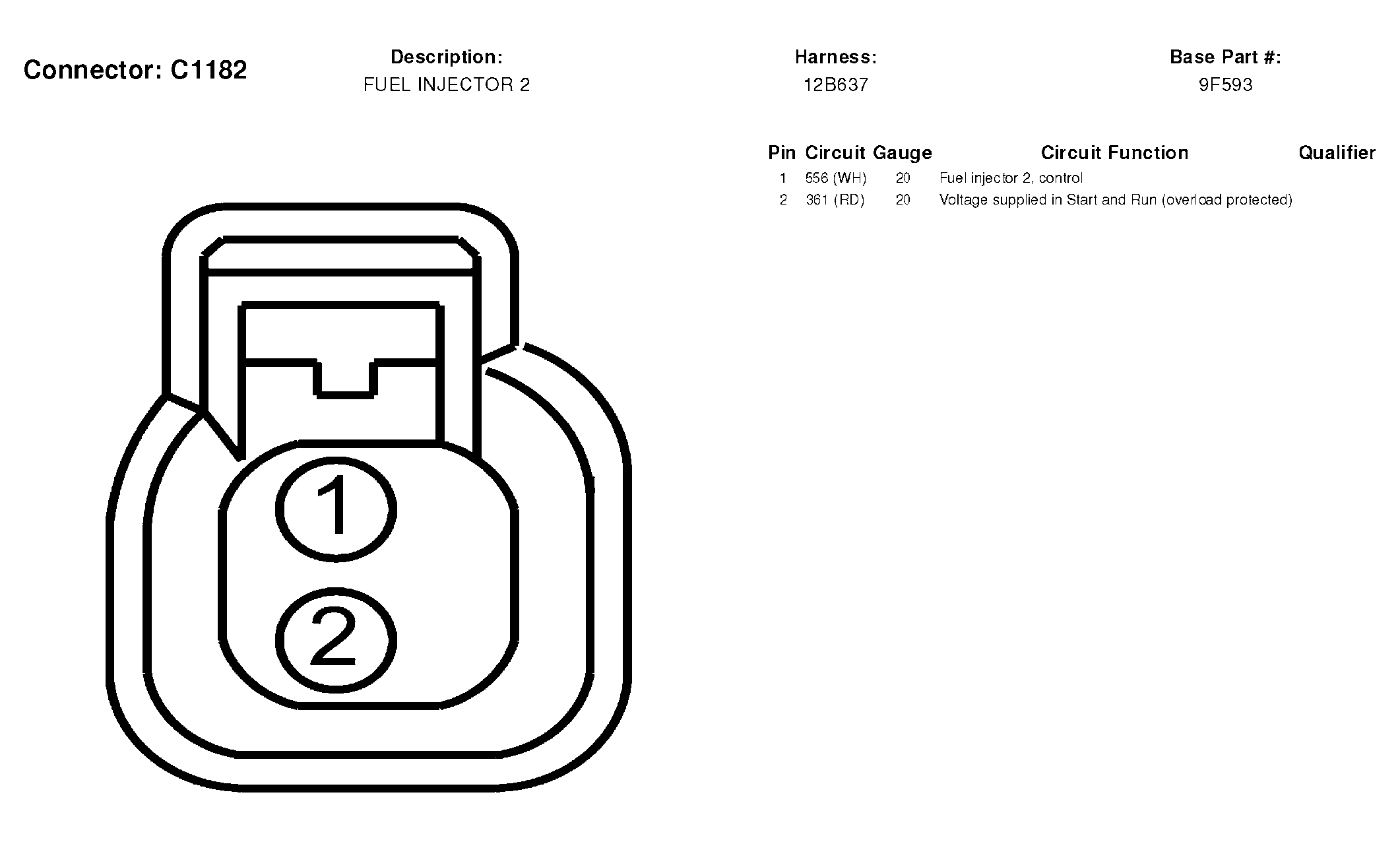

Fig 173: Fuel Injector 2 Connector End View (C1182)

G04598132

Courtesy of FORD MOTOR CO.

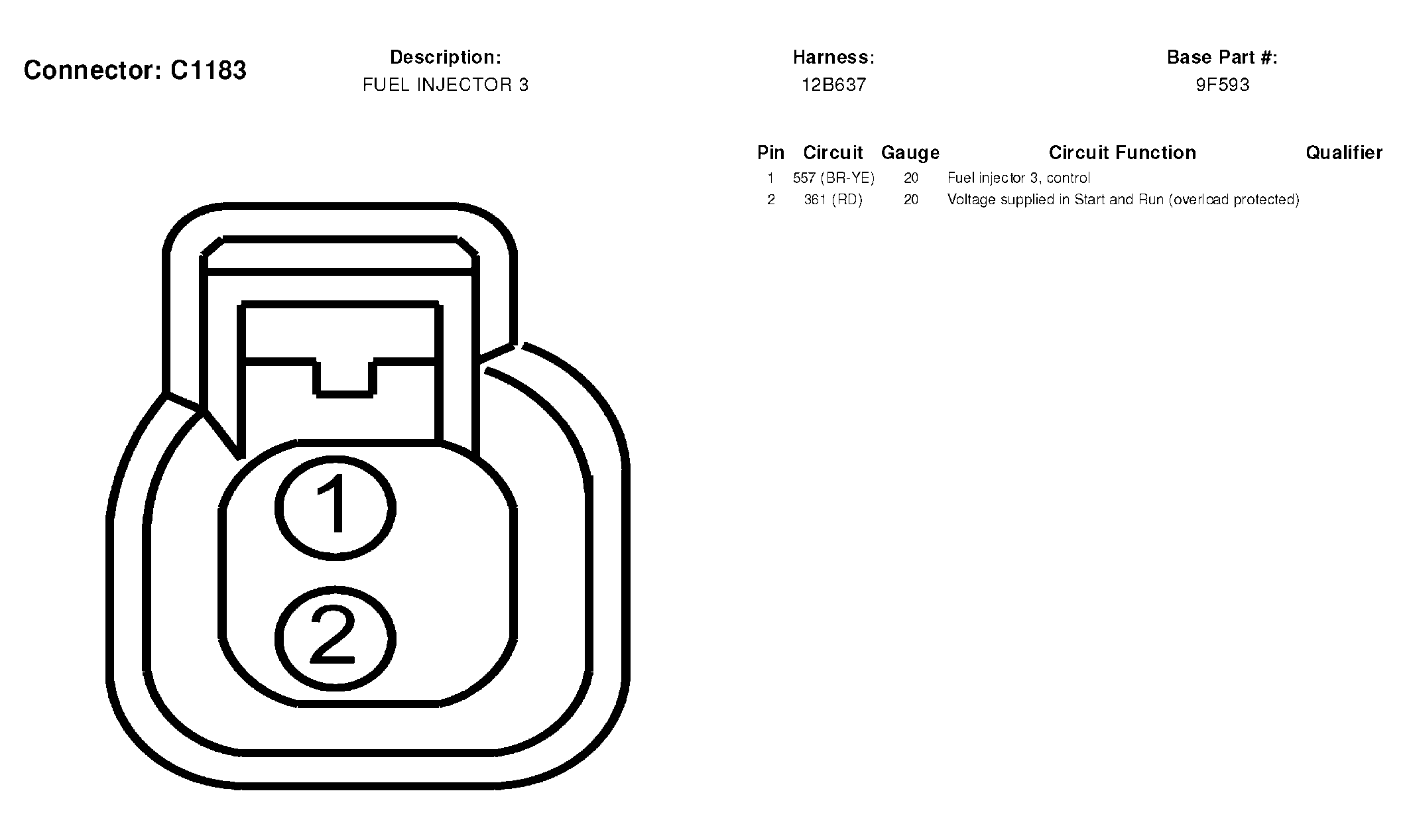

Fig 174: Fuel Injector 3 Connector End View (C1183)

G04598133

Courtesy of FORD MOTOR CO.

Fig 175: Fuel Injector 4 Connector End View (C1184)

G04598134

Courtesy of FORD MOTOR CO.

Fig 176: Fuel Injector 5 Connector End View (C1185)

G04598135

Courtesy of FORD MOTOR CO.

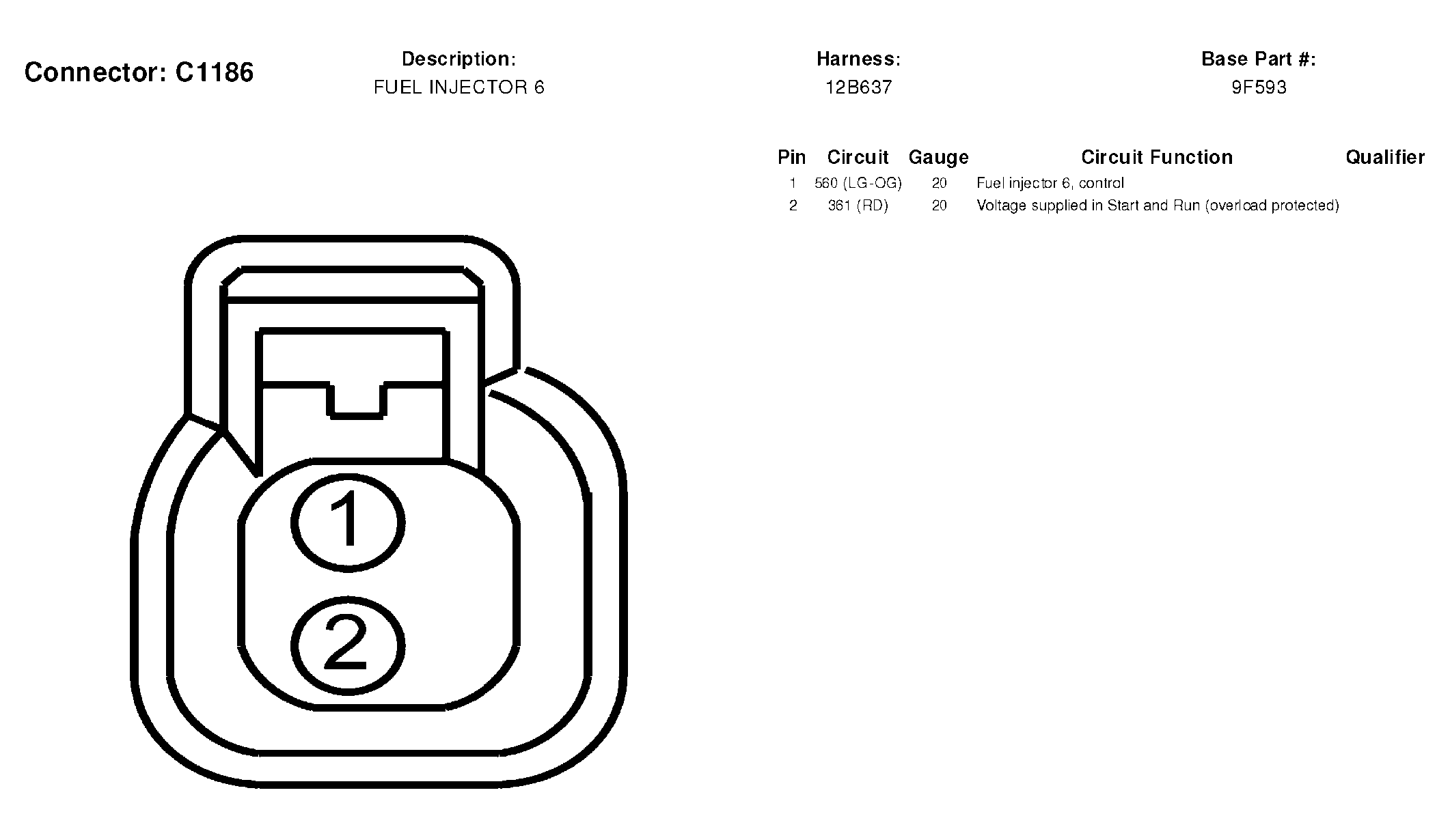

Fig 177: Fuel Injector 6 Connector End View (C1186)

G04598136

Courtesy of FORD MOTOR CO.

Fig 178: Ignition Transformer Capacitor Connector End View (C1196)

G04598137

Courtesy of FORD MOTOR CO.

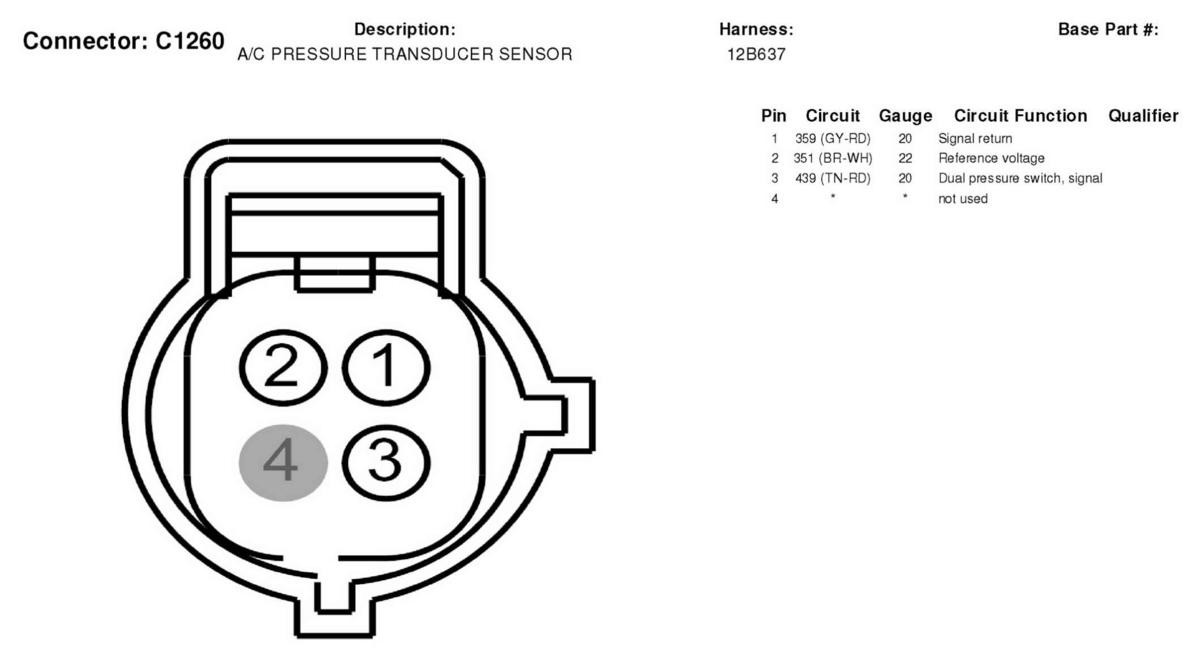

Fig 179: A/C Pressure Transducer Sensor Connector End View (C1260)

G04598138

Courtesy of FORD MOTOR CO.

Fig 180: Fuel Injector 7 Connector End View (C1312)

G04598139

Courtesy of FORD MOTOR CO.

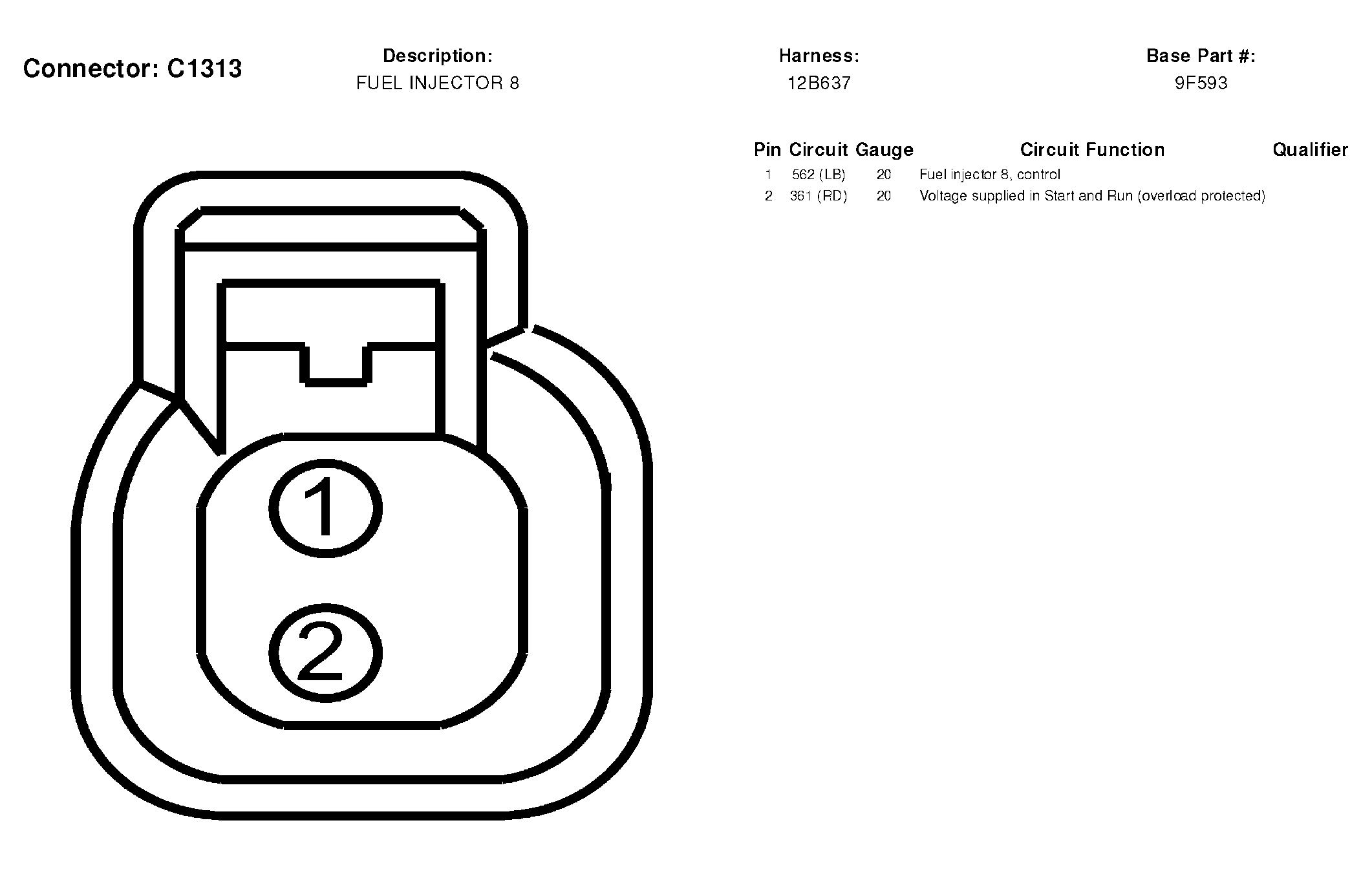

Fig 181: Fuel Injector 8 Connector End View (C1313)

G04598140

Courtesy of FORD MOTOR CO.

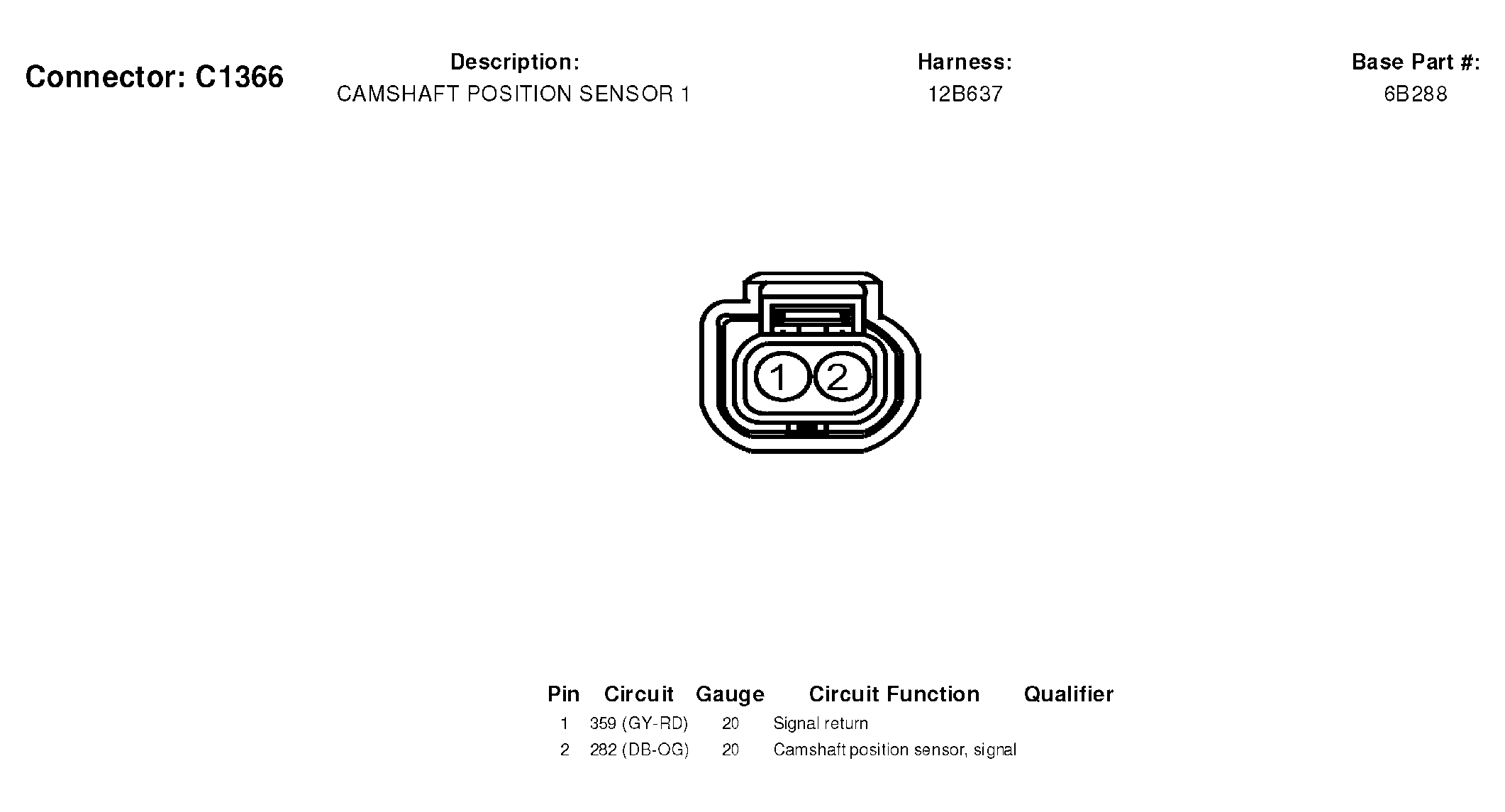

Fig 182: Camshaft Position Sensor 1 Connector End View (C1366)

G04598141

Courtesy of FORD MOTOR CO.

Fig 183: Camshaft Position Sensor 2 Connector End View (C1367)

G04598142

Courtesy of FORD MOTOR CO.

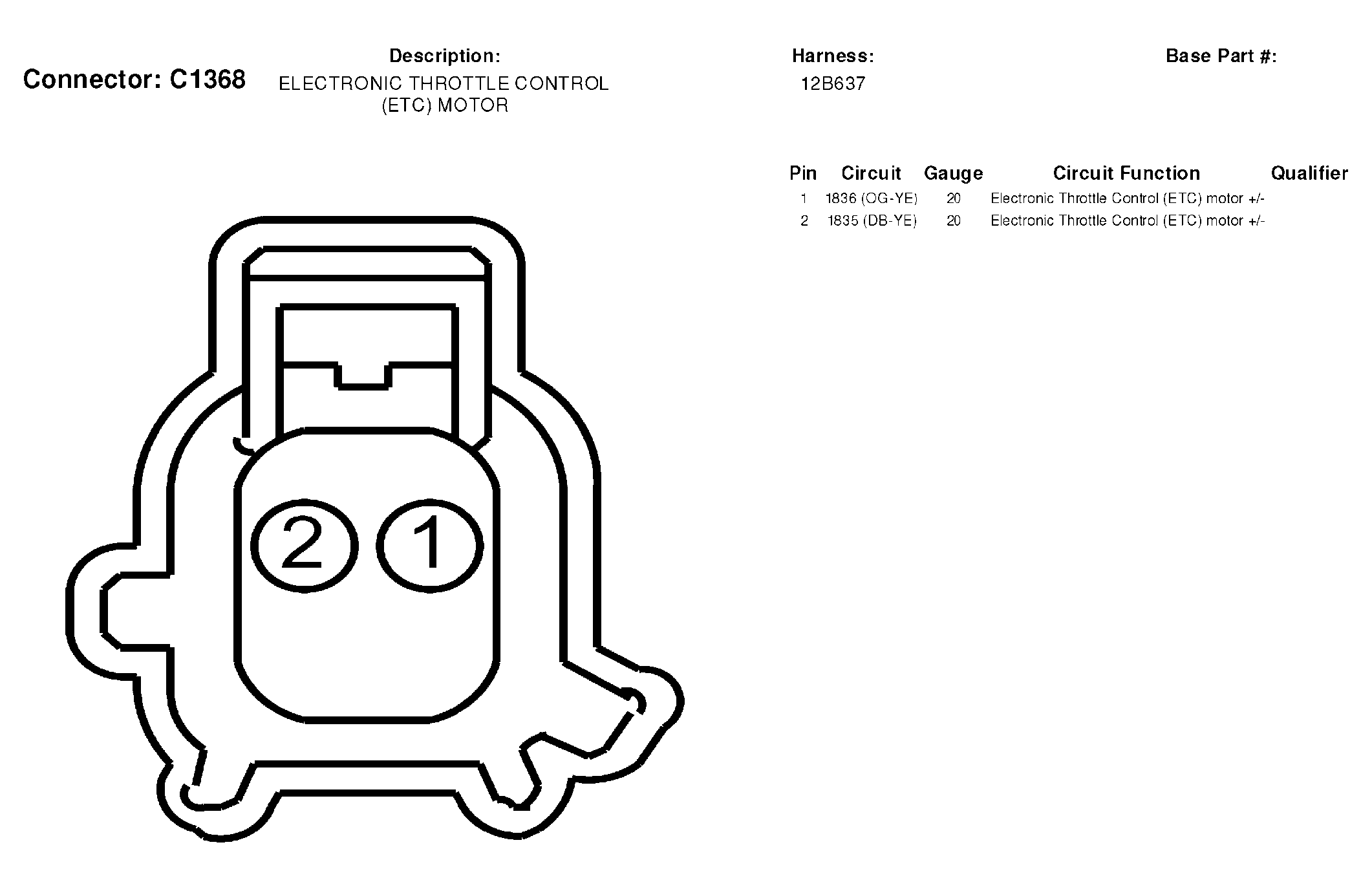

Fig 184: Electronic Throttle Control (ETC) Motor Connector End View (C1368)

G04598143

Courtesy of FORD MOTOR CO.

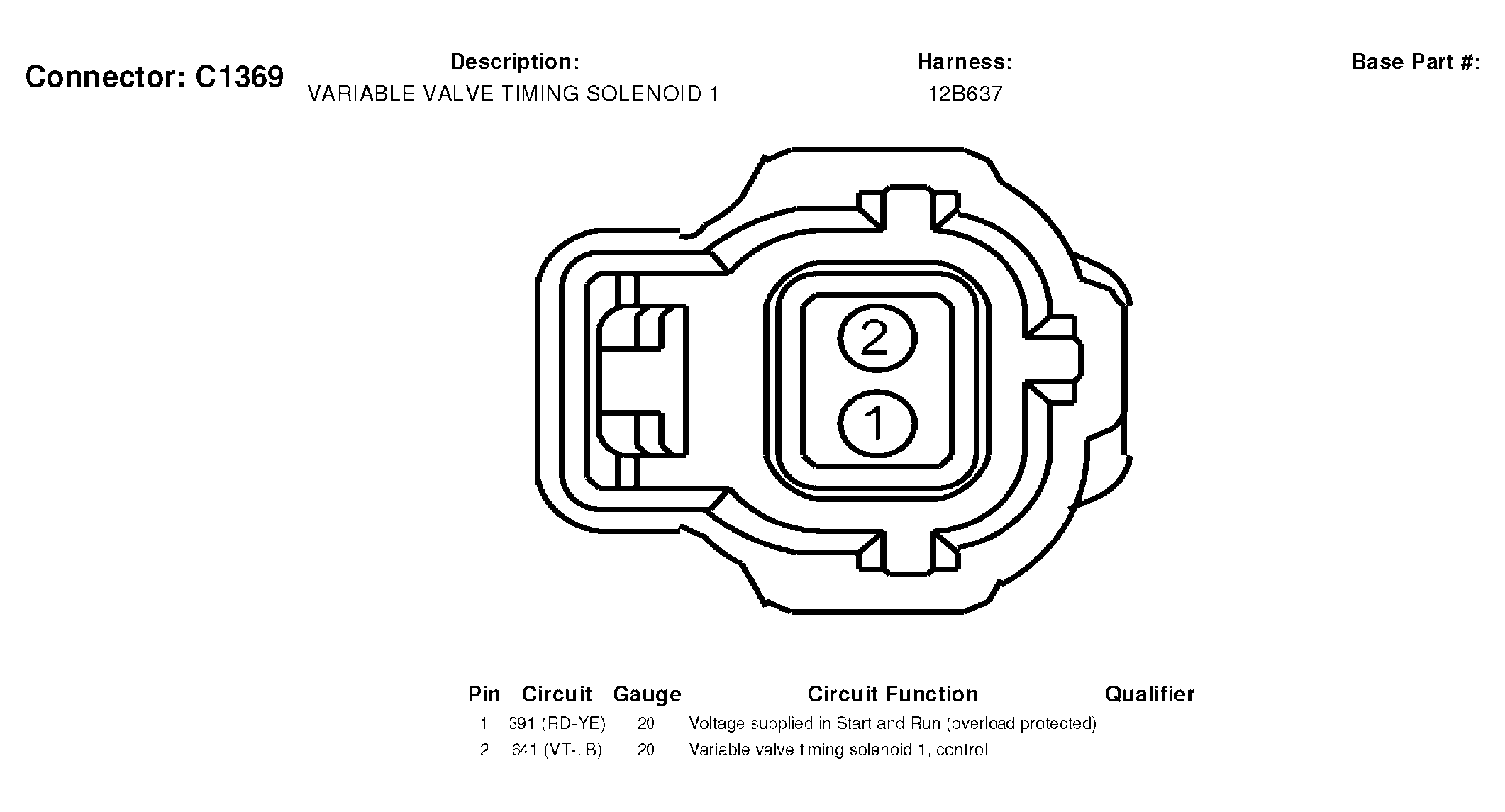

Fig 185: Variable Valve Timing Solenoid 1 Connector End View (C1369)

G04598144

Courtesy of FORD MOTOR CO.

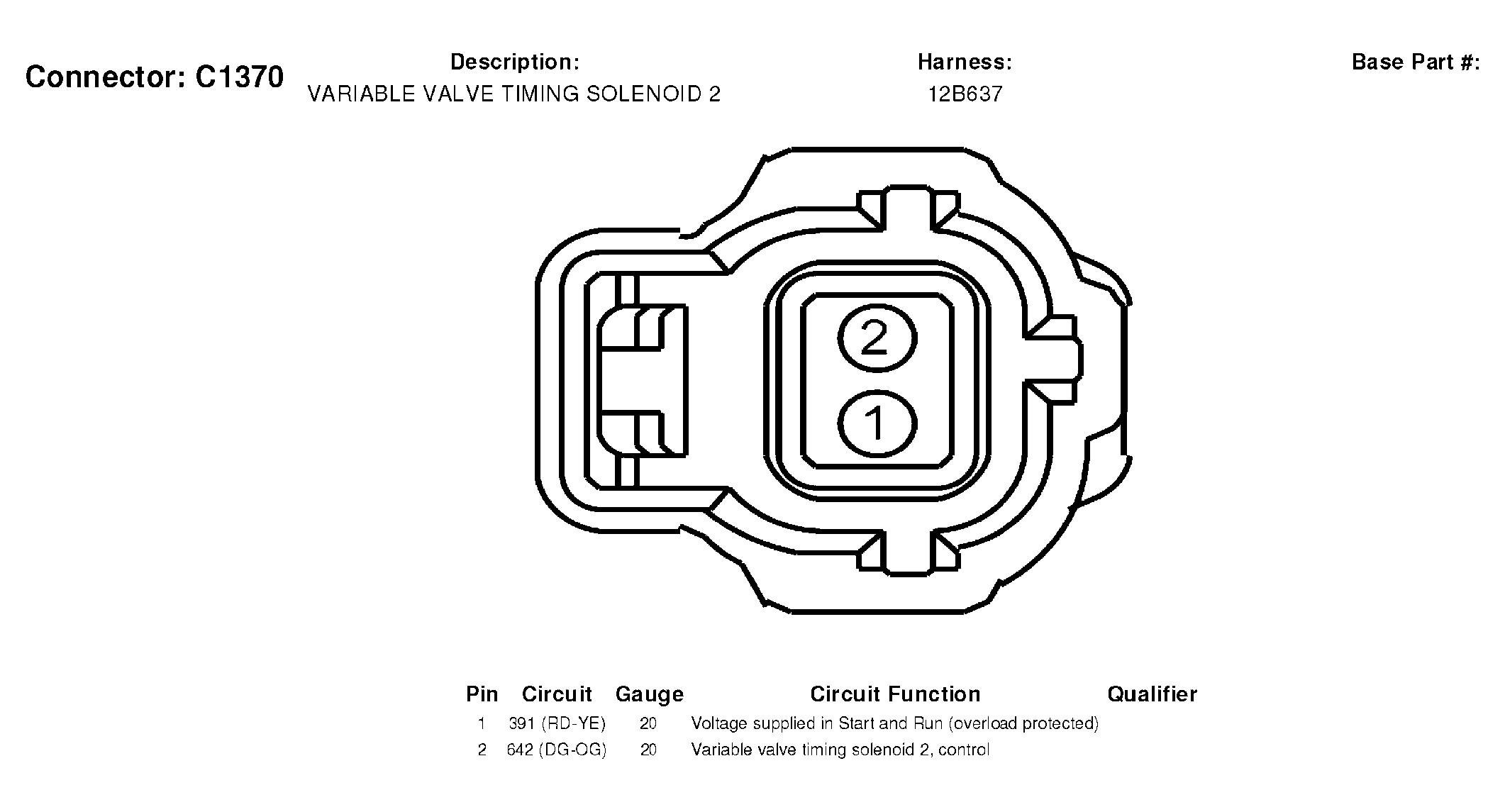

Fig 186: Variable Valve Timing Solenoid 2 Connector End View (C1370)

G04598145

Courtesy of FORD MOTOR CO.

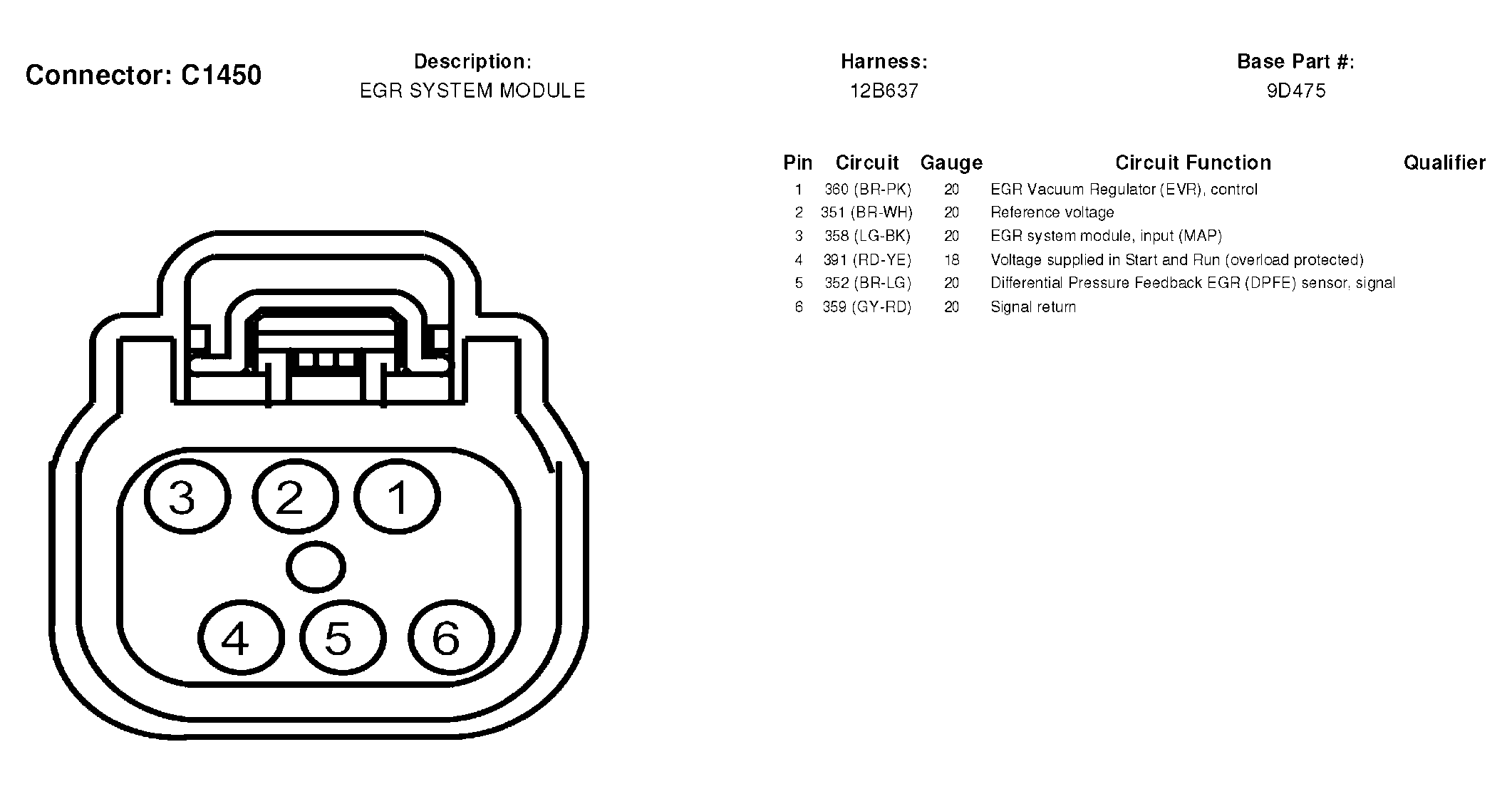

Fig 187: EGR System Module Connector End View (C1450)

G04598146

Courtesy of FORD MOTOR CO.

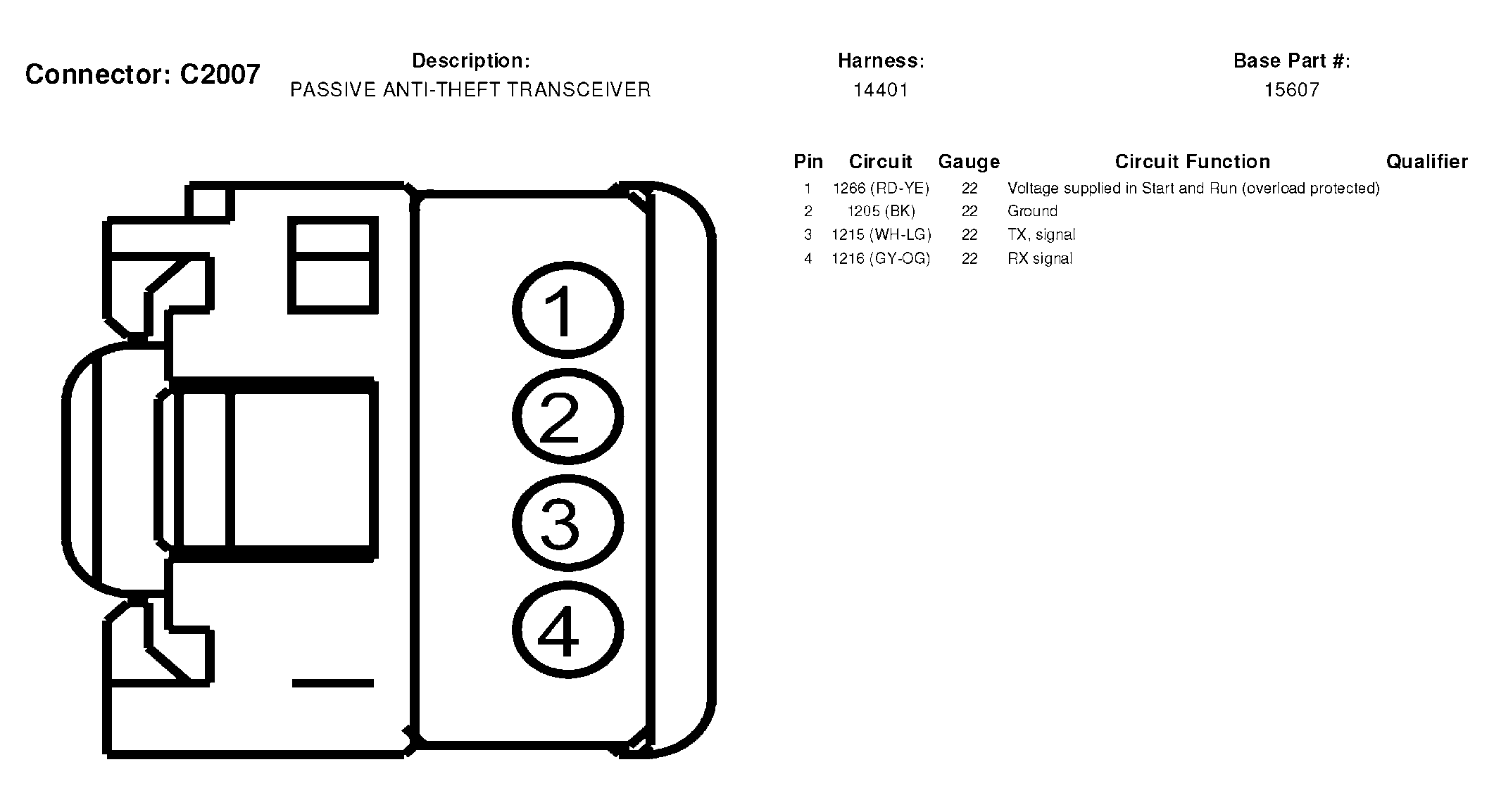

Fig 188: Passive Anti-Theft Transceiver Connector End View (C2007)

G04598147

Courtesy of FORD MOTOR CO.

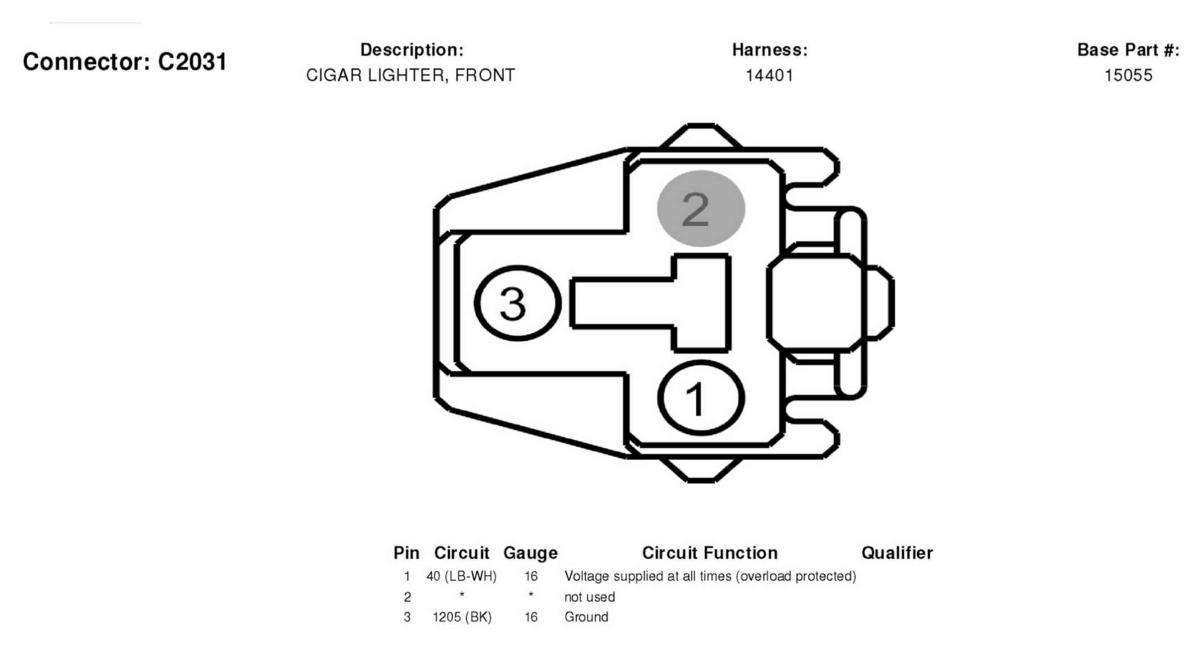

Fig 189: Cigar Lighter, Front Connector End View (C2031)

G04598148

Courtesy of FORD MOTOR CO.

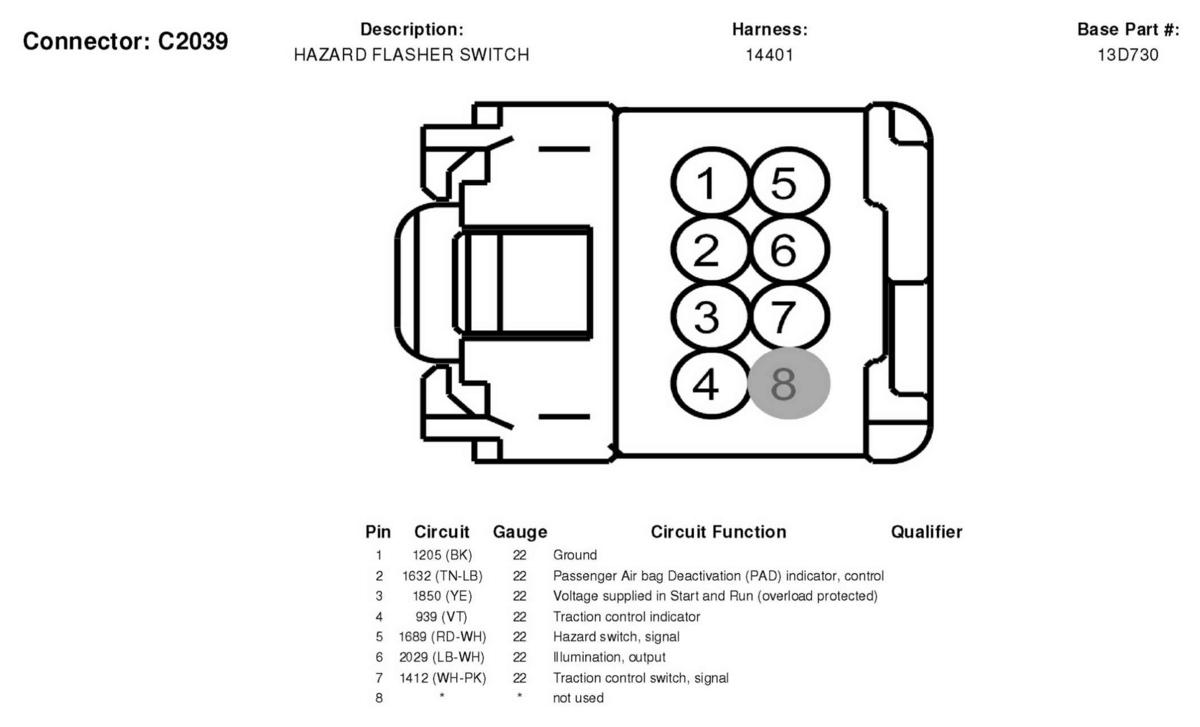

Fig 190: Hazard Flasher Switch Connector End View (C2039)

G04598149

Courtesy of FORD MOTOR CO.

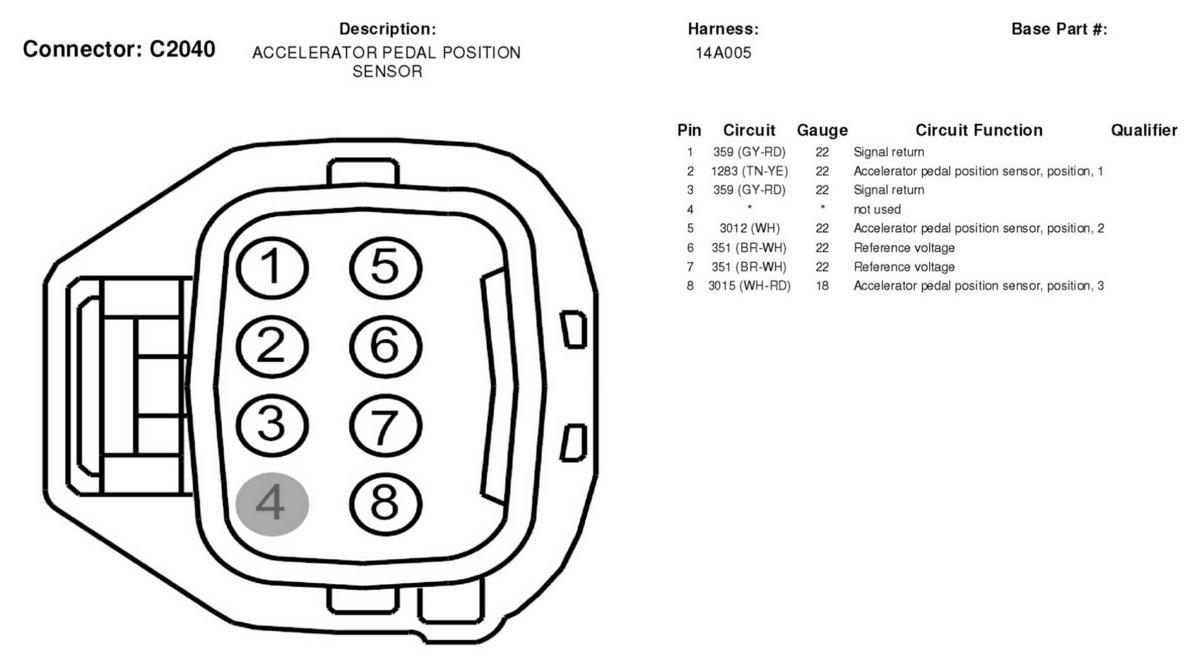

Fig 191: Accelerator Pedal Position Sensor Connector End View (C2040)

G04598150

Courtesy of FORD MOTOR CO.

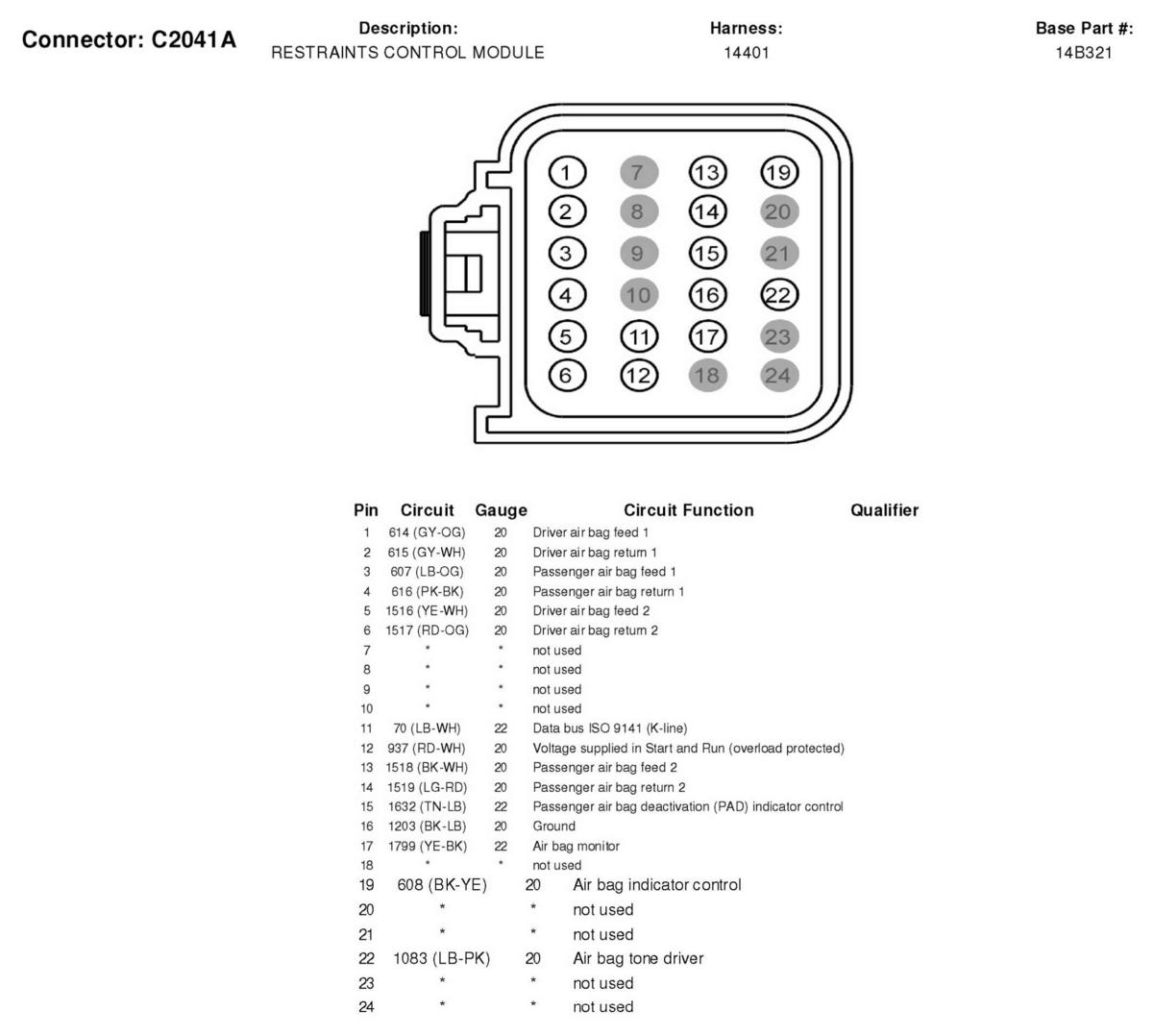

Fig 192: Restraints Control Module Connector End View (C2041A)

G04598151

Courtesy of FORD MOTOR CO.

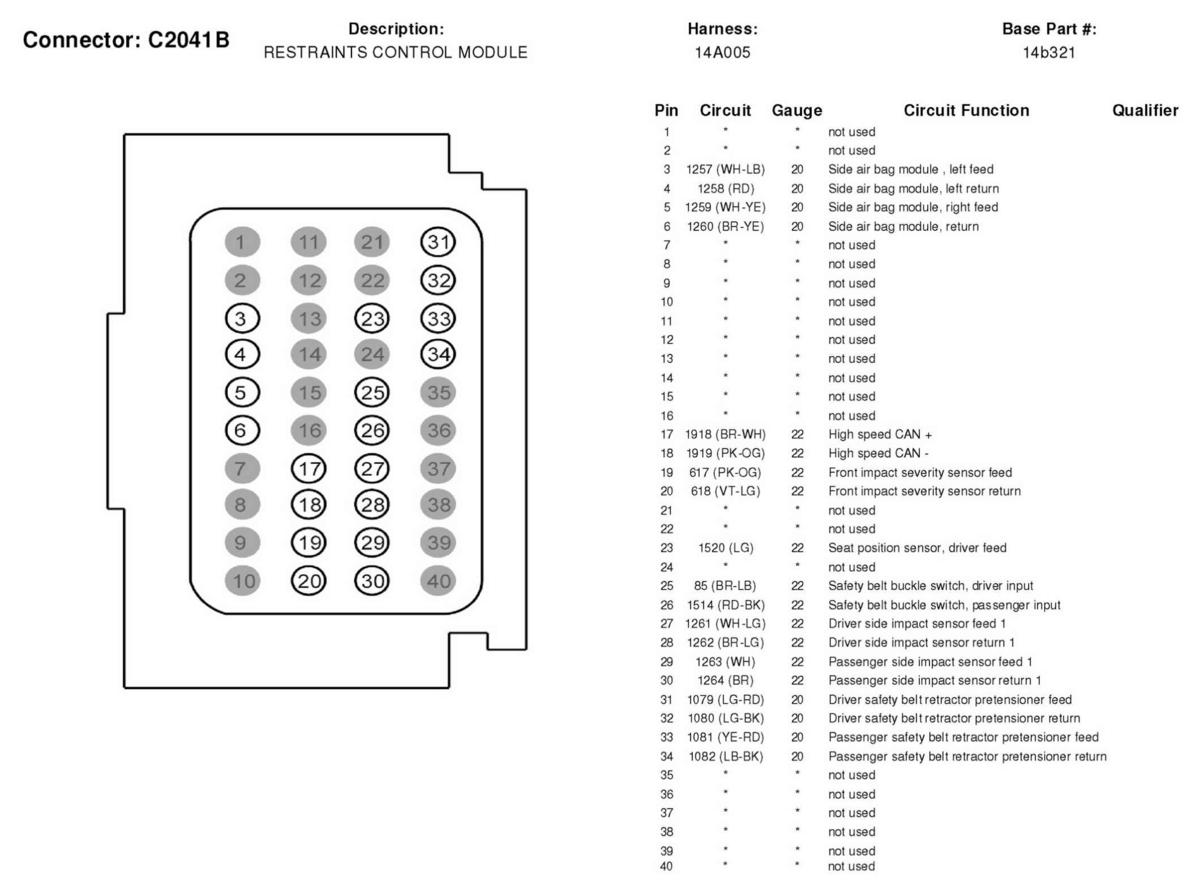

Fig 193: Restraints Control Module Connector End View (C2041B)

G04598152

Courtesy of FORD MOTOR CO.

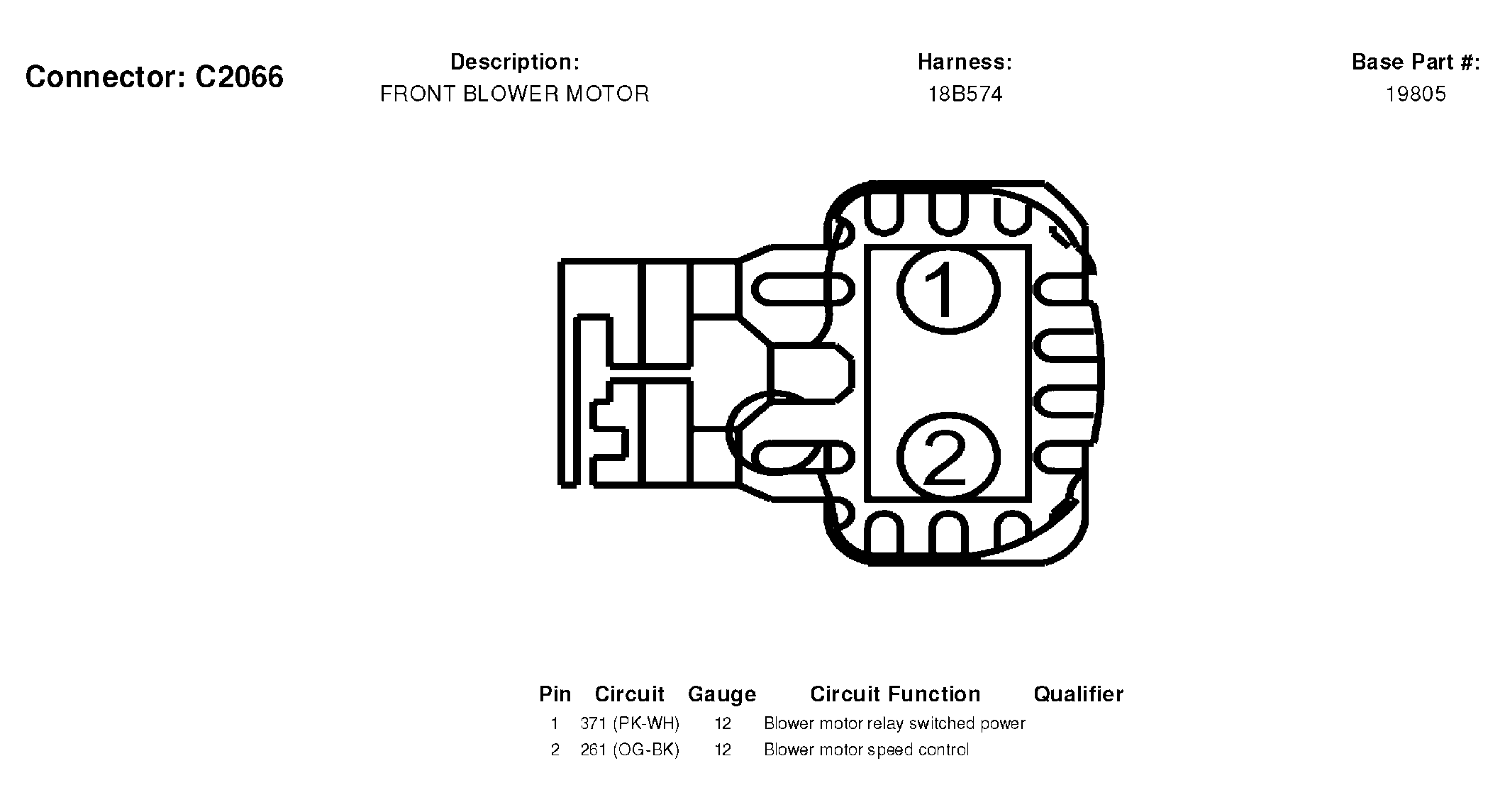

Fig 194: Front Blower Motor Connector End View (C2066)

G04598153

Courtesy of FORD MOTOR CO.

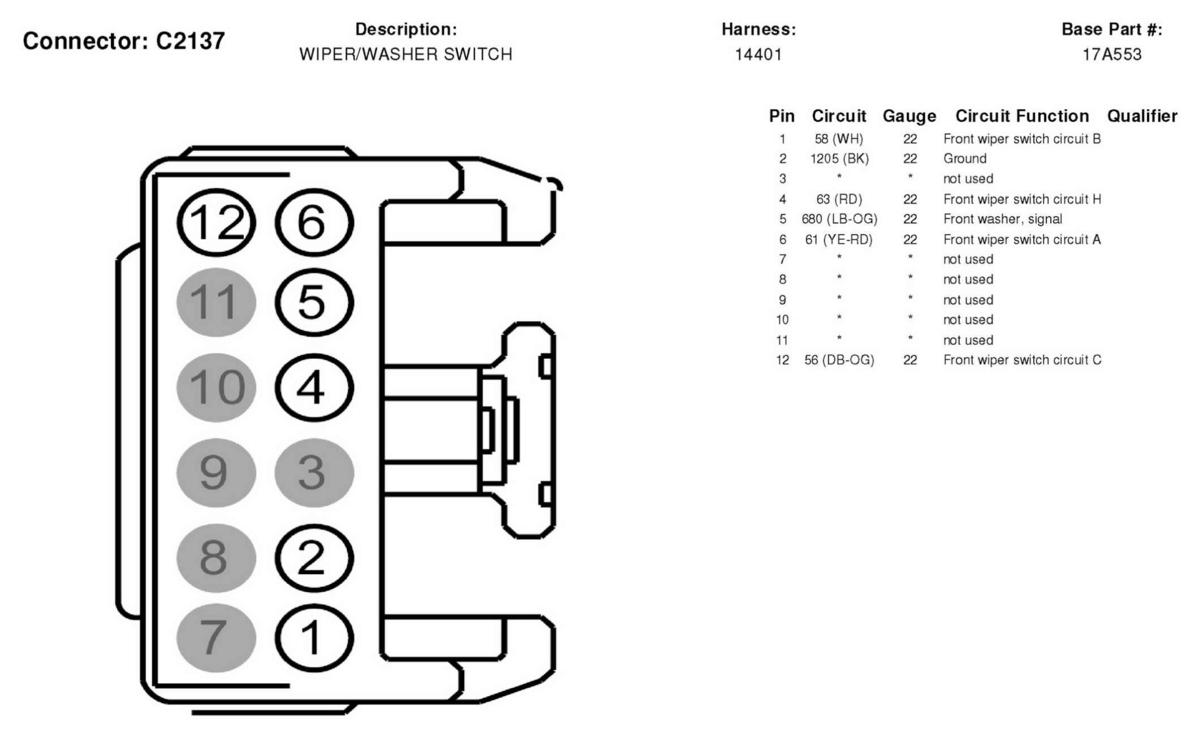

Fig 195: Wiper/Washer Switch Connector End View (C2137)

G04598154

Courtesy of FORD MOTOR CO.

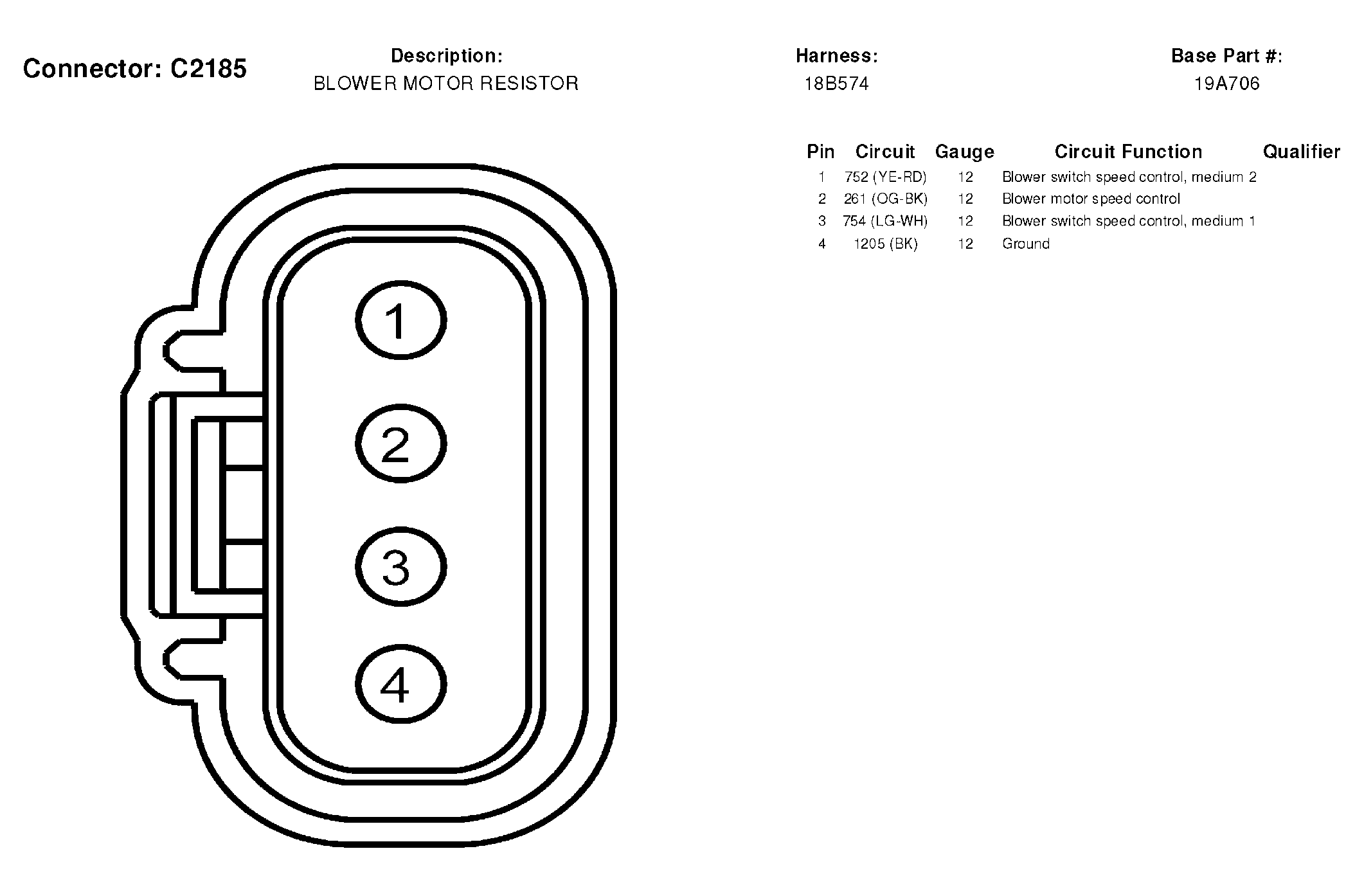

Fig 196: Blower Motor Resistor Connector End View (C2185)

G04598155

Courtesy of FORD MOTOR CO.

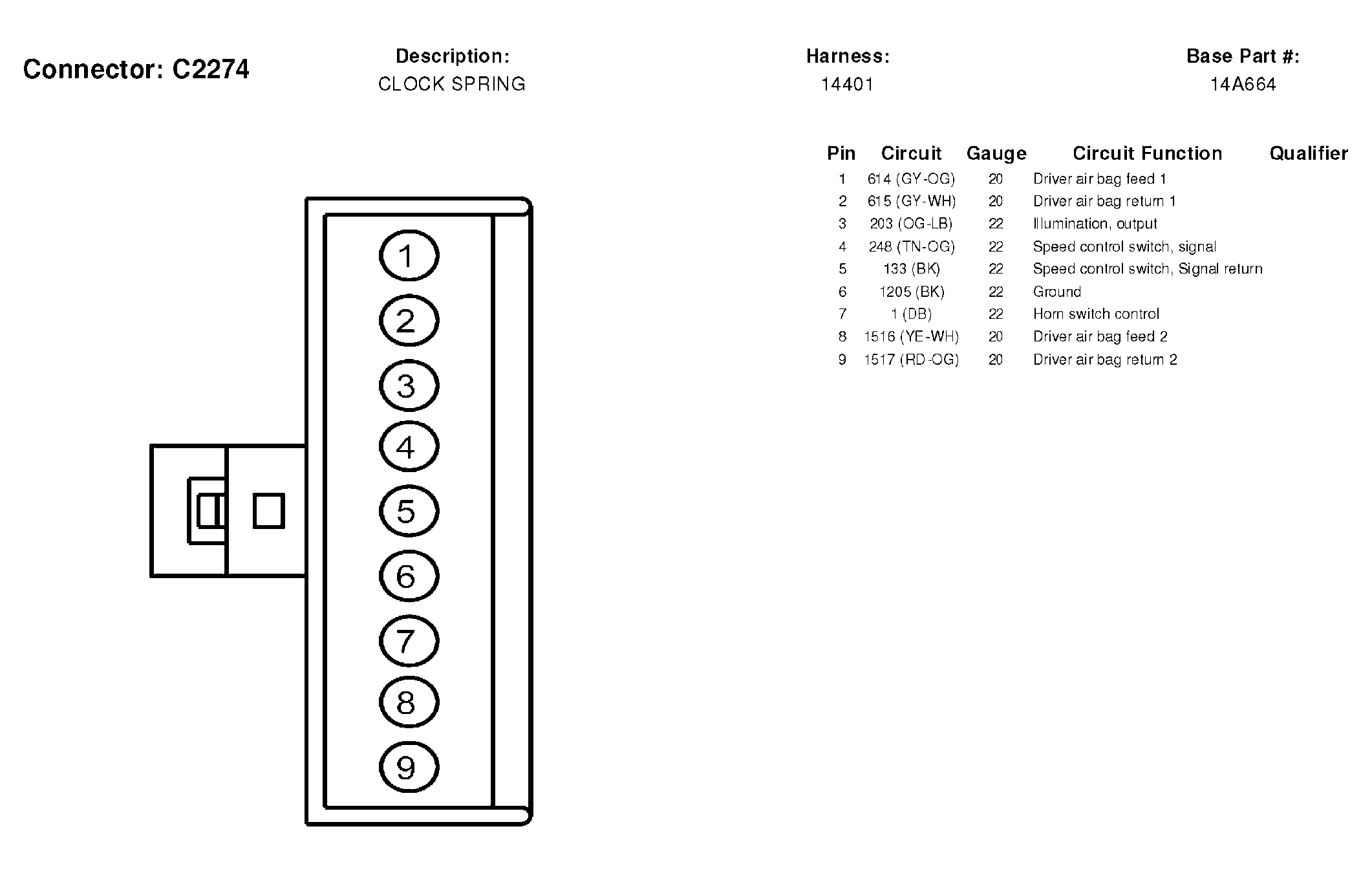

Fig 197: Clock Spring Connector End View (C2274)

G04598156

Courtesy of FORD MOTOR CO.

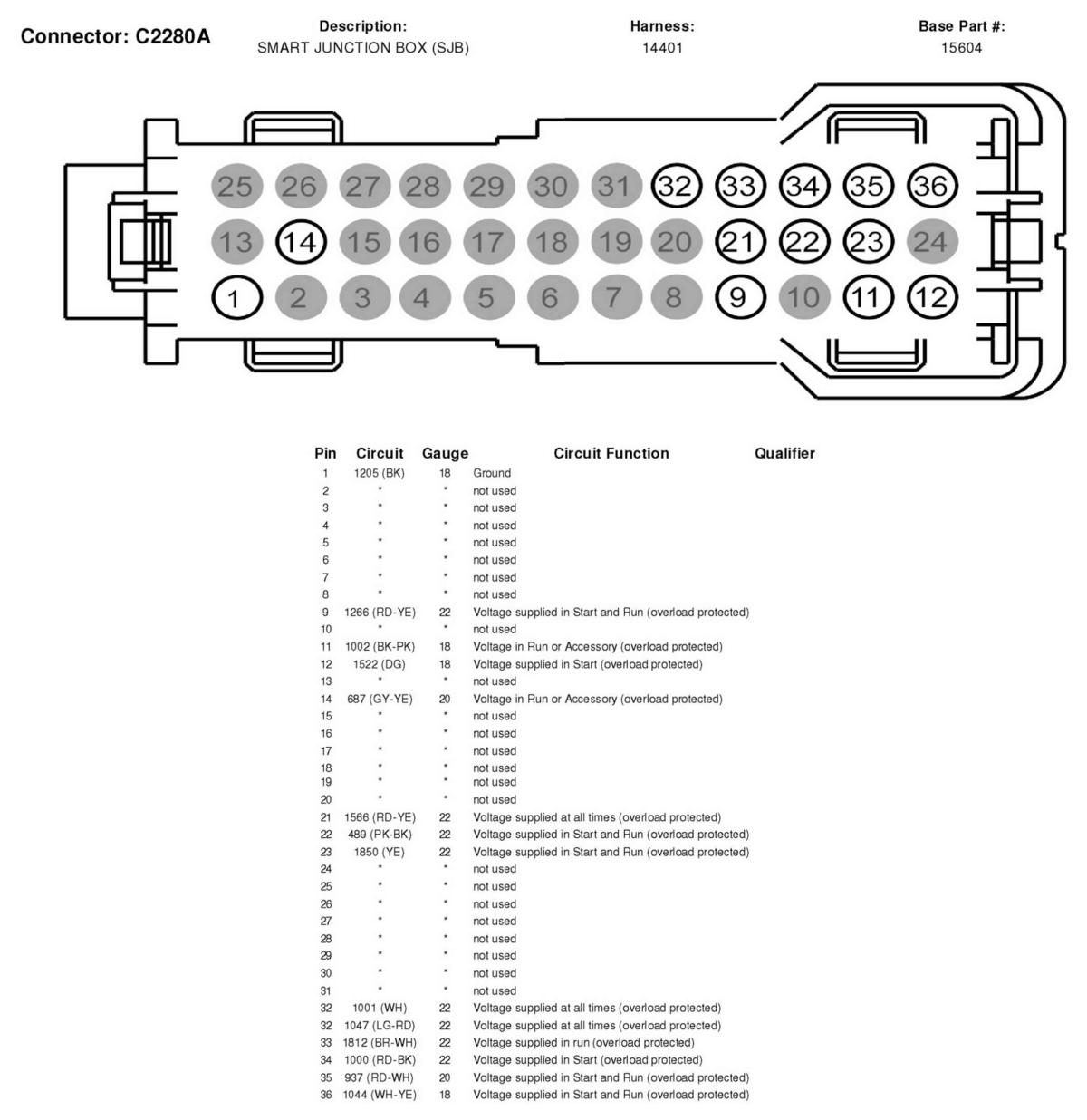

Fig 198: Smart Junction Box (SJB) Connector End View (C2280A)

G04598157

Courtesy of FORD MOTOR CO.

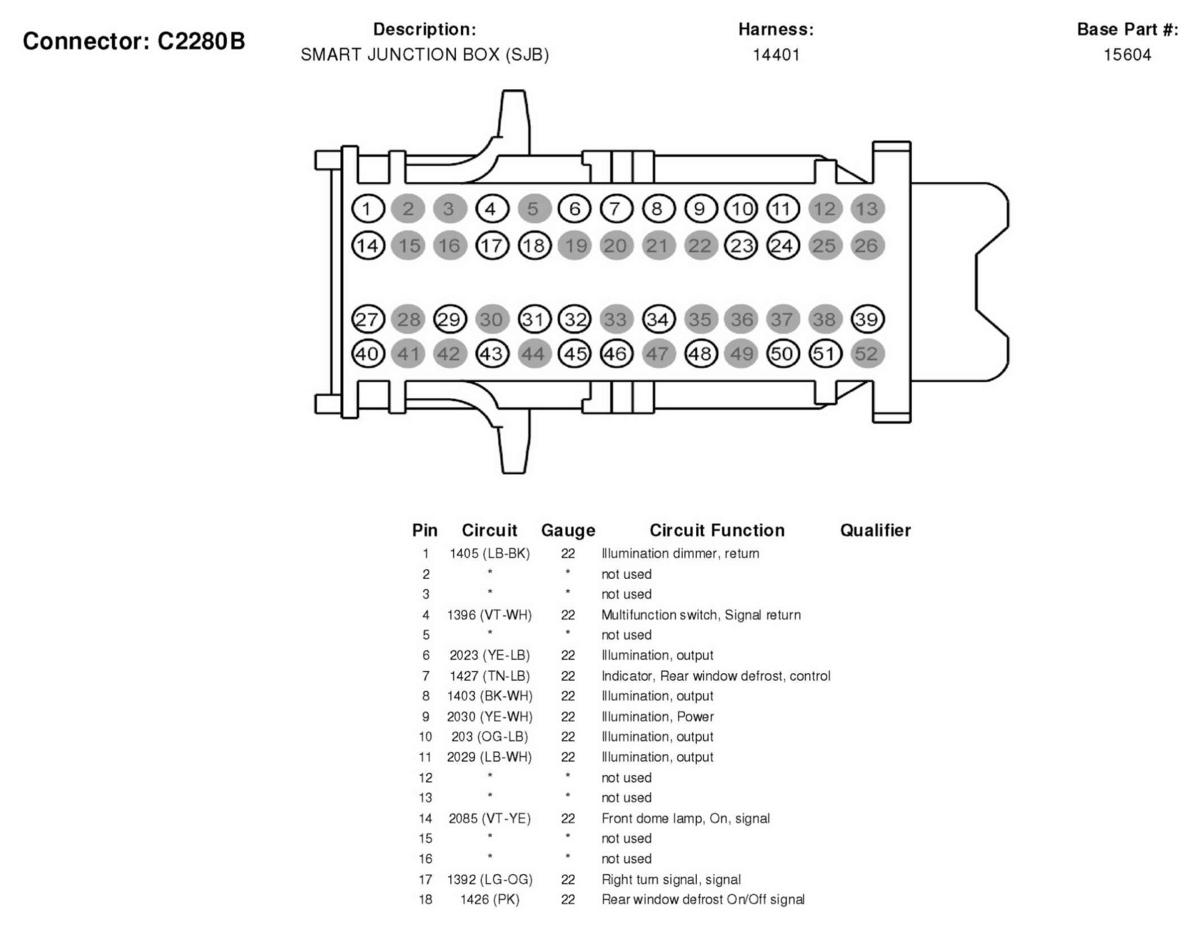

Fig 199: Smart Junction Box (SJB) Connector End View (C2280B) (1 Of 2)

G04598158

Courtesy of FORD MOTOR CO.

Fig 200: Smart Junction Box (SJB) Connector End View (C2280B) (2 Of 2)

G04598159

Courtesy of FORD MOTOR CO.

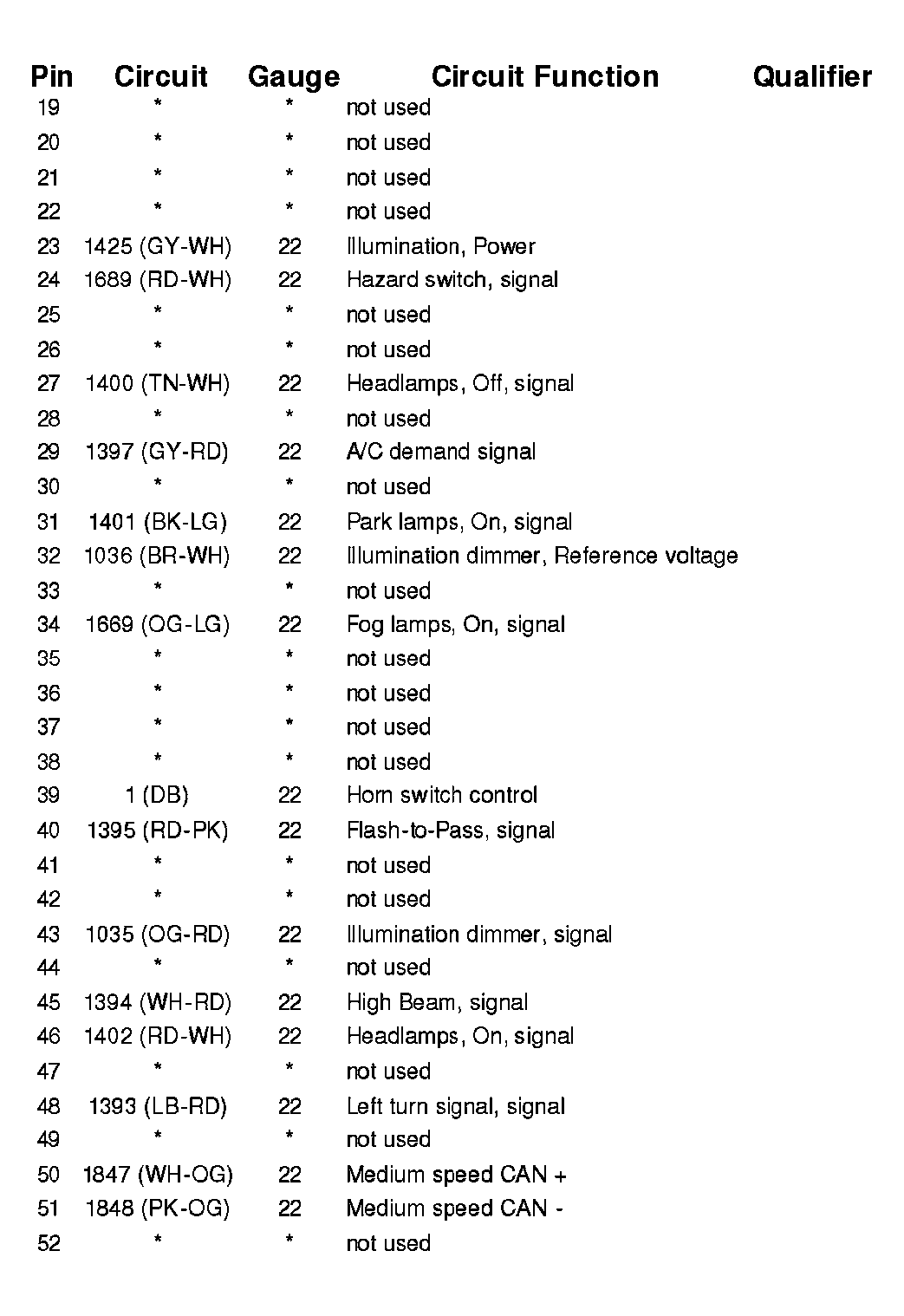

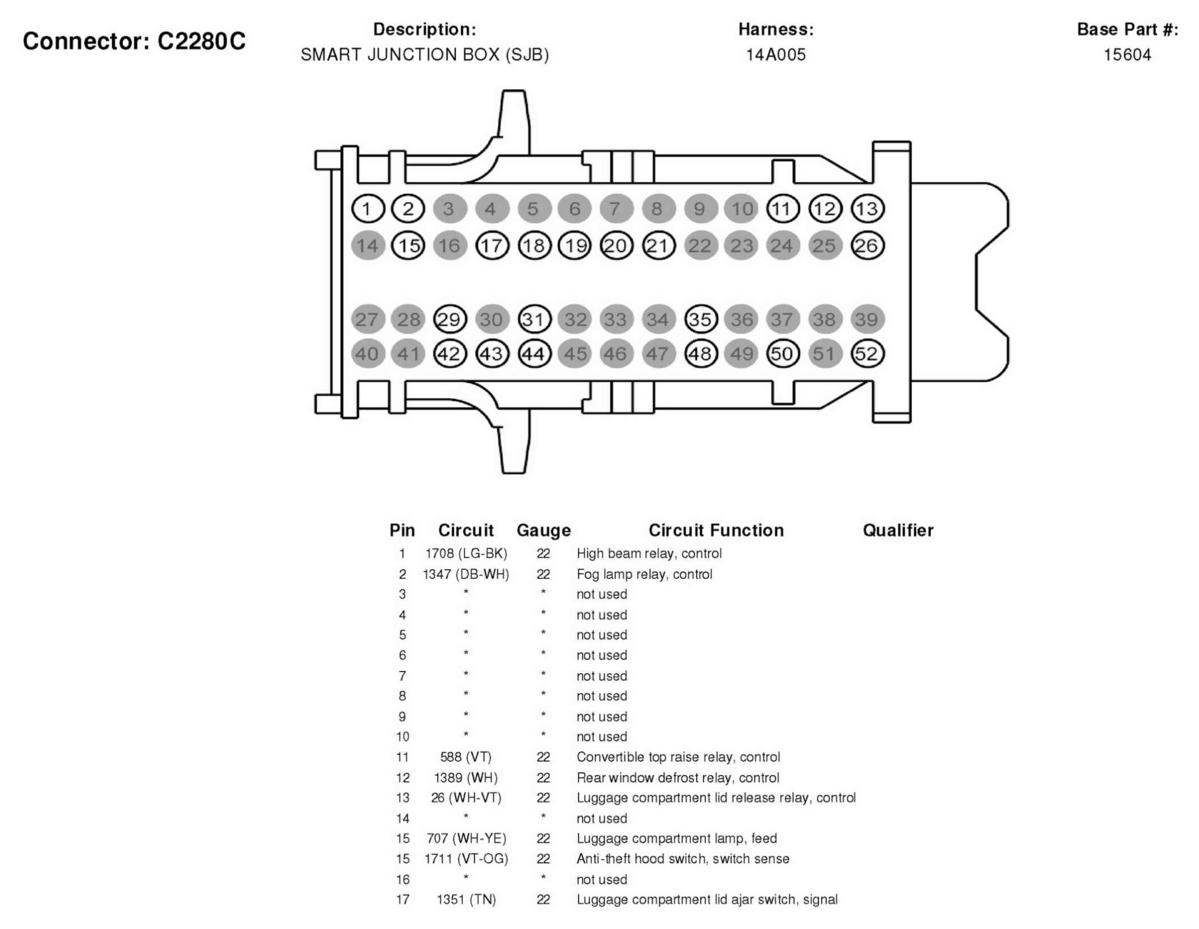

Fig 201: Smart Junction Box (SJB) Connector End View (C2280C) (1 Of 2)

G04598160

Courtesy of FORD MOTOR CO.

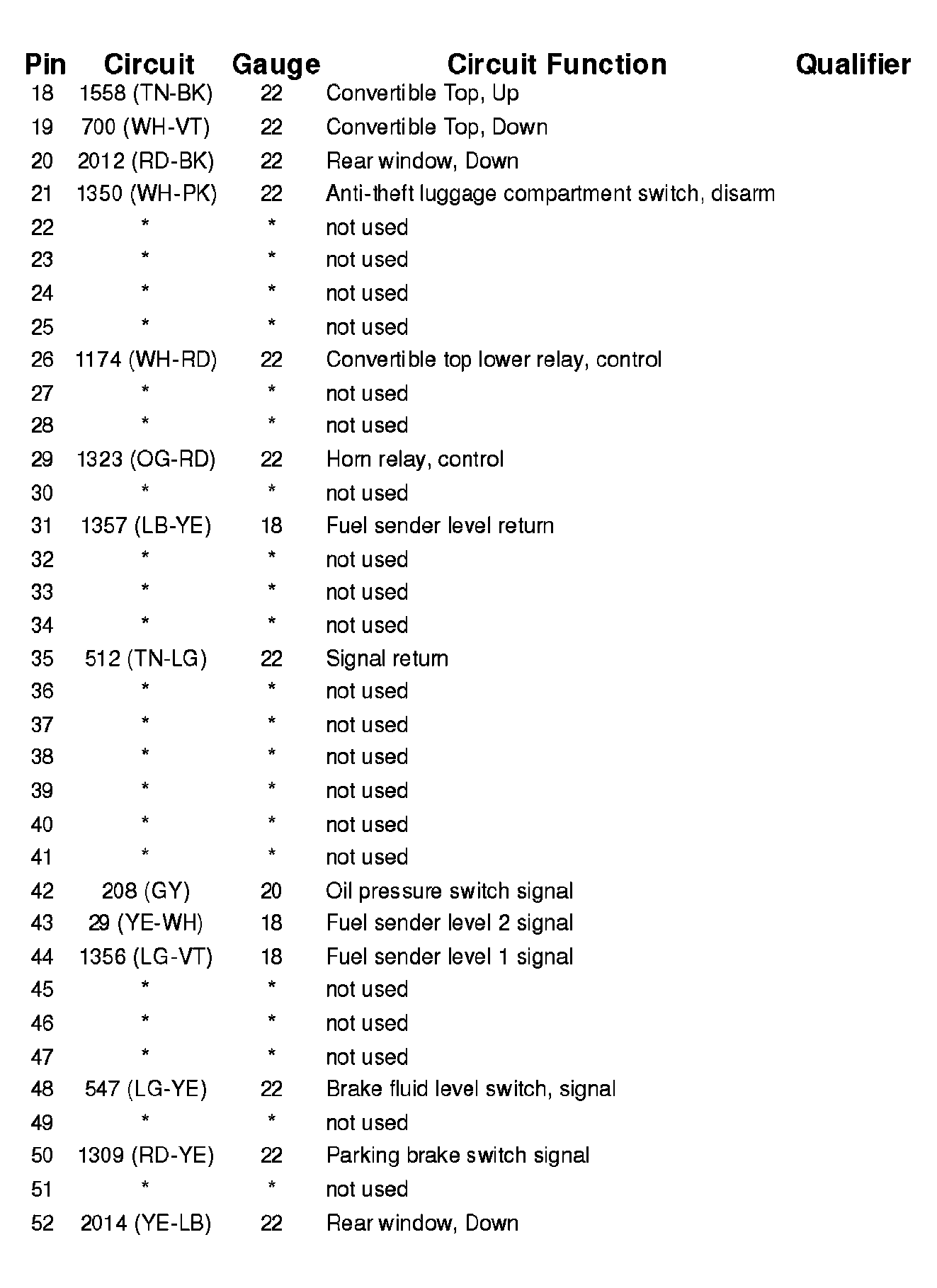

Fig 202: Smart Junction Box (SJB) Connector End View (C2280C) (2 Of 2)

G04598161

Courtesy of FORD MOTOR CO.

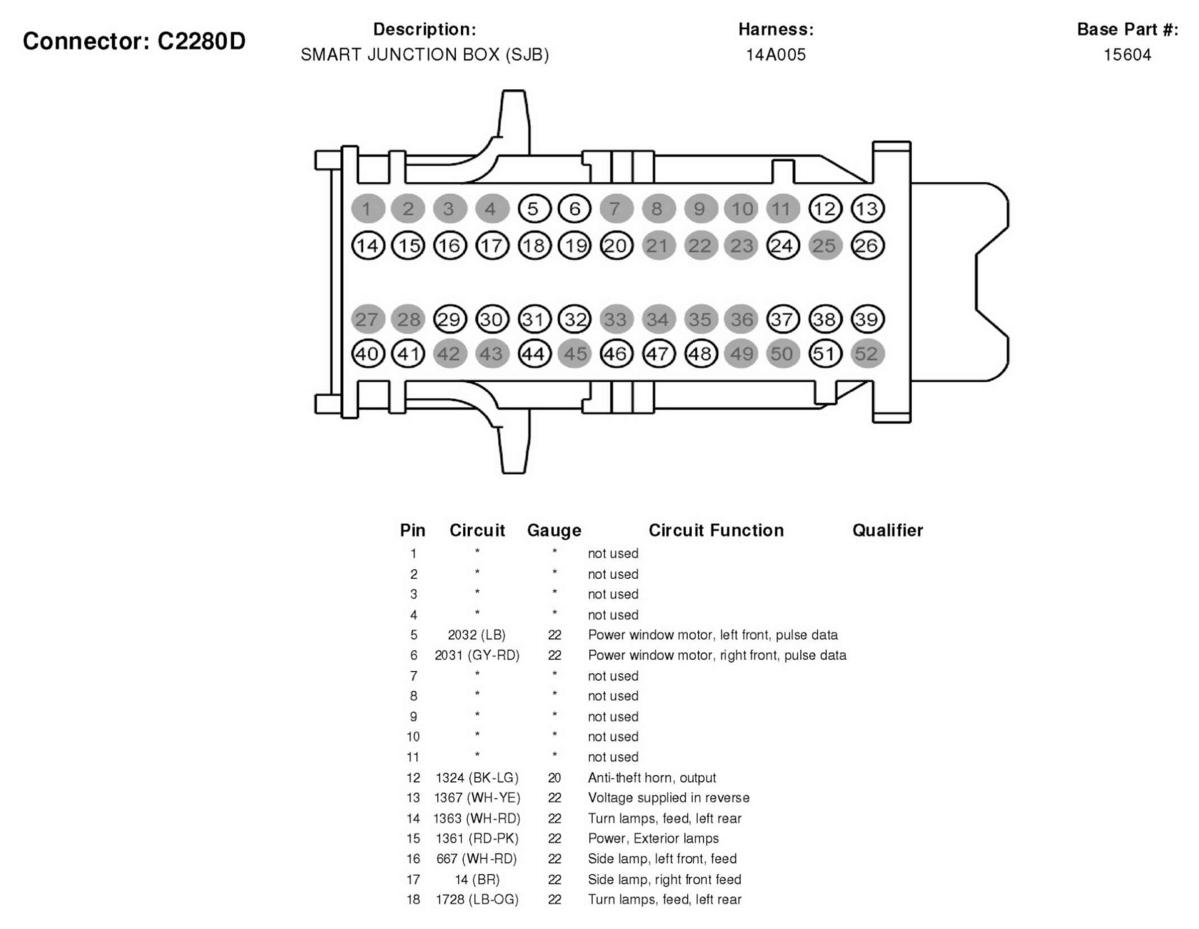

Fig 203: Smart Junction Box (SJB) Connector End View (C2280D) (1 Of 2)

G04598162

Courtesy of FORD MOTOR CO.

Fig 204: Smart Junction Box (SJB) Connector End View (C2280D) (2 Of 2)

G04598163

Courtesy of FORD MOTOR CO.

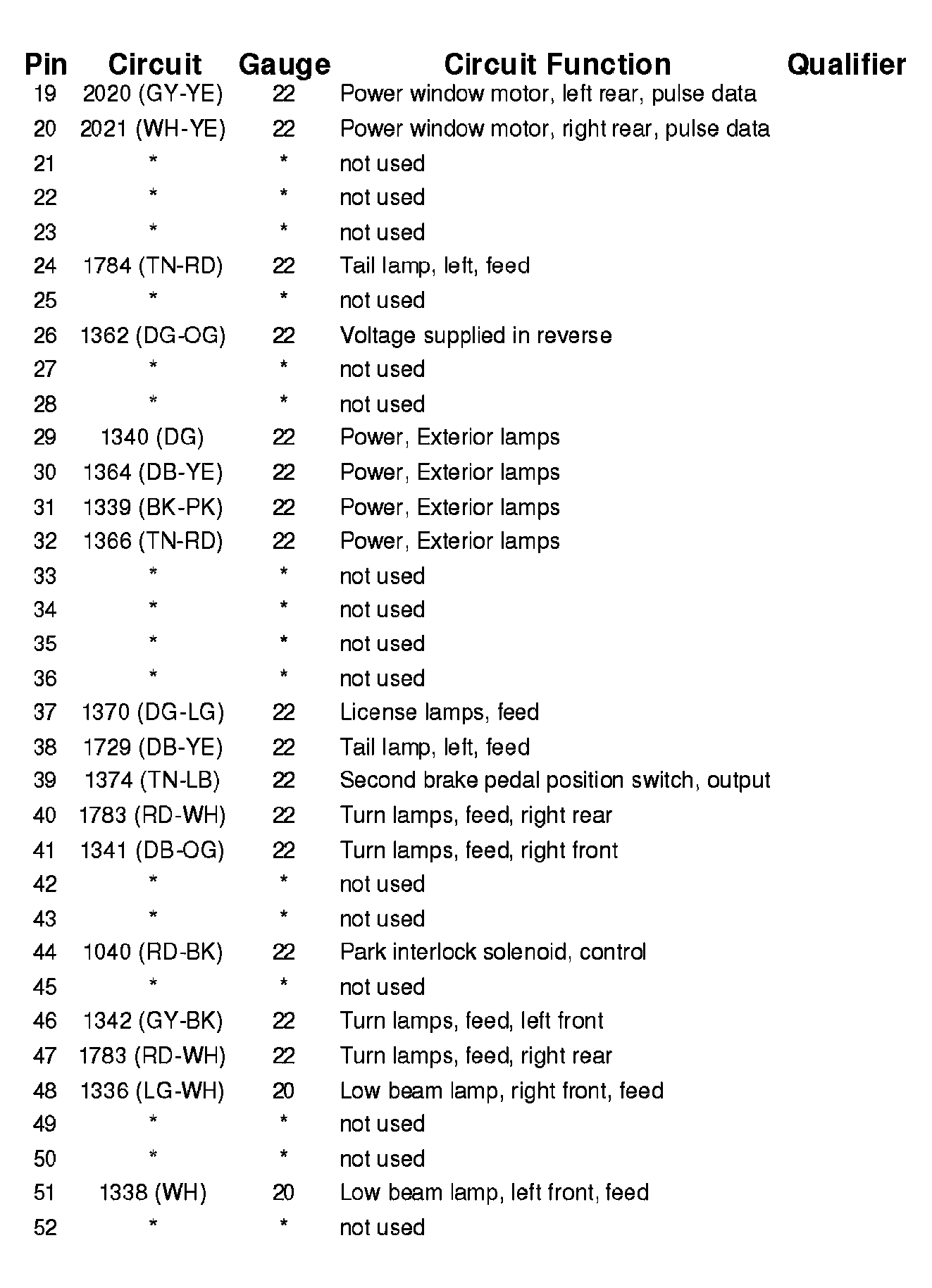

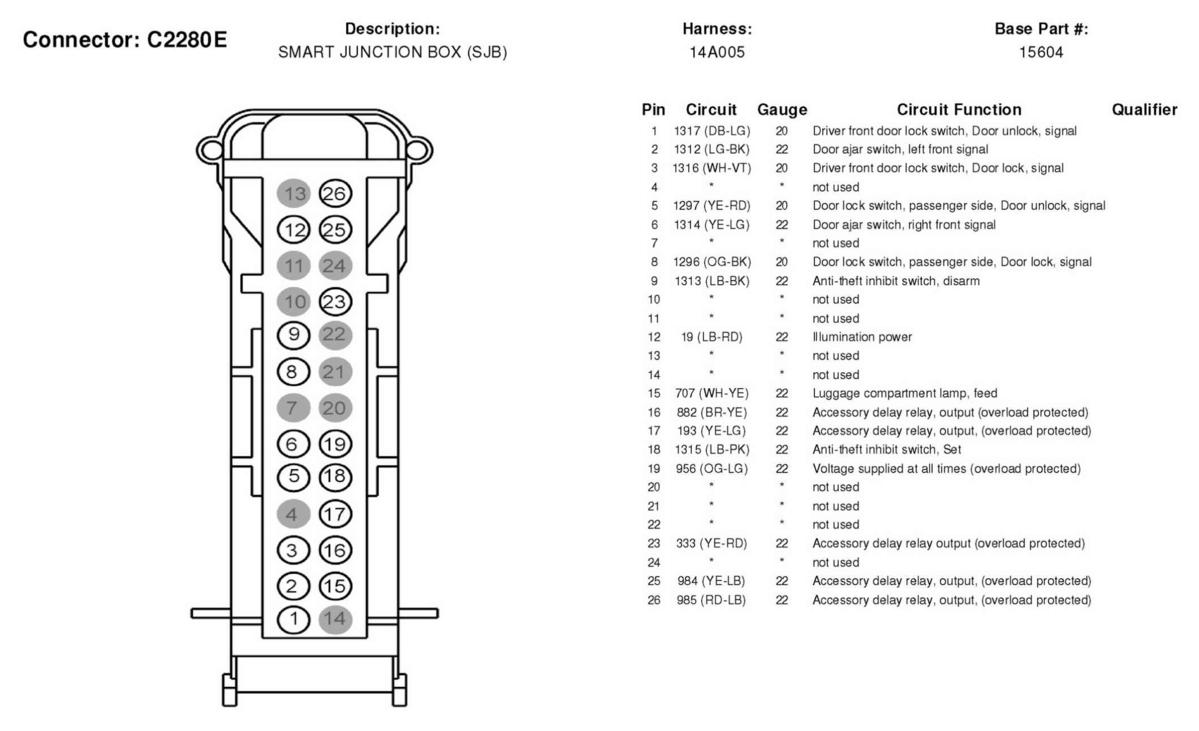

Fig 205: Smart Junction Box (SJB) Connector End View (C2280E)

G04598164

Courtesy of FORD MOTOR CO.

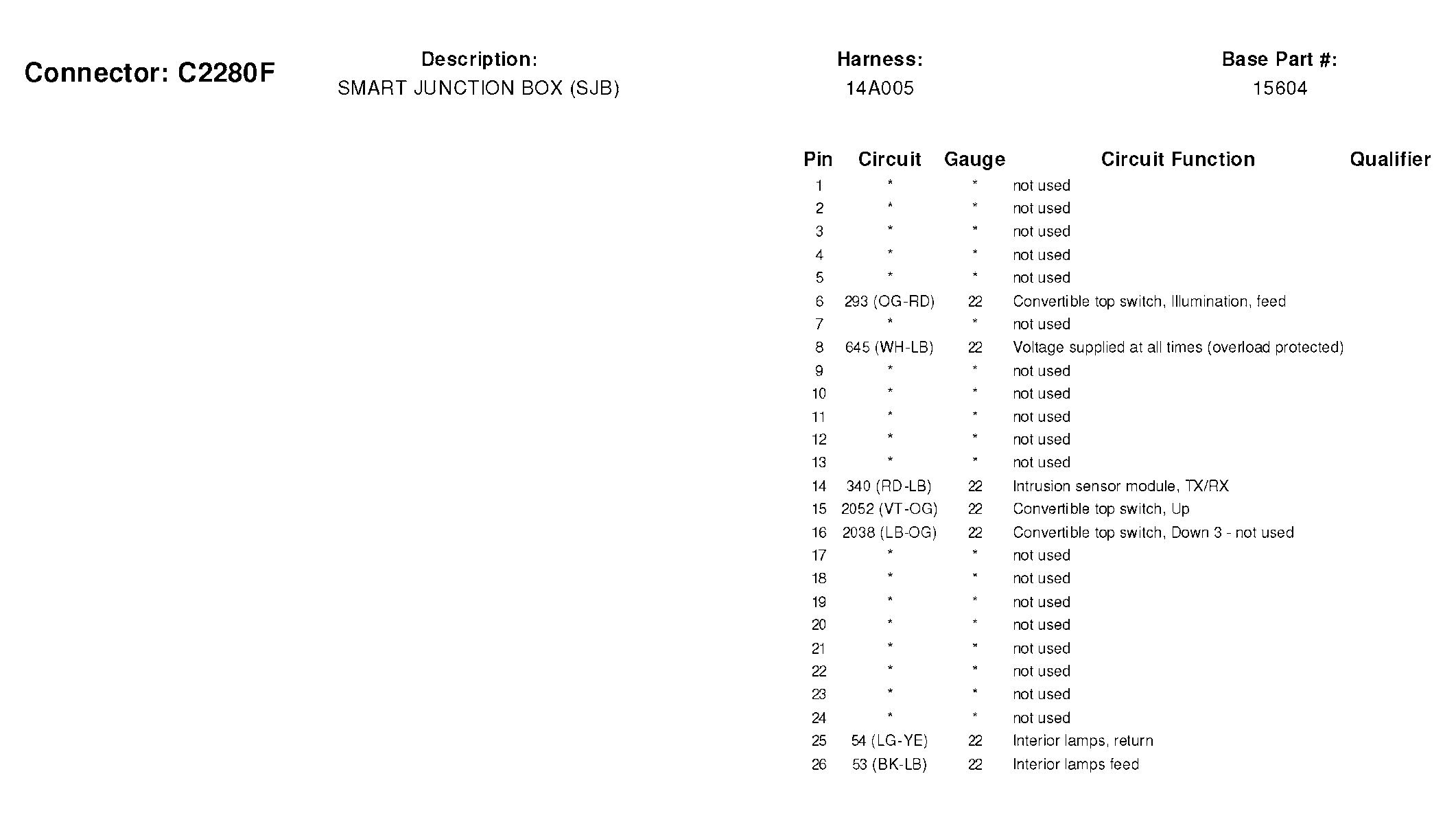

Fig 206: Smart Junction Box (SJB) Connector End View (C2280F)

G04598165

Courtesy of FORD MOTOR CO.

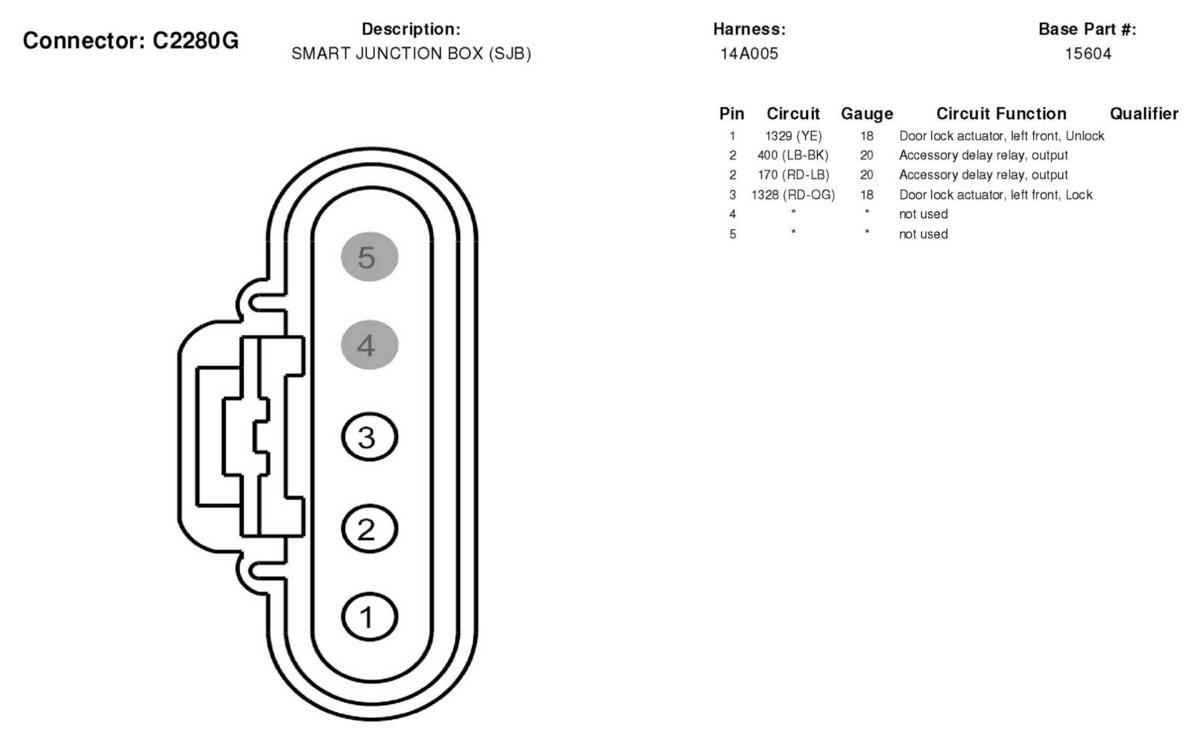

Fig 207: Smart Junction Box (SJB) Connector End View (C2280G)

G04598166

Courtesy of FORD MOTOR CO.

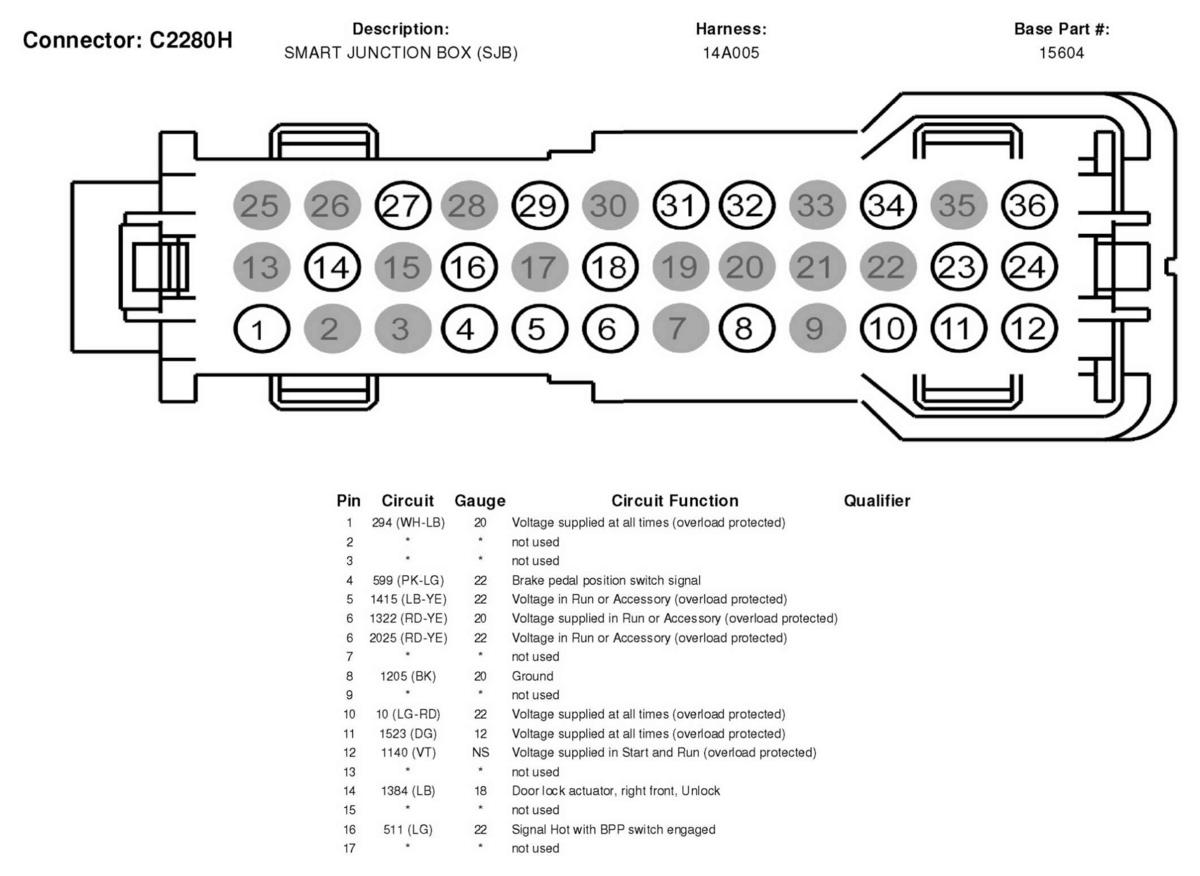

Fig 208: Smart Junction Box (SJB) Connector End View (C2280H) (1 Of 2)

G04598167

Courtesy of FORD MOTOR CO.

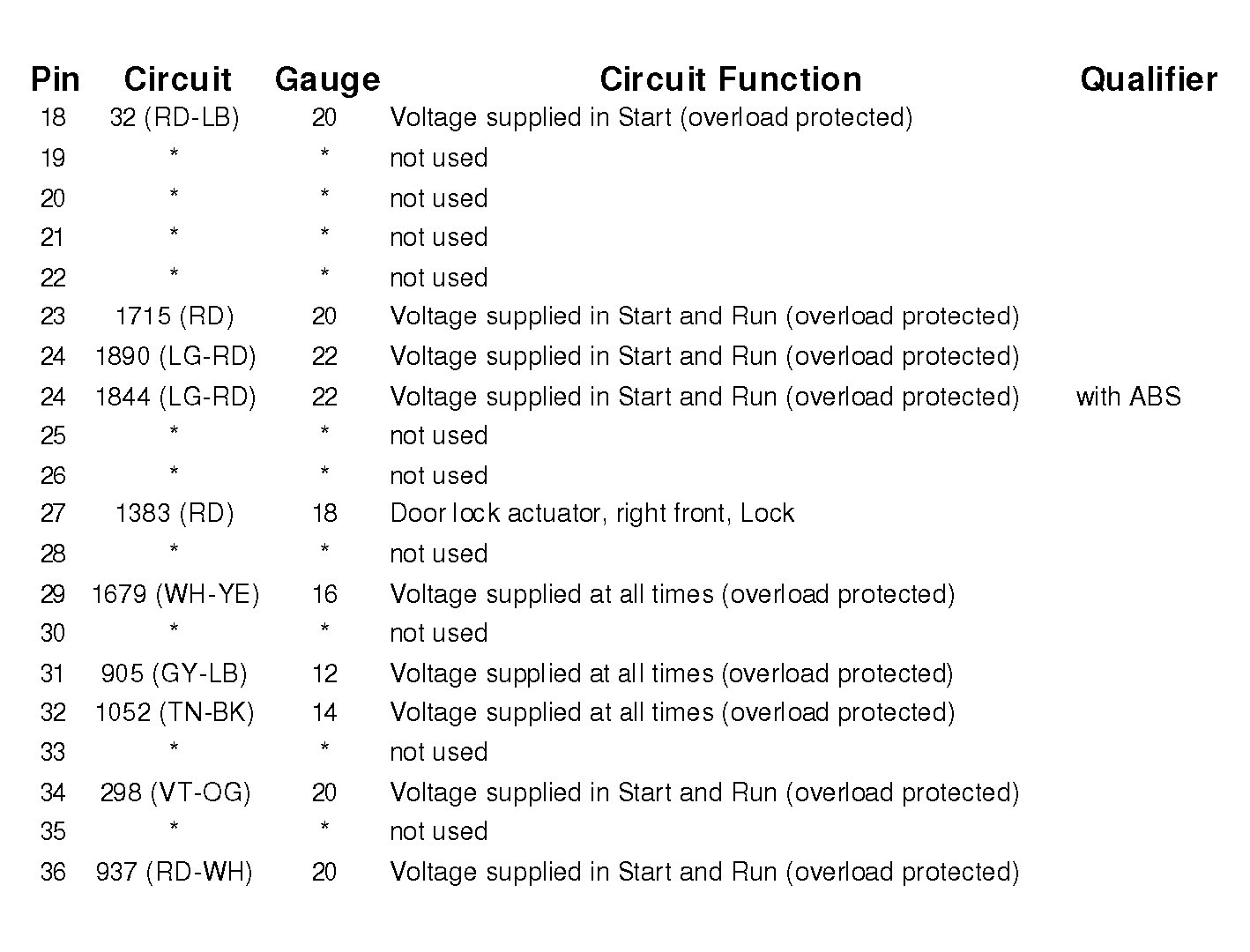

Fig 209: Smart Junction Box (SJB) Connector End View (C2280H) (2 Of 2)

G04598168

Courtesy of FORD MOTOR CO.

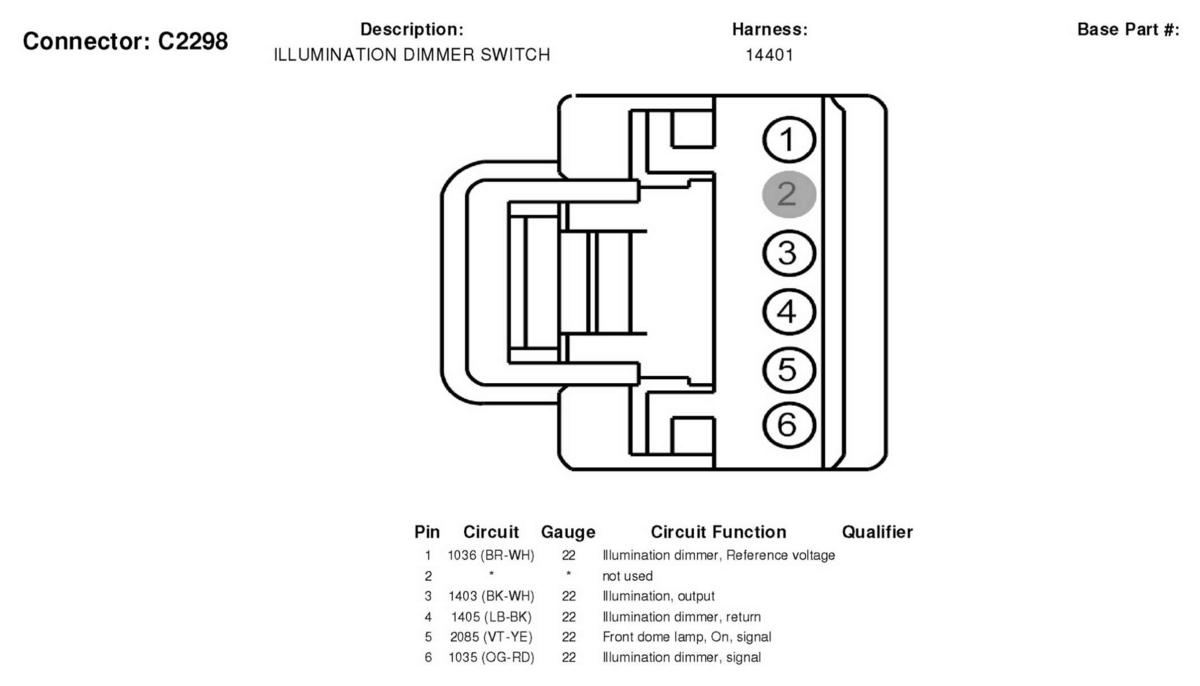

Fig 210: Illumination Dimmer Switch Connector End View (C2298)

G04598169

Courtesy of FORD MOTOR CO.

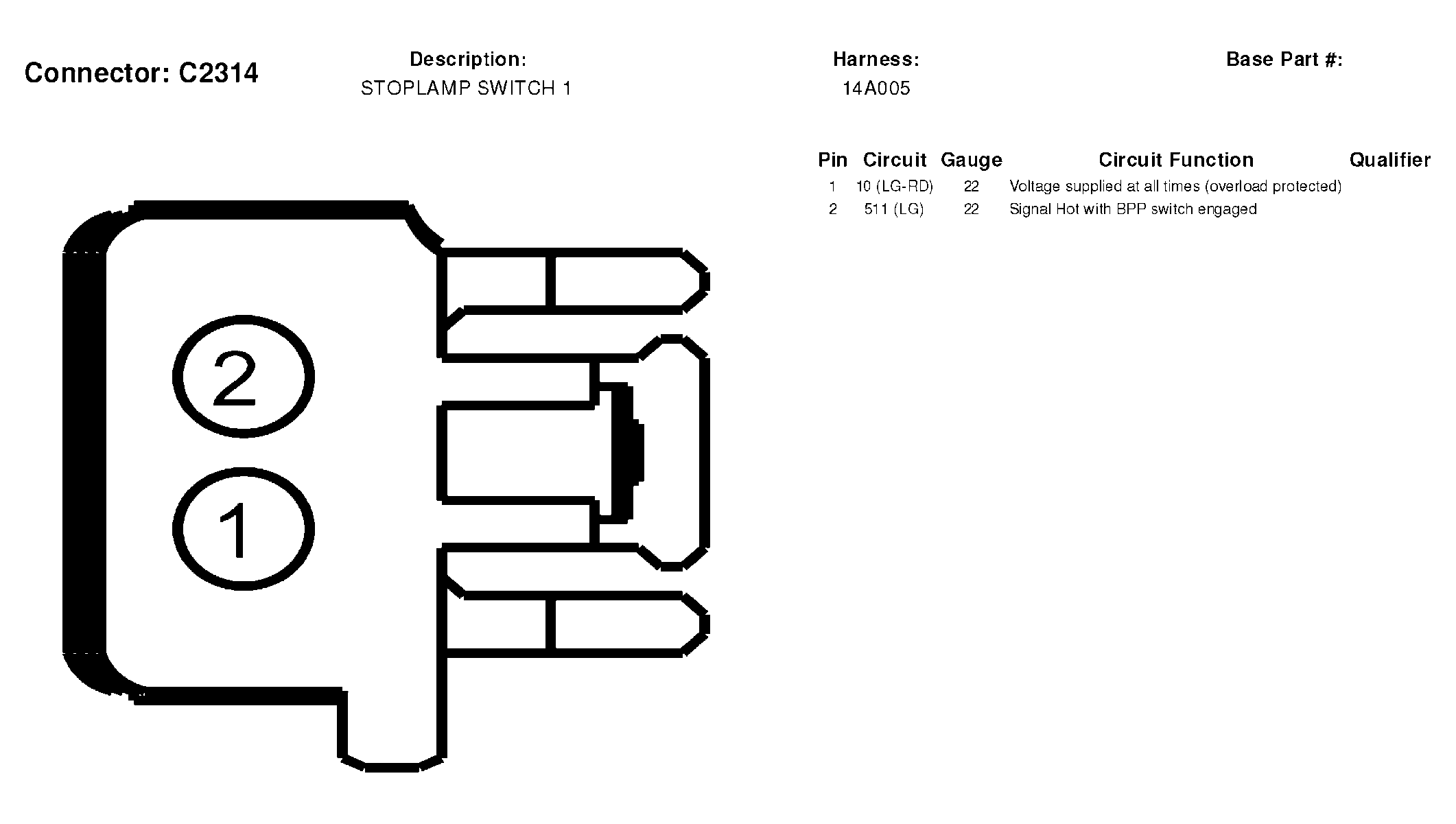

Fig 211: Stoplamp Switch 1 Connector End View (C2314)

G04598170

Courtesy of FORD MOTOR CO.

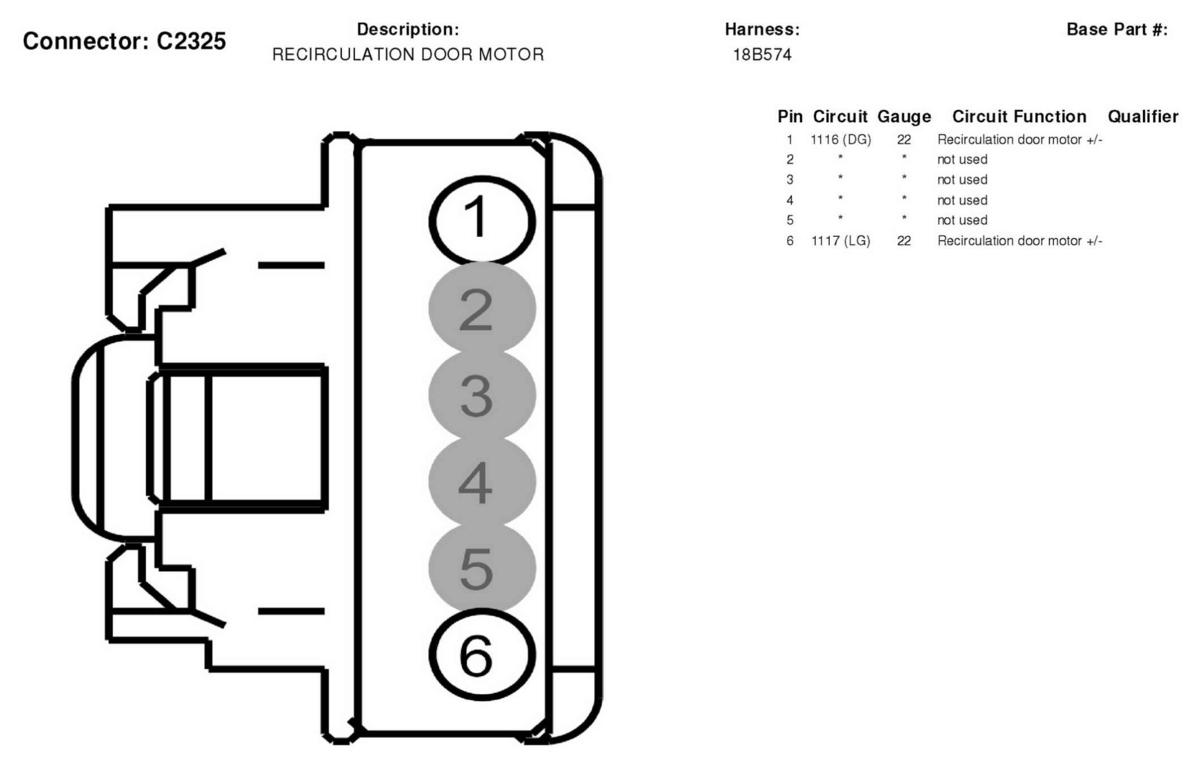

Fig 212: Recirculation Door Motor Connector End View (C2325)

G04598171

Courtesy of FORD MOTOR CO.

Fig 213: Subwoofer Amplifier, Left Front Channel Connector End View (C2993A)

G04598172

Courtesy of FORD MOTOR CO.

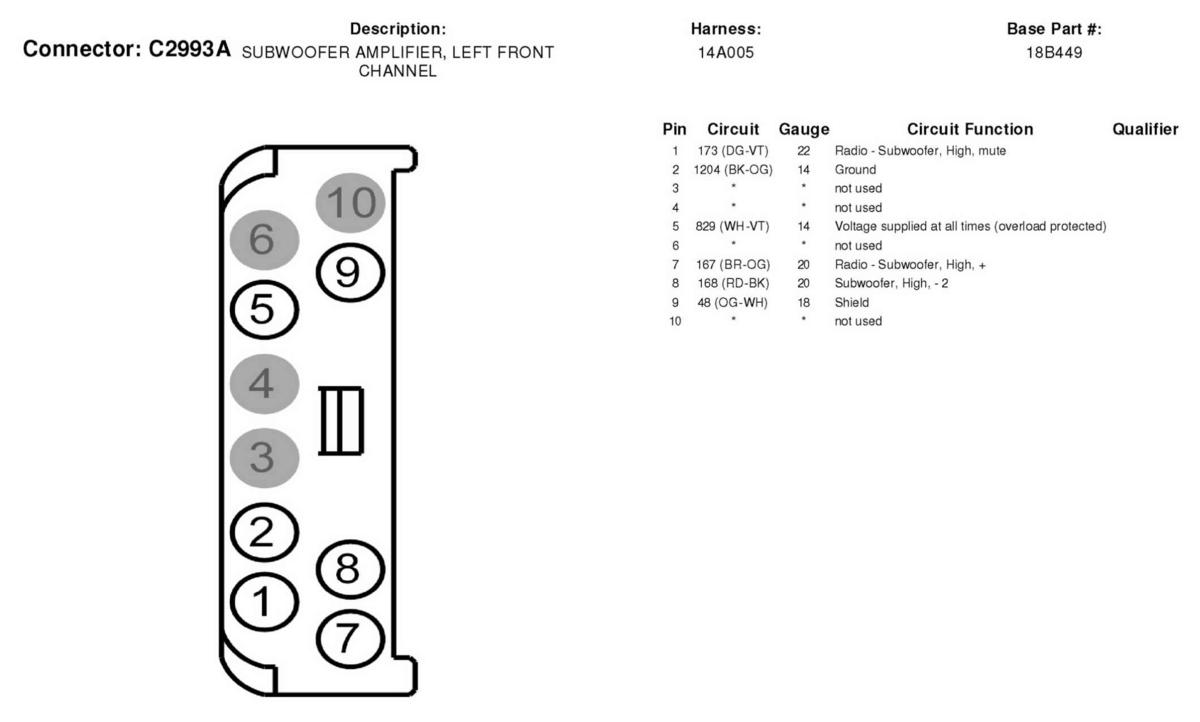

Fig 214: Subwoofer Amplifier, Left Front Channel Connector End View (C2993B)

G04598173

Courtesy of FORD MOTOR CO.

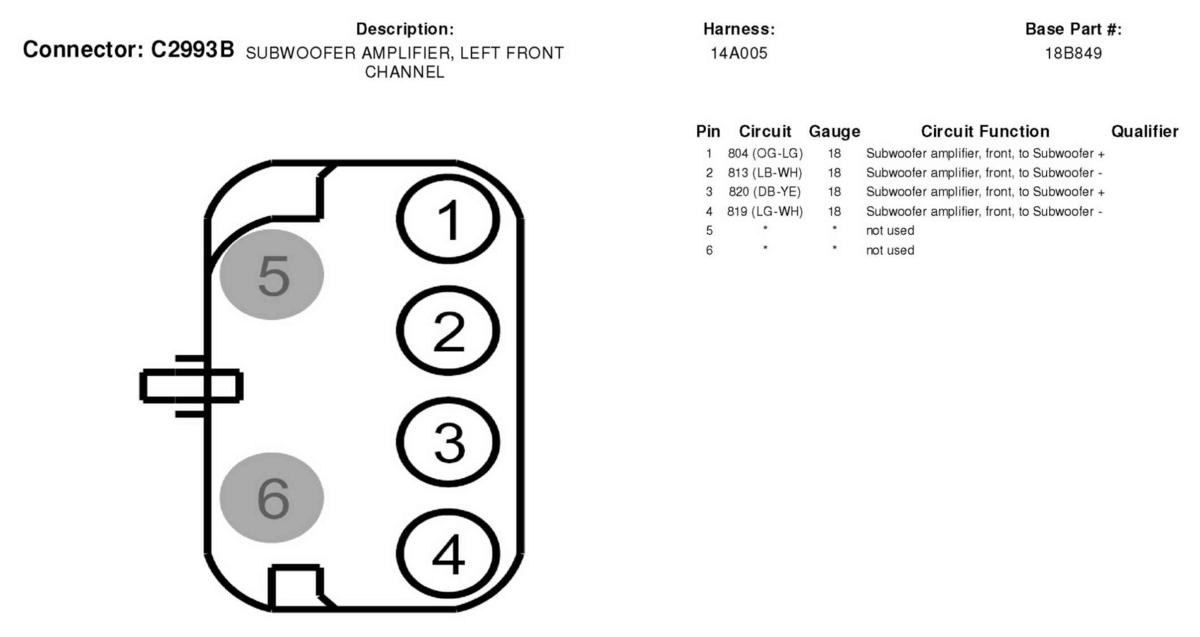

Fig 215: Subwoofer Amplifier, Right Front Channel Connector End View (C2994A)

G04598174

Courtesy of FORD MOTOR CO.

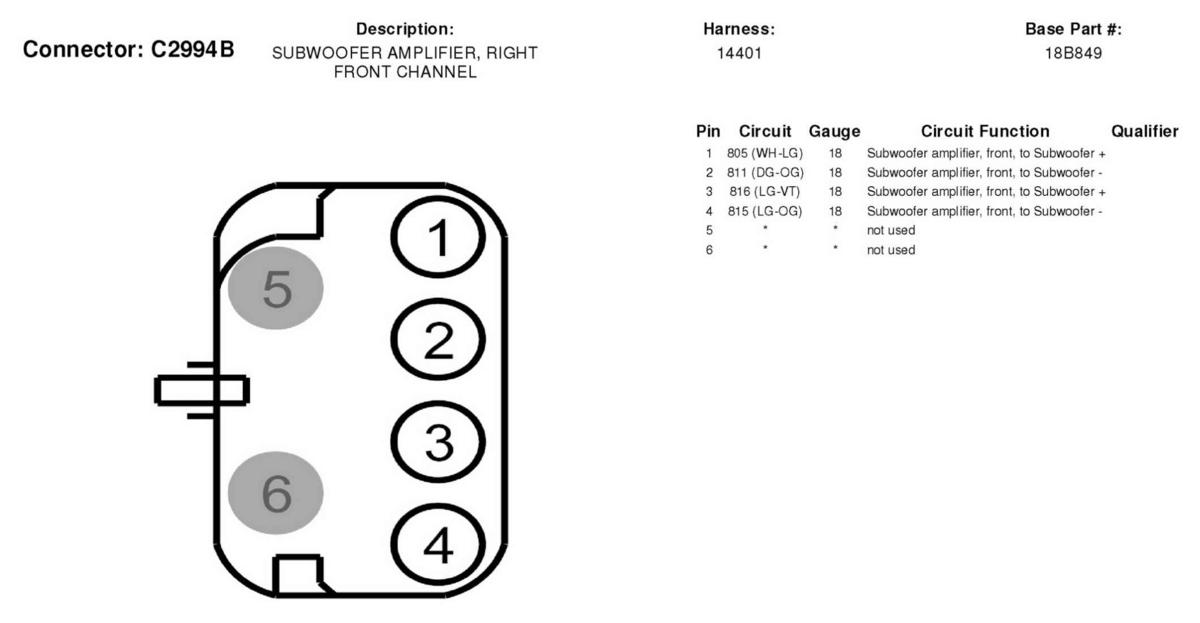

Fig 216: Subwoofer Amplifier, Right Front Channel Connector End View (C2994B)

G04598175

Courtesy of FORD MOTOR CO.

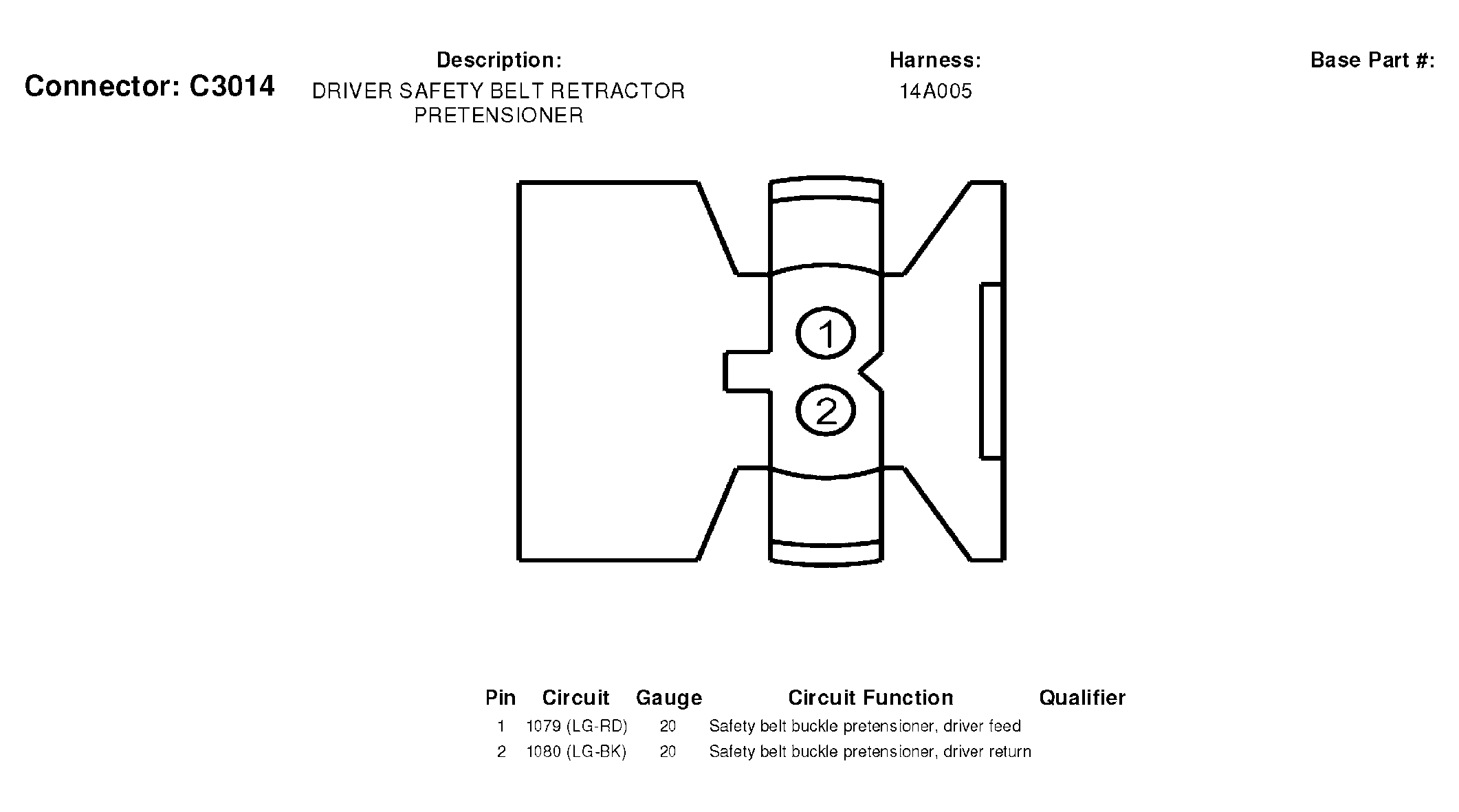

Fig 217: Driver Safety Belt Retractor Pretensioner Connector End View (C3014)

G04598176

Courtesy of FORD MOTOR CO.

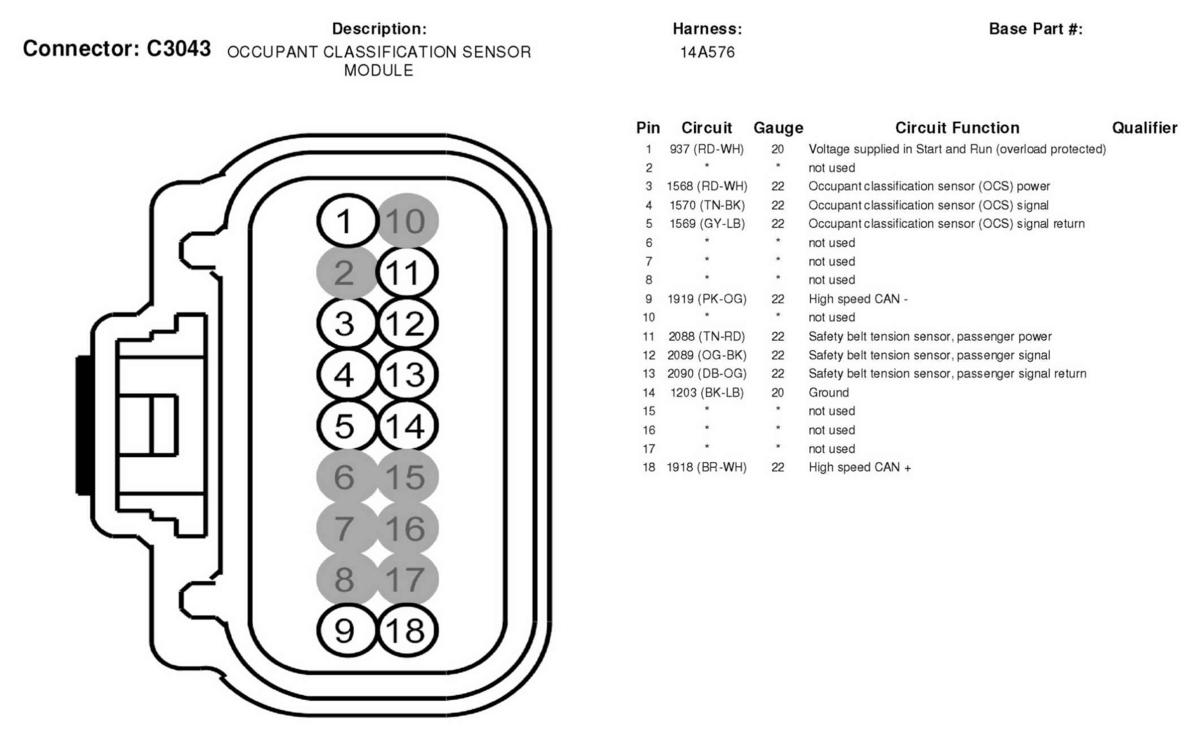

Fig 218: Occupant Classification Sensor Module Connector End View (C3043)

G04598177

Courtesy of FORD MOTOR CO.

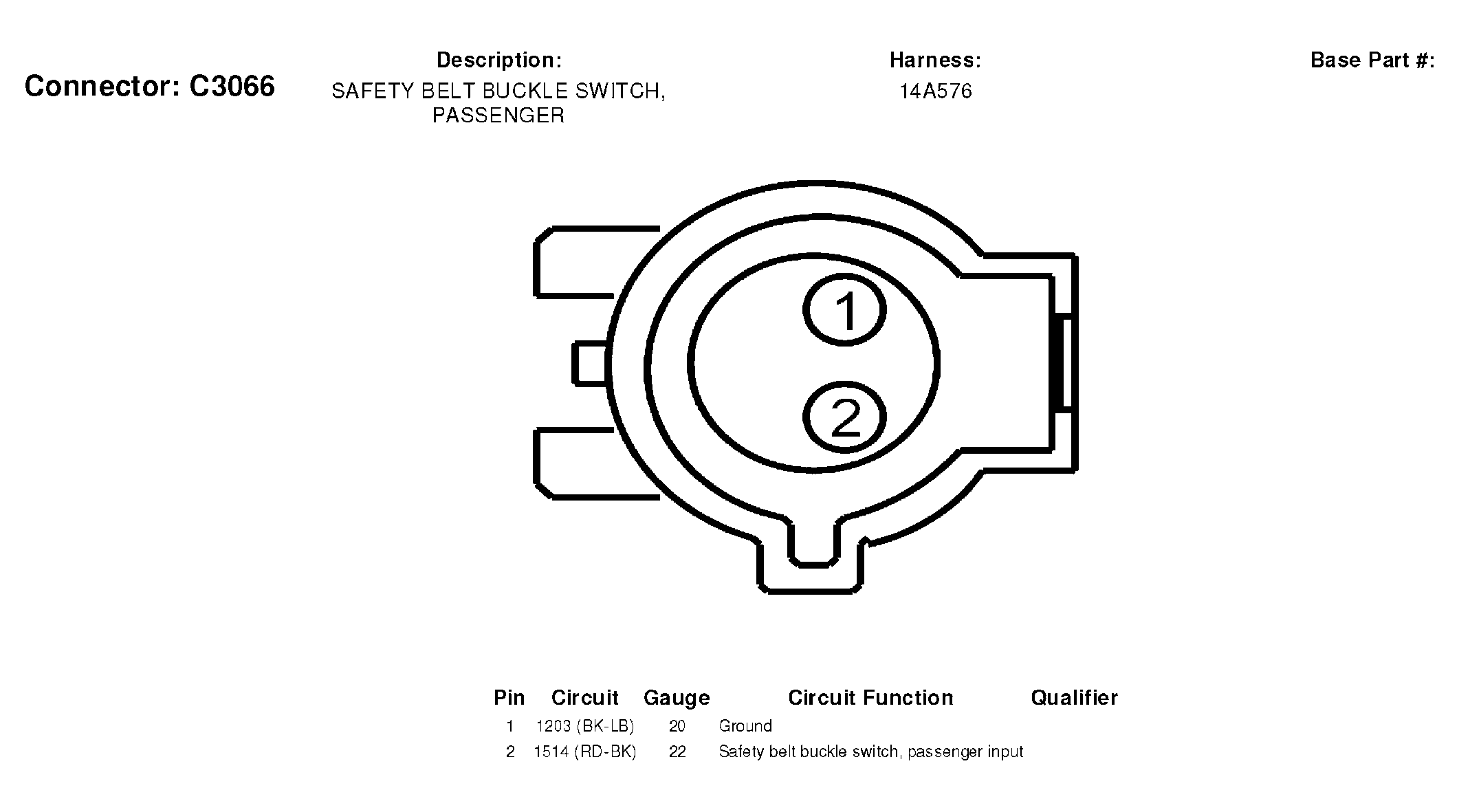

Fig 219: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G04598178

Courtesy of FORD MOTOR CO.

Fig 220: Anti-Theft Horn Connector End View (C3069)

G04598179

Courtesy of FORD MOTOR CO.

Fig 221: Wheel Speed Sensor, Left Rear Connector End View (C3116)

G04598180

Courtesy of FORD MOTOR CO.

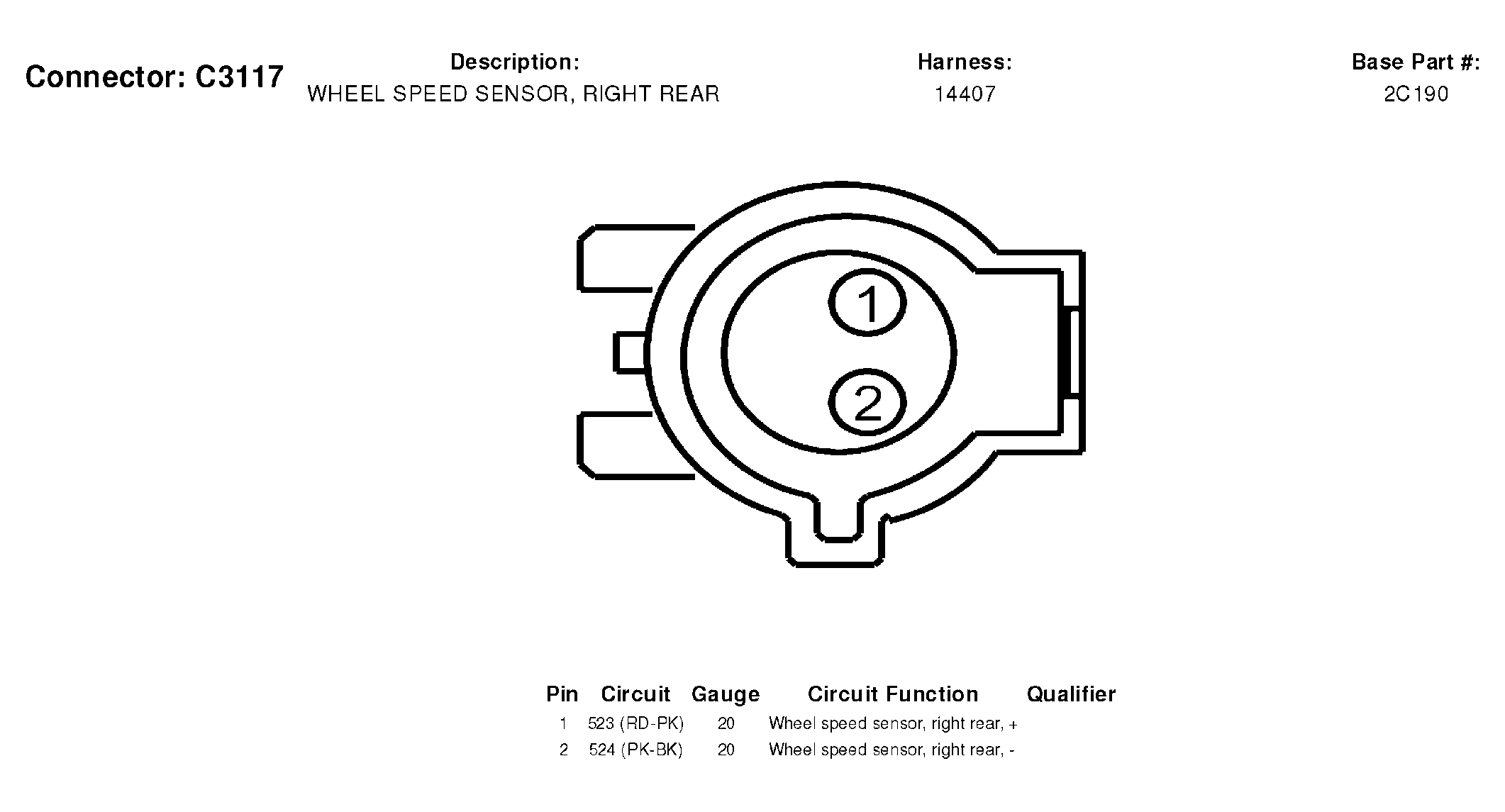

Fig 222: Wheel Speed Sensor, Right Rear Connector End View (C3117)

G04598181

Courtesy of FORD MOTOR CO.

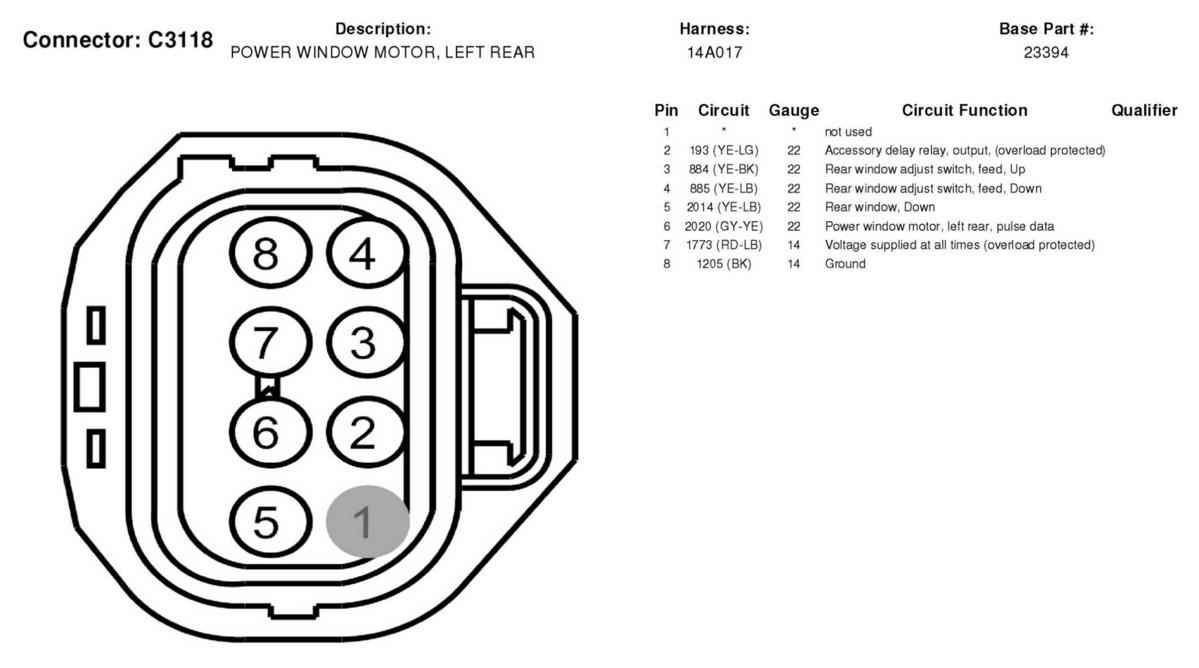

Fig 223: Power Window Motor, Left Rear Connector End View (C3118)

G04598182

Courtesy of FORD MOTOR CO.

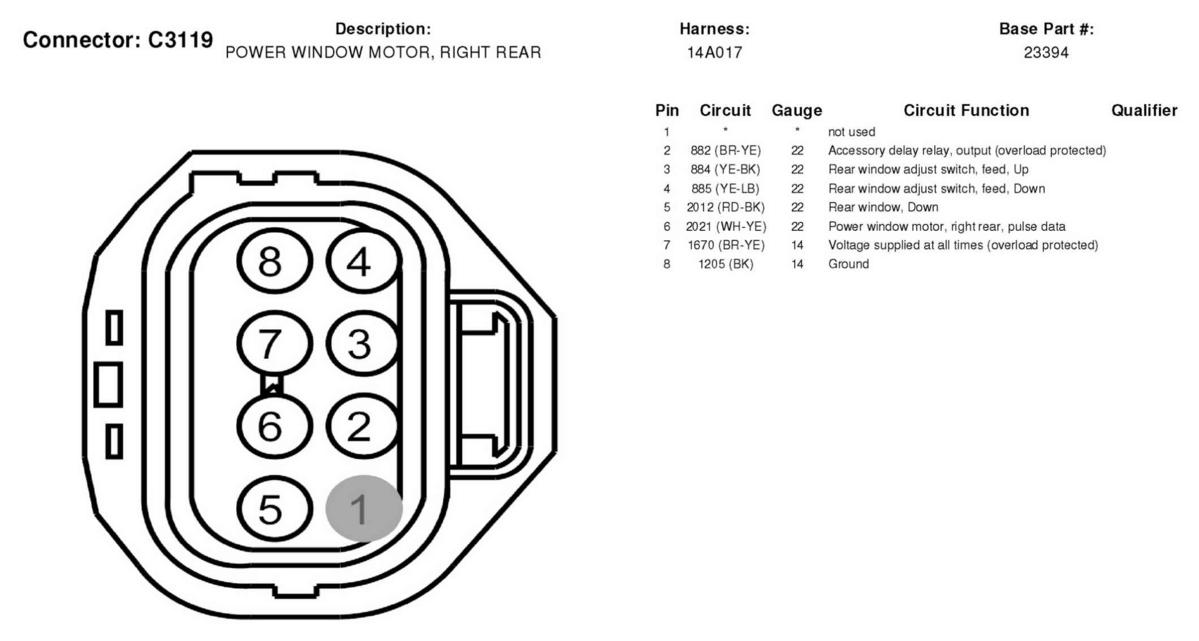

Fig 224: Power Window Motor, Right Rear Connector End View (C3119)

G04598183

Courtesy of FORD MOTOR CO.

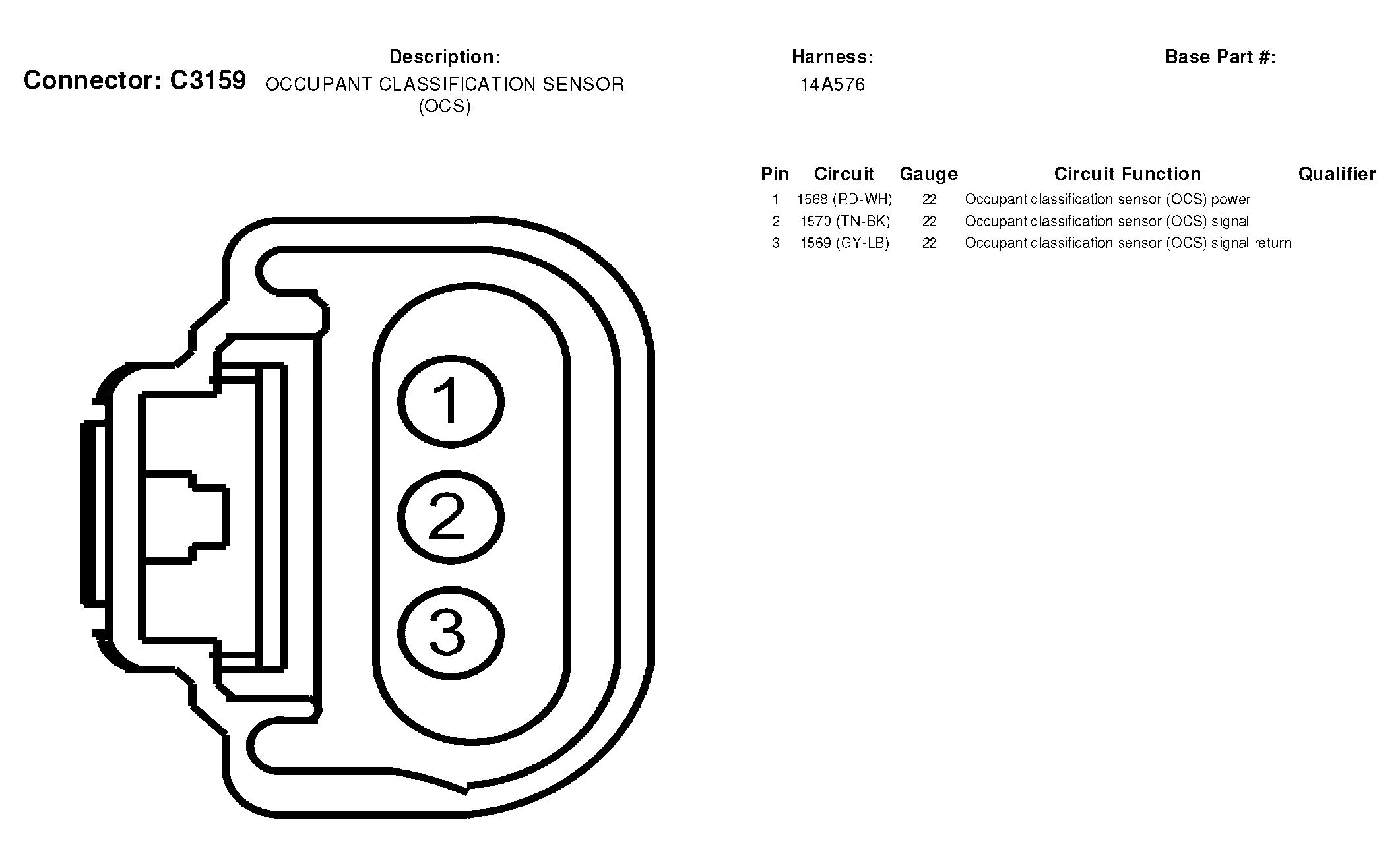

Fig 225: Occupant Classification Sensor (OCS) Connector End View (C3159)

G04598184

Courtesy of FORD MOTOR CO.

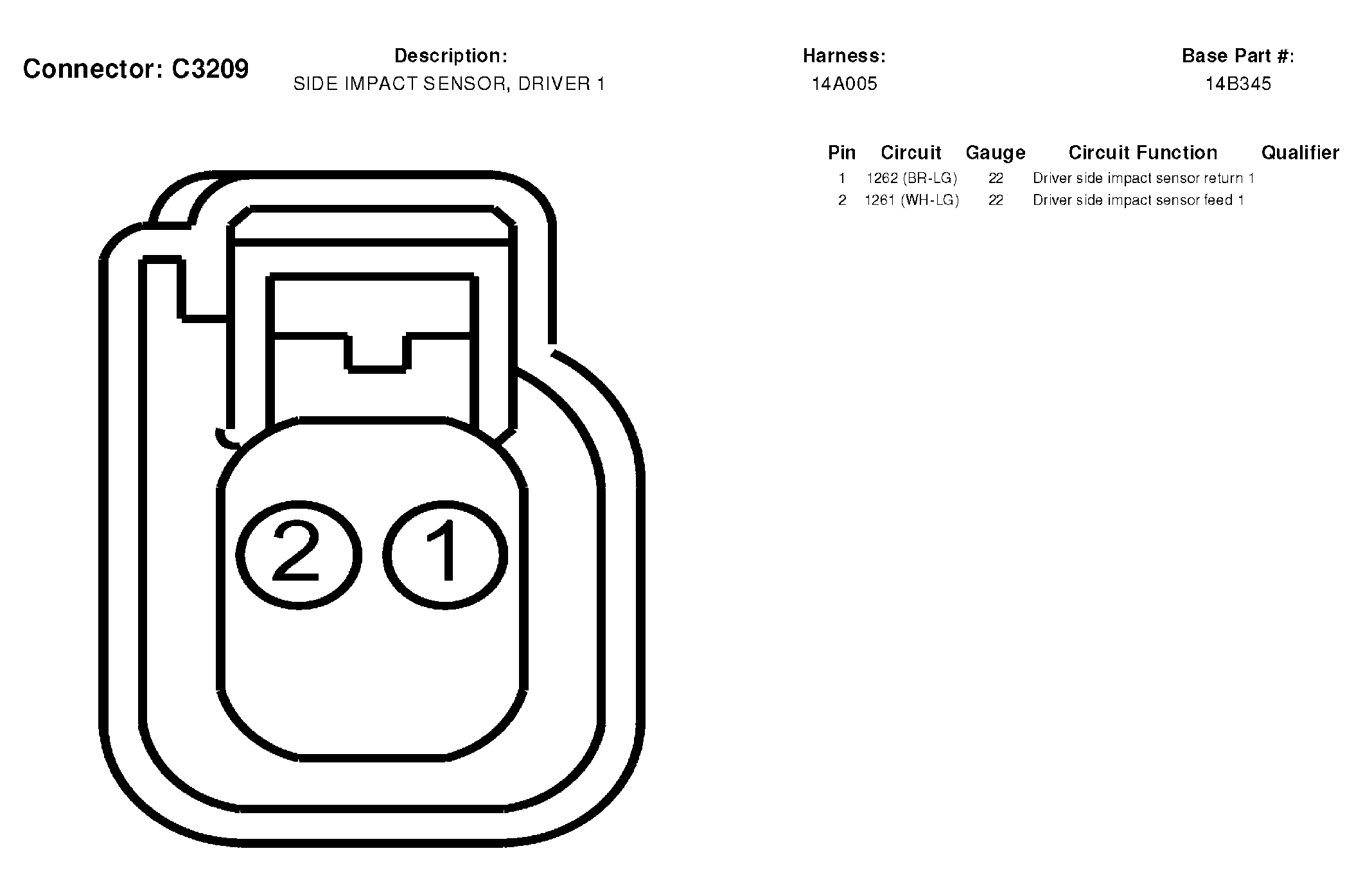

Fig 226: Side Impact Sensor, Driver 1 Connector End View (C3209)

G04598185

Courtesy of FORD MOTOR CO.

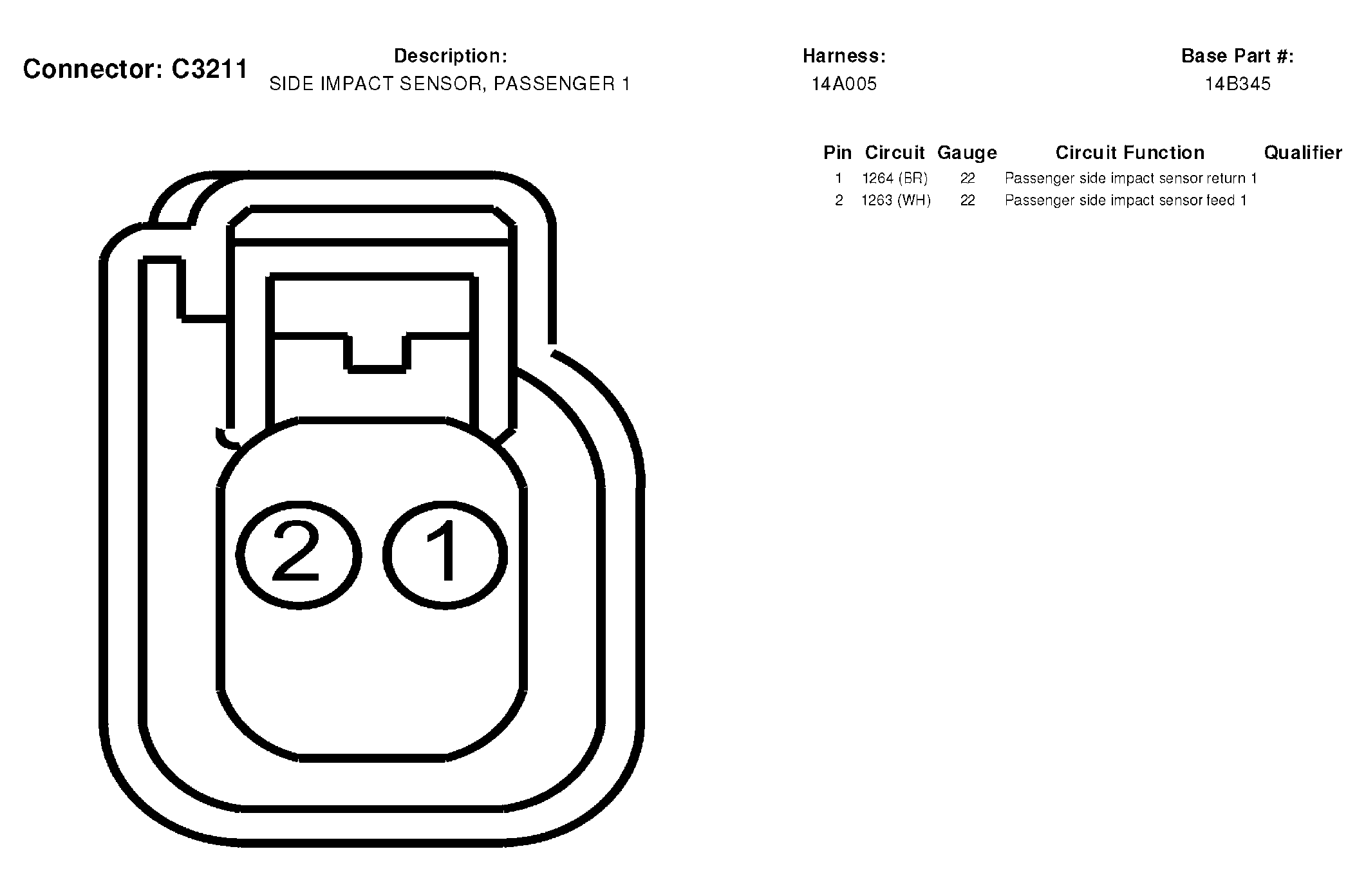

Fig 227: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G04598186

Courtesy of FORD MOTOR CO.

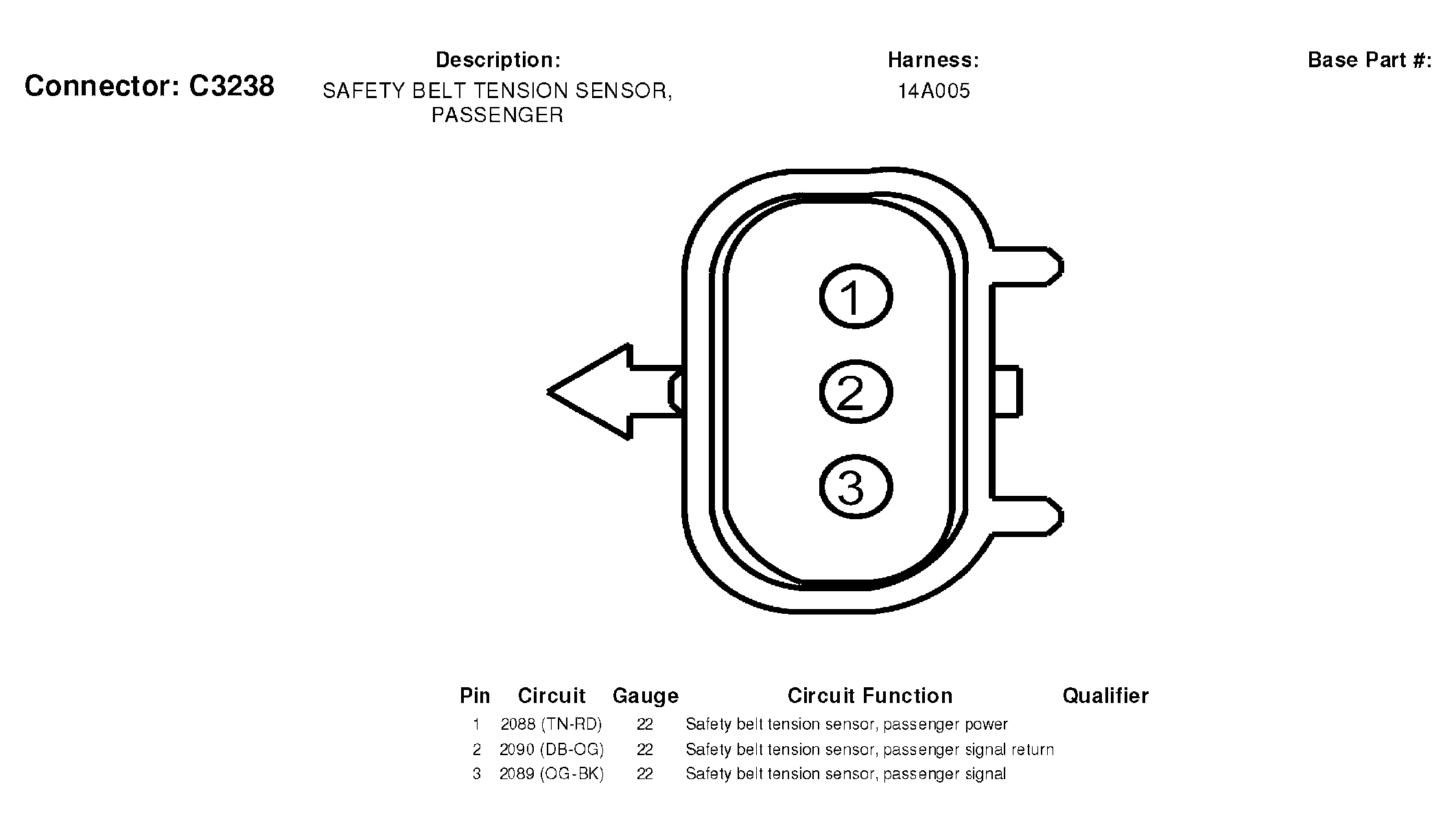

Fig 228: Safety Belt Tension Sensor, Passenger Connector End View (C3238)

G04598187

Courtesy of FORD MOTOR CO.

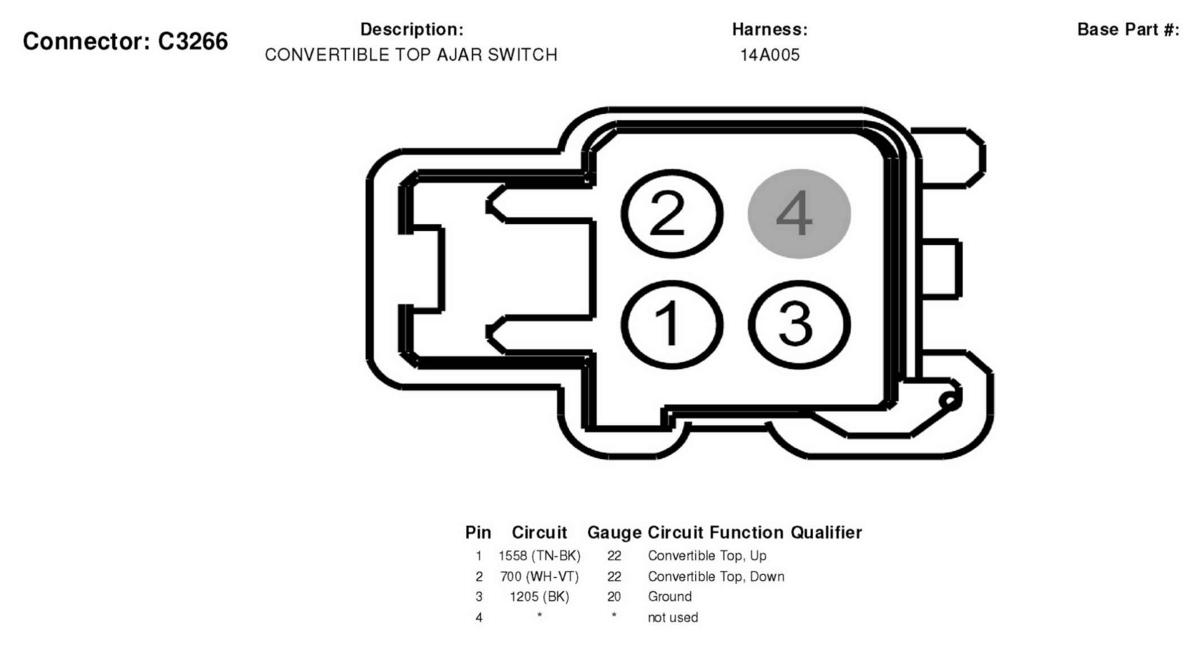

Fig 229: Convertible Top Ajar Switch Connector End View (C3266)

G04598188

Courtesy of FORD MOTOR CO.

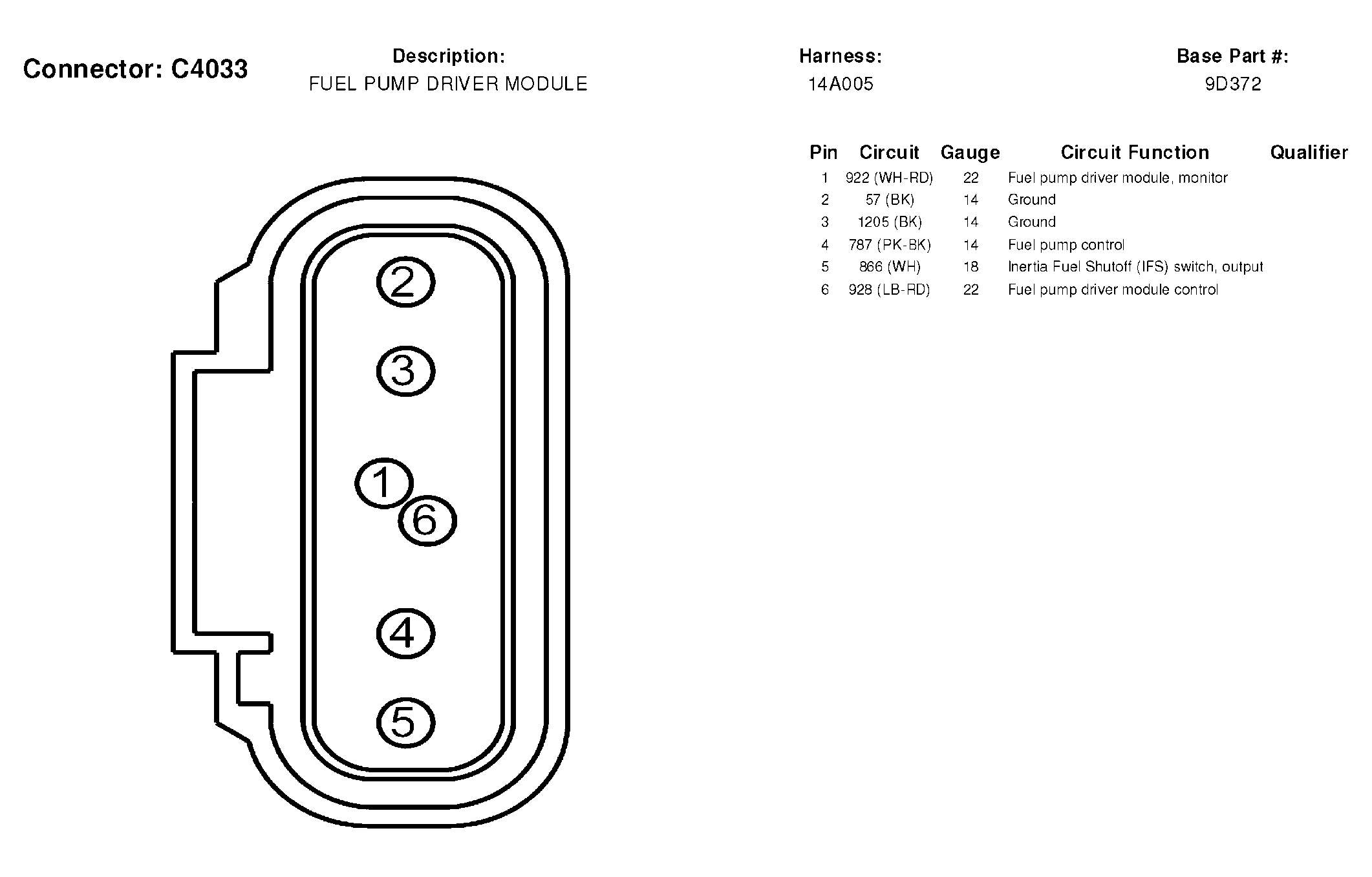

Fig 230: Fuel Pump Driver Module Connector End View (C4033)

G04598189

Courtesy of FORD MOTOR CO.

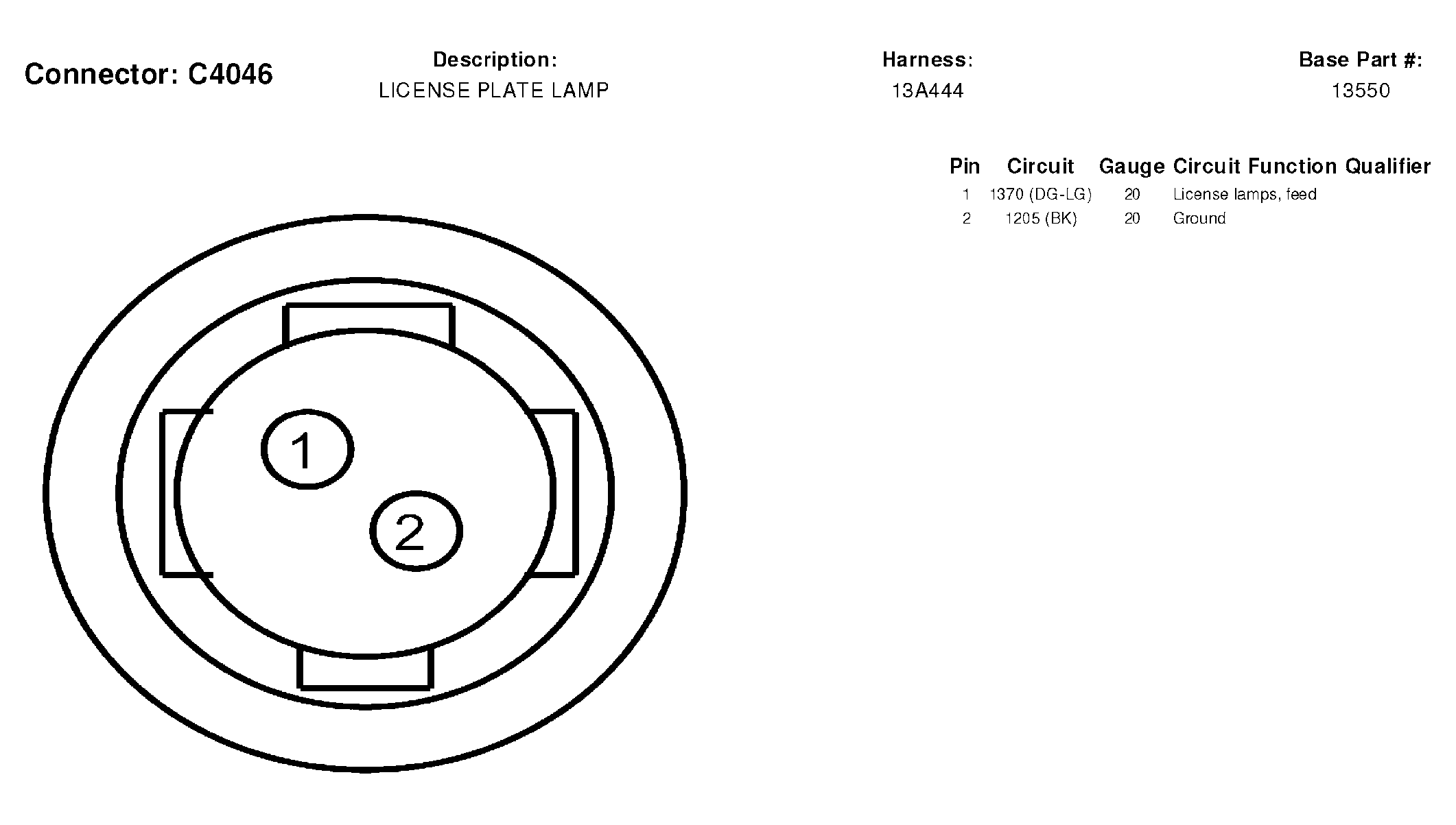

Fig 231: License Plate Lamp Connector End View (C4046)

G04598190

Courtesy of FORD MOTOR CO.

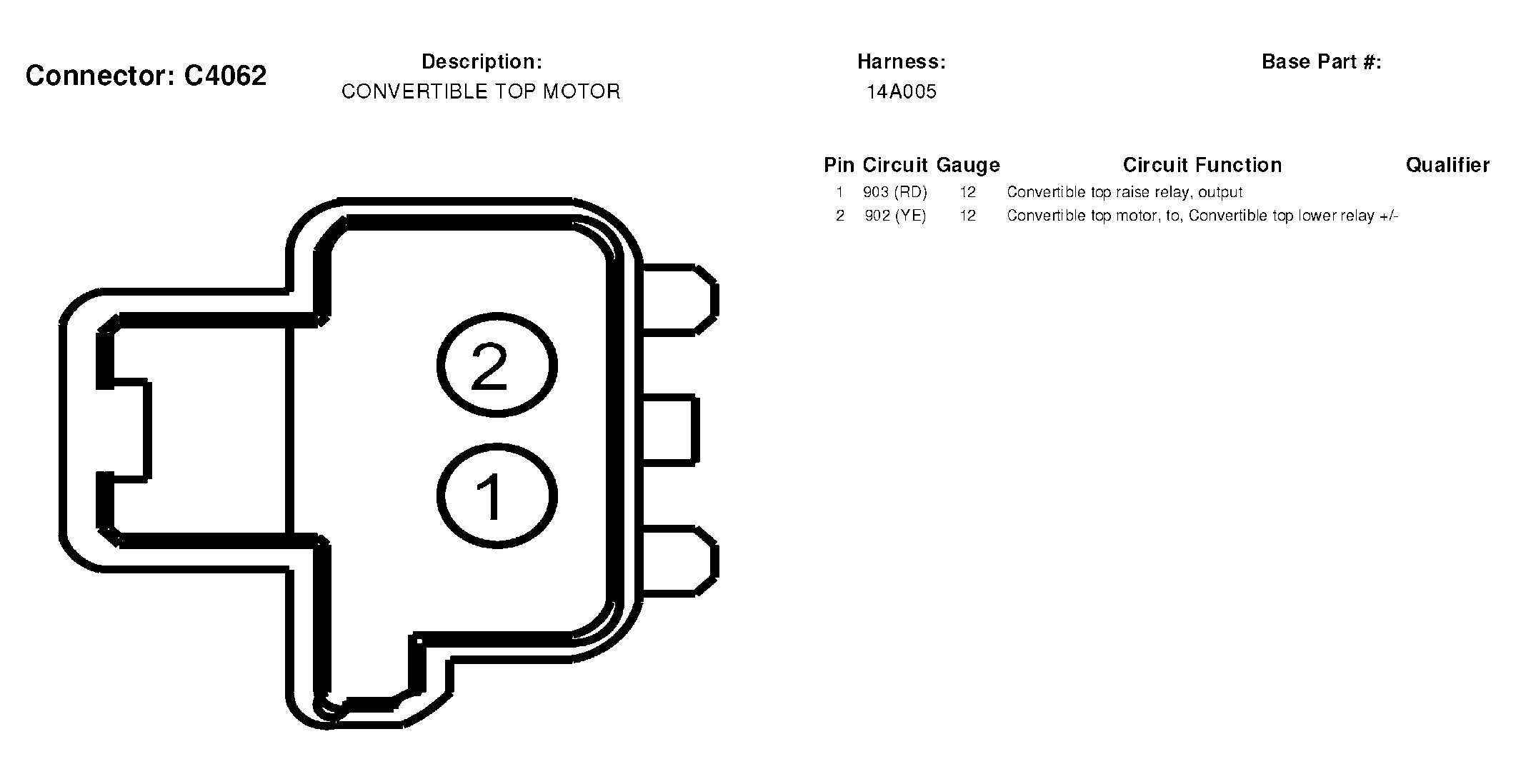

Fig 232: Convertible Top Motor Connector End View (C4062)

G04598191

Courtesy of FORD MOTOR CO.

Fig 233: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)

G04598192

Courtesy of FORD MOTOR CO.

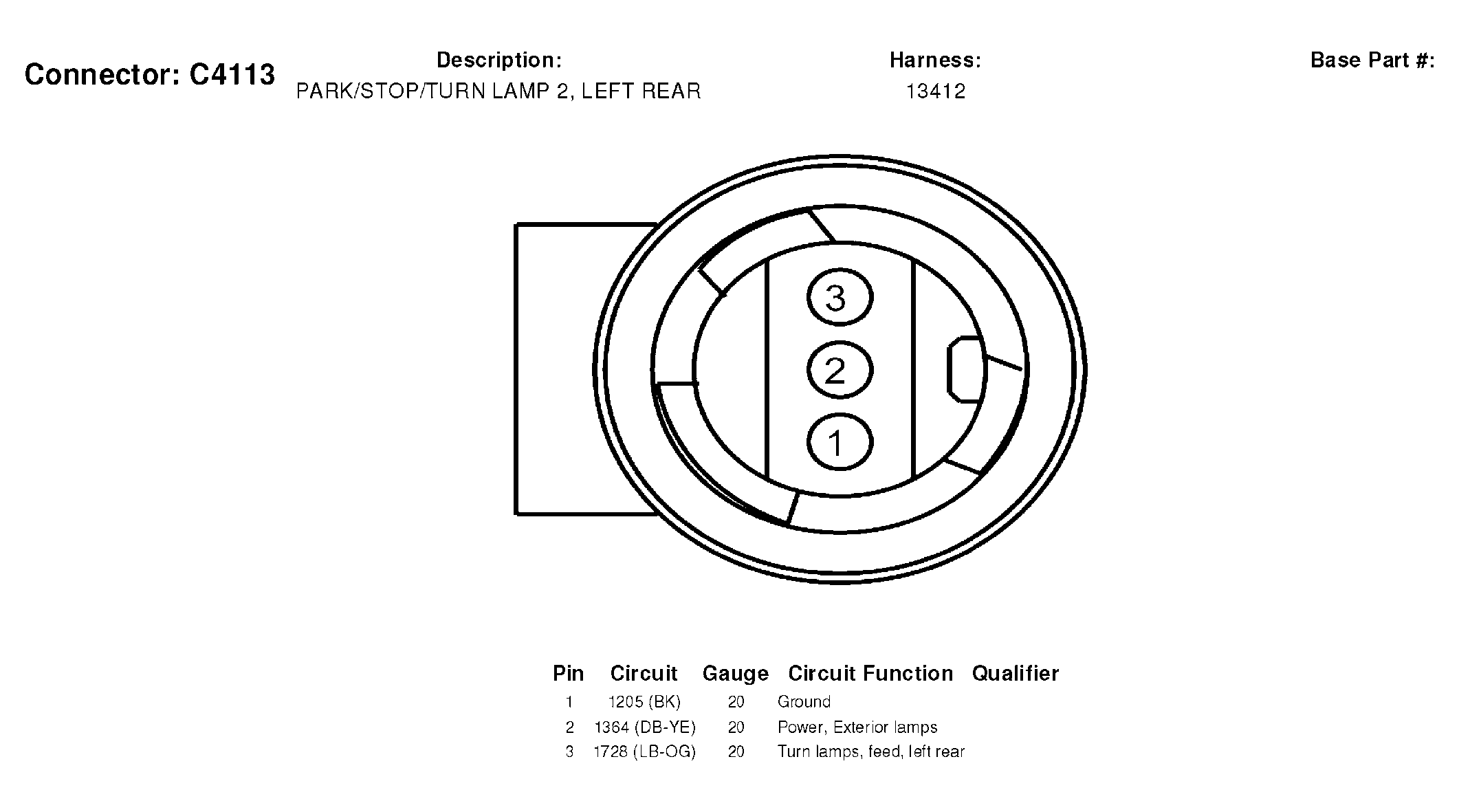

Fig 234: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)

G04598193

Courtesy of FORD MOTOR CO.

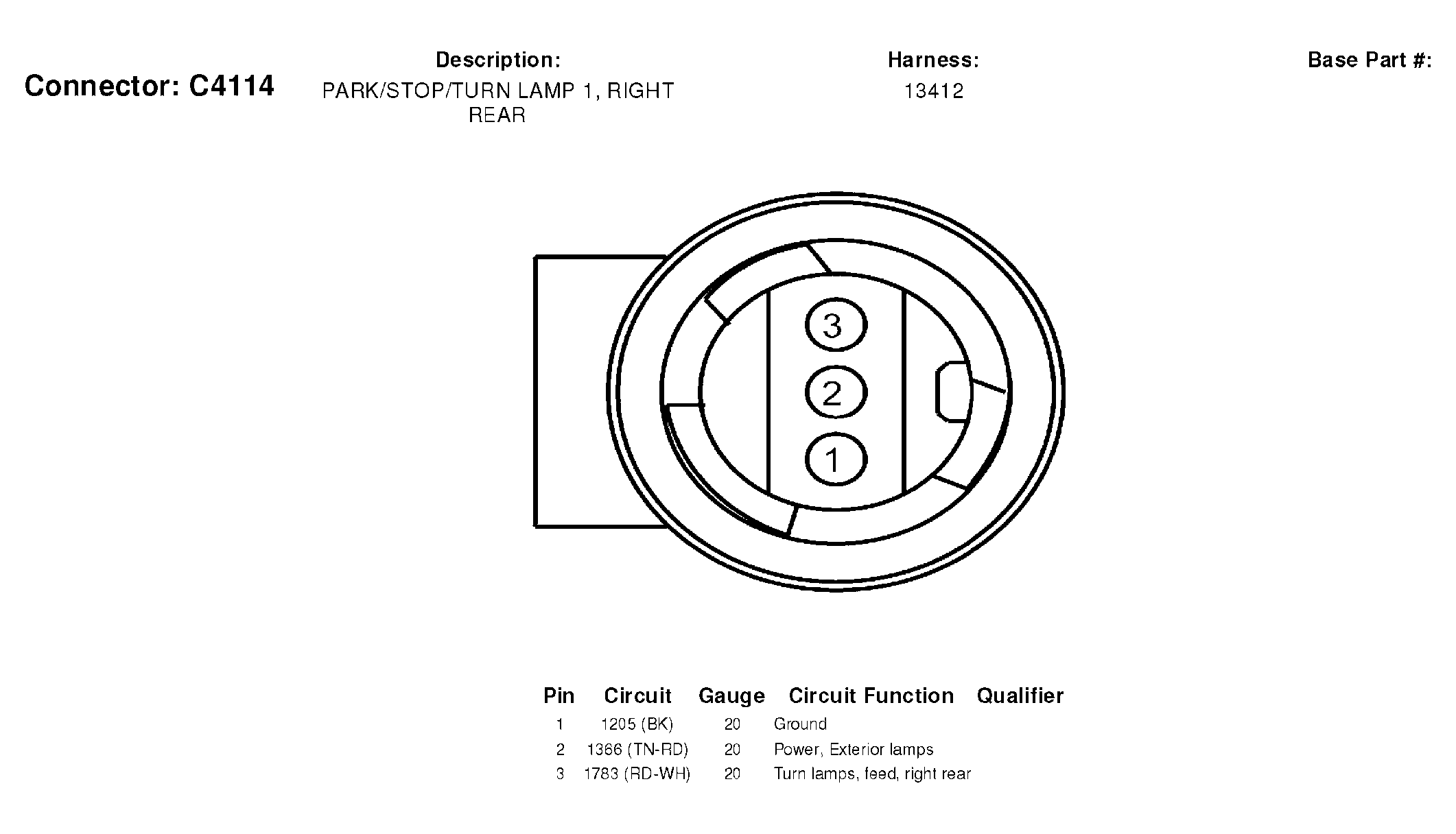

Fig 235: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)

G04598194

Courtesy of FORD MOTOR CO.

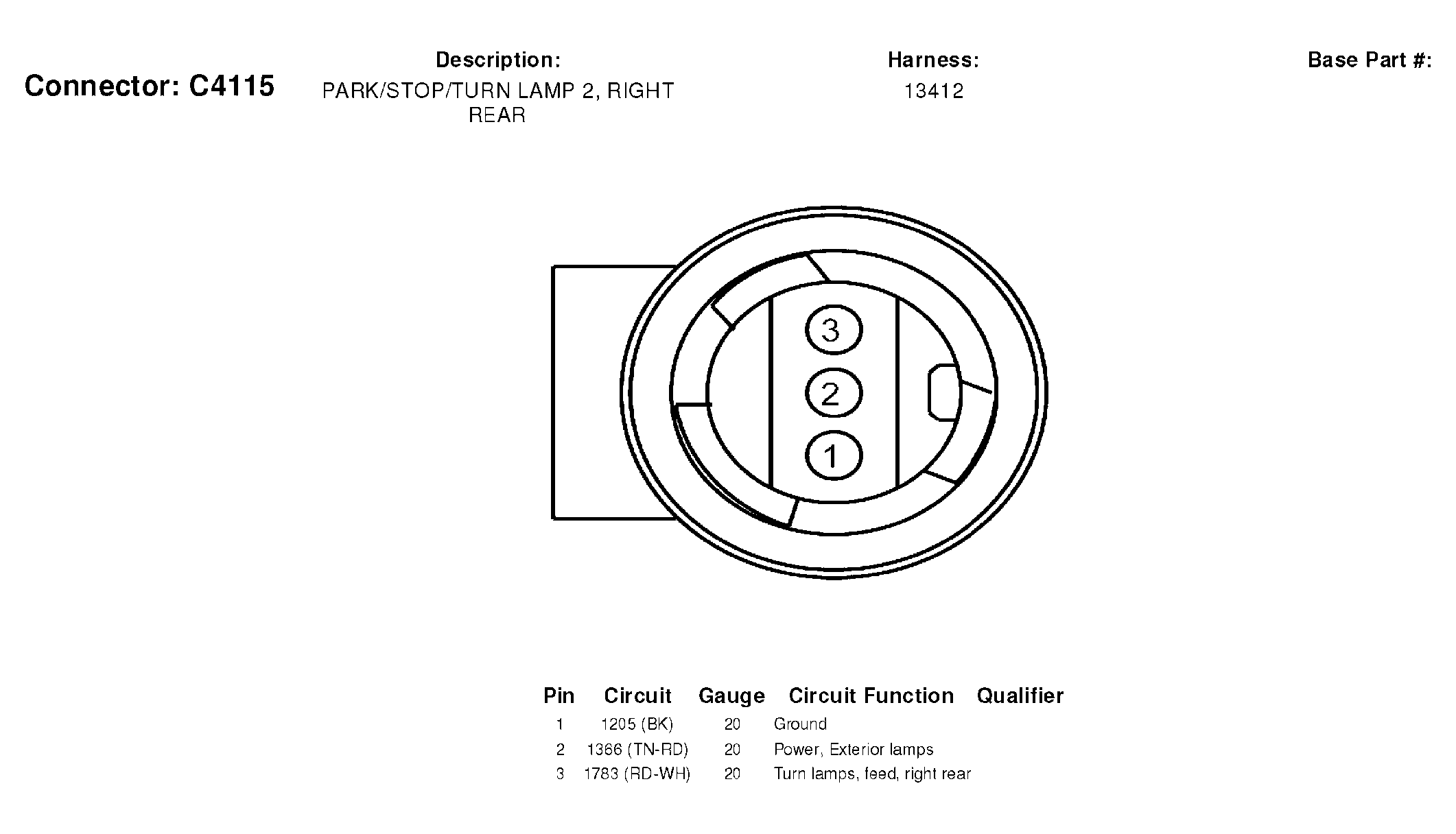

Fig 236: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)

G04598195

Courtesy of FORD MOTOR CO.

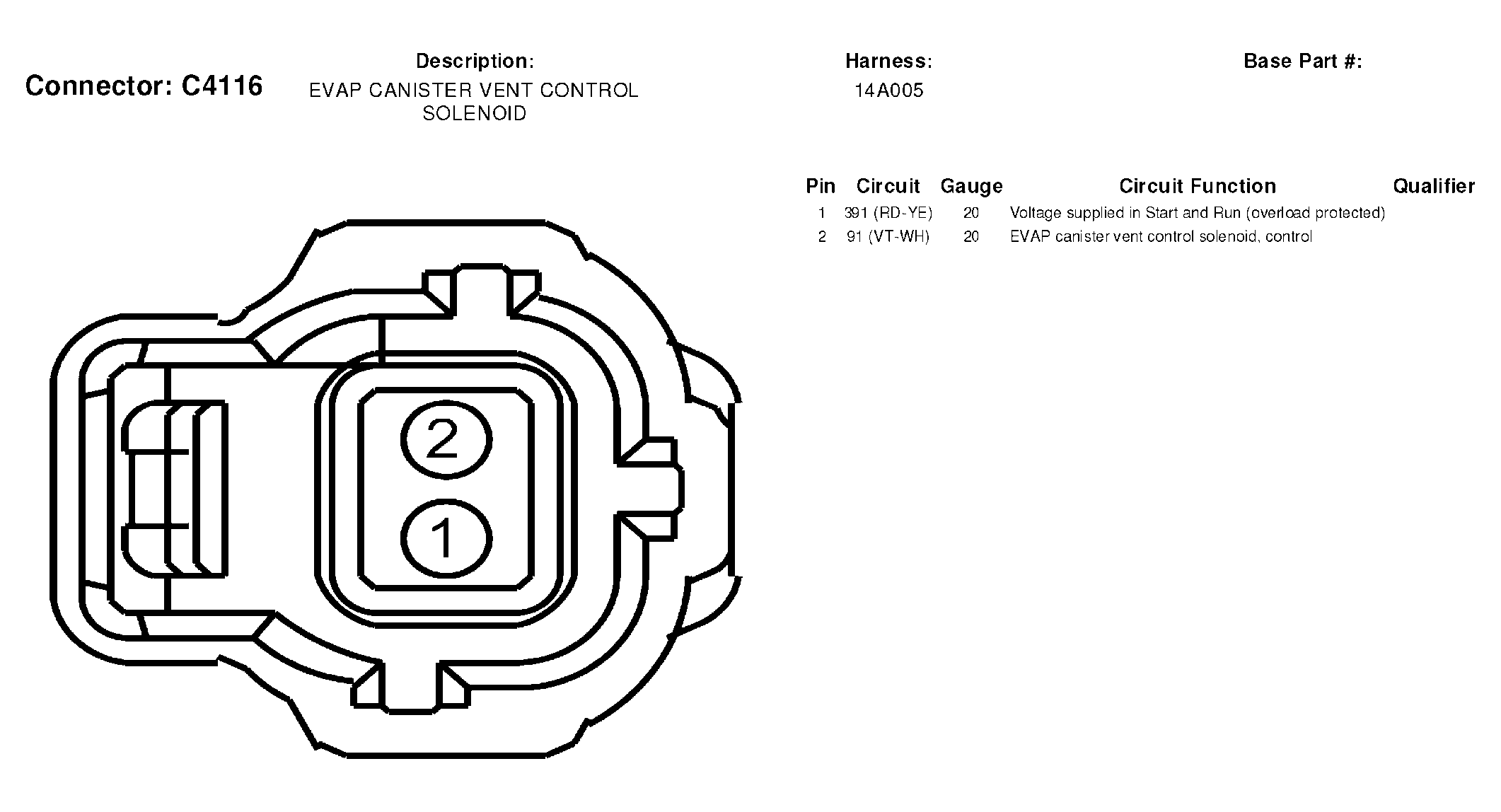

Fig 237: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G04598196

Courtesy of FORD MOTOR CO.

Fig 238: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157A)

G04598197

Courtesy of FORD MOTOR CO.

Fig 239: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157B)

G04598198

Courtesy of FORD MOTOR CO.

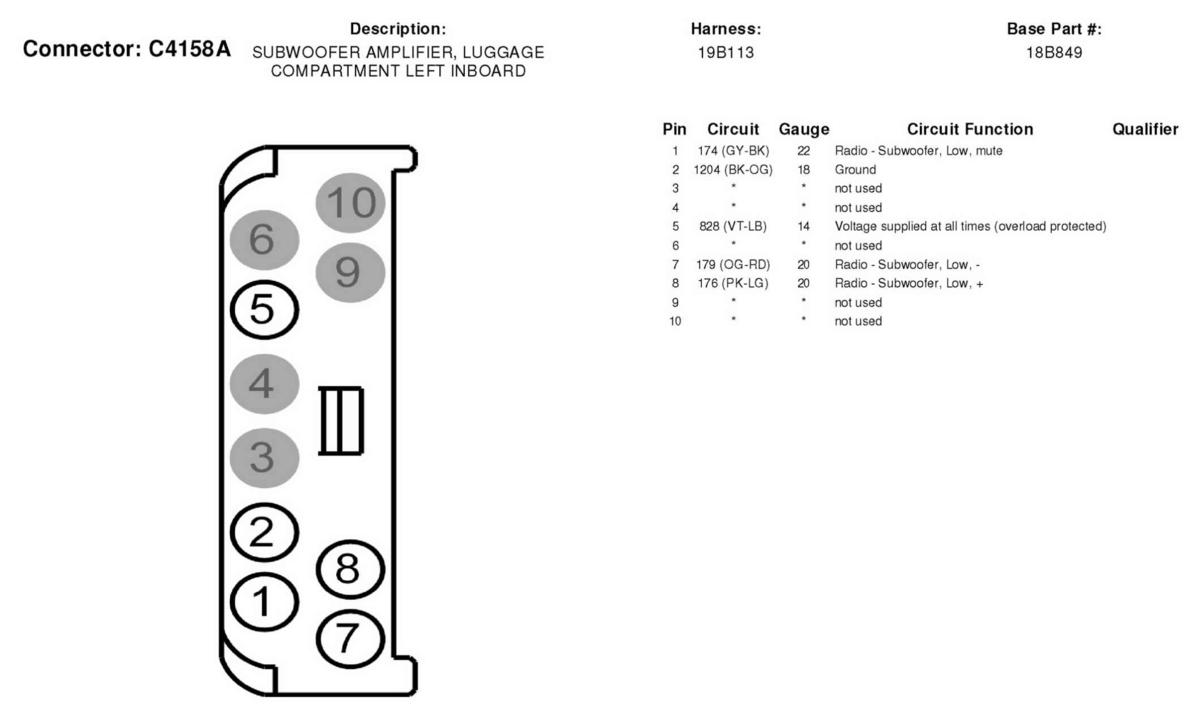

Fig 240: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158A)

G04598199

Courtesy of FORD MOTOR CO.

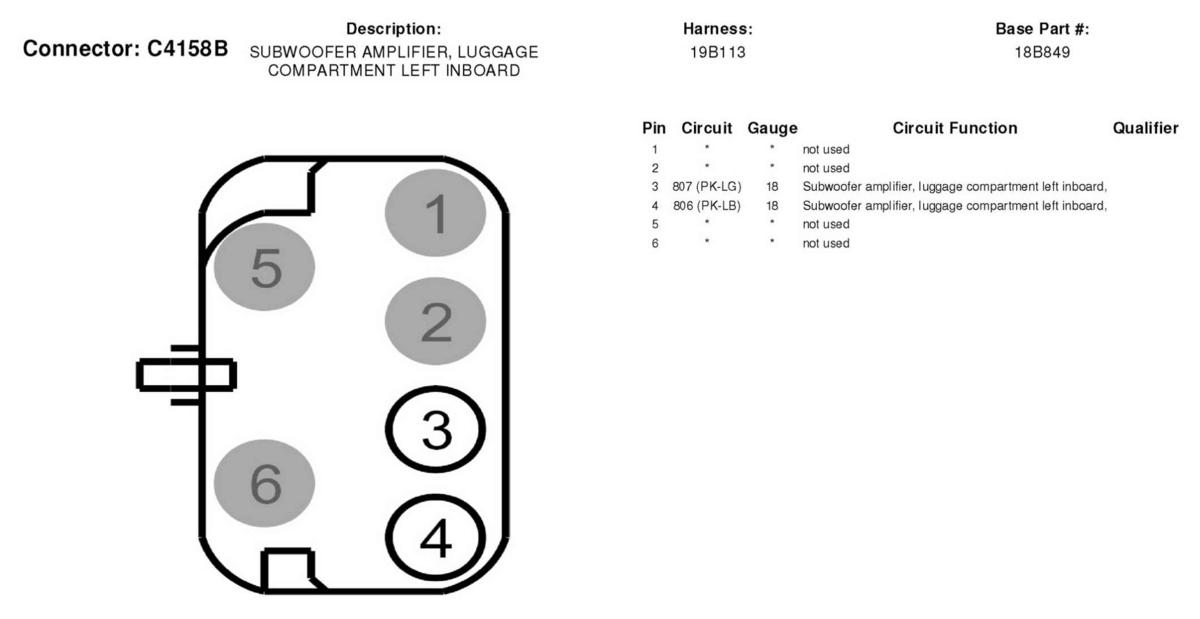

Fig 241: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158B)

G04598200

Courtesy of FORD MOTOR CO.

Fig 242: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159A)

G04598201

Courtesy of FORD MOTOR CO.

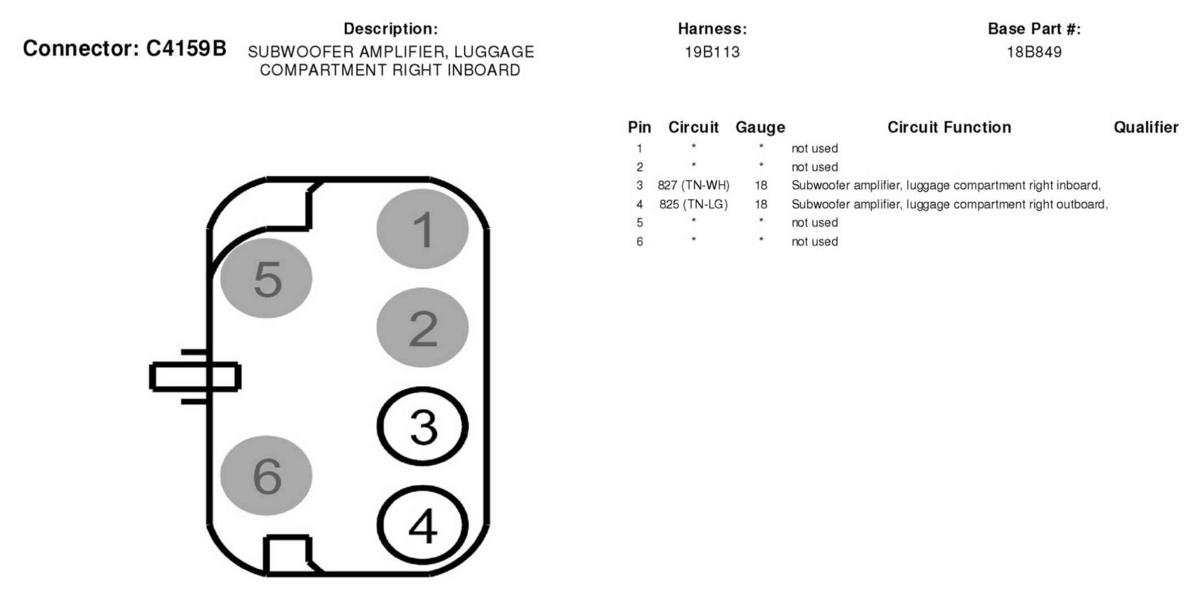

Fig 243: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159B)

G04598202

Courtesy of FORD MOTOR CO.

Fig 244: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160A)

G04598203

Courtesy of FORD MOTOR CO.

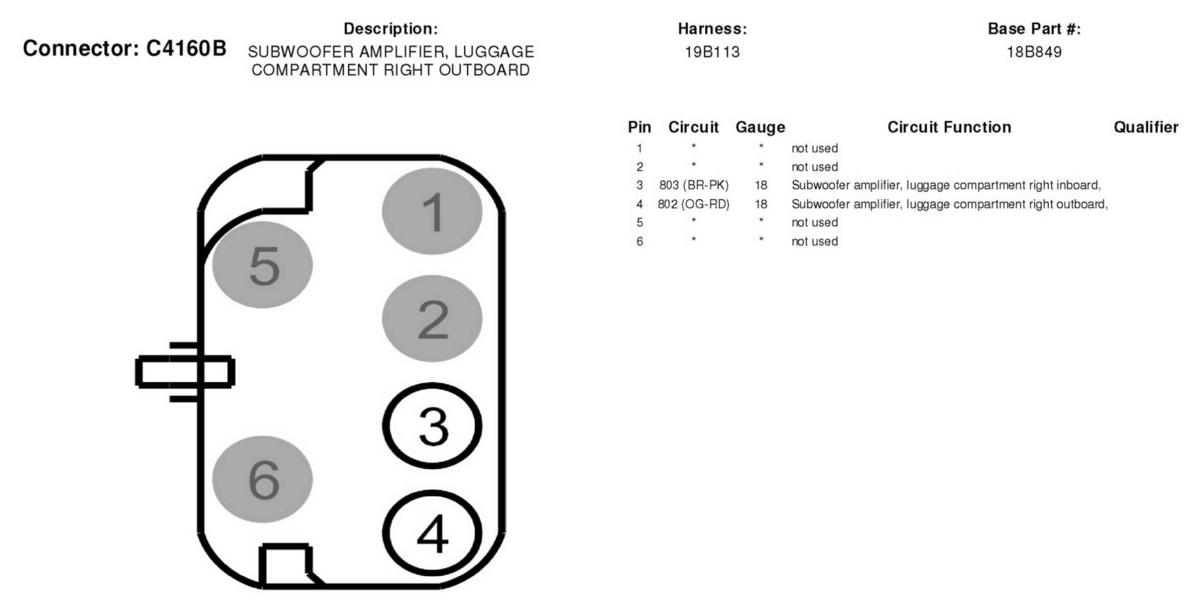

Fig 245: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160B)

G04598204

Courtesy of FORD MOTOR CO.

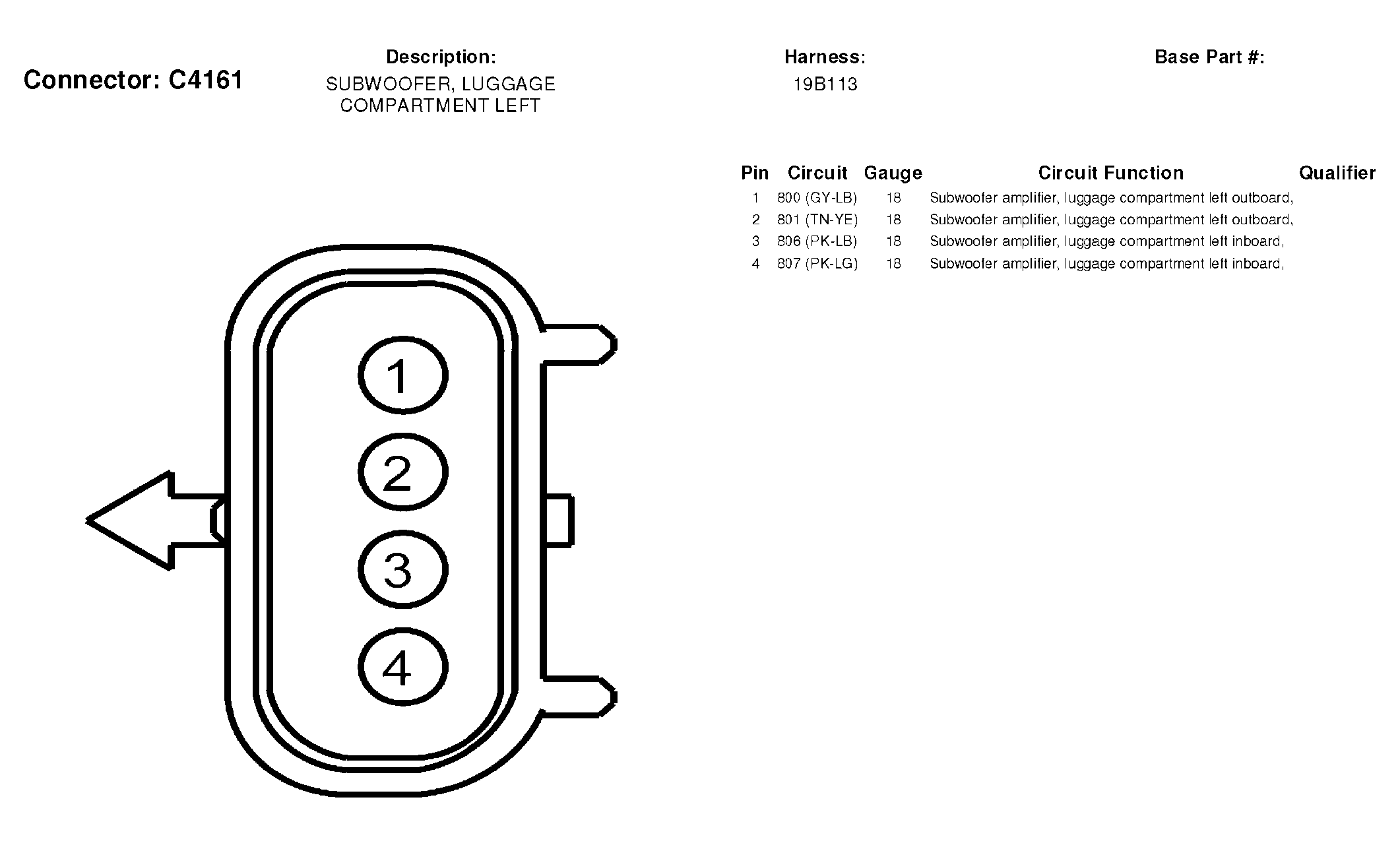

Fig 246: Subwoofer, Luggage Compartment Left Connector End View (C4161)

G04598205

Courtesy of FORD MOTOR CO.

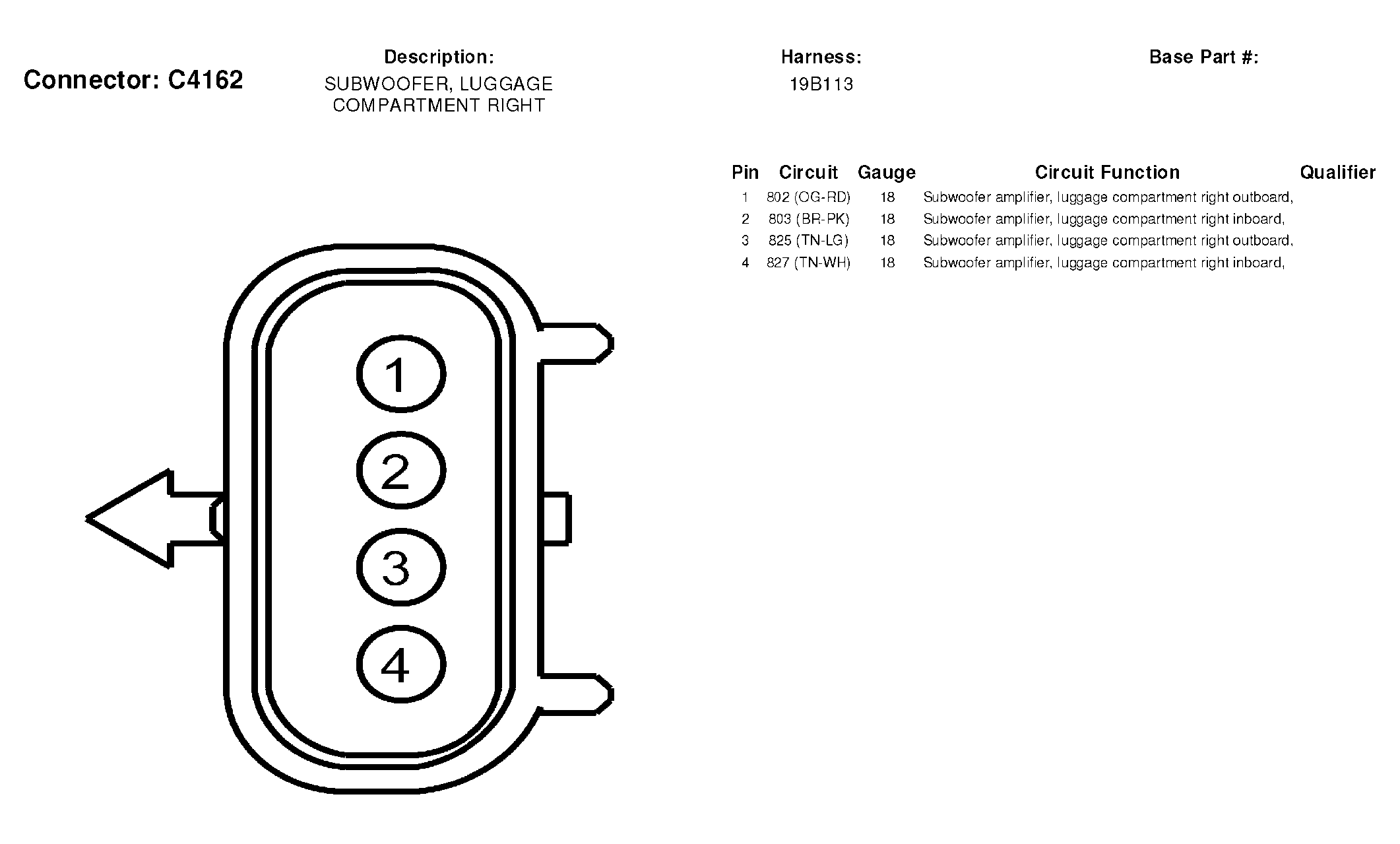

Fig 247: Subwoofer, Luggage Compartment Right Connector End View (C4162)

G04598206

Courtesy of FORD MOTOR CO.

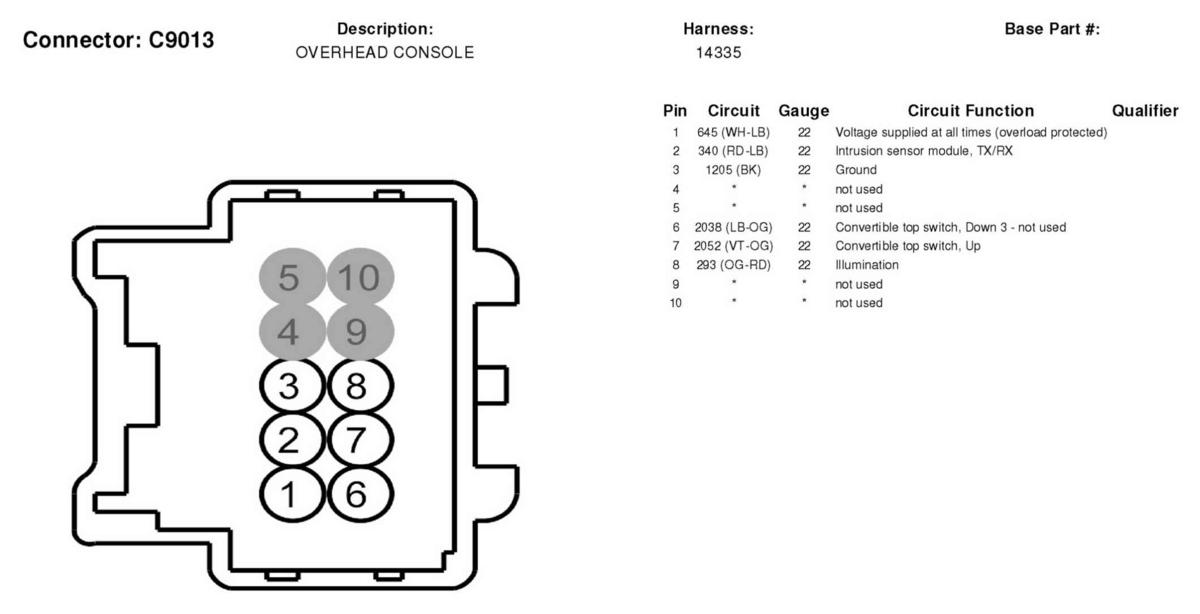

Fig 248: Overhead Console Connector End View (C9013)

G04598207

Courtesy of FORD MOTOR CO.
