Exhaust System - Exploded View

Exhaust System - 4.0L

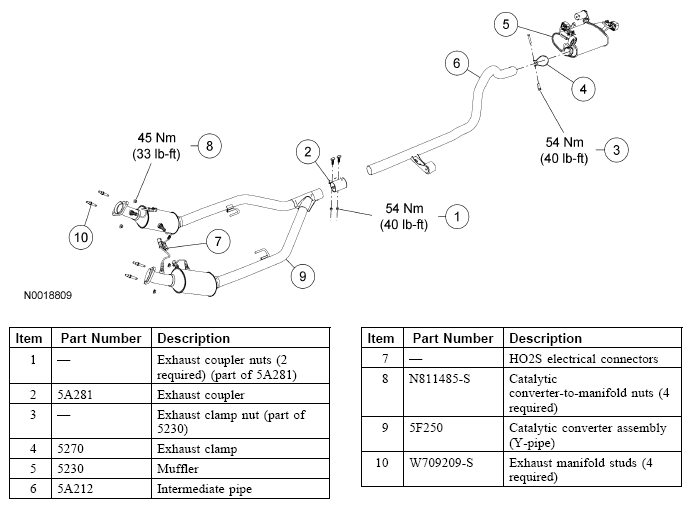

Fig 1: Exploded View Of Exhaust System Components - 4.0L (1 Of 2)

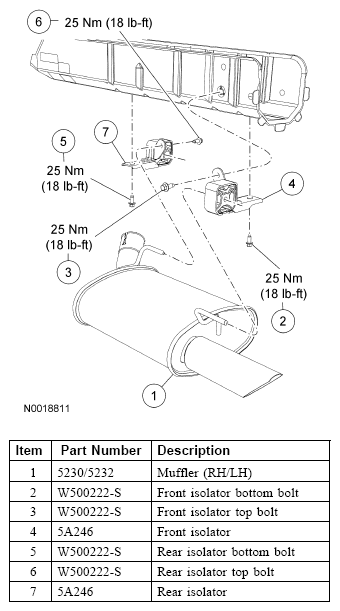

Fig 2: Exploded View Of Exhaust System Components - 4.0L (2 Of 2)

Exhaust System - 4.6L

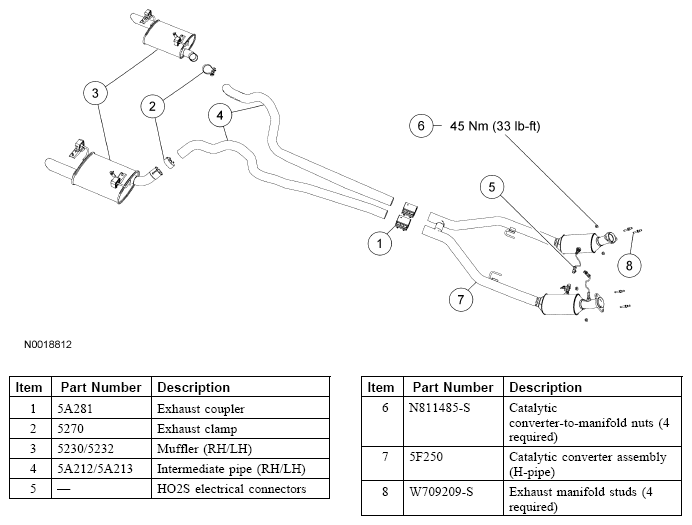

Fig 3: Exploded View Of Exhaust System Components - 4.6L (1 Of 2)

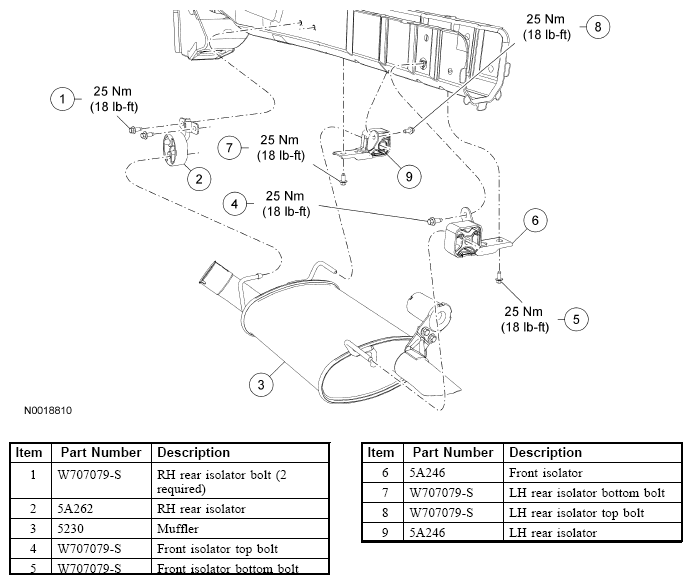

Fig 4: Exploded View Of Exhaust System Components - 4.6L (2 Of 2)

For additional information, refer to the appropriate procedures in this article.
