System Diagram

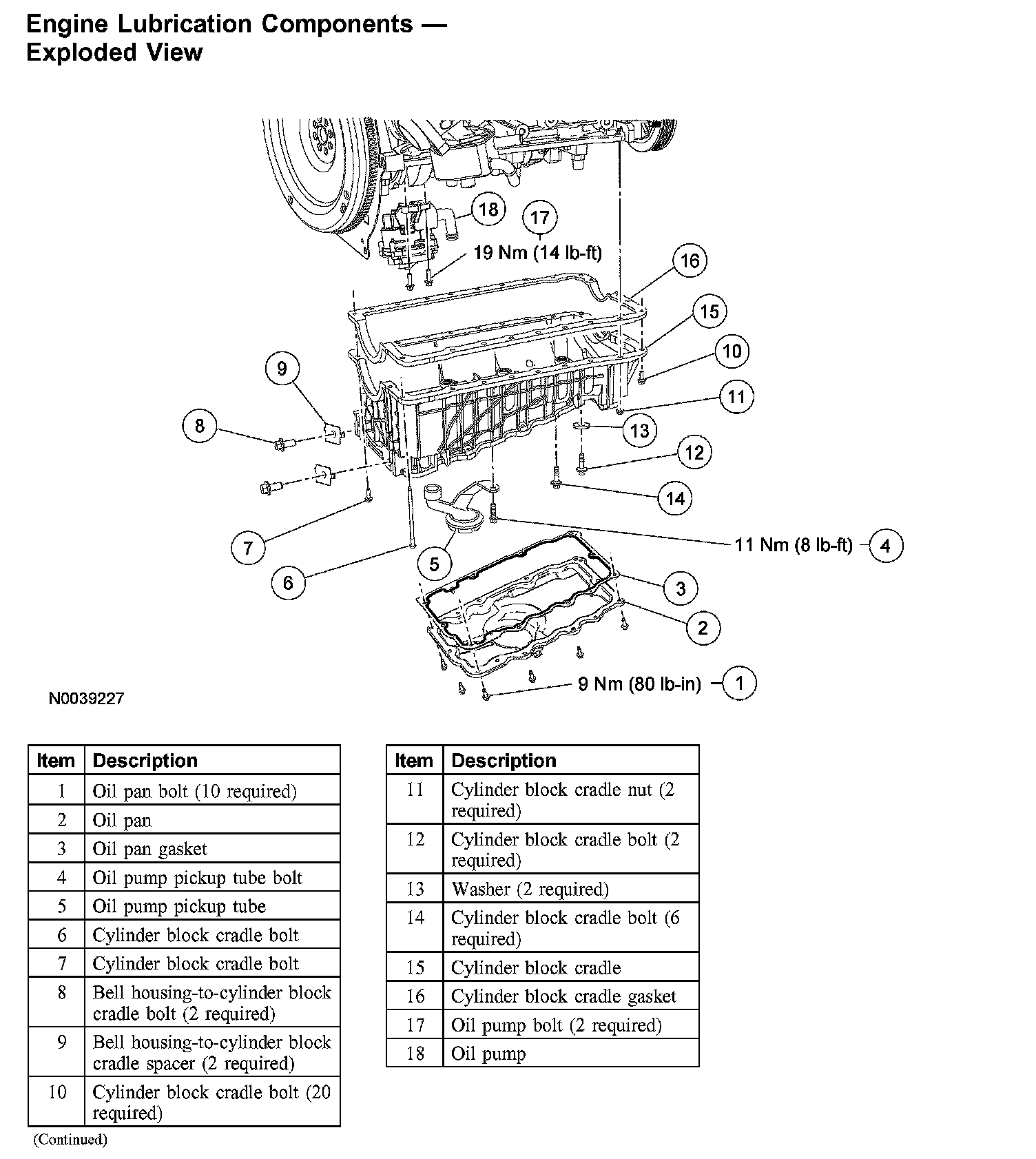

Engine Lubrication Components - Exploded View

Engine Lubrication Components - Exploded View:
