Timing Components

Valve Train Components - Exploded View

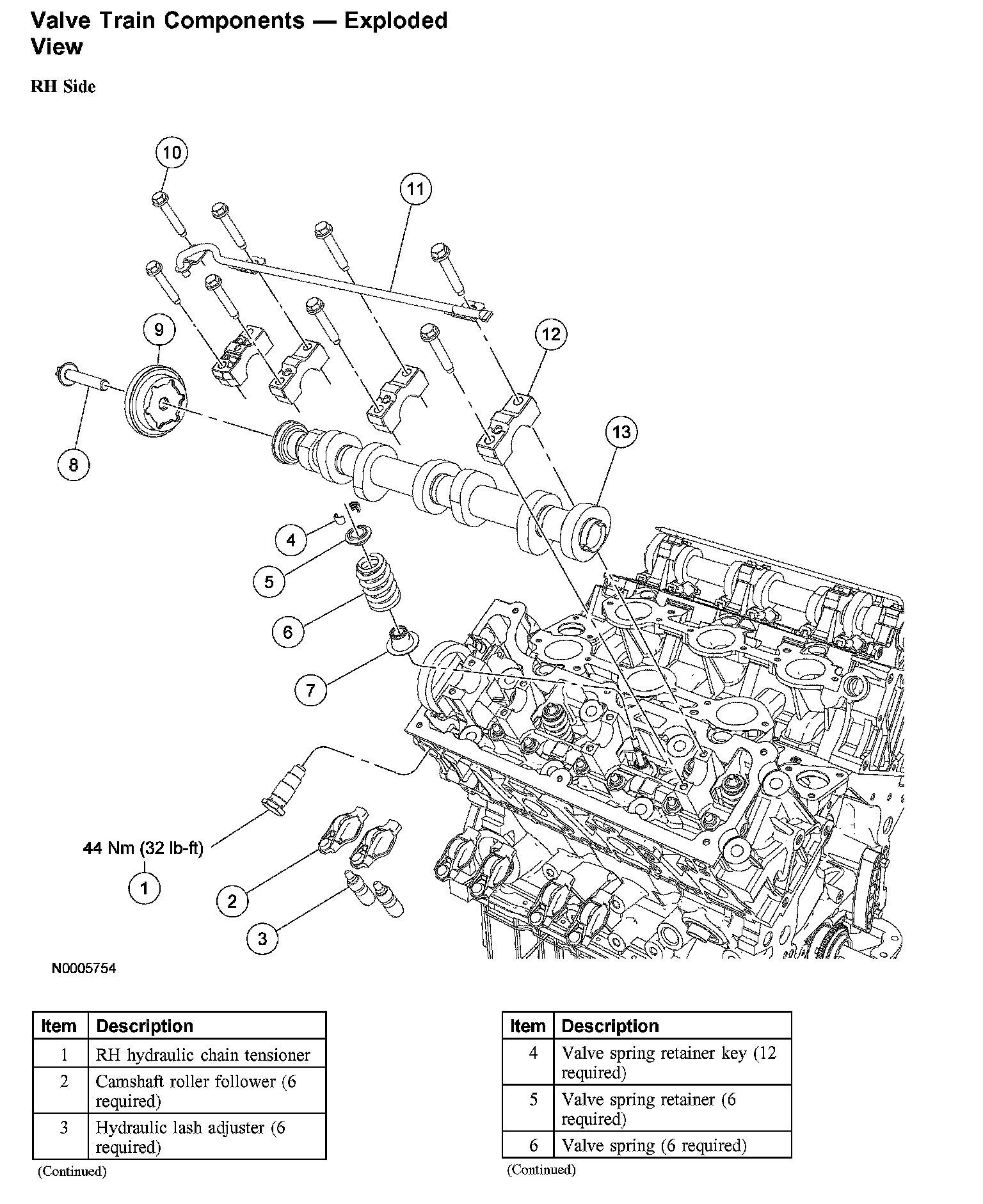

Valve Train Components - Exploded View, RH Side:




Valve Train Components - Exploded View, RH Side:

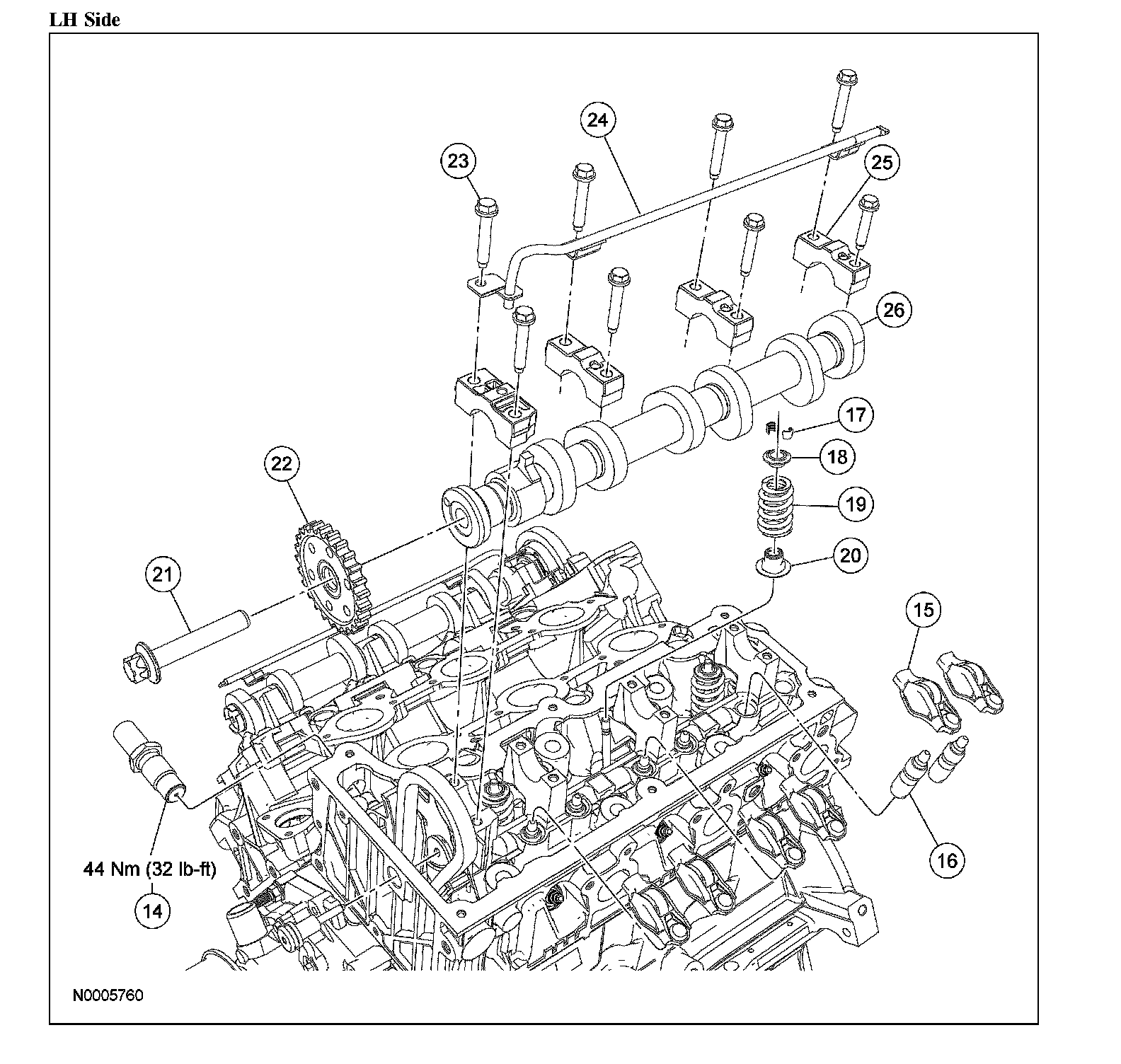

Valve Train Components - Exploded View, LH Side:

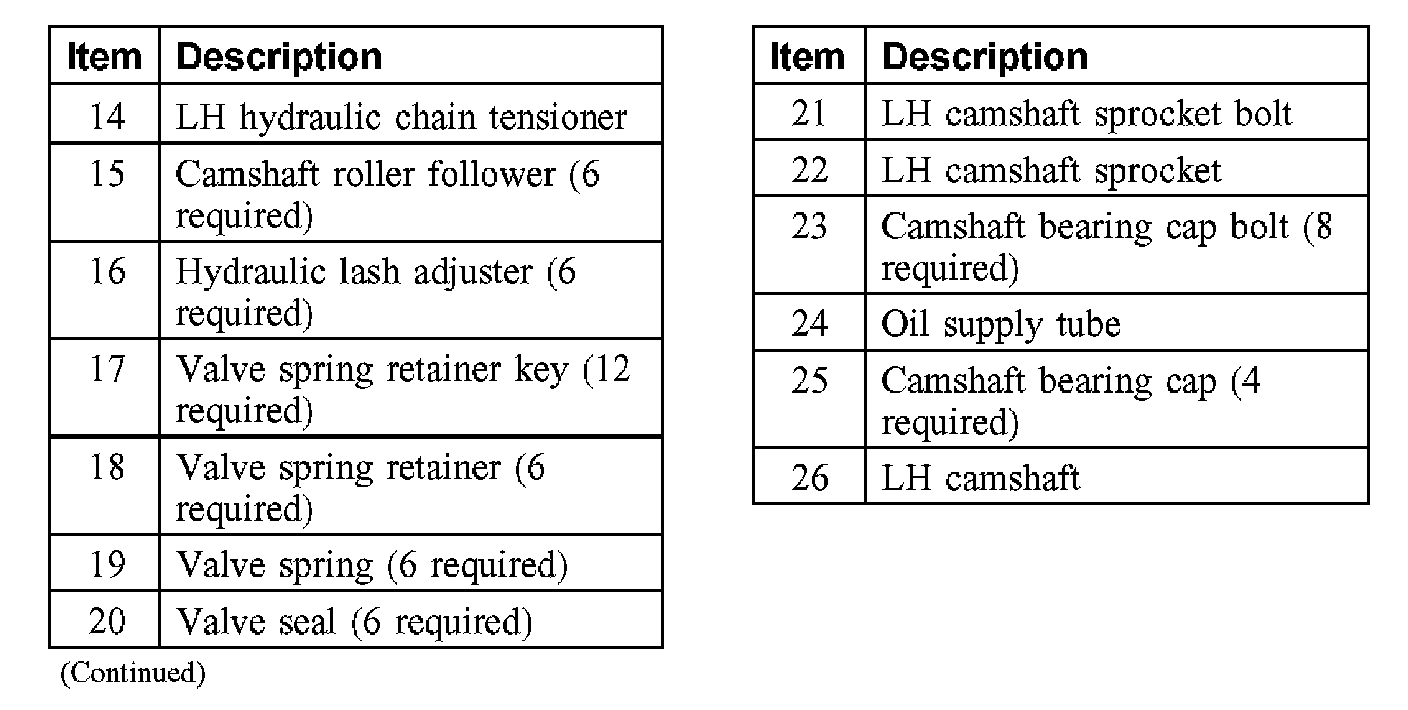

Valve Train Components - Exploded View, LH Side:
