Exhaust System

Exhaust System - Exploded View

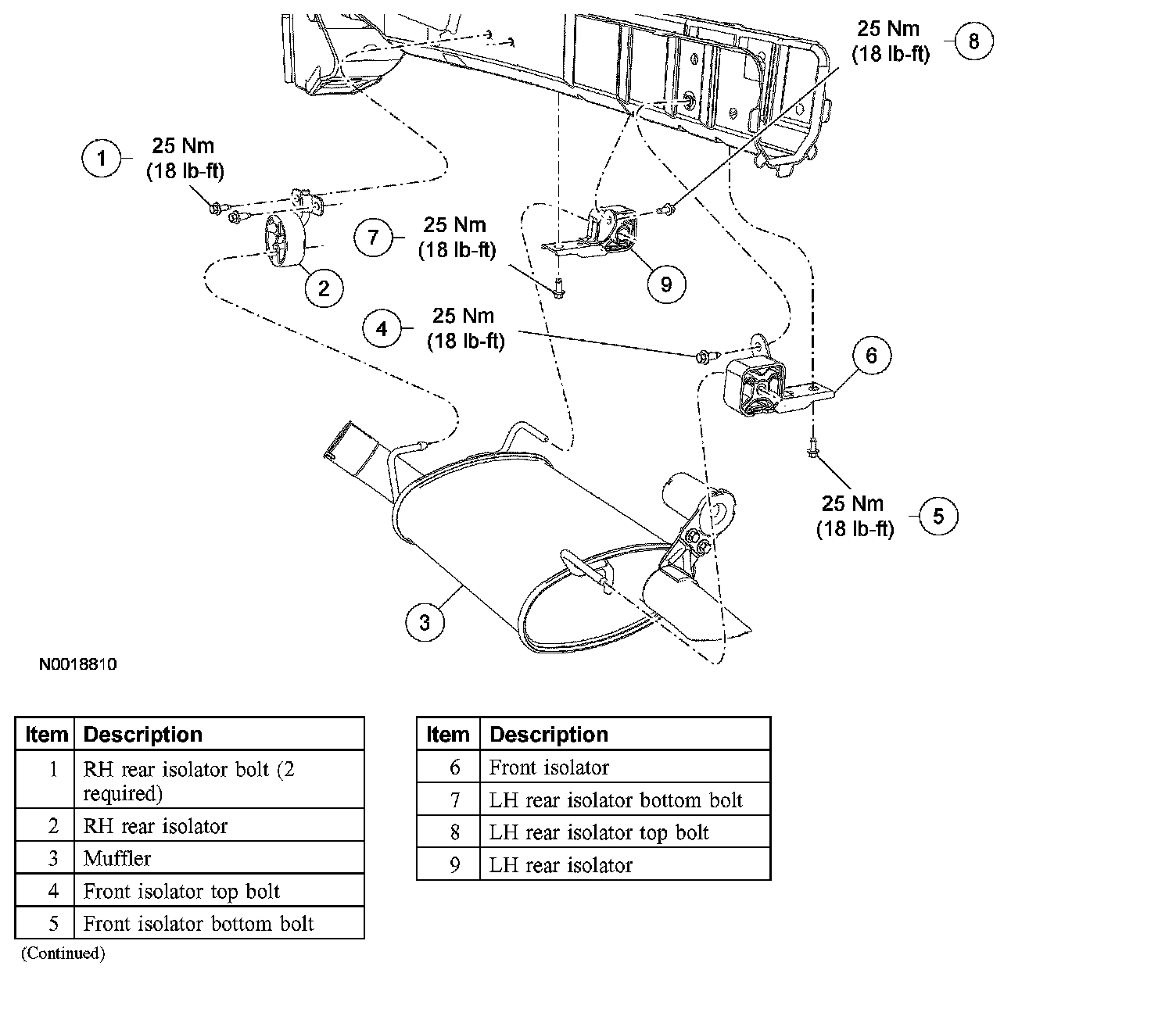

Exhaust System - Exploded View, 4.0L:

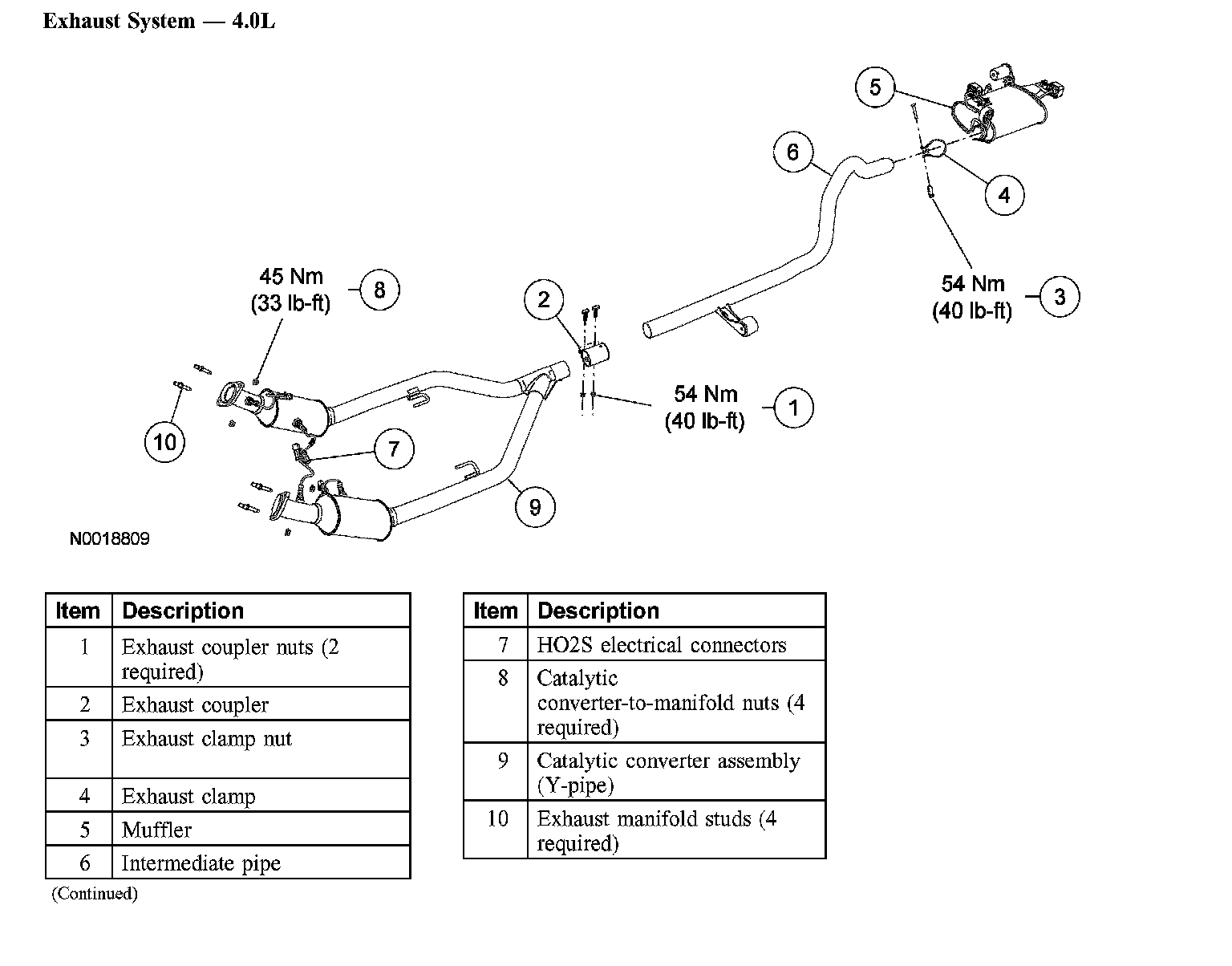

Exhaust System - Exploded View, 4.0L:
