Oxygen Sensor: Locations



View 151-8 (Automatic Transmission):

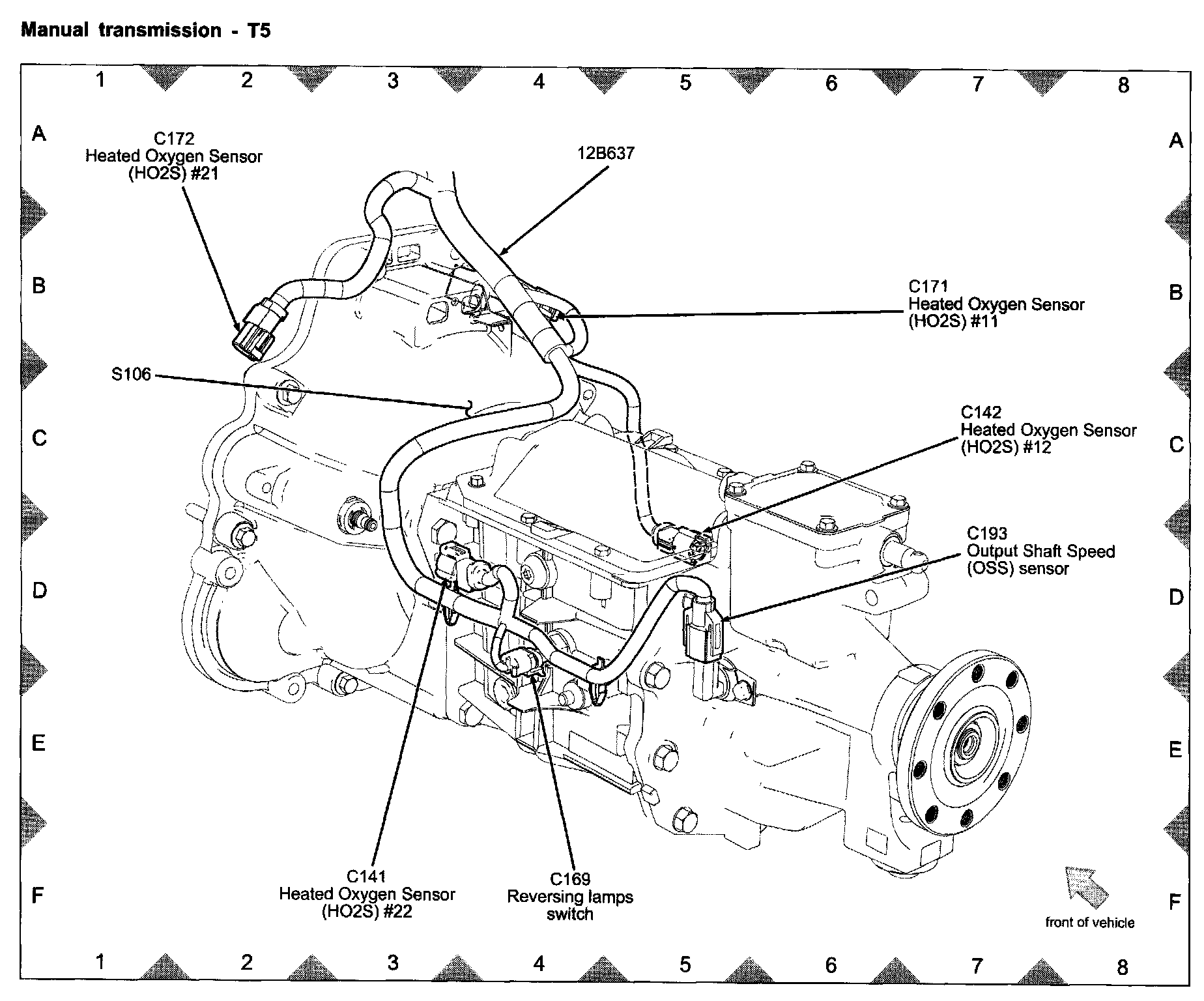

View 151-9 (Manual Transmission - T5):

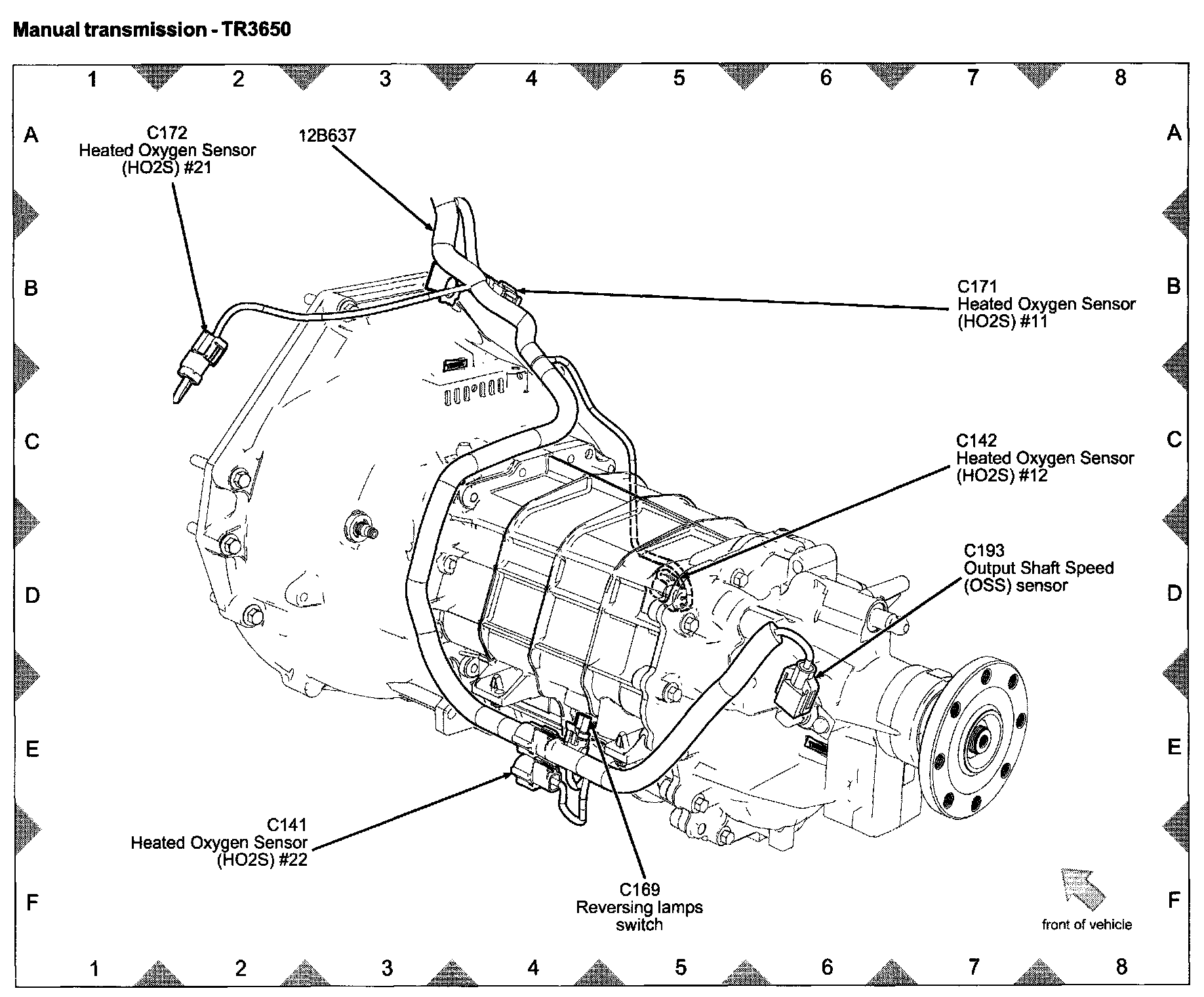

View 151-10 (Manual Transmission - TR3650):
