Ignition Switch: Service and Repair

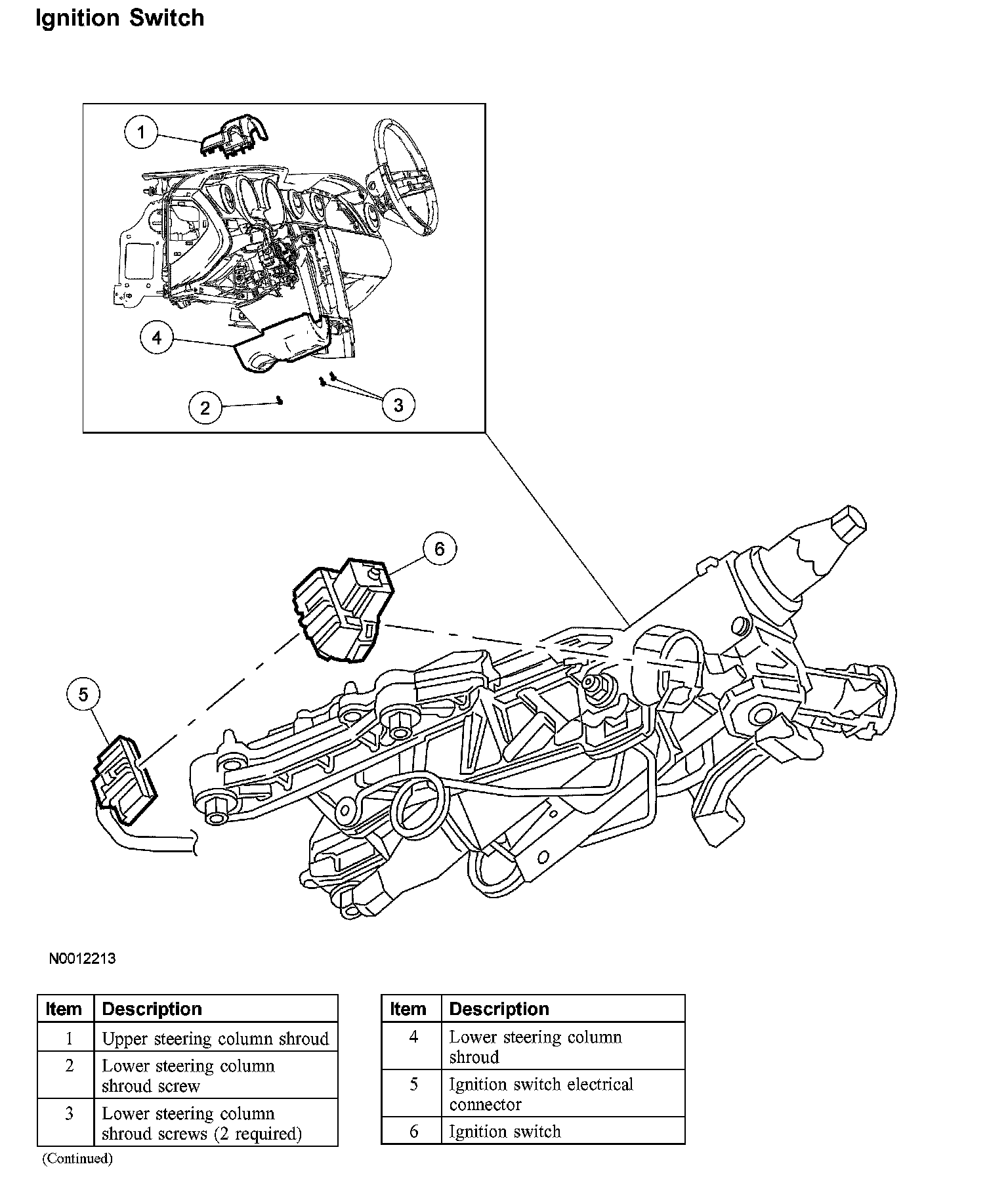

Ignition SwitchIgnition Switch:
Removal and Installation
CAUTION: Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column can result.
1. Depower the supplemental restraint system (SRS).
2. Remove the upper steering column shroud by carefully pressing the sides inward.
3. Remove the 3 screws and the lower steering column shroud.
4. Disconnect the ignition switch electrical connector.
5. Release the 2 locking tabs and remove the ignition switch.
6. To install, reverse the removal procedure.
Repower the SRS.
