Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE CHART

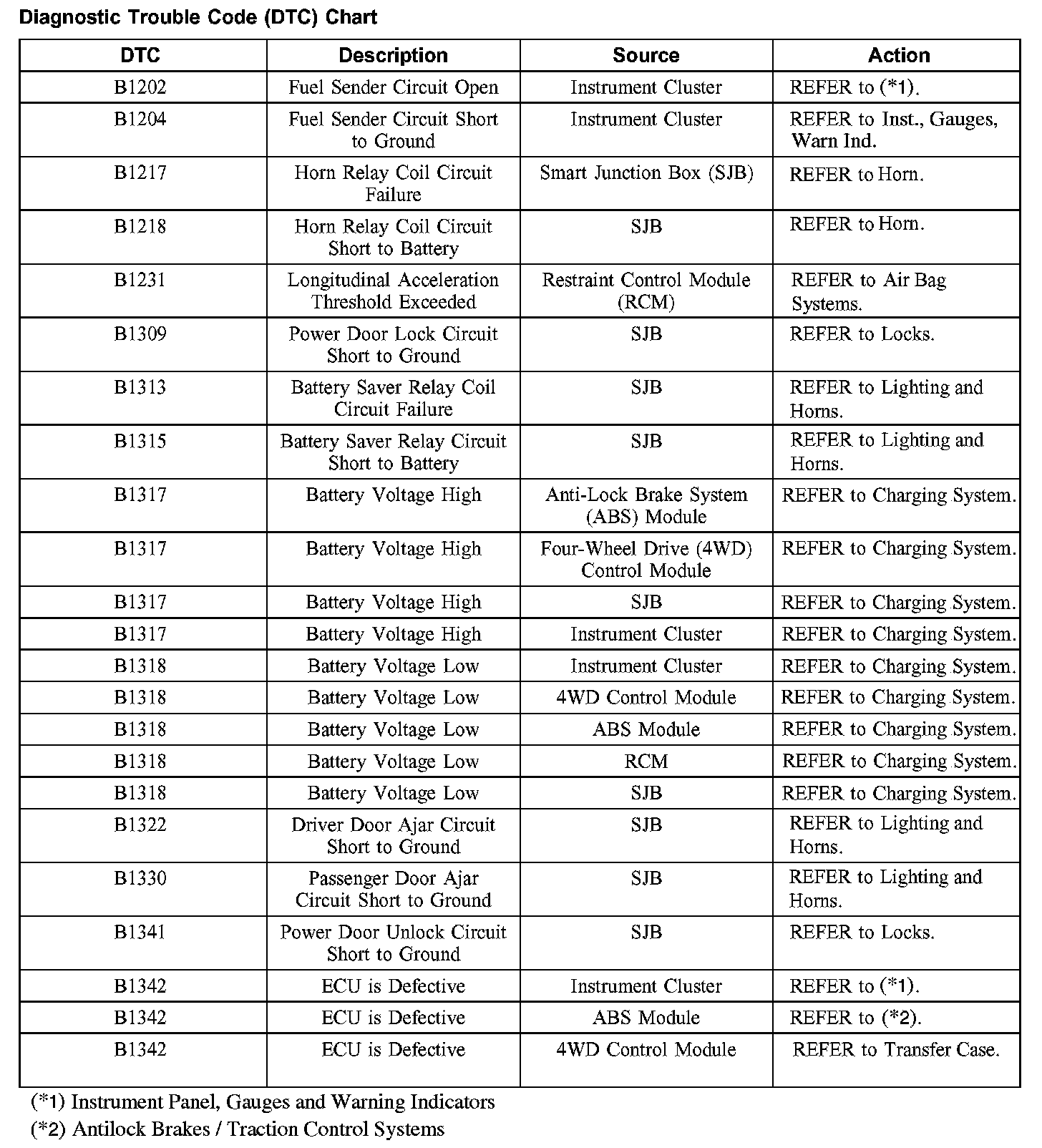

B1202-B1342:

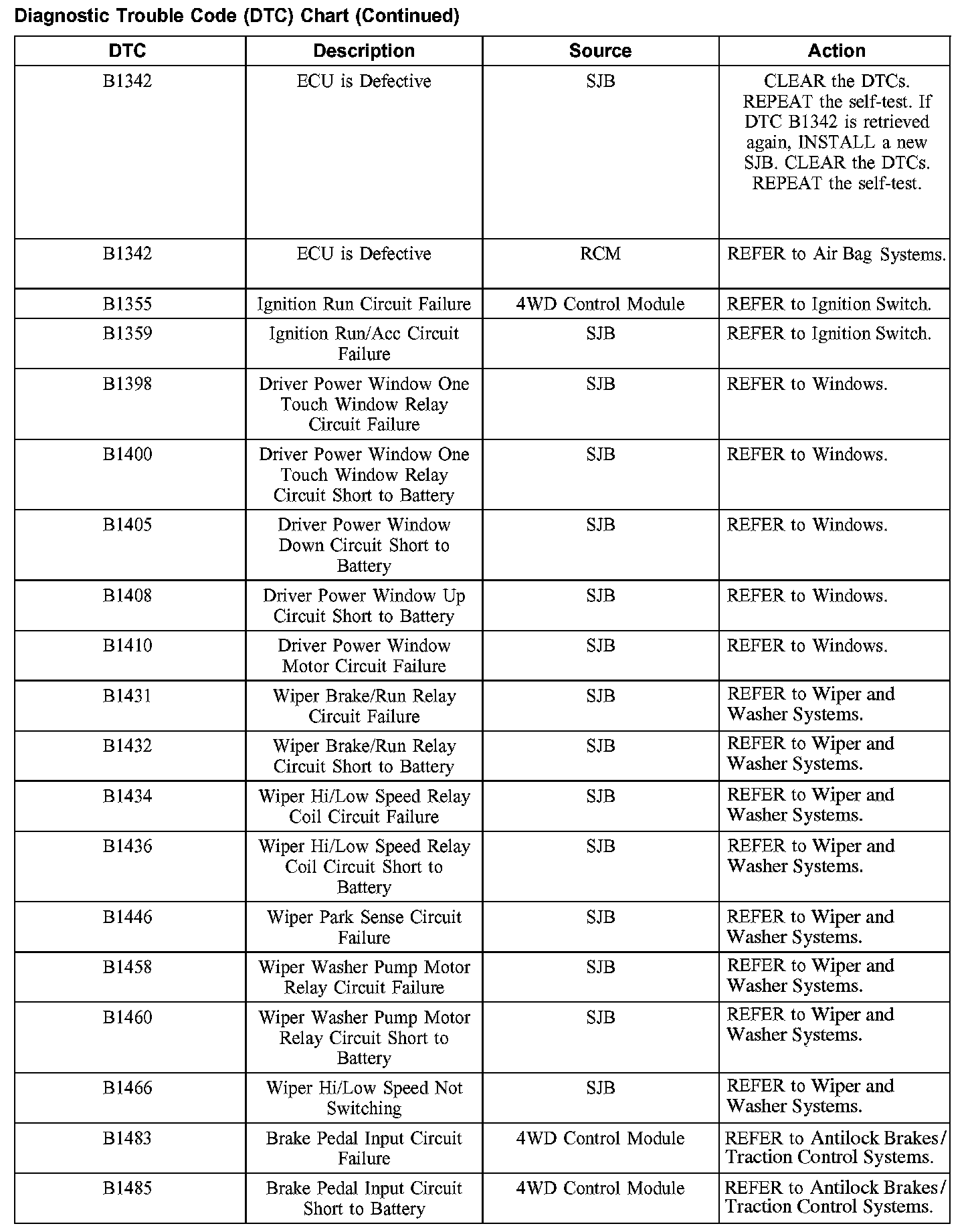

B1342-B1485:

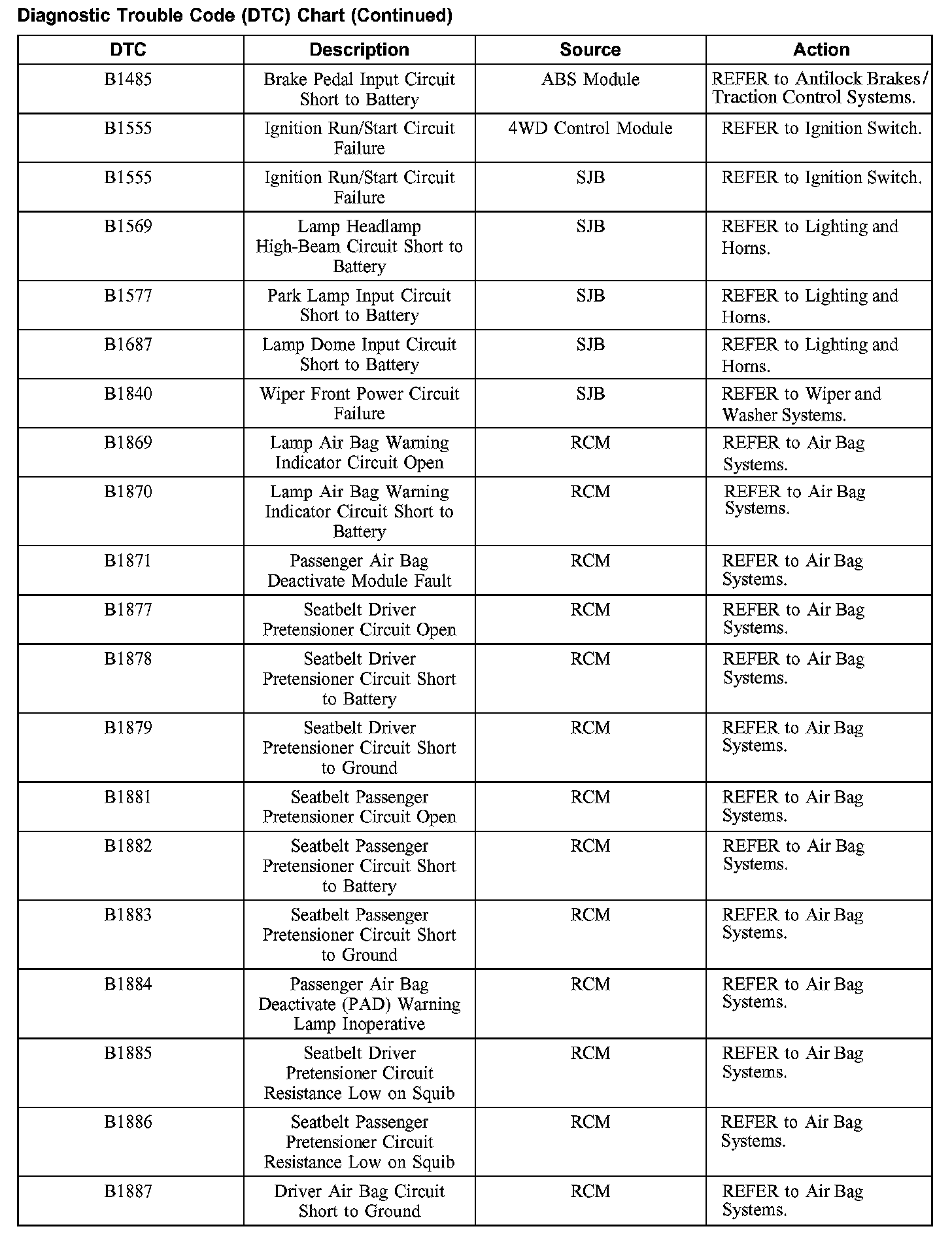

B1485-B1887:

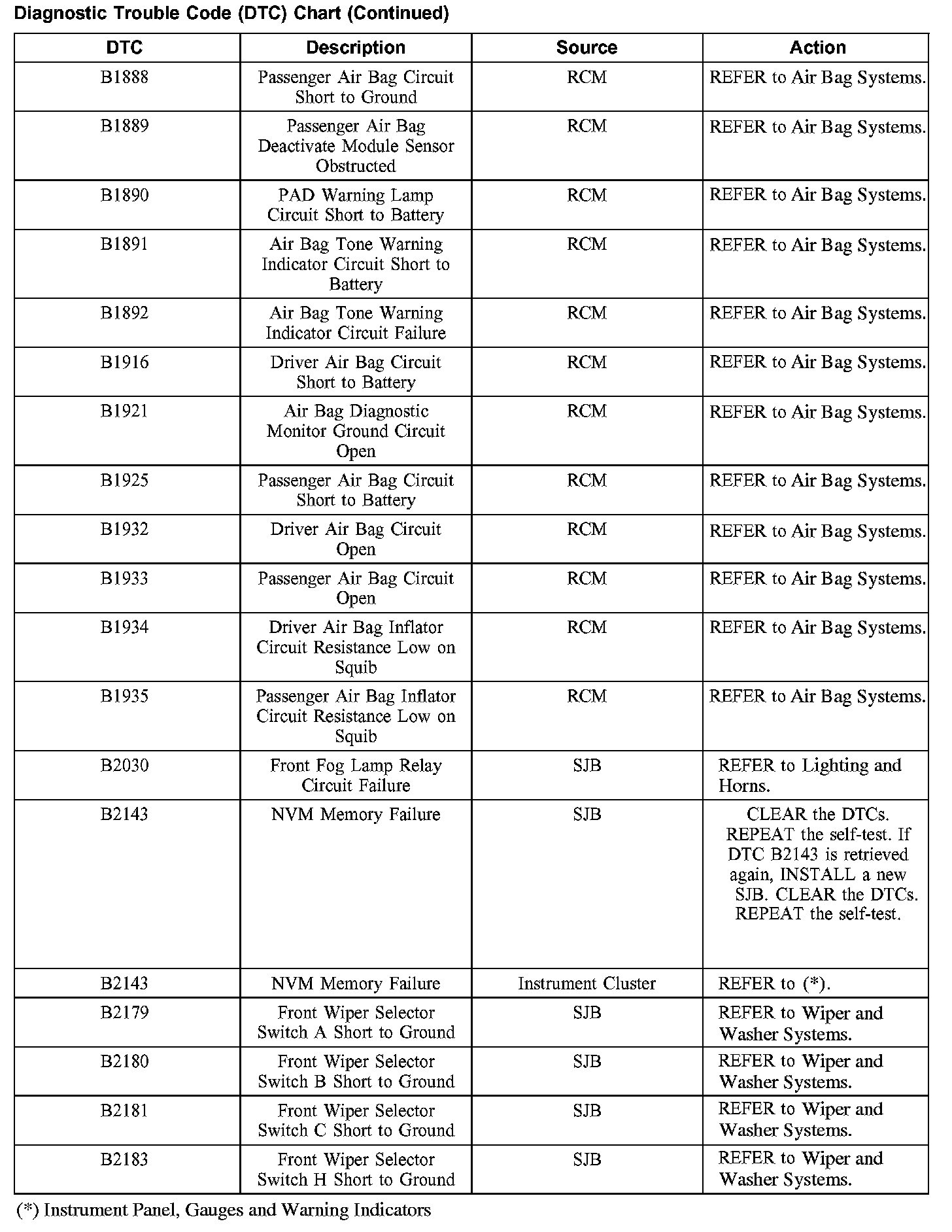

B1888-B2183:

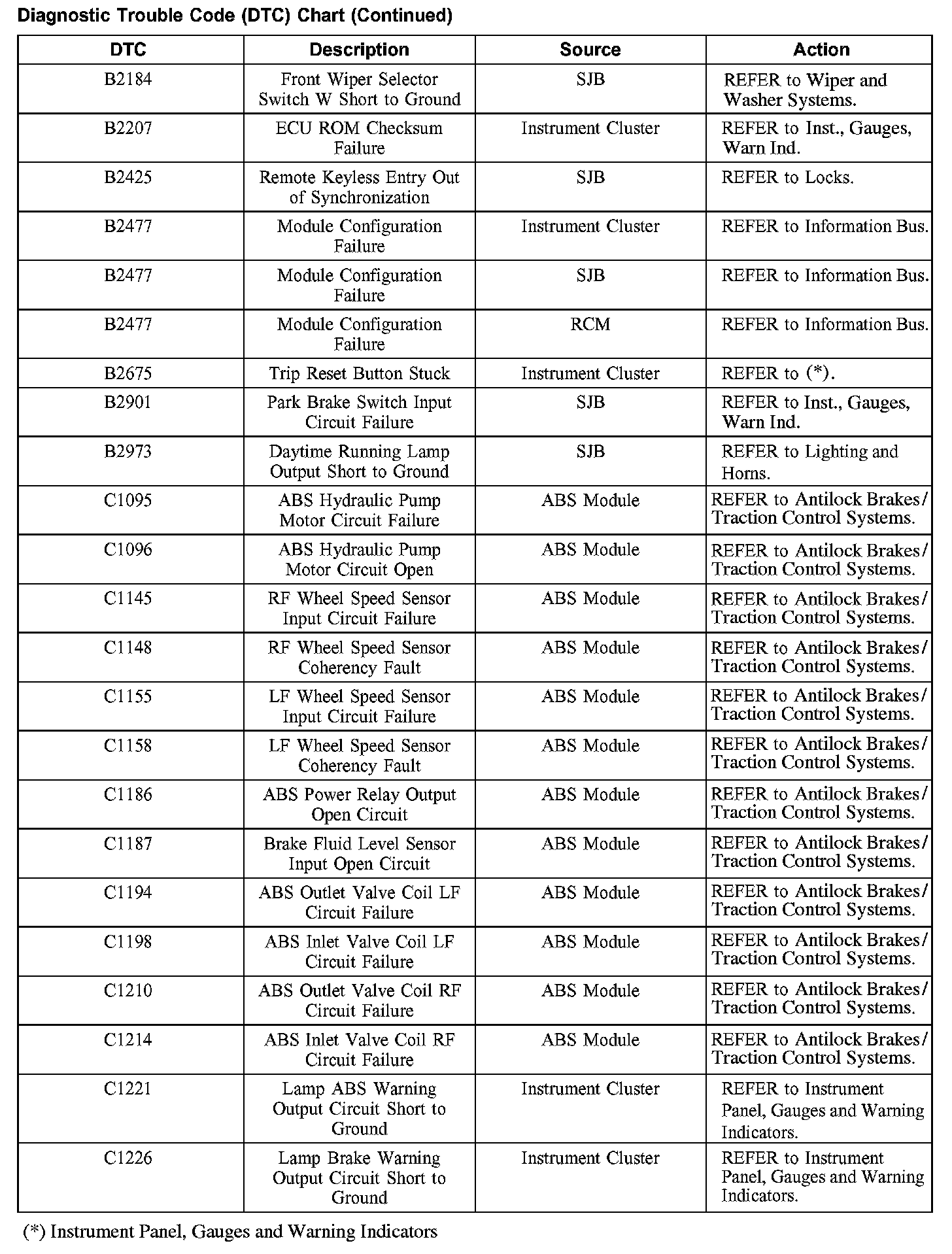

B2184-C1226:

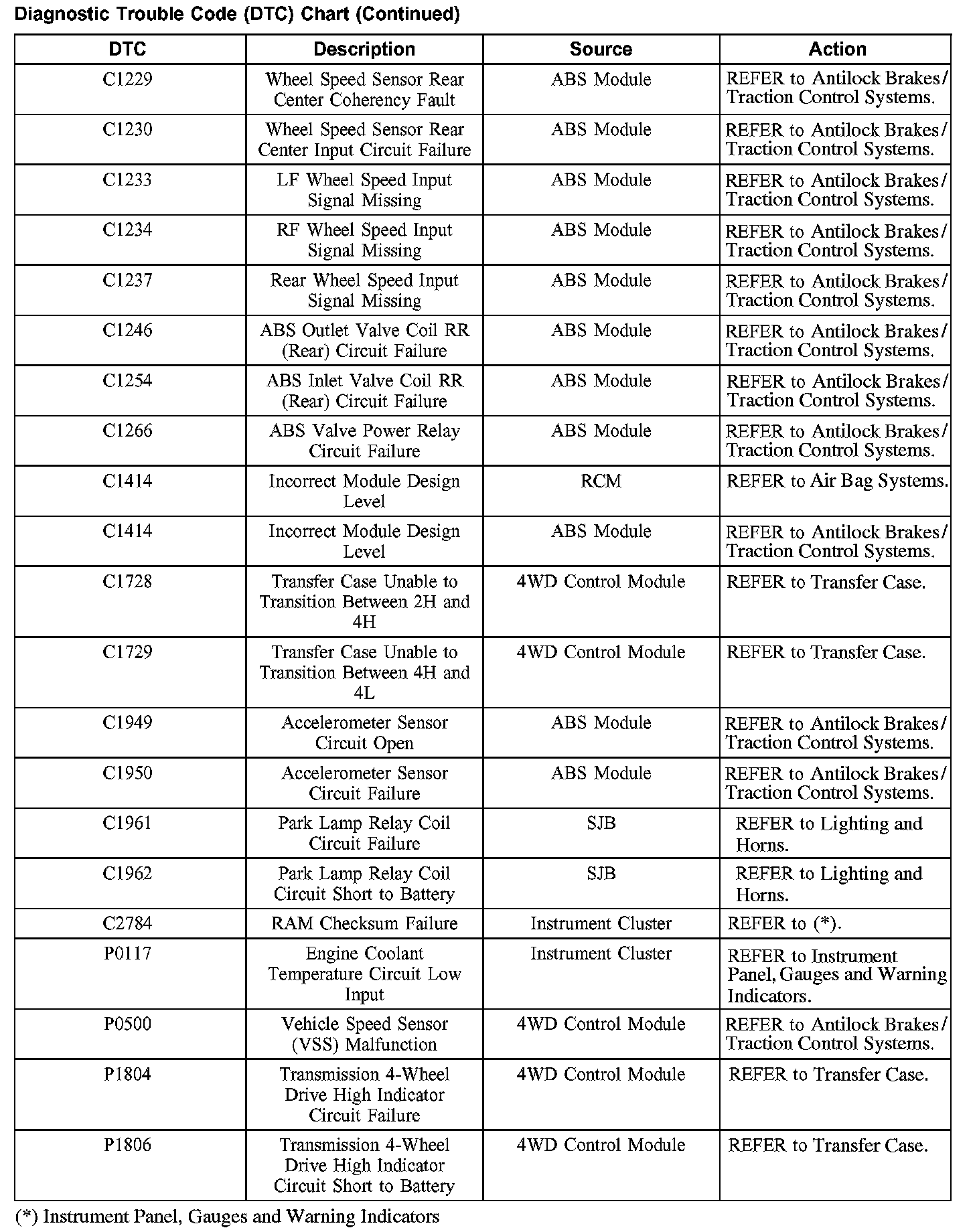

C1229-P1806:

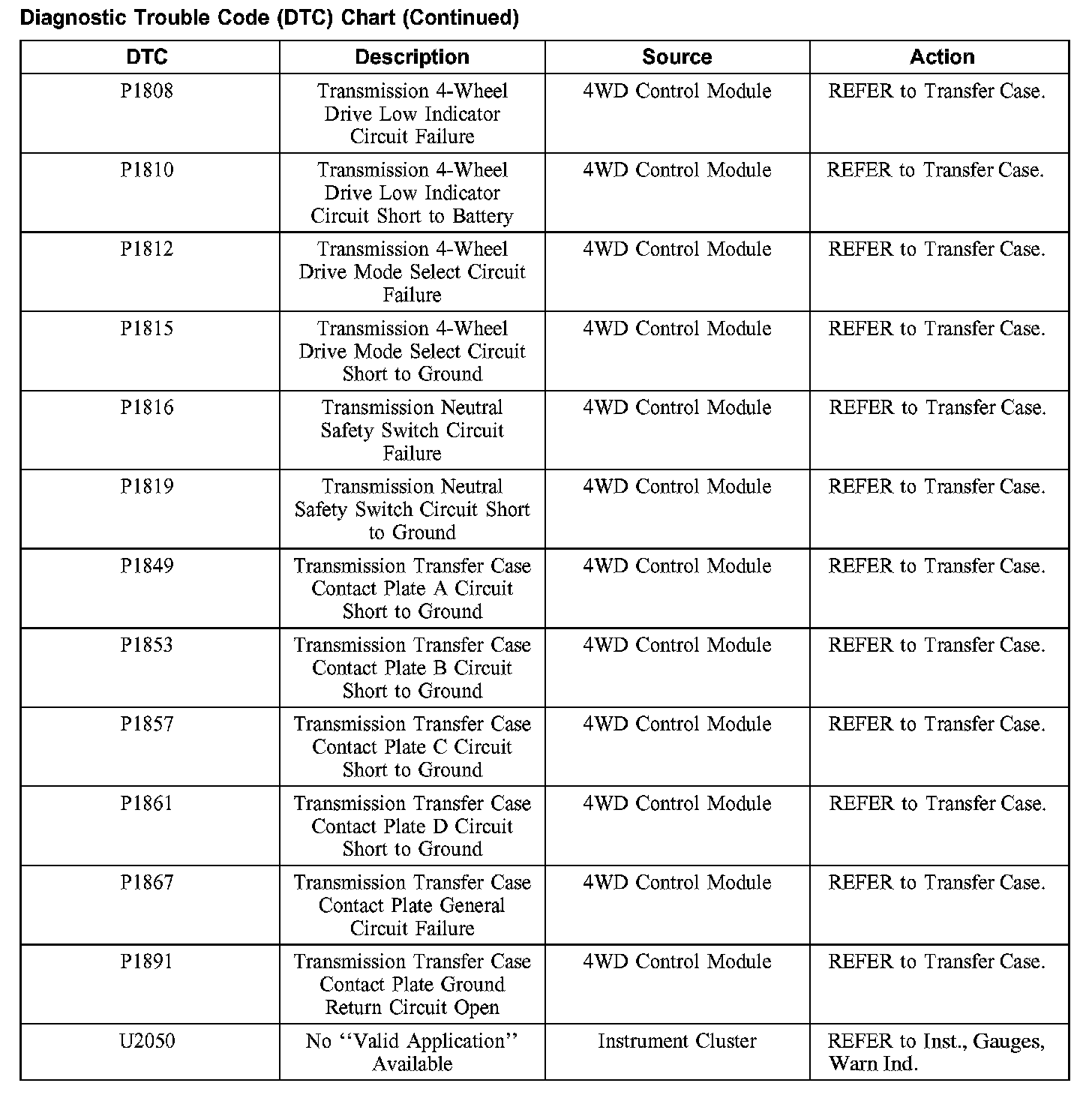

P1808-U2050:
