Digital Transmission Range (TR) Sensor: Installation

Verify that the shift selector lever is in NEUTRAL.
Install the digital TR sensor and loosely install the bolts.

Fig 1: Locating Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.
- Tighten to 11 Nm (8 lb-ft).

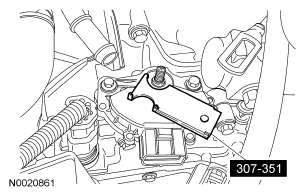

Fig 2: Aligning Digital TR Sensor Using Special Tool (307-351)
Courtesy of FORD MOTOR CO.
Connect the connector.

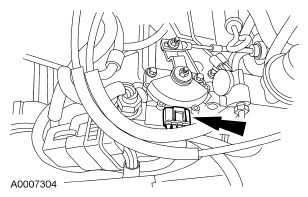

Fig 3: Locating Electrical Connector
Courtesy of FORD MOTOR CO.
Install the shift cable and manual control lever nut.
1. Install the shift cable into the bracket.
2. Install the manual control lever nut.
  - Tighten to 13 Nm (10 lb-ft).
Fig 4: Identifying Manual Control Lever Nut
Courtesy of FORD MOTOR CO.
Install the air filter assembly.

Fig 5: Locating Air Filter Assembly
Courtesy of FORD MOTOR CO.
Install the engine air cleaner.

Fig 6: Locating Engine Air Cleaner
Courtesy of FORD MOTOR CO.
Reconnect the mass air flow (MAF) sensor and the breather tubes.

Fig 7: Locating Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Check for correct vehicle operation.
