Intermediate Clutch Cylinder: Notes

SPECIAL TOOL CHART

G04710184Courtesy of FORD MOTOR CO.
 Dial Indicator Gauge With Holding Fixture 100-D002 (D78P-4201-B)
G04710185Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring 307-015 (T65L-77515-A)
G04710186Courtesy of FORD MOTOR CO.
 Protector, Piston Seal 307-319 (T94P-77001-LH)

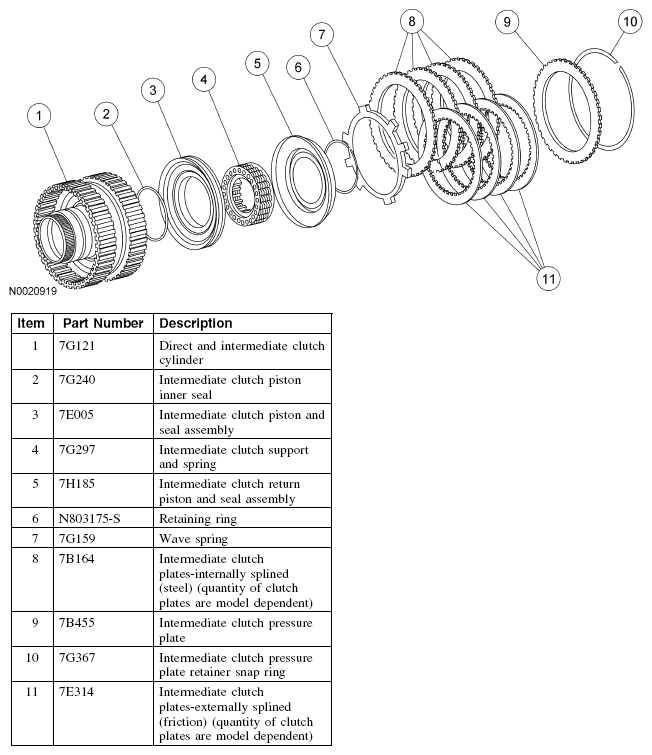

Fig 1: Exploded View Of Intermediate Clutch Cylinder
G04710187Courtesy of FORD MOTOR CO.
