Reverse Clutch: Notes

SPECIAL TOOL CHART

Courtesy of FORD MOTOR CO.	Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent
Courtesy of FORD MOTOR CO.	Compressor, Clutch Spring 307-015 (T65L-77515-A)
Courtesy of FORD MOTOR CO.	Protector, Piston Seal 307-322 (T94P-77001-PH)

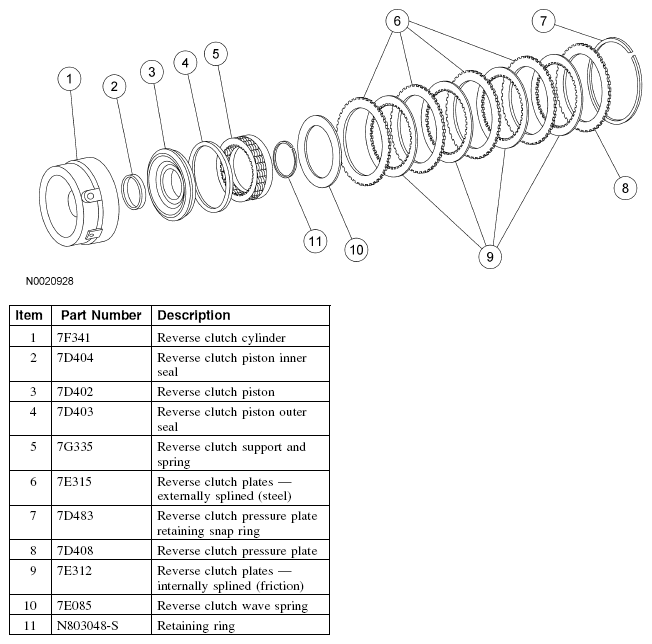

Fig 1: Exploded View Of Reverse Clutch

Courtesy of FORD MOTOR CO.
