Seat - Exploded View, Front

SEAT - EXPLODED VIEW, FRONT

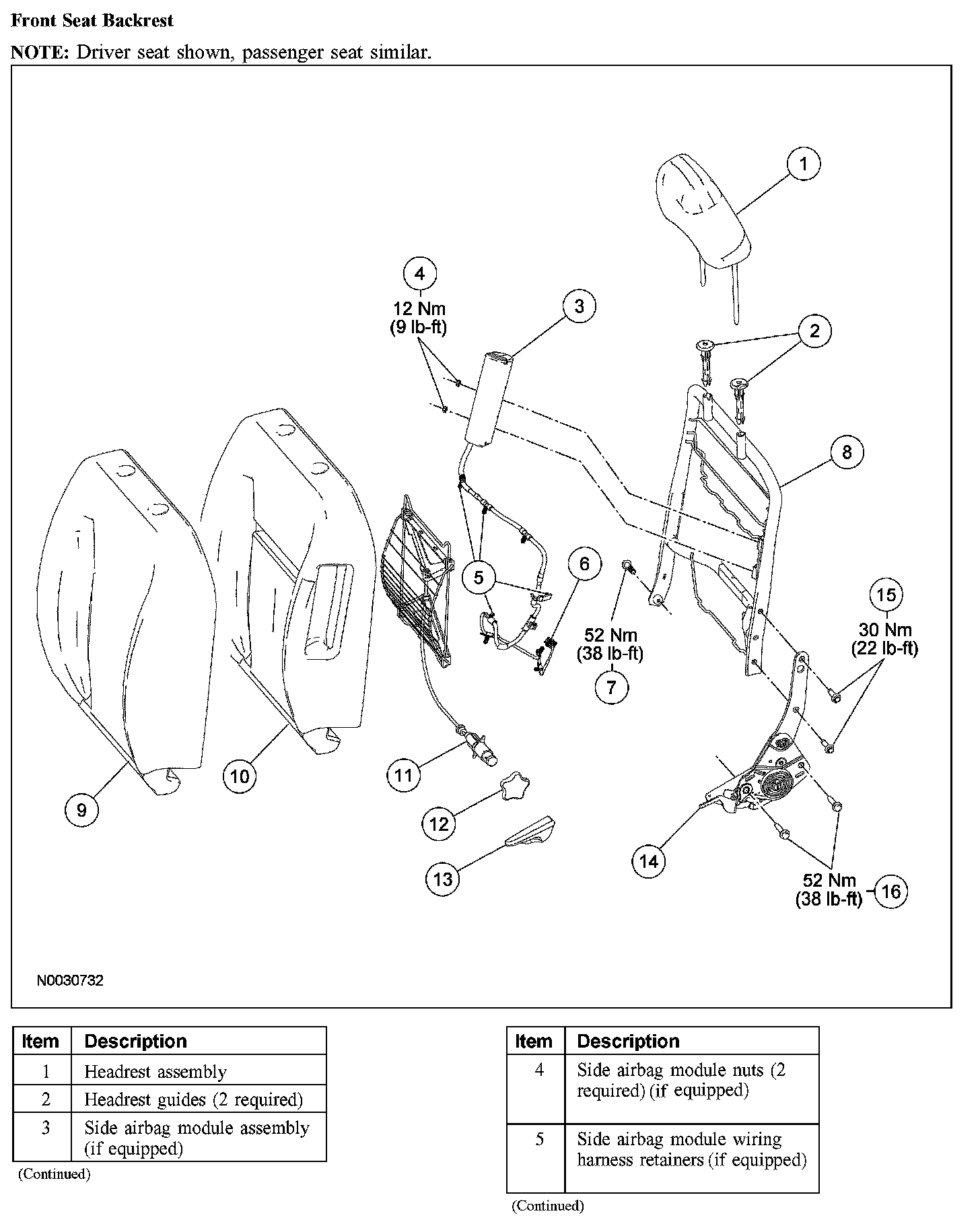

Front Seat Backrest (Part 1):

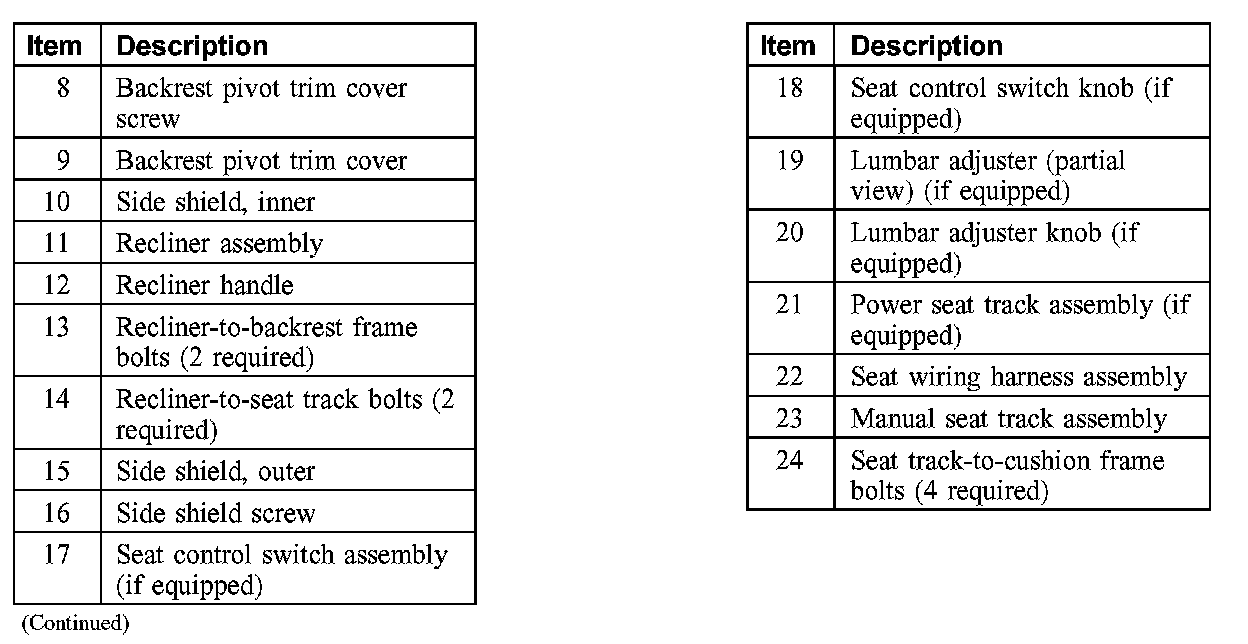

Front Seat Backrest (Part 2):

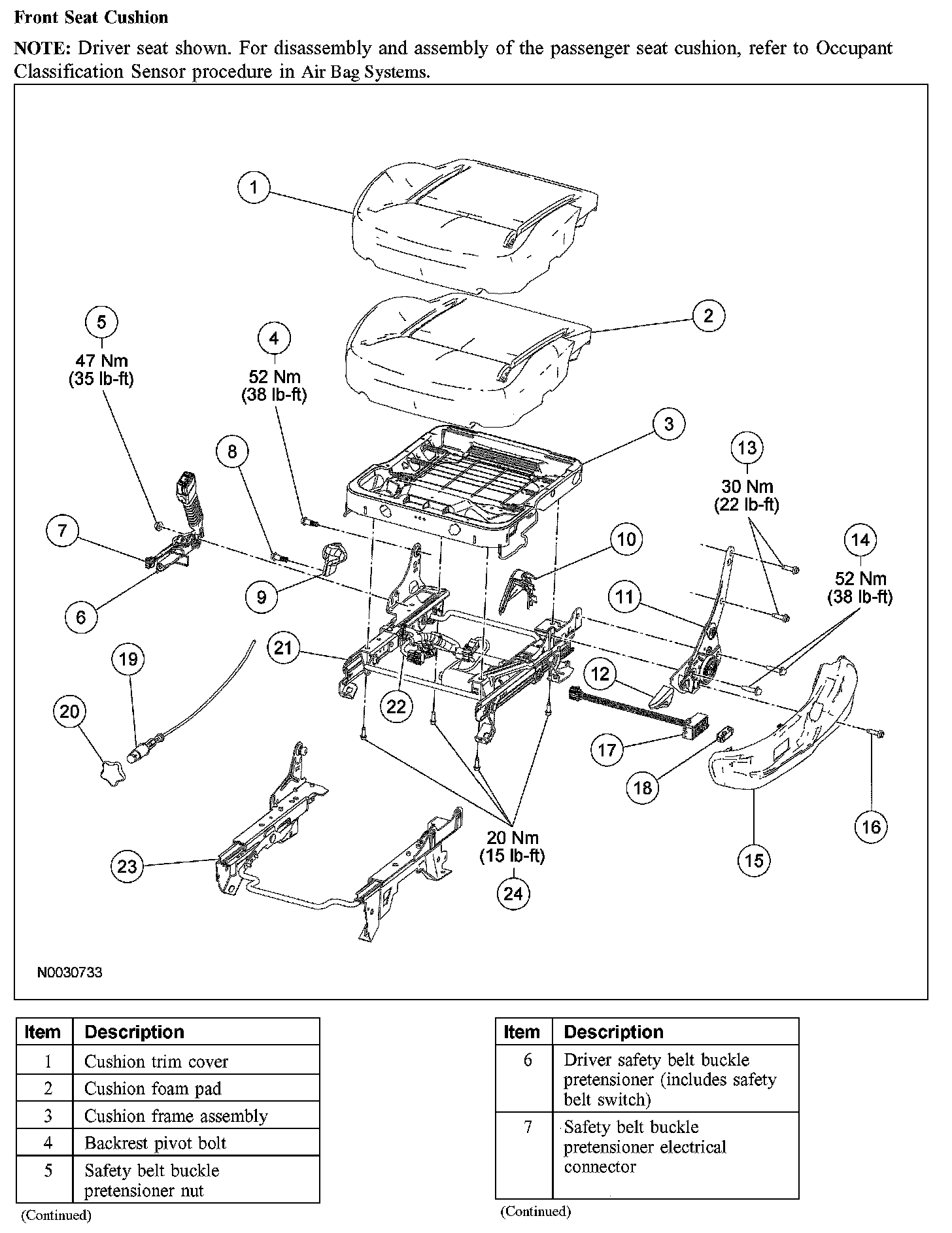

Front Seat Cushion (Part 1):






Front Seat Cushion (Part 2):






Removal and Installation
1. For additional information, refer to the procedures.
