Electronic Brake Control Module: Service and Repair

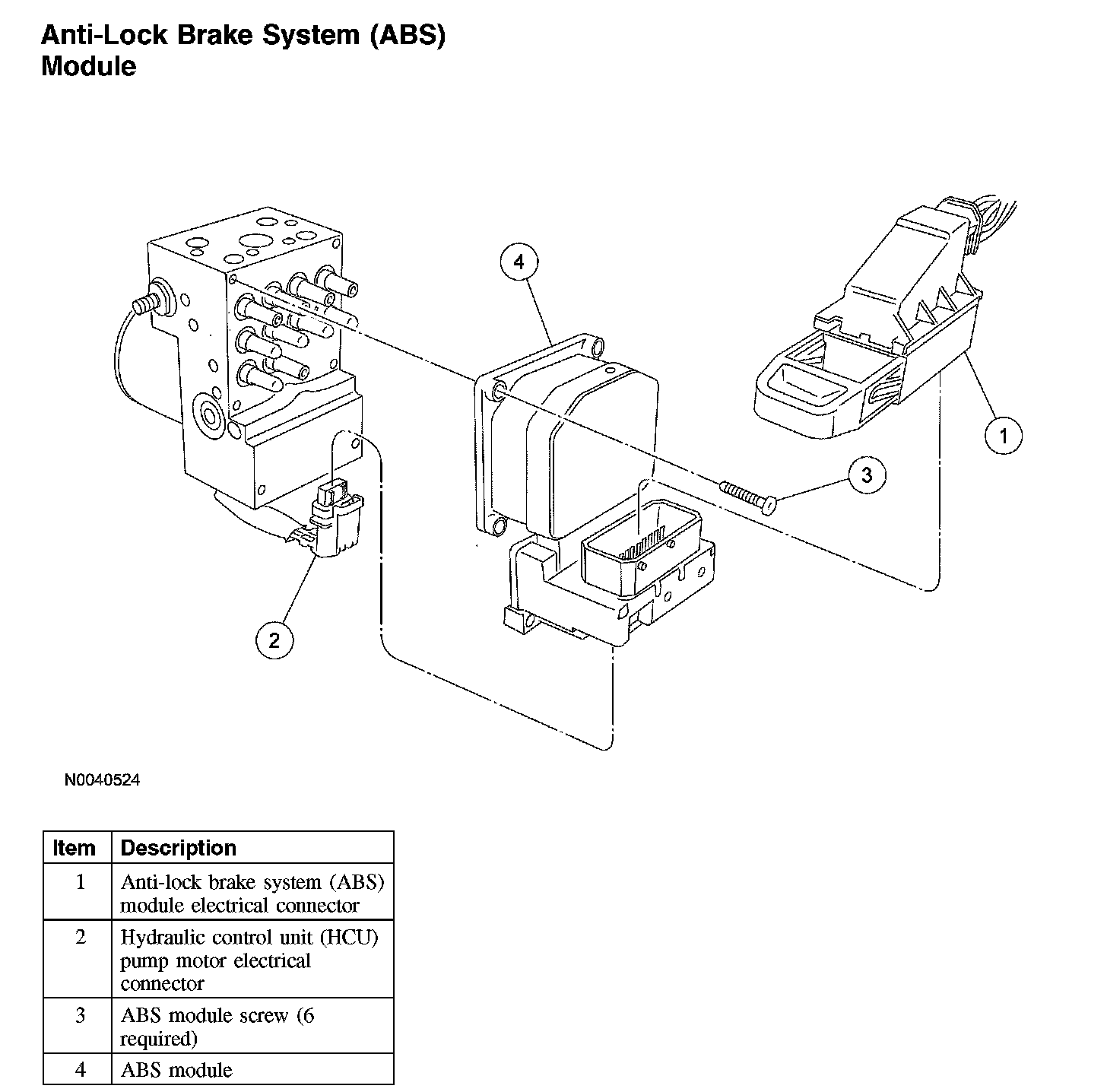

Anti-Lock Brake System (ABS) ModuleAnti-Lock Brake System (ABS) Module:
Removal and Installation
1. Remove the air cleaner.
2. Disconnect the battery ground cable.
3. Disconnect the anti-lock brake system (ABS) module electrical connector.
4. Disconnect the hydraulic control unit (HCU) pump motor electrical connector.
5. NOTE: Care must be taken when removing the module from the hydraulic control unit (HCU).
Remove the ABS module.
^ Remove the screws in the sequence shown.
^ To install, tighten to 3 Nm (27 inch lbs.).
6. NOTE: Make sure that the ABS module-to-HCU gasket surfaces are clean and that the gasket is correctly installed.
To install, reverse the removal procedure.
