Wheel Speed Sensor - Front: Notes

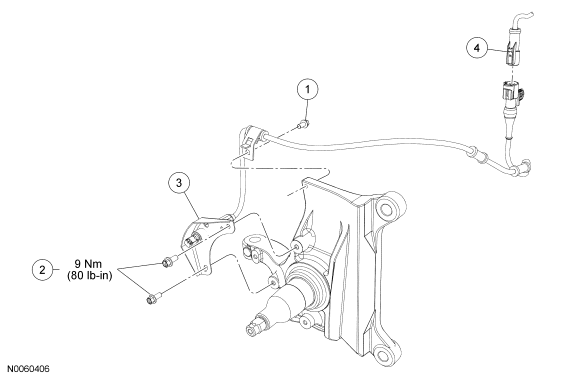

Fig 1: Exploded View of Front Wheel Speed Sensor with Torque Specifications
GF0012324Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Front wheel speed sensor harness retainer bolt
2 - Front wheel speed sensor bolts (2 required)
3 2C204 LH/ 2C205 RH Front wheel speed sensor
