System Diagram

Radiator and Cooling Fan - Exploded View, Diesel Engines

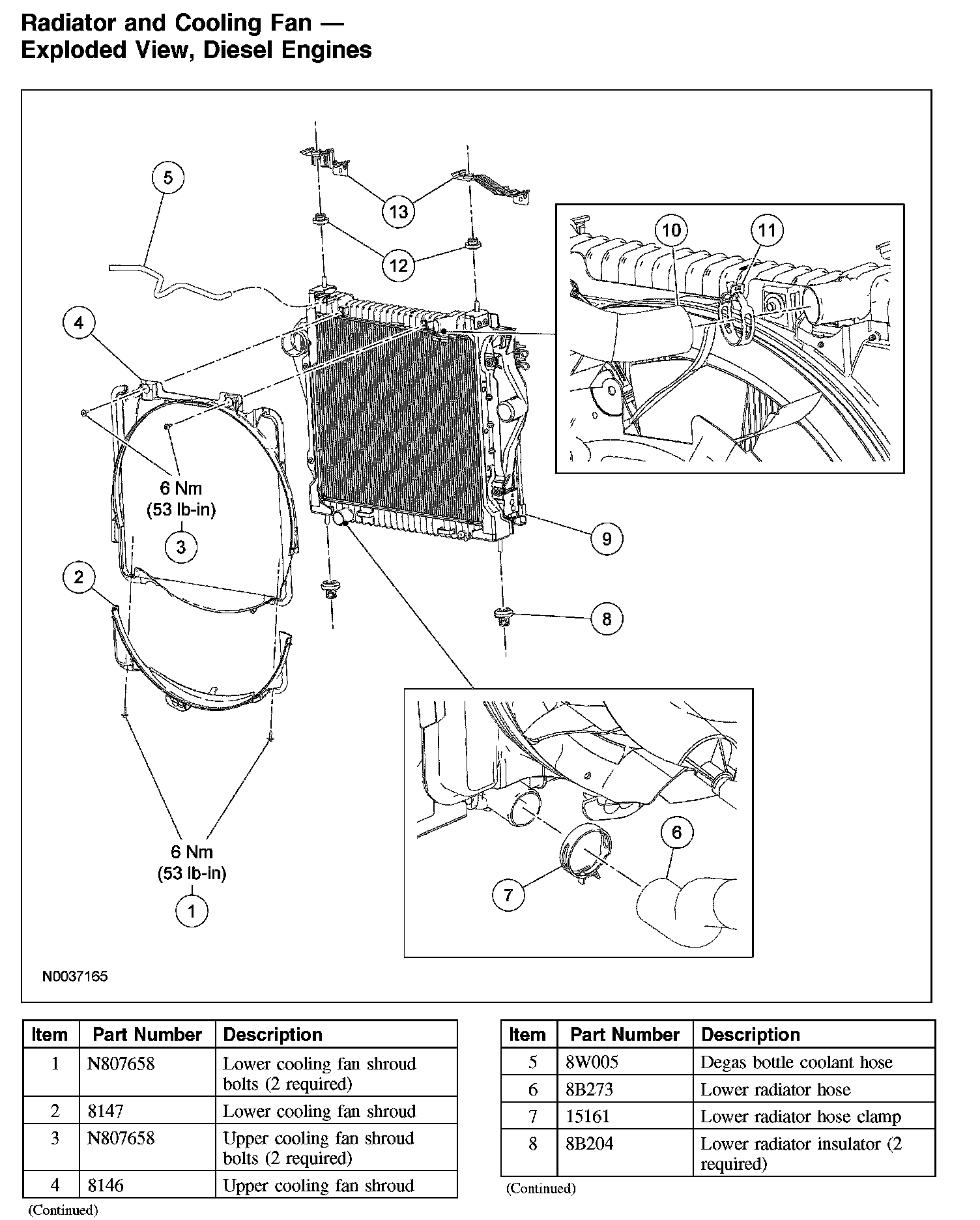

Radiator and Cooling Fan - Exploded View, Diesel Engines (Part 1):

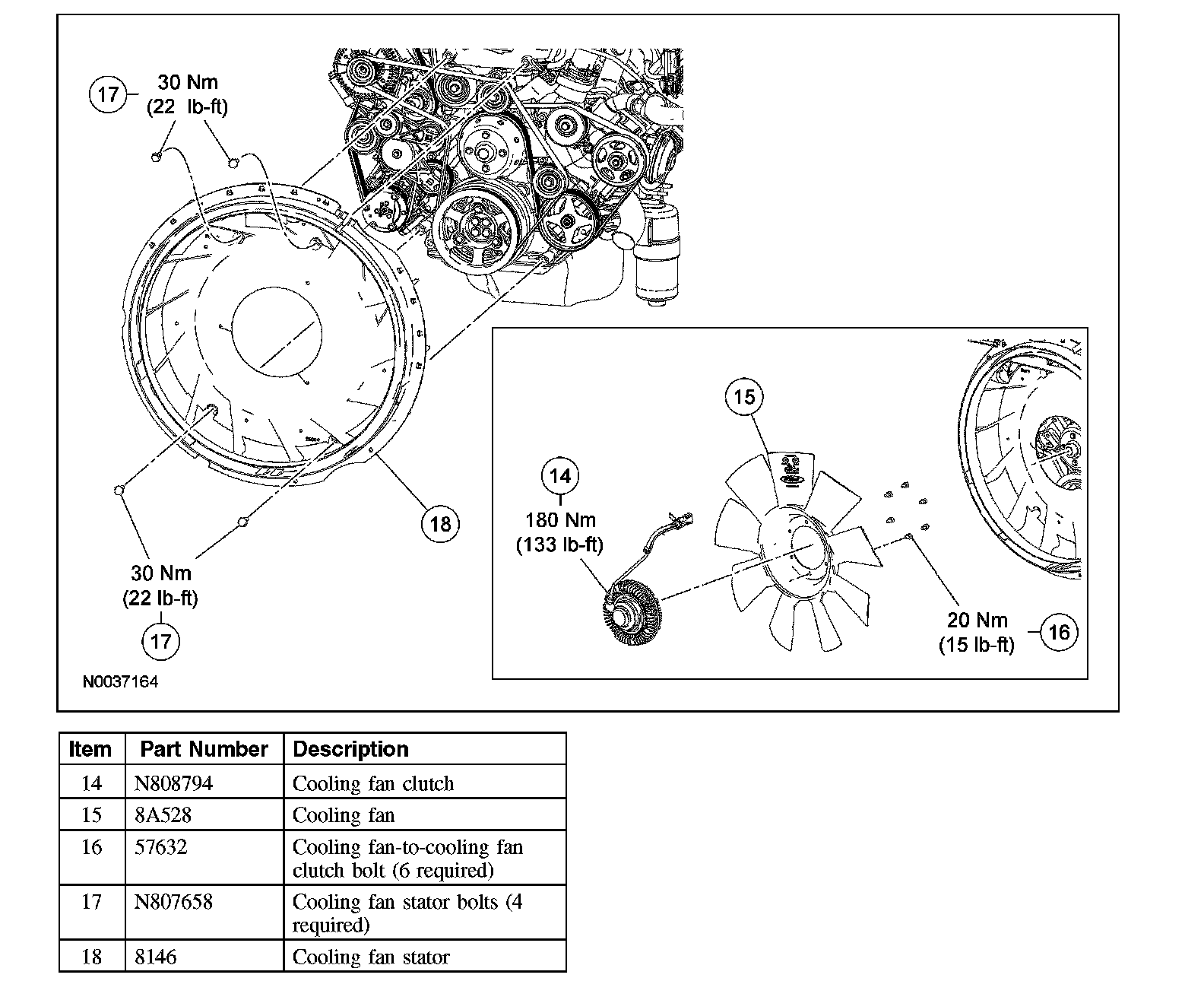

Radiator and Cooling Fan - Exploded View, Diesel Engines (Part 2):




Radiator and Cooling Fan - Exploded View, Diesel Engines (Part 3):
