Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH







Removal and Installation

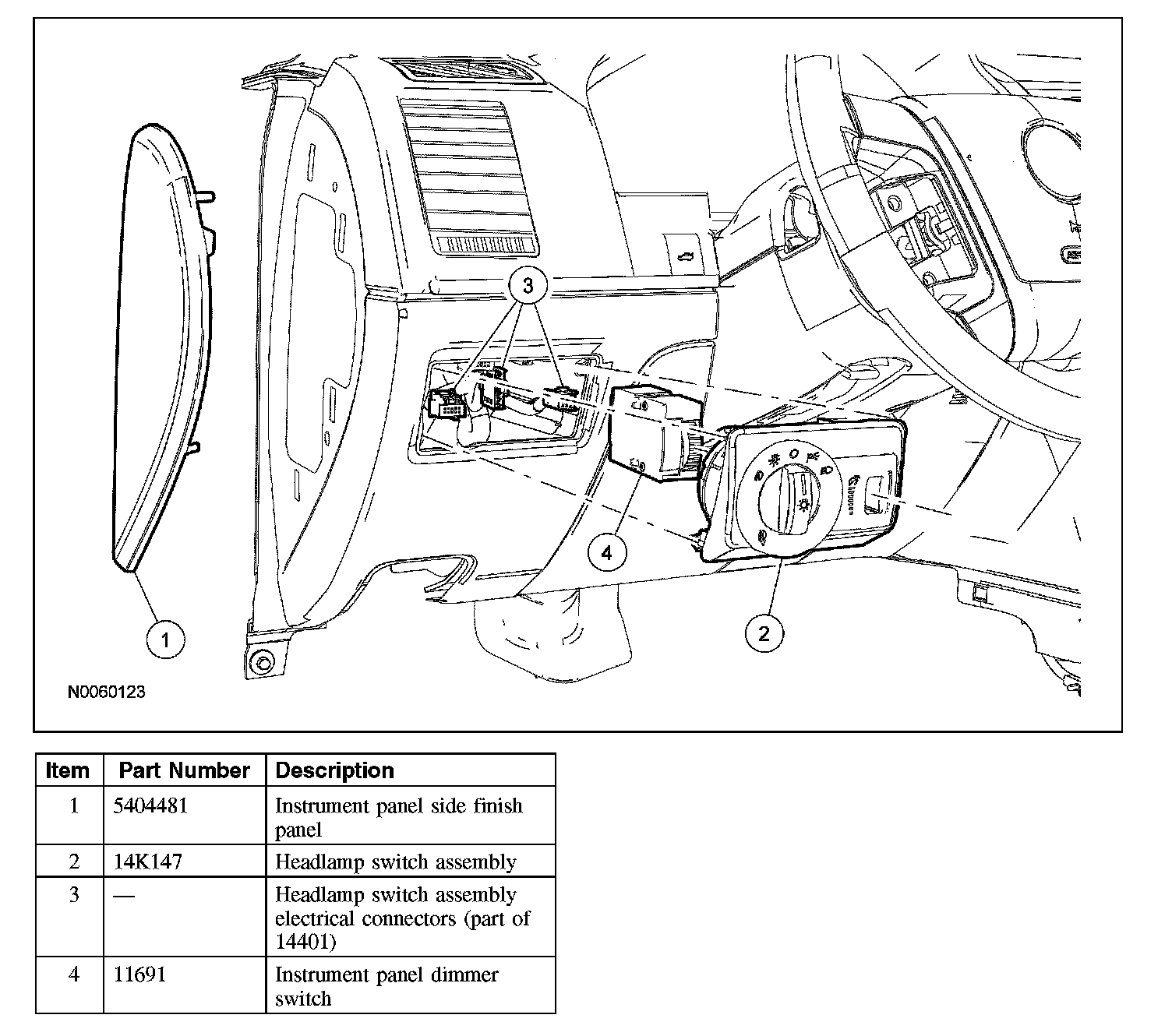

1. Remove the instrument panel side finish panel.

2. NOTE: The switch is removed by pushing from behind.

Release the tabs and remove the headlamp switch assembly.
- Disconnect the electrical connectors.







3. Release the 4 tabs and remove the instrument panel dimmer switch.
4. To install, reverse the removal procedure.
