Tests DR: Camshaft Position (CMP) Sensor

PINPOINT TEST DR: CAMSHAFT POSITION (CMP) SENSOR

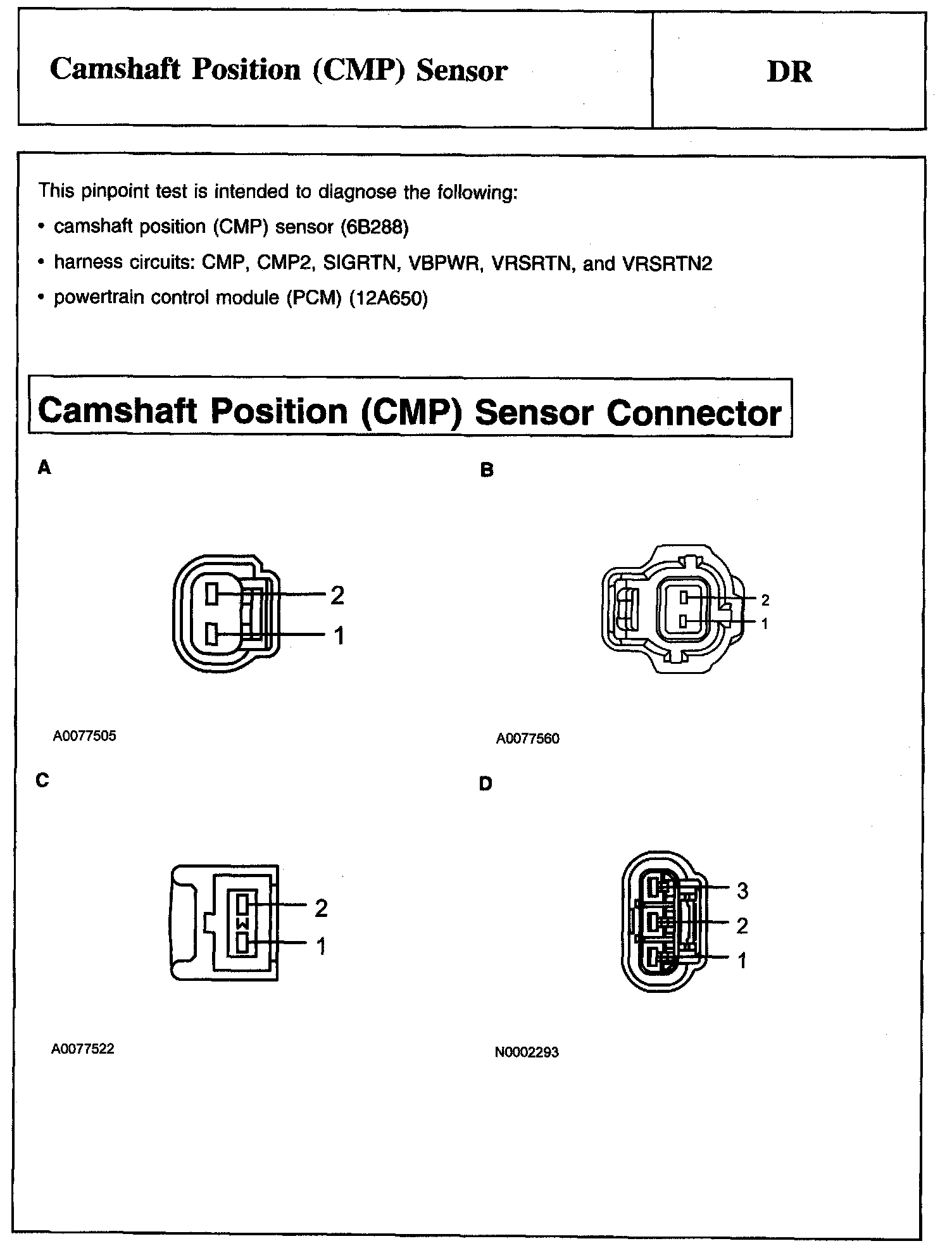

Camshaft Position (CMP) Sensor Connector:

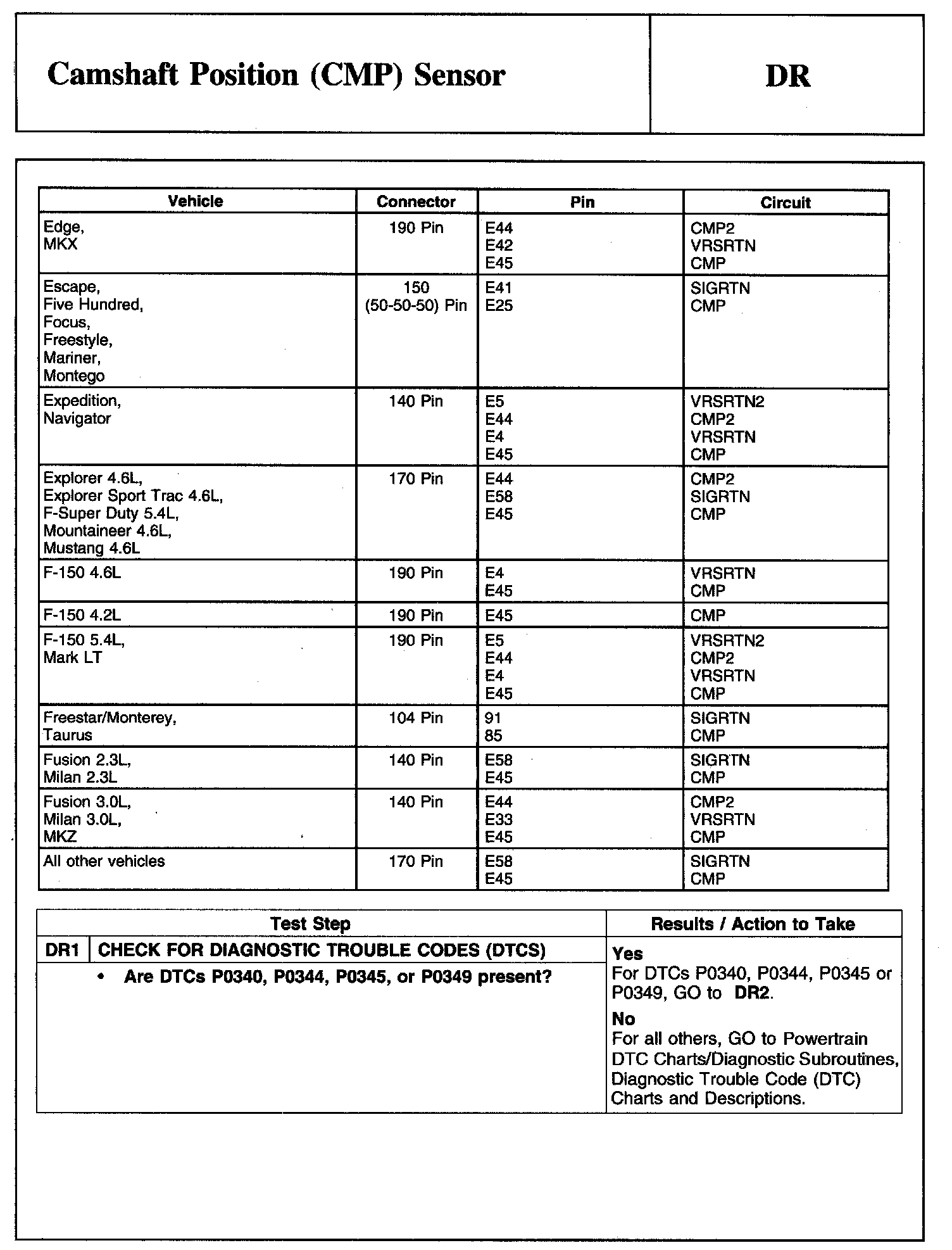

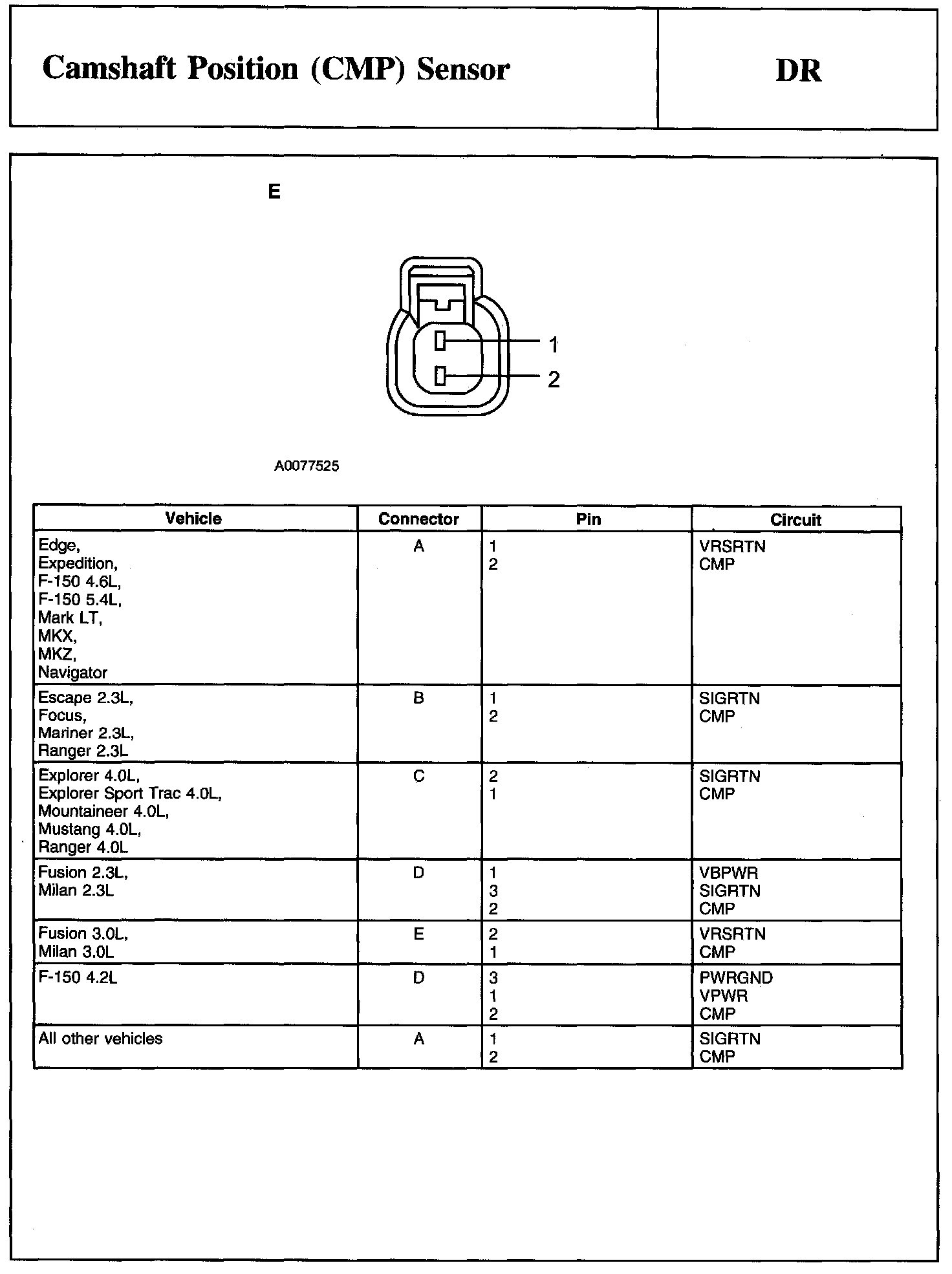

Camshaft Position (CMP) Sensor Connector Continued:

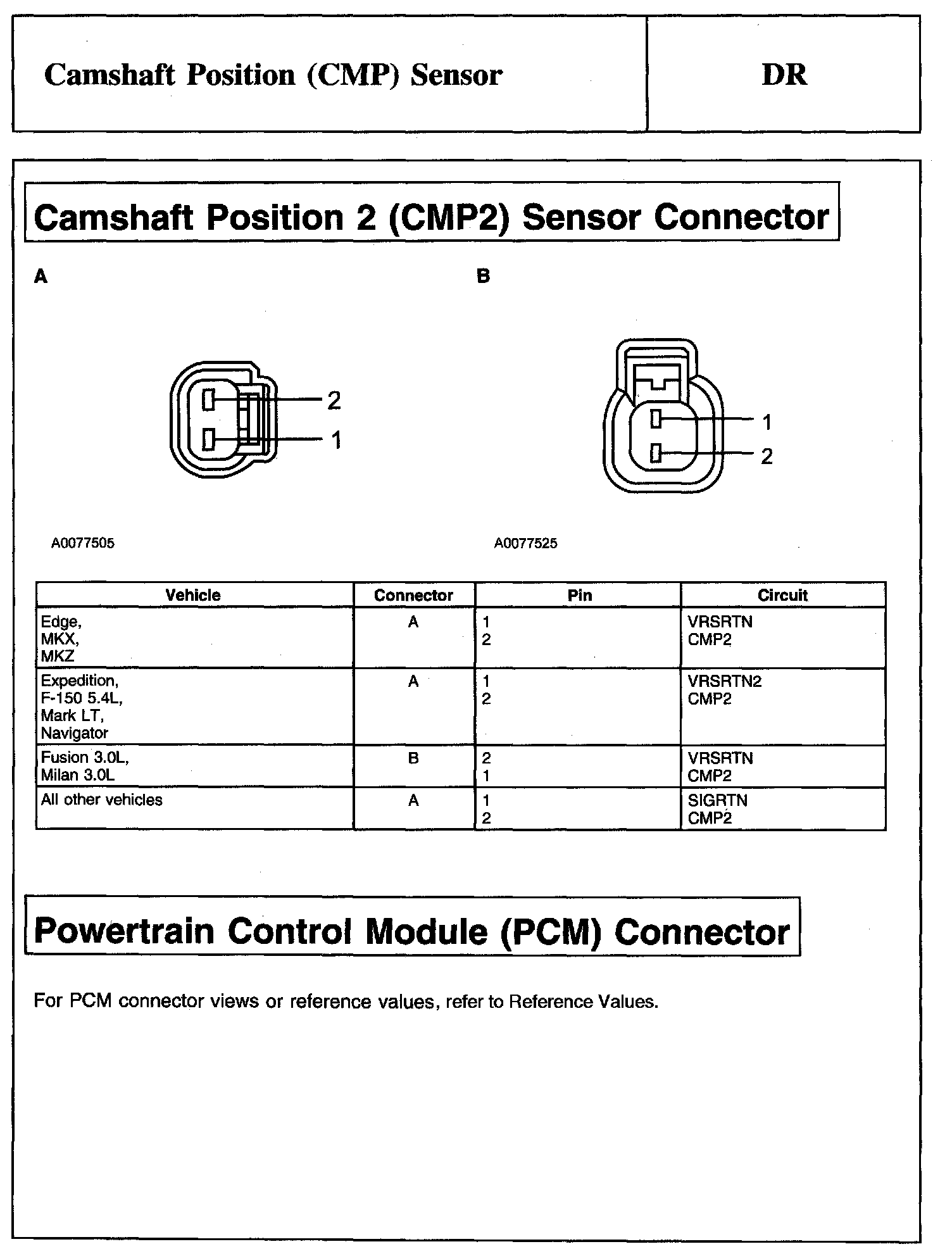

Camshaft Position 2 (CMP2) Sensor Connector And Powertrain Control Module (PCM) Connector:






DR1:

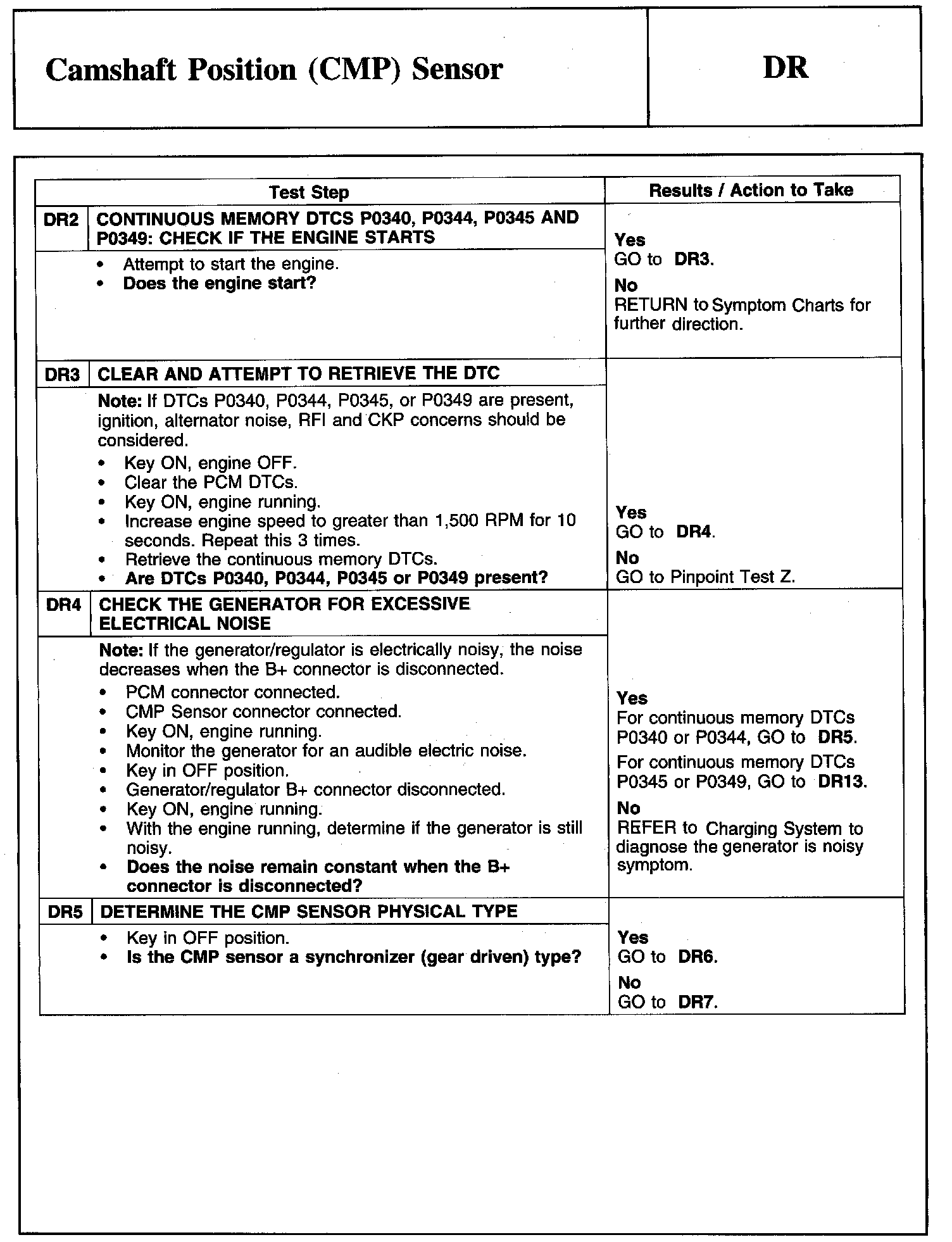

DR2-DR5:

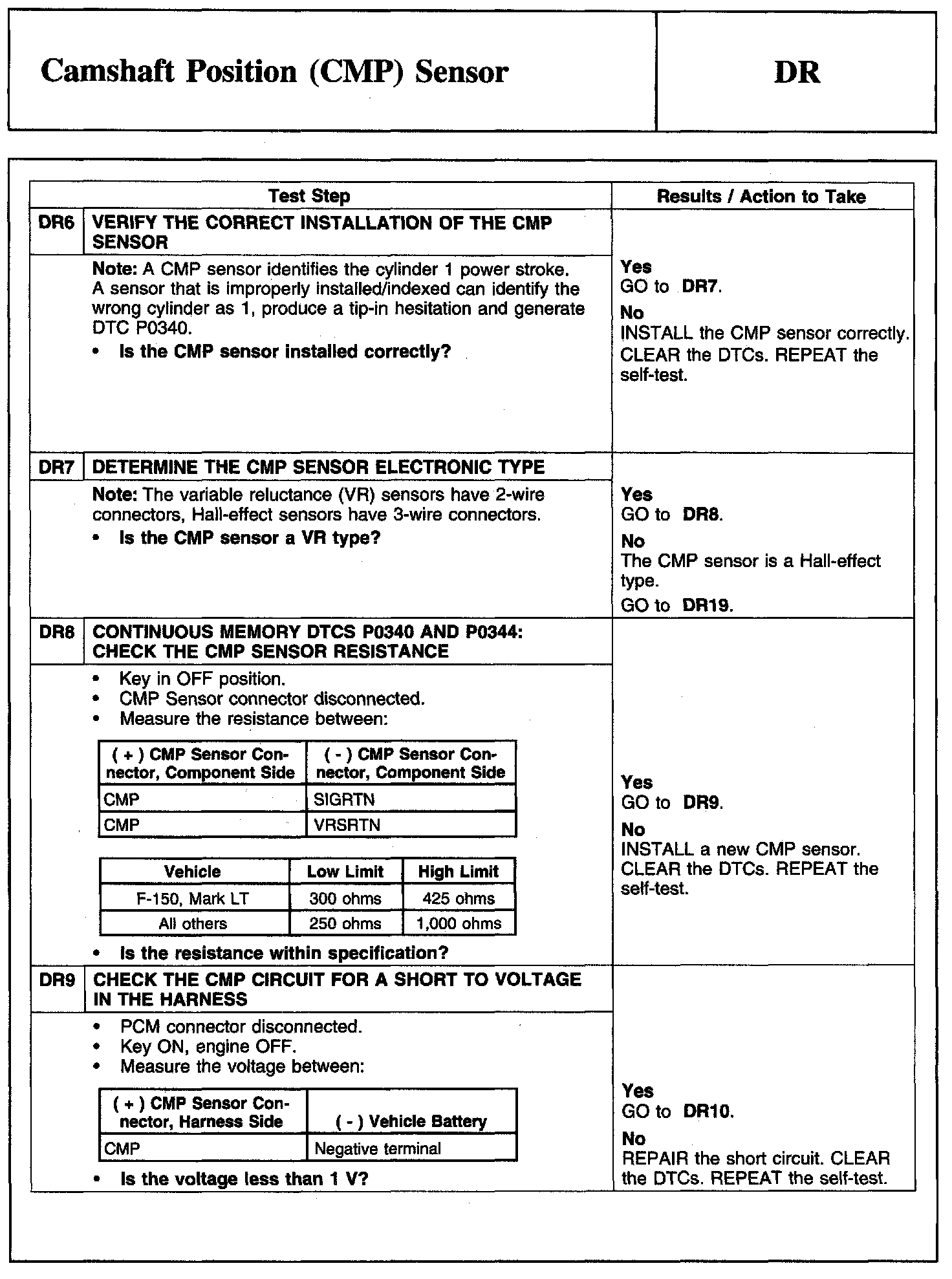

DR6-DR9:

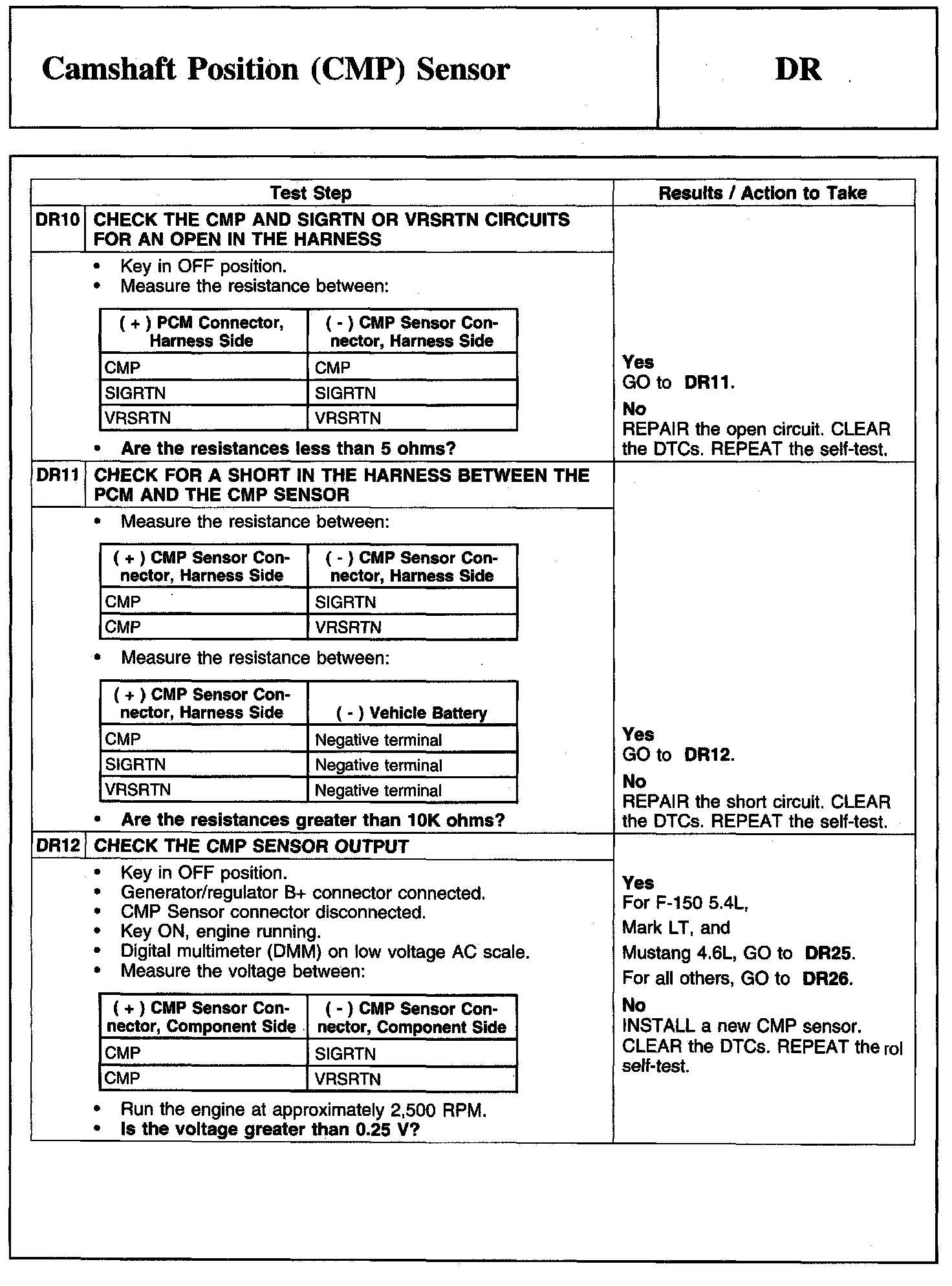

DR10-DR12:

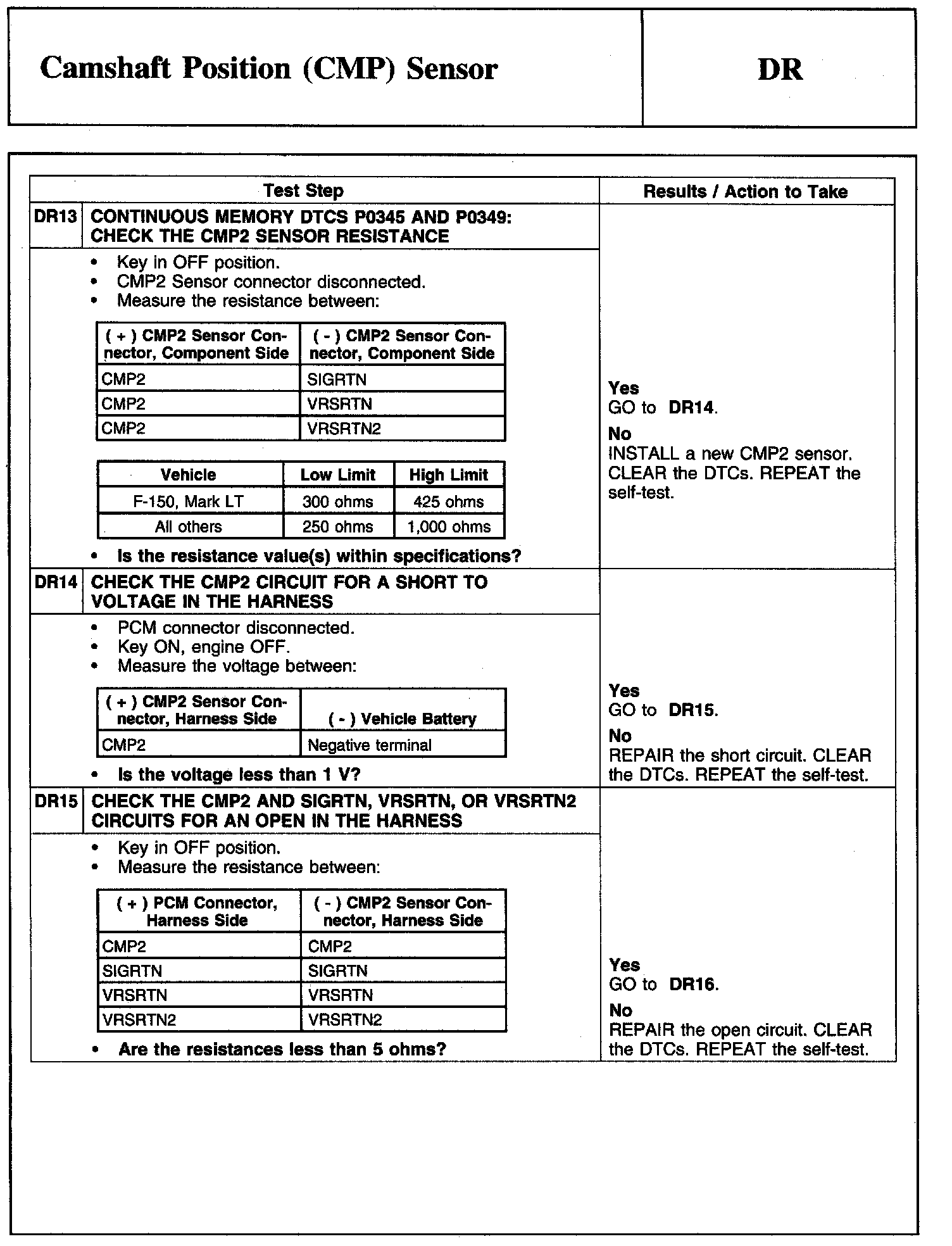

DR13-DR15:

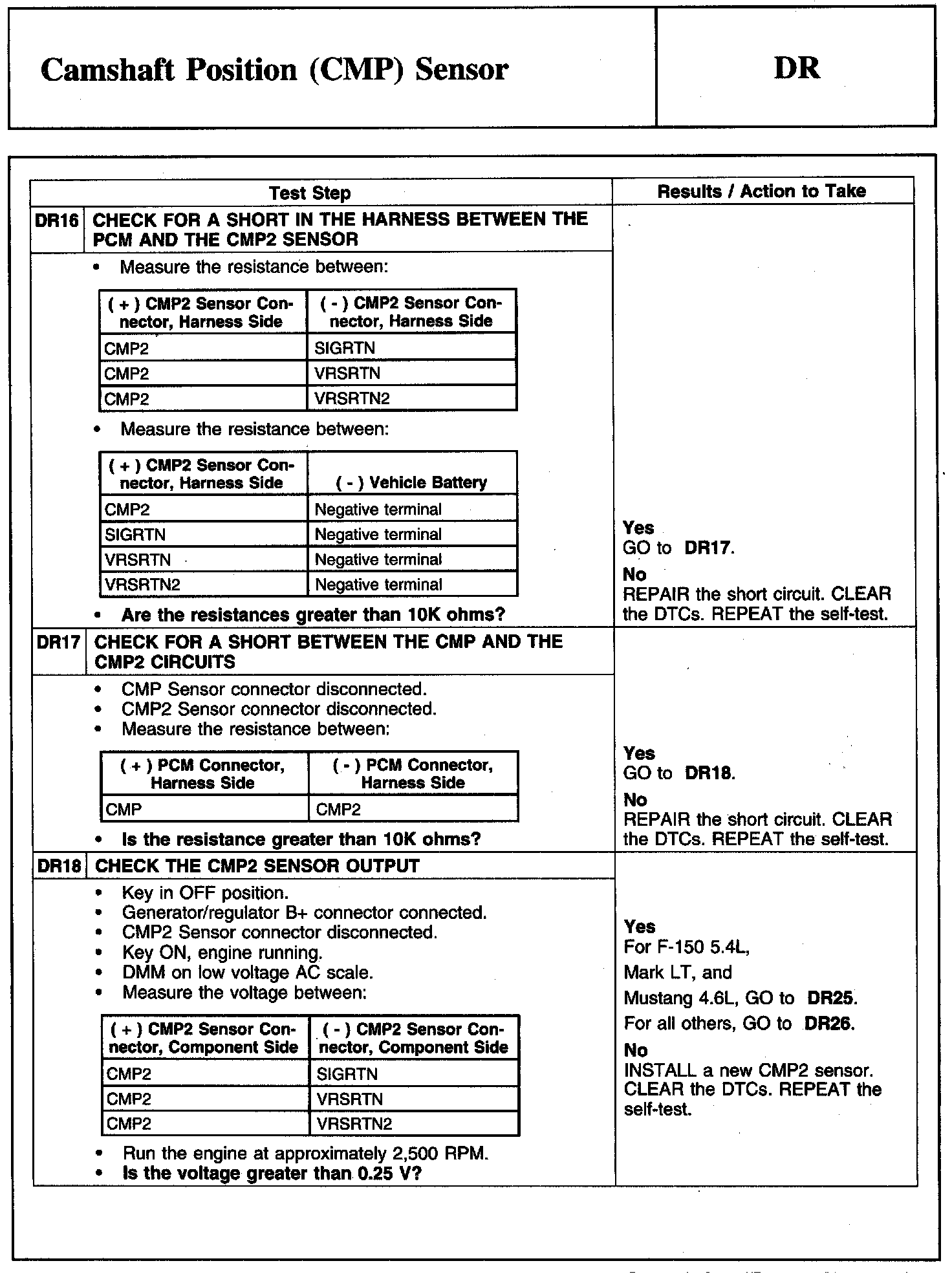

DR16-DR18:

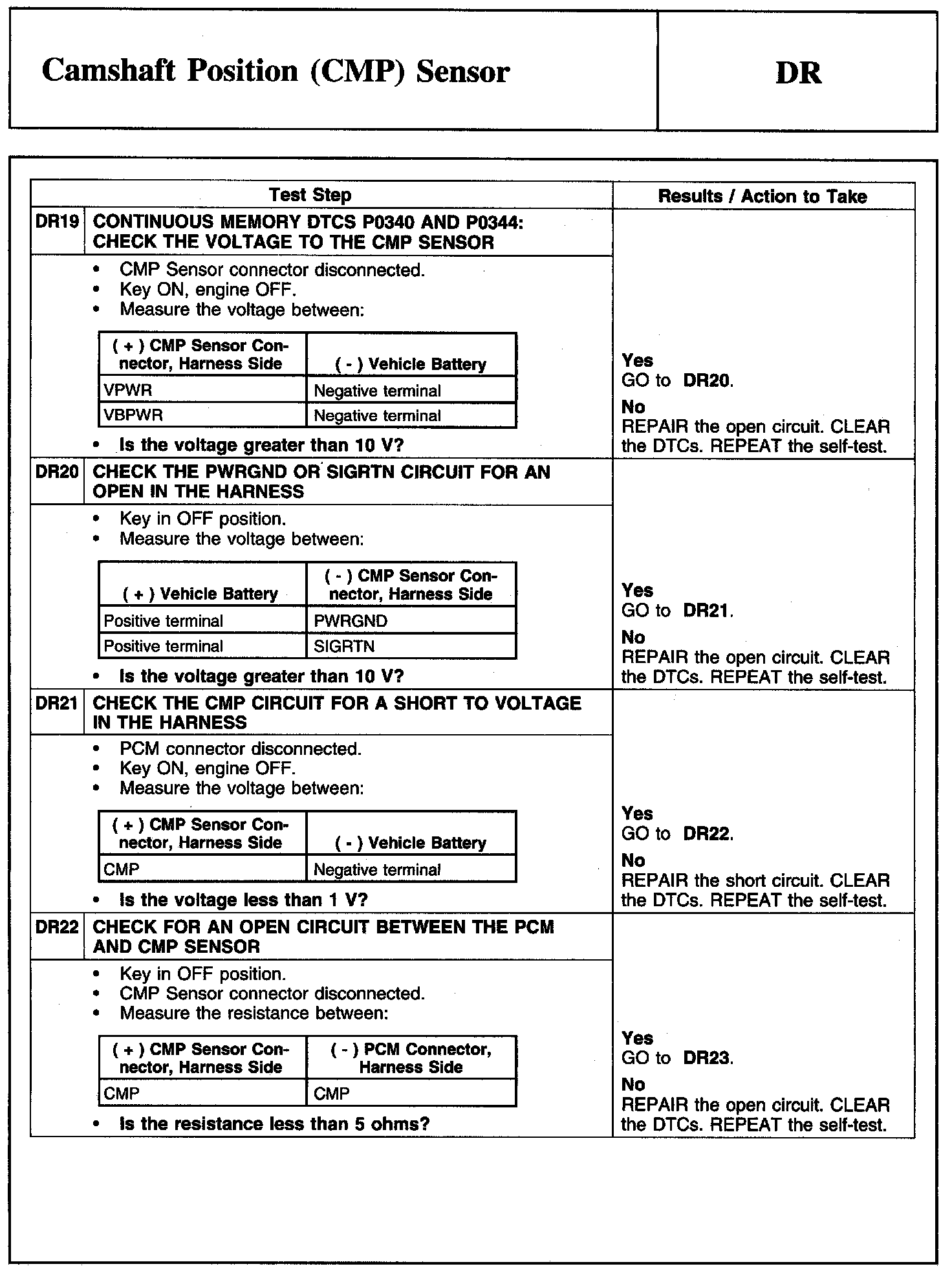

DR19-DR22:

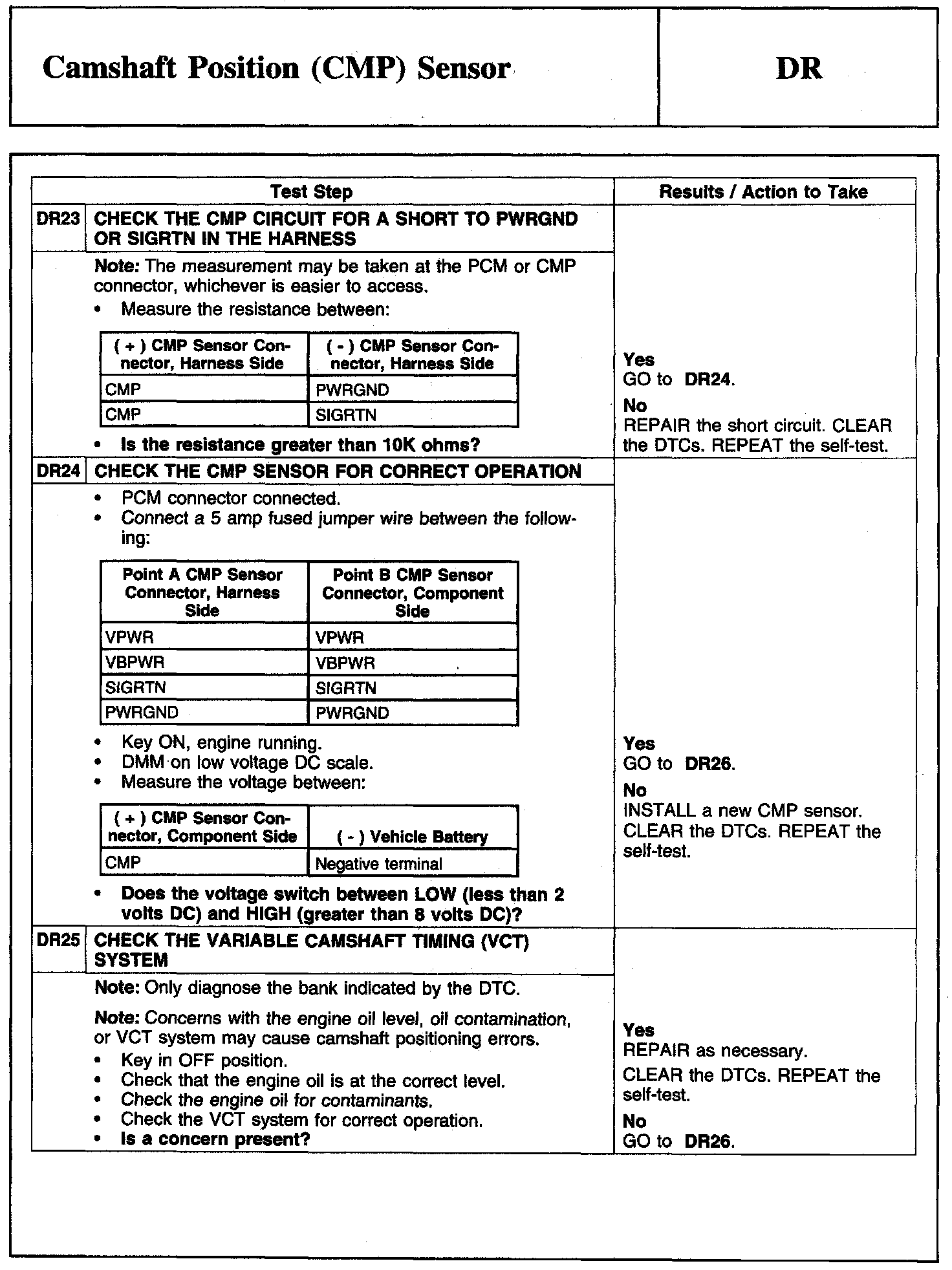

DR23-DR25:

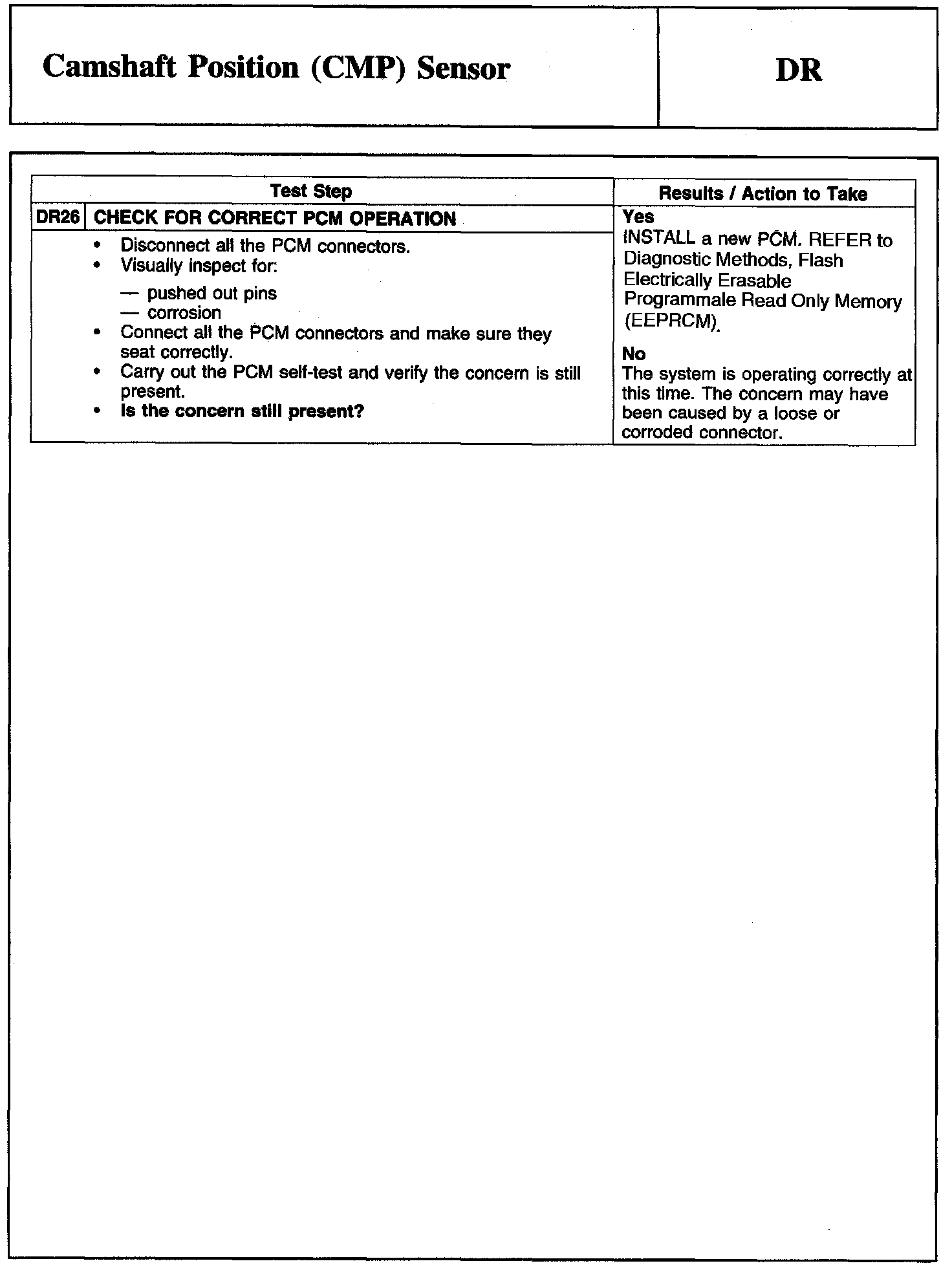

DR26:
