Tests DU: Intake Air Temperature 2 (IAT2) Sensor

PINPOINT TEST DU: INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR

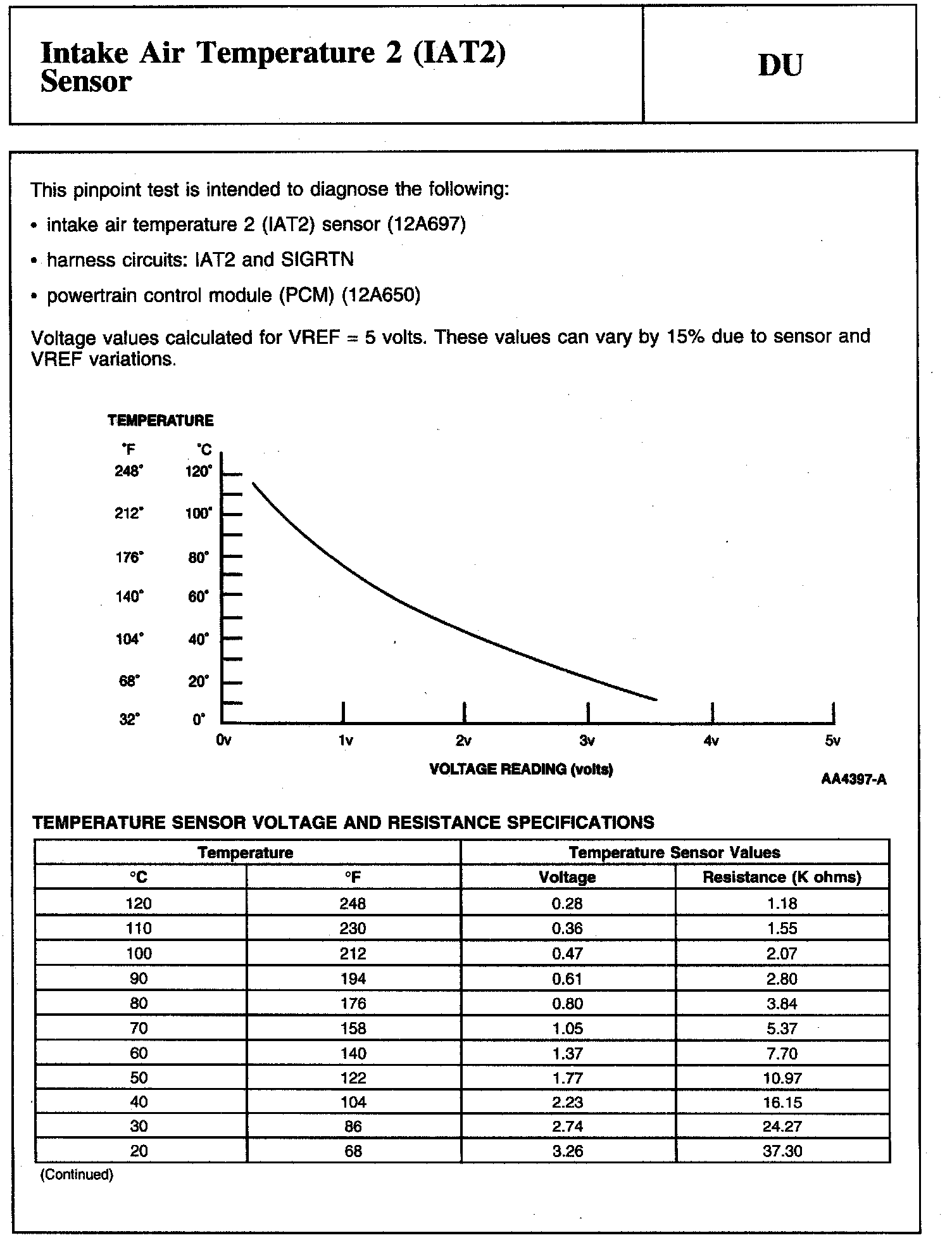

Graph And Table:

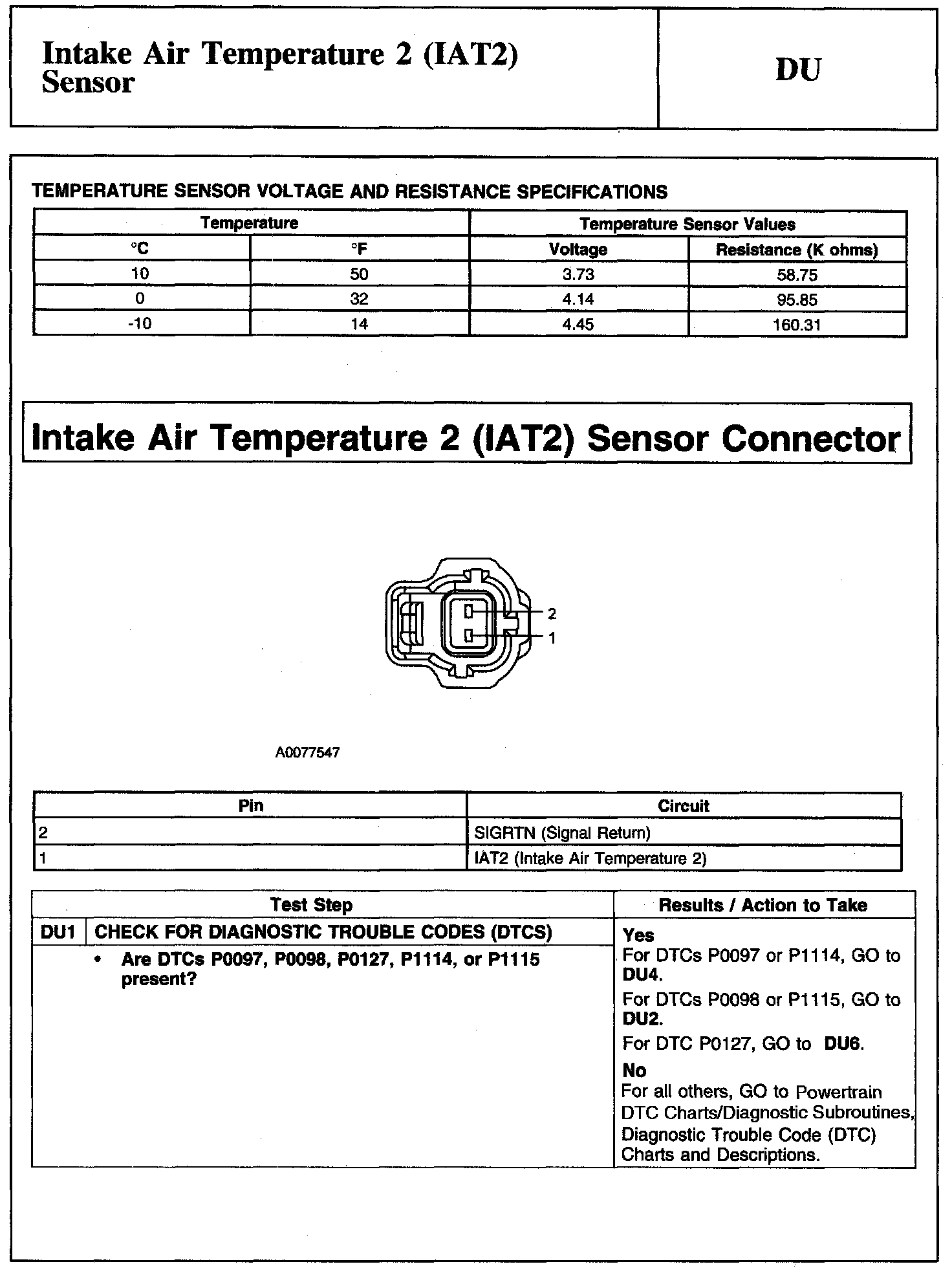

DU1:

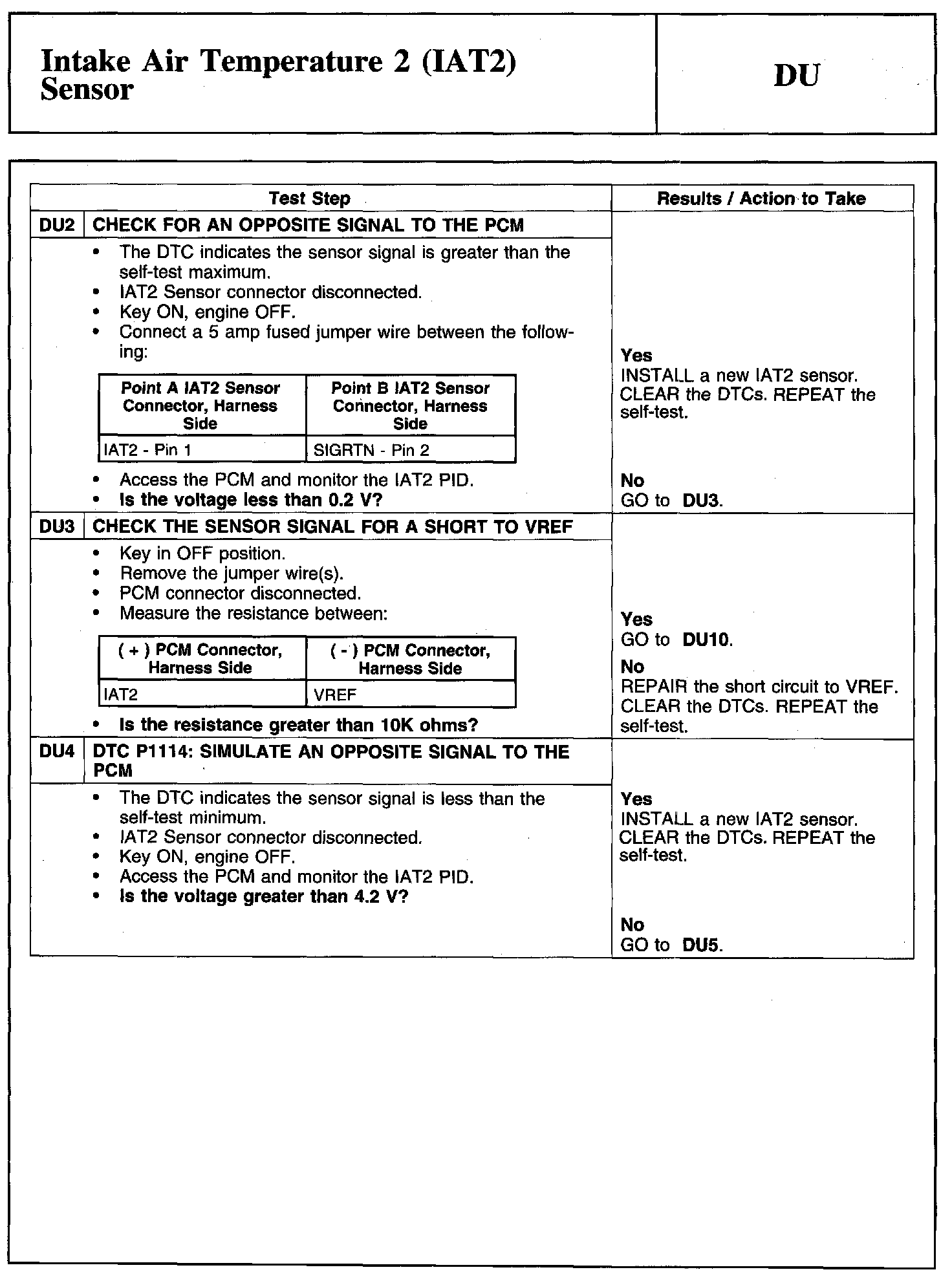

DU2-DU4:

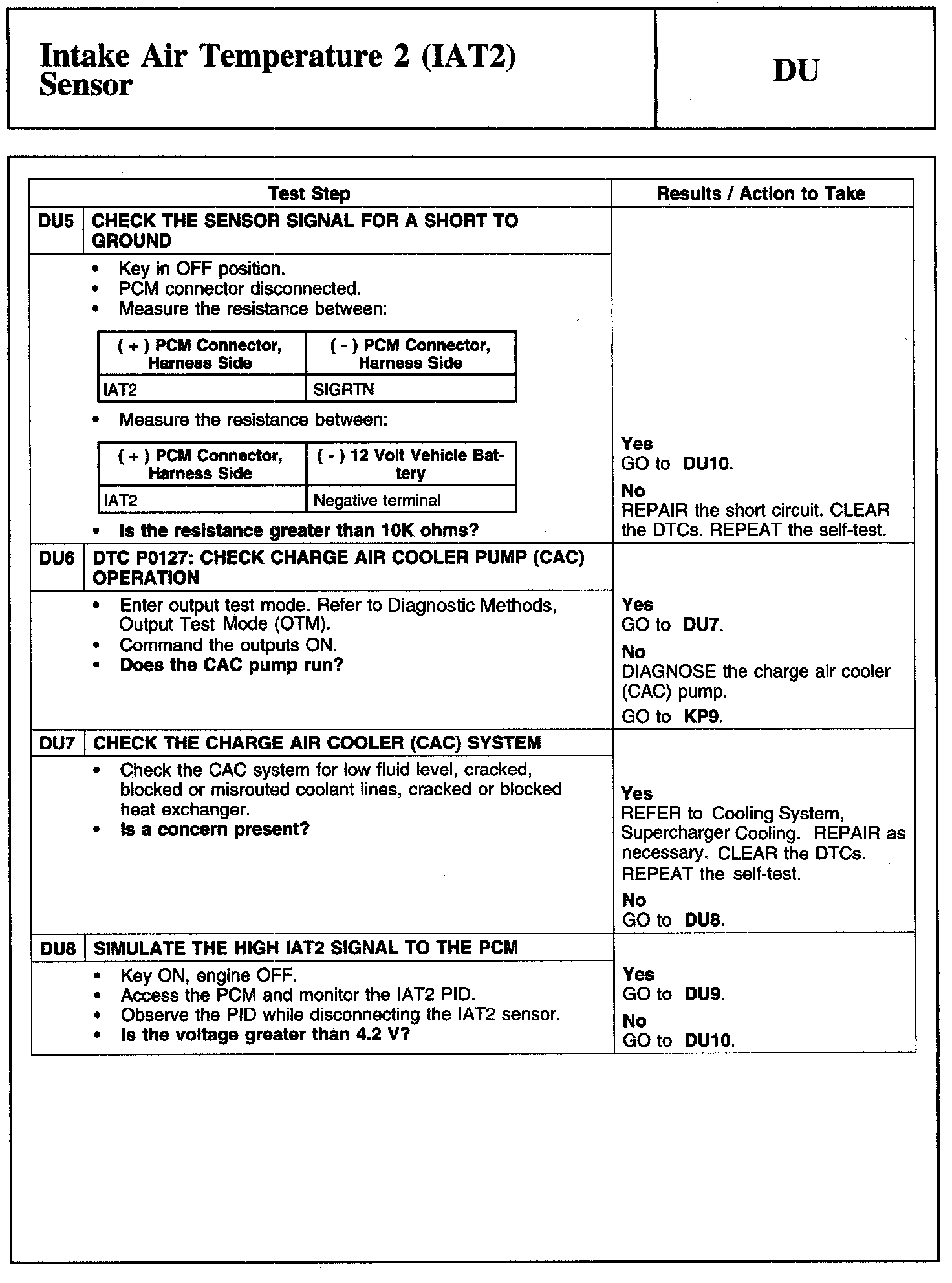

DU5-DU8:

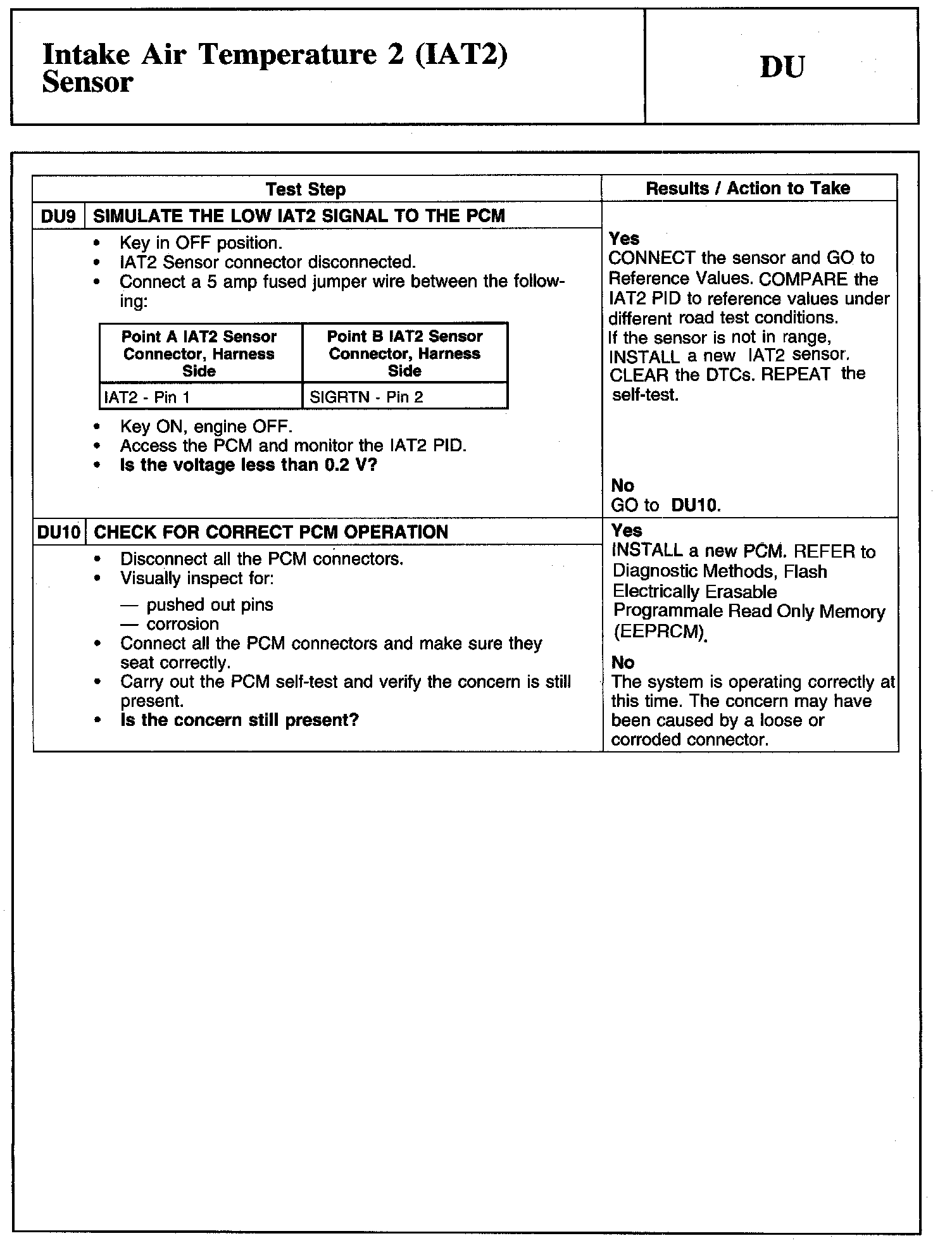

DU9-DU10:
