Tests HF: Catalyst Efficiency Monitor and Exhaust Systems

PINPOINT TEST HF: CATALYST EFFICIENCY MONITOR AND EXHAUST SYSTEMS

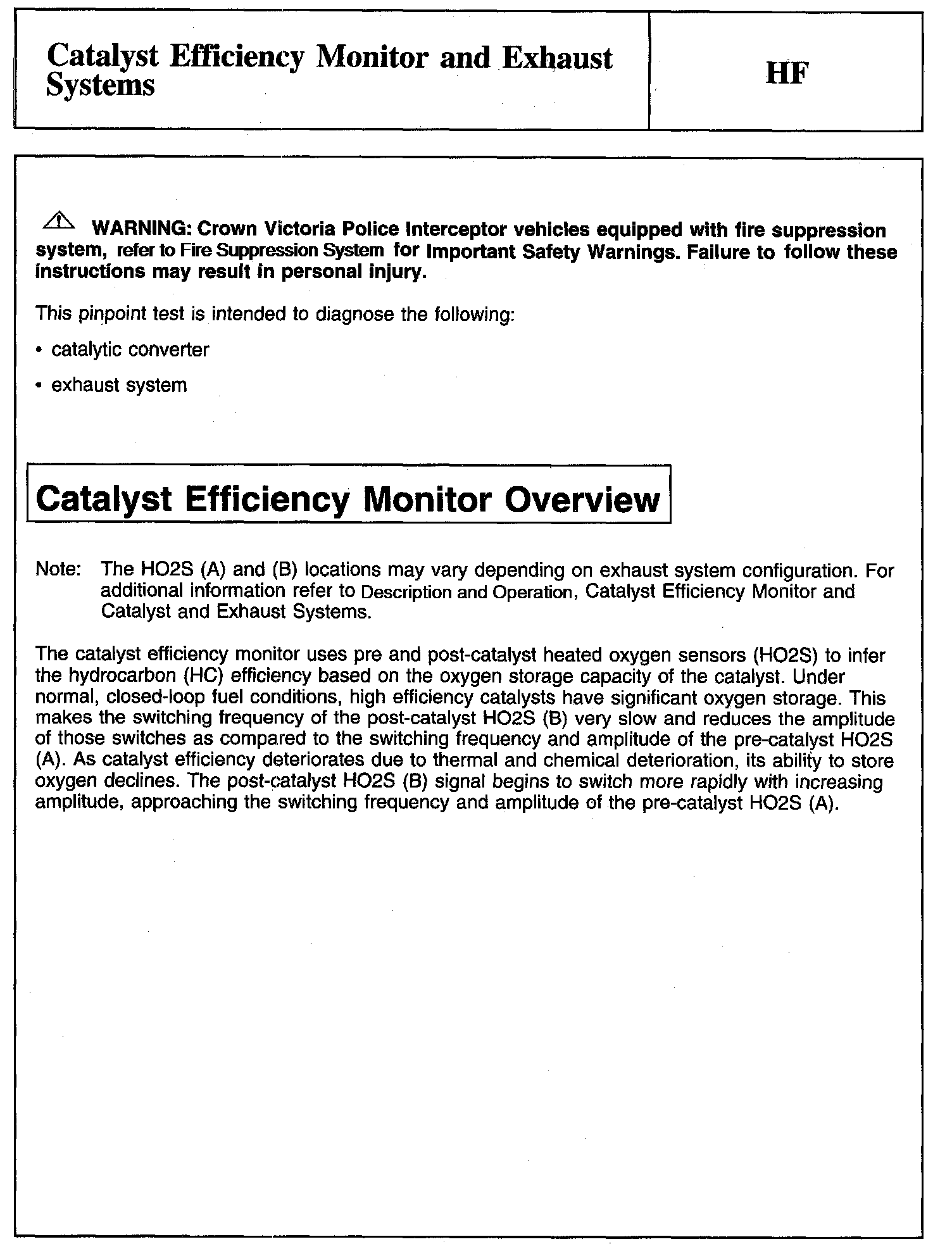

Warning And Catalyst Efficiency Monitor Overview:

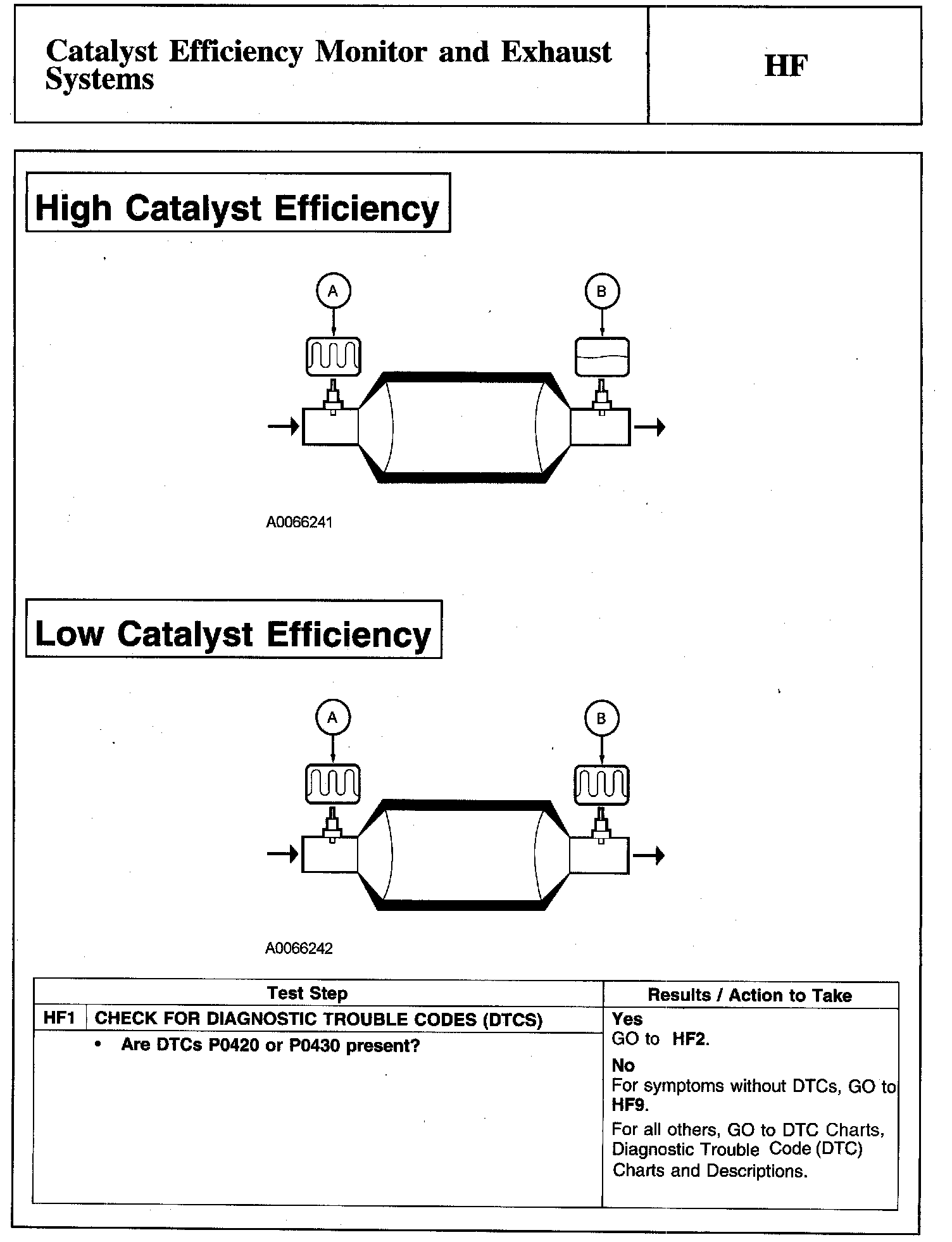

HF1:

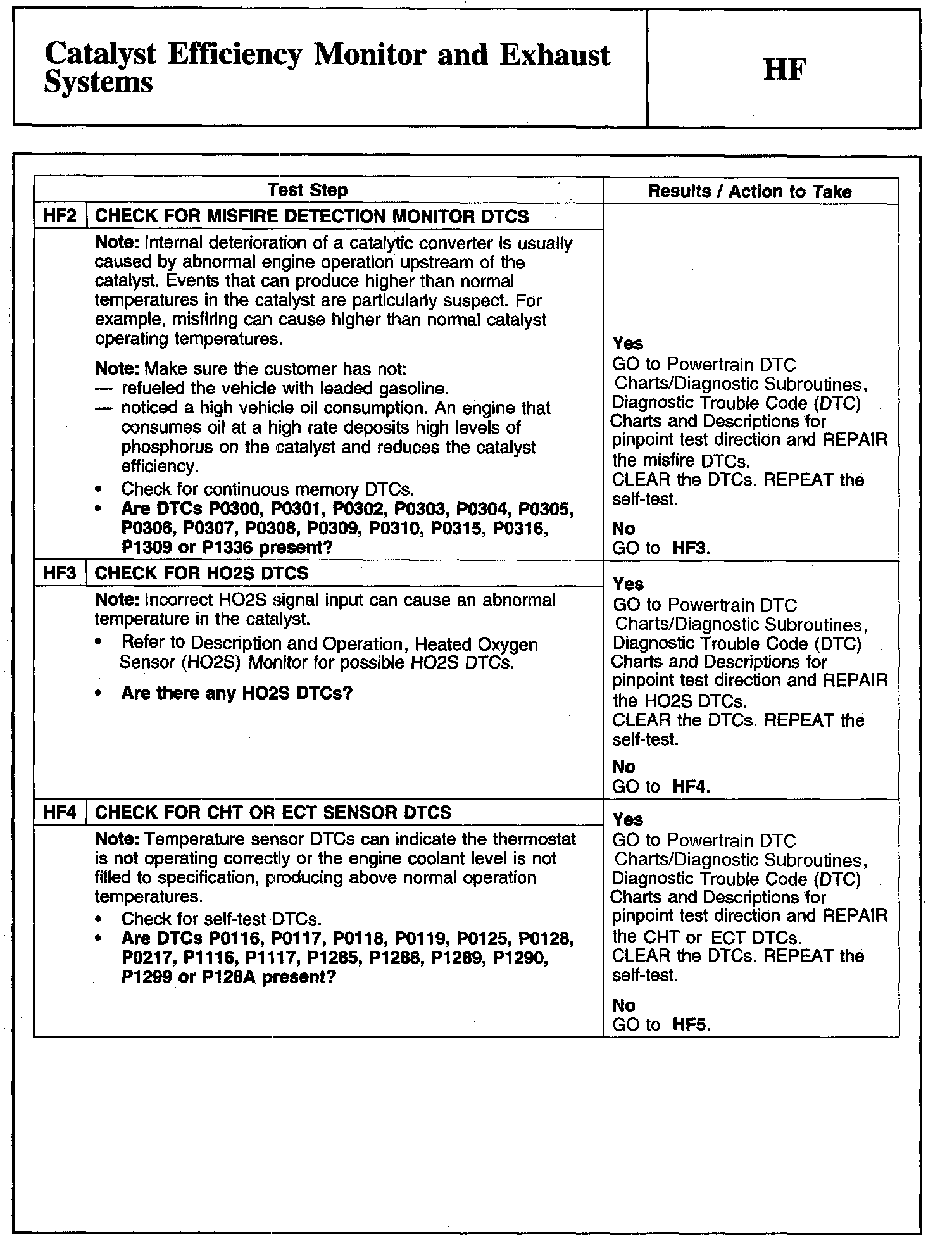

HF2-HF4:

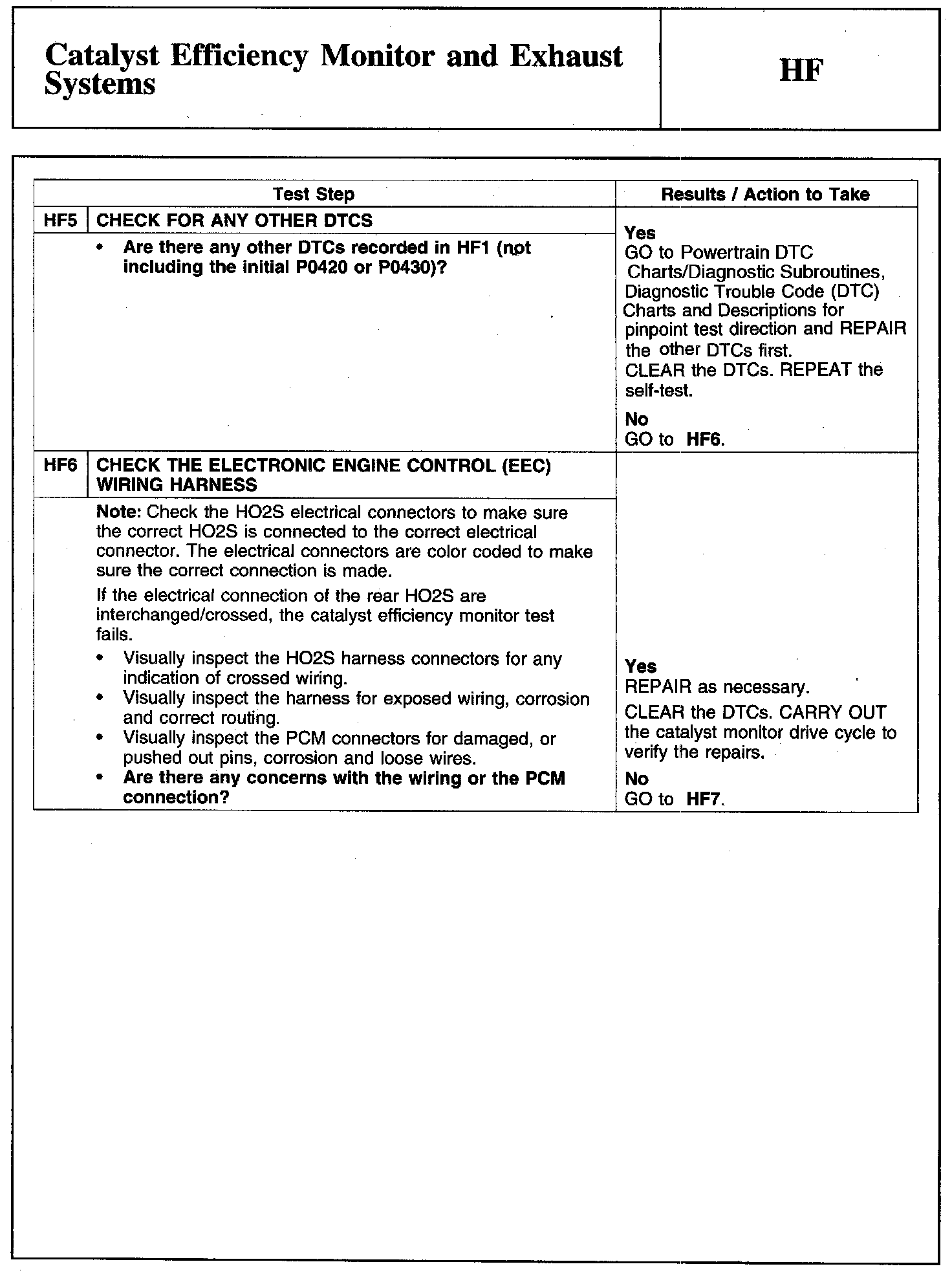

HF5-HF6:

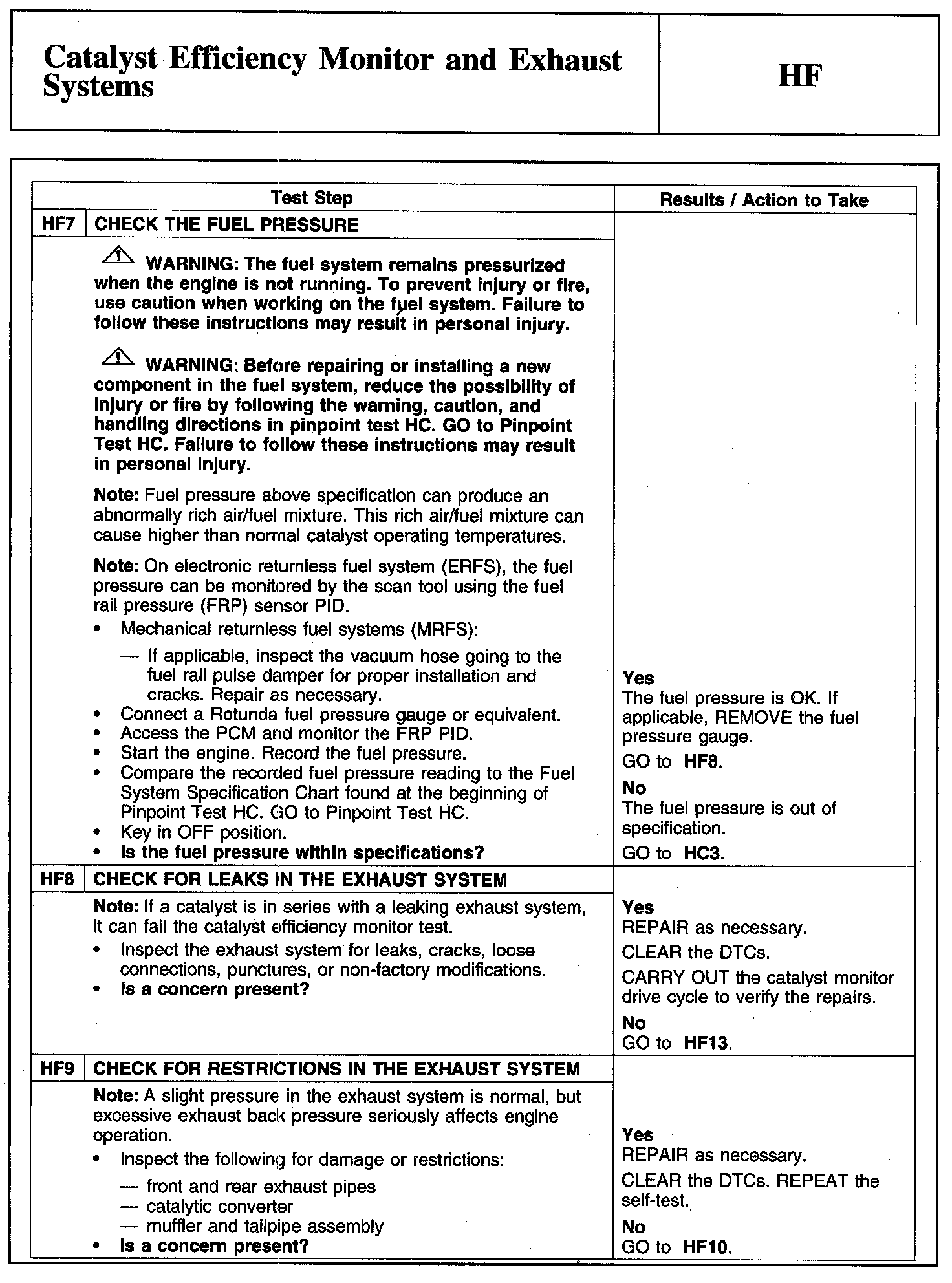

HF7-HF9:

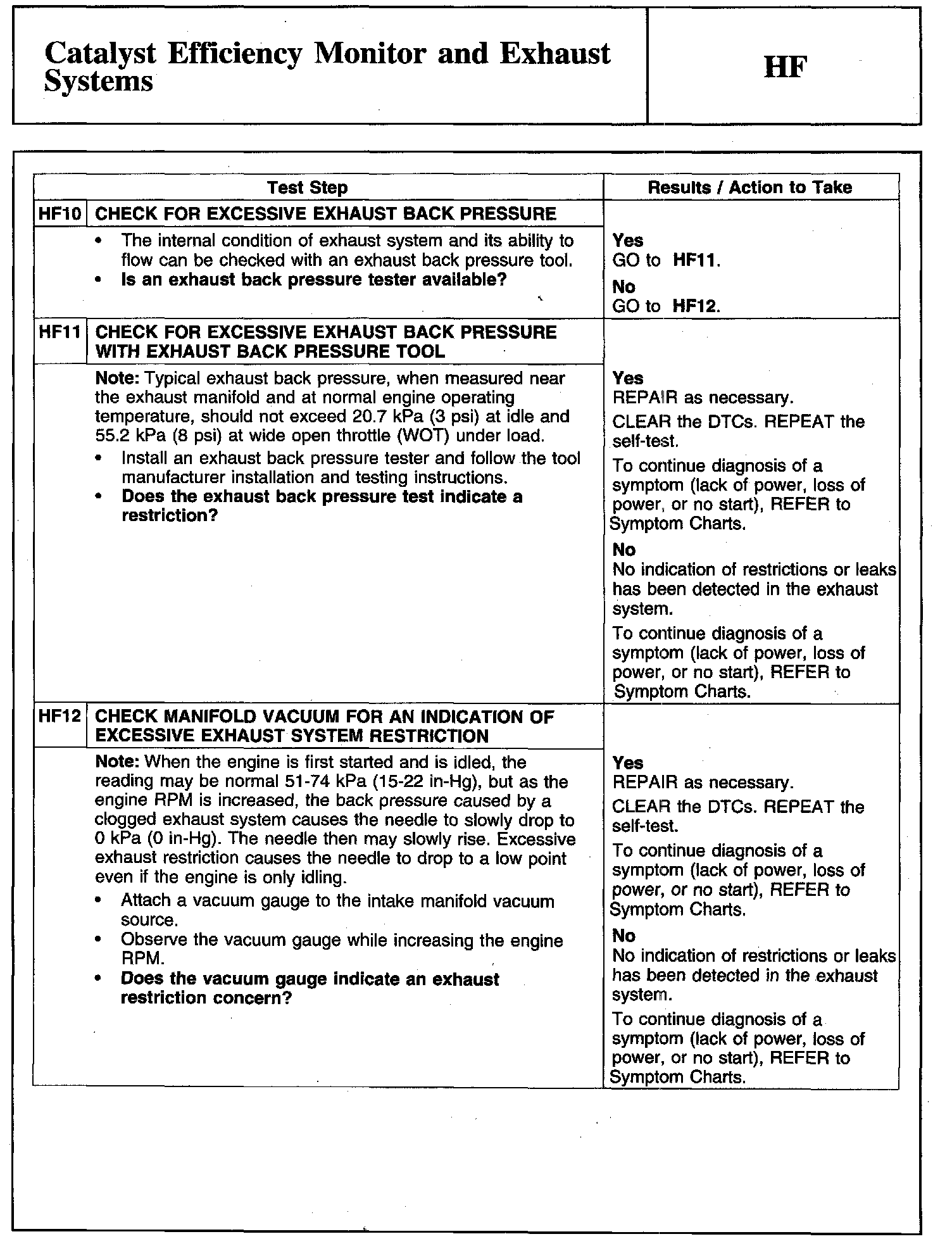

HF10-HF12:

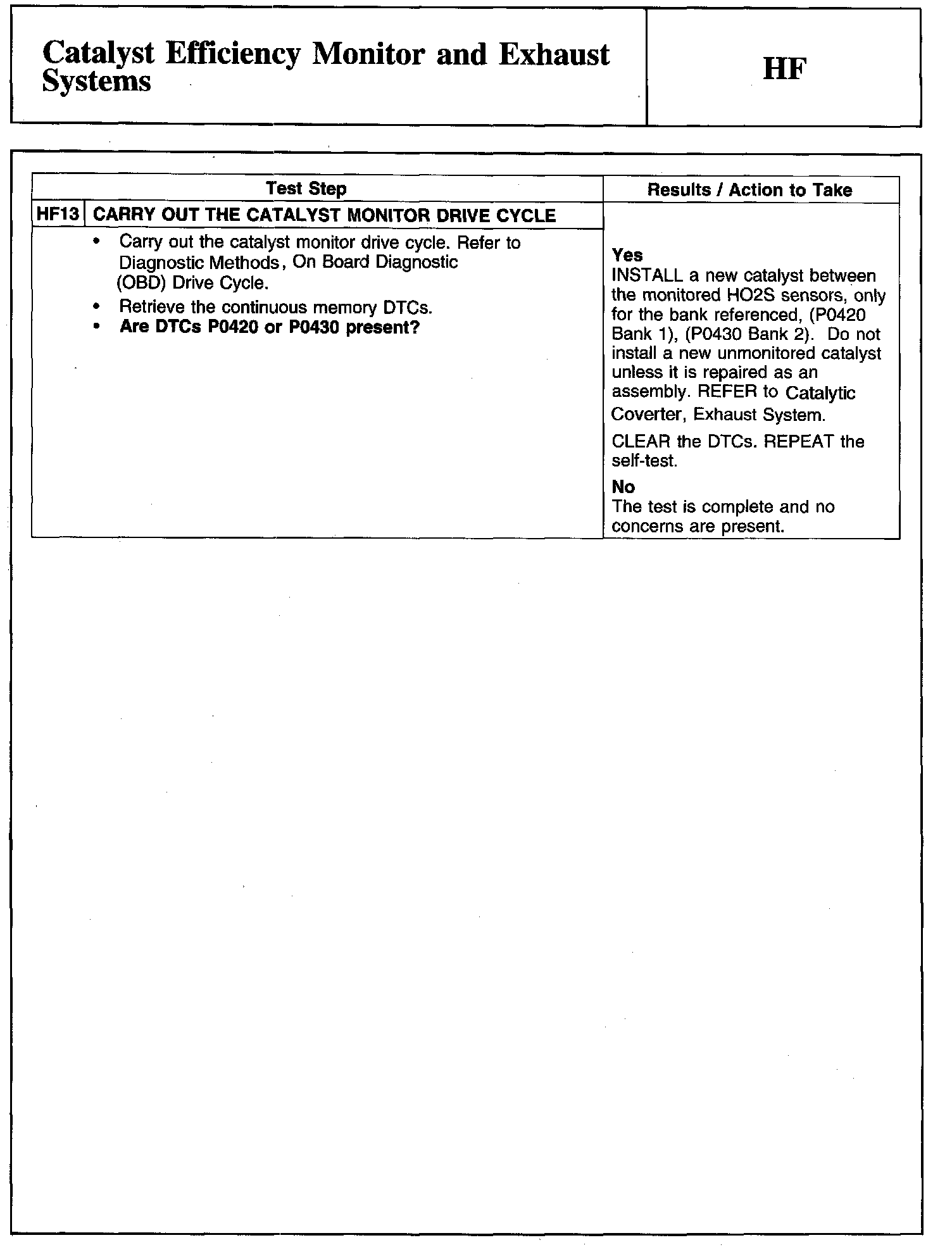

HF13:
