Parking Assist Control Module: Service and Repair

PARKING AID MODULE







Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

1. Remove the LH rear quarter trim panel.

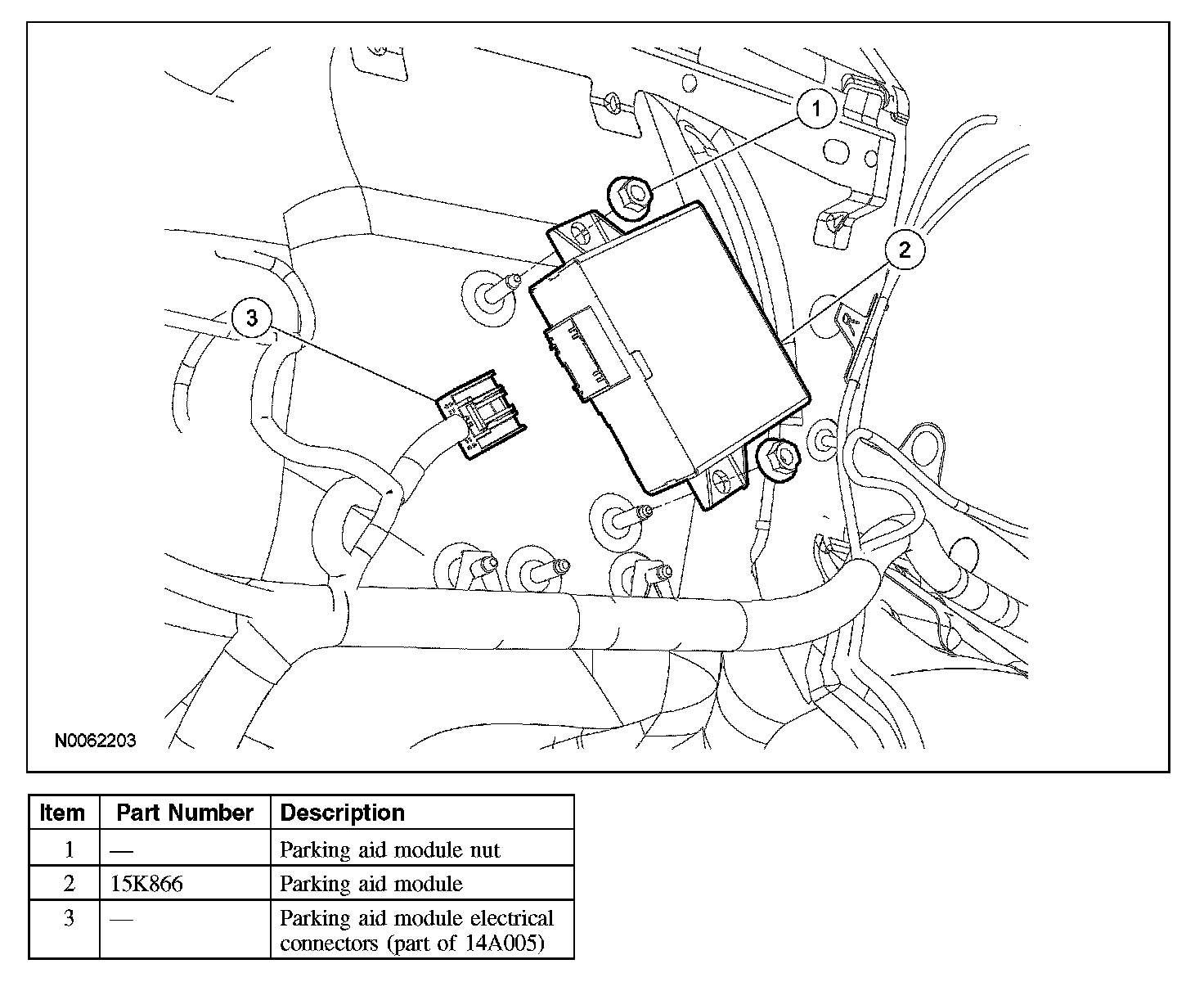

2. Remove the 2 nuts and the parking aid module.
- Disconnect the parking aid module electrical connectors.

3. To install, reverse the removal procedure.
