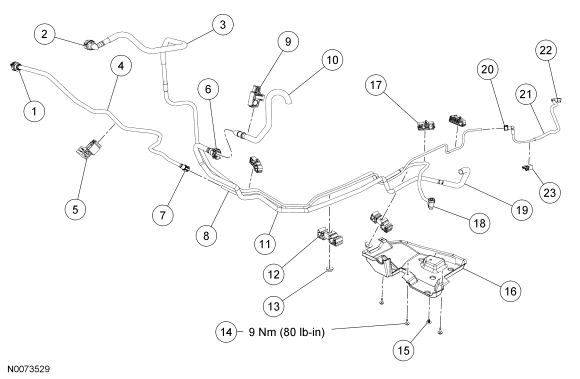

| 1 |
- |
Fuel supply tube-to-fuel rail quick connect coupling (part of 9J280) |
| 2 |
- |
Fuel vapor tube-to-evaporative emission (EVAP) canister purge valve quick connect coupling (part of 9S284) |
| 3 |
9S284 |
Fuel vapor tube |
| 4 |
9J280 |
Fuel supply tube |
| 5 |
- |
Fuel supply tube retainer clip (part of 9J280) |
| 6 |
- |
Fresh air tube-to-fuel vapor vent tube quick connect coupling (part of 9S284) |
| 7 |
- |
Fuel supply tube-to-fuel tube quick connect coupling (part of 9J280) |
| 8 |
9S284 |
Fuel tube |
| 9 |
- |
Fuel vapor vent tube retainer clip (part of 9S327) |
| 10 |
9S327 |
Fuel vapor vent tube |
| 11 |
9S284 |
Fresh air tube |
| 12 |
9F931 |
Bundle retainer clip (2 required) |
| 13 |
W707137 |
Bundle retainer clip nut (2 required) |
| 14 |
W710330 |
EVAP shield bolt (3 required) |
| 15 |
W705681 |
EVAP shield pin-type retainer |
| 16 |
9H296 |
EVAP shield |
| 17 |
9F931 |
Bundle retainer clip (3 required) |
| 18 |
- |
Fuel vapor tube-to-EVAP canister quick connect coupling (part of 9S284) |
| 19 |
9E857 |
Fuel vapor tube |
| 20 |
- |
Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324) |
| 21 |
9324 |
Fuel tank jumper tube |
| 22 |
- |
Fuel tank jumper tube-to-fuel pump (FP) module quick connect coupling (part of 9324) |
| 23 |
9F931 |
Fuel tank jumper tube retainer clip |
