Parking Aid Sensor Connector

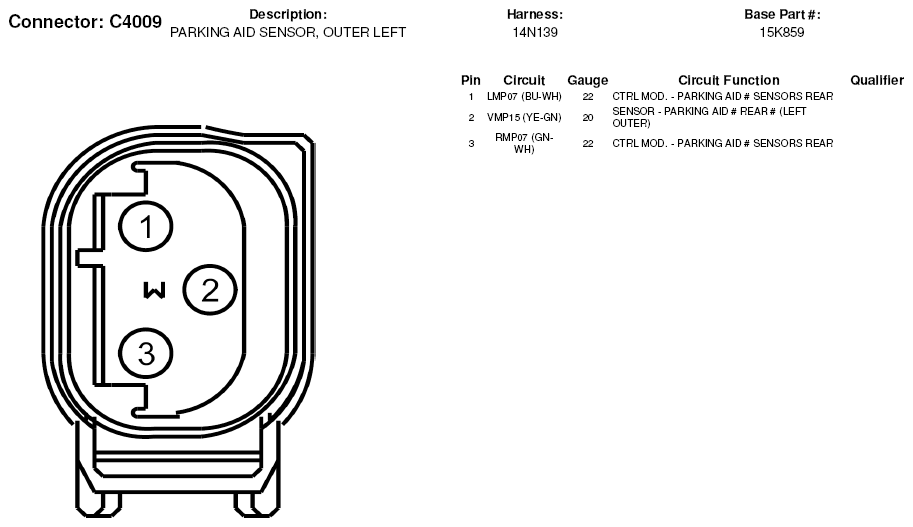

Fig 1: Parking Aid Sensor Connector End View (C4009)
G05182801Courtesy of FORD MOTOR CO.

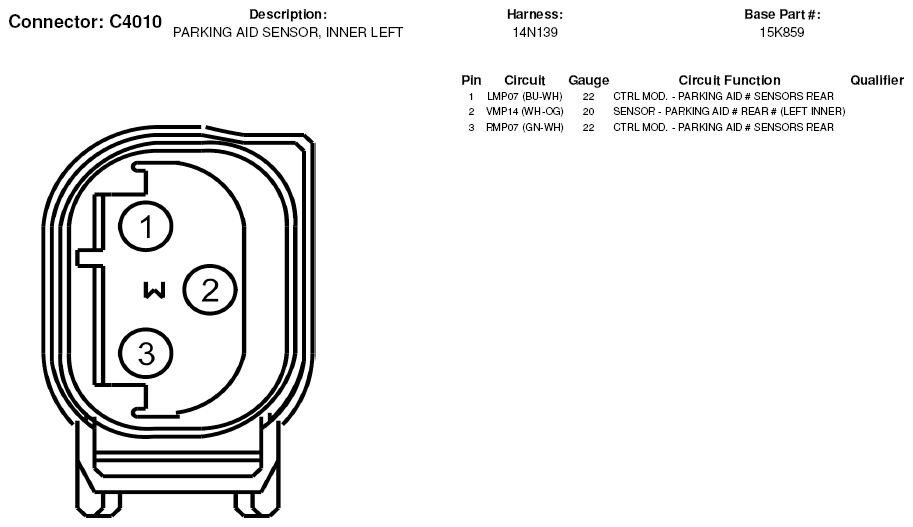

Fig 2: Parking Aid Sensor Connector End View (C4010)
G05182802Courtesy of FORD MOTOR CO.

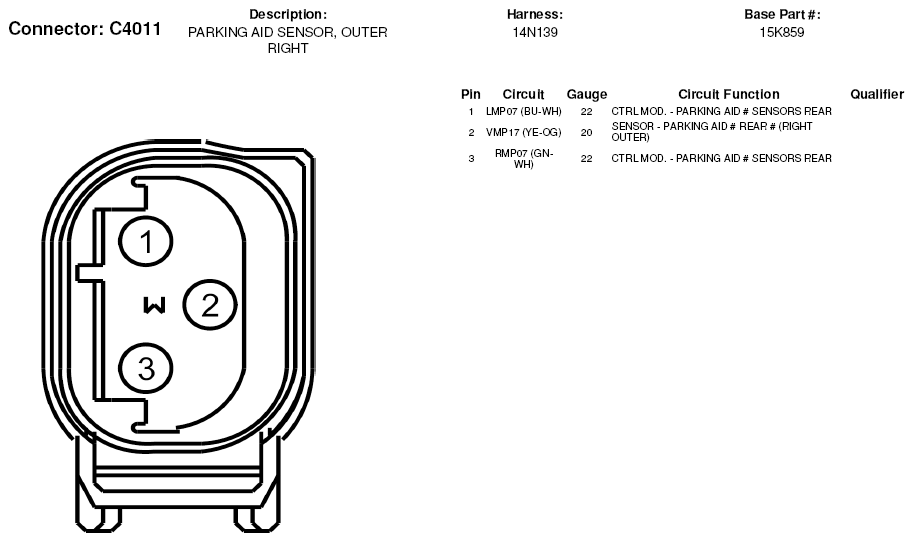

Fig 3: Parking Aid Sensor Connector End View (C4011)
G05182803Courtesy of FORD MOTOR CO.
Fig 4: Parking Aid Sensor Connector End View (C4012)
G05182804Courtesy of FORD MOTOR CO.
