Satellite Digital Audio Receiver Connector

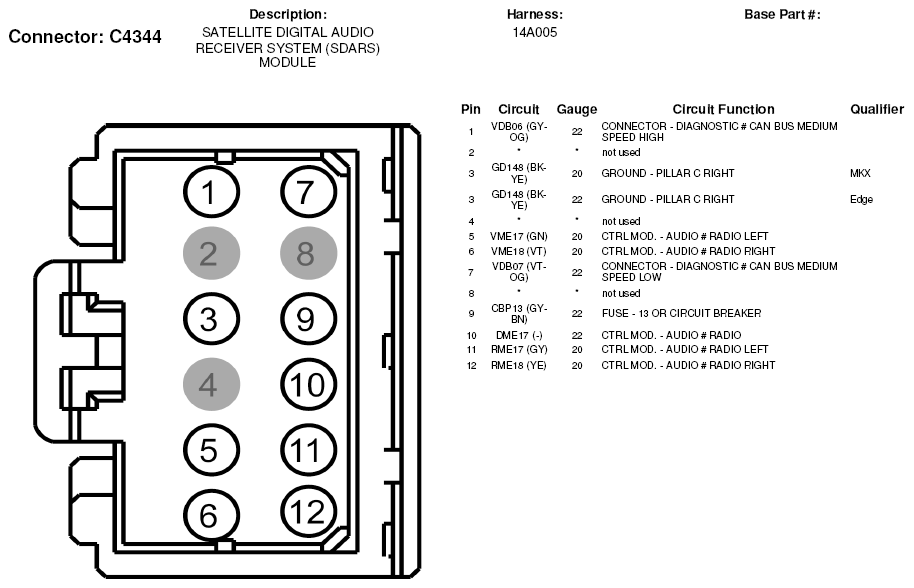

Fig 1: Satellite Digital Audio Receiver Connector End View (C4344)
G05182824Courtesy of FORD MOTOR CO.
