Message Center Switch: Notes

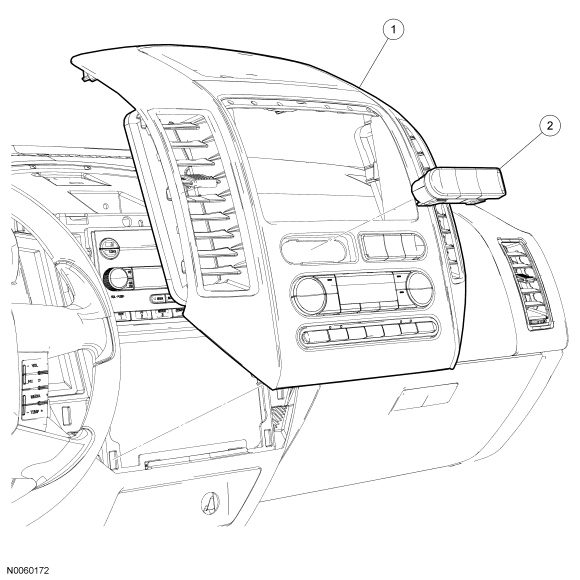

Fig 1: Exploded View Of Message Center Switch - Edge

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78044D70	Instrument panel center finish panel
2	10D889	Message center switch

Fig 2: Exploded View Of Message Center Switch - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	78061A16	Transmission selector lever bezel
2	78045A76	Floor console finish panel
3	W706092	Storage compartment pin-type retainers
4	78047A04	Storage compartment assembly
5	78044D70	Instrument panel center finish panel
6	10D889	Message center switch
