Instrument Panel - Exploded View

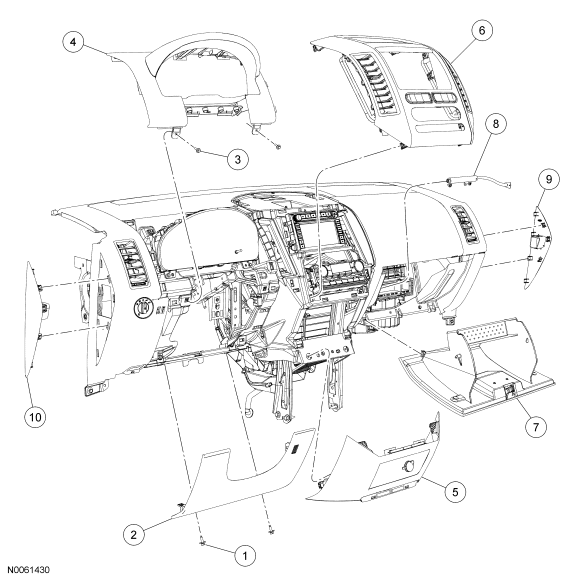

Fig 1: Exploded View Of Edge Instrument Panel (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505002	Steering column cover screw (2 required)
2	04459	Steering column cover
3	W707628	Instrument panel cluster finish panel screw (2 required)
4	044D70	Instrument panel cluster finish panel
5	04608	Instrument panel lower center finish panel
6	04302	Instrument panel upper center finish panel
7	06024	Glove compartment
8	061A58	Glove compartment dampener
9	04480	RH instrument panel end trim panel
10	04481	LH instrument panel end trim panel

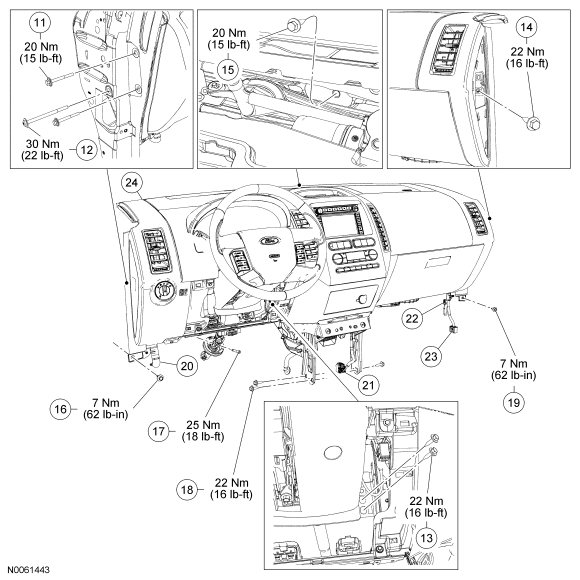

Fig 2: Exploded View Of Edge Instrument Panel With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	W711313	LH instrument panel bolt (2 required)
12	W712246	LH instrument panel bolt
13	W711648	Instrument panel-to-steering column bracket bolt (2 required)
14	W706246	RH instrument panel cowl side panel bolt
15	W710309	Instrument panel-to-front of dash bolt
16	W703845	LH instrument panel-to-body bolt
17	-	Steering column pinch bolt
18	W706246	Instrument panel-to-floor bolt (3 required)
19	W703845	RH instrument panel-to-body bolt
20	14401	LH instrument panel electrical connectors
21	14401	Restraints control module (RCM) electrical connector
22	-	Antenna lead-in
23	14401	RH instrument panel electrical connector
24	04304	Instrument panel

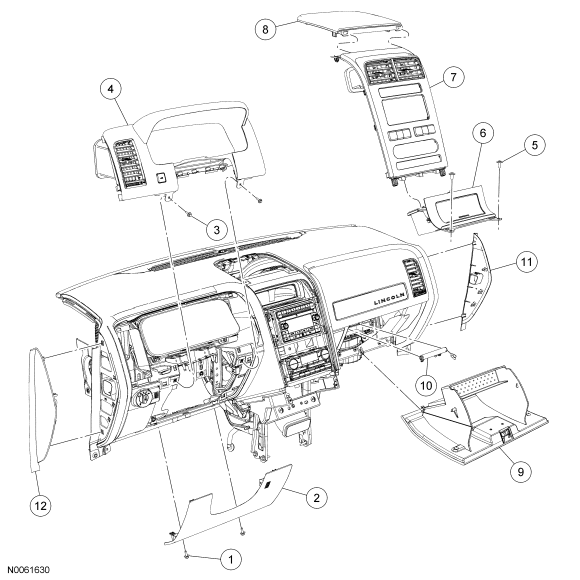

Fig 3: Exploded View Of MKX Instrument Panel (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505002	Steering column cover screw (2 required)
2	04459	Steering column cover
3	W707628	Instrument panel cluster finish panel screw (2 required)
4	044D70	Instrument panel cluster finish panel
5	N811283	Instrument panel storage bin screw (2 required)
6	047A04	Instrument panel storage bin
7	04302	Instrument panel lower center finish panel
8	042A82	Instrument panel upper center finish panel
9	06024	Glove compartment
10	061A58	Glove compartment dampener
11	04480	RH instrument panel end trim panel
12	04481	LH instrument panel end trim panel

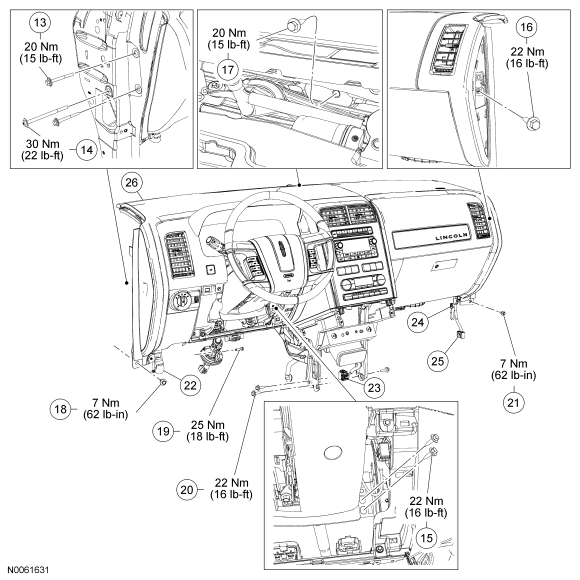

Fig 4: Exploded View Of MKX Instrument Panel With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	W711313	LH instrument panel bolt (2 required)
14	W712246	LH instrument panel bolt
15	W711648	Instrument panel-to-steering column bracket bolt (2 required)
16	W706246	RH instrument panel cowl side panel bolt
17	W710309	Instrument panel-to-front of dash bolt
18	W703845	LH instrument panel-to-body bolt
19	-	Steering column pinch bolt
20	W706246	Instrument panel-to-floor bolt (3 required)
21	W703845	RH instrument panel-to-body bolt
22	14401	LH instrument panel electrical connectors
23	14401	Restraints control module (RCM) electrical connector
24	-	Antenna lead-in
25	14401	RH instrument panel electrical connector
26	04304	Instrument panel
