Test H: Fuel Control

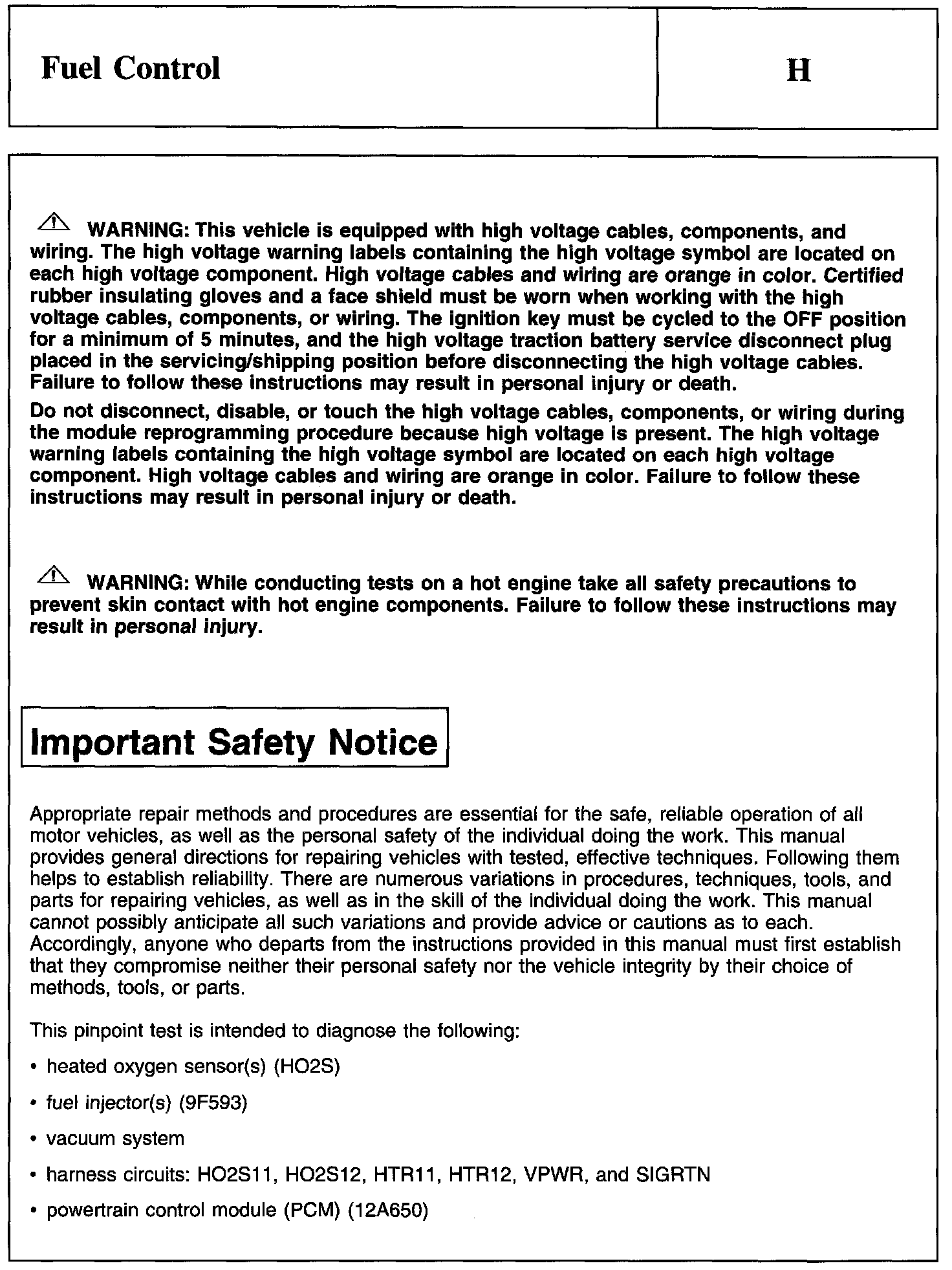

Warning And Important Safety Notice:

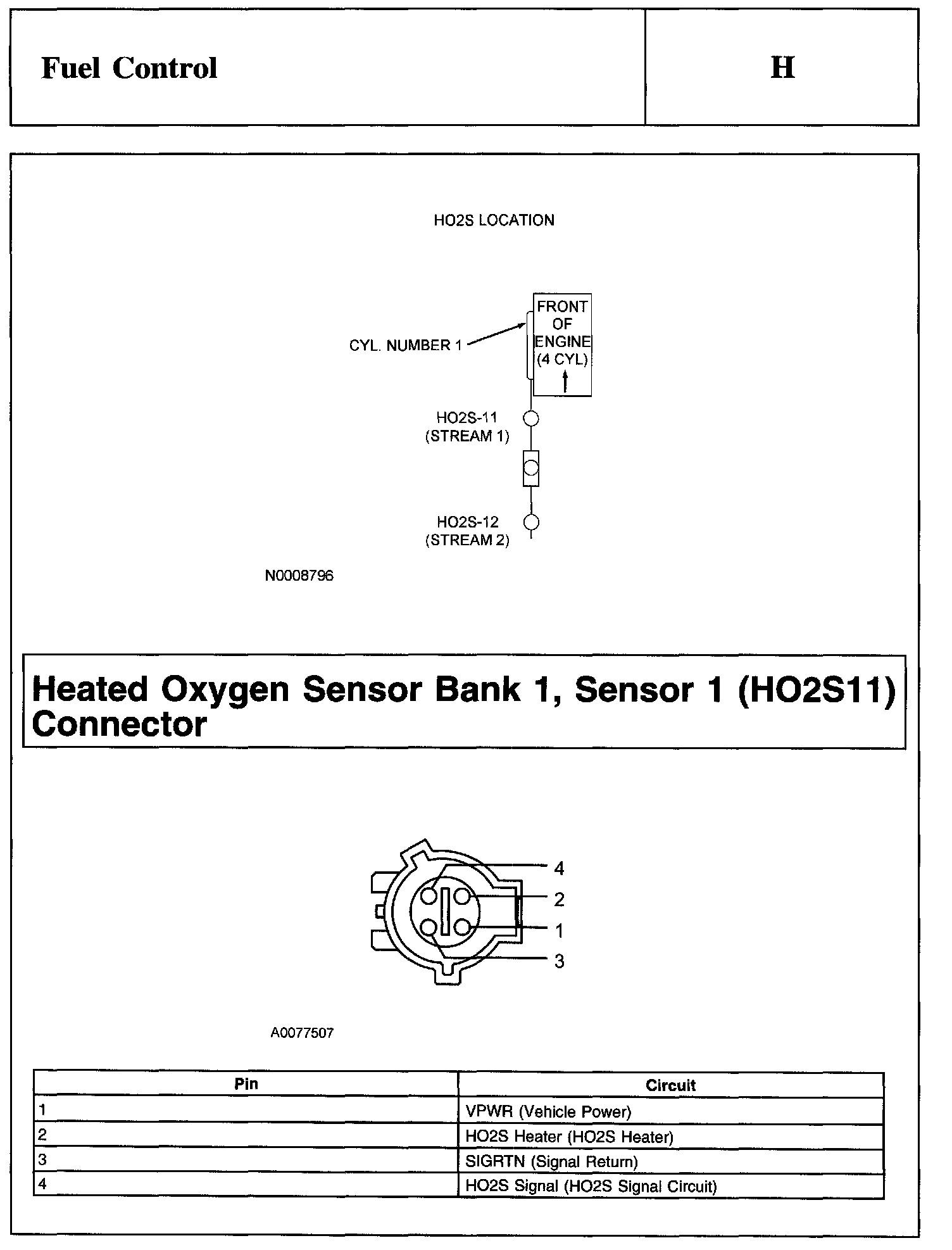

Schematic And Heated Oxygen Sensor Bank 1, Sensor 1 (HO2S11) Connector:

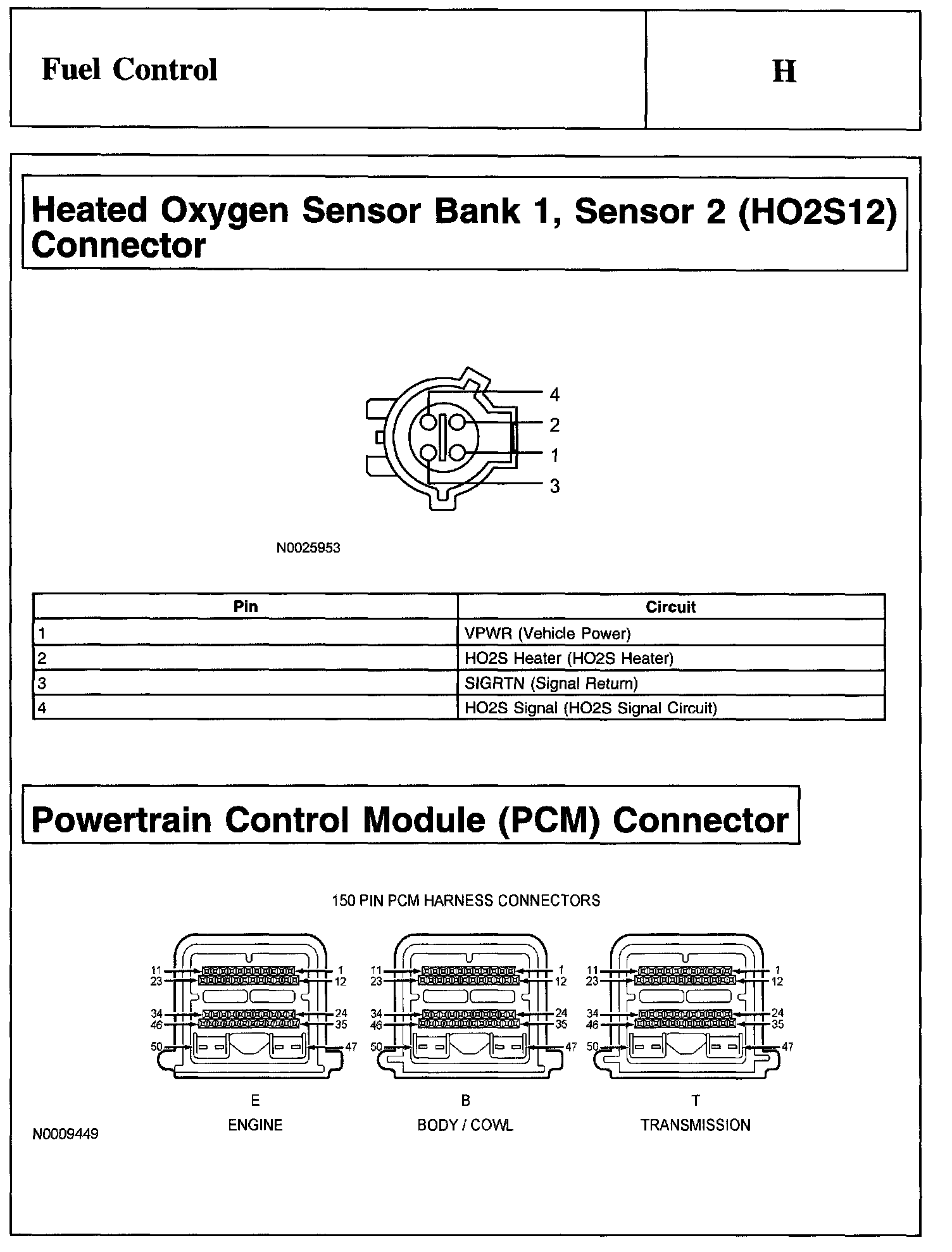

Heated Oxygen Sensor Bank 1, Sensor 2 (HO2S12) Connector And Powertrain Control Module (PCM) Connector:

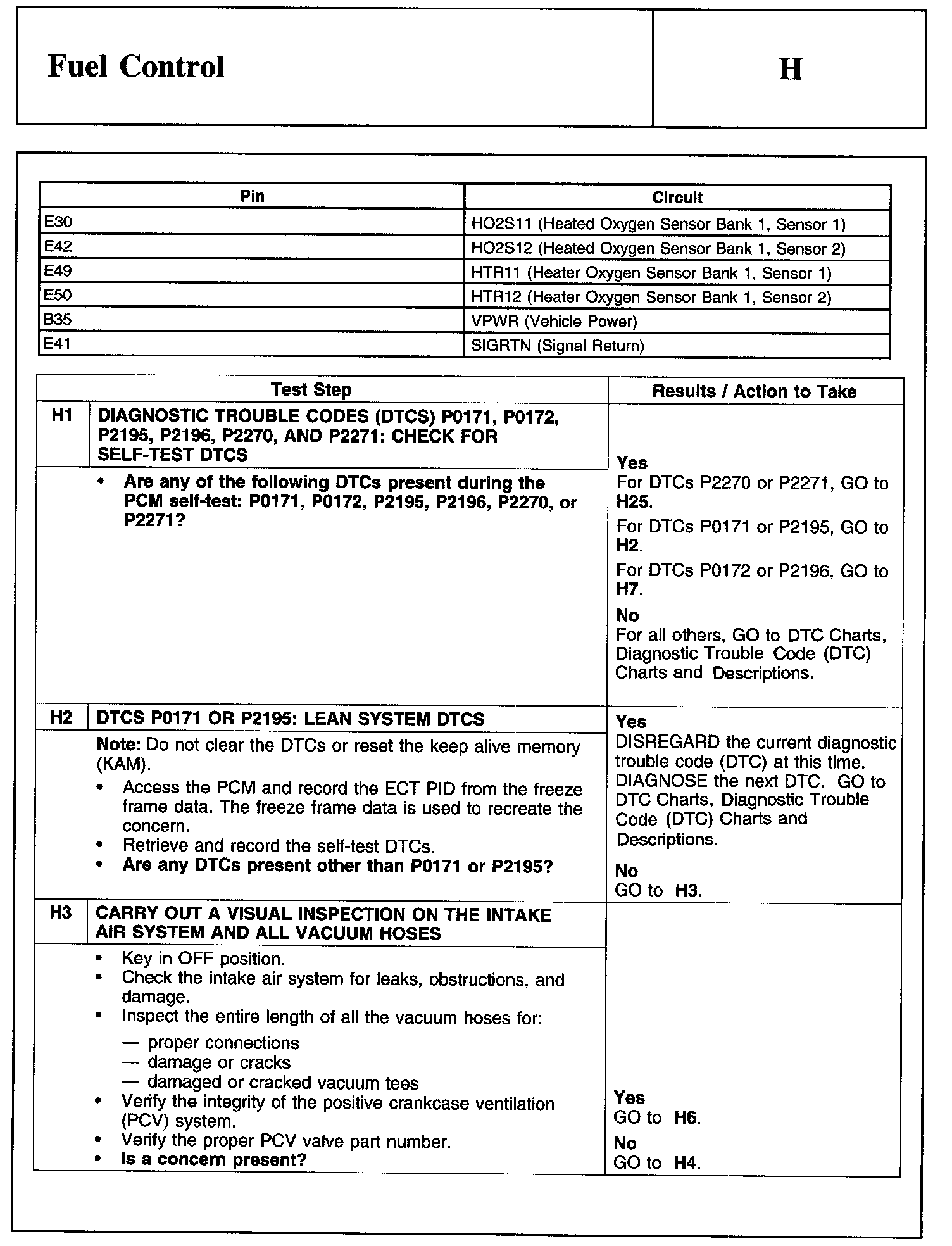

H1-H3:

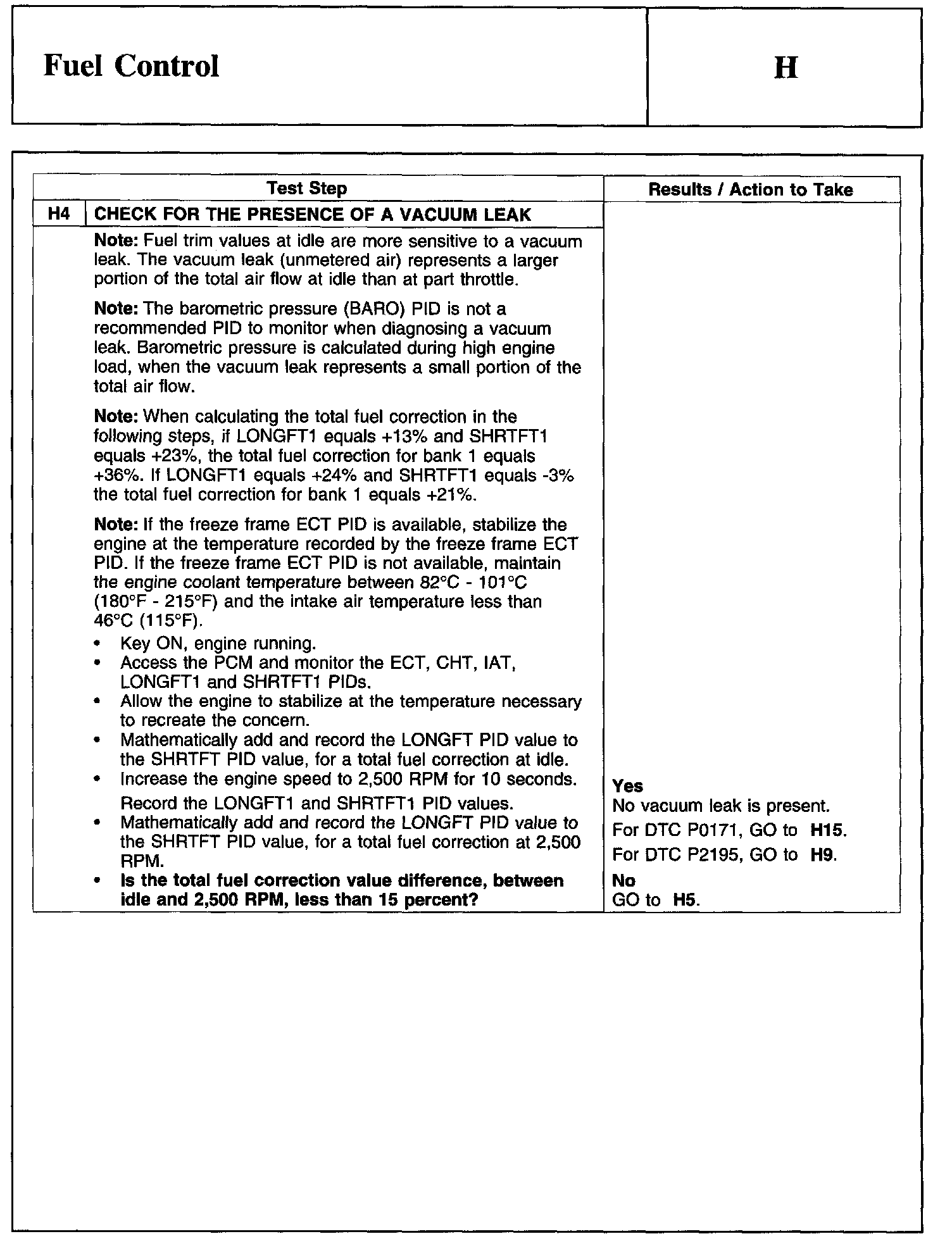

H4:

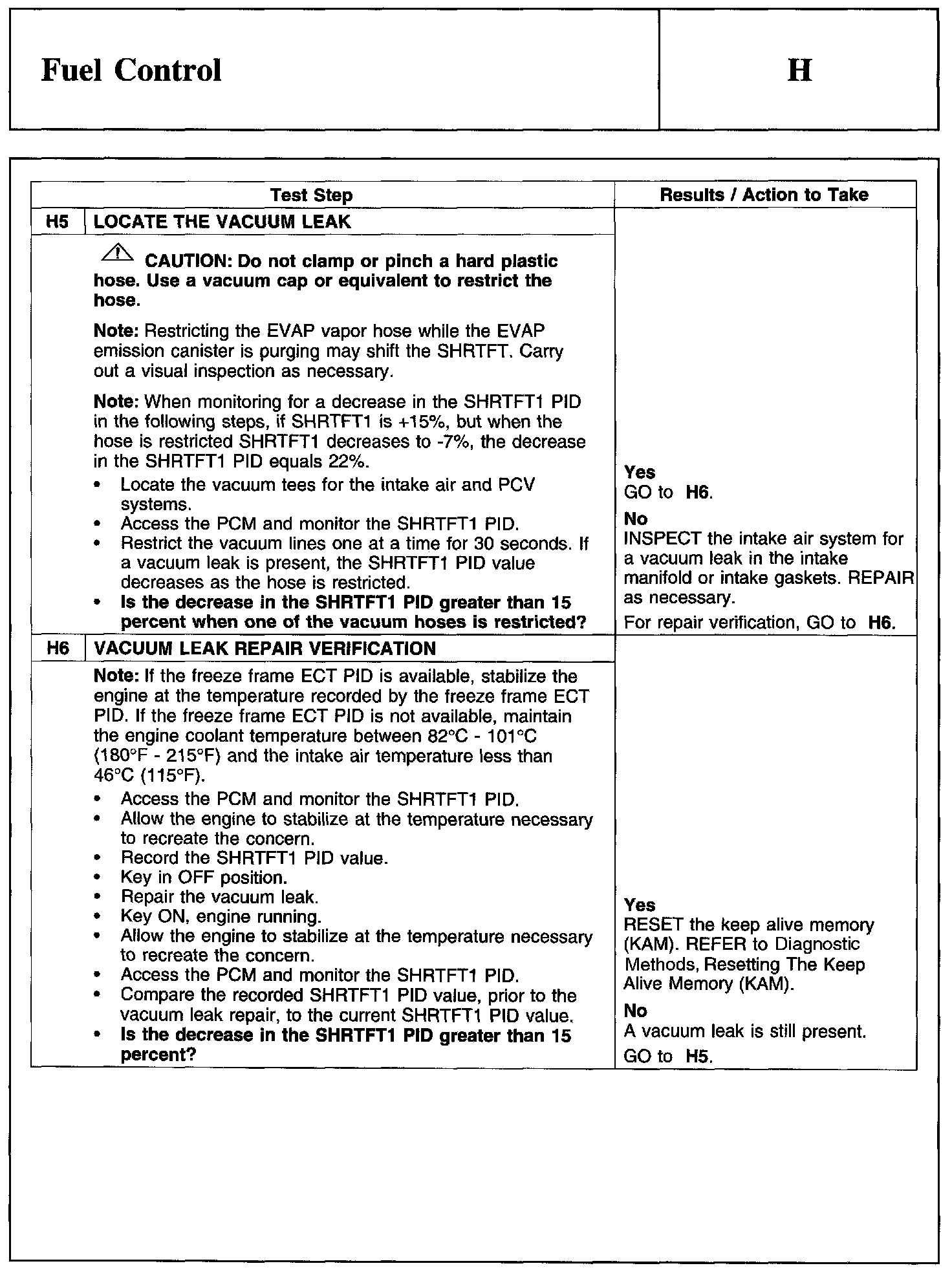

H5-H6:

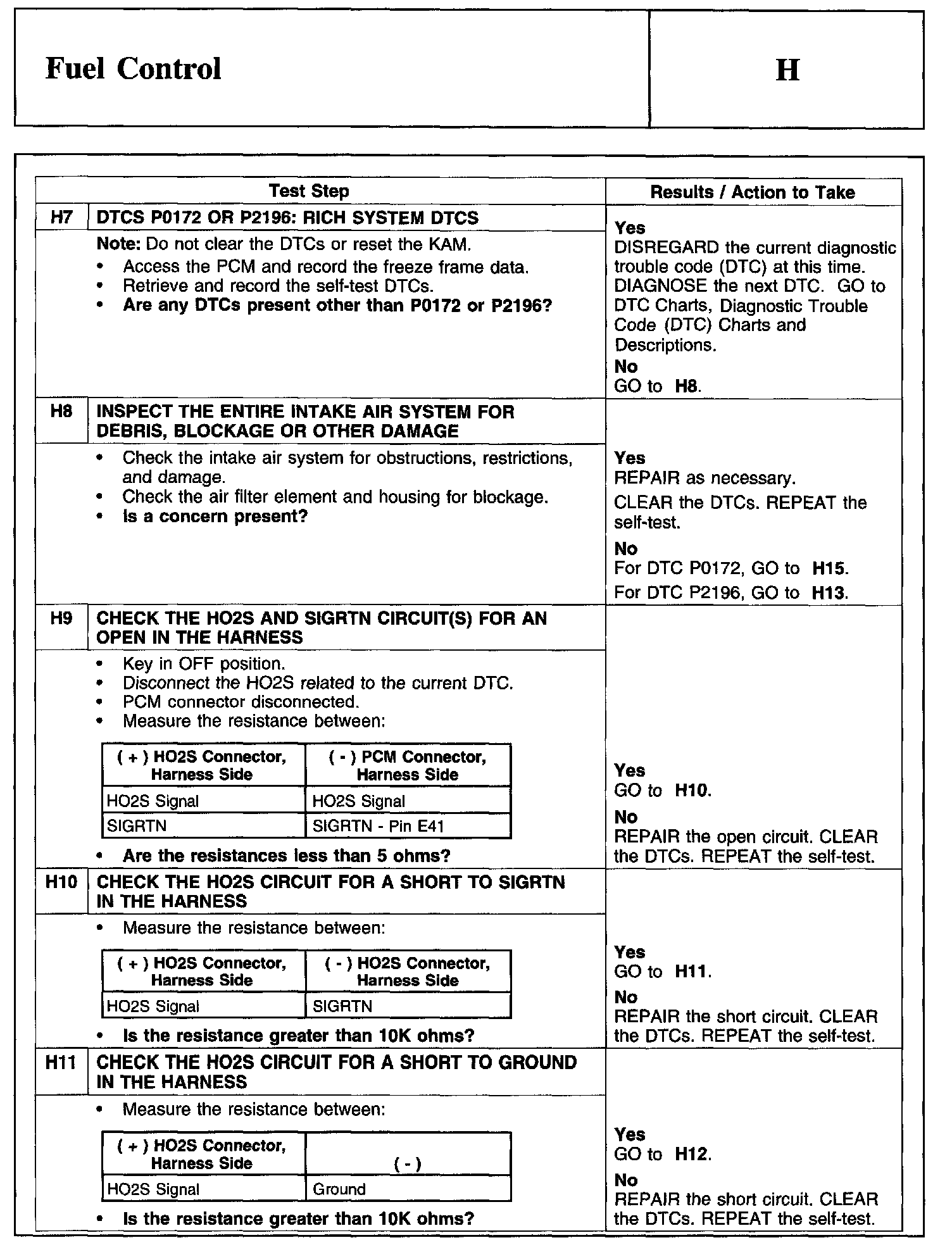

H7-H11:

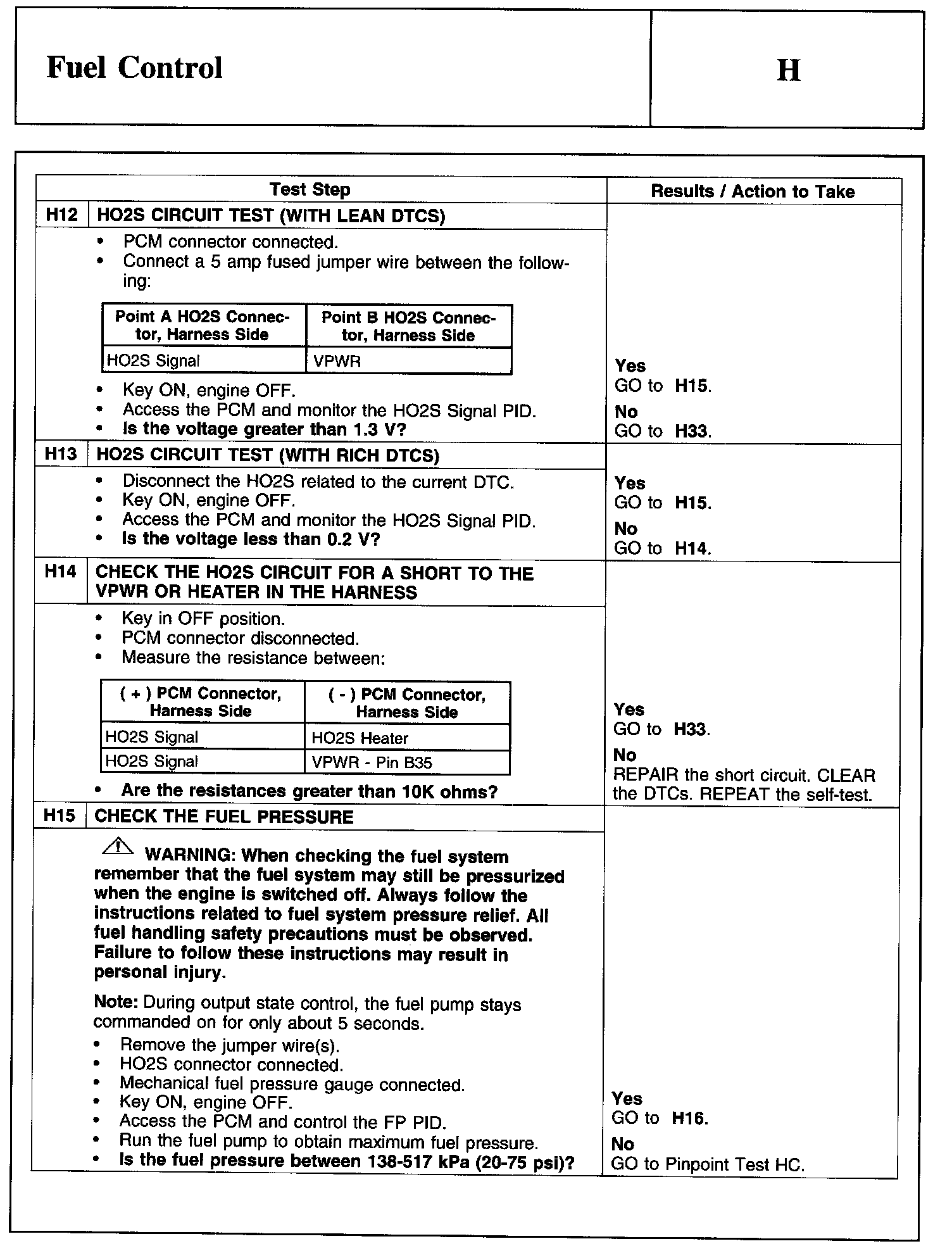

H12-H15:

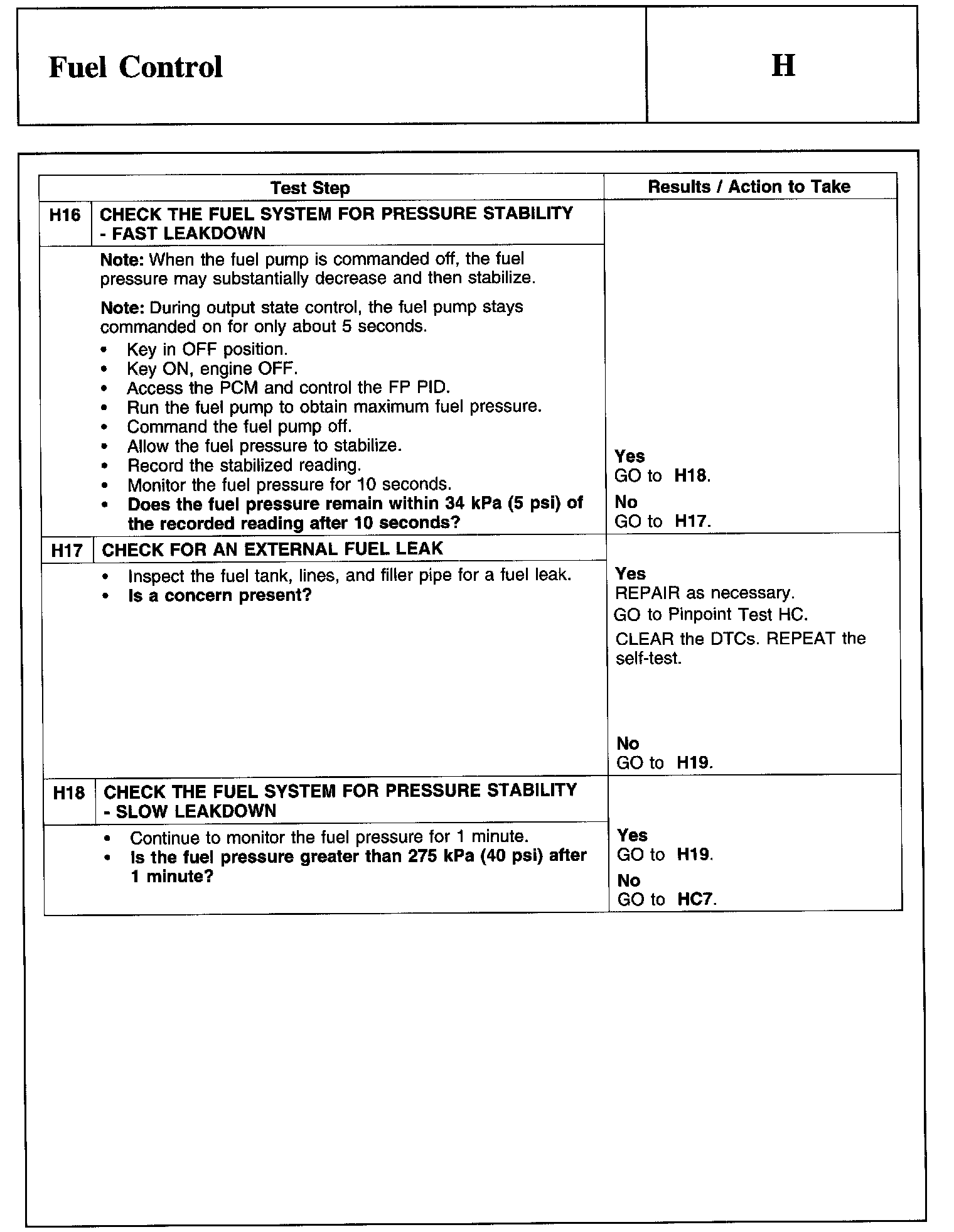

H16-H18:

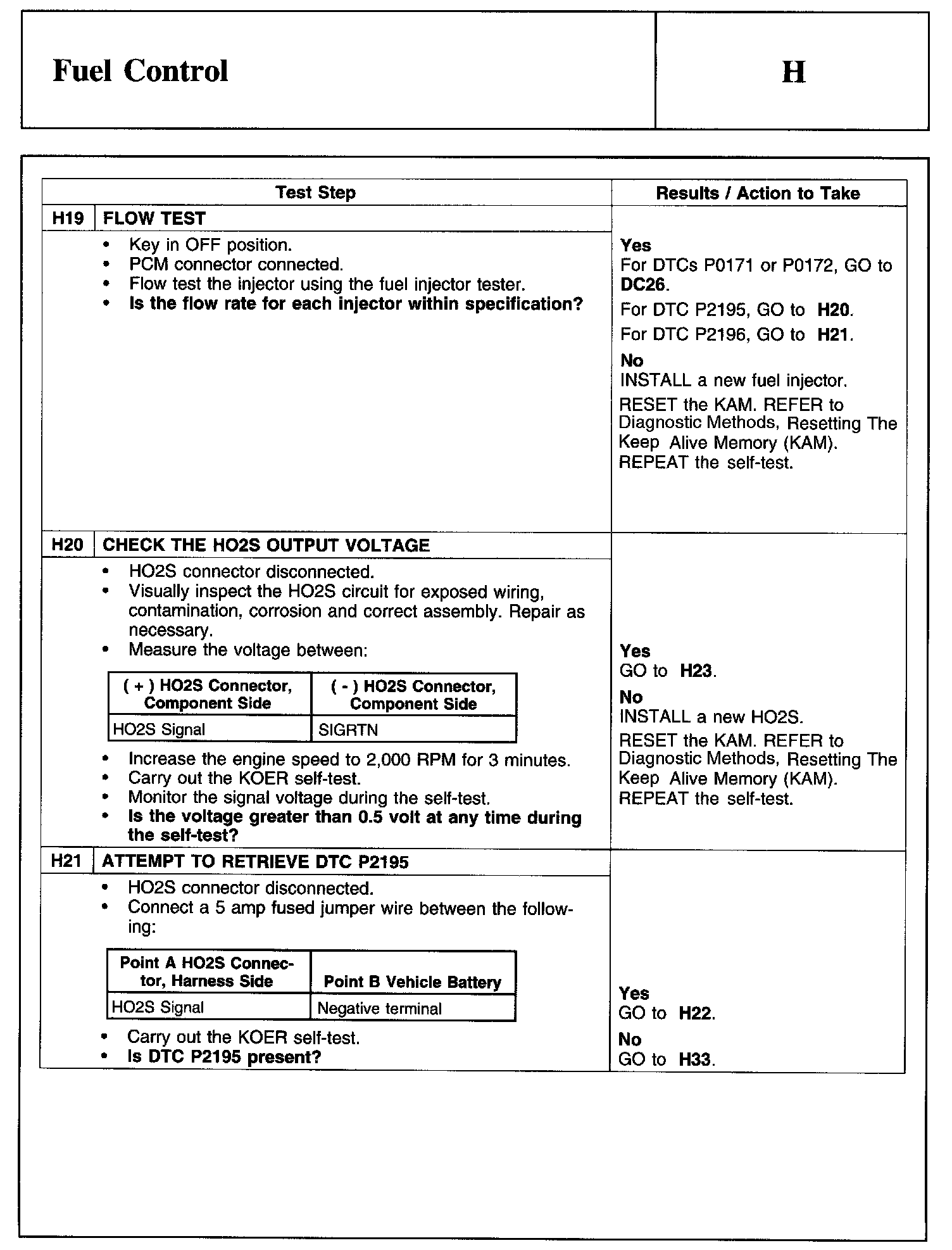

H19-H21:

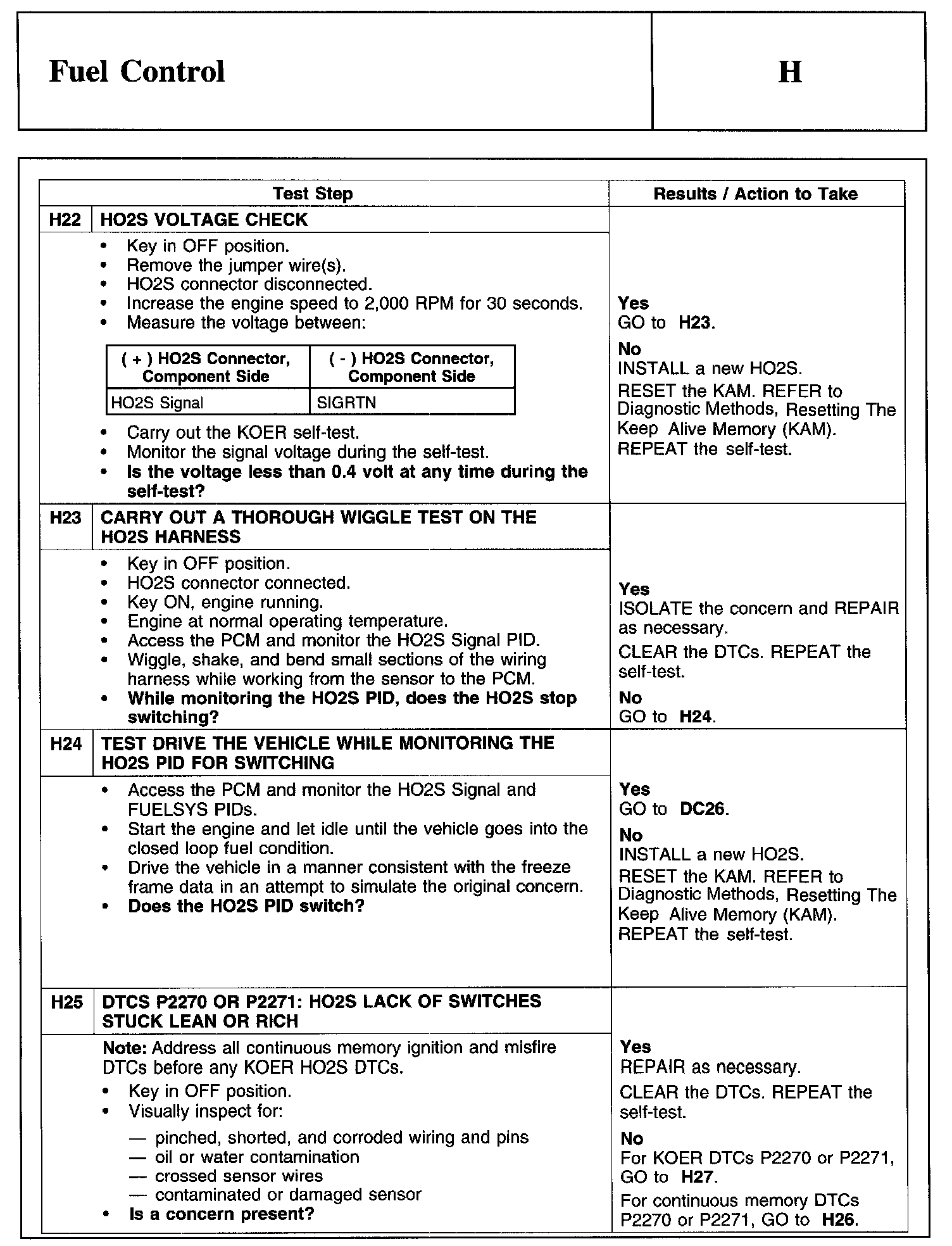

H22-H25:

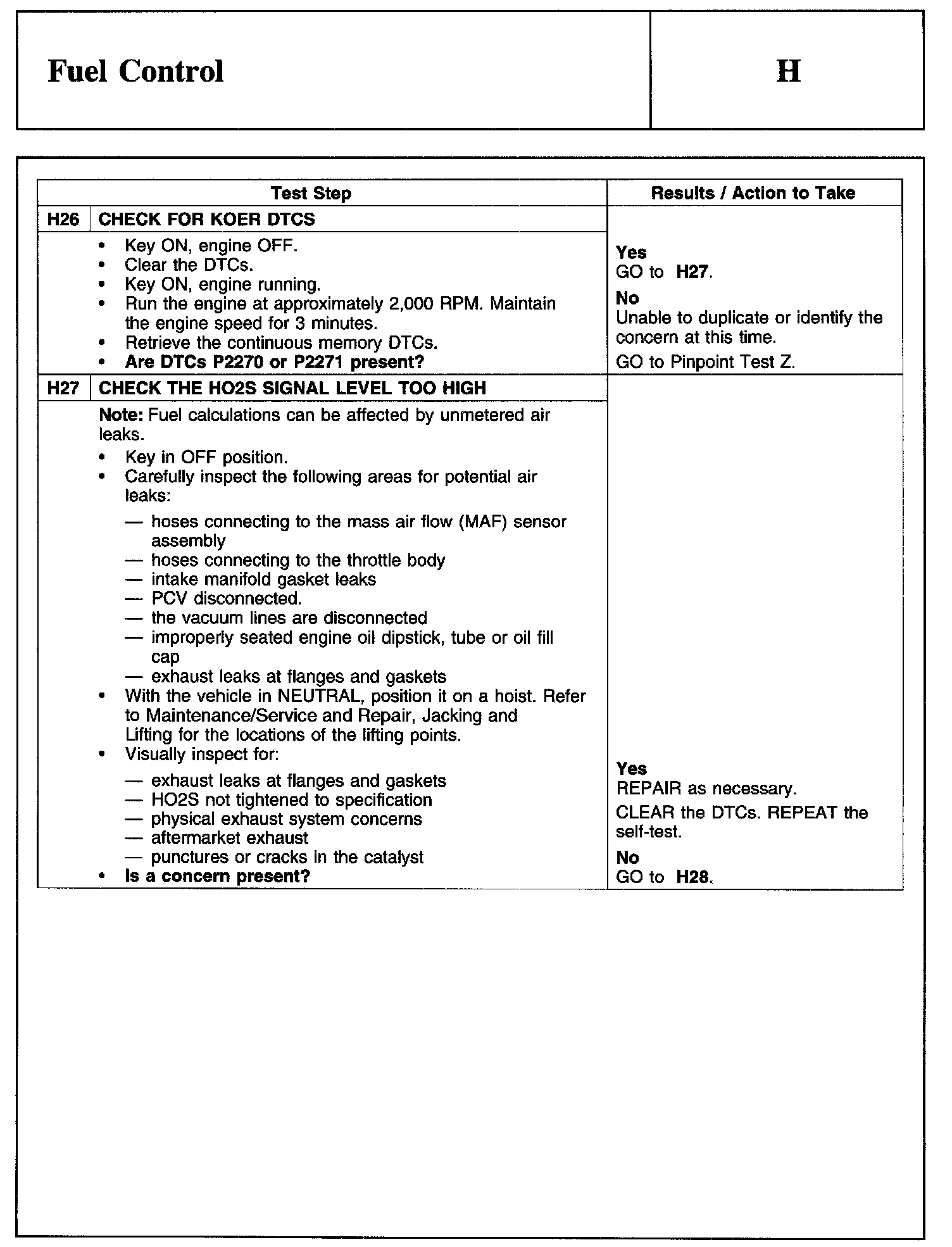

H26-H27:

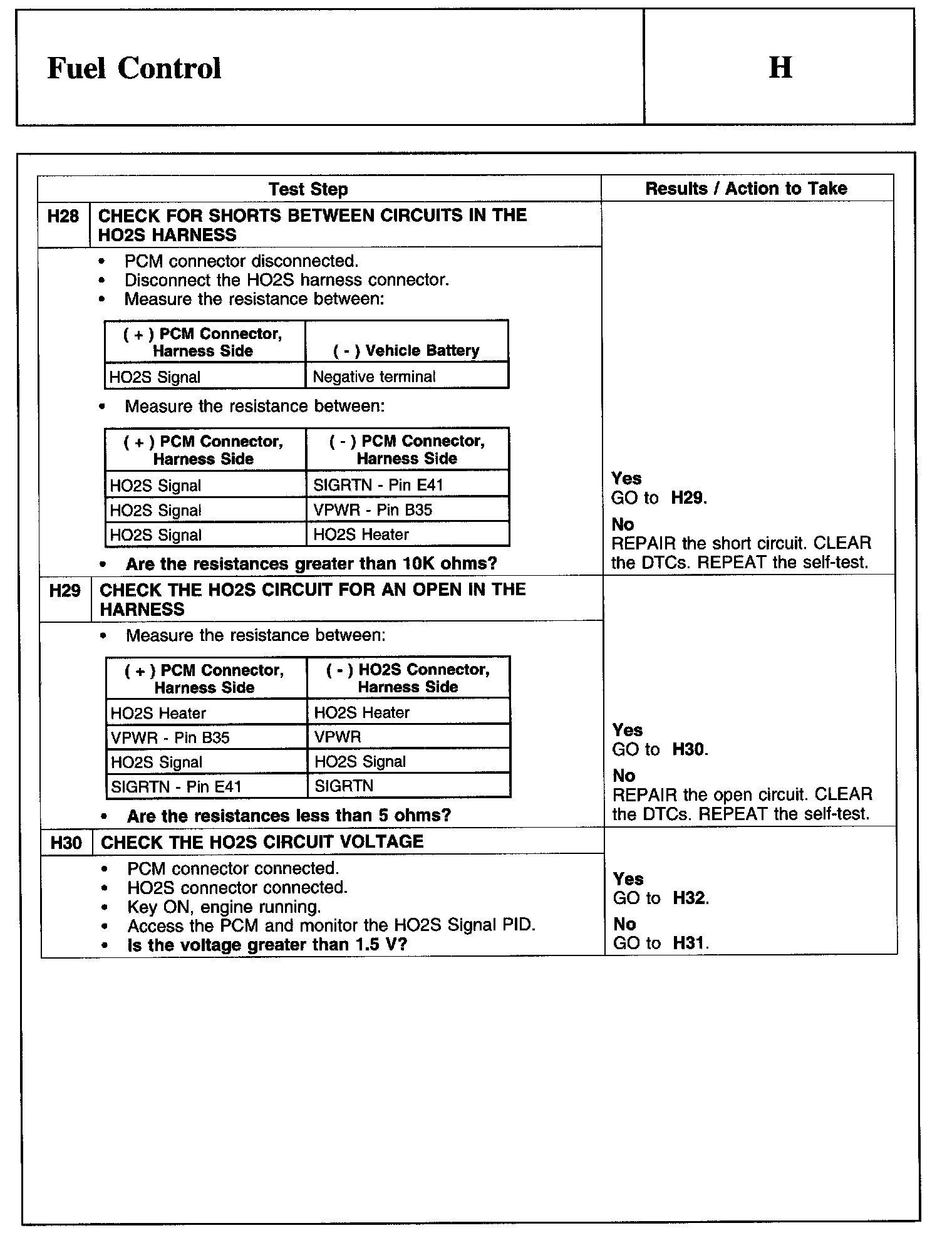

H28-H30:

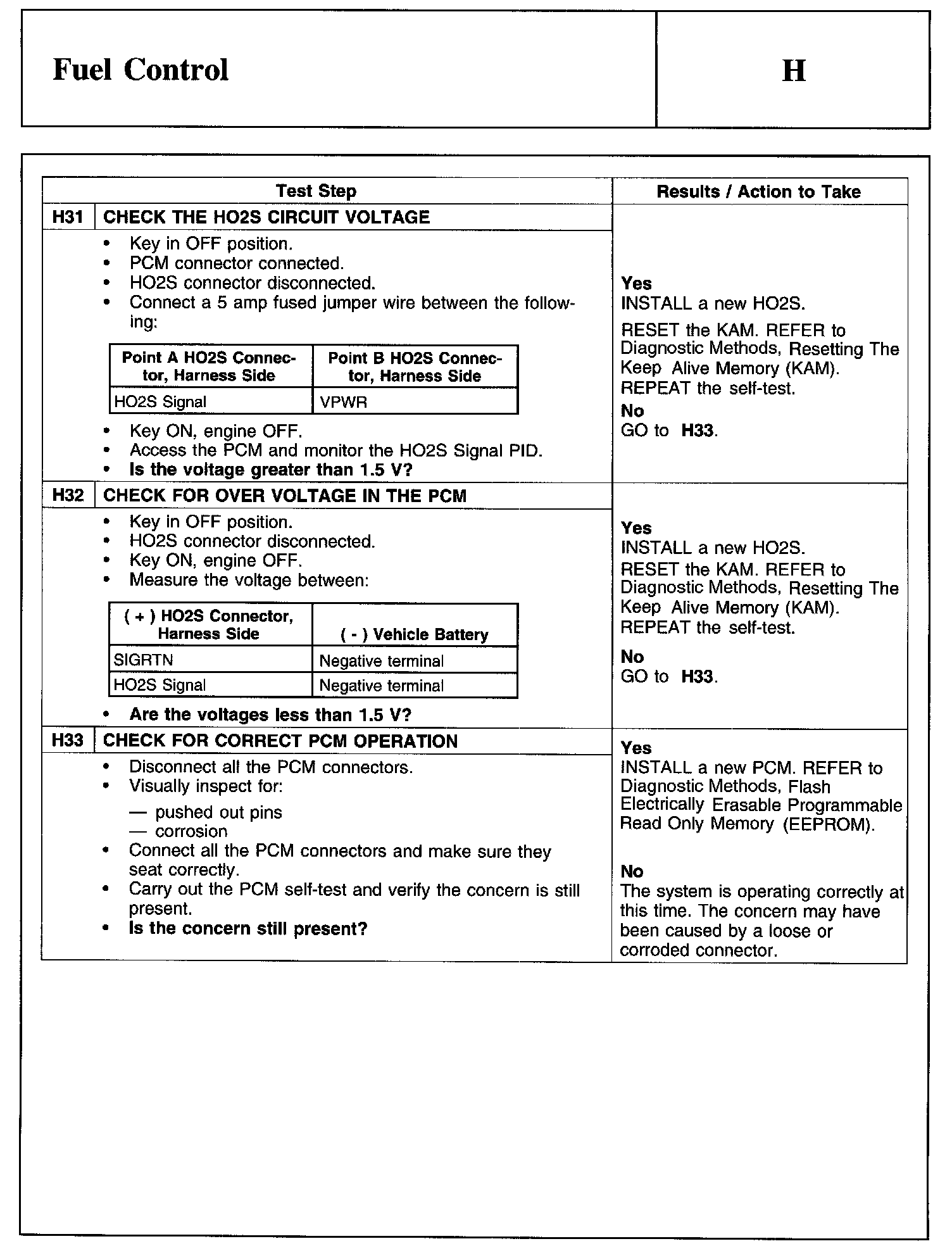

H31-H33:
